Panasonic SC-MT1P User Manual

R

AV SYSTEM

DVD System

TV VCR/AUX

SLEEP

TV/VIDEO

TUNER/BANDDVD/CD

FL DISPLAY
DIMMER

123

PLAY MODE
MIX 2CH

456

REPEAT

7809

P.MEMORY CANCEL

S

10/

VOLUME

SEARCH

DOWN

PROGRESSIVE OUT PHONES

Í

/

I

Í

SELECTOR

UP

TOP MENU

DIRECT
NAVIGATOR

DISPLAY

TV VOL

MUTING

SSS PL C.FOCUS

FM MODE

SETUP

ENTER

SKIP

SLOW/SEARCH

CH

MENU

PLAY LIST

ENTER

RETURN

s

TV VOL

r

VOLUME

SUBWOOFER

LEVEL

CSM SFC

CH SELECT

TEST

ZOOM GROUP AUDIO

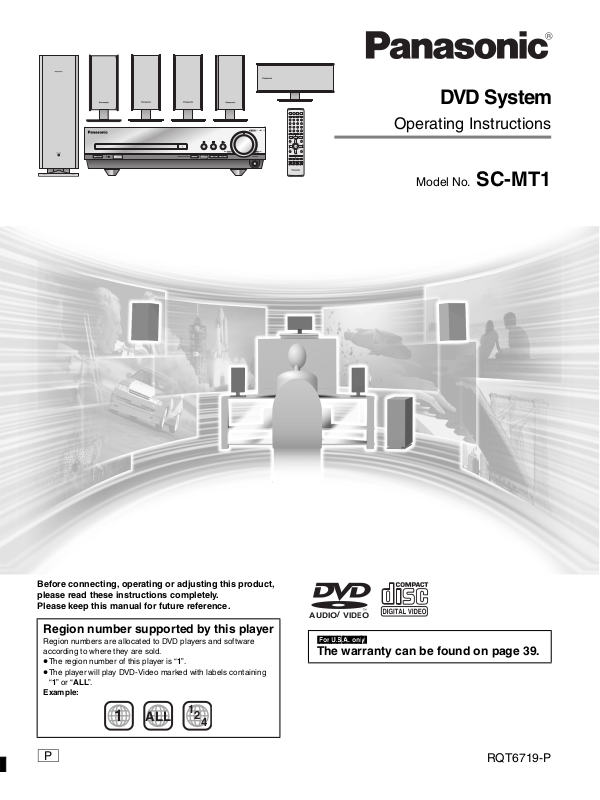

Operating Instructions

Model No. SC-MT1

Before connecting, operating or adjusting this product,
please read these instructions completely.
Please keep this manual for future reference.

Region number supported by this player

Region numbers are allocated to DVD players and software
according to where they are sold.

≥The region number of this player is “1”.
≥The player will play DVD-Video marked with labels containing

“1” or “ALL”.

Example:

1

1 ALL

2

4

P

AUDIO/VIDEO

[For\U.S.A.\only]

The warranty can be found on page 39.

RQT6719-P

Dear customer

Thank you for purchasing this product.
For optimum performance and safety, please read these instructions
carefully.

Operations in these instructions are described mainly with
the remote control, but you can do the operations on the
main unit if the controls are the same.

CAUTION!

THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.

Getting started

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PRODUCT DAMAGE, DO NOT
EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND
THAT NO OBJECTS FILLED WITH LIQUIDS,
SUCH AS VASES, SHALL BE PLACED ON THE
APPARATUS.

CAUTION:

TO PREVENT ELECTRIC SHOCK MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.

CAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,
BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.
ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT
RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT CURTAINS AND ANY
OTHER MATERIALS DO NOT OBSTRUCT THE
VENTILATION VENTS.

CAUTION



RISK OF ELECTRIC SHOCK

DO NOT OPEN

System SC-MT1

Main unit SA-MT1

Front and surround
speakers

Center speaker SB-PC700

Active subwoofer SB-WA340

THE FOLLOWING APPLIES ONLY IN THE U.S.A.:

SB-FS801A

(Inside of product)

CAUTION:

This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

≥Reorient or relocate the receiving antenna.
≥Increase the separation between the equipment and receiver.
≥Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

≥Consult the dealer or an experienced radio/TV technician for

help.

Any unauthorized changes or modifications to this equipment
would void the user’s authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.

RQT6719

2

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of suffi­cient magnitude to constitute a risk of electric shock
to persons.

The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the ap­pliance.

Accessories

Please check and identify the supplied accessories.
Use numbers indicated in parentheses when asking
for replacement parts.

(Only for U.S.A.)
To order accessories contact 1-800-332-5368 or web site (http://
www.panasonic.com).
(Only for Canada)
To order accessories, call the dealer from whom you have made
your purchase.

∏ 1 Remote control

(EUR7623X20)

∏ 2 Batteries

for remote control

∏ 1 AC power supply cord

(RJA0065-1D)

∏ 1 AM loop antenna

(N1DAAAA00001)

∏ 1 FM indoor antenna

(RSA0007-J)

∏ 1 Video cable

(RJL1P016815A)

∏ 1 System cable

(K1HA25HA0001)

∏ 5 Speaker cables

(RFA2163-J)
3k4-m (13-foot) cables
2k10-m (33-foot) cables

Table of contents

Getting started

Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . 4

Disc information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Simple setup

STEP1 Locating . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

STEP2 Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

STEP3 Television . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

STEP4 Connecting the subwoofer, antennas, and

AC power supply cord. . . . . . . . . . . . . . . . . .9

STEP5 The remote control. . . . . . . . . . . . . . . . . . . . .9

Other speaker setup options

STEP6 QUICK SETUP. . . . . . . . . . . . . . . . . . . . . . . .11

Control reference guide . . . . . . . . . . . . . . . . . . . . . . . . . 12

Disc operations

Discs—Basic play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Position Memory function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Skipping items/Fast forward and rewind—SEARCH. . . . . . . . . 14

Slow-motion play/Frame-by-frame viewing . . . . . . . . . . . . . . . . 14

Discs—Convenient functions . . . . . . . . . . . . . . . . . . . . 15

Starting play from a selected item/Repeat play. . . . . . . . . . . . . 15

A-B repeat play/Selecting groups to play . . . . . . . . . . . . . . . . . 15

All group play/Program play/Random play . . . . . . . . . . . . . . . . 16

Soundtracks/Subtitles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Marking places to play again/Variable Zoom function. . . . . . . . 18

WMA/MP3 and CD text navigation menus . . . . . . . . . . 19

Playing the programs or play lists on DVD-RAM. . . . . 20

Selecting a program to play—DIRECT NAVIGATOR . . . . . . . . 20

Using the play list menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Using On-Screen Menu Icons . . . . . . . . . . . . . . . . . . . . 21

Common procedures/Progress indicator. . . . . . . . . . . . . . . . . . 21

Disc information/Unit information . . . . . . . . . . . . . . . . . . . . . . . 22

Getting started

∏ 1 Antenna plug

(K2RC021B0001)

∏ 1 Sheet of speaker-cable stickers

[Note]

The included AC power supply cord is for use with this unit only. Do
not use it with other equipment.

User memo:

DATE OF PURCHASE _______________________________
DEALER NAME ____________________________________
DEALER ADDRESS _________________________________

__________________________________________________

TELEPHONE NUMBER ______________________________

The model number and serial number of this product can be
found on either the back or the bottom of the unit.
Please note them in the space provided below and keep for
future reference.

MODEL NUMBER SC-MT1

SERIAL NUMBER

Radio operations

The radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Manual tuning/Preset tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Sound field/sound quality operations

Sound field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Dolby Digital and DTS/Dolby Pro Logic. . . . . . . . . . . . . . . . . . . 25

Speaker level adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Super Surround/Sound Field Control . . . . . . . . . . . . . . . . . . . . 26

Center Focus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Custom Sound Memory—Store the sound settings . . . . . . . . . 26

Sound quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Adjusting the bass. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Re-master—Enjoying more natural sound . . . . . . . . . . . . . . . . 27

Other functions

Convenient functions . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Muting the volume/Dimming the display . . . . . . . . . . . . . . . . . . 28

The sleep timer/Using headphones. . . . . . . . . . . . . . . . . . . . . . 28

Changing settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Language code list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Optional antenna connections . . . . . . . . . . . . . . . . . . . 31

Operating a television or video cassette recorder . . . 32

Reference

Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Troubleshooting guide. . . . . . . . . . . . . . . . . . . . . . . . . . 36

Product Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Limited Warranty (U.S.A.). . . . . . . . . . . . . . . . . . . . . . . . 39

RQT6719

3

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions
listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with

Getting started

the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.

9) Do not defeat the safety purpose of the polarized or grounding­type plug. A polarized plug has two blades with one wider than
the other. A grounding-type plug has two blades and a third
grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the
obsolete outlet.

10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.

11) Only use attachments/accessories specified by the
manufacturer.

12) Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused
for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate
normally, or has been dropped.

RQT6719

4

Disc information

∫ Discs that can be played

Disc type Logo Indication used in

instructions

DVD-RAM [RAM]

DVD-Audio [DVD-A]

DVD-Video [DVD-V]

DVD-R

Video CD [VCD]

CD [CD]

Including CD text

CD-R/RW — [WMA]

[MP3]

≥Use discs with the above logos and that conform to specifications.

The unit cannot play other discs correctly.

≥Do not use irregularly shaped discs (e.g. heart-shaped), as these

can damage the unit.

∫ Discs that cannot be played

PAL discs (except DVD-Audio), DVD-ROM, CD-ROM, CDV, CD-G,
iRW, DVD-RW, CVD, SVCD, SACD, Divx Video Discs and Photo
CD.

∫ Disc structure

Disc structure and the labels given to the items on discs depend on
the disc type.
Track: the smallest division on DVD-Audio, CDs and Video CDs,

or a single WMA/MP3 file.

Chapter: the smallest division on DVD-Video.
Group: collections of tracks on DVD-Audio and equivalent to

folders or albums on data discs.

Title: the largest division on DVD-Video, usually an entire

movie.

Program: the division on DVD-RAM equivalent to a single

recording.

Play list: a group of scenes on DVD-RAM.
Scene: DVD-RAM program sections specified and grouped into

play lists on a DVD video recorder.

Playing DVDs and Video CDs

The producer of these discs can control how they are played so
you may not always be able to control play as described in these
operating instructions (for example if the play time is not
displayed or if a Video CD has menus). Read the disc’s
instructions carefully.

∫ CD-R and CD-RW discs

This unit can play CD-R/RW (audio recording disc) recorded with
CD-DA, video CD, WMA or MP3. Finalize

§

the disc after recording.

∫ DVD-R discs

Panasonic DVD-R recorded and finalized§ on a Panasonic DVD
video recorder are played as DVD-Video on this unit.

§

A process that allows play on compatible equipment.

∫ DVD-RAM discs

DVD-RAM discs must meet the following conditions for this unit to be
able to play them.

Ty p e ≥Non-cartridge discs

Capacity ≥12 cm (5q) 9.4 GB (double-sided) and 4.7 GB

Recording
format

≥Remove TYPE 2 and 4 discs from their cartridges before use, then

return them when you are finished. Read the instructions for the
disc carefully.

≥Do not allow the disc to become dirty or scratched. Store discs in

their cartridges and ensure the disc label and cartridge label face
the same way.

≥Some parts of the disc, for example where one program ends and

another begins, may not play smoothly.

≥Discs that can be removed from their

cartridges (TYPE 2 and 4)

(single-sided)

≥8 cm (3q) 2.8 GB (double-sided)

Discs recorded with DVD video recorders, DVD
video cameras, personal computers, etc., using
Version 1.1 of the Video Recording Format (a
unified video recording standard).

[Note]

It may not be possible to play CD-R, CD-RW, DVD-R and DVD-RAM
in all cases due to the type of disc or condition of the recording.

∫ Playing PAL system DVD-Audio

This unit converts PAL to NTSC for play. The picture is compressed
to show it in its entirety, but this may cause it to be stretched
vertically.

∫ To clean discs

DVD-Audio, DVD-Video, Video CD, CD

Wipe with a damp cloth and then wipe dry.

DVD-RAM, DVD-R

≥Clean with an optional DVD-RAM/PD disc cleaner (LF-K200DCA1,

where available).

≥Never use cloths or cleaners for CDs etc.

∫ Handling precautions

≥Do not write on the label side with a ball-point pen or other writing

instrument.

≥Do not use record cleaning sprays, benzine, thinner, static

electricity prevention liquids or any other solvent.

≥Do not attach labels or stickers to discs. (Do not use discs with

exposed adhesive from tape or left over peeled-off stickers.)

≥Do not use scratch-proof protectors or covers.
≥Do not use discs printed with label printers available on the market.

Getting started

RQT6719

5

Simple setup

1

Simple setup

STEP

FRONT

(L)

FRONT

(R)

FRONT

(L)

Locating

SURROUND

CENTER

CENTER

(L)

FRONT

SURROUND

(R)

SUBWOOFER

(R)

SUBWOOFER

Caution

Hold the speakers
by the sides.
Applying pressure
to the front net can
damage the
speaker.

SURROUND

(R)

SURROUND

(L)

Main unit

≥The front and surround speakers are the

same. Use those you have connected the
short cords to as front speakers and those
you have connected the long cords to as
surround speakers.

≥Place the front, center, and surround

speakers at approximately the same
distance from the seating position. The
angles in the diagram are approximate.

≥Use only supplied speakers

Using other speakers can damage the unit and sound quality will
be negatively affected.

≥Set the speakers up on an even surface to prevent them from

falling. Take proper precautions to prevent the speakers from
falling if you cannot set them up on an even surface.

Positioning for best effect

How you set up your speakers can affect the bass and the sound
field. Note the following points.

≥Place speakers on flat secure bases.
≥Placing speakers too close to floors, walls, and corners can result

in excessive bass. Cover walls and windows with thick curtain.

Main unit

Note

Keep your speakers at least 10 mm (
for proper ventilation.

13

/32q) away from the system

Center speaker

≥You can also put this speaker directly under the television.
≥Vibration caused by the center speaker can disrupt the picture if it

is placed directly on the television. Put the center speaker on a
rack or shelf.

Subwoofer

Place to the right of the television, on the floor or a sturdy shelf so
that it won’t cause vibration.
Leave 10 cm (4q) on the right for the woofer to be effective. Leave
10 cm (4q) at the rear for ventilation.

RQT6719

6

STEP2 Speakers

Speaker cables

≥3k4-m (13-foot) cables
≥2k10-m (33-foot) cables

Setup example

[1] Attaching the stickers to the speaker

cables

Attach the speaker-cable stickers to make connection
easier.

Short cables

Copper

Sheet of speaker-cable
stickers

[2] Connecting the speakers

FRONT (L)

Copper

_:

Silver

`:

Simple setup

Silver

Long cables

Keeping the cables out of the way

Pass the cables through the holes in the stand to keep them out of
the way.

FRONT (R)

SUBWOOFER

Click!

SURROUND (L)

SURROUND (R)

CENTER

[Note]

≥Never short-circuit positive (i) and negative (j) speaker wires.
≥Be sure to connect only positive (copper) wires to positive (i)

terminals and negative (silver) wires to negative (j) terminals.
Incorrect connection can damage the speakers.

Stand

1 Pass the cable

through the hole.

2 Pass through the

cutout in the base.

RQT6719

7

STEP3 Television

∫ Connecting a television with a VIDEO IN terminal

Television

(not included)

VIDEO
IN

Video cable

Simple setup

Connect directly to your television.

Video cable

Do not connect the unit through a video cassette recorder, because
the picture may not be played correctly due to the copy guard.

(included)

A

AM ANT

EXT
LOOP

FM ANT

VCR/AUXINTV

75½

RL RL

IN

Y

P

B

P

R

COMPONENT
VIDEO OUT

(480P/480I)

S VIDEO

OUT

VIDEO

OUT

∫ Connecting a television with COMPONENT VIDEO terminals

COMPONENT VIDEO OUT terminal

These terminals can be used for either interlace or progressive

COMPONENT

VIDEO IN

R

P

B

P

Y

Video cables

(not included)

A

AM ANT

EXT
LOOP

FM ANT

VCR/AUXINTV

75½

RL RL

IN

Y

P

B

P

R

COMPONENT

VIDEO OUT

(480P/480I)

S VIDEO

OUT

VIDEO

OUT

output and provide a purer picture than the S VIDEO OUT
terminal. Connection using these terminals outputs the color
difference signals (P
order to achieve high fidelity in reproducing colors.
≥The description of the component video input terminals depends

on the television or monitor (e.g. Y/P
Connect to terminals of the same color.

≥After making this connection, change the black level for a better

picture (➡ page 29, Video—Black Level Control).

B/PR) and luminance signal (Y) separately in

B/PR, Y/B-Y/R-Y, Y/CB/CR).

RQT6719

8

To enjoy progressive video

≥Connect to the component video (480P) input terminals on a television compatible with this unit’s copy guard system.

(Video will not be displayed correctly if connected to an incompatible television.)

≥Press [PROGRESSIVE OUT] on the main unit so “PROG.” appears on the display (➡ page 13).
≥All televisions manufactured by Panasonic and that have 480P input connectors are compatible. Consult the manufacturer if

you have another brand of television.

∫ Connecting a television with an S-VIDEO IN terminal

S VIDEO OUT terminal

The S video terminal achieves a more vivid picture than the VIDEO
OUT terminal by separating the chrominance (C) and luminance

S VIDEO

IN

S-video cable

(not included)

A

AM ANT

EXT
LOOP

FM ANT

VCR/AUXINTV

75½

RL RL

IN

Y

P

B

P

R

COMPONENT

VIDEO OUT

(480P/480I)

S VIDEO

OUT

VIDEO

OUT

(Y) signals. (Actual results depend on the television.)

STEP4

5

Connecting the subwoofer, antennas, and AC power supply cord

System cable AM loop antenna

Connect the AC power supply cord after
all other connections are complete.

Subwoofer

1

L

2

R

3

L

4

R

5

A

Catch to the right

To disconnect

Press the catch and
pull out.

AC power supply cord

FM indoor antenna

Adhesive tape
Fix the other end
of the antenna
where reception is
best.

Catch down

To
disconnect

Press the
catch and
pull out.

System cable

To household AC outlet
(AC 120 V, 60 Hz)

FM indoor antenna

AM loop antenna

A

AM ANT

EXT
LOOP

FM ANT

75½

AC power supply cord

Click!

VCR/AUXINTV

RL RL

IN

1

2

2

Stand the antenna up on
its base.
Keep loose antenna cord
away from other wires
and cords.

B

R

S VIDEO

VIDEO

COMPONENT
VIDEO OUT

(480P/480I)

OUT

OUT

Y

P

P

3

Click!

Simple setup

Conserving power

The unit consumes power (approx. 0.5 W) even when it is turned
off with [Í]. To save power when the unit is not to be used for a
long time, unplug it from the household AC outlet.

STEP

Remote control

The remote control

Batteries

R6,AA,UM-3

+

3

-

3

-

+

≥Insert so the poles (i

and j) match those in
the remote control.

1

≥Do not use rechargeable

type batteries.

2

Remember to reset the radio stations and any other memory items
before using the unit again.
Information you enter into the unit’s memory remains intact for up
to 2 weeks after the AC power supply cord is disconnected.

Do not;

≥mix old and new batteries.
≥use different types at the same time.
≥heat or expose to flame.
≥take apart or short circuit.
≥attempt to recharge alkaline or manganese batteries.
≥use batteries if the covering has been peeled off.

Mishandling of batteries can cause electrolyte leakage which
can damage items the fluid contacts and may cause a fire.

Remove if the remote control is not going to be used for a long
period of time. Store in a cool, dark place.

∫ Use

Aim at the sensor, avoiding obstacles, at a maximum range of
7 m (23 feet) directly in front of the unit.

RQT6719

9

Simple setup

Other speaker setup options

Attaching to a wall

[Note]

The wall or pillar on which the speakers are to be attached should
be capable of supporting 10 kg (22 Ib.) per screw.

1 Remove the stand.

BEFORE REMOVING THE STAND

≥Take the speaker cable out of the stand’s hole if it is

threaded through.

≥Lay the speaker on a soft cloth.

Unscrew the screw with a Phillips-head screwdriver.

2 Screw a screw (not included) into the

wall.

30–35 mm

3

/16q–13/8q)

(1

‰7.5–9.4 mm

19

/64q–3/8q)

(

8–11 mm

3

(

Wall

/8q–7/16q)

3 Fit the speaker securely onto the

screw with the hole or holes.

Vertical Horizontal

100 mm

15

(3

/16q)

Stand

Fitting speaker stands (optional)

Preparation

Remove the stand (➡ step 1 above).
Ensure the stands meet these conditions before purchasing them.
≥Observe the diameter and length of the screws and the distance

between screws as shown in the diagram.

≥The stands must be able to support over 10 kg (22 lb.).
≥The stands must be stable even if the speakers are in a high

position.

Notes on speaker use

≥You can damage your speakers and shorten their useful life if you

play sound at high levels over extended periods.

≥Reduce the volume in the following cases to avoid damage.

–When playing distorted sound.
–When the speakers are receiving howling from a record player,

noise from FM broadcasts, or continuous signals from an

oscillator, test disc, or electronic instrument.
–When adjusting the sound quality.
–When turning the unit on or off.

If irregular coloring occurs on your television

These speakers are designed to be used close to a television, but
the picture may be affected with some televisions and setup
combinations.

If this occurs, turn the television off for about 30 minutes.

The television’s demagnetizing function should correct the
problem. If it persists, move the speakers further away from the
television.

5 mm (1/4q)
pitch 0.8 mm (

60 mm (2

Caution
≥Use the speakers only with the

recommended system. Failure to do
so may lead to damage to the
amplifier and/or the speakers, and
may result in the risk of fire. Consult
a qualified service person if damage
has occurred or if you experience a
sudden change in performance.

≥Do not attempt to attach these

speakers to walls using methods
other than those described in this
manual.

3

/8q)

1

/16q)

RQT6719

10

STEP6 QUICK SETUP

AV SYSTEM

1

4–7

SLEEP

FL DISPLAY

DIMMER

PLAY MODE

MIX 2CH

REPEAT

POSITION
MEMORY

TOP MENU

DIRECT

NAVIGATOR

DISPLAY

TV VOL

MUTING

S.SRND

FM MODE

SETUP

s

TV VCR /AUX

TUNER/BAND DVD/CD

TV/VIDEO

123

456

7809

CANCEL

SKIP

SLOW/SEARCH

CH

ENTER

VOLUME

C.S.M.

SFC

PL C.FOCUS

ZOOM GROUP AUDIO

S

10/

ENTER

MENU

PLAY LIST

RETURN

TV VOL

SUBWOOFER

LEVEL

CH SELECT

TEST

r

2

RETURN

3, 7

The QUICK SETUP screen appears when you press [SETUP] the
first time after purchase and assists you to make necessary
settings. You can access this screen again later if you need to
(➡ page 29, Others—QUICK SETUP).

Preparation

Turn on the television and select the appropriate video input on the
television to suit the connections for the unit.

1 Press [Í] to turn on the unit.
2 Press [DVD/CD] to select “DVD/CD”

as the source.

3 Press [SETUP] to show the QUICK

SETUP screen.

SETUP

SELECT

ENTER RETURN

QUICK SETUP

Select the menu language.

English

Français

Español

4 Press [3, 4] to select the menu

language and press [ENTER].

5 Press [3, 4] to select “Yes” to

continue and press [ENTER].

6 Press [3, 4, 2, 1] to select the item

and press [ENTER].

≥Audio Language (➡ page 29)
≥Subtitle Language (➡ page 29)
≥TV Type (➡ below)
≥TV Aspect (➡ below)

7 Press [ENTER] and then [SETUP] to

end the settings.

Simple setup

To return to the previous screen

Press [RETURN].

∫ TV Type

Select to suit the type of television.

≥Standard (Direct View TV) (factory preset)
≥CRT Projector
≥LCD TV/Projector
≥Projection TV
≥Plasma TV

∫ TV Aspect

Select “4:3” (regular) or “16:9” (widescreen) to suit your
television.
If you have a regular 4:3 television, you can also select how video
on some discs is shown (➡ page 29, Video—TV Aspect).

≥4:3 Pan&Scan (factory preset)

Widescreen software is expanded to fill the
screen of a 4:3 aspect television (unless
prohibited by the producer of the disc).

≥4:3 Letterbox

Widescreen software is shown in the
letterbox style on a 4:3 aspect television.

RQT6719

11

Control reference guide

Remote control

B

1 Standby/on switch [Í] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

2 Sleep button [SLEEP] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

AV SYSTEM

1

2

3

SLEEP

FL DISPLAY

DIMMER

PLAY MODE

MIX 2CH

4

5

6

Getting started

7

8

REPEAT

POSITION

MEMORY

SKIP

CH

TV VCR/AUX

TUNER/BAND DVD/CD

TV/VIDEO

123

456

7809

S

10/

CANCEL

ENTER

SLOW/SEARCH

C

D

E

F

9

SFC

MENU

PLAY LIST

RETURN

TV VOL

SUBWOOFER

LEVEL

CH SELECT

TEST

G

r

H

I
J

:

;

<

=

>
?

@
A

TOP MENU

DIRECT

NAVIGATOR

DISPLAY

TV VOL

MUTING

S.SRND

FM MODE

SETUP

s

ENTER

VOLUME

C.S.M.

PL C.FOCUS

ZOOM GROUP AUDIO

3 FL display, Dimmer button [FL DISPLAY, –DIMMER] . . .25, 28
4 Play mode, Mix 2ch button

[PLAY MODE, –MIX 2CH] . . . . . . . . . . . . . . . . . . . . . . . . .16, 25

5 Repeat button [REPEAT]. . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

6 Cancel button [CANCEL] . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

7 Position memory button [POSITION MEMORY] . . . . . . . . . .13

8 Skip, Preset channel, TV channel buttons

[: 9, SKIP, X CH W] . . . . . . . . . . . . . . . . . . . . . .14, 24, 32

9 Basic operation buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

: Top menu, Direct navigator button

[TOP MENU, DIRECT NAVIGATOR] . . . . . . . . . . . . . . . . .14, 20

; Cursor buttons [3, 4, 2, 1], Enter button [ENTER] . . . . .11

< Display, TV volume down button

[DISPLAY, TV VOLs] . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21, 32

= Volume buttons [s, r, VOLUME] . . . . . . . . . . . . . . . . . . . . . .13

> Muting button [MUTING] . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

? Sound field, sound quality buttons . . . . . . . . . . . . . . . . .25–27

@ FM mode, Setup button [FM MODE, SETUP] . . . . . . . . .11, 24

A Zoom button [ZOOM] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

B AV system standby/on button [Í, AV SYSTEM]. . . . . . . . . .32

C Source select buttons

≥Face towards this unit to change the source.
≥Press [TV] or [VCR/AUX] first to operate a Panasonic television

or video cassette recorder (➡ page 32).

D TV/VIDEO button [TV/VIDEO] . . . . . . . . . . . . . . . . . . . . . . . . .32

E Numbered buttons [1–9, 0, S10/ENTER]. . . . . . . . . . . . . . . .14

F Slow/search, Tuning buttons

[6, 5 SLOW/SEARCH] . . . . . . . . . . . . . . . . . . . . . . . .14, 24

G Menu, Play list button [MENU, PLAY LIST] . . . . . . . . . . .14, 20

H Return, TV volume up button [RETURN, TV VOLr] . . . .11, 32

I Audio button [AUDIO] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

J Group button [GROUP] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

1

Main unit

1 Standby/on switch [Í/I, POWER] . . . . . . . . . . . . . . . . . . . . .11

Press to switch the unit from on to standby mode or vice versa.

K

L

M

N

O

VOLUME

SEARCH

In standby mode, the unit is still consuming a small amount of
power.

K Disc tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

L Display

Í

/

I

Í

PROGRESSIVE OUT PHONES

DOWN

SELECTOR

UP

M Open/close button [<] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

N Basic operation buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

O Volume control [VOLUME, DOWN, UP] . . . . . . . . . . . . . . . . .13

P Standby/on indicator [Í]

P

T

RQ

S

U

V

When the unit is connected to the AC mains supply, this indicator
lights up in standby mode and goes out when the unit is turned
on.

Q Remote control signal sensor

R Progressive out button [PROGRESSIVE OUT]. . . . . . . . . . .13

S Source select button [SELECTOR]

DVD /CD >FM>AM>TV>VCR/AUX

T Skip, Preset channel buttons [: 9] . . . . . . . . . . . .14, 24

U Shuttle dial [SEARCH 6, 5] . . . . . . . . . . . . . . . . . . . . . .14

V Headphone jack [PHONES] . . . . . . . . . . . . . . . . . . . . . . . . . .28

Subwoofer

W AC supply indicator [AC IN]

This indicator lights when the unit is connected to the AC mains

W

supply.

RQT6719

12
