Rev 1
Operating Instructions
CD Stereo System
Model No. SC-MAX9000
SC-MAX7000
SC-MAX5000
This illustration shows SC-MAX5000.
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Please keep this manual for future reference.
PSPNPUGN
RQT0A63-1B
These operating instructions are applicable for models
SC-MAX9000
SC-MAX5000
SC-MAX7000
Rev 1
SC-MAX9000, SC-MAX7000 and SC-MAX5000.
SC-MAX9000 :
SC-MAX7000 :
SC-MAX5000 :
System SC-MAX9000 SC-MAX7000 SC-MAX5000
Main unit SA-MAX9000 SA-MAX7000 SA-MAX5000
Speakers SB-MAX9000 SB-MAF7000
Subwoofer – SB-MAW7000 –
Unless otherwise indicated, illustrations in these
operating instructions are of SC-MAX9000.
Your system and the illustrations can look differently.
Recording and playback of content on this or any other
devices may require permission from the owner of the
copyright or other such rights of that content.
Panasonic has no authority to and does not grant you
that permission and explicitly disclaims any right, ability
or intention to obtain such permission on your behalf. It
is your responsibility to ensure that your use of this or
any other devices complies with applicable copyright
legislation in your country. Please refer to that
legislation for more information on the relevant laws and
regulations involved or contact the owner of the rights
of the content you wish to record or playback.
For Australia and New Zealand
RQT0A63
Indicate features applicable to SC-MAX9000.
Indicate features applicable to SC-MAX7000.
Indicate features applicable to SC-MAX5000.
SB-MAG7000
Disposal of Old Equipment and Batteries
Only for European Union and countries
with recycling systems
This symbol is only valid in the European
Union.
If you wish to discard this product, please
contact your local authorities or dealer and
ask for the correct method of disposal.
2
SB-MAX5000
Safety precautions
WARNING!
Unit
• To reduce the risk of fire, electric shock or product
damage,
– Do not expose this unit to rain, moisture, dripping or
splashing.
– Do not place objects filled with liquids, such as
vases, on this unit.
– Use only the recommended accessories.
– Do not remove covers.
– Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
– Do not let metal objects fall inside this unit.
CAUTION!
Unit
• To reduce the risk of fire, electric shock or product
damage,
– Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure this
unit is well ventilated.
– Do not obstruct this unit’s ventilation openings with
newspapers, tablecloths, curtains, and similar items.
– Do not place sources of naked flames, such as
lighted candles, on this unit.
• This unit is intended for use in moderate climates.
• This unit may receive radio interference caused by
mobile telephones during use. If such interference
occurs, please increase separation between this unit
and the mobile telephone.
• This unit utilizes a laser. Use of controls or adjustments
or performance of procedures other than those
specified herein may result in hazardous radiation
exposure.
• Set the unit up on an even surface away from direct
sunlight, high temperatures, high humidity, and
excessive vibration.
• Do not stare directly at the illumination LED to avoid
eyes discomfort.
AC Power supply cord
• The mains plug is the disconnecting device. Install this
unit so that the mains plug can be unplugged from the
socket outlet immediately.
Battery
• Danger of explosion if battery is incorrectly replaced.
Replace only with the type recommended by the
manufacturer.
• When disposing of the batteries, please contact your
local authorities or dealer and ask for the correct
method of disposal.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in a car exposed to direct
sunlight for a long period of time with doors and
windows closed.
• Do not break open or short-circuit the battery.
• Do not charge the alkaline or manganese battery.
• Do not use the battery if the cover has peeled off.
• Remove the battery if you do not use the remote
control for a long period of time. Keep in a cool, dark
area.
For Central America and the Caribbean
Rev 1
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
Table of contents
Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
References. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Supplied accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Placement of speakers . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Making the connections . . . . . . . . . . . . . . . . . . . . . . . . . 6
Preparing the remote control. . . . . . . . . . . . . . . . . . . . . . 7
Overview of controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Preparing media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Media playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Sound and illumination effects . . . . . . . . . . . . . . . . . . . 15
DJ functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Using a microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Clock and timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
External equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Limited Warranty (Australia). . . . . . . . . . . . . . . . . . . . . . 23
References
Licenses
®
The Bluetooth
trademarks owned by Bluetooth SIG, Inc. and any use
of such marks by Panasonic Corporation is under
license. Other trademarks and trade names are those of
their respective owners.
Google Play and Android are trademarks of Google Inc.
MPEG Layer-3 audio coding technology licensed from
Fraunhofer IIS and Thomson.
word mark and logos are registered
About Bluetooth
Panasonic bears no responsibility for data and/or
information that can possibly be compromised during a
wireless transmission.
Frequency band
• This system uses the 2.4 GHz frequency band.
Certification
• This system conforms to the frequency restrictions and
has received certification based on frequency laws.
Thus, a wireless permit is not necessary.
• The actions below are punishable by law:
– Taking apart or modifying the main unit.
– Removing specification indications.
Restrictions of use
• Wireless transmission and/or usage with all Bluetooth
equipped devices is not guaranteed.
• All devices must conform to standards set by
Bluetooth SIG, Inc.
• Depending on the specifications and settings of a
device, it can fail to connect or some operations can be
different.
• This system supports Bluetooth
depending on the operating environment and/or
settings, this security is possibly not sufficient.
Transmit data wirelessly to this system with caution.
• This system cannot transmit data to a Bluetooth
device.
Range of use
• Use this device at a maximum range of 10 m.
• The range can decrease depending on the
environment, obstacles or interference.
Interference from other devices
• This system may not function properly and troubles
such as noise and sound jumps may arise due to radio
wave interference if this unit is located too close to
other Bluetooth
2.4 GHz band.
• This system may not function properly if radio waves
from a nearby broadcasting station, etc. is too strong.
Intended usage
• This system is for normal, general use only.
• Do not use this system near an equipment or in an
environment that is sensitive to radio frequency
interference (example: airports, hospitals, laboratories,
etc.).
®
®
security features. But
®
devices or the devices that use the
®
®
RQT0A63
3
Supplied accessories
█ Attaching the speaker feet
For stability and to prevent damage to the floor,
attach the speaker feet to the bottom of the
speakers.
Preparation
Put a protection layer below the speakers to
prevent scratches.
Speaker feet
Protection layer
(not supplied)
Rev 1
Check and identify the supplied accessories.
1 AC power supply cord
1 AM loop antenna
1 FM indoor antenna
1 Remote control
(N2QAYB001022)
1 Remote control battery
SC-MAX9000
8 Speaker feet
SC-MAX9000 (Except for Australia and New Zealand)
SC-MAX7000
1 Power plug adapter
SC-MAX7000
16 Speaker feet
16 Speaker stacking pins
2 Brackets
2 Screws
CAUTION!
Keep the speaker feet, brackets and screws out of
reach of children to prevent swallowing.
Placement of speakers
Use only the supplied speakers.
You can cause damage to the system and decrease the
sound quality if you use other speakers.
Note:
• Put the speakers on a flat safe surface.
• These speakers do not have magnetic shielding. Do not put
them near TVs, PCs or other equipment easily influenced
by magnetism.
• When you play at high levels for a long period, it can cause
damage to the speakers and decrease the life of the
speakers.
• Decrease the volume in these conditions to prevent
damage:
– When the sound is distorted.
– When you adjust the sound quality.
CAUTION!
• Use the speakers only with the recommended
system. If not, you can cause damage to the
amplifier and speakers and can cause a fire.
Consult an approved service personnel if damage
occurs or if there is a sudden apparent change in
performance.
• Do not modify the speaker or speaker wires as
this can cause damage to the system.
• Do the procedures included in these instructions
when you attach the speakers.
• Do not touch the speaker cone’s reverberating
surfaces:
– This may damage the speaker cone.
RQT0A63
– The speaker cone may be hot.
4
SC-MAX9000
The left and right speakers are the same.
Keep your speakers more than 10 cm from the main unit
to prevent vibration effects from speakers and for
ventilation.
Note:
More than one person is required to move, tilt or carry the
speakers.
CAUTION!
• Be careful when babies or children are near.
• Do not stack the speakers.
• Do not put a hand or foreign object into the port
holes as this can cause personal injury and
damage to the speaker.
SC-MAX7000 SC-MAX5000
Tweeter
█ Stacking the speakers
Stack the speakers with the
supplied speaker stacking pins.
Press down the stacking pins
and the speaker until it is
secured in position.
Stacking pin
Install the supplied bracket as shown below to
secure the speakers.
Screw
Bracket
█ Attaching the speaker feet
Before placing the speakers (SB-MAF7000 &
SB-MAG7000) in a vertical position, lay the
speakers on top of a protection layer and paste the
supplied speaker feet to the bottom of the
speakers.
Speaker feet
Protection layer
(not supplied)
Tweeter
Rev 1
Put the speakers so that the tweeter is on the outside.
Keep your speakers more than 10 mm from the main unit
for ventilation.
SC-MAX7000
Setup 1
Setup 2
You can put the speakers in a vertical position as well as
on a shelf.
SC-MAX5000
Note:
• More than one person is required to move, tilt or carry the
speakers.
CAUTION!
• Be careful when babies
or children are near.
• Do not stack the
speakers.
RQT0A63
5
Making the connections
SC-MAX5000
B
A
Adhesive tape
(not supplied)
TO SPEAKERS
R1R1R2 R3 L3 L2 L1
Connect the speaker cables to
the terminals of the same color.
Connect the corresponding
speaker lighting cables
based on the speaker
identification number.
Rev 1
Connect the AC power supply cord only after all the other connections have been made.
1 Connect the AM loop antenna.
Stand the antenna up on its base until it clicks.
2 Connect the FM indoor antenna.
Put the antenna where reception is best.
3 Connect the speakers.
Connect the speaker cables to the corresponding
terminals.
SC-MAX9000
SC-MAX7000
RQT0A63
6
SC-MAX5000
Connect the speaker
cables to the terminals
of the same color.
To household AC outlet
Insert the AC power
supply cord up to ,
a point just before the
round hole.
For Australia and New Zealand For others
To household
AC outlet
To household
AC outlet
Rev 1
4 Connect the AC power supply cord.
Do not use any other AC power supply cords except
the supplied one.
SC-MAX9000 SC-MAX7000
Preparing the remote control
Use alkaline or manganese battery.
Install the battery so that the poles (+ and –) align with
those in the remote control.
Except for Australia and New Zealand
If the power plug does not fit your socket, use the
supplied power plug adapter.
SC-MAX5000
Conserving power
The system consumes a small amount of power even
when it is in standby mode. Disconnect the power
supply if you do not use the system.
Some settings will be lost after you disconnect the
system. You have to set them again.
RQT0A63
7
Overview of controls
Rev 1
Do the procedures with the remote control. You can also use the buttons on the main unit if they are the same.
A Standby/on switch [`], [1]
Press to switch the unit from on to standby mode or
vice versa. In standby mode, the unit is still
consuming a small amount of power.
B View the content information
C Numeric buttons
To select a 2-digit number
Example: 16: [ 10]=[1]=[6]
D Auto preset the radio station
E Select the audio source
On the main unit:
To start Bluetooth
[ –PAIRING].
F Basic playback control
G Select the sound effects
H Select the illumination effects
I View the setup menu
J Recording operation control
K Open or close the disc tray
L Decrease the brightness of the display panel
The illumination effect is also switched off.
To cancel, press the button again.
M Set the sleep timer
N Adjust the volume level
O Mute the sound
To cancel, press the button again.
“MUTE” is also canceled when you adjust the volume
or when you switch off the system.
P Select MP3 album or track
Q Select DJ jukebox
R Select or confirm the option
S View the play menu
®
pairing, press and hold
RQT0A63
8
For Australia and
New Zealand
Front View
To p V i e w
Rev 1
T NFC touch area
U Turntable for DJ and multi control
V Select MP3 album or track
Press [ALBUM/TRACK] to select album or track.
Browse tracks or albums
Turn [MULTI CONTROL] to browse.
To start playback from the selection, press [4/9].
W USB A
USB port ( )
USB status indicator
Play MP3 tracks.
X USB B
USB port ( )
USB status indicator
Play MP3 tracks.
Record sound or music tracks.
Y DJ function direct buttons
Press [JUKEBOX] or [EFFECT/SAMPLER] to switch
on the DJ function.
Press [DJ1] to [DJ6] on the main unit to select the
desired function.
To cancel, press the selected [DJ1] to [DJ6] again.
Z Switch on the DJ function
To cancel, press the button again.
a AUX IN 2 jack
b Microphone jack
c Adjust the microphone volume level
CAUTION!
Keep the microphone volume knob out of reach of
children to prevent swallowing.
d Disc tray
e Display panel
f Remote control sensor
Distance: Within approximately 7 m
Angle: Approximately 20° up and down,
30° left and right
RQT0A63
9
Preparing media
Rev 1
Disc
1 Press [CD x] (main unit: [x OPEN/CLOSE]) to
open the disc tray.
Put in a disc with the label facing up.
Press again to close the disc tray.
2 Press [CD/RADIO/AUX] to select “CD”.
USB
Preparation
Before you connect a USB device to the system, make
sure you do a backup of the data.
1 Decrease the volume and connect the USB device
to the USB port.
Hold the main unit when connecting or disconnecting
the USB device.
2 Press [USB] (main unit: [MEMORY/USB]) to select
“USB A” or “USB B”.
USB status indicator lights up in red when selected.
Note:
Do not use a USB extension cable. The system cannot
recognise USB device connected through a cable.
Bluetooth
You can connect and play an audio device wirelessly
through Bluetooth
Preparation
• Switch on the Bluetooth
the device near the system.
• Read the operating instructions of the device for
details.
█ Pairing a device
Preparation
If this system is connected to a Bluetooth
disconnect it (Z“Disconnecting a device”).
1 Press [ ].
If “PAIRING” is shown, continue with step 3.
2 Press [PLAY MENU] to select “PAIRING” and then
press [OK].
3 Select “SC-MAX9000”, “SC-MAX7000” or
“SC-MAX5000” from the Bluetooth
device.
If prompted for a passkey, input “0000”.
The device connects with this system automatically
after pairing is complete.
The name of the connected device is shown for a few
seconds.
®
®
.
®
feature of the device and put
®
device,
®
menu of the
Using the main unit
1 Press and hold [ –PAIRING] until “PAIRING” is
shown.
2 Select “SC-MAX9000”, “SC-MAX7000” or
“SC-MAX5000” from the Bluetooth
device.
Note:
You can pair up to 8 devices with this system. If a 9th device
is paired, the device that has not been used for the longest
time will be replaced.
®
menu of the
█ Connecting a device
Preparation
If this system is connected to a Bluetooth
disconnect it (Z“Disconnecting a device”).
®
device,
1 Press [ ].
“BLUETOOTH READY” is shown.
2 Select “SC-MAX9000”, “SC-MAX7000” or
“SC-MAX5000” from the Bluetooth
device.
The name of the connected device is shown for a few
seconds.
®
menu of the
3 Start playback on the device.
Note:
• A device must be paired to connect.
• This system can only connect to one device at a time.
• When “BLUETOOTH” is selected as the source, this
system will automatically try to connect to the last
connected device. (“LINKING” is shown during this
process.)
█ Disconnecting a device
1 Press [ ].
2 Press [PLAY MENU] to select “DISCONNECT?”.
3 Press [Y, U] to select “OK? YES” and then press
[OK].
“BLUETOOTH READY” is shown.
To cancel, select “OK? NO”.
Using the main unit
Press and hold [ –PAIRING] until “PAIRING” is
shown.
Note:
A device is disconnected when you:
• Select a different source.
• Move the device out of the maximum range.
• Disable the Bluetooth
• Switch off the system or the device.
®
transmission of the device.
RQT0A63
10

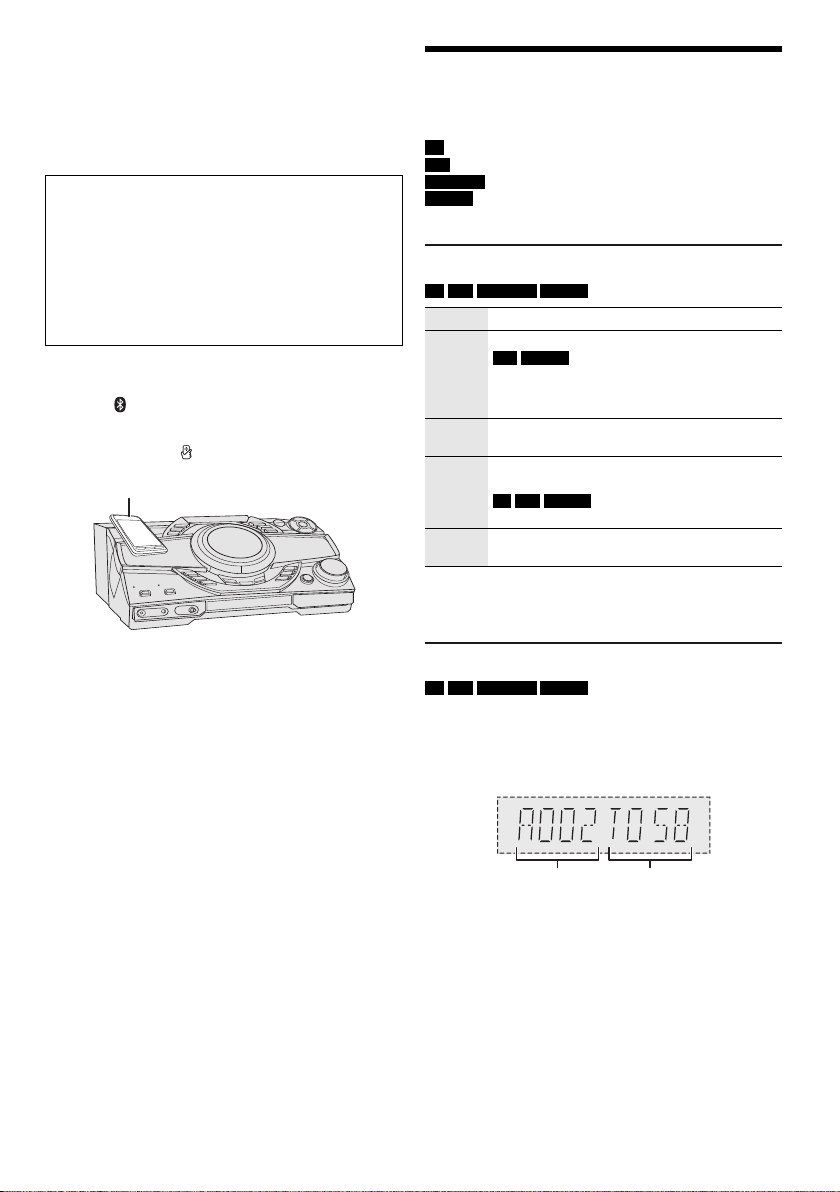

█ One-Touch Connection (NFC)
Bluetooth® device (not supplied)
Album
number
Track
number
Rev 1
For NFC-compatible Bluetooth® devices (Android™
devices) only
Simply by touching an NFC (Near Field Communication)compatible Bluetooth
complete all preparations, from registering a Bluetooth
device to establishing a connection.
Android device version lower than 4.1 requires the
installation of the “Panasonic MAX Juke” app (free of
charge).
®
device on the system, you can
®
A Enter “Panasonic MAX Juke” in the search box of
Google Play™ to search and then select “Panasonic
MAX Juke”.
B Start the app.
– Follow the instructions to complete the settings.
– Make sure to use the latest version of the app.
Preparation
Switch on the NFC feature of the device.
1 Press [ ].
2 Touch and hold the device on the NFC touch area
of the main unit [ ].
Media playback
The following marks indicate the availability of the
feature.
CD :
USB :
BLUETOOTH :
MEMORY :
Basic playback
CD USB BLUETOOTH MEMORY
Play Press [4/9].
Stop Press [8].
Pause Press [4/9].
Skip Press [2] or [6] (main unit: [2/3] or
Search Press and hold [3] or [5] (main unit:
Note:
Depending on the Bluetooth
not work.
CD-R/RW in CD-DA format or with MP3 files.
USB device with MP3 files.
Bluetooth
Internal memory (refer to “Recording” for
adding tracks to the internal memory).
USB MEMORY
The position is memorized.
“RESUME” is shown.
Press again to stop fully.
Press again to continue playback.
[5/6]) to skip track.
CD USB MEMORY
Press [R, T] to skip MP3 album.
[2/3] or [5/6]).
®
device.
®
device, some operations may
– Hold the device until it beeps, vibrates or displays a
pop-up window, and then move the device away
from the system.
– Once the registration and connection of the device
is complete, the name of the connected device is
shown on the system for a few seconds.
– When the connection is not established even if the
device has touched the NFC touch area, change its
touching position. The connection may improve if
you use the “Panasonic MAX Juke” app.
3 Start playback on the device.
Note:
• While connected, you can connect another device by
touching and holding it on the NFC touch area of the main
unit. The previous device will be disconnected
automatically.
• Depending on the device:
– The one-touch connection may not work.
– The position of the NFC touch area of the device may be
different.
– When the connection is established, playback may start
automatically.
Viewing available information
CD USB BLUETOOTH MEMORY
You can view the available information, such as MP3
album and track number, on the display panel.
Press [DISPLAY].
Example: MP3 album and track number display.
Note:
• Maximum characters that can be shown: Approximately 32
• This system supports ver. 1.0, 1.1 and 2.3 ID3 tags.
• Text data that the system does not support can show
differently.
RQT0A63
11
Play menu
Rev 1
CD USB MEMORY
1 Press [PLAY MENU].
2 Press [Y, U] to select the setting and then press
[OK].
OFF
PLAYMODE
1-TRACK
1
1-ALBUM
1
RANDOM
RND
1-ALBUM
RANDOM
1 RND
ALL REPEAT Repeat all tracks.
1-TRACK
REPEAT
1
1-ALBUM
REPEAT
1
RANDOM
REPEAT
RND
1-ALBUM
RANDOM
REPEAT
1 RND
Note:
• During random playback, you cannot skip to tracks which
have been played.
• The setting is canceled when you open the disc tray or
disconnect the USB device.
Cancel the setting.
Play one selected track.
Press the numeric buttons to select the
track.
Play one selected MP3 album.
Press [R, T] to select the MP3 album.
Play all tracks randomly.
Play all tracks in one selected MP3
album randomly.
Press [R, T] to select the MP3 album.
Repeat 1-TRACK.
Repeat 1-ALBUM.
Repeat random playback.
Repeat 1-ALBUM RANDOM.
█ Note on disc
• This system can play CD-R/RW with CD-DA or MP3
format content.
• Before playback, finalize the disc on the device it was
recorded on.
• Some CD-R/RW cannot be played because of the
condition of the recording.
█ Note on USB device
• This system does not guarantee connection with all
USB devices.
• This system supports USB 2.0 full speed.
• This system can support USB devices of up to 32 GB.
• Only FAT 12/16/32 file system is supported.
█ Note on MP3 file
• Files are defined as tracks and folders are defined as
albums.
• Tracks must have the extension “.mp3” or “.MP3”.
• Tracks will not necessarily be played in the order you
recorded them.
• Some files can fail to work because of the sector size.
MP3 file on disc
• This system can access up to:
– 255 albums (including root folder)
–999 tracks
– 20 sessions
• Disc must conform to ISO9660 level 1 or 2 (except for
extended formats).
MP3 file on USB device
• This system can access up to:
– 800 albums (including root folder)
– 8000 tracks
– 999 tracks in one album
Link mode
BLUETOOTH
You can change the link mode to suit the connection
type.
Preparation
If this system is connected to a Bluetooth
disconnect it (Z“Disconnecting a device”).
1 Press [PLAY MENU] to select “LINK MODE”.
2 Press [Y, U] to select the mode and then press
[OK].
MODE 1 Emphasis on connectivity.
MODE 2
(default)
Note:
• Depending on the device, the playback image and sound
RQT0A63
may not be synchronized. In this case, select “MODE 1”.
• Select “MODE 1” if the sound is interrupted.
12
Emphasis on sound quality.
®
device,
Radio
Rev 1
Preparation
Press [CD/RADIO/AUX] to select “FM” or “AM”.
Manual tuning
Press [3] or [5] to tune in to the station.
To tune automatically, press and hold the button until the
frequency starts changing quickly.
“STEREO” is shown when a stereo broadcast is being
received.
Using the main unit
1 Press [TUNE MODE] to select “MANUAL”.
2 Press [2/3] or [5/6] to tune in to the
station.
Memory presetting
You can preset up to 30 FM and 15 AM stations.
█ Automatic presetting
1 Press [AUTO PRESET] to select “LOWEST” or
“CURRENT”.
LOWEST Tuning begins from the lowest
CURRENT Tuning begins from the current
2 Press [OK] to start presetting.
The tuner presets all the stations it can receive into
the channels in ascending order.
To cancel, press [8].
█ Manual presetting
1 Press [3] or [5] (main unit: [2/3] or
[5/6]) to tune in to the station.
2 Press [OK].
3 Press the numeric buttons to select a preset
number.
Do steps 1 through 3 again to preset more stations.
The new station replaces any station that occupies
the same preset number.
frequency.
frequency.
Improving the sound quality
When “FM” is selected
1 Press [PLAY MENU] to select “FM MODE”.
2 Press [Y, U] to select “MONO” and then press
[OK].
To cancel, select “STEREO”.
“MONO” is also canceled when you change the
frequency.
To memorize the setting
Continue with step 2 of “Manual presetting”.
When “AM” is selected
1 Press [PLAY MENU] to select “B.PROOF”.
2 Press [Y, U] to select the setting that provides the
best reception and then press [OK].
Checking the signal status
When “FM” is selected
Press [DISPLAY].
FM – – – – The FM signal is weak.
FM ST The FM signal is in stereo.
FM MONO “MONO” is selected as the “FM MODE”.
The system is not tuned in to a station.
The FM signal is in monaural.
AM/FM allocation setting
By main unit only
Depending on your model and region (refer to “Tuner
section” in “Specifications”), you can change your AM
broadcasts allocated in 10 kHz steps or FM broadcasts
allocated in 0.2 MHz steps.
1 Press [CD/RADIO/AUX] to select “FM” or “AM”.
2 Press and hold [CD/RADIO/AUX].
After a few seconds, the display panel shows the current
minimum radio frequency. Release the button when the
minimum frequency changes.
• To go back to the initial setting, do the above steps
again.
• Preset frequencies are erased after you change the
setting.
█ Selecting a preset station
Press the numeric buttons, [2] or [6] to select
the preset station.
Using the main unit
1 Press [TUNE MODE] to select “PRESET”.
2 Press [2/3] or [5/6] to select the preset
station.
RQT0A63
13
Recording
Remaining
recording time
Internal memory
source
Rev 1
This system can record up to 800 folders (maximum 999
tracks in an album) or a total of 8000 tracks, depending
on the available storage capacity of the internal memory
or the USB device in
To check storage space
In the stop mode, press [DISPLAY].
Example: Remaining recording time of the internal
• “UPDATE” is shown when the system is reading the
• “NO DEVICE” is shown if there is no USB device
Note:
• All recordings are in “.mp3” format.
• You cannot do recording when you are using random
• The DJ function is switched off during recording.
• Repeat playback mode is canceled during recording.
• A new album is added each time you do a recording.
• The sequence of album may change after the recording.
• The recordings are kept in a folder named “REC_DATA” in
• USB status indicator blinks in red during USB recording.
memory.
device.
connected to
playback mode.
the USB device or the internal memory.
Basic recording
1 Select the source you want to record.
CD-DA
Prepare the disc playback mode.
Record all
tracks
Record a
specified
track
Make sure the disc is stopped.
Radio
Tune in to the radio station.
External equipment
Connect and play the equipment
(Z“External equipment”).
2 Press [MEMORY REC 7/9] or [USB REC 7/9] to
start recording.
The name of the folder that keeps the recording is
shown.
USB B .
USB B .
Select “OFF PLAYMODE”
(Z“Play menu”).
Select “1-TRACK” (Z“Play menu”).
Stop recording Press [8]. “WRITING” is shown.
Pause
recording
Note:
• Wait for a few seconds for the system to prepare the USB
device before you start recording.
• When the next track of the disc is being recorded, it will be
shown on the display.
Press [MEMORY REC 7/9] or
[USB REC 7/9] during recording.
Press again to continue recording.
Note:
You can pause during recording from the
radio, AUX 1 or AUX 2 (except in
“SYNCHRO” mode). A track mark is
added every time you pause (Z“Adding
track marks”).
█ High-speed recording
CD-DA disc recording speed:
CD, CD-R: Three times (3x) the normal speed.
CD-RW: Two times (2x) the normal speed.
1 Put in the disc you want to record.
2 Press [REC MODE] to select “NORMAL” or
“HI-SPEED” and then press [OK].
3 Press [USB REC 7/9] or [MEMORY REC 7/9] to
start recording.
Note:
• If you cannot record at high-speed because of the
condition of the disc, record at normal speed.
• The sound is muted during high-speed recording.
█ Adding track marks
When recording from radio or external equipment, you
can divide tracks using various modes.
Before recording
Press [REC MODE] to select the mode.
MANUAL Add a track mark manually.
SYNCHRO
(For AUX 1 or
AUX 2 source)
TIME MARK A track is automatically divided at
Note:
• During recording, if you press [OK] or pause recording
while using “TIME MARK” mode, the 5-minute counter is
reset.
• You cannot add track marks manually in “SYNCHRO”
mode.
Press [OK] during recording to add a
track mark.
Recording starts automatically when
the other equipment starts to play.
Recording pauses when it detects
silence for 3 seconds.
5-minute intervals.
RQT0A63
14
Recording MP3 tracks
Rev 1
You can record MP3 tracks from:
• MP3 disc to
•
USB A to USB B or internal memory
•
USB B to internal memory or vice versa
USB B or internal memory
1 Prepare the source you want to record.
Record all
tracks
Record a
specified
album or track
Select “OFF PLAYMODE”
(Z“Play menu”).
Select “1-ALBUM” or “1-TRACK”
(Z“Play menu”).
2 Press [MEMORY REC 7/9] or [USB REC 7/9] to
start recording.
To check the recording progress, press [DISPLAY].
Stop recording Press [8].
Note:
• Some tracks can use a longer time to record.
• Some tracks cannot be recorded because of the condition
of the source.
• The recorded file name is the same as the original file
(maximum 32 characters).
Recording stops at the last fully
recorded track in the album. For
example, if you stop recording during
the fourth track, only the first three
tracks are recorded.
“NO FILE RECORDED” is shown if no
track is recorded.
Deleting the recorded tracks
1 MEMORY
Press [MEMORY] (main unit: [MEMORY/USB]) to
select “MEMORY”.
USB B
Press [USB] (main unit: [MEMORY/USB]) to select
“USB B”.
2 Press [R, T] to select the album.
3 Press [2] or [6] to select the track.
4 Press [EDIT MODE] to select the mode.
TRACK DEL Delete a single track.
ALBUM DEL Delete one album (maximum 999
FORMAT Format the USB device.
ALL DEL Delete all albums in the internal
tracks).
memory.
5 Press [OK].
The selected item to be deleted is shown.
6 Press [OK].
“SURE? NO” is shown.
7 Press [Y, U] to select “SURE? YES” and then
press [OK].
“WRITING” is shown.
To cancel, select “SURE? NO”.
Sound and illumination effects
Sound effects
Preset EQ
1 Press [EQ] (main unit: [LATIN EQ] or [LOCAL EQ])
to select “PRESET EQ”.
2 Press [R, T] to select the desired preset EQ
setting and then press [OK].
Or turn [MULTI CONTROL] to select the desired
preset EQ setting.
Manual EQ
1 Press [EQ] (main unit: [LATIN EQ] or [LOCAL EQ])
to select “MANUAL EQ”.
2 Press [R, T] to select the sound effect.
Or turn [MULTI CONTROL] to select the sound effect.
3 Press [Y, U] to select the setting and then press
[OK].
Or press [2/3] or [5/6] to select the
setting.
BASS/MID/TREBLE –4 to +4
SURROUND “ON SURROUND” or
D.Bass
1 Press [D.BASS] to select “D.BASS LEVEL” or
“D.BASS BEAT”.
To cancel, select “OFF D.BASS”.
2 Press [R, T] to select the setting and then press
[OK].
Or turn [MULTI CONTROL] to select the setting.
Note:
D.BASS BEAT: This function emphasizes the attack level of
the drum beat and produces a punchy sound. Depending on
the track, the effect may be small.
Illumination effects
You can change the illumination effect on the system.
Press [ILLUMINATION] to select the desired effect.
PATTERN Illuminate with pattern in multiple colors.
COLOR A selection of 60 different illumination
OFF Cancel the effect.
You can also press [R, T] to select the next or previous
effect and then press [OK].
Or turn [MULTI CONTROL] to select the effect.
Note:
SC-MAX7000
To ensure the illumination effects are shown properly, make
sure to arrange the speakers accordingly as in “Placement of
speakers”.
colors on the speakers and 6 different
illumination colors on the main unit.
“OFF SURROUND”
RQT0A63
15
DJ functions
Rev 1
You can use the DJ functions to add sound effect or
sample sound between songs.
Using the “Panasonic MAX Juke” app
You can download and install the free Android app
“Panasonic MAX Juke” on Google Play for additional
features, such as to request song playback from
multiple devices simultaneously.
For details on the app, refer to the below site.
http://av.jpn.support.panasonic.com/support/global
/cs/audio/app/max_juke/android/index.html
(This site is in English only.)
Note:
The DJ function is switched off when you switch off the
system, change to another source or during recording.
DJ jukebox
USB MEMORY
You can use the DJ jukebox function to add cross-fade
effect or sample sound mix between songs.
Press [JUKEBOX] to select “JUKEBOX”.
To cancel, select “OFF JUKEBOX”.
Note:
The system switches to repeat mode automatically when you
switch on DJ Jukebox.
█ Changing the repeat setting
1 Press [PLAY MENU].
2 Press [Y, U] to select the setting and then press
[OK].
Using the main unit
In the stop mode, turn [MULTI CONTROL] to select
the setting and then press [4/9].
RANDOM REPEAT
RND
ALL TITLE REPEAT Repeat all tracks.
RANDOM MIX REPEAT
RND
Repeat random playback.
Repeat random playback.
Sample sound is added to the
intervals of all tracks.
█ Changing the DJ jukebox effect
Press [DJ1] to [DJ6] on the main unit to select the
effect.
[DJ1] Cross-fade: The current track volume
[DJ2] to [DJ6] Sample sound mix: Sample sound is
To cancel, press the button again.
Note:
You cannot select the DJ jukebox effect when you are using
“RANDOM MIX REPEAT” mode.
RQT0A63
gradually becomes soft, and the next
track volume gradually becomes loud.
added to the intervals of all tracks.
16
Using the “Panasonic MAX Juke” app
You can call up the tracks you want to play through the
app.
DJ sampler
(Except for AUX 1 and AUX 2 source)
By main unit only
By turning [MULTI CONTROL], you can apply a scratch
sound or sample sound to the track you are playing.
1 Press [EFFECT/SAMPLER] to select
“SAMPLER SELECT NUMBER”.
2 Press [DJ1] to [DJ6] to select the desired sound.
3 Turn [MULTI CONTROL].
To cancel DJ sampler
Press [EFFECT/SAMPLER] to select “OFF EFFECT”.
Using the “Panasonic MAX Juke” app
You can change the sample sound on the app. (To
return all sample sounds to the factory preset, press
and hold [EFFECT/SAMPLER] when the DJ sampler is
switched off.)
DJ effect
(Except for AUX 1 and AUX 2 source)
By main unit only
You can use the DJ effect function to add the sound
effects.
1 Press [EFFECT/SAMPLER] to select “DJ EFFECT
SELECT NUMBER”.
2 Press [DJ1] to [DJ6] to select the effect.
[DJ1] PHASER
Add space and dimension to the sound.
[DJ2] FILTER
Enhance or filter specific ranges of the
sound.
[DJ3] SOUND CHOPPER
Cut off the sound periodically.
[DJ4] ELECTRO ECHO
Add digital echo to the sound.
[DJ5] PITCH SHIFTER
Adjust the keys of the sound.
[DJ6] HARMONIZER
Add notes to the sound to create harmony.
3 Turn [MULTI CONTROL] to select the setting.
To cancel DJ effect
Press [EFFECT/SAMPLER] to select “OFF EFFECT”.
Using a microphone
Rev 1
Preparation
Decrease the volume of the system to its minimum before
you connect or disconnect a microphone.
1 Connect a microphone (not supplied) to the
microphone jack.
Plug type: Ø 6.3 mm monaural
2 Turn [MIC VOL, MIN/MAX] on the main unit to
adjust the volume of the microphone.
If you want to sing with the background music.
3 Play the music source and adjust the volume of
the system.
Note:
• If a strange noise (howling) is emitted, move the
microphone away from the speakers, or decrease the
volume of the microphone.
• When you do not use the microphone, disconnect it from
the microphone jack, and decrease the volume of the
microphone level to “MIN”.
• This system cannot record from microphone.
Clock and timers
Setting the clock
SC-MAX5000 (For Central America and the Caribbean)
This is a 12-hour clock.
For others
This is a 24-hour clock.
1 Press [SETUP] to select “CLOCK”.
2 Press [Y, U] to set the time and then press [OK].
To check the time
Press [SETUP] to select “CLOCK” and then press [OK].
In standby mode, press [DISPLAY].
Note:
Reset the clock regularly to maintain accuracy.
Sleep timer
The sleep timer switches off the system after the set time.
Press [SLEEP] to select the setting (in minutes).
To cancel, select “OFF”.
To check the remaining time
Press [SLEEP].
Note:
• The remaining time is shown for a few seconds every
minute. “SLEEP 1” is always shown when only 1 minute
remains.
• The play timer and sleep timer or the record timer and sleep
timer can be used together.
• The sleep timer always comes first. Be sure not to set an
overlap of timers.
Play timer and record timer
(Except for Bluetooth®, AUX 1 and AUX 2 source)
You can set the timer to come on at a certain time to:
• Wake you up (play timer).
• Record from the radio (record timer).
Play timer and record timer cannot be used together.
Preparation
Set the clock.
1 Press [SETUP] to select “TIMER ADJ”.
2 Press [Y, U] to select “#PLAY” or “#REC” and
then press [OK].
3 Press [Y, U] to set the start time and then press
[OK].
4 Do step 3 again to set the end time.
5 Press [Y, U] to select the source you want to play
or record and then press [OK].
6 For record timer, press [Y, U] to select “MEMORY”
or “USB B” to keep the recording and then press
[OK].
To start the timer
1 Prepare the source.
Play timer Prepare the source you want to
Record timer Connect the USB device to USB B
listen to (disc, USB, internal
memory or radio) and set the
volume.
(for USB recording) and tune in to
the radio station.
2 Press [SETUP] to select “TIMER SET”.
3 Press [Y, U] to select the setting and then press
[OK].
PLAY ON Start the play timer.
PLAY OFF Cancel the play timer.
REC ON Start the record timer.
REC OFF Cancel the record timer.
“#” is shown.
The system must be switched off for the timer to
operate.
To check the setting
1 Press [SETUP] to select “TIMER ADJ”.
2 Press [Y, U] to select “#PLAY” or “#REC” and
then press [OK].
In standby mode, press [DISPLAY] two times.
Note:
• The play timer starts at a low volume and increases
gradually to the preset level.
• The record timer starts 30 seconds before the set time with
the volume muted.
• The timer comes on at the set time every day if the timer is
on.
• If you switch off the system and then switch on again while
a timer is in operation, the timer will not stop at the end
time.
RQT0A63
17
External equipment
SC-MAX5000
SC-MAX9000
SC-MAX7000
Rear panel of
this main unit
Rear panel of
this main unit
Audio cable
(not supplied)
Audio cable
(not supplied)
DVD player
(not supplied)
Audio cable
(not supplied)
Portable audio equipment
(not supplied)
Rev 1
Preparation
• Disconnect the AC power supply cord.
• Switch off all equipment and read the appropriate
operating instructions.
Note:
Components and cables are sold separately.
Using the auxiliary input
You can connect a VCR, DVD player etc. and listen to the
audio through this system.
1 Connect the external equipment.
2 Press [CD/RADIO/AUX] to select “AUX 1”.
3 Play the external equipment.
Note:
• If you want to connect equipment other than those
described, refer to the audio dealer.
• Sound distortion can occur when you use an adapter.
Connecting a portable audio equipment
You can play music from a portable audio equipment.
Preparation
• Switch off the equalizer (if any) of the portable audio
equipment to prevent sound distortion.
• Decrease the volume of the system and the portable
audio equipment before you connect or disconnect the
portable audio equipment.
1 Connect the portable audio equipment.
Plug type: Ø 3.5 mm stereo
2 Press [CD/RADIO/AUX] to select “AUX 2”.
3 Play the portable audio equipment.
To adjust the input level
1 Press [PLAY MENU] to select “INPUT LEVEL”.
2 Press [Y, U] to select “NORMAL” or “HIGH” and
then press [OK].
Note:
• You cannot adjust the input level during recording.
• Select “NORMAL” if the sound is distorted during “HIGH”
input level.
• Read the operating instructions of the portable audio
equipment for details.
RQT0A63
18
Others
Rev 1
Auto off
This system automatically switches off when you do not
use it for approximately 20 minutes.
1 Press [SETUP] to select “AUTO OFF”.
2 Press [Y, U] to select “ON” and then press [OK].
To cancel, select “OFF”.
Note:
This function does not work when you are in radio source or
when a Bluetooth
®
device is connected.
Bluetooth® standby
This function automatically switches on the system when
you establish a Bluetooth
device.
®
connection from a paired
1 Press [SETUP] to select “BLUETOOTH STANDBY”.
2 Press [Y, U] to select “ON” and then press [OK].
To cancel, select “OFF”.
Note:
Some devices may take longer to respond. If you are
connected to a Bluetooth
system, wait for a minimum of 5 seconds before connecting
to this system from your Bluetooth
®
device before switching off the
®
device again.
Software version
You can check the software version of the system.
1 Press [SETUP] to select “SW VER.” and then press
[OK].
The software version is shown.
2 Press [OK] again to exit.
Maintenance
To clean this system, wipe with a soft, dry cloth.
• Never use alcohol, paint thinner or benzine to clean this
system.
• Before using chemically treated cloth, read the
instructions that came with the cloth carefully.
Trou blesh ooting
Before requesting service, make the following checks. If
you are in doubt about some of the check points, or if the
solutions indicated do not solve the problem, consult
your dealer for instructions.
█ Common problems
The unit does not work.
• The safety device has been activated. Do the following:
1. Press [1] on the main unit to switch the unit to standby
mode. If the unit does not switch to standby mode,
– Press and hold the button for a minimum of
10 seconds. Or,
– Disconnect the AC power supply cord and then
connect it again.
2. Press [1] again to switch on the unit. If the problem
persists, consult your dealer.
The display panel lights up and changes continuously in
standby mode.
• Press and hold [8] on the main unit to select “DEMO OFF”.
No operations can be done with the remote control.
• Examine that the battery is installed correctly.
Sound is distorted or no sound.
• Adjust the volume of the system.
• Switch off the system, determine and correct the cause,
and then switch on again. It can be caused by straining of
the speakers through excessive volume or power, and
when using the system in a hot environment.
A humming sound can be heard during playback.
• An AC power supply cord or fluorescent light is near the
cables. Keep other appliances and cords away from the
cables of this system.
The sound level reduces.
• The protection circuit has been activated due to the
continuous use at high volume output. This is to protect the
system and maintain the sound quality.
█ Disc
Display not shown correctly.
Playback does not start.
• You have not put in the disc correctly. Put it in correctly.
• Disc is dirty. Clean the disc.
• Replace the disc if it is scratched, warped, or
non-standard.
• There is condensation. Let the system dry for 1 to 2 hours.
The total number of tracks displayed is incorrect.
The disc cannot be read.
Distorted sound is heard.
• You put in a disc that the system cannot play. Change to a
playable disc.
• You put in a disc that has not been finalized.
█ USB
The USB device or the contents in it cannot be read.
• The format of the USB device or the contents in it are not
compatible with the system.
• USB devices with storage capacity of more than 32 GB
cannot work in some conditions.
Slow operation of the USB device.
• Large content size or large memory USB device takes
longer time to read.
RQT0A63
19
█ Bluetooth
Rev 1
Pairing cannot be done.
• Check the Bluetooth
• The device is out of the 10 m communication range. Move
the device nearer to the system.
The device cannot be connected.
• The pairing of the device was unsuccessful. Do pairing
again.
• The pairing of the device has been replaced. Do pairing
again.
• This system might be connected to a different device.
Disconnect the other device and try pairing the device
again.
• The system may have a problem. Switch off the system and
then switch on again.
The device is connected but audio cannot be heard
through the system.
• For some built-in Bluetooth
audio output to “SC-MAX9000”, “SC-MAX7000” or
“SC-MAX5000” manually. Read the operating instructions
of the device for details.
Sound from the device is interrupted.
• The device is out of the 10 m communication range. Move
the device nearer to the system.
• Remove any obstacle between the system and the device.
• Other devices that use the 2.4 GHz frequency band
(wireless router, microwaves, cordless phones, etc.) are
interfering. Move the device nearer to the system and
distance it from the other devices.
• Select “MODE 1” for stable communication.
The one-touch connection (NFC) is not working.
• Make sure the system and the NFC feature of the device
are switched on.
• Touch and hold the device on the NFC touch area of this
system again.
Playback image and sound are not synchronized.
• Restart the playback app of the device
• Connect the device to the system with an audio cable (not
supplied).
®
®
device condition.
®
devices, you have to set the
█ Radio
Sound is distorted.
• Use an optional FM outdoor antenna. The antenna should
be installed by a competent technician.
A beat sound is heard.
• Switch off the TV or move it away from the system.
• Move mobile telephones away from the system if the
interference is apparent.
• When in AM tuner mode, select the “B.PROOF” setting that
provides the best reception.
A low hum is heard during AM broadcasts.
• Move the antenna away from other cables and cords.
█ Main unit displays
“ADJUST CLOCK”
• The clock is not set. Adjust the clock.
“ADJUST TIMER”
• The play timer and/or record timer is not set. Adjust the
play timer and/or record timer.
“ALB FULL”
• The number of albums has exceeded the supported limit.
RQT0A63
20
“AUTO OFF”
• The system has not been used for 20 minutes and will
switch off within a minute. To cancel, press any button.
“CAN’T REC”
“DEVICE FULL”
• You cannot do recording because the remaining recording
time of the USB device is less than the total time of the
music source. Change to a USB device which has enough
recording time and do the recording again.
“ERROR”
• An incorrect operation was done. Read the instructions and
try again.
“ERROR” (during recording)
• You cannot select other playback source (example: radio,
USB etc.) or press [2] or [6] during recording. Stop
the recording function.
• You cannot open the disc tray when recording from an AM
source.
“F61”
• Examine and correct the speaker cords connection.
• Disconnect the USB device. Switch off the system and then
switch on again.
“F703”
• Examine the Bluetooth
• Disconnect the Bluetooth
and then switch on again.
“F76”
• There is a problem with the power supply.
• Disconnect the AC power supply cord and consult your
dealer.
“F77”
• Disconnect the AC power supply cord and consult your
dealer.
“NO DEVICE”
• You cannot do recording or check available storage space
because there is no USB device connected to
“NO DISC”
• You have not put in a disc.
“NO PLAY”
“UNSUPPORT”
• Examine the content. You can only play supported format.
• The files in the USB device can be corrupted. Format the
USB device and try again.
• The system may have a problem. Switch off the system and
then switch on again.
“NO TRACK”
• There is no album or track in the USB device or the internal
memory.
“PLAYERROR”
• An unsupported MP3 file has been played. The system will
skip that track and play the next one.
“REC ERROR”
• You disconnected the USB device during recording.
Connect the USB device and do recording again.
• An error occurred during USB recording. Disconnect the
USB device and then connect it again.
“REMOTE 1”
“REMOTE 2”
• The remote control and the main unit are using different
codes. Change the code of the remote control.
– When “REMOTE 1” is shown, press and hold [OK] and
[1] for a minimum of 4 seconds.
– When “REMOTE 2” is shown, press and hold [OK] and
[2] for a minimum of 4 seconds.
®
connection.
®
device. Switch off the system
USB B .
“TEMP NG”
Rev 1
• The temperature protection circuit has been activated, and
the system will switch off. Let the unit cool down before
switching it on again.
• Check that the ventilation opening of the unit is not
obstructed.
• Ensure this unit is well ventilated.
“TRK FULL”
• The number of files has exceeded the supported limit.
“USB A NO DEVICE”
“USB B NO DEVICE”
• The USB device is not connected. Examine the connection.
“USB OVER CURRENT ERROR”
• The USB device is using too much power. Disconnect the
USB device, switch off the system and then switch on
again.
“VBR”
• The system cannot show the remaining play time for
variable bit rate (VBR) tracks.
Remote control code
When other Panasonic equipment responds to the
remote control of this system, change the remote control
code for this system.
Preparation
Press [CD/RADIO/AUX] to select “AUX 1” or “AUX 2”.
█ To set the code to “REMOTE 2”
1 Press and hold [CD/RADIO/AUX] on the main unit
and [2] on the remote control until “REMOTE 2” is
shown.
2 Press and hold [OK] and [2] for a minimum of
4 seconds.
█ To set the code to “REMOTE 1”
1 Press and hold [CD/RADIO/AUX] on the main unit
and [1] on the remote control until “REMOTE 1” is
shown.
2 Press and hold [OK] and [1] for a minimum of
4 seconds.
System memory reset
Reset the memory when the following situations occur:
• There is no response when buttons are pressed.
• You want to clear and reset the memory contents.
1 Disconnect the AC power supply cord.
2 While you press and hold [1] on the main unit,
connect the AC power supply cord again.
Continue to press and hold the button until
“–––––––––” is shown.
3 Release [1].
All the settings are set back to the factory preset.
It is necessary to set the memory items again.
Specifications
█ Amplifier section
RMS output power stereo mode
SC-MAX9000
High Ch 500 W per channel (3 Ω), 1 kHz, 30% THD
Mid Ch 500 W per channel (3 Ω), 1 kHz, 30% THD
Low Ch 1000 W per channel (5 Ω), 100 Hz, 30% THD
Total RMS stereo mode power 4000 W
SC-MAX7000
Front Ch 350 W per channel (3 Ω), 1 kHz, 30% THD
Front Ch 350 W per channel (3 Ω), 1 kHz, 30% THD
Subwoofer Ch 800 W per channel (6 Ω), 100 Hz,
Total RMS stereo mode power 3000 W
SC-MAX5000
High Ch 350 W per channel (3 Ω), 1 kHz, 30% THD
Mid Ch 350 W per channel (3 Ω), 1 kHz, 30% THD
Low Ch 500 W per channel (2 Ω), 100 Hz, 30% THD
Total RMS stereo mode power 2400 W
█ Tuner section
SC-MAX9000 SC-MAX7000
Frequency modulation (FM)
Preset memory 30 stations
Frequency range
Antenna terminals 75 Ω (unbalanced)
Amplitude modulation (AM)
Preset memory 15 stations
Frequency range 522 kHz to 1629 kHz (9 kHz step)
SC-MAX5000
Frequency modulation (FM)
Preset memory 30 stations
Frequency range
For South America
For Central America and the Caribbean
Antenna terminals 75 Ω (unbalanced)
Amplitude modulation (AM)
Preset memory 15 stations
Frequency range
For South America 522 kHz to 1629 kHz (9 kHz step)
For Central America and the Caribbean
87.50 MHz to 108.00 MHz (50 kHz step)
520 kHz to 1630 kHz (10 kHz step)
87.50 MHz to 108.00 MHz (50 kHz step)
87.5 MHz to 108.0 MHz (100 kHz step)
87.9 MHz to 107.9 MHz (200 kHz step)
520 kHz to 1630 kHz (10 kHz step)
520 kHz to 1710 kHz (10 kHz step)
█ Disc section
Disc played (8 cm or 12 cm)
MPEG-1 Layer 3, MPEG-2 Layer 3
Pick up
Wavelength 790 nm (CD)
CD, CD-R/RW (CD-DA, MP3 )
30% THD
RQT0A63
21
█ Bluetooth
Rev 1
®
section
Versi on Bluetooth® Ver. 2.1 + EDR
Class Class 2
Supported profiles A2DP, AVRCP, SPP, OPP, FTP
Operating frequency 2.4 GHz band FH-SS
Operation distance 10 m line of sight
█ Internal memory section
Memory
Memory size 4 GB
Media file format support MP3 (*.mp3)
Memory recording
Bit rate 128 kbps
Memory recording speed 1x, 3x max (CD only)
Recording file format MP3 (*.mp3)
█ Speaker section
SB-MAX9000
Speaker unit(s)
Tweeter 6 cm cone type x 1
Woofer 16 cm cone type x 2
Super Woofer 38 cm cone type x 1
Impedance High 3 Ω / Mid 3 Ω / Low 5 Ω
Dimensions (W x H x D)
Including speaker feet 572 mm x 782 mm x 528 mm
Excluding speaker feet 572 mm x 774 mm x 528 mm
Mass 37 kg
SB-MAF7000 SB-MAG7000
Speaker unit(s)
Tweeter 6 cm cone type
Woofer 20 cm cone type
Impedance 3 Ω
Dimensions (W x H x D) 407 mm x 260 mm x 258 mm
Mass 5.5 kg
SB-MAW7000
Speaker unit(s)
Super Woofer 30 cm cone type
Impedance 6 Ω
Dimensions (W x H x D) 402 mm x 450 mm x 386 mm
Mass 13 kg
SB-MAX5000
Speaker unit(s)
Tweeter 6 cm cone type
Woofer 20 cm cone type
Super Woofer 30 cm cone type
Impedance High 3 Ω / Mid 3 Ω / Low 2 Ω
Dimensions (W x H x D) 407 mm x 709 mm x 389 mm
Mass 19 kg
█ Terminal section
USB port
USB standard USB 2.0 full speed
Media file format support MP3 (*.mp3)
USB device file system FAT12, FAT16, FAT32
USB recording
Bit rate 128 kbps
USB recording speed 1x, 3x (CD only)
Recording file format MP3 (*.mp3)
AUX IN 1
Audio input Pin jack
AUX IN 2
Terminal Stereo, 3.5 mm jack
Microphone
Terminal Mono, 6.3 mm jack
█ General
Power supply
SC-MAX9000 SC-MAX7000
For Australia and New Zealand AC 220 V to 240 V, 50 Hz
For others AC 110 V to 240 V, 50/60 Hz
SC-MAX5000
For South America AC 220 V to 240 V, 50/60 Hz
For Central America and the Caribbean AC 120 V, 60 Hz
Power consumption
SC-MAX9000 SC-MAX7000 340 W
SC-MAX5000 240 W
Dimensions (W x H x D) 460 mm x 234 mm x 409 mm
Mass
SC-MAX9000 SC-MAX7000 6.0 kg
SC-MAX5000 5.5 kg
Operating temperature range 0°C to +40°C
Operating humidity range
Power consumption in standby mode (approximate)
SC-MAX9000 SC-MAX7000 0.4 W
SC-MAX5000
For South America 0.5 W
For Central America and the Caribbean 0.4 W
Power consumption in standby mode (approximate)
(With “BLUETOOTH STANDBY” set to “ON”)
SC-MAX9000 SC-MAX7000 0.5 W
SC-MAX5000
For South America 0.6 W
For Central America and the Caribbean 0.5 W
Note:
• Specifications are subject to change without notice.
Mass and dimensions are approximate.
• Total harmonic distortion is measured by the digital
spectrum analyzer.
35% to 80% RH (no condensation)
RQT0A63
22
Limited Warranty (Australia)
Rev 1
Panasonic Warranty
1. The product is warranted for 12 months from the date of purchase. Subject to the conditions of this warranty Panasonic or
its Authorised Service Centre will perform necessary service on the product without charge for parts or labour, if in the
opinion of Panasonic, the product is found to be faulty within the warranty period.
2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia or its Authorised
Distributors or Dealers and only where the products are used and serviced within Australia or it’s territories. Warranty cover
only applies to service carried out by a Panasonic Authorised Service Centre and only if valid proof of purchase is presented
when warranty service is requested.
3. This warranty only applies if the product has been installed and used in accordance with the manufacturer’s
recommendations (as noted in the operating instructions) under normal use and reasonable care (in the opinion of
Panasonic). The warranty covers normal domestic use only and does not cover damage, malfunction or failure resulting from
use of incorrect voltages, incorrect installation, accident, misuse, neglect, build-up of dirt or dust, abuse, maladjustment of
customer controls, mains supply problems, thunderstorm activity, infestation by insects or vermin, tampering or repair by
unauthorised persons (including unauthorised alterations), introduction of sand, humidity or liquids, commercial use such as
hotel, office, restaurant, or other business or rental use of the product, exposure to abnormally corrosive conditions or any
foreign object or matter having entered the product.
4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:
(a) Cabinet Part(s) (e) DVD, Blu-ray or Recordable Discs
(b) Video or Audio Tapes ( f) Video / Audio Heads from wear and tear in normal use
(c) SD cards or USB devices (g) Information stored on Hard Disk Drive, USB stick or SD card
(d) User replaceable Batteries (h) DTV reception issues caused by TV Aerial / Cabling / Wall socket(s) etc
5.
Some products may be supplied with Ethernet connection hardware. The warranty is limited on such products and will not cover
(a) Internet and or DLNA connection / setup related problems
(b) Access fees and or charges incurred for internet connection
(c) The use of incompatible software or software not specifically stipulated in the product operations manual; and
(d) Any indirect or consequential costs associated with the incorrect use or misuse of the hardware, its connection to the
internet or any other device.
6. To claim warranty service, when required, you should:
• Telephone Panasonic’s Customer Care Centre on 132600 or visit our website referred to below and use the Service
Centre Locator for the name / address of the nearest Authorised Service Centre.
• Send or take the product to a Panasonic Authorised Service Centre together with your proof of purchase receipt as a
proof of purchase date. Please note that freight and insurance to and / or from your nearest Authorised Service Centre
must be arranged by you.
• Note that home or pick-up / delivery service is available for the following products in the major metropolitan areas of
Australia or the normal operating areas of the nearest Authorised Service Centres:
– Plasma / LCD televisions / displays (screen size greater than 103 cm)
7. The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de-installation or
re-installation of a product, including costs related to the mounting, de-mounting or remounting of any screen, (and any
other ancillary activities), delivery, handling, freighting, transportation or insurance of the product or any part thereof or
replacement of and do not extend to, and exclude, any damage or loss occurring by reason of, during, associated with, or
related to such installation, de-installation, re-installation or transit.
Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of Australia, however,
coverage will vary dependant on product. For advice on exact Authorised Service Centre locations for your product, please
telephone our Customer Care Centre on 132600 or visit our website and use the Service Centre Locator.
In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be excluded
under the Australian Consumer Law. If there is a major failure with the product, you can reject the product and elect to have a
refund or to have the product replaced or if you wish you may elect to keep the goods and be compensated for the drop in value
of the goods. You are also entitled to have the product repaired or replaced if the product fails to be of acceptable quality and
the failure does not amount to a major failure.
If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable period
by contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic may
choose to repair or replace the product and will do so in a reasonable period of time from receiving notice from you.
THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE)
SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES
If you require assistance regarding warranty conditions or any other enquiries, please visit the
Panasonic Australia website www.panasonic.com.au or contact by phone on 132 600
If phoning in, please ensure you have your operating instructions available.
Panasonic Australia Pty. Limited
ACN 001 592 187 ABN 83 001 592 187
PRO-031-F11 Issue: 4.0 01-01-2011
1 Innovation Road, Macquarie Park NSW 2113
RQT0A63
23
Customer Service (Latin America)
Rev 1
Customer Service Directory
Obtain products information and operative assistant; localize the closer distributor or
Service Center; buy spare parts and accessories by our Web Site to Latin American:
COUNTRY WEB SITE CONTACT CENTER
Panama www.panasonic.com/pa/soporte/ 800-7262
Colombia www.panasonic.com/co/soporte/ 01-8000-947262
Ecuador www.panasonic.com/ec/soporte/ 1-800-726276
Costa Rica www.panasonic.com/cr/soporte/ 800-7262737
El Salvador www.panasonic.com/sv/soporte/ 800-7262
Guatemala www.panasonic.com/gt/soporte/ 1-801-811-7262
Uruguay www.panasonic.com/uy/soporte/ 0-800-7262
Paraguay www.panasonic.com/uy/soporte/ 0-800-11-7262
Chile www.panasonic.com/cl/soporte/ 800-390-602
Peru www.panasonic.com/pe/soporte/ 0800-00726
Venezuela www.panasonic.com/ve/soporte/ 800-7262-800
Mexico www.panasonic.com/mx/soporte/ 01800-847-7262
Argentina www.panasonic.com/ar/soporte/ 0800-333-7262
Dominican Republic www.panasonic.com/do/soporte/ 809-200-8000
022-797-5000
55-5000-1200
0810-321-7262
Panasonic Corporation
Web Site: http://www.panasonic.com
© Panasonic Corporation 2015
En
RQT0A63-1B
L1215CH1026
Loading...
