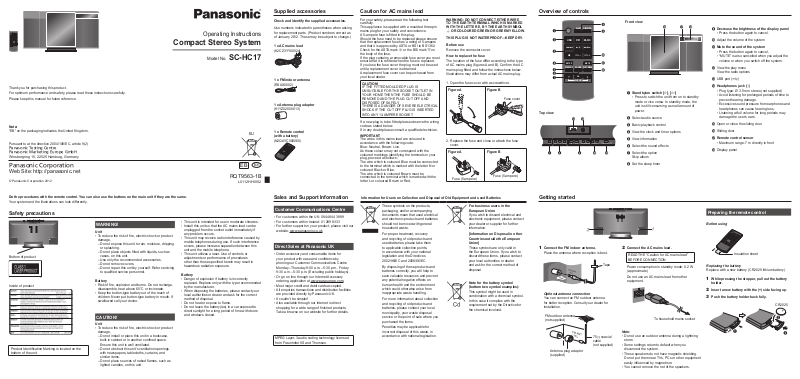

Panasonic SC-HC17 Operating Instructions

AB OJC

Supplied accessories

P Q R

Caution for AC mains lead Overview of controls

Thank you for purchasing this product.

For optimum performance and safety, please read these instructions carefully.

Please keep this manual for future reference.

Note:

“EB” on the packaging indicates the United Kingdom.

Pursuant to at the directive 2004/108/EC, article 9(2)

Panasonic Testing Centre Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

Panasonic Corporation

Web Site: http://panasonic.net

Operating Instructions

Compact Stereo System

Model No. SC-HC17

RQT9563-1B

L0112HH1052

Check and identify the supplied accessories.

Use numbers indicated in parentheses when asking for replacement parts. (Product numbers correct as of January 2012. These may be subject to change.)

1 x AC mains lead

(K2CZ3YY00024)

1 x FM indoor antenna

(RSAX0002)

1 x Antenna plug adaptor

(K1YZ02000013)

1 x Remote control (with a battery)

(N2QAYC000060)

For your safety, please read the following text carefully. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5-ampere fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark the body of the fuse. If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local dealer.

CAUTION!

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS IN SERTED

INTO ANY 13-AMPERE SOCKET.

If a new plug is to be fitted please observe the wiring code as stated below. If in any doubt please consult a qualified electrician.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code: Blue: Neutral, Brown: Live. As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or col oured Black or Blue. The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Brown or Red.

or the BSI mark on

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH SYMBOL

OR COLOURED GREEN OR GREEN/YELLOW.

THIS PLUG IS NOT WATERPROOF—KEEP DRY.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below. Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

Figure A Figure B

Fuse cover

2. Replace the fuse and close or attach the fuse cover.

Figure A Figure B

Fuse (5 ampere)

Top view

USB

DISPLAY

SLEEP

SOUND

ALBUM

DIMMER

RADIO

MUTESETUP

PLAY MENU

Front view

A Standby/on switch [`], [1]

• Press to switch the unit from on to standby

mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

B Select audio source

C Basic playback control

D View the clock and timer options

E View information

F Select the sound effects

G Select the option

Skip album

H Set the sleep timer

I Decrease the brightness of the display panel

• Press the button again to cancel.

J Adjust the volume of the system

K Mute the sound of the system

• Press the button again to cancel.

• “MUTE” is also cancelled when you adjust the

volume or when you switch off the system.

L View the play menu

View the radio options

M USB port (

N Headphones jack (

• Plug type: Ø 3.5 mm stereo (not supplied)

• Avoid listening for prolonged periods of time to

prevent hearing damage.

• Excessive sound pressure from earphones and

headphones can cause hearing loss.

• Listening at full volume for long periods may

damage the user’s ears.

O Open or close the sliding door

P Sliding door

Q Remote control sensor

• Maximum range: 7 m directly in front

R Display panel

)

Do the procedures with the remote control. You can also use the buttons on the main unit if they are the same.

Your system and the illustrations can look differently.

Safety precautions

• This unit is intended for use in moderate climates.

• Install this unit so that the AC mains lead can be

unplugged from the socket outlet immediately if any problem occurs.

• This unit may receive radio interference caused by

mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.

• This unit utilizes a laser. Use of controls or

adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Battery

• Danger of explosion if battery is incorrectly

replaced. Replace only with the type recommended by the manufacturer.

• When disposing the batteries, please contact your

local authorities or dealer and ask for the correct method of disposal.

• Do not heat or expose to flame.

• Do not leave the battery(ies) in a car exposed to

direct sunlight for a long period of time with doors and windows closed.

Bottom of product

Inside of product

Product Identification Marking is located on the bottom of the unit.

WARNING!

Unit

• To reduce the risk of fire, electric shock or product

damage,

– Do not expose this unit to rain, moisture, dripping

or splashing.

– Do not place objects filled with liquids, such as

vases, on this unit. – Use only the recommended accessories. – Do not remove covers. – Do not repair this unit by yourself. Refer servicing

to qualified service personnel.

Battery

• Risk of fire, explosion and burns. Do not recharge,

disassemble, heat above 60°C or incinerate.

• Keep the button-type battery out of the reach of

children. Never put button-type battery in mouth. If swallowed call your doctor.

CAUTION!

Unit

• To reduce the risk of fire, electric shock or product

damage,

– Do not install or place this unit in a bookcase,

built-in cabinet or in another confined space.

Ensure this unit is well ventilated. – Do not obstruct this unit’s ventilation openings

with newspapers, tablecloths, curtains, and

similar items. – Do not place sources of naked flames, such as

lighted candles, on this unit.

Sales and Support Information

Customer Communications Centre

• For customers within the UK: 0844 844 3899

• For customers within Ireland: 01 289 8333

• For further support on your product, please visit our

website: www.panasonic.co.uk

Direct Sales at Panasonic UK

• Order accessory and consumable items for

your product with ease and confidence by phoning our Customer Communications Centre Monday – Thursday 9:00 a.m. – 5:30 p.m., Friday 9:30 a.m. – 5:30 p.m. (Excluding public holidays).

• Or go on line through our Internet Accessory

ordering application at www.pas-europe.com.

• Most major credit and debit cards accepted.

• All enquiries transactions and distribution facilities

are provided directly by Panasonic UK.

• It couldn’t be simpler!

• Also available through our Internet is direct

shopping for a wide range of finished products. Take a browse on our website for further details.

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Getting started

1 Connect the FM indoor antenna.

Place the antenna where reception is best.

Optional antenna connection

You can connect an FM outdoor antenna for better reception. Consult your dealer for installation.

FM outdoor antenna (not supplied)

75 cable (not supplied)

Antenna plug adaptor (supplied)

Tape

coaxial

2 Connect the AC mains lead.

READ THE “Caution for AC mains lead” BEFORE CONNECTION.

Power consumption in standby mode: 0.2 W (approximate)

Do not use an AC mains lead from other equipment.

To household mains socket

Note:

• Do not use an outdoor antenna during a lightning

storm.

• Some settings return to default when you

disconnect the system.

• These speakers do not have magnetic shielding.

Do not put them near TVs, PCs or other equipment easily influenced by magnetism.

• You cannot remove the net of the speakers.

Preparing the remote control

Before using

Insulation sheet

Replacing the battery

Replace with a new battery (CR2025 lithium battery).

1 While pressing the stopper, pull out the battery

holder.

2 Insert a new battery with the (+) side facing up.

3 Push the battery holder back fully.

CR2025

SpecificationsDisc, USB Clock and timers

Inserting or removing media

Disc

Press [CD x OPEN/CLOSE] on the main unit to open the sliding door.

Put in a disc with the label facing towards you.

Click!

Note:

Keep fingers away from the sliding door when it is closing.

USB

USB device (not supplied)

Note:

Do not use a USB extension cable. The system cannot recognise USB device connected through a cable.

Basic playback

Press [CD] or [USB] to select the source.

Play

Stop

Pause

Skip track

Search through track

Skip album

View information

Note:

• Maximum characters that can be shown:

approximately 32

• This system supports ver. 1.0, 1.1 and 2.3 ID3

tags.

• Text data that the system does not support can

show differently.

Press [4/9].

Press [8].

USB

: The track is memorised. “RESUME” is shown. Press two times to stop fully.

Press [4/9]. Press again to continue

playback.

Press [2/3] or [5/6].

Press and hold [2/3] or [5/6].

Press [R, T].

Press [DISPLAY].

Play menu

1 Press [PLAY MENU] to select “PLAYMODE” or

“REPEAT”.

2 Press [R, T] and then press [OK] to select the

desired mode.

PLAYMODE

OFF PLAYMODE

1-TRACK

1-ALBUM

RANDOM

RND

1-ALBUM RANDOM

1 RND

REPEAT

ON REPEAT

OFF REPEAT Cancel repeat playback.

Note:

• During random playback, you cannot skip to tracks

which have been played.

• The setting returns to default when you open the

sliding door.

Play all tracks.

Play one selected track. Press [2/3] or [5/6] to select the track.

Play one selected album. Press [R, T] to select the album.

Play all tracks randomly.

Play all tracks in one selected album randomly. Press [R, T] to select the album.

Repeat playback.

Compatible media

Disc

• This system can play CD-R/RW with CD-DA or

MP3 format content.

• Some CD-R/RW cannot be played because of the

condition of the recording.

• MP3 files are defined as tracks and folders are

defined as albums.

• This system can access up to:

– CD-DA : 99 tracks – MP3 : 999 tracks, 255 albums (including root

folder) and 20 sessions

• Disc must conform to ISO9660 level 1 or 2 (except

for extended formats).

• Recordings will not necessarily be played in the

order you recorded them.

USB

• Compatible USB devices which are defined as

mass storage class:

– USB devices that support bulk-only transfer – USB devices that support USB 2.0 full speed

• Files are defined as tracks and folders are defined

as albums.

• Track must have the extension “.mp3” or “.MP3”.

• This system can access up to:

– 255 albums (including root folder) – 2500 tracks – 999 tracks in one album

• CBI (Control/Bulk/Interrupt) is not supported.

• NTFS file system is not supported (only FAT

12/16/32 file system is supported).

• Some files can fail to work because of the sector

size.

Setting the clock

This is a 24-hour clock.

1 Press [SETUP] to select “CLOCK”.

2 Press [R, T] to set the time.

3 Press [OK].

To show the clock for a few seconds

Press [SETUP] to select “CLOCK” and then press [OK].

Note:

Reset the clock regularly to maintain accuracy.

Sleep timer

The sleep timer switches off the system after the set time.

Press [SLEEP] to select the setting (in minutes).

To cancel, select “OFF”.

SLEEP 30 → SLEEP 60 → SLEEP 90

OFF ← SLEEP120

Note:

• The remaining time is always shown on the display.

The display changes temporarily when you perform other operations.

• The sleep timer can be used together with the play

timer.

• The sleep timer always comes first. Be sure not to

set an overlap of timers.

Play timer

You can set the timer to come on at a certain time to wake you up.

Preparation

Set the clock.

1 Press [SETUP] to select “TIMER ADJ”.

2 Press [R, T] to set the start time.

3 Press [OK].

4 Do steps 2 and 3 again to set the end time.

To start the timer

1 Prepare the audio source you want to listen to

and set the volume.

2 Press [SETUP] to select “TIMER SET”.

3 Press [R, T] to select “SET” and then press

[OK].

“#” is shown. The system must be switched off for the timer to operate.

Check the settings

Cancel 1. Press [SETUP] to select

1. Press [SETUP] to select “TIMER ADJ”.

2. Press [OK].

“TIMER SET”.

2. Press [R, T] to select “OFF” and then press [OK].

Note:

• The timer starts at a low volume and increases

gradually to the preset level.

• The timer comes on at the set time every day if the

timer is on.

• If you switch off the system and switch on again

while a timer is in operation, the timer will not stop at the end time.

Auto off function

This function switches off the system (except in radio source) if you do not use the system for approximately 30 minutes.

CD USB

1 Press [SETUP] to select “AUTO OFF”.

2 Press [R, T] to select “ON” or “OFF” and

then press [OK].

Amplifier section

RMS output power stereo mode

Front Ch (both ch driven) 5 W per channel (6 Total RMS stereo mode power 10 W

), 1 kHz, 10% THD

Tuner section

Preset station FM 30 stations Frequency modulation (FM)

Frequency range

87.50 MHz to 108.00 MHz (50 kHz step) Antenna terminals 75

(unbalanced)

Terminals section

USB port

USB standard USB 2.0 full speed Media file format support MP3 (*.mp3) USB device file system FAT12, FAT16, FAT32 USB port power 500 mA (max)

Headphones jack Terminal Stereo, 3.5 mm jack

Disc section

Disc played (8 cm or 12 cm)

CD, CD-R/RW (CD-DA, MP3

Pick up

Wavelength 790 nm (CD) Laser power CLASS

Audio output (Disc)

Number of channels 2 ch (FL, FR) FL = Front left channel FR = Front right channel

MPEG-1 Layer 3, MPEG-2 Layer 3

)

Speaker section

Type 1 way, 1 speaker system (bass reflex) Speaker unit(s)

Full range 8 cm cone type x 1/ch

Impedance 6

General

Power supply AC 220 to 240 V, 50 Hz Power consumption 12 W Dimensions (W x H x D)

400 mm x 213 mm x 110 mm [D = 72 mm (min)]

Mass 1.9 k Operating temperature range 0°C to +40°C Operating humidity range

35% to 80% RH (no condensation)

Power consumption in standby mode

0.2 W (approximate)

Note:

• Specifications are subject to change without notice.

Mass and dimensions are approximate.

• Total harmonic distortion is measured by the digital

spectrum analyzer.

30 FM stations can be preset.

Preparation

Connect the FM antenna (Z “Getting started”).

Press [RADIO].

Automatic presetting

1 Press [PLAY MENU] to select “A.PRESET”.

2 Press [R, T] to select “LOWEST” or

“CURRENT” frequency.

LOWEST : To begin auto preset from the lowest

frequency.

CURRENT : To begin auto preset from the

current frequency .

To change the frequency, refer to “Manual

tuning and presetting”.

3 Press [OK] to start presetting.

The tuner presets all the stations it can receive into the channels in ascending order. To cancel, press [8].

Manual tuning and presetting

1 Press [PLAY MENU] to select “TUNEMODE”.

2 Press [R, T] to select “MANUAL” and then

press [OK].

3 Press [2/3] or [5/6] to tune in to the

station.

To tune automatically, press and hold the button until the frequency starts changing quickly. “STEREO” is shown when the system is tuned in to a stereo broadcast.

To preset the station

4 Press [OK].

5 Press [R, T] to select a preset number.

6 Press [OK].

Do steps 3 through 6 again to preset more stations.

Note:

A station previously stored is overwritten when another station is stored in the same preset number.

Selecting a preset station

1 Press [PLAY MENU] to select “TUNEMODE”.

2 Press [R, T] to select “PRESET” and then

press [OK].

3 Press [2/3] or [5/6] to select the

preset station.

RDS broadcasting

This system can show the text data transmitted by the radio data system (RDS) available in some areas.

Press [DISPLAY].

PS Station name

PTY Program type

FREQ Frequency

Note:

RDS may not be available if reception is poor.

Improving the sound quality

1 Press [PLAY MENU] to select “FM MODE”.

2 Press [R, T] to select “MONO” and then

press [OK].

To cancel, select “STEREO”. “MONO” is also cancelled when you change the frequency.

To memorise the setting

Continue with steps 4 through 6 of “Manual tuning and presetting”.

Checking the signal status

Press [PLAY MENU] to select “FM STATUS” and then press [OK].

FM The FM signal is in monaural.

The system is not tuned in to a station.

FM ST The FM signal is in stereo.

FM MONO “MONO” is selected as the

“FM MODE”.

Sound effects

1 Press [SOUND] to select a sound effect.

2 Press [R, T] to select the desired setting.

PRESET EQ “HEAVY” : Adds punch to rock.

“SOFT” : For background music. “CLEAR” : Clarifies higher

frequencies. “VOCAL” : Adds gloss to vocal. “FLAT” : Cancels the sound

effect.

BASS “BASS -4” to “BASS +4”.

TREBLE “TREBLE-4” to “TREBLE+4”.

D.BASS “ON D.BASS” or “OFF D.BASS”.

SURROUND “ON SURROUND” or

“OFF SURROUND”.

Maintenance

To clean this system, wipe with a soft, dry cloth.

• Never use alcohol, paint thinner or benzine to clean

this system.

• Before using chemically treated cloth, read the

instructions that came with the cloth carefully.

Troubleshooting Radio

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated do not solve the problem, consult your dealer for instructions.

Common problems

No operations can be done with the remote control.

• Examine that the battery is installed correctly.

• The remote control and this unit are using different

codes (Z right, “REMOTE ”).

Sound is distorted or no sound.

• Adjust the volume of the system.

• Switch off the system, determine and correct the

cause, then switch the system on again. It can be caused by straining of the speakers through excessive volume or power, and when using the system in a hot environment.

A “humming” sound can be heard during playback.

• An AC mains lead or fluorescent light is near the

cable. Keep other appliances and cords away from the cable of this system.

Disc

Display not shown correctly. Playback does not start.

• You did not put the disc in correctly. Put it in

correctly.

• Disc is dirty. Clean the disc.

• Replace the disc if it is scratched, warped, or

non-standard.

• There is condensation. Let the system dry for 1 to

2 hours.

USB

The USB device or the contents in it cannot be read.

• The format of the USB device or the contents in it

is/are not compatible with the system.

• USB devices with storage capacity of more than

32 GB cannot work in some conditions.

Slow operation of the USB device.

• Large content size or large memory USB device

takes longer time to read.

The elapsed time shown is different from the actual play time.

• Transfer the data to another USB device or backup

the data and reformat the USB device.

Radio

A beat sound is heard.

• Switch off the TV or move it away from the system.

• Move mobile telephones away from the unit if the

interference is apparent.

Main unit displays

“--:--”

• You connected the AC mains lead for the first time

or there was a power failure recently. Set the clock.

“ADJUST CLOCK”

• Clock is not set. Adjust the clock accordingly.

“ADJUST TIMER”

• Play timer is not set. Adjust the play timer

accordingly.

“ERROR”

• An incorrect operation was done. Read the

instructions and try again.

“F61”

• There is a power supply problem.

“USB OVER CURRENT ERROR”

• The USB device is drawing too much power.

Remove the USB device. Switch the system off and on again.

“NODEVICE”

• The USB device is not connected. Examine the

connection.

“NO DISC”

• You have not put in a disc.

“NO PLAY”

• You have put in a disc that the system cannot play.

• You have inserted a USB device that cannot be

played. Examine the content. You can only play supported format.

• If there are more than 255 albums or folders (audio

and non-audio), some of the MP3 files in these albums cannot be read and played. Transfer these music albums to another USB device. Alternatively, reformat the USB device and save these music albums prior to saving the other non-audio folders.

“NOT MP3/ERROR”

• An unsupported MP3 format. The system will skip

that track and play the next one.

“REMOTE ” (“  ” stands for a number.)

• The remote control and this unit are using different

codes. Change the code of the remote control.

– When “REMOTE 1” is shown, press and hold

[OK] and [T] for a minimum of 4 seconds.

– When “REMOTE 2” is shown, press and hold

[OK] and [R] for a minimum of 4 seconds.

“–VBR–”

• The system cannot show the remaining play time

for variable bit rate (VBR) tracks.

Memory reset (initialisation)

Reset the memory when the following situations occur:

• There is no response when buttons are pressed.

• You want to clear and reset the memory contents.

1 Disconnect the AC mains lead.

Wait 3 minutes before you continue with step 2.

2 While you press and hold [1] on the main

unit, connect the AC mains lead again.

“– – – – – – – –” is shown.

3 Release [1].

All the settings are set back to the factory preset. It is necessary to set the memory items again.

Remote control code

When other Panasonic equipment responds to the remote control of this system, change the remote control code for this system.

To set the code to “REMOTE 2”

1 Press and hold [CD] on the main unit and [R]

on the remote control until “REMOTE 2” is shown.

2 Press and hold [OK] and [R] for a minimum of

4 seconds.

To set the code to “REMOTE 1”

1 Press and hold [CD] on the main unit and [T]

on the remote control until “REMOTE 1” is shown.

2 Press and hold [OK] and [T] for a minimum of

4 seconds.
