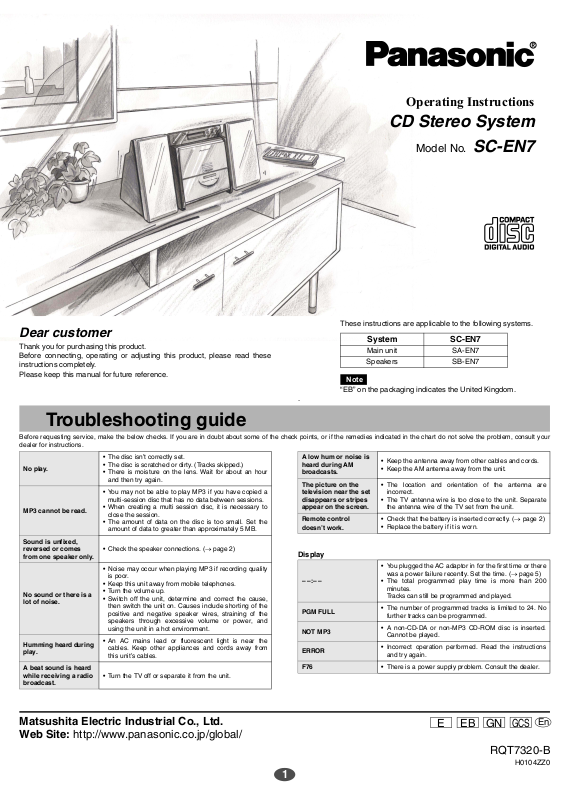

Page 1

Dear customer

Thank you for purchasing this product. Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual for future reference.

Operating Instructions

CD Stereo System

Model No. SC-EN7

These instructions are applicable to the following systems.

System SC-EN7

Main unit SA-EN7

Speakers SB-EN7

Note

“EB” on the packaging indicates the United Kingdom.

Troubleshooting guide

Before requesting service, make the below checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, consult your dealer for instructions.

A low hum or noise is heard during AM broadcasts.

The picture on the television near the set disappears or stripes appear on the screen.

Remote control doesn’t work.

• Keep the antenna away from other cables and cords.

• Keep the AM antenna away from the unit.

• The location and orientation of the antenna are incorrect.

• The TV antenna wire is too close to the unit. Separate the antenna wire of the TV set from the unit.

• Check that the battery is inserted correctly. (→ page 2)

• Replace the battery if it is worn.

Display

• You plugged the AC adaptor in for the first time or there

– –:– –

PGM FULL

NOT MP3

ERROR

F76 • There is a power supply problem. Consult the dealer.

was a power failure recently. Set the time. (→ page 5)

• The total programmed play time is more than 200 minutes. Tracks can still be programmed and played.

• The number of programmed tracks is limited to 24. No further tracks can be programmed.

• A non-CD-DA or non-MP3 CD-ROM disc is inserted. Cannot be played.

• Incorrect operation performed. Read the instructions and try again.

No play.

MP3 cannot be read.

Sound is unfixed, reversed or comes from one speaker only.

No sound or there is a lot of noise.

Humming heard during play.

A beat sound is heard while receiving a radio broadcast.

• The disc isn’t correctly set.

• The disc is scratched or dirty. (Tracks skipped.)

• There is moisture on the lens. Wait for about an hour and then try again.

• You may not be able to play MP3 if you have copied a multi-session disc that has no data between sessions.

• When creating a multi session disc, it is necessary to close the session.

• The amount of data on the disc is too small. Set the amount of data to greater than approximately 5 MB.

• Check the speaker connections. (→ page 2)

• Noise may occur when playing MP3 if recording quality is poor.

• Keep this unit away from mobile telephones.

• Turn the volume up.

• Switch off the unit, determine and correct the cause, then switch the unit on. Causes include shorting of the positive and negative speaker wires, straining of the speakers through excessive volume or power, and using the unit in a hot environment.

• An AC mains lead or fluorescent light is near the cables. Keep other appliances and cords away from this unit’s cables.

• Turn the TV off or separate it from the unit.

Matsushita Electric Industrial Co., Ltd. Web Site: http://www.panasonic.co.jp/global/

E EB

GCS

RQT7320-B

H0104ZZ0

Page 2

Supplied accessories

The remote control

Use the numbers indicated in parentheses when asking for replacement parts.

1 Remote control

(EUR7711110)

1 AC adaptor

For continental Europe (RFEA207E-T) For the United Kingdom (RFEA208B-T) For Australia and New Zealand (RFEA209A-T) For other areas (RFEA210Z-T)

Note

The included AC adaptor is for use with this unit only. Do not use it with other equipment.

2 Batteries 1 AM loop antenna

(G0ZZ00002036)

Placements

Placement of speakers

You can remove the speaker cover netting. Left and right speakers are exactly the same.

Note

• Keep your speakers at least 10 mm away from the system for proper ventilation.

• These speakers do not have magnetic shielding. Do not place them near televisions, personal computers or other devices easily influenced by

Place this unit in an area with more than 300 mm of vertical space. The CD lid may become damaged if it cannot open completely.

magnetism.

• To avoid damage to the speakers, do not touch the speaker cones if you have taken the nets off.

Batteries

g Use

(R6, AA, UM-3)

Remote control signal sensor

• Aim at the sensor, avoiding obstacles, at a maximum range of 7 m directly in front of the unit.

• Operation can be affected by strong light sources, such as direct sunlight, and the glass doors on cabinets.

• Insert so the poles (+ and –) match those in the remote control.

• Do not use rechargeable type batteries.

Caution

• Use the speakers only with the recommended system. Failure to do so may lead to damage to the amplifier and/or the speakers, and may result in the risk of fire. Consult a qualified service person if damage has occurred or if you experience a sudden change in performance.

• Do not attach these speakers to walls or ceilings.

Connections

1 Speakers

Before connecting, twist and pull off the vinyl tip of the speaker cords.

Red

Black

Red

Copper (+)

Silver (–)

Other equipment

(Cables and equipment not included.)

OUT

(L) (R)

Tape deck, etc.

Use

Main unit

AUX

Note

• An analogue player with a built-in phono equalizer can be connected.

• For details, refer to the instruction manual of the other equipment.

Remote control

AUX

Select “AUX”

2 AM loop antenna

Stand the antenna up on its base.

Plug type:

3.5 mm stereo

Start Playback from the other source.

AUX

3 AC adaptor

Connect the AC adaptor only after all other connections

have been made.

To household mains socket

Headphones

(Not included)

PHONES

FOR THE UNITED KINGDOM ONLY BE SURE TO READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 7 BEFORE CONNECTION.

Note

13VDC IN

• The configuration of the AC adaptor differs according to the area.

• If the unit is left unplugged for longer than two weeks, all settings will revert to the factory settings. Do the settings again if this occurs.

Reduce the volume before connection. Plug type: 3.5 mm stereo

Note

Avoid listening for prolonged periods of time to prevent hearing damage.

Page 3

CD operations

CLOCK/

TIMER ADJ

SLEEP

PGM/CLEAR

PLAY MODE

TIMER

SET/CHECK

DISPLAY

123

> =

AUX

TUNER/

BAND

q/h

EXTRA

D.BASS

SOUNDEQLIVE

VIRTUALIZER

ALBUM

4 VOL

VOL

>=>=> =

1 Set the CD in place.

;

The CD lid opens and the unit comes on.

Label must face outward.

Press until you hear it click into place.

Press again to close.

Keep fingers away from the CD lid when it is closing to avoid possible minor injury.

To turn on

the unit

2 Start play.

Remote controlMain unit

q/h

If the CD is already in the unit, the unit comes on and play begins.

(One touch play)

Function indicator

The color changes when using the CD mode.

To adjust the volume

–

VOLUME

VOL

(Minimum)

(Maximum)

Elapsed playing time of track

Track number

1 0:01

Input using the numbered buttons

To select a 2-digit number

e.g. 16: [ 10] → [1] → [6]

To select 3-digit number

e.g. 226: [ 10] → [ 10] → [2] → [2] → [6]

To adjust the volume

Stop

Main unit

Pause

q/h

Press again to resume play.

Skip/ Search

Note

• You cannot search through MP3 files.

• Perform search during play or while paused.

• You can search only within the current track during program, one track repeat, or random play.

Direct access play

Play starts with the track you select.

Refer to page 6 regarding MP3 play.

Remote control

q/h

Main unit Remote control

– +

Press to skip/

Press and hold to search

Select the desired track

MP3

123

Number of tracks

Track p l a y t im e

14 40:21

Number of albums

Number of tracks

MP3

2 18

10 2:16

Repeat play/ random play

1-&:

One track repeat

& : All track

repeat

RND: Random

play

Program play

This function allows you to program up to 24 tracks.

PLAY MODE

Select the play mode

• Each time you press the button: 1-& →

↑

& → RND

(While stopped)

No display (Canceled)←

Note

• During random play, you cannot skip to the previous track.

• You cannot select “RND” while playing MP3.

• You cannot use random play and program play at the same time.

123

PGM/CLEAR

Press while

stopped

PGM

(Maximum 24 tracks)

(CD only)

• Erase a program

(While stopped)

Select tracks

6 --

6 4:01

q/h

Start play

Track number

Sequence number

Total play time

PGM/CLEAR

CLEAR

Note

Program contents are stored in memory even after the function has been changed or the unit is turned off. All program contents are erased by pressing [PGM/ CLEAR] or by opening the CD lid.

• Confirm a programmed

track (While stopped)

• Add a program track

(While stopped)

Note

• You cannot use random play and program play at the same time.

123

Select the track you want to add

Page 4

Radio operations

> =

Radio stations can be turned manually by selecting the station’s frequency or they can be preset into channels to make it easy to tune. You can preset up to 20 FM channels and up to 12 AM channels.

Manual

u/ +/i

Main unit

-BAND -AUTO PRESET

TUNING MODE

tuning

Select

“FM” or “AM”

Remote control

TUNER/

BAND

Select

“FM” or “AM”

Auto tuning

Main unit

– +

Press and hold until the frequency

starts changing rapidly

• Auto tuning stops when it finds a station.

• To cancel auto tuning press the same button again.

Note

• Auto tuning may not function when there is excessive interference.

To improve reception

FM AM

TUNING MODE

Select

“MANUAL”

Remote control

Function indicator

The color changes when using the radio.

-BAND -AUTO PRESET

To adjust the volume

(Minimum)

– +

Select the frequency

–

VOLUME

VOL

(Maximum)

Automatic presetting

The tuner presets all the stations it can receive into channels in ascending order.

Manual presetting

Preset the stations one at a time.

Selecting channels

TIMER

CLOCK/

SET/CHECK

SLEEP

PGM/CLEAR

PLAY MODE

TUNER/

BAND

VOL

EXTRA

D.BASS

ALBUM

TIMER ADJ

SOUNDEQLIVE

DISPLAY

123

AUX

4 VOL

VIRTUALIZER

q/h

Input using the numbered buttons

To select a 2-digit number

e.g. 11: [ 10] → [1] → [1]

To adjust the volume

Perform both FM and AM station presetting once.

-BAND -AUTO PRESET -BAND -AUTO PRESET

Select

“FM” or “AM”

Press and hold

until “AUTO”

appears

Note

During automatic presetting, the memory indicator ( ) flashes and the frequency scrolls. The

PGM

memory indicator and channel numbers are displayed for a second when a station is preset. The first station to be preset is displayed when presetting finishes.

Within 10 seconds

Tune to the station you want

PGM/CLEAR

to set as the preset.

Note

The station occupying a channel is erased if another station is preset over that channel.

Main unit

-BAND -AUTO PRESET

Enter preset mode

PGM

TUNING MODE

123

Select a channel

– +

> =

Extend the whip antenna and adjust its direction.

Change the direction and location of the AM loop antenna.

If noise is excessive in FM

You can improve FM reception by switching reception to monaural.

PLAY MODE

Press to turn the MONO

mode ON/OFF

MONO

Select

“FM” or “AM”

Select

“PRESET”

Select a

channel

Remote control

ALBUM

TUNER/

BAND

Select

Select a channel

“FM” or “AM”

123

TUNER/

BAND

Select

“FM” or “AM”

Select a channel

Page 5

Timer and others

CLOCK/

SET/CHECK

TIMER ADJ

SLEEP

123

PGM/CLEAR

PLAY MODE

AUX

TUNER/

BAND

VOL

EXTRA

SOUNDEQLIVE

VIRTUALIZER

D.BASS

ALBUM

Setting the time

This is a 24-hour clock.

SLEEP timer

The SLEEP timer can turn the unit off after a set time.

Sound quality

You can choose one of four types of sound quality.

Live Virtualizer

You can create a three-dimensional sound field when listening to stereo sound.

Extra D.Bass

Boosts the bass.

CLOCK/

TIMER ADJ

Select “CLK”

--:-- --CLK

• To display the clock when the unit is on

• To check the time when the unit is off

Note

The clock is accurate to within ±60 seconds a month. Readjust if necessary.

SLEEP

• Each time you press the button:

SLEEP 30 → SLEEP 60 → SLEEP 90 → SLEEP 120

←

• To check the remaining time

Note

The play and sleep timer can be used together. The sleep timer always has priority. Be sure not to overlap timer settings.

SOUND

Select the sound quality

• Each time you press the button:

XBS →

(Adds punch to rock)

↑

EQ-OFF ←

CLEAR → (Clarifies higher sounds)

(Turns the sound quality off)

LIVE

VIRTUALIZER

Press to turn the Live Virtualizer ON/OFF

Note

The actual effect depends on the source played.

EXTRA D.BASS

Press to turn Extra D. Bass ON/OFF

TIMER

DISPLAY

q/h

4 VOL

Within 10 seconds

Select the time

• Press and hold to change the time faster.

OFF (Canceled)

VOCAL ← (Adds gloss to vocal)

CLOCK/

TIMER ADJ

CLOCK/

TIMER ADJ

TIMER

SET/CHECK

SLEEP

Press once

SOFT (For background music)

D.BASS

Play timer

This timer starts play of the selected source at the selected time.

Display

You can change the display.

Preparation: Set the clock (see left).

1 Perform timer settings

 Set the start time

Within 10 seconds

CLOCK/

TIMER ADJ

Select “ON”

0:00

Select the start time

• Press and hold to change the time

faster.

 Set the end time

CLOCK/

TIMER ADJ

Select “OFF”

Select the end time

CLOCK/

TIMER ADJ

• Press and hold to

OFF

17:00

change the time faster.

2 Select the source and adjust the volume

TUNER/

BAND

AUX

q/h

VOL

4 VOL

Adjust the volumeSelect the source

3 Turn the timer on

TIMER

SET/CHECK

Turn the unit offDisplay “zPLAY”

PLAY

The unit must be off for the timer to operate.

Note

You can enjoy other sources after you have set the timer.

TIMER

• To cancel the timer while the unit is on

Note

The timer function will be canceled, but the settings stay in the memory. The timer comes on every day if the timer is on.

• To change the timer

• To check the setting while the unit is off

Note

• If you turn the unit off and on again while the timer

is functioning, the finish time setting will not be activated.

• When the “AUX” source is selected, set the timer

on the connected equipment to the same time.

DISPLAY

The following types of information are displayed.

• Original display

• MP3 track title display

• MP3 album title display

• Time display

SET/CHECK

Clear “zPLAY”

TIMER

SET/CHECK

Clear “zPLAY”

and set the timer again

TIMER

SET/CHECK

RQT7320

Page 6

Control guide

TIMER

CLOCK/

DISPLAY

SET/CHECK

TIMER ADJ

SLEEP

123

PGM/CLEAR

VOL

ALBUM

AUX

SOUNDEQLIVE

VIRTUALIZER

4 VOL

q/h

PLAY MODE

TUNER/

BAND

EXTRA D.BASS

Buttons such as Ê function the same as the controls on the remote control.

‰

′″‴⇰⇩⇸

‵

‱

⇷

‶

⇮

‷

 Standby/on switch [^]........................................................................... 3

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power. The unit is in the standby condition (the [

^] indicator lights) when the AC

mains lead is connected. The primary circuit is always “live” as long as the AC adaptor is connected to an electrical outlet.

 Clock/timer adjust button [CLOCK/TIMER ADJ]................................ 5

 SLEEP timer button [SLEEP] ............................................................... 5

 CD program/clear, tuner preset button [PGM/CLEAR] .................. 3, 4

 Play mode button [PLAY MODE].................................................. 3, 4, 6

 AUX button [AUX].................................................................................. 2

 Tuner/band select button [TUNER/BAND] .......................................... 4

 Volume buttons [VOL –, + VOL] ........................................................... 3

 Extra D.Bass button [EXTRA D.BASS]................................................ 5

 Sound EQ button [SOUND EQ] ............................................................ 5

 Album skip, preset channel select buttons

[2, 1, u ALBUM i]..................................................................... 4, 6

 Display button [DISPLAY]..................................................................... 5

 Timer set/check button [TIMER SET/CHECK]..................................... 5

 Numbered buttons [1–9, 0, 10]........................................................... 3

 CD play/pause button [CD q/h]........................................................... 3

 CD stop button [g]................................................................................ 3

 Live virtualizer button [LIVE VIRTUALIZER]....................................... 5

 CD skip/search, frequency select, time adjust buttons

[u, i, –, +]................................................................................ 3, 4, 5

 Standby indicator

When the unit is connected to the AC adaptor, this indicator lights up in standby mode and goes out when the unit is turned on.

 Remote control signal sensor  CD skip/search, tune/preset channel select,

time adjust buttons [u/–, +/i] ................................................... 3, 4

 Tuning mode select button [TUNING MODE]...................................... 4

 Display  Function indicator [AUX], [TUNER], [CD]

The color changes depending on the source used.

 Tuner, band select, auto preset button

[TUNER, -BAND –AUTO PRESET]........................................................ 4

 CD open/close button [; OPEN/CLOSE] ............................................ 3

MP3 operations

This unit can play MP3, a method of compressing audio without overtly hurting audio quality.

When creating MP3 files to play on this unit

• Maximum number of tracks and albums: 999 tracks and 256 albums.

• Compatible compression rate: Between 64 kbps and 320 kbps (stereo).

• Disc formats: ISO9660 level 1 and level 2 (except for extended formats).

• It is better not to create folders (album) within folders (004album below).

CD-ROM drive

001album

001track.mp3

002track.mp3 003track.MP3

002album

004track.mp3

005track.mp3

004album

008track.MP3

006track.mp3 007track.MP3

009track.MP3

PLAY MODE

q/h

ALBUM

SLEEP

PGM/CLEAR

PLAY MODE

TUNER/

BAND

VOL

EXTRA D.BASS

003album

CLOCK/ TIMER ADJ

123

AUX

SOUNDEQLIVE

ALBUM

TIMER

SET/CHECK

VIRTUALIZER

DISPLAY

q/h

4 VOL

128 kbps (stereo) is recommended.

Naming tracks and albums

Prefix with 3-digit numbers in the order you want to play

Extension

001track.mp3 (or.MP3)

Up to 31 characters for tracks and albums

If you created an album such as 004album on the left, the files may not play in order. The albums would play in the order À, Á, Â, Ã.

Album play

You can listen to tracks within albums.

ALBUM

Album play

ALBUM

Album repeat

ALBUM

Select the

album

• Skip the album

PLAY MODE

Select

ALBUM

“” or

ALBUM

“ &”

ALBUM

Start

ALBUM

q/h

play

Limitations on MP3

• This unit is compatible with multi-session but if there are a lot of sessions it takes more time for play to start. Keep the number of sessions to a minimum to avoid this.

• This unit cannot play files recorded using packet write.

• If the disc includes both MP3 and normal audio data (CD-DA), the unit plays the type recorded in the inner part of the disc. If the disc includes both MP3 and other types of audio data (e.g. WMA or WAV), the unit plays only the MP3.

• Depending on how you create MP3 files, they may not play in the order you numbered them or may not play at all.

• Upper case alphanumeric characters and an underbar “_” can be displayed on this unit. Lower case characters are converted to upper case.

Regarding CDs

Note on CD-R and CD-RW

This unit can play CD-R and CD-RW recorded with CD-DA or MP3. Use an audio recording disc for CD-DA and finalize The unit may not be able to play some discs due to the condition of the recording. ∗ A process performed after recording that enables CD-R/CD-RW players

to play audio CD-R and CD-RW.

Caution

Choose discs with this mark: Do not;

• use irregularly shaped CDs.

• attach extra labels and stickers.

• use CDs with labels and stickers that are coming off or with adhesive

exuding from under labels and stickers.

• attach scratch-proof covers or any other kind of accessory.

• write anything on the CD.

• clean CDs with liquids (Wipe with a soft, dry cloth.).

∗

it when you finish recording.

Page 7

Safety precautions

Caution for AC Mains Lead

Placement

Set the unit up on an even surface away from direct sunlight, high temperatures, high humidity, and excessive vibration. These conditions can damage the cabinet and other components, thereby shortening the unit’s service life.

Place it at least 15 cm away from wall surfaces to avoid distortion and unwanted acoustical effects.

Do not place heavy items on the unit.

Foreign matter

Do not let metal objects fall inside the unit. This can cause electric shock or malfunction.

Do not let liquids get into the unit. This can cause electric shock or malfunction. If this occurs, immediately disconnect the unit from the power supply and contact your dealer.

Do not spray insecticides onto or into the unit. They contain flammable gases which can ignite if sprayed into the unit.

Service

Do not attempt to repair this unit by yourself. If sound is interrupted, indicators fail to light, smoke appears, or any other problem that is not covered in these instructions occurs, disconnect the AC adaptor and contact your dealer or an authorized service center. Electric shock or damage to the unit can occur if the unit is repaired, disassembled or reconstructed by unqualified persons.

Extend operating life by disconnecting the unit from the power source if it is not to be used for a long time.

CLASS 1 LASER PRODUCT

LUOKAN 1 LASERLAITE KLASS 1 LASER APPARAT

(Back of product)

(For United Kingdom)

(“EB” area code model only)

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 3-ampere fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 3-ampere and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark or the BSI mark on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local dealer.

CAUTION!

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET.

If a new plug is to be fitted please observe the wiring code as stated below. If in any doubt please consult a qualified electrician.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code: Blue: Neutral, Brown: Live. As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black or Blue. The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Brown or Red.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH SYMBOL

OR COLOURED GREEN OR GREEN/YELLOW.

Inside of product Tuotteen sisällä Produktets innside

For the United Kingdom and Republic of lreland

www. panasonic.co.uk (for UK customers only)

• Order accessory and consumable items for your product with ease and confidence by telephoning our Customer Care Centre MonFriday 9:00am- 5:30pm. (Excluding public holidays.)

• Or go on line through our Internet Accessory ordering application.

• Most major credit and debit cards accepted.

• All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd.

• It couldn’t be simpler!

Customer Care Centre For UK customers: 08705 357357 For Republic of Ireland customers: 01 289 8333

Technical Support For UK customers: 0870 1 505610

This Technical Support Hot Line number is for Panasonic PC software related products only. For Republic of Ireland, please use the Customer Care Centre number listed above for all enquiries. For all other product related enquiries, please use the Customer Care Centre numbers listed above.

THIS PLUG IS NOT WATERPROOF–KEEP DRY.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below. Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

Figure A

2. Replace the fuse and close or attach the fuse cover.

Figure A

Fuse (3 ampere)

Figure B

Fuse cover

Figure B

Fuse (3 ampere)

Page 8

CAUTION!

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CAUTION!

• DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILTIN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.

• DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS.

• DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED CANDLES, ON THE UNIT.

• DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIENDLY MANNER.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

The socket outlet shall be installed near the equipment and easily accessible or the mains plug or an appliance coupler shall remain readily operable.

This product may receive radio interference caused by mobile telephones during use. If such interference is apparent, please increase separation between the product and the mobile telephone.

(For continental Europe, the United Kingdom, Australia and New Zealand)

THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.

(For other areas)

THIS UNIT IS INTENDED FOR USE IN TROPICAL CLIMATES.

SUOMI

TÄMÄ LAITE ON TARKOITETTU KÄYTETTÄVÄKSI LEUDOSSA ILMASTOSSA.

NORSK

DETTE APPARATET ER BEREGNET TIL BRUK UNDER MODERATE KLIMAFORHOLD.

Maintenance

To clean this unit, wipe with a soft, dry cloth.

• Never use alcohol, paint thinner or benzine to clean this unit.

• Before using chemically treated cloth, read the instructions that came with the cloth carefully.

SUOMI

VAROITUS!

LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1 YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE.

VAROITUS!

• ÄLÄ ASENNA TAI LAITA TÄTÄ LAITETTA KABINETTITYYPPISEEN KIRJAKAAPPIIN TAI MUUHUN SULJETTUUN TILAAN, JOTTA TUULETUS ONNISTUISI. VARMISTA, ETTÄ VERHO TAI MIKÄÄN MUU MATERIAALI EI HUONONNA TUULETUSTA, JOTTA VÄLTETTÄISIIN YLIKUUMENEMISESTA JOHTUVA SÄHKÖISKU- TAI TULIPALOVAARA.

• ÄLÄ PEITÄ LAITTEEN TUULETUSAUKKOJA SANOMALEHDELLÄ, PÖYTÄLIINALLA, VERHOLLA TAI MUULLA VASTAAVALLA ESINEELLÄ.

• ÄLÄ ASETA PALAVAA KYNTTILÄÄ TAI MUUTA AVOTULEN LÄHDETTÄ LAITTEEN PÄÄLLE.

• HÄVITÄ PARISTOT LUONTOA VAHINGOITTAMATTOMALLA TAVA LL A.

VAROITUS:

TULIPALO-, SÄHKÖISKUVAARAN TAI TUOTETTA KOHTAAVAN MUUN VAHINGON VÄHENTÄMISEKSI EI LAITETTA SAA ALTISTAA SATEELLE, KOSTEUDELLE, VESIPISAROILLE TAI ROISKEELLE, EIKÄ NESTETTÄ SISÄLTÄVIÄ ESINEITÄ, KUTEN ESIMERKIKSI MALJAKOITA, SAA ASETTAA LAITTEEN PÄÄLLE.

Laite tulee asettaa lähelle verkkopistorasiaa ja pistokkeen täytyy olla sellaisessa asennossa, että siihen on helppo tarttua ongelman sattuessa.

NORSK

ADVARSEL!

DETTE PRODUKTET ANVENDER EN LASER. BETJENING AV KONTROLLER, JUSTERINGER ELLER ANDRE INNGREP ENN DE SOM ER BESKREVET I DENNE BRUKSANVISNING, KAN FØRE TIL FARLIG BESTRÅLING. DEKSLER MÅ IKKE ÅPNES, OG FORSØK ALDRI Å REPARERE APPARATET PÅ EGENHÅND. ALT SERVICE OG REPARASJONSARBEID MÅ UTFØRES AV KVALIFISERT PERSONELL.

ADVARSEL!

• APPARATET MÅ IKKE PLASSERES I EN BOKHYLLE, ET INNEBYGGET KABINETT ELLER ET ANNET LUKKET STED HVOR VENTILASJONSFORHOLDENE ER UTILSTREKKELIGE. SØRG FOR AT GARDINER ELLER LIGNENDE IKKE FORVERRER VENTILASJONSFORHOLDENE, SÅ RISIKO FOR ELEKTRISK SJOKK ELLER BRANN FORÅRSAKET AV OVERHETING UNNGÅS.

• APPARATETS VENTILASJONSÅPNINGER MÅ IKKE DEKKES TIL MED AVISER, BORDDUKER, GARDINER OG LIGNENDE.

• PLASSER IKKE ÅPEN ILD, SLIK SOM LEVENDE LYS, OPPÅ APPARATET.

• BRUKTE BATTERIER MÅ KASSERES UTEN FARE FOR MILJØET.

ADVARSEL:

FOR Å REDUSERE FAREN FOR BRANN, ELEKTRISK STØT ELLER SKADER PÅ PRODUKTET, MÅ DETTE APPARATET IKKE UTSETTES FOR REGN, FUKTIGHET, VANNDRÅPER ELLER VANNSPRUT. DET MÅ HELLER IKKE PLASSERES GJENSTANDER FYLT MED VANN, SLIK SOM BLOMSTERVASER, OPPÅ APPARATET.

Utstyret bør plasseres i nærheten av AC-stikkontakten, og støpslet må være lett tilgjengelig hvis det skulle oppstå problemer.

Specifications

g Main unit

Radio

Frequency range

FM 87.50–108.00 MHz (50 kHz steps) AM 522–1629 kHz (9 kHz steps)

CD player

Sampling frequency 44.1 kHz Decoding 16 bit linear Beam source

(For Norge) Bølgelengde 780 nm Laserstyrke Ingen farlig stråling sendes ut

Number of channels 2 channel, stereo Wow and flutter

D/A converter MASH (1 bit DAC)

Semiconductor laser (wavelength 780 nm)

(med sikkerhets-beskyttelse)

Less than possible mesurement data

Terminals

Input AUX: 3.5 mm stereo (27 kΩ) Output PHONES: 3.5 mm stereo (32 Ω)

General

Power supply (For continental Europe, the United Kingdom, Australia and New Zealand) AC 230 - 240 V, 50 Hz (For other areas) AC 220 - 240 V, 50/60 Hz

AC adaptor DC 13 V, 1.5 A Power consumption 30 W Dimensions (W × H × D) 240 × 216 × 170 mm

Mass

With speakers 3.0 kg

Without speakers 1.6 kg

gSpeakers

Full range 8 cm, 3 Ω × 2 Ceramic tweeter 1.52 cm × 2 Dimensions (W × H × D) 107 × 230 × 165 mm

Power consumption in standby mode: (For continental Europe, the United Kingdom, Australia and New Zealand) 2.6 W (For other areas) 1.9 W

Note

Specifications are subject to change without notice. Mass and dimensions are approximate.

MPEG Layer-3 audio decoding technology licensed from Fraunhofer IIS and Thomson multimedia.
