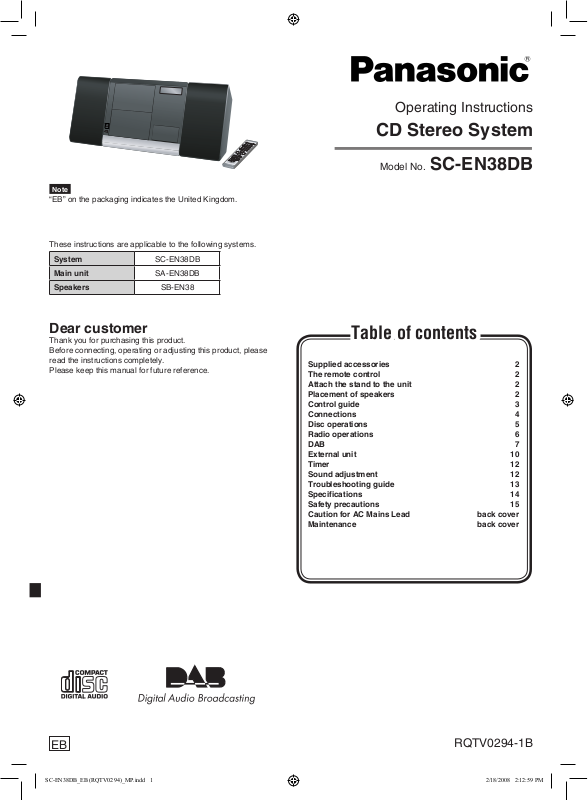

Panasonic SC-EN38DB Operating Instructions

Note

“EB” on the packaging indicates the United Kingdom.

These instructions are applicable to the following systems.

System SC-EN38DB

Main unit SA-EN38DB

Speakers SB-EN38

Operating Instructions

CD Stereo System

Model No. SC-EN38DB

Dear customer

Thank you for purchasing this product.
Before connecting, operating or adjusting this product, please
read the instructions completely.
Please keep this manual for future reference.

Table of contents

Supplied accessories 2
The remote control 2
Attach the stand to the unit 2
Placement of speakers 2
Control guide 3
Connections 4
Disc operations 5
Radio operations 6
DAB 7
External unit 10
Timer 12
Sound adjustment 12
Troubleshooting guide 13
Specifications 14
Safety precautions 15
Caution for AC Mains Lead back cover
Maintenance back cover

EB

RQTV0294-1B

2

RQTV0294

3

2

1

4

Supplied accessories

Please check and identify the supplied accessories.

Use numbers indicated in parentheses when asking for replacement parts.
(Product numbers correct as of January 2008. These may be subject to change.)

1 Remote control

(N2QAYB000245)

1 DAB “T” antenna

Note

The included AC mains lead is for use with this unit only. Do not use it with other equipment.

•
Do not use an AC mains lead from other equipment.

•

1 FM antenna

1 AC mains lead

(RFAX0025)(N1EADY000001)

The remote control

■ Batteries

Insert so the poles (+ and – ) match those

•
in the remote control.
Do not use rechargeable type batteries.

•
Do not heat or expose to flame.

•
Do not leave the battery(ies) in an

R6/LR6, AA

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instructions.

•
automobile exposed to direct sunlight for a
long period of time with doors and windows
closed.

Remote control signal sensor

1 Support stand

(RYQX0512-H)(REXV0088A-1)

2 Batteries

■ Use

Aim at the sensor, avoiding

•
obstacles, at a maximum range
of 7 m directly in front of the unit.
Operation can be affected by

•
strong light sources, such as
direct sunlight, and the glass
doors on cabinets.

Attach the stand to the unit

Support stand

(included)

Placement of speakers

Speakers are designed identically so that no
left or right channel orientation is necessary.

Rear of the main unit

Insert the stand fully until
a click sound is heard.

Note

Keep your speakers at least 10 mm away from

•
the system for proper ventilation.
These speakers do not have magnetic

•
shielding. Do not place them near televisions,
personal computers or other devices easily
influenced by magnetism.
You cannot take the front net off the speakers.

•

Ensure the stand is securely attached to the main unit
for stabilization.

Note

The supplied stand is specially designed for use

•
with this unit.
Only use as indicated in this setup.

•

Caution

Use the speakers only with the recommended

•
system. Failure to do so may lead to damage
to the amplifier and/or speakers, and may
result in the risk of fire. Consult a qualified
service person if damage has occurred or if you
experience a sudden change in performance.
Do not attach these speakers to walls or

•
ceilings.

3

RQTV0294

Control guide

28

27

10

22

8
9

30

31

20

29

2

17

26

1

2

3

8

7

6

5

4

10

14

13

12

11

15

9

19

18

17

16

20

22

23
24
25

21

[SLEEP] Sleep timer setting (12)

1

2

Standby/on switch [^], [8] (5, 12)

Press to switch the unit from on to standby mode
or vice versa.
In standby mode, the unit is still consuming a
small amount of power.

[CLOCK/TIMER] Clock and Timer setting (12)

3

[PGM, -AUTO PRESET] (5, 6, 8)

4

CD/MP3 Program, Tuner Preset (Manual)
[Long press] Tuner Preset (Auto)

[CLEAR] CD/MP3/USB: Delete all programs (5)

5

[q/h, OPTION] (11)

6

Selector switch to Bluetooth
Direct Bluetooth Play/Bluetooth Pause

7

[DEL] Delete last programmed track (5)

[DAB/FM/MUSIC P.] (4, 6, 7, 11)

8

DAB/FM/MUSIC PORT select button

[iPod q/h] (10)

9

Selector switch to iPod
Direct iPod Play/iPod Pause

10

[VOL-], [+VOL], [VOLUME -, +] (5, 10, 11, 12)

To adjust the volume

[ , , ALBUM] (5, 8, 9, 11, 14)

11

MP3:

Previous/Next Album

DAB Menu Selection

[ENTER] (5, 8, 9, 14)

12

MP3/USB: Confirm track selection during

Program Mode
Confirm DAB Menu Selection

[SOUND] Sound mode selection (12)

13

[DAB MENU] (8, 9, 14)

14

Enter/cancel DAB Menu mode

[DAB SECONDARY] (8)

15

Select the secondary service

(12) Play timer on/off [z PLAY]

(5) Open and Close CD lid [;, OPEN/CLOSE]

(5, 6, 8, 11) Numbered buttons [1-9, 0, ≧10]

To select a 2-digit number

e.g. 16: [≧10]  [1]  [6]

To select a 3-digit number

e.g. 226: [≧10]  [≧10]  [2]  [2]  [6]

(5) [CD q/h]

Selector switch to CD

Direct CD Play/CD Pause

(11) [USB q/h]

Selector switch to USB

Direct USB Play/USB Pause

(5, 10, 11) Stop button [g]

[u, 2], [i, 1], [2/u], [1/i]

(5, 6, 7, 8, 10, 11, 12)

CD: Skip/Search
MP3/USB: Track Skip
Tuner: Tune up/down

[Long press] Auto tuning

(5, 7, 8) Play mode button [PLAY MODE]

(5) Repeat on/off [REPEAT]

(5, 8, 11) [DISPLAY]

CD: CD Display (Elapsed play time/Remaining

play time)

MP3: MP3 Display [Elapsed time/Album name/

Track name/ID3 (Album)/ID3 (Track)/ID3 (Artist)]

USB: USB Display [Elapsed time/Remaining

time/Album name/Track name/ID3 (Album)/ID3

(Track)/ID3 (Artist)]

DAB: DAB Display (Dynamic label/PTY display/

Ensemble label/Frequency display/Time display)

16

17

18

19

20

21

22

23

24

25

Push to open the lid.

Remote control signal sensor

Built-in iPod Dock

USB port

Music port jack

(5) [CD q/g]

Selector switch to CD

CD Play/Stop button

Display

26

27

28

29

30

31

4

RQTV0294

1

3

4

2

1

2

Connections

➡ Page 3 for the buttons position of remote control and main unit.

Speakers

1

Red Black

Red (+)Black (-)

FM antenna

3

Taped part

FM antenna

Unplug the antenna connector by holding the
taped part.

DAB “T” antenna

2

The cross bar of the T should be kept firmly stretched.
Find a position with good reception.
There is a function on the unit to check signal quality. (refer to page 9)

Be sure to fully
tighten the screw.

For best reception

A DAB outdoor antenna is recommended. (refer to page 7)

AC mains lead

4

READ THE CAUTION FOR THE AC
MAINS LEAD ON BACK COVER
BEFORE CONNECTION.

To household AC mains socket

Connect the AC mains lead after all other connections are complete.

Note

If the unit is left unplugged for longer than approximately two weeks, all settings will revert to the
factory settings.
Remember to reset the radio stations and any other memory items before using the unit again.

Adhesive
tape

PC Sync

Connect your PC to the PC Sync port.

➡ Refer to page 10 for further information.

iPod connection

Insert your iPod into the Built-in iPod
Dock.

➡ Refer to page 10 for further information.

Portable audio equipment (Cords and equipment not included)

Portable audio player Plug type: 3.5 mm stereo

Note

Adjust the volume and sound quality of this unit and the other equipment.

•
For details, refer to the instruction manual of the other equipment.

•

Headphones (not included)

Bluetooth connection

Connect the Bluetooth Receiver to the option port.

➡ Refer to page 11 for further information.

USB connection

Connect your USB enabled device to the USB port.

➡ Refer to page 11 for further information.

Start playback from the
portable audio source.

Reduce the volume level and connect the
headphones.
Plug type: 3.5 mm stereo.

Note

To prevent hearing damage, avoid

•
listening for prolonged periods of time.
Excessive sound pressure from

•
earphones and headphones can cause
hearing loss.

MAIN UNIT REMOTE CONTROL

➡

5

RQTV0294

Disc operations

PGM

➡ Page 3 for the buttons position of remote control and main unit.

Basic play

 Press [8] to turn the unit on.
 Press [;, OPEN/CLOSE] to open the CD lid and then set the CD in

place.
Press [;, OPEN/CLOSE] again to close the lid.

Keep fingers away from the CD lid when it is closing to avoid possible
minor injury.

Label must face outward.
Press until you hear it click into place.

 Press [CD q/g] to start play.
 Adjust the volume.

Note

Be sure to press the [;, OPEN/CLOSE] button to open and close the

•
CD lid.
Damage may occur if the lid is forced closed.

•
During standby, if the CD is ready in the unit, the unit comes on and

•
play begins. (One touch play)

Stop

Pause

Skip/Search

Skip album Press [ or , ALBUM] in the play mode.

MP3

Direct access
play

(Play starts with
the track you
select.)

Press [g].

Press [CD q/h]. Press again to resume play.

Press [u, 2] or [i, 1] to skip.
Press and hold [u, 2] or [i, 1] to search.

Note

You can search during play or while paused.

•
You cannot search through MP3 files.

•
You can only search within the current track during

•
program play, one track repeat, and random play.

Press [ or , ALBUM] once and then the numbered
buttons in the stop mode.

CD

Press the numbered buttons to select the

desired track.

MP3

 Press [ or , ALBUM] to select the album.
 Press [i, 1] once and then press the numbered

buttons to select the desired track.

Repeat play

You can repeat program play or other selected play mode.

Press [REPEAT] before or during play.

“REPEAT ON” and “ & ” are displayed.

To cancel

Press [REPEAT] again.

“REPEAT OFF” is displayed and “ & ” is cleared.

Display function

This function allows you to display the information of the current track.

Press [DISPLAY] repeatedly during play or pause.

CD

MP3

Note

Maximum number of displayable characters: approximately 30.

•
This unit supports ver. 1.0 & 1.1 ID3 tags. Text data that is not

•
supported will not be displayed.
ID3 is a tag embedded in MP3 tracks to provide information about the

•
track.

Elapsed play time Remaining play time

Elapsed time Album name Track name

ID3 (Artist) ID3 (Track) ID3 (Album)

Program play

The function allows you to program up to 24 tracks.

CD

 Press [PGM, -AUTO PRESET] while stopped.
 Press the numbered buttons to select tracks. (Maximum 24 tracks)

Repeat this step to program other tracks.

 Press [CD q/h] to start play.

Track number Program number

MP3

 Press [PGM, -AUTO PRESET] while stopped.
 Press [ or , ALBUM] to select your desired album.
 Press [i, 1] once and then press the numbered buttons to

select tracks. (Maximum 24 tracks)

 Press [ENTER].

Repeat step 2 to 4 to program other tracks.

 Press [CD q/h] to start play.

Album number Track number

g Confirm a

programmed
track

g Delete the last

track

g Delete all

programs

g Cancel program

mode

Note

Program contents are stored in the unit’s memory even after changing to
a different function or turning the unit off. All program contents are erased
by pressing [CLEAR] or by opening the CD lid.

Press [u, 2] or [i, 1] when “PGM” is
displayed in the stop mode. To check while
programming, press [PGM, -AUTO PRESET]
twice after “PGM” appears, then press [u, 2]
or [i, 1].

Press [DEL] in the stop mode.

Press [CLEAR] in the stop
mode.
“CLR ALL” is displayed.

Press [PGM, -AUTO PRESET] in the stop mode
to clear “PGM” indicator from the display.

Play Mode function

Press [PLAY MODE] to select the desired mode.

Mode To play

1-TRACK

1TR

1-ALBUM

1ALBUM

RANDOM

RND

1-ALBUM
RANDOM

1ALBUM RND

Note

During random play, you cannot skip to previous track.

one selected track on the disc.
Press the numbered buttons to select the track.

MP3

one selected album on the disc.
Press [ or , ALBUM] to select the album.

a disc randomly.

all tracks in one selected album randomly.

MP3

Press [ or , ALBUM] to select the album.

6

RQTV0294

Disc operations (continued)

Note on CD-R and CD-RW

This unit can play CD-R and CD-RW recorded with CD-DA or MP3. Use an
audio recording disc for CD-DA and finalize* it when you finish recording.
The unit may not be able to play some discs due to the condition of the
recording.
* A process performed after recording that enables CD-R/CD-RW players to
play audio CD-R and CD-RW.

Caution

Choose discs with this mark:
Do not:

use irregularly shaped CDs.

•
attach extra labels and stickers.

•
use CDs with labels and stickers that are coming off

•
or with adhesive exuding from under labels and stickers.
attach scratch-proof covers or any other kind of accessory.

•
write anything on the CD.

•
clean CDs with liquids (Wipe with a soft, dry cloth.).

•

Radio operations

➡ Page 3 for the buttons position of remote control and main unit.

MP3

The unit can play MP3, a method of compressing audio without overly
hurting audio quality.

When creating MP3 files to play on this unit

Maximum number of tracks and albums: 999 tracks and 256 albums.

•
Compatible compression rate: Between 64 kbps and 320 kbps (stereo).

•

•

Disc formats: ISO9660 level 1 and level 2 (except for extended formats).
The time for reading TOC depends on the number of the tracks, the

•
folders or folder structures.

128 kbps (stereo) is recommended.

Limitations on MP3

This unit is compatible with multi-session but if there are a lot of sessions

•
it takes more time for play to start. Keep the number of sessions to a
minimum to avoid this.
This unit cannot play files recorded using packet write.

•
If the disc includes both MP3 and normal audio data (CD-DA), the unit

•
plays the type recorded in the inner part of the disc.
If the disc includes both MP3 and other types of audio data (e.g. WMA or
WAV), the unit plays only the MP3.
Depending on how you create MP3 files, they may not play in the order

•
you numbered them or may not play at all.

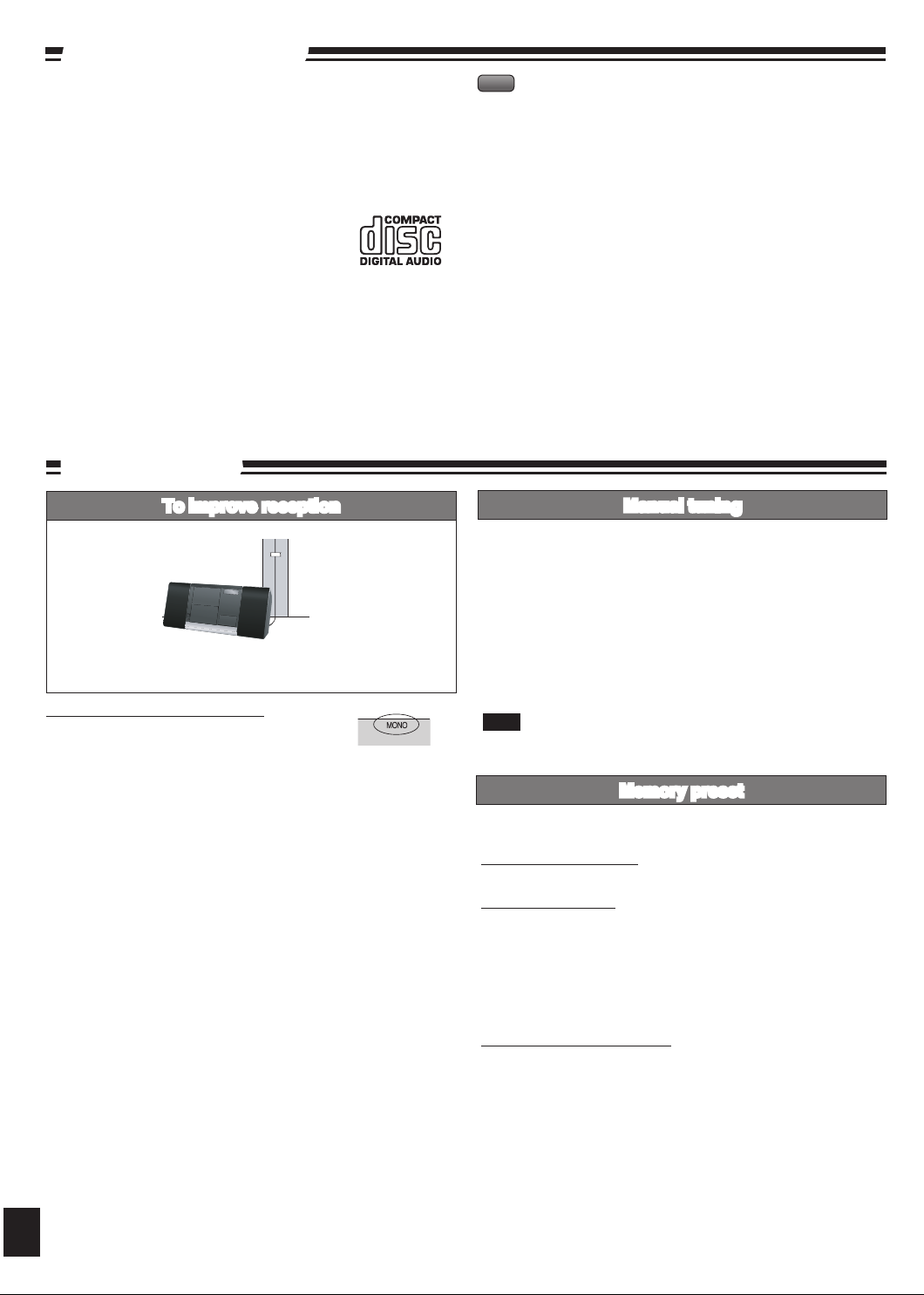

To improve reception

FM

Receive the radio stations after connecting the antenna. Then attach the
antenna cord to a wall or pillar where there is good reception.

To improve FM sound quality

Press and hold [PLAY MODE] to display “MONO”.

To cancel

Press and hold [PLAY MODE] again until “MONO” disappears.

“MONO” is also canceled if the frequency is changed.

•
Turn off “MONO” for normal listening.

•

Manual tuning

 Press [DAB/FM/MUSIC P.] to select “FM”.
 Press [PLAY MODE] to select “MANUAL”.
 Press [u, 2] or [i, 1] to select the frequency of the required

station.

To tune automatically

 Press [DAB/FM/MUSIC P.] to select “FM”.
 Press [PLAY MODE] to select “MANUAL”.
 Press and hold [u, 2] or [i, 1] until the frequency starts

changing rapidly.

Auto tuning stops when it finds a station.

•

To cancel auto tuning, press [u, 2] or [i, 1] once again.

•

Note

Auto tuning may not function when there is excessive interference.

Memory preset

You can preset up to 30 FM channels.

Preparation: Press [DAB/FM/MUSIC P.] to select “FM”.

Automatic presetting

Press and hold [PGM, -AUTO PRESET] to start presetting.

Manual presetting

 Press [PLAY MODE] to select “MANUAL”.
 Press [u, 2] or [i, 1] to tune to the required station.
 Press [PGM, -AUTO PRESET].
 Press the numbered buttons to select a channel.

The station occupying a channel is erased if another station is preset in
that channel.

 Repeat steps 2 to 4 to preset more stations.

Selecting a preset station

Press the numbered buttons to select the channel.

For channels 10 to 30 press [≧10], then the two digits.

OR

 Press [PLAY MODE] to select “PRESET”.
 Press [u, 2] or [i, 1] to select the channel.

7

RQTV0294

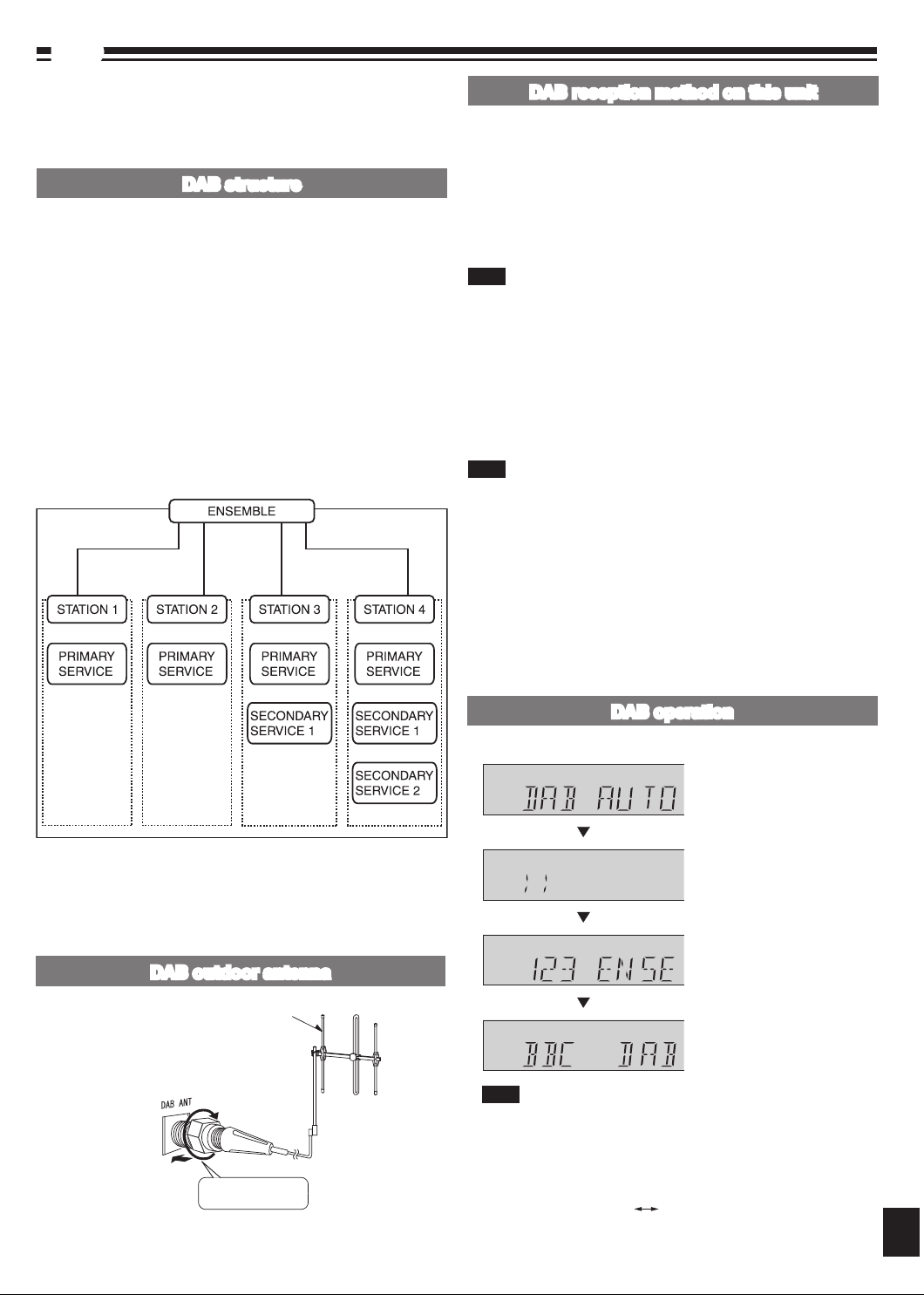

DAB

Be sur e to fully
tighten the screw.

DAB outdoor antenna

(not included)

DAB

DAB

DAB

DAB

DAB stands for digital audio broadcasting. It is a new form of radio that
is broadcast digitally. Unlike regular analogue broadcasting, digital radio
deteriorates less, and is thus able to provide quality sound close to that of
a disc.

DAB structure

Bands

There are two types of DAB bands, “BAND III” (Receivable in this unit) and
“L BAND” (Not broadcast in the United Kingdom, and not receivable on this
unit).

Frequencies

There are 41 frequencies on BAND III. Among those frequencies, 7 are
used in the United Kingdom (current as of January, 2008).

Ensemble, station and service

The number of stations that make up one frequency differ between
DAB and analogue radio. Analogue stations all broadcast on different
frequencies, even if it is the same company doing the broadcasting. With
DAB however, it is possible to broadcast a number of stations on the same
frequency.
In DAB terminology, a group of stations on the same frequency is called an
ensemble.

DAB reception method on this unit

Depending on the region there is a difference between broadcast frequency
and stations broadcast along the same frequency. For this reason, a
memory of receivable stations should first be created and then selected
from those memorized stations as the reception method.

DAB Auto Scan

This function searches for currently receivable stations and inputs them into
unit memory.
When DAB is selected for the first time, this function starts automatically.

Note

Even if the station is stored into memory, some stations may not broadcast
depending on the time of day etc. If this occurs, “NO SERVICE” is
displayed.

Station Memory Updating

When there is a station name change, or a new station begins
broadcasting, the unit memory is automatically updated when:

The previous station name is displayed by selecting “STATION TUNE”.

•
One of the stations already broadcasting on the same frequency with the

•
new station is displayed by selecting “STATION TUNE”.

Note

Deleting stations that are no longer broadcasting is not automatic. If you

•
want to delete a station, perform Auto scan again and the new memory
is created.
When a new frequency begins broadcasting, stations on the new

•
frequency are not automatically added to memory. Perform Auto scan
to add them to memory. Also, you may need to change the Auto scan
range if the new frequency is outside the factory set Auto scan range
(➡ page 9).

As shown in the diagram, an ensemble consists of a group of stations which
have primary services, they can also have secondary services. This means,
for example, that commentary on sports events from different areas can all
be broadcast at once.

Never use an outdoor antenna during a lightning storm.•

DAB outdoor antenna

DAB outdoor antenna

(not included)

Be sure to fully
tighten the screw.

STATION TUNE

You can select stations from the memory created as shown above in
alphanumeric order. You can easily select your favorite stations by using
presets (➡ page 8).

DAB operation

 Press [DAB/FM/MUSIC P.] to enter DAB mode.

The unit comes on.

If you are selecting DAB for the
first time, “DAB Auto Scan...”
is displayed, stations that
are currently receivable are
memorized.

When a frequency is tuned the
ensemble corresponding to the
frequency is displayed.

The station first in alphanumeric
order is broadcast.

Note

“SCAN FAILED” appears if no stations are memorized. If this occurs,
adjust the antenna and try Auto scanning or change the Auto scan
frequency range (➡ page 9 ).

 Press [PLAY MODE] to select “STATION TUNE”.

Each time you press the button:

“STATION TUNE” “PRESET TUNE”

 Press [u, 2] or [i, 1] to select a station.

The station name changes in alphanumeric order.

8

RQTV0294

DAB

DAB

DAB

DAB

DAB

DAB

DAB

DAB (continued)

DAB Auto Scan

Press and hold [PLAY MODE] until “DAB AUTO SCAN” appears.

When a frequency is tuned by Auto scanning on this unit, the ensemble
corresponding to the frequency is displayed for approximately 2 seconds.

Note

When updating memory with Auto scan, preset stations are not erased

•
or changed.
When a frequency cannot be received, the previous memory is restored.

•
Total stations received is displayed for approximately 2 seconds.

•

Presetting

Presetting channel

Up to 20 channels can be set.

 Press [u, 2] or [i, 1] to select a station.
 Press [PGM, -AUTO PRESET].
 Press the numbered buttons to select a channel.
 To preset more stations, press [PLAY MODE] to select “STATION

TUNE” and then repeat steps 1 to 3.

Note

You cannot preset stations when the station is not broadcasting or when
you are selecting a secondary service.

Selecting a preset channel

 Press [PLAY MODE] to select “PRESET TUNE”.

 Press [u, 2] or [i, 1] or numbered buttons to select a channel.

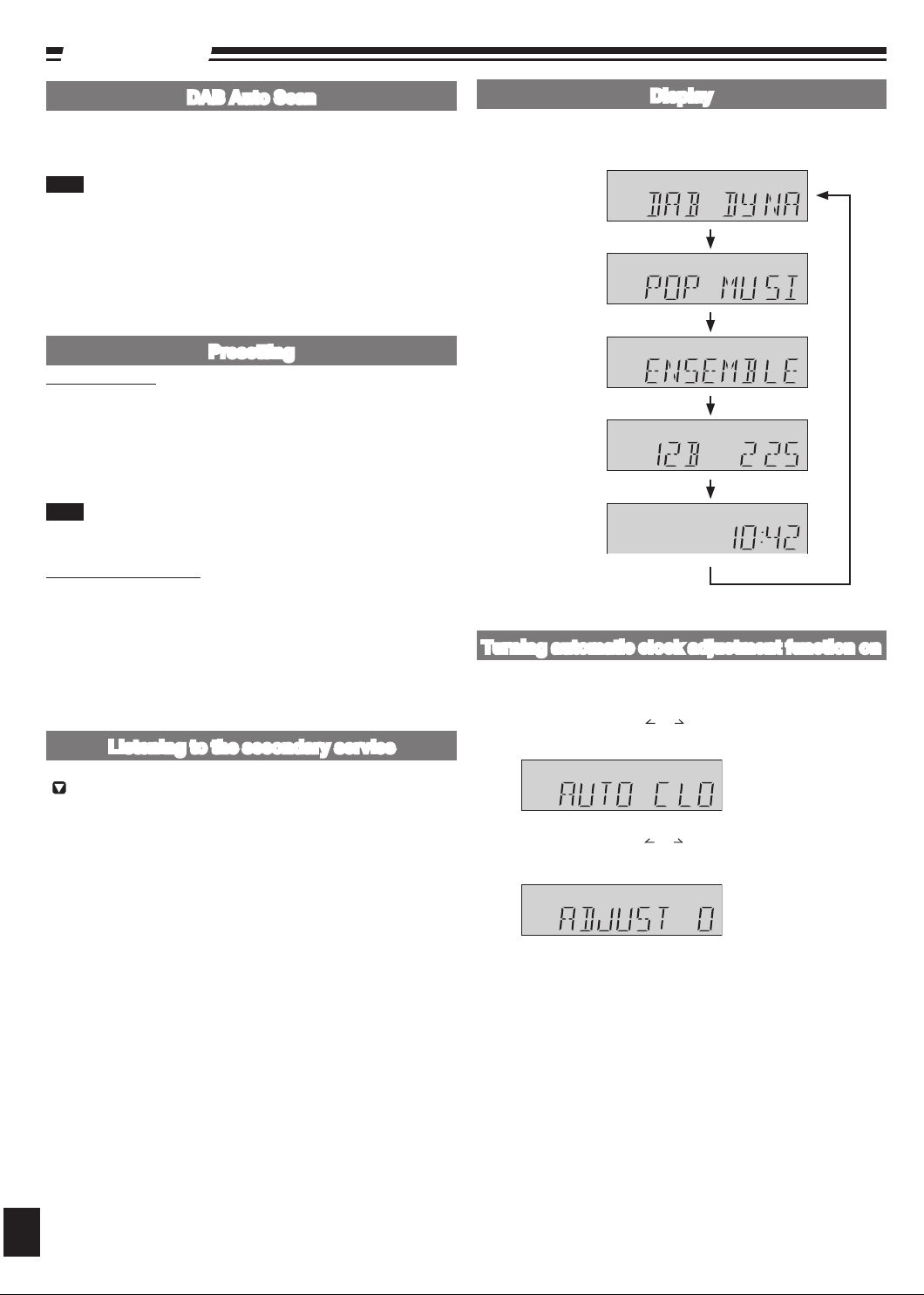

Display

Press [DISPLAY] to select the display.

The information scroll through the display.
Each time you press the button:

Dynamic label

(information about
the broadcast)

PTY display

(program type)

Ensemble label

(the name of the
ensemble)

Frequency display

Time display

Listening to the secondary service

Press the [DAB SECONDARY] to select the secondary service.

“ ” is displayed if there is a secondary service broadcast.

The secondary services are selected each time the button is pressed. The
primary service is returned to after the last secondary service.

Turning automatic clock adjustment function on

To adjust the time information during DAB broadcasting and automatic time
adjustment.

 Press [DAB MENU] to enter menu mode.
 Within 10 seconds, press [ or , ALBUM] to select “AUTO CLOCK

ADJ.” and then press [ENTER].

 Within 10 seconds, press [ or , ALBUM] to select “ADJUST ON”

and then press [ENTER].

Select “ADJUST OFF” to turn the automatic clock adjustment function off.

To exit

Press [DAB MENU] again.

9

RQTV0294

DAB

DAB

DAB

DAB

DAB

DAB

DAB (continued)

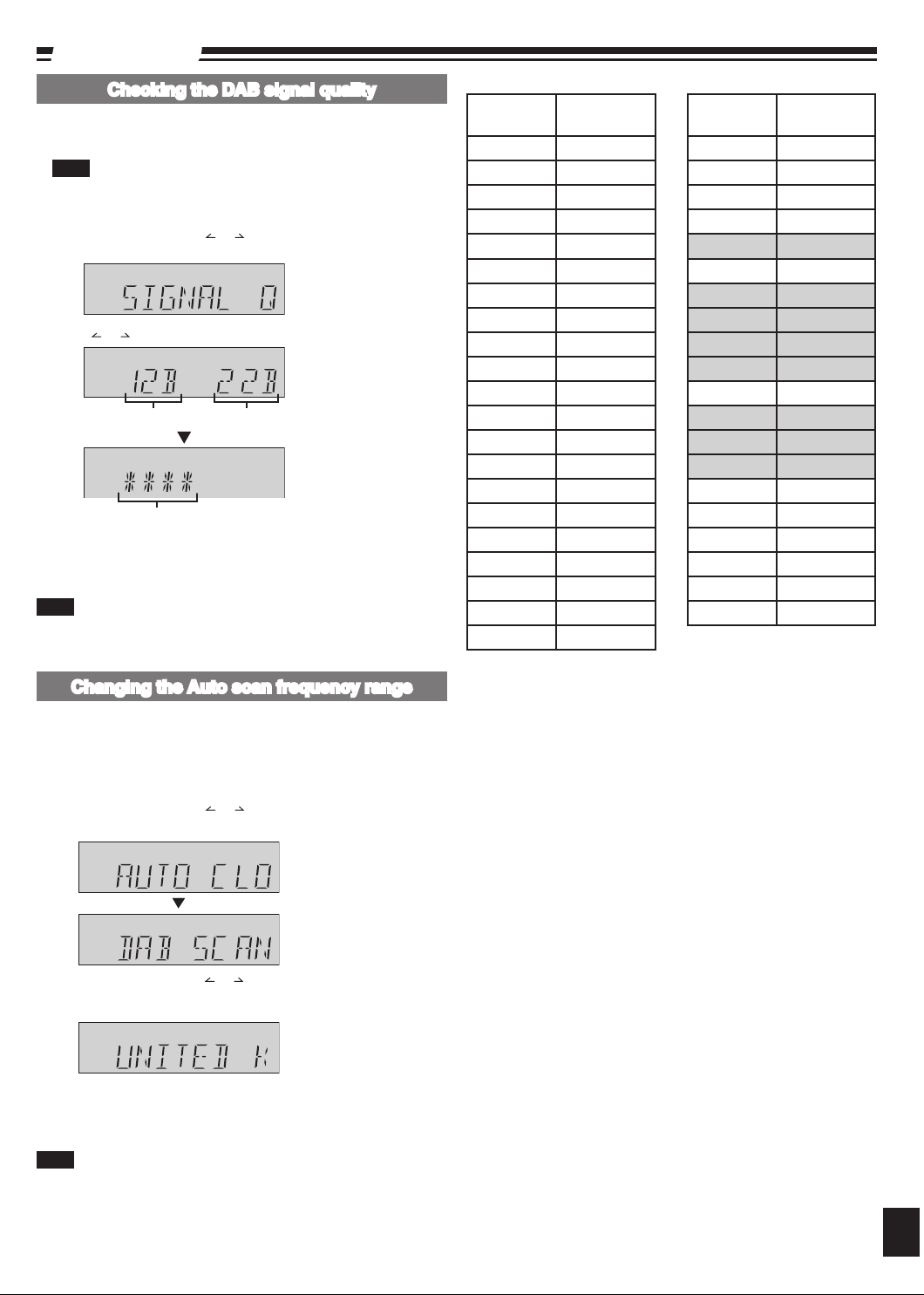

Checking the DAB signal quality

To improve reception by adjusting the antenna while monitoring signal
quality on the display.

 Press [DAB MENU] to enter menu mode.

Note

“SCAN FAILED” appears if no stations are memorized. If this occurs,
adjust the antenna and try Auto scanning or change the Auto scan
frequency range.

 Within 10 seconds, press [ or , ALBUM] to select “SIGNAL

QUALITY” and then press [ENTER].

 Press [ or , ALBUM] to select the frequency.

Frequency block Frequency

Reception quality
0 (poor) - 8 (excellent)

To exit

Press [DAB MENU] again.

Note

In order to enjoy the new stations after adjusting the antenna, it is
necessary to perform Auto scanning and update the station memory.

Changing the Auto scan frequency range

Only the frequencies currently used in the UK as of March 2007 on BAND
III are Auto scanned (“United Kingdom”, factory setting).
Select “ALL BAND III” when you want to store stations on other frequencies
to memory.

ALL BAND III Frequency

Frequency

block

5A 174.928 10N 210.096

5B 176.640 10B 211.648

5C 178.352 10C 213.360

5D 180.064 10D 215.072

6A 181.936 11A 216.928

6B 183.648 11N 217.088

6C 185.360 11B 218.640

6D 187.072 11C 220.352

7A 188.928 11D 222.064

7B 190.640 12A 223.936

7C 192.352 12N 224.096

7D 194.064 12B 225.648

8A 195.936 12C 227.360

8B 197.648 12D 229.072

8C 199.360 13A 230.784

8D 201.072 13B 232.496

9A 202.928 13C 234.208

9B 204.640 13D 235.776

9C 206.352 13E 237.488

9D 208.064 13F 239.200

10A 209.936

Shaded areas are frequencies used currently as of January 2008 in the
“United Kingdom”.

Frequency

(MHz)

Frequency

block

Frequency

(MHz)

 Press [DAB MENU] to enter menu mode.
 Within 10 seconds, press [ or , ALBUM] to select “DAB SCAN

MODE” and then press [ENTER].

 Within 10 seconds, press [ or , ALBUM] to select “UNITED

KINGDOM” or “ALL BAND III” and then press [ENTER].

Auto scan begins automatically after the change has been made.

To exit

Press [DAB MENU] again.

Note

When the “DAB SCAN MODE” is changed, the DAB preset channels are
erased and if the DAB play timer has been set the timer switches to off.

10

RQTV0294

External unit

3

2

1

➡ Page 3 for the buttons position of remote control and main unit.

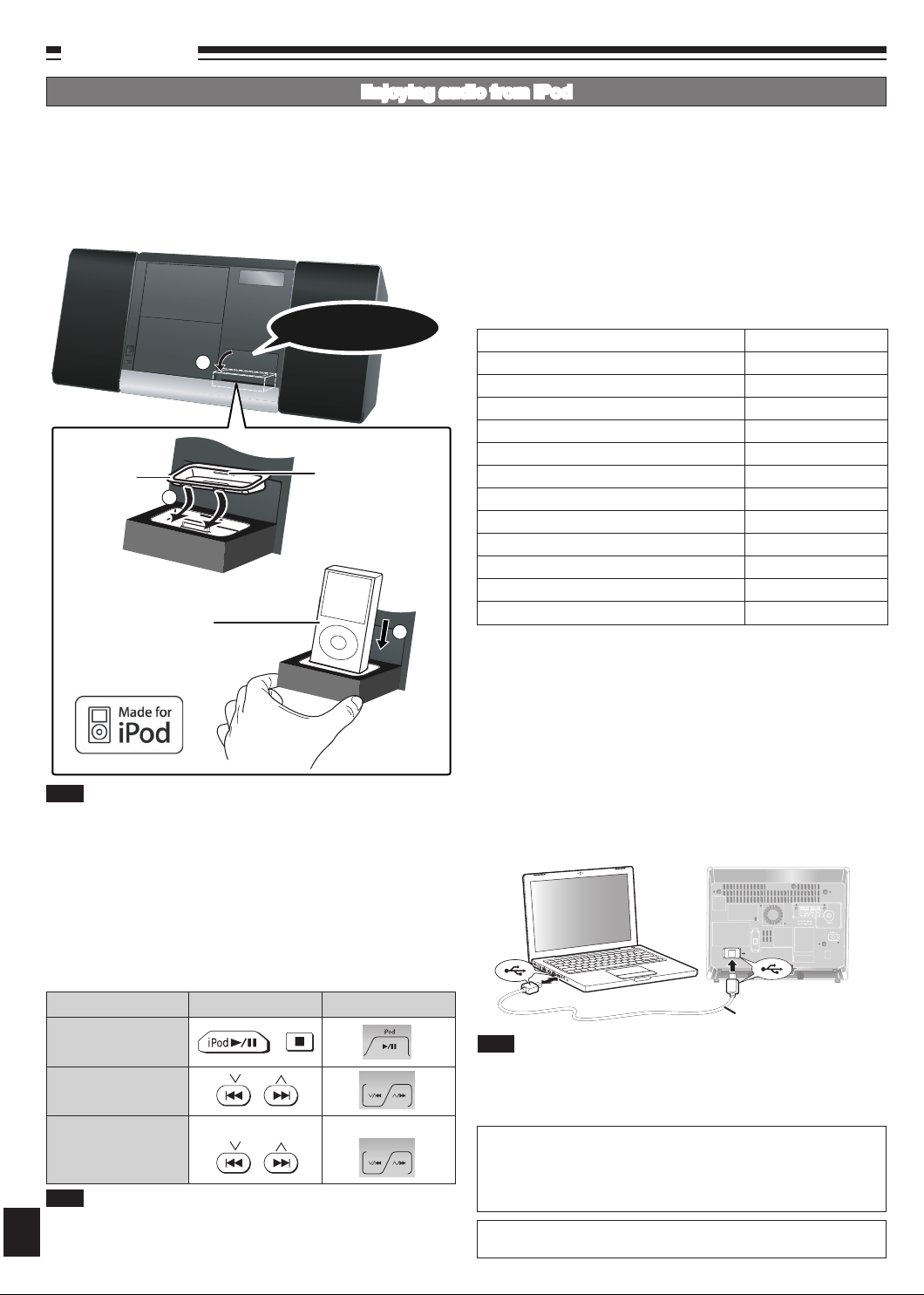

Enjoying audio from iPod

g Inserting the iPod

 Push to open the Built-in iPod Dock and then press down until a

click sound is heard.

 Insert the suitable dock adapter for your iPod.
 Insert your iPod into the dock.

Hold the dock when connecting/disconnecting the iPod.

•

Recharging starts when the iPod is inserted.

•

Push and then

press down.

Dock adapter

(not included)

iPod

(not included)

When removing, insert
your fingernail or a flat
object and lift upwards.

g Charging the iPod

iPod will start recharging regardless of whether this unit is in On or

•
Standby condition.
“IPOD ” will be shown on the main unit’s display during iPod charging

•
in main unit standby mode.
Check iPod to see if the battery is fully recharged.

•
If you are not using iPod for an extended period of time after recharging

•
has completed, disconnect it from main unit, as the battery will be
depleted naturally. (Once fully recharged, additional recharging will not
occur.)

■ Compatible iPod

Name Memory size

iPod touch 8GB, 16GB

iPod nano 3rd generation (video) 4GB, 8GB

iPod classic 80GB, 160GB

iPod nano 2nd generation (aluminum) 2GB, 4GB, 8GB

iPod 5th generation (video) 60GB, 80GB

iPod 5th generation (video) 30GB

iPod nano 1st generation 1GB, 2GB, 4GB

iPod 4th generation (colour display) 40GB, 60GB

iPod 4th generation (colour display) 20GB, 30GB

iPod 4th generation 40GB

iPod 4th generation 20GB

iPod mini 4GB, 6GB

Compatibility depends on the software version of your iPod.•

Note

It is recommended to use the dock adapter from Apple.

g Playing the iPod

Preparation:

Reduce the volume of the main unit.

•
Confirm the iPod connection. (➡ above)

•
Confirm the USB cable is removed. (➡ PC Sync, right)

•

 Press [iPod q/h] to play the iPod.
 Adjust the volume of the main unit.

To pause track

To skip a track
(During play/pause)

To search the current
track
(During play/pause)

Note

When you select another source or turn the main unit off, the iPod turns off.

Remote control Main unit

press and hold press and hold

g PC Sync

Enables data synchronization between PC and iPod without unplugging
iPod from the set.

Preparation:

Confirm the iPod is well inserted into the dock. (➡ left)

 Connect your PC to the main unit through USB cable. (PC will

automatically detect iPod.)
To transfer songs to iPod, refer to iPod instruction manual.

 Before disconnecting the USB cable, make sure the procedure of

safe eject of hardware from PC is done.

USB cable (not included)

Note

PC Sync will function only when the main unit is in Standby or On condition.

Recording and operating problems may occur on some computer
systems.
Please note that Panasonic and Panasonic dealers cannot be held liable
for any lost audio data or other direct or indirect damage except in cases
of intentional or gross negligence.

iPod is a trademark of Apple Inc., registered in the U.S. and other
countries.

11

RQTV0294

External unit (continued)

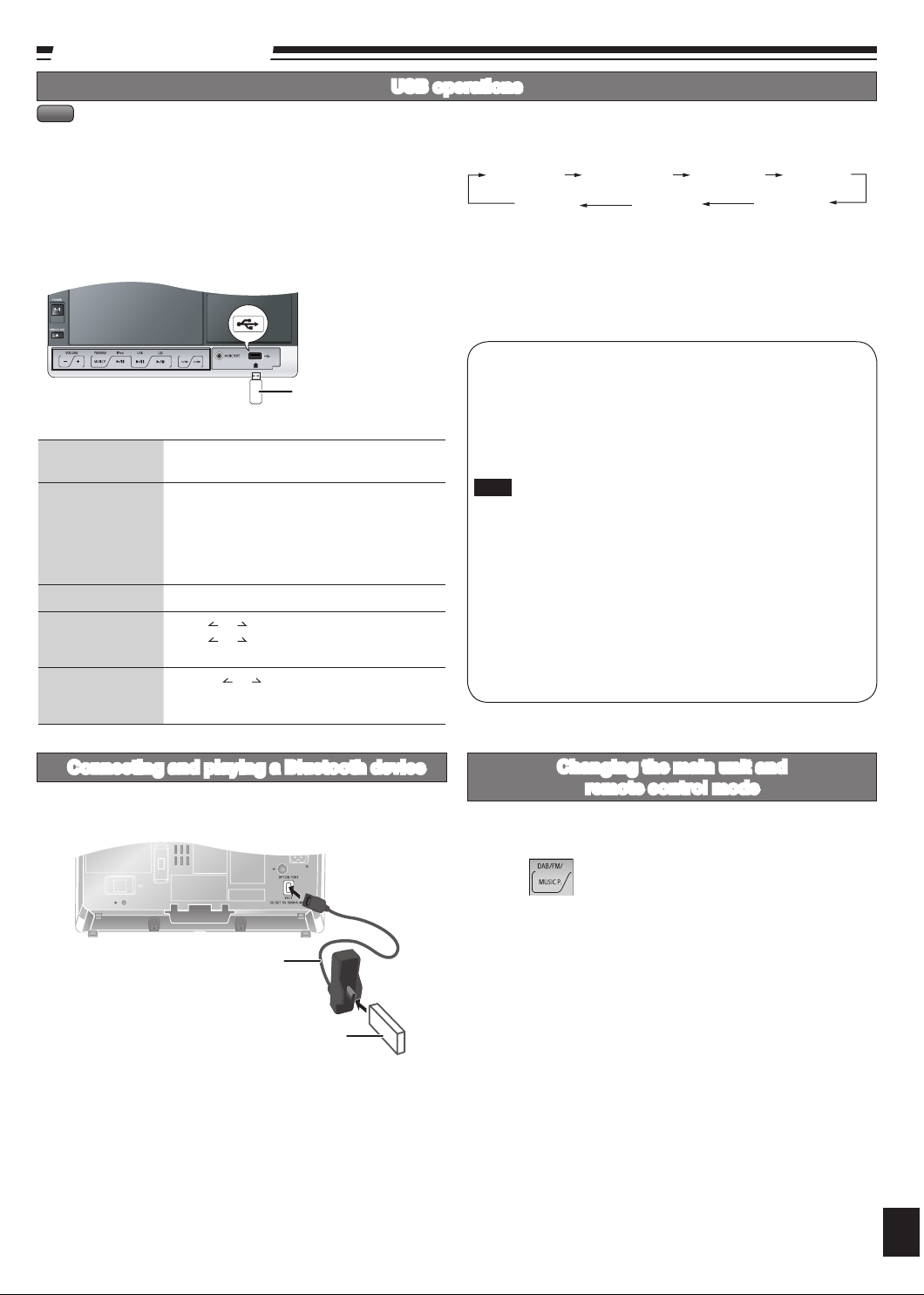

USB operations

MP3

The USB connectivity enables you to connect and play MP3 tracks from
USB mass storage class. Typically, USB memory devices (Bulk only
transfer).

Preparation:

Before connecting any USB mass storage device to the unit, ensure that
the data stored therein has been backed up.
It is not recommended to use a USB extension cable. The device connected
via the cable will not be recognised by this unit.

 Reduce the volume and connect the USB mass storage device.

USB enabled device

 Press [USB q/h] to start play.

To pause play

To stop play

To skip track

To skip album Press [ or , ALBUM] in the play mode.

Direct access play
(Play starts with the
track you select.)

Press [USB q/h].
Press again to resume play.

Press [g].
“RESUME” is displayed. The position is
memorized.
Press [USB q/h] to resume play.
OR
Press [g] again to clear the position.

Press [u, 2] or [i, 1].

Press [ or , ALBUM] once and then the
numbered buttons in the stop mode.

 Press [ or , ALBUM ] to select the album.
 Press [i, 1] once and then press the

numbered buttons to select the desired track.

(not included)

➡ Page 3 for the buttons position of remote control and main unit.

g Display function

Press [DISPLAY] repeatedly during play or pause.

Elapsed time Album name Track name

ID3 (Artist) ID3 (Track) ID3 (Album)

For other operating functions, they are similar as those described in “Disc
Operations” (➡ page 5 and 6).

To remove the USB mass storage device

Select a source other than “USB”.

Removing the USB mass storage device with it selected as a source can
damage the data stored in the device.

Remaining time

g Compatible device

Devices which are defined as USB mass storage class:

USB devices that support bulk only transfer.

•
USB devices that support USB 2.0 full speed.

•

g Supported Format

Files must have the extension “.mp3” or “.MP3”.

Note

CBI (Control/Bulk/Interrupt) is not supported.

•
A device using NTFS file system is not supported [Only FAT 16/32

•
(File Allocation Table 16/32) file system is supported].
Depending on the sector size, some files may not work.

•
This unit can access up to 255 albums and 2500 tracks.

•
The maximum number of tracks in a folder are 999 tracks.

•
Only one memory card will be selected when connecting a multiport

•
USB card reader. Typically the first memory card inserted.
Disconnect the USB card reader from the unit when you remove the

•
memory card. Failure to do so may cause malfunction to the device.
When you connect your digital audio player to the USB jack, it charges

•
all the time except in standby mode.

Connecting and playing a Bluetooth device

By connecting a Bluetooth Receiver (e.g SH-FX570R, sold separately),
you can receive and play the audio stored in your Bluetooth audio source
device (mobile phone etc).

male-female cable

(not included)

Bluetooth Receiver

(not included)

 Connect the Bluetooth Receiver to the OPTION PORT through

a male-female cable (see the Bluetooth Receiver’s instruction
manual).

 Press [q/h, OPTION] to select OPTION as the source.
 Pair and play your Bluetooth audio device (see the device’s

instruction manual).

- To play / To pause play

Press [q/h, OPTION].

- Other basic operation functions are similar to “USB operations”.
(➡ above)

Changing the main unit and

remote control mode

The remote control and main unit are factory-set to “REMOTE 1” mode.
If your remote control affects other equipment during operation, you can
switch to operate in “REMOTE 2” mode.

To switch to “REMOTE 2” mode

 Press [DAB/FM/MUSIC P.] to select “FM”.
 (While pressing [DAB/FM/MUSIC P.] on the main unit)

Press and hold [2] until “REMOTE 2” appears on the main unit
display.

 Press and hold [ENTER] and [2] for at least 2 seconds.

The main unit and remote control are now set to operate in
“REMOTE 2” mode.

To return to “REMOTE 1” mode

Perform steps 1 to 3 but use [1] instead of [2] for steps 2 and 3.
(“REMOTE 1” appears on the main unit during step 2.)

The remote control cannot work with the main unit if their modes are
different.

“REMOTE 1” or “REMOTE 2” appears on the main unit when you operate
the remote control.*
* If “REMOTE 1” appears (The main unit is in “REMOTE 1” mode.)

Press and hold [ENTER] and [1] on the remote control for at least 2
seconds.
If “REMOTE 2” appears (The main unit is in “REMOTE 2” mode.)
Press and hold [ENTER] and [2] on the remote control for at least 2
seconds.

12

RQTV0294

EQ

EQ-OFF VOCAL

HEAVY CLEAR SOFT

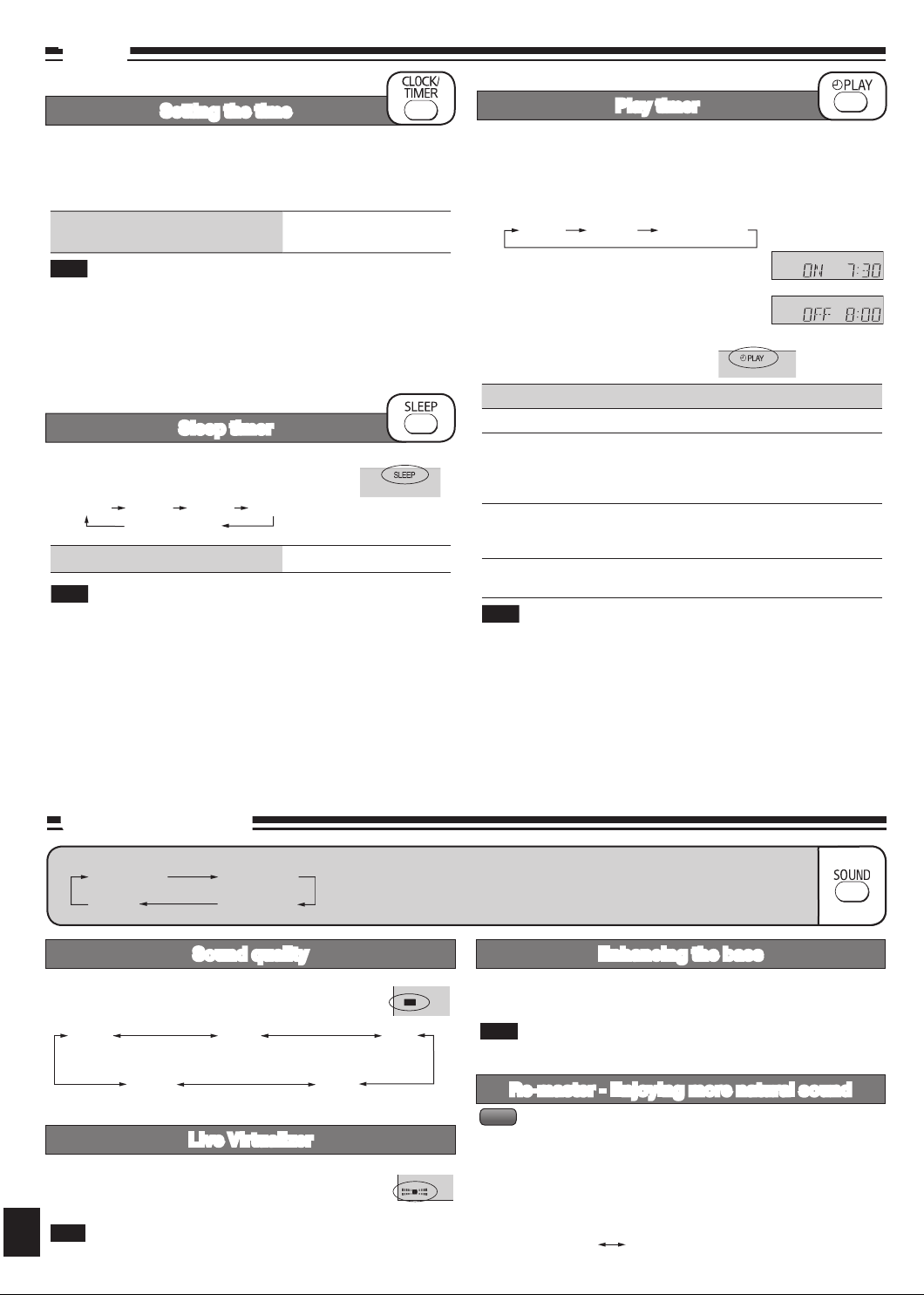

Timer

30MIN 60MIN 90MIN 120MIN

RE-MASTER ON RE-MASTER OFF

D.BASS

PRESET EQ SURROUND

RE-MASTER

➡ Page 3 for the buttons position of remote control.

Setting the time

This is a 24-hour clock.

 Press [CLOCK/TIMER] to set the clock.
 Press [u, 2] or [i, 1] to select the time within 5 seconds.

(Press and hold to change the time faster.)

 Press [CLOCK/TIMER] again.

g To display the clock when the unit

is on

Note

The clock is accurate to within ±60 seconds a month. Readjust if

•
necessary.
Set again after disconnecting the AC mains lead or power failure.

•

Press [CLOCK/TIMER]

Sleep timer

The SLEEP timer can turn the unit off after a set time.

Press [SLEEP] to turn the SLEEP function on/off.

Each time you press the button:

•

OFF (Canceled)

g To check the remaining time

Note

The play timer and sleep timer can be used together. The sleep timer
always has priority. Be sure not to overlap timer settings.

Press [SLEEP] once

Play timer

You can set the timer to come on at a certain time to wake you up.

Preparation:

Turn the unit on and set the clock.

•
Prepare the music source (disc, radio, iPod or music port) and set the

•
volume.

 Press [CLOCK/TIMER] repeatedly to select play timer.

CLOCK zPLAY Original display

 Within 5 seconds, press [u, 2] or [i, 1] to

set the starting time.

 Press [CLOCK/TIMER] to confirm.
 Repeat steps 2 and 3 to set the finishing time.

To activate the timer

 Press [zPLAY] to turn on the timer.
 Press [^] to turn off the unit.

To Action

Change the settings Repeat steps 1 to 4 and 6.

Change the source or
volume

Check the settings
(when the unit is on or
in standby mode)

Cancel

Note

The timer will start at the preset time, with the volume increasing

•
gradually to the preset level.
The timer comes on at the set time every day if the timer is on.

•
The unit must be in the standby mode for the timer to function.

•
If you turn the unit off and on again while the timer is functioning, the

•
finish time setting will not be activated.
When external unit is selected as the source when the timer comes

•
on, the system turns on and engages external unit as the source. If
you wish to playback from the portable audio equipment, activate the
equipment’s play mode and increase the volume. (See the portable
audio equipment’s instruction manual.)

 Press [zPLAY] to clear zPLAY indicator

from the display.

 Make changes to the source or volume.
 Perform steps 5 and 6.

Press [CLOCK/TIMER] repeatedly to select
zPLAY.

Press [zPLAY] to clear the timer indicator
from the display.

Sound adjustment

Each time you press the button:

Sound quality

You can choose one of four types of sound quality.

 Select “PRESET EQ”.
 Press [u, 2] or [i, 1] to select a setting.

(Adds punch to
rock)

(Canceled) (Adds gloss to vocals)

You can create a three-dimensional sound field when listening to stereo
sound.

 Select “SURROUND”.
 Press [u, 2] or [i, 1] to turn the Live Virtualizer on/off.

Note

The actual effect depends on the source played.

(Clarifies higher
sounds)

Live Virtualizer

(For background
music)

Enhancing the bass

Enables you to enjoy the powerful bass effect.

 Select “D.BASS”.
 Press [u, 2] or [i, 1] to turn the D.BASS function on/off.

Note

The actual effect depends on the disc.

Re-master - Enjoying more natural sound

MP3

Digital remaster is effective on CD (MP3) and USB
Analog remaster is effective on iPod and Music Port

This feature reproduces the frequencies lost during recording to give you
a sound closer to the original.

 Select “RE-MASTER”.
 Press [u, 2] or [i, 1] during play to turn the RE-MASTER

on/off.

13

RQTV0294

Troubleshooting guide

Before requesting service, make the following checks. If you are in doubt about any of the check points, or if the solutions indicated in the chart
do not solve the problem, consult your dealer for instructions.

The disc isn’t correctly set.

No play.

MP3 cannot be read.

Sound is unfixed, reversed or
comes from one speaker only.

No sound or there is a lot of
noise.

Humming heard during play.

A beat sound or noise is heard
while receiving a radio broadcast.

The picture on the television near
the set disappears or stripes
appear on the screen.

Remote control doesn’t work.

Display

--:--

PGM FULL The number of programmed tracks is limited to 24. No further tracks can be programmed.•

NO PLAY A CD-ROM disc that is not CD-DA or MP3 format is inserted. It cannot be played.•

ERROR Incorrect operation performed. Read the instructions and try again.•

F76 There is a power supply problem. Consult the dealer.•

•
The disc is scratched or dirty. (Tracks skipped.)

•
There is moisture on the lens. Wait for about an hour and then try again.

•

•

You may not be able to play MP3 if you have copied a multi-session disc that has no data between sessions.
When creating a multi session disc, it is necessary to close the session.

•
The amount of data on the disc is too small. Set the amount of data to greater than approximately 5 MB.

•

Check the speaker connections. (➡ page 4)•

Noise may occur when playing MP3 if recording quality is poor.

•
Keep this unit away from mobile telephones if the interference is apparent.

•
Turn the volume up.

•
Switch the unit off, determine and correct the cause, then switch the unit on. Causes include shorting of the

•
positive and negative speaker wires, straining of the speakers through excessive volume or power, and using
the unit in a hot environment.

An AC mains lead or fluorescent light is near the cords. Keep other appliances and cords away from this unit’s

•
cables.

Switch the TV or other audio player off or separate it from the unit.

•
Switch off the portable audio player connected to “MUSIC PORT”.

•

The location and orientation of the antenna are incorrect.

•
The television antenna wire is too close to the unit. Separate the antenna wire of the television from the unit.

•

Check that the batteries are inserted correctly. (➡ page 2)

•
Replace the batteries if they are worn.

•

You plugged the AC mains lead in for the first time and there was a power failure recently. Set the time.

•
(➡ page 12)

iPod

iPod does not turn on.

No sound is coming from the
speakers.

Music is distorted or the sound
level is too low.

Cannot control the iPod from the
CD Stereo System.

iPod does not charge.

Unable to use PC Sync.

USB

No response when [USB q/h]
button is pressed.

The USB drive or it’s contents
cannot be read.

Slow operation of the USB flash
drive.

“USB OVER CURRENT ERROR”

“NO PLAY”

Verify that the iPod battery is not depleted before connecting it to the unit.

•
Before inserting your iPod into the dock, turn off both the unit and iPod. Power on the unit and select the

•
appropriate source.
Make sure PC is not connected to the main unit and activate PC Sync.

•
The iPod is not correctly inserted into the dock. Turn off the iPod, remove it from the dock connector. Reinsert

•
it and turn it on again.
Make sure that iPod is actually playing something.

•
Adjust the volume.

•

Make sure the equalizer function of your iPod is turned off.•

Make sure the iPod is inserted properly into the dock.

•
Check the dock connection and make sure that iPod is selected as the source of music. (➡ page 10)

•

Check all connections. (➡ page 4)•

Turn the unit on.

•
Check PC and iPod connections. (➡ page 10)

•

Disconnect the USB device and then reconnect it back. Alternatively, turn the unit off and then back on.•

The USB drive format or it’s contents is/are not compatible with the system. (➡ page 11)

•
The USB host function of this product may not work with some USB devices.

•
USB devices with storage capacity of more than 8 gigabytes may not work in some instances.

•

Large file size or high memory USB flash drive takes longer time to read.•

The USB mass storage device rating exceeds 500mA. Disconnect the USB device. Turn the unit off and then

•
back on.

Check the content.

•
Only MP3 format files can be played.

•

14

RQTV0294

Troubleshooting guide (continued)

DAB

Keep the antenna away from computers, televisions, other cables and cords.

DAB reception is poor

DATA Data broadcast being received over the DAB broadcast signal. Cannot be used on this unit.•

SCRAMBLED The broadcast station being received cannot be accessed.•

NO SERVICE The station is currently not broadcasting.•

NO SIGNAL

SCAN FAILED

STATION FULL

•
Use an outdoor antennas. (➡ page 7)

•

This station cannot be received. Check your antenna. (➡ page 4)•

Stations are not receivable. Check your antenna and try Auto scanning. (➡ page 4, 9)•

DAB station memory is full. Use the following method to clear station memory.

•

1. Press [DAB MENU].

2. Press [ or , ALBUM] to select “STATION CLEAR”.

3. Press [ENTER]. “OK? Push ENTER” is displayed.

4. Press [ENTER].
Station memory is erased and the unit automatically begins Auto scanning.

Specifications

g AMPLIFIER SECTION

RMS OUTPUT POWER both channel
driven simultaneously

10 % total harmonic distortion (THD)
1 kHz 3 W per channel (6 Ω)

Input Music Port

Sensitivity 100 mV, 15 kΩ
Terminal Stereo, 3.5 mm jack

Output Headphone

Terminal

(16

Option Port Version 1

g TUNER SECTION

Frequency range

FM 87.50 MHz to 108.00 MHz (50 kHz)

g DAB SECTION

DAB memories 20 channels
Frequency Band (Wavelength)

Band III (UK Only)
11B to 12D (218.640 MHz to 229.072 MHz)
Band III (Europe)
5A to 13F (174.928 MHz to 239.200 MHz)

Stereo, 3.5 mm jack

Ω to 32 Ω)

g CD SECTION

Disc played [8 cm or 12 cm]

(1) CD-Audio (CD-DA)
(2) CD-R/RW (CD-DA, MP3)
(3) MP3

Sampling frequency

CD 44.1 kHz
MP3 32 kHz, 44.1 kHz, 48 kHz

Bit rate

MP3 32 kbps to 384 kbps
Decoding 16/20/24 bit linear
Pick up

Wavelength 785 nm

Laser power CLASS 1
Audio Output (Disc)

Number of channels 2 channel
Audio performance

Frequency response (CD-Audio)

20 Hz to 20 kHz

Wow and flutter Below measurement limit
Digital filter 8
D/A converter MASH (1 bit DAC)

g USB SECTION

Media file format support MP3 (*.mp3)

g SPEAKER SECTION

Type 1 way, 1 speaker system (Bass reflex)
Speaker unit(s)

Full range 7 cm cone type
Impedance 6 Ω
Input power (IEC) 3 W (Max)
Dimensions (W x H x D)
120 mm x 202.8 mm x 133.5 mm

g GENERAL

Power supply AC 230 to 240 V, 50 Hz
Power consumption 30 W
Dimensions (W x H x D)

252.5 mm x 202.8 mm x 133.5 mm
Mass

With speakers Approx. 3.20 kg

Without speakers Approx. 1.90 kg
Operating temperature range
0 °C to +40 °C
Operating humidity range

35 % to 80 % RH (no condensation)

Power consumption in standby mode:

2.6 W (approx.)

Notes:

Specifications are subject to change without

•
notice.
Total harmonic distortion is measured by the

•
digital spectrum analyzer.

15

RQTV0294

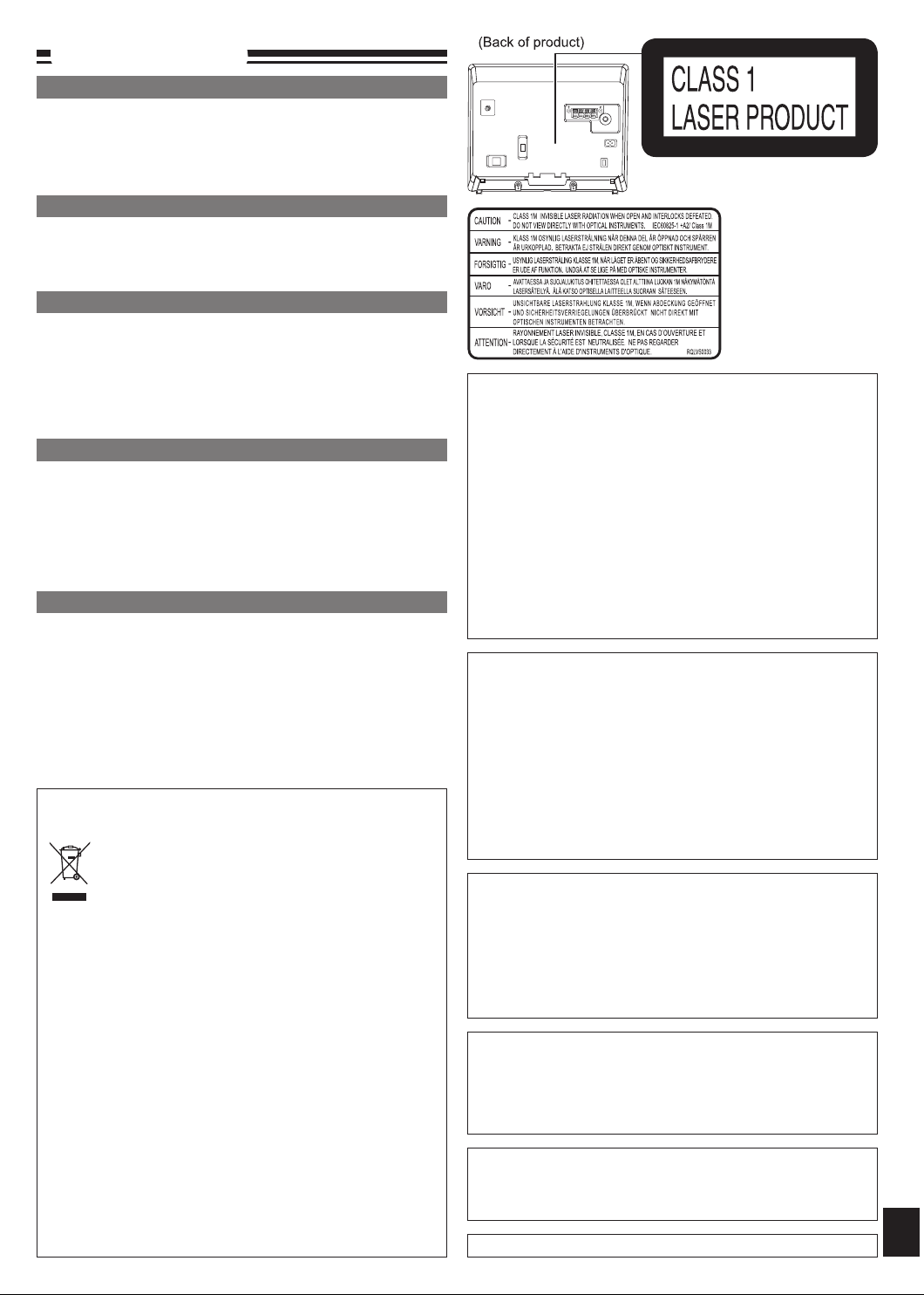

Safety precautions

Placement

Set the unit up on an even surface away from direct sunlight,
high temperature, high humidity, and excessive vibration. These
conditions can damage the cabinet and other components,
thereby shortening the unit’s service life.

Do not place heavy items on the unit.

Voltage

Do not use high voltage power sources. This can overload the
unit and cause a fire.

Do not use a DC power source. Check the source carefully when
setting the unit up on a ship or other place where DC is used.

AC mains lead protection

Ensure the AC mains lead is connected correctly and not
damaged. Poor connection and lead damage can cause fire or
electric shock. Do not pull, bend, or place heavy items on the lead.

Grasp the plug firmly when unplugging the lead. Pulling the AC
mains lead can cause electric shock.

Do not handle the plug with wet hands. This can cause electric
shock.

Foreign matter

Do not let metal objects fall inside the unit. This can cause
electric shock or malfunction.

Do not let liquids get into the unit. This can cause electric shock
or malfunction. If this occurs, immediately disconnect the unit from
the power supply and contact your dealer.

Do not spray insecticides onto or into the unit. They contain
flammable gases which can ignite if sprayed into the unit.

Service

Do not attempt to repair this unit by yourself. If sound is
interrupted, indicators fail to light, smoke appears, or any other
problem that is not covered in these instructions occurs, disconnect
the AC mains lead and contact your dealer or an authorized service
center. Electric shock or damage to the unit can occur if the unit is
repaired, disassembled or reconstructed by unqualified persons.

Extend operating life by disconnecting the unit from the power
source if it is not to be used for a long time.

-If you see this symbol-

Information on Disposal for Users of Waste Electrical
& Electronic Equipment (private households)

This symbol on the products and/or accompanying
documents means that used electrical and electronic
products should not be mixed with general household
waste.

For proper treatment, recovery and recycling, please
take these products to designated collection points, where they
will be accepted on a free of charge basis. Alternatively, in some
countries you may be able to return your products to your local
retailer upon the purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable
resources and prevent any potential negative effects on human
health and the environment which could otherwise arise from
inappropriate waste handling. Please contact your local authority
for further details of your nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste,
in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment,
please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the
European Union

This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local
authorities or dealer and ask for the correct method of disposal.

(Inside of product)

CAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,

•
BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.
ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT
RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE
TO OVERHEATING, ENSURE THAT CURTAINS AND
ANY OTHER MATERIALS DO NOT OBSTRUCT THE
VENTILATION VENTS.
DO NOT OBSTRUCT THE UNIT’S VENTILATION

•
OPENINGS WITH NEWSPAPERS, TABLECLOTHS,
CURTAINS, AND SIMILAR ITEMS.
DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH

•
AS LIGHTED CANDLES, ON THE UNIT.
DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY

•
FRIENDLY MANNER.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE,

DO NOT EXPOSE THIS APPARATUS TO RAIN,

•
MOISTURE, DRIPPING OR SPLASHING AND THAT NO
OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES,
SHALL BE PLACED ON THE APPARATUS.
USE ONLY THE RECOMMENDED ACCESSORIES.

•
DO NOT REMOVE THE COVER (OR BACK); THERE

•
ARE NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION!

THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.

The socket outlet shall be installed near the equipment and
easily accessible.
The mains plug of the power supply cord shall remain readily
operable.
To completely disconnect this apparatus from the AC Mains,
disconnect the power supply cord plug from AC receptable.

This product may receive radio interference caused by mobile
telephones during use. If such interference is apparent, please
increase separation between the product and the mobile
telephone.

THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.

Caution for AC Mains Lead

For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin mains plug for your
safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the replacement
fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to
BS1362.
Check for the ASTA mark or the BSI mark on the body of the fuse.
If the plug contains a removable fuse cover you must ensure that it is
refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a replacement
cover is obtained.
A replacement fuse cover can be purchased from your local dealer.

If a new plug is to be fitted please observe the wiring code as stated below.
If in any doubt please consult a qualified electrician.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following
code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the coloured markings identifying
the terminals in your plug, proceed as follows:
The wire which is coloured Blue must be connected to the terminal which is
marked with the letter N or coloured Black or Blue.
The wire which is coloured Brown must be connected to the terminal which
is marked with the letter L or coloured Brown or Red.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH
TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH
SYMBOL OR COLOURED GREEN OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF–KEEP DRY.

Before use

Remove the connector cover.

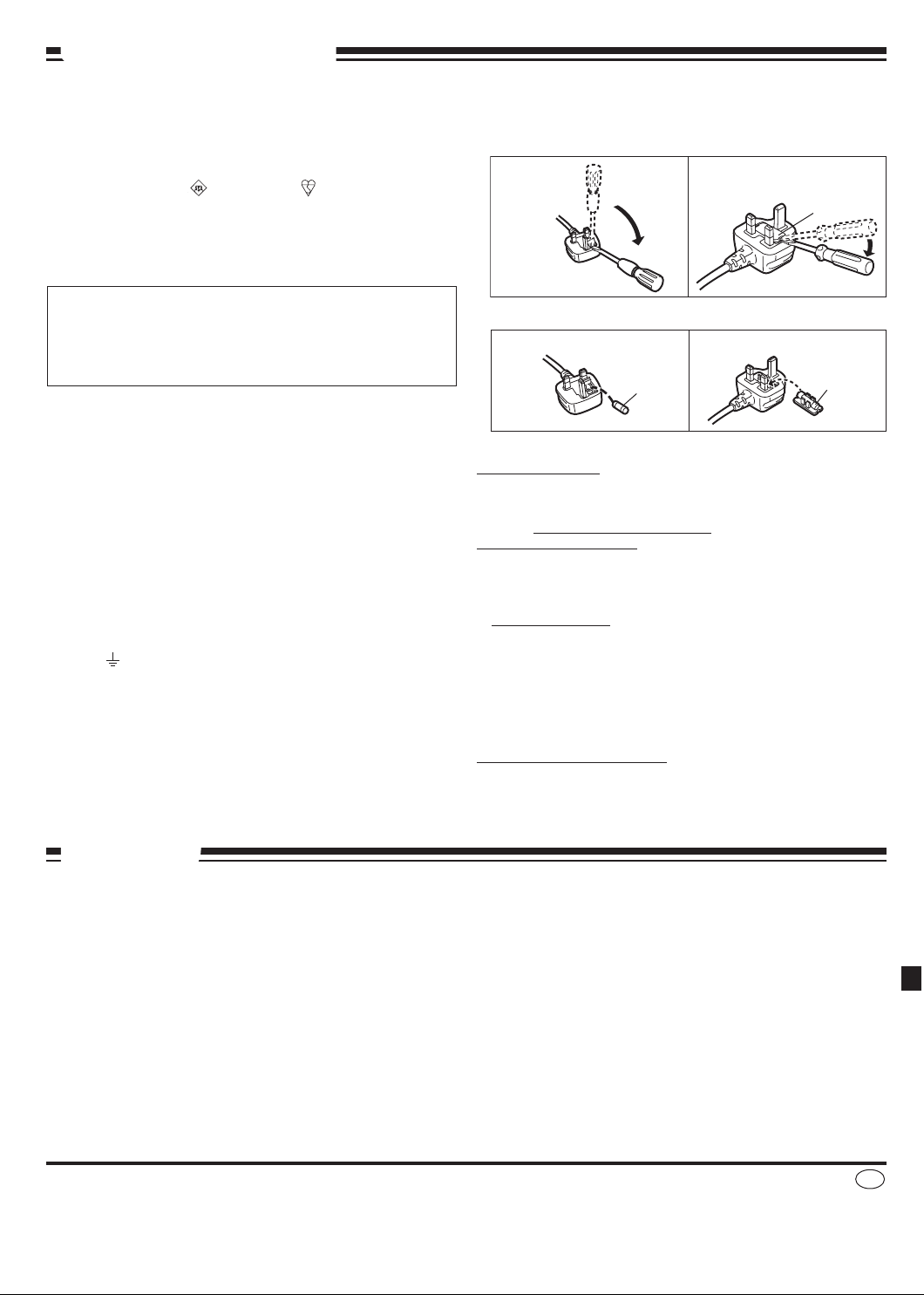

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug (figures
A and B). Confirm the AC mains plug fitted and follow the instructions below.
Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

2. Replace the fuse and close or attach the fuse cover.

� Sales and Support Information

Customer Care Centre

For UK customers: 0844 844 3852
For the Republic of Ireland customers: 01 289 8333
Visit our website for product information
E-mail: [e-mail]

Direct Sales at Panasonic UK

Order accessory and consumable items for your product with ease
and confidence by phoning our Customer Care Centre Monday-Friday
9:00am-5:30pm. (Excluding public holidays)
Or go on line through our Internet Accessory ordering application at
www.panasonic.co.uk
Most major credit and debit cards accepted.
All enquiries transactions and distribution facilities are provided directly
by Panasonic UK Ltd.
It couldn’t be simpler!
Also available through our Internet is direct shopping for a wide range of
finished products, take a browse on our website for further details.

Interested in purchasing an extended guarantee?
Please call 0870 240 6284 or visit our website
www.panasonic.co.uk/guarantee

.

•

•

•

•

•

•

•

•

•

•

1. Open the fuse cover with a screwdriver.







2. Replace the fuse and close or attach the fuse cover.

 











CAUTION!

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET
OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED
AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT
OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET.

Maintenance

■ If the surfaces are dirty

To clean this unit, wipe with a soft, dry cloth.

Never use alcohol, paint thinner or benzine to clean this unit.

•
Before using chemically treated cloth, read the instructions that came

•
with the cloth carefully.

Matsushita Electric Industrial Co., Ltd.
Web Site: http://panasonic.net

■ Care of the CD lens

Clean the lens regularly to prevent malfunctions. Use a blower to remove

•
dust and a cotton swab if it is extremely dirty.
Recommended product: Lens cleaner kit (part no. SZZP1038C).
Do not use the lens cleaner of the CD type.

•

Pursuant to at the directive 2004/108/EC, article 9 (2)
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, F.R. Germany

RQTV0294-1B

H0108FL1028

En
