Speaker System
Operating Instructions
Model No.
SB-PT96
E
Before connecting, operating or adjusting this product, please read these instructions completely.
Please keep this manual for future reference.
RQT6003-E
![](/html/09/0915/09150f6835d695f89b9e4b6e51a3fe03bb0a6ca41d40f6b5726c6aa2767a24cc/bg2.png)
Dear customer
Speaker set-up
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions
carefully.
These are the optional speakers for the SC-HDV600 DVD Stereo
System.
System SB-PT96
Center speaker x 1 SB-PC96
Surround speaker x 2 SB-PS96
Peripheral equipment and parts are not included unless otherwise
indicated.
Attaching the surround speakers
to the wall
Screws
Screw the wood screw into a thick and hard part of the wall.
The surface you attach the speakers to must be able to support over
10 kg.
Front speaker (Left)
Center speaker (SB-PC96)
TV
Amplifier (SE-HDV600)
Front speaker (Right)
Surround speaker (Right)(SB-PS96)
Surround speaker (Left)(SB-PS96)
Location
The front, center, and surround speakers should be placed at approximately the same distance from the listening position.
The angles in the diagram are approximate.
Positioning for best effect
How you set up your speakers can affect the bass and the sound
field. Note the following points.
•Place speakers on flat, secure bases.
•Placing speakers too close to floors, walls, and corners can result
in excessive bass.
•Cover walls and windows with thick curtain.
•Place the surround speakers on the side of or slightly behind the
seating position, about one meter higher than ear level.
•Vibration may cause distortion in the picture if the center speaker
is placed directly on the television. Place it on a rack or shelf.
•Place the center speaker at least 5 cm from the wall as it has a
bass reflex port in the rear.
Do not attempt to attach these speakers to walls using methods
other than those described in this manual.
2
RQT6003
Connections
Confirm the colors of the cords to ensure correct connection. Incorrect connection can damage the unit.
•Before making the connections, switch OFF the power to the am-
plifier.
•Use with an amplifier having 8 Ω impedance for these speakers.
•Be sure to connect only positive (+) gray wires to positive (+) ter-
minals, and negative (–) blue wires to negative (–) terminals.

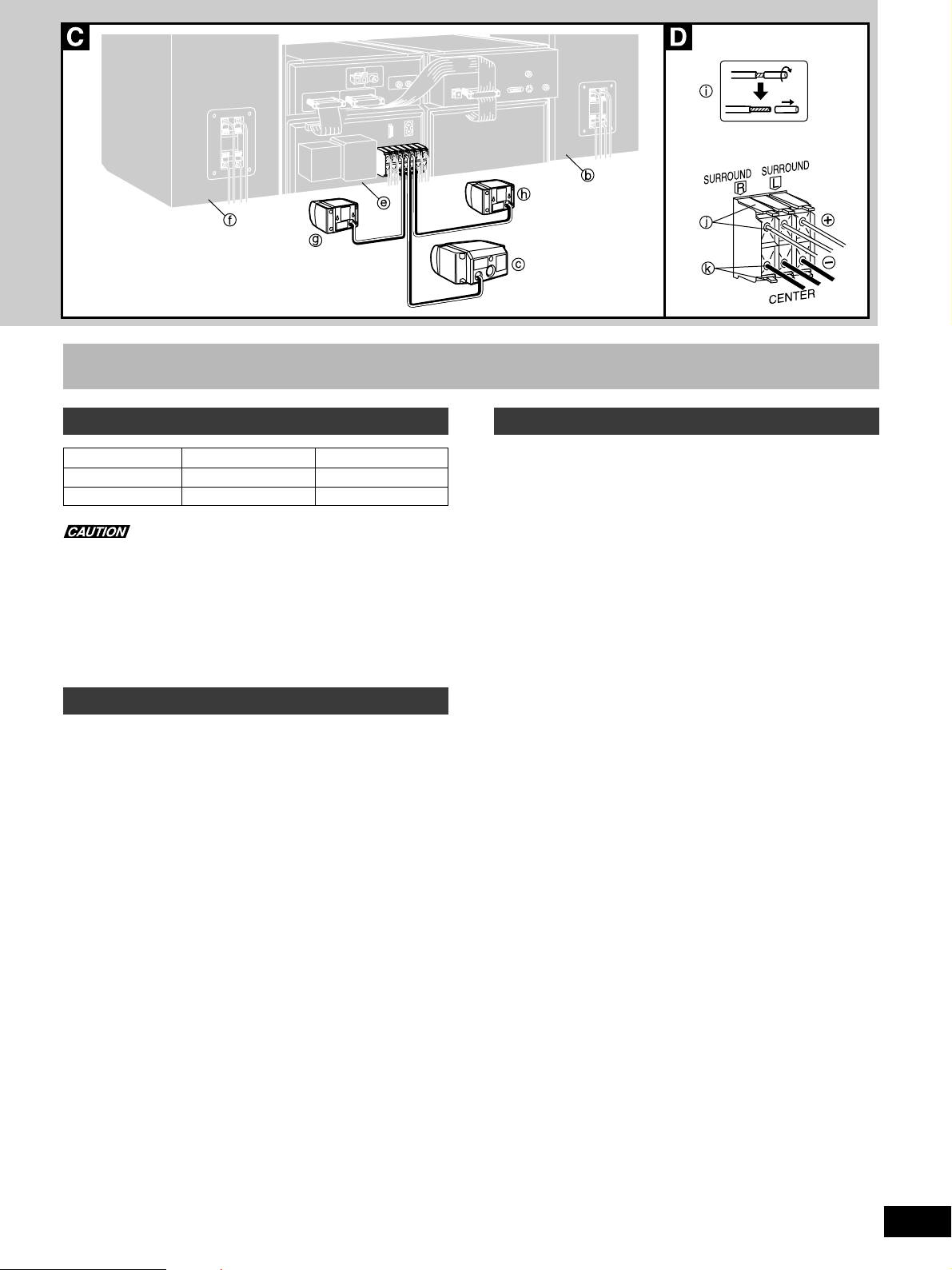

Connecting the cables
Before connection
To prepare the speaker cables, twist the vinyl tip and pull off.
Gray (+) Blue (–)
To prevent damage to circuitry, never short-circuit positive (+) and
negative (–) speaker wires.
After you have completed set-up and connection, wind the excess
cord and keep together with string.
