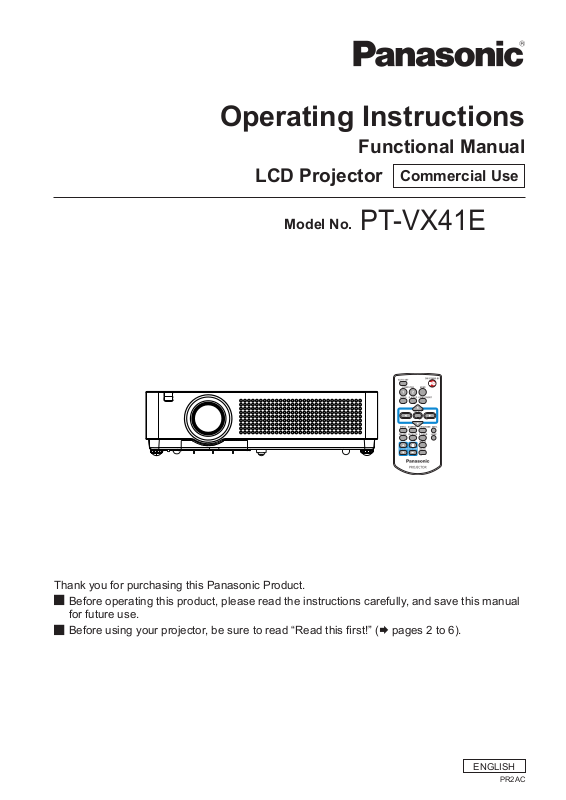

Operating Instructions
Functional Manual
LCD Projector
Model No.
PT-VX41E
Commercial Use
Thank you for purchasing this Panasonic Product.
J
Before operating this product, please read the instructions carefully, and save this manual
for future use.
J
Before using your projector, be sure to read “Read this rst!” (
pages 2 to 6).
Æ
ENGLISH
PR2AC
Read this rst!
2
- ENGLISH
Important
Information
Read this rst!
WARNING:
WARNING: To prevent damage which may result in re or shock hazard, do not expose this appliance to rain
Machine Noise Information Ordinance 3. GSGV, January 18, 1991: The sound pressure level at the operator
position is equal or less than 70 dB (A) according to ISO 7779.
WARNING:
1. Remove the plug from the mains socket when this unit is not in use for a prolonged period of time.
2. To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to
3. Do not remove the earthing pin on the mains plug. This apparatus is equipped with a three prong earthing
CAUTION:
Product information (for Turkey only)
THIS APPARATUS MUST BE EARTHED.
or moisture.
qualied service personnel.
type mains plug. This plug will only t an earthing-type mains socket. This is a safety feature. If you are
unable to insert the plug into the mains socket, contact an electrician. Do not defeat the purpose of the
earthing plug.
To assure continued compliance, follow the attached installation instructions, which includes using
the provided power cord and shielded interface cables when connecting to computer or peripheral
device. If you use serial port to connect PC for external control of projector, you must use optional
RS-232C serial interface cable with ferrite core. Any unauthorized changes or modications to
this equipment will void the user’s authority to operate.
EEE Yönetmeliğine Uygundur.
EEE Complies with Directive of Turkey.
TURN OFF THE UV LAMP BEFORE OPENING THE LAMP COVER.
WARNING:
WARNING:
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE.
RISK OF ELECTRIC SHOCK, DO NOT OPEN.
The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the
user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may
be of sufcient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
product.
Read this rst!
ENGLISH -
3
Important
Information
WARNING:
POWER
The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily
accessible when problems occur. If the following problems occur, cut off the power supply
immediately.
Continued use of the projector in these conditions will result in re or electric shock.
If foreign objects or water get inside the projector, cut off the power supply.
z
If the projector is dropped or the cabinet is broken, cut off the power supply.
z
If you notice smoke, strange smells or noise coming from the projector, cut off the power supply.
z
Please contact an Authorized Service Center for repairs, and do not attempt to repair the projector yourself.
During a thunderstorm, do not touch the projector or the cable.
Electric shocks can result.
Do not do anything that might damage the power cord or the power plug.
If the power cord is used while damaged, electric shocks, short-circuits or re will result.
Do not damage the power cord, make any modications to it, place it near any hot objects, bend it
z
excessively, twist it, pull it, place heavy objects on top of it or wrap it into a bundle.
Ask an Authorized Service Center to carry out any repairs to the power cord that might be necessary.
Insert the power plug securely into the wall outlet.
If the plug is not inserted correctly, electric shocks or overheating will result.
Do not use anything other than the provided power cord.
z
Do not use the provided power cord for other electrical equipment.
z
Do not use plugs which are damaged or wall outlets which are coming loose from the wall.
z
Clean the power plug regularly to prevent it from becoming covered in dust.
Failure to observe this will cause a re.
If dust builds up on the power plug, the resulting humidity can damage the insulation.
z
If not using the projector for an extended period of time, pull the power plug out from the wall outlet.
z
Pull the power plug out from the wall outlet and wipe it with a dry cloth regularly.
Do not handle the power plug with wet hands.
Failure to observe this will result in electric shocks.
Do not overload the wall outlet.
If the power supply is overloaded (ex., by using too many adapters), overheating may occur and re will result.
ON USE/INSTALLATION
Do not place liquid containers on top of the projector.
If water spills onto the projector or gets inside it, re or electric shocks will result.
If any water gets inside the projector, contact an Authorized Service Center.
Do not place the projector on soft materials such as carpets or sponge mats.
Doing so will cause the projector to overheat, which can cause burns, re or damage to the projector.
Do not set up the projector in humid or dusty places or in places where the projector may come into
contact with oily smoke or steam, ex. a bathroom.
Using the projector under such conditions will result in re, electric shocks or components deterioration.
Components deterioration (such as ceiling mount brackets) may cause the projector which is mounted on the
ceiling to fall down.
Do not install this projector in a place which is not strong enough to take the full weight of the
projector or on top of a surface which is sloped or unstable.
Failure to observe this will cause projector to fall down or tip over the projector, and severe injury or damage
could result.
Do not place another projector or other heavy objects on top of the projector.
Failure to observe this will cause the projector to become unbalanced and fall, which could result in damage or
injury. The projector will be damaged or deformed.
Read this rst!
4
- ENGLISH
Important
Information
WARNING:
Installation work (such as ceiling mount bracket) should only be carried out by a qualied technician.
If installation is not carried out and secured correctly it can cause injury or accidents, such as electric shocks.
Do not cover the air inlet port or the air outlet port.
Doing so will cause the projector to overheat, which can cause re or damage to the projector.
Do not place your hands or other objects close to the air outlet port.
Doing so will cause burns or damage your hands or other objects.
Do not look and place your skin into the lights emitted from the lens while the projector is being used.
Doing so can cause burns or loss of sight.
Do not insert any foreign objects into the projector.
Doing so will cause re or electric shocks.
Never attempt to remodel or disassemble the projector.
High voltages can cause re or electric shocks.
Do not project an image with the lens cover attached.
Doing so can cause re.
Do not allow metal objects, ammable objects, or liquids to enter inside of the projector. Do not allow
the projector to get wet.
Doing so may cause short circuits or overheating, and result in re, electric shock, or malfunction of the
projector.
Use the ceiling mount bracket specied by Panasonic.
Defects in the ceiling mount bracket will result in falling accidents.
Do not use anything other than an authorized ceiling mount bracket.
z
Be sure to use the wire provided with the projector mount base for ceiling mount as an extra safety
z
measure to prevent the projector from falling down. (Install in a different location to the ceiling mount
bracket).
Do not place the projector in narrow, badly ventilated places.
z
Do not place the projector on cloth or papers, as these materials could be drawn into the air inlet port.
z
Heated air comes out of the air outlet port. Do not place your hands or face, or objects which cannot
z
withstand heat close to this port.
Strong light is emitted from the projector’s lens. Do not look or place your hands directly into this light.
z
Be especially careful not to let young children look into the lens. In addition, turn off the power and
z
disconnect the power plug when you are away from the projector.
Do not insert any metal objects or ammable objects into the projector or drop them onto the projector.
z
For any inspection, adjustment and repair work, please contact an Authorized Service Center.
z
Do not place containers of liquid or metal objects near the projector.
z
If liquid enters inside of the projector, consult your dealer.
z
Particular attention must be paid to children.
z
Attach the supplied safety cable to the ceiling mount bracket to prevent the projector from falling down.
z
Read this rst!
ENGLISH -
5
Important
Information
WARNING:
ACCESSORIES
Do not use or handle the batteries improperly, and refer to the following.
Failure to observe this will cause burns, batteries to leak, overheat, explode or catch re.
Use AAA/R03 or AAA/LR03 batteries.
z
Do not use unspecied batteries.
z
Do not disassemble dry cell batteries.
z
Do not heat the batteries or place them into water or re.
z
Do not allow the + and
z
necklaces or hairpins.
Do not store batteries together with metallic objects.
z
Store the batteries in a plastic bag and keep them away from metallic objects.
z
Make sure the polarities (+ and
z
Do not use a new battery together with an old battery or mix different types of batteries.
z
Do not use batteries with the outer cover peeling away or removed.
z
Remove the empty batteries from the remote control at once.
z
Insulate the battery using tape or something similar before disposal.
z
Do not allow children to reach the batteries (AAA/R03 or AAA/LR03 type).
The battery can cause personal injury if swallowed.
z
If swallowed, seek medical advice immediately.
z
If the battery uid leaks, do not touch it with bare hands, and take the following measures if necessary.
Battery uid on your skin or clothing could result in skin inammation or injury.
z
Rinse with clean water and seek medical advice immediately.
Battery uid coming in contact with your eyes could result in loss of sight.
z
In this case, do not rub your eyes. Rinse with clean water and seek medical advice immediately.
Do not disassemble the lamp unit.
If the lamp breaks, it could cause injury.
Lamp replacement
The lamp has high internal pressure. If improperly handled, an explosion and severe injury or accidents will
result.
The lamp can easily explode if struck against hard objects or dropped.
z
Before replacing the lamp, be sure to disconnect the power plug from the wall outlet.
z
Electric shocks or explosions can result if this is not done.
When replacing the lamp, turn the power off and allow the lamp it to cool for at least 45 minutes before
z
handling it otherwise it can cause burns.
Do not allow infants or pets to touch the remote control unit.
Keep the remote control unit out of the reach of infants and pets after using it.
z
Do not use the supplied power cord with devices other than this projector.
Using the supplied power cord with devices other than this projector may cause short circuits or
z
overheating, and result in electric shock or re.
Remove the depleted batteries from the remote control promptly.
Leaving them in the unit may result in uid leakage, overheating, or explosion of the batteries.
z
-
terminals of the batteries to come into contact with metallic objects such as
-
) are correct when inserting the batteries.
CAUTION:
POWER
When disconnecting the power cord, be sure to hold the power plug and power connector.
If the power cord itself is pulled, the lead will become damaged, and re, short-circuits or serious electric
shocks will result.
When not using the projector for an extended period of time, disconnect the power plug from the wall
outlet and remove the batteries from the remote control.
Disconnect the power plug from the wall outlet before carrying out any cleaning and replacing the unit.
Electric shocks can result if this is not done.
Read this rst!
Information
Important
CAUTION:
Do not put your weight on this projector.
You could fall or the projector could break, and injury will result.
Do not place the projector in extremely hot locations.
Doing so will cause the outer casing or internal components to deteriorate, or result in re.
Always disconnect all cables before moving the projector.
Moving the projector with cables still attached can damage the cables, which will cause re or electric shocks
to occur.
Never plug headphones and earphones into AUDIO OUT jack.
Excessive sound pressure from earphones and headphones can cause hearing loss.
Do not use the old lamp unit.
If used it could cause lamp explosion.
If the lamp has broken, ventilate the room immediately. Do not touch or bring your face close to the
broken pieces.
Failure to observe this will cause the user to absorb the gas which was released when the lamp broke and which
contains nearly the same amount of mercury as uorescent lamps, and the broken pieces will cause injury.
ON USE/INSTALLATION
Be especially careful not to let young children stand or sit on the projector.
z
Take particular care in locations exposed to direct sunlight or near stoves.
z
ACCESSORIES
If you believe that you have absorbed the gas or that the gas has got into your eyes or mouth, seek
z
medical advice immediately.
Ask your dealer about replacing the lamp unit and check the inside of the projector.
z
To remove the battery
Remote Control Battery
1. Press the guide and lift the cover. 2. Remove the batteries.
Trademarks
•
HDMI, the HDMI logo and High-Denition Multimedia Interface is a trademark or registered trademark of HDMI
Licensing LLC.
•
PJLink™ is a trademark or pending trademark in Japan, the United States, and other countries and regions.
•
Other names, company names or product names used in these operating instructions are the trademarks or
registered trademarks of their respective holders.
Please note that the operating instructions do not include the ® and ™ symbols.
Illustrations in these operating instructions
•
Note that illustrations of the projector and screens may differ from the ones you actually see.
Page references
•
In these instructions, references to pages are indicated as: (
page 00).
Æ
Term
•
In these instructions, the “Wireless remote control unit” accessory is referred to as the “Remote control”.
6
- ENGLISH
Auto Setup Function
J
Quick steps
For details, see the corresponding pages.
This function enables Input search,
Auto Keystone correction and Auto
PC adjustment by pressing the
<AUTO SETUP> button.
Direct Power Off Function
With the Direct Power Off function,
you can disconnect the power cord
from the wall outlet or turn off the
breaker even during projection.
Improved connectivity
The inclusion of an HDMI terminal
provides support for high quality
video and HDMI audio.
1. Set up your projector.
(Æpage 19)
2. Connect with other devices.
(Æpage 22)
3. Connect the power cord.
(Æpage 23)
4. Power on.
(Æpage 25)
Useful Functions for Presentations
The digital zoom function allows
you to focus on the crucial
information during a presentation.
The MIC function and 10W audio
output allows you to make a
presentation without any external
audio equipment.
5. Select the input signal.
(Æpage 28)
6. Adjust the image.
(Æpage 28)
ENGLISH -
7
8
- ENGLISH
Important
Information
Preparation Getting Started Basic Operation Settings Maintenance Appendix
Contents
Be sure to read “Read this rst!”. ( pages 2 to 6)
Important Information
Read this rst! ........................................... 2
Contents ..................................................... 8
Precautions for Use................................. 10
Preparation
About Your Projector .............................. 15
Using Remote control ............................. 18
Getting Started
Setting up ................................................. 19
Connections ............................................. 22
Basic Operation
Powering ON/OFF .................................... 23
Projecting ................................................. 28
Basic operations by using the remote
Cautions when transporting .......................................... 10
Cautions when installing ............................................... 10
Security .........................................................................11
Disposal .........................................................................11
Cautions on use ........................................................... 12
Accessories .................................................................. 13
Optional accessories .................................................... 14
Remote control ............................................................. 15
Projector body .............................................................. 16
Control panel ............................................................... 17
Rear terminals .............................................................. 17
Installing and Removing batteries ................................ 18
Setting Remote control ID numbers ............................. 18
Projection method ........................................................ 19
Parts for ceiling mount (Optional) ................................. 19
Screen size and throw distance ................................... 20
Adjusting front adjustable feet ...................................... 21
Before connecting to the projector ............................... 22
Connecting example ..................................................... 22
Connecting the power cord .......................................... 23
POWER indicator ......................................................... 24
Turning On the Projector .............................................. 25
Enter a PIN code .......................................................... 26
Turning Off the Projector .............................................. 27
Selecting the image ...................................................... 28
How to adjust the state of the image ............................ 28
control................................................... 29
Using the AUTO SET function ...................................... 29
Switching the input signal ............................................. 29
Using the SCREEN button ........................................... 29
Using the KEYSTONE button ....................................... 30
Using the INFO. button ................................................. 30
Using the FREEZE function ......................................... 30
Using the AV MUTE function ........................................ 31
Using the P-TIMER button ........................................... 31
Using the LAMP button ................................................ 31
Using the D.ZOOM buttons .......................................... 31
Controlling the volume of the speaker .......................... 31
Using the IMAGE button ............................................... 32
Using the MUTE button ................................................ 32
Settings
Menu Navigation ...................................... 33
Navigating through the menu ....................................... 33
Main menu .................................................................... 34
Sub menu ..................................................................... 34
Input menu ............................................... 36
Computer 1: RGB/Component /RGB (Scart) ............... 36
Computer 2: RGB ......................................................... 36
HDMI ............................................................................ 36
Video ............................................................................ 36
S-video ......................................................................... 36
Auto PC adjust ......................................... 38
Auto PC adj. ................................................................. 38
Manual PC adjust ..................................... 39
Fine sync ...................................................................... 39
Total dots ...................................................................... 39
Horizontal ..................................................................... 39
Vertical .......................................................................... 39
Current mode ............................................................... 40
Clamp ........................................................................... 40
Display area H .............................................................. 40
Display area V .............................................................. 40
Reset ............................................................................ 40
Mode free ..................................................................... 40
Store ............................................................................. 40
Image select ............................................ 41
Dynamic ....................................................................... 41
Standard ....................................................................... 41
Real .............................................................................. 41
Cinema ......................................................................... 41
Blackboard(Green) ....................................................... 41
Colorboard .................................................................... 41
Image 1-4 ..................................................................... 41
Image adjust............................................. 42
Contrast ........................................................................ 42
Brightness .................................................................... 42
ENGLISH -
9
Important
Information
PreparationGetting StartedBasic OperationSettingsMaintenanceAppendix
Contents
Color ............................................................................. 42
Tint .............................................................................. 42
Color temp. ................................................................... 42
Red .............................................................................. 43
Green ........................................................................... 43
Blue ............................................................................. 43
Sharpness .................................................................... 43
Gamma ......................................................................... 43
Noise reduction ............................................................ 43
Progressive .................................................................. 44
Reset ............................................................................ 44
Store ............................................................................. 44
Normal .......................................................................... 45
Full .............................................................................. 45
Wide(16:9) .................................................................... 45
Zoom ............................................................................ 45
True .............................................................................. 45
Custom ......................................................................... 45
Screen ...................................................... 45
Custom adj. .................................................................. 46
Digital zoom +............................................................... 46
Digital zoom - ............................................................... 46
Keystone ...................................................................... 46
Ceiling .......................................................................... 47
Rear .............................................................................. 47
Reset ............................................................................ 47
Sound ....................................................... 48
Volume ......................................................................... 48
Mute ............................................................................. 48
MIC .............................................................................. 48
MIC gain ....................................................................... 48
Standby MIC out ........................................................... 48
Setting ...................................................... 49
Language ..................................................................... 49
Menu position ............................................................... 49
Auto setup .................................................................... 49
Background .................................................................. 50
Display .......................................................................... 50
Logo ............................................................................. 50
HDMI setup .................................................................. 51
Terminal ........................................................................ 51
Power management ..................................................... 51
Direct on ....................................................................... 52
Standby mode .............................................................. 52
P-timer .......................................................................... 52
Closed caption .............................................................. 53
Lamp power .................................................................. 53
Remote control ............................................................. 53
Security ........................................................................ 53
Fan .............................................................................. 54
Fan control ................................................................... 54
Video delay control ....................................................... 55
Filter counter ................................................................ 55
Total power savings ...................................................... 55
Warning log .................................................................. 55
Factory default .............................................................. 55
Information ............................................... 56
Input Source Information Display ................................. 56
Network .................................................... 57
Projector name ............................................................. 57
Network setup .............................................................. 57
Network control ............................................................ 58
Network status .............................................................. 58
AMX D.D. ..................................................................... 58
Network factory default ................................................. 58
Network connections .................................................... 59
Computer operation ...................................................... 60
Accessing from the Web browser ................................. 60
Maintenance
LAMP REPLACE and WARNING
Indicators.............................................. 71
Managing the indicated problems ................................ 71
Replacement ............................................ 72
Before replacing the unit .............................................. 72
Maintenance ................................................................. 72
Replacing the unit ......................................................... 72
Attaching the Lens Cap ................................................ 76
Troubleshooting ...................................... 77
Appendix
Technical Information ............................. 79
PJLink protocol ............................................................. 79
Control commands via LAN .......................................... 80
Serial terminal .............................................................. 82
Other terminals ............................................................. 85
List of compatible signals ............................................. 86
Specications .......................................... 90
Dimensions ................................................................... 92
Ceiling mount bracket safeguards......... 92
Index ......................................................... 93
10
- ENGLISH
Important
Information
Precautions for Use
Within
Within
+20°
-20°
Within
Within
Cautions when transporting
z
z
Cautions when installing
J
z
J
z
z
z
J
This requires an optional ceiling mount bracket.
Model No.: ET-PKV100H (for high ceilings), ET-PKV100S (for low ceilings),
When transporting the projector, hold it securely by its bottom and avoid excessive vibration and impacts.
Doing so may damage the internal parts and result in malfunctions.
Do not transport the projector with the adjustable feet extended. Doing so may damage the adjustable feet.
Do not set up the projector outdoors.
The projector is designed for indoor use only.
Do not use under the following conditions.
Places where vibration and impacts occur such as in a car or vehicle: Doing so may damage the internal parts
and result in malfunctions.
Near the exhaust of an air conditioner or near lights (studio lamps, etc.) where temperature changes greatly
(Operating environment Æpage 91): Doing so may shorten the life of the lamp or result in deformation of the
outer case and malfunctions.
Near high-voltage power lines or near motors: Doing so may interfere with the operation of the projector.
Be sure to ask a specialized technician when installing the product to a
ceiling.
ET-PKV100B (Projector Mount Base).
J
When using the projector in the elevation of below 1 200 m, make sure
[Fan control] is set to [Off].
Failure to do so may shorten the life of the internal parts and result in malfunctions.
J
When using the projector in the elevation of above 1 200 m and below
2 000m, make sure [Fan control] is set to [On 1].
Failure to do so may shorten the life of the internal parts and result in malfunctions.
J
When using the projector in the elevation of above 2 000 m and below
2 700m, make sure [Fan control] is set to [On 2].
Failure to do so may shorten the life of the internal parts and result in malfunctions.
J
Do not install the projector at elevations of 2 700 m (8 858 ft) or higher
above sea level.
Failure to do so may shorten the life of the internal parts and result in malfunctions.
J
Do not tilt the projector or place it on its side.
Do not tilt the projector body more than approximately ±40 degrees vertically or ±20 degrees horizontally. Over
tilting may result in shortening the life of the components.
Precautions for Use
ENGLISH -
11
Important
Information
J
Cautions when setting the projectors
zDo not stack the projectors.
Do not block the ventilation ports (intake and exhaust) of the
z
projector.
Avoid heating and cooling air from the air conditioning system
z
directly blow to the ventilation ports (intake and exhaust) of the
projector.
over 50 cm
(20")
over 20 cm
(7.8")
Do not place the projector in an enclosed space.
z
If you need to place the projector in an enclosed space, additional air conditioning and ventilation system
must be equipped. When ventilation is insufcient, remaining heat may trigger the protection circuit of the
projector.
over 50 cm
(20")
over 1 m (40")
Security
J
Take safety measures against following incidents.
Personal information being leaked via this product.
z
Unauthorized operation of this product by a malicious third party.
z
Interfering or stopping of this product by a malicious third party.
z
J
Security instruction (
Make your password as difcult to guess as possible.
z
Change your password periodically.
z
Panasonic or its afliate company never inquires a password directly to a customer. Do not tell your password
z
in case you receive such an inquiry.
The connecting network must be secured by rewall or others.
z
Set a password for web control and restrict the users who can log in.
z
pages 53, 70 )
Æ
Disposal
When disposing of the product, ask your local authority or dealer about the correct methods of disposal.
The lamp contains mercury. When disposing of the used lamp unit, ask your nearest local authorities or dealer
about proper disposal of the unit.
Dispose of used batteries according to the instructions or your local disposal rule or guidelines.
Precautions for Use
12
- ENGLISH
Important
Information
Cautions on use
J
z
z
z
J
If the surface of the lens becomes dirty from ngerprints or anything else, this will be magnied and projected
onto the screen.
J
The display unit of this projector comprises three LCD panels. Although an LCD panel is a product of high-
precision technology, some of the pixels on the projected image may be missing or constantly lit. Please note that
this is not a malfunction.
Displaying a still image for a longer time may result in an after-image on the LCD panels. If this happens, display
the all white screen in the test pattern for an hour or more.
In order to get the picture quality
Draw curtains or blinds over windows and turn off any lights near the screen to prevent outside light or light
from indoor lamps from shining onto the screen.
Depending on where the projector is used, heated air from an exhaust port or warm or cold air from an air
conditioner can cause a shimmering effect on screen.
Avoid use in locations where exhaust or streams of air from projector, other devices and air conditioners ow
between the projector and the screen.
The lens of projector is affected by the heat from the luminous source. Because of this, the focusing may not
be stable right after the power is turned on. Focusing is stabled after projecting image for 30 minutes and
longer.
Do not touch the surface of the projector lens with your bare hand.
LCD Panel
J
Optical components
Operating the projector in an environment with high temperature or heavy exposure to dust or tobacco smoke
will reduce the service life of the optical components, such as the LCD panel and polarizing plate, and may
necessitate their replacement within less than one year of use. For details, consult your dealer.
J
Lamp
The luminous source of the projector is a mercury lamp with high internal pressure.
A high pressure mercury lamp has following characteristics.
The brightness of the lamp will decrease by duration of usage.
z
The lamp may burst with sound or shorten life by shock or chipping.
z
The life of the lamp varies greatly depending on individual specicities and usage conditions. In particular,
z
continuous use over 12 hours and frequent on/off switching of the power greatly deteriorate the lamp and
affect the lamp life.
In rare cases, the lamp burst shortly after the projection.
z
The risk of bursting increases when the lamp is used beyond its replacement cycle. Make sure to replace the
z
lamp unit consistently. (“When to replace the lamp unit” (Æ page 74))
If the lamp bursts, gas contained inside of the lamp is released in a form of smoke.
z
It is recommended to store replacement lamps for contingency.
z
It is recommended to have authorized engineer or your dealer replace the lamp unit.
z
Pursuant to at the directive 2004/108/EC, article 9(2)
Panasonic Testing Centre
Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, F.R. Germany
Precautions for Use
ENGLISH -
13
Important
Information
Accessories
Make sure the following accessories are provided with your projector. Numbers in the brackets ( ) show the
number of accessories.
Remote control unit (x1)
(6451048738)
RGB signal cable (x1)
(6103580425)
Power cord (x1)
(6103580203)
Filter cover (x1)
(6103568881)
CD-ROM (x1)
(6103609515)
AC power cord holder
(x1) (6103573700)
(6103573694)
Batteries (AAA/R03 or
AAA/LR03 type) (x2)
(for remote control unit)
Lens cap (x1)
(6103527222)
(Attached to the projector
at the time of purchase.)
Attention
After unpacking the projector, discard the power cord cap and packaging material properly.
z
For lost accessories, consult your dealer.
z
The part numbers of accessories and separately sold components are subject to change without notice.
z
Store small parts in an appropriate manner, and keep them away from young children.
z
String (x1)
(6103430249)
Soft Carrying Case (x1)
(6103581620)
Precautions for Use
Information
Important
J
The following contents are stored on the supplied CD-ROM.
Optional accessories
Ceiling Mount Bracket
Projector Mount Base
Replacement Lamp Unit
Replacement Filter Unit
Contents of
Operating Instructions – Functional Manual
Operation Manual Multi Projector Monitoring &
Control Software 2.6
Operation Manual Logo Transfer Software 2.0
List of compatible projector models
•
This is a list of projectors that are compatible with
the software (refer to the right column), and their
restrictions.
Options Model No.
CD-ROM
Instructions/List (PDF) Software
ET-PKV100H (for high ceilings), ET-PKV100S (for low ceilings)
Multi Projector Monitoring & Control
Software 2.6 (Windows)
•
This software allows you to monitor and control
multiple projectors connected to the LAN.
Logo Transfer Software 2.0 (Windows)
•
This software allows you to create original
images, such as company logos to be displayed
when projection starts, and transfer them to the
projector.
ET-PKV100B
ET-LAV100
ET-RFV100
14
- ENGLISH
About Your Projector
Remote control
(17)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(10) <ON/STAND-BY> Button
Turn the projector on or off. (Æpage 25)
(11) <KEYSTONE> Button
Correct keystone distortion. (Æpage 30)
(12) <INFO.> Button
Operate the information function. (Æpage 30)
(13) <LAMP> Button
Select a lamp mode. (Æpage 31)
(14) <P-TIMER> Button
Operate the P-timer function. (Æpage 31)
(15) <IMAGE> Button
Select the image mode. (Æpage 32)
(16) <MUTE> Button
Mute the sound. (Æpage 32)
(17) Remote control signal emitter
Attention
Do not drop the remote control.
z
Avoid contact with liquids.
z
Do not attempt to modify or disassemble the remote
z
control.
Preparation
(9)
(1) <AUTO SET> Button
Execute the setting of Auto setup in the setting
menu. (Æpage 49)
(2) Input Selection Buttons: <COMPUTER 1>,
<COMPUTER 2>, <HDMI>, <VIDEO>,
<S-VIDEO>, <COMPONENT>.
These buttons are used to select the input signal.
(Æpage 29)
(3) ▲▼◄► Buttons, <SELECT> Button
Navigate the MENU display. (Æpage 33)
(4) <SCREEN> Button
Select a screen mode. (Æpage 45)
(5) <MENU> Button
Open or close the On-Screen Menu. (Æpage 33)
(6) <FREEZE> Button
Pauses the projected image and sound tentatively.
(Æpage 30)
(7) <AV MUTE> Button
Temporarily turn off the image on the screen.
(Æpage 31)
(8) <D.ZOOM ▲▼> Buttons
Zoom in and out the images.
(9) <VOLUME +/–> Buttons
Adjusts the volume of the speaker. (Æpage 31)
Note
The remote control can be used within a distance of
z
about 5 m (16.4 ft) if pointed directly at the remote control
signal receiver. The remote control can control at angles
of up to ± 30 ° vertically and ± 30 ° horizontally, but the
effective control range may be reduced.
If there are any obstacles between the remote control
z
and the remote control signal receiver, the remote control
may not operate correctly.
You can operate the projector by reecting the remote
z
control signal on the screen. The operating range may
differ due to the loss of light caused by the properties of
the screen.
When the remote control signal receiver is lit with a
z
uorescent light or other strong light source, the projector
may become inoperative. Set the projector as far from
the luminous source as possible.
ENGLISH -
15
About Your Projector
16
- ENGLISH
Preparation
Projector body
(1) Remote control signal receiver
(2) Zoom Ring
Adjust the zoom.
(3) Focus Ring
(4) Projection Lens
(5) Air intake port
(6) Control Panel and Indicators
(7) Lamp cover
(8) Air outlet port
•
(9) Speaker
(10) AC IN
(11) Terminals
(12) Air lter cover
(13) Adjustable feet
(6)
(5)
Adjust the focus.
The lamp unit is located inside.
Hot air is exhausted from the exhaust vent. Do
not put heat-sensitive objects near this side.
Adjust the projection angle.
(1)
(Æpage 75)
(Æpage 17)
(7)
(3)
(2) (4) (5)
(Æpage 72)
(Æpage 17)
(8)
(12)
(13)
(9)
(5)
(10)
(11)
WARNING:
z
Keep your hands and other objects away from
the air exhaust port
z
Keep your hand and face away.
z
Do not insert your nger.
z
Keep heat-sensitive articles away.
Heated air from the air exhaust port can cause burns
or external damage.
.
About Your Projector
ENGLISH -
17
Preparation
Control panel
(9)
(8)
(7)
(6)
(1) <SELECT> button
Execute the selected item.
(2) ▲▼◄► (VOL -/+) buttons
Navigate the MENU screen.
(2)
(5)
(4)
(3)
(1)
Adjust the volume level (with <VOL -/+> buttons).
(Æpage 31)
(3) <INPUT> button
Selects the input signal. (Æpage 28)
(4) <ON/STAND-BY> button
Turn the projector on/off.
(5) <POWER> indicator
Indicate the power status.
(6) <MENU> button
Displays the MENU screen. (Æpage 33)
(7) <AUTO SETUP> button
Execute the setting of Auto setup in the setting
menu.
(8) <WARNING> indicator
Indicate the abnormal conditions of the projector.
(9) <LAMP REPLACE> indicator
Lights yellow when the projection lamp reaches its
end of life.
Rear terminals
(5)
(12)
(1) LAN
Connect to a LAN cable for network connection.
(2) HDMI
Connect to HDMI input signals.
(3) COMPUTER IN 1/ COMPONENT IN
Connect to COMPUTER IN 1/ COMPONENT IN
input signals.
(4) COMPUTER IN 2/ MONITOR OUT
Connect to COMPUTER IN 2/ MONITOR OUT
input signals or outputs the analog RGB signals
input the projector.
(5) AUDIO OUT (VARIABLE)
Output the audio signals input to the projector.
(6) Security slot
Attach the commercial shackle lock, manufactured
by Kensington, to protect your projector.
Compatible with the Kensington MicroSaver
Security System.
(10)(11)
(4)
(3)
(7) S-VIDEO IN
Connect to S-VIDEO input signals.
(8) CONTROL PORT
Connect to a computer via an RS-232C cable.
(9) AUDIO IN
Connect to the audio input signals.
AUDIO IN has right and left (L and R) terminals.
For a mono audio signal (a single audio jack),
connect it to the L (MONO) jack.
(10) VIDEO IN
Connect to VIDEO input signals.
(11) COMPUTER AUDIO IN 1
Connect to the audio input signals.
(12) COMPUTER AUDIO IN 2 (MIC IN)
Connect to the audio input signals. Or connect
the MIC to this jack.
Attention
When a LAN cable is directly connected to the projector,
z
the network connection must be made indoors.
(2)
(1)
(6)(7)(8)(9)
Using Remote control
Using Remote control
Installing and Removing batteries
Preparation
Setting Remote control ID numbers
When you use the system with multiple projectors, you can operate all the projectors simultaneously or each
projector individually using single remote control, if unique ID number is assigned to each projector.
After setting the ID number of the projector, set the same ID number to the remote control.
There are 7 different ID codes (ALL, Code 1~Code 6), the initial ID number is [ALL].
Open the cover1 ) Install batteries and close the cover2 )
z
(Insert the – side rst.)
Remove the batteries in the reverse order of
installation.
J
Setting the ID number
1) While holding down the <MENU> button, press the <IMAGE> button. The number of times you press
the <IMAGE> button corresponds to the desired ID code number.
2) The number of times to press the <IMAGE> button is as follows:
Code 1= Once, Code 2= Twice, Code 3= 3 times, Code 4= 4 times
Code 5= 5 times, Code 6= 6 times.
3) The ID code is changed when the <MENU> button is released.
J
Resetting the ID number
The ID code is reset to [ALL] (default) by pressing the <MENU> button and <IMAGE> button at the same
time for 5 seconds or more.
Attention
z
If the <IMAGE> button is pressed 7 times or more, the ID code
cannot be changed (the operation is invalid).
Note
For details, please refer to the [Remote control] of the [Setting] menu.
z
(Æpage 53)
MENU button
IMAGE button
18
- ENGLISH
Setting up
Projection method
You can use the projector with any of the following 4 projection methods. To set the desired method in the projector.
J
Setting on a desk/oor and
projecting forward
1
Menu setting
Ceiling Off
Rear Off
J
Mounting on the ceiling and
*
projecting from rear
(Using translucent screen)
J
Mounting on the ceiling and
projecting forward
1
Menu setting
Ceiling On
Rear Off
J
Setting on a desk/oor and
*
projecting from rear
(Using translucent screen)
Getting Started
1
Menu setting
Ceiling On
Rear On
For details about the menu setting, please refer to the [Screen] menu → [Ceiling] and [Rear]. *1 :
*
Menu setting
Ceiling Off
Rear On
1
*
(Æ
page
47)
Parts for ceiling mount (Optional)
You can install the projector on the ceiling by using the optional ceiling mount bracket (ET-PKV100H: for high
ceiling, ET-PKV100S: for low ceiling), and the optional projector mount base ET-PKV100B.
z
Use only the ceiling mount brackets specied for this projector.
z
Refer to the installation manual for the ceiling mount bracket when you install the bracket and the projector.
Attention
z
To ensure projector performance and security, installation of the ceiling mount bracket must be carried by your
dealer or a qualied technician.
ENGLISH -
19
Setting up
20
- ENGLISH
Getting Started
Screen size and throw distance
Place the projector referring
to the diagram on the right
and the gures of throwing
distance. You can adjust the
display size.
L (LW/LT) *1Projection distance (m)
SH Height of the projection area (m)
SW Width of the projection area (m)
SD Diagonal length of the projection area (m)
LW : Minimum distance *1 :
LT : Maximum distance
Attention
Before installing, please read “Precautions for Use” (
z
J
Projection distance
(All measurements below are approximate and may differ slightly from the actual measurements.)
Projection size For 4:3 aspect ratio For 16:9 aspect ratio
Screen diagonal (SD)
Projected image
SH
Minimum distance
(LW)
SD
SW
pages 10 to 14).
Æ
Maximum distance
(LT)
SH
SW
Screen
L (LW/LT)
L (LW/LT)
Screen
Minimum distance
(LW)
Maximum distance
(LT)
1.02 m(40") 1.4 m(4.59') 1.7 m(5.58') 1.5 m(4.92') 1.8 m(5.91')
1.27 m(50") 1.7 m(5.58') 2.1 m(6.89') 1.9 m(6.23') 2.3 m(7.55')
1.52 m(60") 2.1 m(6.89') 2.5 m(8.20') 2.3 m(7.55') 2.8 m(9.19')
1.78 m(70") 2.5 m(8.20') 3.0 m(9.84') 2.7 m(8.86') 3.2 m(10.5')
2.03 m(80") 2.8 m(9.19') 3.4 m(11.15') 3.1 m(10.17') 3.7 m(12.14')
2.29 m(90") 3.2 m(10.5') 3.8 m(12.47') 3.5 m(11.48') 4.1 m(13.45')
2.54 m(100") 3.5 m(11.48') 4.2 m(13.78') 3.8 m(12.47') 4.6 m(15.09')
3.05 m(120") 4.2 m(13.78') 5.1 m(16.73') 4.6 m(15.09') 5.5 m(18.04')
3.81 m(150") 5.3 m(17.39') 6.4 m(21.00') 5.8 m(19.03') 6.9 m(22.64')
5.08 m(200") 7.1 m(23.29') 8.5 m(27.89') 7.7 m(25.26') 9.2 m(30.18')
6.35 m(250") 8.8 m(28.87') 10.6 m(34.78') 9.6 m(31.50') 11.6 m(38.06')
7.62 m(300") 10.6 m(34.78') 12.7 m(41.67') 11.6 m(38.06') 13.0 m(42.65')
Any other projection distance can be obtained according to the screen dimensions (m) using the following
calculations.
The distance is shown in units of meters. (The calculated distance may contain a certain error.)
If the screen dimensions are written as “SD"
For 4:3 aspect ratio For 16:9 aspect ratio
Screen height (SH) = SD(m) × 0.6 = SD(m) × 0.490
Screen width (SW) = SD(m) × 0.8 = SD(m) × 0.872
Minimum distance (LW) = 1.3937 × SD(m) - 0.0240 = 1.5184 × SD(m) - 0.0240
Maximum distance (LT) = 1.6732 × SD(m) - 0.0242 = 1.8229 × SD(m) - 0.0242
Setting up
ENGLISH -
21
Getting Started
Adjusting front adjustable feet
The adjustable feet can be extended by turning it as shown in the gure. It is retracted by turning it in the opposite
direction. (Projection angle can be adjusted vertically.)
Attention
Heated air comes out of the air exhaust port while the lamp is lit. Do not touch the air exhaust port directly when you adjust
z
the front adjustable feet.
If keystone distortion occurs on the projected image, perform “KEYSTONE” from the “Screen” menu. (
z
Adjustable Feet
Adjustable range
Front adjustable feet : 41.2 mm(1.622")
page 46)
Æ
Connections
Before connecting to the projector
z
Read carefully the instruction manual for the device to be connected.
z
Turn off the power switch of the devices before connecting cables.
z
If any connection cable is not supplied with the device, or if no optional cable is available for connection of the
device, prepare a necessary system connection cable to suit the device.
z
Video signals containing too much jitter may cause the images on the screen to randomly wobble or wafture.
In this case, a time base corrector (TBC) must be connected.
z
The projector accepts the following signals: VIDEO, S-VIDEO, analogue-RGB (with TTL sync. Level) and
digital signal.
z
Some computer models are not compatible with the projector.
z
When using long cables to connect with each of equipment to the projector, there is a possibility that the image
will not be output correctly unless a compensator is used.
z
For details on what video signals the projector supports, see “List of compatible signals”. (
Connecting example
Getting Started
pages 86-89)
Æ
Basic Operation
MIC
Blue ray disk player with HDMI
terminal
Attention
When connecting with a video deck, be sure to use the one with a built-in time base corrector (TBC) or use a TBC between
z
the projector and the video deck.
If nonstandard burst signals are connected, the image may be distorted. If this is the case, connect a TBC between the
z
projector and the video deck.
Audio system
Computer
Video deck
(TBC built-in)
Control computer
Note
When using an HDMI cable, check that it is compliant with the HDMI standard. Using a cable that is not compliant with the
z
HDMI standard may result in problems such as the image cutting out or not appearing.
When connecting the 1 080p signal using HDMI, use a cable compliant with 1 080p signal.
This projector does not support the Viera link (HDMI).
z
For the specications of the RGB signals that can be applied from the PC, refer to “List of compatible signals”. (
z
See [Network] in this instruction manual for the details of wired LAN communication between the projector and the
z
computer.
22
- ENGLISH
pages 86-89)
Æ
Powering ON/OFF
Bottom View
Connecting the power cord
Be sure to insert the attached power cord securely to its base to prevent it from coming off.
J
Power cord holder
A power cord holder is designed to prevent the AC power cord from coming off the projector.
Please insert the power cord into the power cord holder correctly as Picture (1) shown:
AC Power cord holder
Clamp
Picture (1)
J
Attaching
Attach the AC power cord with the power cord clamp to the projector by following these steps.
Plug the power cord with the power cord holder to the projector as Picture (2) shown.1 )
Push the clamp at the AC Power cord holder downward to secure it to the projector. It is correctly attached 2 )
until you hear the "CLICK" sound. See Picture (3) for correct attachment.
Picture (2)
Picture (3)
Basic Operation
ENGLISH -
23
Powering ON/OFF
24
- ENGLISH
Basic Operation
POWER indicator
POWER indicator
The power indicator informs you the status of the power. Conrm the status of the <POWER> indicator before
operating the projector.
Indicator status Status
No illumination or ashing The power cord is unplugged.
RED
GREEN
Lit
Flashing
Lit Projecting.
Flashing
The power cord is plugged.
The projector is in stand-by mode, after the cooling is completed.
The projector is cooling down. The projector cannot be turned on until cooling is
completed and the <POWER> indicator stops blinking.
The temperature inside the projector is abnormally high and the projector is cooling
down. And the <WARNING> indicator also blinks in red (Æpage 71). The projector
cannot be turned on until cooling is completed and the <POWER> indicator stops
blinking.
The projector is in stand-by status with [Power management] function.
The projection lamp will be turned on if the input signal is reconnected or any
button on the control panel or remote control is pressed. (Æpage 51)
Powering ON/OFF
ENGLISH -
25
Basic Operation
Turning On the Projector
(2)
(3)
(3)
Complete peripheral connections (with a 1 )
computer, VCR, etc.) before turning on the
projector.
Connect the projector’s AC power cord into an 2 )
AC outlet. The <POWER> indicator lights red.
Open the lens cap.
Press the <ON/STAND-BY> button to on the 3 )
control panel or on the remote control. The
<POWER> indicator lights green and the cooling
fans start to operate. The preparation display
appears on the screen and the count down
starts.
After the countdown, the input source that was 4 )
selected the last time and the lamp power status
icon appear on the screen.
If there is no signal input when start on the 5 )
projector, or the current signal is missed while
operating the projector, the Video/Computer
selection window will be displayed on the screen,
please move the pointer to input source desired
by pressing the ▲▼ and the <SELECT> button.
And then follow the input signal guidance window
to correct the signal and connection.
Preparation display
06
The preparation display will disappear
after 30 seconds.
Initial display
Input source
Lamp power status
Video/Computer selection
If the projector is locked with a PIN code, PIN
code input dialog box will appear. Enter the PIN
code as instructed on the next page.
Note
When the [Logo select] function is set to [Off], the logo
z
will not be shown on the screen (Æpage 50).
When [Countdown off] or [Off] is selected in the [Display]
z
function, the preparation display will not be shown on the
screen (Æpage 50).
When the [Input search] function is set to [On 2], the
z
input signal will be searched automatically (Æpage 49).
When the [Direct on] function is set to [On], the projector
z
will be turned on automatically by connecting the AC
power cord to an AC outlet.
Powering ON/OFF
26
- ENGLISH
Basic Operation
Enter a PIN code
Press ▲▼ to enter a number. Press ► to x the
number and move the red frame pointer to the next
box. The number changes to . If you xed an
incorrect number, use the ◄ button to move the
pointer to the number you want to correct, and then
enter the correct number.
Repeat this step to complete entering a four-digit
number.
After entering the four-digit number, move the pointer
to “Set”. Press the <SELECT> button so that you can
start to operate the projector.
If you entered an incorrect PIN code, PIN code and
the number (
the correct PIN code all over again.
Note
If the PIN code number is not entered or wrong PIN code
z
number is entered within three minutes after the PIN
code dialog box appeared, the projector will be turned off
automatically.
The “1234” is set as the initial PIN code at the factory.
z
PIN Code Input Dialog Box
After the OK icon disappears,
you can operate the projector.
) will turn red for a moment. Enter
Powering ON/OFF
ENGLISH -
27
Basic Operation
Turning Off the Projector
Press the <ON/STAND-BY> button on the control 1 )
panel or on the remote control, and
appears on the screen.
Press the <ON/STAND-BY> button again to turn 2 )
off the projector. The <POWER> indicator starts
to blink red, and the cooling fans keep running.
At this time, you can unplug the AC power cord
even if the fans are still running.
When the projector has cooled down enough, 3 )
the <POWER> indicator stops blinking and you
can turn on the projecto
Note
Do not put the projector in a case before the projector is
z
cooled enough.
While the <POWER> indicator is blinking, the lamp is
z
being cooled down and the projector cannot be turned
on. Wait until the <POWER> indicator stops blinking to
turn on the projector again.
The projector can be turned on after the <POWER>
z
indicator turns red. The waiting time to restart will be
shortened when the normal power-off processing for fan
cooling is completed, compared with the time the AC
power cord is immediately unplugged after the power-off.
r.
Power off?
Power off?
disappears after 4 seconds.
J
Direct Power Off function
You can disconnect the power cord from the wall
outlet or turn off the breaker even during projection
without pressing the <ON/STAND-BY> button.
Note
The cooling fans will continue to rotate using internally
z
stored power.
When using the [Direct power Off] function, you can
z
not restart the projector immediately after the power is
disconnected. The lamp remains high temperature and
needs to be cooled, so it sometimes takes longer time
than usual for the lamp to light up again.
28
- ENGLISH
Basic Operation
Projecting
Check the connections of the peripheral devices and connection of the power cord (Æpage 23) and switch on the
power (Æpage 25) to start the projector. Select the image and adjust the state of the image.
Selecting the image
Select an input signal.
The image selected with the <COMPUTER 1>,
<COMPUTER 2>, <HDMI>, <VIDEO>, <S-VIDEO>,
or <COMPONENT> button is projected (Æpage 29).
Attention
Images may not be projected properly depending on the
z
connected device and DVD, video tape, etc. to be played.
Select a system format that is suitable for the input signal
in [Component] or [RGB] in the [Input] menu (Æpage 36).
Check the aspect ratio of the screen and the image and
z
select the optimum aspect ratio under the [Screen] menu
(Æpage 45).
How to adjust the state of the image
Adjust the projection angle.1 )
z
For details, see “Adjusting front adjustable feet”
(Æpage 21).
Adjust the zoom and the focus.2 )
Turn [Zoom ring] and [Focus ring] to adjust the
image.
Focus Ring
Note
It is recommended that the images are projected
z
continuously for at least 30 minutes before the focus is
adjusted.
If you adjust the focus, you may need to adjust the size
z
of the image by moving the zoom ring again.
If keystone distortion occurs, see “KEYSTONE”
z
(Æpage 46).
Zoom Ring
ENGLISH -
29
Basic Operation
Basic operations by using the remote control
Using the AUTO SET function
This function allows you to automatically adjust
Input search, Auto Keystone correction and Auto PC
adjustment during signal input from a computer.
COMPUTER 1
COMPUTER 2
HDMI
VIDEO
S-VIDEO
COMPONENT
Note
Each press of the <INPUT> button on the Control Panel
z
of the main unit switches the settings as shown below.
(Æpage 17)
Computer 1 (RGB)/
Computer 1 (Component)
S-video Video
It depends on the item you selected in the
*
[Computer 1] submenu of the [Input] menu.
Switches to Computer 1(RGB)/
Computer 1(Scart) input.
Switches to Computer 2(RGB)
input.
Switches to HDMI input.
Switches to Video input.
Switches to S-video input.
Switches to Computer 1
(Component) input.
Computer 1 (Scart)/
*
Computer 2
(RGB)
HDMI
button
Press the <AUTO SET> button on the
remote control.
Note
For details, see “Setting” of Main menu. (
z
page 49)
Æ
Switching the input signal
You can switch the input signals to project.
buttons
Press (<COMPUTER 1>,<COMPUTER
2>, <HDMI>, <VIDEO>, <S-VIDEO>, or
<COMPONENT>) button on the remote
control.
Using the SCREEN button
This function allows you to select screen mode or
change the screen size.
button
Press the <SCREEN> button on the
remote control.
Note
For details, see “Screen” of Main menu. (
z
page 45)
Æ
