Page 1
Outdoor
Camera Housings and
Mounting Brackets
Page 2
OUTDOOR FIXED HOUSINGS
Outdoor Housings and Mounting Brackets
INDOOR/OUTDOOR FIXED HOUSINGS
POH1000
Outdoor Housing
■
10" indoor/outdoor aluminum housing for all Panasonic standard body cameras
and all current Panasonic vari-focal and fixed lenses
■
Lightweight aluminum chassis
■
Side hinges for ease of access when focusing and adjusting
■
Terminal block interface for easy connection
■
Provision for optional heater/blower and sun shield
POH1000HB
Outdoor Housing
Includes same features as POH1000, plus:
■
Built-in 24VAC heater/blower
POH1500
Outdoor Housing
■
15" indoor/outdoor aluminum housing for all Panasonic standard body cameras
and all current Panasonic vari-focal and fixed lenses
■
Lightweight aluminum chassis
■
Side hinge for ease of access when adjusting and servicing camera
■
Dual conduit opening on housing bottom, sealed with rubber grommets
■
Terminal block interface for easy connection
■
Provision for optional heater/blower and sun shield
POH1500HB
Outdoor Housing
Includes same features as POH1500, plus:
■
Built-in 24VAC heater/blower
Optional Accessories
PHK10 – Heater kit
PBK10 – Blower kit
PSS10 – Sunshield, also performs as hanging mount
Optional Accessories
PHK10 – Heater kit
PBK10 – Blower kit
PSS15 – Sunshield, also performs as hanging mount
Optional Accessory
WV-Z50 – Wiper assembly f/WV-7150D/7160D
Optional Accessory
PBWM10 – Wall mount bracket f/PBRH10
PBRH10
Outdoor Bullet Resistant Housing
■
10" indoor/outdoor aluminum housing for all Panasonic
standard body cameras and all current Panasonic
vari-focal and fixed lenses
■
Ballistic rated
■
7-gauge strength and durability
■
24 VAC heater
WV-7150D
Outdoor Housing
■
Weatherproof outdoor housing for cameras with fixed focal length lenses
■
Thermostat automatically controls built-in heater and cooling fan
■
Sun shield provided
■
Easy wiring with use of terminal board
■
Mountable to the WV-7260D Pan/Tilt Mechanism
Page 3
Outdoor Housings and Mounting Brackets
OUTDOOR DOME HOUSINGS
POD7CWN
Outdoor Dome Housing
Includes same features as POD7CN, except:
■
Wall mount style
POD7CN
Outdoor Dome Housing
■
Hanging mount style
■
Easy installation
■
24-hour fan operation for effective heating
and condensation protection
■
24VAC heater for low power installation
■
Surge protection for video line and power
■
Ground loop protection by optional unit PWBT1621 (isolation transformer)
■
Optically clear dome material
■
Lower dome: 7" diameter
■
Designed for WV-CS954 / WV-CS574 / WV-NS324 cameras
POD8C
Pendant Mount (for PTZ dome cameras)
■
Beige housing (POD8C and POD8CF only)
■
Durable engineered plastic top, UV protected with a UL flame rating of 94V0
■
Aluminum wall or pendant mount
■
24VAC blowers and thermostatically controlled heaters for condensation protection
■
Surge protection for both video and power
■
Thermoformed, optically clear, cell-cast acrylic material
■
Designed for WV-CS574 or WV-NS324 cameras
POD8CF
Pendant Mount (for fixed cameras)
■
Includes same features as POD8C
■
Optional mounts for corner, pole, and parapet applications PACA2, PAPM3
■
Pendant mount only
■
Use optional PWM20G or PWM20GB for wall mount application
POD8CW
Wall Mount (for PTZ dome cameras)
■
White housing
■
Includes same features as POD8C
■
Designed for WV-CS574 and WV-NS324 dome cameras
POD8CWF
Wall Mount (for fixed cameras)
■
White housing
■
Includes same features as POD8C
■
Optional mounts for corner, pole, and parapet applications
Optional Accessories
PPRM30G – Parapet mount f/POD7CN (inside wall), black
PPRM30GB – Parapet mount f/POD7CN (inside wall), beige
PWM20G – Gooseneck wall mount for POD7CN, black
PWM20GB – Gooseneck wall mount for POD7CN, beige
PWM30G – Parapet mount for POD7CN (outside wall), black
PWM30GB – Parapet mount for POD7CN (outside wall), beige
Optional Accessories
PWBT1621 – Ground loop isolation transformer
PACA2 – Corner mount adapter, black
PAPM3 – Pole mount adapter, black
Page 4
OUTDOOR BRACKETS: VANDAL-PROOF CAMERAS
PRESSURIZED HOUSINGS
PPFD9C
Pressurized Dome Housing
■
Designed for Panasonic fixed cameras
■
Constructed of durable engineered plastic top,
94 VO with polycarbonate lower dome
■
PPFD8C meets DE and IP67 standards
■
Pressurized indicator
■
50 W heater turns on at 40º F and off at 60º F
■
Power and video surge protector
■
Weighs 8 lbs. (without camera)
■
13.0"H x 11.5"W x 11.5"D
■
Designed for WV-CS954 / WV-CS574 / WV-NS324 cameras
PCM474SA
Vandal-Proof
Corner Mount
■
Weatherproof
■
Pass through for wire connections
■
Corner outdoor mount for WV-CW474S,
WV-CW244S and WV-CW474AS
cameras
PPM474SA
Vandal-Proof
Pole Mount
■
Weatherproof
■
Pass through for wire connections
■
Pole outdoor mount for WV-CW474S
and WV-CW244S cameras
PHM474SA
Vandal-Proof Hanging Mount
■
Made of 1" thick steel tubing
■
Beige powder coat finish
■
Weatherproof
■
Pass through for wire connections
■
Outdoor hanging mount for WV-CW244S,
WV-CW474AS and WV-CW474S cameras
PWM474SA
Vandal-Proof
Wall Mount
■
Weatherproof
■
Pass through for wire connections
■
Outdoor wall mount for WV-CW474S,
WV-CW474AS and WV-CW244S
cameras
POD9CWT
Wall Mount
(for PTZ dome cameras)
■
Includes same features as POD8C
■
White housing; available in sleek,
hi-tech silver design (POD9CW)
■
Designed for WV-CS954 / WV-CS574 /
WV-NS324 cameras
POD9CT
Pendant Mount
■
Includes same features as POD8C
■
White housing; available in sleek,
hi-tech silver design (POD9C)
■
Designed for WV-CS954 / WV-CS574 /
WV-NS324 cameras
OUTDOOR DOME HOUSINGS
Page 5
Outdoor Housings and Mounting Brackets

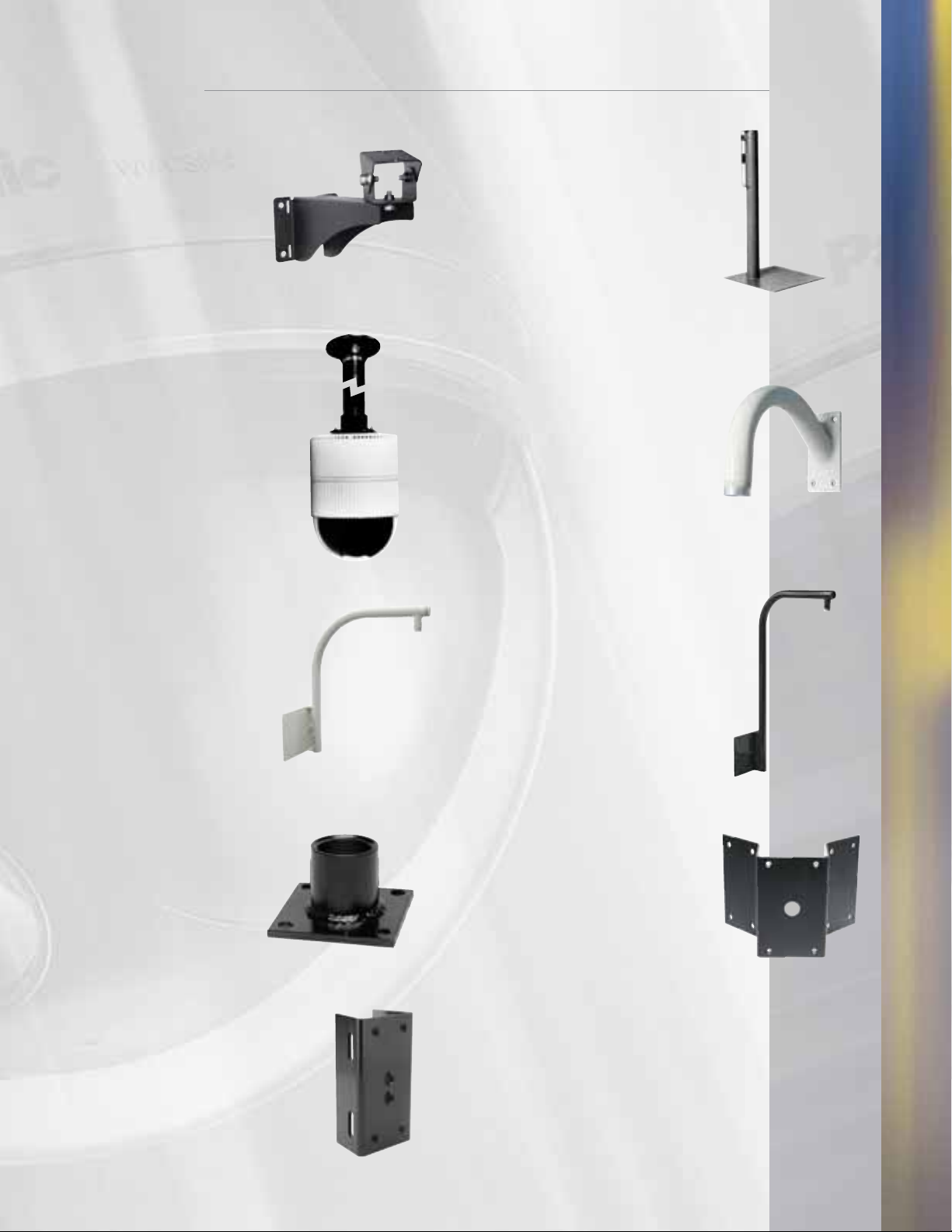

MOUNTING BRACKETS
PWM800
Outdoor Wall Mount
■
Medium-duty outdoor mount
■
Designed for mounting to a
flat wall or round pole
(larger than 3.5" diameter)
■
Supports weight loads up to 25 lbs.
■
Black, textured powder coat finish
■
Designed for POH1000 and POH1500
PSRCW2000B
Outdoor Parapet
Roof Top Mount Bracket
■
Heavy-duty
■
Designed to be mounted on a flat
roof top or roof top parapet
■
150 lbs. load rating
■
Black
■
Designed for POD7CN outdoor
dome housing (with wall mount
bracket PWM20G or POD7CWN)
PHM5
Indoor/Outdoor Hanging
Mount Bracket
■
Designed for pendant mounting from
a flat surface
■
Pipe extension (not included)
■
Designed for the WV-CS954/
WV-CS574 Series
PWM30G – Black Finish
PWM30GB – Beige Finish
Parapet Mount
■
Durable powder coat finish
■
All aluminum construction
■
1 1/2" pipe thread on end for
quick and easy dome mounting
■
Access plug for easy wire pulls
■
50 lbs. load rating
■
Designed for all pendant housings
PPRM30G – Black Finish
PPRM30GB – Beige Finish
Parapet Mount
■
Durable powder coat finish
■
All aluminum construction
■
1 1/2" pipe thread on end for quick
and easy dome mounting
■
Access plug for easy wire pulls
■
Extension piece for added flexibility
■
50 lbs. load rating
■
Designed for all pendant housings
PWM20G – Black Finish
PWM20GB – Beige Finish
Wall Mount
■
Durable powder coat finish
■
All aluminum construction
■
1 1/2" pipe thread on end for quick
and easy dome mounting
■
Access plug for easy wire pulls
■
50 lbs. load rating
■
Designed for all pendant housings
PAPM3 – Black Finish
PAPM3B – Beige Finish
Outdoor Pole Mount Adapter
■
Mounted to a round pole larger than
3" in diameter by stainless steel straps
(not included)
■
200 lbs. load rating
■
Designed for POD7CWN, PWM20G, PWM20GB
PACA2 – Black Finish
PACA2B – Beige Finish
Outdoor Corner Mount Adapter
■
200 lbs. load rating
■
To corner mount the POD7CWN,
PWM20G, PWM20GB
PPMF12D
Pendant Mount Bracket
■
Mounting bracket and backbox
for use with POD7CN in a hanging
mount application
■
1-1/2" standard pipe
(not included)
Page 6
Panasonic System Solutions Company
Unit of Panasonic Corporation of North America
Security Systems
One Panasonic Way, Panazip 2H-2, Secaucus, NJ 07094
TOLL-FREE Phone: 1-877-733-3689 •TOLL-FREE Fax: 1-866-808-9115
www.panasonic.com/security
Product specifications are subject to change without notice.
©2006 Panasonic Corporation of North America. All rights reserved.
Mounting equipment shown in this brochure is made available as an option to cameras.
February 2006
