Installation Guide
Home Network System
Indoor Camera
Model No. KX-HNC200
Thank you for purchasing a Panasonic product.
This document explains how to install the indoor camera properly.
For details about how to use the system, refer to the User’s Guide (page 13).
Please read this document before using the unit and save it for future reference.
For assistance, visit our Web site: www.panasonic.com/support
for customers in the U.S.A. or Puerto Rico.
Please register your product: www.panasonic.com/prodreg
Printed in China
Introduction
Accessory information ..................................3
Other information .........................................3
Important Information
About this system .........................................4
For your safety .............................................4
Important safety instructions ........................5
For best performance ...................................5
Other information .........................................6
Setup
Part names and functions ............................7
About the LED indicator ...............................7
Setup overview .............................................7
Registering the camera ................................7
Information about sensor features ...............8
Confirming the usage area ...........................9
Connections ...............................................10
Wall mounting ............................................11
Appendix
Testing the motion detection range ............12
Features available when using the [Home
Network] app ..............................................12
Accessing the User’s Guide .......................13
Specifications .............................................13
FCC and other information .........................14
Customer services .....................................15
Warranty (For United States and Puerto
Rico) ...........................................................16
2
Table of Contents
Accessory information
Supplied accessories
No. Accessory item/Part number Quantity
A AC adaptor/PNLV2360Z 1
A
Other information
R Design and specifications are subject to change without notice.
R The illustrations in these instructions may vary slightly from the actual product.
Trademarks
R microSDHC is a trademark of SD-3C, LLC.
R iPhone and iPad are registered trademarks of Apple Inc.
R Android is a trademark of Google Inc.
R All other trademarks identified herein are the property of their respective owners.
Notice
R The hub supports microSD and microSDHC memory cards. In this document, the term
“microSD card” is used as a generic term for any of the supported cards.
For assistance, please visit www.panasonic.com/support
3
Introduction
About this system
R This system is an auxiliary system; it is not
designed to provide complete protection
from property loss. Panasonic will not be
held responsible in the event that property
loss occurs while this system is in operation.
R This product should not be used as
substitute for a medical or caregiver’s
supervision. It is the caregiver’s
responsibility to stay close enough to
handle any eventuality.
For your safety
To prevent severe injury and loss of life/
property, read this section carefully before
using the product to ensure proper and safe
operation of your product.
WARNING
Power connection
R Use only the power source marked on the
product.
R Do not overload power outlets and
extension cords. This can result in the risk
of fire or electric shock.
R Completely insert the AC adaptor/power
plug into the power outlet. Failure to do so
may cause electric shock and/or excessive
heat resulting in a fire.
R Regularly remove any dust, etc. from the
AC adaptor/power plug by pulling it from
the power outlet, then wiping with a dry
cloth. Accumulated dust may cause an
insulation defect from moisture, etc.
resulting in a fire.
R Unplug the product from power outlets if it
emits smoke, an abnormal smell, or makes
an unusual noise. These conditions can
cause fire or electric shock. Confirm that
smoke has stopped emitting and contact us
at www.panasonic.com/contactinfo
R Unplug from power outlets and never touch
the inside of the product if its casing has
been broken open. Danger of electric shock
exists.
R Never touch the plug with wet hands.
Danger of electric shock exists.
R Do not connect non-specified devices.
Installation
R To prevent the risk of fire or electrical
shock, do not expose the product to rain or
any type of moisture.
R Do not place or use this product near
automatically controlled devices such as
automatic doors and fire alarms. Radio
waves emitted from this product may cause
such devices to malfunction resulting in an
accident.
R Do not allow the AC adaptor to be
excessively pulled, bent or placed under
heavy objects.
R Keep small parts, such as microSD cards
and screws, out of the reach of children.
There is a risk of swallowing. In the event
they are swallowed, seek medical advice
immediately.
Operating safeguards
R Unplug the product from power outlets
before cleaning. Do not use liquid or
aerosol cleaners.
R Do not disassemble the product.
R Never put metal objects inside the product.
If metal objects enter the product, turn off
the circuit breaker and contact an
authorized service center.
Medical
R Consult the manufacturer of any personal
medical devices, such as pacemakers or
hearing aids, to determine if they are
adequately shielded from external RF
(radio frequency) energy. DECT features
operate between 1.92 GHz and 1.93 GHz
with a peak transmission power of 115 mW.
R Do not use the product in health care
facilities if any regulations posted in the
area instruct you not to do so. Hospitals or
health care facilities may be using
equipment that could be sensitive to
external RF energy.
4
For assistance, please visit www.panasonic.com/support
Important Information
CAUTION
Installation and location
R Never install wiring during a lightning storm.
R The AC adaptor is used as the main
disconnect device. Ensure that the AC
outlet is installed near the product and is
easily accessible.
R To avoid the risk of strangulation, keep the
product and the AC adaptor cord at least
1 m (3 feet) from a child’s crib and out of
the reach of small children.
R Mount the product on the stable location
where the camera can be adequately
supported when installing.
R Do not mount the product on soft material.
It may fall down, break or cause injury.
R Do not mount the product on the following
materials: gypsum board, ALC (autoclaved
lightweight cellular concrete), concrete
block, plywood less than 25 mm (1 inch)
thick, and etc.
Preventing accidents and injuries
R Do not put your ear(s) near the speaker, as
loud sounds emitted from the speaker may
cause hearing impairment.
Important safety instructions
When using your product, basic safety
precautions should always be followed to
reduce the risk of fire, electric shock, and
injury to persons, including the following:
1. Do not use this product near water for
example, near a bathtub, washbowl,
kitchen sink, or laundry tub, in a wet
basement or near a swimming pool.
2. Use only the power cord indicated in this
document.
SAVE THESE INSTRUCTIONS
For best performance
Hub location/avoiding noise
The hub and other compatible Panasonic
devices use radio waves to communicate with
each other.
R For maximum coverage and noise-free
communications, place your hub:
– at a convenient, high, and central
location with no obstructions between
the product and hub in an indoor
environment.
– away from electronic appliances such as
TVs, radios, personal computers,
wireless devices, or other phones.
– facing away from radio frequency
transmitters, such as external antennas
of mobile phone cell stations. (Avoid
putting the hub on a bay window or near
a window.)
R If the reception for a hub location is not
satisfactory, move the hub to another
location for better reception.
Environment
R Keep the product away from electrical noise
generating devices, such as fluorescent
lamps and motors.
R The product should be kept free from
excessive smoke, dust, high temperature,
and vibration.
R Do not expose this product to direct
sunlight or other forms of powerful light
such as halogen lights for long periods of
time. (This may damage the image sensor.)
R Do not place heavy objects on top of the
product.
R When you leave the product unused for a
long period of time, unplug the product from
the power outlet.
R The product should be kept away from heat
sources such as heaters, kitchen stoves,
etc. It should not be placed in rooms where
the temperature is less than 0 °C (32 °F) or
greater than 40 °C (104 °F). Damp
basements should also be avoided.
R Operating the product near electrical
appliances may cause interference. Move
away from the electrical appliances.
For assistance, please visit www.panasonic.com/support
5
Important Information
Other information
Routine care
R Wipe the outer surface of the product with a
soft moist cloth.
R Do not use benzine, thinner, or any
abrasive powder.
Camera image quality
R Camera images may have the following
characteristics.
– Colors in images may differ from the
actual colors.
– When there is light behind the subject
(i.e., backlighting), faces may appear
dark.
– Image quality may be reduced in dark
locations.
– Images may appear hazy when there
are outdoor lights in use.
Protecting your recordings
R Do not remove the microSD card or
disconnect the hub’s AC adaptor while
reading or writing data to the microSD card.
Data on the card could become corrupted.
R If a microSD card malfunctions or is
exposed to electromagnetic waves or static
electricity, data on the card could become
corrupted or erased. Therefore we
recommend backing up important data to a
computer or other device.
Notice:
6
For assistance, please visit www.panasonic.com/support
Important Information
Part names and functions
A
I
H
C ED GFB
Lens unit
Microphone
Stand
LED indicator
Hole
You can prevent the camera from falling
by passing a string through the hole in the
stand.
Temperature sensor
Speaker
M N
Used when registering the camera to the
hub.
DC jack
About the LED indicator
You can use the LED indicator to confirm the
camera’s status.
Indicator Status
Off No power, or LED
indicator is turned
off
*1
Green, lit
Normal operation
*1
Green, blinking Registration mode
Red Motion detection
feature was triggered
Red, blinking Live images are
being viewed or
recorded
Indicator Status
Red, blinking quickly Camera is out of
range of the hub, or
device malfunction
Amber, blinking Camera is not
registered to a hub
*1 You can configure the camera so that its
LED indicator does not light during
normal operation. For more information,
refer to the User’s Guide (page 13).
Setup overview
1 Initial setup
Make sure you can access the system
using your mobile device. For details,
refer to the System Setup Guide included
with your hub.
2 Registration
Required only if the camera was
purchased separately (i.e., not as part of
a bundle).
3 Confirm the usage area
Read the information in this document to
confirm that the desired usage area is
suitable to proper operation.
4 Connection
Place the camera in the desired location
and connect it to the power outlet.
Registering the camera
This procedure is not required for devices
that were included as part of a bundle.
Before you can use the camera, it must be
registered to the hub.
If the camera is not registered to a hub, the
camera’s LED indicator blinks in amber.
You can register each device by using the
registration buttons or the [Home Network]
app.
For assistance, please visit www.panasonic.com/support
7
Setup
Note:
R Before registering the camera, make sure
the AC adaptors of the hub and camera are
connected and each device is powered.
Using registration buttons
1 Hub:
Press and hold M
CAMERAN until the
LED indicator blinks in green.
2 Camera:
Press and hold M N until the LED
indicator blinks in green (page 7).
R When registration is complete, the hub
sounds one long beep.
Note:
R To cancel the registration, press the
registration button on the hub and on the
camera.
R If registration fails, the hub sounds several
short beeps.
Using the app
When you register the camera by using the
[Home Network] app, you can assign a name
to your devices and group them by location.
For more information, refer to the User’s
Guide (page 13).
Information about sensor features
The camera has 3 sensor features: a visual
sensor used for motion detection, a
temperature sensor, and a sound sensor.
Please read the following information about
each sensor before deciding where to install
the camera.
Note:
R The camera’s sensor features are not
designed to be used in situations that
require high reliability. We do not
recommend use of the sensor features in
these situations.
R Panasonic takes no responsibility for any
injury or damage caused by the use of the
camera’s sensor features.

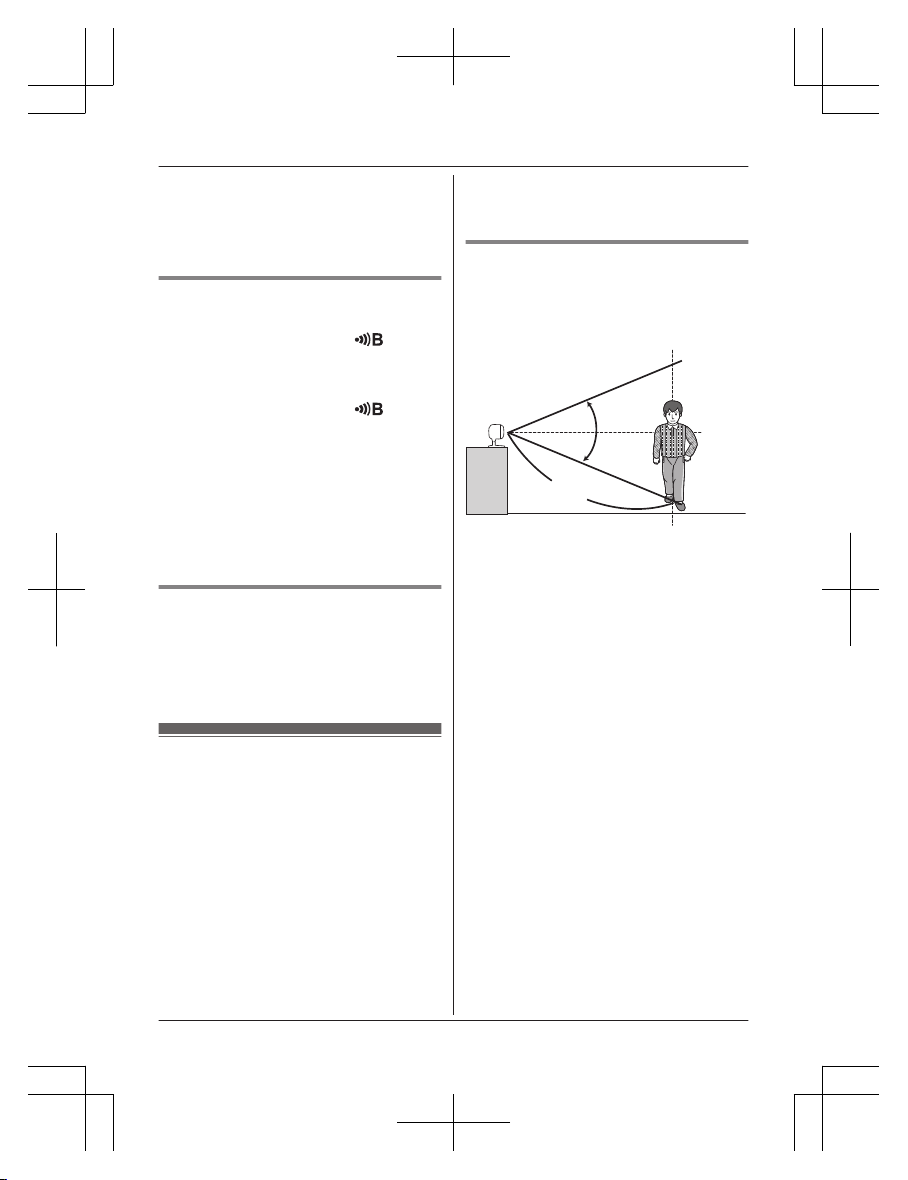

Using visible light to detect
motion
The camera can detect motion by recognizing
changes in the brightness of areas that are
visible to the camera.
1
2
1
Vertical detection range: approx. 50°
2
Distance of detectable motion: approx. 5 m
(16.4 feet)
Note:
R Movement may be incorrectly detected
when the moving object and the
background have similar colors.
R Movement may be incorrectly detected
when there are sudden changes to the
overall brightness level, such as when
lights are turned on.
R Detection becomes difficult when the image
is dark.
R You can adjust the area detectable by the
visual sensor. For more information, refer to
the User’s Guide (page 13).
8
For assistance, please visit www.panasonic.com/support
Setup
Direction of motion
It is easier to detect objects that move
sideways in front of the camera, and more
difficult to detect objects that move directly
toward the front of the camera.
A
B
C
E
D
It is difficult to detect movement directly
towards the front of the camera.
It is easy to detect movement sideways in
front of the camera.
Detection range
Horizontal detection range: approx. 70°
Camera
Temperature sensor
The sensor is triggered when the set
temperature range is exceeded.
Note:
R The temperature sensor may not detect
temperature accurately if the camera is
exposed to warm or cool breezes from
heating/cooling systems.
R You can adjust the temperature setting of
the temperature sensor. For more
information, refer to the User’s Guide
(page 13).
Sound sensor
The sensor is triggered when the set sound
level is exceeded.
Note:
R The sound sensor does not function while
the camera’s lullaby feature is playing a
lullaby.
R The sound sensor may not function as
desired when the camera is placed in noisy
environments.
R You can adjust the sound level setting of
the sound sensor. For more information,
refer to the User’s Guide (page 13).
Confirming the usage area
Wireless communication range
The wireless communication range of each
device in the system from the hub is
approximately 50 m (160 feet) indoors and
approximately 300 m (1,000 feet) outdoors.
Wireless communication may be unreliable
when the following obstacles are located
between the hub and other devices.
R Metal doors or screens
R Walls containing aluminum-sheet insulation
R Walls made of concrete or corrugated iron
R Double-pane glass windows
R Multiple walls
R When using each device on separate floors
or in different buildings
Note:
R The camera’s LED indicator blinks quickly
in red if it is out of range of the hub. In this
case, confirm all connections, including
those of the hub.
Usage area cautions
Using the camera in the following areas may
cause deformation, malfunction, or operational
failure.
R In direct sunlight
R Areas exposed to grease or steam, such as
kitchens
R Near fire or heating devices
For assistance, please visit www.panasonic.com/support
9
Setup
R Near magnetic fields (such as near
microwaves and magnets)
R Areas subject to extreme temperature
changes, such as next to air conditioners
R Areas with reflective objects, such as glass,
that can interfere with detection of
temperature variation
R Areas where the temperature is affected by
strong illuminating objects (such as
fluorescent lights)
R Near devices that emit strong radio waves,
such as mobile phones
Connections
Insert the AC adaptor plug firmly into the
DC jack.
Connect the AC adaptor to the power
outlet.
Note:
R Use only the supplied Panasonic AC
adaptor PNLV236.
2
1
Note about power connections
AC adaptor connection
R The AC adaptor must remain connected at
all times. (It is normal for the adaptor to feel
warm during use.)
R The AC adaptor should be connected to a
vertically oriented or floor-mounted AC
outlet. Do not connect the AC adaptor to a
ceiling-mounted AC outlet, as the weight of
the adaptor may cause it to become
disconnected.
Power failure
R The camera will not work during a power
failure.
Placing the camera on a flat area
When you place the camera on a flat area,
you can prevent the camera from falling by
passing a string through the hole (page 7) in
the stand.
1 Pass a string (not supplied) through the
hole in the stand.
2 Tie the string and hook it to the bracket.
10
For assistance, please visit www.panasonic.com/support
Setup
Wall mounting
R Mount the camera on the stable location
where the unit can be adequately
supported when installing.
R The AC adaptor should be connected to a
vertically oriented or floor-mounted AC
outlet. Do not connect the AC adaptor to a
ceiling-mounted AC outlet, as the weight of
the adaptor may cause it to become
disconnected.
R Do not mount the camera on a soft
material. It may fall down, break or cause
injury.
R Do not mount the camera on the following
places: plaster board, ALC (autoclaved
lightweight cellular concrete), concrete
block, plywood less than 25 mm (1 inch)
thick, and etc.
1 Drive the screws (not supplied) into the
wall.
1
Longer than 20 mm (25/32 inches)
2
Space 1.3 mm (1/32 inches)
1 2
Note:
R Use the following template when
determining the location of the screw
holes.
(1 3/32 inches)
28 mm
2 Mount the camera to the wall.
1
Screws
2
28 mm (1 3/32 inches)
2
1
3 Adjust the angle of the camera.
For assistance, please visit www.panasonic.com/support
11
Setup
Testing the motion detection range
After you have installed the [Home Network]
app on your mobile device, you can use your
mobile device to test the performance of the
camera’s motion detection feature. For more
information, refer to the User’s Guide
(page 13).
1 Start the [Home Network] app and
display live images from the camera.
2 Move to an area within the camera’s
viewable area.
3 While moving near the camera, use your
mobile device to observe where you are
in the viewable area when the camera’s
motion detection feature is triggered.
R When the motion detection feature is
triggered, the camera’s LED indicator
lights in red for about 3 seconds.
4 Note the areas of the viewable area
where movement is detected, and make
adjustments as necessary.
Note:
R You can adjust the area detectable by the
visual sensor. For more information, refer to
the User’s Guide (page 13).
Testing the microphone
To test the microphone, speak loudly and
clearly into the microphone while a mobile
device user is viewing live images from the
camera.
Features available when using the [Home Network] app
Some of the features that are available when
using the [Home Network] app are listed
below. For more information, refer to the
User’s Guide (page 13).
– Security system
You can use the app to arm and disarm the
security system, confirm the current status
of the sensor, and view a log of previous
security events.
– Live camera monitoring
You can view live images from the camera,
even while away from home.
– Listen and talk
You can use your mobile device to talk and
listen to anyone within range of the
camera’s microphone and speaker.
– Sensor adjustment
You can adjust the detection range of the
visual sensor and the setting levels of the
sound sensor and temperature sensor.
– Sensor integration
You can configure the camera’s sensor
features to trigger other system events,
such as camera recording*1, turning on an
electric device (such as a lamp), etc.
(Appropriate device required.)
*1 A commercially-available microSD
card must be inserted into the hub in
order to record images.
– Notification
You can configure the camera to send a
notification to the [Home Network] app
when the camera’s sensor features are
triggered, for example, if a baby is crying
(sound sensor) or if the room becomes too
warm or too cold (temperature sensor).
12
For assistance, please visit www.panasonic.com/support
Appendix
Accessing the User’s Guide
The User’s Guide is a collection of online
documentation that helps you get the most out
of the [Home Network] app.
1 iPhone
®
/iPad
®
Tap in the app’s home screen.
Android™ devices
Tap or press your mobile device’s
menu button in the app’s home screen.
2 Tap [User’s Guide].
Note:
R You can also access the User’s Guide at
the web page listed below.
www.panasonic.net/pcc/support/tel/
homenetwork/manual/
Specifications
R Standards
DECT 6.0 (Digital Enhanced Cordless
Telecommunications 6.0)
R Frequency range
DECT: 1.92 GHz – 1.93 GHz
R RF transmission power
DECT: 115 mW (max.)
R Power source
120 V AC, 60 Hz
R Power consumption
Standby: 1.3 W
During operation:
1.4 W (when the LED lights are not lit)
2.2 W (when the LED lights are lit)
R Operating conditions
0 °C – 40 °C (32 °F – 104 °F)
up to 90% relative humidity
(non-condensing)
R Transmitting range
Approx. 50 m (160 feet) indoors
Approx. 300 m (1,000 feet) outdoors
R Image sensor
0.3 megapixel CMOS
R Minimum illuminance required
0 lx
*1
R Focal length
Fixed (0.4 m (1.3 feet) – infinity)
R Angular field of view (camera angle)
Horizontal: approx. 70°
Vertical: approx. 50°
R Motion detection method
Visual sensor
R Motion detection range
Horizontal: approx. 70°
Vertical: approx. 50°
R Adjustable mounting angles
Horizontal: ±90°
Vertical: facing forward - facing down
approx. 60°
(adjustable when mounting)
R Dimensions
Approx. 102 mm ´ 75 mm ´ 75 mm (4
inches ´ 2 15/16 inches ´ 2 15/16 inches)
R Mass (weight)
Approx. 160 g (0.35 lb)
*1 The IR-LED will be lighted at the low
illuminance conditions.
For assistance, please visit www.panasonic.com/support
13
Appendix
FCC and other information
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including
interference that may cause undesired
operation.
Privacy of communications may not be
ensured when using this phone.
CAUTION:
Any changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority to
operate this device.
NOTE:
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/
TV technician for help.
Some cordless telephones operate at
frequencies that may cause interference to
nearby TVs and VCRs. To minimize or
prevent such interference, the base of the
cordless telephone should not be placed near
or on top of a TV or VCR. If interference is
experienced, move the cordless telephone
further away from the TV or VCR. This will
often reduce or eliminate interference.
FCC RF Exposure Warning:
R This product complies with FCC radiation
exposure limits set forth for an uncontrolled
environment.
R To comply with FCC RF exposure
requirements, the device must be installed
and operated 20 cm (8 inches) or more
between the product and all person’s body.
R This product may not be collocated or
operated in conjunction with any other
antenna or transmitter.
R For body-worn operation, the handset must
be used only with a non-metallic accessory.
Use of other accessories may not ensure
compliance with FCC RF exposure
requirements.
Notice:
R FCC ID can be found on the rear of the unit.
14
For assistance, please visit www.panasonic.com/support
Appendix
Customer services
Customer Services Directory (United States and Puerto Rico)
Obtain Product Information and Operating Assistance; locate your nearest
Dealer or Service Center; purchase Parts and Accessories; or make Customer
Service and Literature requests by visiting our Web Site at:
www.panasonic.com/support
or, contact us via the web at:
www.panasonic.com/contactinfo
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
For hearing or speech impaired TTY users, TTY: 1-866-605-1277
Purchase Parts, Accessories and Owner’s Manual online for all
Panasonic Products by visiting our Web Site at:
www.pstc.panasonic.com
or, send your request by E-mail to:
npcparts@us.panasonic.com
You may also contact us directly at:
1-800-237-9080 (Fax Only)
(Monday - Friday 9 am to 9 pm, EST.)
Panasonic National Parts Center
20421 84th Avenue S., Kent, WA 98032
(We accept Visa, MasterCard, Discover Card, American Express.)
Accessory Purchases (United States and Puerto Rico)
You may also contact us directly at: 1-800-211-PANA (1-800-211-7262),
Monday - Friday 9 am to 9 pm; Saturday - Sunday 10 am to 7 pm, EST.
For assistance, please visit www.panasonic.com/support
15
Appendix
Warranty (For United States and Puerto Rico)
Limited Warranty Coverage
Labor
One (1) Year
Parts
One (1) Year
Online Repair Request
To submit a new repair request and for quick repair status visit our Web Site at
www.panasonic.com/repair
PROOF OF PURCHASE.
Panasonic Home Network System Products
Limited Warranty
Mail-In Service--Online
If your product does not work properly because of a defect in materials or workmanship,
Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length
of the period indicated on the chart below, which starts with the date of original purchase
(“Limited Warranty period”), at its option either (a) repair your product with new or
refurbished parts, or (b) replace it with a new or a refurbished equivalent value product, or
(c) refund your purchase price. The decision to repair, replace or refund will be made by
the warrantor.
During the “Labor” Limited Warranty period there will be no charge for labor. During the
“Parts” Limited Warranty period, there will be no charge for parts. You must mail-in your
product prepaid during the Limited Warranty period. This Limited Warranty excludes both
parts and labor for batteries, antennas, and cosmetic parts (cabinet). This Limited
Warranty only applies to products purchased and serviced in the United States or Puerto
Rico. This Limited Warranty is extended only to the original purchaser and only covers
products purchased as new.
Home Network System Products
microSD card (Included model only) 90 days N/A
When shipping the unit carefully pack in a padded shipping carton, include all
accessories, and send it prepaid. Include a letter detailing the complaint, a return
address and provide a day time phone number where you can be reached. P.O. Boxes
are not acceptable. Keep the tracking number for your records. A copy of valid
registered receipt is required under the 1 year parts and labor Limited Warranty.
For Limited Warranty service for headsets if a headset is included with this
product please follow instructions above.
IF REPAIR IS NEEDED DURING THE LIMITED WARRANTY PERIOD THE
PURCHASER WILL BE REQUIRED TO FURNISH A SALES
RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE,
AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE
CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH
16
For assistance, please visit www.panasonic.com/support
Appendix
When you ship the product
• Carefully pack your unit, preferably in the original carton.
• Attach a letter, detailing the symptom.
• Send the unit to Panasonic Exchange Center, prepaid and adequately insured.
• Do not send your unit to Panasonic Corporation of North America listed on the back
cover or to executive or regional sales offices. These locations do not repair consumer
products.
Limited Warranty Limits And Exclusions
This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship,
and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty
ALSO DOES NOT COVER damages which occurred in shipment, or failures which are
caused by products not supplied by the warrantor, or failures which result from accidents,
misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty
installation, set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, introduction of sand,
humidity or liquids, commercial use such as hotel, office, restaurant, or other business or
rental use of the product, or service by anyone other than a Factory Service Center or
other Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED
WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR
ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY. (As examples, this
excludes damages for lost time, lost calls or messages, cost of having someone remove or
re-install an installed unit if applicable, travel to and from the servicer. The items listed are
not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES,
INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE
PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential
damages, or limitations on how long an implied warranty lasts, so the exclusions may not
apply to you.
This Limited Warranty gives you specific legal rights and you may also have other rights
which vary from state to state. If a problem with this product develops during or after the
Limited Warranty period, you may contact your dealer or Service Center. If the problem is
not handled to your satisfaction, then write to the warrantor’s Consumer Affairs Department
at the addresses listed for the warrantor.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY,
ARE YOUR RESPONSIBILITY.
For assistance, please visit www.panasonic.com/support
17
Appendix
18
Notes
19
Notes
A
B
Reconnect the AC adaptor to the camera.
If your product is not working properly. . .
IMPORTANT!
Visit our Web site: www.panasonic.com/support
• FAQ and troubleshooting hints are available.
Use the Home Network app to access the User’s Guide
and refer to the Troubleshooting section.
For your future reference
We recommend keeping a record of the following information to assist with any repair under
warranty.
Serial No. Date of purchase
(found on the bottom of the stand)
Name and address of dealer
Attach your purchase receipt here.
Two Riverfront Plaza, Newark, NJ 07102-5490
© Panasonic System Networks Co., Ltd. 2014
Guía de instalación
Sistema de red doméstico
Cámara interior
Modelo n° KX-HNC200
Gracias por adquirir un producto Panasonic.
Este documento explica cómo instalar la cámara interior de forma correcta.
Para obtener detalles sobre cómo usar el sistema, consulte la Guía del usuario (página 8).
Lea este documento antes de usar la unidad, y guárdelo para consultarlo en el futuro.
Para obtener ayuda, visite nuestro sitio web: www.panasonic.com/support
para clientes en los EE. UU. o Puerto Rico (solo en inglés).
Por favor, registre su producto: www.panasonic.com/prodreg
PNQX6698ZA CC0814WK0 (E)
Configuración
Nombres de los componentes y funciones ..........3
Acerca del Led indicador ......................................3
Resumen de configuración ..................................3
Cómo registrar la cámara .....................................3
Información acerca de las características del
sensor ..................................................................4
Confirmación del área de uso ..............................5
Conexiones ..........................................................6
Montaje en la pared .............................................7
Apéndice
Cómo probar el alcance de detección de
movimiento ...........................................................8
Acceso a la Guía del usuario ...............................8
2
Tabla de Contenido
Nombres de los componentes y funciones
A
I
H
C ED GFB
Unidad del lente
Micrófono
Soporte
Led indicador
Orificios
Puede evitar que la cámara se caiga pasando
una cuerda a través del orificio en el soporte.
Sensor de temperatura
Altavoz
M N
Se usa para registrar la cámara en el hub.
Clavija de corriente continua
Acerca del Led indicador
Puede usar el Led indicador para confirmar el
estado de la cámara.
Indicador Estado
Apagado Sin energía, o el Led in-
dicador está apagado
*1
Verde, encendido Funcionamiento nor-
mal
*1
Verde, parpadeante Modo de registro
Rojo La función de detec-
ción de movimiento se
activó
Rojo, parpadeante Las imágenes se están
visualizando o grabando
Indicador Estado
Rojo, parpadeo rápido La cámara está fuera
de alcance del hub o
falla el dispositivo
Ámbar, parpadeante La cámara no está re-
gistrada en el hub
*1 Puede configurar la cámara de forma tal que
el Led indicador no se encienda durante el
funcionamiento normal. Para obtener más
información, consulte la Guía del usuario
(página 8).
Resumen de configuración
1 Configuración inicial
Asegúrese de poder acceder al sistema
mediante su dispositivo móvil. Para obtener
más detalles, consulte la Guía de
configuración del sistema que viene con su
hub.
2 Registro
Solo se requiere si se compró la cámara por
separado (es decir, no como parte de un
paquete).
3 Confirmación del área de uso
Lea la información de este documento para
confirmar que el área de
uso deseada sea la
adecuada para el correcto funcionamiento.
4 Conexión
Coloque la cámara en la ubicación deseada y
conéctela a la toma de corriente.
Cómo registrar la cámara
Este procedimiento no es necesario para unidades que son parte de un paquete.
Antes de que pueda usar la cámara, se debe
registrar en el hub.
Si la cámara no se ha registrado a un hub, el
indicador Led de la cámara parpadea en ámbar.
Puede registrar cada unidad mediante los botones
de registro o la aplicación [Red doméstico].
Para obtener ayuda, visite www.panasonic.com/support
3
Configuración
Nota:
R Antes de registrar la cámara, asegúrese que
todos los adaptadores de corriente del hub y la
cámara estén conectados y cada dispositivo
reciba alimentación.
Uso de los botones de registro
1 Hub:
Oprima y mantenga oprimido M
CAMERAN hasta que el Led indicador
parpadee en verde.
2 Cámara:
Oprima y mantenga oprimido M
N hasta
que el Led indicador parpadee en verde
(página 3).
R Cuando se ha completado el registro, el
hub emitirá un pitido largo.
Nota:
R Para cancelar el registro, presione el botón de
registro en el hub y en la cámara.
R Si el registro falla, el hub emitirá varios pitidos
cortos.
Uso de la aplicación
Cuando registre su cámara con la aplicación [Red
doméstico], puede asignar un nombre a sus
dispositivos y agruparlos por ubicación. Para
obtener más información, consulte la Guía del
usuario (página 8).
Información acerca de las características del sensor
La cámara tiene 3 características de sensor: un
sensor visual que se usa para la detección de
movimiento, un sensor de temperatura y un sensor
de sonido. Lea la información siguiente sobre cada
sensor antes de decidir dónde instalar la cámara.
Nota:
R Las funciones del sensor de la cámara no están
preparadas para que se las use en situaciones
que requieran
alta confiabilidad. No
recomendamos el uso de las características del
sensor en esas situaciones.
R Panasonic no asume ninguna responsabilidad
por lesiones o daños provocados por el uso de
las características del sensor de la cámara.
Uso de la luz visible para detectar
movimiento
La cámara puede detectar el movimiento al
reconocer los cambios en el brillo de áreas que la
cámara puede ver.
1
2
1
Alcance de detección vertical: aprox. 50°
2
Distancia de movimiento detectable: aprox. 5 m
(16.4 pies)
Nota:
R Es posible que no se detecte correctamente el
movimiento cuando el objeto en movimiento y el
fondo tengan colores similares.
R Es posible que no se detecte correctamente el
movimiento cuando haya cambios bruscos en el
nivel general de brillo, como cuando se
encienden las luces.
R Se dificulta la detección cuando la imagen está
oscura.
R Puede aju
star el área detectable mediante el
sensor visual. Para obtener más información,
consulte la Guía del usuario (página 8).
4
Para obtener ayuda, visite www.panasonic.com/support
Configuración
Dirección del movimiento
Es más fácil detectar objetos que se mueven de
lado frente a la cámara y es más difícil detectar
objetos que se mueven de frente hacia la cámara.
A
B
C
E
D
Es difícil detectar movimiento directamente
hacia la parte delantera de la cámara.
Es fácil detectar movimiento lateral frente a la
cámara.
Alcance de detección
Alcance de detección horizontal: aprox. 70°
Cámara
Sensor de temperatura
El sensor se desactiva cuando se supera el rango
de temperatura establecido.
Nota:
R Es posible que el sensor de temperatura no
detecte la temperatura de forma adecuada, si la
cámara se expone a las brisas cálidas o frías del
sistema de calentamiento/enfriamiento.
R Puede ajustar la configuración de temperatura
del sensor de temperatura. Para obtener más
información, consulte la Guía del
usuario
(página 8).
Sensor de audio
El sensor se activa cuando se supera el nivel de
audio establecido.
Nota:
R El sensor de audio no funciona mientras la
función canción de cuna de la cámara está
activada.
R El sensor de audio no funcionará como desea si
la cámara se coloca en un ambiente ruidoso.
R Puede ajustar la configuración del nivel de audio
del sensor de audio. Para obtener más
información, consulte la Guía del usuario
(pá
gina 8).
Confirmación del área de uso
Alcance de la comunicación
inalámbrica
El alcance de la comunicación inalámbrica de cada
dispositivo en el sistema del hub es de
aproximadamente 50 m (160 pies) en interiores y
de aproximadamente 300 m (1,000 pies) en el
exterior. Es posible que la comunicación
inalámbrica no sea tan confiable cuando se
encuentran los obstáculos siguientes entre el hub y
otros dispositivos.
R Puertas o pantallas metálicas
R Pa
redes que contengan aislamiento de aluminio
R Paredes de hormigón o hierro corrugado
R Ventanas de vidrio doble
R Varias paredes
R Cuando los dispositivos están en pisos o
edificios diferentes
Nota:
R Si el Led indicador de la cámara parpadea en
rojo de forma rápida, se encuentra fuera de
alcance del hub. En este caso, confirme todas
las conexiones, incluso las del hub.
Precauciones respecto al área de uso
Usar la cámara en las áreas siguientes puede
causar deformación, averías o fallas de operación.
R A la luz del sol
R En áreas expuestas a grasa o vapor, como en
cocinas
Para obtener ayuda, visite www.panasonic.com/support
5
Configuración
R Cerca del fuego o calefactores
R Cerca de campos magnéticos (como cerca de
hornos microondas e imanes)
R Áreas sujetas a cambios extremos de
temperatura, como cerca de aires
acondicionados
R Áreas con objetos reflectivos, como vidrios, que
pueden interferir con la detección de la variación
de temperatura
R Áreas donde objetos de iluminación afectan la
temperatura (como luces fluorescentes)
R Cerca de dispositivos que emiten ondas de
radio potentes, como teléfonos móviles
Conexiones
Inserte el enchufe del adaptador de corriente
firmemente en la clavija de corriente continua.
Conecte el adaptador de corriente a la toma
de corriente.
Nota:
R Use solo el adaptador de corriente alterna
Panasonic PNLV236 que se suministra.
2
1
Nota acerca de las conexiones de
alimentación
Adaptador de corriente alterna
R El adaptador de corriente debe permanecer
conectado en todo momento (es normal que el
adaptador se caliente durante su uso).
R El adaptador de corriente debe estar conectado
a un enchufe de corriente orientado
verticalmente o en una toma de corriente alterna
colocada en el piso. No conecte el adaptador de
corriente alterna a una toma de corriente
montada en el techo, ya que e
l peso del
adaptador puede hacer que se desconecte.
Falla en el suministro eléctrico
R La cámara no funciona durante las fallas del
suministro eléctrico.
Cómo colocar la cámara en un área
plana
Cuando coloca la cámara en un área plana, puede
prevenir que caiga la cámara pasando una cuerda
a través del orificio (página 3) en el soporte.
1 Pase una cuerda (no incluida) por el orificio en
el soporte.
2 Ate la cuerda y engánchela al apoyo.
6
Para obtener ayuda, visite www.panasonic.com/support
Configuración
Montaje en la pared
R Monte la cámara en una ubicación estable
donde la unidad se pueda colocar con seguridad.
R El adaptador de corriente debe estar conectado
a un enchufe de corriente orientado
verticalmente o en una toma de corriente alterna
colocada en el piso. No conecte el adaptador de
corriente alterna a una toma de corriente
montada en el techo, ya que el peso del
adaptador puede hacer que se descone
cte.
R No coloque la cámara sobre un material blando.
Podría caerse, romperse o provocar lesiones.
R No monte la cámara en los siguientes lugares:
tablas de yeso, ALC (concreto celular ligero en
autoclave), bloque de concreto, contrachapados
con grosor inferior a 25 mm (1 pulgada), etc.
1 Coloque los tornillos (no se suministran) en la
pared.
1
Más largo que 20 mm (25/32 pulgadas)
2
Espacio de 1.3 mm (1/32 pulgadas)
1 2
Nota:
R Use la siguiente plantilla cuando determine
la ubicación de los orificios de los tornillos.
28 mm
(1 3/32 pulgadas)
2 Coloque la cámara en la pared.
1
Tornillos
2
28 mm (1 3/32 pulgadas)
2
1
3 Ajuste el ángulo de la cámara.
Para obtener ayuda, visite www.panasonic.com/support
7
Configuración
Cómo probar el alcance de detección de movimiento
Después de haber instalado la aplicación [Red
doméstico] en su dispositivo móvil, puede usarlo
para probar el desempeño de la función de
detección de movimiento. Para obtener más
información, consulte la Guía del usuario
(página 8).
1 Inicie la aplicación [Red doméstico] y
muestre imágenes en vivo desde la cámara.
2 Muévase a un área dentro de la zona visible
d
e la cámara.
3 Mientras se mueve cerca de la cámara, utilice
el dispositivo móvil para observar dónde está
en el área visible de la cámara cuando se
activa la función de detección de movimiento.
R Cuando se activa la función de detección
de movimiento, el Led indicador de la
cámara se enciende en rojo durante 3
segundos.
4 Observe las zonas del área visible de la
cámara cuando se detecta movimiento y haga
los a
justes necesarios.
Nota:
R Puede ajustar el área detectable mediante el
sensor visual. Para obtener más información,
consulte la Guía del usuario (página 8).
Cómo probar el micrófono
Para probar el micrófono, hable fuerte y claro en el
micrófono mientras un usuario de dispositivo móvil
observa las imágenes en vivo desde la cámara.
Acceso a la Guía del usuario
La Guía del usuario es una colección de
documentación en línea que lo ayuda a aprovechar
al máximo la aplicación [Red doméstico].
1 iPhone
®
/iPad
®
Toque
en la pantalla de inicio de la
aplicación.
Dispositivos Android™
Toque
u oprima el botón menú de su
dispositivo en la pantalla de inicio de la
aplicación.
2 Toque [Guía del usuario].
Nota:
R También puede acceder a la Guía del usuario
mediante la página web a continuación.
www.panasonic.net/pcc/support/tel/
homenetwork/manual/
8
Para obtener ayuda, visite www.panasonic.com/support
Apéndice
Loading...
