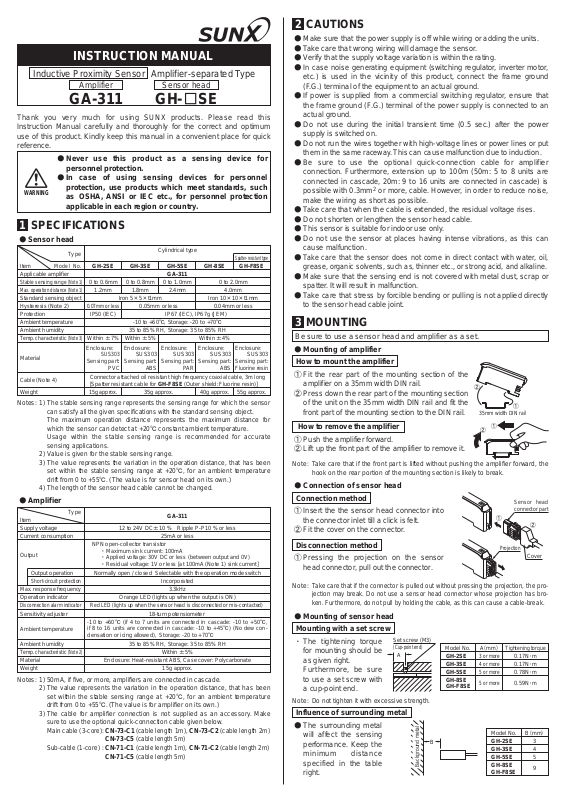

INSTRUCTION MANUAL

Inductive Proximity Sensor

Amplifier

GA-311

Thank you very much for using SUNX products. Please read this
Instruction Manual carefully and thoroughly for the correct and optimum
use of this product. Kindly keep this manual in a convenient place for quick
reference.

٨

Never use this product as a sensing device for
personnel protection.

٨

In case of using sensing devices for personnel

WARNING

1

SPECIFICATIONS

٨ Sensor head

Item

Stable sensing range
Max. operation distance
Standard sensing object

Ambient humidity
Temp. characteristic

Material

Cable (Note 4)
Weight

Notes: 1)

٨ Amplifier

Item

Output

Short-circuit protection

Max. response frequency

Disconnection alarm indicator

Ambient temperature

Temp. characteristic
Material
Weight

Notes: 1)

protection, use products which meet standards, such
as OSHA, ANSI or IEC etc., for personnel protection
applicable in each region or country.

Type

Model No.

(Note 1)
(Note 1)

0.07mm or less
IP50 (IEC)

(Note 3)

Enclosure:
Sensing part:

Connector attached oil resistant high frequency coaxial cable, 3m long

[Spatter resistant cable for GH-F8SE (Outer shield: Fluorine resin)]
15g approx.

The stable sensing range represents the sensing range for which the sensor
can satisfy all the given specifications with the standard sensing object.
The maximum operation distance represents the maximum distance for
which the sensor can detect at +20 constant ambient temperature.
Usage within the stable sensing range is recommended for accurate
sensing applications.
Value is given for the stable sensing range.

2)
The value represents the variation in the operation distance, that has been

3)
set within the stable sensing range at +20, for an ambient temperature
drift from 0 to +55. (The value is for sensor head on its own.)
The length of the sensor head cable cannot be changed.

4)

Type

Red LED (lights up when the sensor head is disconnected or mis-contacted)

-10 to +60 (if 4 to 7 units are connected in cascade: -10 to +50,
if 8 to 16 units are connected in cascade: -10 to +45) (No dew con­densation or icing allowed), Storage: -20 to +70

(Note 2)

50mA, if five, or more, amplifiers are connected in cascade.
The value represents the variation in the operation distance, that has been

2)
set within the stable sensing range at +20, for an ambient temperature
drift from 0 to +55. (The value is for amplifier on its own.)

3)

The cable for amplifier connection is not supplied as an accessory. Make
sure to use the optional quick-connection cable given below.
Main cable (3-core): CN-73-C1 (cable length 1m), CN-73-C2 (cable length 2m)

Sub-cable (1-core) : CN-71-C1 (cable length 1m), CN-71-C2 (cable length 2m)

Iron 55t1mm

SUS303

PVC

12 to 24V DCr10 %ޓRipple P-P10 % or lessSupply voltage

NPN open-collector transistor

࡮Maximum sink current: 100mA
࡮Applied voltage: 30V DC or less (between output and 0V)
࡮Residual voltage: 1V or less [at 100mA (Note 1) sink current]

Normally open / closed Selectable with the operation mode switchOutput operation

Orange LED (lights up when the output is ON)Operation indicator

Enclosure: Heat-resistant ABS, Case cover: Polycarbonate

CN-73-C5 (cable length 5m)

CN-71-C5 (cable length 5m)

Amplifier-separated Type

Sensor head

GH-غSE

Cylindrical type

GH-3SE GH-F8SEGH-2SE GH-8SEGH-5SE

0 to 0.8mm0 to 0.6mm 0 to 2.0mm0 to 1.0mm

1.8mm1.2mm 4.0mm2.4mm

-10 to +60, Storage: -20 to +70Ambient temperature

35 to 85% RH, Storage: 35 to 85% RH

Within r5%Within r7% Within r4%

Enclosure:

SUS303

Sensing part:

35 to 85% RH, Storage: 35 to 85% RHAmbient humidity

0.05mm or lessHysteresis (Note 2)

35g

ABS

approx.

18-turn potensiometer Sensitivity adjuster

GA-311Applicable amplifier

IP67 (IEC), IP67g (JEM)Protection

Enclosure:

SUS303

Sensing part:

PAR

GA-311

25mA or lessCurrent consumption

Incorporated

3.3kHz

Within r5%

15g approx.

Iron 1010t1mm

0.04mm or less

Enclosure:

SUS303

Sensing part:

ABS

40g

approx.

Spatter-resistant type

Enclosure:

SUS303
Sensing part:
Fluorine resin

55g

approx.

2

CAUTIONS

٨

Make sure that the power supply is off while wiring or adding the units.

٨

Take care that wrong wiring will damage the sensor.

٨

Verify that the supply voltage variation is within the rating.

٨

In case noise generating equipment (switching regulator, inverter motor,
etc.) is used in the vicinity of this product, connect the frame ground
(F.G.) terminal of the equipment to an actual ground.

٨

If power is supplied from a commercial switching regulator, ensure that
the frame ground (F.G.) terminal of the power supply is connected to an
actual ground.

٨

Do not use during the initial transient time (0.5 sec.) after the power
supply is switched on.

٨

Do not run the wires together with high-voltage lines or power lines or put
them in the same raceway. This can cause malfunction due to induction.

٨

Be sure to use the optional quick-connection cable for amplifier
connection. Furthermore, extension up to 100m (50m: 5 to 8 units are
connected in cascade, 20m: 9 to 16 units are connected in cascade) is
possible with 0.3mm

2

or more, cable. However, in order to reduce noise,

make the wiring as short as possible.

٨

Take care that when the cable is extended, the residual voltage rises.

٨

Do not shorten or lengthen the sensor head cable.

٨

This sensor is suitable for indoor use only.

٨

Do not use the sensor at places having intense vibrations, as this can
cause malfunction.

٨

Take care that the sensor does not come in direct contact with water, oil,
grease, organic solvents, such as, thinner etc., or strong acid, and alkaline.

٨

Make sure that the sensing end is not covered with metal dust, scrap or
spatter. It will result in malfunction.

٨

Take care that stress by forcible bending or pulling is not applied directly
to the sensor head cable joint.

3

MOUNTING

Be sure to use a sensor head and amplifier as a set.

Mounting of amplifier

٨

How to mount the amplifier

Ԙ

Fit the rear part of the mounting section of the
amplifier on a 35mm width DIN rail.

ԙ

Press down the rear part of the mounting section
of the unit on the 35mm width DIN rail and fit the
front part of the mounting section to the DIN rail.

How to remove the amplifier

Ԙ

Push the amplifier forward.

ԙ

Lift up the front part of the amplifier to remove it.

Take care that if the front part is lifted without pushing the amplifier forward, the

Note:

hook on the rear portion of the mounting section is likely to break.

Connection of sensor head

٨

Connection method

Ԙ

Insert the the sensor head connector into
the connector inlet till a click is felt.

ԙ

Fit the cover on the connector.

Disconnection method

Pressing the projection on the sensor

Ԙ

ԙ

35mm width DIN rail

Ԙ

ԙ

Ԙ

Projection

Ԙ

Sensor head
connector part

head connector, pull out the connector.

Note:

Take care that if the connector is pulled out without pressing the projection, the pro­jection may break. Do not use a sensor head connector whose projection has bro­ken. Furthermore, do not pull by holding the cable, as this can cause a cable-break.

٨ Mounting of sensor head

Mounting with a set screw

࡮ The tightening torque

for mounting should be
as given right.
Furthermore, be sure
to use a set screw with
a cup-point end.

Do not tighten it with excessive strength.Note:

Set screw (M3)
(Cup-point end)

A

Model No.

GH-3SE
GH-5SE
GH-8SE

GH-F8SE

Amm
3 or more
4 or more
5 or more

5 or more

Tightening torque

0.17N㨯mGH-2SE

0.17N㨯m

0.78N㨯m

0.59N㨯m

Influence of surrounding metal

٨ The surrounding metal

will affect the sensing
performance. Keep the

B

Model No.

GH-2SE

minimum distance
specified in the table
right.

Background metal

GH-8SE
GH-F8SE

ԙ

Cover

Bmm

3
4GH-3SE
5GH-5SE

9

٨࡮Mutual interference

When two or more sensors are installed in parallel or face to face, keep the
minimum separation distance specified below to avoid mutual interference.

Face to face mountingCParallel mounting

D

Model No.

GH-2SE

GH-8SE
GH-F8SE

C (mm)

15
20GH-3SE
25GH-5SE

40

D (mm)

10
15
20

26

٨࡮Sensing range

The sensing range is specified for the standard sensing object. With a
non-ferrous metal, the sensing range is obtained by multiplying with the
correction coefficient specified below.

Correction coefficient

Model No.

Metal

Iron

Stainless steel
(SUS304)

Brass

Aluminum

GH-2SE GH-3SE GH-5SE

1111

0.68 approx.

0.53 approx.

0.51 approx.

0.55 approx.

0.35 approx.

0.33 approx.

0.69 approx.

0.41 approx.

0.39 approx.

Note: The sensing range also changes if the sensing object is plated.

4

CONNECTION

GH-8SE
GH-F8SE

0.64 approx.

0.37 approx.

0.32 approx.

Make sure that the power supply is off while connecting / disconnecting the
quick-connection cable.

Connection method

Ԙ

Holding the connector of the quick-connec­tion cable, align its projection with the

Groove

Projection

groove at the top portion of the amplifier
connector.

ԙ

Insert the connector till a click is felt.

Disconnection method

Quick-connection cable

Projection

Ԙ Pressing the projection at the top of the

quick-connection cable connector, pull out
the connector.

Note: Take care that if the connector is pulled out without pressing the

projection, the projection may break. Do not use a quick-connection cable
whose projection has broken.
Furthermore, do not pull by holding the cable, as this can cause a cable-break.

5

CASCADING UNITS

٨

Make sure that the power is off while cascading/removing the amplifiers.

٨

Be sure to check the allowable ambient temperature, as it depends on
the number of amplifiers connected in cascade.

٨

In case two, or more, amplifiers are connected in cascade, make sure to
mount them on a DIN rail.

٨

When the amplifiers move on the DIN rail depending on the attaching
condition, fitting them between the optional end plates (MS-DIN-E)
mounted at the two ends.

٨

When connecting in cascade, mount the amplifiers close to each other, fitting
them between the optional end plates (MS-DIN-E) mounted at the two ends.

٨

When connecting more than two amplifiers in cascade, use the sub cable
(CN-71-Cغ) as the quick-connection cable for the second amplifier onwards.

٨

This product does not incorporate the communication function When
this product used by cascading along with other than this product,
mount at the either side of the cascaded products.

Refer to the ' MOUNTING' for mounting/dismantling the amplifiers.

Cascading method

Ԙ

Mount the amplifiers, one by
one, on the 35mm width DIN

3

Sub-cable
(CN-71-Cغ)
(optional)

and set them close to each
other without any gap between
them.

ԙ

Connect the quick-connection
cables to the amplifiers.

Ԛ

Mount the end plate (MS-DIN-E)
(optional) at both ends to hold
the units between their flat sides.

ԛ

Tighten the screws to fix the

Main cable
(CN-73-Cغ) (optional)

End plate
(MS-DIN-E)
(optional)

end plates (MS-DIN-E)

Dismantling

Ԙ

Pressing the projection at the top

End plate
(MS-DIN-E) (optional)

of the quick connection cable
connector, pull out the connector.

ԙ

Remove the amplifiers.

6

I/O DIAGRAMS

Connector pin No. for the sensor head side

Not used

Signal wire

Shielded wire

Not used

1

2

3

4

D

Tr

Sensor circuit

Internal circuit

Connector pin No. for power supply side

Color code of quick-connection cable

(Brown) +V (Note)

1

Load

100mA max.

User's circuit

ZD

(Black) Output

3

(Blue) 0V (Note)

2

+

12 to 24V DC

r10%



Note: The quick-connection cable does not have +V(Blown) and 0V(Blue). The

supply voltage is supplied through the main cable connector.

Symbols... D

٨

Terminal arrangement diagram

Sensor head side connector

7

PART DESCRIPTION

Operation indicator (Orange)

8

SENSITIVITY ADJUSTMENT

Step Sensing condition Adjustment

Ԙ

ԙ

Ԛ

: Reverse supply polarity protection diode

Z

: Surge absorption zener diode

D

: NPN output transistor

Tr

Power supply side connector

ԘNot used
ԙSignal wire
ԚShielded wire
ԛNot used

Disconnection alarm indicator (Red) Operation mode switch

Turn the sensitivity adjuster fully coun-

Set the operation mode switch to
NORM. (Initial setting)

Approach
along sens­ing axis

Approach
perpendicu­lar to sens­ing axis

Select the operation mode as per your application.
(NORM.: Normally open, INV.: Normally closed)

Sensing object

Sensor
head

Sensing object

Sensor
head

Movement
direction

࡮

terclockwise. (Minimum sensitivity)

࡮

Place the sensing object within the
stable sensing range.

࡮

Turn the sensitivity adjuster clockwise
and set it at the point where the
operation indicator (orange) lights up.

Place the sensing object within the

࡮

stable sensing range.

Movement

Turn the sensitivity adjuster clockwise,

࡮

direction

and set it at the optimum sensing point
which is a little beyond the point where
the operation indicator (orange) lights up.

Ԙ㧗V

ԚOutput
ԙ0V

Sensitivity adjuster

Sensitivity adjuster

Note: Use a flathead screwdriver (please arrange separately) to turn the adjuster

slowly. Turning with excessive strength will cause damage to the adjuster.

9

DIMENSIONS (Unit: mm)

٨ GH-غSE / Sensor head

B

A

C

Cable 3m long

٨ GA-311 / Amplifier

Sensor head
connector

Connector cover

10

15.55

4.65

6.3

30.5

2.5

3 3.95

Model No.

GH-2SE

GH-8SE Ǿ8.0

1.9 0.4

33.5

53.7

64.5(16) (7)

36.5 14.5

Ǿ2.8
Ǿ3.8GH-3SE
Ǿ5.4GH-5SE

21.95

A

B

C

12

Ǿ1.6

15

Ǿ2.5

15

Ǿ2.5

15

Ǿ2.5

15

Ǿ2.65GH-F8SE Ǿ8.0

Quick-connection
connector

10.5

Note: The side view is with the sensor head connector and the quick-connection

cable.

SUNX Limited

http://www.sunx.co.jp/

Head Office

2431-1 Ushiyama-cho, Kasugai-shi, Aichi, 486-0901, Japan
Phone: [phone] FAX: [phone]

Overseas Sales Dept.

Phone: [phone] FAX: [phone]

PRINTED IN JAPAN
