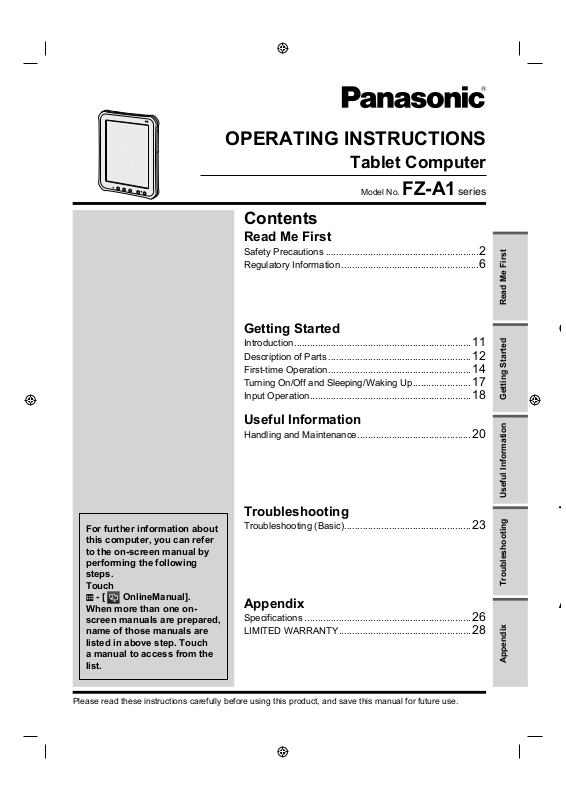

Panasonic FZ-A1 User Manual

OPERATING INSTRUCTIONS

Tablet Computer

Model No. FZ-A1 series

Contents

Read Me First

Safety Precautions ..........................................................2

Regulatory Information ....................................................6

Getting Started

Introduction ................................................................... 11

Description of Parts ...................................................... 12

First-time Operation ...................................................... 14

Turning On/Off and Sleeping/Waking Up ...................... 17

Input Operation ............................................................. 18

Read Me FirstGetting Started

For further information about
this computer, you can refer
to the on-screen manual by
performing the following
steps.
Touch

- [ OnlineManual].
When more than one on­screen manuals are prepared,
name of those manuals are
listed in above step. Touch
a manual to access from the
list.

Useful Information

Handling and Maintenance ........................................... 20

Useful InformationTroubleshooting

Troubleshooting

Troubleshooting (Basic)................................................ 23

Appendix

Specifications ............................................................... 26

LIMITED WARRANTY .................................................. 28

Appendix

Please read these instructions carefully before using this product, and save this manual for future use.

Safety Precautions

To reduce the risk of injury, loss of life, electric
shock, fire, malfunction, and damage to equipment
or property, always observe the following safety
precautions.

Explanation of symbol word panels

The following symbol word panels are used to
classify and describe the level of hazard, injury,
and property damage caused when the denotation
is disregarded and improper use is performed.

DANGER

Denotes a potential hazard that will result in
serious injury or death.

Read Me First

WARNING

Denotes a potential hazard that could result in
serious injury or death.

CAUTION

Denotes a hazard that could result in minor
injury.

NOTICE

Denotes a hazard that could result in property
damage.

The following symbols are used to classify and
describe the type of instructions to be observed.

This symbol is used to alert users to a
specific operating procedure that must not
be performed.

This symbol is used to alert users to a
specific operating procedure that must
be followed in order to operate the unit
safety.

WARNING

Do Not Charge the Battery Using
Methods Other Than Those Specified

If the battery is not charged using one
of the specified methods, electrolyte
leakage, generation of heat, ignition or
rupture of the battery may result.

Do Not Throw the Product Into a Fire or
Expose It to Excessive Heat

Generation of heat, ignition or rupture of
the battery may result.

Avoid Extreme Heat (Near the Fire, In
Direct Sunlight, for Example)

Electrolyte leakage, generation of heat,
ignition or rupture of the battery may
result.

Do Not Insert Sharp Objects Into the
Internal Battery, Disassemble, or
Modify It

Electrolyte leakage, generation of heat,
ignition or rupture of the battery may
result.

Do Not Apply Shocks to the Product by
Dropping It, Applying Strong Pressure
to It, etc.

Electrolyte leakage, generation of heat,
ignition or rupture of the battery may
result.

• If this product is subjected to a strong
impact, stop using it immediately.

When the battery has deteriorated,
contact your technical support office to
replace the battery

Continued use of a damaged battery
may result in heat generation, ignition or
battery rupture.

2

WARNING

If a Malfunction or Trouble Occurs,
Immediately Stop Use

If a Malfunction Occurs, Immediately
Unplug the AC Plug

• This product is damaged

• Foreign object is inside this product

• Smoke emitted

• Unusual smell emitted

• Unusually hot
Continuing to use this product while any
of the above conditions are present may
result in fire or electric shock.

• If a malfunction or trouble occurs,
immediately turn the power off and
unplug the AC plug. Then contact your
technical support office for repair.

Do Not Touch This Product and Cable
When It Starts Thundering

Electric shock may result.

Do Not Connect the AC Adaptor to a
Power Source Other Than a Standard
Household AC Outlet

Otherwise, a fire due to overheating
may result. Connecting to a DC/AC
converter (inverter) may damage the AC
adaptor. On an airplane, only connect
the AC adaptor/charger to an AC outlet
specifically approved for such use.

Do Not Do Anything That May Damage
the AC Cord, the AC Plug, or the AC
Adaptor

Do not damage or modify the cord, place
it near hot tools, bend, twist, or pull it
forcefully, place heavy objects on it, or
bundle it tightly. Continuing to use a
damaged cord may result in fire, short
circuit, or electric shock.

Do Not Pull or Insert the AC Plug If
Your Hands Are Wet

Electric shock may result.

Clean Dust and Other Debris of the AC
Plug Regularly

If dust or other debris accumulates on the
plug, humidity, etc. may cause a defect in
the insulation, which may result in a fire.

• Pull the plug, and wipe it with a dry cloth.
Pull the plug if the computer is not being
used for a long period of time.

Insert the AC Plug Completely

If the plug is not inserted completely, fire
due to overheating or electric shock may
result.

• Do not use a damaged plug or loose AC
outlet.

Close the Connector Cover Tightly
When Using This Product Where Is a
Lot of Water, Moisture, Steam, Dust,
Oily Vapors, etc.

The entry of foreign matter may cause a
fire or electric shocks.

• If foreign matter has found its way inside,
immediately turn the power off and
unplug the AC cord. Then contact your
technical support office.

Do Not Disassemble This Product

You may receive an electric shock, or
foreign matter may enter and result in a
fire.

Keep microSD Memory Cards Away
from Infants and Small Children

Accidental swallowing will result in bodily
injury.

• In the event of accidental swallowing,
see a doctor immediately.

Do Not Use With Exposing the Skin To
This Product For a Long Period of Time

Using this product with exposing the
skin to the heat source of this product or
AC adaptor for a long period of time can
cause a low-temperature burn.

Do Not Turn the Volume Up To Loud
When Using Headphones

Listening at high volumes that
overstimulate the ear for long periods of
time may result in loss of hearing.

CAUTION

Do Not Place This Product on Unstable
Surfaces

If balance is lost, this product may fall over
or drop, resulting in an injury.

Avoid Stacking

If balance is lost, this product may fall over
or drop, resulting in an injury.

Read Me First

3

Safety Precautions

Read Me First

CAUTION

Do Not Leave This Product in High
Temperature Environment for a Long
Period of Time

Leaving this product where it will be
exposed to extremely high temperatures
such as near fire or in direct sunlight may
deform the cabinet and/or cause trouble
in the internal parts. Continued use in
such a resulting condition may lead to
short-circuiting or insulation defects, etc.
which may in turn lead to a fire or electric
shocks.

Hold the Plug When Unplugging the AC
Plug

Pulling on the cord may damage the cord,
resulting in a fire or electric shock.

Do Not Move This Product While the
AC Plug Is Connected

The AC cord may be damaged, resulting
in fire or electric shock.

• If the AC cord is damaged, unplug the
AC plug immediately.

Use Only the Specified AC Adaptor
With This Product

Using an AC adaptor other than the one
supplied (supplied with the unit or one
sold separately as an accessory) may
result in a fire.

Do Not Subject the AC Adaptor To Any
Strong Impact

Using the AC adaptor after a strong
impact such as being dropped may result
in electric shock, short circuit, or fire.

Take a Break Of 10-15 Minutes Every
Hour

Using this product for long periods of time
may have detrimental health effects on
the eyes or hands.

Do Not Expose the Skin To This
Product When Using the Product In A
Hot Or Cold Environment

Burns, low-temperature burns, or frostbite
may result.

• When it is necessary to expose the
skin to this product such as to scan a
fingerprint, perform the operation in the
shortest time possible.

NOTICE

 Do not place the computer near a television or

radio receiver.

 Keep the computer away from magnets. Data

stored on the flash memory may be lost.

 This computer is not intended for the display of

images for use in medical diagnosis.

 This computer is not intended for a use with

connection of medical equipment for the purpose
of medical diagnosis.

 Panasonic shall not be liable for loss of data

or other incidental or consequential damages
resulting from the use of this product.

 If this computer will not be used for a long period

of time (a month or more), charge or discharge
(use) the battery until the remaining battery level
becomes 30 % to 40 % and store the product in
a cool, dry place.

 This computer prevents overcharging of the

battery by recharging only when the remaining
power is less than approx. 95 % of capacity.

 The battery is not charged when this computer

is first purchased. Be sure to charge it before
using it for the first time. When the AC adaptor
is connected to this computer, charging begins
automatically.

 Should the battery leak and the fluid get into your

eyes, do not rub your eyes. Immediately flush
your eyes with clear water and see a doctor for
medical treatment as soon as possible.

NOTE

 The battery may become warm during

recharging or normal use. This is completely
normal.

 Recharging will not commence if internal

temperature of the battery is outside of the
allowable temperature range (0 °C to 50 °C).
Once the allowable range requirement is
satisfied, charging begins automatically. Note
that the recharging time varies based on the
usage conditions. (Recharging takes longer than
usual when the temperature is 10 °C or below.)

 If the temperature is low, the operating time is

shortened. Only use the computer within the
allowable temperature range.

 The battery is a consumable item. If the amount

of time the computer can be run by using a
particular battery becomes dramatically shorter
and repeated recharging does not restore its
performance, the battery should be replaced with
a new one. Contact your technical support office.

4

 Always power off the computer when it is not

in use. Leaving the computer on when the
AC adaptor is not connected will exhaust the
remaining battery capacity.

THIS PRODUCT IS NOT INTENDED FOR USE
AS, OR AS PART OF, NUCLEAR EQUIPMENT/
SYSTEMS, AIR TRAFFIC CONTROL
EQUIPMENT/SYSTEMS, AIRCRAFT COCKPIT
EQUIPMENT/SYSTEMS *
OR ACCESSORIES *

1

, MEDICAL DEVICES

2

, LIFESUPPORT
SYSTEMS OR OTHER EQUIPMENTS/
DEVICES/SYSTEMS THAT ARE INVOLVED
WITH ENSURING HUMAN LIFE OR SAFETY.
PANASONIC WILL NOT BE RESPONSIBLE
FOR ANY LIABILITY RESULTING FROM THE
USE OF THIS PRODUCT ARISING OUT OF
THE FOREGOING USES.

1

*

AIRCRAFT COCKPIT EQUIPMENT/

SYSTEMS include Class2 Electrical Flight
Bag (EFB) Systems and Class1 EFB Systems
when used during critical phases of flight (e.g.,
during take-off and landing) and/or mounted
on to the aircraft. Class1 EFB Systems and
2 EFB Systems are defined by FAA: AC
(Advisory Circular) 120-76A or JAA: JAA TGL
(Temporary Guidance Leaflets) No.36.

2

*

As defined by the European Medical Device

Directive (MDD) 93/ 42/EEC.
Panasonic cannot guarantee any specifications,
technologies, reliability, safety (e.g. Flammability/
Smoke/Toxicity/Radio Frequency Emission, etc)
requirements related to aviation standards and
medical equipment standards that differ from the
specifications of our COTS (Commercial-Off­The-Shelf) products.

Read Me First

This computer is not intended for use in medical
equipment including life-support systems, air traffic
control systems, or other equipment, devices or
systems that are involved with ensuring human life
or safety. Panasonic cannot be held responsible
in any way for any damages or loss resulting from
the use of this unit in these types of equipment,
devices or systems, etc.
This computer has been designed so as to
minimize shock to the LCD, the leakage of liquid
(e.g., water) on to the buttons, etc., but no warranty
is provided against such trouble. Therefore, as a
precision instrument, be extremely careful in the
handling.

5

Regulatory Information

Information to the User

This product and your Health

This product, like other radio devices, emits radio
frequency electromagnetic energy. The level of
energy emitted by this product however is far much
less than the electromagnetic energy emitted by
wireless devices like for example mobile phones.
Because this product operates within the
guidelines found in radio frequency safety
standards and recommendations, we believe
this product is safe for use by consumers. These
standards and recommendations reflect the
consensus of the scientific community and result
from deliberations of panels and committees of
scientists who continually review and interpret the
extensive research literature.

Read Me First

In some situations or environments, the use of
this product may be restricted by the proprietor of
the building or responsible representatives of the
organization. These situations may for example
include:

 Using this product on board of airplanes, or
 In any other environment where the risk of

interference to other devices or services is

perceived or identified as harmful.
If you are uncertain of the policy that applies on the
use of wireless devices in a specific organization
or environment (e.g. airports), you are encouraged
to ask for authorization to use this product prior to
turning on the product.

Regulatory Information

We are not responsible for any radio or television
interference caused by unauthorized modification
of this product. The correction of interference
caused by such unauthorized modification will be
the responsibility of the user. We and its authorized
resellers or distributors are not liable for damage or
violation of government regulations that may arise
from failing to comply with these guidelines.

Lithium Battery

26-M-1

Pile au lithium!

Le micro-ordinateur renferme une pile au lithium
qui permet de sauvegarder certaines données,
notamment la date et l’heure. La pile ne doit être
remplacée que par un technicien qualifié.
Danger!
Risque d’explosion en cas de non respect de cette
mise en garde!

15-F-1

Information for Users on
Collection and Disposal
of Old Equipment and
used Batteries

These symbols on the products,
packaging, and/or accompanying
documents mean that used electrical
and electronic products and batteries
should not be mixed with general

household waste.
For proper treatment, recovery and recycling of
old products and used batteries, please take them
to applicable collection points, in accordance
with your national legislation and the Directives
2002/96/EC and 2006/66/EC.
By disposing of these products and batteries
correctly, you will help to save valuable resources
and prevent any potential negative effects on
human health and the environment which could
otherwise arise from inappropriate waste handling.
For more information about collection and recycling
of old products and batteries, please contact your
local municipality, your waste disposal service or
the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal
of this waste, in accordance with national
legislation.

For business users in the European Union

If you wish to discard electrical and electronic
equipment, please contact your dealer or supplier
for further information.

Lithium Battery!

This computer contains a lithium battery to enable
the date, time, and other data to be stored. The
battery should only be exchanged by authorized
service personnel.
Warning! A risk of explosion from incorrect
installation or misapplication may possibly occur.

6

15-E-1

[Information on Disposal in other

Countries outside the European

Union]

These symbols are only valid in the

European Union. If you wish to discard

this product, please contact your local

authorities or dealer and ask for the

correct method of disposal.

Note for the battery symbol (bottom
two symbol examples):

This symbol might be used in
combination with a chemical symbol.
In this case it complies with the
requirement set by the Directive for the
chemical involved.

53-E-1

Safety Precautions for
wireless WAN

<Only for model with wireless WAN>
The following safety precautions must be observed
during all phases of the operation, usage, service
or repair of any Computer incorporating wireless
WAN modem. Manufacturers of the cellular
terminal are advised to convey the following safety
information to users and operating personnel and
to incorporate these guidelines into all manuals
supplied with the product. Failure to comply with
these precautions violates safety standards of
design, manufacture and intended use of the
product. Panasonic assumes no liability for
customer failure to comply with these precautions.

When in a hospital or other health care
facility, observe the restrictions on
the use of mobiles. Switch Computer
incorporating wireless WAN modem off,
if instructed to do so by the guidelines
posted in sensitive areas. Medical
equipment may be sensitive to RF
energy.
The operation of cardiac pacemakers,
other implanted medical equipment
and hearing aids can be affected
by interference from Computer
incorporating wireless WAN modem
placed close to the device. If in doubt
about potential danger, contact the
physician or the manufacturer of the
device to verify that the equipment is
properly shielded. Pacemaker patients
are advised to keep their Computer
incorporating wireless WAN modem
away from the pacemaker, while it is on.

Switch off Computer incorporating
wireless WAN modem before boarding
an aircraft. Make sure it cannot be
switched on inadvertently. The operation
of wireless appliances in an aircraft is
forbidden to prevent interference with
communications systems. Failure to
observe these instructions may lead

to the suspension or denial of cellular
services to the offender, legal action, or
both. For details on usage of this unit
in aircrafts please consult and follow
instruction provided by the airline.

Do not operate Personal Computer
or Handheld Computer incorporating
wireless WAN modem in the presence
of flammable gases or fumes. Switch off
the cellular terminal when you are near
petrol stations, fuel depots, chemical
plants or where blasting operations are
in progress. Operation of any electrical
equipment in potentially explosive
atmospheres can constitute a safety
hazard.

Your Computer incorporating wireless
WAN modem receives and transmits
radio frequency energy while switched
on. Remember that interference can
occur if it is used close to TV sets,
radios, computers or inadequately
shielded equipment. Follow any
special regulations and always switch
off Computer incorporating wireless
WAN modem wherever forbidden, or
when you suspect that it may cause
interference or danger.

Road safety comes first! Do not use a
Computer incorporating wireless WAN
modem while driving a vehicle. Do
not place the computer with wireless
WAN modem in an area where it could
cause personal injury to the driver or
passengers. It is recommended to stow
the unit in the boot or secure stowage
area while driving. Do not place the
computer with wireless WAN modem
in an area over an air bag or in the
vicinity where an air bag may deploy. Air
bags inflate with great force and if the
computer with wireless WAN modem is
placed in the air bag deployment area
may be propelled with great force and
cause serious injury to occupants of the
vehicle.

IMPORTANT!
Computer incorporating wireless WAN
modem operate using radio signals
and cellular networks cannot be
guaranteed to connect in all conditions.
Therefore, you should never rely
solely upon any wireless device for
essential communications, for example

Read Me First

7

Regulatory Information

emergency calls. Remember, in order
to make or receive calls, Computer
incorporating wireless WAN modem
must be switched on and in a coverage
area with adequate cellular signal
strength. Some networks do not allow
for emergency calls if certain network
services or phone features are in
use (e.g. lock functions, fixed dialing
etc.). You may need to deactivate
those features before you can make
an emergency call. Some networks
require that a valid SIM card be properly
inserted in Computer incorporating
wireless WAN modem.

Camera Light

Read Me First

CAUTION

Camera Light for rear camera

- The light from the LED is strong and can injure
human eyes. Do not look directly at the LEDs with
naked eyes.

For U.S.A.

<Models for U.S.A.>

Federal Communications Commission Radio
Frequency Interference Statement

Note: This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy
and, if not installed and used in accordance with
the instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of the
following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment

and receiver.

 Connect the equipment into an outlet on a

circuit different from that to which the receiver is
connected.

 Consult the Panasonic Service Center or an

experienced radio/TV technician for help.

57-E-1

Warning

To assure continued compliance, use only shielded
interface cables when connecting to a computer
or peripheral. Also, any changes or modifications
not expressly approved by the party responsible
for compliance could void the user’s authority to
operate this equipment.
This device complies with Part 15 of the FCC
Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful

interference, and

(2) This device must accept any interference

received, including interference that may cause
undesired operation.

FCC RF Exposure Warning:

 This device meets the government’s

requirements for exposure to radio waves.
This device is designed and manufactured not
to exceed the emission limits for exposure to
radio frequency (RF) energy set by the Federal
Communications Commission of the U.S.
Government.

 This equipment has been approved for portable

operation, and does not require any minimum
spacing be provided between antennas and
all person’s body. This equipment may not be
colocated or operated with any other antenna or
transmitter.

 The exposure standard for wireless device

employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit
set by the FCC is 1.6 W/kg.
* Tests for SAR are conducted using standard

operating positions accepted by the FCC with
the device transmitting at its highest certified
power level in all tested frequency bands.
Although the SAR is determined at the highest
certified power level, the actual SAR level of
the device while operating can be well below
the maximum value. This is because the
device is designed to operate at multiple power
levels so as to use only the poser required to
reach the network. In general, the closer you
are to a wireless base station antenna, the
lower the power output.

 The FCC has granted an Equipment

Authorization for this device with all reported
SAR levels evaluated as in compliance with the
FCC RF exposure guidelines. SAR information
on this device is on file with the FCC and can be
found under the Display Grant section of www.
fcc.gov/oet/ea/fccid after searching on FCC ID:
ACJ9TGFZ-A12.

25-M-4

8

This product is restricted to indoor use due to its
operation in the 5.15 to 5.25 GHz frequency range.
FCC requires this product to be used indoors for
the frequency range 5.15 to 5.25 GHz to reduce
the potential for harmful interference to co-channel
Mobile Satellite systems. High power radars are
allocated as primary users of the 5.25 to 5.35 GHz
and 5.65 to 5.85 GHz bands. These radar stations
can cause interference with and /or damage this
product.

25-M-W-4

Responsible Party: Panasonic Corporation of North
America
One Panasonic Way
Secaucus, NJ 07094
Tel No:1-800-LAPTOP5 (1-800-527-8675)

6-M-1

USA Only: Disposal may be regulated in your
community due to environmental considerations.
For disposal or recycling information, please
visit Panasonic website:
http://www.panasonic.com/environmental
or call 1-888-769-0149

65-M-2

CAUTION:

Risk of Explosion if Battery is replaced by an
Incorrect Type.
Dispose of Used Batteries According to the
Instructions.

58-E-1

ATTENTION:

Il y a risque d’explosion si la batterie est
remplacée par une batterie de type incorrect.
Mettre au rebut les batteries usagées
conformément aux instructions.

58-F-1

A lithium ion battery that is
recyclable powers the
product you have
purchased.
Please call
1-800-8-BATTERY for
information on how to
recycle this battery.

L’appareil que vous vous êtes procuré est
alimenté par une batterie au lithium-ion.
Pour des renseignements sur le recyclage
de la batterie, veuillez composer le
1-800-8-BATTERY.

48-M-1

For Canada

<Models for Canada>

Canadian ICES-003

This Class B digital apparatus complies with
Canadian ICES-003.
Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.

7-M-2

<Only for model with Wi-Fi/Bluetooth/GPS>

Industry Canada

This product complies with RSS210 Industry Canada.
Operation is subject to the following two conditions;
(1) this device may not cause interference, and
(2) this device must accept any interference,

including interference that may cause
undesired operation of the device.

30-Ca-1-1

Industrie Canada

Cet équipement est conforme à la norme CNR­210 d’Industrie Canada. Son fonctionnement est
soumis aux deux conditions suivantes :
(1) ce dispositif ne peut produire de brouillage, et
(2) ce dispositif doit accepter le brouillage, y

compris le brouillage pouvant entraîner le
fonctionnement non déiré de l’appareil.

30-Ca-1

This product (local network devices) for the band
5150- 5250 MHz is only indoor usage to reduce
potential for harmful interference to co-channel
Mobile Satellite systems. High power radars are
allocated as primary users (meaning they have
priority) of 5250-5350 MHz and 5650-5850 MHz
and these radars could cause interference and/or
damage to LELAN devices.
Cet appareil (pour réseaux locaux radioélectriques)
dans les bandes de fréquences 5150-5250 MHz
est réservé à une utilisation à l’intérieur afin de
réduire le risque d’interférence avec les systèmes
satellites mobiles bicanaux.
Les radars forte puissance sont désignés comme
étant les premiers utilisateurs (c’est-à-dire qu’ils
ont la priorité) des bandes de fréquences 5250­5350 MHz et 5650-5850 MHz. Ces stations radars
peuvent provoquer des interférences et/ou des
dommages à ce périphérique.

30-Ca-2-1

 This computer complies with Industry Canada

radiation exposure limits set forth for an
uncontrolled environment.

 This PC with WLAN and/or Bluetooth

transmitters installed, has been approved for
portable operation and does not require any
minimum spacing be provided between antennas
and all person’s body.

Read Me First

9

Regulatory Information

 Cet équipement est conforme aux limites

d’exposition aux rayonnements d’Industrie
Canada établies pour un environnement non
contrôlé.

 Ce PC avec émetteurs WLAN et/ou Bluetooth

a été approuvé à des fins d’opération mobile;
aucun espace minimum entre les antennes et le
corps de l’utilisateur n’est requis.

FOR USE WITH MODEL NO. :

FZ-AA2202B

POUR UTILISER AVEC MODÈLE :

FZ-AA2202B

Read Me First

For Europe

<Only for model with a “ ” mark on the
bottom of the computer>

Declaration of Conformity
(DoC)
“Hereby, Panasonic
declares that this

Personal Computer is in
compliance with the essential requirements and
other relevant provisions of the Directive 1999/5/
EC.”
Hint:
If you want to get a copy of the original DoC of our
above mentioned products, please contact our web
address: http://www.doc.panasonic.de

Authorised Representative:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany

Indication of the countries where WLAN is intended
to be used:
AT BE BG CH CY CZ DE DK EE ES
FI FR GB GR HU IE IS IT LT LU
LV MT NL NO PL PT RO SE SI SK TR

25-Ca-1

20-Ca-1

18-25-E-0

For UK

<Models for UK>

For your safety, please read the following text
carefully.

This appliance is supplied with a molded three pin
mains plug for your safety and convenience.
A 3 ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure
that the replacement fuse has a rating of 3 ampere
and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark
on the body of the fuse.
If the plug contains a removable fuse cover you
must ensure that it is refitted when the fuse is
replaced.
If you lose the fuse cover the plug must not be
used until a replacement cover is obtained. A
replacement fuse cover can be purchased from
your local dealer.
If the fitted molded plug is unsuitable for the
socket outlet in your home then the fuse should
be removed and the plug cut off and disposed of
safely.
There is a danger of severe electrical shock if the
cut off plug is inserted into any 13-ampere socket.

How to replace the fuse

The location of the fuse differs according to the
type of AC mains plug (figures A and B).
Confirm the AC mains plug fitted and follow the
instructions below. Illustrations may differ from
actual AC mains plug.
Open the fuse cover with a screwdriver and
replace the fuse and close or attach the fuse cover.

Figure A Figure B

A S A

or the BSI mark

Fuse cover

For India

Interface Cable

Use of an interface cable longer than 3 m
{ 9.84 feet } is not recommended.

10

11-E-1

For the purpose of recycling to facilitate
effective utilization of resources, please
return this product to a nearby

authorized collection center, registered
dismantler or recycler, or Panasonic service center
when disposing of this product.
Please see the Panasonic website for further
information on collection centers, etc.
http://www.panasonic.co.in/wps/portal/home

Introduction

Thank you for purchasing this Panasonic product.
For optimum performance and safety, please read
these instructions carefully.

Terms and Illustrations
in These Instructions

Page in these Operating Instructions



or in the Reference Manual.

Reference to the on-screen manuals.

 Some illustrations are simplified to help your

understanding and may look different from the
actual unit.

 Refer for the latest information about optional

products to the catalogs, etc.

Disclaimer

Computer specifications and manuals are subject
to change without notice. Panasonic Corporation
assumes no liability for damage incurred directly or
indirectly from errors, omissions or discrepancies
between the computer and the manuals.

and MPEG-4 Visual Patent Portfolio License
for the personal use of a consumer or other
uses in which it does not receive remuneration
to (i) encode video in compliance with the AVC
Standard, VC-1 Standard and MPEG-4 Visual
Standard (“AVC/VC-1/MPEG-4 Video”) and/or
(ii) decode AVC/VC-1/MPEG-4 Video that was
encoded by a consumer engaged in a personal
activity and/or was obtained from a video
provider licensed to provide AVC/VC-1/MPEG-4
Video. No license is granted or shall be implied
for any other use. Additional information may be
obtained from MPEG LA, LLC. See http://www.
mpegla.com.

Getting Started

Trademarks / Licenses

 Google, the Google logo, Google Search, Gmail,

Android and Google Play are trademarks of
Google, Inc.

 Marvell and the Marvell logo are registered

trademarks of Marvell and/or its affiliates.

 microSDHC Logo is a trademark of SD-3C, LLC.

 HDMI, the HDMI Logo and High-Definition

Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC in
the United States and other countries.

 Adobe, the Adobe logo and Adobe Reader are

either registered trademarks or trademarks
of Adobe Systems Incorporated in the United
States and/or other countries.

 Bluetooth

by Bluetooth SIG, Inc., U.S.A. and licensed to
Panasonic Corporation.

 Names of products, brands, etc., appearing

in this manual are trademarks or registered
trademarks of their respective own companies.

 This product is licensed under the AVC Patent

Portfolio License, VC-1 Patent Portfolio License

®

is a registered trademark owned

11

Description of Parts

A

Front Side

Wireless WAN Antenna
<Only for model with wireless WAN>

A


Communication - Wireless WAN”

Getting Started

Ambient light sensor

B


Dashboard”

Front camera

C


Videos”

LCD

D

 “Input Operation” (page 18), “Home
Screen” (page 19)

Wi-Fi antenna / Bluetooth antenna


E

Communication - Wi-Fi”, “Wireless
Communication - Bluetooth”

Magnet sensor

F


Settings Application - Display”

GDHF I J KLM

Reference Manual “Wireless

Reference Manual “Settings - Using

Reference Manual “Photos and

Reference Manual “Wireless

Reference Manual “Settings - Using

A

CB

E

Microphone

G

 Reference Manual “Input Operation -
Voice Input”

Menu button

H

 “Input Operation” (page 18)
Home button

I

 “Input Operation” (page 18)
Back button

J

 “Input Operation” (page 18)
USER button

K

 “Input Operation” (page 18)
Battery indicator

L



Reference Manual “Battery Power -

Checking the Battery Status”
Power switch

M

 “Turning On/Off and Sleeping/Waking
Up” (page 17)

12
