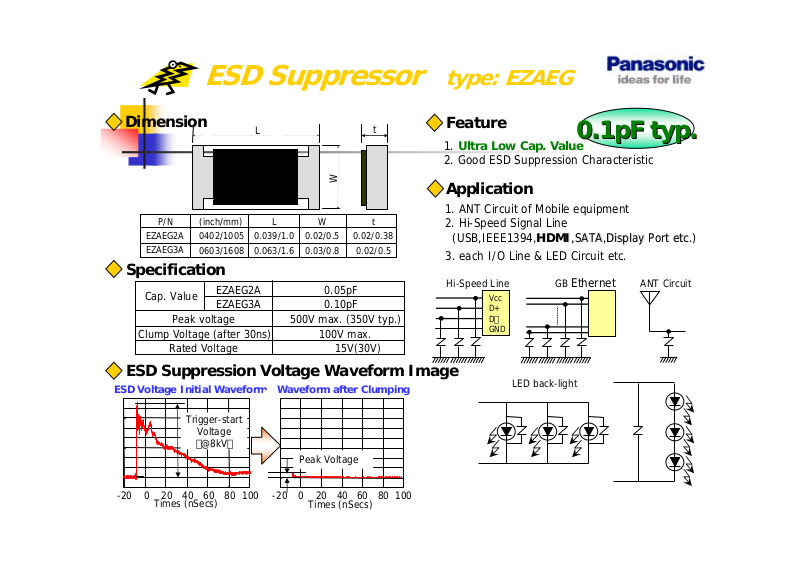

ESD Suppressor

type: EZAEG

Dimension

P/N
EZAEG2A
EZAEG3A

L

W

(inch/mm) L W t
0402/1005 0.039/1.0 0.02/0.5 0.02/0.38
0603/1608 0.063/1.6 0.03/0.8 0.02/0.5

t

Specification

Cap. Value

Peak voltage 500V max. (350V typ.)

Clump Voltage (after 30ns) 100V max.

Rated Voltage 15V(30V)

EZAEG2A
EZAEG3A

0.05pF

0.10pF

ESD Suppression Voltage Waveform Image

ESD Voltage Initial Waveform

Waveform after Clumping

Feature

0.1pF typ.

0.1pF typ.

1. Ultra Low Cap. Value

2. Good ESD Suppression Characteristic

Application

1. ANT Circuit of Mobile equipment

2. Hi-Speed Signal Line
(USB,IEEE1394,

3. each I/O Line & LED Circuit etc.

Hi-Speed Line ANT Circuit

Vcc
D+
Dｰ
GND

HDMI

HDMI

GB Ethernet

LED back-light

,SATA,Display Port etc.)

,SATA,Display Port etc.

Trigger-start

Voltage

（@8kV）

-20 0 20 40 60 80 100
Times (nSecs)

Peak Voltage

-20 0 20 40 60 80 100
Times (nSecs)

ESD Suppressor array

ESD Suppressor array

EZAEGCA type

EZAEGCA type

Dimension Specification

P

LWTABCP

2.0 1.2 0.5 0.3 0.35 0.25 0.5

Feature

(1)ESD protection for 2 pairs of Hi-Speed Differential

Data Lines (HDMI etc.) in one package

(2)Low Capacitance (Good TDR Characteristic)

Circuit Configuration

910

1

245

3

4 Signal lines are contained in the product

A

B

W

C

L

T

(mm)

78

GND:1,6
In/Out:2,3,4,5,

6

7,8,9,10

Application

High-Speed Data line : HDMI,IEEE1394

Application note

ESD protection by single parts

Recommended Land Pattern Design

C value

Peak voltage 500V max.(350V typ.)

Rated voltage 15V(I/O to GND)

Rated current 100mA max.(I/O to I/O)

ESD protection
component

0.25+0.05/-0.10pF

Clamping voltage(after 30ns) 100V max.

ESD protection by array parts

HDMI

IC

connector

ESD Suppressor Array

HDMI

IC

0.35d1.85e0.25g2.60h0.501.700.250.75
