Page 1

Operating Instructions

Digital Camera

DC-S1H

DVQP2024ZA

F0919AJ0

Page 2

Please read these instructions carefully before using this product, and

save this manual for future use.

Dear Customer,

We would like to take this opportunity to thank you for purchasing this Panasonic

Digital Camera. Please read this document carefully and keep it handy for future

reference. Please note that the actual controls and components, menu items, etc. of

your Digital Camera may look somewhat different from those shown in the illustrations

in this document.

Carefully observe copyright laws.

Recording of pre-recorded tapes or discs or other published or broadcast material for

purposes other than your own private use may infringe copyright laws. Even for the

purpose of private use, recording of certain material may be restricted.

Finding the Information You Need



You can find the information you need by looking at the following pages in this

document.

Contents l 6

Contents by Function l 15

Names of Parts l 28

Menu Guide l 390

Index l 615

Page 3

About Operating Instructions

Symbols Used in This Document



Symbols for recording modes, pictures, and videos that can be used

In this document, symbols are placed at the start of functional explanations (recording

modes, pictures, and videos) showing conditions in which these functions can be

used.

Black icons show conditions in which these can be used, and grey icons show

conditions in which these cannot be used.

Example: /

Operating symbols

In this document, camera operation is explained using the following symbols:

A Front dial

B Rear dial

C 3421

D Press the centre of the joystick

E [MENU/SET] button

F Control dial

0 For information about operation methods of the operation part, refer to page 64. 0 Other symbols, such as icons shown on the camera screen, are also used in

explanations.

0 This document describes the procedure for selecting menu items as follows:

Example) Set [Picture Quality] of the [Photo] ([Image Quality]) menu to [STD.].

¨ [ ] ¨ [ ] ¨ [Picture Quality] ¨ Select [STD.]

For information about menu operation methods, refer to page 77.

Cursor button up/down/left/right

Joystick up/down/left/right

Page 4

About Operating Instructions

Notification classification symbols

In this document, notifications are classified and described using the following

symbols:

To confirm prior to using the function

Hints for better use of the camera and tips for recording

Notifications and supplementary items regarding specifications

Related information and page number

0 This document provides an explanation with the assumption that menu settings are

in the default settings.

Furthermore, illustrations of screens used assume the following settings.

– [Style] ([Clock Set]): [Y.M.D]/[24hrs]

0 Description in this document is based on the interchangeable lens (S-R24105:

optional).

Page 5

Chapters

1. Introduction

2. Getting Started

3. Basic Operations

4. Image Recording

5. Focus/Zoom

6. Drive/Shutter/Image Stabiliser

7. Metering/Exposure/ISO Sensitivity

8. White Balance/Image Quality

9. Flash

10. Recording Videos

11. Special Video Recording

12. Connections with External Devices (Video)

13. Playing Back and Editing of Images

14. Camera Customisation

15. Menu Guide

16. Wi-Fi/Bluetooth

131

185

204

228

242

297

329

347

366

390

465

17. Connecting to Other Devices

18. Materials

522

539

Page 6

About Operating Instructions ....................................................... 3

Chapters ...................................................................................... 5

Contents by Function .................................................................15

1. Introduction 19

Before Use .................................................................................19

Standard Accessories................................................................22

Lenses That Can Be Used......................................................... 23

Memory Cards That Can Be Used.............................................25

Names of Parts .......................................................................... 28

Camera.............................................................................................. 28

Viewfinder/Monitor Displays ..............................................................32

Status LCD Display ........................................................................... 33

2. Getting Started 34

Attaching a Shoulder Strap ........................................................34

Charging the Battery .................................................................. 36

Charging with the Charger ................................................................ 36

Battery Insertion ................................................................................ 39

Inserting a Battery into the Camera for Charging .............................. 41

Using the Camera While Supplying It with Power

(Supplying Power/Charging).............................................................. 43

Notifications Regarding Charging/Power Supply............................... 44

[Power Save Mode] ........................................................................... 46

Inserting Cards (Optional)..........................................................48

Formatting Cards (Initialisation)......................................................... 50

Attaching a Lens........................................................................51

Adjusting the Monitor Direction and Angle.................................54

Setting the Clock

(When Turning On for the First Time)........................................ 56

Page 7

Contents

3. Basic Operations 59

Basic Recording Operations ...................................................... 59

How to Hold the Camera....................................................................59

Taking Pictures ..................................................................................61

Recording Videos...............................................................................62

Selecting the Recording Mode...........................................................63

Camera Setting Operations ....................................................... 64

Display Settings......................................................................... 68

Setting the Viewfinder ........................................................................68

Switching Between the Monitor and Viewfinder .................................69

Switching the Display Information......................................................70

Turning On the Status LCD Backlight ................................................72

Quick Menu ............................................................................... 73

Control Panel............................................................................. 75

Menu Operation Methods.......................................................... 77

[Reset]................................................................................................80

Intelligent Auto Mode ................................................................. 81

Recording Using Touch Functions ............................................ 84

Touch AF/Touch Shutter....................................................................84

Touch AE ...........................................................................................85

4. Image Recording 87

[Aspect Ratio] ............................................................................ 87

[Picture Size] ............................................................................. 88

[Picture Quality] ......................................................................... 90

[Double Card Slot Function] ...................................................... 92

[Folder / File Settings]................................................................ 93

[File Number Reset]................................................................... 95

Page 8

Contents

5. Focus/Zoom 96

Selecting the Focus Mode .........................................................96

Using AF ....................................................................................97

[AF Custom Setting(Photo)] ............................................................ 101

Selecting the AF Mode ............................................................ 103

[Face/Eye/Body/Animal Detect.]..................................................... 105

[Tracking]........................................................................................ 108

[225-Area]....................................................................................... 110

[Zone (Vert./ Horz.)]/ [Zone (Square)]/ [Zone (Oval)]...................... 111

[1-Area+]/ [1-Area].......................................................................... 113

[Pinpoint] ........................................................................................ 114

[Custom1] to [Custom3].................................................................. 116

AF Area Movement Operation .................................................118

Moving the AF Area by Touch ......................................................... 119

Moving the AF Area Position with the Touch Pad ...........................121

[Focus Switching for Vert / Hor]....................................................... 122

Record Using MF.....................................................................123

Recording with Zoom...............................................................127

Extra Tele Conversion..................................................................... 128

6. Drive/Shutter/Image Stabiliser 131

Selecting the Drive Mode.........................................................131

Taking Burst Pictures...............................................................132

6K/4K Photo Recording ...........................................................136

Selecting Pictures from a 6K/4K Burst File .............................. 142

Correcting Pictures After Recording (Post-Recording

Refinement)..................................................................................... 143

Picture Selection Operations ........................................................... 144

Recording with Time Lapse Shot............................................. 149

Recording with Stop Motion Animation....................................153

Time Lapse Shot/Stop Motion Animation Videos ....................156

Recording Using the Self-timer................................................158

Bracket Recording ...................................................................160

Post-Focus Recording .............................................................166

Page 9

Contents

Selecting the Focus Point for the Picture to Save............................169

Focus Stacking ................................................................................171

[Silent Mode]............................................................................ 174

[Shutter Type] .......................................................................... 175

Image Stabiliser....................................................................... 177

Image Stabiliser Settings .................................................................179

7. Metering/Exposure/ISO Sensitivity 185

[Metering Mode]....................................................................... 185

Programme AE Mode .............................................................. 186

Aperture-Priority AE Mode....................................................... 188

Shutter-Priority AE Mode ......................................................... 191

Manual Exposure Mode........................................................... 193

Preview Mode .......................................................................... 196

Exposure Compensation ......................................................... 197

Locking Focus and Exposure (AF/AE Lock) ............................ 199

ISO Sensitivity ......................................................................... 200

[Dual Native ISO Setting] .................................................................203

8. White Balance/Image Quality 204

White Balance (WB) ................................................................ 204

Adjusting the White Balance ............................................................208

[Photo Style] ............................................................................ 210

[Filter Settings]......................................................................... 216

[Simultaneous Record w/o Filter] .....................................................221

[High Resolution Mode] ........................................................... 222

[HLG Photo] ............................................................................. 226

Page 10

Contents

9. Flash 228

Using an External Flash (Optional) ..........................................228

Removing the Hot Shoe Cover........................................................ 228

Setting Flash ............................................................................231

[Flash Mode].................................................................................... 231

[Red-Eye Removal] ......................................................................... 233

[Firing Mode]/[Manual Flash Adjust.] ............................................... 234

[Flash Adjust.].................................................................................. 235

[Flash Synchro] ............................................................................... 236

[Auto Exposure Comp.] ................................................................... 237

Recording Using a Wireless Flash...........................................238

10. Recording Videos 242

Recording Videos ....................................................................242

Creative Video Mode ...............................................................247

Displays Suited to Video Recording ................................................247

Recording with Creative Video ........................................................249

[CreativeVideo Combined Set.] .......................................................252

Recording Video ......................................................................253

[System Frequency] ........................................................................ 253

[Rec. File Format]............................................................................ 255

[Rec Quality].................................................................................... 255

[Image Area of Video]...................................................................... 266

Time Code ...............................................................................268

Setting the Time Code..................................................................... 268

Synchronising the Time Code with an External Device...........270

Synchronise the Time Code of the External Device with That of

the Camera (TC OUT)..................................................................... 271

Synchronise the Time Code of the Camera with That of the

External Device (TC IN)................................................................... 273

Using AF (Video) .....................................................................275

[Continuous AF]............................................................................... 275

[AF Custom Setting(Video)]............................................................. 277

Video Brightness and Colouring ..............................................278

[Luminance Level] ........................................................................... 278

Page 11

Contents

[Master Pedestal Level] ...................................................................279

Recording While Controlling Overexposure (Knee) .........................280

[ISO Sensitivity (video)]....................................................................282

Audio Settings ......................................................................... 283

[Sound Rec Level Disp.] ..................................................................283

[Mute Sound Input]...........................................................................283

[Sound Rec Gain Level] ...................................................................284

[Sound Rec Level Adj.] ....................................................................284

[Sound Rec Level Limiter]................................................................285

[Wind Noise Canceller] ....................................................................285

Main Assist Functions.............................................................. 286

[SS/Gain Operation].........................................................................286

[WFM/Vector Scope]........................................................................288

[Luminance Spot Meter]...................................................................292

[Zebra Pattern] .................................................................................293

[Video Frame Marker] ......................................................................295

Colour bars/Test Tone .....................................................................296

11. Special Video Recording 297

Variable Frame Rate ............................................................... 297

High Frame Rate Video ........................................................... 300

[Focus Transition] .................................................................... 301

[Live Cropping] ........................................................................ 304

Log Recording ......................................................................... 308

[V-Log View Assist] ..........................................................................310

HLG Videos ............................................................................. 312

[HLG View Assist] ............................................................................314

Anamorphic Recording ............................................................ 315

[Anamorphic Desqueeze Display]....................................................316

[Synchro Scan] ........................................................................ 318

[Loop Recording (video)] ......................................................... 320

[Segmented File Recording] .................................................... 322

List of Recording Qualities That Enable Special Videos to

be Recorded ............................................................................ 323

Page 12

Contents

12. Connections with External Devices (Video) 329

HDMI Devices (HDMI Output) .................................................329

Attaching the Cable Holder ............................................................. 330

Images Output via HDMI .................................................................333

HDMI Output Image Quality (Resolution/Frame Rate) ............335

Settings for Down-Converting.......................................................... 335

HDMI Output Settings.............................................................. 338

Outputting the Camera Information Display via HDMI..................... 338

Outputting Control Information to an External Recorder ................. 338

Outputting Down-converted Audio to an HDMI Device ................... 339

Outputting Audio via HDMI .............................................................. 339

External Microphones (Optional) ............................................. 340

XLR Microphone Adaptor (Optional)........................................343

Headphones ............................................................................345

13. Playing Back and Editing of Images 347

Playing Back Pictures .............................................................. 347

Playing Back Videos................................................................349

Extracting a Picture ......................................................................... 351

Switching the Display Mode.....................................................352

Enlarged Display ............................................................................. 352

Thumbnail Screen ........................................................................... 354

Calendar Playback .......................................................................... 355

Group Images .......................................................................... 356

Deleting Images.......................................................................357

[RAW Processing]....................................................................359

[Video Divide]........................................................................... 364

Page 13

Contents

14. Camera Customisation 366

Fn Buttons ............................................................................... 367

[Dial Operation Switch] ............................................................ 376

Quick Menu Customisation......................................................378

Custom Mode .......................................................................... 383

My Menu .................................................................................. 387

[Save/Restore Camera Setting]...............................................389

15. Menu Guide 390

List of Menu .............................................................................391

[Photo] Menu ........................................................................... 396

[Video] Menu ........................................................................... 410

[Custom] Menu ........................................................................ 418

[Setup] Menu ........................................................................... 444

[Playback] Menu ...................................................................... 456

Entering Characters................................................................. 464

16. Wi-Fi/Bluetooth 465

Connecting to a Smartphone................................................... 467

Operating the Camera with a Smartphone.............................. 479

Sending Images from the Camera........................................... 492

Wi-Fi Connections ................................................................... 508

Send Settings and Selecting Images....................................... 515

[Wi-Fi Setup] Menu .................................................................. 517

Page 14

Contents

17. Connecting to Other Devices 522

Viewing on a TV....................................................................... 524

Importing Images to a PC ........................................................ 527

Copying Images to a PC ................................................................. 527

Installing Software ........................................................................... 529

Storing on a Recorder.............................................................. 532

Tethered Recording ................................................................. 533

Installing Software ........................................................................... 533

Operating the Camera from a PC.................................................... 534

Printing..................................................................................... 535

18. Materials 539

Using Optional Accessories .....................................................539

Battery Grip (Optional) .................................................................... 539

Shutter Remote Control (Optional) .................................................. 540

AC Adaptor (Optional)/DC Coupler (Optional)................................. 541

Monitor/Viewfinder Displays ....................................................542

Recording Screen............................................................................ 542

Playback Screen ............................................................................. 550

Message Displays.................................................................... 553

Troubleshooting ....................................................................... 557

Cautions for Use ...................................................................... 569

Number of Pictures That Can Be Taken and Available

Recording Time with the Battery..............................................579

Number of Still Images That Can Be Taken and Video

Recording Time with Cards ..................................................... 582

List of Default Settings/Custom Saving/Settings Available

for Copying ..............................................................................587

List of Functions That Can Be Set in Each Recording

Mode........................................................................................601

Specifications........................................................................... 606

Index ........................................................................................615

Trademarks and Licences ....................................................... 623

Page 15

Contents by Function

Power Source

Charging l 36 Charging error l 38

Battery indication l 44 Power supply l 43 [Battery Information] l 450 Power save function l 46 Number of pictures that can be taken, available recording time

Card

Cards that can be used l 25 [Card Format] l 50 [Double Card Slot Function] l 92 [Destination Card Slot] l 92 Switching the playback card l 348

Folder structure l 528 [Folder / File Settings] l 93 [File Number Reset] l 95 Entering characters l 464 Number of pictures, length of recording time

Lens

Attaching l 51 [Lens Information] l 183

Basic Settings

[Language] l 455 [Clock Set] l 56 [Time Zone] l 454 [Beep] l 448 [Copyright Information] l 444 [Reset] l 80

l 42

l 579

l 354

l 582

Viewfinder

Dioptre adjustment l 68 Display magnification l 68 Eye sensor l 69 [Eye Sensor AF] l 424

Display

Recording screen l 542 Playback screen l 550 Viewfinder l 32 Status LCD l 33 Control panel l 75

Switching display l 70 Monitor/viewfinder adjustment Monitor/viewfinder luminance Display speed l 445 Level gauge l 438 Grid lines l 433 [Histogram] l 432 [Sheer Overlay] l 437 Checking overexposure l 436 [V-Log View Assist] l 310 [HLG View Assist] l 314

AF/MF

Focus mode l 96 [Continuous AF] l 275 Selecting the AF mode l 103

Face/eye/human detection l 105 Animal detection l 106 Movement tracking l 108 [AF ON] l 98 Moving the AF area l 118 Enlarged display l 100

Setting the AF sensitivity l 101

l 546

l 446

l 423

l 125

l 277

Page 16

Contents by Function

AF/AE Lock l 199 Touch AF l 84

[Touch Pad AF] l 121 [AF Assist Light] l 401 MF l 123 [MF Guide] l 422 [MF Assist] l 422 [Focus Peaking] l 402

Image Stabiliser

[Image Stabilizer] l 177 [E-Stabilization (Video)] l 179 [Boost I.S. (Video)] l 182 [Anamorphic (Video)] l 182 [Lens Information] l 183

Drive

Drive mode l 131 Burst l 132 [6K/4K PHOTO] l 136 [Time Lapse Shot] l 149 Recording with Stop Motion Animation [Self Timer] l 158 [Post-Focus] l 166

Image Quality

[Picture Size] l 88 [Picture Quality] l 90 RAW l 90 JPEG l 90 Aspect ratio l 87 [White Balance] l 204 [Photo Style] l 210 [Filter Settings] l 216 [Color Space] l 420 [6K/4K PHOTO Noise Reduction] [Flicker Decrease (Photo)] l 407

l 120

l 153

l 144

[Long Exposure NR] l 397 [i.Dynamic Range] l 399 [Vignetting Comp.] l 400 [Diffraction Compensation] l 400

Taking Pictures

Recording mode l 63 Quick menu l 73 Zoom l 127 [Ex. Tele Conv.] l 128 Bracket recording l 160 Bulb recording [High Resolution Mode] l 222 [Multiple Exposure] l 408 [HLG Photo] l 226 [Shutter Type] l 175 [Silent Mode] l 174 Remote control recording l 540 Screen display l 542

Exposure

[Exposure Comp.] l 197 Programme Shift l 187 Preview mode [Metering Mode] l 185 AE Lock l 199 [One Push AE] l 371 [Touch AE] l 85 [Sensitivity] l 200 [Extended ISO] l 419 [Dual Native ISO Setting] l 203

Flash

External flash l 228 [Firing Mode] l 234 [Flash Mode] l 231 [Flash Adjust.] l 235 [Flash Synchro] l 236 [Wireless Flash Setup] l 238

l 195

l 196

Page 17

Contents by Function

Video Recording

Video recording l 242 [System Frequency] l 253 [Image Area of Video] l 266 Creative Video mode l 247 [Variable Frame Rate] l 297 High frame rate video l 300 [Focus Transition] l 301 [Live Cropping] l 304 Log recording (V-Log) l 308 HLG video l 312 Anamorphic Recording l 315 [Loop Recording (video)] l 320 [Segmented File Recording] l 322 [Tally Lamp] l 242 [Down Convert] l 335 [Time Code] l 268 Remote control recording l 540

Display (Video)

SS/Gain Operation l 286 [WFM/Vector Scope] l 288 [Luminance Spot Meter] l 292 [Zebra Pattern] l 293 [Video Frame Marker] l 295 [Color Bars] l 296

Image Quality (Video)

[Rec. File Format] l 255 [Rec Quality] l 255 Resolution l 255 Recording frame rate l 255 Bit rate l 255 [Flicker Decrease (Video)] l 411 [Synchro Scan] l 318

Exposure (Video)

Exposure settings l 243

[Dual Native ISO Setting] l 203 Luminance level l 278 [Master Pedestal Level] l 279 Knee l 280 Gain l 286

Audio

External microphone l 340 XLR Microphone Adaptor l 343 Headphones l 345 [Sound Output] l 345 [Sound Rec Level Disp.] l 283 [Mute Sound Input] l 283 [Sound Rec Gain Level] l 284 [Sound Rec Level Adj.] l 284 Wind noise reduction l 285 Attenuator l 285 Test tone l 296

Playback

[Auto Review] l 430 Playing back pictures l 347 Playing back videos l 349 Thumbnail display l 354 Calendar display l 355 Enlarged display l 352 Group images l 356 Saving 6K/4K photos l 142 Viewing on a TV l 524 Deleting l 357 Screen display l 550 [Slide Show] l 457

l 252

Page 18

Contents by Function

Editing of Images

[RAW Processing] l 359 [Protect] l 460 [Rating] l 460 [Resize] l 461 [Rotate] l 461 [Video Divide] l 364 [Copy] l 462

Customisation

[Custom] menu l 418 Function button l 367 Custom recording mode l 383 My Menu l 387 Quick menu l 378 Dial operation l 376 Saving camera settings l 389

Connecting with Other

Devices

Sending images (PC) l 527 Printing l 535 Viewing on a TV l 524 HDMI output l 329

Tethered recording l 533 Cable holder l 330

l 525

Wi-Fi/Bluetooth

Bluetooth connection l 469 [Wi-Fi connection] l 473

[Wi-Fi Setup] l 517 Smartphone app “LUMIX Sync” [Remote shooting] l 480 Location information l 488 Sending images ([Smartphone]) Sending images ([PC]) l 499 Sending images ([Printer]) l 502 Sending images ([Web service]) Sending images ([Cloud Sync. Service]) Saving camera settings l 491 “LUMIX CLUB” l 518

Software

“PHOTOfunSTUDIO ” l 530 “SILKYPIX ” l 531 “LUMIX Tether” l 533

Maintenance

[Sensor Cleaning] l 454 [Pixel Refresh] l 454

l 508

l 467

l 484 l 496

l 504

l 506

Page 19

1. Introduction

Before Use

Firmware of Your Camera/Lens



Firmware updates may be provided in order to improve camera capabilities or to add

functionality. For smoother recording, we recommend updating the firmware of the

camera/lens to the latest version.

0 For the latest information on the firmware or to download/update the firmware,

visit the following support site:

https://panasonic.jp/support/global/cs/dsc/

(English only)

0 To check the firmware version of the camera/lens, attach the lens to the camera and

select [Firmware Version] in the [Setup] ([Others]) menu. You can also update the firmware in [Firmware Version]. (l 455)

0 This document provides explanations for camera firmware version 1.0.

Handling of the Camera



When using the camera, take care not to drop it, bump it, or apply undue force.

These may cause malfunction or damage to the camera and lens.

If sand, dust, or liquid gets on the monitor, wipe it off with a dry soft cloth.

– Touch operations may be incorrectly recognised.

When using in low temperatures (s10 oC to 0 oC (14 oF to 32 oF))

– Before use, attach a Panasonic lens with a minimum recommended operating

temperature of j10 oC (14 oF).

Page 20

1. Introduction

Do not place a hand inside the camera mount.

This may cause a failure or damage because the sensor is a precision device.

If you shake the camera while turning the camera off, a sensor may operate or a

rattling sound may be heard. This is caused by the image stabiliser mechanism

in the body. It is not a malfunction.

Splash Resistant



Splash Resistant is a term used to describe an extra level of protection this

camera offers against exposure to a minimal amount of moisture, water or dust.

Splash Resistant does not guarantee that damage will not occur if this camera is

subjected to direct contact with water.

In order to minimise the possibility of damage please be sure the following

precautions are taken:

– Splash Resistant works in conjunction with the lenses that were specifically

designed to support this feature.

– Securely close the doors, socket caps, contact points cover, etc.

– When the lens or cap is removed or a door is open, do not allow sand, dust, and

moisture to enter inside.

– If liquid gets on the camera, wipe it off with a dry soft cloth.

Condensation (When the Lens, the Viewfinder or Monitor



is Fogged Up)

0 Condensation occurs when there are temperature or humidity differences. Take care

as this may lead to soiling, mould, and malfunctions in the lens, viewfinder, and

monitor.

0 If condensation occurs, turn off the camera and leave it for approx. 2 hours. The fog

will disappear naturally when the temperature of the camera becomes close to the

ambient temperature.

Page 21

1. Introduction

Be Sure to Perform Trial Recording in Advance



Perform trial recording in advance of an important event (wedding, etc.) to check that

recording can be performed normally.

No Compensation Regarding Recording



Please note that compensation cannot be provided in the event that recording could

not be performed due to a problem with the camera or a card.

Be Careful with Regard to Copyrights



Under copyright law, you may not use the images and audio you have recorded for

other than personal enjoyment without the permission of the copyright holder.

Be careful because there are cases where restrictions apply to recording even for the

purpose of personal enjoyment.

Also Read “Cautions for Use” (l 569)



Page 22

1. Introduction

Standard Accessories

Check that all the accessories are supplied before using the camera.

The accessories and their shape will differ depending on the country or area where

the camera was purchased.

For details on the accessories, refer to “Operating Instructions <Basic>” (supplied).

0 Digital camera body is referred to as camera in this document. 0 Battery pack is referred to as battery pack or battery in this document. 0 Battery charger is referred to as battery charger or charger in this document. 0 The memory card is optional. 0 The interchangeable lens is optional.

Page 23

1. Introduction

Lenses That Can Be Used

The lens mount of this camera is compliant with the L-Mount standard of

Leica Camera AG. It can be used with 35 mm full-frame compatible

interchangeable lenses and APS-C size interchangeable lenses of this

standard. This camera is capable of sensor read out suited to the image

circles of 35 mm full-frame interchangeable lenses and Super 35 mm

interchangeable lenses.

When using an APS-C size interchangeable lens, sensor read out is possible across

the same range as a Super 35 mm interchangeable lens.

0 The interchangeable lenses used in the explanations are designated as follows in

this document.

Types of interchangeable lens Designation in this document

35 mm full-frame interchangeable lens full-frame lens

Super 35 mm interchangeable lens Super 35 mm lens

APS-C-size interchangeable lens APS-C lens

0 When there is no distinguishing the type of lens, the explanation will use lens. 0 When using a lens that cannot communicate with this camera, you can register the

lens information using the following menu item. The settings on this camera enable you to switch settings to suit full-frame or Super 35 mm/APS-C lenses. (l 183)

[] ¨ [ ] ¨ [Image Stabilizer] ¨ [Lens Information] ¨ [Lens1] to [Lens12] ¨

[Image Circle]

[] ¨ [ ] ¨ [Lens Information] ¨ [Lens1] to [Lens12] ¨ [Image Circle]

Page 24

1. Introduction

Notes on the Use of Super 35 mm/APS-C Lenses



As the image area is narrowed when using Super 35 mm/APS-C lenses,

the following functions may not be available or their behaviour may be

different.

[Aspect Ratio] l 87 [Picture Size] l 88 [Ex. Tele Conv.] l 128 [6K/4K PHOTO] l 136 [Post-Focus] l 166 [Shutter Type] l 175

Refer to catalogues/websites for most current information regarding

supported lenses.

https://panasonic.jp/support/global/cs/dsc/

(English only)

[Filter Settings] l 216 [High Resolution Mode] l 222 [HLG Photo] l 226 [Rec Quality] l 263 [Image Area of Video] l 266 [Multiple Exposure] l 408

Page 25

1. Introduction

Memory Cards That Can Be Used

You can use the following memory cards with this camera.

SD memory card, SDHC memory card, and SDXC memory card are referred to by

the generic name of card in this document.

SD memory card

(512 MB to 2 GB)

0 The camera supports SDHC/SDXC memory cards

compliant with UHS Speed Class 3 of the UHS-

II standard.

UHS-

0 The camera supports

SDHC memory card

(4 GB to 32 GB)

SDXC memory card

(48 GB to 128 GB)

SDHC/SDXC memory

cards compliant with

Video Speed Class 90 of

II standard.

the UHS-

0 Operation with the Panasonic cards on the left has

been verified.

0 For the latest information, check the following support site:

https://panasonic.jp/support/global/cs/dsc/

(English only)

Page 26

1. Introduction

Cards That Can Be Used Stably with This Camera



When using the following functions, use cards that have the correct SD

Speed Class, UHS Speed Class, and Video Speed Class.

Speed classes are standards to guarantee the minimum speed necessary for

continuous writing.

[Video Record]

Bit rate of the

recording quality

Speed Class

Class 10

Example of

indication

72 Mbps

100 Mbps to

200 Mbps

400 Mbps Video Speed Class 60 or higher

UHS Speed Class 1 or higher

Video Speed Class 10 or higher

UHS Speed Class 3

Video Speed Class 30 or higher

[6K/4K PHOTO]/[Post-Focus]

Speed Class

UHS Speed Class 3

Video Speed Class 30 or higher

Example of

indication

Page 27

0 You can prevent the writing and deleting of data by setting

the write-protect switch A on the card to “LOCK”.

0 The data stored on a card may be damaged due to

electromagnetic waves, static electricity or a failure of the

camera or card. We recommend backing up important data.

0 Keep the memory card out of reach of children to prevent

swallowing.

1. Introduction

Page 28

1. Introduction

Names of Parts

Camera

Stereo microphone (l 284)

0 Do not block the microphone

with a finger. Audio will be

difficult to record.

[ ] (Recording distance

reference mark) (l 126)

3 Mode dial (l 63)

Mode dial lock button (l 63)

Drive mode dial (l 131)

Hot shoe (hot shoe cover) (l 228)

• Keep the hot shoe cover out of

reach of children to prevent swallowing.

[LVF] button (l 69)

8 Speaker (l 448)

Front dial (l 65)

Camera on/off switch (l 56)/

[ ] (Status LCD backlight)

(l 72, 447)

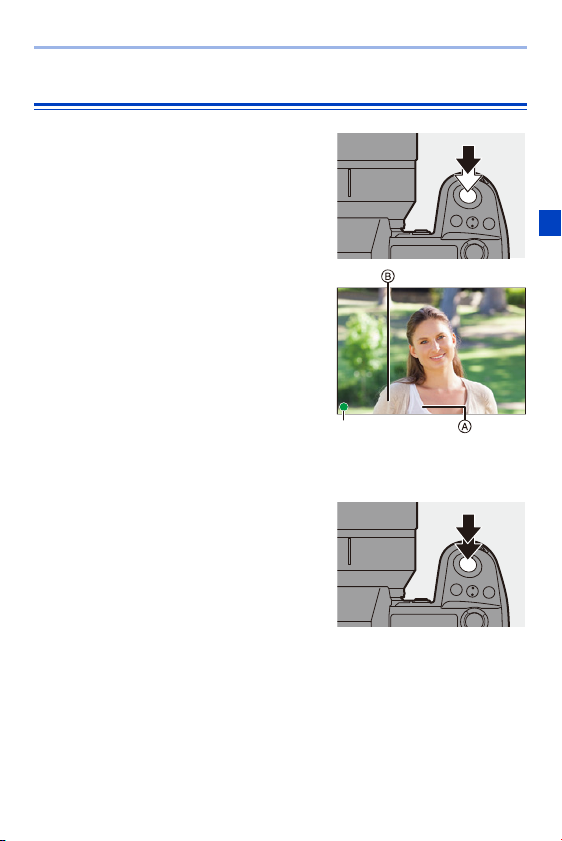

Shutter button (l 61)

[WB] (White balance) button

(l 204)

[ISO] (ISO sensitivity) button

(l 200)

[ ] (Exposure compensation)

button (l 197)

15 Video rec. button (l 62, 242)

Rear dial (l 65)

Status LCD (l 33, 248, 447)

18 [V.MODE] button (l 68)

10 11 12 13

Page 29

1. Introduction

6 7

15 16

8 9

12 13 14

10 11

1 Dioptre adjustment dial (l 68)

Operation lock lever (l 67)

[(] (Playback) button (l 347)

Monitor (l 32, 542)/

Touch screen (l 66)

Rear tally lamp (l 242)

[ ] (AF mode) button (l 97)

7 [AF ON] button (l 98)

Focus mode lever (l 96, 97, 123)

Joystick (l 66)/ Fn buttons (l 367)

Centre: Fn8, 3: Fn9, 1: Fn10, 4:Fn11, 2: Fn12

0 The following buttons light when the camera on/off switch is set to [ ].

The lighting timing can be changed in [Illuminated Button] in the [Custom] ([Operation]) menu. (l 429) –[(] button/[Q] button/[ ] button/[ ] button/[DISP.] button

10 [Q] (Quick menu) button (l 73)

Cursor buttons (l 65)/ Fn buttons (l 367)

3: Fn13, 1: Fn14, 4: Fn15, 2: Fn16

Control dial (l 65)

[MENU/SET] button (l 65, 77)

[ ] (Cancel) button (l 79)

[ ] (Delete) button (l 357)

[DISP.] button (l 70)

Page 30

1. Introduction

Eye sensor (l 69)

1 2 Viewfinder (l 32, 69, 542)

Eye cup (l 572)

Eye cup lock lever (l 572)

Fan inlet

0 The fan inlet for the cooling fan. 0 Do not obstruct this unit’s

ventilation openings with

newspapers, tablecloths,

curtains, and similar items.

Monitor lock lever (l 55)

Tripod mount (l 576)

0 If you attempt to attach a tripod

with a screw length of 5.5 mm

(0.22 inch) or more, you may not

be able to securely fix it in place

or it may damage the camera.

12 13 14 15

Battery grip connector (cover for

the battery grip connector) (l 539)

0 Keep the cover for the battery

grip connector out of reach of

children to prevent swallowing.

Card slot 1 (l 48)

Card slot 2 (l 48)

11 Card door lock lever (l 48)

Card door (l 48)

Card access light (l 49)

DC Coupler cover (l 541)

0 When using an AC adaptor,

ensure that the Panasonic DC

Coupler (DMW-DCC16:

optional) and AC Adaptor

(DMW-AC10: optional) are

used.

Battery door (l 39)

Battery door release lever (l 39)

Page 31

1 2

3 4 5

1 Shoulder strap eyelet (l 34)

Self-timer light (l 158)/

AF assist light (l 401) Fn button (Fn1) (l 367)

Grip

Preview button (l 196)/

Fn button (Fn2) (l 367)

6 Lens release button (l 53) 7 Front tally lamp (l 242)

Flash synchro socket (flash synchro

socket cap) (

l 229)

Use the flash with a

synchronisation voltage of 25 0 V

or less.

Connect the supplied BNC

conversion cable (for TC IN/OUT)

when synchronising the time code

with an external device. (

Keep the flash synchro socket cap

out of reach of children to prevent

swallowing.

9 [REMOTE] socket (l 540)

16 17 1918 2015 1 2114

l 268)

1. Introduction

10 [MIC] socket (l 340)

Headphone socket (l 345)

0 Excessive sound pressure from

earphones and headphones can

cause hearing loss.

USB port (l 41, 522)

12 13 [HDMI] socket (l 329, 522) 14 Lens fitting mark (l 52)

Lens lock pin

Sensor

Contact points

Mount

Screw hole for function expansion

0 This is a hole that will be used in

a future function expansion.

Sub video rec. button (l 62, 242)

Fan outlet

The fan outlet for the cooling fan.

Do not obstruct this unit’s

ventilatio n openings with

newspapers, table cloths, curtains,

and similar items.

10 11

Page 32

1. Introduction

999

ISO

100

4.060

FINE

AFSAFS

8 9 1011 12 13 14 15 16 17

1 2 43 5 6 7

Viewfinder/Monitor Displays

At the time of purchase, the viewfinder/monitor displays the following

icons.

For information about the icons other than those described here, refer to page 542.

Viewfinder Monitor

FINE

AFSAFS

ISO

100F4.060±0

999

Photo Style (l 210 )

Level gauge (l 438)

Picture quality (l 90)/

Picture size (l 88)

AF area (l 11 8)

Focus mode (l 96, 123)

AF mode (l 103)

Image stabiliser (l 177)

Focus (green) (l 61, 98)/

Recording state (red) (l 223, 242)

Recording mode (l 63)

0 Press [ ] to switch between display/hide of the level gauge.

Metering mode (l 185)

Shutter speed (l 61)

Aperture value (l 61)

Exposure compensation value (l 197)/

Manual Exposure Assist (l 194)

ISO sensitivity (l 200)

Card slot (l 48)/

Double card slot function (l 92)

Number of still images that can be taken (l 582)/

Number of pictures that can be taken continuously (l 134)

Battery indication (l 44)

Page 33

1. Introduction

Status LCD Display

The following recording settings are displayed when recording pictures.

Refer to page 248 for information on the [ ] mode (Creative Video mode) display.

3421

BKT

4.0

7 8

Recording mode (l 63 )

Metering mode (l 185)

Shutter speed (l 61)

Aperture value (l 61)/

Aperture Bracket (l 163)

White balance (l 204)/

White Balance Bracket (l 165)

ISO sensitivity (l 200)/

Dual Native ISO setting (l 203)

Exposure compensation (l 197)/

Exposure Bracket (l 163)

Flash output adjustment (l 235)

Photo Style (l 210)/

Filter settings (l 216)

AWB

BKT

13 15 16 17

ISOWB BKT

100

54321012345

10 11

999 999

HLG photo (l 226)

Picture quality (l 90)/

Picture size (l 88)

Wi-Fi/Bluetooth connection state

(l 466)

Drive mode (l 131)/Post-Focus (l 166)/High Resolution mode

(l 222)

AF mode (l 103)

Card slot (l 48)/

Double card slot function (l 92)

Number of still images that can be taken (l 582)/

Number o f picture s that ca n be taken continuously (l 134)

Battery indication (l 44)/

Power supply (l 43)

0 Turning on the status LCD backlight. (l 72) 0 You can change the colour of text, the background colour, and how the

backlight turns on for the status LCD: [] ¨ [ ] ¨ [Status-LCD] (l 447)

Page 34

2. Getting Started





Attaching a Shoulder Strap

Attach a shoulder strap to the camera with the following procedure to

prevent it from dropping.

Pass the shoulder strap

through the shoulder strap eyelet A.

Pass the end of the shoulder

strap through the ring and then pass it through the fastener.





Pass the end of the shoulder

strap through the other hole of the fastener.

Pull the shoulder strap and

check that it will not come out.

0 Attach the opposite end of the shoulder

strap with the same procedure.







Page 35

2. Getting Started

0 Use the shoulder strap around your shoulder.

– Do not wrap the strap around your neck.

It may result in injury or accident.

0 Do not leave the shoulder strap where an infant can reach it.

– It may result in an accident by mistakenly wrapping around the neck.

Page 36

2. Getting Started

Charging the Battery

You can charge the battery either using the supplied charger, or in the

camera body.

You can also charge by connecting to a USB PD (USB Power Delivery)

compatible device using the supplied USB connection cable (C–C).

Furthermore, you can turn the camera on while it is charging and record. 0 The battery that can be used with the camera is DMW-BLJ31. (As of

August 2019)

0 The battery is not charged at the time of purchase. Charge the battery before

use.

Charging with the Charger

Charging time Approx. 130 min

0 Use the supplied charger and AC adaptor. 0 The indicated charging time is for when the battery has been discharged completely.

The charging time may vary depending on how the battery has been used.

The charging time for the battery in hot/cold environments or a battery that has not

been used for a long time may be longer than normal.

0 Use the products supplied with the camera for charging. 0 Use the charger indoors.

Page 37

Connect the charger and the

AC adaptor with the USB connection cable (C–C).

0 Hold the plugs and insert them straight

in or pull them straight out.

(Inserting these at an angle may cause

deformation or malfunction)

Connect the AC mains lead to

the AC adaptor and then insert into the electrical outlet.

Insert the battery.

≥Insert the terminal end of the

battery and push.

≥The [CHARGE] light A blinks and

charging begins.

0 Do not use any other USB connection cables except the supplied USB

connection cable (C– C).

This may cause malfunction.

0 Do not use any other AC adaptors except the supplied one.

This may cause malfunction.

0 Do not use any other AC mains leads except the supplied one.

This may cause malfunction.



2. Getting Started







Page 38

2. Getting Started

[CHARGE] Light Indications



Charging

status

[CHARGE]

light

0% to 49% 50% to 79% 80% to 99% 100%

A Blinking B On C Off

0 After charging, disconnect the power source connection and remove the

battery.

0 If the [50%] light is blinking quickly, then charging is not occurring.

– The temperature of the battery or surroundings is either too high or too low.

Try charging at an ambient temperature between 10 °C and 30 °C (50 oF and 86 oF).

– The terminals of the charger or the battery are dirty.

Remove the connection to the power source, and wipe with a dry cloth.

Page 39

2. Getting Started

Battery Insertion

0 Always use genuine Panasonic batteries (DMW-BLJ31). 0 If you use other batteries, we cannot guarantee the quality of this product.

Set the camera on/off switch

to [OFF].

Open the battery door.

≥Move the battery door release lever

to the [OPEN] position.

Insert the battery.

≥Insert the terminal end of the

battery and push until a locking

sound is heard.

Check that the lever A is holding the

battery in place.



Close the battery door.

≥Close the battery door, and move

the battery door release lever to the

[LOCK] position.

Page 40

2. Getting Started

Removing the Battery



Set the camera on/off switch to [OFF].

Open the battery door.

Check that the card access light A is

turned off and then open the battery door.

Push the lever B in the direction of the arrow and then remove the battery.

0 Ensure that no foreign objects are adhering to the inner side (rubber seal) of

the battery door.

0 Remove the battery after use.

(The battery will drain if left inserted in the camera for a long period of time.)

0 The battery becomes warm after use, during charging, and immediately after

charging.

The camera also becomes warm during use. This is not a malfunction.

0 Be careful when removing the battery as the battery will jump out.



Page 41

2. Getting Started

Inserting a Battery into the Camera for Charging

Charging time Approx. 140 min

0 Using the camera body and the supplied AC adaptor.

The camera is turned off.

0 The indicated charging time is for when the battery has been discharged completely.

The charging time may vary depending on how the battery has been used.

The charging time for the battery in hot/cold environments or a battery that has not

been used for a long time may be longer than normal.

0 Use the products supplied with the camera for charging.

Set the camera on/off switch to [OFF].

Insert the battery into the camera.

Connect the camera USB port and the AC adaptor using

the USB connection cable (C–C).

0 Hold the plugs and insert them straight in or pull them straight out.

(Inserting these at an angle may cause deformation or malfunction)

Page 42

2. Getting Started





Connect the AC mains lead to

the AC adaptor and then insert into the electrical outlet.

≥[CHARGE] is displayed on the status

LCD and charging starts.

[FULL] is displayed when charging is

complete.

0 You can also charge the battery by connecting a USB device (PC, etc.) and

the camera with the USB connection cable (C–C or A–C).

In that case, charging may take a while.

0 When using the Battery Grip (DMW-BGS1: optional), the battery within the

Battery Grip will also be charged.

0 Do not use any other USB connection cables except the supplied USB

connection cables (C– C and A – C).

This may cause malfunction.

0 Do not use any other AC adaptors except the supplied one.

This may cause malfunction.

0 Do not use any other AC mains leads except the supplied one.

This may cause malfunction.

0 After charging, disconnect the connection to the power source. 0 When an [ERROR] is displayed on the status LCD, charging is not possible.

– The temperature of the battery or surroundings is either too high or too low.

Try charging at an ambient temperature between 10 °C and 30 °C (50 oF and 86 oF).

– The terminals of the battery are dirty.

Remove the battery and wipe off the dirt with a dry cloth.

0 Even when the camera on/off switch is set to [OFF] thus turning the camera

off, it consumes power.

When the camera will not be used for a long time, remove the power plug from

the electrical outlet in order to save power.

Page 43

2. Getting Started

Using the Camera While Supplying It with Power (Supplying Power/Charging)

When charging with both the camera body and the supplied AC adaptor (l 41), you can charge while the camera is being supplied with power by

turning the camera on. You can record while charging.

This is also possible by connecting devices that support USB PD (USB

Power Delivery) to the camera.

A AC adaptor B Devices that support USB PD (mobile

Insert the battery into the camera.

battery, etc.)

0 Connect using the supplied USB connection cable (C–C). 0 Use a device (mobile battery, etc.) with an output of 9 V/3 A (27 W or more) that

supports USB PD.

0 When the camera is on, charging will take longer than when the camera is off.

0 Even when connecting with devices that support USB PD, you may not be

able to charge while using the camera.

0 If connecting with devices (PC, etc.) that do not support USB PD and turning

the camera on, then this will supply power only.

0 Turn off the camera before connecting or disconnecting the power plug. 0 Remaining charge in the battery may decrease depending on usage

conditions. When the battery level is depleted, the camera will turn off.

0 Depending on the power supply capabilities of the connected device, it may

not be possible to supply power.

0 USB power supply can be turned off:

[] ¨ [ ] ¨ [USB] ¨ [USB Power Supply] (l 449)

Page 44

2. Getting Started



 

Notifications Regarding Charging/Power Supply

Power Indications



Indication on status LCD

Indication on monitor

80% or higher

60% to 79%

40% to 59%

20% to 39%

19% or below

Low battery

Blinking

0 Charge or replace the battery.

0 The battery level indicated on the screen is approximate.

The exact level varies depending on the environment and the operating conditions.

0 The highest battery level reading of C or D blinks during charging. 0 When a charging error occurs, the status LCD display icon A blinks.

A USB connection cable supplying

power

B Power source



C The battery level of the battery in the



camera

D The battery level of the battery in the

Battery Grip

E Battery indication F Using the battery in the Battery Grip

Page 45

2. Getting Started

0 It has been found that counterfeit battery packs which look very similar

to the genuine product are made available for purchase in some

markets. Some of these battery packs are not adequately protected with

internal protection to meet the requirements of appropriate safety

standards. There is a possibility that these battery packs may lead to fire

or explosion. Please be advised that we are not liable for any accident or

failure occurring as a result of use of a counterfeit battery pack. To

ensure that safe products are used, we recommend that a genuine

Panasonic battery pack is used.

0 Do not leave any metal items (such as clips) near the contact areas of the

power plug.

Otherwise, a fire and/or electric shocks may be caused by short-circuiting or

the resulting heat generated.

0 Do not use the AC adaptor, AC mains lead, or USB connection cables (C–C

and A–C) on other devices.

This may cause a malfunction.

0 Do not use USB extension cables or USB conversion adaptors. 0 The battery can be charged even when it still has some charge left, but it is not

recommended that the battery charge be frequently topped up while the

battery is fully charged.

(Since characteristic swelling may occur.)

0 If there is a power outage or other problem with the electrical outlet, then

charging may not complete successfully.

Reconnect the power plug.

0 Do not connect to keyboard or printer USB ports, or to USB hubs. 0 If the connected PC enters sleep status, then charging/power supply may

stop.

0 The battery level display on the monitor can be changed to a percentage:

[] ¨ [ ] ¨ [Remaining Battery Level] (l 446)

0 You can confirm the degree of deterioration of the battery:

[] ¨ [ ] ¨ [Battery Information] (l 450)

Page 46

2. Getting Started

[Power Save Mode]

This is a function to automatically turn the camera to sleep (power save)

status or turn off the viewfinder/monitor if no operation is performed for a

set time. Reduces battery consumption.

¨ [ ] ¨ [ ] ¨ Select [Power Save Mode]

[Sleep Mode] Sets the amount of time until the camera is put to sleep.

[Sleep Mode(Wi-

Fi)]

[Auto LVF/

Monitor Off]

[Power Save

LVF Shooting]

To recover from [Sleep Mode], [Sleep Mode(Wi-Fi)], or [Power Save LVF Shooting],

perform one of the following operations:

– Press the shutter button halfway.

– Set the camera on/off switch to [OFF] and then [ON] again.

0 To recover from [Auto LVF/Monitor Off], press any button.

Sets the camera to sleep 15 minutes after being disconnected

from Wi-Fi.

Sets the amount of time it takes for the viewfinder/monitor to turn

off.

(The camera is not turned off.)

Puts the camera to sleep when the recording screen is being

displayed on the monitor when automatic viewfinder/monitor

switching is active.

0 [Power Save LVF Shooting] does not work when [Time to

Sleep] is set to [OFF].

[Time to

Sleep]

[Method of

Activation]

Sets the amount of time until the camera is put to

sleep.

Sets the screen where the camera is put to sleep.

[Only Control Panel]:

Puts the camera to sleep only when the control panel (l 70) is displayed.

[While Recording Standby]:

Puts the camera to sleep from any screen during

recording standby.

Page 47

2. Getting Started

0 [Power Save Mode] is not available in the following cases:

– While connected to a PC or printer

– During video recording/video playback

– When recording with [6K/4K Pre-Burst]

– During a [Time Lapse Shot]

– When recording with [Stop Motion Animation] (when [Auto Shooting] is set)

– When recording with [Multiple Exposure]

– When recording with [Focus Transition]

– During a [Slide Show]

– During HDMI output for recording

Page 48

2. Getting Started











Inserting Cards (Optional)

This camera supports the double card slot function.

When two cards are used, relay recording, backup recording, and

allocation recording are available.

For information about the cards that can be used, refer to page 25.

Open the card door.

≥Slide the card door in the direction

of the arrow while pushing down the

card door lock lever.

Insert the cards.

A Card slot 1 B Card slot 2

≥Match the orientation of the cards

as shown in the figure and then

insert them firmly until they click.

Do not touch the card connection contacts C.

Close the card door.

≥Close the card door and slide it

firmly in the direction of the arrow

until it clicks.



The cards are displayed on the status

LCD.



Page 49

2. Getting Started

0 You can set the way to record to card slots 1 and 2:

[] ¨ [ ] ¨ [Double Card Slot Function] (l 92)

Card Access Indications



The card access light turns on while the

card is being accessed.

Removing a Card



Open the card door.

Check that the card access light A is

turned off and then open the card door.

Push the card until it clicks and then pull the card out straight.

0 The card may be warm just after the camera has been used. Be careful when

removing.

0 Do not perform the following operations during access.

The camera may operate incorrectly or the card and recorded images

may be damaged.

– Turn off the camera.

– Remove the battery or card or disconnect the power plug.

– Subject the camera to vibration, impacts, or static electricity.

0 You can set so that the card access light does not turn on:

[] ¨ [ ] ¨ [Card Access Light] (l 452)

Page 50

2. Getting Started

Formatting Cards (Initialisation)

Format the cards with the camera before use in order to ensure optimal

card performance.

0 When a card is formatted, all of the data stored in the card is erased and

cannot be restored.

Save a backup of necessary data before formatting the card.

¨ [ ] ¨ [ ] ¨ Select [Card Format]

Settings: [Card Slot 1]/[Card Slot 2]

0 Do not turn off the camera or perform another operation during formatting. 0 Take care not to turn off the camera while formatting is in progress. 0 Cards that have not been formatted after purchase should be formatted on the

camera.

0 If the card has been formatted with a PC or other device, format it again with

the camera.

0 You can format the card while keeping the camera settings information stored

on the card:

[] ¨ [ ] ¨ [Save/Restore Camera Setting] ¨ [Keep Settings While Format] (l 389)

Page 51

2. Getting Started







Attaching a Lens

You can attach the Leica Camera AG L-Mount standard lens to this

camera.

For information about the lens that can be used, refer to page 24.

0 Change the lens in a location where there is not a lot of dirt and dust. If dirt or

dust gets on the lens, refer to page 571.

0 Change the lens while the lens cap is attached.

Set the camera on/off switch to [OFF].

Turn the lens rear cap and the body cap in the direction

of the arrow to remove them.

≥When removing the body cap, rotate it while pressing the lens

release button A.





Page 52

2. Getting Started

Align the lens fitting marks B on the lens and camera

and then rotate the lens in the direction of the arrow.

≥Attach the lens by rotating it until it clicks.

0 When you have attached a lens that does not have a communication function

with this camera, after turning on the camera, a message asking for

confirmation of the lens information is displayed. You can register items such

as the image circle and focal length for the lens when you select [Yes]. (l 183)

0 You can change the settings so that the confirmation message is not

displayed: [] ¨ [ ] ¨ [Lens Info. Confirmation] (l 443)

0 Insert the lens straight in.

Inserting this at an angle to attach it may damage the camera lens mount.

Page 53

2. Getting Started

Removing a Lens



Set the camera on/off switch to [OFF].

While pressing the lens release button A, rotate the lens in the direction of the arrow until it stops and then remove it.

0 After removing the lens, be sure to attach the body cap and the lens rear cap.

Page 54

2. Getting Started

180°

90°

180°

Adjusting the Monitor Direction and Angle

The monitor on this camera has angling and tilting that you can adjust in

combinations to freely change the orientation and angle.

At the time of purchase, the monitor is stowed in the camera body. Turn the

monitor surface out before use.

Open the monitor.

Rotate the monitor.

0 You can rotate 180° towards the lens and

90° down.

Return the monitor to the

original position.

Page 55

2. Getting Started





60°

30°30°

Tilt



While sliding the monitor lock lever in the

direction of the arrow, push the monitor up.

The monitor of this camera can be tilted in two

stages.

0 The monitor can still be opened when tilted to

30°.

0 The angles of adjustment are guides only. 0 Take care not to trap a finger in the monitor. 0 Do not apply an excessive force to the monitor. This may cause damage or

malfunction.

0 When not using the camera, close the monitor with the monitor surface facing

in.

Page 56

2. Getting Started

Setting the Clock (When Turning On for the First Time)

When you turn the camera on for the first time, a screen to set the time

zone and clock appears.

Be sure to set these settings before use to ensure images are recorded

with the correct date and time information.

Set the camera on/off switch

to [ON].

≥If the language select screen is not

displayed, proceed to Step

When [Please set the language] appears, press or

Set the language.

≥Press 34 to select the language and then press or .

When [Please set the time zone] appears, press or

Set the time zone.

≥Press 21 to select the time zone

and then press or .

0 If you are using Daylight Savings

[ ], press 3. (The time will

move forward by 1 hour.)

To return to the normal time, press 3 again.

A Time difference from GMT (Greenwich Mean Time)

Page 57

2. Getting Started

When [Please set the clock] appears, press or .

Set the clock.

21: Select an item (year, month,

day, hour, minute, or second).

34: Select a value.

To set the display order B and time display format C

≥Press 21 to select the time zone

[Style] and then press or ,

the screen for setting the display

order and time display format

appears.

Confirm your selection.

≥Press or .

When [The clock setting has

been completed.] appears, press or .

Page 58

2. Getting Started

0 If the camera is used without setting the clock, it will be set to 0:00:00, 1st

January 2019.

0 Clock settings are maintained for approx. 3 months using the built-in clock

battery even without the battery.

(Leave the fully-charged battery in the camera for approx. 24 hours to charge

the built-in battery.)

0 [Time Zone] and [Clock Set] can be changed from the menu:

–[ ] ¨ [ ] ¨ [Time Zone] (l 454)

–[ ] ¨ [ ] ¨ [Clock Set]

Page 59

3. Basic Operations





Basic Recording Operations

How to Hold the Camera

To minimise camera shake, hold the camera so that it will not move during

recording.

Hold the camera with both hands, keep your arms still at your side, and stand with your feet shoulder width apart.

≥Hold the camera firmly by wrapping your right hand around the camera

grip.

≥Support the lens from below with your left hand.

Do not cover the AF assist light A or microphone B with your fingers or other

objects.

0 Do not cover the fan inlet C and fan outlet D of the cooling fan with your hand, etc.

Page 60

3. Basic Operations

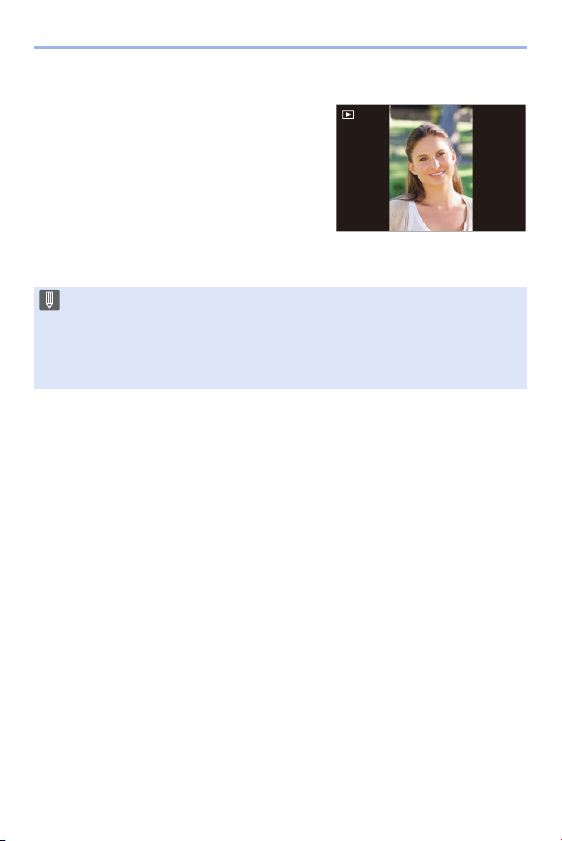

Vertical Orientation Detection Function



This function detects when pictures were

recorded with the camera held vertically

orientated.

With the default settings, pictures are

automatically played back vertically

oriented.

If you set [Rotate Disp.] to [OFF], pictures will be

played back without being rotated. (l 457)

0 When the camera is tilted significantly up or down, the vertical orientation

detection function may not work correctly.

0 Images recorded using the following functions cannot be displayed vertically

orientated:

– Video recording/[6K/4K PHOTO]/[Post-Focus]

Page 61

Taking Pictures

F4.0



Adjust the focus.

≥Press the shutter button halfway

(press it gently).

≥The aperture value A and shutter

speed B are displayed.

(When the correct exposure cannot

be obtained, the indications blink in

red.)

≥Once the subject is in focus, the

focus indication C lights.

(When the subject is not in focus,

the indication blinks.)

You can also perform the same operation by pressing [AF ON].

Start recording.

≥Press the shutter button fully (press

it further).

3. Basic Operations

F4.0

F4.060

Page 62

3. Basic Operations





0 Recorded pictures can be displayed automatically by setting [Auto Review] of

the [Custom] ([Monitor / Display (Photo)]) menu. You can also change the picture display duration to your preferred setting. (l 430)

0 With the default settings, you cannot take a picture until the subject is

brought into focus.

If you set [Focus/Shutter Priority] in the [Custom] ([Focus/Shutter])

menu to [BALANCE] or [RELEASE], you will be able to take a picture even when the subject is not in focus. (l 421)

Recording Videos

Start recording.

≥Press the video rec. button A. ≥You can also perform the same

operation by pressing the sub video rec. button B.

0 Release the video rec. button right after

you press it.

Stop recording.

≥Press the video rec. button again. ≥You can also perform the same

operation by pressing the sub video rec. button B.

Page 63

3. Basic Operations

Selecting the Recording Mode

While pressing the mode dial lock button 1, rotate the mode dial 2.





[iA] Intelligent Auto mode (l 81)

[P] Programme AE mode (l 186)

[A] Aperture-Priority AE mode (l 188)

[S] Shutter-Priority AE mode (l 191)

[M] Manual Exposure mode (l 193)

[] Creative Video mode (l 247)

[C1]/[C2]/[C3] Custom mode (l 383)

Page 64

3. Basic Operations

Camera Setting Operations

When changing the camera settings, operate the camera using the

following operation parts.

To prevent accidental operation, you can disable operation with the

operation lock lever.

A Front dial (l 65)

B Rear dial (l 65)

C Control dial (l 65)

D Cursor buttons (l 65)

E [MENU/SET] button (l 65)

F Joystick (l 66)

G Touch screen (l 66)

H Operation lock lever (l 67)

Page 65

Front Dial ( )/Rear Dial ( )



Rotate:

Selects an item or numeric value.

Sets the aperture, shutter speed, and other

settings when you are recording in the [P]/[A]/

[S]/[M] modes.

The operation method can be changed in [Dial Set.]. (l 428)

Control Dial ( )



Rotate:

Selects an item or numeric value.

Adjusts the headphone volume during recording.

The function can be changed in [Control Dial Assignment] of [Dial Set.]. (l 428)

Cursor Buttons (3421)



Press:

Selects an item or numeric value.

3. Basic Operations

[MENU/SET] Button ( )



Press:

Confirms a setting.

Displays the menu during recording and

playback.

Page 66

3. Basic Operations





Joystick (3421/)



The joystick can be operated in 8 directions by tilting it up, down, left, right

and diagonally and by pressing the centre part.

A Tilt: Selects an item or numeric value, or

moves a position.

Place your finger on the centre of the joystick

before tilting. The joystick may not work as

expected when the sides are pressed.

B Press: Confirms a setting.

When recording, this moves the AF area and MF

Assist. The joystick functions for recording can be changed in [Joystick Setting]. (l 429)

Touch Screen



Operations can be performed by touching the icons, slide bars, menus,

and other items displayed on the screen.

A Touch

Operation of touching and then lifting your

finger from the touch screen.

B Drag

Operation of moving a finger while it

touches the touch screen.

C Pinch (widen/narrow)

Operations of widening the distance

between two fingers (pinch out) and

narrowing the distance between two fingers

(pinch in) while they are touching the touch

screen.







Page 67

3. Basic Operations

0 Touch the screen with clean and dry fingers. 0 If you will use a commercially available monitor protection sheet, observe the

precautions for the sheet.

(Visibility and operability may be impaired depending on the type of monitor

protection sheet.)

0 The touch screen may not operate correctly in the following cases:

– When you are wearing gloves

– When the touch screen is wet

0 Touch operations can be disabled:

[] ¨ [ ] ¨ [Touch Settings] (l 425)

Operation Lock Lever



Aligning the operation lock lever with the

[LOCK] position disables the following

operation parts.

The operation parts to disable can be set in

[Lock Lever Setting] of the [Custom] ([Operation]) menu. (l 426)

– Cursor buttons

– [MENU/SET] button

– Joystick

– Touch screen

– Front dial

– Rear dial

– Control dial

Page 68

3. Basic Operations

Display Settings

Setting the Viewfinder

Adjusting the Viewfinder Dioptre



Rotate the dioptre adjustment dial while looking through the viewfinder.

0 Adjust until you can clearly see the text on the

viewfinder.

Switching the Viewfinder Display Magnification



Press [V.MODE].

≥The display magnification of the

viewfinder can be switched between

3 levels.

Page 69

3. Basic Operations

Switching Between the Monitor and Viewfinder

With the default settings, automatic viewfinder/monitor switching is set.

When you look through the viewfinder, the eye sensor

camera switches from monitor display to viewfinder display.

You can switch to viewfinder display or monitor display with [LVF] button

Press [LVF].

A works and the

Automatic viewfinder/

monitor switching

Viewfinder display Monitor display

0 The eye sensor does not work while the monitor is tilted. 0 The eye sensor may not work correctly due to the shape of eyeglasses, the

way the camera is held, or bright light shining around the eyepiece.

0 During video playback or slide show, automatic viewfinder/monitor switching

does not work.

0 To focus when looking through the viewfinder:

[] ¨ [ ] ¨ [Eye Sensor AF] (l 424)

0 The sensitivity of the eye sensor can be changed:

[] ¨ [ ] ¨ [Eye Sensor] (l 447)

Page 70

3. Basic Operations

999 999

AWB

ISO

AUTO

0 0

AFS FINE

3:2

Switching the Display Information

The recording information (icons) on the recording screen and playback

screen can be hidden.

The monitor on the back can display the control panel, be turned off, etc.

Press [DISP.].

≥The display information is switched.

Recording Screen



Monitor

With information

FINE

AFSAFS

ISO

AUTO

Viewfinder

With information

FINE

AFSAFS

999

Without

information

Without

information

Control panel Turned off (black)

999

Page 71

3. Basic Operations

2019.12.1 10:00 100-0001 1/999

ISO

100

4.060±0

FINE

100

100-0001

ISO

F4.0

2019.12. 1 10:00

RGB

1/5

FINE

AFS

STD.

3:2

AWB

0 Press [ ] to switch between display/hide of the level gauge.

This can also be set by using [Level Gauge]. (l 438)

0 Control panel operation (l 75) 0 You can hide the control panel and black screen:

[] ¨ [ ] ¨ [Show/Hide Monitor Layout] (l 439)

0 The display can be changed so that live view and display information do not

overlap: [] ¨ [ ] ¨ [LVF/Monitor Disp. Set] (l 435)

Playback Screen



With information

Detailed

information

¢1

display

Without

information

¢1 Pressing 34 switches the display information. (l 552)

– Detailed information display

– Histogram display

– Photo Style display

– White balance display

– Lens information display

¢2 This is a screen without blinking highlights display that is shown when [Blinking

Highlights] of the [Custom] ([Monitor / Display (Photo)]) is set to [ON]. In other than this screen, overexposed parts of the screen will blink. (l 436)

Display without

blinking

highlights

¢2

Page 72

3. Basic Operations

Turning On the Status LCD Backlight

Set the camera on/off switch to [].

≥The backlight will turn on. ≥When you release the camera on/off

switch, it returns to the [ON] position.

≥If the camera is left without any

operations for a certain period of time, the backlight turns off.

With the default settings, the illuminated buttons turn on.

0 0 Set the camera on/off switch to [ ] again or press the shutter button fully to turn

off the backlight.

0 The status LCD backlight and illuminated buttons do not turn on while you are using

the following functions:

– Video recording/[6K/4K PHOTO]/[Post-Focus]

– Burst recording

– Playback

– Menu

– Quick menu

0 You can change the colour of text, the background colour, and how the

backlight turns on for the status LCD: [] ¨ [ ] ¨ [Status-LCD] (l 447)

Page 73

3. Basic Operations

00 0

AWB

3:2

0 0

AUTO

ISO

00 0

AWB

3:2

0 0

AUTO

ISO

Quick Menu

This menu enables you to quickly set functions that are frequently used

during recording without calling up the menu screen. You can also change

the Quick menu display method and the items to display.

Display the Quick menu.

≥Press [Q].

Select a menu item.

≥Press 3421. ≥Directions on the diagonal can also

be selected using the joystick.

≥Selection is also possible by

rotating .

≥Selection is also possible by

touching a menu item.

Select a setting item.

≥Rotate or . ≥Selection is also possible by

touching a setting item.

Close the Quick menu.

≥Press the shutter button halfway. ≥You can also close the menu by

pressing [Q].

Page 74

3. Basic Operations

0 Some items cannot be set depending on the recording mode or camera

settings.

0 The Quick menu can be customised:

[] ¨ [ ] ¨ [Q.MENU Settings] (l 378)

Page 75

3. Basic Operations

999 999

AWB

ISO

AUTO

0 0

AFS

FINE

3:2

Control Panel

This screen allows you to view the current recording settings on the

monitor. You can also touch the screen to change the settings.

In the [ ] mode (Creative Video mode), the display changes to one especially for video. (l 548)

Display the control panel.

≥Press [DISP.] several times.

Touch the items.

≥The setting screens for each of the

items are displayed.

Change the setting.

Example) Changing the AF mode

≥Touch the setting item.

Refer to the pages explaining each item

for information on how to change the

settings.

Touch [Set].

Page 76

3. Basic Operations

AWB

ISO

AUTO

AFS

FINE

3:2

AWB

ISO

AUTO

AFS

FINE

3:2

Changing Directly Using the Dial



Steps 2 to 4 can also be changed using the

following operations.

Press one of 3421 to enable selection of items.

0 Selected items are displayed in

yellow.

Press 3421 to select an item. 0 Selection is also possible by rotating

or .

Rotate to change the settings values.

0 Some items cannot be set depending on the recording mode or camera

settings.

Page 77

3. Basic Operations











Menu Operation Methods

In this camera, the menu is used for setting a wide variety of functions and

performing camera customisations.

Menu operations can be performed using the cursors, joystick, dial, or by

touch.

Configuration and operation parts of the menu

The menu can be operated by pressing 21 to move between menu screens.

Use the operation parts indicated below to operate the main tab, the sub tab, the

page tab, and menu items without moving to the corresponding menu levels.

0 You can also operate by touching the icons, menu items, and setting items.

A Main tab ([Q] button) B Sub tab ( ) C Menu item ( ) D Page tab ( ) E Setting item

Display the menu.

≥Press .

Page 78

3. Basic Operations

Select a main tab.

≥Press 34 to select a main tab and

then press 1.

≥You can also perform the same

operation by rotating to select

the main tab and then pressing

or .

Select a sub tab.

≥Press 34 to select a sub tab and

then press 1.

≥You can also perform the same

operation by rotating to select

the sub tab and then pressing

or .

If there are page tabs A, then after the

page tabs have finished switching, the next

sub tab is switched to.

Select a menu item.

≥Press 34 to select a menu item

and then press 1.

≥You can also perform the same

operation by rotating to select

the menu item and then pressing

or .



Page 79

3. Basic Operations

Select a setting item and then

confirm your selection.

≥Press 34 to select a setting item

and then press or .

≥You can also perform the same

operation by rotating to select

the setting item and then pressing

or .

The display and selection methods of setting items differ depending on the

menu item.

Close the menu.

≥Press the shutter button halfway. ≥You can also close the menu by

pressing [ ] several times.

0 For details about menu items, refer to Menu Guide. (l 390)

Displaying Descriptions About Menu Items and Settings



If you press [DISP.] while a menu item or

setting item is selected, a description about

the item is displayed on the screen.

Page 80

3. Basic Operations

Greyed Out Menu Items



Menu items that cannot be set are

displayed greyed out.

If you press or while a greyed out

menu item is selected, the reason why it

cannot be set is displayed.

The reason why a menu item cannot be set may

not be displayed depending on the menu item.

[Reset]

Return each of the following settings to the default setting:

– Recording settings

– Network settings (settings of [Wi-Fi Setup] and [Bluetooth])

– Setup and custom settings (other than [Wi-Fi Setup] and [Bluetooth])

¨ [ ] ¨ [ ] ¨ Select [Reset]

0 If the setup and custom settings are reset, the [Playback] menu is also reset. 0 If the setup and custom settings are reset, [Lens Information] in [Image

Stabilizer] in the [Photo] ([Others (Photo)]) menu/[Video] ([Others (Video)])

menu is also returned to the default setting.

0 The folder numbers and clock settings are not reset.

0 List of default settings and settings that can be reset (l 587)

Page 81

3. Basic Operations

Intelligent Auto Mode

The [iA] mode (Intelligent Auto mode) can record images using settings

automatically selected by the camera.

The camera detects the scene to set the optimal recording settings

automatically to match the subject and recording conditions.

Set the mode dial to [iA].

Aim the camera at the subject.

≥When the camera detects the

scene, the recording mode icon

changes.

(Automatic Scene Detection)

Adjust the focus.

≥Press the shutter button halfway. ≥Once the subject is in focus, the

focus indication lights.

(When the subject is not in focus,

the indication blinks.)

[ ] of the AF mode works and the AF area is displayed aligned to any

humans or animals.

Page 82

3. Basic Operations

Start recording.

≥Press the shutter button fully.

0 Backlight compensation operates automatically to prevent subjects from

appearing dark when there is a backlight.

Types of Automatic Scene Detection



: Scenes detected during picture taking

: Scenes detected during video recording

i-Low Light

¢2

i-Night Scenery

i-Portrait & Animal

i-Night Portrait

¢1 Detected when animal detection is disabled. ¢2 Detected when using an external flash.

i-Portrait

¢1

i-Scenery

i-Food

i-Macro

i-Sunset

Page 83

3. Basic Operations

0 If none of the scenes are applicable, recording is with [ ] (standard setting). 0 Different scene types may be selected for the same subject depending on the

recording conditions.

AF Mode



Changing the AF mode.

Each press of [ ] changes the AF mode.

The camera detects a person’s face, eyes,

and body (entire body or upper half of the

[]

([Face/Eye/

Body/Animal

Detect.])

body) and the body of animals, and adjusts

the focus.

0 Each press of switches the person,

animal or eye to be brought into focus. It

cannot be switched by touching.

0 Animal detection will maintain the enable/disable setting selected

during other than [iA] mode.

When the focus mode is set to [AFC], the

AF area follows the movement of the

[]

([Tracking])

subject, maintaining focusing.

Aim the AF area over the subject and then

press and hold the shutter button halfway.

0 The camera will track the subject while the shutter button is

pressed halfway or fully.

0 For information about AF modes, refer to page 105 and 108.

Flash



When recording using a flash, the camera switches to the appropriate flash

mode for the recording conditions.

When Slow Sync. ([ ], [ ]), be careful with regard to camera shake

because the shutter speed becomes slow.

0 When [ ] or [ ], Red-Eye Removal works.

0 For information about external flashes, refer to page 228.

Page 84

3. Basic Operations

Recording Using Touch Functions

Touch AF/Touch Shutter

Touch functions allow you to focus on the point that you touch, release the

shutter, etc.

0 With the default settings, the Touch Tab is not displayed.

Set [Touch Tab] to [ON] in [Touch Settings] in the [Custom] ([Operation]) menu. (l 425)

Touch [ ].

Touch the icon.

≥The icon switches each time you

touch it.

(Touch AF)

(Touch Shutter)

(OFF)

(When set to anything other

than OFF) Touch the subject.

Focus on the Touched Position.

Record with focus on the point touched.

Page 85

3. Basic Operations

0 When the Touch Shutter fails, the AF area first turns red and then disappears.

0 Refer to “Operations on the AF area movement screen” on page 107 for

information about operations to move the AF area.

0 It is also possible to optimise the focus and brightness on the touched

position: [] ¨ [ ] ¨ [Touch Settings] ¨ [Touch AF] ¨ [AF+AE] (l 119 )

Touch AE

This function adjusts the brightness according to a touched position.

When a subject’s face appears dark, you can make the screen brighter to

match the face.

0 With the default settings, the Touch Tab is not displayed.

Set [Touch Tab] to [ON] in [Touch Settings] in the [Custom] ([Operation]) menu. (l 425)

Touch [ ].

≥The Touch AE settings screen

appears.

Page 86

3. Basic Operations

Touch the subject to which

you wish to adjust the brightness.

0 To return the position to which to adjust

the brightness to the centre, touch

[Reset].

Touch [Set].

How to Disable Touch AE



Touch [ ].

0 When the following function is being used, Touch AE is not available:

– [Live Cropping]

0 You can also adjust both the focus and brightness to those of the position you

touch. (At this time, Touch AE is not available): [] ¨ [ ] ¨ [Touch Settings] ¨ [Touch AF] ¨ [AF+AE] (l 119)

ュリヴヱハ

5HVHW

6HW

Page 87

4. Image Recording

[Aspect Ratio]

You can select the image aspect ratio.

¨ [ ] ¨ [ ] ¨ Select [Aspect Ratio]

[4:3] Aspect ratio of a 4:3 monitor

[3:2] Aspect ratio of a standard film camera

[16:9] Aspect ratio of a 16:9 TV

[1:1] Square aspect ratio

[65:24]

[2:1]

0 [16:9] and [1:1] aspect ratios are not available when using the following

functions:

– 6K photo

– [Post-Focus] (when set to [6K 18M])

0 [65:24] and [2:1] aspect ratios are not available when using the following

functions:

– [iA] mode

– Taking burst pictures

– [6K/4K PHOTO]/[Post-Focus]

– [Time Lapse Shot]

– [Stop Motion Animation]

– [HLG Photo]

– [High Resolution Mode]

– [Filter Settings]

– [Multiple Exposure]

0 When using Super 35 mm/APS-C lenses, [65:24] and [2:1] are not available.

0 You can register functions to Fn buttons:

[] ¨ [ ] ¨ [Fn Button Set] ¨ [Setting in REC mode] ¨ [Aspect Ratio] (l 367)

Panoramic aspect ratio

Page 88

4. Image Recording

[Picture Size]

Sets the picture’s image size. The image size varies depending on the

[Aspect Ratio] or the lens used.

When a Super 35 mm/APS-C lens is used, the image area switches to the

one for Super 35 mm/APS-C, thereby narrowing the angle of view.

¨ [ ] ¨ [ ] ¨ Select [Picture Size]

[Aspect

Ratio]

[4:3]

[3:2]

[16:9]

[1:1]

[65:24] [L] (13M) 6000k2208 s

[2:1] [L] (18M) 6000k3000 s

When [Ex. Tele Conv.] is set, the [M] and [S] image sizes are indicated with [ ].

When using full-frame lenses

[L] (21.5M) 5328k4000 [L] (9.5M) 3536k2656

[M] (10.5M) 3792k2848 [M] (5M) 2560k1920

[S] (5.5M) 2688k2016 [S] (2.5M) 1840k1376

[L] (24M) 6000k4000 [L] (10M) 3888k2592

[M] (12M) 4272k2848 [M] (5M) 2784k1856

[S] (6M) 3024k2016 [S] (2.5M) 1968k1312

[L] (20M) 6000k3368 [L] (9M) 4064k2288

[M] (10M) 4272k2400 [M] (4.5M) 2816k1584

[S] (5M) 3024k1704 [S] (2M) 1920k1080

[L] (16M) 4000k4000 [L] (7M) 2656k2656

[M] (8M) 2848k2848 [M] (3.5M) 1920k1920

[S] (4M) 2016k2016 [S] (2M) 1376k1376

Picture size

When using Super 35 mm/

APS-C lenses

Page 89

4. Image Recording

0 When the following functions are being used, [Picture Size] is not available:

– [6K/4K PHOTO]/[Post-Focus]

– [RAW] ([Picture Quality])

– [High Resolution Mode]

– [Multiple Exposure]

0 You can register functions to Fn buttons:

[] ¨ [ ] ¨ [Fn Button Set] ¨ [Setting in REC mode] ¨ [Picture Size] (l 367)

Page 90

4. Image Recording

[Picture Quality]

Set the compression rate used for storing pictures.

¨ [ ] ¨ [ ] ¨ Select [Picture Quality]

Setting File format Settings details

[FINE]

[STD.]

[RAWiFINE]

[RAWiSTD.]

[RAW] RAW This records RAW images.

JPEG

RAWiJPEG

JPEG images that give priority to image quality.

JPEG images of standard image quality.

This is useful for increasing the number of

recordable pictures without changing the picture

size.

This records RAW and JPEG images ([FINE] or

[STD.]) simultaneously.

Page 91

4. Image Recording

Note on RAW

RAW format refers to a data format of images that have not been processed on

the camera.

Playback and editing of RAW images require the camera or the dedicated

software.

0 You can process RAW images on the camera. (l 359) 0 Use software (“SILKYPIX Developer Studio” by Ichikawa Soft Laboratory) to

process and edit RAW files on a PC. (l 531)

0 Pictures taken with [RAW] cannot be displayed enlarged to the maximum

magnification during playback. Take pictures with [RAWiFINE] or [RAWiSTD.] if you want to check their

focus on the camera after recording.

0 RAW images are always recorded in the [L] size of the [3:2] aspect ratio. 0 When you delete an image recorded with [RAWiFINE] or [RAWiSTD.] on

the camera, both the RAW and JPEG images will be deleted simultaneously.

0 When the following functions are being used, [Picture Quality] is not available:

– [6K/4K PHOTO]/[Post-Focus]

– [High Resolution Mode]

– [Multiple Exposure]

0 You can register functions to Fn buttons:

[] ¨ [ ] ¨ [Fn Button Set] ¨ [Setting in REC mode] ¨ [Picture Quality] (l 367)

Page 92

4. Image Recording

[Double Card Slot Function]

This sets the way recording to the card slots 1 and 2 is performed.

¨ [ ] ¨ [ ] ¨ Select [Double Card Slot Function]

Selects the priority of card slots for recording.

[Relay Rec]

[Recording

Method]

Notes about relay recording

[Backup

Rec]

[Allocation

Rec]

0 The following video cannot be continued to be recorded on another card:

– [AVCHD] videos

– [Loop Recording (video)]

Notes about Backup Recording

0 We recommend using cards with the same Speed Class rating and capacity.

If the card Speed Class or capacity is insufficient when video recording,

recording to both cards stops.

0 Backup recording is not available with the following video. They can only be

recorded on a single card:

– [AVCHD] videos

– [Loop Recording (video)]

0 When using the following combinations of cards, recording videos, 6K/4K

photos, and recording with [Post-Focus] are not available:

– SD memory card or SDHC memory card, and SDXC memory card

0 You can register [Destination Card Slot] in an Fn button and switch the

recording destination slot:

[] ¨ [ ] ¨ [Fn Button Set] ¨ [Setting in REC mode] ¨ [Destination Card Slot] (l 367)

[Destination Card Slot]: [ ]/[ ]

Relays recording to the card in the other card

slot after the first card runs out of free space.

Records the same images to both cards

simultaneously.

Allows you to specify the card slot to be used for

recording for different image formats.

[JPEG/HLG Photo Destn.]/[RAW Destination]/

[6K/4K Photo Destination]/[Video

Destination]

Page 93

[Folder / File Settings]

100ABCDE

 


  

Set the folder and file name where to save the images.

Folder name File name

4. Image Recording

1 Folder number (3 digits, 100 to 999) 3

2 5-character user-defined segment 4 3-character user-defined segment

Colour space

([P]: sRGB, [ _ ]: AdobeRGB)

5 File number (4 digits, 0001 to 9999)

6 Extension

¨ [ ] ¨ [ ] ¨ Select [Folder / File Settings]

[Select

Folder]

Selects a folder for storing images.

0 The folder name and the number of files that can be stored will

be indicated.

Creates a new folder with an incremented folder number.

0 If there are no recordable folders in the card, a screen for

[Create a New

Folder]

[File Name

Setting]

¢ When [Double Card Slot Function] is set to [Allocation Rec], [Select Folder (Slot

1)] and [Select Folder (Slot 2)] will be displayed.

resetting the folder number is displayed.

Increments the folder number without changing the

[OK]

5-character user-defined segment (2 above).

[Change]

[Folder

Number

Setting]

Changes the 5-character user-defined segment (2 above). This will also increment the folder number.

Uses the 3-character user-defined segment (4 above) to set the folder number (1 above).

Link]

[User

Changes the 3-character user-defined segment (4 above).

0 Follow the steps on page 464 when the character entry screen is displayed.

Available characters: alphabetic characters (upper-case), numerals, [ _ ]

Page 94

4. Image Recording

0 Each folder can store up to 1000 files. 0 File numbers are assigned sequentially from 0001 to 9999 in the order of

recording.

If you change the storage folder, a number continuing on from the last file

number will be assigned.

0 In the following cases, a new folder with an incremented folder number will be

created automatically when the next file is saved:

– The number of files in the current folder reaches 1000.

– The file number reaches 9999.

0 New folders cannot be created when there are folders numbered from 100 all

the way up to 999.

We recommend backing up your data and formatting the card.

0 [Select Folder] is not available when [Backup Rec] in [Double Card Slot

Function] is being used.

Page 95

[File Number Reset]

Refresh the folder number to reset the file number to 0001.

¨ [ ] ¨ [ ] ¨ Select [File Number Reset]

Settings: [Card Slot 1]/[Card Slot 2]

0 When the folder number reaches 999, the file number cannot be reset.

We recommend backing up your data and formatting the card.

0 To reset the folder number to 100:

1 Perform [Card Format] to format the card. (l 50) 2 Perform [File Number Reset] to reset the file number. 3 Select [Yes] on the folder number reset screen.

4. Image Recording

Page 96

5. Focus/Zoom

Selecting the Focus Mode

Select the focusing method (focus mode) to match subject movement.

Set the focus mode lever.

This is suitable for recording still subjects.

[S]

([AFS])

([AFC])

[MF]

When the shutter button is pressed halfway, the camera focuses

once.

The focus stays locked while the shutter button is pressed halfway.

This is suitable for recording moving subjects.

While the shutter button is pressed halfway, the focus is constantly

[C]

adjusted according to the movement of the subject.

0 This predicts the movement of the subject, maintaining focusing.

(Movement prediction)

Manual focusing. Use this when you want to fix the focus or avoid activating AF. (l 123)

0 In the following cases, [AFC] works the same as [AFS] when the shutter

button is pressed halfway:

– [ ] mode

– In low light situations

0 When the following functions are being used, [AFC] switches to [AFS]:

– [65:24]/[2:1] ([Aspect Ratio])

– [High Resolution Mode]

0 This function is not available for Post-Focus recording.

Page 97

5. Focus/Zoom

Using AF

AF (Auto Focus) refers to automatic focusing.

Select the focus mode and the AF mode appropriate for the subject and

scene.

Set the focus mode to [S] or

[C].

≥Set the focus mode lever. (l 96)

Select the AF mode.

≥Press [ ] to display the AF mode

selection screen, and set using or . (l 103)

≥Selection is also possible by

pressing [ ].

In [iA] mode, each press of [ ] switches between [ ] and [ ]. (l 83)

Press the shutter button

halfway.

≥The AF operates.

Page 98

5. Focus/Zoom

LOW

STAR

Focus

In focus Not in focus

Focus icon A Lights Blinking

AF area B Green Red

AF beep Two beeps —

Low illumination AF

In dark environments, low illumination AF automatically operates, and the focus icon

is indicated as [ ].

0 Achieving focus may take more time than usual.

Starlight AF

If the camera detects stars in the night sky after determining low illumination AF, then

Starlight AF will be activated.

When focus is achieved, the focus icon will display [ ], and the AF area will be

displayed on the area in focus.

0 Edges of the screen cannot detect Starlight AF.

[AF ON] button



You can also activate AF by pressing [AF ON].

Page 99

5. Focus/Zoom

Subjects and recording conditions that make focusing difficult with AF

mode

– Fast-moving subjects

– Extremely bright subjects

– Subjects without contrast

– Subjects recorded through windows

– Subjects near shiny objects

– Subjects in very dark locations

– When recording subjects both distant and near

0 You can change the operation of AF-ON so that AF prioritises subjects close

by.

This function is useful when the camera mistakenly focuses on the

background:

[] ¨ [ ] ¨ [Fn Button Set] ¨ [Setting in REC mode] ¨ [AF-ON : Near Shift] (l 367)

0 You can change the operation of AF-ON so that AF prioritises subjects far

away.

This function is useful when taking pictures through fences or nets:

[] ¨ [ ] ¨ [Fn Button Set] ¨ [Setting in REC mode] ¨ [AF-ON : Far Shift] (l 367)

0 When the following operations are performed while recording with [AFC], it

may take some time for the camera to focus.

– When zooming from the wide-angle end to the telephoto end

– When the subject is suddenly changed from one far away to one close by

0 If using the zoom after achieving focus, the focus may be erroneous. In that

case, re-adjust the focus.

0 When camera shake reduces, it is possible to focus automatically:

[] ¨ [ ] ¨ [Quick AF] (l 424)

0 You can change the settings so that AF does not function when the shutter

button is pressed halfway: [] ¨ [ ] ¨ [Half-Press Shutter] (l 424)

0 The AF beep volume and sound can be changed:

[] ¨ [ ] ¨ [Beep] ¨ [AF Beep Volume]/[AF Beep Tone] (l 448)

Page 100

5. Focus/Zoom

Magnify the AF Area Position ([AF-Point Scope])



This magnifies the focus point when the AF mode is [ ], [ ], or [ ]. (In

other AF modes, the centre of the screen is magnified.)

You can check focus and observe an enlarged subject as with a telephoto

lens.

Enlarge the AF area position by pressing and holding the Fn button.

When the screen is enlarged, pressing the

shutter button halfway re-acquires focus in

a small central AF area.

0 When the screen is enlarged, turn or

to adjust the magnification.

Use for more detailed adjustments.

0 When the screen is enlarged, [AFC] changes to [AFS]. 0 When the following functions are being used, AF-Point Scope cannot be used:

– Video recording/[Post-Focus]

– [6K/4K Pre-Burst]

– [65:24]/[2:1] ([Aspect Ratio])

– [Miniature Effect] ([Filter Settings])

– [Multiple Exposure]

– [Live Cropping]

– [Video-Priority Display]

0 You can change the display method of the magnified screen:

[] ¨ [ ] ¨ [AF-Point Scope Setting] (l 424)
