Read these instructions completely before operating television.
Contents are subject to change without notice or obligation.
Copyright 2002 by Matsushita Electric Corporation of America. All rights reserved.
Unauthorized copying and distribution is a violation of law.
TABLEOF CONTENTS
1 ?
CONGRATULATIONS
Congratulations
Your new TV Monitor/Receiver features a solid state chassis that is designed to give you many years of enjoyment. It was
thoroughly tested and tuned at the factory for best performance.
Customer Record
The model and serial number of this product are located on the back of the television. You should note the model and serial
number in the space provided and retain as a permanent record of your purchase. This will aid in identification in the event
of theft or loss. Product registration for U.S. customers is available at www.prodreg.com/panasonic.
Model
Number
Serial
Number
Care and Cleaning
Screen (Turn TV Off)
•Use a mild soap solution or window cleaner with a soft clean cloth. DO NOT USE ABRASIVE CLEANERS.
•Avoid excessive moisture and wipe dry.
Note:Do not spray any type of cleaning fluid directly on the screen.
Cabinet and Remote Control
? For cabinets and remote control, use a soft cloth dampened with water or a mild detergent solution. Avoid excessive moisture and
wipe dry.
? Do not use benzene, thinner or other petroleum based products.
Video Input Jacks1Vp-p, 75 Ohm, Phono Jack Type
Audio Input Jacks500mV RMS 47K Ohm
Audio Output Jacks0-2.0V RMS 4.7K Ohm
Component input (Y / PB / PR)
S-Video Input JacksS-Video (Y-C) Connector
Specifications are subject to change without notice or obligation.
120V AC, 60Hz
75 Ohms, Phono Jack Type
2 ?
INSTALLATION
Incoming Cable from
Installation
Television Location
Follow these recommendations before deciding the location of your television.
? Avoid excessive sunlight or bright lights, including reflections.
? Keep away from excessive heat or moisture. Inadequate ventilation may cause internal component failure.
? Fluorescent lighting may reduce remote control transmitting range.
? Keep away from magnetic equipment, including motors, fans and external speakers.
CAUTION: Use this television receiver only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from
tip-over. In order to avoid injury to children, never place your television receiver on a piece of furniture that is capable of
being tilted by a child leaning on it, pulling on it, standing on it, or climbing on it.
CT-27D32, CT-27D32U:
CAUTION:These television receivers for use only with PANASONIC TY-27G22M stand. Use with other carts (or stands) is capable of resulting in instability causing possible injury.
CT-32D32, CT-32D32U:
CAUTION:These television receivers for use only with PANASONIC TY-32G22M stand. Use with other carts (or stands) is capable of resulting in instability causing possible injury.
CT-36D32, CT-36D32U:
CAUTION:These television receivers for use only with PANASONIC TY-36G22M stand. Use with other carts (or stands) is capable of resulting in instability causing possible injury.
Optional Cable Connections
Shielded audio and video cables should be used between components. For best results:
? Use 75-ohm coaxial shielded cables.
? Use appropriate input and output connectors that match your component connectors.
? Avoid long cables to minimize interference.
AC Power Supply Cord
CAUTION: TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT OF AC OUTLET
AND FULLY INSERT. DO NOT USE A PLUG WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER, CRIMPED, BENT OR PINCHED,
PARTICULARLY AT PLUGS, CONVENIENCE RECEPTACLES, AND THE POINT WHERE THEY EXIT FROM THE APPARATUS.
Polarized plug
Cable / Antenna Connection
For proper reception, either a cable or antenna connection is required.
Cable Connection
Connect the cable supplied by your local cable company.
Note:A cable converter box may be required for proper reception. Check with your local cable company for
compatibility requirements.
Antenna Connection
•For proper reception of VHF/UHF channels, an external antenna is required. For best reception, an
outdoor antenna is recommended.
•Connect home antenna to ANT on the back of television.
Note:Cable Mode is preset at the factory. Antenna users must change to TV mode in the Set Up Menu under
Prog Chan.
Incoming Cable from
Cable Company
75 Ohm VHF/UHF
on back of TV
Home Antenna
3 ?
FEATURE CHART
Feature Chart
A/V JACKSAUDIOSPECIAL FEATURES
MODELS
CT-27D32
Features
MENU LANGUAGE ENG/SPAN/FR
2 TUNER PIP???
VIDEO INPUT MEMORY???
CHANNEL INFO BANNER???
VIDEO INPUT SKIP???
75 OHM INPUT???
V-CHIP CAPABILITY ???
CLOSED CAPTIONING???
VIDEO NORM???
AUDIO NORM???
STEREO???
BASS/TREBLE/BALANCE???
SURROUND???
AI SOUND???
NUMBER OF SPEAKERS 222
A/V IN (REAR/FRONT)
AUDIO OUT???
S-VIDEO INPUT (REAR/FRONT)
COMPONENT VIDEO INPUT
(REAR/FRONT)
HEADPHONE JACK
???
3
(2/1)3(2/1)3 (2/1)
1
(1/0)1(1/0)1 (1/0)
1
(1/0)1(1/0)1 (1/0)
???
CT-32D32
CT-36D32
IMPORTANT INFORMATION REGARDING THE USE OF VIDEO GAMES, COMPUTERS, OR
OTHER FIXED IMAGE DISPLAYS.
WARNING: The marking or retained image on the picture tube resulting from viewing fixed
image is not an operating defect and as such is not covered by Warranty.
This television is designed to display constantly moving images on the screen. Continuous viewing
of stationary images such as letterbox pictures on standard screen TVs (with top/bottom bars), nonexpanded standard (4:3) pictures on wide screen TVs (with side bars shown on each side of an
image), stock market report bars (ticker running at the bottom of the screen), video game patterns,
fixed scoreboards, bright station logos, on-line (internet) or repetitive computer style patterns should
be limited.
The extended use of fixed image program material can cause a permanent picture tube damage,
shown as a “shadow image” viewable on normal programs. This type of irreversible picture tube
deterioration can be limited by performing the following steps:
•Do not display the fixed image for extended periods of time.
•Turn the power off when not in use.
4 ?
AUTO SET UP MENU
Auto Set Up Menu

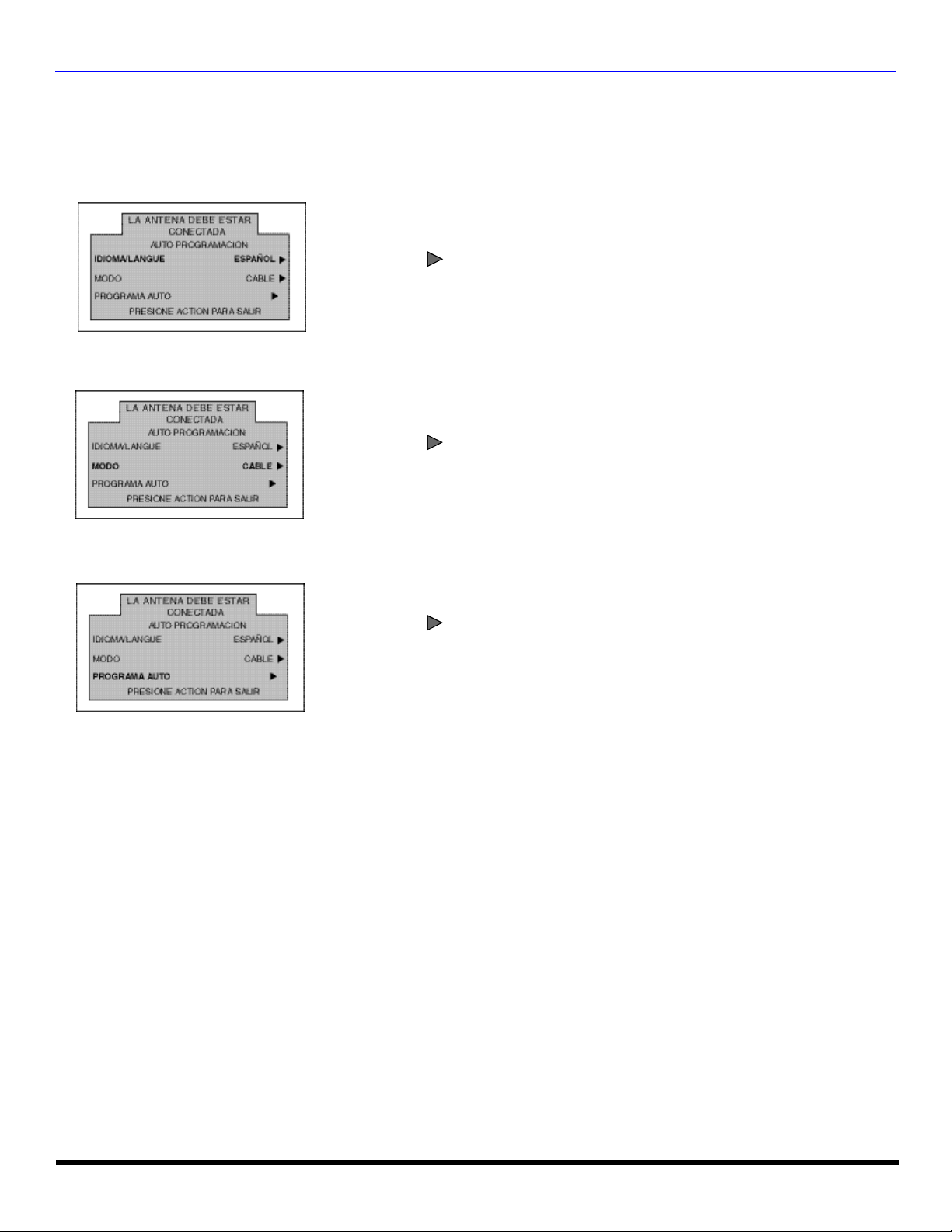

For your convenience, Auto Set up menu will be displayed on screen when the set is turned on for the first time. If needed,
follow the menus and procedures for setting up the features.
? IDIOMA/LANGUE - To change menu language to ENGLISH, SPANISH or FRENCH.
Press to select English, Spanish or French.
VOL
? MODE - To select TV (antenna) or CABLE mode depending on the signal source.
Press to select TV or CABLE.
VOL
? AUTO PROGRAM - To automatically program all channels with a signal.
Press to start Auto Programming.
VOL
5 ?
OPTIONAL EQUIPMENT CONNECTIONS
TV/VIDEO
Optional Equipment Connections
VCR Connection
VCRs, video disc players, video game equipment, and DSS equipment can also be connected to the video inputs. See the
optional equipment manual for more information.
Note: VIDEO 1 input is a dual-purpose input. It is primarily intended for connection with 480i devices such as a DVD player
using the Y PB PR component video jacks and Audio L & R jacks. However, it can also be connected to conventional
composite video sources such as a VCR, using only the Y/Video jack and Audio L & R jacks. The on-screen label will
display Component or Video 1 depending on which source is connected.
CONNECTION ON BACK OF TV
VCR
TO AUDIO
AMP
L
R
COMPONENT
VIDEO INPUT
INPUT 1
S-VIDEO
R AUDIO
P
R
R AUDIO
L
P
Y/VIDEO
B
VIDEO
LINPUT 2
CABLES NOT SUPPLIED
Procedure
1. Connect equipment as shown to front or rear Audio/Video input jacks.
Note:Front and rear Audio/Video connectors cannot be operated at the same time.
2. Select the Video mode by pressing TV/VIDEO button.
3. Operate optional equipment as instructed in equipment manual.
Front Control Panel
Jack used for 1/8"
headpone plug
VIDEO OUT
L
AUDIO OUT
R
ANT IN
ANT OUT
HPJ VIDEO 3 L AUDIO IN R
FRONT OF TV
Press to select VIDEO input mode.
Note:The front control panel can be used to access menus and switch video mode when the remote control is not available.
6 ?
OPTIONAL EQUIPMENT CONNECTIONS

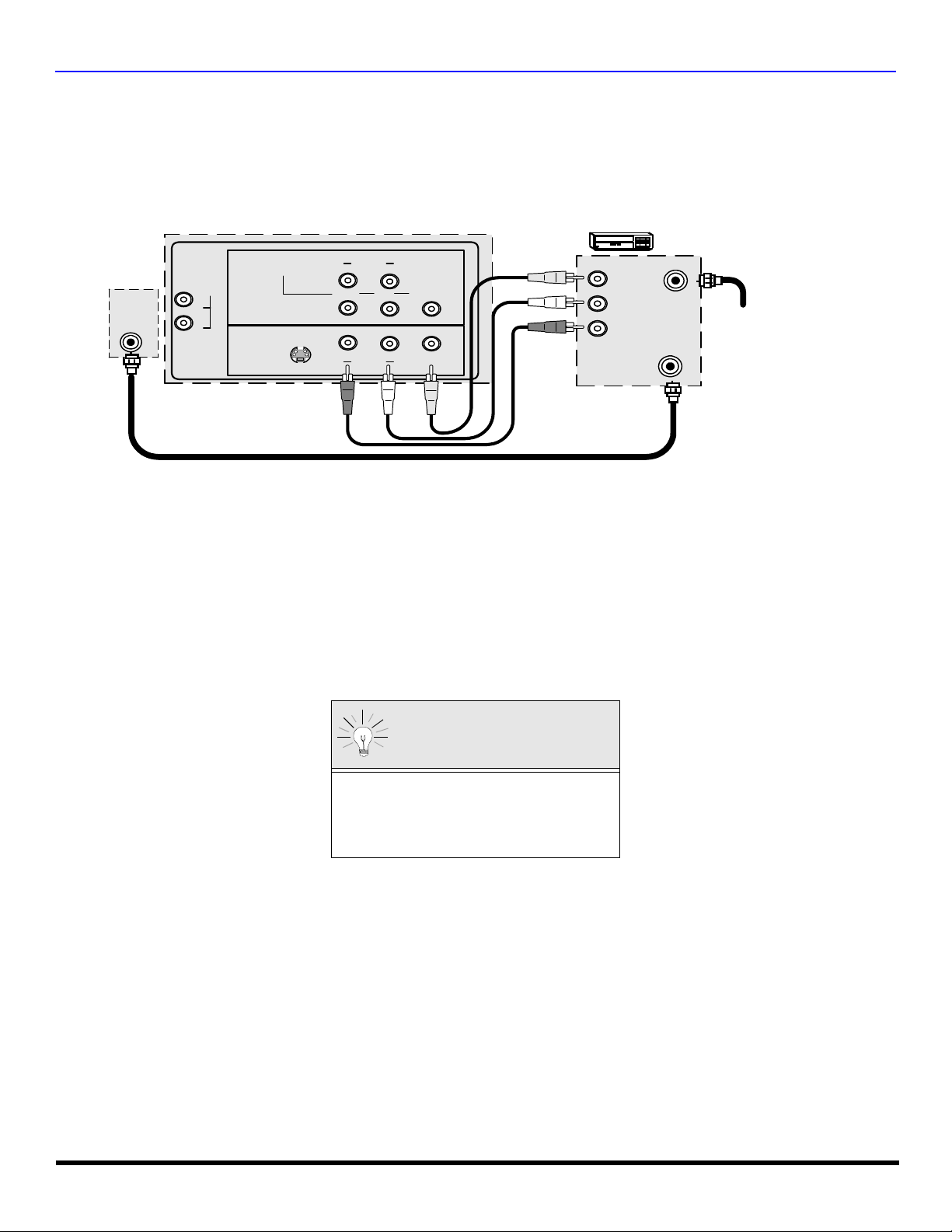

Digital TV - Set-Top Box (DTV-STB) or DVD Player Connection

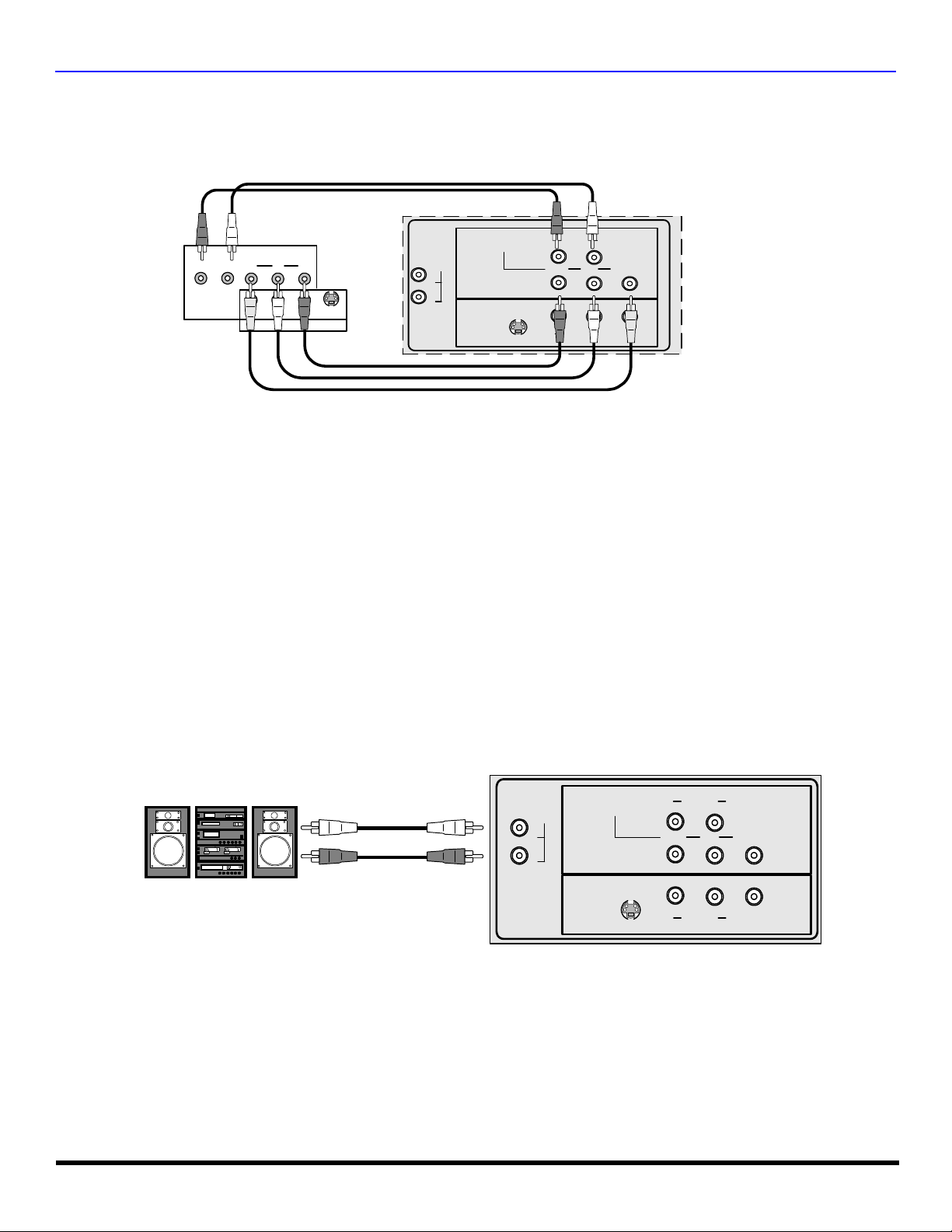

Use this diagram to connect the Panasonic DTV-STB (Digital TV-Set-Top Box) to the back of your TV.
TERMINALS ON BACK OF DTV-STB OR DVD PLAYER
Y
R-AUDIO-L
PBP
R-AUDIO-L VIDEO
NTSC OUTPUT
DIGITAL OUTPUT
CABLES NOT SUPPLIED
R
S-VIDEO
COMPONENT
TO AUDIO
AMP
L
R
VIDEO INPUT
INPUT 1
S-VIDEO
COMPONENT VIDEO INPUT TERMINALS ON BACK OF TV
RAUDIO
P
R
RAUDIO
L
P
Y/VIDEO
B
VIDEO
LINPUT 2
Notes:
? There are three video inputs, Y, PB, and PR. Separate component colour inputs provide luminance and color separation. Use the L
(left) and R (right) audio inputs.
? Select DTV-STB to 480i output mode. TV set can receive 480i signal only.
Amplifier Connection (To Audio Amp)
Connect to an external audio amplifier input for listening to a stereo system.
Note:TO AUDIO AMP terminals cannot be connected directly to externalspeakers.
Audio Adjustments
1. Select TV SPEAKERS ON from AUDIO menu.
2. Set amplifier volume to minimum.
3. Adjust TV volume to desired level.
4. Adjust amplifier volume to match the TV.
5. Select TV SPEAKERS OFF&VAO from AUDIO menu.
6. Volume, mute, bass, treble and balance are now controlled from the TV.
Note:In OFF&FAO the volume is controlled by the externalamplifier.
CONNECTIONS ON BACK OF TV
External Amplifier
TO AUDIO
AMP
COMPONENT
VIDEO INPUT
R AUDIO
L
CABLES NOT SUPPLIED
P
L
INPUT 1
R
S-VIDEO
P
R
R AUDIO
B
LINPUT 2
Y/VIDEO
VIDEO
7 ?
OPTIONAL EQUIPMENT CONNECTIONS
2 Tuner Picture In Picture (PIP) Operation
PIP Operation with a VCR and a Cable Box
This television includes a two tuner Picture In Picture (PIP) feature. This allows watching two (2) live broadcasts at the
same time without or with an external video source (VCR).
Without a VCR (External Video Source)
Procedure
1. Connect incoming cable to antenna (ANT) input on back of TV.
2. Press the PIP button on the Remote Control to display the PIP frame.
Note:Audio is for the Main Picture (left) only.
3. Choose channels for the PIP frame by pressing the Remote control PIP CHANNEL up/down buttons.
4. Choose channels for the main Picture by pressing the Remote Control CH up/down buttons or by using the numeric keypad.

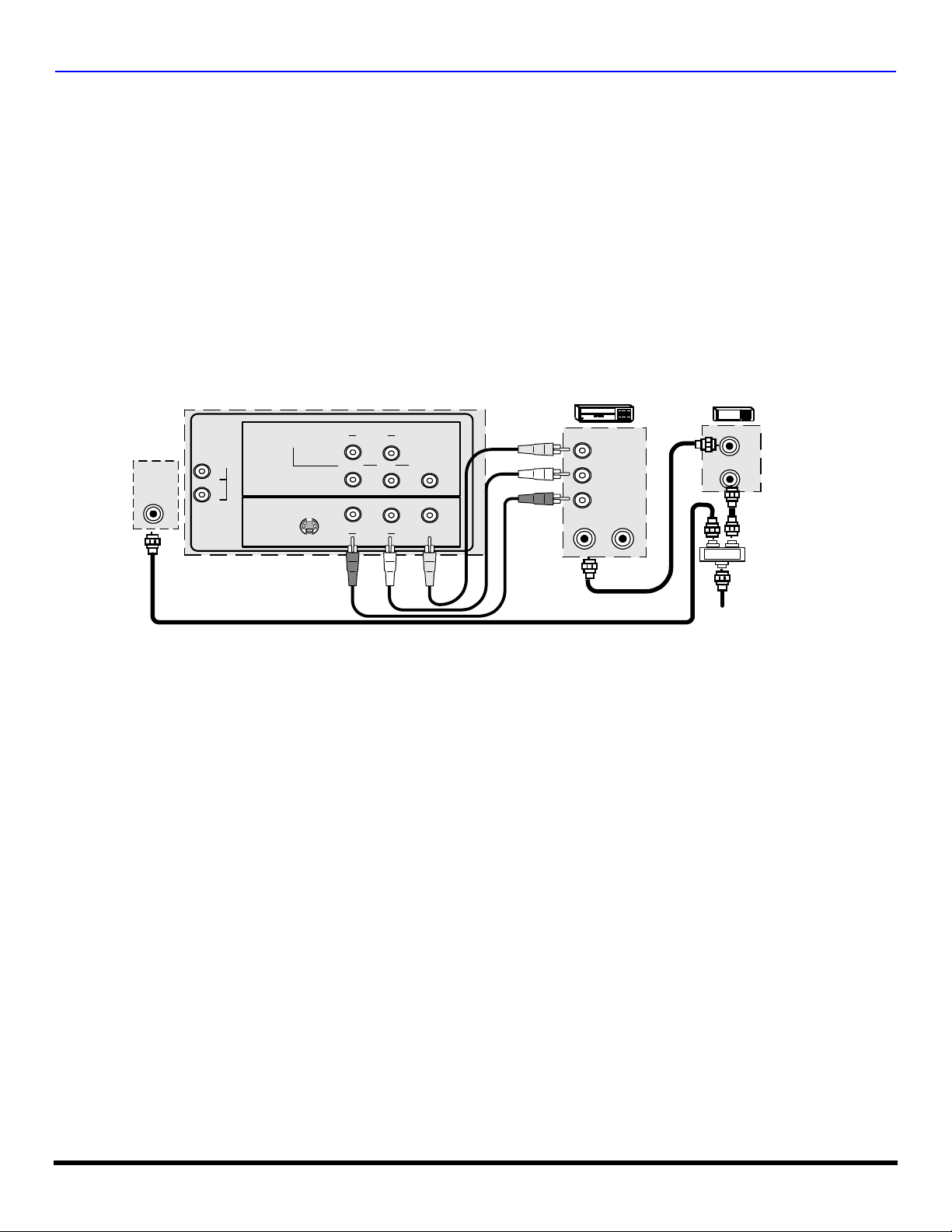

With a VCR (External Video Source) and Cable Box
Connect your television to a VCR and Cable Box, as shown.
ANT IN
TO AUDIO
AMP
L
R
CONNECTIONS ON BACK OF TV
COMPONENT
VIDEO INPUT
INPUT 1
S-VIDEO
R AUDIO
P
R
R AUDIO
L
P
B
LINPUT 2
Y/VIDEO
VIDEO
VCR
VIDEO OUT
L
AUDIO OUT
R
ANT IN
ANT OUT
CABLE BOX
ANT OUT
ANT IN
CABLES NOT SUPPLIED
Incoming Cable
Note:The Remote Control must be programmed with supplied codes to operate the VCR and Cable Box.
Procedure
Press the PIP button on the Remote Control to display the PIP frame.
To view scrambled channels through your Cable Box in the PIP frame:
1. Press the TV/VIDEO button on the Remote Control to select the same video input to which your VCR is connected.
2. Verify the CABLE BOX and VCR are ON and the VCR tuned to channel 3.
3. Choose channels for the PIP frame by pressing the CBL button on the Remote Control and using the numeric keypad or PIPCHANNEL up/down buttons.
4. Choose channels for the Main Picture by pressing the TV button on the Remote Control and using the numeric keypad or CH
up/down buttons.
Note:The SWAP button switches the on screen PIP and Main Picture source. Press the RECALL button for PIP and Main Picture
source status.
8 ?
OPTIONAL EQUIPMENT CONNECTIONS

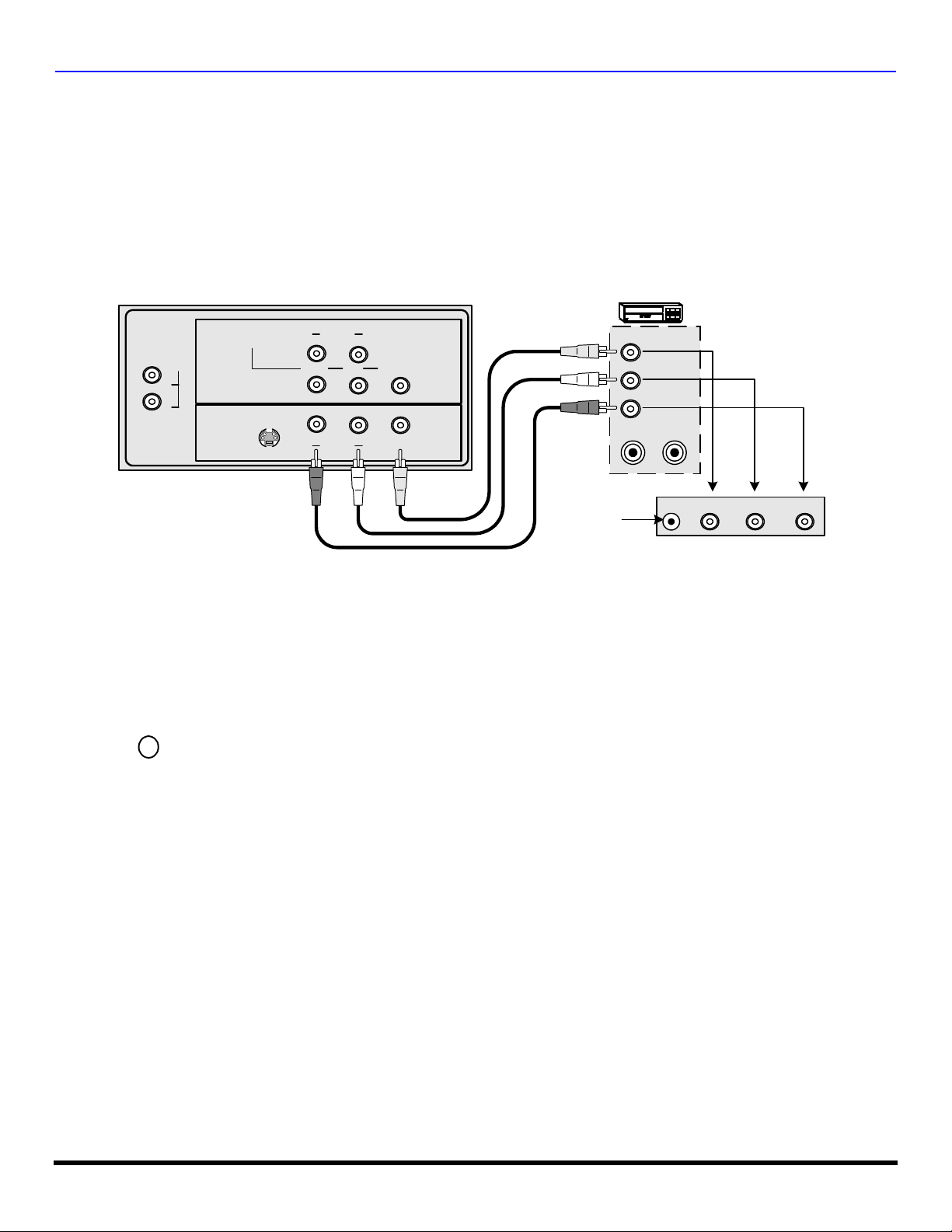

2 Tuner PIP Operation with a VCR - NO Cable Box
This television includes a two tuner Picture In Picture (PIP) feature. This allows viewing two (2) live broadcasts at the same
time without or with an external video source (VCR).
Connect your television to a VCR, as shown.
ANT IN
TO AUDIO
AMP
L
R
CONNECTIONS ON BACK OF TV
COMPONENT
VIDEO INPUT
INPUT 1
S-VIDEO
R AUDIO
P
R
R AUDIO
L
P
B
LINPUT 2
Y/VIDEO
VIDEO
VCR
VIDEO OUT
L
AUDIO OUT
R
ANT IN
Incoming
Cable
ANT OUT
CABLES NOT SUPPLIED
Note:The Remote Control must be programmed with the supplied codes to operate the VCR.
Procedure
Press the PIP button on the Remote Control to display the PIP frame on screen.
Note: The audio is from the Main Picture only.
To view an external video source in the PIP frame:
1. Press the TV/VIDEO button on the Remote Control to select the same video input to which your VCR is connected.
2. Verify the VCR is on.
3. Choose channels for the Main Picture by pressing the TV button on the Remote Control and using the numeric keypad or CH
up/down button.
4. Choose channels for the PIP frame by pressing the VCR button on the Remote Control and using the VCR/DBS CH up/down
buttons.
SWAP and RECALL Buttons

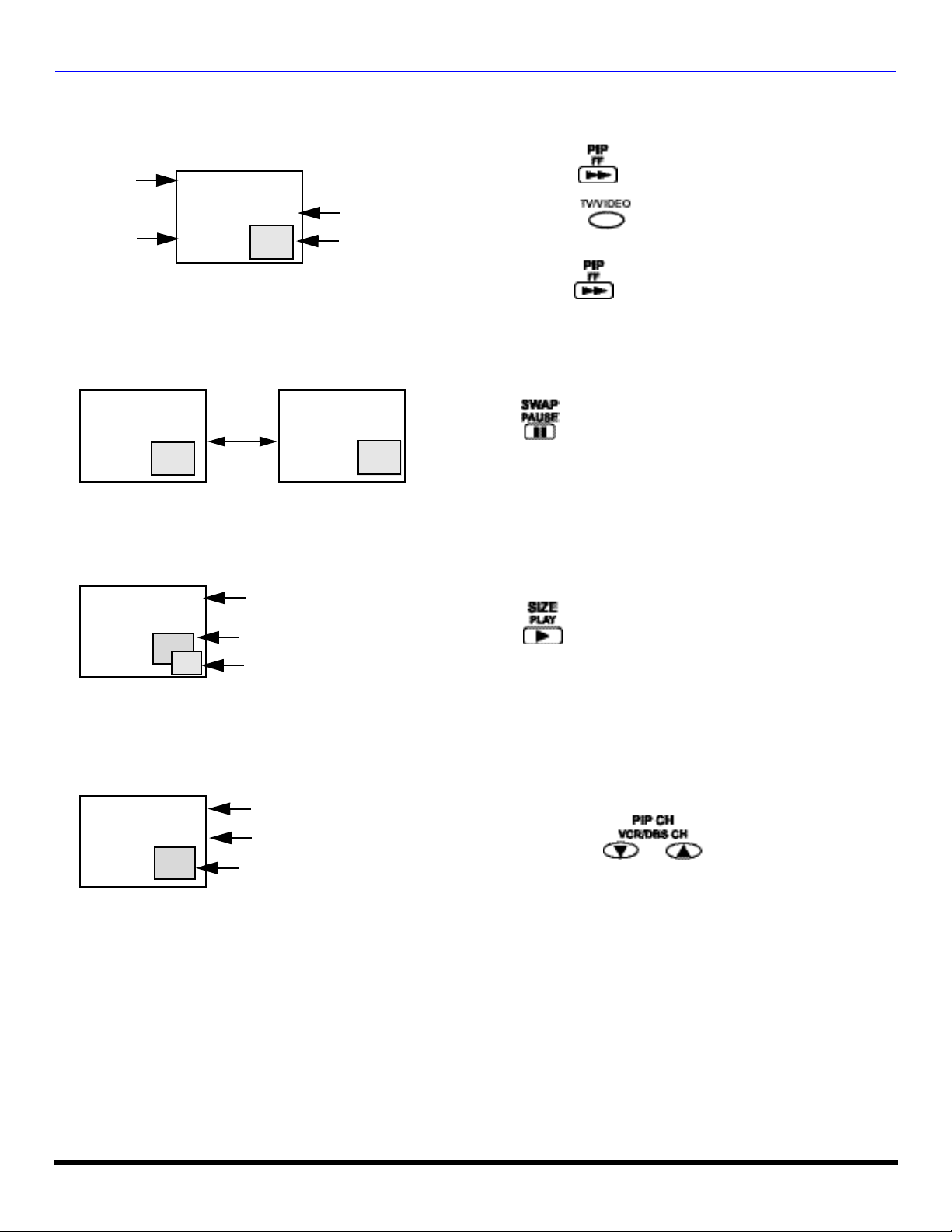

The SWAP button switches the PIP and
Main Picture source. Press the RECALL
button for on screen PIP and Main Picture
source status.
9 ?
PIP FUNCTION BUTTONS
PIP Function Buttons
PIP (Picture-in-Picture) Button
Main Picture
Channel
Main
with
Audio
Swap Button
CH 2
PIP VIDEO 1
Size Button
CH 2
PIP VIDEO 1
INPUT:
PIP Video Source
or
PIP CH #
PIP Frame
VIDEO 1
CH 2
? Press to display PIP frame.
? Press while PIP frame is displayed to select desired input
mode.
? Press again to cancel the PIP feature.
Note:Audio is from Main Picture only
? Press (when PIP frame is displayed) to interchange the main
picture with the picture in the PIP frame.
PIP Channel Buttons
PIP CH #
Main Picture
large PIP frame
small PIP frame
Main Picture
PIP channel
PIP frame
? Press (when PIP frame is displayed) to choose either the
large or small PIP frame.
? Press the while PIP frame is displayed to scan
through channels.
10 ?
PIP Function Buttons (contd.)
This feature lets you scan through all available

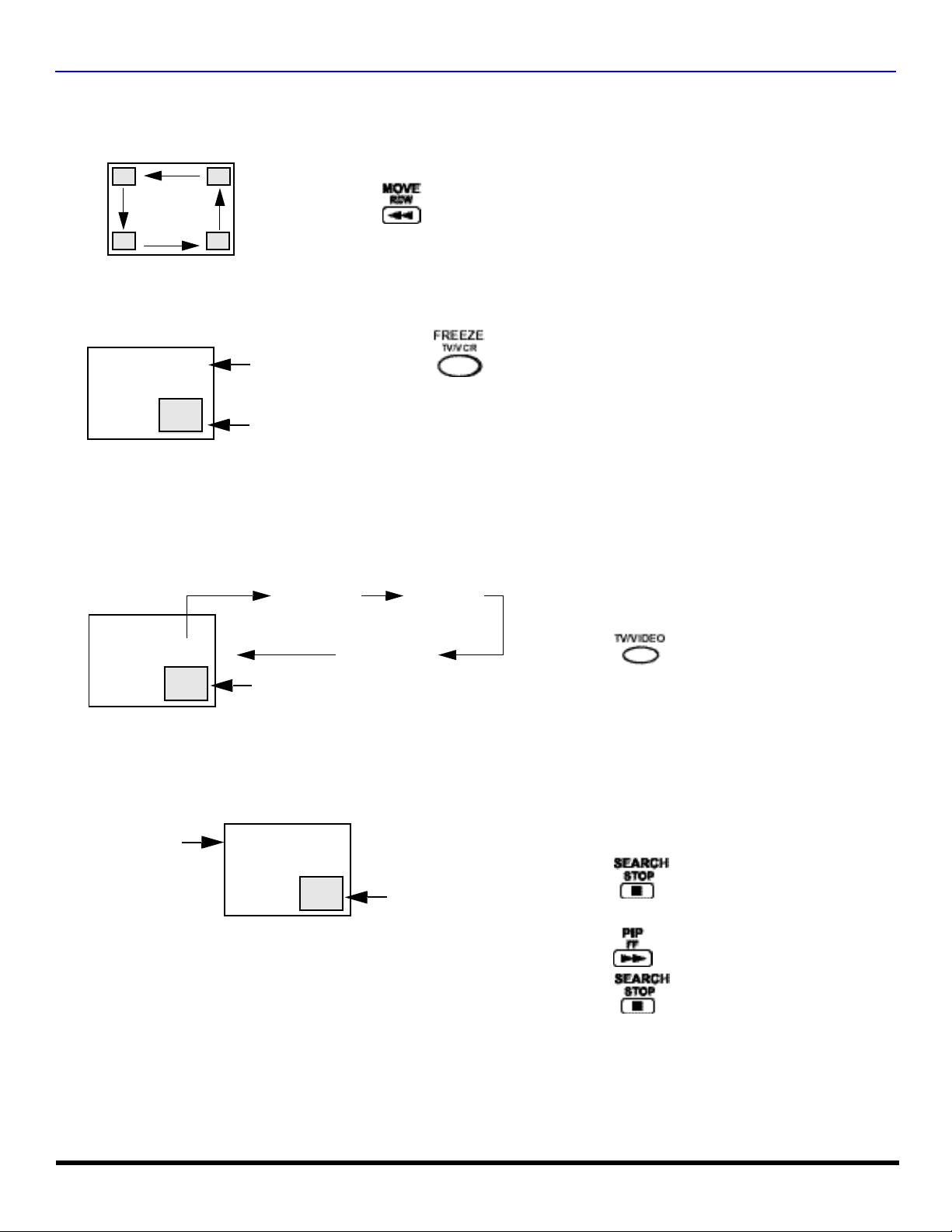

Move Button
? The PIP frame may be placed at any corner of the Main Picture by pressing the button.
Each time the MOVE button is pressed, the PIP frame will move counterclockwise as illustrated.
Freeze Button
PIP FUNCTION BUTTONS
TV/VIDEO Button
PIP CH #
Search Button
Main Picture
Main
PIP
Frame
PIP VIDEO 1PIP VIDEO 2
PIP Frame
? Press to stop action in the Main or PIP frame.
Note:
•Pressing FREEZE button when PIP frame is not displayed, will display a
•Pressing FREEZE button when PIP frame is displayed, will freeze the
PIP VIDEO 3
snapshot image of the main picture in the PIP frame.
action in the PIP frame. Press the FREEZE button again to continue
action.
? Press while PIP frame is displayed to
select desired input mode.
?
channels.
? Press to display search frames.
Search Frame
? Press to stop search frame or press
to delete search frame.
11 ?
REMOTE CONTROL OPERATION

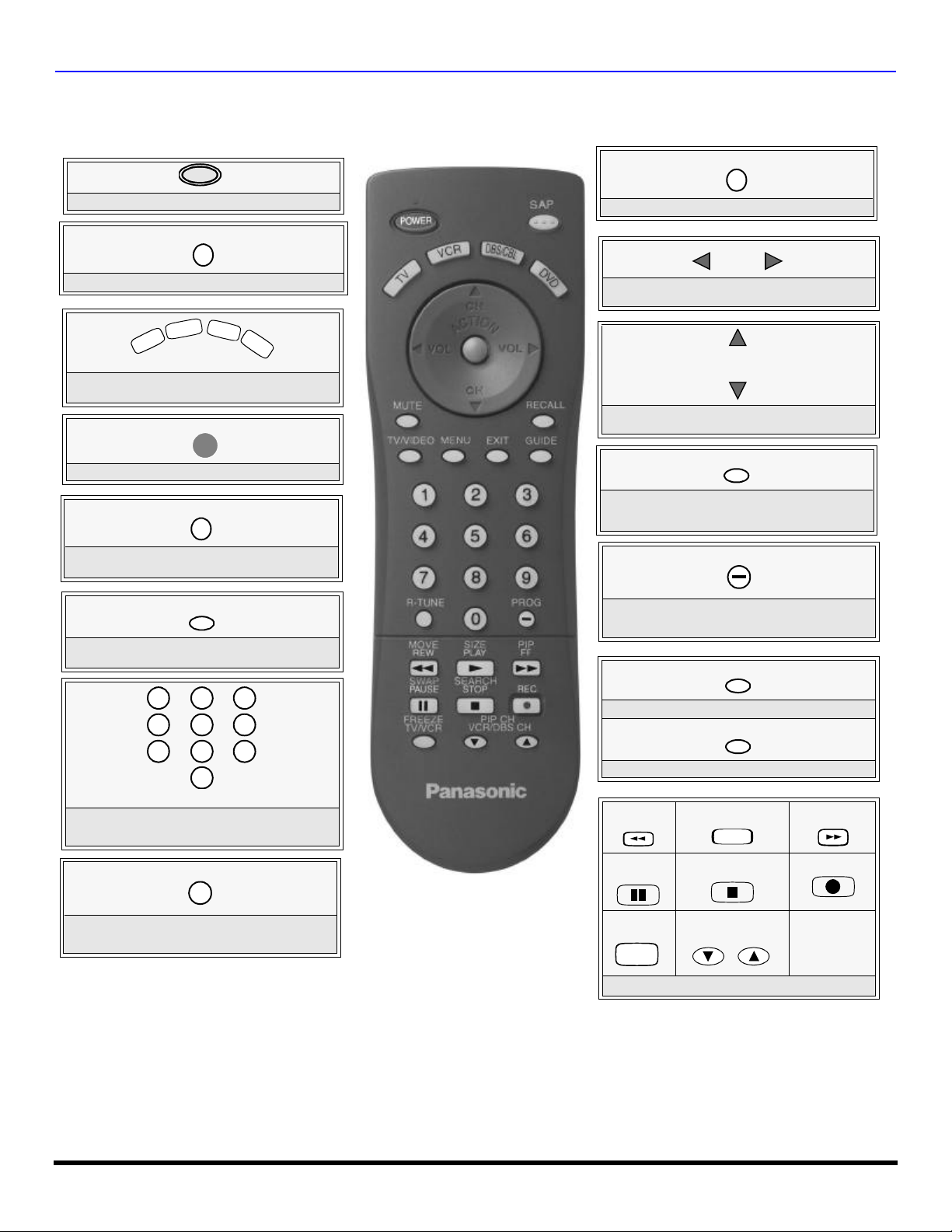

Remote Control Operation
POWER
POWER
Press to turn ON and OFF.
MUTE
Press to mute sound. Press to display and
cancel CC (Closed Caption).
D
B
S
R
/
C
ACTION
C
B
L
D
V
D
V
V
T
Press to select remote operation.
Press to access menus.
TV/VIDEO
Press to select TV, Video mode.
SAP
Press to acces second audio program.
VOL VOL
Press to adjust TV sound and navigate in
menus.
CH
CH
Press to select next or previous channel and
navigate in menus.
RECALL
Press to display time, channel, sleep timer,
and other options.
EXIT
MENU
Press to access DBS or DVD menus.
12
4
7
3
5
6
8
9
0
Press numeric keypad to select any channel.
R-TUNE
Press to switch to previously viewed
channel or video mode.
Battery Installation
Use two AA batteries:
Remove battery cover by pushing in and up neararrow.
Install batteries matching (+) and (-) polarity signs.
Replace the battery cover.
EUR7613Z30
DBS functions button.
GUIDE
DBS functions button.
PROG
Press to enter minor number in a compound
number.
MOVE
REW
SWAP
PAUSE
FREEZE
TV/VCR
Component function buttons
SIZE
PLAY
?
SEARCH
STOP
VCR /DBS CH
Precautions
•Replace batteries in pairs.
•Do not mix battery types (zinc carbon
with alkaline).
•Do not recharge, heat, short-circuit,
disassemble, or burn batteries.
PIP CH
PIP
FF
REC
Note:Incorrect installation can cause battery leakage and
corrosion that will damage the Remote Control
12 ?
REMOTE CONTROL OPERATION
Mode Operational Key Chart
This chart defines the keys that are opereational in the selected component modes (TV, VCR, DBS, CABLE or DVD) after
programming (if needed).
KEY NAME
POWER
SAP
MUTE
TV/VIDEO
MENU
CHAN UP
CHAN DOWN
VOL RIGHT
VOL LEFT
ACTION
RECALL
EXIT
GUIDE
PROG
1
2
3
4
5
6
7
8
9
0
R-TUNE
PROG
MOVE
<<REW
SIZE
PLAY
PIP
FF >>
SWAP
PAUSE
SEARCH
STOP
RECORD
FREEZE/TV/VCR
PIP CH
VCR/DBS CH
PIP CH
VCR/DBS CH
TV MODECABLE MODEDBS MODE
POWER POWER POWER
SAP ON/OFF-STB AUDIO TRACK
MUTETV MUTETV MUTE
INPUT SWITCHTV INPUT SWITCHTV INPUT SWITCH
--DBS MENU
CHANNEL UPCABLE CHANNEL UPDBS NAVIGATION UP
CHANNEL DOWNCABLE CHANNEL DOWNDBS NAVIGATION DOWN
VOL +TV VOL +DBS NAVIGATION RIGHT
VOL - TV VOL -DBS NAVIGATION LEFT
ACTION-DBS MENU
DISPLAYTV DISPLAYDBS PROG. INFO
POWER
SAP
MUTE
MENU
TV/VIDEO
CHAN UP
CHAN DOWN
VOL RIGHT
VOL LEFT
ACTION
RECALL
EXIT
GUIDE
PROG
1
2
3
4
5
6
7
8
9
0
R-TUNE
MOVE
<<REW
SIZE
PLAY
PIP
FF>>
SWAP
PAUSE
SEARCH
STOP
RECORD
FREEZE/TV/VCR
PIP CH
VCR/DBS CH
PIP CH
VCR/DBS CH
VCR MODEDVD MODE
POWER POWER
--
TV MUTETV MUTE
--
TV INPUT SWITCHTV INPUT SWITCH
-NEXT CHAPTER
- PREVIOUS CHAPTER
TV VOLUME + NAVIGATION RIGHT
TV VOLUME - NAVIGATION LEFT
--
ONSCREEN VCR
DISPLAY
--
--
--
--
--
--
--
--
--
--
--
--
--
--
VCR REWINDSKIP SEARCH REW <<
VCR PLAYDVD PLAY
VCR FFSKIP SEARCH FF>>
VCR PAUSEDVD STILL
VCR STOPDVD STOP
VCR RECORD-
TV/VCR SWITCHOPEN/CLOSE
VCR CHANNEL
DOWN
VCR CHANNEL UPSLOW +
DVD DISPLAY
SLOW -
14 ?
REMOTE CONTROL OPERATION
VOL
Programming The Remote
The Universal Remote Control can be programmed to operate many manufacturers’ components, using the component
function buttons for VCR, DVD, CABLE or DBS. Follow the procedures for programming your Remote Control with or
without a code for the component.
Default Modes For Remote Control
DeviceOperatesDefault
TVTV (Panasonic Only)Panasonic TV Codes
VCRVCR (Preset)Panasonic VCR Codes
DBSDBS (Preset)Panasonic DBS Codes
CABLECABLE (Preset)Panasonic DBS Codes
DVDDVD, CD (Preset) Panasonic DVD Codes
Determine the manufacturer of the component and look in the table for the code.
Programming With a Code
Procedure
•Confirm that the external component is plugged in and operating.
•Turn the component off.
•Press and together, forat least 5 seconds.
ACTION
•Press appropriate component button on the Remote Control VCR, DVD, CABLE or DBS.
•Enter the 3-digit component code using the Remote Control numeric keypad (0 ~ 9 buttons).
POWER
•Press the Remote Control to test the component. If the procedure was successful, the component will turnon.
POWER
Helpful Hints: Unsuccessful Code
If the component does not operate with the Remote Control, repeat
the procedure using another code. (Some brands have multiple
codes).
If an incorrect code is entered, or if the procedure takes longer than
30 seconds, the programming will fail.
Programming Without A Code
This procedure searches all codes and is called the “sequence method.”
•Confirm that the external component is plugged in and on.
•Turn the component off.
•Press and together, forat least 5 seconds.
ACTION
•Press appropriate component button on the Remote Control.
•Press to move forward to the next code. Press to move backward.
VOL
•Press the Remote Control to test the component. If the procedure was successful, the component will turn on.
Note:Repeat the above steps until the component code is found. It may take many attempts before the correct code
isfound.
•After the code is found, press to store the code.
POWER
POWER
ACTION
15 ?
REMOTE CONTROL OPERATION
Component Codes
The Universal Remote Control is capable of operating many component brands after entering a code. Some components
may not operate because the codes are not available due to limited memory. The Universal Remote Control does not
control all features found in each model.
Write the code numbers from tables in this space. This will serve as a reference if you need
to program your Remote Control.

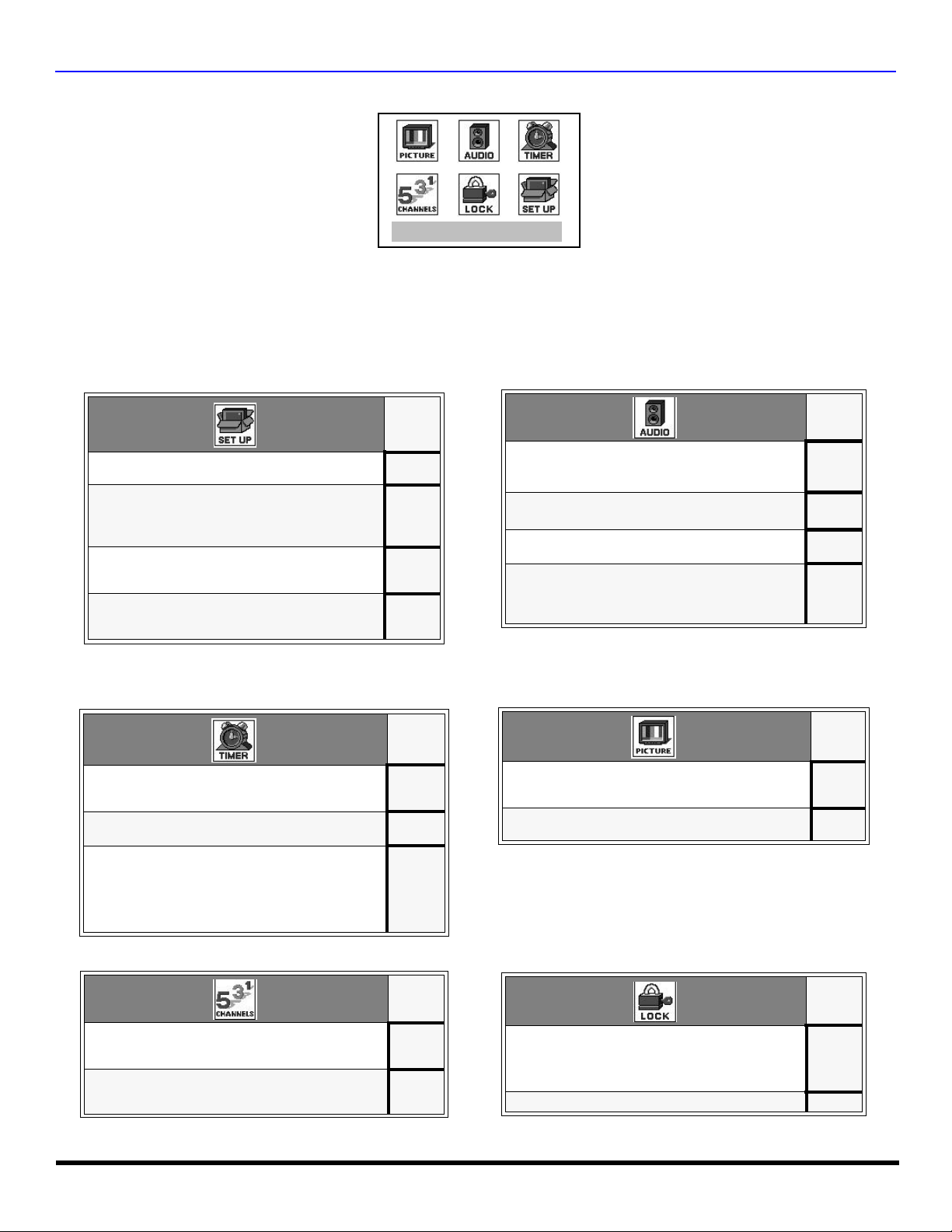

These charts list all menus under each Icon and which pages to refer to for menus description.
MAIN MENU ICONS
IDIOMA/LANGUE
?MODE - (ENGLISH, FRANÇAIS, ESPAÑOL)
PROG CHAN
?MODE - (TV or CABLE)
?AUTO PROGRAM
?MANUAL PROGRAM
CC (CLOSED CAPTIONED)
?CC ON MUTE
?CC MODE
OTHER ADJ.
?AUTO POWER ON
?CHANNEL BANNER

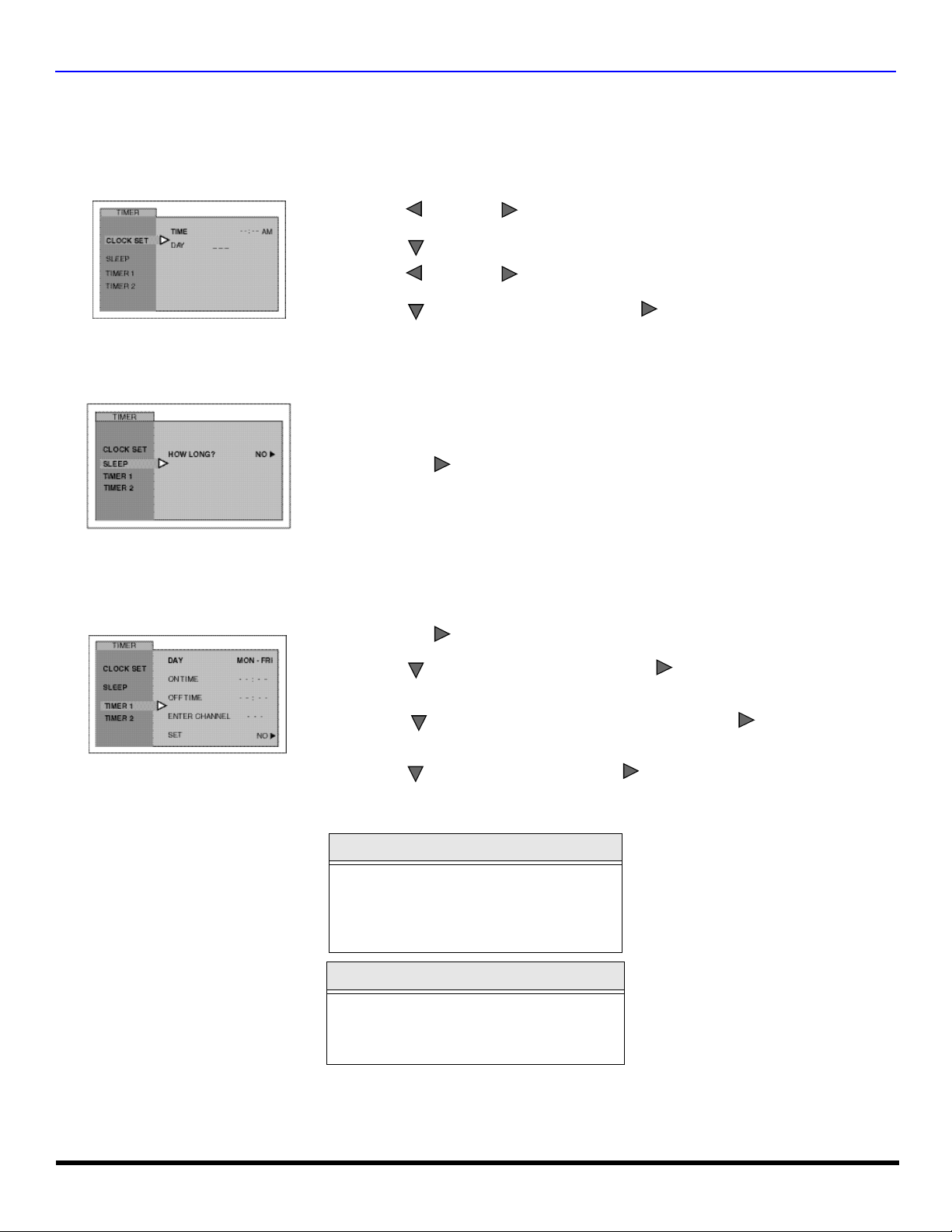

CLOCK SET
?TIME
?DAY
SLEEP
?HOW LONG?
TIMER
?DAY
?ON TIME
?OFF TIME
?ENTER CHANNEL
?SET
REFER
TO
PAGE
20
20
21
21
REFER
TO
PAGE
23
23
23
AUDIO ADJ.
?MODE (STEREO, SAP or MONO)
?BASS, TREBLE, BALANCE OR NORMAL
OTHER ADJ.
?AI SOUND
SURROUND
?MODE
SPEAKERS
?ON
?OFF & VARIABLE AUDIO OUT
?OFF & FIXED AUDIO OUT
VIDEO ADJ
?COLOR, TINT, BRIGHTNESS, PICTURE,
SHARPNESS OR NORMAL
OTHER ADJ.
?COLOR TEMP
REFER
TO
PAGE
24
24
24
24
REFER
TO
PAGE
22
22

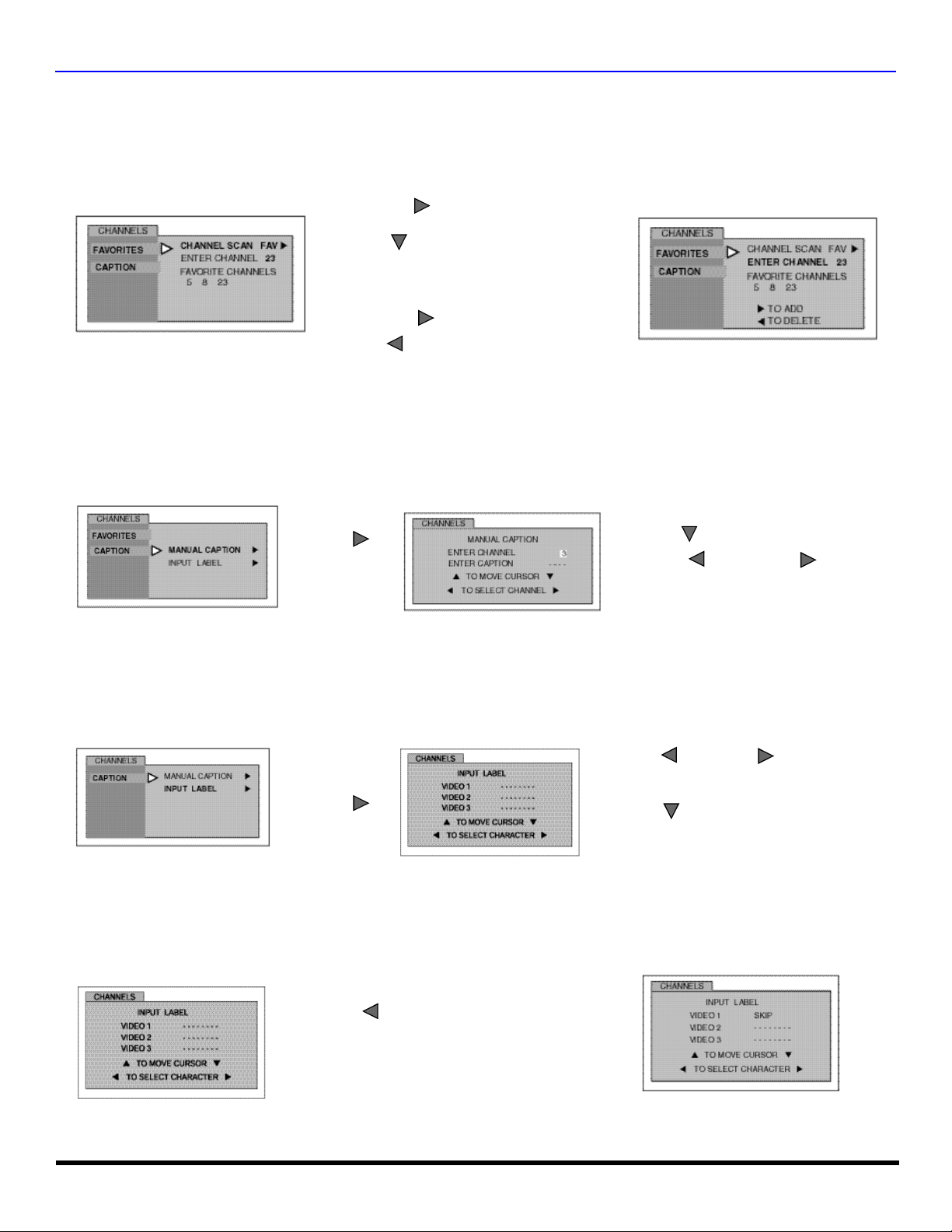

FAVORITES
?CHANNEL SCAN
?ENTER CHAN
CAPTION
?MANUAL CAPTION
?INPUT LABEL
REFER
TO
PAGE
25
25

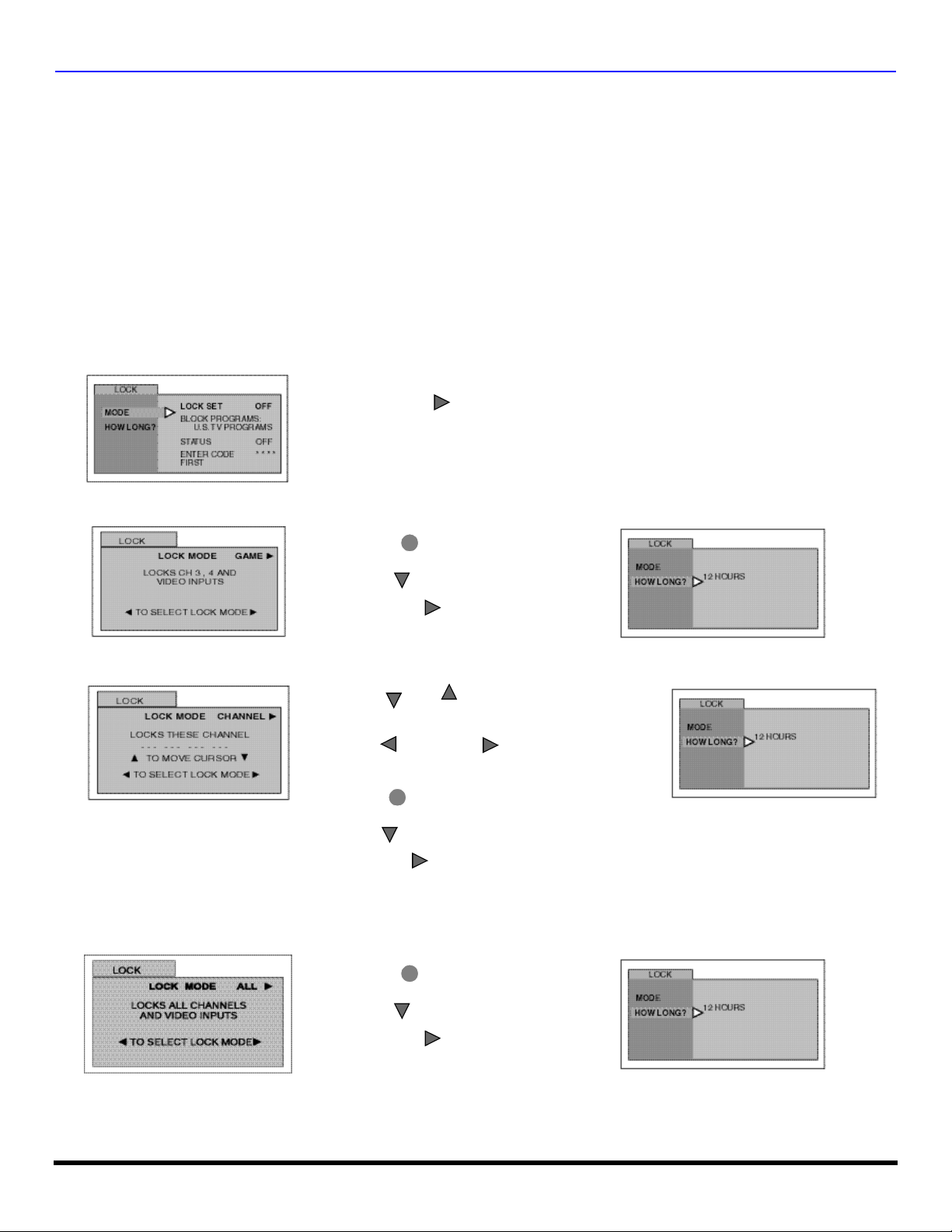

MODE
?LOCK SET - GAME, CHANNEL or ALL)
?BLOCK PROGRAM
?HOW LONG?

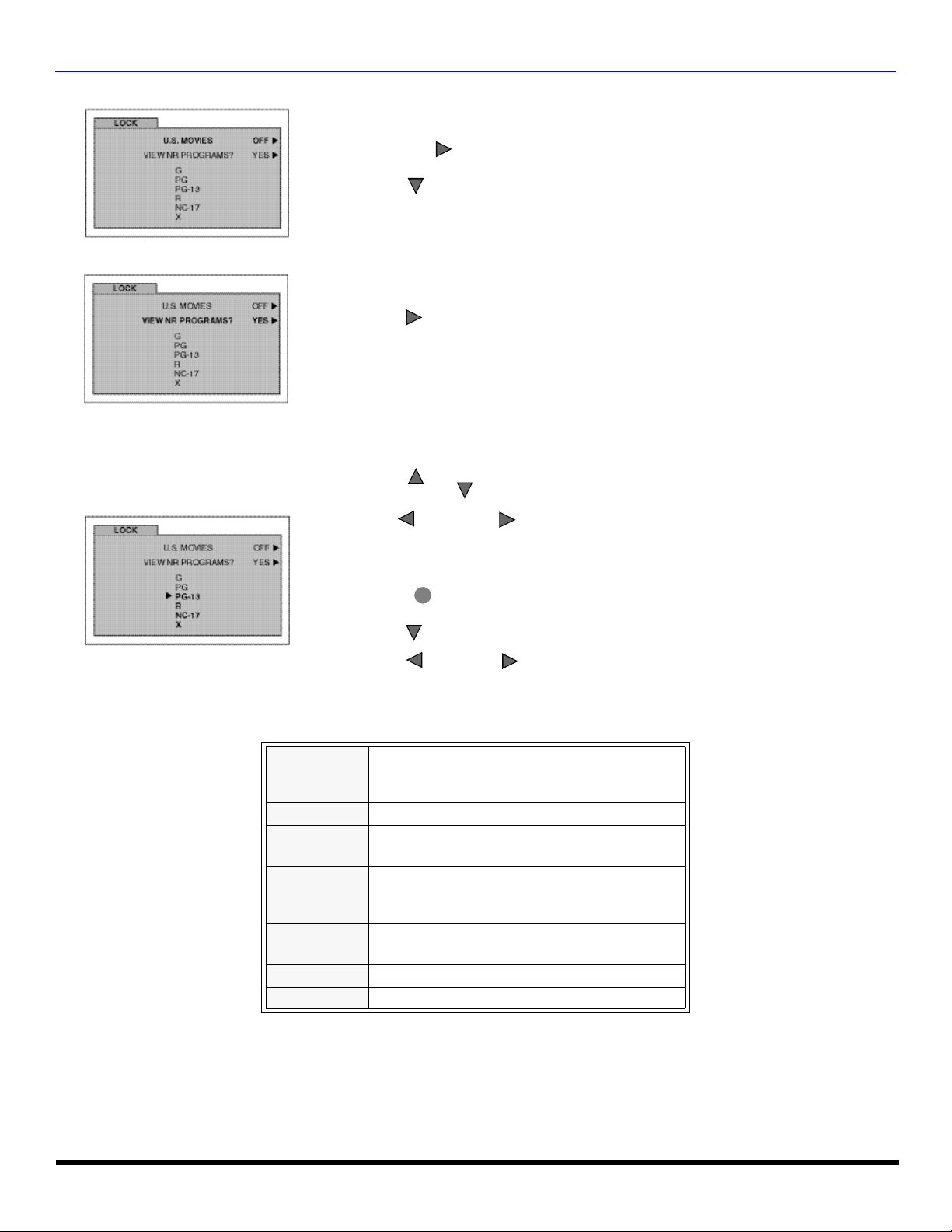

V-CHIP OPERATION27
REFER
TO
PAGE
26
19 ?
ICON MENU OPERATION
Icon Menu Operation
SET UP
Note:Refer to page 18 for Icon Menu Navigation procedures.
IDIOMA/LANGUE (Menu Languages)

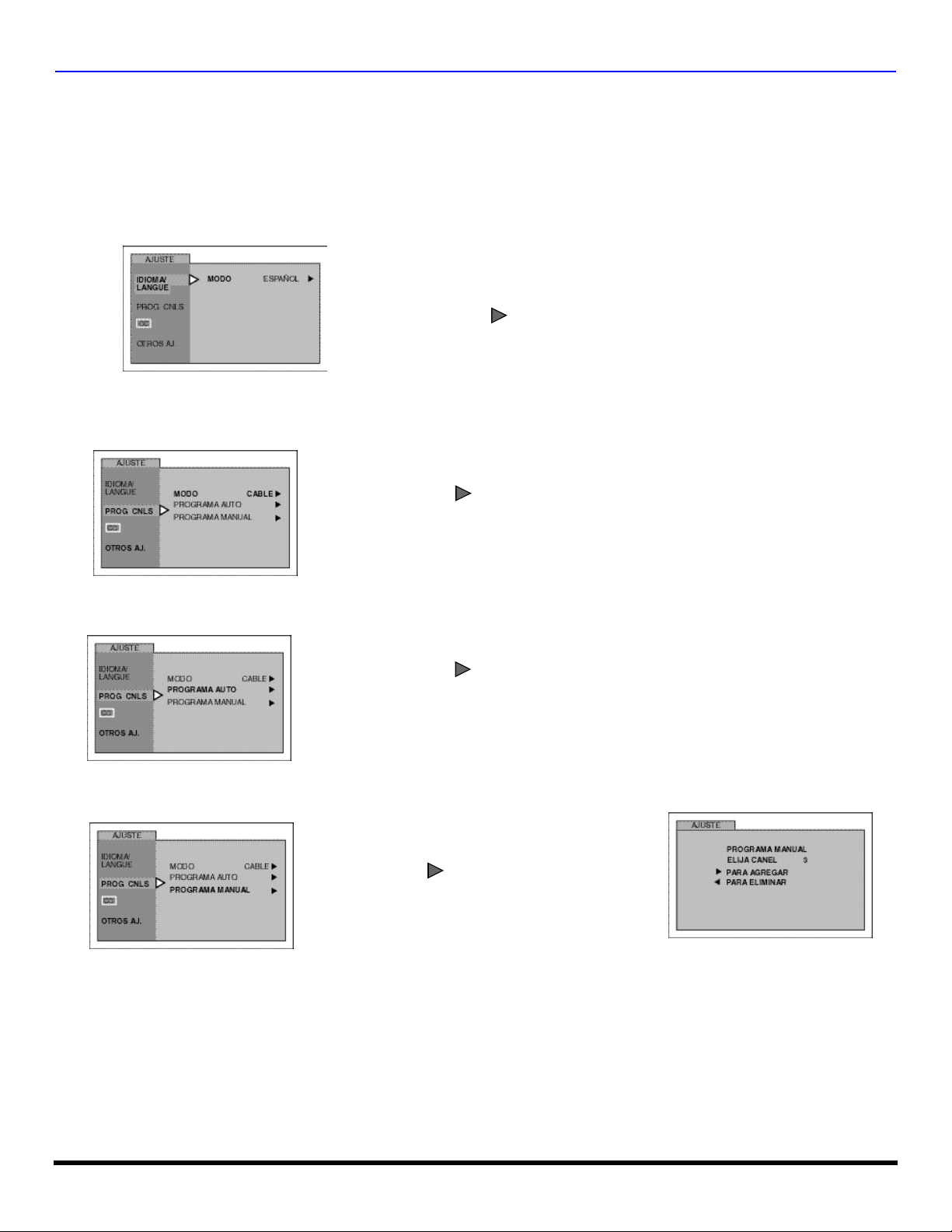

In SET UP Menu, select IDIOMA/LANGUE to change menu language to ENGLISH, ESPAÑOL (Spanish) or FRANÇAIS
(French).
? Press to select English, Spanish or French.
VOL
Prog Chan (Program Channels)
In SET UP menu under PROG CHAN select:
? MODE - To select TV (antenna) or CABLE mode depending on the signal source.
? Press to select TV or CABLE.
? AUTO PROGRAM - To automatically program all channels with a signal.
? Press to start AUTO PROGRAM.
VOL
VOL
? MANUAL PROGRAM - To manually add or delete channels.
? Press to display next menu.
VOL
20 ?
Note:Use Remote numeric keypad to enter channel
numbers.
ICON MENU OPERATION

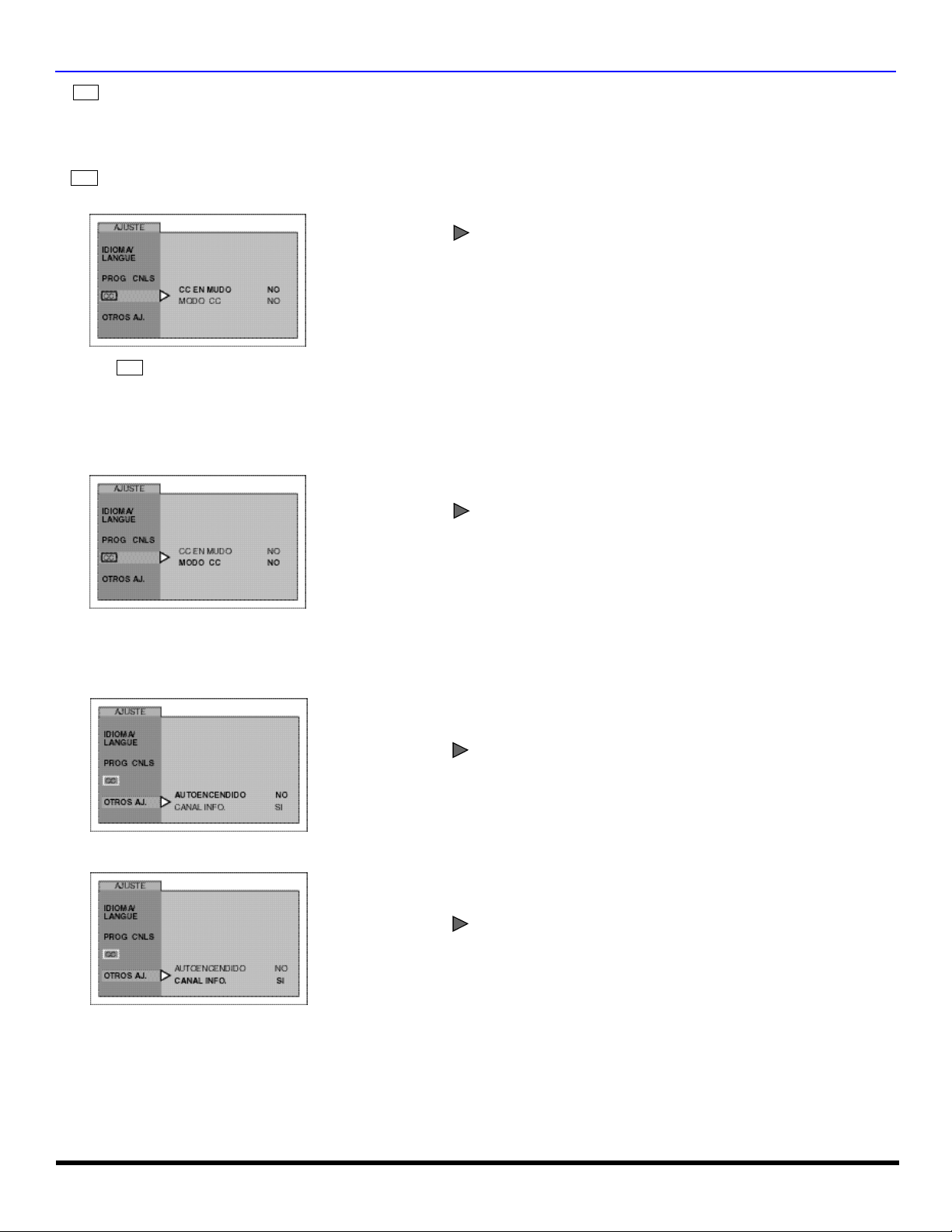

CC
(Closed Captioning)
This television contains a built-in decoder that displays (Closed Captioned) text across the screen (white or colored
letters on black background). It allows the viewer to read the dialogue of a television program or other information. The
program viewed must include Closed Captioning for the feature to work.
CC
On Mute
Activates the Closed Caption feature when the MUTE button on the remote control is pressed
CC
? Press to select C1, C2, or NO.
Note: This feature only functions when the Closed Caption Mode is OFF. The recommended
VOL
set up for Closed Caption on Mute is:
• CC ON MUTE: C1
• CC MODE: OFF
CC
Mode
Activates the onscreen Closed Caption feature by selecting one of the following modes:
? OFF - When Closed Caption is not desired.
? C1 - For video related information to be displayed, up to 4 lines onscreen at a time. (It does not block relevant parts of the picture).
Text may be in any language.
Other Adjustments
In SETUP Menu under OTHER ADJ. select:
? AUTO POWER ON - Select SET to power up the TV at the same time as the Cable box or other components or select OFF.
? Press to select OFF or SET.
VOL
? CHANNEL BANNER - Select ON to display onscreen banner when changing channels.
? Press to select OFF or ON.
Note:Press RECALL to display onscreen Channel Banner at any time.
VOL
21 ?
ICON MENU OPERATION
CH
VOL
Note:Refer to page 18 for Icon Menu Navigation procedures.

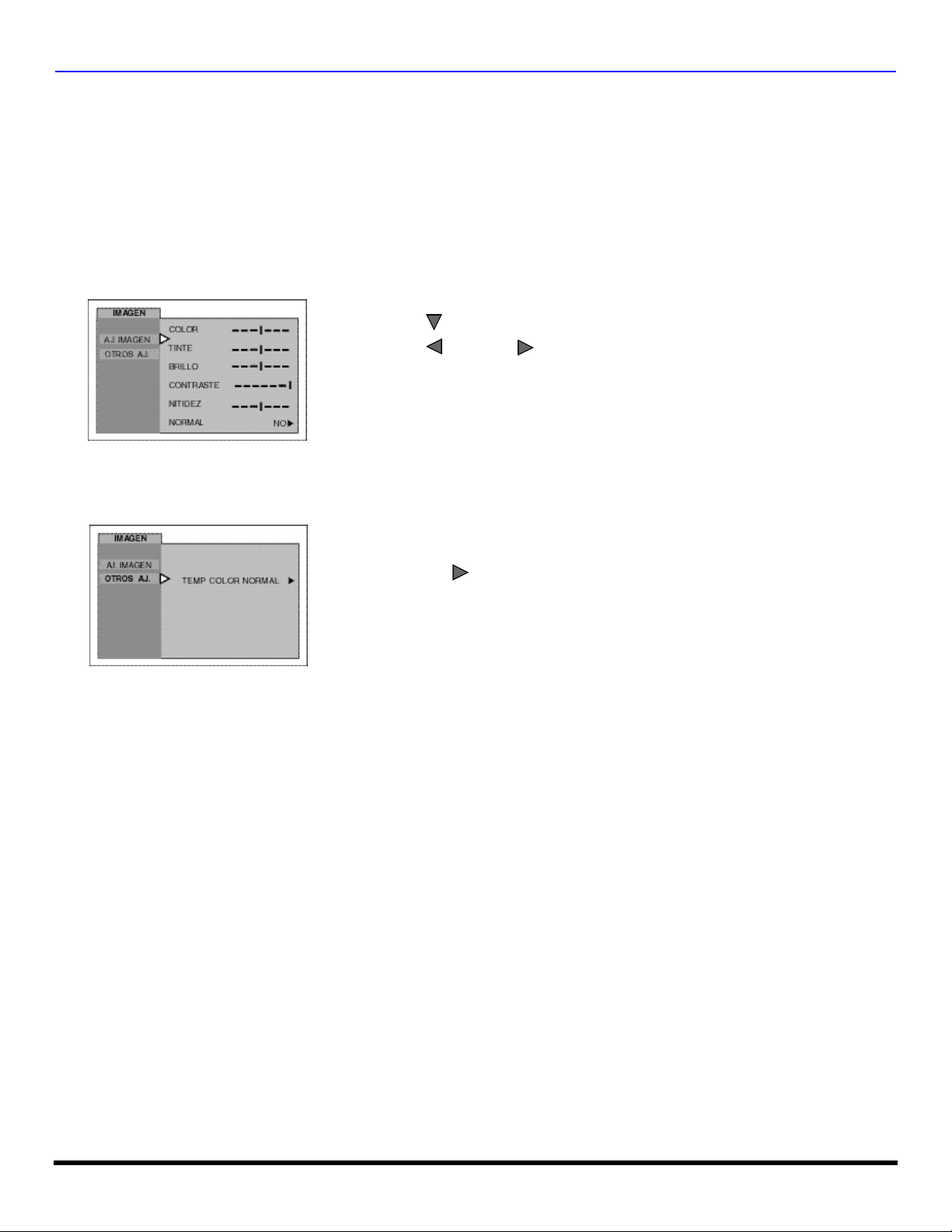

Video Adj.
In Picture menu under VIDEO ADJ. select:
? COLOR - Adjusts desired color intensity.
? TINT - Adjusts natural flesh tones.
? BRIGHTNESS - Adjusts dark areas of picture.
? PICTURE - Adjusts white areas of picture.
? SHARPNESS - Adjusts clarity of outline detail.
? NORMAL - Reset all picture adjustments to factory default settings.
? Press to select desired picture adjustment.
? Press or to adjust.
VOL
Video Input Memory
? Video adjustments can be individually set for each video input mode.
Other Adj.
In Picture menu under OTHER ADJ. select:
? COLOR TEMP - To increase and decrease WARM (red) and COOL (blue) colors to suit personal preferences.
? Press to select WARM, COOL or NORMAL.
VOL
22 ?
Loading...
+ 56 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
