Panasonic CT-2707D User Manual

Color Television
Operating Instructions

CT-2707D CT-3207D

®

For assistance, please call: 1-800-211-PANA (7262) or
send e-mail to: [e-mail] (USA only)

TQB2AA0397 11812
PRINTEDINMEXICO

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

36 WARNING: To reduce the risk of electric shock do not remove cover or

back. No user-serviceable parts inside. Refer servicing to qualified service

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO

FCC CAUTION:

ENVIRONMENTAL NOTICE:

The lightning flash with arrow
head within a triangle is
intended to tell the user that
parts inside the product are a
risk of electric shock to
persons.

The exclamation point within a
triangle is intended to tell the
user that important operating
and servicing instructions are
in the papers with the
appliance.

NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

ANY CHANGES OR MODIFICATIONS TO THIS TV
RECEIVER NOT EXPRESSLY APPROVED BY
MATSUSHITA ELECTRIC CORPORATION OF AMERICA
COULD CAUSE HARMFUL INTERFERENCE, WHICH
WOULD VOID THE USER’S AUTHORITY TO OPERATE
THIS EQUIPMENT.

THIS PRODUCT UTILIZES BOTH A CATHODE RAY TUBE (CRT) AND
OTHER COMPONENTS THAT CONTAIN LEAD. DISPOSAL OF THESE
MA TERIALS MAY BE REGULATED IN YOUR COMMUNITY DUE TO
ENVIRONMENTAL CONSIDERATIONS. FOR DISPOSAL OR RECYCLING
INFORMATION PLEASE CONTACT YOUR LOCAL AUTHORITIES, OR THE
ELECTRONICS INDUSTRIES ALLIANCE: <HTTP://WWW.EIAE.ORG.>

Table of Contents

Congratulations.........................................................2

Customer Record......................................................................2

Care and Cleaning.....................................................................2

Specifications ............................................................................2

Installation..................................................................3

Television Location....................................................................3

Optional Cable Connections......................................................3

AC Power Supply Cord..............................................................3

Cable / Antenna Connection......................................................3

Feature Chart .............................................................4

Auto Set Up Menu......................................................5

Optional Equipment Connections ...........................6

VCR Connection........................................................................6

Front Control Panel ...................................................................6

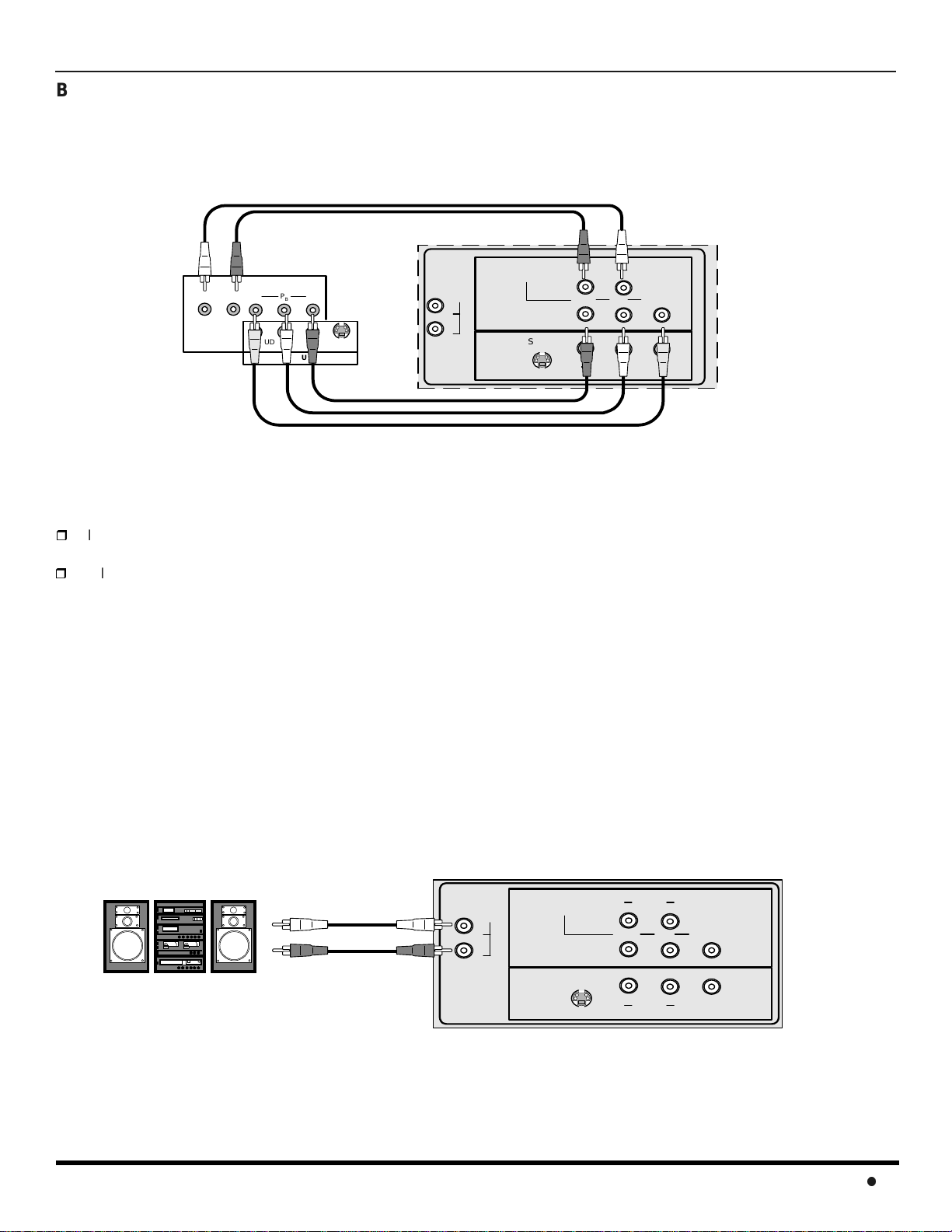

Digital TV - Set-Top Box or DVD Player Connection ................7

Amplifier Connection (TO AUDIO AMP) ...................................7

Picture In Picture Operation.....................................8

PIP Operation with a VCR and Cable Box ................................8

PIP Operation with a VCR No Cable Box..................................9

PIP Function Buttons..............................................10

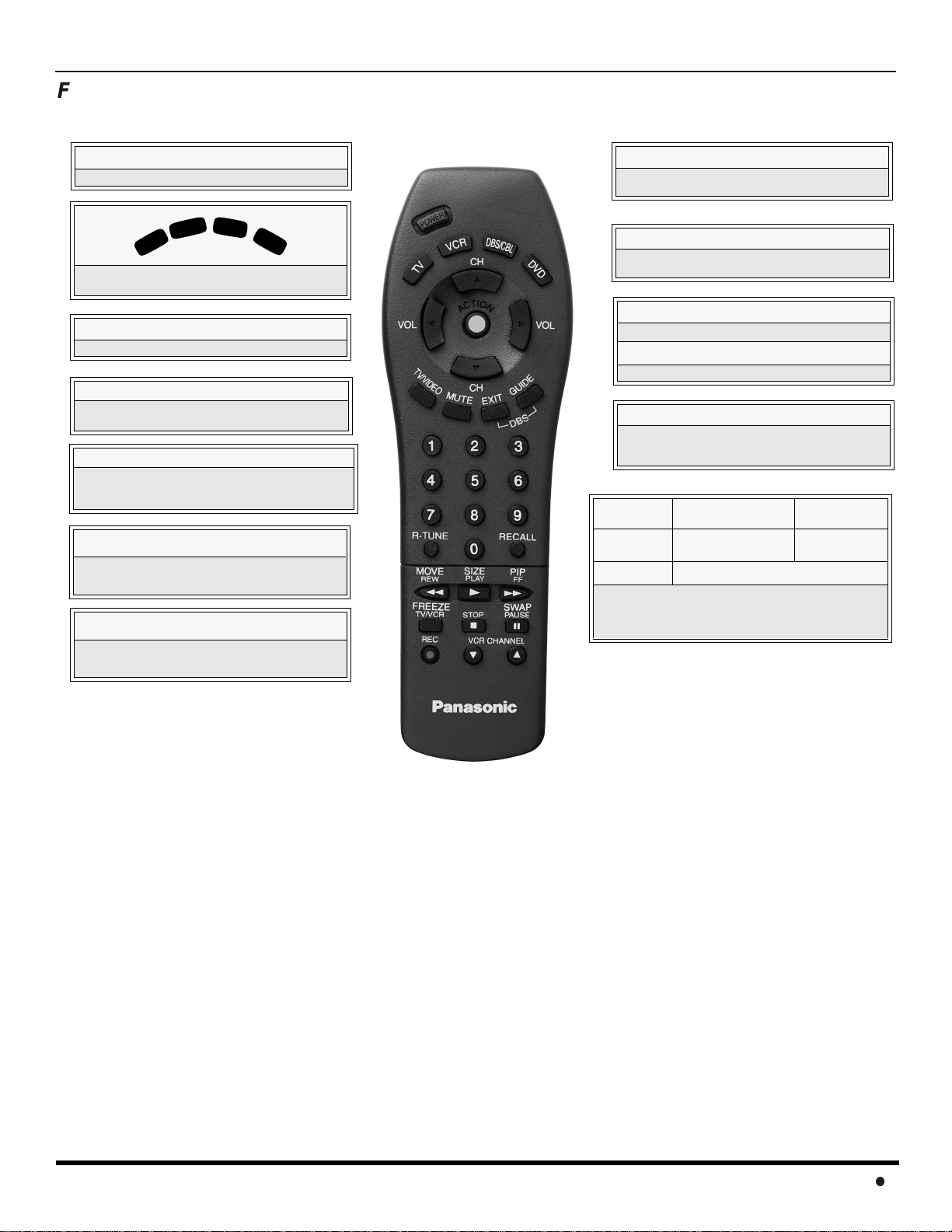

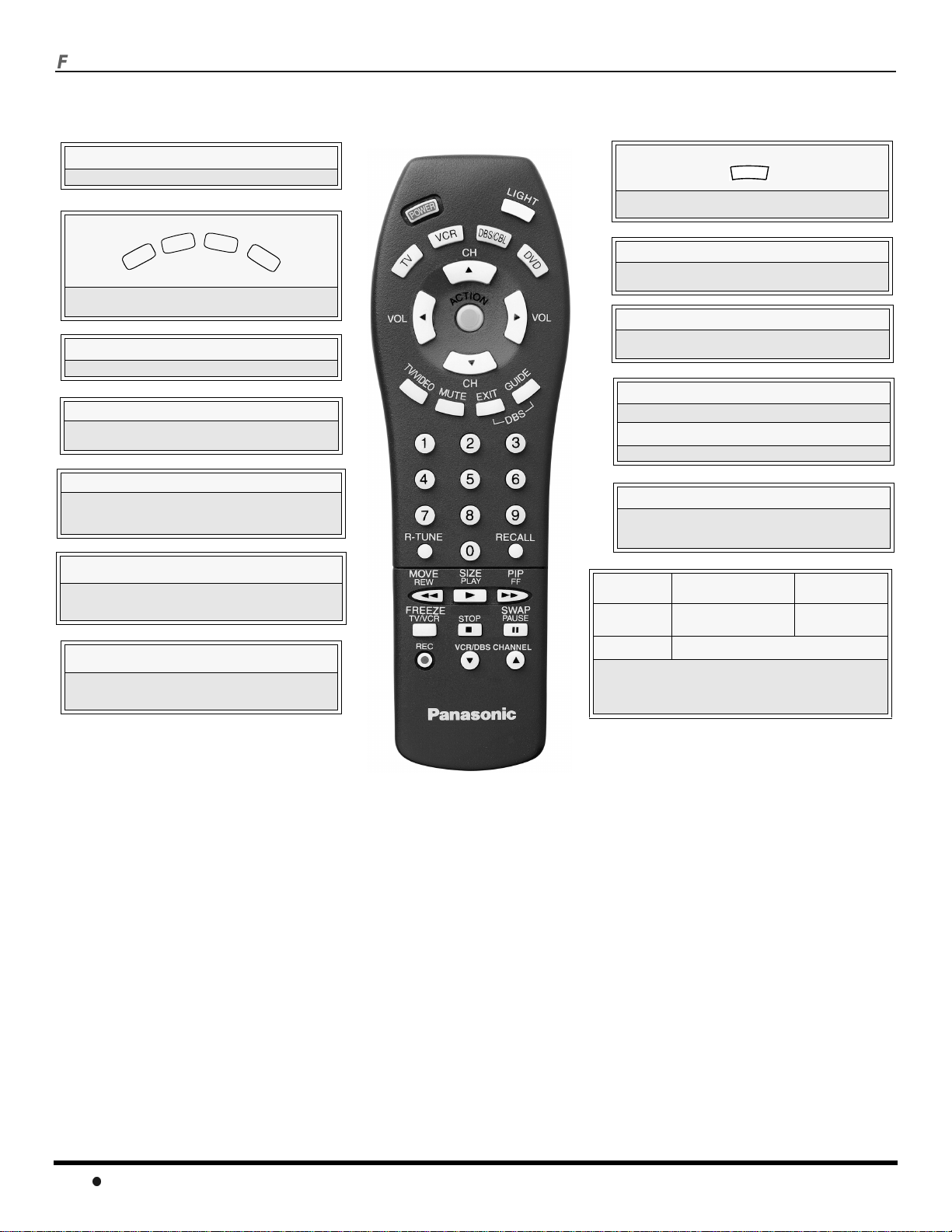

Remote Control Operation (model CT-2707D only) ....11

Remote Control Operation (model CT-3207D only) ....12

Mode Operational Key Chart ..................................................13

Programming the Remote .......................................................15

Programming With a Code......................................................15

Programming Without a Code.................................................15

Component Codes...................................................................16

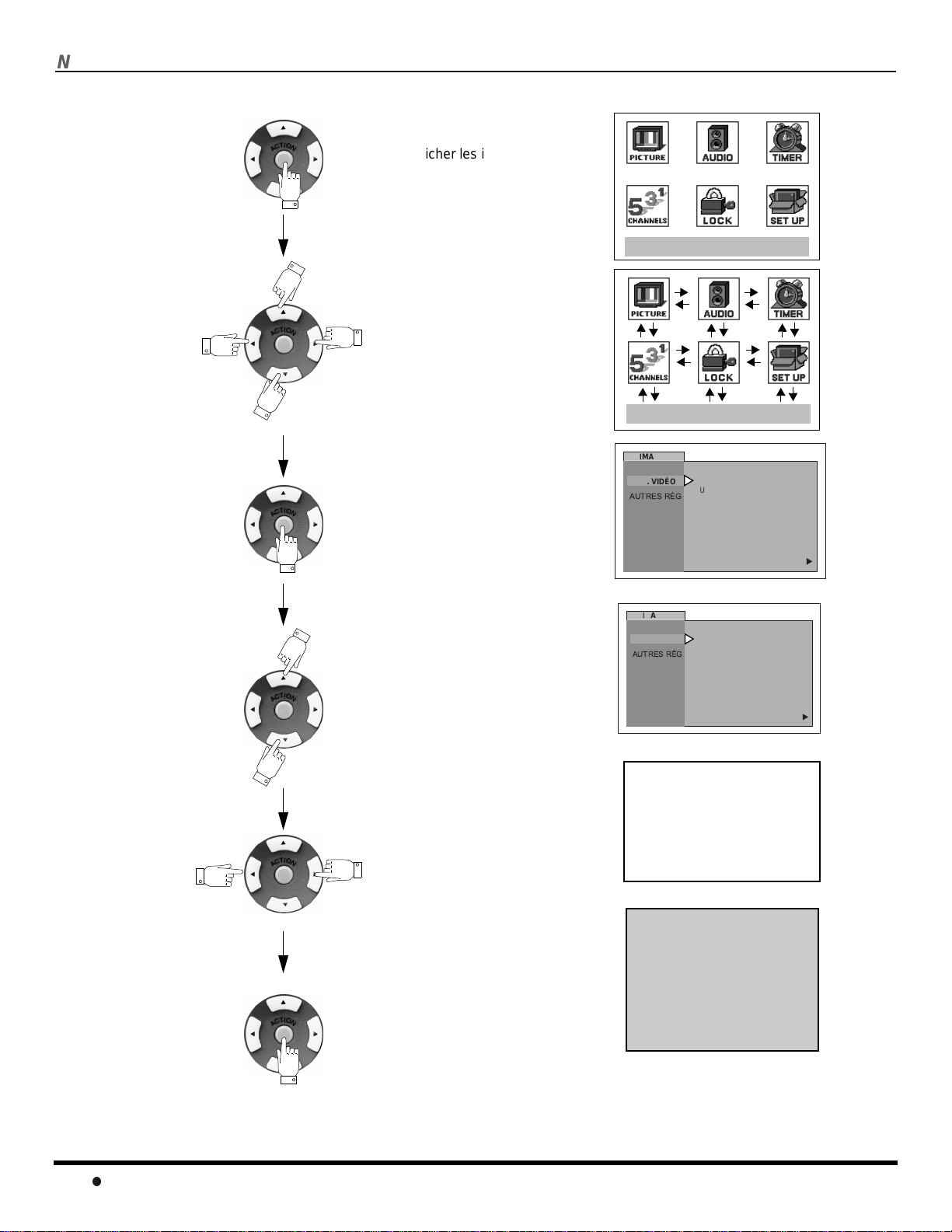

Icon Menu Navigation .............................................18

Main Menu Icons......................................................19

Icon Menus..............................................................................19

Icon Menu Operation...............................................20

Set Up......................................................................................20

Picture .....................................................................................22

Timer .......................................................................................23

Audio .......................................................................................24

Channels .................................................................................25

Lock.........................................................................................26

V-Chip Menu Operation...........................................27

U.S. TV Programs ...................................................................27

U.S. Movies.............................................................................28

Rating Systems for Canada.....................................................30

Troubleshooting Chart............................................32

Limited Warranty.....................................................33

Customer Services Directory.................................35

Limited Warranty (models sold in Canada only) ..36

Index .........................................................................37

Read these instructions completely before operating television.
Contents are subject to change without notice or obligation.

Copyright 2002 by Matsushita Electric Corporation of America. All rights reserved.
Unauthorized copying and distribution is a violation of law.

T

ABLE OFCONTENTS

1



C

ONGRATULATIONS

Congratulations

Your new TV Monitor/Receiver features a solid state chassis that is designed to give you many years of enjoyment. It was
thoroughly tested and tuned at the factory for best performance.

Customer Record

The model and serial number of this product are located on the back of the television. You should note the model and serial
number in the space provided and retain as a permanent record of your purchase. This will aid in identification in the event
of theft or loss. Product registration for U.S. customers is available at www.prodreg.com/panasonic.

Model
Number

Serial
Number

Care and Cleaning

Screen (Turn TV Off)

• Use a mild soap solution or window cleaner with a soft clean cloth. DO NOT USE ABRASIVE CLEANERS.

• Avoid excessive moisture and wipe dry.

Note: Do not spray any type of cleaning fluid directly on the screen.

Cabinet and Remote Control



For cabinets and remote control, use a soft cloth dampened with water or a mild detergent solution. Avoid excessive moisture and
wipe dry.



Do not use benzene, thinner or other petroleum based products.

Specifications

Power Source

CT-2707D (2.1A)
CT-2707DU (2.1A)
CT-3207D (2.2A)
CT-3207DU (2.2A)

Channel Capability - 181 VHF-12; UHF-56; Cable-113

Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type

Audio Input Jacks 500mV RMS 47K Ohm

Audio Output Jacks 0–2.0V RMS 4.7K O hm

Componentinput(Y/PB/PR)

S-Video Input Jacks S-Video ( Y-C) Connecto r

Specifications are subject to change without notice or obligation.

120V AC, 60Hz

75 Ohms, Phono Jack Type

2



I

NSTALLATION

Installation

Television Location

Follow these recommendations before deciding the location of your television.



Avoid excessive sunlight or bright lights, including reflections.



Keep away from excessive heat or moisture. Inadequate ventilation may cause internal component failure.



Fluorescent lighting may reduce remote control transmitting range.



Keep away from magnetic equipment, including motors, fans and externalspeakers.

CAUTION: Use this television receiver only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from
tip-over. In order to avoid injury to children, never place your television receiver o n a piece of furniture that is capable of
being tilted by a child leaning on it, pulling on it, standing on it, or climbing on it.

CT-2707D, CT-2707DU:

CAUTION: This television receiver for use only with PANASONIC TY-27G22M (TY-27G22M-PC for Canada) stand. Use with other
carts (or stands) is capable of resulting in instability causing possible injury.

CT-3207D, CT-3207DU:

CAUTION: This television receiver for use only with PANASONIC TY-32G22M (TY-32G22M-PC for Canada) stand. Use with other
carts (or stands) is capable of resulting in instability causing possible injury.

Optional Cable Connections

Shielded audio and video cables should be used between components. For best results:



Use 75-ohm coaxial shielded cables.



Use appropriate input and output connectors that match your component connectors.



Avoid long cables to minimize interference.

AC Power Supply Cord

CAUTION: TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT OF AC OUTLET

AND FULLY INSERT. DO NOT USE A PLUG WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER, CRIMPED, BENT OR PINCHED,
PARTICULARL YAT PLUGS, CONVENIENCE RECEPTACLES, AND THE POINT WHERE THEY EXIT FROM THE APPARATUS.

Polarized plug

Cable / Antenna Connection

For proper reception, either a cable or antenna connection is required.

Cable Connection

Connect the cable supplied by your localcable company.

Note: A cable converter box may be required for proper reception. Check with your local cable company for

compatibility requirements.

Antenna Connection

• For proper reception of VHF/UHF channels, an external antenna is required. For best reception, an
outdoor antenna is recommended.

Note: Cable Mode is preset at the factory. Antenna users must change to TV mode in the Set Up Menu under

Prog Chan.

Incoming Cable from

Cable Company

75 Ohm VHF/UHF

on back of TV

IncomingCablefrom

Home Antenna

3



F

EATURECHART

Feature Chart

MODELS

FEATURES

MENU LANGUAGE

ENG/SPAN/FR

1 TUNER PIP

VIDEO INPUT

PICTURE MEMORY

CHANNEL INFO

BANNER

CLOSED CAPTIONING

V-CHIP CAPABILITY

75 OHM INPUT

VIDEO INPUT SKIP

VIDEO NORM

AUDIO NORM

STEREO

AI SOUND

BASS/BALANCE/TREBLE

SURROUND

NUMBER OF SPEAKERS 2 2

A/V IN

(REAR/FRONT)

AUDIO OUT

S-VHS INPUT

A/V JACKS AUDIO SPECIAL FEATURES

COMPONENT INPUT

HEADPHONE JACK

CT-2707D

CT-3207D

 

 

 

 

 
 
 
 
 
 
 
 
 
 

3

(2/1)3(2/1)

 
 
 
 

IMPORTANT INFORMATION REGARDING THE USE OF VIDEO GAMES, COMPUTERS, OR
OTHER FIXED IMAGE DISPLAYS.

WARNING: The marking or retained image on the picture tube resulting from viewing fixed
image is not an operating defect and as such is not covered by Warranty.

This television is designed to display constantly moving images on the screen. Continuous viewing
of stationary images such as letterbox pictures on standard screen TVs (with top/bottom bars), non­expanded standard (4:3) pictures on wide screen TVs (with side bars shown on each side of an
image), stock market report bars (ticker running at the bottom of the screen), video game patterns,
fixed scoreboards, bright station logos, on-line (Internet) or repetitive computer style patterns should
be limited.

The extended use of fixed image program material can cause a permanent picture tube damage,
shown as a “shadow image” viewable on normal programs. This type of irreversible picture tube
deterioration can be limited by performing the following steps:

• Do not display the fixed image for extended periods of time.

• Turnthe power off when not in use.

4



A

UTOSETUPMENU

Auto Set Up Menu

For your convenience, Auto Set up menu will be displayed on screen when the set is turned on for the first time. If needed,
follow the menus and procedures for setting up the features.



IDIOMA/LANGUE - To change menu language to ENGLISH, SPANISH or FRENCH.

FIRST PLEASE

CONNECT THE ANTENNA

IDIOMA/LANGUE ENGLISH

AUTO PROGRAM



MODE - To select TV (antenna) or CABLE mode depending on the signalsource.

IDIOMA/LANGUE ENGLISH

AUTO PROGRAM

AUTO SET UP

PRESS ACTION TO EXIT

FIRST PLEASE

CONNECT THE ANTENNA

AUTO SET UP

PRESS ACTION TO EXIT

u

CABLEMODE

u

u

u

CABLEMODE

u

u

Press to select English, Spanish or French.

VOL

Press to select TV or CABLE.

VOL



AUTO PROGRAM - To automatically program all channels with a signal.

FIRST PLEASE

CONNECT THE ANTENNA

IDIOMA/LANGUE ENGLISH

AUTO SET UP

CABLEMODE

AUTO PROGRAM

PRESS ACTION TO EXIT

u

u

u

Press to start Auto Programming.

VOL

5



O

PTIONALEQUIPMENTCONNECTIONS

Optional Equipment Connections

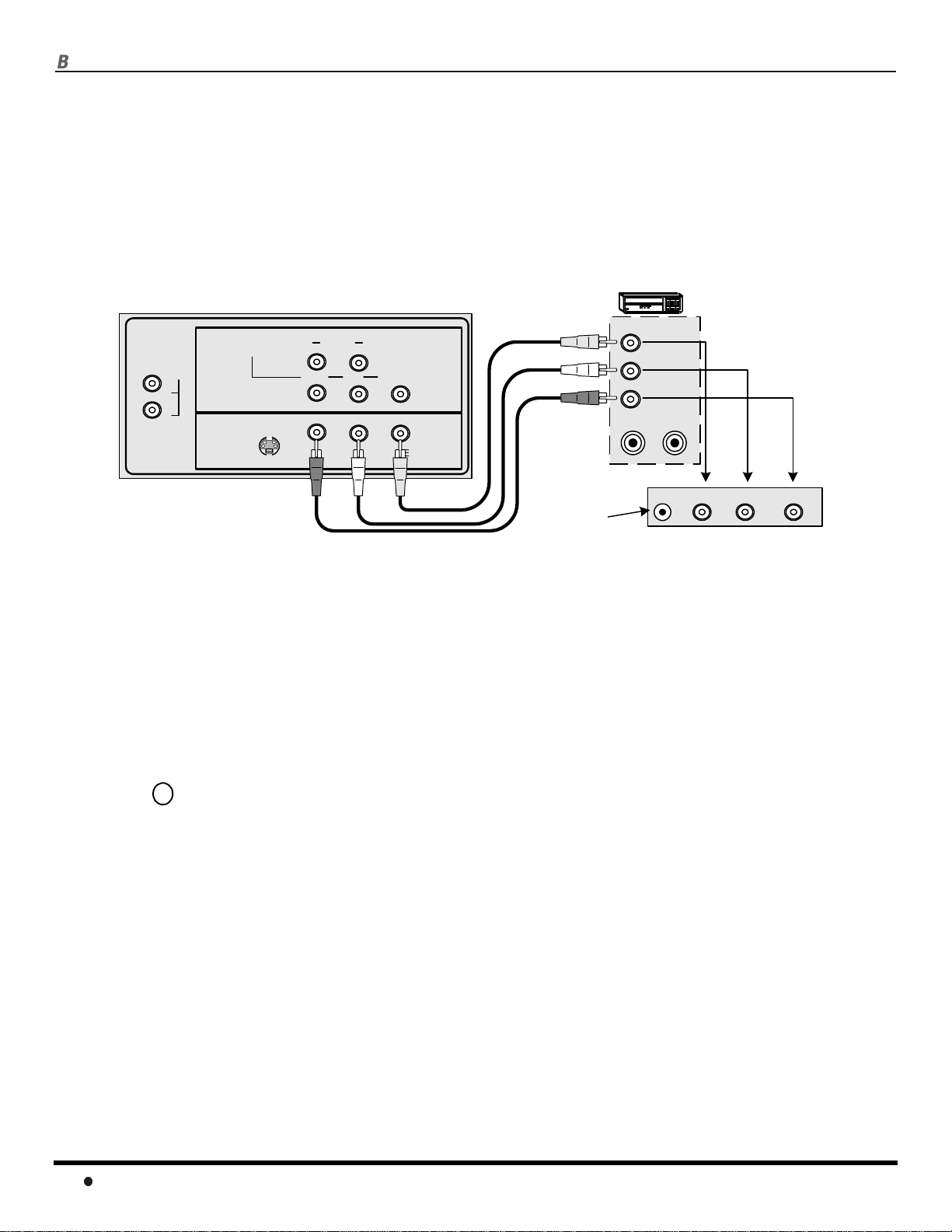

VCR Connection

VCRs, video disc players, video game equipment, and DSS equipment can also be connected to the video inputs. See the
optional equipment manual for more information.

Note: VIDEO 1 input is a dual-purpose input. It is primarily intended for connection with 480i devices such as a DVD player

using the Y P
composite video sources such as a VCR, using only the Y/Video jack and Audio L & R jacks. The on-screen label will

display Component or Video 1 depending on which source is connected.

CONNECTION ON BACK OF TV

component video jacks and Audio L & R jacks. However, it can also be connected to conventional

BPR

VCR

COMPONENT

TO AUDIO

AMP

L

R

VIDEO INPUT

INPUT 1

S-VIDEO

CABLES NOT SUPPLIED

R AUDIO

P

R

R AUDIO

L

P

Y/VIDEO

B

VIDEO

LINPUT 2

Jack used for 1/8"

headpone plug

VIDEO OUT

L

AUDIO OUT

R

ANT IN

ANT OUT

HPJ VIDEO 3 L AUDIO IN R

FRONTOFTV

Procedure

1. Connect equipment as shown to front or rear Audio/Video input jacks.

Note: Front and rear Audio/Video connectors cannot be operated at the sametime.

2. Select the Video mode by pressing TV/VIDEO button.

3. Operate optional equipment as instructed in equipment manual.

Front Control Panel

Use the front panel of the television to use the TV without remote or to use the Audio/Video input jacks for optional
equipment.

TV/VIDEO

Press to select VIDEO input mode.

Note: The front control panel can be used to access menus and switch video modewhen the remote control is not available.

6



O

PTIONALEQUIPMENTCONNECTIONS

Digital TV - Set-Top Box (DTV-STB) or DVD Player Connection

Use this diagram to connect the Panasonic DTV-STB (Digital TV-Set-Top Box) to the back of your T V.

TERMINALS ON BACK OF DTV-STB OR DVD PLAYER

CABLES NOT SUPPLIED

COMPONENT

L
R

VIDEO INPUT

AMP

INPU T1

R-AUDIO-L

PBP

Y

R-AUDIO-L VIDEO

NTSC OUTPUT

DIGI TAL OUTPUT

R

TOAUDIO

S-VIDEO

COMPONENT VIDEO INPUT TERMINALS ON BACK OF TV

Notes:



There are three video inputs, Y, PB,andPR. Separate component color inputs provide luminance and color separation. Use the
L (left) and R (right) audio inputs.



Select DTV-STB to 480i output mode. TV set can receive 480i signal only.

S-VIDEO

R AUDIO

P

R

R AUDIO

L

P

Y/VIDEO

B

VIDEO

LINPU T2

Amplifier Connection (TO AUDIO AMP)

Connect to an external audio amplifier input for listening to a stereo system.

Note: TO AUDIO AMP terminals cannot be connected directly to external speakers.

Audio Adjustments

1. Select TV SPEAKERS ON from AUDIO menu.

2. Set amplifier volume to minimum.

3. Adjust TV volume to desiredlevel.

4. Adjust amplifier volume to match the TV.

5. Select TV SPEAKERS OFF&VAO from AUDIO menu.

6. Volume, mute, bass, treble and balance are now controlled from the TV.

Note: In OFF&FAO the volume is controlled by theexternal amplifier.

CONNECTIONS ON BACK OF TV

External Amplifier

TO AUDIO

AMP

L

R

CABLES NOT SUPPLIED

COMPONENT
VIDEO INPUT

INPUT 1

S-VIDEO

R AUDIO

P

R

R AUDIO

L

P

Y/VIDEO

B

VIDEO

LINPUT 2

7



P

ICTUREINPICTURE

(PIP) O

PERATION

Picture In Picture (PIP) Operation

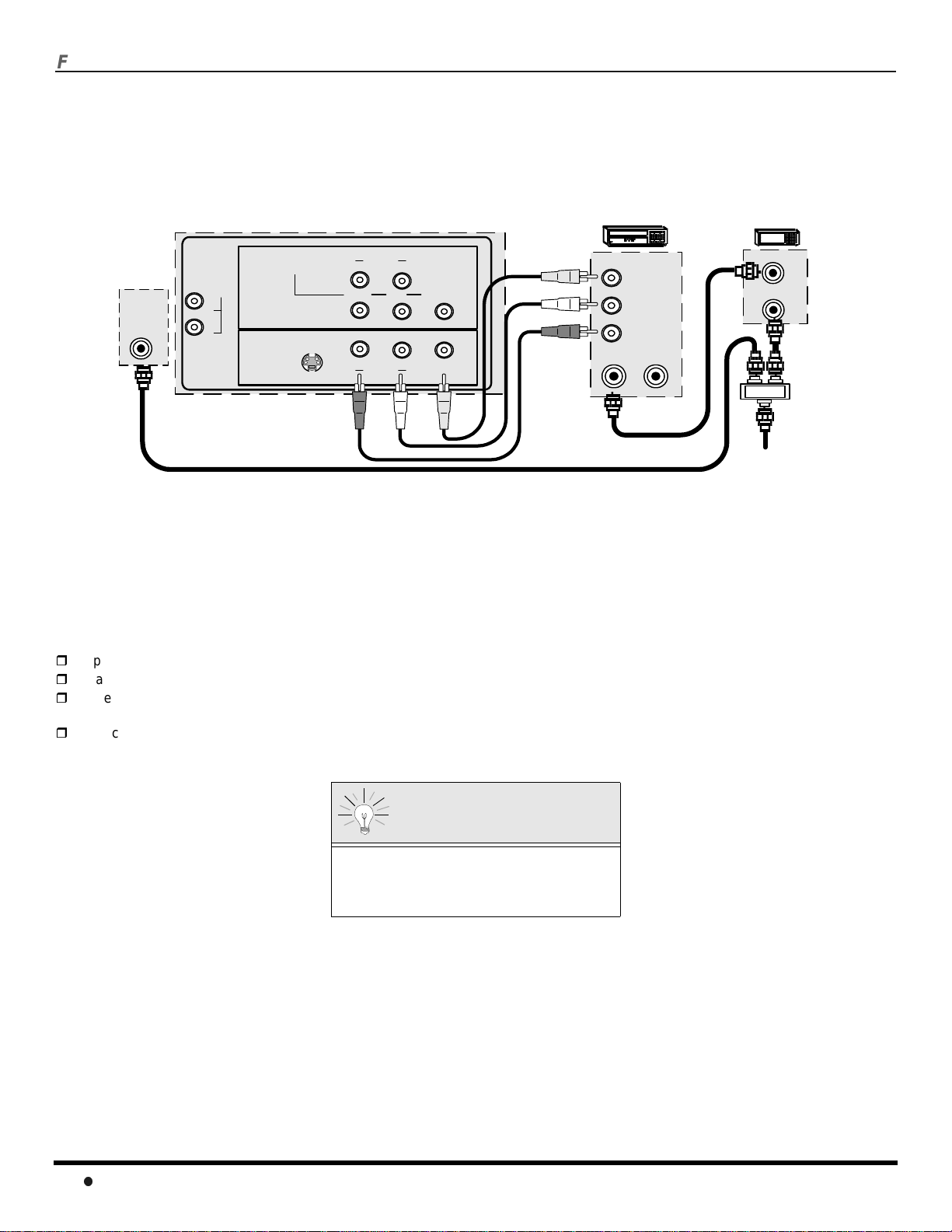

PIP Operation with a VCR and Cable Box

This television includes a Picture In Picture (PIP) feature. A second video source (VCR, Camcorder, etc.) is required to
provide a second picture.
Connect your television to a VCR and Cable Box, as shown.

ANTIN

TOAUDIO

AMP

L
R

CONNECTION ON BACK OF TV

COMPONENT
VIDEO I NPUT

INP U T1

S-VIDEO

RAUDIO

P

R

RAUDIO

L

P

B

LINP U T2

Y/VIDEO

VIDEO

VCR CABLE BOX

VIDEO OUT

L

AUDIO OUT

R

ANT IN

ANTOUT

CABLES NOT SU PPLIED

Cable splitter (not supplied)

Note: The Remote Control must be programmed with suppliedcodes to operate the VCR and Cable Box.

Press the PIP button on the Remote Control to display the PIP frame.

Note: The PIP picture is the same as the main picture, initially.

To view a different picture in the PIP frame:



Press the TV/VIDEO button on the R emote Control to select the video PIP source.



Verifythe CABLE BOX and VCR are ON and the VCR is tuned to channel 3 .



Choose channels for the
down buttons.



Choose channels for the
down buttons.

PIP

framebypressingtheCBL button on the Remote Control and using the numeric keypad or CH up/

Main Picture

by pressing the TV button on the Remote Control and using the numeric keypad or CH up/

ANTOUT

ANTIN

Incoming

Cable

SWAP and RECALL Buttons

The SWAP button switches the PIP and Main Picture
source. Press the RECALL button for on screen PIP
and Main Picture source status.

8



PIP O

PERATION WITH A

VCR - NOC

ABLEBOX

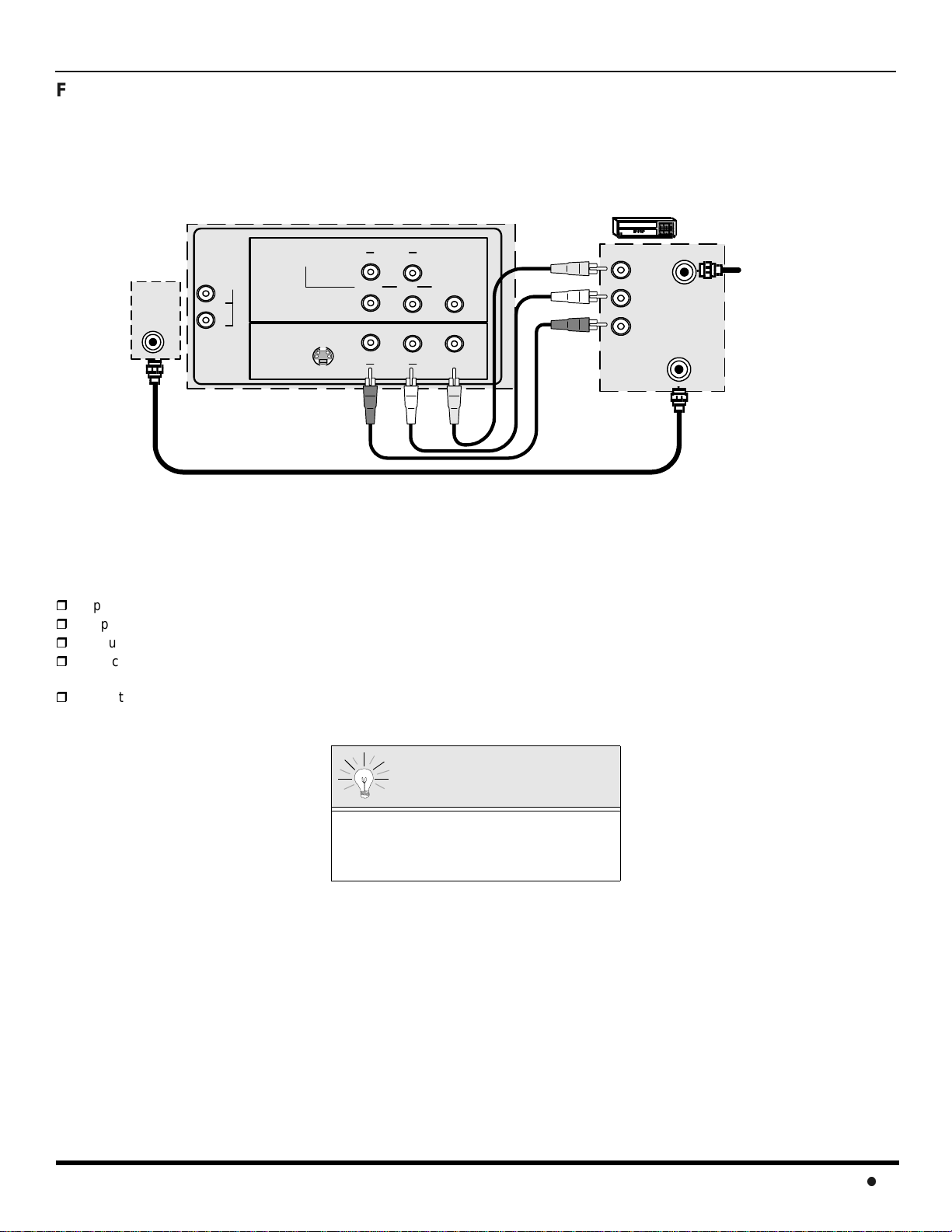

PIP Operation with a VCR - No Cable Box

This television includes a Picture In Picture (PIP) feature. A second video source (VCR) is required to provide a second
picture.

Connect your television to a VCR, as shown:

VCR

VIDEO OUT

AUDIO OUT

ANT IN

TO AUDIO

AMP

L

R

CONNECTION ON BACK OF TV

COMPONENT
VIDEO INPUT

INP UT1

S-VIDEO

R AUDIO

P

R

R AUDIO

L

P

B

LINP UT2

Y/VIDEO

VIDEO

CABLES NOT SUPPLIED

Note: The Remote Control must be programmed with the supplied codes to operate the VCR.

Procedure

Turn the VCR OFF and tune the TV to channel 3.
Press the PIP button on the Remote Control to display the PIP frame on screen.

Note: The PIP picture is the same as the Main picture, initially.



Press the TV/VIDEO button on the Remote Control to select the VIDEO PIP source.



Press the VCR button on the Remote Control and turn ON the VCR.



Press the TV/VCR button on the Remote Control.



Choose channels for



Choose channels for the
down buttons.

PIP

frame by pressing VCR CHANNEL up/down buttons on the RemoteControl.

Main Picture

by pressing the TV button on the Remote Control and using the numeric keypad or CH up/

ANT IN

L

R

ANT OUT

Incoming

Cable

SWAP and RECALL Buttons

The SWAP button switches the PIP and Main Picture
source. Press the RECALL button for on screen PIP
and Main Picture source status.

9



PIP F

UNCTIONBUTTONS

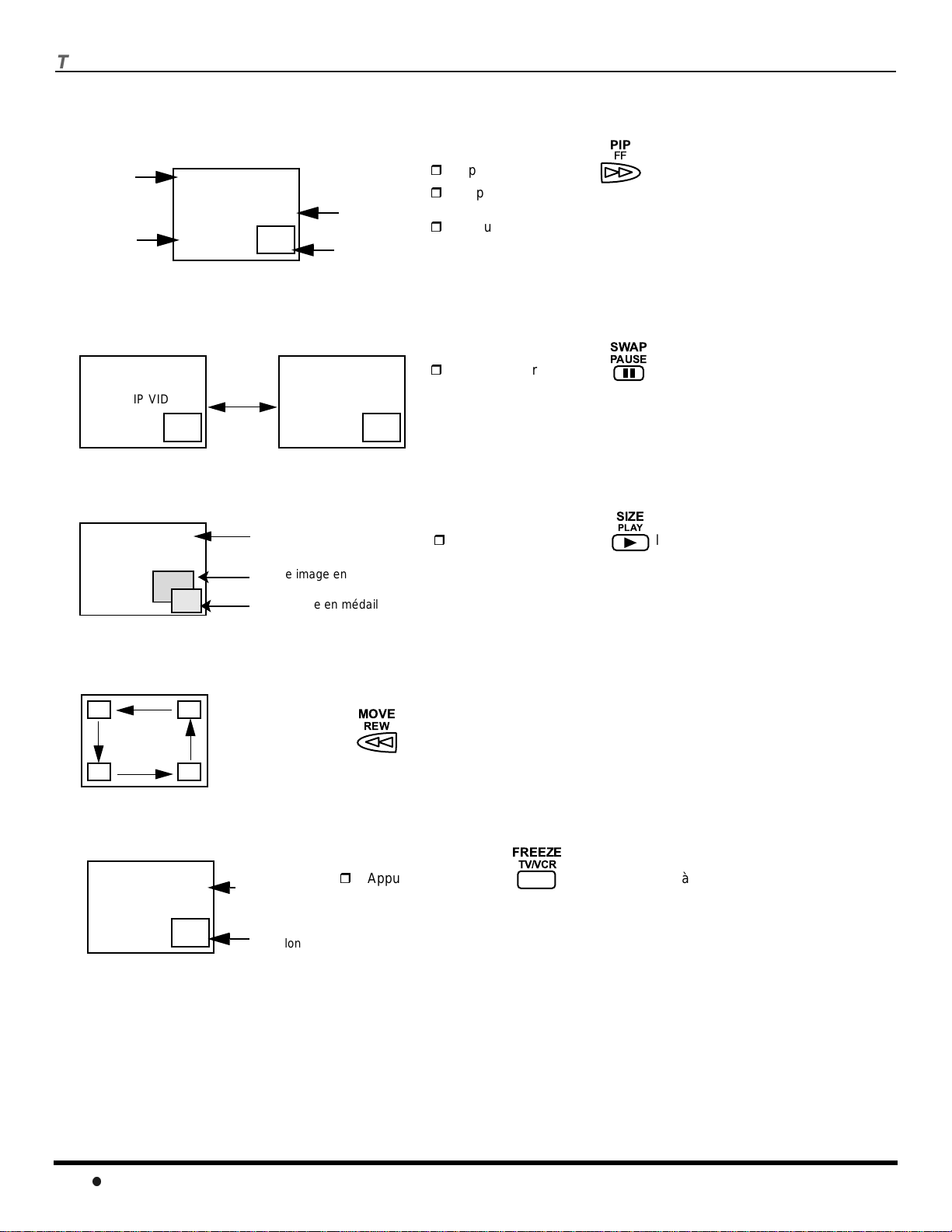

PIP Function Buttons

PIP (Picture-in-Picture) Button

Main


with

Audio

Swap Button

CH 2

PIP VIDEO 1

Size Button

PIP VIDEO 1

Main Picture

CH 2

Large PIP frame

Main Picture
Channel

PIP Video
Source

PIP
Frame

VIDEO 1

CH 2

PIP

FF



Press to display PIP frame.



Press TV/VIDEO button to select the same input to which the
external video source is connected.



Press PIP button again to cancel the PIP feature.

Note: Audio is from Main Picture only

SWAP



PAUSE

Press (when PIP frame is displayed) to interchange the main
picture w ith the picture in the PIP frame.

SIZE



Press (when PIP frame is displayed) to choose either the

PLAY

large or small PIP frame.

Move Button

Freeze Button

Small PIP frame

MOVE

REW

The PIP frame may be placed at any corner of the Main Picture by pressing the button. Each
time the MOVE button is pressed, the PIP frame will move counterclockwise as illustrated.

FREEZE

Main



Press tostopactionintheMainorPIPframe.

TV/VCR

Note:

PIP
Frame

• Pressing FREEZE button when PIP frame is not displayed, will display a
snapshot image of the main picture in the PIP frame.

• Pressing FREEZE button when PIP frame is displayed, will freeze the
action in the PIP frame. Press the FREEZE button again to continue
action.

10



Remote Control Operation

(For model CT-2707Donly)

R

EMOTECONTROLOPERATION

POWER

Press to turn ON and OFF.

D

B

R

S

/

C

C

V

V

T

Press to select remote operati on.

B

L

D

V

D

ACTION

Press to access menus.

TV/VIDEO

Press to select TV o r Video mode

MUTE

Press to mute sound. Press to display and
cancel CC (Closed Caption)..

“0~9”

Press numeric keypad to select any channel.

R-TUNE

Press to switch to previou sly viewed
channel o r video mode.

VOL

Press to adjust TV sound and navigate in
menus.

CH

Press to select next or previous channel and
navigate in menus.

EXIT

DBS functions button.

GUIDE

DBS functions button.

RECALL

Press to display time, channel, sleep timer,
and other options.

*MOVE

REW

*FREEZE

TV/VCR

REC

*PIP function buttons (top)

Component function buttons (bottom)

*SIZE
PLAY

STOP

VCR/DBS CHANNEL

*SWAP
PAUSE

*PIP

FF

Battery Installation

Use two AA batteries:

Remove battery cover by pushingin and up near arrow.
Install batteries matching (+) and (-) polarity signs.
Replace the batterycover.

Note:

Incorrect installation can cause battery leakage and
corrosion that will damagethe Remote Control

EUR511511

Precautions

• Replace batteries in pairs.

• Do not mix battery types (zinc carbon
with alkaline).

• Do not recharge, heat, short-circuit,
disassemble, or burn batteries.

11



R

EMOTECONTROLOPERATION

Remote Control Operation

(For model CT-3207Donly)

POWER

Press to turn ON and OFF.

D

B

S

/

C

R

B

C

V

V

T

Press to select remote operation.

L

D

V

D

ACTION

Press to access menus.

TV/VIDEO

Press to select TV or Video mode

MUTE

Press to mute sound. Press to display and
cancel CC (Closed Caption)..

“0~9”

Press numeric keypad to select any channel.

R-TUNE

Press to switch to previously viewed
channel o r video mode.

*LIGHT

Press to illuminate remote buttons.

VOL

Press to adjust TV sound and navigate in
menus.

CH

Press to select next or previous channel and
navigate in menus.

EXIT

DBS f unctions button.

GUIDE

DBS f unctions button.

RECALL

Press to display time, channel, sleep timer,
and other options.

*MOVE

REW

*FREEZE

TV/VCR

REC

*PIP function buttons (top)

Component function buttons (bottom)

*SIZE

PLAY

STOP

VCR/DBS CHANNEL

*SWAP

PAUSE

*PIP

FF

Battery Installation

Use two AA batteries:

Remove battery cover by pushingin and up near arrow.
Install batteries matching (+) and (-) polarity signs.
Replace the batterycover.

Note:

12

Incorrect installation can cause battery leakage and
corrosion that will damagethe Remote Control



EUR511501

Precautions

• Replace batteries in pairs.

• Do not mix battery types (zinc carbon
with alkaline).

• Do not recharge, heat, short-circuit,
disassemble, or burn batteries.

*To prolong the life for the batteries, turn the light
off and on by pressing R-TUNE and RECALL
buttons, simultaneously.

R

EMOTECONTROLOPERATION

Mode Operational Key Chart

This chart defines the keys that are operational in the selected component modes (TV, VCR, DBS, CABLE or DVD) after
programming (if needed).

KEY NAME
POWER
MUTE
TV/VIDEO
CH



CH



VOL





VOL
ACTION
RECALL
EXIT
GUIDE
1
2
3
4
5
6
7
8
9
0

R-TUNE
<<MOVE

REW

SIZE/PLAY

>>PIP

FF
FREEZE/TV/VCR
STOP
SWAP/PAUSE
RECORD

TV MODE CABLE MODE DBS MODE

POWER POWER POWER

MUTE TV MUTE TV MUTE

INPUT SWITCH TVINPUT SWITCH TV INPUT SWITCH

CHANNEL UP CABLE CHANNEL UP DBS CHAN/NAVIGATIONUP

CHANNEL DOWN CABLE CHANNEL DOWN

VOL + TV VOL + DBS NAVIGATION RIGHT

VOL - TV VOL - DBS NAVIGATION LEFT

MENU/ENTER - DBS MENU

DISPLAY TV DISPLAY DBS PROG. INFO

- - DBS EXIT

- - DBS GUIDE
DIGIT 1 DIGIT 1 DIGIT 1
DIGIT 2 DIGIT 2 DIGIT 2
DIGIT 3 DIGIT 3 DIGIT 3
DIGIT 4 DIGIT 4 DIGIT 4
DIGIT 5 DIGIT 5 DIGIT 5
DIGIT 6 DIGIT 6 DIGIT 6
DIGIT 7 DIGIT 7 DIGIT 7
DIGIT 8 DIGIT 8 DIGIT 8
DIGIT 9 DIGIT 9 DIGIT 9
DIGIT 0 DIGIT 0 DIGIT 0

PREVIOUS CHAN
OR VIDEO MODE

TV PIP MOVE - -

TV PIP SIZE - -

TV PIP ON / OFF - -

TV PIP FREEZE -

- - -

TV PIP SWAP - -

- -

CABLE PREVIOUS

CHANNEL

DBS CHAN/NAVIGATION

DOWN

PREVIOUS DBS CHANNEL

VCR/DBS CHAN

VCR/DBS CHAN

VCR CHANNEL UP - DBS PAGE DOWN

VCR CHANNEL DOWN - DBS PAGE UP

13



R

EMOTECONTROLOPERATION

Mode Operational Key Chart (cont’d)

KEY NAME VCR MODE DVD MODE
POWER
MUTE
TV/VIDEO
ACTION
CHAN UP
CHAN DOWN
VOL RIGHT
VOL LEFT

RECALL
EXIT

GUIDE
1
2
3
4
5
6
7
8
9
0
R-TUNE
<<REW
PLAY

>>FF
PAUSE

STOP
RECORD
TV/VCR

VCR/DBS CHAN

POWER POWER

TV MUTE TV MUTE

TV INPUT SWITCH TV INPUT SWITCH

- -

- NEXT CHAPTER

- PREVIOUS CHAPTER

TV VOLUME + TV VOLUME +

TV VOLUME - TV VOLUME -

ONSCREEN VCR

DISPLAY

- -

- -

- -

- -

- -

- -

- -

- -

- -

- -

- -

- -

- --

VCR REWIND SKIP SEARCH <<

VCR PLAY DVD PLAY

VCR FF

VCR PAUSE DVD PAUSE

VCR STOP DVD STOP

VCR RECORD -

TV/VCR SWITCH OPEN/CLOSE

VCR CHANNEL UP SLOW+

DVD DISPLAY

SKIP SEARCH

FF>>

14

VCR/DBS CHAN

VCR CHANNEL DOWN SLOW -



R

EMOTECONTROLOPERATION

Programming The Remote

The Universal Remote Control can be programmed to operate many manufacturers’ components, using the component
function buttons for VCR, DVD, CABLE or DBS. Follow the procedures for programming your Remote Control with or
without a code for the component.

Default Modes For Remote Control

Device Operates Default

TV TV (Panasonic Only) Panasonic TV Codes
VCR VCR (Preset) Panasonic VCR Codes
DBS DBS (Preset) Panasonic DBS Codes
CABLE CABLE (Preset) Panasonic DBS Codes
DVD DVD, CD (Preset) Panasonic DVD Codes

Determine the manufacturer of the component and look in the table for the code.

Programming With a Code

Procedure

• Confirm that the external component is plugged in and operating.

• Turn the component off.

• Press and together, for at least 5 seconds.

ACTION

• Press appropriate component button on the Remote Control VCR, DVD, CABLE or DBS.

• Enter the 3-digit component code using the Remote Control numeric keypad (0 ~ 9 buttons).

• Press the Remote Control to test the component. If the procedurewas successful, the component will turn on.

POWER

POWER

Helpful Hints: Unsuccessful Code

If the component does not operate with the Remote Control, repeat
the procedure using another code. (Some brands have multiple
codes).
If an incorrect code is entered, or if the procedure takes longer than
30 seconds, the programming will fail.

Programming Without a Code

This procedure searches all codes and is called the “sequence method.”

• Confirm that the external component is plugged in and on.

• Turn the component off.

• Press and together, for at least 5 seconds.

• Press appropriate component button on the Remote Control.

• Press to move forward to the next code.Press to move backward.

• Press the Remote Control to test the component. If the procedurewas successful, the component will turn on.

ACTION

VOL

Note: Repeat the above steps until the component code is found. It may take many attempts before the correct code

is found.

• After the code is found, press to store the code.

POWER

VOL

POWER

ACTION

15



R

EMOTECONTROLOPERATION

Component Codes

The Universal Remote Control is capable of operating many component brands after entering a code. Some components
may not operate because the codes are not available due to limited memory. The Universal Remote Control does not
control all features found in each model.

Write the code numbers from tables in this space. This will serve as a reference if you need
to program your Remote Control.

VCR DVD DBS CABLE

Codes For VCR

Brand Code

Admiral 135
Aiwa 127, 132

Akai
Audio Dynamic 139, 111

Bell & Howell 105, 113
Broksonic 120, 126
Canon 123, 125
CCE 143
Citizen 106
Craig 105, 129, 106
Curtis Mathes 145, 124, 127
Daewoo 143, 124, 175
DBX 139, 110, 111
Dimensia 145
Emerson 143, 126, 119, 103, 125, 120
Fisher 105, 108, 109, 107, 113
Funai 120, 126. 127. 134
GE 124, 133, 145
Go Video 137, 151, 163
Goldstar 106
Gradiente 134, 156, 168, 170
Hitachi 100, 123, 127, 145, 168
Instant Replay 123, 124
Jensen 139
JVC 110, 111, 134, 139
Kenwood 106, 110, 111, 134, 139
LG 106

LXI
Magnavox 123, 124, 131

Marantz 110, 111, 139
Marta 106
Memorex 109, 124
MGA 138, 140, 141, 147, 148, 161
Minolta 100, 145
Mitsubishi 138, 140, 141, 147, 148, 1
Multitech 137
NEC 110, 111, 134, 139
Olympic 123, 124
Optimus 106, 121, 128, 135

129, 114, 115,1

100, 105, 106, 107, 108, 109,
127

Brand Code

Orion 120, 126
Panasonic 121, 122, 123, 124

Penney
Pentax 100, 111, 145

Philco 120, 123, 124, 126, 127, 143
Philips 123, 124, 131, 173
Pioneer 123

Proscan
Quasar 121, 122, 123, 124
Radio S hack

RCA

Realistic 105,109, 124, 127, 136, 140
Samsung 102, 104, 133, 137
Sansui 120, 126, 139, 152
Sanyo 105, 109, 113

Scott
Sears 100, 105, 106, 107, 108

Sharp 135, 136, 137
Shintom 117
Signature 2000 127,135
Singer 117
Sony 128, 129, 130
SV2000 127
Sylvania 1123, 124, 127, 131, 178
Symphonic 127,168, 177
Tashiro 106
Tatung 110, 111, 139
Teac 110, 111, 127, 139
Technics 1121, 122, 123, 124
Teknika 124, 127
Toshiba 101,146, 166
Vector Research 111
Wards 106, 109, 135, 136
Yamaha 105, 110, 111, 139
Zenith 106, 169

100, 105, 110, 111, 124, 139,
145,

100, 101, 102, 123, 124, 131,
133, 145, 146, 174

105, 109, 124, 127, 133, 136,
140

100, 101, 102,123, 124, 131,
133, 145, 146, 170, 172, 174,
176

102, 104, 109, 120, 126, 138,
140, 147, 148

16



Component Codes (contd.)

Codes for Cable Box

R

EMOTECONTROLOPERATION

Brand Code

ABC 224
Archer 225, 232
Cableview 205, 232
Citizen 205, 222
Curtis 212, 213
Diamond 224, 225, 232
Eagle 229
Eastern 234
GCbrand 205, 232
Gemini 222

General
Instrument/
Jerrold

Hamlin 212,218, 240, 241, 242, 245
Hitachi 203, 224
Macom 203, 204, 205
Memorex 230
Movietime 205, 232
Oak 202, 237, 239
Panasonic 209, 210, 214
Philips 206, 207, 228, 229, 230
Pioneer 201, 216
Pulsar 205, 232

211,219, 220, 221, 222, 224,
225, 226, 227

Brand Code

Puser 232
RCA 215
Realistic 232

Regal
Regency 234

Rembrandt 205, 232, 237
Samsung 205
Scientific

Atlanta
Slmark 201, 205
Sprucer 205, 210
Stargate 205, 210
Telecaption 248
Teleview 201, 205
Texscan 244
Tocom 235, 236, 247
Unika 225, 232
Universal 222, 232
Videoway 206
Viewstar 229, 230
Zenith 200, 227
Zenith/.Drake

Satellite

212, 218, 240, 241, 242, 245,
249

211,212, 213

200

Brand Code

Denon 100
Ferguson 101
JVC 108
Mitsubishi 105
Nordmende 101
Panasonic 100
Philips 103
Pioneer 102

Brand Code

Dish N etwork
(Echostar)

Echostar 105
G. E. 106
Gradiente 114
Hitachi 103, 111, 112
HNS (Hughes) 103

105

Codes for DVD

Brand Code

RCA 101
Saba 101
Samsung 110
Sharp 108
Sony 104
Thomson 670
Toshiba 103
Yamaha 100
Zenith 107

Codes for DBS

Brand Code

Panasonic 104
Philips 101, 102
Primestar 108
RCA 106, 109, 110, 113
Sony 107
Toshiba 100
Uniden 101, 102

17



I

CONMENUNAVIGATION

Icon Menu Navigation

Press to display the icons.

Press to select desired icon.

EXIT

EXIT

Press to display selected

icon features.

Press to select feature.

Press

to adjust or activate feature.


VIDEO ADJ.

OTHER ADJ.


VIDEO ADJ.

OTHER ADJ.

COLOR

TINT
BRIGHTNESS
SHARPNESS
NORMAL

COLOR

TINT
BRIGHTNESS
SHARPNESS
NORMAL

-- --

-- --

-- --

-- -- -- -- ---- -- -- -- --

-- --

-- --

-- --

-- --

-- -- -- -- ---- -- -- -- --

-- --

BRIGHTNESS 32 -- -- -- I -- -- --

--

I -- -- --

--

I -- -- --

--

I -- -- --

--

I -- -- --

--

--

--

--

--

NO

I -- -- -­ I -- -- --

I -- -- --

I -- -- --

NO

I

u

--

I

u

18

Press repeatedly to exit menus.

NORMAL PICTURE



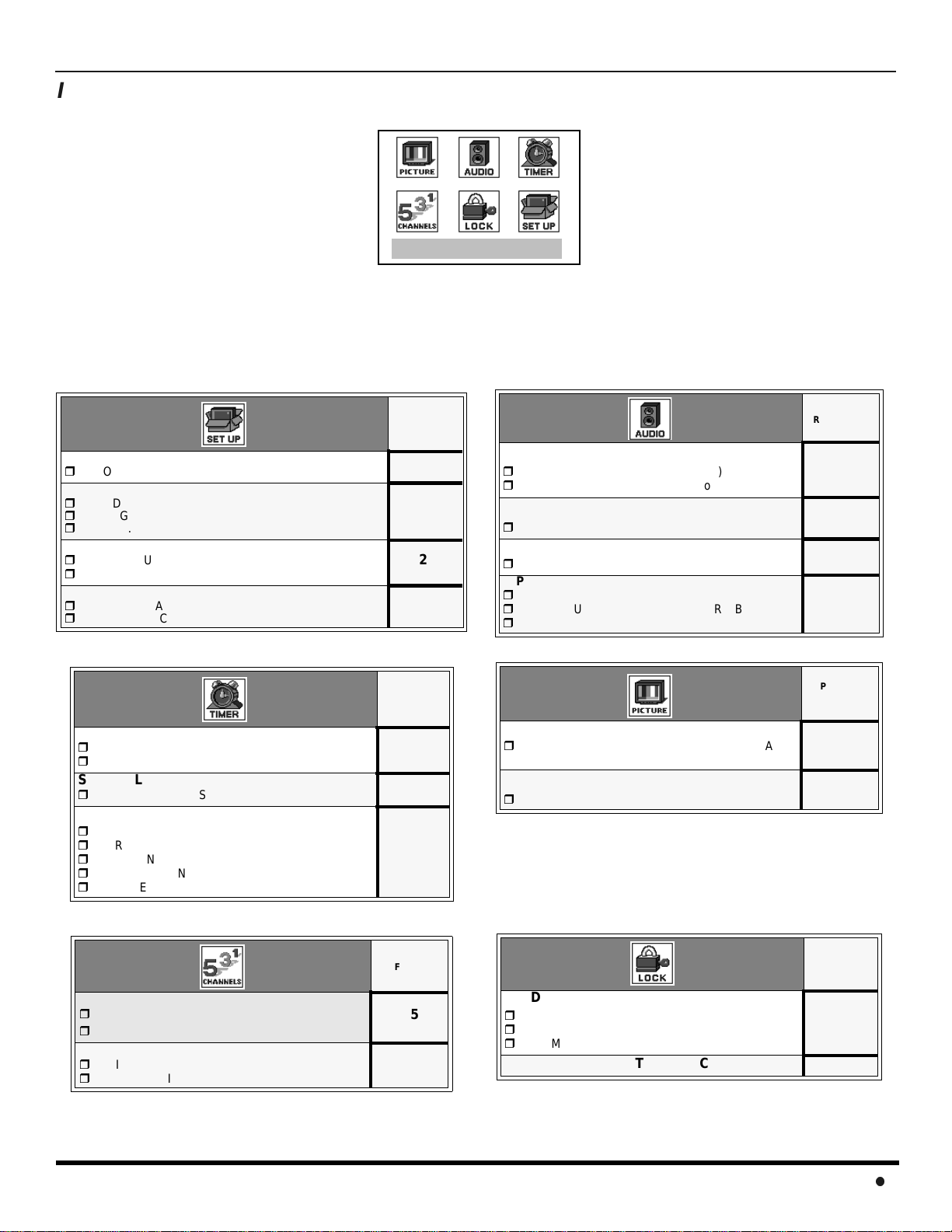

Main Menu Icons

EXIT

Icon Menus

These charts list all menus under each Icon and which pages to refer to for menus description.

M

AINMENUICONS

IDIOMA/LANGUE



MODE - (ENGLISH, FRANÇAIS, ESPAÑOL)

PROG CHAN



MODE - (TV or CABLE)



AUTO PROGRAM



MANUAL PROGRAM

CC (CLOSED CAPTIONED)



CC ON MUTE



CC MODE

OTHER ADJ.



AUTO POWER ON



CHANNEL BANNER

CLOCK SET



TIME



DAY

SLEEP



HOW LONG?

TIMER 1 and TIMER 2



DAY



ON TIME



OFF TIME



ENTER CHANNEL



SET

REFER

TO

PAGE

20

20

21

21

REFER

TO

PAGE

23

23

23

AUDIO ADJ.



MODE (STEREO, SAP or MONO)



BASS, TREBLE, BALANCE OR NORMAL

OTHER ADJ.



AI SOUND

SURROUND



MODE

SPEAKERS



ON



OFF & VARIABLE AUDIO OUT



OFF & FIXED AUDIO OUT

VIDEO ADJ



COLOR, TINT, BRIGHTNESS, PICTURE,
SHARPNESS OR NORMAL

OTHER ADJ.



COLOR TEMP

REFER

TO

PAGE

24

24

24

24

REFER

TO

PAGE

22

22

FAVORITES



CHANNEL SCAN



ENTER CHAN

CAPTION



MANUAL CAPTION



INPUT LABEL

REFER

TO

PAGE

25

25

MODE



LOCK SET - (OFF or GAME)



BLOCK PROGRAM



HOW LONG?

V-CHIP OPERATION 27

REFER

TO

PAGE

26

19



I

CONMENUOPERATION

Icon Menu Operation

SET UP

Note: Refer to page 18 for IconMenu Navigation procedures.

IDIOMA/LANGUE (Menu Languages)
In SET UP Menu, select IDIOMA/LANGUE to change menu language to ENGLISH, ESPAÑOL (Spanish) or FRANÇAIS

(French).

SETUP

IDIOMA/
LANGUE

PROG CHAN

CC

OTHER ADJ.

MODE ENGLISH

Prog Chan (Program Channels)

In SET UP menu under PROG CHAN select:



MODE - To select TV (antenna) or CABLE mode depending on the signalsource.

SETUP

IDIOMA/

LANGUE

PROG CHAN

CC

OTHER ADJ.

MODE

AUTO PROGRAM
MANUAL PROGRAM

CABLE

u
u

u

u



Press to select English, Spanish or French.

VOL



Press to select TV or CABLE.

VOL



AUTO PROGRAM - To automatically program all channels with a signal.

SETUP

IDIOMA/

LANGUE

PROG CHAN

CC

OTHER ADJ.



MANUAL PROGRAM - To manually add or delete channels.

SETUP

IDIOMA/

LANGUE

PROG CHAN

CC

OTHER ADJ.

MODE

AUTO PROGRAM

MANUAL PROGRAM

MODE
AUTO PROGRAM

MANUAL PROGRAM

CABLE

u
u

CABLE

u
u

u

u



Press to start AUTO PROGRAM.

VOL



Press to display next menu.

VOL

SET UP

MANUAL PROGRAM

ENTER CHANNEL

u

TO ADD

t

TO DELETE

3

Note: Use Remote numeric keypad to enter channel

numbers.

20



I

CONMENUOPERATION

CC

(Closed Captioning)

This television contains a built-in decoder that displays (Closed Captioned) text across the screen (white or colored

CC

letters on black background). It allows the viewer to read the dialogue of a television program or other information. The
program viewed must include Closed Captioning for the feature to work.

CC

On Mute

Activates the Closed Caption feature when the MUTE button on the remote control is pressed

SETUP

IDIOMA/
LANGUE

PROG CHAN

CC

OTHER ADJ.

CC ON MUTE NO

CC MODE OFF



Press to select C1, C2, or NO.

VOL

Note: This feature only functions when the Closed Caption Mode is O FF. The recommended

setupforClosedCaptiononMuteis:

• CCONMUTE:C1

•CCMODE:OFF

CC

Mode

Activates the onscreen Closed Caption feature by selecting one of the following modes:



OFF - When Closed Caption is not desired.



C1 - Forvideo related informationto be displayed, up to 4 lines onscreen at a time. (It does not block relevant parts of the picture).
Text may be in any language.



C2 - For other mode of video related information.

SETUP

IDIOMA/
LANGUE

PROG CHAN

CC

OTHER ADJ.

CC ON MUTE NO

CC MODE OFF



Press to select C1, C2, or NO.

VOL

Note: C1 mode is recommended for viewing Closed Caption.

Other Adjustments

In SETUP Menu under OTHER ADJ. select:



AUTO POWER ON - Select SET to power up the TV at the same time as the Cable box or other components or select OFF.

SETUP

IDIOMA/
LANGUE

PROG CHAN

CC

OTHER ADJ.



CHANNEL BANNER - Select ON to displayonscreen banner when changing channels.

SETUP

IDIOMA/
LANGUE

PROG CHAN

CC

OTHER ADJ.

AUTO POWER ON OFF

CHAN BANNER OFF

AUTO POWER ON OFF

CHAN BANNER OFF



Press to select OFF or SET.

VOL



Press to select OFF or ON.

VOL

Note: Press RECALL to display onscreen Channel Banner at any time.

21



I

CONMENUOPERATION


Note: Refer to page 18 for IconMenu Navigation procedures.

Video Adj.

In Picture menu under VIDEO ADJ. select:



COLOR - Adjusts desired color intensity.



TINT - Adjusts natural flesh tones.



BRIGHTNESS - Adjusts dark areas of picture.



PICTURE - Adjusts white areas of picture.



SHARPNESS - Adjusts clarity of outline detail.



NORMAL - Reset all picture adjustments to factory default settings.


VIDEO ADJ.

OTHER ADJ.

COLOR

TINT
BRIGHTNESS
SHARPNESS
NORMAL

-- -- -- I -- -- --

-- I -- -- --

-- --

-- -- -- I -- -- --

-- -- -- -- ---- -- -- -- -- -- I

-- -- -- I -- -- --

NO





u

Video Input Me mory



CH

Press to select desired picture adjustment.
Press or to adjust.

VOL VOL

Video adjustments can be individually set for each video input mode.

Other Adj.

In Picture menu under OTHER ADJ. select:



COLOR TEMP - To increase and decrease WARM (red) and COOL (blue) colors to suitpersonal preferences.




VIDEO ADJ.

OTHER ADJ.

COLOR TEMP NORMAL

u

Press to select WARM, COOL or NORMAL.

VOL

22


