Panasonic CQ-DFX883U User Manual [en, es, fr]
Panasonic
Removable Full Front MP3 WMA CD Player/Receiver
with CD Changer Control
Récepteur/lecteur CD MP3 WMA avec panneau avant
amovible et contrôle de changeur CD
Reproductor de CD MP3 WMA/Receptor con Controlador
de Cambiador de Discos y Frente Completo Desmontable
CQ-DFX883U
m
sis
-‘■r-
Operating Instructions
Manuel d’instructions
Manual de instrucciones
í âUOlO
I TP y T I
• Pleas« read ihese msimciions carefully belore using ifiis product and save tnis manual tor tuture use
• Pnere de lire ces instructions allentivemeni avant d'uliliscr lo produit et garder ce manuel pour ruIHisatfon ulténeirre
• Lea con atención estas mstriccinnes antes de utilizar el producto y guarde este manual para poderío consultar en el luluro.
Safety Information
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, AND ANNOYING INTERFERENCE, USE
ONLY THE INCLUDED COMPONENTS.
CAUTION:
THIS PRODUCT IS A CLASS I LASER PRODUCT.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
The following applies only in the U.S.A.
rPart 15 of the FCC Rules
I
! FCC Warning:
j Any unauthorized changes or modifications to
this equipment would void the user’s authority to
operate this device.
r
NOTICE:
This product has a fluorescent lamp that con
tains a smait amount of mercury. It also con
tains lead in some components. Disposal of
these materials may be regulated in your com
munity due to environmental considerations.
For disposal or recycling information please
contact your local authorities, or the
Electronics Industries Alliance:
<
http://www.eiae.org.>
Find the model number and serial number on either
the back or bottom of the unit. Please record them
in the space below and retain this booklet as a per
manent record of your purchase to help with identi
fication in case of theft.
MODEL NUMBER
SERIAL NUMBER
DATE PURCHASED
FROM
CQ-DFX883U
C0-DFX883U
Consignes de sécurité Información para su seguridad
MISE EN GARDE:
POUR RÉDUIRE LES RISQUES D’INCENDIE OU
D’ÉLECTROCUTION, N’EXPOSEZ PAS CET APPAREIL À
LA PLUIE OU À L’HUMIDITÉ.
AFIN DE PRÉVENIR TOUT RISQUE D’INCENDIE OU
D’INTERFÉRENCES, UTILISER UNIQUEMENT LES
COMPOSANTS FOURNIS.
AHENTION:
CET APPAREIL EST UN PRODUIT LASER DE LA
CUSSEI.
L’UTILISATION DE COMMANDES OU RÉGUGES QU
L’EXÉCU^ON D’OPÉRATIONS AUTRES QUE CELLES QUI
SONT INDIQUÉES DANS CE DOCUMENT PEUVENT
RÉSULTER EN UNE EXPOSITION À UN RAYONNEMENT
DANGEREUX.
N’OUVREZ PAS LES COUVERCLES ET N’ESSAYEZ PAS
D’EFFECTUER VOUS-MÊME DES RÉPARATIONS.
ADRESSEZ-VOUS À UN PERSONNEL QUALIFIÉ POUR
TOUTE RÉPARAUON.
ADVERTENCIA:
PARA REDUCIR EL RIESGO DE INCENDIOS O
SACUDIDAS ELÉCTRICAS, NO EXPONGA ESTE
PRODUCTO A LA LLUVIA NI A LA HUMEDAD.
PARA REDUCIR EL RIESGO DE INCENDIOS O
SACUDIDAS ELÉCTRICAS, Y PARA EVITAR LAS
INTERFERENCIAS MOLESTAS, UTILICE SOUMENTE
LOS COMPONENTES INCLUIDOS.
PRECAUCION:
ÉSTE ES UN PRODUCTO LÁSER DE U CLASE I.
U UTILIZACIÓN DE CONTROLES, EL HACER AJUSTES
O EL SEGUIR PROCEDIMIENTOS DISTINTOS DE LOS
ESPECIFICADOS EN ESTE MANUAL PODRÍA CAUSAR
UNA EXPOSICIÓN PELIGROSA A LA RADIACIÓN.
NO ABRA LAS CUBIERTAS NI HAGA REPARACIONES
USTED MISMO. SOLICITE LOS TRABAJOS DE SERVICIO
AL PERSONAL CALIFICADO.
II est recommandé de noter, dans l’espace prévu
ci-dessous, les numéros de modèle et de série
inscrits soit à l’arrière soit sous le fond de
l’appareil, et de conserver ce manuel comme
mémorandum de l’achat afin de permettre
l’identification de l’appareil en cas de vol.
NUMERO DE MODELE
CQ-DFX883U
NUMÉRO DE SÉRIE
DATE DE L’ACHAT
VENDEUR
Busque el número del modelo y el número de serie
ya sea en la parte trasera o en el fondo de la unidad.
Sírvase anotar dichos números en el espacio
siguiente, y mantenga este líbrete como una
anotación permanente de su compra para
ayudar en la identificación en el caso de robo.
NÚMERO DEL MODELO
CQ-DFX883U
NÚMERO DE SERIE
FECHA DE COMPRA
NOMBRE DE LA TIENDA
CQ-DFX883U
Panasonic welcomes you to our ever growing
family of electronic product owners. We know that
this product will bring you many hours of enjoy
ment Our reputation is built on precise electronic
and mechanical engineering, manufactured with
Use this Product Safely
carefully selected components and assembled by
people who take pride in their work. Once you dis
cover the quality, reliability, and. value we have
built into this product, you too will be proud to be
a member of our family.
When Driving
Keep the volume level low enough to be aware of
road and traffic conditions.
When Washing Your Car
Do not expose the product, including the speakers
and CDs, to water or excessive moisture. This could
cause electrical shorts, fire, or other damage.
When Parked
Parking in direct sunlight can produce very high
temperatures inside your car. Give the interior a
chance to cool down before switching the unit on.
Use the Proper Power Supply
This product is designed to operate with a 12 V DC,
negative ground battery system (the normal system
in a North American car).
Features
MP3/WMA Playback from CD-R/RW
You can play your MP3/WMA {Windows Media
Audio) files as well as regular CDs.
With up to 10 to 12 times* the capacity of a con
ventional CD, a single MP3/WMA-encoded disc can
keep you entertained throughout your entire jour
ney.
‘Depending on bit rate.
Oise Mechanism
Do not insert coins or any small objects. Keep
screwdrivers and other metallic objects away from
the disc mechanism and disc.
Use Authorized Servicenters
Do not attempt to disassemble or adjust this preci
sion product. Please refer to the Servicenter list in
cluding with this product for service assistance.
For Installation
This product should be installed in a horizontal po
sition with the front end up at a convenient angle,
but not more than 30®.
Note;
• The preset memory is cleared to return to the
original factory setting when the power connector
or battery is disconnected.
Large-sized Volume Control
An large-sized rotary volume control that looks like
one belonging to a Hi-Fi audio system is featured.
Spectrum Analyzer
This shows you the changing energy levels in differ
ent frequencies of the music as it is played.
CD Changer Control
You need connect the optional CD changer unit. For
details, refer to the operating instructions on the CD
changer unit.
Example:
CQ-DFX883U
Front Speaker
Rear speaker
CQ-DFX883U
Contents
Safety Information..............................................................................Page 2
Use this Product Safely
Features................................................................................................... 4
Before Reading these Instructions
a Accessories......................................................................................16
..............................................................................
..............................................................
4
5
□ Remote Control Unit Preparation
......................................................
16
Battery installation, battery notes
□ General......................................................................................... 17
Power (PWR), source, volume, muting or attenuation, dimmer (display
brightness setting range), S-HDB (Super High Definition Bass)
□ Clock Set
.......................................................................................
19
Time reset, display change
□ Radio.............................................................................................20
Radio mode, band, tuning, direct memory (D-M), display change, preset
station setting, manual preset memory, auto preset memory (АРМ),
preset station calling
□ CD Player......................................................................................22
Listening to a CD, open the front panel, insert the disc, stop and eject the
disc, folder selection, track (file) selection, pause, fast forward/fast
reverse, display change, direct track (file) selection, direct folder selection,
scan play, folder scan play, notes on MP3/WMA, random play/repeat play
in CD player mode, random play/repeat play in MP3/WMA player mode
□ CD Changer Control........................................................................32
CD changer mode, disc selection, track selection, fast forward/fast
reverse, using two changers (dual changers), display change, direct disc
selection, scan play, disc scan play, random play/repeat play
WELCOME
О
о
FM
о
о
о о
о о
о о
8 = 00
О
О
о
□ Audio Settings................................................................................36
Volume, bass and treble, balance and fader, subwoofer level, subwoofer
low pass filter

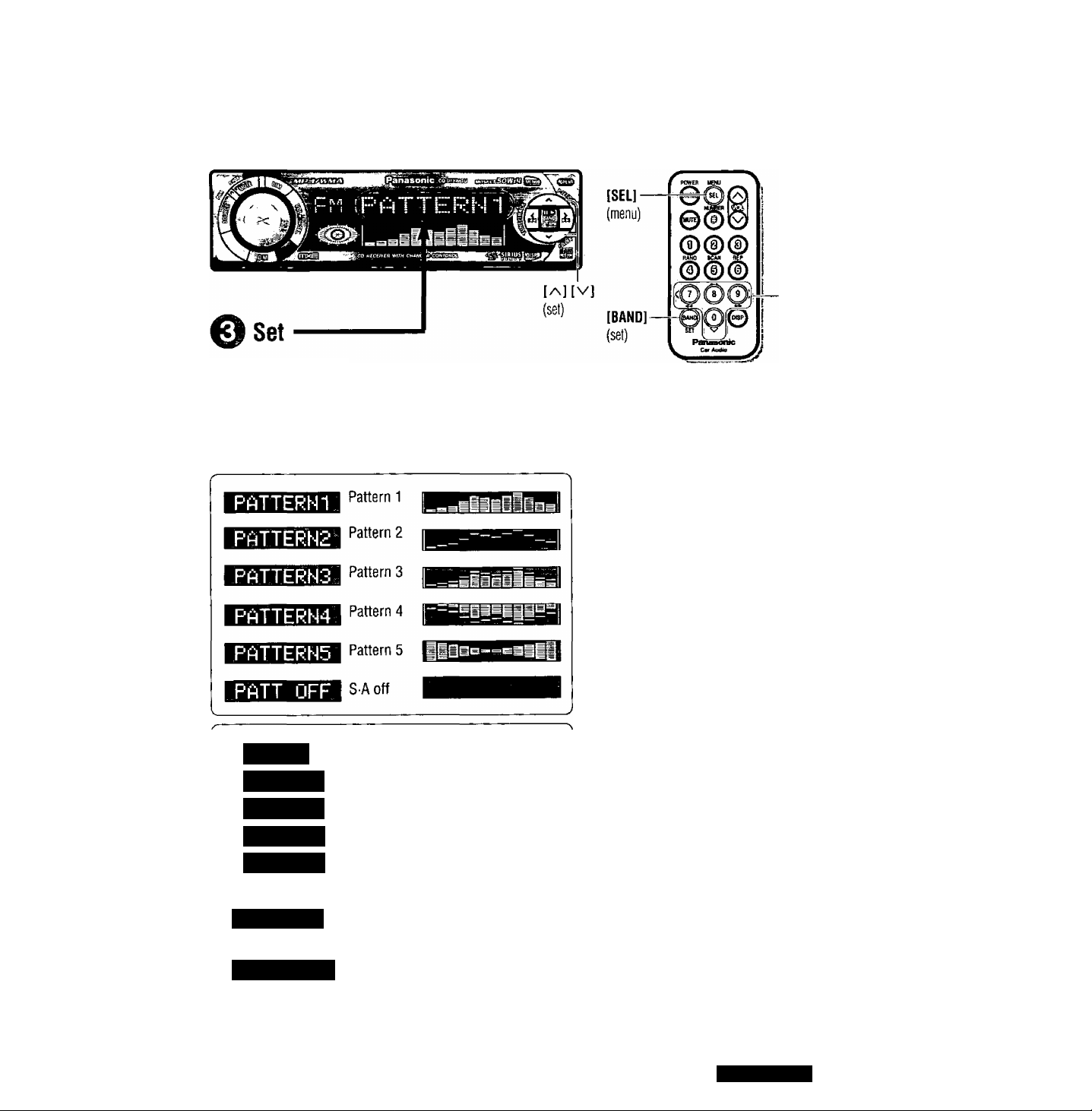

□ Picture (Display) Settings [PICTURE]................................................38
Spectrum Analyzer (S-A) display pattern, contrast, display setting
О Function Settings [FUNCTION].......................................................40
Muting or attenuation, security function, excluding Sirius from source
selection
CQ-DFX883U
'
----------
■о|
о
□ Troubleshooting............................................................................ 42
Preliminary steps, if you suspect something wrong, troubleshooting tips,
error display messages, maintenance, product servicing, replacing the
fuse
□ Maintenance................................................................................. 49
Notes on CD-Rs/RWs, notes on CD/CD media (CD-ROM, CD-R, CD-RW)
o o o o o
N
I
S
H
u
o

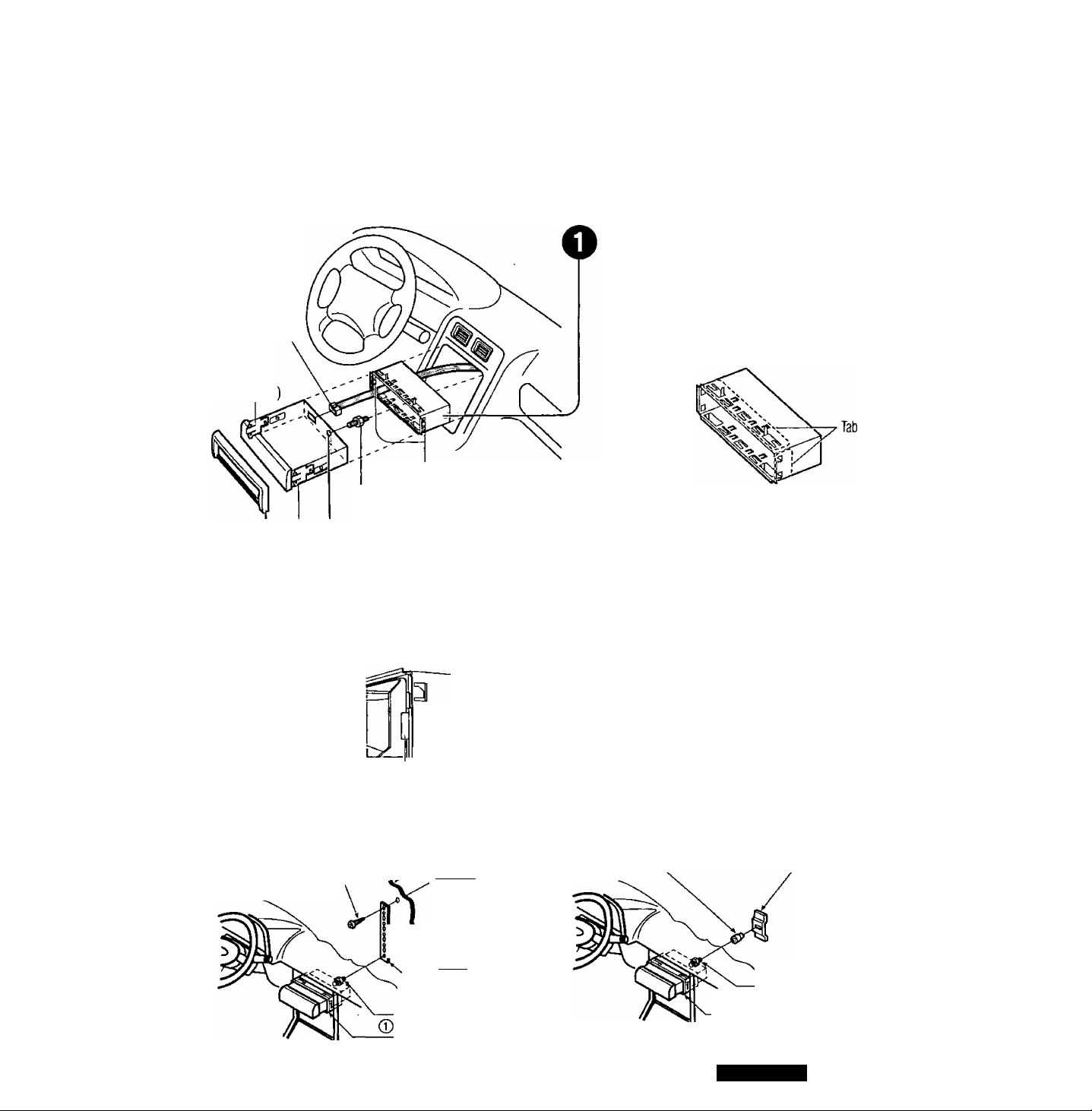

□ Instailation Guide
..........................................................................
50
Remove the unit
□ Anti-Theft System..........................................................................55
Place the removable face plate into case, install removable face plate,
security indicator, panel removal alarm

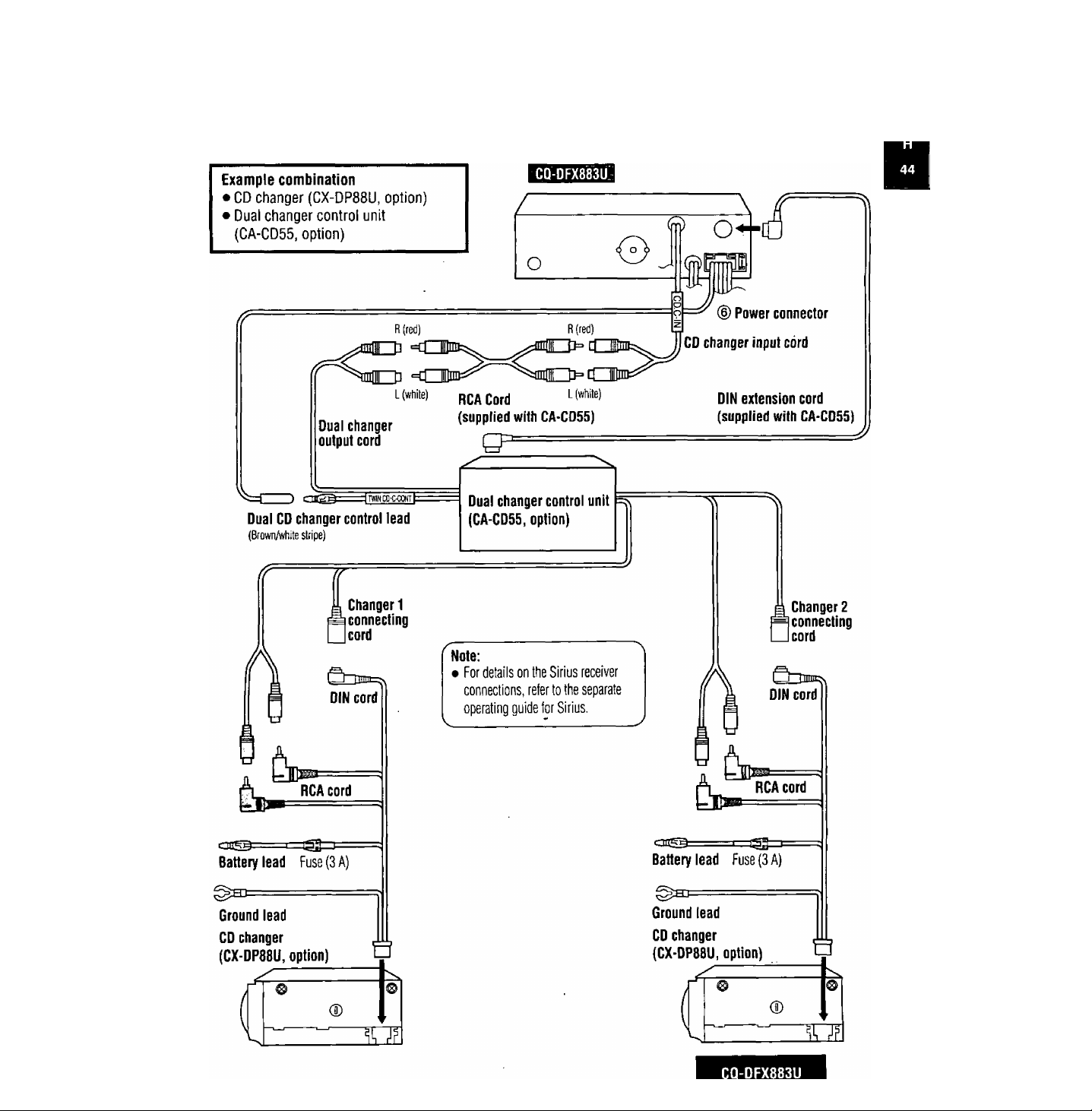

□ Electrical Connections....................................................................56
Caution, wiring diagram, upgrading the system 1,
upgrading the system 2
3 Specifications..................................................................................60
CQ-DFX883U
Panasonic est heureuse de vous compter parmi les
utilisateurs de ses appareils électroniques. Nous
pouvons vous assurer que cet appareil vous procurera
de longues heures d'agrément. Notre réputation est
fondée sur une ingénierie électronique et mécanique de
haute précision, laquelle préside à la fabrication
Précautions à prendre
d’appareils ne comportant que des composants de
choix assemblés par un personnel soucieux de la bonne
réputation acquise par la qualité de son travail. Après
avoir découvert la qualité, la valeur et la fiabilité de cet
appareil, vous aussi serez fier d’être un client
Panasonic.
Au volant
Réglez le volume à un niveau qui ne risque pas de
masquer les bruits ambiants.
Lavage de la voiture
Atin de prévenir tout risque de court-circuit ou
d’incendie, n’exposez pas [’équipement, y compris les
haut-parleurs et les disques, à l’eau ou à une humidité
excessive.
Voiture stationnée
L’habitacle d’une . voiture immobile exposée au soleil
toutes vitres fermées devient rapidement très chaud.
Laisser rafraîchir l’intérieur du véhicule avant d’utiliser
l’appareil.
Source d’aiimentation
Cet appareil est conçu pour fonctionner sur un système
d’alimentation avec batterie de 12 V à masse négative
(système standard sur les voitures de construction
nord-américaine).
Caractéristiques
Lecture MP3/WMA depuis un CD-R/RW
En plus des CD ordinaires, vous pouvez également faire ta
lecture des fichiers MP3/WMA {Windows Media Audio).
Avec une capacité 10 à 12 fois supérieure* à celle d’un
CD classique, un seul CD codé en format MP3/WMA peut
vous procurer un divertissement musical qui dure une
journée entière.
* Varie suivant le débit binaire.
Mécanisme de disque
N'insérez pas de pièces de monnaie ou de petits objets.
Gardez les tournevis et autres objets métalliques à l’écart
du mécanisme de disque et du disque.
Réparation
Ne tentez pas de démonter ou d’ajuster l’appareil
vous-même. Veuillez vous référer à la liste des centres de
service fournie avec cet appareil pour contacter le service
d’assistance.
Installation
L'appareil doit être installé en position horizontale avec
son extrémité avant inclinée vers le haut à un angle
commode, mais ne dépassant pas 30“.
Remarque:
• La mémoire de présyntonisation est effacée et les
réglages d’usine sont rétablis lorsque l’on débranche le
connecteur d’alimentation ou la batterie.
Grande commande de volume
L’appareil est équipé d’une grande commande rotative du
volume pour le réglage de la configuration audio Hi-Fi.
Analyseur de spectre
Vous indique la fluctuation des niveaux d’énergie pour les
diverses fréquences de la musique pendant sa lecture.
Commande de changeur CD
Le raccordement du changeur CD en option est nécessaire.
Pour plus de détails, référez-vous au manuel d’instructions
qui accompagne le changeur CD.
Exemple:
CQ-DFX883U
Haut-parleur avant
=^45“
Haut-parleur avant
Haut-parleur arrière
------
Amplificateur de puissance
\ pour enceintes avant et arriére
Ctiangeur CD
lii
□
Amplificateur de puissance
-------pour subwoofer
Haut-parleur arrière
Avant de lire ce manuel d’instructions
Signifie que la commande doit être effectuée
directement sur l’appareil.
Les opérations qui ne comportent aucun de ces symboles
peuvent s'effectuer directement sur l’appareil ou au
moyen de la télécommande.
Signifie que la commande doit être effectuée
au moyen de la télécommande.
CQ-DFX883U
Tables des matières
Consignes de sécurité.................................................................................Page 3
Précautions à prendre........................................................................................8
Caractéristiques................................................................................................. 8
Avant de lire ce manuel d’instructions..................................................................9
□ Accessoires.........................................................................................................62
П Préparation de la télécommande
Installation de la pile, remarques sur la pile
□ Généralités.........................................................................................................63
Alimentation (PWR), source, volume, coupure ou atténuation, gradateur (plage de
réglage de la luminosité d’affichage), S-HDB (graves à définition supérieure)
П Réglage de l’horloge.............................................................................................. 65
Réglage du temps, changement d’affichage
□ Radio ..................................................................................................................66
Mode radio, bande, syntonisation, mémoire directe (D-M), changement
d’affichage, réglage des stations présyntonisées, présyntonisation manuelle,
présyntonisation automatique (АРМ), appel de station présyntonisée
Lecteur CD..........................................................................................................68
Écoute d’un CD, ouvrez le panneau avant, insérez le disque, arrêt et ejection de
disque, sélection de dossier, sélection de plage (fichier), pause, avance
accélérée/recul accéléré, changement d’affichage, sélection directe de plage
(fichier), sélection directe de dossier, lecture des débuts de plage, lecture des
débuts de fichier des dossiers, remarques sur le format MP3A/VMA, lecture
aléatoire/lecture répétée en mode de lecteur CD, lecture aléatoire/lecture répétée
en mode de lecteur MP3/WMA
............................................................................
62
WELCOME
O
O
8:00
FM
O
O
O O
O O
O O
O
O
O
Commande de changeur CD
Mode de changeur CD, sélection de disque, sélection de plage, avance
accélérée/recul accéléré, utilisation de deux changeurs (changeurs doubles),
changement d'affichage, sélection directe de disque, lecture des débuts de plage,
lecture des débuts de plage des disques, lecture aléatoire/lecture répétée
□ Réglages audio....................................................................................................82
Volume, graves et aigus, balance et équilibrage, niveau du haut-parleur
d’extrêmes-graves, filtre passe-bas du haut-parleur d’extrêmes-graves
□ Réglages d’image (affichage) [PICTURE]...............................................................84
Type d’affichage d’analyseur de spectre (S*A), contraste, réglage de l’affichage
□ Réglages de fonctions [FUNCTION]
Coupure ou atténuation, fonction de sécurité, exclure Sirius de la sélection de
source
10
CQ-DFX883U
.................................................................................
......................................................................
86
78
O O
—
□ En cas de difficulté..............................................................................................88
Étapes préliminaires, lorsqu’on soupçonne que quelque chose est défectueux,
guide de dépannage, messages d'erreur, entretien, service après-vente de
l’appareil, remplacement d’un fusible
□ Entretien............................................................................................................ 95
Remarques relatives aux CD-R/RW, remarques relatives aux CD et supports de
type CD (CD-ROM. CD-R, CD-RW)
□ Guide d’installation..............................................................................................96
Pour retirer l’appareil
□ Système antivol............................................................................................... 101
Mettre la plaque de façade amovible dans l’étui, installer la plaque de façade
amovible, voyant du système de sécurité, alarme de retrait du panneau
□ Branchements électriques..................................................................................102
Précaution, schéma de câblage, mise à niveau du système 1, mise à niveau du
système 2
□ Données techniques..........................................................................................106
CQ-DFX883U
•11
Panasonic le da la bienvenida a la familia
constantemente en aumento de poseedores de
productos electrónicos. Nos esfoaamos en
proporcionarte las ventajas de la ingeniería mecánica y
electrónica de precisión, de una fabricación con
componentes cuidadosamente seleccionados, y de un
montaje realizado por personas orgullosas de la
Uso de este equipo con seguridad
reputación que su trabajo ha cimentado para nuestra
empresa. Estamos seguros de que este producto le
proporcionará muchas horas de distracción y, una vez
comprobada la calidad, el valor y la fiabilidad
incorporados, usted también se sentirá orgulloso de
pertenecer a nuestra familia.
Cuando conduzca
Mantenga el nivel del volumen suficientemente bajo para
estar atento a la carretera y a las condiciones del tráfico.
Cuando lave el automóvil
No exponga el equipo, incluyendo los altavoces y tos
CDs, al agua o a una humedad excesiva. Esto puede
causar cortocircuitos eléctricos, incendios u otros daños.
Cuando esté estacionado
El estacionamiento a la luz solar directa puede producir
temperaturas muy altas en el interior de su vehículo.
Procure enfriar el interiorantes de encender la unidad.
Uso de la alimentación apropiada
Este equipo ha sido diseñado para funcionar con un
sistema de batería de 12 V CC con negativo a masa (el
sistema normal en un vehículo norteamericano).
Características
Reproducción de MP3/WMA desde CD-R/RW
Puede reproducir sus archivos MP3/WMA (Windows
Media Audio), así como discos CD normales. Con hasta
10 a 12 veces* la capacidad de un CD convencional, un
solo disco MP3AA/MA codificado puede proporcionarle
entretenimiento para un viaje entero.
‘Depende de la velocidad de transferencia.
Mecanismo de disco
No inserte monedas ni ningún objeto pequeño. Mantenga
los destornilladores u otros objetos metálicos apartados
del mecanismo de disco y de) disco.
Uso de los centros de servicio autorizados
No intente desmontar ni ajustar este equipo de precisión.
Consulte la lista de centros de servicio incluidos con este
producto para acudir a ellos cuando sea necesario.
Instalación
La unidad deberá instalarse en posición horizontal, con el
extremo delantero hacia arriba formando un ángulo
conveniente, pero con no más de 30“.
Nota:
• La memoria de presintonización se borra para volver al
ajuste original de fábrica cuando el conector de
alimentación o la batería están desconectados.
Control de volumen grande
La unidad está equipada con un control de volumen
giratorio grande, el cual funciona para controlar audio
Hi-Fi.
Analizador de espectro
Muestra los niveles cambiantes de energía a las
diferentes frecuencias de la música que se reproduce.
^2^
Ejemplo:
CQ-DFX883U
Altavoz delantero
Altavoz delantero
Control del cambiador de CD
Debe conectar el cambiador de CD opcional. Para más
detalles, consulte el manual de instrucciones del cambiador
de CD.
Altavoz trasero
Amplificador de potencia para
altavoces delanteros y traseros
Cambiador de CO
Amplificador de potencia
para altavoz de subgraves
□
Altavoz trasero
Antes de leer estas instrucciones
Sólo se puede controlar mediante la unidad
principal.
Las operaciones que no tengan ninguna de estas dos
marcas pueden activarse con la unidad principal o con el
control remoto.
Sólo se puede controlar mediante el control
remoto.
I
CQ-DFX883U
13
Indice
Información para su seguridad
Uso de este equipo con seguridad.....................................................................12
Características..................................................................................................12
Antes de leer estas instrucciones.......................................................................13
□ Accesorios.........................................................................................................108
G Preparación del controlador remoto
Sustitución de la pila, notas sobre la pila
□ Generalidades...................................................................................................109
Alimentación (PWR), fuente, volume, silenciamiento o atenuación, regulador de la
intensidad de luz {gama de ajuste de brillo de visualización), S-HDB (graves de
definición superalta)
Ajuste del reloj
Reajuste de hora, cambio de visualización
Radio ...............................................................................................................112
Modo de la radio, banda, sintonización, memoria directa (D-M), cambio de
visualización, ajuste de emisora presintonizada, memoria de presintonización
manual, memoria de presintonización automática (АРМ), llamada de emisoras
presintonizadas
............................................
.................................................................
......................................................................
Página 3
108
111
□ Reproductor CD .................................................................................................. 114
Para escuchar un CD, abra el panel delantero, inserte el disco, parada y expulsión
de disco, selección de carpetas, selección de pista (archivo), pausa, avance
rápido/retroceso rápido, cambio de visualización, selección directa de pista
(archivo), selección directa de carpeta, reproducción con exploración,
reproducción con exploración de carpeta, notas sobre MP3/WMA, reproducción
aleatoria/repetición de reproducción en el modo de reproductor de CD,
reproducción aleatoria/repetición de reproducción en el modo de reproductor de
MP3/WMA
O Control del cambiador de CD.............................................................................124
Modo de cambiador de CD, selección de disco, selección de pista, avance
rápido/retroceso rápido, uso de dos cambiadores (cambiadores dobles), cambio
de visualización, selección directa de disco, reproducción con exploración,
reproducción cori exploración de disco, reproducción aleatoria/repetición de
reproducción
□ Ajustes de audio................................................................................................128
Volume, graves y agudos, equilibrio y desvanecimiento, nivel de altavoz de
subgraves, filtro de paso bajo de subgraves
□ Ajustes de imagen (visualización) [PICTURE].......................................................130
Patrón de visualización del analizador de espectro (S-A), contraste, ajuste de
pantalla
14
CQ-DFX883U
n Ajustes de funciones [FUNCTION].........................................................................132
Sílenciamíento o atenuación, función de seguridad, para excluir a Sirius de la
selección de fuente
□ Solución de problemas ......................................................................................134
Pasos preliminares, si cree que hay algo que no funciona bien, consejos para
localizar y solucionar averías, mensajes de visualización de error, mantenimiento,
mantenimiento del producto, cómo sustituir el fusible
□ Mantenimiento................................................................................................. 141
Notas sobre discos CD-R/RW, notas sobre soportes CD/CD (CD-ROM, CD-R,
CD-RW)
O Guía de instalación..........................................................................................142
Para extraer el aparato
□ Sistema antírrobo..............................................................................................147
■ Coloque la placa frontal removible en la caja, instale la placa frontal removible,
indicador de seguridad, alarma de extracción del panel
a Conexiones eléctricas...........................................................................................148
Precaución, diagrama del cableado, mejora del sistema 1, mejora del sistema 2
????n
O O O O O
□ Especificaciones................................................................................................152
CQ-DFX883U
15
Accessories
Remote control unit
(1)
• Warranty card, etc.
• Lithium battery
(CR2025){1)
• Installation hardware
{screws, power con
nector, etc.)
(page 50)
• Operating instruc
tions (1)
Remote Control Unit Preparation
Battery Installation
O Remove the battery holder.
Pull the battery holder by the position B while
pushing position A in the direction indicated by
the arrow. •
Q Install the battery on the battery holder.
O Insert the battery holder back into its original
position.
Operating guide tor
Sirius (1)
Lithium battery
, Battery Notes
• Battery type: Panasonic lithium battery (CR2025)
(included)
• Battery life: Approximately 6 months with nor
mal use (at room temperature)
Caution:
• Improper use of batteries may cause overheat
ing, an explosion or ignition, resulting in injury
or a fire. Battery leakage may damage the unit.
• Remove and dispose of an old battery immediately.
• Do not disassemble or short the battery. Do not
throw a battery into a fire.
• Keep batteries away from children to avoid the
risk of accidents.
• Be careful to observe proper local disposal rules
when you dispose of batteries.
16
CQ-DFX883U
General
Power (PWR)
Turn your car’s ignition key to ACC or ON
position.
ON: Press [PWR],
OFF: Press and hold [PWR] again for more
than 1 second.
Note:
• When the power is switched on for the first
time, a demonstration display appears.
To cancel this display, press [DISP] (display).
• To display the demonstration again, press
and hold tSOURCE] on the main unit for
more than 4 seconds when the power is off.
After turning off the ignition key, a security mes
sage is displayed, and the panel removable alarm
that reminds you to take the panel is activated.
(When security function is set to on, page 40)
[DISP] (display)
Press [SOURCE] to change the source.
Radio
CD player
ri; 01 a*”02
; MP3 player
or
WMA player
CD changer control
r
AUX-IN setting
rliï;<rux in;
(page 20)
(When a CD is in the player.)
(page 22}
(When a M P Z data disc
is in the player.) (page 22)
(When a WMA data disc
is in the player.) (page 22)
(When a CD changer is
connected.) (page 32)
What is displayed here changes in line
with the reception sensitivity.
Remote control signal sensor
Point the remote control unit at the
main unit’s sensor.
For details on the Sirius mode, refer to
the separate operating guide for Sirius.
17
CQ-DFX883U
General
(continued)
! Volume
Turn [VOU.
[VOL v;
Down
[VOL Up
[VOL vj: Down
U0LLINE13
Note:
• The sound level for each source is stored in mem
ory.
(For radio, one voiume setting for AM, one vol
ume setting for all FMs)
Setting range: 0 to 40
(default: 18)
Dimmer (Display '
Brightness Setting Range) i
Press IDIM] (dimmer).
DINNER 3
ÉmiiiüM
DINNER 1
[<][>] (clock set)
Bright {default)
Medium,
Dark
, Muting or Attenuation
ON: Press [MUTE].
OFF: Press [MUTE] again.
Decreasing volume range is adjustable by setting,
(page 40)
MUTE
18
CQ-DFX883U
No sound.
LMUTEI lights.
Decrease the volume by 10 steps.
t MUTE I lights during attenuation
as well.
S-HDB I
I
(Super High Definition Bass)
With music genres like rock music, the bass-sound
will be more powerful.
Press and hold [S*HDB] for more than 2 seconds.
SHDE OFF
BOON
TIGHT
S-HDB is non-active, (default)
The bass sounds of the speakers are strongly emphasized,
5-HDB
The bass sounds of the speak
ers are moderately empha
sized. is-HDB| lights.
(The sounds of the subwoofer
can be heard clearly.)
lights.
i
Clock Set
The 12-hour system is used for the clock.
O Press [DISP] (display).
ftrUUST
Q Press and hold [DISP] (display) again tor
more than 2 seconds.
Hours:
O Press K1 or [>].
EBillPa Hours set.
O Press [D)SP] (display).
■ aî»iEB5|5B “'nutes blink.
Minutes:
0 Press [<] or [>].
© Press [DISP] (display).
10:10
Clock display
Hours blink.
Minutes set.
End.
, Display Change
Press [DISP] (display).
When the power is off:
10: 10
Î
_______
Clock display
Display off
Note:
ADJUST
Press and hold [<] or [>] to change numbers
rapidly.
Displays before adjusting the
clock.
Time Reset
0 Press and hold [DISP] (display) for more than
2 seconds.
© Repeat steps O to ©.
[MUTE]
[VOL A]
[VOL V]
(volume)
[<] [>]
(clock set)
[DISP]
(display)
CQ-DFX883U
19
Radío
Radio Mode
Press [SOURCE] to change to the radio
mode.
[D-M]
(direct memory) changes in line with the re
What is displayed here
ception sensitivity.
Band
Q
Press [BAND].
Radio mode display
Band Frequency
FM stereo indicator
[/\] [V] (preset station)
[DISP] (display)
Tuning
©
[>I: Up
[<]: Down
Press and hold [<] or [>] for more than
0.5 seconds, then release.
Seeking will start.
, Direct Memory ÍD-IVI)
Your favorite radio station can be memorized in [D*M] (direct memory).
Default: FM 87.9 MHz
■ Memorize
O Select a band and frequency.
© Press and hold [D*M] for more than 2 seconds.
Frequency blinks once and is saved in the
memory.
Note;
• Existing saved station is overwritten with new sta
tion after this procedure above.
20
[(Bi
■ Recalling the Direct Memory
Press [D*M].
Press [D*M] again to cancel.
Note;
• You can recall the direct memory even when the
power is off.
Caution:
• To ensure safety, never attempt to preset stations while you are driving.
, Display Change
Press [DISP] (display).
Î
1 в : 1 i-J
Radio mode display
(default)
Clock display
Note:
EMPTV
Displays when not have any
menu settings. Radio and AUX
IN mode do not have any menu
settings.
Preset Station Setting
Up to 6 stations each can be saved in the FM1, FM2, FM3 and AM preset station memories.
Manual Preset Memory
Manually save a station in the preset memory.
O Select a band and frequency, (previous page)
0
Press and hold t/\] or [v] for more than
2 seconds until the preset number blinks.
o Press i/\] or [V] to select a preset number
0-6).
O Press and hold [/^] or [v] for more than
2 seconds to memorize.
• The display blinks once, and a receiving sta
tion is saved in the memory.
\ I /
Preset numbtr ^
Note:
• Frequency setting can be performed even after se
lecting a preset number.
• To cancel preset write, press [DISP] (display).
O Select a band and frequency, (previous
H page)
^ 0 Press and hold [1] to [6] for more than
2 seconds to memorize.
Auto Preset Memory (АРМ)
Automatically save stations with good reception in
the preset memory.
О Select a band, (previous page)
0
Press and hold [АРМ] for more than 2 sec
onds.
• The 6 stations with good reception wifi be auto
matically saved in the memory under preset num
ber 1 to 6.
• Once set, the preset stations are sequentially
scanned for 5 seconds each, (scanning)
Note:
• Existing saved stations are overwritten with new stations after this procedure above.
Preset Station Calling
O Select a band, (previous page)
0
Press [/\] or [V].
(Press [1] to [6] on the remote control unit.)
CQ-DFX883U
21
CD Player
r
Caution:
• Disc size: 5" (12 cm) CD only • push the front panel down or place
• CO-DA data recorded CD-R and CD-RW discs
• MP3/WMA data recorded CD media
(CD-ROM, CD-R, CD-RW)
• 3" (8 cm) CD is not available for this unit, so do • Do not:
not insert it absolutely. panel.
• Before loading a disc, check to make sure that a
disc is not already loaded.
• Refer to page 49 about notes on CD-Rs/RWs.
• Refer to page 26 about notes on MP3/WMA.
_
________________________
-----------------------------------------------------
^* use irregularly shaped discs.• Available discs:
objects on it while it is open.
• use discs that have a seal or label attached.
• pinch your finger or hand in the front
•insert foreign matter into the disc
slot.
•watch the scroll display while driving
^ a car. (page 24)
Listening to a CO
Open the front panel.
O
Press [OPEN).
Note:
• Do not insert a disc when “DISC” indicator
lights.
NO DISC
Insert the disc.
A Insert the disc.
(eject)
\
_________
22
Close the front panel manually.
The display changes as shown below.
Data reading. ; Ordinary music CD
REhDIHG
• Do not insert a disc
when “DISC” indicator
lights.
• Lights when the disc is
loaded.
When CD is in the player
Press [SOURCE] to change to CD player
mode.
stop and eject the disc.
e
Press [OPEN] and [^1 (eject).
CQ-DFX883U
CD-DA
MP3 data
or
WMA data
Playback will automatically start.
Track number Playing time
Folder number File number
Note:
• The power will be turned on automatically when
a disc is loaded.
• Be sure to close the front panel while CD play
back.
• The title can be displayed, {page 24)
• It may take some time to distinguish CD-DA and
MP3/WMA before playback starts.
• if you record too many folders and files onto a
disc, it may take some time before playback
starts.
Folder Selection
■ MP3/WMA ^
Ne^rt^old^.
[V]: Previous folder.
/. J
Track (File) Selection
]: Next track (file).
]: Beginning of the current track (fiie).
For the previous track (file), press twice.
Pause
Press [||/► l.
Press [!!/► ] again to cancel.
PftUSE
[OPEN]
WhM is displayed here moves during play
Fast Forward/Fast Reverse
Press and hold;'
[ 1 (► ► ): Fast forward.
(◄ ◄ ): Fast reverse.
Release to resume the regular play.
[SOURCE]
[◄ ◄ ][► ► ]
(track/file)
[BAND]
(pause)
, Panasonic 1] [ 1 [ '^ ]
(folder)
V '■ .’'.’i i
CQ-DFX883U
23
CD Player (continued)
Display Change
Press [DISP] (display).
■ CD
01 0*^02
D-TITLE
T-TITLE
10:10
Note:
HO TEXT
• The display shows title when a disc with CD text
data is loaded.
* Press and hold [DISP] (display) for more than
2 seconds to have an another circle scroll while a
text is displayed.
Track number/playing time
(default)
*Disc title (scroll)
*Track title (scroll)
Clock display
Displays when there is no text.
MP3/WMA
001-002
0"20
FOLDER
FILE
TITLE
ARTIST
10:10
Note:
NO TEXT
ROOT
• The bit rate value changes when variable bit rate
(VBR) data is played.
• Characters that the player cannot display are
shown as an asterisk.
• Press and hold [DISPl (display) for more than
2 seconds to have an another circle scroll while a
text is displayed. - , .
Folder/file number (default)
Playing time
‘Folder name (scroll)
‘File name (scroll)
‘Title name (ID3/WIVIA tag)
(scroll)
‘Artist name (ID3AWMA tag)
(scroll)
Clock display
Displays when there is no text.
Displays when , playing a root
folder.
24
CQ-DFX883U
direct Track (File)
I Selection
Example: track (file) number 10
O Press [#].
© Press [1] [0].
0 Press [BAND].
Note:
Press [DISP] ((jisplay) to return to the regular
mode.
T
■ CD
TRACK __
TRACK 10
MP3/WIVIA
FILE
_____
I
i
FILE _10
Scan Play
. ■ i-n
Press [5], ■ ■ ; ■ .!,
The first 10 seconds of each track%iie on all folder)
plays in sequence, , , 1
CD
MP3/WMA
32 =0
/ I ^
Press [5] again to cancel.
/5?
Direct Folder Selection
■ MP3/WIVIA
Example: folder number 10
© Press [#1 twice.
©Press [1][0].
o Press [BAND].
Note:
If there is no file in the specified folder, error
message “E4” appears. Select another folder
which contains files.
Press [DISP] (display) to return to the regular
mode.
FLDR
____
FLDR _10
r
Folder Scan Play
■ MP3/WMA
Press and hold [5] for more than 2 seconds.
From the next folder, the first 10 seconds of the
first file on each folder plays in sequence.
V I /
Press and hold for more than 2 seconds [5] again
to cancel.
I
4li
J
25
CD Player (continued)
Notes on MP3/WIVIA
□ What is MP3/WWIA?
MP3 (MPEG audio layer 3) and WMA (Windows Media™ Audio) are the compression formats of digital audio.
The former is developed by MPEG (Motion Picture Experts Group), and the latter is developed by Microsoft
Corporation. Using these compression formats, you can record the contents of about 10 music CDs on a sin
gle CD media. (This figures refer to data recorded on a 650 MB CD-R or CD-RW at a fixed bit rate of 128 kbps
and a sampling frequency of 44.1 kHz.)
Note:
• MP3/WMA encoding and writing software are not supplied with this unit.
• CD writing software is not supplied with this unit.
□ Points to remember when making MP3/WMA fiies
Common
• High bit rate and high sampling frequency are
recommended forhigh'quality sounds.
• Selecting VBR (Variable Bit Rate) is not recom
mended because playing time is not displayed
properly and sound may be skipped.
• The playback sound quality differs depending on
the encoding circumstances. For details, refer to
the user manual of your own encoding software
and writing software.
MP3
• It is recommended to set the bit rate to “128 kbps
or more’’ and “fixed”.
WMA
• It is recommended to set the bit rate to ‘‘64 kbps
or more” and “fixed".
• Do not set the copy protect attribute on the WMA
file to enable this unit to playback.
Caution:
• Never assign the “.mp3”, or “.wma” file name extension to a file that is not in the MP3/WMA format.
This may not only produce noise from the speaker damage, but also damage your hearing.
□ Display Information
i.
■ Displayed items
CD-TEXT MP3/WMA
• Disc title • Folder name
• Track title «Filename
MP3 (ID3 tag)
• Artist name
• Title name
WMA (WMA tag)
• Artist name
• Title name
■ Oisplayable characters
• Displayable length of file name/folder name: within 64 characters
• Name files and folders in accordance with the standard of each file system. Refer to the instructions of writ-
. ing software for details.
• ASCII character set and special characters in each language can be displayed.
ASCII character set Special characters
A to Z, a to z. digits 0 to 9, and the following symbols: AAAAAaaaaaA a';
(space) !”#$%&’() * + ,-./::< = >?@[\]'_'{|}~ pOOgOodood
UUUUuuuij
Note:
• With some software in which MP3/WMA format files have been encoded, the character information may not
be displayed properly.
• Undisplayable characters and symbols will be converted into an asterisk.
26
CQ-DFX883U
□ Recording MP3/WMA files on a CD
• You are recommended to minimize the chances
of making a disc that contains both CD-DA files
and MP3/WMA files.
• If CD-DA files are on the same disc as MP3 or
WMA files, the songs may not play in the in
tended order, or some songs may not play at
all.
• When storing MP3 data and WMA data on the
same disc, use different folders for each data.
• Do not record files other than IV1P3/WMA files and
unnecessary folder on a disc.
• The name of MP3/WMA file should be added by
rules as shown in the following descriptions and
also comply with the rules of each file system.
media
• You may encounter trouble in playing MP3/WMA
files or displaying the information of MP3/WMA
files recorded with certain writing software or CD
recorders.
• The file e)ttension ".mp3” or “.wma” should be
assigned to each file depending on the file format.
• This unit does not have the play list function.
• Although Multi-session recording is supported,
the use of Disc-at-Once is recommended.
Supported file systems
ISO 9660 Level 1/Level 2, Apple Extension to ISO
9660, Joliet, Romeo
Note:
• Apple HFS, UDF 1.50, Mix CD (CD Extra) is not
supported.
Compression formats (Recommendation: “Points to remember when making MP3/WMA files” on the previous page)
Compression method
MPEG 1 audio layer 3 (MP3)
MPEG 2 audio layer 3 (MP3)
Windows Medio Audio Ver. 8
Bit rate
32 k-320 kbps
8 k-160 kbps
64 k-192 kbps
VBR Sampling frequency
Yes
Yes 16, 22.05, 24 kHz
No
32, 44.1,48 kHz
32, 44.1,48 kHz
□ Folder selection order/file playback order (example)
Note:
• This unit counts the number of folders irrespective of
the presence or absence of MP3AA/MA file.
• If the selected folder does not contain any MPSA/VMA
files, the nearest MP3A/VMA files in the order of play
back will be played.
• Playback order may be different from other MP3A/VMA
players even if the same disc is used.
• “ROOT" appears when displaying the root folder name.
Maximum number ot files/folders:
• Maximum number of files; 999
• Maximum number of files in one folder; 255
• Maximum depth of trees: 8
• Maximum number of folders: 255 (Root folder is includ
ed.)
Windows Media, and the Windows
iogo are trademarks, or registered
trademarks of Microsoft
Corporation in the United States
and/or other countries.
ss
Wtndov»
Metfia**
— Root folder {root directory)
a. ©=n Folder selection
------
Tree1 Tree 2 Tree3
Copyright
It is prohibited by copyright laws to copy, distribute
and deliver copyrighted materials such as music
without the approval of copyright holder except en
joying yourself personally.
No warranty
Above description complies with our investigations
as of December 2002. It has no warranty for repro
ducibility and displayability of MP3/WMA.
In ttie order m to a
^File selection
In the order to
a
^
..........
Tree 8 (Max.)
CQ-DFX883U
27
CD PlSySr (continued)
Random Play/Repeat Play in CD player mode
Random Play
Default: RAND OFF
Repeat Play
Default; REP OFF
^ Menu
Press [MENU] during
CD playing.
(Press and hold [MENU! on the
remote control unit during CD
playing.)
[SET]
Submenu
© Press [/\] or [V].
@ Press [SET].
[A][V]
(submenu)
28
CQ-DFX883U
Press [y\] or [V],
[AHV]
(set)
[A][V]
(submenu/
set)
RAND OH
RAND OFF
REP ON
REP OFF
Note:
• Press IMENU] or [DISP] (display) to return to the regular mode.
• Press and hold [MENU] on the remote control unit to return to the
regular mode.
All the available tracks play in a random se
quence.
lights.
Cancel
Repeat the current track.
Uliil lights.
Cancel
Direct Operation
CQ-DFX883U
29
CD Player
(continued)
Random Play/Repeat Play in MP3/WIVIA player mode
[MENU]
Random Play
Default: RAND OFF
Folder Random Play
Default: F-RND OFF
Repeat Play
Default; REP OFF
" ^
Press [MENU] during MP3A/VMA playing.
{Press and hold [MENU] on
the remote control unit during
MPS/WMA playing.)
[SET]
Submenu
© Press [/\] or [V].
@ Press [SET].
[A][V]
(submenu)
Folder Repeat Play
Default: F-REP OFF
30
CQ-DFX883U
