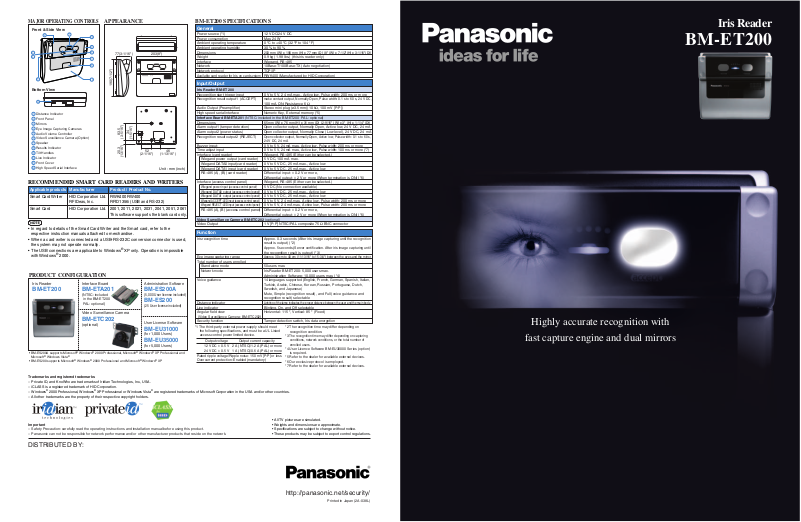

Panasonic BM-ET200 User Manual

Iris Reader

BM-ET200

Highly accurate recognition with

fast capture engine and dual mirrors

Simple to configure and easy-to-use Iris Reader with recognition results in 0.3 seconds*

*Time required for recognition in a normal, ready-to-recognize condition after the eyes are aligned with the main unit mirrors.

The BM-ET200 offers more-accurate, faster, non-contact entry/exit control
utilizing biometric technology for iris recognition.
The system can be used to check IDs in a variety of applications,
including airports and entry/exit control for many types of industries.

SYSTEM DIAGRAMS

Network system

Integrates with Wiegand-compatible Systems

Compatible with standard Wiegand interface protocol
access control systems thus offering flexible system
configuration. Legacy PROX cards are also supported.*

Most card formats are supported-please check with your local Panasonic sales office.

*

To handle the protocol, it is necessary to install the BM-ETA201 optional Interface Board

*

(PAL only).

Maximum system specification

Maximum number of iris readers 256 units

Number of users that can be registered 10,000 users

Local matching 5,000 users

Fast, high-speed capture engine developed to
obtain recognition in only 0.3 seconds

Panasonic developed a unique high-speed capture engine
that obtains recognition in only 0.3 seconds after eye
position alignment with the mirrors. If recognition is not
achieved the first time, the operation is automatically
repeated at high prompting speeds.

Dual-mirror configuration
makes eye alignment easy

Two mirrors are mounted on the front panel.
Eye position is less likely to be out of side to side
alignment, making recognition easier. Positioning of
either left or right eye is simplified.

Distance guide indicator informs the
user of proper iris capture distance

To adjust the camera for the most optimal eye distance,
both voice instructions and distance indicator lamp
guide provide user guidance so the correct capture
position is achieved.

Distance

Too close

Suitable

Too far

High security, with false acceptance
rate of 1 in 1.2 million*

Iris recognition uses individual
differences in the complex
patterns found within the
iris of the human eye to
authenticate individual identities.
Iris recognition is the most precise
of all biometric identification systems.
The false acceptance rate is so low that the probability of
falsely identifying one individual as another is virtually zero.

Iris Characteristics

•

An extremely complex pattern that differs even between identical twins.

• Patterns stabilize between six months and two years of age and
then remain unchanged for life.

• They are extremely difficult to imitate.

"RECOGNIZING PERSONS BY THEIR IRIS PATTERNS" by Dr.John Daugman,
University of Cambridge.

Number of

lighting lamps

Vo ice guidance

Please move
back a little

Please move a
little closer

Iris

Retina

Lens

Voice guidance
recognition procedure

Speaker on the front panel offers voice
guidance for operational assistance and
recognition results. Fourteen (14) languages
can be selected for each iris reader.
Supported languages: English, French, German,
Spanish, Italian, Turkish, Arabic, Chinese,
Korean, Russian, Portuguese, Dutch, Swedish,
and Japanese.

Three settings for
voice guidance

Simple :
Full : Voice guidance such as ''Please move

M ute : No voice guidance.

Iris Reader

BM-ET200

Only recognition results are announced.

a little closer'' and ''Please move back
a little'' and also recognition results
are given.

The camera unit swivels
up and down

The angle of the two embedded cameras can be
adjusted to accommodate users from 152 cm to
180 cm. Taller users can simply bend over to
use the system.

45 °

300 mm

(11-13/16")

Bottom of camera unit

400 mm

(15-3/4")

1,240 mm

(48-13/16")

Upside limit of
the eye position

1,678 mm
(66-1/16")

Downside
limit of the
eye position

1,395 mm

(54-15/16")

Distance indicator

Lighting of the lamp indicates the proper
capture distance between the user and the
BM-ET200.

Mirrors (Dual)

Adjusts the eye position when registering
or recognizing eyes.

Eye image capturing cameras

Located behind the mirrors, the camera
captures images of the irises.

Live indicator

The light indicates the current operating
condition.

Results indicator

The lamp lights when recognition
is completed.

Tamper Detection

The tamper protection feature prevents data from
being extracted from the system. An audible alarm
is triggered via the integrated tamper switches.
Alarm signals are also transmitted to the access
control system and Administration Server.

5,000 User License Included

Iris data for up to 5,000 users can be registered
with the Base Administration Software BM­ES200A within the network mode. With
additional (optional) user licenses, the system
can register and manage iris data for up to
10,000 users. Contact Panasonic directly for
systems requiring more than 10,000 users. Up
to 50 users are included in the stand alone mode.

50 user licenses included in the BM-ET200 in stand alone mode
cannot be used in a network mode.

Access log can be searched by time

Using the time of image capture stored in the
camera, you can search the access log of a
specific user for the specified time.

APPLICATIONS

Offices

Data center, material storage,
safes, executive offices, secure
meeting rooms

Laboratories and factories

Drug or dangerous materials
storage rooms, night or holiday
entry control

LAN Connection

Wiegand Connection

RS-485 Connection

Iris Server

Smart Card

DB

Writer

Administration

Software

Enrollment Reader

BM-ET200

Enrollment Reader

BM-ET200

Smart Cards

The iris data on an ID card is compared
with the captured image to allow access.

Recognition Reader

BM-ET200

Recognition Reader

BM-ET200

Smart cards provide application flexibility
and do not require a central database.

*To handle the protocol, it is necessary
to install the BM-ETA201 optional
Interface Board (PAL only).

Recognition Reader

The existing BM-ET330 system can be connected to the BM-ET200 system after

*

upgrading the management software to BM-ES200A without changing existing data.

DB

BM-ET330

*

Stand alone system

Set up PC

LAN

LAN connection

For large and small systems

Flexible registration software supports
incremental users. User License
Software; BM-EU31000 for 1,000
users or BM-EU35000 for 5,000
users. Easy operation and
management from a iris server,
all settings, registrations,
updates, and information
confirmation can be controlled
from a PC display.

Iris Image Display

Financial institutions Lifeline facilities Traffic control centers

Safes, safety deposit box rooms Power generator rooms, dam

management offices, gas
company control rooms

Recognition Reader
BM-ET200

clear

*

=

/

–

7

8

9

4

5

6

Numeric key
connection

Capitalize 'Menu' to be consistent with others

Expressway administration
centers, railroad dispatcher
rooms

+

1

2

3

enter

0

,

.

Card Reader

Recognition Reader
BM-ET200

DB

Access Control Server

DB

Access Control Panel

Card Reader

Make contact connection

Numeric key

Airport and harbor facilities

Staff gates, Immigration,
workshops

Access Control Panel

Smart Card

Smart Card

Card Reader

Card Reader

User Information Menu

Electric Lock

Electric Lock

Door control box

Environment Setting Menu

• Police

• Prisons

• Courts

• Any and
all security
applications

MAJOR OPERATING CONTROLS

Front & Side View

2

3
4

5

Bottom View

12

1

Distance Indicator

2

Front Panel

3

Mirrors

4

Eye Image Capturing Cameras

5

Audio Volume Controller

6

Video Surveillance Camera (Option)

7

Speaker

8

Results Indicator

9

Tilt Handles

10

Live Indicator

11

Front Cover

12

High Speed Serial Interface

1

APPEARANCE

10

9

8

7

6

11

190(7-1/2")

83.5
(3-5/16")

20.3
(13/16")

34

(1-5/16")

52

(2-1/16")

203(8")77(3-1/16")

(1-13/16")

Unit : mm (inch)

46

RECOMMENDED SMART CARD READERS AND WRITERS

Applicable products

Smart Card Writer HID Corporation Ltd.

Smart Card 2001, 2011, 2021, 2031, 2041, 2051, 2061

• In regard to details of the Smart Card Writer and the Smart card, refer to the
respective instruction manuals attached to merchandise.

• When a card writer is connected and a USB-RS-232C conversion connector is used,
the system may not operate normally.

• The USB connections are applicable to Windows
with Windows

Manufacturer Product / Product No.

RWK400 RW400

RFIDeas, Inc.

RFID1356i (USB and RS-232)

HID Corporation Ltd.

This software supports the blank card only.

®

2000.

®

XP only. Operation is impossible

PRODUCT CONFIGURATION

Iris Reader

BM-ET200

Interface Board

BM-ETA201

(NTSC: included

in the BM-ET200
PAL: optional

)

Video Surveillance Camera

BM-ETC202

(optional)

•

BM-ES200A supports Microsoft® Windows® 2000 Professional, Microsoft® Windows® XP Professional and

Microsoft® Windows Vista

•

BM-ES200 supports Microsoft® Windows® 2000 Professional and Microsoft® Windows® XP

Trademarks and registered trademarks

– Private ID, and KnoWho are trademarks of Iridian Technologies, Inc., USA.
– iCLASS is a registered trademark of HID Corporation.

®

– Windows
– All other trademarks are the property of their respective copyright holders.

®

2000 Professional, Windows

®

XP Professional or Windows Vista

Administration Software

BM-ES200A

(5,000 User license included)

BM-ES200

(25 User license included)

User License Software

BM-EU31000

(for 1,000 Users)

BM-EU35000

(for 5,000 Users)

®

are registered trademarks of Microsoft Corporation in the USA and/or other countries.

BM-ET200 SPECIFICATIONS

General

Power source (*1) 12 V DC/24 V DC
Power consumption Max. 24 W
Ambient operating temperature 0 ºC to +40 ºC (32 ºF to 104 ºF)
Ambient operating humidity 30 % to 90 %
Dimensions
Weight 0.9 kg (1.98 lbs.) (this iris reader only)
Interface Wiegand, RS-485
Network 10Base-T/100Base-TX (Auto negotiation)
Network protocol TCP/IP
Available card reader for Iris on card system

Input/Output

Iris Reader BM-ET200

Recognition start trigger input 0 V to 5 V, 24 mA max., Active low, Pulse width: 200 ms or more
Recognition result output1 (ACCEPT)

Audio Output (Preamplifier) Stereo mini plug (ø3.5 mm)(10 kΩ, 100 mV [P-P])
High speed serial interface Numeric Key, External memory (*5)

Interface Board BM-ETA201 (NTSC: included in the BM-ET200 PAL: optional)
Dimensions
Alarm output1 (tamper detection) Open collector output, Normally Open, Active low, 24 V DC, 24 mA
Alarm output2 (power status) Open collector output, Normally Close (Low level), 24 V DC, 24 mA
Recognition result output2 (REJECT)

Buzzer input:
Time adjust input
Interface (card reader) Wiegand, RS-485 (Either can be selected.)
Wiegand power output (card reader) 5 V DC, 100 mA max.
Wiegand DATA0 input(card reader) 0 V to 5 V DC, 25 mA max., Active low
Wiegand DATA1 input (card reader) 0 V to 5 V DC, 25 mA max., Active low
RS-485 (A), (B) (card reader) Differential input: ± 0.2 V or more,
Differential output: ± 2 V or more (When termination is ON) (*6)
Interface (access control panel) Wiegand, RS-485 (Either can be selected.)

Wiegand power input (access control panel)
Wiegand DATA0 output (access control panel)
Wiegand DATA1 output (access control panel)
Wiegand ACCEPT-LED input (access control panel)
Wiegand REJECT-LED input (access control panel)
RS-485 (A), (B) (access control panel)

Video Surveillance Camera BM-ETC202 (optional)
Video Output 1 V [P-P] NTSC/PAL composite 75 Ω BNC connector

Function

Iris recognition time Approx. 0.3 seconds (After iris image capturing until the recognition

Eye image capturing range
Total number of users enrolled

Stand alone mode 50 users max.
Network mode

Voice guidance

Distance indicator
Live indicator Blinking, On, and Off selectable
Angular field view Horizontal: 115 º, Vertical: 85 º (Fixed)
(Video Surveillance Camera: BM-ETC202)
Security function Tamper detection switch, Iris data encryption

*1 The third-party external power-supply should meet

the following specifications, and must be a UL Listed
access control power limited device.

Output voltage Output current capacity

12 V DC ± 0.5 V 2 A (NTSC)/1.2 A (PAL) or more
24 V DC ± 0.5 V 1 A (NTSC)/0.6 A (PAL) or more

Rated ripple voltage/Ripple noise: 150 mV [P-P] or less
Overcurrent protection: Enabled (mandatory)

203 mm (W) x 190 mm (H) x 77 mm (D) (8" (W) x 7-1/2"(H) x 3-1/16"(D))

RWK400 (Manufactured by HID Corporation)

make contact output, Normally Open, Pulse width: 0.1 s to 60 s, 24 V DC,
100 mA, ON-Resistance 6 Ω

65 mm (W) x 76 mm (H) x 31 mm (D) (2-9/16" (W) x 3" (H) x 1-1/4" (D))

Open collector output, Normally Open, Active low, Pulse width: 0.1 s to 60 s,
24 V DC, 24 mA
0 V to 5 V, 24 mA max., Active low, Pulse width: 200 ms or more
0 V to 5 V, 24 mA max., Active low, Pulse width: 100 ms or more (*7)

5 V DC (No connection available)
0 V to 5 V DC, 25 mA max., Active low
0 V to 5 V DC, 25 mA max., Active low
0 V to 5 V, 24 mA
0 V to 5 V, 24 mA
Differential input: ± 0.2 V or more,
Differential output: ± 2 V or more (When termination is ON) (*6)

result is output) (*2)
Approx. 5 seconds (Server certification. After iris image capturing until
the recognition result is output) (*3)
Approx. 30 cm to 40 cm (11-13/16" to 15-3/4") between the eyes and the mirror

Iris Reader BM-ET200: 5,000 users max.
Administration Software: 10,000 users max. (*4)
14 languages supported (English, French, German, Spanish, Italian,
Turkish, Arabic, Chinese, Korean, Russian, Portuguese, Dutch,
Swedish, and Japanese
Mute, Simple (recognition result), and Full (voice guidance and
recognition result) selectable
Lighting of the lamp indicates the proper distance between the user and the main body.

max.,

Active low, Pulse width: 200 ms or more

max.,

Active low, Pulse width: 200 ms or more

)

*2 The recognition time may differ depending on

recognition condition.

*3

The recognition time may differ depending on capturing
conditions, network conditions, or the total number of
enrolled users.

*4 User Licence Software BM-EU30000 Series (option)

is required.
*5 Refer to the dealer for available external devices.
*6 Our exclusive protocol is employed.
*7 Refer to the dealer for available external devices.

Important

– Safety Precaution: carefully read the operating instructions and installation manual before using this product.
– Panasonic can not be responsible for network performance and/or other manufacturer products that reside on the network.

DISTRIBUTED BY:

• All TV pictures are simulated.

• Weights and dimensions are approximate.

• Specifications are subject to change without notice.

• These products may be subject to export control regulations.

http://panasonic.net/security/

Printed in Japan (2A-038L)
