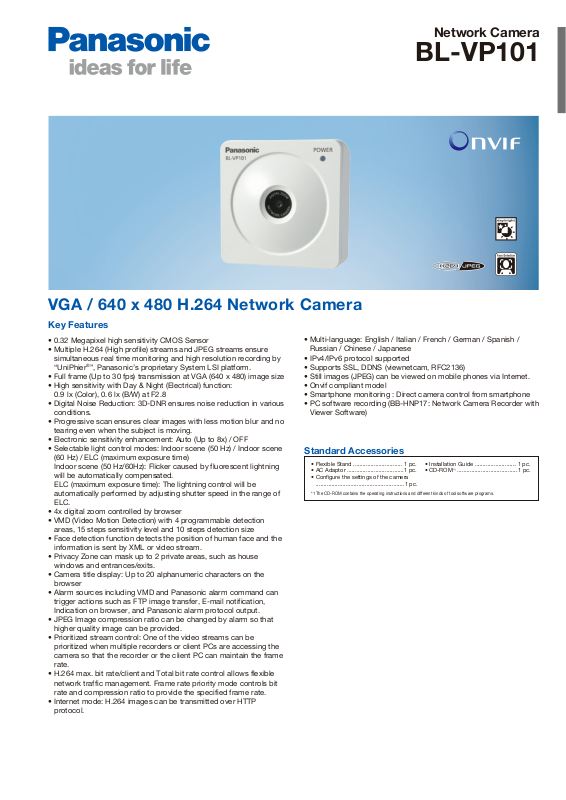

Panasonic BL-VP101P Specsheet

VGA / 640 x 480 H.264 Network Camera

Network Camera

BL-VP101

Key Features

• 0.32 Megapixel high sensitivity CMOS Sensor

• Multiple H.264 (High profile) streams and JPEG streams ensure simultaneous real time monitoring and high resolution recording by “UniPhier

• Full frame (Up to 30 fps) transmission at VGA (640 x 480) image size

• High sensitivity with Day & Night (Electrical) function:

0.9 lx (Color), 0.6 lx (B/W) at F2.8

• Digital Noise Reduction: 3D-DNR ensures noise reduction in various conditions.

• Progressive scan ensures clear images with less motion blur and no tearing even when the subject is moving.

• Electronic sensitivity enhancement: Auto (Up to 8x) / OFF

• Selectable light control modes: Indoor scene (50 Hz) / Indoor scene (60 Hz) / ELC (maximum exposure time)

Indoor scene (50 Hz/60Hz): Flicker caused by fluorescent lightning

will be automatically compensated.

ELC (maximum exposure time): The lightning control will be

automatically performed by adjusting shutter speed in the range of ELC.

• 4x digital zoom controlled by browser

• VMD (Video Motion Detection) with 4 programmable detection areas, 15 steps sensitivity level and 10 steps detection size

• Face detection function detects the position of human face and the information is sent by XML or video stream.

• Privacy Zone can mask up to 2 private areas, such as house windows and entrances/exits.

• Camera title display: Up to 20 alphanumeric characters on the browser

• Alarm sources including VMD and Panasonic alarm command can trigger actions such as FTP image transfer, E-mail notification, Indication on browser, and Panasonic alarm protocol output.

• JPEG Image compression ratio can be changed by alarm so that higher quality image can be provided.

• Prioritized stream control: One of the video streams can be prioritized when multiple recorders or client PCs are accessing the camera so that the recorder or the client PC can maintain the frame rate.

• H.264 max. bit rate/client and Total bit rate control allows flexible network traffic management. Frame rate priority mode controls bit rate and compression ratio to provide the specified frame rate.

• Internet mode: H.264 images can be transmitted over HTTP protocol.

”, Panasonic’s proprietary System LSI platform.

• Multi-language: English / Italian / French / German / Spanish / Russian / Chinese / Japanese

• IPv4/IPv6 protocol supported

• Supports SSL, DDNS (viewnetcam, RFC2136)

• Still images (JPEG) can be viewed on mobile phones via Internet.

• Onvif compliant model

• Smartphone monitoring : Direct camera control from smartphone

• PC software recording (BB-HNP17: Network Camera Recorder with Viewer Software)

Standard Accessories

• Flexible Stand ............................... 1 pc.

• AC Adaptor ....................................1 pc.

• Configure the settings of the camera

........................................................1 pc.

*1 The CD-ROM contains the operating instructions and different kinds of tool software programs.

• Installation Guide .......................... 1 pc.

• CD-ROM

...................................... 1 pc.

Specifications

Camera Image Sensor 1/5 type CMOS Sensor

Effective Pixels Approx. 0.32 megapixels Scanning Mode Progressive Scanning Area 2.69 mm (H) x 2.02 mm (V) {1/8 inches (H) x 1/16 inches (V)} Minimum Illumination Color: 0.9 lx (F2.8, Auto slow shutter: Off (1/30s), Gain:On(High)) Color: 0.11 lx (F2.8, Auto slow shutter: Max. 8/30s, Gain:On(High)) BW: 0.6 lx (F2.8, Auto slow shutter: Off (1/30s), Gain:On(High)) BW: 0.08 lx (F2.8, Auto slow shutter: Off (8/30s), Gain:On(High))

White Balance Light Control Mode Indoor scene (50 Hz / 60 Hz) / ELC Shutter Speed

Adaptive Black Stretch ON / OFF

AGC ON (HIGH) / ON (MID) / ON (LOW) / OFF Electronic Sensitivity UP OFF (1/30 s), Max. 2/30 s, Max. 3/30 s, Max. 4/30 s, Max. 8/30 s Day & Night (electrical) OFF / AUTO Digital Noise Reduction HIGH / LOW Video Motion Detection ON / OFF (4 areas available) Privacy Zone ON / OFF (up to 2 zones available) Camera Title (OSD) Up to 20 characters (alphanumeric characters, marks) , On/Off Lens Focal Length 2.7 mm Angular Field of View Horizontal: 53 °, Vertical: 40.5 ° Maximum Aperture Ratio 1 : 2.8

Focusing Range 0.5 m ~ ∞

Browser GUI

Camera Control Brightness Display Mode screens or 16 split screen (JPEG only). 20 characters camera title available. Zoom electronic zoom (up to 4x). Camera Title Up to 20 alphanumeric characters Clock Display Alarm Control Reset One Shot Capture A still picture will be displayed on a newly opened window.

GUI/Setup Menu Language English / Italian / French / German / Spanish / Russian / Chinese / Japanese System Log Up to 100 (Internal), error logs Supported OS

Supported Browser Windows Network Network IF 10Base-T / 100Base-TX, RJ-45 connector (female)


Resolution

[4 : 3] JPEG: VGA (640 x 480) / QVGA (320 x 240), up to 30 fps

H.264

JPEG

Supported Protocol IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP,

IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP,

FTP Client Alarm image transmission, FTP periodic transmission No. of Simultaneous Users Up to 14 users (Depends on network conditions) Face Detection ON / OFF (with XML notification)

Cellular Phone Compatibility JPEG image

Mobile Terminal Compatibilty*7 Alarm Alarm Source VMD, Command alarm Alarm Actions E-mail notification, Indication on browser, FTP image transfer, Panasonic protocol output Schedule VMD

General

Safety/

EMC Standard

Power Source and

Power Consumption

Ambient Operating Temperature

Ambient Operating Humidity Dimensions inches (H) x 1 inch (D)} (excluding projection) Mass (approx.) Approx. 75 g {0.17 lbs} Finish Main body: ABS resin, white

*1 Converted value *2 The actual line speed may be different depending on the network environment and the wireless devices connected. *3 Depending on the wireless router (wireless access point) used, connections may not possible

between the camera and the wireless router. When connecting with 802.11n, select WPA-PSK (AES) or WPA2-PSK (AES) for security. *4 Refer to "Notes on Windows Vista

about system requirements for a PC and precautions when using Microsoft

Microsoft *5 When using IPv6 for communication, use Microsoft *6 Transmission for 2 streams can be individually set in the same compression method. *7 For further information about compatible devices, refer to our website (http://panasonic.net/pss/security/support/info.html).

Aspect ratio: H.264: VGA (640 x 480) / QVGA (320 x 240), up to 30 fps

Aspect ratio: H.264: 640 x 360 / 320 x 180, up to 30 fps [16 : 9]

Transmission Mode Frame Rate 1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps Bit Rate/Client Image Quality LOW / NORMAL / FINE Refresh Interval Transmission Type Image Quality Refresh Interval 0.1 fps ~ 30 fps Transmission Type

Windows Vista®.

AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)

ELC (1/30 s), ELC (3/100 s), ELC (3/120 s), ELC (2/100 s), ELC (2/120 s), ELC (1/100 s), ELC (1/120 s), ELC (1/250 s), ELC (1/500 s), ELC (1/1,000 s), ELC (1/2,000 s), ELC (1/4,000 s), ELC (1/8,000 s)

Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad

Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual)

*4 *5

Microsoft® Windows® 7, Microsoft® Windows Vista®,Microsoft® Windows® XP SP3

Windows® Internet Explorer® 9.0 (32 bit), Windows® Internet Explorer® 8.0 (32 bit),

JPEG: 640 x 360 / 320 x 180, up to 30 fps

Internet Explorer® 7.0 (32 bit), Microsoft® Internet Explorer® 6.0 SP3

Constant bitrate / Frame rate / Best effort

64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 / 4096

1 fps ~ 30 fps

UNICAST / MULTICAST

10 steps

PULL / PUSH

iPad, iPhone, iPod touch (iOS 4.2.1 or later) , AndroidTM mobile terminals

BL-VP101: <Safety> UL60950-1 Ed.2, C22.2 NO.60950-1 Ed.2 <EMC> FCC Part15 ClassB, ICES-003 ClassB BL-VP101E / BL-VP101U: <Safety> IEC60950-1 Ed.2 <EMC> EN55022 ClassB, EN55024

6.5 V DC (Use only with Panasonic AC adapter) BL-VP101/VP101E/VP101U: max. 1.8 W 0 °C ~ 40 °C (32 °F ~ 104 °F) Less than 90 % (no condensation) 70 mm (W) x 70 mm (H) x 25.4 mm (D) {2-3/4 inches (W) x 2-3/4

/ Windows® 7" on the provided CD-ROM for further information

SNMP, DHCPv6, MLD, ICMP, ARP

SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP

Windows® 7 or

Windows® 7 or Microsoft® Windows Vista®.

Part Names and Functions

Front view Rear view

Appearance

4.5( 0-3/16")

Trademarks and registered trademarks

Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.

– – iPad, iPhone and iPod touch are registered trademarks of Apple Inc. – UniPhier is a registered trademark of Panasonic Corporation. – "Super Dynamic", "SDII", "SDIII", "SD5", "SD6", "SD5Link" logos are trademarks or registered trademarks of Panasonic Corporation. – ONVIF and the ONVIF logo are trademarks of ONVIF Inc.

Important

Safety Precaution: carefully read the operating instructions and installation manual before using this product.

– –

Panasonic can not be responsible for network performance and/or other manufacturer products that

reside on the network.

Power Indicator Lens INITIAL SET Button

32(1-1/4")

70(2-3/4")

AC Adaptor Cord Hook Stand/Tripod Mounting Hole DC IN Jack LAN Port

4.5( 0-3/16")

33(1-19/64")

25.4(1")

51.5(2-1/32")

86.5(3-13/32")

70(2-3/4")

65.6(2-19/32") 3.5(0-1/8")

Unit: mm (inches)

• Masses and dimensions are approximate.

• Specifications are subject to change without notice.

• These products may be subject to export control regulations.

DISTRIBUTED BY:

http://panasonic.net/security/

Printed in Japan (2A-094A)
