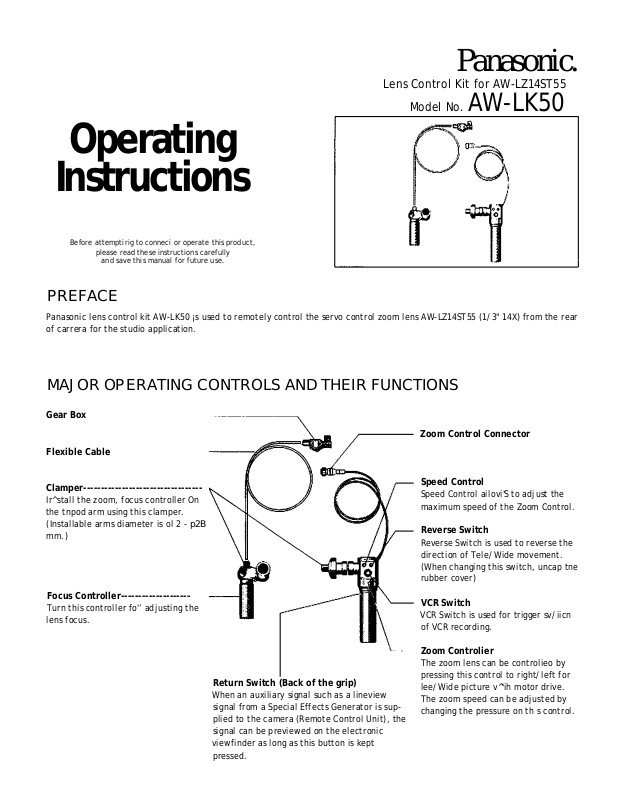

Panasonic.
Lens Control Kit for AW-LZ14ST55
Model No. AW-LK50
Operating
Instructions
Before attemptirig to conneci or operate this product,
please read these instructions carefully
and save this manual for future use.
PREFACE
Panasonic lens control kit AW-LK50 ¡s used to remotely control the servo control zoom lens AW-LZ14ST55 (1/3" 14X) from the rear
of carrera for the studio application.
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS
Gear Box
Zoom Control Connector
Flexible Cable
Clamper
Ir^stall the zoom, focus controller On
the tnpod arm using this clamper.
(Installable arms diameter is ol 2 - p2B
mm.)
Focus Controller
Turn this controller fo'’ adjusting the
lens focus.
----------------------------------
--------------------
Return Switch (Back of the grip)
When an auxiliary signal such as a lineview
signal from a Special Effects Generator is sup
plied to the camera (Remote Control Unit), the
signal can be previewed on the electronic
viewfinder as long as this button is kept
pressed.
Speed Control
Speed Control ailovi'S to adjust the
maximum speed of the Zoom Control.
Reverse Switch
Reverse Switch is used to reverse the
direction of Tele/Wide movement.
(When changing this switch, uncap tne
rubber cover)
VCR Switch
VCR Switch is used for trigger sv/iicn
of VCR recording.
Zoom Controlier
The zoom lens can be controlieo by
pressing this control to right/left for
lee/Wide picture v^'ih motor drive.
The zoom speed can be adjusted by
changing the pressure on th s control.
INSTALLATION
A tripod having double panning arms should be used for
the AW-LK50.
® Unscrew the cap for zoom control connector on the
zoom lens and connect the zoom control connector.
d) Install the gear box on the lens and connect the flexible
cable to the gear box and the focus controller.
CD Install the zoom controller on the right tripod arm and
the focus controller on the left tripod arm.
