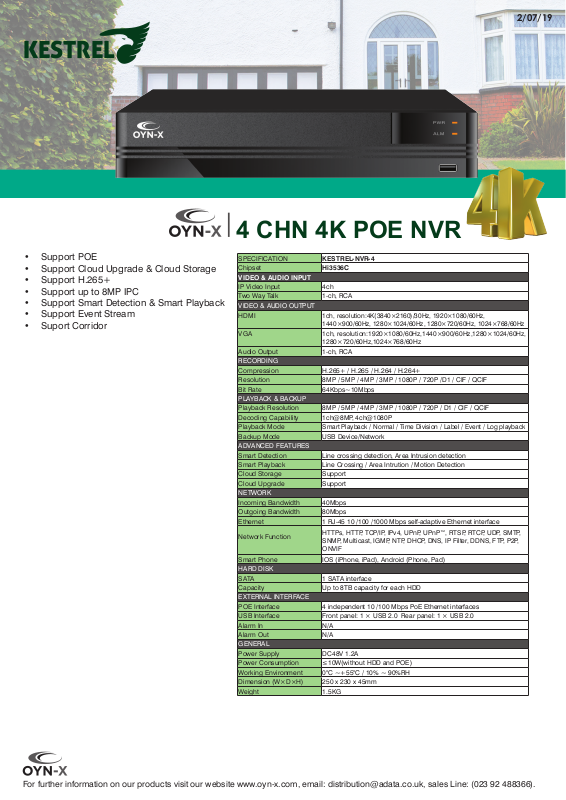

OYN-X KESTREL-NVR-4 Technical data
KESTREL
2/07/19
4 CHN 4K POE NVR
• Support POE
• Support Cloud Upgrade & Cloud Storage
• Support H.265+
• Support up to 8MP IPC
• Support Smart Detection & Smart Playback
• Support Event Stream
• Suport Corridor
SPECIFICATION KESTREL-NVR-4
Chipset Hi3536C
VIDEO & AUDIO INPUT
IP Video Input 4ch
Two Way Talk 1-ch, RCA
VIDEO & AUDIO OUTPUT
HDMI
VGA 1ch, resolution:1920×1080/60Hz,1440×900/60Hz,1280×1024/60Hz,
Audio Output 1-ch, RCA
RECORDING
Compression H.265+ / H.265 / H.264 / H.264+
Resolution 8MP / 5MP / 4MP / 3MP / 1080P / 720P /D1 / CIF / QCIF
Bit Rate 64Kbps~10Mbps
PLAYBACK & BACKUP
Playback Resolution 8MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 / CIF / QCIF
Decoding Capability 1ch@8MP, 4ch@1080P
Playback Mode
Backup Mode USB Device/Network
ADVANCED FEATURES
Smart Detection Line crossing detection, Area Intrusion detection
Smart Playback Line Crossing / Area Intrution / Motion Detection
Cloud Storage Support
Cloud Upgrade Support
NETWORK
Incoming Bandwidth 40Mbps
Outgoing Bandwidth 80Mbps
Ethernet 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
Network Function
Smart Phone IOS (iPhone, iPad), Android (Phone, Pad)
HARD DISK
SATA 1 SATA interface
Capacity Up to 8TB capacity for each HDD
EXTERNAL INTERFACE
POE Interface 4 independent 10 /100 Mbps PoE Ethernet interfaces
USB Interface Front panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0
Alarm In N/A
Alarm Out N/A
GENERAL
Power Supply DC48V 1.2A
Power Consumption ≤10W(without HDD and POE)
Working Environment 0°C ~+55°C / 10% ~ 90%RH
Dimension (W×D×H) 250 x 230 x 45mm
Weight 1.5KG
1ch, resolution:4K(3840×2160)/30Hz, 1920×1080/60Hz,
1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
1280×720/60Hz,1024×768/60Hz
Smart Playback / Normal / Time Division / Label / Event / Log playback
HTTPs, HTTP, TCP/IP, IPv4, UPnP, UPnP™, RTSP, RTCP, UDP, SMTP,
SNMP, Multicast, IGMP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, P2P,
ONVIF
For further information on our products visit our website www.oyn-x.com, email: distribution@adata.co.uk, sales Line: (023 92 488366).
