Page 1

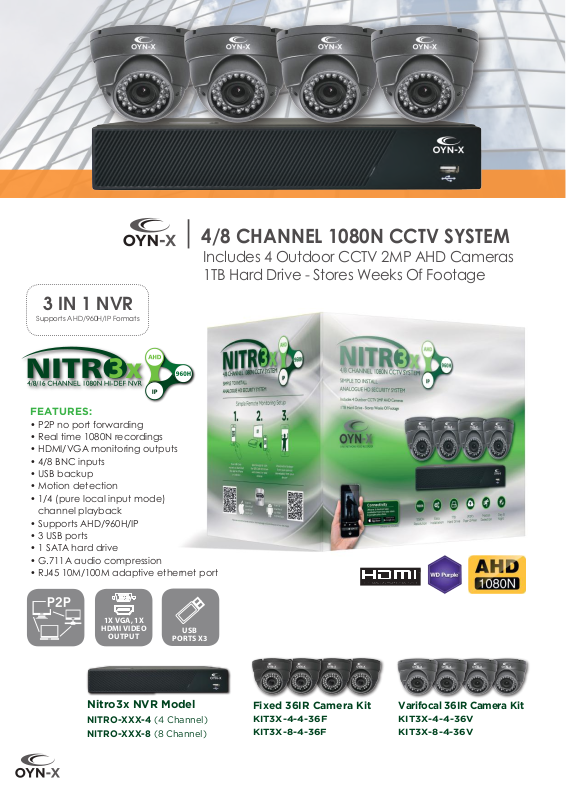

4/8 CHANNEL 1080N CCTV SYSTEM
®
Includes 4 Outdoor CCTV 2MP AHD Cameras
1TB Hard Drive - Stores Weeks Of Footage
3 IN 1 NVR
Supports AHD/960H/IP Formats
FEATURES:
• P2P no port forwarding
• Real time 1080N recordings
• HDMI/VGA monitoring outputs
• 4/8 BNC inputs
• USB backup
• Motion detection
• 1/4 (pure local input mode)
channel playback
• Supports AHD/960H/IP
• 3 USB ports
• 1 SATA hard drive
• G.711A audio compression
• RJ45 10M/100M adaptive ethernet port
1X VGA, 1X
HDMI VIDEO
OUTPUT
Nitro3x NVR Model
NITRO-XXX-4 (4 Channel)
NITRO-XXX-8 (8 Channel)
USB
PORTS X3
Fixed 36IR Camera Kit
KIT3X-4-4-36F
KIT3X-8-4-36F
Varifocal 36IR Camera Kit
KIT3X-4-4-36V
KIT3X-8-4-36V
Page 2
4/8 CHN 1080N HI-DEF AHD, 960H, IP - NVR
®
MODEL 4 CHANNEL 8 CHANNEL
VIDEO
3 IN 1 NVR
Supports AHD/960H/IP Formats
FEATURES:
• P2P no port forwarding
• Real time 1080N recordings
• HDMI/VGA monitoring outputs
• 4/8 BNC inputs
• USB backup
• Motion detection
• 1/4 (pure local input mode)
channel playback
• Supports AHD/960H/IP
• 3 USB ports
• 1 SATA hard drive
• G.711A audio compression
• RJ45 10M/100M
adaptive ethernet port
Video Codec H.264
Encode 4*AHD-M 8*1080N@12fps
Decode 1*AHD-M 4*1080N@12fps
Multi-mode
Input
Onvif Not supported Supported
AUDIO
Audio compression G.711A
Intercom Supported
RECORDING AND PLAYBACK
Record Mode Manual>alarm>motion detection>timing
Playback Channels 1 (pure local input mode) 4 (pure local input mode)
STORAGE
Backup Mode Network backup: USB HDD, USB writer, SATA writer
INTERFACE
Video Input 4 BNC 8 BNC
Pure Analog: 4*AHD-M;
4*AHD-L
hybrid: 2*AHD-M(analog)
+2*720P(network)
Network only: 4*1080P;
8*720P
Pure Analog: 8*1080N;
4*AHD-H; 4*1080N Mixed:
2*AHD-H (analog) ++2*1080P
(network)
Pure Network: 8*1080P;
8*960P; 4*3M
Video Output 1ch VGA, 1ch HDMI
Audio Input 1ch RCA 1ch RCA
Audio Output 1ch RCA
Alarm Input NO
Alarm Output NO
Network Interface RJ45 10M/100M Adaptive Ethernet port
PTZ Control (NO RS485), Coax (NO RS485), Coax
USB 3 USB ports
Hard Disk 1 SATA (Each maximum support 6T)
Power 12V/2A
Dimension 255mm (length) x 236mm (width) x 44mm (height)
Page 3
FEATURES:
• 1080P/2MP
• 1/2.9” 2MP CMOS Sensor
• Day & Night
• IR Cut Filter
• 0 Lux Ir On
• 3Yr Warranty
• 12V DC
• Wide Dynamic Range (WDR)
• Armoured Housing
• Privacy Masking
DIAGRAM:
2MP AHD Fixed Lens Eyeball Domes
SPECIFICATION AHD2-EYE-FG
Image Sensor 1/2.9” 2 Megapixel CMOS sensor
Signal System PAL/NTSC
Active Pixels 1984(H) × 1105(V)
Lens
Angle of View H:70° ( 89°/ 48°)
Horizontal Resolution 2MP/ 1080P
S/N Radio >50 dB ( AGC off )
Min Illumination 0 Lux (IR ON - IR-cut technology)
Language
Sens-up
Auto Electronic Shutter
Dynamic Noise Reduction 3D
Privacy Masking ON/OFF(4 Area)
Motion Detection ON/OFF(4 Area)
White Balance AWC->SET/AWB/ATW/Indoor/ Outdoor
D-WDR ON/OFF
Auto Gain Control Built-in
Video output
Gamma Correction Y = 0.45
Power Supply
Current Consumption 115 mA(IR OFF) , 360 mA(IR ON)
IR Led 36 pcs
IR Distance in Effect 25-30M
IP Rating IP66
Storage Temperature -50°C ~+90°C
Operating Temperature -30°C ~+70°C
Dimension Φ120*86mm
Weight 800g
3.6mm MP Lens
ENG/CHN/GER/FRA/ITA/SPA/POL/RUS/
POR/NED/TUR
x1 ~ x 30
PAL:1/50 - 1/100,000 sec ,
NTSC:1/60 - 1/100,000 sec
1 Analog HD output / 1 Analog
CVBS/1.0Vp-p/75Ω
DC12V±10%
Page 4
FEATURES:
• 1080P/2MP
• 1/2.9” 2MP CMOS Sensor
• Day & Night
• IR Cut Filter
• 0 Lux Ir On
• 3Yr Warranty
• 12V DC
• Wide Dynamic Range (WDR)
• Armoured Housing
• Privacy Masking
DIAGRAM:
2MP AHD Varifocal Eyeball Domes
SPECIFICATION AHD2-EYE-VG
Image Sensor 1/2.9” 2 Megapixel CMOS sensor
Signal System PAL/NTSC
Active Pixels 1984(H) × 1105(V)
Lens 2.8-12mm MP Lens
Angle of View H:98° - 32°
Horizontal Resolution 2MP/ 1080P
S/N Radio >50 dB (AGC off)
Min Illumination 0 Lux (IR ON - IR-cut technology)
Language
Menu OSD Control
Sens-up
Auto Electronic Shutter
Dynamic Noise Reduction 3D
Privacy Masking ON/OFF(4 Area)
Motion Detection ON/OFF(4 Area)
White Balance AWC->SET/AWB/ATW/Indoor/Outdoor
D-WDR ON/OFF
Auto Gain Control Built-in
Video output
Gamma Correction y = 0.45
Power Supply
Current Consumption 115mA(IR OFF), 360mA(IR ON)
IR Led 36 pcs
IR Distance in Effect 25-30M
IP Rating IP66
Storage Temperature -50°C ~+90°C
Operating Temperature -30°C ~+70°C
Dimension Φ120*86mm
Weight 800g
ENG/CHN/GER/FRA/ITA/SPA/POL/RUS/
POR/NED/TUR
x1 ~ x 30
PAL:1/50 - 1/100,000 sec,
NTSC:1/60 - 1/100,000 sec
1 Analog HD output /
1 Analog CVBS/1.0Vp-p/75Ω
DC12V±10%
