KESTREL
Video
Analytics
2MP
Resolution
H.265
Compression
960H
960 X 576
IR LED
Day &
Night
18 Pcs
3D
DNR
720P
1280 X 720
Lens
3.6mm
30M IR
Distance
Motion
Detection
1080P
1920 X 1080
Lens 3.6 [email protected]
Horizontal FOV:82°
Vertical FOV:44°
Maximum Image Resolution
2MP (1920 x 1080, 20FPS)
PIXELS
MEGA
2
1080P FIXED BULLET

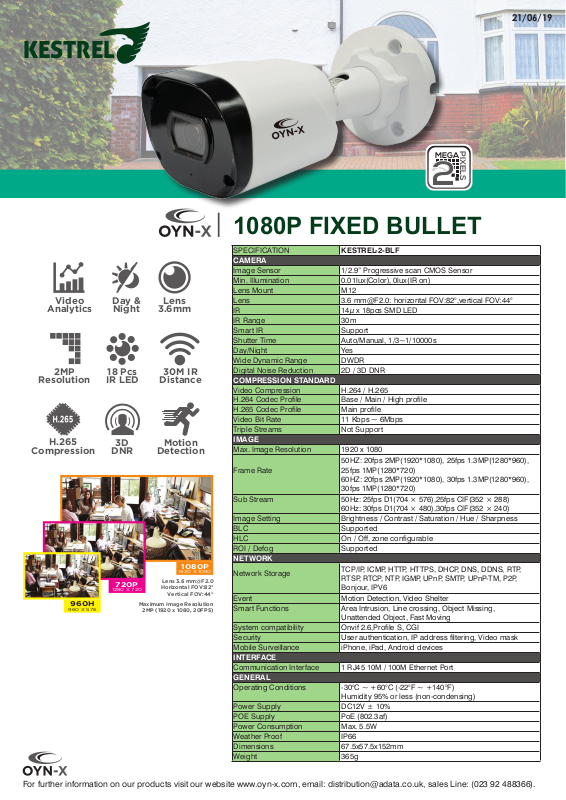

SPECIFICATION KESTREL-2-BLF
CAMERA
Image Sensor 1/2.9” Progressive scan CMOS Sensor
Min. Illumination 0.01lux(Color), 0lux(IR on)
Lens Mount M12
Lens 3.6 [email protected]: horizontal FOV:82°,vertical FOV:44°
IR 14µ x 18pcs SMD LED
IR Range 30m
Smart IR Support
Shutter Time Auto/Manual, 1/3~1/10000s
Day/Night Yes
Wide Dynamic Range DWDR
Digital Noise Reduction 2D / 3D DNR
COMPRESSION STANDARD
Video Compression H.264 / H.265
H.264 Codec Prole Base / Main / High prole
H.265 Codec Prole Main prole
Video Bit Rate 11 Kbps ~ 6Mbps
Triple Streams Not Support
Max. Image Resolution 1920 x 1080
Frame Rate
Sub Stream 50Hz: 25fps D1(704 × 576),25fps CIF(352 × 288)
Image Setting Brightness / Contrast / Saturation / Hue / Sharpness
BLC Supported
HLC On / Off, zone congurable
ROI / Defog Supported
NETWORK
Network Storage
Event Motion Detection, Video Shelter
Smart Functions Area Intrusion, Line crossing, Object Missing,
System compatibility Onvif 2.6,Prole S, CGI
Security User authentication, IP address ltering, Video mask
Mobile Surveillance iPhone, iPad, Android devices
INTERFACE
Communication Interface 1 RJ45 10M / 100M Ethernet Port
GENERAL
Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F)
Power Supply DC12V ± 10%
POE Supply PoE (802.3af)
Power Consumption Max. 5.5W
Weather Proof IP66
Dimensions 67.5x57.5x152mm
Weight 365g
50HZ: 20fps 2MP(1920*1080), 25fps 1.3MP(1280*960),
25fps 1MP(1280*720)
60HZ: 20fps 2MP(1920*1080), 30fps 1.3MP(1280*960),
30fps 1MP(1280*720)
60Hz: 30fps D1(704 × 480),30fps CIF(352 × 240)
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP,
RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P,
Bonjour, IPV6
Unattended Object, Fast Moving
Humidity 95% or less (non-condensing)
21/06/19
For further information on our products visit our website www.oyn-x.com, email: [email protected], sales Line: (023 92 488366).
