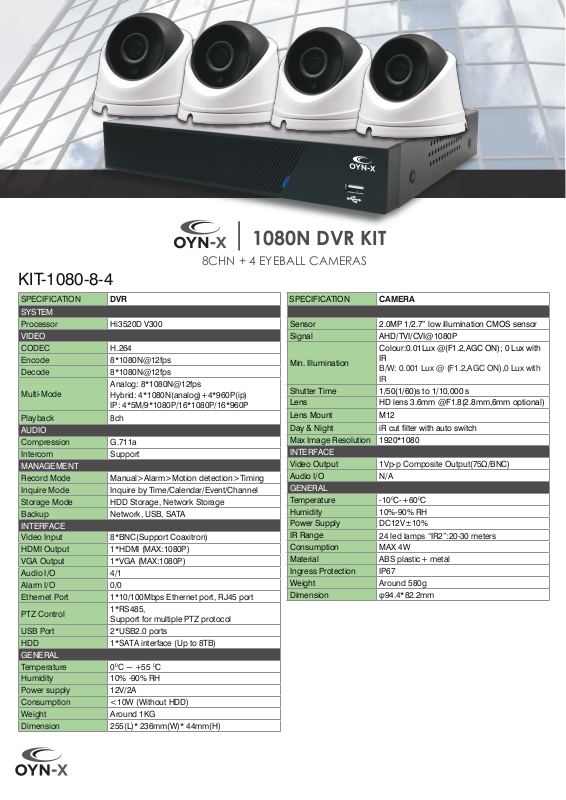

KIT-1080-8-4
1080N DVR KIT
8CHN + 4 EYEBALL CAMERAS
SPECIFICATION DVR
SYSTEM
Processor Hi3520D V300
VIDEO
CODEC H.264
Encode 8*1080N@12fps
Decode 8*1080N@12fps
Analog: 8*1080N@12fps
Multi-Mode
Playback 8ch
AUDIO
Compression G.711a
Intercom Support
MANAGEMENT
Record Mode Manual>Alarm>Motion detection>Timing
Inquire Mode Inquire by Time/Calendar/Event/Channel
Storage Mode HDD Storage, Network Storage
Backup Network, USB, SATA
INTERFACE
Video Input 8*BNC(Support Coaxitron)
HDMI Output 1*HDMI (MAX:1080P)
VGA Output 1*VGA (MAX:1080P)
Audio I/O 4/1
Alarm I/O 0/0
Ethernet Port 1*10/100Mbps Ethernet port, RJ45 port
PTZ Control
USB Port 2*USB2.0 ports
HDD 1*SATA interface (Up to 8TB)
GENERAL
Temperature 0
Humidity 10% -90% RH
Power supply 12V/2A
Consumption <10W (Without HDD)
Weight Around 1KG
Dimension 255(L)* 236mm(W)* 44mm(H)
Hybrid: 4*1080N(analog)+4*960P(ip)
IP: 4*5M/9*1080P/16*1080P/16*960P
1*RS485,
Support for multiple PTZ protocol
0
C ~ +55 0C
SPECIFICATION CAMERA
Sensor 2.0MP 1/2.7” low illumination CMOS sensor
Signal AHD/TVI/CVI@1080P
Colour:0.01Lux @(F1.2,AGC ON); 0 Lux with
Min. Illumination
Shutter Time 1/50(1/60)s to 1/10,000 s
Lens HD lens 3.6mm @F1.8(2.8mm,6mm optional)
Lens Mount M12
Day & Night iR cut lter with auto switch
Max Image Resolution 1920*1080
INTERFACE
Video Output 1Vp-p Composite Output(75Ω/BNC)
Audio I/O N/A
GENERAL
Temperature -10
Humidity 10%-90% RH
Power Supply DC12V±10%
IR Range
Consumption MAX 4W
Material ABS plastic+ metal
Ingress Protection IP67
Weight Around 580g
Dimension φ94.4*82.2mm
IR
B/W: 0.001 Lux @ (F1.2,AGC ON),0 Lux with
IR
0
C-+600C
24 led lamps “IR2”:20-30 meters
