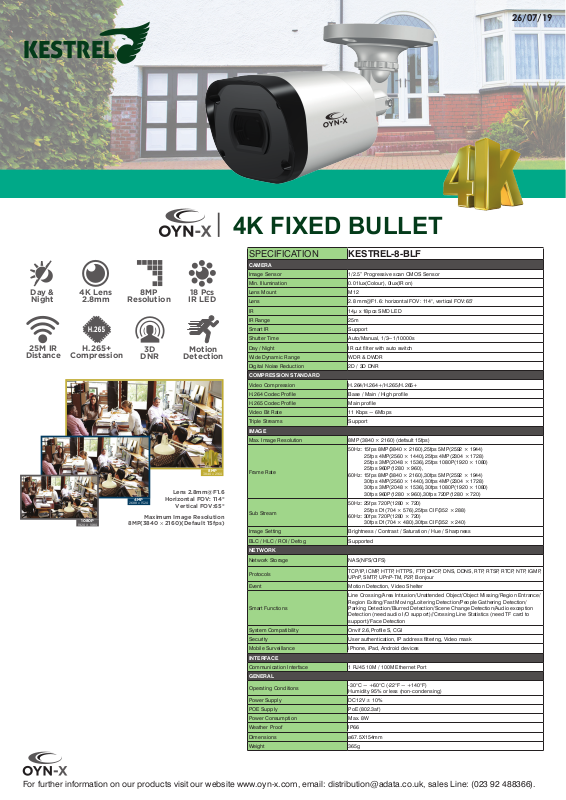

OYN-X KESTREL-8-BLF Technical data
KESTREL
Day &
Night
25M IR
Distance
4K Lens
2.8mm
H.265+
Compression
1080P
1920 X 1080
8MP
Resolution
3D
DNR
4MP
2688 x 1520
Maximum Image Resolution
8MP(3840 × 2160)(Default 15fps)
18 Pcs
IR LED
Motion
Detection
8MP
3840 x 2160
Lens 2.8mm@F1.6
Horizontal FOV: 114°
Vertical FOV:65°
4K FIXED BULLET
SPECIFICATION KESTREL-8-BLF
CAMERA
Image Sensor 1/2.5” Progressive scan CMOS Sensor
Min. Illumination 0.01lux(Colour), 0lux(IR on)
Lens Mount M12
Lens 2.8 mm@F1.6: horizontal FOV: 114°, vertical FOV:65°
IR 14µ x 18pcs SMD LED
IR Range 25m
Smart IR Support
Shutter Time Auto/Manual, 1/3~1/10000s
Day / Night IR cut lter with auto switch
Wide Dynamic Range WDR & DWDR
Digital Noise Reduction 2D / 3D DNR
COMPRESSION STANDARD
Video Compression H.264/H.264+/H.265/H.265+
H.264 Codec Prole Base / Main / High prole
H.265 Codec Prole Main prole
Video Bit Rate 11 Kbps ~ 6Mbps
Triple Streams Support
Max. Image Resolution 8MP (3840 × 2160) (default 15fps)
50Hz: 15fps 8MP(3840 × 2160),25fps 5MP(2592 × 1944)
25fps 4MP(2560 × 1440),25fps 4MP(2304 × 1728)
25fps 3MP(2048 × 1536),25fps 1080P(1920 × 1080)
Frame Rate
Sub Stream
Image Setting Brightness / Contrast / Saturation / Hue / Sharpness
BLC / HLC / ROI / Defog Supported
NETWORK
Network Storage NAS(NFS/CIFS)
Protocols
Event Motion Detection, Video Shelter
Smart Functions
System Compatibility Onvif 2.6,Prole S, CGI
Security User authentication, IP address ltering, Video mask
Mobile Surveillance iPhone, iPad, Android devices
INTERFACE
Communication Interface 1 RJ45 10M / 100M Ethernet Port
GENERAL
Operating Conditions
Power Supply DC12V ± 10%
POE Supply PoE (802.3af)
Power Consumption Max. 8W
Weather Proof IP66
Dimensions ø67.5X154mm
Weight 365g
25fps 960P(1280 × 960),
60Hz: 15fps 8MP(3840 × 2160),30fps 5MP(2592 × 1944)
30fps 4MP(2560 × 1440),30fps 4MP(2304 × 1728)
30fps 3MP(2048 × 1536),30fps 1080P(1920 × 1080)
30fps 960P(1280 × 960),30fps 720P(1280 × 720)
50Hz: 25fps 720P(1280 × 720)
25fps D1(704 × 576),25fps CIF(352 × 288)
60Hz: 30fps 720P(1280 × 720)
30fps D1(704 × 480),30fps CIF(352 × 240)
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP,
UPnP, SMTP, UPnP-TM, P2P, Bonjour
Line Crossing/Area Intrusion/Unattended Object/Object Missing/Region Entrance/
Region Exiting/Fast Moving/Loitering Detection/People Gathering Detection/
Parking Detection/Blurred Detection/Scene Change Detection/Audio exception
Detection (need audio I/O support)//Crossing Line Statistics (need TF card to
support)/Face Detection
-30°C ~ +60°C (-22°F ~ +140°F)
Humidity 95% or less (non-condensing)
26/07/19
For further information on our products visit our website www.oyn-x.com, email: distribution@adata.co.uk, sales Line: (023 92 488366).
