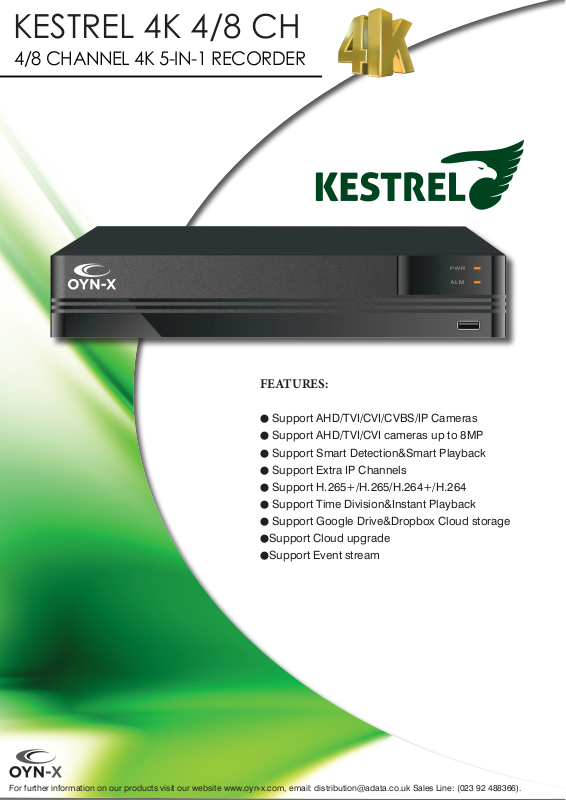

OYN-X KESTREL-4K-4, KESTREL-4K-8 Technical data
KESTREL 4K 4/8 CH
4/8 CHANNEL 4K 5-IN-1 RECORDER
FEATURES:
● Support AHD/TVI/CVI/CVBS/IP Cameras
● Support AHD/TVI/CVI cameras up to 8MP
● Support Smart Detection&Smart Playback
● Support Extra IP Channels
● Support H.265+/H.265/H.264+/H.264
● Support Time Division&Instant Playback
● Support Google Drive&Dropbox Cloud storage
●Support Cloud upgrade
●Support Event stream
For further information on our products visit our website www.oyn-x.com, email: distribution@adata.co.uk Sales Line: (023 92 488366).
KESTREL 4K 4/8 CH
4/8 CHANNEL 4K 5-IN-1 RECORDER
Model KESTREL-4K-4 KESTREL-4K-8
4 Channel 8 Channel
VIDEO & AUDIO INPUT
Analog Video Input 4CH (1.0Vp-p, 75 Ω) 8CH (1.0Vp-p, 75 Ω)
HDTVI Input 8MP, 5MP, 4MP, 1080P, 720P
AHD Input 8MP, 5MP, 4MP, 1080P, 720P
CVI Input 4MP, 1080P, 720P
CVBS Input Support
IP video Input Up to 8CH, 8MP resolution Up to 16CH, 8MP resolution
Audio Input 4CH, RCA(2.0 Vp-p, 1 KΩ)
Two-Way Audio 1CH, multiplex with Audio Input(RCA)
Video & Audio Output
HDMI
VGA 1CH, resolution: 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
CVBS 1CH, BNC(1.0Vp-p,75Ω), resolution: PAL:704x576, NTSC:704x480
Audio Output 1CH, RCA(Linear, 1kΩ)
RECORDING
Video Compression H.265+ / H.265 / H.264+/ H.264
Encoding Resolution 8MP / 5MP / 4MP / 1080P / 1080P Lite / 720P / 960H / D1
Resolution
Frame Rate(fps) 1-25fps(PAL) / 30fps(NTSC)
Video Bit Rate 11Kbps~ 6386Kbps
Record Mode Manual, Schedule, Alarm
Audio Compression G.711a
Audio Bit Rate 64kbps
PLAYBACK & BACKUP
Playback Number
Playback Mode Smart Playback / Normal / Time Division / Label / Event / Picture playback
Backup Mode USB Device / Network
ADVANCED FEATURES
Smart Detection for Analog 4CH line crossing detection, intrusion detection 8CH line crossing detection, intrusion detection
VQD
Smart Detection for QV IPC Line crossing detection, Area intrusion detection
Smart Playback for Analog Line crossing detection, Area intrusion detection, Motion detection
Smart Playback for QV Line crossing detection, Area intrusion detection, Motion detection
Cloud Storage & Upgrade Supported
NETWORK
Ethernet 1 RJ-45 10 /100/1000 Mbps self-adaptive Ethernet interface
Network Function
HARD DISK
SATA 1 SATA interfaces
Capacity Up to 10TB capacity for each HDD
OTHER
Serial Interface RS-485
USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Power Supply DC12V, 2A
Power Consumption ≤15W (without HDD)
Working Environment -10°C ~ +55°C / 10% ~ 90% RH
Dimension (W x D x H) 250mm x 230mm x 45mm
Weight (without HDD) 1.5kg
1CH, resolution: 4K(3840×2160)/30Hz, 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz,
1024×768/60Hz
Main stream: 8MP@7fps, 8MP-N@15fps, 5MP@12fps, 4MP@15fps,
1080P/720P/960H/D1@25fps (P)/30fps (N)
1CH 8MP Playback
4CH 8MP-N Playback
4CH Defocus Detection for Analog
Scene change Detection for IP Channel
HTTPs, HTTP, TCP/IP, IPv4, UPnP, Onvif 2.6, RTSP, RTCP, UDP, SMTP, SNMP, Multicast, IGMP, NTP,
DHCP, DNS, DDNS, FTP, P2P
4CH 8MP Playback
8CH 8MP-N Playback
8CH Defocus Detection for Analog
Scene change Detection for IP Channel
Updated 24/05/2019
