3.25 CU. FT. REFRIGERATOR
INSTRUCTION MANUAL
Model No.: OSDR325B1
To ensure proper use of this appliance and your safety, please read the
following instructions completely before operating this appliance.
TABLE OF CONTENTS
NAMES OF THE PARTS................................................................................ 2
SPECIFICATIONS.......................................................................................... 2
IMPORTANT SAFETY INSTRUCTIONS........................................................ 3
INSTALLATION INSTRUCTIONS
BEFORE USING YOUR REFRIGERATOR............................................ 3
INSTALLING YOUR REFRIGERATOR................................................... 3
ELECTRICAL CONNECTION................................................................. 4
OPERATING YOUR REFRIGERATOR
TEMPERATURE CONTROL................................................................ 5
THE FREEZER COMPARTMENT........................................................ 5
WHEN TO DEFROST........................................................................... 5
HOW TO DEFROST............................................................................. 5
CHANGING THE REVERSIBLE DOOR......................................................... 6-7
LIGHT BULB REPLACEMENT....................................................................... 7
CARE AND MAINTENANCE
CLEANING YOUR REFRIGERATOR.................................................. 8
VACATION TIME................................................................................. 8
MOVING YOUR REFRIGERATOR...................................................... 8
ENERGY SAVING TIPS...................................................................... 8
TROUBLESHOOTING GUIDE....................................................................... 9-10
REFRIGERATOR WARRANTY..................................................................... 11
1
NAMES OF THE PARTS
MODEL NO.: OSDR325B1
(1) Door, Freezer Section
(2) Temperature Control Box
(3) Interior Light Switch
(4) Shelf, Refrigerator Section
(5) Door, Refrigerator Section
(6) Crisper
(7) Leveling Leg
4
6
1
2
3
5
7
WARNING
: Never touch the interior of the Freezer Section or frozen foods in the
compartment with wet hands as this could result in frostbite.
SPECIFICATIONS - MODEL NO.: OSDR325B1
PRODUCT DESCRIPTION
MODEL NO.
CAPACITY
UNIT DIMENSIONS
(inches)
NET WEIGHT (lbs.)
Oster 2 Door Refrigerator
Width
OSDR325B1
3.25 Cu. Ft.
Height
19.1” 33.9”
57.5 (lbs.)
Depth
19.5”
2
IMPORTANT SAFETY INSTRUCTIONS
WARNING
• Read all instructions before using the refrigerator.
• DANGER or WARNING: Risk of child entrapment.
• To avoid the possibility of child entrapment, please take the following precautions
before throwing out the refrigerator.
- Remove all doors from the unit.
- Leave the shelves in place so that children may not easily climb inside.
• Never allow children to operate, play with, or crawl inside the refrigerator.
• Refrigerants: All refrigeration products contain refrigerants, which under the
guidelines of federal law must be removed before disposal of product. It is the
consumer’s responsibility to comply with federal and local regulations when
disposing of this product.
• Never clean refrigerator parts with ammable uids. The fumes can create a re
hazard or explosion.
• Do not store or use gasoline or any other ammable vapors and
of this or any other refrigerator. The fumes can create a re hazard or an explosion.
To reduce the risk of re, electrical shock,
or injury when using your refrigerator,
follow these basic precautions:
liquids in the vicinity
-Save these instructions-
INSTALLATION INSTRUCTIONS
efore Using Your Refrigerator
B
• Remove the exterior and interior packing.
• Before connecting the refrigerator to the power source, let it stand upright for approximately 4
hours. This will reduce the possibility of a malfunction in the cooling system from improper
handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth. (Cleaning Your Refrigerator on page 8)
Installing
• This appliance is designed to be free standing only, and should not be recessed or built-in.
• Place your refrigerator on a oor that is strong enough to support the refrigerator when it is fully
• Allow 5 inches of space between the back and sides of the refrigerator, which allows the proper
• Locate the refrigerator away from direct sunglight and sources of heat (stove, heater, radiator, etc.).
• Avoid locating the refrigerator in moist areas.
• Plug the refrigerator into dedicated, properly installed-grounded wall outlet. Do not under any
• After plugging the appliance into a wall outlet, turn the unit on and allow the unit to cool down for
Your Refrigerator
loaded.
air ventilation. Adjust the feet to keep the refrigerator level.
Direct sunlight may aect the acrylic coating and heat sources may increase electrical consumption.
Ambient temperature below 50°F (10°C) or above 85°F (29.4°C) will hinder the performance of this
appliance. This unit is not designed for use in a garage or any other outside installation.
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certied electrician or an
authorized service center. This unit is not designed to be installed in an RV or used with an inverter.
2-3 hours under before placing food in the refrigerator or freezer co
mpartment.
3
Electrical Connection
WARNING
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized service center.
This refrigerator should be properly grounded for your safety. The power cord of this refrigerator is equipped
with a three-prong plug which mates with standard three-prong wall outlets to minimize the possibility of
electrical shock.
Do not, under any circumstances, cut or remove the third ground prong from the power cord supplied.
This refrigerator requires a standard 115/120 Volt A.C. ~/60Hz electrical outlet with three-prong ground.
This refrigerator is not designed to be used with an inverter.
The cord should be secured behind the refrigerator and not left exposed or dangling to prevent
accidental injury.
Never unplug the refrigerator by pulling the power cord. Always grip the plug rmly and pull straight
out from the receptacle.
Do not use an extension cord with this appliance. If the power cord is too short, have a qualied
electrician or service technician install an outlet near the appliance. Use of an extension cord can
negatively aect the performance of the unit.
If any problems with the appliance persist, please contact our Customer Service Department to consult with
a representative at 877-
856-0202 or visit our website to request warranty service at www.mcappliance.com.
4
OPERATING YOUR REFRIGERATOR

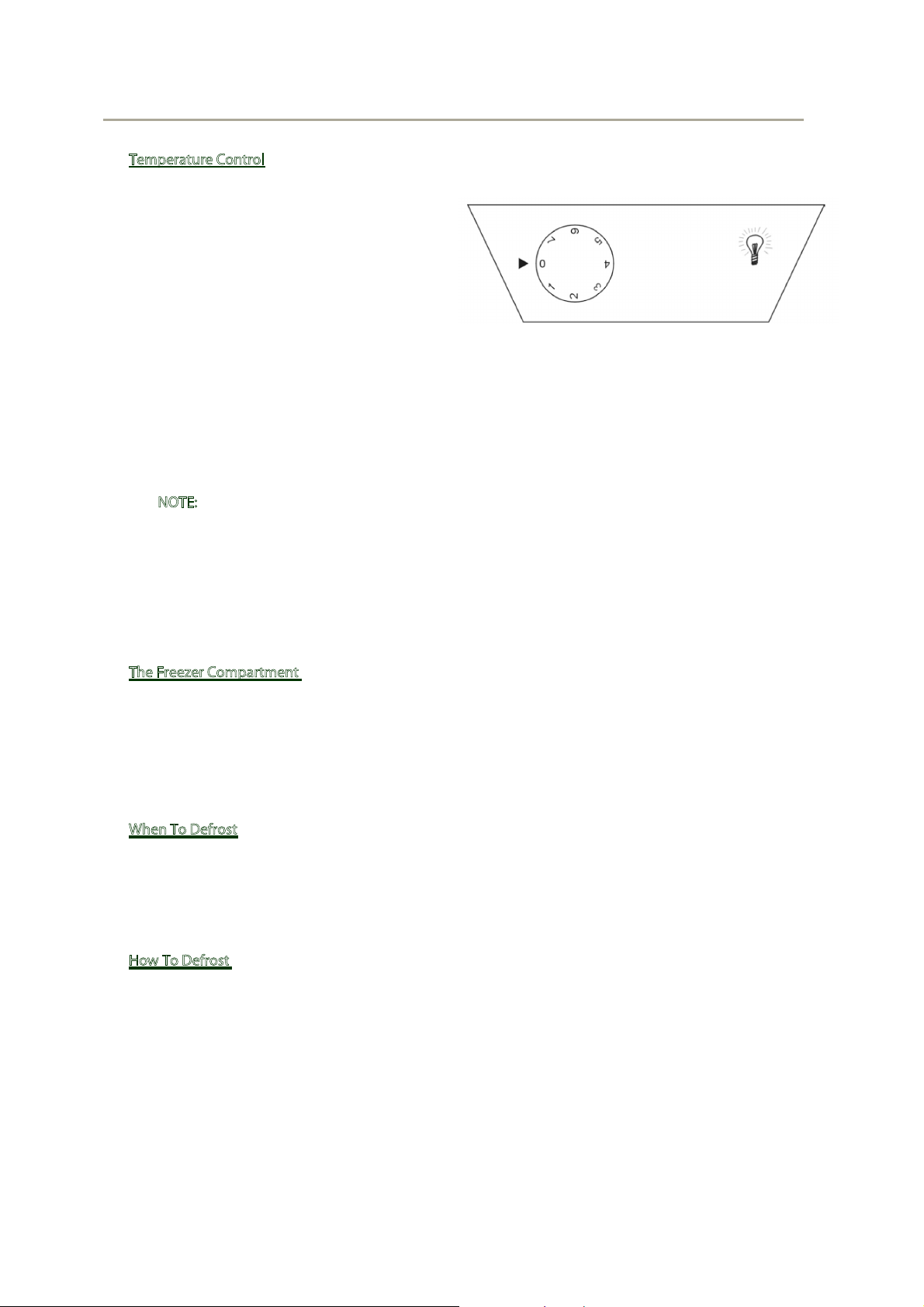

Temperature Control
• Your refrigerator has one control for
regulating the temperature. The
temperature control is located on the top
center of the refrigerator compartment.
• The rst time you turn the unit on, adjust
the temperature control knob to “7” and
run for at least 2 hours before putting
foods inside. This will ensure the cabinet is thoroughly chilled before food is put in.
• The range of the refrigerator temperature control is from position “1” the warmest to “7” the
coldest. Adjust the temperature control to the setting that best suits your needs. The setting of “4”
should be appropriate for home or oce refrigerator use.
• Turning the temperature control knob to “0” position stops the cooling cycle but does not shut o
the power to the unit.
NOTE:
•
• If the unit is unplugged, loses power; you must wait 3 to 5 minutes before restarting the
unit. If you attempt to restart before this time delay, the refrigerator will not start.
• Large amounts of food will lower the cooling eciency of the appliance.
• Do not place the foods on the air outlet, and leave spaces for air ow.
• If you choose to change the thermostat setting, adjust the thermostat control by one
increment at a time. Allow several hours for temperature to stabilize between adjustments.
TEMPERATURE
CONTROL
7 IS COLDEST
15W MAX
Freezer Compartment
The
• This compartment is designed for the long-term storage of frozen food.
• The storage life of frozen foods varies and the recommended storage time should not be exceeded.
• Place frozen food into the freezer as quickly as possible after purchase. If there are instructions on the
packet, carefully follow these instructions regarding storage times.
To Defrost
When
This unit is not designed to defrost automatically. In order to prevent damage to the interior liner of
the unit from excessive frost build-up, please manually defrost the unit every 3 months or when the ice /
frost is approximately 1/4” thick inside the freezer compartment.
ow To Defrost
H
Defrost the freezer compartment when the ice / frost are approximately 1/4” thick or every 3 months,
whichever comes rst. Set the thermostat dial to “0” to defrost. Remove all contents from the freezer
compartment. Leave the freezer door open to allow accumulated ice/frost to melt. Remove large
pieces of ice as needed. Do not use hot water or other electric heating devices to melt the
accumulated ice. After defrosting, remove accumulated ice / water and wipe the freezer compartment
dry with a soft cloth. In the event that the ice is not visibly present in the freezer compartment, please
allow the evaporator located behind the freezer wall to completely defrost for approximately 2 hours
before restarting the unit. Restart the unit per starting instructions.
5

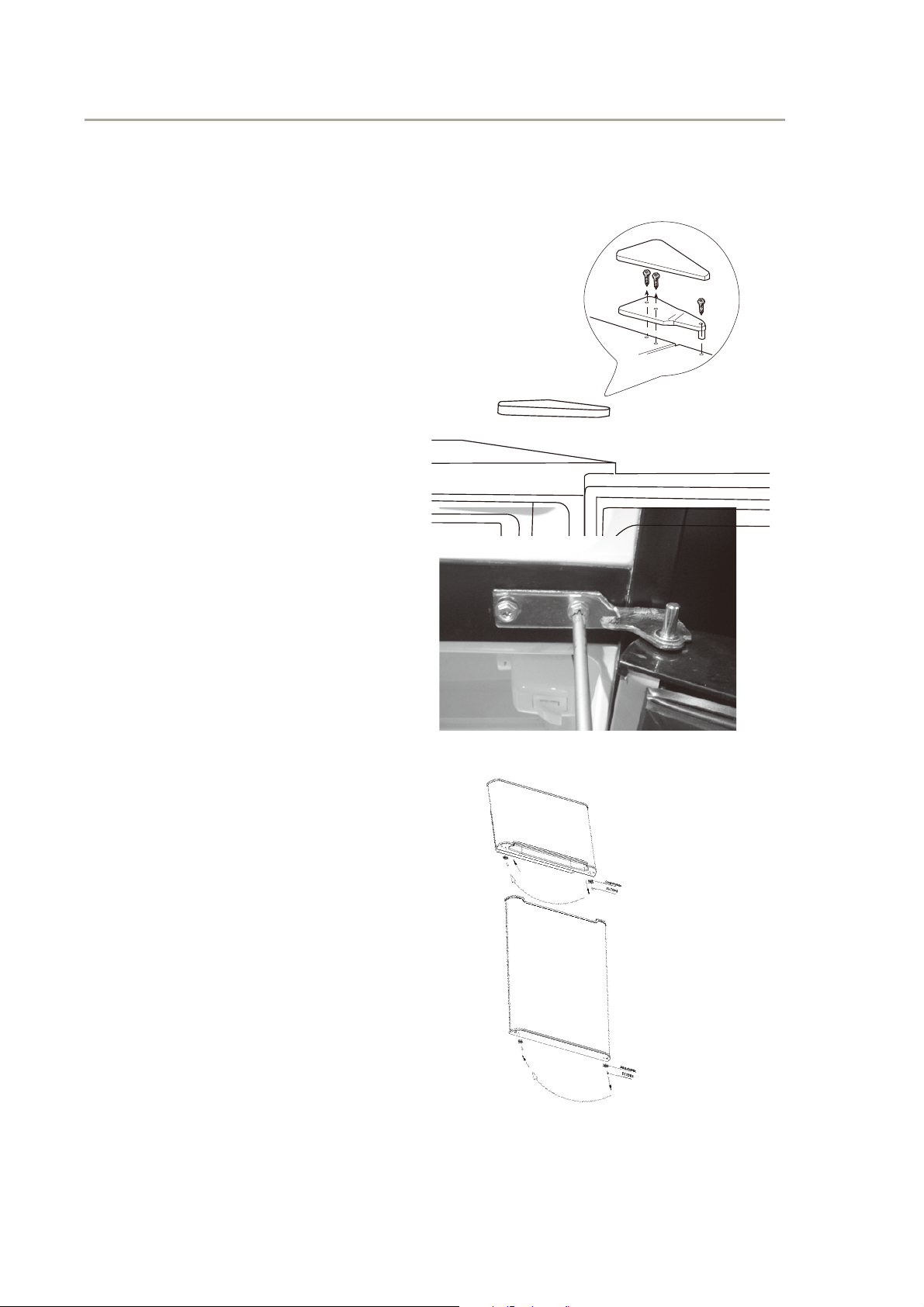

CHANGING THE REVERSIBLE DOOR
CAUTION: To avoid personal injury to yourself and/or property, we recommend someone assist you
during the door reversal process.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Remove the top hinge cover. (See Fig. 1)
Using Phillips Head Screwdriver, loosen and remove the
screws holding the top hinge in place.
Remove top hinge and carefully lift off the
freezer door.
Remove the screw hole plugs from the
opposite side and insert the plugs in the
screw hole openings of the just removed
.
screws.
Open refrigerator door and unscrew two
screws from the center hinge bracket
while holding the open d
(See Fig. 2)
Remove bracket and lift off refrigerator door.
While doors are removed unscrew the door
stoppers and re-insert on opposite side of
door. (See Fig. 3)
Remove the screw hole plugs from
opposite side and insert the plugs in the
screw hole openings of the just removed
screws.
Remove any loose items in the refrigerator
and carefully tilt refrigerator and lean against
wall. Remove both leveling legs
in a secure area.
Loosen the screws holding the lower hinge
bracket to the refrigerator door and remove
screws and bracket. Remove leveling leg.
Remove screws from the other side and
insert in the previously removed screw
holes. Remove leveling leg.
Remove door pin by turning counter clockwi
and re-insert to the underside of the bracket
and tighten.
Align bracket and insert 2 remaining
screws into the holes provided. Tighten
all the way. Replace leveling legs and
place refrigerator in upright position.
Replace washers and cap over pin. Align hole to
the refrigerator door with the door pin and gently
push down until firm.
Insert pin from center hinge bracket into
refrigerator door hole and align center hinge
bracket holes to the screw holes in the cabin
oor in place.
w
the
and place
se
et.
Fig. 1
Fig. 2
Fig. 3
6
•
Insert 2 screws and tighten.
•
Place washers on the center hinge bracket pin and align the freezer door holes and insert into pin.
•
Replace screws on the top hinge cover, align door and tighten screws.
•
Replace top hinge cover.
Hole Plugs
Door Axis
Hole Cover
Middle
Hinge
Hole Plugs
Tall Leg Tall Leg
Screws
Fig. 4
LIGHT BULB REPLACEMENT
•
Switch off power to refrigerator.
•
Gently pull out the clear cover.
•
Replace
•
Push the clear cover back into place.
with same type light bulb rated at 10 watts.
Screws
Bottom
Hinge
Short Leg
7
CARE AND MAINTENANCE
Cleaning Your Refrigerator
• Upon installation of your new appliance, it is recommended that it be cleaned thoroughly.
• Turn o the refrigerator rst and then unplug the unit from the wall outlet.
• Remove all food content.
• Wash the inside with a damp warm cloth soaked in lukewarm water and baking soda solution.
The solution should be about 2 tablespoons of baking soda to a quart of water.
• Be sure to keep the door gasket (seal) clean to keep the unit running eciently.
• The outside of the refrigerator should be cleaned with mild detergent and warm water.
• Dry the interior and exterior with a soft cloth.
Vacation
• Turn o the refrigerator rst and then unplug the unit from the wall outlet.
• Remove all the food.
• Clean the refrigerator.
• Leave the door open slightly to avoid possible formation of condensation, mold, or odor.
• Use extreme caution in the case of children. The unit should not be accessible to child’s play.
• Short vacations: Leave the refrigerator operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all food and unplug
Time
the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave
the door open slightly: blocking it open if necessary or have the door removed.
Mo
ving Your Refrigerator
• Turn o the refrigerator rst and then unplug the unit from the wall outlet.
• Remove all the food.
• Securely tape down all loose items inside your refrigerator.
• Tape the doors shut.
• Be sure the refrigerator stays in the upright position during transportation.
Ener
gy Saving Tips
• The refrigerator should be located in the coolest area of the room, away from heat producing
appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing them into the refrigerator. Overloading the
refrigerator forces the compressor to run longer. Foods that freeze too slowly may lose quality, or
spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the refrigerator.
This cuts down on frost build-up inside the refrigerator.
• Organize and label food to reduce door openings and extended searches. Remove as many
items as needed at one time, and close the door as soon as possible.
8
TROUBLESHOOTING GUIDE
You can solve many common refrigerator problems easily, saving you the cost of a possible
service call. Try the suggestions below to see if you can solve the problem before calling for
service.
ESUAC ELBISSOP MELBORP
Refrigerator does not operate.
Compressor turns on and o frequently. - The room temperature is hotter than normal.
Temperature inside the refrigerator is too warm. - Temperature control is set too warm. Turn the
Temperature inside the refrigerator is too cold. - Temperature control is set too cold. Turn the
Temperature of external refrigerator surface is
warm.
Popping or cracking sound when compressor
comes on.
Bubbling or gurgling sound, like water boiling. - Refrigerant (used to cool refrigerator) is
Vibrations. - Check to assure that the refrigerator is on a level
- Not plugged in.
- The circuit breaker tripped or a blown fuse.
- A large amount of food has been added to the
refrigerator.
- The door is opened too often.
- The door is not closed completely.
- The temperature control is not set correctly.
- The door gasket does not seal properly.
- The refrigerator does not have the correct
clearances.
- The refrigerator has recently been disconnected
for a period of time. 4 hours are required for the
refrigerator to cool down completely.
control to a cooler setting and allow several hours
for the temperature to stabilize.
- Door is kept open too long or is opened too
frequently. Warm air enters the refrigerator every
time the door is opened. Open the door less
often.
- The door is not closed completely.
- The door gasket does not seal properly.
- A large amount of warm or hot food might have
been stored recently. Wait until the refrigerator
has had a chance to reach its selected
temperature.
- The refrigerator has recently been disconnected
for a period of time. 4 hours are required for the
refrigerator to cool down completely.
control to a warmer setting and allow several
hours for the temperature to stabilize.
- The exterior refrigerator walls can be as much as
ο
F warmer than room temperature. This is
30
normal while the compressor works to transfer
heat from inside the refrigerator cabinet.
- Metal parts undergo expansion and contraction,
as in hot water pipes. This is normal. Sound will
level o or disappear as refrigerator continues to
run.
circulating throughout the system. This is normal.
surface.
- Floor is uneven or weak. Refrigerator rocks on
the oor when it is moved slightly. Be sure oor
can adequately support refrigerator. Level the
9
refrigerator by putting wood or metal shims under
part of the refrigerator.
The refrigerator is touching the wall. Re-level the
refrigerator and move it from the wall.
See “Installation Instructions”.
Moisture forms on inside refrigerator walls. - Weather is hot and humid, which increases
internal rate of frost build-up. This is normal.
- Door is slightly open.
- Door is kept open too long, or is opened too
frequently. Open the door less often.
- The door is not sealed properly.
Moisture forms on outside of refrigerator.
The door will not close properly. - The refrigerator is not on a level surface.
- Door is slightly open, causing cold air from inside
the refrigerator to meet warm moist air from
outside.
- The gasket is dirty.
- The storage basket is out of position.
10
REFRIGERATOR WARRANTY
Unless otherwise prohibited, MC Appliance Corporation warrants each new Refrigerator to be free from
defects in material and workmanship, and agrees to remedy any such defect or to furnish a new part(s), at
the company’s option, for any part(s) of the unit that has failed during the warranty period.
Parts and labor expenses are covered on this unit for a period of one year from the date of purchase. In
addition, MC Appliance Corporation warrants the compressor (parts only) to be free from defects in material
and workmanship for a period of 5 years. The consumer is responsible for all labor and transportation
expenses related to the diagnosis and replacement of the compressor after the initial one-year warranty
expires. A copy of the dated sales receipt or invoice is required to receive warranty service or a
refund.
This warranty covers appliances in use within the continental United States, Puerto Rico, and Hawaii.
The warranty does not cover the following:
Damages due to shipping damage or improper installation.
Damages due to misuse or abuse.
Content losses due to failure of the unit.
Inside components such as door panels, door shelves, racks, light bulbs, etc.
Punctures to the evaporator system due to improper defrosting of the unit.
Repairs performed by unauthorized service agents.
Service calls that do not involve defects in material and workmanship as instructions on
proper use of the product, door reversal, or improper installation.
Replacement or resetting of house fuses or circuit breakers.
Failure of this product if used for other than for its intended purpose.
Disposal costs for any failed unit not returned to our factory.
Any delivery costs incurred as the result of a unit that fails to perform as specified.
Expenses for travel and transportation for product service if your appliance is
located in a remote area where service by an authorized service technician is not available.
The removal and reinstallation of your appliance if it is installed in an inaccessible location or
is not installed in accordance with published installation instructions.
Liability under this warranty is limited to repair, replacement, or refund. If a replacement unit is not
available or the unit cannot be repaired, liability is limited to the actual purchase price paid by the
consumer.
This warranty is non-transferable.
This warranty applies only to the original purchase and does not extend to any subsequent
owner(s).
This warranty is in lieu of all warranties expressed or implied and no representative or person is authorized to
assume for us any other liability in connection with the sale of this product. Under no circumstances is the
consumer permitted to return this unit to the manufacturer without prior written consent from MC Appliance
Corporation.
Model Parts Labor Compressor (Part Only) Type of Service
OSDR325B1 One-Year One-Year Five-Years Carry In
For Service or Assistance, please call 877-856-0202. Or visit us on the web at www.mcappliance.com to
request warranty service or order parts.
11
2 S© 201 un beam Pr odu cts, In c. doin g bus iness a s Jarde n Con sumer S olutions . All rig hts reserv ed.
Oste r is a registered trademark of Sunbeam Products, Inc. used under license.
Distributed by MC Appliance Corporation, 777 Mark Street, Wood Dale, IL 60191
MCP0 427 12
For service, support and warranty information, visit www.mcappliance.com or in the U.S. call 877-856-0202.
Loading...
