ABOUT THIS MANUAL
ABOUT THIS MANUAL
서신원님
공장
모델
KOG-867T9A02 BUYER CURTIS INTERNATIONAL향 영어 BUYER모델
OMW-4990 브 랜 드 OSTER
1차
2차 일정
3차
4차 제 한( )
규격
MEMO 접수:2004.07.09
04.7.13-표지,1,4,7,8,12,13,14,15,16,17,18,19,23,33
15page-신규
VVIISSIIOONN
전지현
TEL: 757-9340 FAX: 774-1039
Before operating this oven, please read these instructions completely.
Important Toaster Cooking Tips:
- Before using the toaster for the first time, operate the toaster without bread or bagel about 2~3 min. to burn off residues on the heating elements.(refer. page10)
- The fan will operate 1min. 30sec. more after the toast cooking for better performance and to prevent the toaster from overheating.
- Do not use the microwave oven or toaster when empty. (refer. page 6 No.2)
- Refer to the page 11 for Toaster Operation Procedure.
OPERA TING INSTRUCTIONS
0.9 cu.ft Micr owave Oven
& Toaster Combinations
OMW4990
1
TABLE OF CONTENTS
PRECAUTIONS
.............................................................................................................
2
FCC RF INTERFERENCE STATEMENT......................................................................2
GROUNDING INSTRUCTIONS
.....................................................................................
3 INSTALLATION
...............................................................................................................
3 SPECIFICATIONS
..........................................................................................................
4 OUTER DIMENSION
.....................................................................................................
4 IMPORTANT SAFETY INSTRUCTIONS
.......................................................................
5 FEATURES DIAGRAM
...................................................................................................
7 OPERATION PROCEDURE(Microwave Oven)
............................................................
9 IMPORTANT
.................................................................................................................
10
OPERATION PROCEDURE(TOASTER)
....................................................................
11
CONTROLS
..................................................................................................................
12
SETTING THE CLOCK
...................................................................................................
12
TOAST COOKING
..........................................................................................................
13
TO STOP THE TOASTER OPERATING
......................................................................
13
AUTO DEFROSTING(WEIGHT DEFROSTING, TIME DEFROSTING)
.......................
14
COOKING IN ONE STAGE
.............................................................................................
15
COOKING IN TWO STAGES
.........................................................................................
15
KITCHEN TIMER MODE
................................................................................................
16
SPEEDY COOK
..............................................................................................................
17
ONE TOUCH COOKING
.................................................................................................
17
AUTO COOK
..................................................................................................................
18
MEMORY COOK
.............................................................................................................
19
LESS, MORE
...................................................................................................................
20
CHILD SAFETY LOCK AND POWER SAVE MODE
.....................................................
20
TO STOP THE OVEN WHILE THE OVEN IS OPERATING
.........................................
20
WHICH UTENSIL CAN BE USED IN THE OVEN?
....................................................
21
USE YOUR MICROWAVE OVEN SAFELY
................................................................
22
ARCING
......................................................................................................................
22

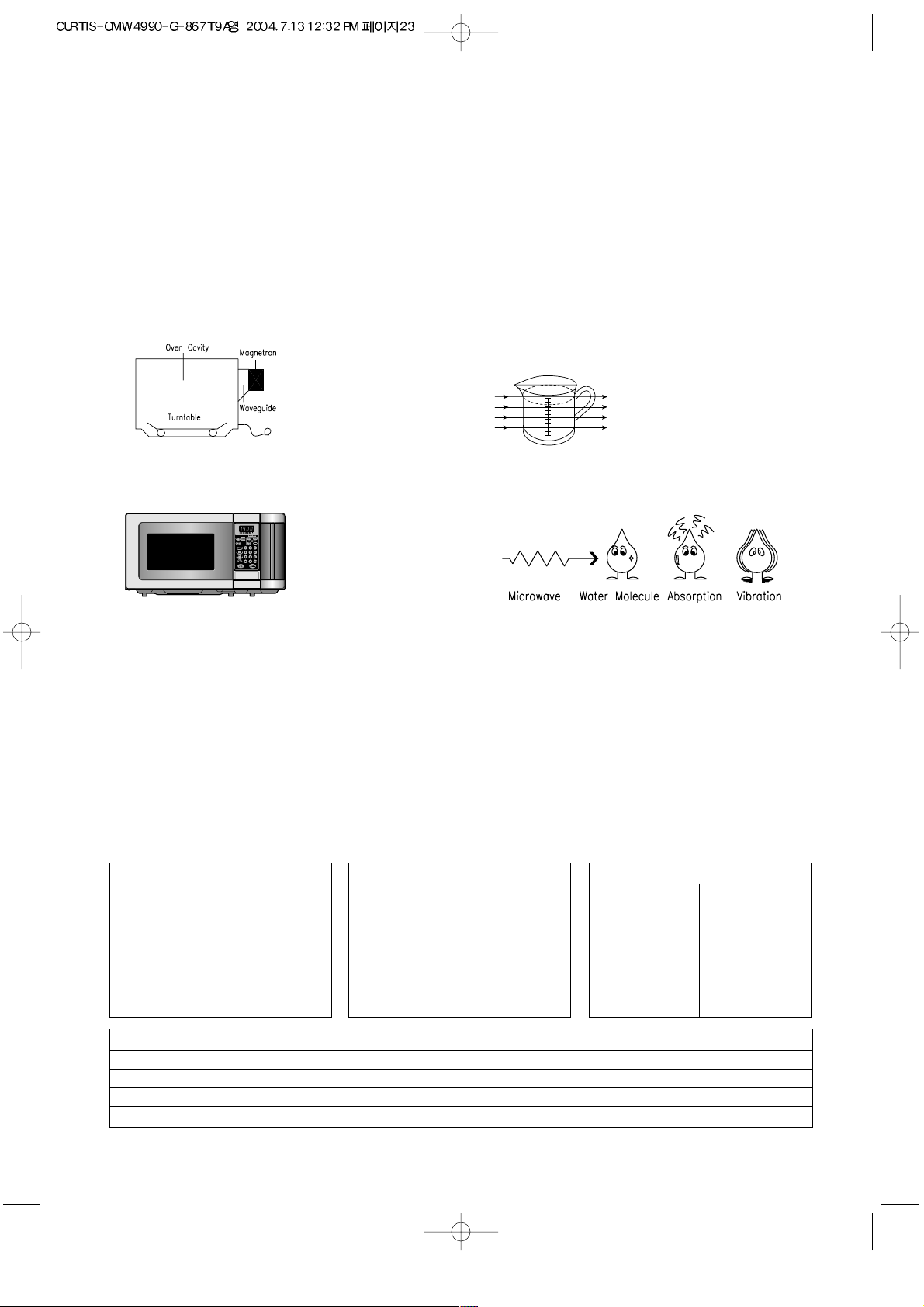

MICROWAVING PRINCIPLES
..................................................................................
23
HOW MICROWAVES COOK FOOD
.........................................................................
23
CONVERSION CHARTS
...........................................................................................
23
COOKING TECHNIQUES
...........................................................................................
24
DEFROSTING GUIDE
................................................................................................
25
TIME DEFROSTING CHART
......................................................................................
26
COOKING & REHEATING CHART
............................................................................
27
VEGETABLE CHART
..................................................................................................
28
COOKING UTENSILS
.................................................................................................
30
CARE AND CLEANING
.............................................................................................
30
BEFORE YOU CALL FOR SERVICE
..........................................................................31
QUESTIONS AND ANSWERS
...................................................................................
32
2
WARNING:
This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer’s instructions, may cause interference to radio and television reception. It has been type-tested and found to comply with limits for an ISM Equipment pursuant to part 18 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the followings.
• Reorient the receiving antenna of radio or television.
• Relocate the Microwave oven with respect to the receiver.
• Move the microwave oven away from the receiver.
• Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.
THE MANUFACTURER is not responsible for any radio or TV inerference caused by UNAUTHORIZED MODIFICATION to this microwave oven. It is the responsibility of the user to correct such interference.
FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT
PRECAUTIONS TO A VOID POSSIBLE EXPOSURE TO EXCESSIVE MICROW A VE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can
result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.
(c) WARNING : If the door or door seals are damaged, the oven must not be operated until it has
been repaired by a trained person : (1) door (bent), (2) hinges and latches(broken or loosened), (3) door seals and sealing surfaces.
(d) WARNING : It is hazardous for anyone other than a trained person to carry out any service or
repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.
(e) WARNING : Liquids or other foods must not be heated in sealed containers since they are
liable to explode.
(f) WARNING : Only allow children to use the oven without supervision when adequate instructions
have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
3
GROUNDING INSTRUCTIONS
This appliance must be earthed. In the event of an electrical short circuit, earthing reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a earthing wire with a earthing plug. The plug must be plugged into an outlet that is properly installed and earthed.
INSTALLA TION
1 Steady, flat location
This oven should be set on a steady, flat surface. This oven is designed for counter top use only.
2 Leave space behind and side
All air vents should be kept a clearance. If all vents are covered during operation, the oven may overheat and, eventually, oven failure.
3 Away from radio and TV sets
Poor television reception and radio interference may result if the oven is located close to a TV, Radio antenna, feeder and so on. Position the oven as far from them as possible.
4 Away from heating appliance and water taps
Keep the oven away from hot air, steam or splash when choosing a place to position it, or the insulation might be adversely affected and breakdowns occur.
5 Power supply
• Check your local power source. This oven requires a current of approximately 12 amperes, 120V 60Hz.
• The voltage used must be the same as specified on this oven. Using a higher voltage may result in a fire or other accident causing oven damage. Using low voltage will cause slow cooking. We are not responsible for damage resulting from use of this oven with a voltage of ampere fuse other than those specified.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
6 Examine the oven after unpacking for any damage such as:
A misaligned door, Broken door, A dent in cavity. If any of the above are visible, DO NOT INSTALL, and notify dealer immediately.
7 Do not operate the oven if it is colder than room temperature.
(This may occur during delivery in cold weather.) Allow the oven to become room temperature before
operating.
8 The minimum height of free space necessary above the top surface of the oven is 100mm(3.9 in).
WARNING : Improper use of the earthing plug can result in a risk of electric shock. Consult a qualified
electrician or serviceman if the earthing instructions are not completely understood, or if doubt exists as to whether the appliance is properly earthed. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade earthing plug, and a 3­slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord should be equal to or greater than the electrical rating of the appliance.
4
SPECIFICATIONS
* Specifications are subject to change without notice.
POWER SUPPLY 120V AC 60 Hz SINGLE PHASE WITH EARTHING
POWER CONSUMPTION 1400 KW
OUTPUT POWER 1000 W MICROWAVE FREQUENCY 2450 MHz OVEN TIMER 59 min. 99 sec.
POWER LEVELS 10 LEVELS
CAVITY DIMENSIONS 320 x 244 x 338 mm (12.6 x 9.6 x 13.3 inch) TOASTER POWER CONSUMPTION 1000 KW OUTSIDE DIMENSIONS (W x H x D) 583 x 301 x 421 mm (22.9 x 11.8 x 16.5 inch) NET WEIGHT APPROX. 15.7 KG (34.3 lbs)
OUTER DIMENSION
5
IMPORTANT SAFETY INSTRUCTIONS
WARNING : Before using this appliance, read all instructions following.
11. Do not touch hot surfaces. Use handles or knobs.
12. To protect against electrical shock do not immerse cord, plug in water or other liquid.
13. Close supervision is necessary when any appliance is used by or near children.
14. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
15. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been
damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
16. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
17. Do not use outdoors.
18. Do not let cord hang over edge of table or counter, or touch hot surfaces.
19. Do not place on or near a hot gas or electric burner, or in a heated oven.
10. Extreme caution must be used when moving an appliance containing hot oil or other liquids.
11. Always attach plug to appliance first, then plug cord into the wall oulet. To disconnect, turn any control to “off”, then remove plug from wall outlet.
12. Do not use appliance for other than intended use.
13. Oversize foods or metal utensils must not be inserted in a toaster-oven as they may create a fire or risk of electric shock.
14. A fire may occur if the toaster-oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation. Do not store ay item on top of the appliance when in operation.
15. Extreme caution should be exercised when using containers constructed of other than metal or glass.
16. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts involving a risk of electric shock.
17. Do not store any materials, other than manufacturers recommended accessories, in this oven when not in use.
18. Do not place any of the following materials in the oven: (List all materials - that is, paper, cardboard, plastic, and the like.)
19. Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.
20. The manufacturer shall explain how the toaster-oven is turned off. (An off means must be provided other than unplugging the cord.)
21. SUPERHEATED WATER - Liquids, such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not alway present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILNG OVER WHE THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE UQUID. To reduced the risk of injury to persons:
• Do not overheat the liquid.
• Stir the liquid both before and halfway through heating it.
• Do not straight-sided containers with narrow necks.
• After heating, allow the container to stand in the microwave oven for a short time before removing the
container.
• Use extreme care when inserting a spoon or other utensil into the container.
SAVE THESE INSTRUCTIONS
6
IMPORTANT SAFETY INSTRUCTIONS
WARNING : To prevent fire, burns, electric shock and other warnings: Listed below are, as with all appliances, certain rules to follow and safeguards to assure high
performance from this oven:
11. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any
other nonfood items or for sterilizing purposes.
12. Do not use the microwave oven or the toaster when empty, this could damage the oven seriously.
13. Do not use the oven cavity for any type of storage, such as papers, cookbook, cookware, etc.
14. Do not operate the oven without the glass tray in place. Be sure it is properly sitting on the rotating base.
15. Make sure you remove caps or lids prior to cooking when you cook food sealed in bottles.
16. Do not put foreign material between the oven surface and door. It could result in excessive leakage of
microwave energy.
17. Do not use recycled paper products for cooking. It may contain impurities which could cause sparks and/or
fires when used during cooking.
18. Do not pop popcorn unless popped in a microwave approved popcorn popper or unless it's commercially
packaged and recommended especially for microwave ovens. Microwave popped corn produces a lower yield than conventional popping; there will be a number of
unpopped kernels. Do not use oil unless specified by the manufacturer.
19. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc.,
without first piercing them several times with a fork.
10. Do not pop popcorn longer than the manufacturer's directions. (popping time is generally below 3 minutes). Longer cooking does not yield more popped corn, it can cause scorchings and fire. Also, the cooking tray can become too hot to handle or may break.
11. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
12. When heating food in plastic or paper containers, check the oven frequently due to the possibility of ignition.
13. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.
14. Always test the temperature of food or drink which has been heated in a microwave oven before you give it to somebody, especially to children or elderly people. This is important because things which have been heated in a microwave oven carry on getting hotter even though the microwave oven cooking has stopped.
15. Eggs in their shell and whole hard-boiled eggs shall not be heated in microwave ovens since they may explode.
16. Keep the waveguide cover clean at all times. Wipe the oven interior with a soft damp cloth after each use. If you leave grease or fat anywhere in the cavity it may overheat, smoke or even catch fire when next using the oven.
17. Never heat oil or fat for deep frying as you cannot control the temperature and doing so may lead to overheating and fire.
18. Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container.
7
11
Door latch - When the door is closed it will automatically shut off. If the door is opened while the oven is operating, the magnetron will automatically shut off.
22
Door seal - The door seal maintains the microwave within the oven cavity and prevents microwave leakage.
33
Oven cavity
44
Spatter shield - Protects the microwave outlet from splashes of cooking foods.
55
Safety interlock system - Prevents the oven from operating while the door is opened.
66
Door release button - Pushing this button stops oven operation and opens the door.
77
Glass cooking tray - Made of special heat resistant glass. The tray must always be in proper position before operating. Do not cook food directly on the tray.
88
Roller guide - Supports the glass cooking tray.
99
Door screen - Allows viewing of food. The screen is designed so that light can pass through, but not the microwaves.
00
Toaster drawer
qq
Toaster opening handle
ww
Crumb Tray(refer. page10)
FEATURES DIAGRAM
MICROWAVE OVEN TOASTER
23450
9876w
q
1
8
11
Time set pad - Used to set the cooking time and the present time.
22
Display - Cooking time, power level, indicators and present time are displayed.
33
Toast Bread - Used to reheat bread.
44
Toast Bagel- Used to reheat bagel.
55
Toast Stop/Clear - Used to stop the toast
operation or to clear the toast setting. Used to transfer toaster mode to microwave mode.
66
Toast Start - Used to toast start.
77
Memory - Used to set favorite cooking mode.
88
Popcorn - Used to cook or reheat specific
quantities of food.
99
Auto Cook - Used to cook or reheat.
00
More-Used to add time to cooking.
qq
Less-Used to remove time from cooking.
ww
Auto Defrost - Used to defrost foods. (for weight and time)
ee
Microwave - Used to select microwave power level.
rr
Kitchen Timer - Used as a minute timer, to delay the start of cooking, or to set a holding time after cooking.
tt
Clock - Used to set clock.
yy
Stop/Clear - Used to stop the Microwave operation or to delete the cooking data. Used to transfer Microwave mode to toaster mode.
uu
Start/Speedy Cook - Used to start the oven and also used to set a reheat time.
FEATURES DIAGRAM
3
5
1
t
r
u
4
6
2
9
8
7
e
w
0
q
y
9
The oven light is on only when the microwave oven is operating.
The oven door can be opened at any time during operation by touching the door release button on the control panel. The oven will automatically shut off.
Each time a pad is touched, a BEEP sounds to acknowledge the touch.
The oven automatically cooks on full power unless set to a lower power level.
The display will show “ : 0” when the oven is plugged in.
Time clock returns to the present time when the cooking time ends.
When the Microwave STOP/CLEAR pad is touched during the oven operation, the oven stops cooking and all information retained. To erase all information(except the present time), touch the STOP/CLEAR pad once more. If the oven door is opened during the oven operation, all information is retained.
If the Microwave START pad is touched and the oven does not operate, check the area between the door and door seal for obstructions and make sure the door is closed securely. The oven will not start cooking until the door is completely closed or the program has been reset.
OPERATION PROCEDURE(Microwave Oven)
This section includes useful information about Microwave oven operation.
1. Plug power supply cord into a standard 3-pronged 20Amp, 120V AC 60Hz poweroutput.
2. After placing the food in a suitable container, open the oven door and put it on the glass tray. The glass tray and roller guide must always be in place during cooking.
3. Shut the Microwave oven door. Make sure that it is firmly closed.
1 2
3 4
5 6
7
8
Make sure the oven is properly installed and plugged into the electrical outlet.
W ATTAGE OUTPUT CHART
• The power-level is set by pressing the MICROWAVE pad. The chart shows the display, the power level and the percentage of power.
Touch MICROWAVE pad Power level (Display) Approximate Percentage of Power
once P-HI 100%
twice P-90 90% 3 times P-80 80% 4 times P-70 70% 5 times P-60 60% 6 times P-50 50% 7 times P-40 40% 8 times P-30 30% 9 times P-20 20%
10 times P-10 10% 11 times P-00 0%
Loading...
+ 24 hidden pages
