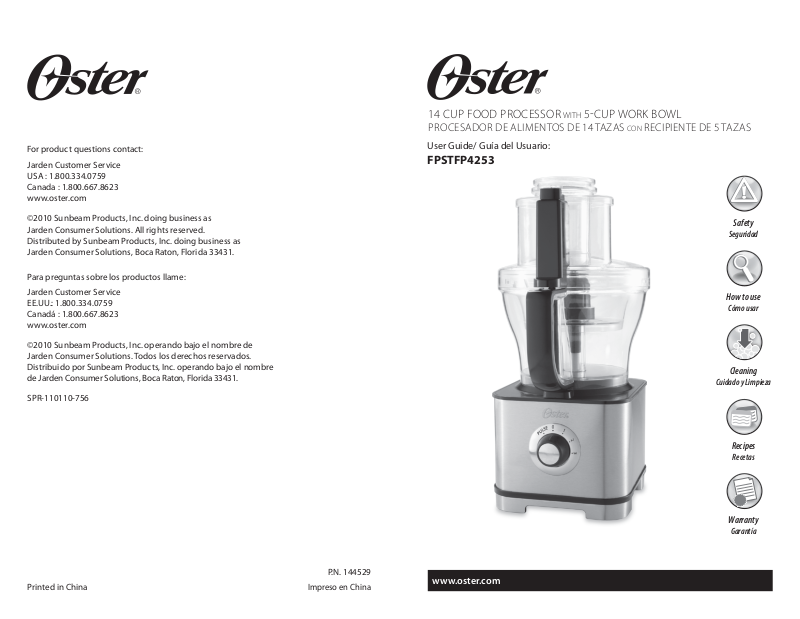

Oster FPSTTFP4253 User Manual
14 CUP FOOD PROCESSOR w i t h 5CUP WORK BOWL
PROCESADOR DE ALIMENTOS DE 14 TAZAS c o n RECIPIENTE DE 5 TAZAS
For product questions contact:
Jarden Customer Service
USA : 1.800.334.0759
Canada : 1.800.667.8623
www.oster.com
©2010 Sunbeam Products, Inc. doing business as
Jarden Consumer Solutions. All rights reserved.
Distributed by Sunbeam Products, Inc. doing business as
Jarden Consumer Solutions, Boca Raton, Florida 33431.
Para preguntas sobre los productos llame:
Jarden Customer Service
EE.UU.: 1.800.334.0759
Canadá : 1.800.667.8623
www.oster.com
©2010 Sunbeam Products, Inc. operando bajo el nombre de
Jarden Consumer Solutions. Todos los derechos reservados.
Distribuido por Sunbeam Products, Inc. operando bajo el nombre
de Jarden Consumer Solutions, Boca Raton, Florida 33431.
SPR-110110-756
User Guide/ Guía del Usuario:
FPSTFP4253
Safety
Seguridad
How to use
Cómo usar
Cleaning
Cuidado y Limpieza
Printed in China
P.N. 144529
Impreso en China
Recipes
Recetas
Warranty
Garantía
www.oster.com
www.oster.com
2
www.oster.com
3
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed
including the following:
1. Read all instructions before use.
2. To protect against risk of electrical shock, do not put food processor in water or any other liquid. This
may cause personal injury or damage to the product.
3. Close supervision is necessary when using this appliance near children.
4. Switch O (O) and unplug from outlet to disconnect appliance, before putting on or taking o parts,
before cleaning and when not in use.
5. Do not contact moving parts.
6. Do not operate food processor with a damaged cord or plug or after the appliance malfunctions, or
is dropped or damaged in any manner. Return appliance to the nearest authorized service center for
examination, repair or mechanical adjustment.
7. The use of attachments not recommended or sold by the manufacturer may cause re,
electrical shock or injury.
8. Do not let cord touch hot surfaces or hang over table edges or counters.
9. Do not use your food processor if any part is broken.
10. Do not use outdoors or for commercial purposes.
11. Keep hands and utensils away from moving blades or discs while processing food to reduce the risk
of severe injury to persons or damage to the food processor. A scraper may be used but must be used
only when the food processor is not running.
12. Blade and processing disk are sharp. Handle carefully.
13. To reduce the risk of injury to persons, never place cutting blade on motor base without rst putting
container properly in place.
14. Be certain container cover is securely locked in place while operating appliance.
15. Never feed food into food chute by hand, always use the food pusher.
16. Be sure to turn switch to OFF (O) position after each use.
17. Do not use this appliance for other than its intended use.
18. Do not attempt to defeat the cover interlock mechanism.
ThIS UNIT IS INTENDED FOR hOUSEhOlD USE ONly.
This appliance has a polarized alternating current plug (one blade is
wider than the other). To reduce the risk of electric shock, as a safety
feature, this plug will fit in a polarized outlet only one way. If the plug
does not insert fully in the outlet, reverse the plug. If it still fails to fit,
contact a qualified electrician.
DO NOT ATTEMPT TO DEFEAT THIS SAFETY FEATURE.
ExTENSION CORD USE
A short power-supply cord is provided to reduce the risk resulting from
becoming entangled in or tripping over a longer cord. An extension cord
may be used if care is exercised in its use. If an extension cord is used, the
electrical rating of the cord must be at least as great as the electrical rating
of the appliance. The extension cord should be arranged so that it will
not drape over the countertop or tabletop where it can be pulled on by
children or tripped over unintentionally.
SAvE ThESE INSTRUCTIONS
Thank you for purchasing the OSTER® 14 Cup Food Processor. Before you
use this product for the first time, please take a few moments to read these
instructions and keep it for reference. Pay particular attention to
the Safety Instructions provided. Please review the product service and
warranty statements. To learn more about Oster® products, please visit us
at www.oster.com or call us at 1-800-334-0759.
www.oster.com
4
www.oster.com
5
LEARNING ABOUT YOUR
P
U
L
S
E
0
1
2
3
14 CUP FOOD PROCESSOR
c
d
m
1 Pulse - The control knob must be turned to the left and
Control Knob
held for unit to operate. When released, unit will stop. Use
PULSE for short processing tasks, such as chopping nuts,
a
raw meats, or vegetables. This lets you check processed
results and control the consistency.
b
2 (1–3) Speeds - When the control knob is turned to the
right to the 1, 2 or 3 position, unit will run continuously
until the control knob is turned to OFF (O) position.
e
3 Off - Processor should always be left in the OFF (O) position when not in use.
NOTE: When slicing or shredding use high speed. When using chopping blade use
f
n
lower speed to control size of chopped food.
Before Using Your Oster® Food Processor
• When unpacking the product and removing packing material, handle the
chopping blade and slice/shred discs carefully: they are very sharp.
o
• Wash all parts except the Base in hot, soapy water. Rinse them dry.
These parts can also be placed in the dishwasher. Be sure to read the
Care & Cleaning Section of this manual to learn the correct methods
for taking the unit apart and cleaning.
k
l
Large Food Pusher
a
Small Food Pusher
b
c
Food Chute
d
Slide Release Button
e
Food Chute Lid
g
h
i
j
Bowl Lid
f
g
Bowl
h
Center Post
i
Base
j
Control Knob
5-Cup Small Work Bowl
k
l
Small Chopping Blade
m
Chopping Blade
n
Slice/Shred Disk
o
Disc Stem
www.oster.com
6
www.oster.com
7
HOW TO:
LOCK
UNLOCK
Using Your Food Processor
NOTE: Do not attempt to chop ice in this food processor; it will damage the bowl
and dull the Chopping Blade. This unit will not whip cream, beat egg whites,
grind coffee beans, spices or other items with high oil content, or slice or shred
hard-cooked eggs, marshmallows, or soft cheeses.
Important: For your protection, this unit has an interlock system. The processor
will not operate unless the bowl is properly locked onto the base and cover is
properly locked onto the bowl. Do not attempt to operate the unit without the
bowl lid, bowl and food chute lid correctly in place. Be sure base is on a flat, dry
and clean surface before you begin processing.
NOTE: Before you begin, PLEASE BE SURE THAT THE ELECTRIC CORD IS UNPLUGGED.
How To Assemble the Large Bowl
Align the base and bowl as illustrated in
Figure 1. Align the bowl handle with the
UNLOCK
counter-clockwise until it clicks onto the base.
The bowl handle should now align with the
LOCK mark on the base. (The bowl handle
will be positioned above the control buttons).
NOTE: There is only one position for the bowl
to lock onto the base. The unit will not operate
if the bowl does not lock onto the base.
How to Lock the Cover
Place the cover onto the bowl. Align the
UNLOCK mark on the cover and the UNLOCK
mark on the bowl (as illustrated in Figure 2).
Twist the cover counter-clockwise towards the
LOCK until it clicks onto the bowl. The LOCK
mark on the cover should now align with the
LOCK mark on the bowl.
NOTE: When the cover is locked into position,
the safety mechanism on the cover and bowl
will align. The unit will not operate if the cover is not locked onto the bowl.
NOTE: BOWL MUST BE LOCKED INTO BASE BEFORE COVER CAN BE LOCKED INTO
POSITION.
mark on the base. Turn the bowl
Figure 1
Figure 2
How to Lock the Food
Chute Lid
Figure 3
Food Chute Lid
1 The Food Chute lid hinges
onto the back of Food Chute.
As illustrated in Figure 3.
Figure 4
2 Push down the Large Food
Pusher into the Food Chute.
As illustrated in Figure 4.
Figure 5
3 Push down on the tab of Large
Food Pusher to latch the Food
Chute lid onto the Food Chute.
As illustrated in Figure 5.
NOTE: Unit will not operate if the
Food Chute lid does not latch onto
the Food Chute
How to Open the Food
Chute Lid
Figure 6
1 Pull Side Release button out.
As illustrated in Figure 6.
Figure 7
2 Pull up the Large Food Pusher.
As illustrated in Figure 7.
Figure 8
3 Pull back the food chute lid
and Large Food Pusher. As
illustrated in Figure 8.
NOTE: Before opening Food Chute
lid, turn the unit OFF (O) and
unplug the cord.
www.oster.com
8
www.oster.com
9
How to Chop Using the Large Work Bowl
NOTE: Make sure the unit is turned OFF (O) and unplugged before use. Never use
hand to push food into processor. Do not use the processor continuously for more
than 3 minutes at a time.
1 Lock the large bowl onto base.
(See “How to assemble the large bowl”)
2 Grasp the chopping blade by its stem
and slide it onto the center post
(Figure 9a).
3 Place food into bowl.
4 Lock cover onto bowl.
(See “How to Lock the cover”)
5 Lock the Food Chute Lid.
(See “How to Lock the Food Chute Lid”).
6 Plug the cord into an electric outlet.
Use the Food Guide to prepare food
for chopping.
7 Turn the knob to the desired speed position for continuous processing or the
PULSE position for short processing tasks. When using the PULSE setting, hold
the knob in the PULSE position for about 2-3 seconds at a time, check results
and repeat if desired.
8 When finished processing, release the knob, or if you were using continuous 1,
2 or 3 position, turn the knob to the OFF (O) position and allow the chopping
blade to stop rotating.
9 Twist the cover towards the UNLOCK mark to remove lid.
10 Hold the Chopping Blade by its stem and remove. Unlock the bowl by turning it
clockwise towards the UNLOCK mark, and lift off. Empty the processed food.
NOTE: Chopping Blade is very sharp, use caution when handling.
Figure 9
How to Chop Using the Small Work Bowl
(Do not use slice/shred disc with small work bowl.)
NOTE: Make sure the unit is turned OFF (O) and unplugged before use. Never use
hand to push food into processor. Do not use the processor continuously for more
than 3 minutes at a time.
1 Lock the large bowl onto base.
(See “How to assemble the large bowl”)
2 Insert Small work bowl into large work bowl and twist inner bowl until it is
seated into the large work bowl.
3 Grasp the small chopping blade by its stem and slide it onto the center post.
4 Place food into bowl.
5 Lock cover onto bowl. (See “How to Lock the cover”)
6 Lock the Food Chute Lid. (See “How to Lock the Food Chute Lid”).
7 Plug the cord into an electric outlet.
8 Turn the knob to the desired speed position for continuous processing or
the PULSE position for short processing tasks. When using the PULSE setting,
hold the knob in the PULSE position for about 2-3 seconds at a time, check
results and repeat is desired.
9 When finished processing, release the knob, or if you were using a continuous
speed, turn the knob to the OFF (O) position and allow the chopping blade to
stop rotating.
10 Twist the Lid towards the UNLOCK mark to remove.
11 Hold the Chopping Blade by its stem and remove. Lift small work bowl out of
the larger work bowl. Empty processed food.
NOTE: When using chopping blade use slower speeds to control size of chopped
food. Chopping Blade is very sharp, use caution when handling.
