1694
Instruction Manual
STAND FAN WITH OSCILLATION
PLEASE READ ALL INSTRUCTIONS BEFORE USING
Manual de Instrucciones
VENTILADOR DE PEDESTAL CON OSCILACION
LEA TODAS LAS INSTRUCCIONES ANTES DE USAR
1694
60º
1
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be taken
including the following:
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
• Use fan only for purposes described in the instruction manual
• To protect against electrical shock do not immerse unit, plug or cord in water or spray
with liquids. Plug the appliance directly into an electrical outlet of the same voltage as
that of the rating plate in the unit
• Close supervision is necessary when any appliance is used by or near children
• Unplug from outlet when not in use, when moving fan from one location to another,
before putting on or taking off parts and before cleaning
• Avoid contact with moving parts
• DO NOT operate in the presence of explosives and/or flammable fumes
• To avoid fire hazard, NEVER place the cord under rugs or any parts near an open
flame, cooking or other heating appliance
• DO NOT operate any appliance with a damaged cord or plug or after the appliance
malfunctions or has been damaged in any manner. Return this appliance only to the
nearest Authorized Oster® Service Center for examination, repair or adjustment
• The use of attachments not recommended or sold by the appliance manufacturer may
cause hazards
• DO NOT use outdoors
• DO NOT let the cord hang over the edge of a table, counter or come in contact with hot
surfaces or leave exposed to high traffic areas
• To disconnect, grip plug and pull from wall outlet. Never yank on cord
• Always use on a dry, level surface
• DO NOT operate fan until fully assembled with all parts properly in place
• This product is intended for household use ONLY and not for commercial or industrial
applications
SAVE THESE INSTRUCTIONS
(For 120 & 127 volts only)
To reduce the risk of electrical shock, this appliance has a polarized plug (one blade is
wider than the other). This plug fits a polarized outlet only one way. This is a safety
feature intended to help reduce the risk of electrical shock. If the plug does not fit fully
into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not
attempt to defeat this safety feature.
2

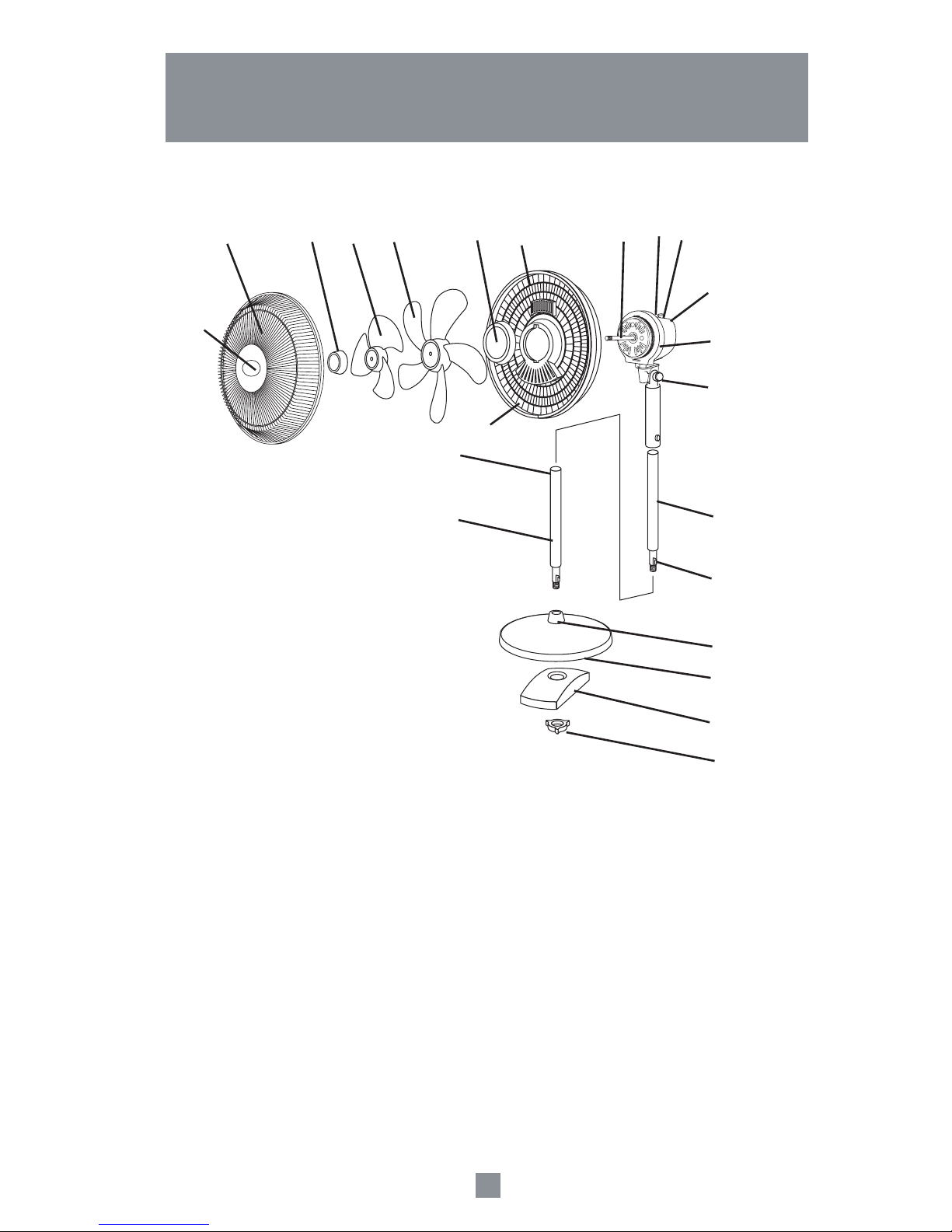

DESCRIPTION OF THE APPLIANCE
1. Logo Plate
2. Front Grill
3. Blade Cap
4. Small Fan Blade
5. Large Fan Blade
6. Rear Grill Mounting Nut
7. Rear Grill
8. Grill Screw
9. Motor Shaft
10. Motor Housing Assembly
11. Oscillation Knob
6
1
2 3 4 5 6 7
8
9
10
11
12
13
14
15
17
16
18
19
20
21
22
12. Grill Mount
13. Tilt-Adjustment Knob
14. Speed Control Knob
15. Upper Pole
16. Hollow End (Female)
17. Threaded Joint (Male)
18. Lower Pole
19. Decorative Cap
20. Base
21. Base Weight
22. Weight Nut
3
INSTRUCTIONS FOR USE
BEFORE USING FOR THE FIRST TIME
Read and follow all the instructions for this section on use and care and find a place to keep
this instruction manual ready for future reference.
For your convenience, record the complete model number (located at the bottom of the motor)
and the date you received the product, together with your purchase receipt and attach to the
warranty and service information. Retain in the event that the warranty service is required.
NOTE: The use of attachments not recommended or sold by Sunbeam Products, Inc. may
cause fire, electrical shock, injury or damage to the product.
ASSEMBLY INSTRUCTIONS
Carefully unpack contents from carton.
1. Insert Lower Pole through the hole in the center of base and twist clockwise into position.
Be sure to align the groves on the threaded joint with the raised slots protruding from the
base center walls.
2. Turn the Base upside down (pole facing the floor) and place the weight over the threaded
pole end. The threads will be exposed as they protrude through the weight.
3. Secure the Weight to the Base by tightening the Base Nut in a clockwise direction.
NOTE: DO NOT use a tool to tighten the Base Nut.
4. Insert the remaining Pole with the Threaded Joint into the hollow end of the pole
connected to the Base and Twist Clockwise to secure.
5. Insert the neck of motor housing into hallow end of Upper Pole and turn the neck
clockwise to lock into place.
6. Position the Rear Grill over the Motor Shaft, making certain the 2 notches at the top and
bottom of the Rear Grill fit over the 2 prongs on the motor housing. Secure the Rear Grill
in place with the Rear Grill Mounting Nut. Turn mounting nut clockwise and tighten firmly.
7. Position the Large Fan Blade, with hollowed interior of the blade facing towards the Rear
Grill, firmly onto the Motor Shaft. Align the Motor Shaft pin with the recessed groove in the
back of the fan blade. Be sure the shaft protrudes from the front of the blade.
8. Position the Small Fan Blade, with guide pins into the hollowed interior of the Large blade,
and press firmly into place. Also be sure the shaft protrudes from the front of the blade.
9. Secure the fan blade onto the Motor Shaft by turning the blade cap counter-clockwise and
tighten firmly.
10. Center the Front Grill by aligning the Oster® logo horizontally and parallel to the floor, and
then place into the Rear Grill. Snap the front and rear grills completely together. Tighten
the Grill Screw at the bottom of the Rear Grill. (NOTE: If Logo Plate is not already
assembled to Front Grill, you must attach it by aligning the slots located on the back side
of the logo plate with the notches in the grill center. Press firmly into place.)
