MODEL/MODELO
Instruction Manual
16” TABLE FAN
PLEASE READ ALL INSTRUCTIONS BEFORE USING
Manual de Instrucciones
VENTILADOR DE MESA DE 40,6 CM
LEA TODAS LAS INSTRUCCIONES ANTES DE USAR
1691A
1691A
001691A-814_13ESM1.indd 1 5/21/13 9:30 AM
When using electrical appliances, basic safety precautions should always be followed to
reduce the risk of re, electric shock, and injury to persons. These precautions include:
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
• Use fan only for purposes described in the instruction manual.
• To protect against electrical shock do not immerse unit, plug or cord in water or spray
with liquids. Plug the appliance directly into electrical outlet.
• Unplug from outlet when not in use, when moving fan from one location to another,
before putting on or taking off parts and before cleaning.
• Avoid contact with moving parts.
• Do not operate in the presence of explosive and/or ammable fumes.
• To avoid re hazard, NEVER place the cord under rugs or any parts near an open ame,
cooking or other heating appliance.
• Do not operate any appliance with a damaged cord or plug after the appliance
malfunctions, or has been dropped/damaged in any manner. Take it to an Authorized
Service Center for its examination and/or repair.
• The use of attachments not recommended or sold by the appliance manufacturer may
cause hazards.
• Do not use outdoors. Do not let the cord hang over the edge of a table, counter or come
in contact with hot surfaces or leave exposed to high trafc areas.
• To disconnect, grip plug and pull from wall outlet. Never yank on cord.
• Always use on a dry, level surface.
• Do not operate fan until fully assembled with all parts properly in place.
• This product is intended for household use ONLY and not for commercial or industrial
applications.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they do
not play with the appliance.
• Close supervision is necessary when any appliance is used by or near children, or
incapacitated individuals.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFEGUARDS
1
001691A-814_13ESM1.indd 2 5/21/13 9:30 AM

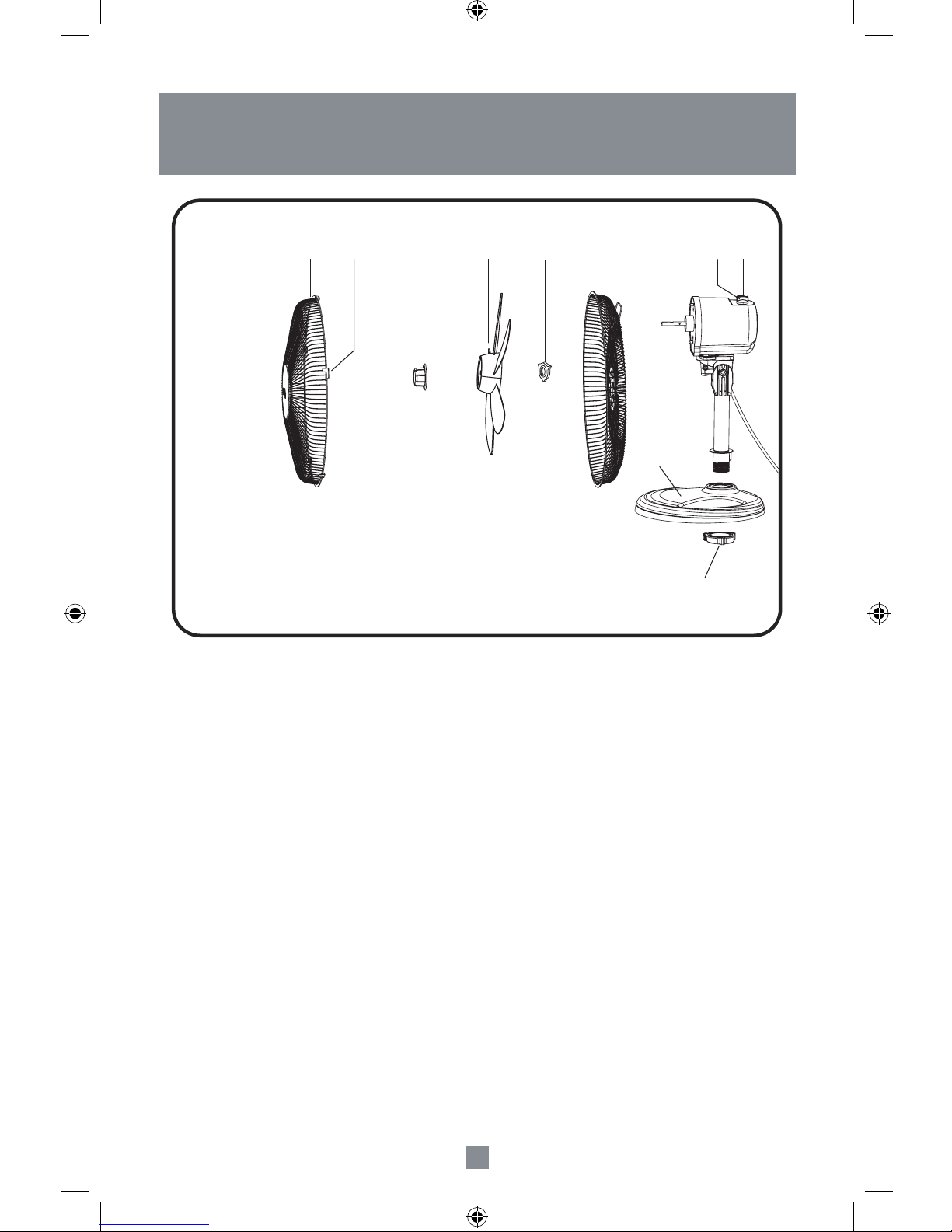

Fig. 1
56
4789 3 12
10
11
1. Oscillation Knob
2. Speed Knob
3. Motor Assembly
4. Rear Grill
5. Grill Retaining Nut
6. Blade
7. Blade Retaining Nut
8. Clips
9. Front Grill
10. Base
11. Thumbscrew
DESCRIPTION OF THE APPLIANCE
2
001691A-814_13ESM1.indd 3 5/21/13 9:30 AM
3
INSTRUCTIONS FOR USE
BEFORE USING FOR THE FIRST TIME
Read and follow all the instructions for this section on use and care and nd a place to keep
this instruction manual ready for future reference.
For your convenience, record the complete model number (located at the bottom of the
motor) and the date you received the product, together with your purchase receipt and
attach to the warranty and service information. Retain in the event that the warranty service
is required.
NOTE: The use of attachments not recommended or sold by Sunbeam Products, Inc. may
cause re, electrical shock, injury or damage to the product.
ASSEMBLY INSTRUCTIONS
1. Remove the thumbscrew from the bottom of the motor assembly (turning counterclockwise). Then attach motor assembly to base hole until snapped. Make sure to align
the notch on the motor assembly with the rib on the base. Tighten thumbscrew on the
bottom of the base (turning clockwise).
2. Remove the grill retaining nut (turning counter-clockwise) while holding motor housing.
Take off the motor shaft sleeve protector, if included, and discard.
3. Set the rear grill in the proper position (carry handle up) on the motor assembly, with
vertical openings at top and bottom tting over notches. Then screw on the grill retaining
nut (turning clockwise) until tight.
4. Install the blade onto the shaft of the motor assembly and screw on the blade retaining
nut (turning counter-clockwise while holding the blade) until tight. Make sure that the fan
blade rests on the pin on the motor shaft.
5. Loosen the four clips on the front grill. Place the front grill on the rear grill with the Oster®
logo upright. Snap all the clips into place.
001691A-814_13ESM1.indd 4 5/21/13 9:30 AM
