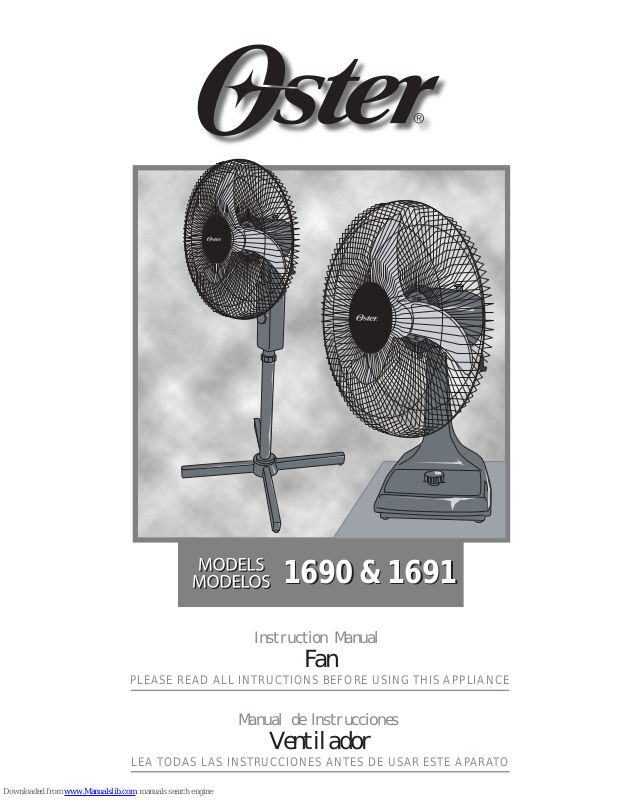

Instruction Manual
Fan
PLEASE READ ALL INTRUCTIONS BEFORE USING THIS APPLIANCE
Manual de Instrucciones
Ventilador
LEA TODAS LAS INSTRUCCIONES ANTES DE USAR ESTE APARATO
1690 & 1691
1690 & 1691
I
I
I
I
I
I
1
IMPORTANT SAFEGUARDS
When using electric appliances, basic safety precautions must always be followed,
including the following:
• Read all instructions before first use.
• Before connecting the unit, make sure the voltage in your outlet is the same as the
voltage indicated on the appliance's rating label.
• To protect against risk of electric shock, do not immerse the unit in water or any other
liquid.
• Children should not use this appliance. Moving blades could hurt them. Adult
supervision is necessary when the appliance is being used near children.
• The unit should always be turned "OFF" before plugging or unplugging from the outlet.
Never yank the cord to disconnect it from the outlet. Instead, grasp the plug and pull to
disconnect.
• Do not operate the unit with a damaged cord or if the unit has been dropped or
damaged. To avoid the risk of electric shock, do not disassemble the unit. Take it to an
authorized service center for examination and repair. Incorrect re-assembly can cause
a risk of electric shock when the iron is used.
• The use of attachments not recommended by the manufacturer may cause fire,
electrical shock, or injury.
• Do not use outdoors.
• Use this electric iron only for its intended use.
• Do not allow the cord to touch hot surfaces. Loop cord loosely around iron when
storing.
• Use on a flat and stable surface.
• Due to aggregated air flow and oscillation of the unit, keep hair, clothing, curtains or
any other object that could be absorbed and entangled with the back mesh, interrupting
the flow of air
• Avoid contact with moving arts
• Never use gasoline or other flammable chemicals to clean the unit. Wipe it with a
damp cloth
• Do not use the unit near ovens, fireplaces, stoves or other sources of high temperature
heat.
2
• Never use the fan partially assembled.
• Using the fan without the frontal mesh might cause accidents.
• Do not insert your fingers or any other object through the protective mesh
FOR HOUSEHOLD USE ONLY
Welcome
Congratulations on the purchase of your Oster® fan! Oster® Fans are designed to
provide the utmost in quality, ease of use and convenience.
SAVE THESE INSTRUCTIONS
3

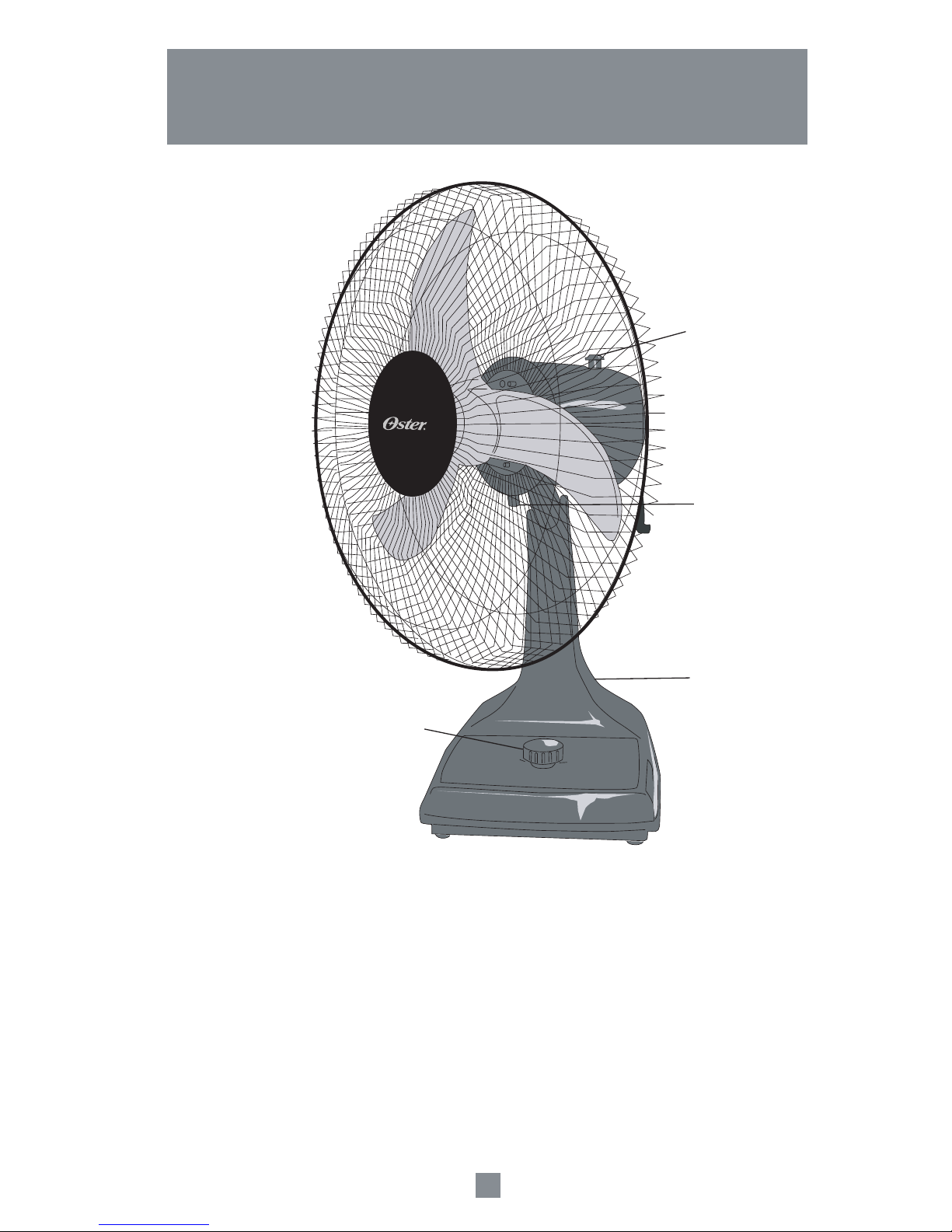

LEARNING ABOUT YOUR FAN
1. Air flow Speed Selector
2. Oscillation control.
3. Pitch control
4. Heel Rest
1
2
3
4
4
1. Oster fans feature an oscillation control enabling continuous oscillation silently and
uniformly. Oscillation control knob is located on the upper housing of the motor. Press
the knob to enable oscillation, and pull the knob to focus the airflow.
2. Speed control: Airflow quantity is adjusted through a 3-speed rotary switch. Speed 3
supplies the highest amount of airflow and 1 the minimum. To select the airflow speed,
just turn the switch to the desired number.
3. Pitch control. Adjusting fan pitch must be performed when the fan is disconnected. To
direct the airflow up or down, hold the back of the motor housing and move it up or
down vertically adjusting to the desire pitch.
Mounting Instructions
Model 1691 (desk) and model 1690 (Stand)
Fans are packed dissembled. For your safeguard, it is necessary to correct assemble
the fan before its use. Proceed assembling by following the instructions and illustrations
provide in this manual.
Mounting the back mesh:
1. Place the back mesh over the motor shaft. Make sure the aligning hole of the mesh
fits the fastener located at the front of the motor.
2. Hold the back housing of the motor while keeping the mesh fitted in place. Then
adjust the lock nut to the motor shaft turning it to the right.
Mounting the blade:
1. Insert the blade through the motor shaft.
2. To adjust the blades twist the plastic button to the left.
Mounting the front mesh:
1. Superpose the front mesh to the back mesh and close the locks.
USING YOUR FAN
