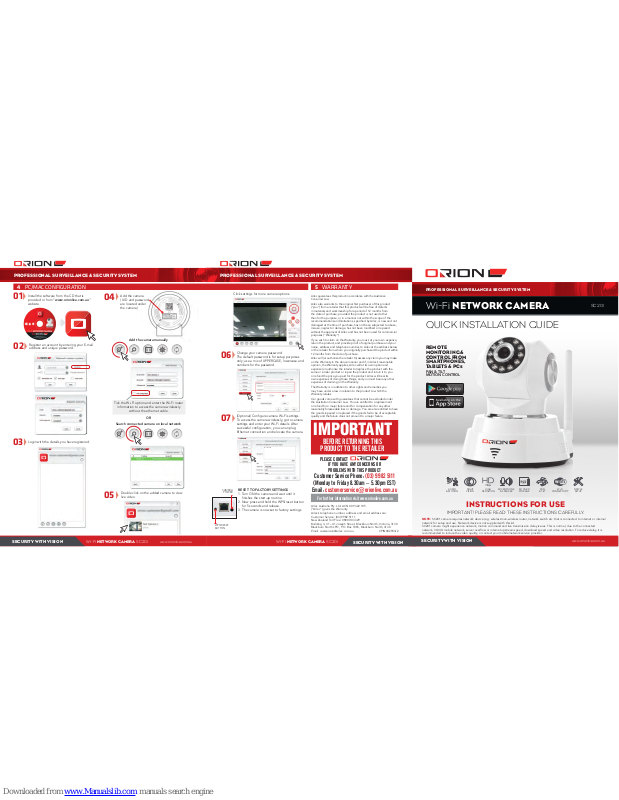

Orion SC201 Quick Installation Manual

SECURITY WITH VISION

3

WI-FI NETWORK CAMERA SC201

www.orionlive.com.au

SECURITY WITH VISION

WI-FI NETWORK CAMERA SC201

PROFESSIONAL SURVEILLANCE & SECURITY SYSTEM PROFESSIONAL SURVEILLANCE & SECURITY SYSTEM

INSTRUCTIONS FOR USE

IMPORTANT! PLEASE READ THESE INSTRUCTIONS CAREFULLY.

NOTE: SC201 camera requires network device (e.g. wireless/non-wireless router, network switch etc. that is connected to internet or internal

network for setup and use. Network device is not supplied with this kit.
SC201 camera might experience network, motion command and live transmission delay issues. This is normal, due to the connected
network, 3G/4G mobile network, server overflow or internet upstream speed, download speed and video resolution. To reduce delay, it is
recommended to reduce the video quality, or contact your mobile/network service provider.

ORION SC201 A5- 6 PAGE QUICK INSTALLATION GUIDE CPIN002933/2

www.orionlive.com.au

PROFESSIONAL SURVEILLANCE & SECURITY SYSTEM

SC201

W i-Fi NETWORK CAMERA

SD CARD
STORAGE

AUDIO

& MOTION

PAN

& TILT

NIGHT

VISION

Wi-Fi

CONNECTIVITY

HIGH

DEFINITION

SIMPLE
SETUP

MICROPHONE

& SPEAKER

SECURITY WITH VISION

REMOTE
MONITORING &
CONTROL FROM
SMARTPHONES,
TABLETS & PCs

PAN & TILT
MOTION CONTROL

QUICK INSTALLATION GUIDE

SECURITY WITH VISION

WI-FI NETWORK CAMERA SC201

Customer Service Phone: [phone]

(Monday to Friday 8.30am – 5.30pm EST)

Email: [e-mail]

For further information visit www.orionlive.com.au

PLEASE CONTACT

IF YOU HAVE ANY CONCERNS OR
PROBLEMS WITH THIS PRODUCT

IMPORTANT

BEFORE RETURNING THIS

PRODUCT TO THE RETAILER

4 PC/MaC Configuration 5 Warranty

Register an account by entering your E-mail
address and unique password.

Login with the details you have registered.

Add the camera
( UID and password
are located under
the camera)

Search connected camera on local network

OR

Install the software from the CD that is
provided or from “www.orionlive.com.au”
website.

04

01

03

02

05

Double click on the added camera to view
live video.

Click settings for more camera options.

07

06

Change your camera password.
The default password is for setup purposes
only; use a mix of UPPERCASE, lowercase and
numbers for the password.

(Optional) Configure camera Wi-Fi settings.
To access the camera wirelessly, go to camera
settings and enter your Wi-Fi details. After
successful configuration, you can unplug
Ethernet connection and relocate the camera.

Arlec Australia Pty. Ltd. ACN 009 322 105
(“Arlec”) gives the Warranty.
Arlec’s telephone number, address and email address are:
Customer Service: [phone]
New Zealand Toll Free: 0800 003 329
Building 3, 31 – 41 Joseph Street, Blackburn North, Victoria, 3130
Blackburn North LPO, P.O. Box 1065, Blackburn North, 3130

Email: [e-mail]

Arlec guarantees this product in accordance with the Australian
Consumer Law.

Arlec also warrants to the original first purchaser of this product
(“you”) from a retailer that this product will be free of defects
in materials and workmanship for a period of 12 months from
the date of purchase; provided the product is not used other
than for the purpose, or in a manner not within the scope of the
recommendations and limitations, specified by Arlec, is new and not
damaged at the time of purchase, has not been subjected to abuse,
misuse, neglect or damage, has not been modified or repaired
without the approval of Arlec and has not been used for commercial
purposes (“Warranty”).

If you wish to claim on the Warranty, you must, at your own expense,
return the product, and provide proof of original purchase and your
name, address and telephone number, to Arlec at the address below
or the retailer from whom you originally purchased the product within
12 months from the date of purchase.

Arlec will (or authorise the retailer to) assess any claim you may make
on the Warranty in the above manner and if, in Arlec’s reasonable
opinion, the Warranty applies, Arlec will at its own option and
expense (or authorise the retailer to) replace the product with the
same or similar product or repair the product and return it to you
or refund the price you paid for the product. Arlec will bear its
own expenses of doing those things, and you must bear any other
expenses of claiming on the Warranty.

The Warranty is in addition to other rights and remedies you
may have under a law in relation to the product to which the
Warranty relates.

Our goods come with guarantees that cannot be excluded under
the Australian Consumer Law. You are entitled to a replacement
or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have
the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.

CPIN002933/2

Add the camera manually

Tick the Wi-Fi option and enter the Wi-Fi router

information to access the camera wirelessly

without the ethernet cable.

RESET TO FACTORY SETTINGS

1. Turn ON the camera and wait until it
finishes the start-up routine.

2. Now press and hold the WPS/reset button
for 5 seconds and release.

3. The camera is now set to factory settings.

Camera

Power

wPs/reset
Button

wI-FI ssID

www.orionlive.com.au

SECURITY WITH VISION

2

WI-FI NETWORK CAMERA SC201

PROFESSIONAL SURVEILLANCE & SECURITY SYSTEM

1 identifiCation

mountIng
BraCket

mICro sD

CarD slot

sPeaker mICroPhone

external

I/o

rj45

ethernet

Port

Power
soCket

wPs/reset

auDIo

out

InFra-reD leD

antenna

aDjustaBle

lens

mICroPhone

InDICatIon

lIght

tIlt/Pan

Camera heaD

REspONsiblE usE:

Please ensure this equipment is used in accordance with any local laws or regulations, especially if your device is
capable of audio recording. Users of this equipment should at all times act responsibly and consider the reasonable expectations of privacy of
individuals. Surveillance should be for a legitimate purpose related to the activities of the person or organisation conducting it.
We recommend that you clearly indicate (written or otherwise) that surveillance is in operation in the monitored area.

2 ConneCtion diagraM

ethernet

CaBle

Power

aDaPter

Press to aDD
new Camera

Press anD holD to

aCCess settIngs

menu

or

taP to vIew lIve

vIDeo

Camera

suCCessFully

ConneCteD

ChangIng PassworD

wI-FI settIngs

Internet

Option 1

Wirelessly Connected
to Internet

Option 2

Local Connection

ethernet

CaBle

ethernet

CaBle

sC201 rear vIew

Power

aDaPter

Internet

3 aPPle/android Configuration

Install the Oricam application from Google Play or App Store.

01

Register an account by entering your E-mail
address and unique password.

0302

Login with the details you have registered.

04 05

aDD Camera

manually

searCh ConneCteD

Camera on loCal

network

Follow these steps to add camera to your account.
Camera UID, password and QR code are located under the camera

Follow these steps to change camera
password and configure Wi-Fi settings.

SCAN CAMERA

QR CODE

Internet

ORION SC201 A5- 6 PAGE QUICK INSTALLATION GUIDE CPIN002933/2

swIPe sCreen
For Pan & tIlt

Control

settIngs menu

Or

wI-FI ssID

Oricam
