Full Weather Station with Radio Controlled
Clock and Projection
(Model #: PS-M02 / PS-M02U)
User Manual
EN
PS M02 English Cover R7 op 7/24/03, 11:57 AM1
Black
1
EN
Projector ................................................................. 18
Reset system ........................................................... 19
Safety and care ....................................................... 20
Warnings ................................................................. 20
Troubleshooting ....................................................... 21
Specifications .......................................................... 22
Additional resources ................................................ 25
TABLE OF CONTENTS
About this guide ........................................................ 2
Product overview ....................................................... 3
Getting started .......................................................... 8
Batteries .............................................................. 8
AC power adapter ............................................... 8
Switch between modes ....................................... 8
Change settings .................................................. 9
Remote unit setup ...................................................... 9
Clock ...................................................................... 10
Alarm ...................................................................... 11
Calendar ................................................................. 12
Moon phase ............................................................ 12
Barometer ............................................................... 13
Weather forecast ..................................................... 14
Temperature & humidity ........................................... 14
Backlight ................................................................. 17
PS M02 English R18 op 7/24/03, 11:56 AM1
Black
2
EN
In this box, you will find:
• Main unit
• Remote sensor
• Batteries
• AC/DC power adapter
ABOUT THIS GUIDE
Congratulations on your selection of the Philippe Starck
with Oregon Scientific Full Weather Station with Radio
Controlled Clock and Projection (PS-M02 / PS-M02U).
This powerful device bundles time keeping, alarm,
indoor and wireless outdoor temperature and humidity
monitoring, weather forecasting, and projection features
into a single tool you can use from the convenience of
your home.
Keep this manual handy as you use your new product.
It contains practical step-by-step instructions, as well as
technical specifications and warnings you should know.
PS M02 English R18 op 7/24/03, 11:56 AM2
Black
3
EN
DESCRIPTIONS
1. Snooze / Light button
2. Light sensor
3. Projection lens
PRODUCT OVERVIEW
TOP VIEW
2
1
3
PS M02 English R18 op 7/24/03, 11:56 AM3
Black
4
EN
LCD DISPLAY
DESCRIPTIONS
1. Low battery icon
2. Clock
3. Barometer
4. Weather forecast
5. Moon phase
6. Calendar
7. Temperature and humidity
8. Alarm
1
2
3
4
5
6
7
8
PS M02 English R18 op 7/24/03, 11:56 AM4
Black
5
EN
BACK VIEW BUTTON DESCRIPTIONS
1. Select - switch modes / change settings
2. Focus - focus projector
3. Up - increase setting / activate auto-synch
4. Down - decrease setting / deactivate auto-synch
5. Rotation - rotate projector
6. Alarm -activate / deactivate alarm
7. Channel - switch remote unit
1
2
3
4
5
6
7
PS M02 English R18 op 7/24/03, 11:56 AM5
Black
6
EN
3
BOTTOM AND SIDE VIEW
DESCRIPTIONS
1. Battery compartment
2. Backlight switch
3. Reset button
4. Light sensitivity knob
5. DC power input jack
AC power adapter not shown.
NOTE
5
41
2
PS M02 English R18 op 7/24/03, 11:56 AM6
Black
7
EN
REMOTE UNIT
DESCRIPTIONS
1. Temperature / Trend display
2. Low battery icon
3. Humidity / Trend / Comfort Level display
4. °C/°F switch
5. Channel switch
6. Reset button
7. Battery compartment
8. Wall-mount hole
9. Battery compartment lid
1
2
5
3
4
6
7
8
9
PS M02 English R18 op 7/24/03, 11:56 AM7
Black
8
EN
GETTING STARTED
BATTERIES
Batteries for the remote and main units are supplied
with this product. Replace them whenever the low
battery signal (
) displays. Remove the battery
compartment lid on the bottom of the main unit, and
insert the batteries. You will need a small Phillips
screwdriver to remove the remote unit compartment lid.
Be sure to match the correct polarity, as shown in the
battery compartment. Before you close the lid, press
the RESET button with the point of a blunt object (such
as a ball point pen).
Insert the batteries in the remote unit before
you set up the main unit. Do not use rechargeable
batteries.
AC POWER ADAPTER
An AC power adapter is supplied for use with the main
unit. You must connect the power adapter if you wish
to use the continuous projection or backlight features.
The jack is located on the side of the unit.
If the AC power becomes unavailable, the
unit will automatically switch to battery power.
SWITCH BETWEEN MODES
Press SELECT. The selected mode will flash. The
display will stop flashing if no key is pressed within
5 seconds.
NOTE
NOTE
PS M02 English R18 op 7/24/03, 11:56 AM8
Black
9
EN
CHANGE SETTINGS
Press and hold SELECT for 2 seconds. Then, press
UP or DOWN to change each setting. Press SELECT
to switch options.
REMOTE UNIT SET UP
Up to 3 remote units can be used with this product
to monitor outdoor temperature and humidity. The
measurement unit (°C or °F) and channel number
(1, 2, or 3) switches are located in the battery
compartment, and should be set prior to installation.
Additional remote units sold separately. If you
are using more than one remote unit, be sure to
select a different channel number for each unit.
INSTALLATION
Mount the remote unit on a flat surface using the recess
holes on the back of the unit.
For best results:
• Before you insert the batteries, select the
measurement unit and channel number first.
• Place the unit out of direct sunlight and moisture.
• Do not place the remote unit more than
20 - 30 meters (60 - 90 feet) from the main
(indoor) unit.
• Position the unit so that it faces the main (indoor)
unit. Minimize obstructions such as doors, walls,
and furniture.
You may need to experiment with various locations to
get the best reception.
NOTE
PS M02 English R18 op 7/24/03, 11:56 AM9
Black
10
EN
CLOCK
This product can automatically synchronize the date
and time with official time-keeping organizations in
Frankfurt, Germany (PS-M02) or Rugby, England
(PS-M02U). When the unit is within 1500 km
(932 miles) of a RF signal, the reception icon will blink
during reception.
RECEPTION
Reception takes 2 - 10 minutes to complete. Once
complete, the icon will stop blinking.
For best results, place the unit away from metal
or electrical objects, and near a window with a clear
view to the sky.
TO DISABLE OR ENABLE AUTOSYNCHRONIZATION
In Clock mode, press DOWN for 2 seconds to disable
the auto-synchronization. The unit will not respond to
radio signals until you reactivate the synchronization.
To enable auto-reception, press UP for 2 seconds.
NOTE

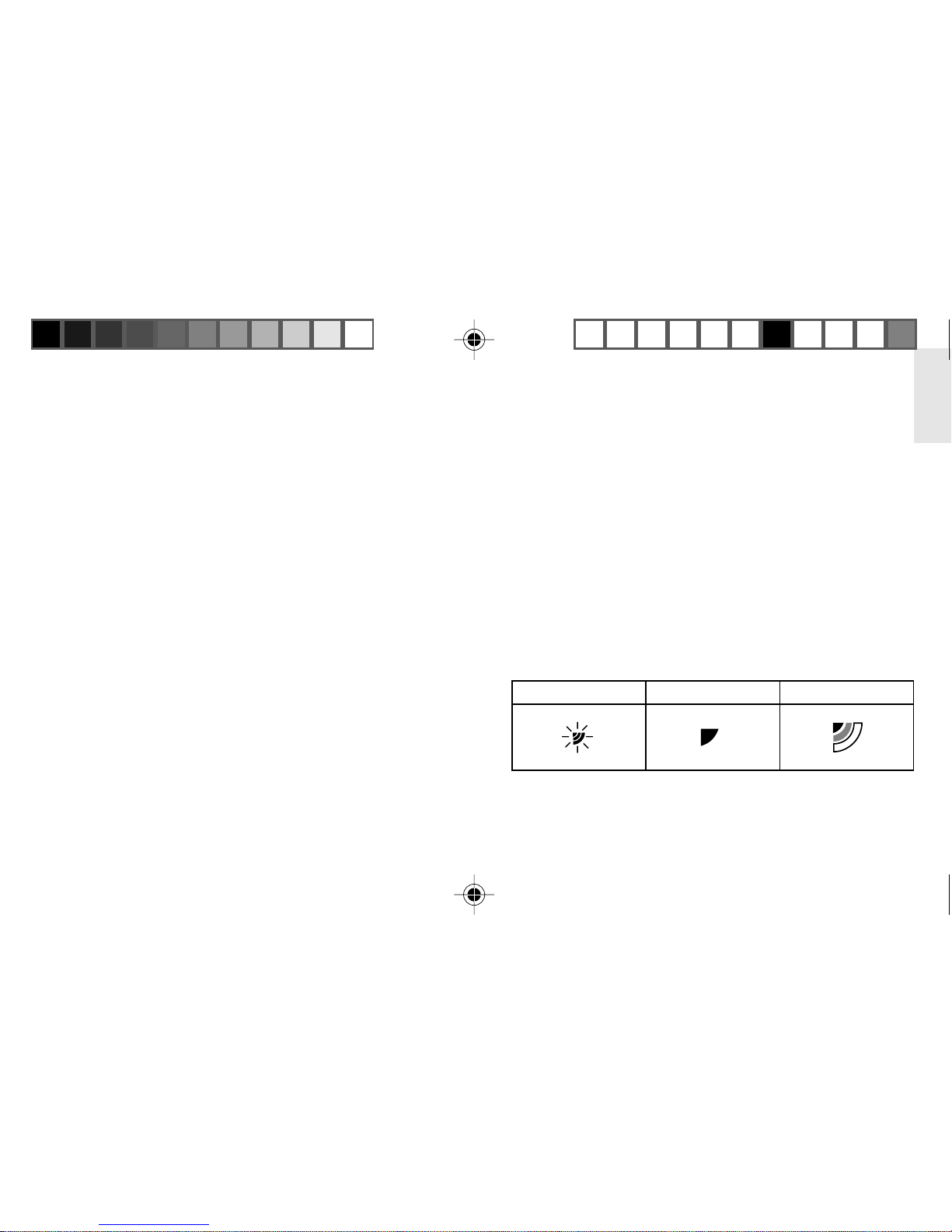

Strong signal Weak signal No signal
PS M02 English R18 op 7/24/03, 11:56 AM10
Black
11
EN
SET OR CHANGE THE CLOCK
1. Press SELECT to switch to the Clock Mode. The
time will flash.
2. Press and hold SELECT for 2 seconds to enter
the setting mode.
3. Select the 12/24-hour format, hour, and minute.
Press UP or DOWN to change the setting.
Press SELECT to confirm.
ALARM
When activated, the Melody Alarm starts quietly, then
gradually becomes louder. It shuts off after two
minutes. The LCD display lights up for the first
8 seconds.
SET ALARM
1. Press SELECT several times until the Alarm area
flashes.
2. Press and hold SELECT for 2 seconds to enter
the setting mode.
3. Select the hour, minute, melody (1 - 7) and
volume level (Lo or Hi). Press UP or DOWN to
change the setting. Press SELECT to confirm.
4. Press SELECT again when you are finished.
SNOOZE
Press the SNOOZE/LIGHT button the top of the unit
to temporarily disable the alarm for 8 minutes. The alarm
icon will blink while Snooze is activated.
PS M02 English R18 op 7/24/03, 11:56 AM11
Black
12
EN
TO TURN THE ALARM OFF OR ON
Press any button to stop the alarm.
To turn the alarm off completely (deactivate it for the
next day), press ALARM.
CALENDAR
SET DATE
Clock auto-synchronization must be deactivated before
you manually set the date. (
10)
1. Press SELECT several times until the calendar
area flashes.
2. Press and hold SELECT for 2 seconds to enter
the calendar setting mode.
3. Select the year, month, date, and language.
Press UP or DOWN to change the setting.
Press SELECT to confirm.
The language options are (E) English, (F) French,
(D) German, (I) Italian, and (S) Spanish.
MOON PHASE
Press SELECT until the Calendar Area flashes. Then,
press UP or DOWN to change the date and view the
corresponding moon phase.
NOTE
PS M02 English R18 op 7/24/03, 11:56 AM12
Black
13
EN
BAROMETER
This product tracks barometric pressure changes over
the past 24 hours to provide the weather forecast
(
14) and a trend line showing the direction of
barometric change. Barometric changes are measured
by the main (indoor) unit.
BAROMETRIC TREND
The barometric trend arrow for the last 30 minutes is
always displayed.
VIEW THE LAST 24 HOURS
Press SELECT 2 times until the Barometer Area
flashes. Then, press UP or DOWN to view the last
24 hours history.

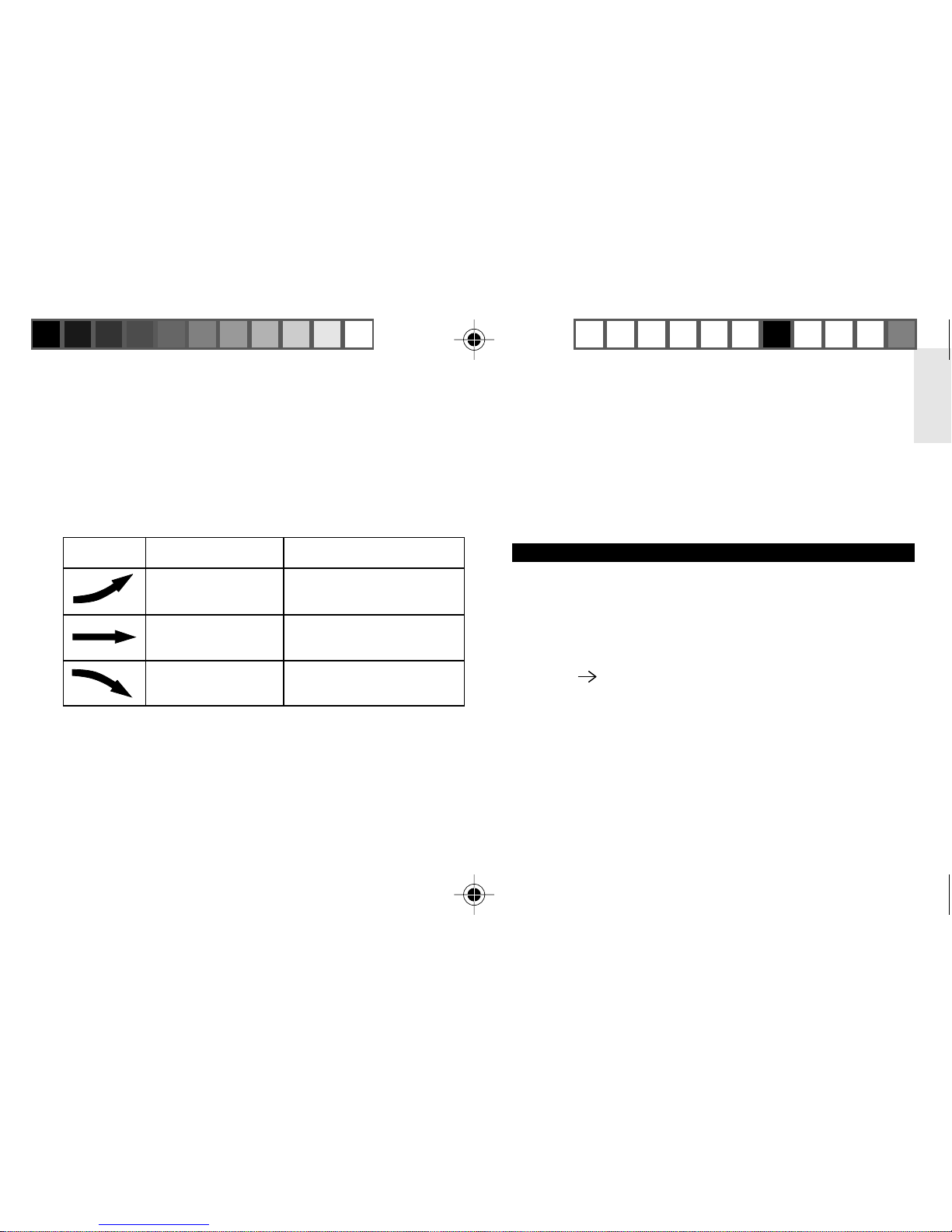

Trend Description Pressure change
(mb/hPa)
Rising
Steady
Falling
1 hr 6 hrs
+
1
+
3
Steady Steady
-1 -3
PS M02 English R18 op 7/24/03, 11:56 AM13
Black
14
EN
SET UNIT AND ALTITUDE
You can set the unit of measurement (mb/hPa or inHg)
and altitude. Setting the altitude allows the product to
take more accurate barometric measurements.
1. Press SELECT 2 times until the Barometer Area
flashes.
2. Press and hold SELECT for 2 seconds.
3. Select altitude (-100 meters to 2500 meters in
increments of 10) and the unit of measurement
(mb/hPa or inHg). Press UP or DOWN to
change the setting. Press SELECT to confirm.

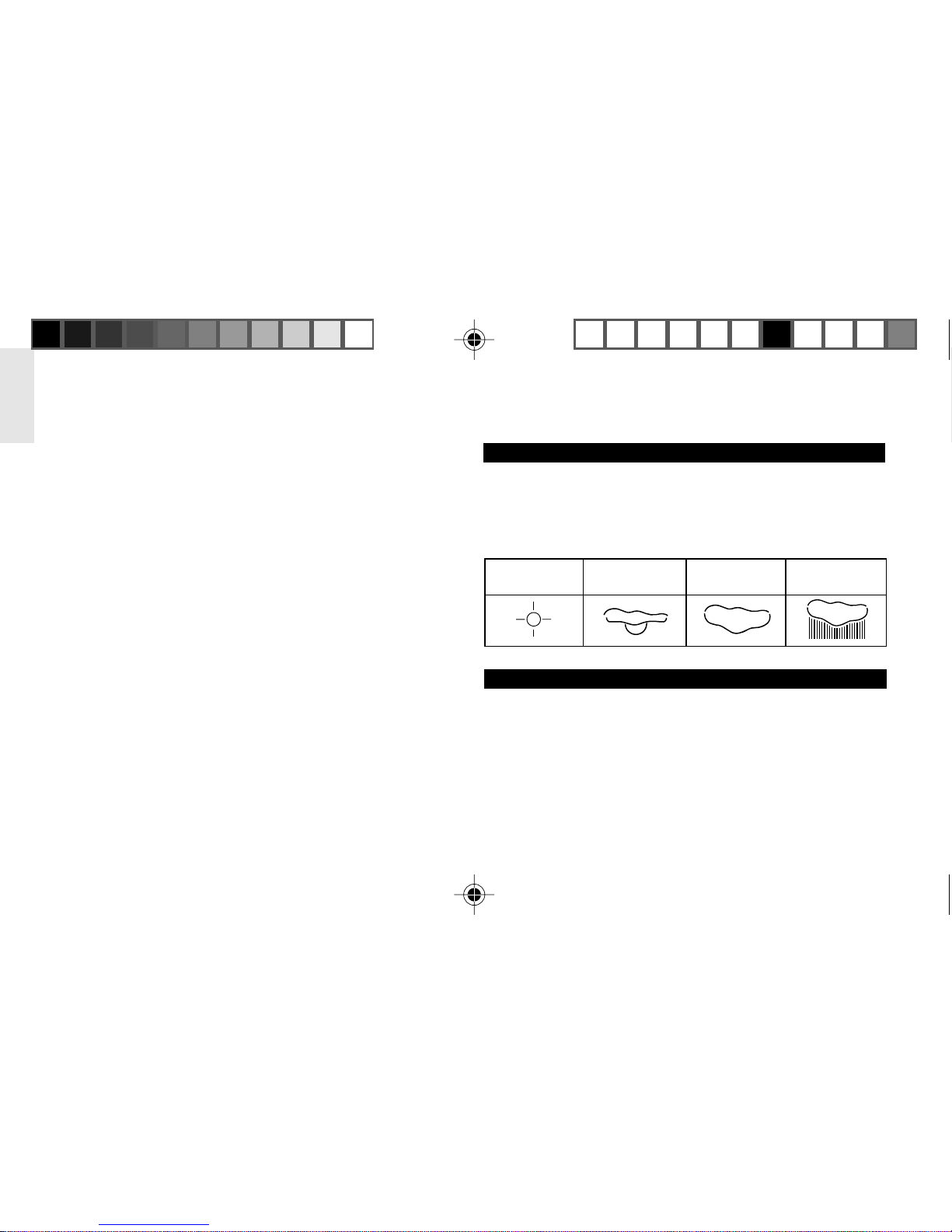

WEATHER FORECAST
This product forecasts the next 12 to 24 hours of
weather within a 30 to 50 km (19 - 31 mile) radius with
70 to 75 percent accuracy. The weather forecast is
always displayed.
TEMPERATURE AND HUMIDITY
With the press of a button, you can check the current
indoor or outdoor temperature, humidity percentage,
comfort level, trend, and record measurements.
Outdoor measurements are collected by the remote
unit.
Clear Partly Cloudy Cloudy Rainy
PS M02 English R18 op 7/24/03, 11:56 AM14
Black
15
EN
Searching No sensor Sensor found
Temperature is given at the top; humidity is below.
VIEW MIN / MAX / CURRENT MEASUREMENTS
Press SELECT 3 times until the Temperature and
Humidity Areas flash. Press UP or DOWN to scan
the readings.
CLEAR MIN / MAX RECORDS
While viewing Min/Max records, press and hold UP or
DOWN for 2 seconds until a beep sounds. This clears
the previous measurements from the memory.
SELECT REMOTE UNIT CHANNEL
While in the Temperature / Humidity Mode, press
CHANNEL to switch between CH 1, 2, or 3, or press
and hold CHANNEL for 2 seconds to enter Auto scan
mode. If only 1 remote unit is in use, you will not be able
to change channels or select Auto. If you select “Auto”,
the channel will change every 3 seconds. To deactivate,
press and hold CHANNEL for 2 seconds again.
SENSOR SEARCHING
If there is no remote unit signal, the temperature and
humidity measurements will be blank. Check the remote
unit batteries, or press and hold UP and DOWN for
2 seconds to search for the remote unit(s).
PS M02 English R18 op 7/24/03, 11:56 AM15
Black
16
EN
Comfort
Wet
Dry
Signals from household electrical appliances
such as doorbells and home security systems can
cause temporary reception failures between the indoor
and outdoor units. This is normal and does not affect
the general performance of the product.
Reception will automatically resume once the
interference ends.

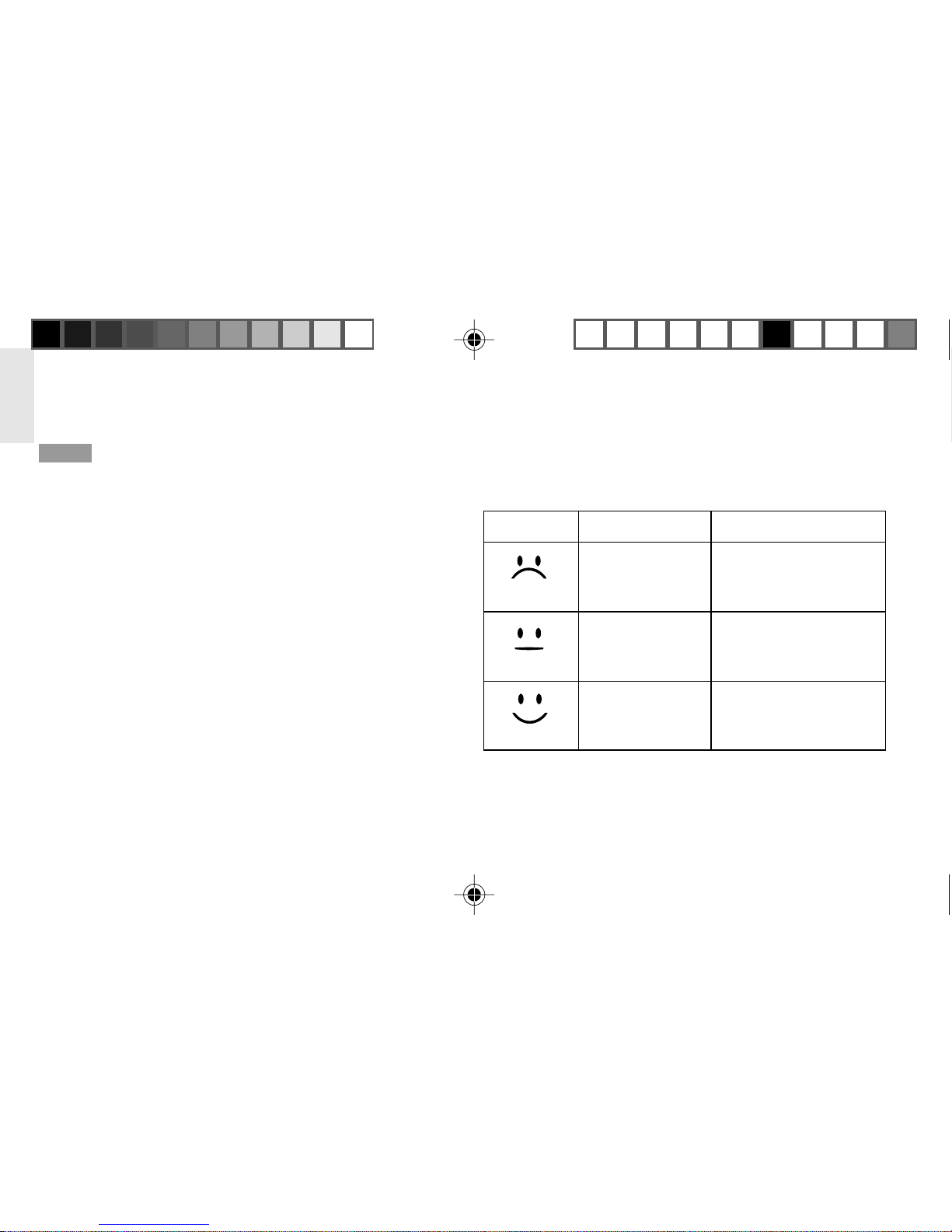

COMFORT ZONE
The indoor and outdoor comfort zones are shown for
the following conditions.
NOTE
Zone
20 - 25 °C
(68 - 77 °F)
40 - 70%
Any >70%
Any <40%
RelativeHumidityTemperature
PS M02 English R18 op 7/24/03, 11:56 AM16
Black
17
EN
TRENDS
The trend arrow for the last 30 minutes always displays.
Indoor and outdoor temperature and humidity trends are
shown separately.
SET UNIT
While in Temperature / Humidity Mode, press SELECT
for 2 seconds. Press UP or DOWN to switch between
°C and °F. Press SELECT to confirm.
BACKLIGHT
Press SNOOZE/LIGHT to illuminate the backlight for
5 seconds.
CONTINUOUS BACKLIGHT
The AC power adapter must be plugged in to use this
feature (
8).

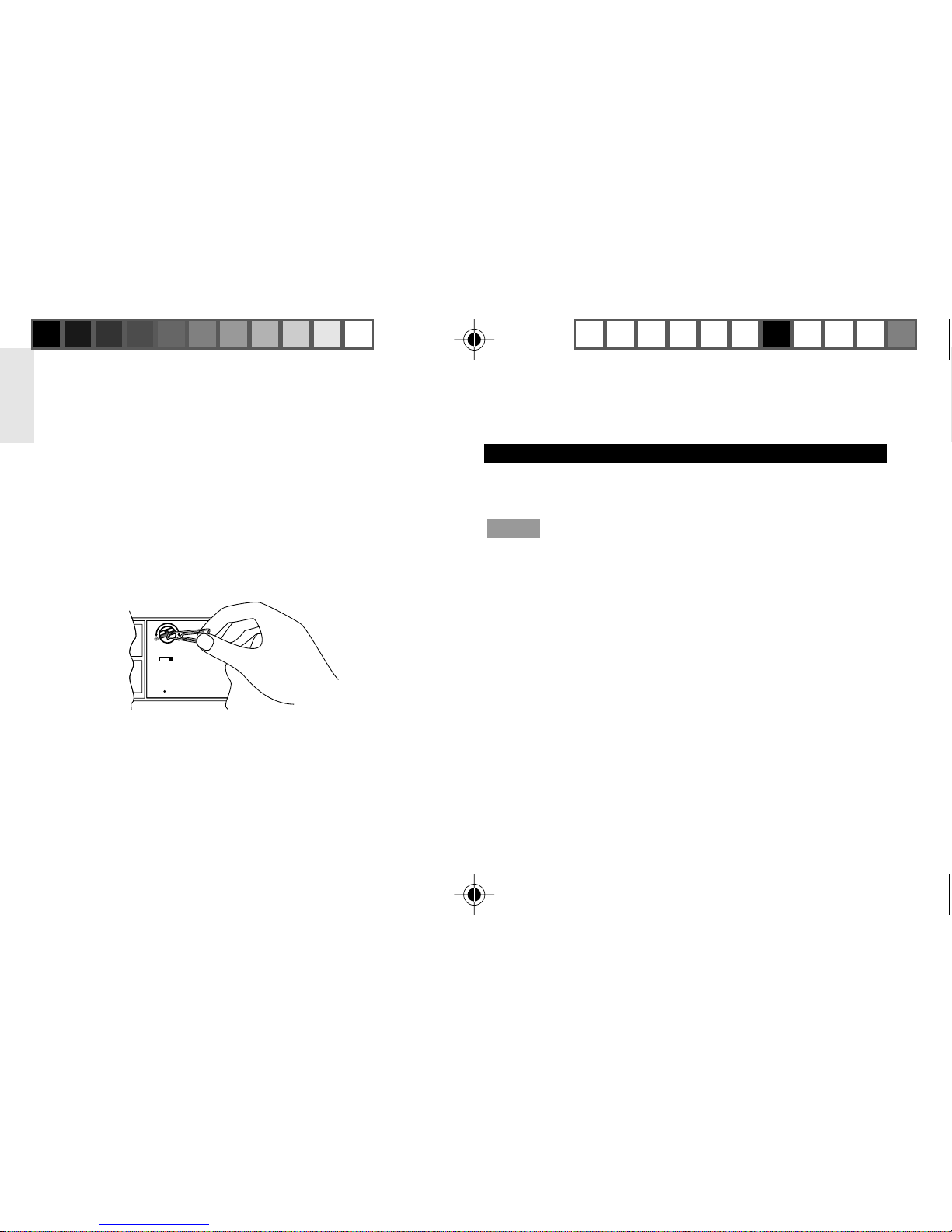

1. The BACKLIGHT switch is located in the battery
compartment. Move it to the “ON” position to
enable the continuous backlight. Move it to the
“OFF” position to disable.
Trend
Temperature
Relative Humidity
+
0.5 °C +3%
SteadySteady
-0.5 °C -3%
PS M02 English R18 op 7/24/03, 11:56 AM17
Black
18
EN
NOTE
2. Move it to the “AUTO” position to enable
continuous backlight controlled by light intensity.
When activated, the backlight will be on
whenever the unit perceives that the room is
dark.
3. The Light Sensitivity knob switch is located in
the battery compartment. Rotate to adjust.
PROJECTOR
This product has a built-in projector for viewing time
and alarm status at night.
The maximum projection range is 2 meters
(6 feet). The image gets larger the farther you display it.
PROJECT TIME / ALARM STATUS
In a darkened room, press SNOOZE/LIGHT to display
the time and alarm status for 5 seconds.
FLIP IMAGE
Press SNOOZE/LIGHT again while the projector is
on.
ROTATE IMAGE
The ROTATION switch is located on the back of the
unit. Rotate to adjust.
RESET
ON OFF AUTO
LIGHT SENSOR
E
O
I
LIGHT
4. When activated, the continuous backlight will be
half as bright as usual. To achieve full brightness,
press SNOOZE/LIGHT.
PS M02 English R18 op 7/24/03, 11:56 AM18
Black
19
EN
FOCUS IMAGE
The FOCUS switch is located on the back of the unit.
Rotate to adjust.
CONTINUOUS PROJECTION
The AC power adapter must be plugged in to use this
feature (
8),
Press and hold SNOOZE/LIGHT for 2 seconds when
the projection is on. When activated, the time and alarm
status will project continuously.
Press and hold SNOOZE/LIGHT for 2 seconds again
to deactivate.
RESET SYSTEM
The RESET buttons are located in the battery
compartments for the main and remote units. Press
these buttons with the tip of a blunt object (such as a
ball point pen) whenever you change the batteries, or
whenever performance is not behaving as expected
(e.g., unable to establish radio frequency link with
remote unit or automatic clock, etc.) This will return all
settings to default value, and you will lose all stored
information (minimum / maximum temperature and
humidity, etc.).
PS M02 English R18 op 7/24/03, 11:56 AM19
Black
20
EN
SAFETY AND CARE
Wash the unit with a slightly damp cloth and mild detergent.
Avoid dropping the unit or placing it in a location where the
AC power adapter will be stepped on.
WARNINGS
This product is designed to give you years of service if
handled properly. Observe the following guidelines:
• Never immerse the unit in water. This can cause
electrical shock and damage the unit.
• Do not subject the main unit to extreme force,
shock, or fluctuations in temperature or humidity.
• Do not tamper with the internal components.
• Do not mix new and old batteries or batteries of
different types.
• Do not use rechargeable batteries with this
product.
• Remove the batteries if storing this product for a
long period of time.
• Do not scratch the LCD display.
• Do not make any changes or modifications to this
product. Unauthorized changes may void your
right to use the product.
• The contents of this user manual are subject to
change without notice.
• Images not drawn to scale.
PS M02 English R18 op 7/24/03, 11:56 AM20
Black
21
EN
Check sensors.
Only one sensor is
working (
15 )
Problem
Symptom Remedy
Remote
unit
Cannot locate
remote unit
Check batteries
(
8)
Check location
(
9)
Cannot change
channel
Clock
Cannot
autosynchronize
1. Remove batteries.
2. Press RESET. All
memory items will
return to default.
3. Replace batteries.
Temp
Shows “LLL” or
“HHH”
Temperature is outof-range.
Problem
Symptom Remedy
Backlight
No continuous
backlight
Plug in AC power
adapter. Check the
BACKLIGHT switch.
(
8, 17)
Calendar
Strange date /
month
Change language
(
12)
No
continuous
projection
Plug in AC power
adapter
(
8, 18, 19)
Projector
TROUBLESHOOTING
Check here before contacting our customer service
department.
PS M02 English R18 op 7/24/03, 11:56 AM21
Black
22
EN
SPECIFICATIONS
Main unit dimensions
L x W x H 129 x 43 x 133.3 mm
(5.1 x 1.7 x 5.3 inches)
Weight 471 grams with batteries
Remote unit dimensions
L x W x H 75 x 35 x 78.3 mm
(3 x 1.4 x 3.1 inches)
Weight 136 grams with battery
Temperature
Unit °C or °F
Range Main unit: -5 ºC to 50 ºC
(23 ºF to 122 ºF)
Problem Symptom Remedy
4. Place clock near
window / away
from electrical
devices, and wait
10 - 20 minutes.
If it still fails, you may
be too far from a signal.
Cannot
change
clock
Disable autosynchronization
(
10)
Baro Strange reading Set altitude / unit
(
14)
PS M02 English R18 op 7/24/03, 11:56 AM22
Black
23
EN
Remote Unit: -20 °C to 60 °C
(-4 °F to 140 °F)
Resolution 0.1 °C (0.2 °F)
Comfort 20 °C to 25 °C (68 °F to 77 °F)
(see also, Relative humidity)
Memory Minimum / maximum
Trend
+
/- 0.5 °C (+/- 0.9 °F) change
Relative humidity
Range Main & Remote Unit 25% to 95%
Resolution 1%
Comfort 40% to 70%
(see also, Temperature)
Memory Minimum / maximum
Trend 3% change
Barometer
Unit mb/hPa or inHg
Range 500 to 1050 mb
(14.77 to 31.01 inHg)
Resolution 1 mb (0.03 inHg)
Altitude -100 to 2500 meters
(-328 to 8202 feet)
Display Rainy, cloudy, partly cloudy, sunny
Memory 24 hour
Trend 1mb change in 1 hour or 3mb
change in 6 hours
Remote unit
RF frequency 433 MHz
Range 30 meters (98 feet) with no
obstructions
Transmission approximately every 40 seconds
Channel No. 1, 2, or 3
Unit °C or °F
PS M02 English R18 op 7/24/03, 11:56 AM23
Black
24
EN
Radio-controlled clock
Synchronization Auto or disabled
Clock display HH:MM:SS
Hour format 12hr AM/PM (MSF format)
24hr (DCF format)
Calendar DD/MMM; weekday selection in
5 languages (E, D, F, I, S)
Moon phase High, medium, and low tide
Alarm 7 melody; 2 minute crescendo
Snooze 8 minutes
Projector
Display Current time / alarm status
Rotation 180° and image flip
Focusing Manual
Projection 5-second or continuous
Power
Main unit 4 x UM-3 (AA) 1.5V alkaline
batteries (back-up)
AC/DC 6V power adapter
(for normal operation and
continuous backlight and
projector)
Remote unit 2 x UM-4 (AAA) 1.5V alkaline
batteries
PS M02 English R18 op 7/24/03, 11:56 AM24
Black
25
EN
ADDITIONAL RESOURCES
Visit our website (www.oregonscientific.com) to learn
more about your new product and other Oregon
Scientific products such as digital cameras, hand-held
organizers, health and fitness gear, and weather
stations. The website also includes contact information
for our customer service department, in case you need
to reach us.
PS M02 English R18 op 7/24/03, 11:56 AM25
Black
26
EN
EC-DECLARATION OF CONFORMITY
This product contains the approved transmitter module
TX 07 and complies with the essential requirements of
Article 3 of the R&TTE 1999/5/EC Directives, if used for
its intended use and that the following standard(s)
has/have been applied:
Radio frequency spectrum
(Article 3.2 of the R&TTE Directive)
applied standard(s)
ETSI EN 300 220-3 (Ver.1.1.1):2000-09
Electromagnetic compatibility
(Article 3.1.b of the R&TTE Directive)
applied standard(s) ETSI EN 301 489-1-3 (Ver.1.4.1):2002-08
Safety of information technology equipment
(Article 3.1.a of the R&TTE directive)
applied standard(s)
EN 60950:2000
Additional information:
The product is therefore conform with the Low Voltage
Directive 73/23/EC, the EMC Directive 89/336/EC and
R&TTE Directive 1999/5/EC (appendix II) and carries the
respective CE marking.
VS-Villingen / Germany August 2003
Gerhard Preis
R&TTE Representative of manufacturer
RTT&E Compliant Countries:
All EC Countries, Switzerland ,
and Norway
©2003 Oregon Scientific. All rights reserved.
CH
N
PS M02 English R18 op 7/24/03, 11:57 AM26
Black
Loading...
