Oregon RMR966P, RMR966PA User Manual

RADIO-CONTROLLED PROJECTION
CLOCK WITH NIGHTLIGHT &
INDOOR/ REMOTE THERMOMETER
MODEL NO.: RMR966P/RMR966PU
INSTRUCTION MANUAL
INTRODUCTION
The unit is a multi-functional radio-controlled clock. The RMR966P
--- the Central Europe model --- is designed to automatically synchronize its current time and date when brought within an approximate 1500km radius of the radio signal generated from Frankfurt, Germany (DCF-77). The RMR966PU --- the UK model
--- will do the same when brought within range of the radio signal MSF-60 generated from Rugby, England.
In addition to indoor temperature display, by means of a wireless remote thermo sensor this unit can simultaneously monitor the outdoor temperature. The unit can record maximum and minimum indoor/outdoor temperature readings. No wire installation is required between the main and remote units as this unit operates at 433 MHz.
This unit featured with a projection function that allows the user to display either (1) the Current Time with Indoor Temperature or (2) Current time with Outdoor Temperature on the ceiling, wall or other flat surface. The image projected is in a deep red color which is easily seen in the dark.
The Projection Clock also comes with favourable features such as Auto-on/off Nightlight, EL back-light, hourly-chime function and dual daily alarm with 8-minute snooze function and Pre-Alarm function.
KEY CONFIGURATION & FEATURES:
MAIN UNIT
FRONT VIEW
A4 A1
A3
A8 A7
1
A2
A9
GB
A5 A6
GB
A1 3-Line LCD Display
Displays the time, date and temperature
A2 [ ] Battery-low indicator
Displays when battery power of main unit is low
A3 [ ] Battery-low indicator
Displays when battery power of remote sensor is low
A4 [ ] Radio-reception icon
Indicates the strength of the reception of clock radio signal
A5 [IN/OUT TEMP] BUTTON
- Press to toggle between the Indoor and Outdoor temperature display
-Press and hold for 2 seconds to activate the auto-search for remote thermo signal
A6 [MEM] BUTTON
- Press to toggle among current, maximum and minimum temperature records
- Press and hold for 2 seconds to erase the memories

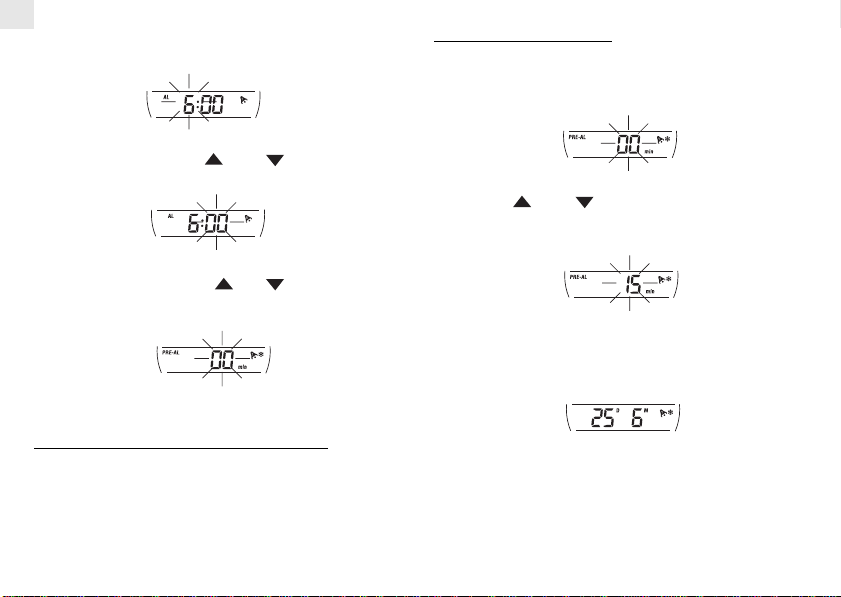

A7 [ALARM/*] BUTTONS
- Press to display the alarm-1 or alarm-2 function
- Press and hold for 2 seconds to enter the corresponding alarm time setting mode
A8 [MODE] BUTTON
- Press to toggle among the calendar clock display modes
- Press and hold for 2 seconds to enter the clock setting mode
A9 [ & ] BUTTONS
-Press to increase/ decrease the values in setting modes
-Press and hold for 2 seconds to activate/ deactivate the autoreception of RF clock radio signal
TOP VIEW
B4
B1
B1 [SNOOZE/ LIGHT] BUTTON
- Press to turn on the EL backlight and projection for 5 seconds
- Press to change the projected temperature (Indoor or Outdoor) when projection is On
-Press to stop the alarm sound and activate the 8-minutes Snooze function
B2 [LIGHT AUTO-ON-OFF] SLIDE BUTTON
Slide to select the different mode for the Nightlight
B3 LIGHT SENSOR B4 ROTATABLE NIGHTLIGHT
2
B2
B3
BACK VIEW
C8
GB
C2
C5 C3 C4
C1
C1 [180º ROTATION] BUTTON
Press to flip the projected image horizontally
C2 [FOCUS] KNOB
Rotate to adjust the focus of projection
C3 [IMAGE ROTATION] KNOB
Rotate to change the image 90º to the left or right
C4 [PROJECTION ON
Slide to enable continuous projection (when Adapter is connected)
C5 BATTERY COMPARTMENT
Accommodates 2 pieces of UM-3 or AA 1.5 V batteries
D1
] BUTTON
C7
C6 [RESET] BUTTON
Press to return all settings to default values
C7 [+ LIGHT SENSOR -] KNOB
Rotate to adjust the sensitivity of the light sensor
C8 [˚C / ˚F ] BUTTON
Selects between Centigrade (°C) and Fahrenheit (°F)
BOTTOM VIEW
D1 4.5 V DC JACK
For AC power adapter installation
3
C6
D1
GB
KEY CONFIGURATION AND
FEA TURES:REMO TE THERMO UNIT
THR228NS
A. LCD
Displays the current temperature monitored by the remote unit
B. LED INDICATOR
Flashes when the remote unit transmits a reading
C. °C/°F SLIDE SWITCH
Selects between Centigrade (°C) and Fahrenheit (°F)
D. RESET BUTTON
Returns all settings to default values
E. BATTERY COMPARTMENT
Accommodates two UM-4 or AAA size 1.5V batteries
F. BATTERY DOOR G. WALL-MOUNT HOLDER
Supports the remote unit in wall-mounting
H. REMOVABLE TABLE ST AND
For standing the remote unit on a flat surface
BATTERY INSTALLATION:MAIN UNIT
This unit can be operated by batteries or A C power alone as well as both together.
4
Battery Installation:
1. Remove the battery compartment door by rotating it to the direction of “Open ” as shown
2. Insert two pieces of UM-3 or AA 1.5V batteries in accordance to the polarities.
3. Press [RESET].
4. Replace the battery compartment door by rotating it back onto the unit by following the direction of “Close ”.
When the battery power level is low, the respective low battery indicator [ with AC power adapter Please note if only A C adapter is connected and no battery is installed, low battery indicator [
Using AC Power
5
] will light up. Replace the batteries or connect it
] for main unit will also light up.
GB
GB
BATTERY INSTALLATION : REMOTE UNIT
1. Place both main and remote units as close as possible to each other.
2. Remove the screws on the battery door of the remote unit.
3. Select the units of measurement for the temperature display on the °C/°F slide switch.
4. Install 2 batteries (UM-4 or "AAA" size 1.5V) strictly according to the polarities shown.
5. Insert batteries or press the reset button of the main unit.
6. Replace the battery compartment door and secure its screws.
7. Position the remote sensor and main unit within effective transmission range, which in usual circumstances, is 30 meters.
Though the sensor is weather resistant, and is meant for use outside, it should be placed away from direct sunlight, rain, or snow.
Note: The effectiv e range may be limited by building materials and the position of either the main unit or remote sensors. Try various set-up arrangements for best result.
REMOTE UNIT : WALL-MOUNTING OR
TABLE STANDING
Wall-mount Table Stand
FEATURES
Section I — Radio-Controlled Digital
Calendar Clock
6
