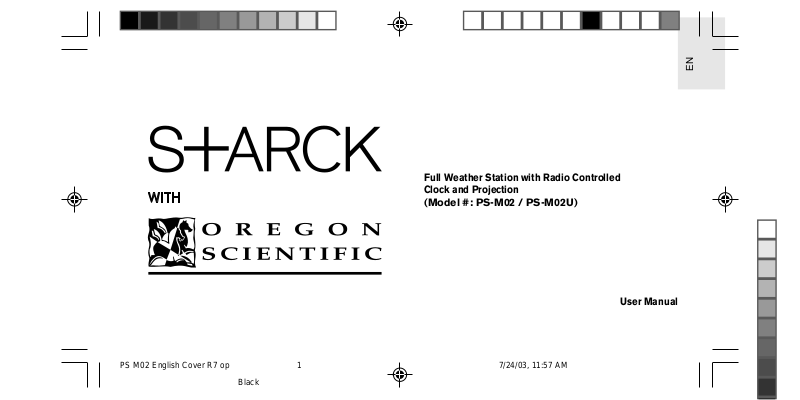

PS M02 English Cover R7 op 7/24/03, 11:57 AM1
Black
EN
Full Weather Station with Radio Controlled
Clock and Projection
(Model #: PS-M02 / PS-M02U)
User Manual
TABLE OF CONTENTS
About this guide ........................................................ 2
Product overview ....................................................... 3
Getting started .......................................................... 8
Batteries .............................................................. 8
AC power adapter ............................................... 8
Switch between modes ....................................... 8
Change settings .................................................. 9
Remote unit setup ...................................................... 9
Clock ...................................................................... 10
Alarm ...................................................................... 11
Calendar ................................................................. 12
Moon phase ............................................................ 12
Barometer ............................................................... 13
Weather forecast ..................................................... 14
Temperature & humidity ........................................... 14
Backlight ................................................................. 17
PS M02 English R18 op 7/24/03, 11:56 AM1
Black
EN
Projector ................................................................. 18
Reset system ........................................................... 19
Safety and care ....................................................... 20
Warnings ................................................................. 20
Troubleshooting ....................................................... 21
Specifications .......................................................... 22
Additional resources ................................................ 25
1
EN
ABOUT THIS GUIDE
Congratulations on your selection of the Philippe Starck
with Oregon Scientific Full Weather Station with Radio
Controlled Clock and Projection (PS-M02 / PS-M02U).
This powerful device bundles time keeping, alarm,
indoor and wireless outdoor temperature and humidity
monitoring, weather forecasting, and projection features
into a single tool you can use from the convenience of
your home.
Keep this manual handy as you use your new product.
It contains practical step-by-step instructions, as well as
technical specifications and warnings you should know.
PS M02 English R18 op 7/24/03, 11:56 AM2
Black
In this box, you will find:
• Main unit
• Remote sensor
• Batteries
• AC/DC power adapter
2
PRODUCT OVERVIEW
EN
DESCRIPTIONS
TOP VIEW
1
2
PS M02 English R18 op 7/24/03, 11:56 AM3
Black
1. Snooze / Light button
2. Light sensor
3. Projection lens
3
3
EN
LCD DISPLAY
DESCRIPTIONS
1
2
3
4
5
6
PS M02 English R18 op 7/24/03, 11:56 AM4
Black
1. Low battery icon
2. Clock
3. Barometer
4. Weather forecast
5. Moon phase
6. Calendar
7
8
7. Temperature and humidity
8. Alarm
4
BACK VIEW BUTTON DESCRIPTIONS
1
1. Select - switch modes / change settings
2. Focus - focus projector
3. Up - increase setting / activate auto-synch
4. Down - decrease setting / deactivate auto-synch
2
5. Rotation - rotate projector
6. Alarm -activate / deactivate alarm
3
4
5
6
7
7. Channel - switch remote unit
5
PS M02 English R18 op 7/24/03, 11:56 AM5
Black
EN
EN
BOTTOM AND SIDE VIEW
2
PS M02 English R18 op 7/24/03, 11:56 AM6
Black
DESCRIPTIONS
1. Battery compartment
2. Backlight switch
3. Reset button
4. Light sensitivity knob
5. DC power input jack
NOTE
3
41
5
AC power adapter not shown.
6
REMOTE UNIT
EN
DESCRIPTIONS
1
2
3
PS M02 English R18 op 7/24/03, 11:56 AM7
Black
4
5
6
7
1. Temperature / Trend display
2. Low battery icon
3. Humidity / Trend / Comfort Level display
4. °C/°F switch
5. Channel switch
6. Reset button
7. Battery compartment
8. Wall-mount hole
8
9
9. Battery compartment lid
7
EN
GETTING STARTED
BATTERIES
Batteries for the remote and main units are supplied
with this product. Replace them whenever the low
battery signal (
) displays. Remove the battery
compartment lid on the bottom of the main unit, and
insert the batteries. You will need a small Phillips
screwdriver to remove the remote unit compartment lid.
Be sure to match the correct polarity, as shown in the
battery compartment. Before you close the lid, press
the RESET button with the point of a blunt object (such
as a ball point pen).
PS M02 English R18 op 7/24/03, 11:56 AM8
Black
Insert the batteries in the remote unit before
NOTE
you set up the main unit. Do not use rechargeable
batteries.
AC POWER ADAPTER
An AC power adapter is supplied for use with the main
unit. You must connect the power adapter if you wish
to use the continuous projection or backlight features.
The jack is located on the side of the unit.
If the AC power becomes unavailable, the
NOTE
unit will automatically switch to battery power.
SWITCH BETWEEN MODES
Press SELECT. The selected mode will flash. The
display will stop flashing if no key is pressed within
5 seconds.
8
