Anywhere.Weather.Kit
Model:..LW301/LW301U/LW301A
Anywhere.Weather.Kit.Basic
Model:.LW302/LW302U/LW302A
USER.MANUAL
LW301_UM_EN_R8.indd 1 2012/8/14 3:05:30 PM
EN
2
INTRODUCTION
LW301/302
Thank you for selecting the Oregon Scientic™ Anywhere
Weather Kit (LW301) or Kit Basic (LW302). Either one can
collect weather data via a weather sensor receiver from
different accessorial sensors, and then send the data
back to Oregon Scientic Internet server via Internet-
connected hub through Internet. It also provides a solution
for the user to have a weather station connection that can
be remote accessed from their mobile device, such as
smartphone or tablet PC.
.N
OTE. Please keep this manual handy as you use
your new product. It contains practical step-by-step
instructions, as well as technical specifications and
warnings you should know about.
PACKAGING.CONTENTS
COMMUNICATIONS.SET
LW301/302
WIND.SENSOR.
LW301
1 x Internet-connected hub
1 x Weather sensor receiver
1 x Power adapter
(May vary in
different countries)
1
x receiver
connection cable
1 x LAN cable
1 x sensor
connector
2 x AA UM-3
1.5V batteries
4 x Screws
(Type A)
1
x Round
U- bolt
1 x Wind Sensor
(WGR800)
(1 x Wind Vane above
and
1 x Anemometer below)
LW301_UM_EN_R8.indd 2 2012/8/14 3:05:44 PM
EN
3

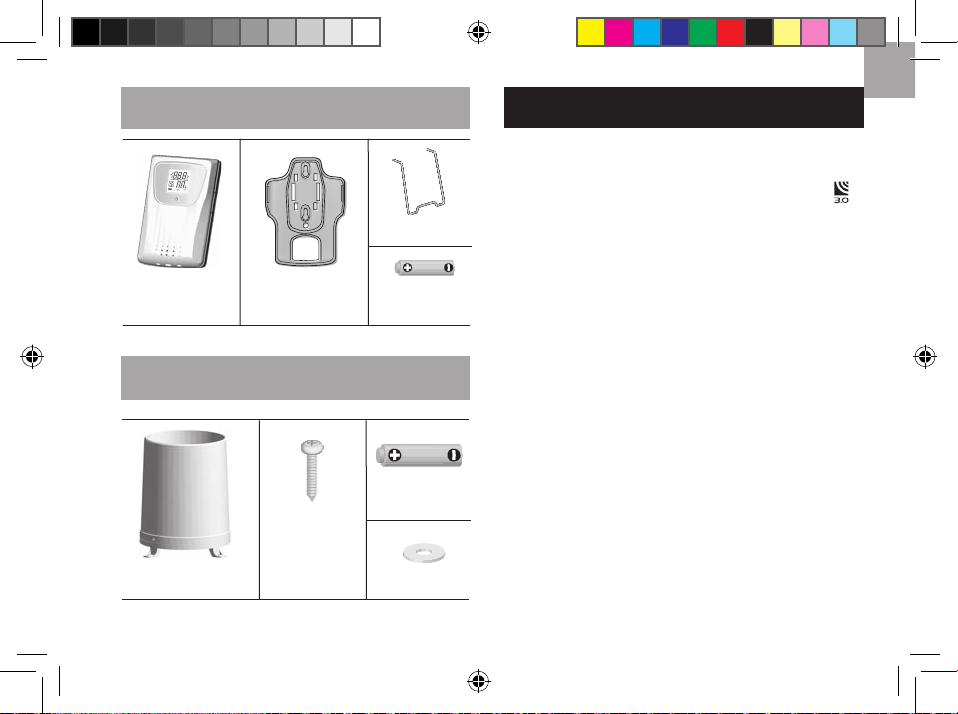

TEMPERATURE.&.HUMIDITy.SENSOR
LW301/302
R
AIN.GAUGE
LW301
ACCESSORIES.–.SENSORS
LW301/302
You can expand the system by adding up to 8 sensors
at any one time to capture outdoor temperature and
relative humidity in various locations.
Optional wireless remote sensors with this logo
such as those listed below are also compatible with the
weather sensor receiver. For more information of these
sensors, please contact your local retailer.*
• THGN801 (Wireless Temp. & Humidity Sensor)
• THGR/THGN800 (Thermometer & Humidity Sensor
with 3 Channels
•
THGR/THGN810 (Thermometer & Humidity Sensor
with 10 Channels
• UVN800 (Ultra-violet Index Sensor)
• PCR800 (Wireless Rain Gauge)
• THWR800 (Wireless Floating Temperature Sensor)
* Features and accessories will not be available in
all
countries.
2 x AAA UM-4
1.5V battery
1 x wall mount
bracket
1
x Temperature /
Humidity Sensor
(THGR800)
1
x Table stand
2 x AA UM-3
1.5V batteries
4 x Screws
(Type C)
1
x Rain Collector
(PCR800)
6 x Washers
LW301_UM_EN_R8.indd 3 2012/8/14 3:06:02 PM
EN
4
OVERVIEW
INTERNET-CONNECTED.HUB
LW301/302
4321
5
6
7
1. / Receiver connection socket (1 or 2)
2. RESET.hole: return to default settings
3.
ETHERNET socket: connect LAN cable
4.
Power adaptor socket
5.
: power indicator
6.
/ indicators: Receiver connection cable
(1 or 2) is plugged
7.
: data is being transferred
WEATHER.SENSOR.RECEIVER
LW301/302
WIND.SENSOR
LW301
1
2
3
4
1
1
2
3
SEARCH
...Front.View:
1. Wind direction
2. Wind vane casing
3. Anemometer
4. Solar power socket
1.
LED status indicator: Blinks during
search; continuous light indicates a
successful connection
1. SEARCH:
Initiate search for remote sensors
2. RESET: return to default settings
3. USB socket: Upload records to
Internet-connected hub
Back
.View:
LW301_UM_EN_R8.indd 4 2012/8/14 3:06:08 PM
Loading...
