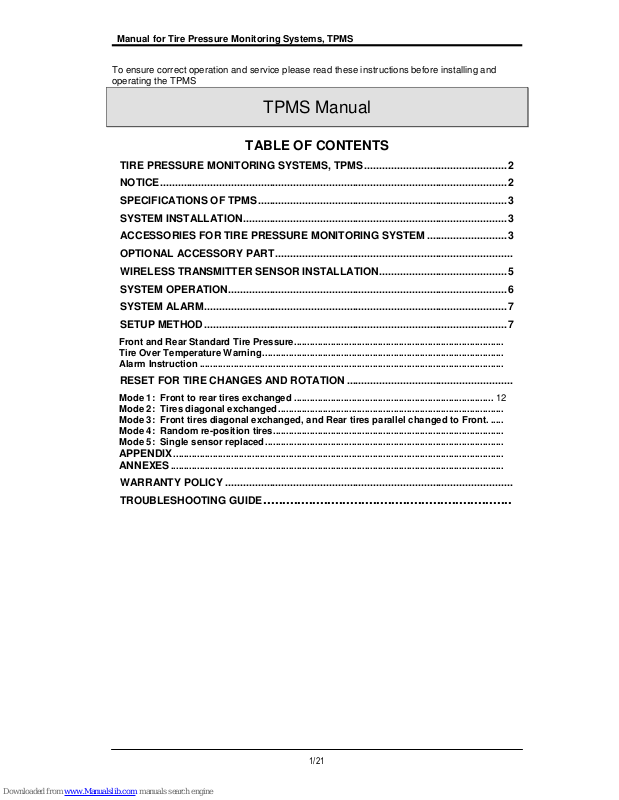

ORANGE P420A User Manual

Manual for Tire Pressure Monitoring Systems, TPMS
1/21
To ensure correct operation and service please read these instructions before installing and operating the TPMS
TPMS Manual
TABLE OF CONTENTS
NOTICE ..................................................................................................................... 2
SPECIFICATIONS OF TPMS .................................................................................... 3
SYSTEM INSTALLATION ......................................................................................... 3
ACCESSORIES FOR TIRE PRESSURE MONITORING SYSTEM ........................... 3
OPTIONAL ACCESSORY PART ................................................................................
SYSTEM OPERATION .............................................................................................. 6
SYSTEM ALARM ...................................................................................................... 7
SETUP METHOD ...................................................................................................... 7

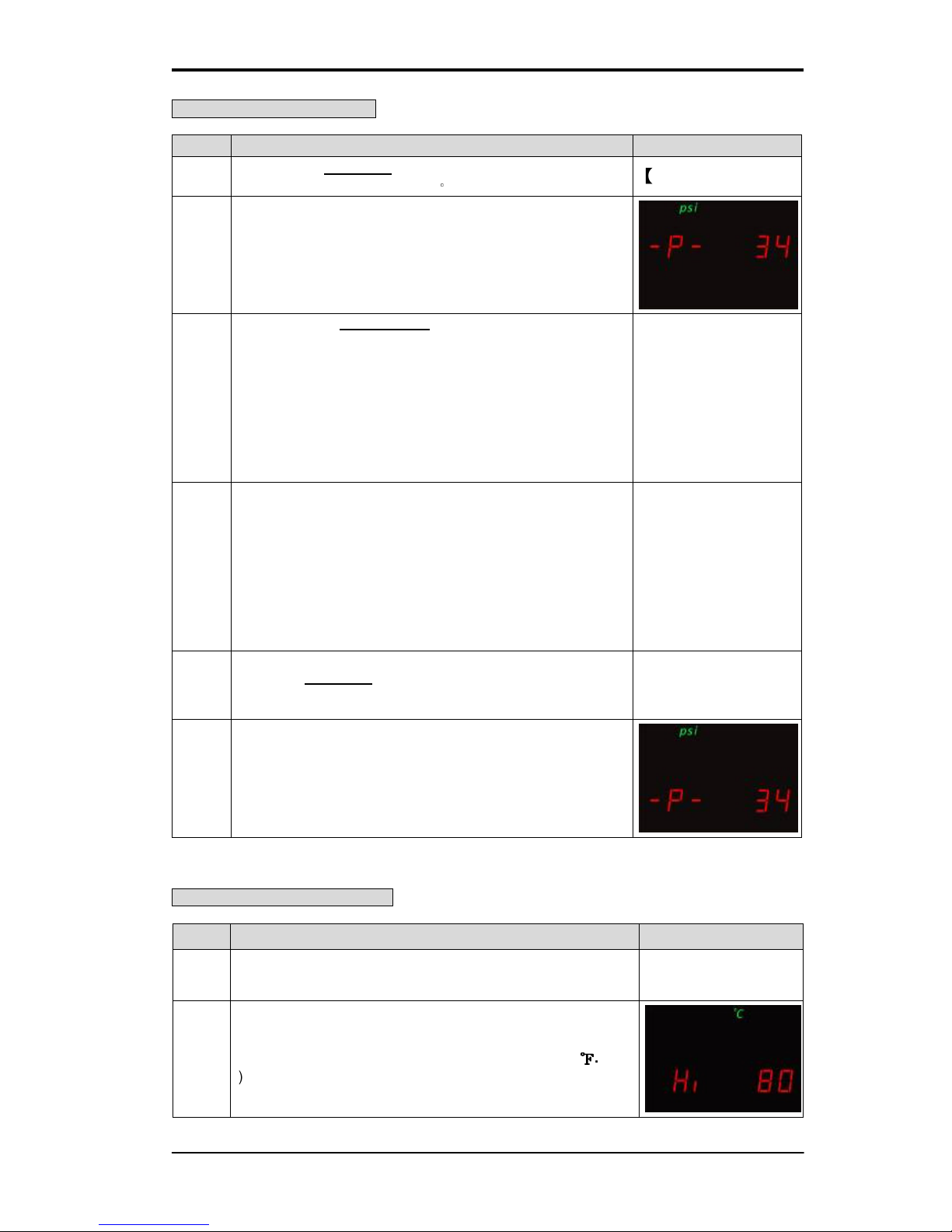

Front and Rear Standard Tire Pressure ................................................................................
Tire Over Temperature Warning ............................................................................................
Alarm Instruction ....................................................................................................................
RESET FOR TIRE CHANGES AND ROTATION ........................................................

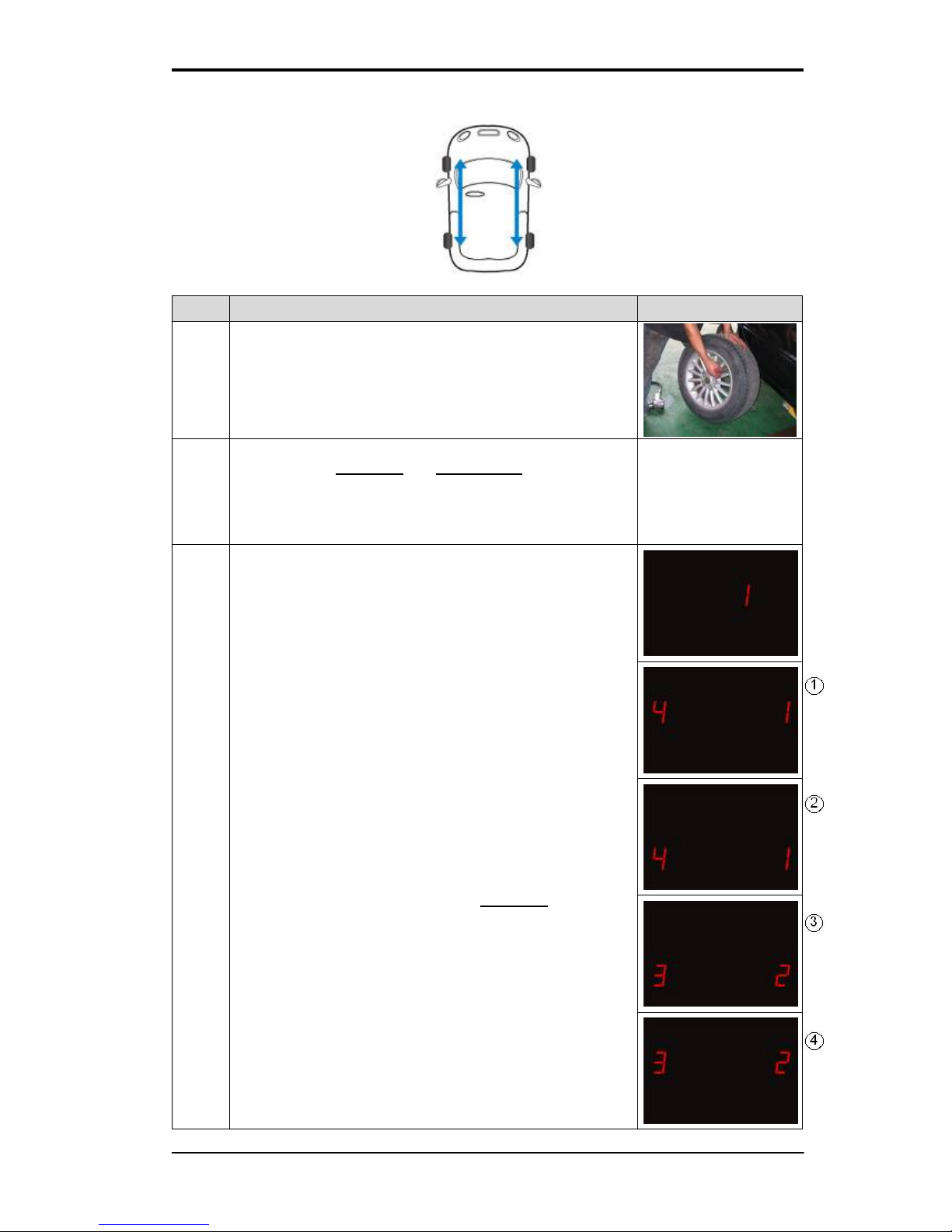

Mode 1: Front to rear tires exchanged ............................................................................ 12

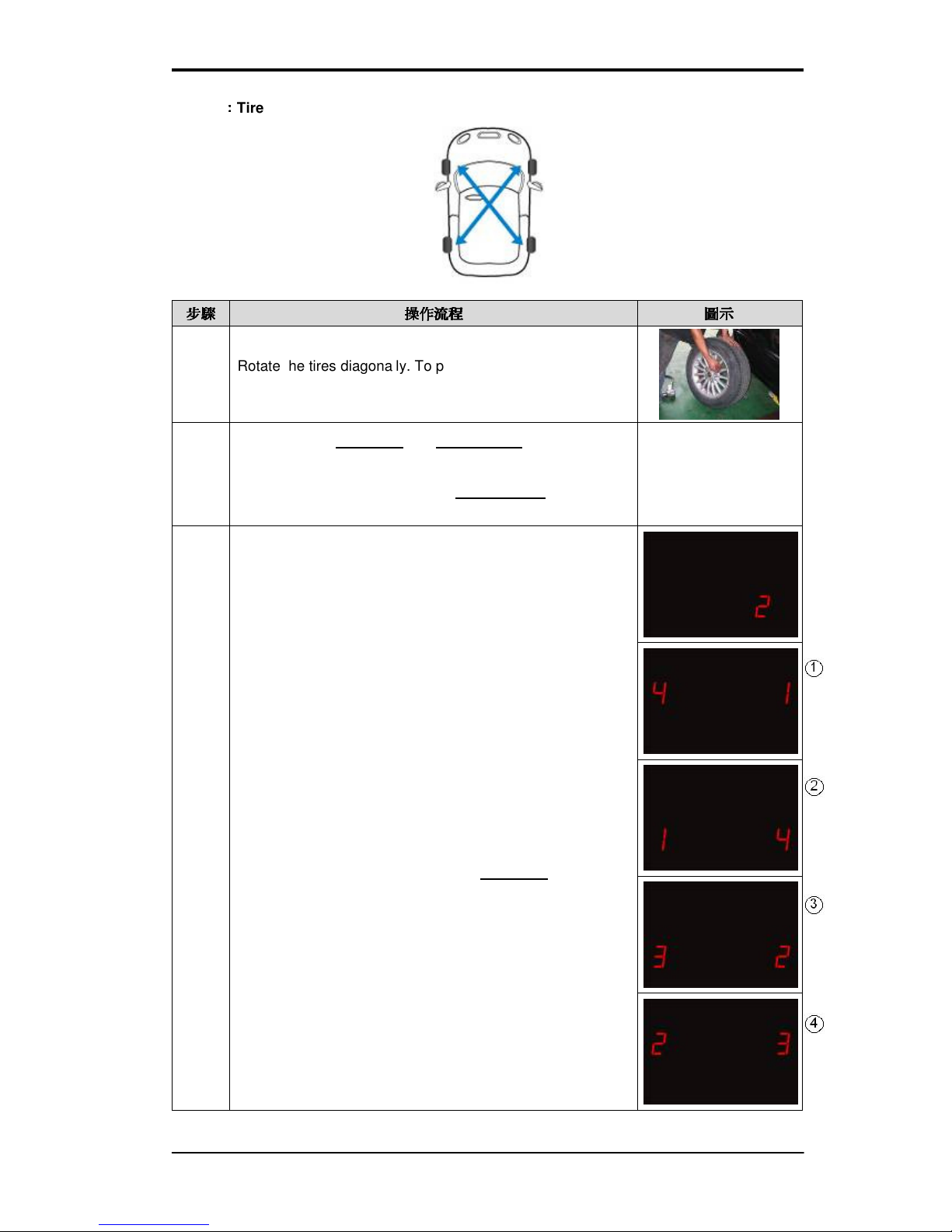

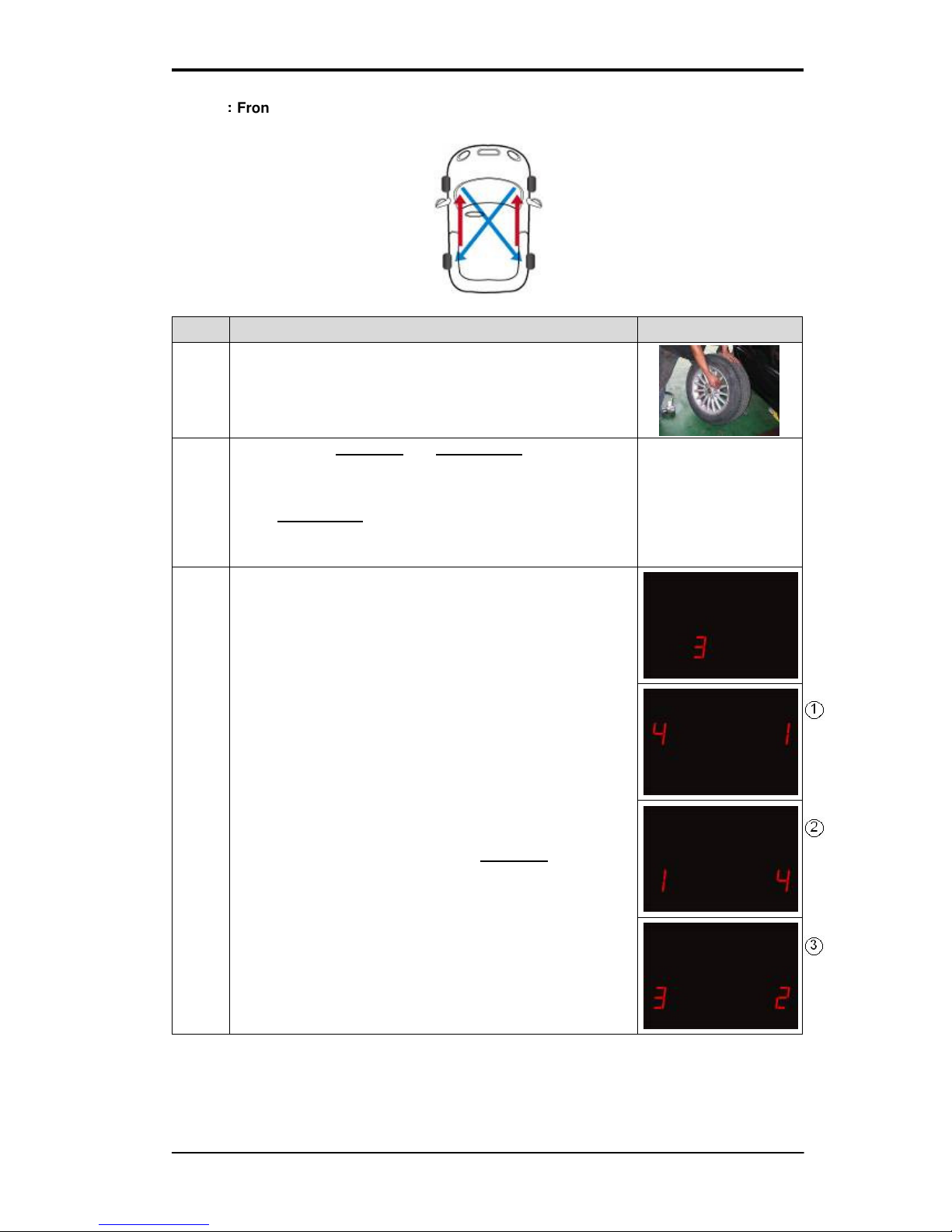

Mode 2: Tires diagonal exchanged ......................................................................................
Mode 3: Front tires diagonal exchanged, and Rear tires parallel changed to Front. .....

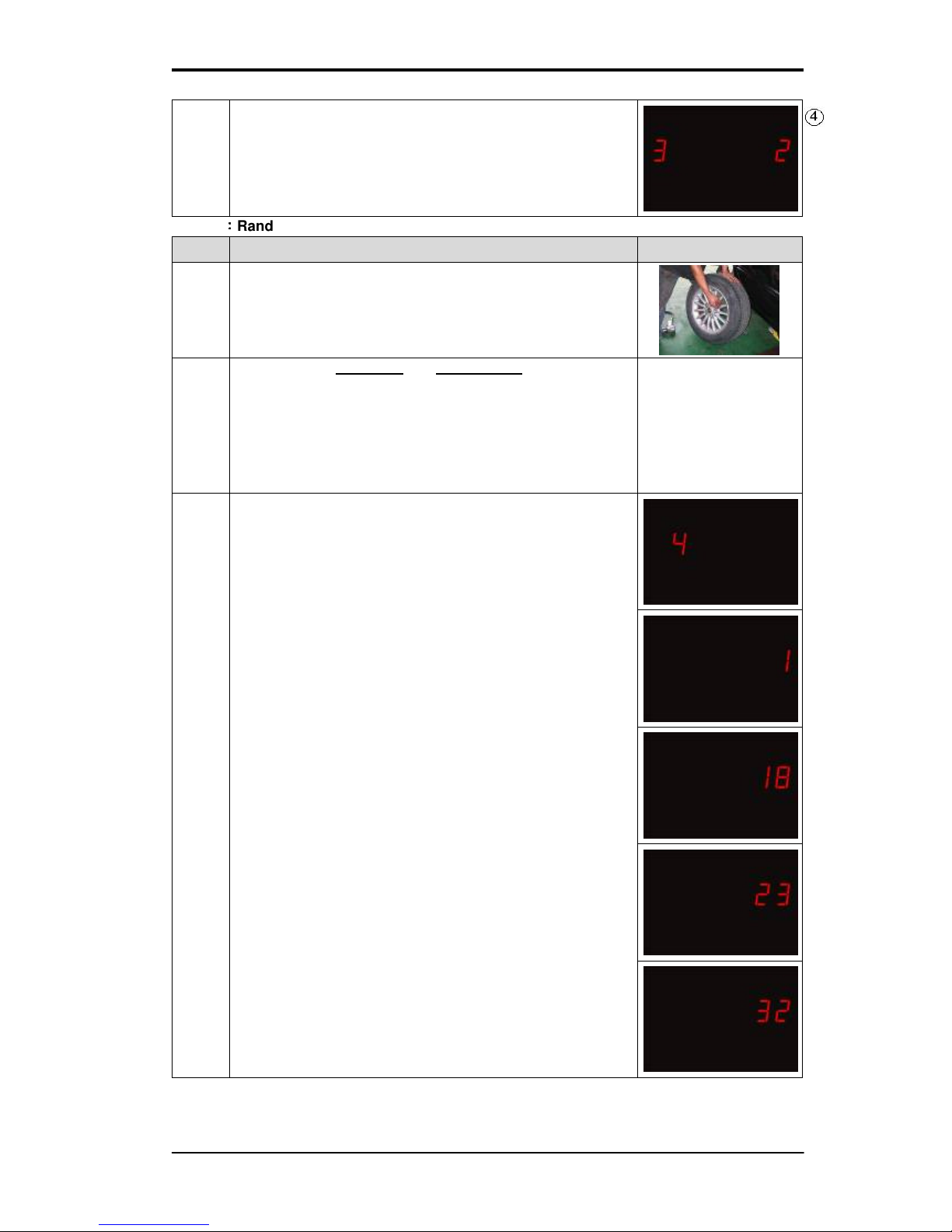

Mode 4: Random re-position tires ........................................................................................

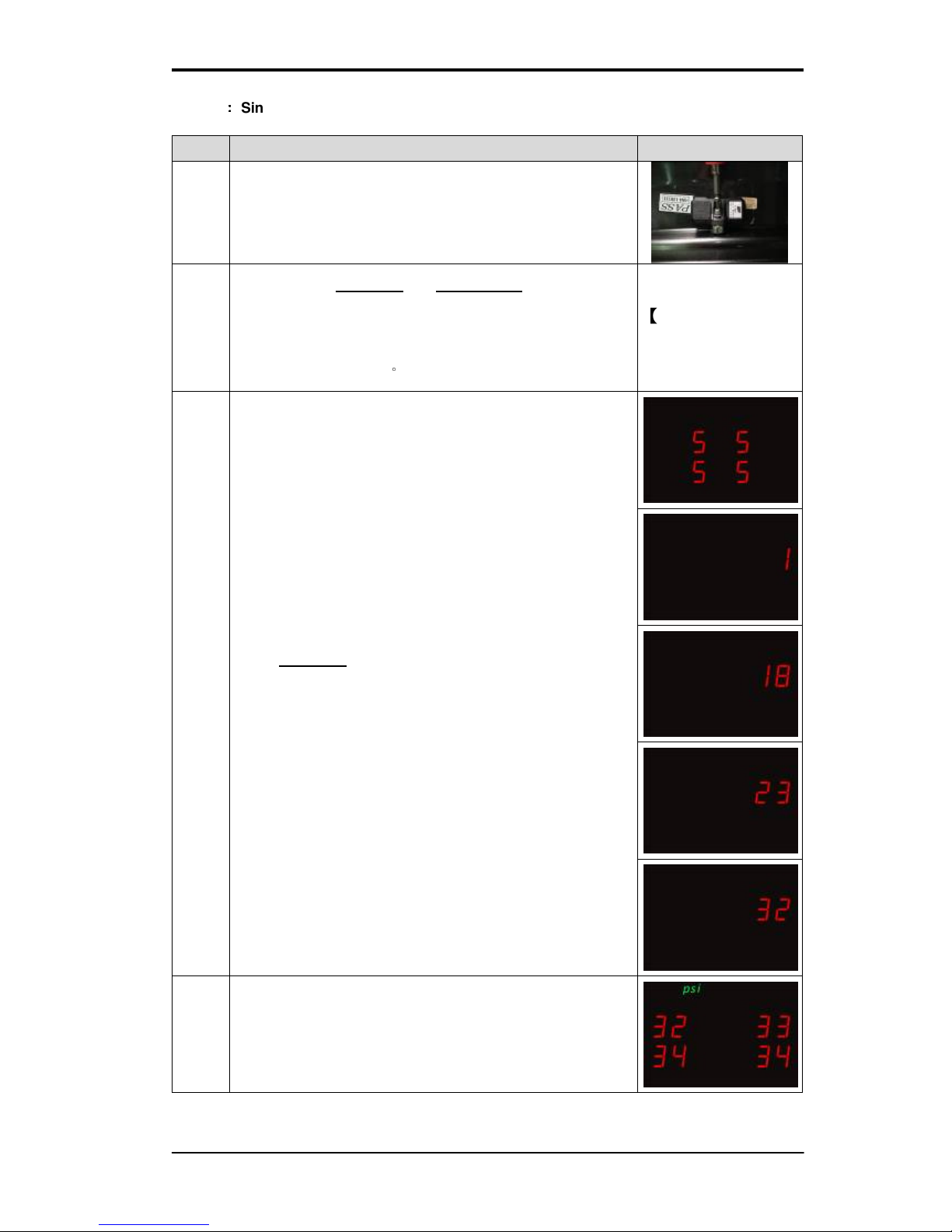

Mode 5: Single sensor replaced ...........................................................................................
APPENDIX
..............................................................................................................................
ANNEXES
...............................................................................................................................
WARRANTY POLICY .................................................................................................
TROUBLESHOOTING GUIDE
..................................................................
Manual for Tire Pressure Monitoring Systems, TPMS
2/21
Tire Pressure Monitoring Systems, TPMS
Tire Pressure Monitoring Systems (TPMS) improves safety while driving. Once installed in your vehicle, the system will automatically monitor your tires in real-time for pressure and temperature. When any tire’s pressure and/or temperature appear abnormal, the system will, in real-time, transmit signals to active an alarm and show a digital figure to warn the driver of a problem. The system aids safety, can extend the tire life and help reduce fuel consumption.
NOTICE
FCC Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the factoring measures.
Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
Caution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operating to conjunction with any other antenna or transmitter.
System Scope of Use and Warnings
Tire Pressure Monitoring System, TPMS This system is a sensing device designed to measure and display tire operation and / or activate an alert to the driver when pressure and temperature irregularities are detected. It is the responsibility of the driver to react promptly and with discretion to alerts. Abnormal tire inflation pressure should be corrected at the earliest opportunity.

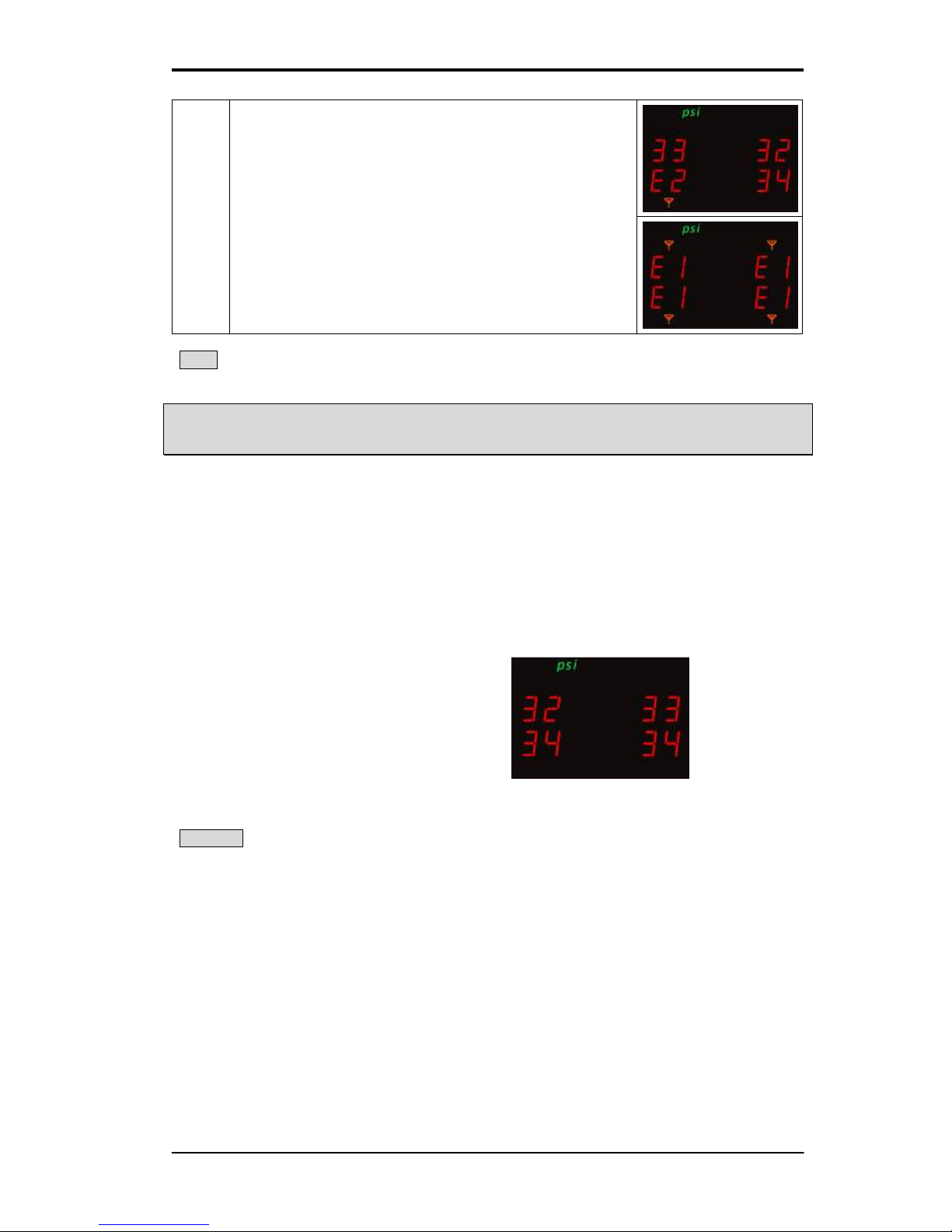

Caution: The system is wireless RF product; therefore, it may not receive a signal due to the poor environment or incorrect operating or incorrect installation. When the system continually cannot receive any signal from any tire sensor more than 10 minutes since the system be switch on power for monitoring, the system will show “ E2 ” and turn on the RED abnormal tire LED light and alert sound. In this case, it may cause by a RF interference environment, a driver need to drive the vehicle and leave this place. If the display still cannot receive any correct signal from tire sensor, then, a driver need to find a nearby qualified tire maintain service for checking and maintain. It may cause by a tire sensor damages or battery power consumption. (Battery in normal condition can be used more than 7 year, but in abnormal condition, the tire sensor will continually send warning signal for drivers, thus it will consumption the battery quickly than normal prediction.)
System Installation and Usage Use of the TPMS requires that qualified personnel according to the instructions here have properly installed it. This system is suitable for use on a passenger car, SUV and 4X4 tires, with up to maximum cold inflation pressure of 74 Psi (Guage) ,below instruction is Guage value mentioned.
Manual for Tire Pressure Monitoring Systems, TPMS
3/21
Reacting to Alerts When an alert or warning is received, reduce vehicle’s speed and proceed to a safe location to stop where the tire can be inspected and /or serviced. The low-pressure alert indicates that the air pressure has dropped to a selected minimum and a high-temperature alert indicates that the temperature of the tire content has surpassed the threshold value set.
Use of Chemicals Temporary resealing or re-inflation products containing internal sealants or propellants in any tire assembly may adversely affect the operation of the sensor/transmitter.
Specifications of TPMS
RECEIVER SPECIFICATI
ONS
Operating voltage 12V DC Operating current < 200mA Monitored temperature range -30oC to 75oC Operating temperature -25oC to 75oC
SENSOR AND TRANSMITTER SPECIFICATIONS
Storage temperature -40oC to 125oC Operating temperature -30oC to 110oC Operating humidity Max 95% Operating frequency 433.92MHz ±50kHz Pressure monitoring range 0~74 psi
Pressure reading accuracy
At Normal condition
± 1psi at normal pressure range Temperature reading accuracy ± 4oC in normal environmental condition Transmission power
Max 75 dBm Battery 3V Sensor weight 27g ±3 g
System Installation
There are two parts of system installation
1. Setting up the display unit in the vehicle
2. Installing the transmitter unit sensor in each tire. We strongly suggest installing the display unit first, and then install the tire transmitters.
Note: Warranty does not cover “Tire Valves” and “Screws for Tire Valves”, all the tire valves and the screws will need to be replaced with new tire valves and screws when rotating tires, changing of tires, and changing of Wireless Transmitter sensors. (Whenever a wireless transmitter sensor is installed or reinstalled, a new tire valve” and “screws for the tire valve” must be used).
Accessories for Tire Pressure Monitoring System
NO.
Accessory Name Quantity
A Wireless Receiver and Display Unit 1
B Velcro for Display 2
C Power Connection for Cigarette Lighter 1
D
Wireless Transmitter Sensor (Remote Sensing Module)
4
E Tire Valves 4
Manual for Tire Pressure Monitoring Systems, TPMS
4/21
F Screw for Tire Valves (Nylok screw) 4
G Magnetic windshield holder 1
H Manual 1
Caution: the power connection is NOT COMPATABLE with USB interface; please do not plug in any USB devices.
Display Unit Installation
1. Plug in one side of C the power cable connection into A the display located on the side.
2. Connect the power cable C into the vehicle’s cigarette lighter socket for power connection. ( or cut the cigar jet , plug the power cable with ACC, VCC, Negative into fuse box)
Note: Pluging the power cable with ACC, VCC, Negative into fuse box will allow the display unit to receive signals 24 hours a day , the LED light will turn on only when ACC is on and the LED light will be off when ACC is turned off.
3. Install the display unit in front of driver at an appropriate position.
Stick the Velcro B into the bottom of the display unit A, and Stick the unit into the convenient place.
4. After set up the monitor please take off the protection film from the panel of monitor.
Antenna (Black
)
Positive (Red
)
ACC
(GREEN)
Power Cable
Negative (White)
Manual for Tire Pressure Monitoring Systems, TPMS
5/21
Wireless Transmitter Sensor Installation
1
Use a jack to raise the vehicle and place jack stands underneath the vehicle for safety. Refer to vehicle owner’s manual for full service advice. Seek the assistance of a qualified motor mechanic if required.
2
Take off the tires and bleed the air. Then take off the air valve of the tire from the wheel. (NOTE: You must change
the valve to TPMS valve). This part of the process will
normally require the service of a tire fitting service or mechanic.
3
Recognize the number on each sensor (D) with position of tire on the vehicle. (VERY IMPORTANT)
a. RF – 1 = Right Front, No. 1 b. RR – 2 = Right Rear, No. 2 c. LR – 3 = Left Rear, No. 3 d. LF – 4 = Left Front, No. 4
4
Set up the new TPMS special valve (E) in the wheel. Use wrench to fix the valve, and then tighten nut to 40 kg (4±0.5Nm) above.
Manual for Tire Pressure Monitoring Systems, TPMS
6/21
5
Use the new TPMS special Nylok screw (F) to tighten the transmitter sensor into the valve on the wheel.
6
Adjust the transmitter sensor angle so that the transmitter fits tightly on the wheel and then tighten the screw for the transmitter’s sensor so that it is fixed on the wheel.
7
Clean inside the tire to prevent the tire from damaging the transmitter sensor.
8
Inflate the tires.
Balance the tire a. Balance tires using a balance machine b. A lead tire weight may need to be added for balancing. c. Balance until the tire balance shows balance as “OK” The Steps above will require the assistance of a tire fitting service or a mechanic. It is important that the wheels are balanced after the fitting of the TPMS sensors in order to ensure the safe operation of the tire when refitted to the vehicle.
9 Set up the other three tires in the same manner.
10
Turn the ignition key of the vehicle until the power is activated on the cigar lighter, this may be first or second position depending on the car manufacturer. The in-car display will be activated. The function button of the display unit can be switched to pressure or temperature depending on the customer’s need.
System Operation

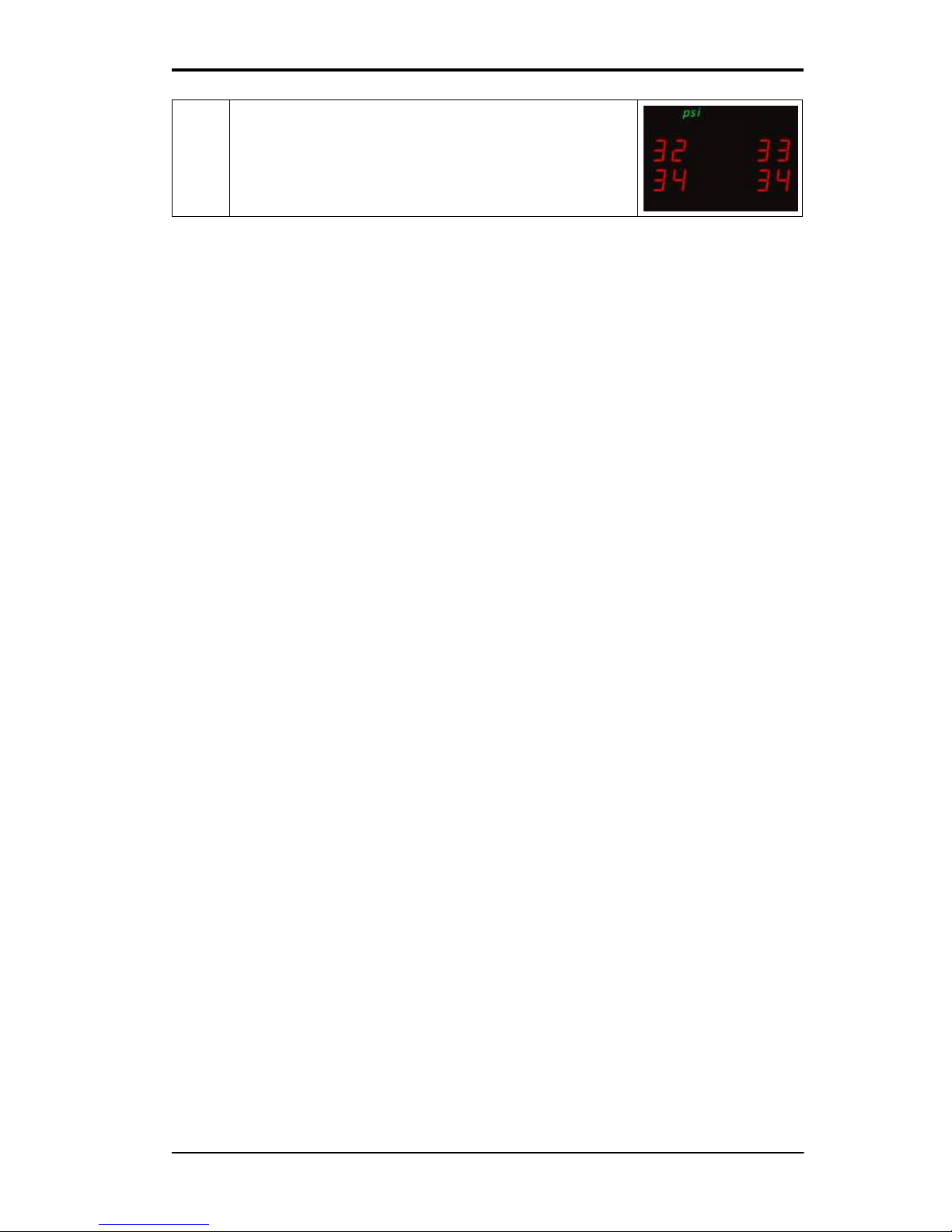

Once installed the system will automatically monitor the tires when power is applied. When the power of the vehicle is switched on, the display unit will show, in real-time, the pressure of all the tires simultaneously.
Manual for Tire Pressure Monitoring Systems, TPMS
7/21

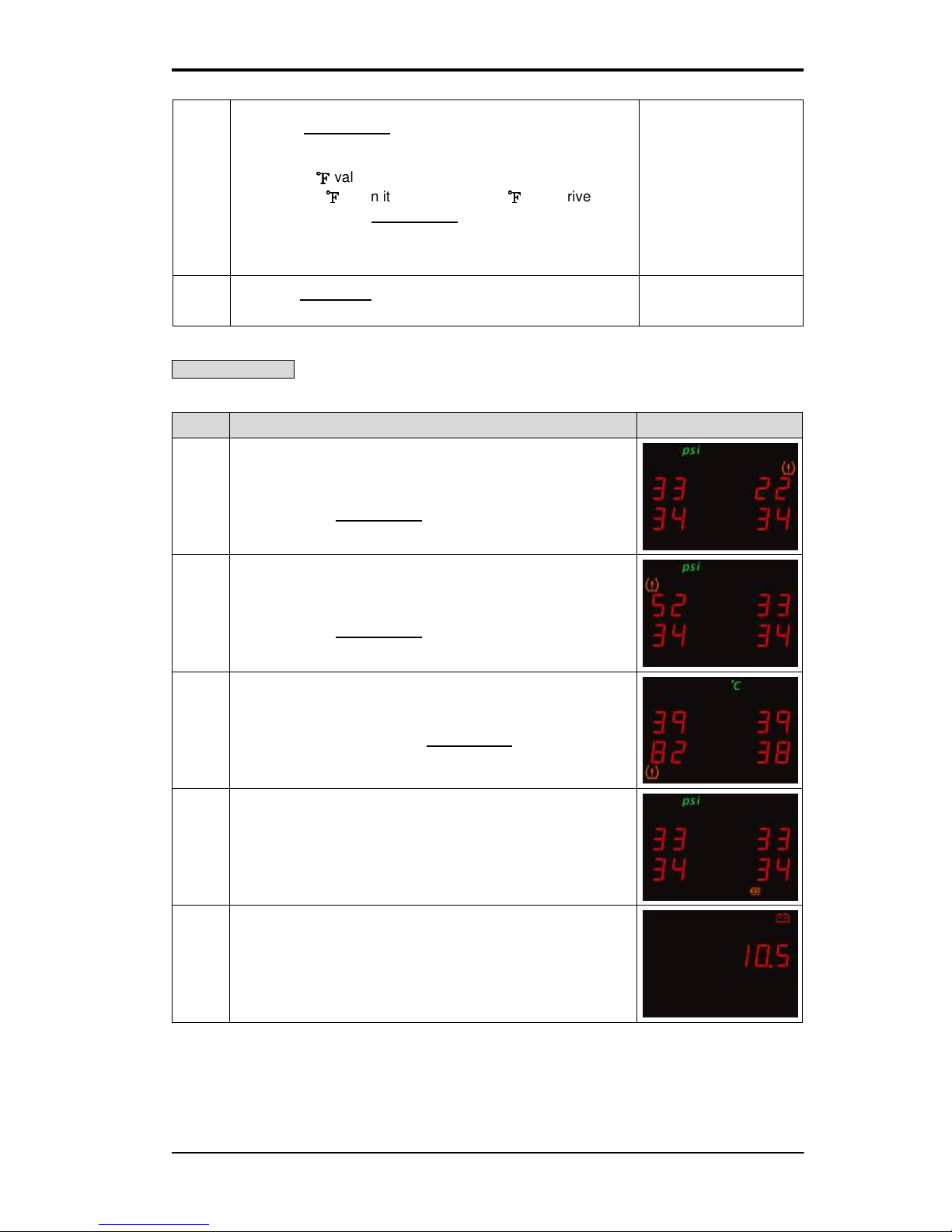

System Alarm
The alarm system will start, if tire pressure is too low, and if tire temperature is too high, the alarm system will start too. If high tire temperature and low tire pressure situation happen at the same time, the system will show low tire pressure at first and then show tire temperature, both of tire pressure and temperature will show on the screen for six seconds by turns. The alarm will keep making sound till turning off alarm system or solving abnormal situation, and below the manual will explain operation process.
Setup Method
The driver can follow the steps to adjust the system of pre-loaded values
(Notice: the system has been pre-set with alert figures. If the driver wants to change the figure, then follow the professional tire technician’s instruction).

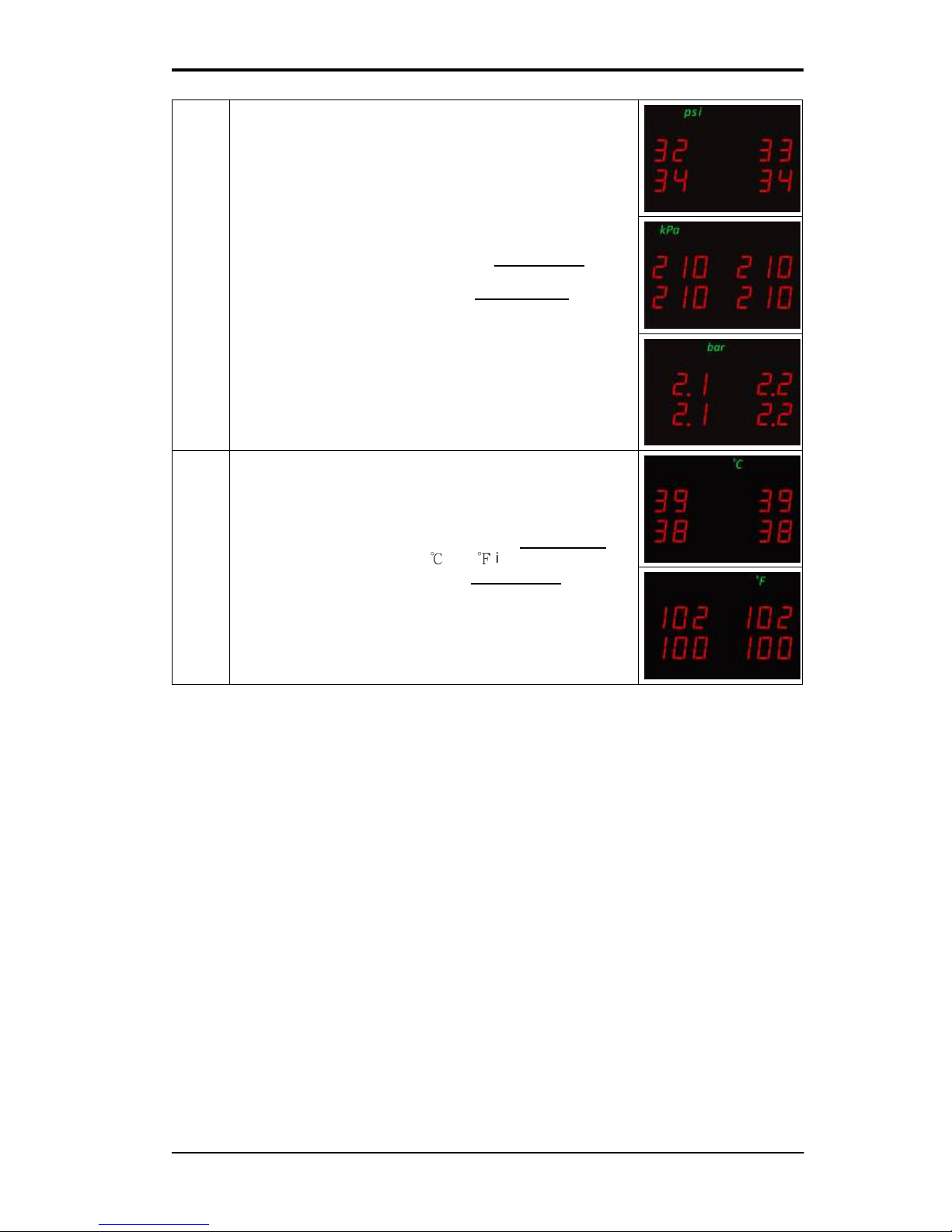

Choosing preferred Pressure Units and Temperature Units
Step Operation process Photograph
1
By pressing the function key , it will switch among displaying the pressure unit, displaying the temperature unit, displaying the battery voltage, and displaying both pressure unit and temperature unit by turns. The operator can choose which one to set up first.
Setup key
Function
Key
