EP 758

Powerhouse XGA DDR DLPTM Projector

The Optoma EP 758 has 3000 lumens projector only 7.5 lbs.
Installation grade performance at a size you can handle. EP758 are
perfect for a wide range of applications from auditoriums and churches
to classrooms or conference rooms.

♦ Ultra bright of 3000 lumens
♦ Superior 2000:1 contrast ratio.
♦ Exceptional UVGA (1600 x 1200) resolution
♦ Fully HDTV compatible (480i/p, 720p, 576i/p, and 1080i)
♦ Convenient DVI-HDCP, Component, Composite, S-Video,

inputs and monitor loop-through on-board I/O.

♦ Revolutionary Tunnel Cooling System design for near-

silent operation and minimal light leakage

♦ Auto Altitude Pressure Sensor Fan System for higher

altitude locations

♦ Full feature remote mouse control with scroll wheel for

easy navigation

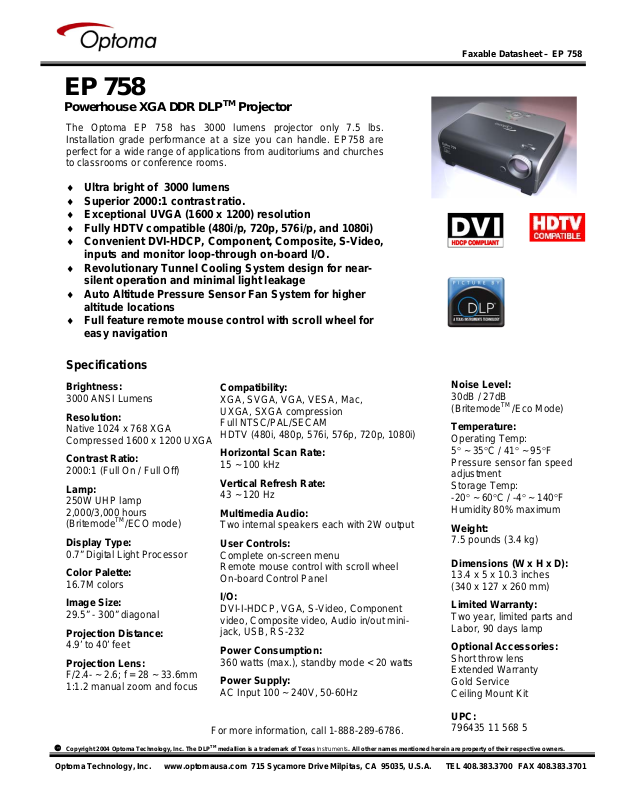

Faxable Datasheet – EP 758

Specifications

Brightness:

3000 ANSI Lumens
Resolution:

Native 1024 x 768 XGA
Compressed 1600 x 1200 UXGA

Contrast Ratio:
2000:1 (Full On / Full Off)

Lamp:
250W UHP lamp
2,000/3,000 hours
(Britemode

TM

/ECO mode)

Display Type:

0.7” Digital Light Processor
Color Palette:

16.7M colors
Image Size:

29.5” - 300” diagonal

Projection Distance:

4.9’ to 40’ feet

Projection Lens:

F/2.4- ~ 2.6; f = 28 ~ 33.6mm
1:1.2 manual zoom and focus

Compatibility:

XGA, SVGA, VGA, VESA, Mac,
UXGA, SXGA compression
Full NTSC/PAL/SECAM
HDTV (480i, 480p, 576i, 576p, 720p, 1080i)

Horizontal Scan Rate:

15 ~ 100 kHz

Vertical Refresh Rate:

43 ~ 120 Hz

Multimedia Audio:

Two internal speakers each with 2W output
User Controls:

Complete on-screen menu
Remote mouse control with scroll wheel
On-board Control Panel

I/O:

DVI-I-HDCP, VGA, S-Video, Component
video, Composite video, Audio in/out mini­jack, USB, RS-232

Power Consumption:
360 watts (max.), standby mode < 20 watts

Power Supply:
AC Input 100 ~ 240V, 50-60Hz

For more information, call 1-888-289-6786.

© Copyright 2004 Optoma Technology, Inc. The DLP

Optoma Technology, Inc. www.optomausa.com 715 Sycamore Drive Milpitas, CA 95035, U.S.A. TEL [phone] FAX [phone]

TM

medallion is a trademark of Texas Instruments. All other names mentioned herein are property of their respective owners.

Noise Level:

30dB / 27dB
(Britemode

TM

/Eco Mode)

Temperature:
Operating Temp:
5° ~ 35°C / 41° ~ 95°F
Pressure sensor fan speed
adjustment
Storage Temp:

-20° ~ 60°C / -4° ~ 140°F
Humidity 80% maximum

Weight:

7.5 pounds (3.4 kg)
Dimensions (W x H x D):

13.4 x 5 x 10.3 inches
(340 x 127 x 260 mm)

Limited Warranty:
Two year, limited parts and
Labor, 90 days lamp

Optional Accessories:

Short throw lens
Extended Warranty
Gold Service
Ceiling Mount Kit

UPC:
796435 11 568 5
