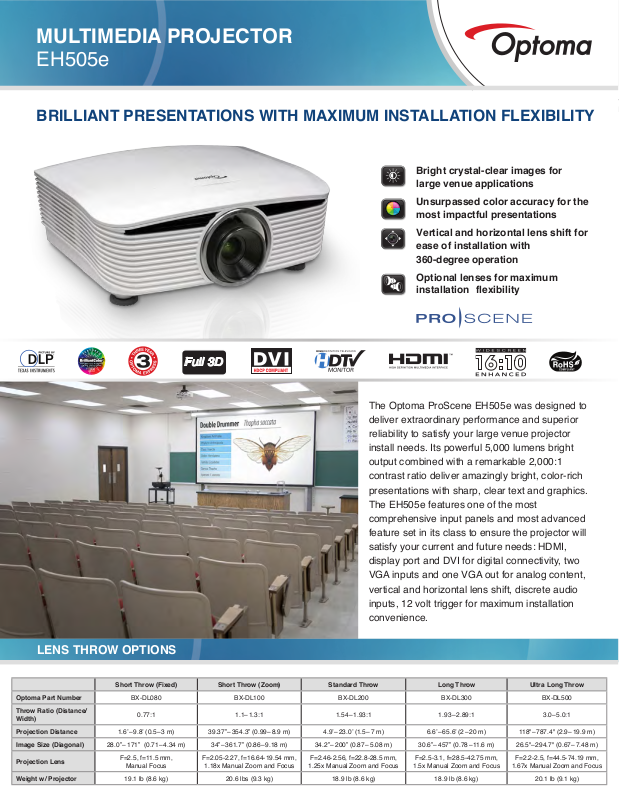

Optoma EH505e Product Sheet

MULTIMEDIA PROJECTOR

EH505e

BRILLIANT PRESENTATIONS WITH MAXIMUM INSTALLATION FLEXIBILITY

Bright crystal-clear images for large venue applications

Unsurpassed color accuracy for the most impactful presentations

Vertical and horizontal lens shift for ease of installation with

360-degree operation

Optional lenses for maximum

installation flexibility

The Optoma ProScene EH505e was designed to deliver extraordinary performance and superior reliability to satisfy your large venue projector install needs. Its powerful 5,000 lumens bright output combined with a remarkable 2,000:1 contrast ratio deliver amazingly bright, color-rich presentations with sharp, clear text and graphics. The EH505e features one of the most comprehensive input panels and most advanced feature set in its class to ensure the projector will satisfy your current and future needs: HDMI, display port and DVI for digital connectivity, two VGA inputs and one VGA out for analog content, vertical and horizontal lens shift, discrete audio inputs, 12 volt trigger for maximum installation convenience.

LENS THROW OPTIONS

Short Throw (Fixed) Short Throw (Zoom) Standard Throw Long Throw Ultra Long Throw

Optoma Part Number BX-DL080 BX-DL100 BX-DL200 BX-DL300 BX-DL500

Throw Ratio (Distance/ Width)

Projection Distance 1.6’– 9.8’ (0.5– 3 m) 39.37”– 354.3” (0.99– 8.9 m) 4.9’– 23.0’ (1.5 – 7 m) 6.6’– 65.6’ (2– 20 m) 118"– 787.4" (2.9– 19.9 m)

Image Size (Diagonal) 28.0”– 171” (0.71– 4.34 m) 34”– 361.7” (0.86– 9.18 m) 34.2”– 200” (0.87– 5.08 m) 30.6”– 457” (0.78 –11.6 m) 26.5"– 294.7" (0.67– 7.48 m)

Projection Lens

Weight w/ Projector 19.1 lb (8.6 kg) 20.6 lbs (9.3 kg) 18.9 lb (8.6 kg) 18.9 lb (8.6 kg) 20.1 lb (9.1 kg)

0.77:1 1.1–1.3:1 1.54 –1.93:1 1.93– 2.89:1 3.0–5.0:1

F=2.5, f=11.5 mm,

Manual Focus

F=2.05-2.27, f=16.64-19.54 mm,

1.18x Manual Zoom and Focus

F=2.46-2.56, f=22.8-28.5 mm,

1.25x Manual Zoom and Focus

F=2.5-3.1, f=28.5-42.75 mm,

1.5x Manual Zoom and Focus

F=2.2-2.5, f=44.5-74.19 mm,

1.67x Manual Zoom and Focus

MULTIMEDIA PROJECTOR — EH505e

OPTICAL/TECHNICAL SPECIFICATIONS

Display Technology Single 0.65” DarkChip3™ DLP®

Technology by Texas Instruments

Native Resolution WUXGA (1920 x 1200)

Maximum Resolution WUXGA (1920 x 1200)

Brightness (Typical) 5,000 lumens

Contrast Ratio 2,000:1 (full on/full off)

Displayable Colors 1.07 Billion

Lamp Life* and Type 4,000 Eco / 3,000 Bright; Lamp type 365W

Projection Method Front, rear, ceiling mount, table top

Keystone Correction ±15° Vertical

Uniformity 85%

Aspect Ratio 16:10 Native, 4:3 and 16:9 compatible

Lens Shift (Telecentric) Horizontal: ±10% offset

Vertical: -30~110% offset

Noise Level (STD) 34dB

Remote Control Fully-featured IR remote with the option to

hardwire to the projector

Operating Conditions

41–113°F (5–45°C), 85% max humidity,

adjustable fan speed for high altitude application

Power Supply

AC Input 100–240V, 50– 60Hz, auto-switching

Power Consumption 480W max (bright), 330W (STD),

<0.5W (standby)

™

1. Power LED Indicator

2. HDMI

3. DVI-D

4. Display Port

5. RJ45

6. 3D SYNC Out (5V)

7. USB Charging Port

8. VGA-In

10 11 12

15 16 17

18 19 21 22

9. Audio-In (VGA-1)

10. VGA 2-In

11. Audio-In (VGA-2)

12. VGA-Out

13. Audio-Out

14. BNC (RGBHV/YPbPr)

15. Component

16. RCA Audio-In

17. RS-232C

18. S-Video

19. Composite Video

20. RCA Audio-In

21. Wired Remote

22. 12V Trigger

23. Power

24. 3DSync IN

COMPATIBILITY SPECIFICATIONS

Computer Compatibility WUXGA, UXGA, SXGA+, WXGA, SXGA,

Video Compatibility

3D Compatibility

Vertical Scan Rate

NTSC, PAL, SECAM, SDTV (480i/576i), EDTV

†

Supports all HDMI 1.4a mandatory 3D formats

24–85kHz, 120Hz

Horizontal Scan Rate 15–91kHz

User Controls Complete on-screen menu adjustments in 26

I/O Connection Ports

Display port, HDMI, DVI-D w/ HDCP, two VGA-in,

Monitor Loop Through

XGA, SVGA, VGA resized, VESA, PC and Mac compatible

(480p/576p, HDTV (720p, 1080i/p)

(Frame pack, side-by-side, top-bottom) and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz (i.e 60 or 72 frames per eye). 3D glasses are needed and are sold separately. Refer to user manual for details.

languages

VGA-out, S-video, composite video, component video, ve BNC (RGBHV/YPbPr), two stereo mini jack audio-in, two RCA stereo audio-in, audio-out, 3D VESA port, wired remote, USB-A charging port, RS-232C, RJ45, and 12V trigger

Monitor: D-Sub 15 pin VGA output (functional in both normal and standby modes Audio: VAO audio out, HDMI VAO audio out supported (VAO in normal mode, xed in Standby)

PHYSICAL SPECIFICATIONS

Security Kensington® lock port, security bar & keypad lock

Weight

18.6 lb (8.4 kg) w/o lens

Dimensions (W x H x D) 16.9” x 7.1” x 13.4” (430 x 181 x 340 mm)

Warranty

3 Year parts and labor limited warranty on the projector, 1-year lamp warranty or 1000 hours (whichever comes first)

In the Box

EH505e projector, AC power cord, VGA to VGA cable, remote control, batteries for remote, CD-ROM user’s manual, quick start card and warranty card (lens is not included)

Optional Accessories

Three optional lenses, wireless dongle, universal ceiling mount, HDMI cable, Optoma screen, RF 3D glasses, RF 3D emitter, DLP

Link™ 3D glasses,

wireless HDMI system and single Cat6 HDBaseT kit

Accessory Part Numbers

Lamp: BL-FU365B Remote: BR-3070L

DLP® Link™ 3D glasses: ZD302

RF 3D glasses: ZF2300GLASSES RF 3D emitter: BC300 Wireless HDMI system: WHD200 Single-Cat6 HDBaseT kit: EVBMN-M110 Universal ceiling mount: BM-5001U Universal ceiling mount: OCM818W-RU Universal ceiling mount (with extensional pole): OCM815W

UPC 796435 44 195 1
