Opel Insignia 2009 User Manual

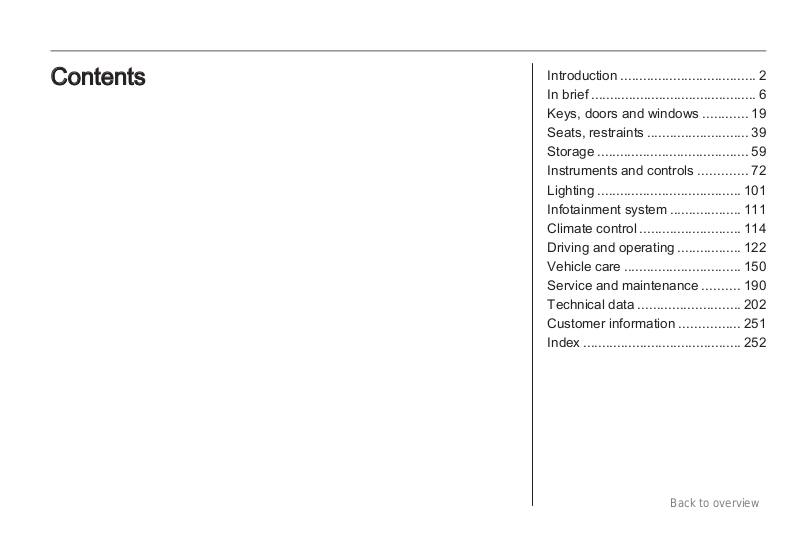

Contents

Back to overview

Introduction .................................... 2

In brief ............................................ 6

Keys, doors and windows ............ 19

Seats, restraints ........................... 39

Storage ........................................ 59

Instruments and controls ............. 72

Lighting ...................................... 101

Infotainment system ................... 111

Climate control ........................... 114

Driving and operating ................. 122

Vehicle care ............................... 150

Service and maintenance .......... 190

Technical data ........................... 202

Customer information ................ 251

Index .......................................... 252

2 Introduction

Back to overview

Introduction

Introduction 3

Back to overview

Vehicle specific data

Please enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and
maintenance" and "Technical data"
as well as on the identification plate.

Introduction

Your vehicle is a designed
combination of advanced technology,
safety, environmental friendliness
and economy.

This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.

Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.

You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this
Owner's Manual.

When this Owner's Manual refers to
a workshop visit, we recommend your
Opel Service Partner.

All Opel Service Partners provide
first-class service at reasonable
prices. Experienced mechanics
trained by Opel work according to
specific Opel instructions.

The customer literature pack should
always be kept ready to hand in the
vehicle.

Using this manual

■ The "In brief" section will give you
an initial overview.

■ The table of contents at the
beginning of this manual and within
each chapter shows where the
information is located.

■ The index will enable you to search
for specific information.

■ This Owner's Manual depicts left­hand drive vehicles. Operation is
similar for right-hand drive vehicles.

■ The Owner's Manual uses the
factory engine designations. The
corresponding sales designations
can be found in the chapter
"Technical data".

■ Directional data, e.g. left or right, or
front or back, always relate to the
direction of travel.

■ The displays may not support your
language.

■ Depending on the model variant,
country variant, integrated special
equipment and accessories, the
scope of equipment in your vehicle
can differ from the items mentioned
in this Owner's Manual.

■ Display messages and interior
labelling are written in bold letters.

4 Introduction

Back to overview

Danger, Warnings and
Cautions

9 Danger

Text marked 9 Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.

9 Warning

Text marked 9 Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.

Caution

Text marked Caution provides
information on possible damage to
the vehicle. Disregarding this
information may lead to vehicle
damage.

Symbols

Page references are indicated with

3. 3 means "see page".
We wish you many hours of

pleasurable driving.
Adam Opel GmbH

Introduction 5

Back to overview

6 In brief

Back to overview

In brief

Initial drive information

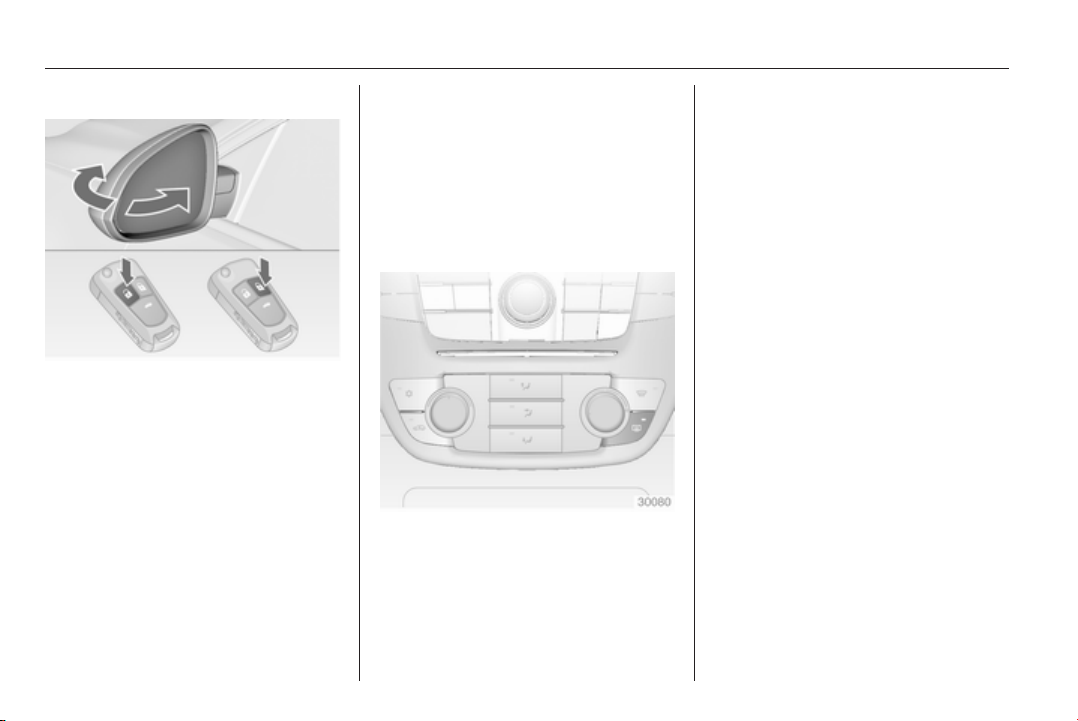

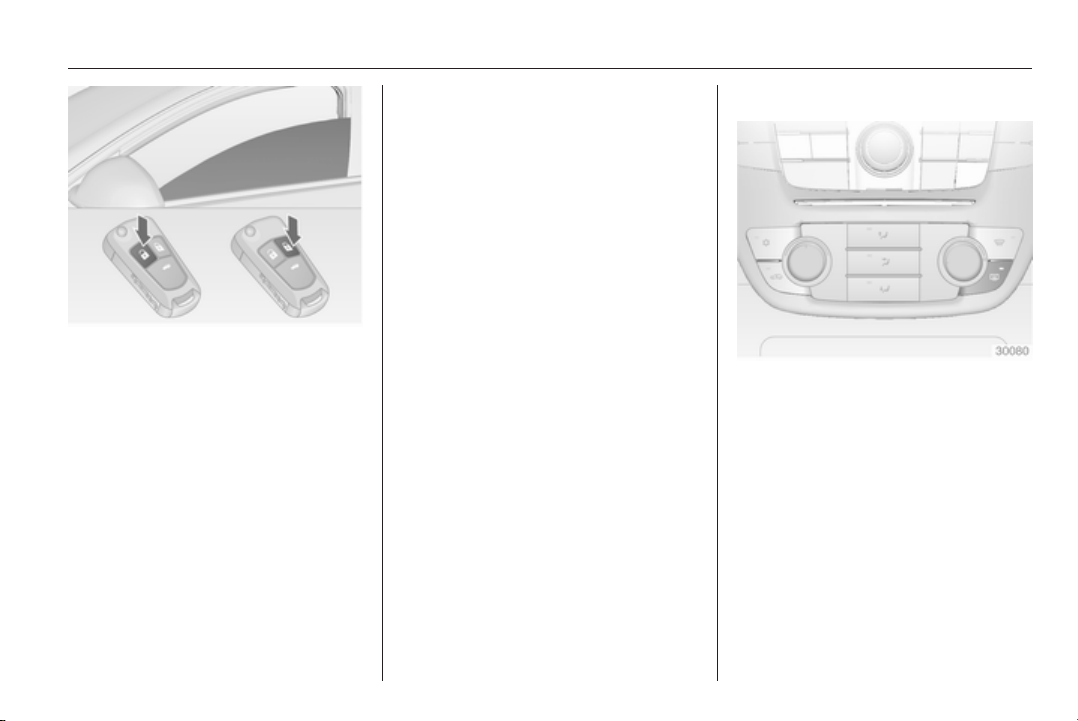

Vehicle unlocking

Press button c to unlock the doors
and load compartment. Open the
doors by pulling the handles. To open
the tailgate, pull the button under the
tailgate moulding.

Press button x; only the load
compartment is unlocked and opens.

Radio remote control 3 19, Central
locking system 3 21, Load
compartment 3 24.

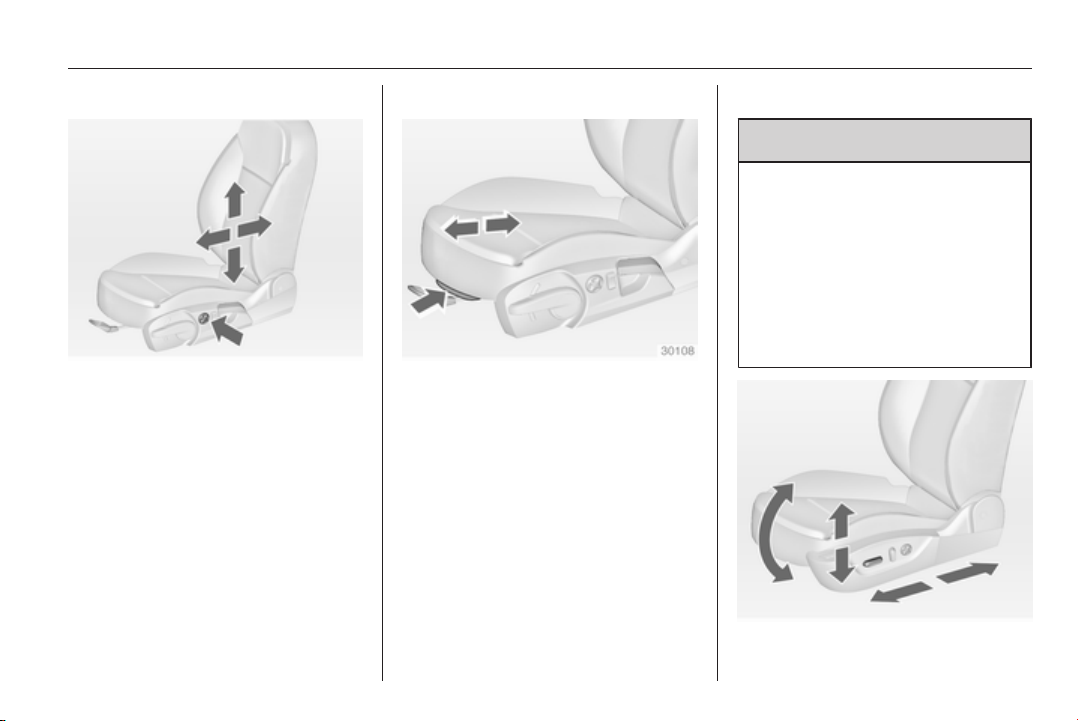

Seat adjustment

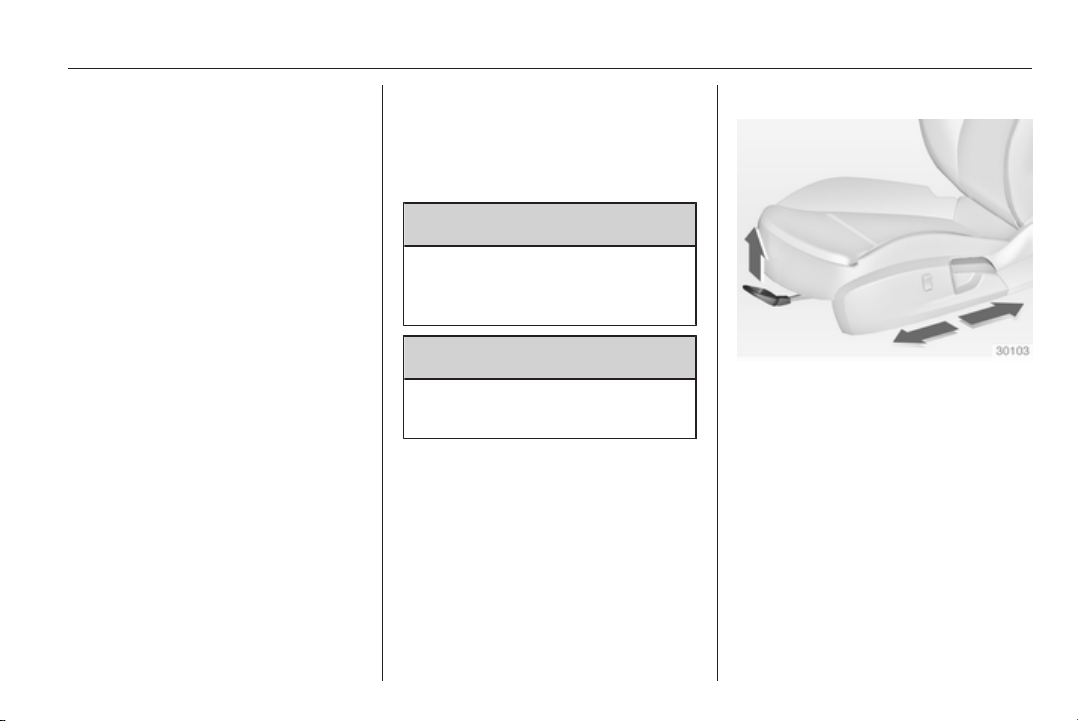

Seat positioning

Pull handle, slide seat, release
handle.

Seat position 3 40, Seat adjustment
3 41.

In brief 7

Back to overview

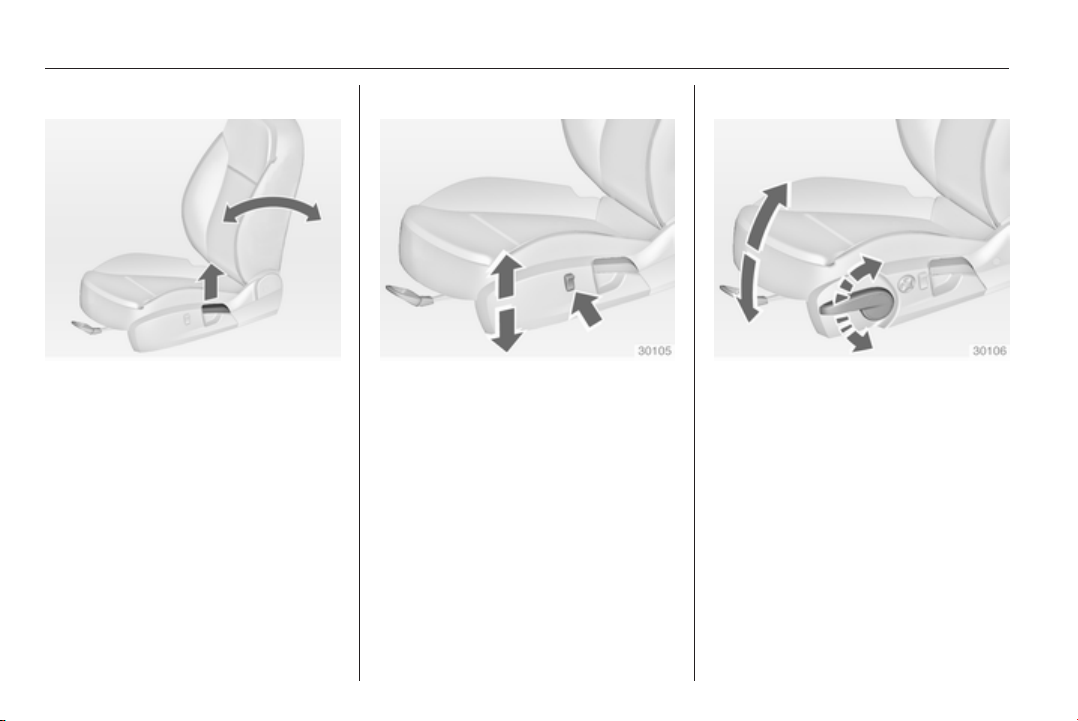

Seat backrests

Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly. Do not lean on
backrest when adjusting.

Seat position 3 40, Seat adjustment
3 41.

Seat height

Press switch
top = seat higher

bottom = seat lower

Seat position 3 40, Seat adjustment
3 41.

Seat inclination

Lever pumping motion
up = front end higher

down = front end lower

Seat position 3 40, Seat adjustment
3 41.

8 In brief

Back to overview

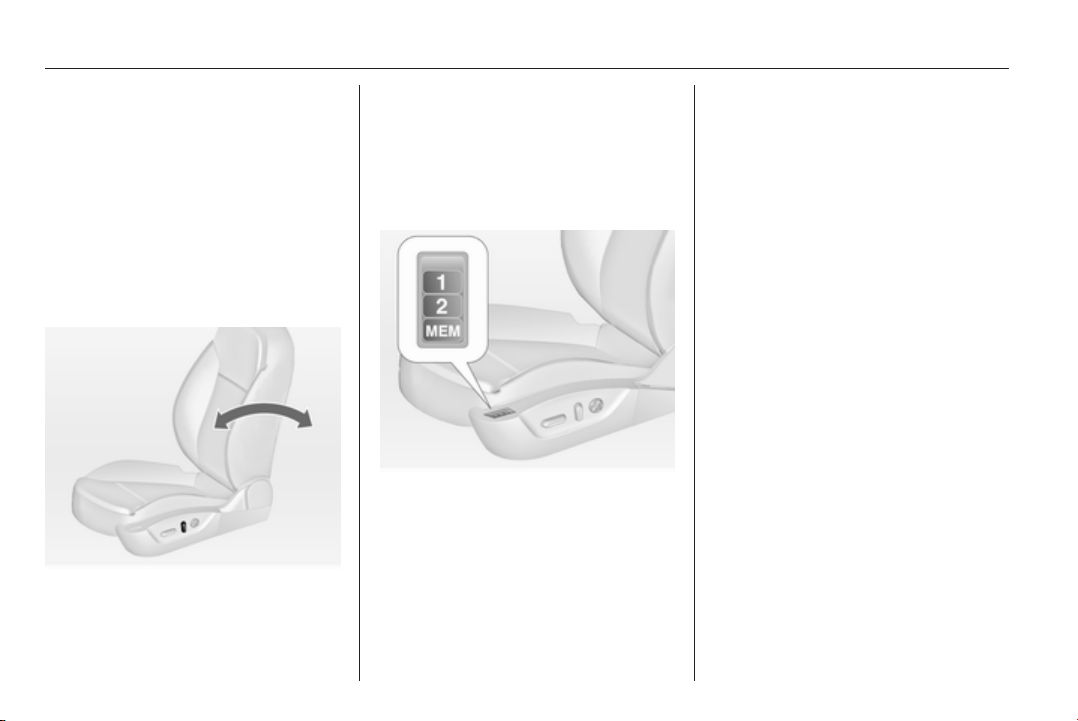

Power seat adjustment

Operate switches.
positioning = move switch

forwards/backwards

height = move switch upwards/

downwards

inclination = move switch upwards/

downwards at front

backrest = turn switch forwards/

backwards

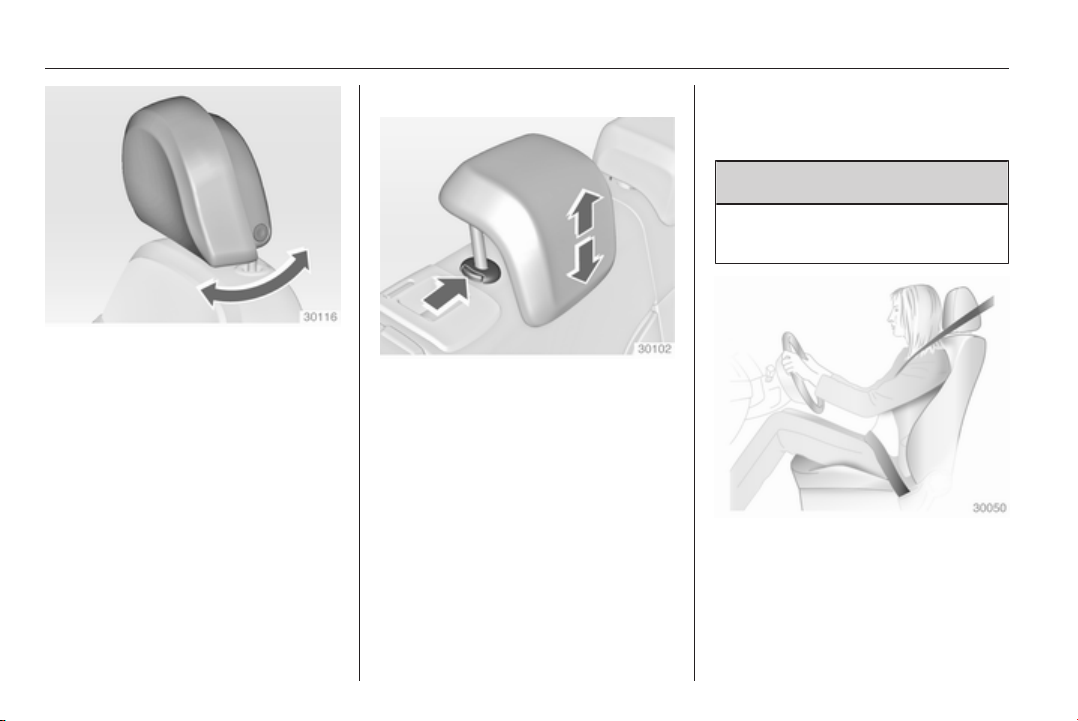

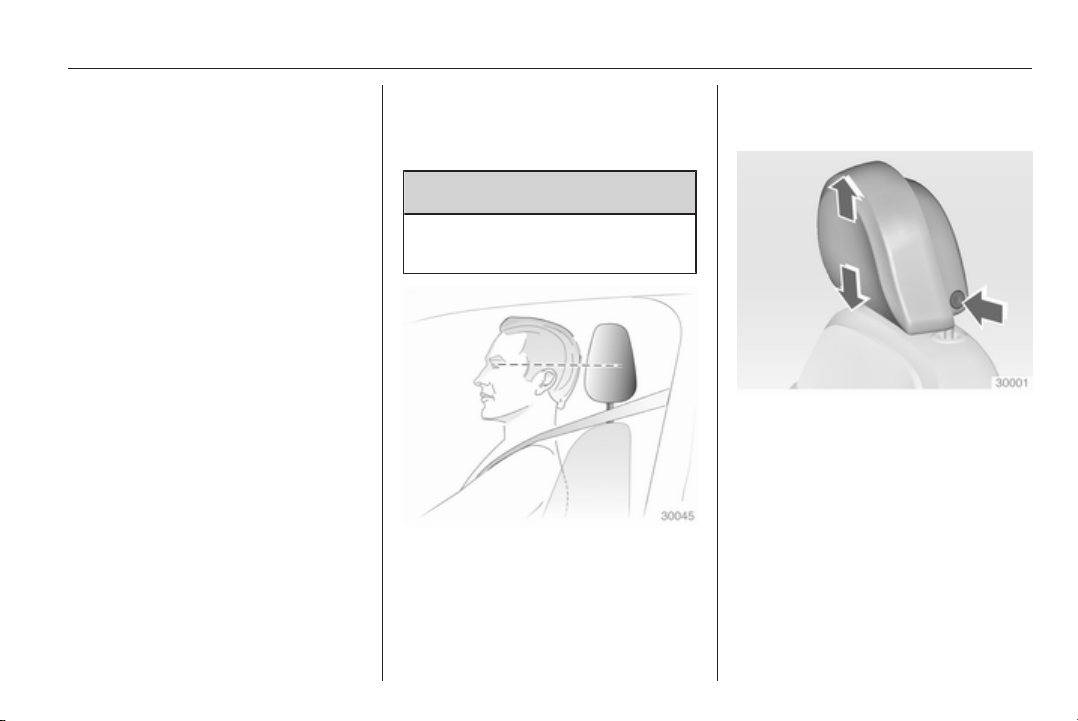

Head restraint adjustment

Press release button, adjust height,
engage.

Head restraints 3 39.

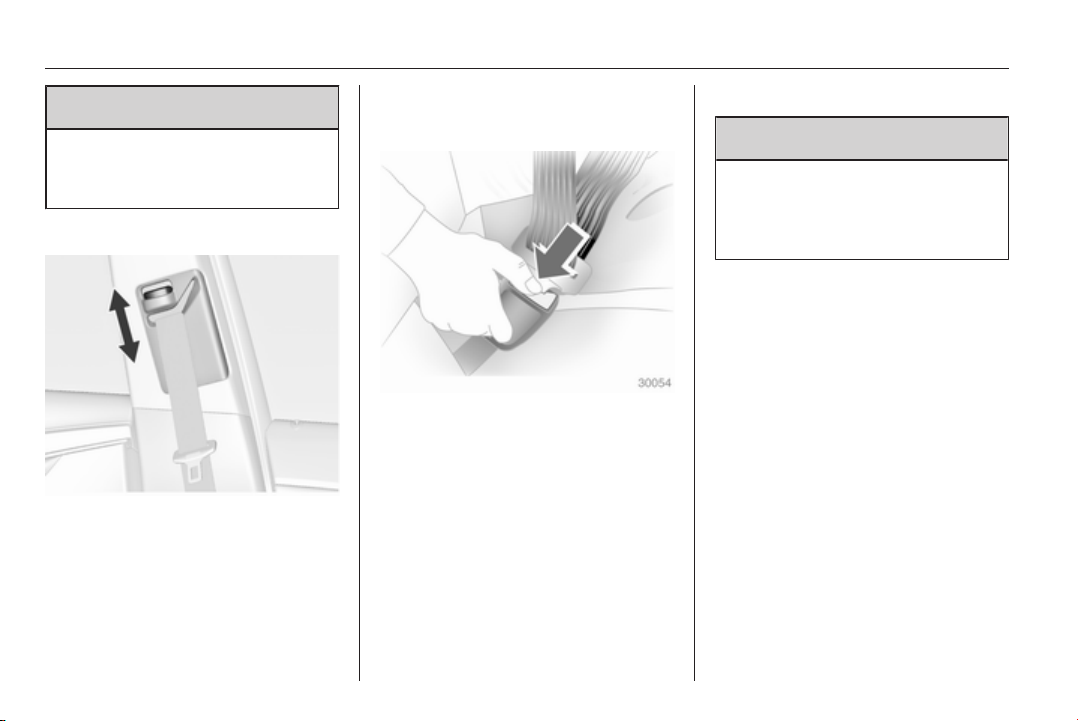

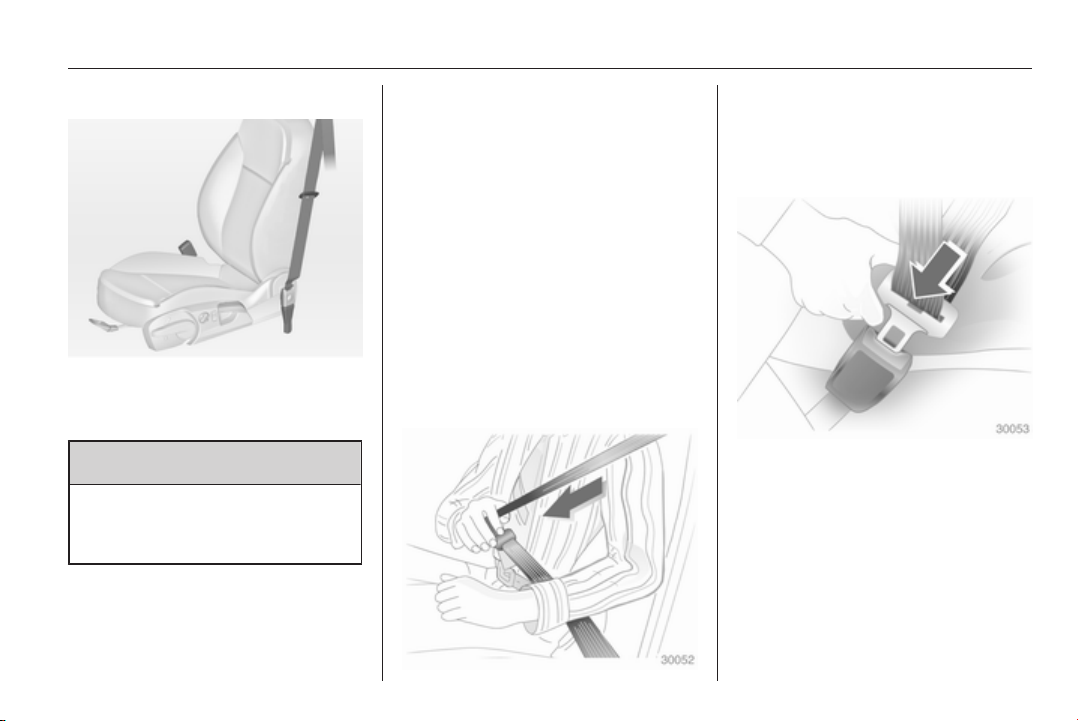

Seat belt

Pull out the seat belt and engage in
belt buckle. The seat belt must not be
twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25 °).

To release belt, press red button on
belt buckle.

Seat position 3 40, Seat belts
3 46, Airbag system 3 49.

In brief 9

Back to overview

Mirror adjustment

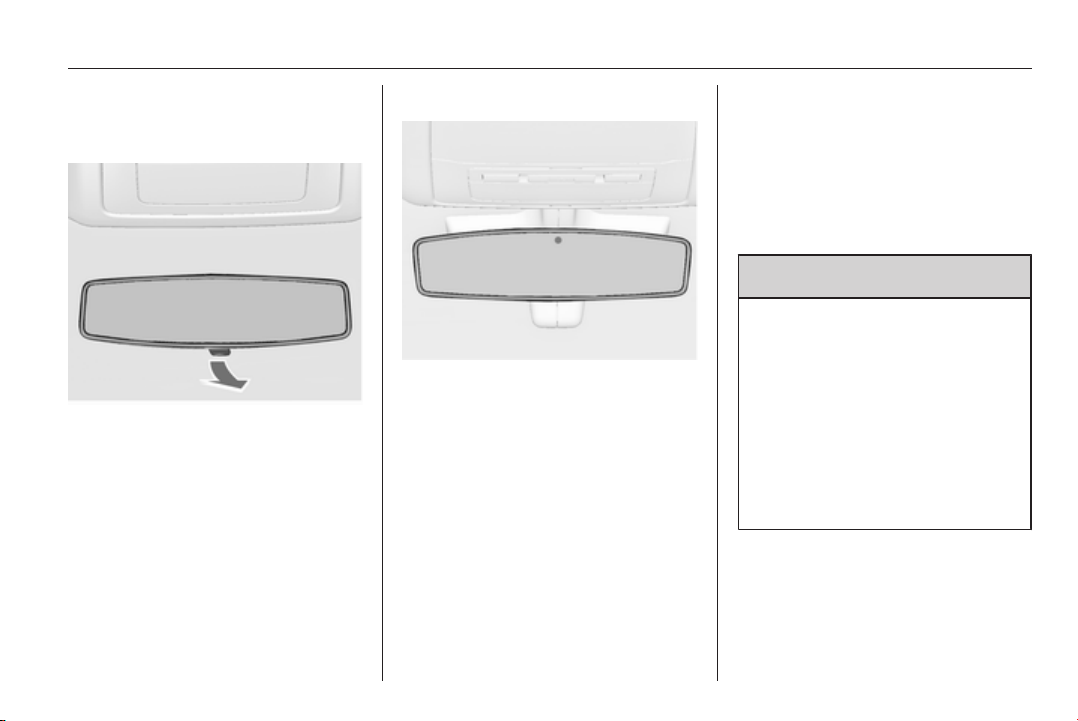

Interior mirror

Adjust the lever on the underside to
reduce dazzle.

Interior mirror 3 33, Automatic anti­dazzle interior mirror 3 33.

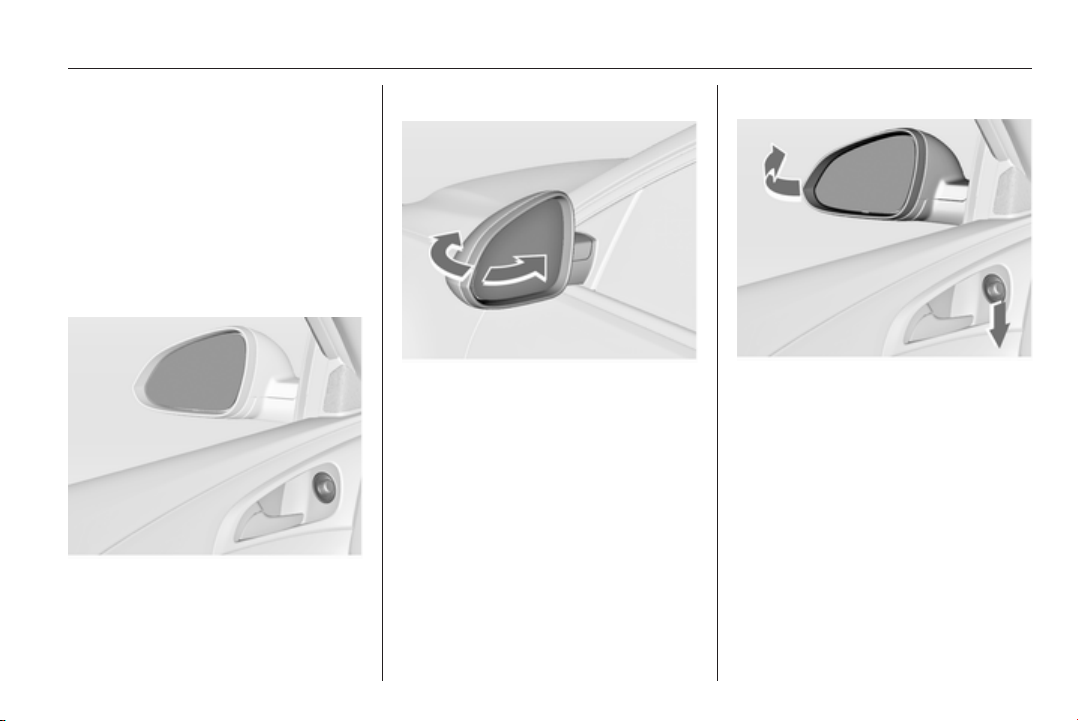

Exterior mirrors

Select the relevant exterior mirror and
adjust.

Convex exterior mirrors 3 31,
Electric adjustment 3 31, Folding
exterior mirrors 3 31, Heated
exterior mirrors 3 32.

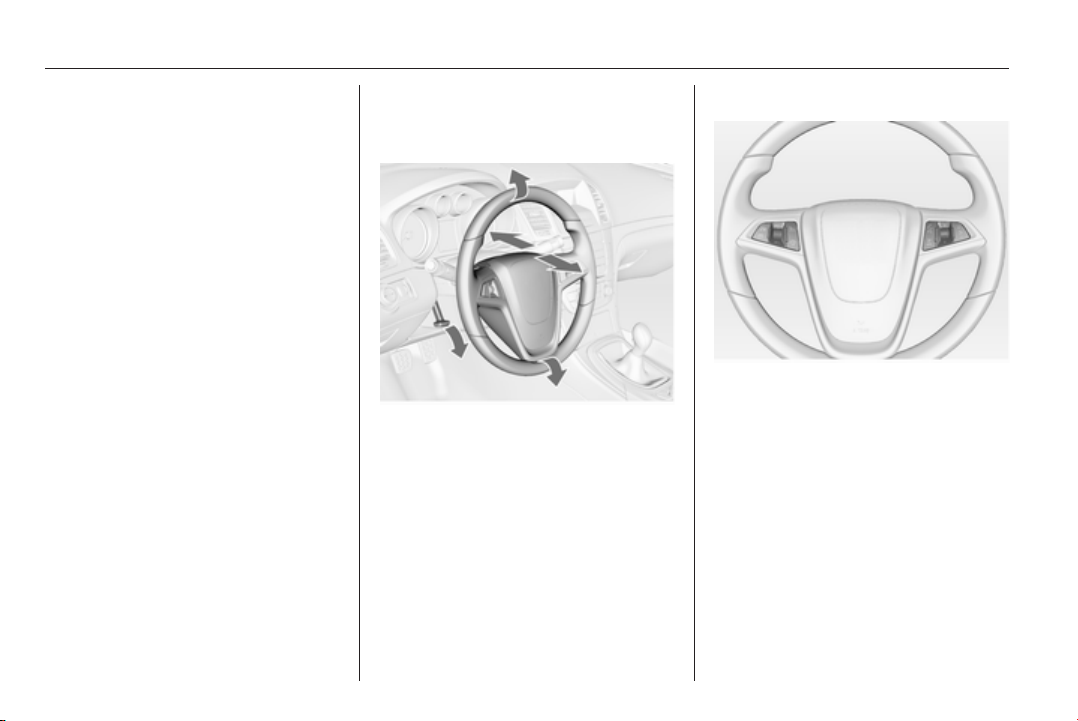

Steering wheel adjustment

Unlock lever, adjust steering wheel,
then engage lever and ensure it is
fully locked. Do not adjust steering
wheel unless vehicle is stationary and
steering wheel lock has been
released.

Airbag system 3 49, Ignition
positions 3 123.

10 In brief

Back to overview

Instrument panel overview

In brief 11

Back to overview

1 Light switch ........................ 101

Headlight range

adjustment ......................... 104

Front fog lights ................... 106

Rear fog light ...................... 106

Instrument illumination ....... 107

2 Side air vents ...................... 120

3 Turn and lane-change

signals, headlight flash,

low beam and high beam ...105

Exit lighting ......................... 109

Parking lights ...................... 106

Driver Information Center ...... 88

4 Cruise control ..................... 137

5 Instruments .......................... 79

6 Horn ..................................... 73

Driver airbag ........................ 49

7 Driver Information Center ...... 88

8 Remote control for

Infotainment system ............. 72

9 Windscreen wiper,

windscreen washer

system, headlight washer

system, rear wiper ................ 73

10 Centre air vents .................. 120

11 Infotainment system ........... 111

12 Info-Display .......................... 89

13 Anti-theft alarm system

status LED ........................... 28

14 Central locking system .......... 21

Hazard warning flashers ....105

Control indicator for airbag

deactivation .......................... 84

Control indicator for front

passenger seat belt .............. 83

15 Sport mode ........................ 135

Tour mode .......................... 135

Traction Control system .....134

Electronic stability control ..134

Universal parking assist .....138

Advanced parking aid ........138

Lane departure warning .....142

16 Front passenger airbag ........ 49

17 Glovebox .............................. 59

18 Climate control system ........ 114

19 Selector lever, manual

transmission ....................... 130

Automatic transmission ...... 126

20 Ashtray ................................. 78

21 Accelerator pedal ............... 122

22 Ignition switch with

steering wheel lock ............ 123

23 Brake pedal ........................ 131

24 Clutch pedal ....................... 122

25 Steering wheel adjustment ... 72
26 Storage compartment,

fuse box ............................. 169

27 Bonnet release lever .......... 151

12 In brief

Back to overview

In brief 13

Back to overview

Exterior lighting

Turn light switch
Auto = Automatic light control:

Headlights are switched on
and off automatically.

= activation or deactivation of

7

8
9

Press

>
r

Lighting 3 101.

the automatic light control
= sidelights
= headlights

= front fog lights
= rear fog light

Headlight flash, high beam and low beam

headlight flash = pull lever
high beam = push lever
low beam = push or pull lever

Automatic light control 3 102, High
beam 3 104, Headlight flash 3 104.

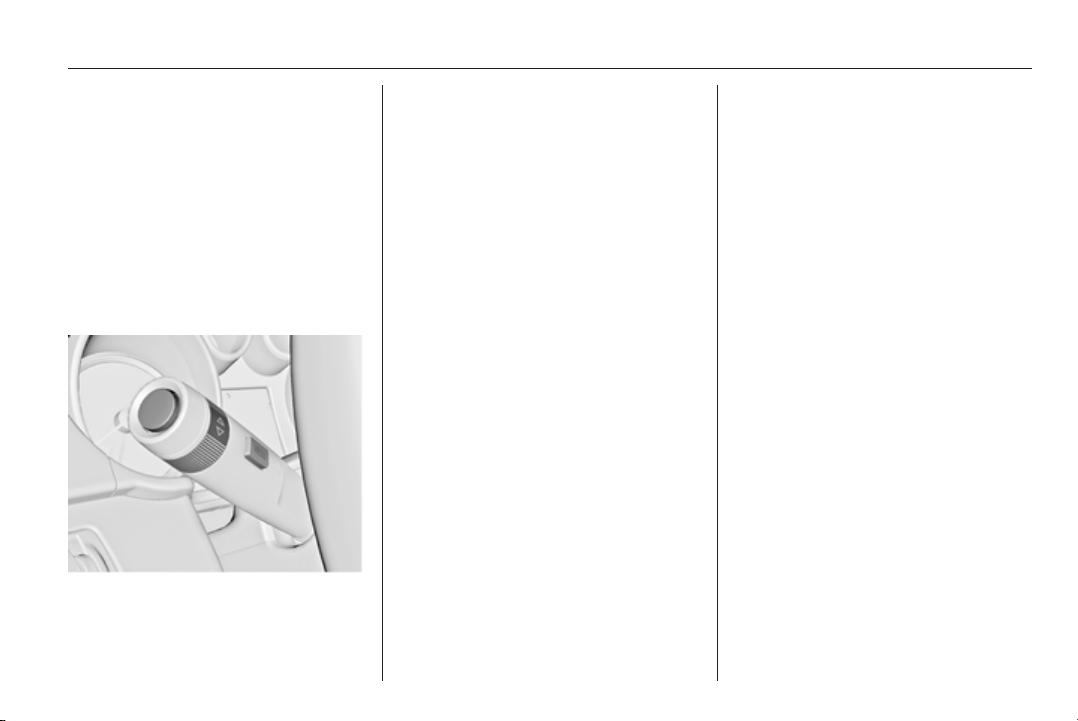

Turn and lane-change signals

right = lever up
left = lever down

Turn and lane-change signals
3 105, Parking lights 3 106.

14 In brief

Back to overview

Hazard warning flashers

Operated with the ¨ button.
Hazard warning flashers 3 105.

Horn

Press j.

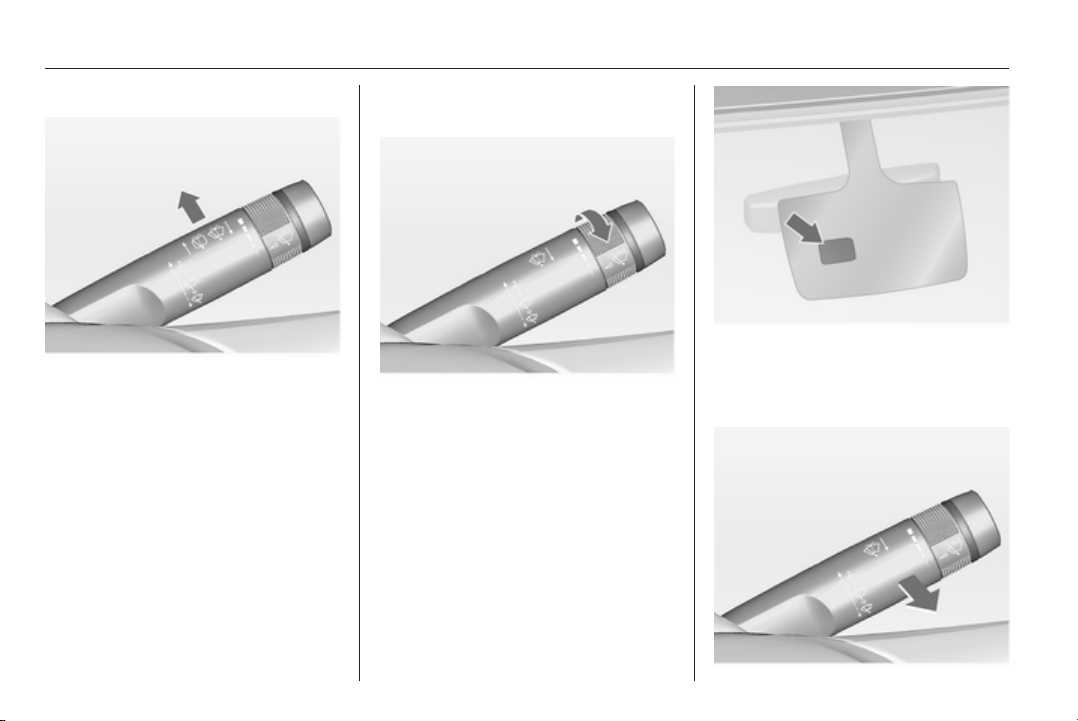

Washer and wiper systems

Windscreen wiper

2 = fast
1 = slow

P

= timed interval wiping or

automatic wiping with rain
sensor

= off

§

For a single swipe when the
windscreen wiper is off, press the
lever down.

Windscreen wiper 3 73, Wiper
blade replacement 3 155.

In brief 15

Back to overview

Windscreen and headlight washer systems

Pull lever.
Windscreen and headlight washer

system 3 73, Washer fluid 3 154.

Rear window wiper and washer systems

Push the rocker switch to activate the
rear window wiper:

top = continuous operation
bottom = intermittent operation

Push lever.
Washer fluid is sprayed on the rear

window and the wiper swipes for
a few strokes.

16 In brief

Back to overview

Climate control

Heated rear window, heated exterior mirrors

Heating is operated by pressing the
Ü button.

Heated rear window 3 35.

Demisting and defrosting the windows

Press button V.
Set temperature control to warmest

level.
Cooling n on.
Heated rear window Ü on.
Climate control system 3 114.

Transmission

Manual transmission

Reverse: with the vehicle stationary,
depress clutch pedal, pull up the
button on the selector lever and
engage the gear.

If the gear does not engage, set the
lever in neutral, release the clutch
pedal and depress again; then repeat
gear selection.

Manual transmission 3 130.

In brief 17

Back to overview

Automatic transmission

P = park
R = reverse
N = neutral
D = drive

Manual mode: move selector lever
from D to the left.

= higher gear

<

= lower gear

]

The selector lever can only be moved
out of P when the ignition is on and
the brake pedal is applied. To engage
P or R, push the release button.

Automatic transmission 3 126.

Starting off

Check before starting off

■ Tyre pressure and condition

3 173, 3 218.

■ Engine oil level and fluid levels

3 152.

■ All windows, mirrors, exterior
lighting and number plates are free
from dirt, snow and ice and are
operational.

■ Proper position of mirrors, seats,
and seat belts 3 31, 3 40,
3 47.

■ Brake function at low speed,
particularly if the brakes are wet.

Starting the engine

■ Turn key to position 1

■ move the steering wheel slightly to
release the steering wheel lock

■ operate clutch and brake

■ automatic transmission in P or N

■ do not accelerate

■ diesel engines: turn the key to
position 2 for preheating and wait
until control indicator ! goes out

■ turn key to 3 and release

Starting the engine 3 123.

18 In brief

Back to overview

Parking

■ Always apply parking brake.
Manual parking brake without
pressing release button. Apply as
firmly as possible on a downhill
slope or uphill slope. Operate foot
brake at the same time to reduce
operating force.

For vehicles with electrical parking
brake pull switch m.

■ Switch off the engine and ignition.
Turn the ignition key to 0 and
remove. Turn the steering wheel
until the steering wheel lock is felt
to engage.

For vehicles with automatic
transmission, the key can only be
removed when the selector lever is
in the P position.

■ If the vehicle is on a level surface or
uphill slope, engage first gear or set
the selector lever to P before
switching off the ignition. On an
uphill slope, turn the front wheels
away from the kerb.

If the vehicle is on a downhill slope,
engage reverse gear or set the
selector lever to P before switching
off the ignition. Turn the front
wheels towards the kerb.

■

Lock the vehicle with button e on
the radio remote control.

Activate the anti-theft alarm system
3 28.

■ Do not park the vehicle on an easily
ignitable surface. The high
temperature of the exhaust system
could ignite the surface.

■ Close windows and sunroof.

■ The engine cooling fans may run
after the engine has been switched
off 3 151.

■ After running at high engine speeds
or with high engine loads, operate
the engine briefly at a low load or
run in neutral for approx. 30
seconds, before switching off in
order to protect the turbocharger.

Keys, locks 3 19, Laying the vehicle
up for a long period of time 3 150.

Keys, doors and windows 19

Back to overview

Keys, doors and windows

Keys, locks ................................... 19

Doors ........................................... 24

Vehicle security ............................ 28

Exterior mirrors ............................ 31

Interior mirrors ............................. 33

Windows ...................................... 33

Roof ............................................. 36

Keys, locks

Keys

Replacement keys

The key number is specified in the
Car Pass or on a detachable tag.

The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.

Locks 3 187.

Key with foldaway key section

Press button to extend. To fold the
key, first press the button.

Car Pass

The Car Pass contains security
related vehicle data and should
therefore be kept in a safe place.

When the vehicle is taken to
a workshop, this vehicle data is
needed in order to perform certain
operations.

Radio remote control

20 Keys, doors and windows

Back to overview

Used to operate:

■ Central locking system

■ Anti-theft locking system

■ Anti-theft alarm system

■ Load compartment

■ Power windows

■ Sunroof

■ Foldable power mirrors

The radio remote control has a range
of approx. 5 metres (16 ft). This range
can be affected by outside influences.
The hazard warning flashers confirm
operation.

Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.

Fault

If the central locking system cannot
be operated with the radio remote
control, it may be due to the following:

■ Range exceeded

■ Battery voltage too low

■ Frequent, repeated operation of the
radio remote control while not in
range, which will require re­synchronisation

■ Overload of the central locking
system by operating at frequent
intervals, the power supply is
interrupted for a short time

■ Interference from higher-power
radio waves from other sources

Unlocking 3 21.

Basic settings

Some settings can be changed in the
menu Settings in the Info-Display.
Vehicle personalisation 3 97.

Radio remote control battery replacement

Replace the battery as soon as the
range reduces.

Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.

Key with foldaway key section

Extend the key and open the unit.
Replace the battery (battery type
CR2032), paying attention to the
installation position. Close the unit
and synchronise.

Radio remote control synchronisation

After replacing the battery, unlock the
door with the key in the driver's door
lock. The radio remote control will be
synchronised when you switch on the
ignition.

Keys, doors and windows 21

Back to overview

Memorised settings

By removing the key from the ignition
switch the settings are automatically
saved for the key being used:

■ Electronic climate control

■ Lighting

■ Infotainment system

■ Power seats

■ Power mirrors

■ Central locking system

The saved settings are automatically
used when the key is inserted into the
ignition switch.

Vehicle personalisation 3 97.

Central locking system

Unlocks and locks doors, load
compartment and fuel filler flap.

A pull on an interior door handle
unlocks the entire vehicle and opens
the door.

Note
In the event of an accident of
a certain severity, the vehicle
unlocks automatically.

Unlocking

Press button c.
Two settings are possible: To unlock

only the driver's door, press button c
once, and to unlock all doors, load
compartment and fuel filler flap, press
button c twice.

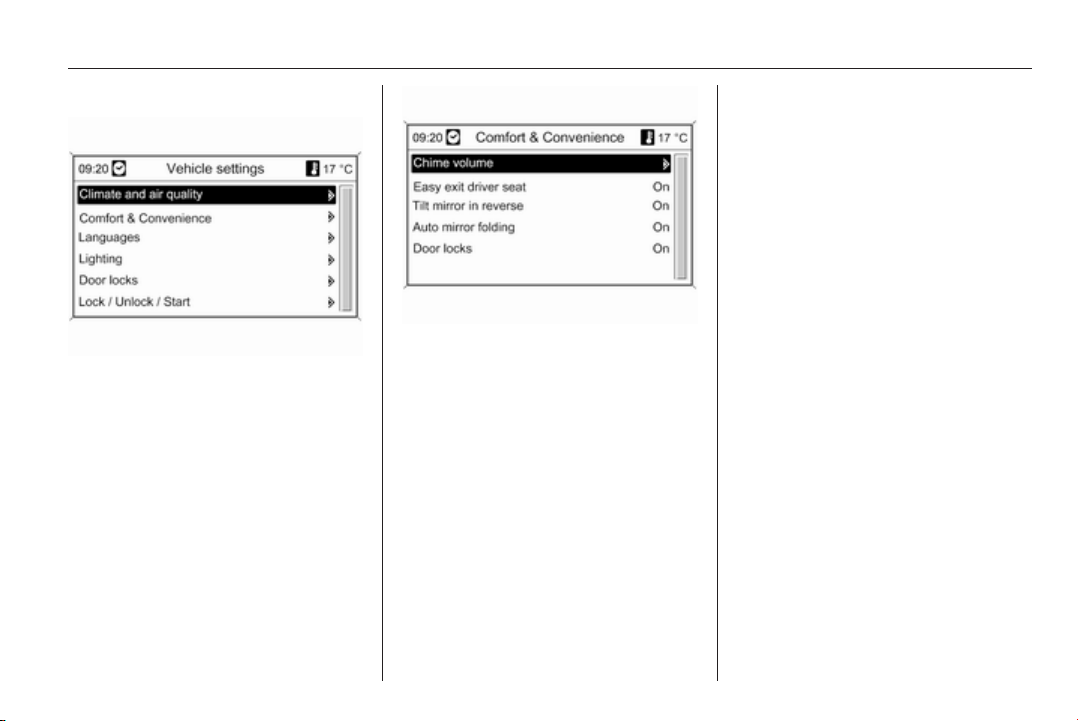

Settings can be changed in the menu
Settings in the Info-Display. Vehicle
personalisation 3 97.

The settings can be saved for the key
being used, Memorised settings
3 21.

Locking

Close doors, load compartment and
fuel filler flap.

Press button e.
If the driver's door is not closed

properly, the central locking system
will not work. Activation or
deactivation of this function can be
changed in the menu Settings in the
Info-Display. Vehicle personalisation
3 97.

22 Keys, doors and windows

Back to overview

Unlocking the tailgate

Press button x when the ignition is
off until tailgate is opened. The
tailgate will unlock and open, whilst all
other doors remain locked.

Power tailgate 3 24

Central locking buttons

Locks or unlocks all doors, the load
compartment and fuel filler flap.

Press the e button to lock.
Press the c button to unlock.
When the key is in the ignition switch,

locking is only possible if all doors are
closed.

Fault in radio remote control system

Unlocking

Manually unlock the driver's door by
turning the key in the lock. Switch on
the ignition and press the central
locking button c to open all doors,
load compartment and fuel filler flap.
To deactivate the anti-theft locking
system, switch on the ignition.

Locking
Manually lock the driver's door by

turning the key in the lock.

Keys, doors and windows 23

Back to overview

Fault in central locking system

Unlocking
Manually unlock the driver's door by

turning the key in the lock. The other
doors can be opened by pulling the
interior handle twice. The load
compartment and fuel filler flap
cannot be opened. To deactivate the
anti-theft locking system, switch on
the ignition 3 28.

Locking
Push inside locking knob of all doors

except driver's door. Then close the
driver's door and lock it from the
outside with the key. The fuel filler flap
and tailgate cannot be locked.

Automatic locking

Automatic locking after driving off

This security feature can be
configured to automatically lock all
doors, load compartment and fuel
filler flap as soon as the vehicle is
driven.

Settings can be changed in the menu
Settings in the Info-Display. Vehicle
personalisation 3 97.

The settings can be saved for the key
being used 3 21.

Automatic locking when leaving the vehicle

This security feature can be
configured to automatically lock all
doors, load compartment and fuel
filler flap a short time after the doors
are closed when leaving the vehicle.

Settings can be changed in the menu
Settings in the Info-Display. Vehicle
personalisation 3 97.

The settings can be saved for the key
being used 3 21.

Child locks

9 Warning

Use the child locks whenever
children are occupying the rear
seats.

Using a key or suitable screwdriver,
turn the child lock in the rear door to
the horizontal position. Door cannot
be opened from the inside. For
deactivation turn the child lock to the
vertical position.

24 Keys, doors and windows

Back to overview

Doors

Load compartment

Tailgate

Opening

Pull the button under the tailgate
moulding.

With radio remote control press
button x until the tailgate is
opened.

Central locking system 3 21.

Closing

Use the interior handle.
Do not pull the button under the

moulding whilst closing as this will
unlock tailgate again.

Central locking system 3 21.

Power tailgate

9 Warning

Take care when operating the
power tailgate. Risk of injury,
particularly to children.

Keep a close watch on the
movable tailgate when operating.
Ensure that nothing becomes
trapped during operating and no
one is standing within the moving
area.

The power tailgate is operated by:

■ Radio remote control

■ Switch in the door panel of the
driver's door

■ Touchpad switch and button in the
tailgate.

It can only be operated when vehicle
is stationary with applied parking
brake and automatic transmission in
P.

The taillights flash and a chime
sounds when power tailgate is
operating.

Keys, doors and windows 25

Back to overview

Note
Operating the power tailgate does
not operate the central locking
system. Therefore always unlock the
vehicle before opening the tailgate
and lock after closing.

Central locking system 3 21.

Operation with radio remote control

Press and hold button x until
tailgate starts to open or close.

Operation with the switch in the driver's door

Press and hold button G until
tailgate starts to open or close.

Operation with switches in the tailgate

To open the tailgate, push and hold
the touchpad switch under the
tailgate moulding until tailgate starts
to move.

26 Keys, doors and windows

Back to overview

To close, press and hold the button
G in the open tailgate until it starts
to move.

Stop or change direction of movement

Pressing button x or G or
touchpad switch whilst moving, the
tailgate will stop in the current
position. Pressing button x or G
again will reverse the direction of
movement.

Operation modes
The power tailgate has three modes

of operation, which are controlled by
the switch in the driver's door. To
change the mode turn the switch:

■ Normal mode о: power tailgate
opens to full height

■ Intermediate mode ☯: power
tailgate opens to a reduced height
that can be adjusted

■ Mode Off: tailgate can be operated
manually.

Adjust reduced opening height in intermediate mode

1. Turn operation mode switch to о
or ☯

2. Open power tailgate with any
operation switch

3. Stop movement at the desired
height by pressing any operation
switch. If required, manually move
the stopped liftgate to the desired
position

4. Press and hold the button on the
inside of the open tailgate for
3 seconds.

Keys, doors and windows 27

Back to overview

The turn signals will flash and a chime
will sound to indicate the new
programmed setting.

When turning the adjuster wheel in
the driver's door to intermediate mode
☯, the power tailgate will stop opening
at the newly set position.

There is a minimum open angle that
the system will hold the tailgate open.
The opening height cannot be
programmed below that angle.

Safety function
If the power tailgate encounters an

obstacle during opening or closing,
the direction of movement will
automatically be reversed to open or
close slightly. Multiple obstacles in
one power cycle will deactivate the
function. In this case close or open
the tailgate manually.

Power tailgate has pinch sensors on
the side edges. If the sensors detect
obstacles between tailgate and
chassis, the tailgate will open, until it
is activated again or closed manually.

Safety function is indicated as
a message in the Driver Information
Center and by warning chimes.

Remove all obstacles for resuming
normal power operation.

If the vehicle is equipped with
a factory-fitted towing equipment, the
operation of the power tailgate is
automatically deactivated, when
towing a trailer.

General hints for operating tailgate

9 Warning

Do not drive with the tailgate open
or ajar, e.g. when transporting
bulky objects, since toxic exhaust
gases, which can not be seen or
smelled, could enter the vehicle.
This can cause unconsciousness
and even death.

Caution

Before opening the tailgate check
overhead obstructions, such as
a garage door, to avoid damage of
the tailgate. Always check the
moving area above and behind the
tailgate.

Note
Power tailgate: if the support struts
of the open tailgate loose pressure,
the taillights will flash and a chime
will sound. The tailgate will remain
open for a while and then close
slowly. Seek the assistance of
a workshop.

Note
The operation of the power tailgate
is disabled under low battery
condition. In this case the tailgate
can be operated manually.

Note
Having the power tailgate disabled
and all doors unlocked, the tailgate
can be manually operated. In this
case the manual efforts will be
higher than a non power tailgate.

28 Keys, doors and windows

Back to overview

Note
The installation of certain heavy
accessories onto the tailgate may
affect its ability to remain open.

Vehicle security

Anti-theft locking system

9 Warning

Do not use the system if there are
people in the vehicle! The doors
cannot be unlocked from the
inside.

The system deadlocks all the doors.
All doors must be closed or the
system cannot be activated.

If the ignition was on, the driver's door
must be opened and closed once so
that the vehicle can be secured.

Unlocking the vehicle disables the
mechanical anti-theft locking system.
This is not possible with the central
locking button.

Activating

Press e on the radio remote control
twice within 15 seconds.

Anti-theft alarm system

The anti-theft alarm system is
combined with the anti-theft locking
system.

It monitors:

■ Doors, tailgate, bonnet

■ Passenger compartment including
adjoining load compartment

■ Vehicle inclination, e.g. if it is raised

■ Ignition

Keys, doors and windows 29

Back to overview

Activation

■ Self-activated 30 seconds after
locking the vehicle (initialisation of
the system)

■

Directly by pressing e on the radio
remote control once more after
locking

■ 30 seconds after locking if the
function "automatic locking when
leaving the vehicle" is activated

Note
Changes to the vehicle interior such
as the use of seat covers, and open
windows or sunroof, could impair the
function of passenger compartment
monitoring.

Activation without monitoring of passenger compartment and vehicle inclination

Switch off the monitoring of
passenger compartment and vehicle
inclination when people or animals
are being left in the vehicle, because
of high volume ultrasonic signals,
movements triggering the alarm and
when the vehicle is on a ferry or train.

1. Close tailgate, bonnet, windows
and sunroof.

2. Press button o. LED in the
button o illuminates for
maximum 10 minutes.

3. Close doors.

4. Activate the anti-theft alarm
system.

Status message is displayed in the
Driver Information Center.

Status LED

Status LED is integrated in the sensor
on top of the instrument panel.

30 Keys, doors and windows

Back to overview

Status during the first 30 seconds of
anti-theft alarm system activation:

LED
illuminates
LED flashes
quickly

Status after system is armed:
LED flashes

slowly
LED flashes
quickly
3 times after
unlocking

Seek the assistance of a workshop in
the event of faults.

= test, arming delay.

= doors, tailgate or

bonnet not
completely closed,
or system fault.

= system is armed.

= system is disarmed.

Deactivation

Unlocking the vehicle deactivates
anti-theft alarm system.

Alarm

When triggered, the alarm sounds via
a separate battery-backed power
sounder, and the hazard warning

lights flash simultaneously. The
number and duration of alarm signals
are stipulated by legislation.

The alarm can be silenced by
pressing any button of the radio
remote control or by switching on the
ignition.

The anti-theft alarm system can be
deactivated only by pressing button
c or by switching on the ignition.

Immobiliser

The system is integrated into the
ignition switch and checks whether
the vehicle is allowed to start with the
key being used. If the transponder in
the key is recognized, the engine can
be started.

The electronic immobiliser activates
itself automatically after the key has
been removed from the ignition
switch.

If the control indicator d flashes when
the ignition is on, there is a fault in the
system; the engine cannot be started.
Switch off the ignition and then repeat
the start attempt.

If the control indicator continues
flashing, attempt to start the engine
using the spare key and seek the
assistance of a workshop.

Note
The immobiliser does not lock the
doors. You should always lock the
vehicle after leaving it and switch on
the anti-theft alarm system 3 21,
3 28.

Control indicator d 3 87.

Keys, doors and windows 31

Back to overview

Exterior mirrors

Convex shape

The convex exterior mirror reduces
blind spots. The shape of the mirror
makes objects appear smaller, which
will affect the abilty to estimate
distances.

Electric adjustment

Select the relevant exterior mirror by
turning the control to left (L) or right
(R). Then swivel the control to adjust
the mirror.

In position 0 no mirror is selected.

Folding

For pedestrian safety, the exterior
mirrors will swing out of their normal
mounting position if they are struck
with sufficient force. Reposition the
mirror by applying slight pressure to
the mirror housing.

Electric folding

Turn control to 7, then push the
control down. Both exterior mirrors
will fold.

Push the control down again - both
exterior mirrors return to their original
position.

If an electrically folded mirror is
manually extended, pressing down
the control will only electrically extend
the other mirror.

32 Keys, doors and windows

Back to overview

Folding mirrors from outside

Press and hold e button to fold in
mirrors.

Press and hold c button to fold out
mirrors.

At the same time the windows are
closed or opened 3 33.

Release button to stop mirror
movement.

If the mirrors were folded in via the
control in the driver's door, they are
not folded out by pressing c.

Activation or deactivation of this
function can be changed in the menu
Settings in the Info-Display. Vehicle
personalisation 3 97.

The settings can be saved for the key
being used 3 21.

Heated

Operated by pressing the Ü button.
Heating works with the engine

running and is switched off
automatically after a short time.

Parking assist

Both exterior mirrors are
automatically aimed at the rear tyres
as a parking aid when reverse gear is
selected, except during trailer
operation.

Activation or deactivation of this
function can be changed in the menu
Settings in the Info-Display. Vehicle
personalisation 3 97.

Keys, doors and windows 33

Back to overview

Interior mirrors

Manual anti-dazzle

To reduce dazzle, adjust the lever on
the underside of the mirror housing.

Automatic anti-dazzle

Dazzle from following vehicles at
night is automatically reduced.

Windows

Manual windows

The door windows can be opened or
closed with the window winders.

Power windows

9 Warning

Take care when operating the
power windows. Risk of injury,
particularly to children.

If there are children on the rear
seats, switch on the child safety
system for the power windows.

Keep a close watch on the
windows when closing them.
Ensure that nothing becomes
trapped in them as they move.

Power windows can be operated:

■ with ignition on,

■ within 10 minutes of switching
ignition off,

■ within 5 minutes of opening a door.

34 Keys, doors and windows

Back to overview

After switching off the ignition,
window operation is disabled when
the driver's door is opened, then
closed and locked.

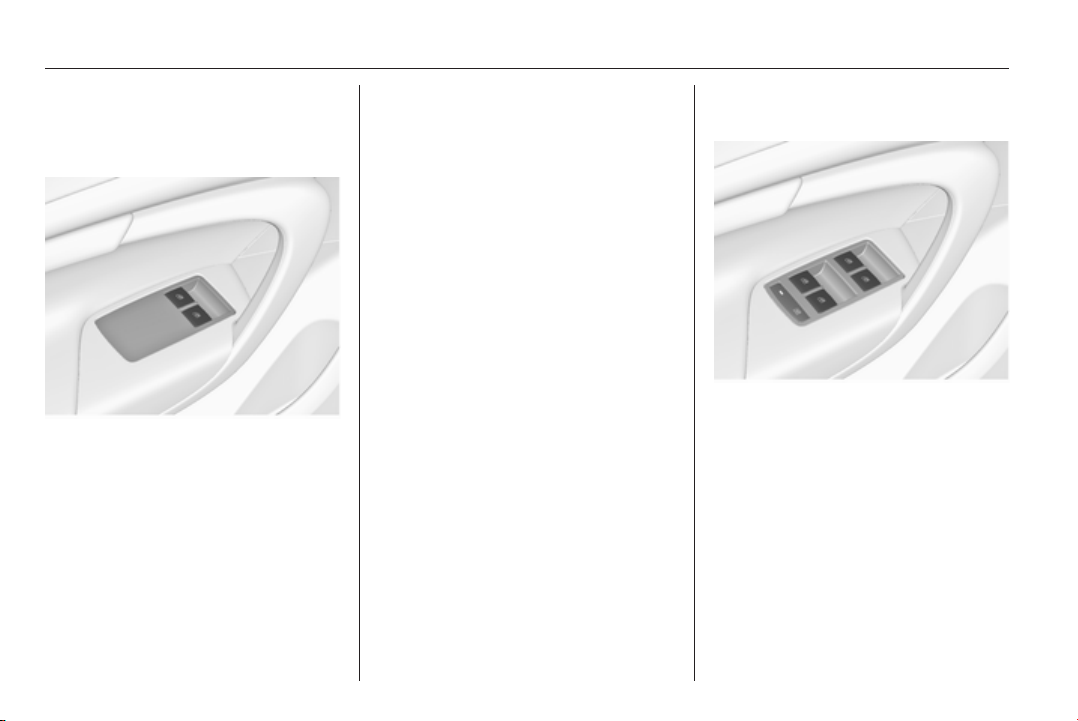

Operate the switch for the respective
window by pushing to open or pulling
to close.

Pushing or pulling gently to the first
detent: window moves up or down as
long as switch is operated.

Pushing or pulling firmly to the second
detent and then releasing: window
moves up or down automatically with

enabled safety function. To stop
movement, operate the switch once
more in the same direction.

Safety function

If the window glass encounters
resistance above the middle of the
window during automatic closing, it is
immediately stopped and opened
again.

Override safety function

In the event of closing difficulties due
to frost or the like, pull and hold the
switch. The window moves up without
safety function. To stop movement,
release and pull the switch once
more.

Child safety system for rear windows

Press switch z to deactivate rear
door power windows, the LED
illuminates. To activate, press z
again.

Operating windows from outside

The windows can be operated
remotely from outside the vehicle.

Keys, doors and windows 35

Back to overview

Press and hold c button to open
windows.

Press and hold e button to close
windows.

Release button to stop window
movement.

Overload

If the windows are repeatedly
operated within short intervals, the
window operation is disabled for
some time.

Initialising the power windows

If the windows cannot be closed
automatically (e.g. after
disconnecting the vehicle battery),
a warning message or a warning code
is displayed in the Driver Information
Center.

Vehicle messages 3 90.
Activate the window electronics as

follows:

1. Close doors.

2. Switch on ignition.

3. Close the window completely and
keep the switch pulled for
additional 2 seconds.

4. Repeat for each window.

Heated rear window

Operated by pressing the Ü button.
Heating works with the engine

running and is switched off
automatically after a short time.

Depending on the engine type, the
heated rear window comes on
automatically when the diesel particle
filter is being cleaned.

Sun visors

The sun visors can be folded down or
swivelled to the side to prevent
dazzling.

36 Keys, doors and windows

Back to overview

Sun visors swivelled to the side can
be adjusted in length.

If the sun visors have integral mirrors,
the mirror covers should be closed
when driving.

Roller blinds

To reduce sunlight at the rear seats,
pull the blind upwards using the grip
and engage it at the top of the door
frame.

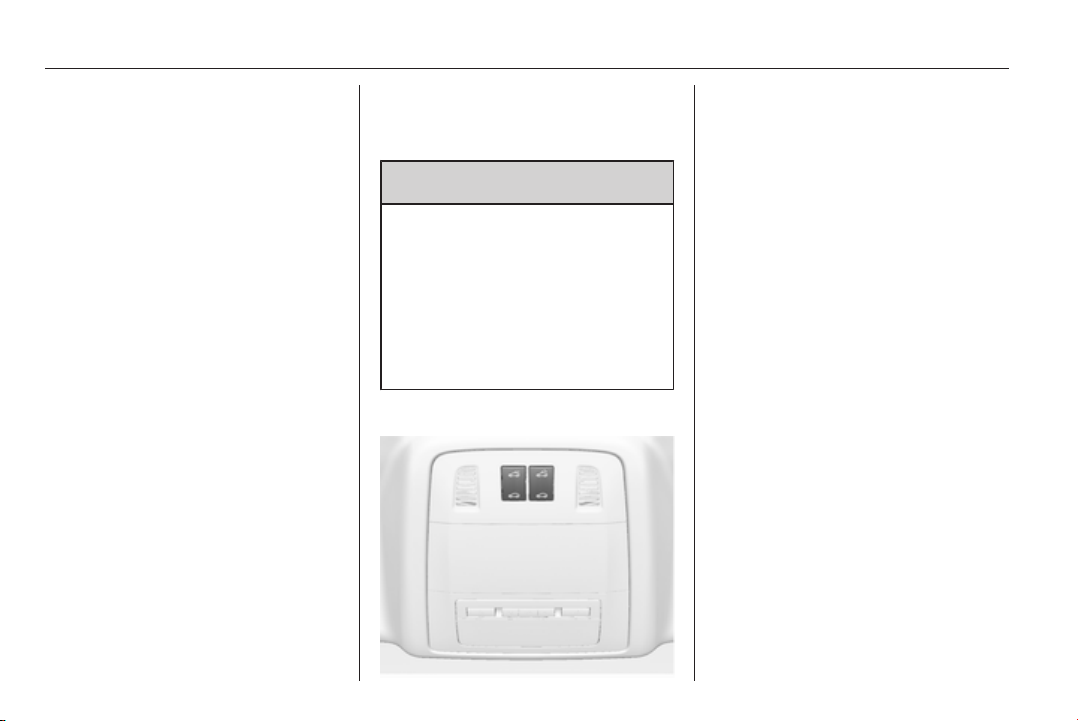

Roof

Sunroof

9 Warning

Take care when operating the
sunroof. Risk of injury, particularly
to children.

Keep a close watch on the
movable parts when operating
them. Ensure that nothing
becomes trapped in them as they
move.

Sunroof, Saloon

Open or close
Press p or r gently to the first
detent: sunroof is opened or closed

with enabled safety function as long
as the switch is operated.

Press p or r firmly to the second
detent and then release: the sunroof
is opened or closed automatically
with enabled safety function. To stop
movement, operate the switch once
more.

Raise or close
Press q or r: sunroof is raised or
closed automatically with enabled

safety function.
If the sunroof is raised, it can be

opened in one step by pushing p.

Sunblind
The sunblind is manually operated.

Close or open the sunblind by sliding.
When the sunroof is open, the
sunblind is always open.

Keys, doors and windows 37

Back to overview

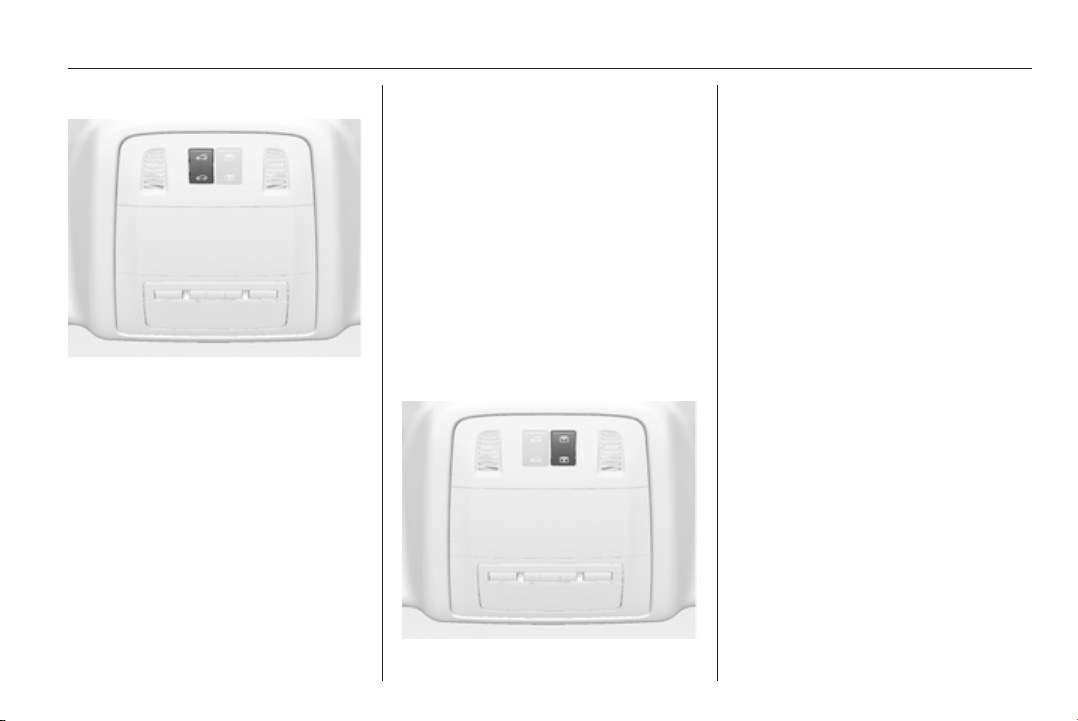

Sunroof, Station wagon

Open
Press p gently to the first detent:
sunroof is opened to the spoiler

position.
Press p firmly to the second detent

and then release: the sunroof is
opened automatically with enabled
safety function. To stop movement,
operate the switch once more.

Close
Press r gently to the first detent:
sunroof is closed from full open or

spoiler position with enabled safety
function as long as the switch is
operated.

Press r firmly to the second detent
and then release: the sunroof is
completely closed automatically with
enabled safety function. To stop
movement, operate the switch once
more.

Sunblind
The sunblind is power operated.

Close or open the sunblind by
pressing button H or G.

Safety function
If the sunblind encounters resistance

during automatic closing, it is
immediately stopped and opened
again.

General hints

Function standby
The sunroof can be operated:

■ with ignition on,

■ within 10 minutes of switching
ignition off,

■ within 5 minutes of opening a door.

After switching off the ignition,
sunroof operation is disabled when
driver's door is opened, then closed
and locked.

Safety function
If the sunroof encounters resistance

during automatic closing, it is
immediately stopped and opened
again.

38 Keys, doors and windows

Back to overview

Override safety function
In the event of closing difficulties due

to frost or the like, hold the switch
r pressed to the second detent.
The sunroof closes without safety
function. To stop movement, release
the switch.

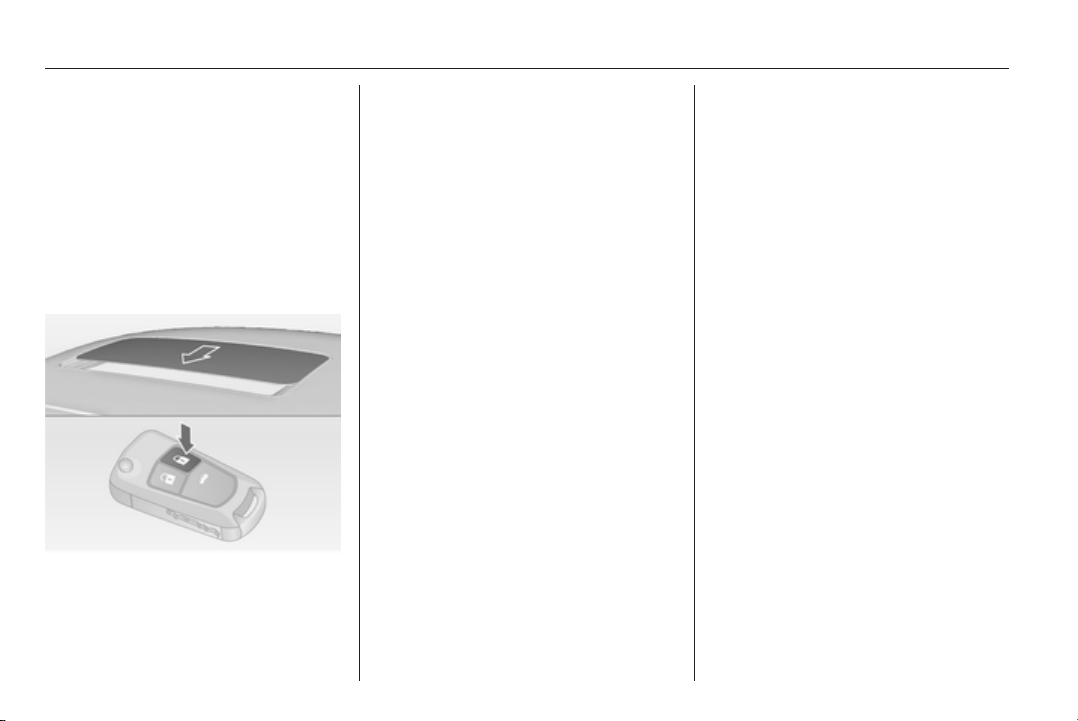

Closing sunroof from outside
The sunroof can be closed remotely

from outside the vehicle.

Press and hold e button to close the
sunroof.

Release the button to stop the
movement.

Initialising of the roof
If the sunroof cannot be closed (e.g.

after disconnecting the vehicle
battery), activate the sunroof
electronics as follows:

■ If sunroof is closed, keep the switch

r pressed for 10 seconds.

■ If sunroof is open, keep the switch

r pressed until sunroof is fully
closed. Then release switch shortly
and press it again for 10 seconds.

Relearning of safety function
If the sunroof does not close correctly

after initialising:

1. Open sunroof fully by pressing

switch p.

2. Release switch and then press

again switch p gently to the first
detent for approx. 30 seconds.
The switch can be released, when
the sunroof is in closed position.

Initialising and relearning of the power operated sun blind

Repeat the previous steps using the
switches H for closing and G for
opening.

Seats, restraints 39

Back to overview

Seats, restraints

Head restraints ............................ 39

Front seats ................................... 40

Rear seats ................................... 46

Seat belts ..................................... 46

Airbag system .............................. 49

Child restraints ............................. 53

Head restraints

Position

9 Warning

Only drive with the head restraint
set to the proper position.

The middle of the head restraint
should be at eye level. If this is not
possible for extremely tall people, set
to highest position, and set to lowest
position for small people.

Adjustment

Head restraints on front seats

Height adjustment
Press the button, adjust height and

engage.

40 Seats, restraints

Back to overview

Inclination adjustment
Swivel the bottom edge of the head

restraint forwards or rearwards.

Active head restraints on front seats
In the event of a rear-end impact, the

active head restraints are moved
slightly forwards. The head is more
effectively supported so the risk of
whiplash injury is reduced.

Note
Approved accessories may only be
attached to the front passenger
head restraint if the seat is not in use.

Head restraints on rear seats

Height adjustment
Pull the head restraint upwards or

press the catch to release and push
the head restraint downwards.

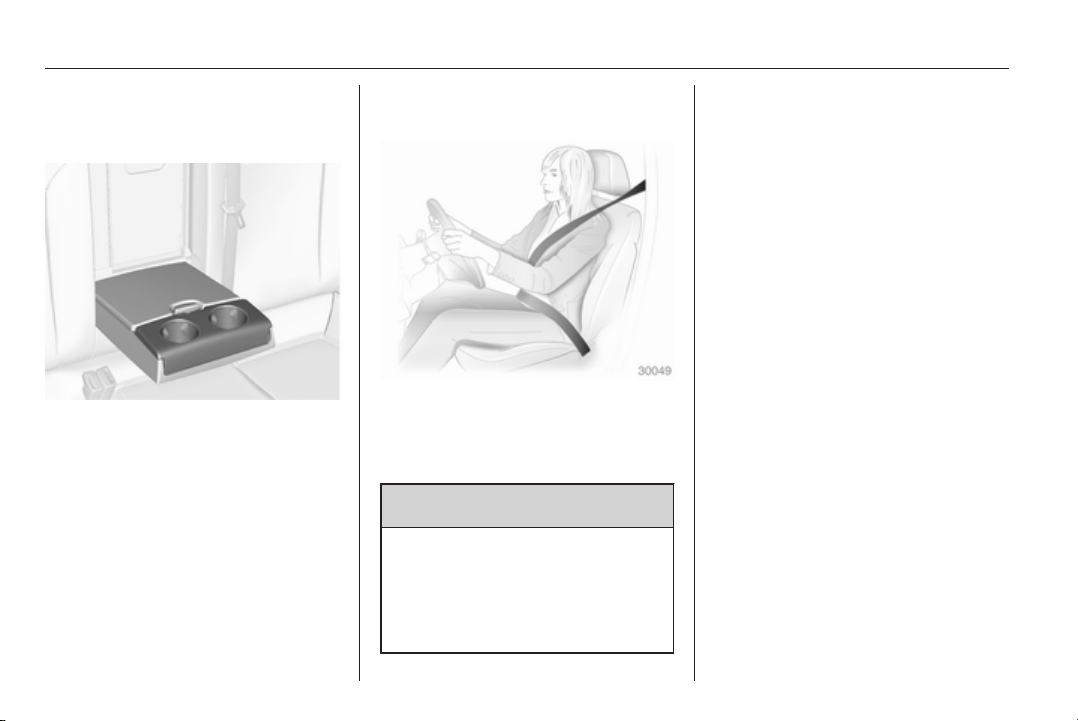

Front seats

Seat position

9 Warning

Only drive with the seat correctly
adjusted.

Sit with buttocks as far back against

■
the backrest as possible. Adjust the
distance between the seat and the
pedals so that legs are slightly
angled when pressing the pedals.
Slide the front passenger seat as
far back as possible.

Seats, restraints 41

Back to overview

■ Sit with shoulders as far back
against the backrest as possible.
Set the backrest rake so that it is
possible to easily reach the
steering wheel with arms slightly
bent. Maintain contact between
shoulders and the backrest when
turning the steering wheel. Do not
angle the backrest too far back. We
recommend a maximum rake of
approx. 25°.

■ Adjust the steering wheel 3 72.

■ Set seat height high enough to
have a clear field of vision on all
sides and of all display instruments.
There should be at least one hand
of clearance between head and the
roof frame. Your thighs should rest
lightly on the seat without pressing
into it.

■ Adjust the head restraint 3 39.

■ Adjust the height of the seat belt
3 47.

■ Adjust the thigh support so that
there is a space approx. two fingers
wide between the edge of the seat
and the hollow of the knee.

■ Adjust the lumbar support so that it
supports the natural shape of the
spine.

Seat adjustment

9 Danger

Do not sit nearer than 25 cm (10
inches) from the steering wheel, to
permit safe airbag deployment.

9 Warning

Never adjust seats while driving as
they could move uncontrollably.

Seat positioning

Pull handle, slide seat, release
handle.

42 Seats, restraints

Back to overview

Seat backrests

Pull lever, adjust inclination and
release lever. Allow the backrest to
engage audibly.

Do not lean on backrest when
adjusting.

Seat height

Press switch
top = seat higher

bottom = seat lower

Seat inclination

Lever pumping motion
up = front end higher

down = front end lower

Seats, restraints 43

Back to overview

Lumbar support

Adjust lumbar support using four-way
switch to suit personal requirements.

Moving support up and down: push
switch up or down. Increasing and
decreasing support: push switch
forwards or backwards.

Adjustable thigh support

Pull the lever and slide the thigh
support.

Power seat adjustment

9 Warning

Care must be taken when
operating the power seats. There
is a risk of injury, particularly for
children. Articles could become
trapped.

Keep a close watch on the seats
when adjusting them. Vehicle
passengers should be informed
accordingly.

44 Seats, restraints

Back to overview

Seat positioning

Move front of switch forwards/
backwards.

Seat height

Move switch upwards/downwards.

Seat inclination

Move switch upwards/downwards at
front.

Seat backrests

Turn switch forwards/backwards.

Memory function for power seat adjustment and exterior mirrors

Two different seat and mirror settings
can be stored.

Memorised settings 3 21, Vehicle
personalisation 3 97.

Storing settings

■ Adjust driver seat first and then
exterior mirrors.

■ Keep memory button MEM pressed
and then press position button to be
used (1 or 2). Storage is
acknowledged by an acoustic
signal.

Retrieving settings

■ Keep position button 1 or 2 pressed
until the stored seat and mirror
positions have been reached.

Easy exit function
For easy exit from the vehicle, the

power driver seat moves rearwards
when vehicle is stationary, the key is
out of the ignition switch and the
driver's door is opened.

Activation or deactivation of this
function can be changed in the menu

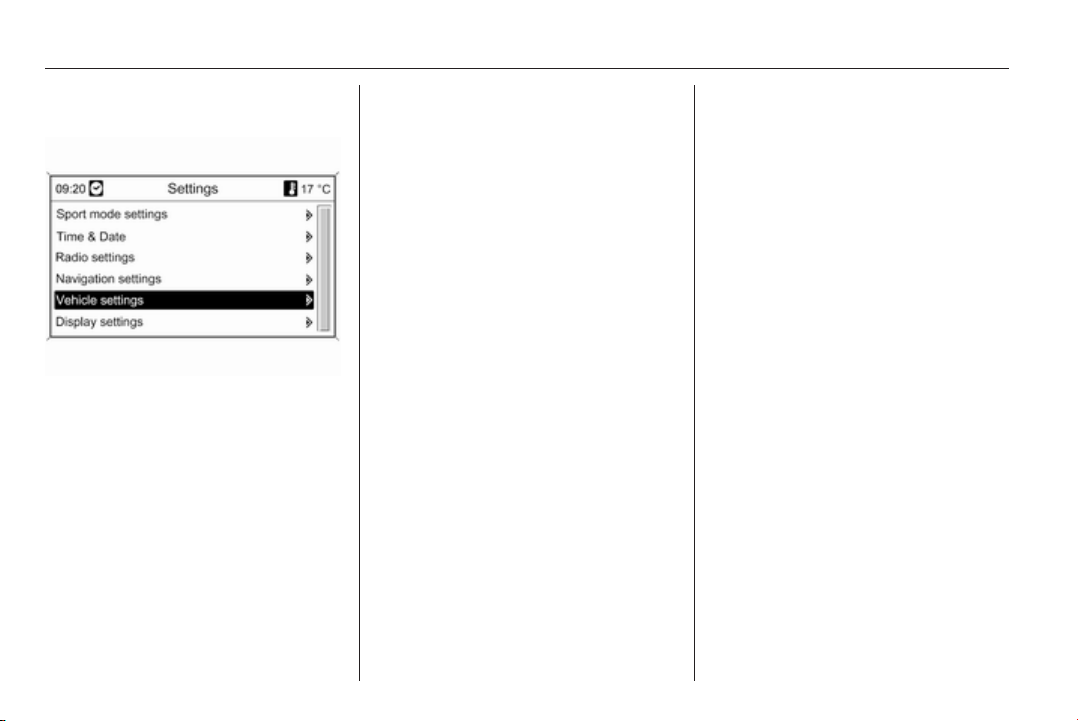

Settings in the Info-Display. Vehicle
personalisation 3 97.

Overload
If the seat setting is electrically

overloaded, the power supply is
automatically cut off for a short time.

Seats, restraints 45

Back to overview

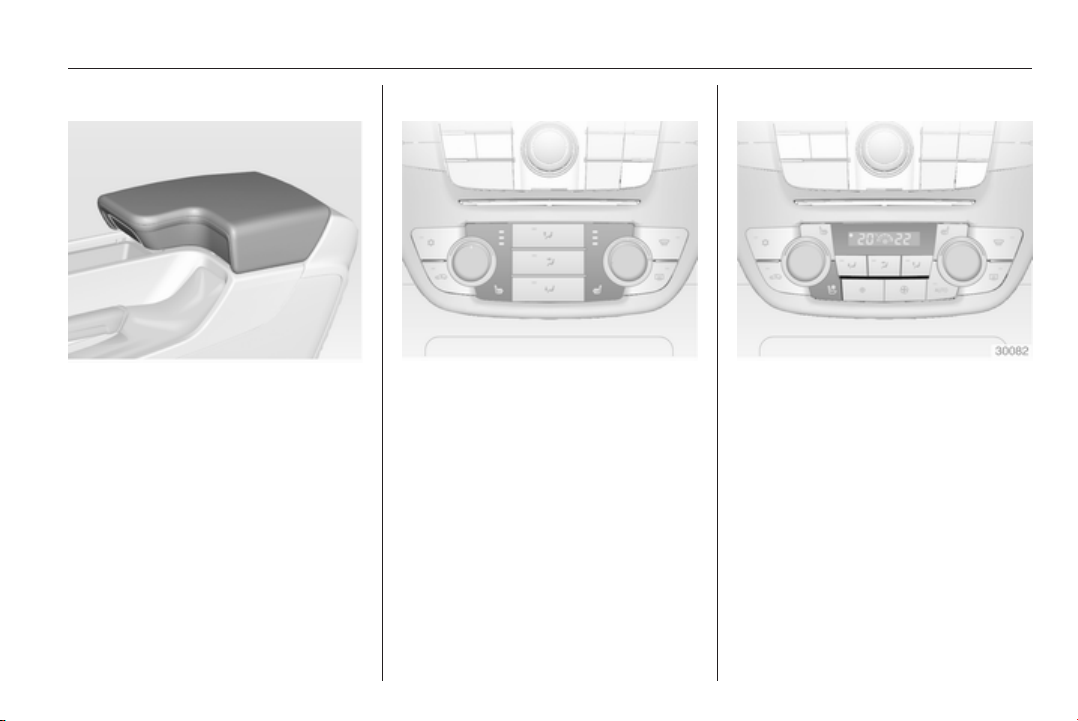

Armrest

Push button and fold armrest
upwards. Under the armrest there is
a storage compartment.

Auxiliary devices 3 112.

Heating

Adjust heating to the desired setting
by pressing the ß button for the
respective seat one or more times
with the ignition on. The control
indicator in the button or in the display
indicates the setting.

Prolonged use of the highest setting
for people with sensitive skin is not
recommended.

Seat heating is operational when
engine is running.

Ventilating

Adjust ventilation to the desired
setting by pressing the A button for
the driver seat one or more times with
the ignition on.

The control indicator in the display
indicates the setting.

Ventilated driver seat is operational
when engine is running.

46 Seats, restraints

Back to overview

Rear seats

Armrest

Fold armrest down. The armrest
contains cupholders and a storage
box.

Seat belts

The belts are locked during heavy
acceleration or deceleration of the
vehicle for the safety of the
occupants.

9 Warning

Fasten seat belt before each trip.
In the event of an accident, people

not wearing seat belts endanger
their fellow occupants and
themselves.

Seat belt reminder X 3 83.
Seat belts are only designed for use

by one person at a time. They are not
suitable for people younger than 12
years of age or smaller than 150 cm
(59 inches).

Periodically check all parts of the belt
system for damage and proper
functionality.

Have damaged components
replaced. After an accident, have the
belts and triggered belt tensioners
replaced by a workshop.

Note
Make sure that the belts are not
damaged by shoes or sharp-edged
objects or trapped. Prevent dirt from
getting into the belt retractors.

Belt force limiters

In the front seats, stress on the body
is reduced by the gradual release of
the belt during a collision.

Seats, restraints 47

Back to overview

Belt tensioners

In the event of a head-on or rear-end
collision of a certain severity, the front
seat belts are tightened.

9 Warning

Incorrect handling (e.g. removal or
fitting of belts) can trigger the belt
tensioners with risk of injury.

Deployment of the belt tensioners is
indicated by illumination of control
indicator v 3 83.

Triggered belt tensioners must be
replaced by a workshop. Belt
tensioners can only be triggered
once.

Note
Do not affix or install accessories or
other objects that may interfere with
the operation of the belt tensioners.
Do not make any modifications to
belt tensioner components as this
will invalidate the vehicle type
approval.

Three-point seat belt

Fitting

Withdraw belt from retractor, guide it
untwisted across the body and insert
the latch plate in the buckle. Tension
the lap belt regularly whilst driving by
tugging the shoulder belt.

Loose or bulky clothing prevents the
belt from fitting snugly. Do not place
objects such as handbags or mobile
phones between the belt and your
body.

48 Seats, restraints

Back to overview

9 Warning

The belt must not rest against hard
or fragile objects in the pockets of
your clothing.

Height adjustment

1. Pull belt out slightly.

2. Press button.

3. Adjust height and engage.

Adjust the height so that the belt lies
across the shoulder. It must not lie
across the throat or upper arm.

Do not adjust while driving.

Removing

To release belt, press red button on
belt buckle.

Seat belts on the rear seats

The seat belt for the rear centre seat
can only be withdrawn from the
retractor if the backrest is in the rear
position.

Using the seat belt while pregnant

9 Warning

The lap belt must be positioned as
low as possible across the pelvis
to prevent pressure on the
abdomen.

Seats, restraints 49

Back to overview

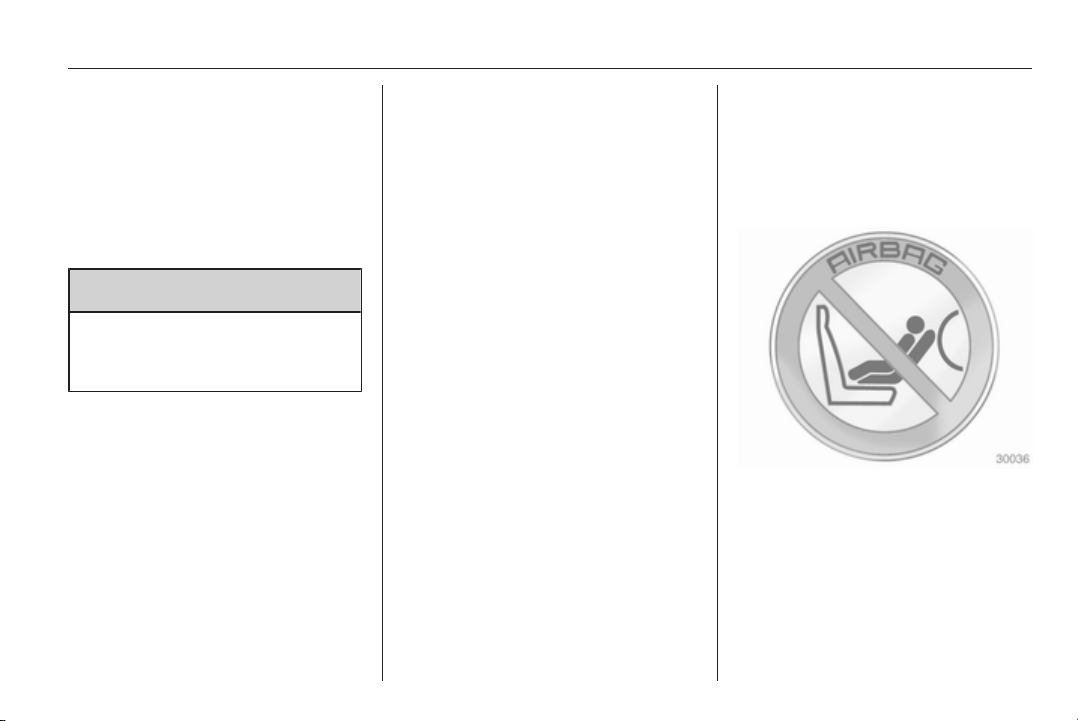

Airbag system

The airbag system consists of
a number of individual systems.

When triggered the airbags inflate
within milliseconds. They also deflate
so quickly that it is often unnoticeable
during the collision.

9 Warning

If handled improperly the airbag
systems can be triggered in an
explosive manner.

Note
The airbag systems and belt
tensioner control electronics are
located in the centre console area.
Do not put any magnetic objects in
this area.

Do not stick anything on the airbag
covers and do not cover them with
other materials.

Each airbag is triggered only once.
Have deployed airbags replaced by
a workshop.

Do not make any modifications to
the airbag system as this will
invalidate the vehicle type approval.

In the event of airbag deployment
have the steering wheel, the
instrument panel, all panelling parts,
the door seals, the handles and the
seats removed by a workshop.

Control indicator v for airbag systems
3 83.

Front airbag system

The front airbag system consists of
one airbag in the steering wheel and
one in the instrument panel on the
front passenger side. These can be
identified by the word AIRBAG.

There is also a warning label on the
side of the instrument panel, visible
when the front passenger door is
open.

50 Seats, restraints

Back to overview

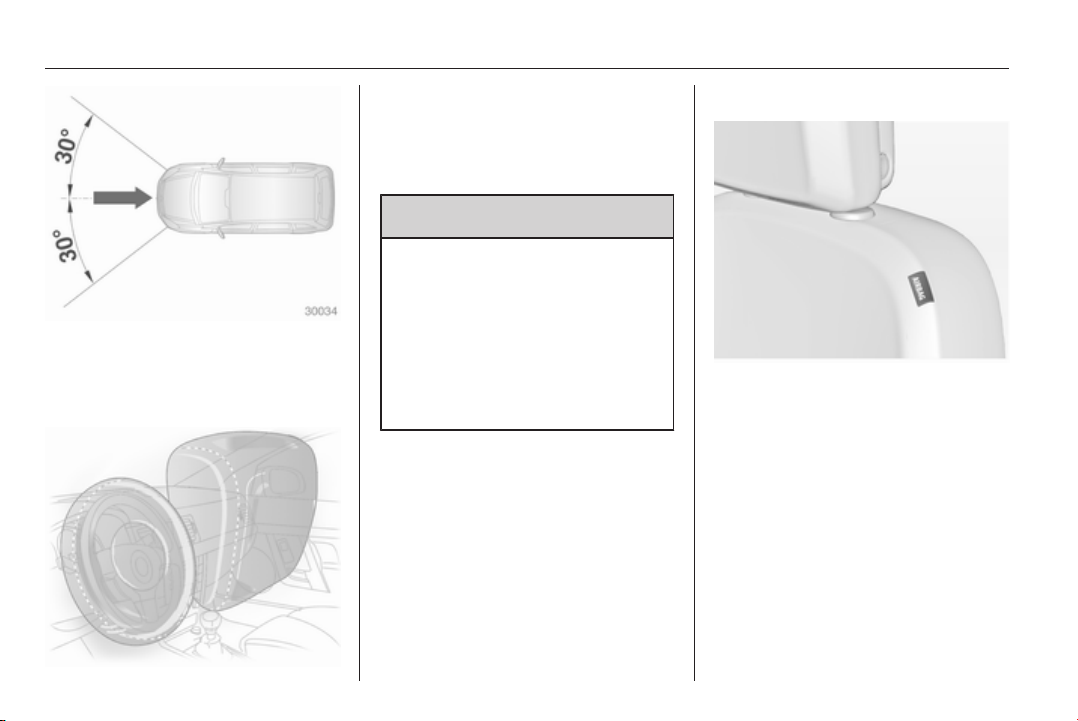

The front airbag system is triggered in
the event of an accident of a certain
severity in the depicted area. The
ignition must be on.

The forward movement of the front
seat occupants is decelerated,
thereby considerably reducing the
risk of injury to the upper body and
head.

9 Warning

Optimum protection is only
provided when the seat is in the
proper position 3 40.

Keep the area in which the airbag
inflates clear of obstructions.

Fit the seat belt correctly and
engage securely. Only then the
airbag is able to protect.

Side airbag system

The side airbag system consists of an
airbag in each front seat backrest and
in the rear outboard seat backrests.
This can be identified by the word
AIRBAG.

Seats, restraints 51

Back to overview

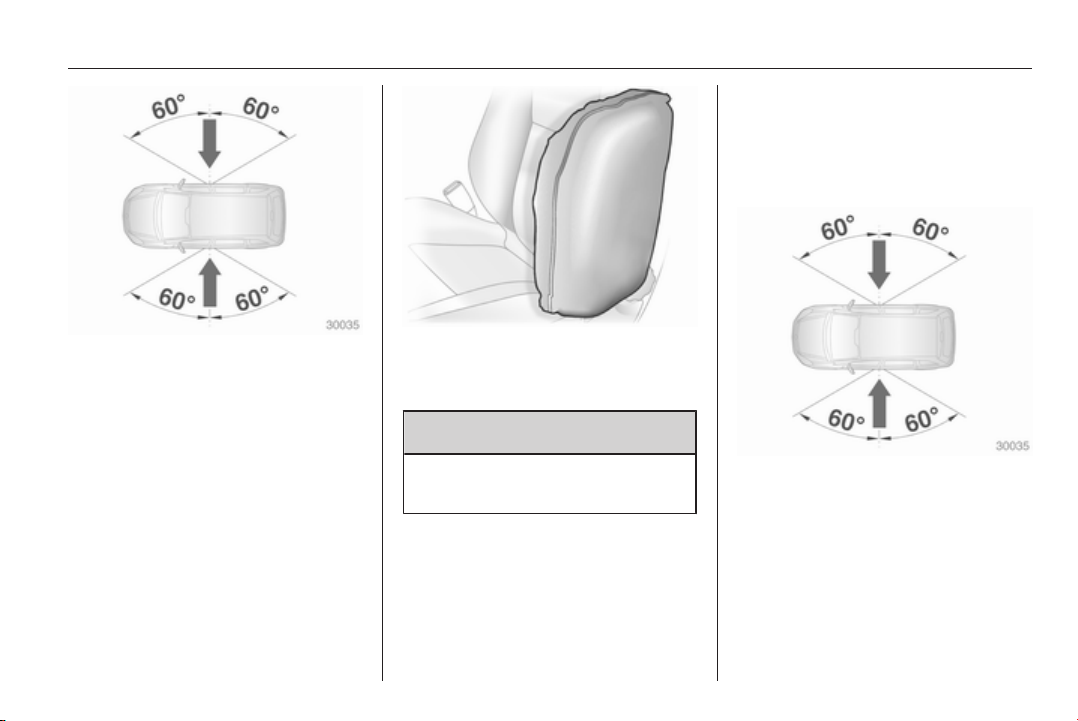

Curtain airbag system

The curtain airbag system consists of
an airbag in the roof frame on each
side. This can be identified by the
word AIRBAG on the roof pillars.

The side airbag system is triggered in
the event of an accident of a certain
severity in the depicted area. The
ignition must be on.

The risk of injury to the upper body
and pelvis in the event of a side-on
collision is considerably reduced.

9 Warning

Keep the area in which the airbag
inflates clear of obstructions.

Note
Only use protective seat covers that
have been approved for the vehicle.
Be careful not to cover the airbags.

The curtain airbag system is triggered
in the event of an accident of a certain
severity in the depicted area. The
ignition must be on.

52 Seats, restraints

Back to overview

The risk of injury to the head in the
event of a side impact is considerably
reduced.

9 Warning

Keep the area in which the airbag
inflates clear of obstructions.

The hooks on the handles in the
roof frame are only suitable for
hanging up light articles of
clothing, without coat hangers. Do
not keep any items in these
clothes.

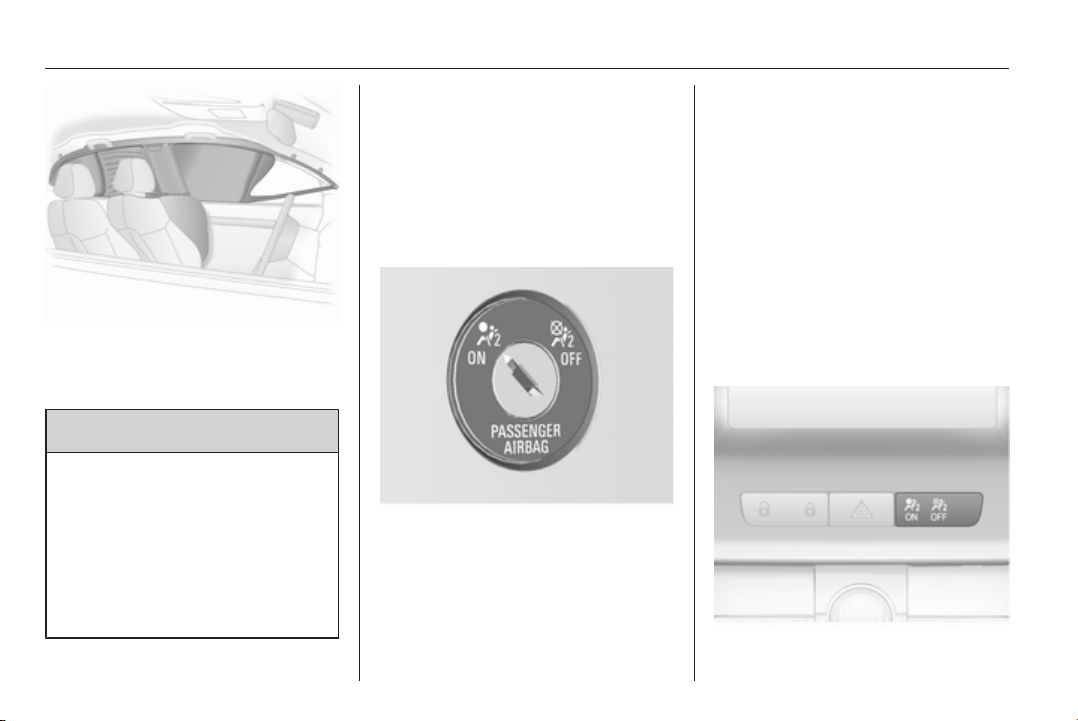

Airbag deactivation

Front airbag and side airbag systems
for the front passenger seat have to
be deactivated if a child restraint
system is to be fitted on this seat. The
curtain airbag system, the belt
tensioners and all driver airbag
systems will remain active.

Front passenger airbag system can
be deactivated via a lock on the side
of the instrument panel, visible when
the front passenger door is open.

Use the ignition key to choose the
position:

= front passenger airbags are

*

deactivated and will not inflate
in the event of a collision.
Control indicator * illuminates
continuously. A child restraint
system can be installed in
accordance with the
chart Child restraint installation
locations 3 55.

V

= front passenger airbags are

active. No child restraint
systems can be installed.

Seats, restraints 53

Back to overview

As long as the control indicator * is
not illuminated, the airbag systems
for the front passenger seat will inflate
in the event of a collision.

Change status only when the vehicle
is stopped with the ignition off.

Status remains until the next change.
Control indicator for airbag

deactivation 3 84.

Child restraints

Child restraint systems

When a child restraint system is being
used, pay attention to the following
usage and installation instructions
and also those supplied with the child
restraint system.

Always comply with local or national
regulations. In some countries, the
use of child restraint systems is
forbidden on certain seats.

9 Warning

When using a child restraint
system on the front passenger
seat, the airbag systems for the
front passenger seat must be
deactivated; if not, the triggering of
the airbags poses a risk of fatal
injury to the child.

This is especially the case if rear­facing child restraint systems are
used on the front passenger seat.

Selecting the right system

Children should travel facing
rearwards in the vehicle, until as old
as possible. It is approp'riate to
change the system when the child’s
head can no longer be properly
supported at eye height. The childs
cervical vertebrae are still very weak
and in an accident they suffer less
stress in the semi-prone rearward
position than when sitting upright.

Children under 12 years or under 150
cm (59 inches) tall should only travel
in an appropriate child restraint
system.

When transporting children, use the
child restraint systems suitable for the
child's weight.

Ensure that the child restraint system
to be installed is compatible with the
vehicle type.

Ensure that the mounting location of
the child restraint system within the
vehicle is correct.

Only allow children to enter and exit
the vehicle at the side facing away
from the traffic.

54 Seats, restraints

Back to overview

When the child restraint system is not
in use, secure the seat with a seat belt
or remove it from the vehicle.

Note
Do not stick anything on the child
restraint systems and do not cover
them with any other materials.

A child restraint system which has
been subjected to stress in an
accident must be replaced.

Seats, restraints 55

Back to overview

Child restraint installation locations

Permissible options for fitting a child restraint system

On front passenger seat

Weight and age class

Group 0: up to 10 kg

X

U1, U

2

or approx. 10 months

Group 0+: up to 13 kg

X

U1, U

2

or approx. 2 years

Group I: 9 to 18 kg

X

U1, U

2

or approx. 8 months to 4 years

Group II: 15 to 25 kg

X X U U

or approx. 3 to 7 years

Group III: 22 to 36 kg

X X U U

or approx. 6 to 12 years

1

= Only if front passenger seat airbag systems are deactivated. If the child restraint system is being secured using a three-

point seat belt, move seat height adjustment to uppermost position and ensure that vehicle safety belt runs forwards
from the upper anchorage point.

2

= Seat available with ISOFIX and Top-Tether mounting brackets.
U = Universal suitability in conjunction with three-point seat belt.
X = No child restraint system permitted in this weight class.

On rear outboard seats On rear centre seatactivated airbag deactivated airbag

2

U

2

U

2

U

2

U

2

U

2

U

56 Seats, restraints

Back to overview

Permissible options for fitting an ISOFIX child restraint system

Weight class Size class Fixture On front passenger seat1)On rear outboard seats On rear centre seat

Group 0: up to 10 kg E ISO/R1 IL IL IL

Group 0+: up to 13 kg E ISO/R1 IL IL IL

D ISO/R2 X IL IL

C ISO/R3 X IL IL

Group I: 9 to 18 kg D ISO/R2 X IL IL

C ISO/R3 X IL IL

B ISO/F2 IL IL, IUF IL, IUF

B1 ISO/F2X IL IL, IUF IL, IUF

A ISO/F3 IL IL, IUF IL, IUF

IL = Suitable for particular ISOFIX restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories.

The ISOFIX restraint system must be approved for the specific vehicle type.
IUF = Suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this mass group.
X = No ISOFIX child restraint system approved in this weight class.

1)

The ISOFIX anchorages, except for sport seats, can be retrofitted by a workshop.

Seats, restraints 57

Back to overview

ISOFIX size class and seat device

A – ISO/F3 = Forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg.
B – ISO/F2 = Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.
B1 – ISO/F2X = Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.
C – ISO/R3 = Rear-facing child restraint system for children of maximum size in the weight class up to 13 kg.
D – ISO/R2 = Rear-facing child restraint system for smaller children in the weight class up to 13 kg.
E – ISO/R1 = Rear-facing child restraint system for young children in the weight class up to 13 kg.

58 Seats, restraints

Back to overview

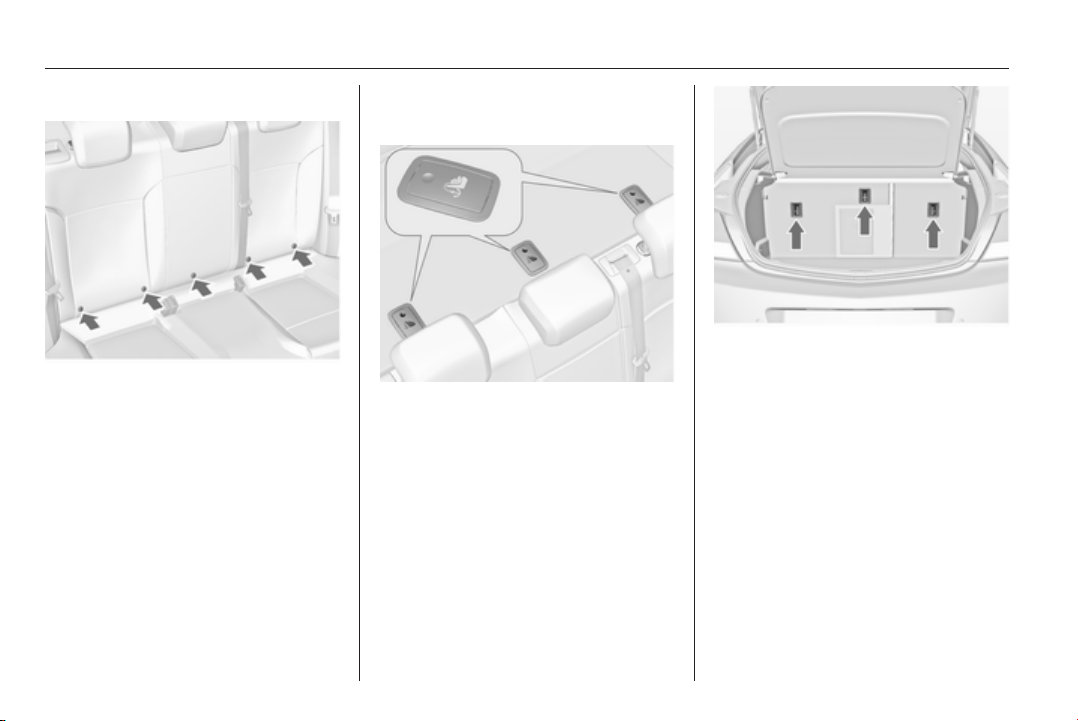

Isofix child restraint systems

Fasten vehicle-approved ISOFIX
child restraint systems to the
mounting brackets.

It is not possible to install 3 ISOFIX
child restraint systems in the rear seat
row. Only 2 child seats on the
outboard seats or 1 on the centre seat
may be installed at any one time.

When using ISOFIX mounting
brackets for seat mounting,
universally approved child restraint
systems for ISOFIX may be used.

ISOFIX mounting brackets are
indicated by a label on the backrest.

Top-tether child restraint systems

Fasten Top-tether child restraint
systems to the fastening eyes behind
the rear head restraints or at the
backside of the front passenger seat
backrest. The strap must run between
the two guide rods of the head
restraint.

When using Top-tether for seat
mounting, universally approved child
restraint systems for Top-Tether may
be used.

Top-tether mounting loops are
indicated by labels on the load
compartment cover or on the rear
side of the backrests.

Storage 59

Back to overview

Storage

Storage compartments ................ 59

Load compartment ....................... 61

Roof rack system ......................... 69

Loading information ..................... 70

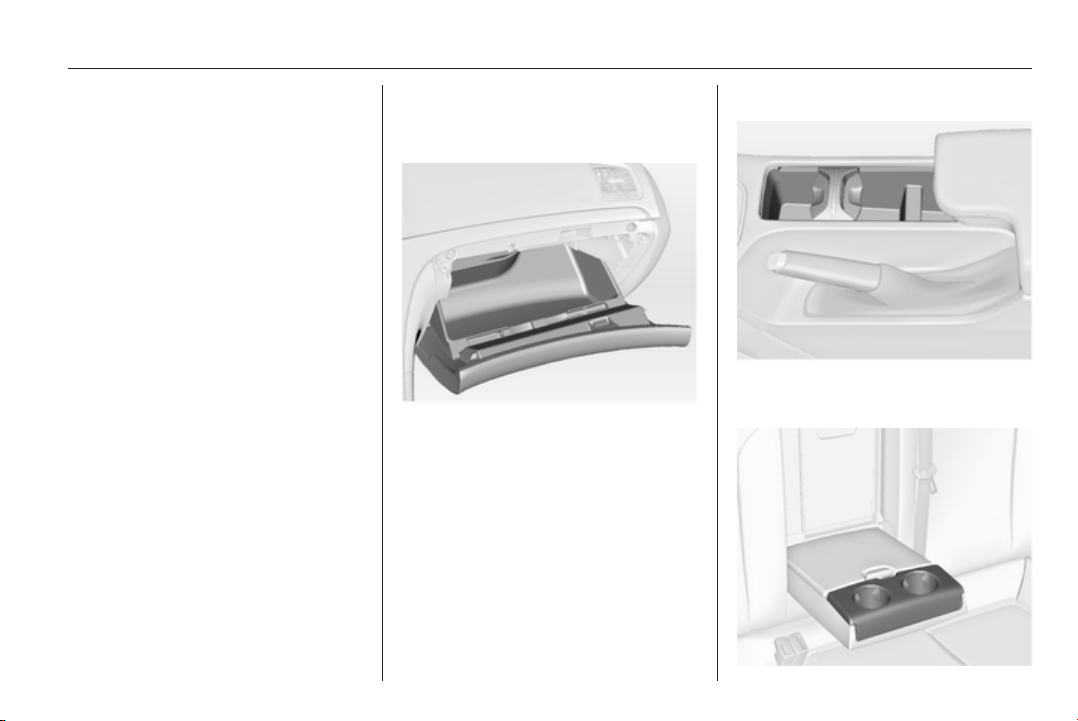

Storage compartments

Glovebox

The glovebox features a pen holder.
The glovebox should be closed whilst

driving.

Cupholders

Cupholders are located in the centre
console.

60 Storage

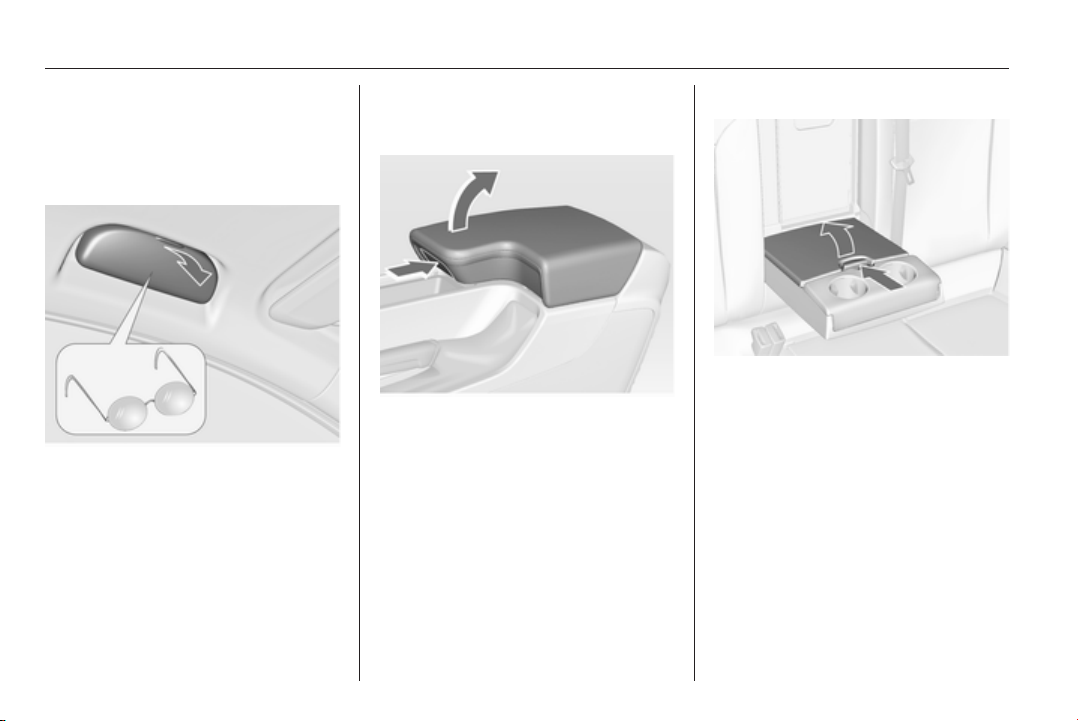

Back to overview

Additional cupholders are located in
the rear armrest, when it is folded
down.

Sunglasses storage

Fold down and open.
Do not use for storing heavy objects.

Armrest storage

Storage in the front armrest

Push button to fold up the armrest.

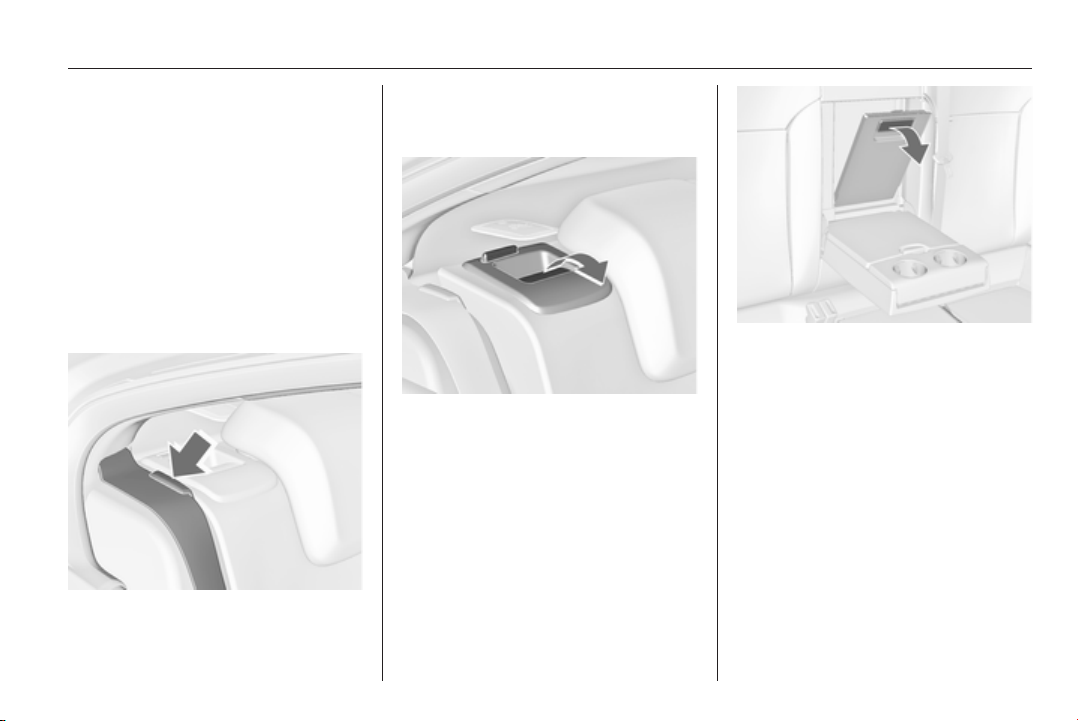

Storage in the rear armrest

Fold down armrest and open cover.
Close cover before folding the

armrest up.

Storage 61

Back to overview

Load compartment

Folding down rear seat backrests

The rear seat backrest is divided into
two parts. Both parts can be folded
down.

Remove load compartment cover as
necessary.

Push head restraints down by
pressing the catch.

Fold up rear armrest.

Put the seat belts of the outboard
seats into belt guides.

Pull release lever onto one or both
sides and fold down the backrests
onto the seat cushion.

To fold up, raise backrests and guide
them into upright position until they
engage audibly.

Ensure seat belts of the outboard
seats are placed in the corresponding
belt guides.

The backrests are only engaged
when the red marks on both sides
near the release lever are not visible.

Opening the pass-through in the rear centre backrest

Fold down rear armrest.

Pull grip and open the cover.
Suitable for loading long, narrow

objects.
Ensure the cover engages after

folding up.

62 Storage

Back to overview

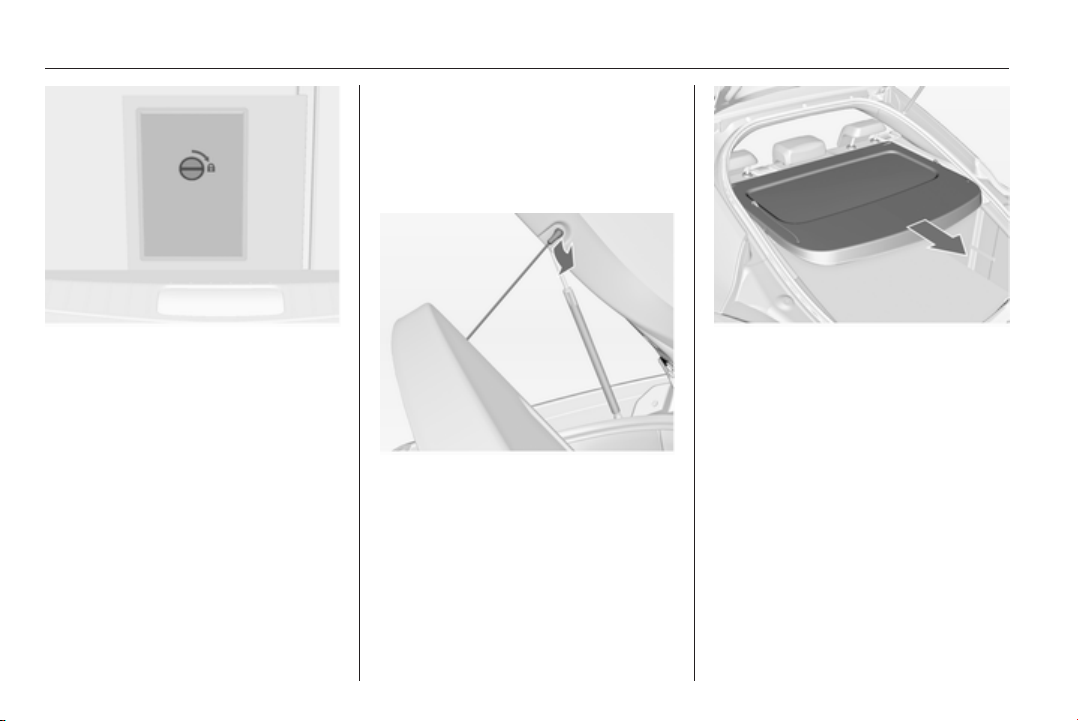

Load compartment cover

Do not place any objects on the cover.

5-door Saloon

Removing

The closed cover can be secured
from the side of the load
compartment. Turn knob through
90°:

knob
horizontal

knob
vertical

= cover secured from

the side of the
passenger room

= cover not secured

Storage in the load compartment

Depending on the version, storage
boxes are available under the load
compartment cover.

Unhook retaining straps from tailgate.

Pull cover from the side guides.

Fitting
Engage cover in side guides and fold

downwards. Attach retaining straps to
tailgate.

Station wagon

Closing
Pull the cover towards the rear using

the handle until it engages in the
sideward retainers.

Storage 63

Back to overview

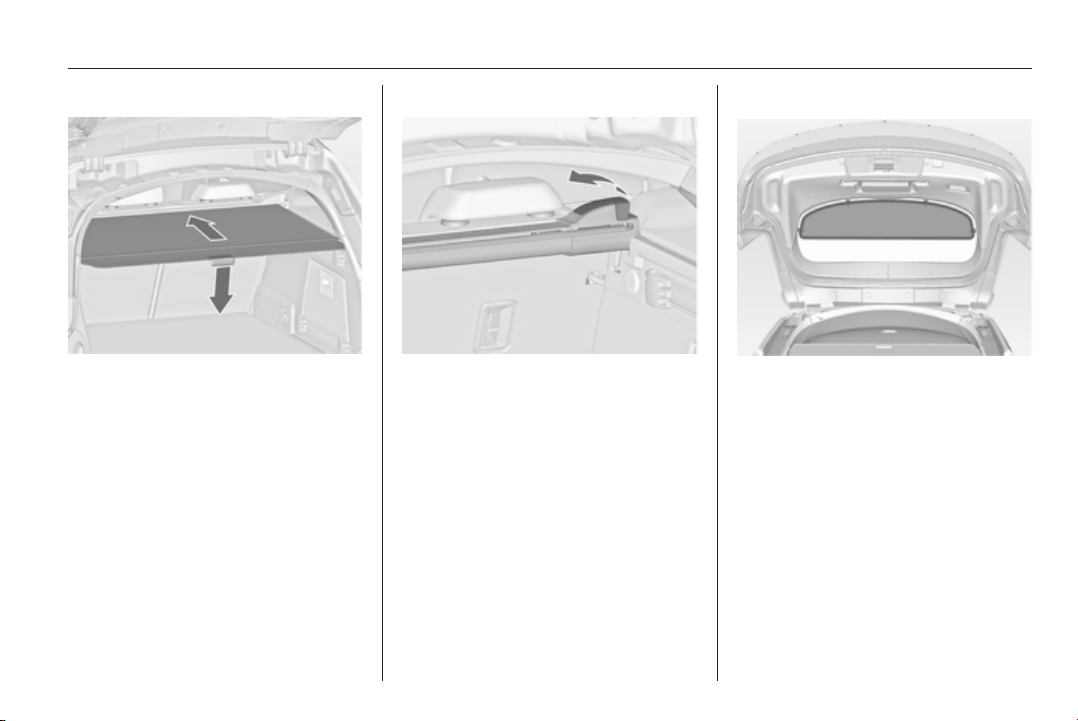

Opening

Pull down the handle at the end of the
cover. It rolls up automatically.

Removing

Open the load compartment cover.
Pull the release lever on the right side

up and hold. Lift cover firstly on right
side and remove from retainers.

The removed cover can be stored
under the load compartment floor
3 66.

Installation
Insert the left side of the load

compartment cover in the recess, pull
the release lever up and hold, insert
the right side of the load compartment
cover and engage.

Blind at the tailgate

To cover the load compartment
complete, mount the blind at four
fixing points on the inside of the
tailgate.

64 Storage

Back to overview

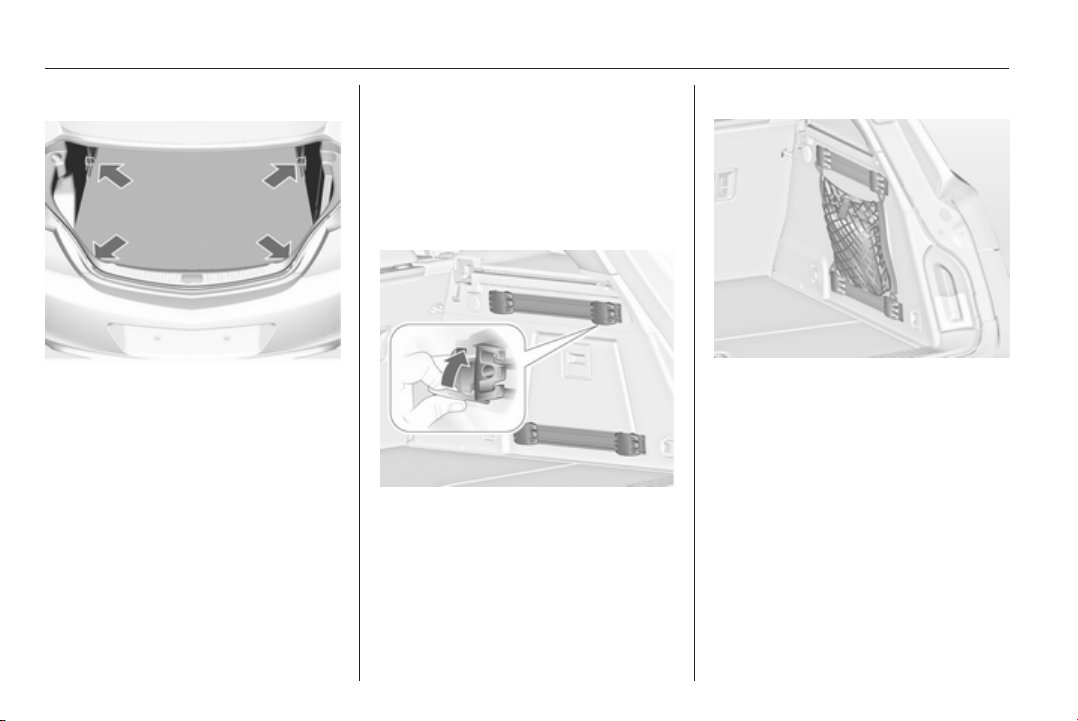

Lashing eyes

The lashing eyes are designed to
secure items against slippage, e.g.
using lashing straps or luggage net.

Cargo management system

The FlexOrganizer is a flexible
system for dividing the load
compartment or securing loads.

The system consists of

■ adapters,

■ mesh pockets,

■ hooks,

■ service box,

■ strap set.

The components are fitted in rails on
both side panels using adapters and
hooks.

Installation of adapters in the rails

Fold open the handle plate, insert
adapter into upper and lower groove
of rail and move to required position.
Turn handle plate upwards to lock the
adapter. To remove turn handle plate
upwards and move out of the rail.

Net pocket

Insert adapters into required position
in rails. Net pocket can be suspended
from the adapters.

Storage 65

Back to overview

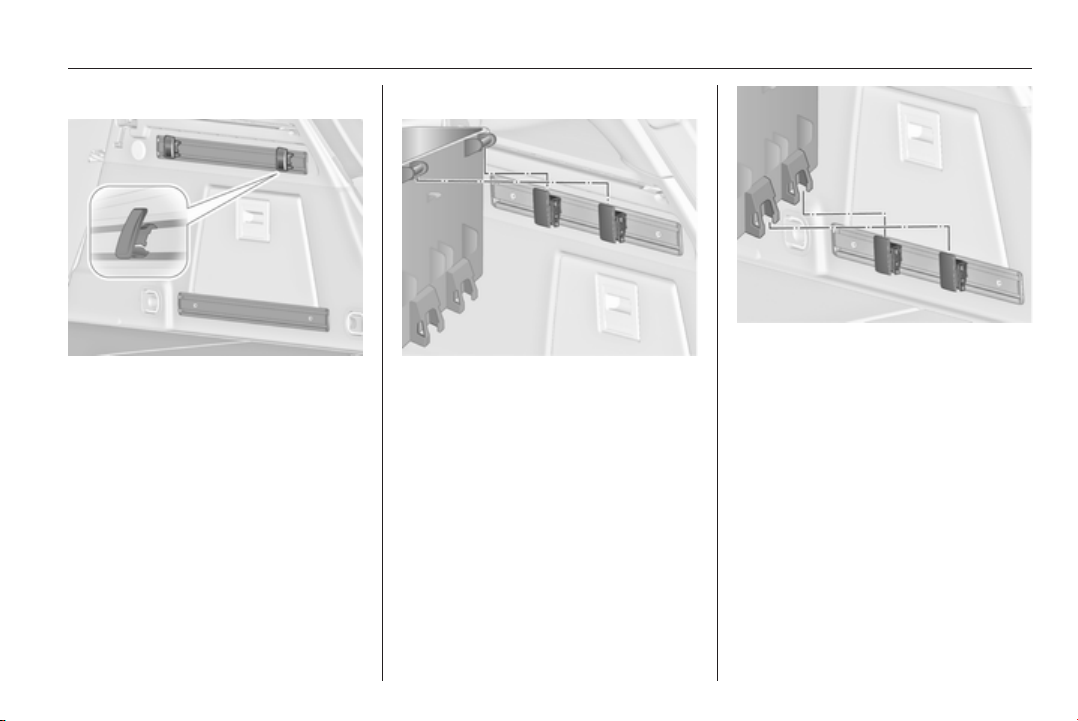

Installation of hooks in the rails

Insert the hook in the desired position
firstly in the upper groove of the rail
and then press in the lower groove.
To remove firstly pull out of the upper
groove.

Service box

Install two hooks in the upper rail.
Insert upper brackets of the box from
above into the hooks.

Alternatively install both hooks in the
lower rail. Plug in the lower brackets
of the box from above into the lower
hooks.

66 Storage

Back to overview

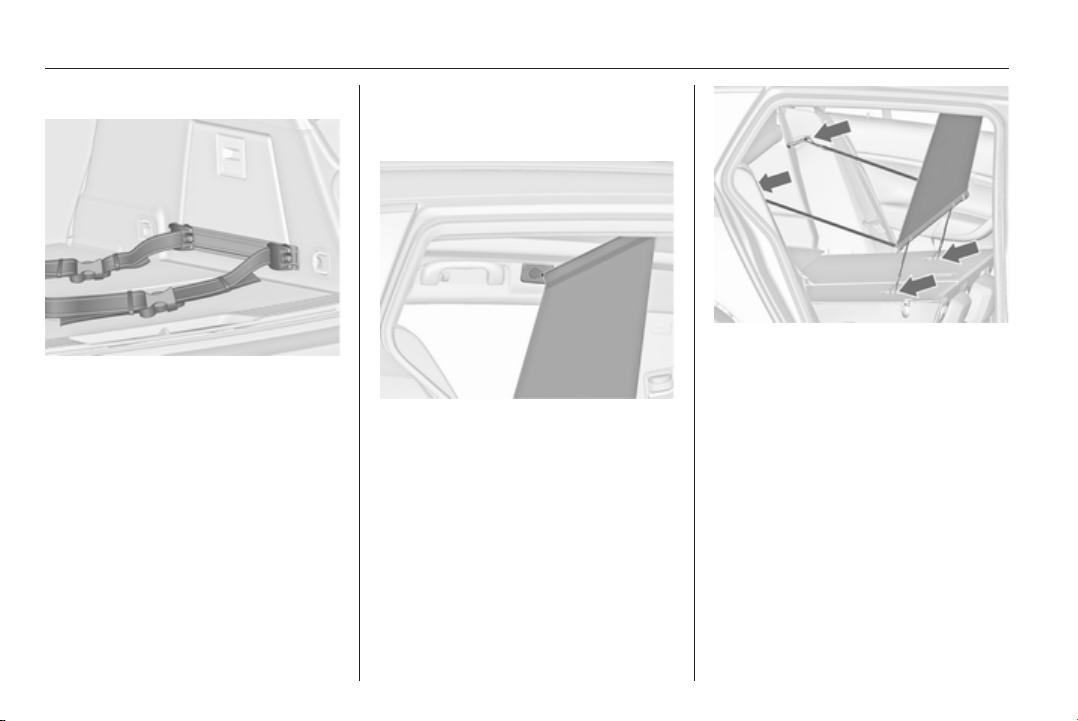

Strap set

Insert the adapters of the strap set in
a rail. Be sure that the belt is not
twisted.

The strap set has two locks to open.
The belt can be tightened.

Safety net

Two different safety nets can be
installed behind the front seats or the
rear seats.

Passengers must not be transported
behind the safety net.

Safety net behind the front seats

Push head restraints down and fold
down rear seat backrests 3 61.

Front installation openings in the roof
frame: latch rod of the net at one side,
compress rod and latch at the other
side.

Fit the hooks of the small belts into the
Top-Tether mounting loops on the
back side of the folded rear seat
backrests.

Fit the hooks of the wider belts into the
locking devices of the rear seat
backrests.

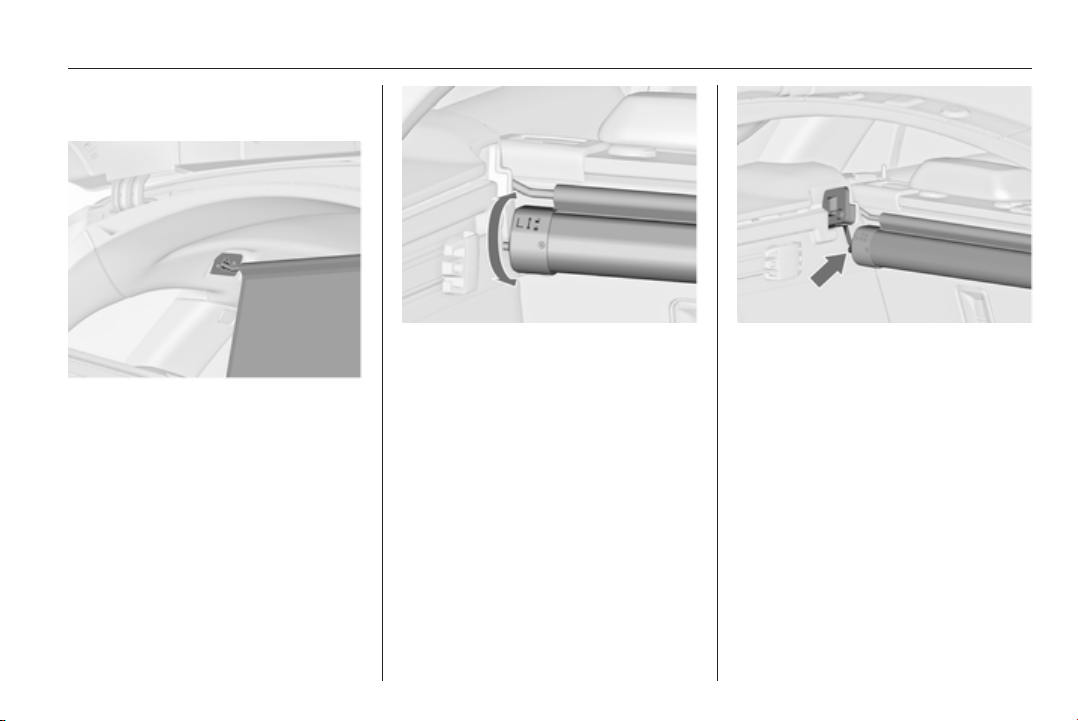

Safety net cassette behind the

Back to overview

rear seats

Storage 67

Pull out the net from the cassette and
latch rod of net at one side into the
rear installation opening in the roof
frame. Compress rod and latch at the
other side.

Removal of the cassette
Roll up safety net.

Remove load compartment cover
3 62.

To unlock turn cassette slightly
backwards and remove it upwards
from the retainers.

Installation of the cassette
Remove load compartment cover.

Insert the cassette into the retainers
on left and right side. Note the signs
L (left side) and R (right side) on the
cassette as installation hint.

Turn cassette slightly forwards to
lock.

Stowage of safety net and load compartment cover

Rear safety net cassette can be
placed together with the load
compartment cover under the load
compartment floor.

68 Storage

Back to overview

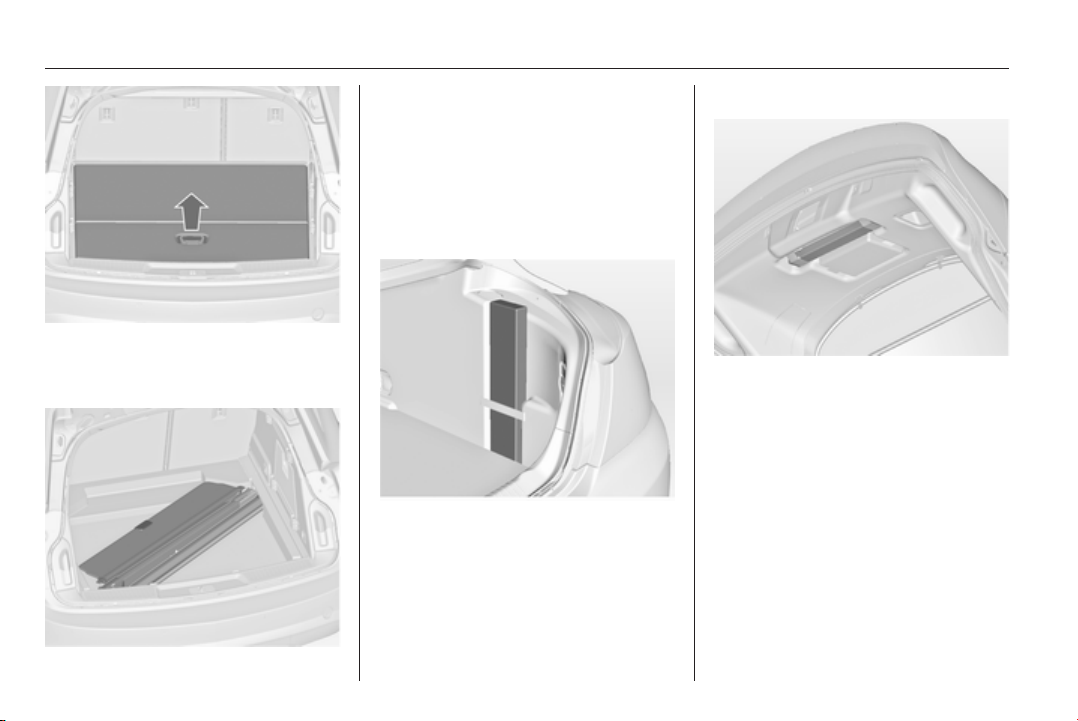

Open the load compartment floor by
pulling the handle. Fold and place the
floor behind the rear seats.

Put the load compartment cover with
the upper side downwards and with
the release lever in the front right
edge into the hollow.

Warning triangle

Saloon

Stow the warning triangle in the space
behind the strap on the right side of
the load compartment.

Station wagon

Stow the warning triangle in the space
behind the straps on the inside of the
tailgate.

Storage 69

Back to overview

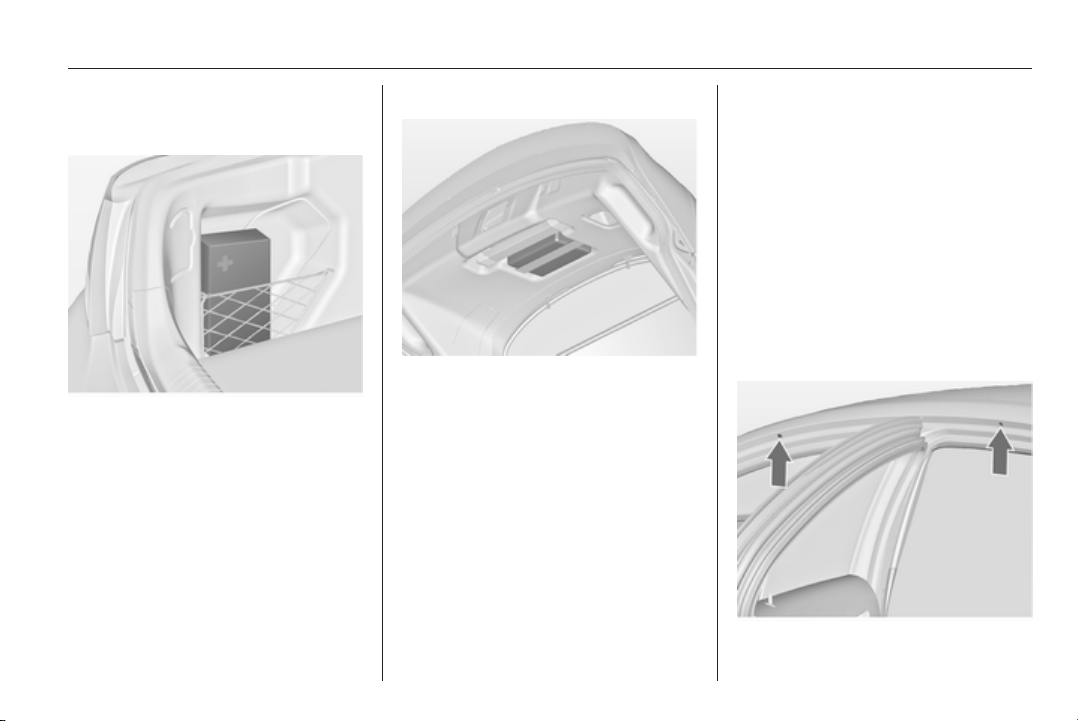

First aid kit

Saloon

Stow the first aid kit in the space
behind the mesh on the left side of the
load compartment.

Station wagon

Stow the first aid kit in the space
behind a strap on the inside of the
tailgate.

Roof rack system

Roof rack

For safety reasons and to avoid
damage to the roof, the vehicle
approved roof rack system is
recommended.

Follow the installation instructions
and remove the roof rack when not in
use.

Mounting roof rack

Saloon

Open all doors.

70 Storage

Back to overview

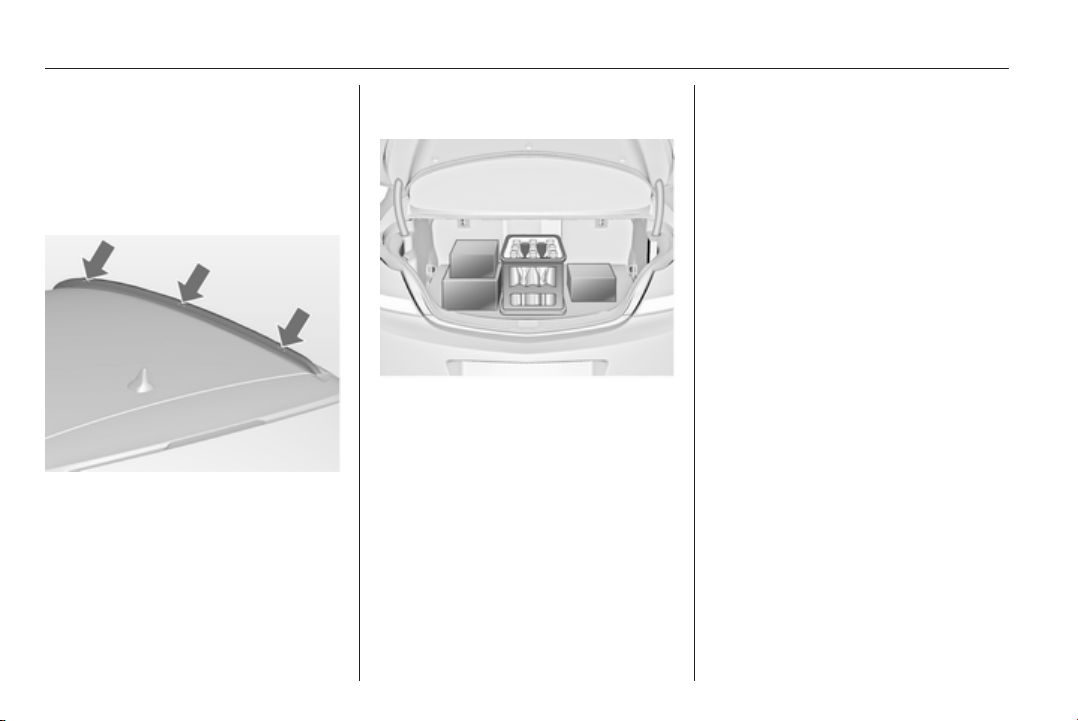

Mounting points are located in each
door frame of the vehicle body.

Detach the cover from each mounting
point and fasten the roof rack with the
attached screws.

Station Wagon with roof railing

To fasten the roof rack, insert the
mounting bolts in the holes indicated
in the figure.

Loading information

■ Heavy objects in the load
compartment should be placed
against the seat backrests. Ensure
the backrests are securely
engaged. If objects can be stacked,
the heavier objects should be
placed at the bottom.

■ Secure objects with lashing straps
attached to lashing eyes 3 64.

■ Secure loose objects in load
compartment to prevent sliding.

■ When transporting objects in the
load compartment, the backrests of
the rear seats must not be angled
forward.

■ Do not allow the load to protrude
above the upper edge of the
backrests.

■ Do not place any objects on the
load compartment cover or the
instrument panel, and do not cover
the sensor on top of the instrument
panel.

■ The load must not obstruct the
operation of the pedals, parking
brake and gear selector, or hinder
the freedom of movement of the
driver. Do not place any unsecured
objects in the interior.

■ Do not drive with an open load
compartment.

Storage 71

Back to overview

■ The payload is the difference
between the permitted gross
vehicle weight (see identification
plate 3 202) and the EC kerb
weight.

To calculate the EC kerb weight,
enter the data for your vehicle in the
Weights table, on page 3 3.

The EC kerb weight includes
weights for the driver (68 kg),
luggage (7 kg) and all fluids (tank
90 % full).

Optional equipment and
accessories increase the kerb
weight.

■ Driving with a roof load increases
the sensitivity of the vehicle to
cross-winds and has a detrimental
effect on vehicle handling due to
the vehicle’s higher centre of
gravity. Distribute the load evenly
and secure it properly with retaining
straps. Adjust the tyre pressure and
vehicle speed according to the load
conditions. Check and retighten the
straps frequently.

The permissible roof load is 100 kg.
The roof load is the combined
weight of the roof rack and the load.

72 Instruments and controls

Back to overview

Instruments and controls

Controls ....................................... 72

Warning lights, gauges and

indicators ..................................... 79

Information displays ..................... 88

Vehicle messages ........................ 90

Trip computer ............................... 95

Vehicle personalisation ................ 97

Controls

Steering wheel adjustment

Unlock lever, adjust steering wheel,
then engage lever and ensure it is
fully locked.

Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.

Steering wheel controls

The Infotainment system, the Cruise
control and the Traffic Sign Assistant
system can be operated via the
controls on the steering wheel.

Further information is available in the
Infotainment system manual.

Cruise control 3 137.
Traffic Sign Assistant system 3 93

Instruments and controls 73

Back to overview

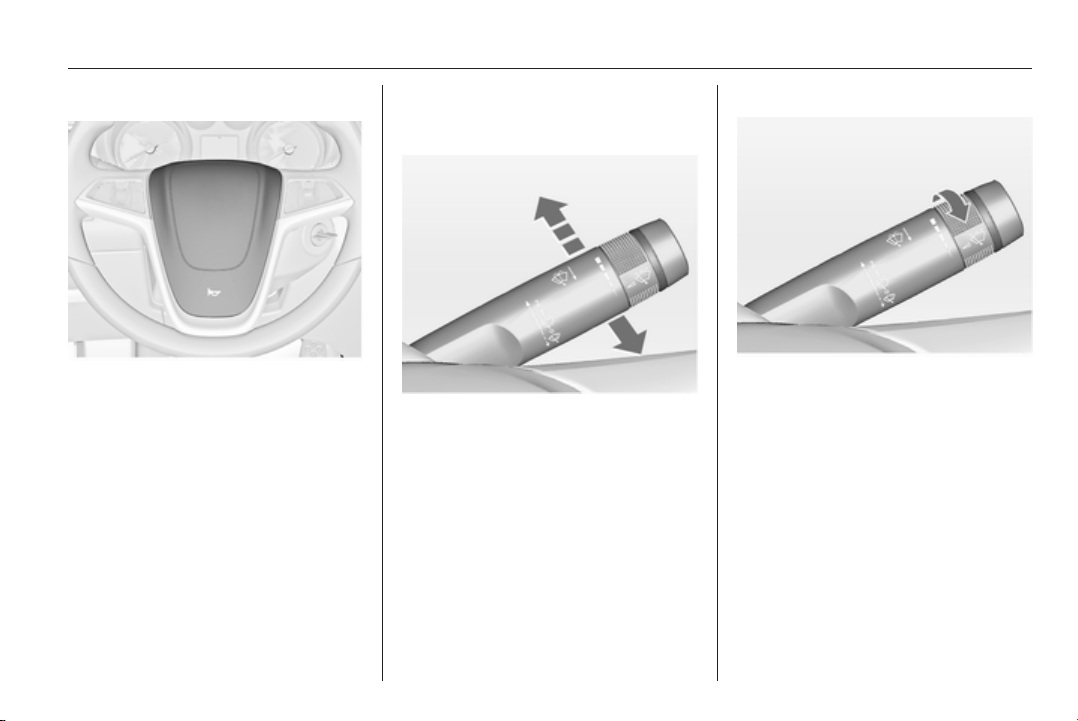

Horn

Press j.

Windscreen wiper/washer

Windscreen wiper

2 = fast
1 = slow

P

= timed interval wiping
= off

§

For a single swipe when the
windscreen wiper is off, press the
lever down.

Do not use if the windscreen is frozen.
Switch off in car washes.

Adjustable wiper interval

Wiper lever in position P.
Turn the adjuster wheel to adjust the

desired wipe interval:
short

interval
long
interval

= turn adjuster wheel

upwards

= turn adjuster wheel

downwards

74 Instruments and controls

Back to overview

Automatic wiping with rain sensor

P

= automatic wiping with rain

sensor

The rain sensor detects the amount of
water on the windscreen and
automatically regulates the frequency
of the windscreen wiper.

Adjustable sensitivity of the rain sensor

Turn the adjuster wheel to adjust the
sensitivity:

low
sensitivity
high
sensitivity

= turn adjuster wheel

downwards

= turn adjuster wheel

upwards

Keep the sensor free from dust, dirt
and ice.

Windscreen washer

Instruments and controls 75

Back to overview

Pull lever. Washer fluid is sprayed
onto the windscreen and the wiper
swipes for a few strokes.

If the headlights are on, washer fluid
is also sprayed on the headlights. The
headlight washer system is then
inoperable for 2 minutes.

Rear window wiper/washer

Push the rocker switch to activate the
rear window wiper:

upper
position
lower
position
middle
position

Push lever. Washer fluid is sprayed
on the rear window and the wiper
swipes for a few strokes.

The rear window wiper comes on
automatically when the windscreen
wiper is switched on and reverse gear
is engaged.

= continuous

operation

= intermittent

operation

= off

Activation or deactivation of this
function can be changed in the menu
Settings in the Info-Display.

Vehicle personalisation 3 97.
The rear window washer system is

deactivated when the fluid level is
low.

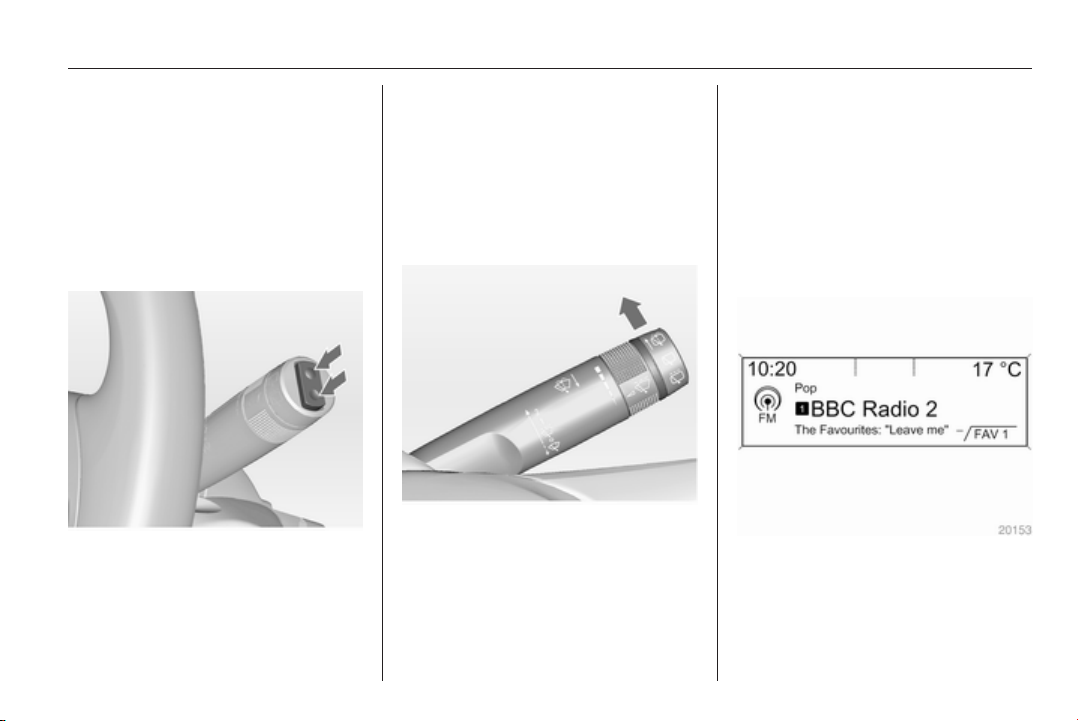

Outside temperature

A drop in temperature is indicated
immediately and a rise in temperature
after a time delay.

76 Instruments and controls

Back to overview

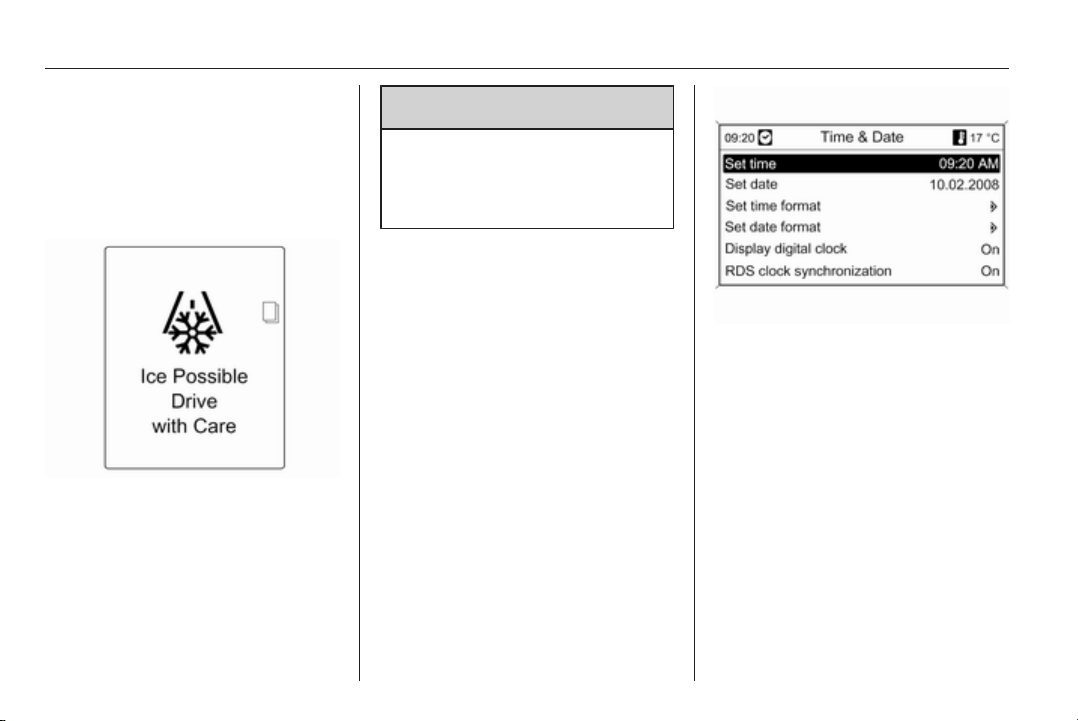

If outside temperature drops to 3 °C,
the symbol 4 illuminates in the Driver
Information Center with Uplevel­Display or in the Info-Display as
a warning for icy road conditions. 4
remains illuminated until
temperatures reach at least 5 °C.

Additionally a warning message is
displayed in the Driver Information
Center with Uplevel-Display.

9 Warning

The road surface may already be
icy even though the display
indicates a few degrees above
0 °C.

Clock

Date and time are shown in the Info­Display.

Set date and time

Press the CONFIG button. The menu
Settings is displayed.

Select Time & Date.
Vehicle personalisation 3 97.

Settings for time and date can be
adjusted.

See Infotainment system manual for
further information.

RDS clock synchronization
The RDS signal of most VHF

transmitters automatically sets the
time.

Some transmitters do not send
a correct time signal. In such cases, it
is recommended to switch off
automatic time synchronisation.

Instruments and controls 77

Back to overview

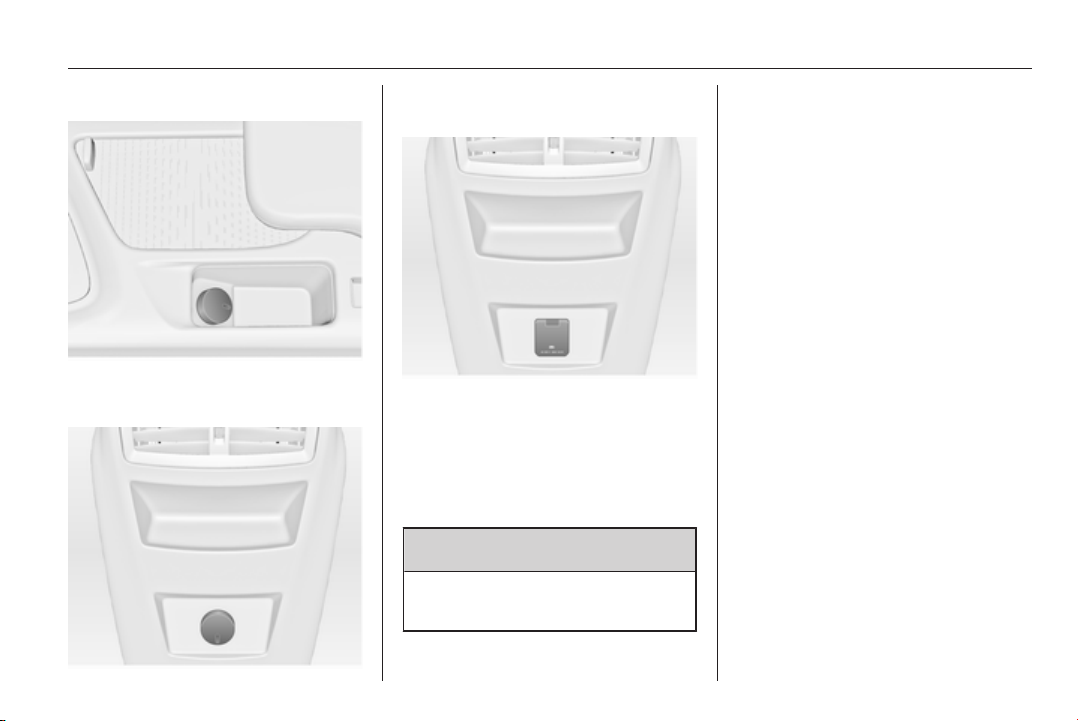

Power outlets

12 V power outlets are located in the
front and rear centre console.

Do not exceed the maximum power
consumption of 120 watts.

A 230 V power outlet is located in the
rear centre console. If ignition is on
and a device is plugged in, an LED in
the outlet illuminates green.

Do not exceed the maximum power
consumption of 150 watts.

9 Danger

Power outlet works under high
electrical voltage!

With ignition off the power outlets are
deactivated. Additionally the power
outlets are deactivated in the event of
low battery voltage.

Electrical accessories that are
connected must comply with the
electromagnetic compatibility
requirements laid down in DIN VDE
40 839.

Do not connect any current-delivering
accessories, e.g. electrical charging
devices or batteries.

Do not damage the outlets by using
unsuitable plugs.

78 Instruments and controls

Back to overview

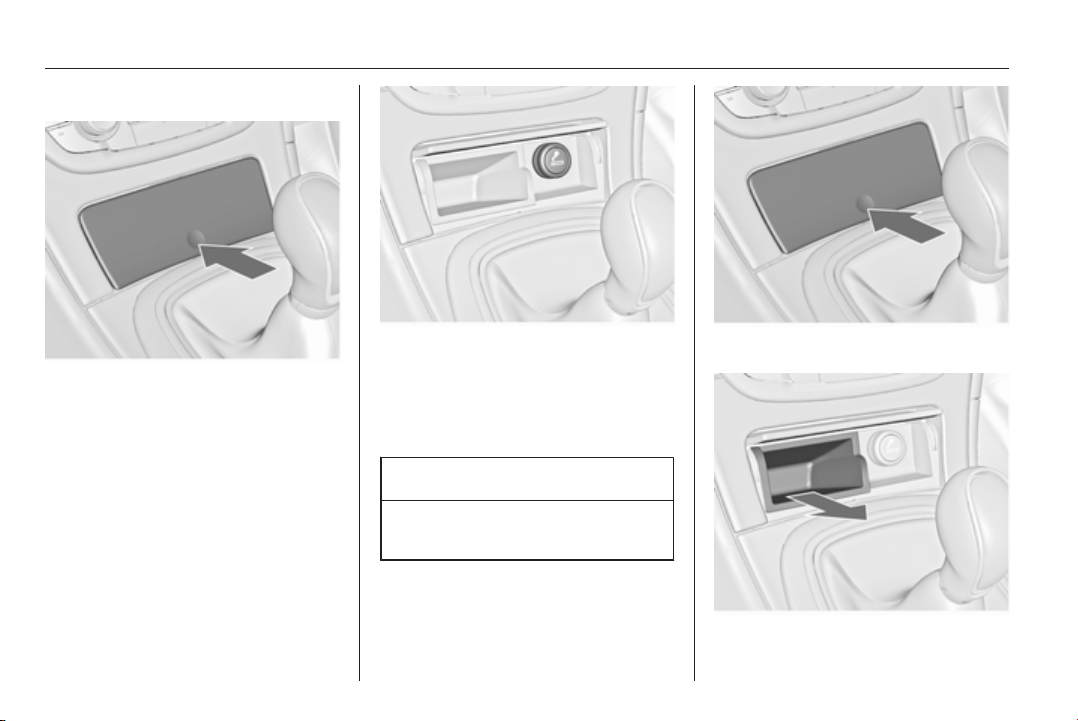

Cigarette lighter

The cigarette lighter is located behind
the ashtray cover.

Press ashtray cover to open.

Press in cigarette lighter. Switches off
automatically once the element is
glowing. Pull out lighter.

Ashtrays

Caution

To be used only for ash and not for
combustible rubbish.

Press ashtray cover to open.

To empty, grip both sides of the
ashtray insert and remove.

Instruments and controls 79

Back to overview

Warning lights, gauges and indicators

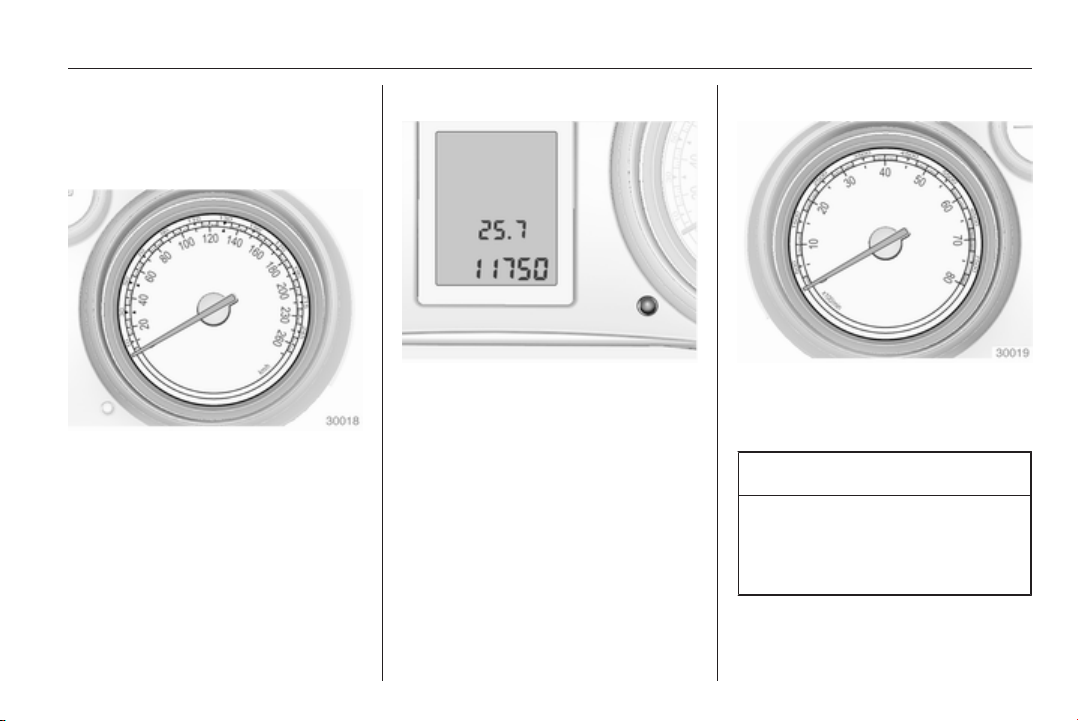

Speedometer

Indicates vehicle speed.

Odometer

The bottom line displays the recorded
distance.

Trip odometer

The top line displays the recorded
distance since the last reset.

To reset, hold the reset knob
depressed for a few seconds with the
ignition on.

Tachometer

Displays the engine speed.
Drive in a low engine speed range for

each gear as much as possible.

Caution

If the needle is in the red warning
zone, the maximum permitted
engine speed is exceeded. Engine
at risk.

80 Instruments and controls

Back to overview

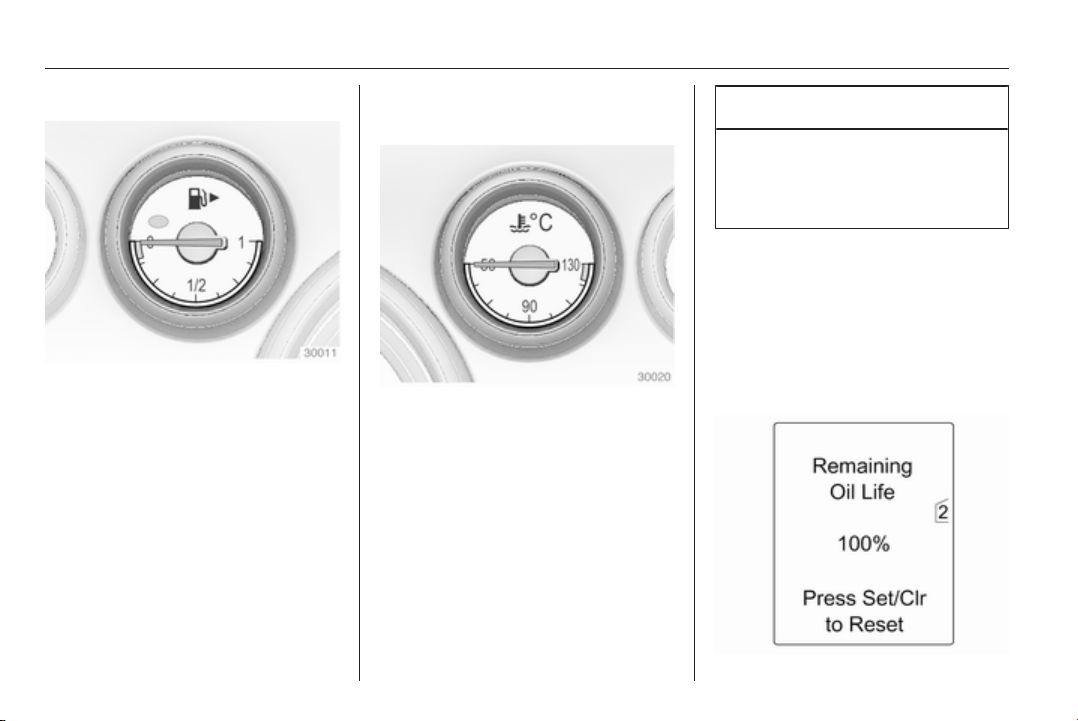

Fuel gauge

Displays the fuel level in the tank.
Control indicator i illuminates if the

level in the tank is low. Refuel
immediately.

Never run the tank dry.
Because of the fuel remaining in the

tank, the top-up quantity may be less
than the specified tank capacity.

Engine coolant temperature gauge

Displays the coolant temperature.
left area = engine operating

temperature not yet

reached
central
area
right area = temperature too high

= normal operating

temperature

Caution

If engine coolant temperature is
too high, stop vehicle, switch off
engine. Danger to engine. Check
coolant level.

Service display

The engine oil life system lets you
know when to change the engine oil
and filter. Based on driving
conditions, the interval at which an
engine oil and filter change will be
indicated can vary considerably.

Instruments and controls 81

Back to overview

In the Uplevel-Display the remaining
oil life duration is displayed in the
Vehicle Information Menu.

In the Midlevel-Display the remaining
engine oil duration is displayed by the
control indicator I.

The menu and function can be
selected via the buttons on the turn
signal lever.

To display the remaining engine oil
duration:

Press the MENU button to select the
Vehicle Information Menu.

Turn the adjuster wheel to select the
oil life system.

For the system to work properly, it
must be reset every time the engine
oil is changed. Seek the assistance of
a workshop.

Press the SET/CLR button to reset
while applying the brake pedal.

When the system has calculated that
engine oil life has been diminished,
Change Engine Oil Soon or a warning
code appears in the Driver
Information Center. Have engine oil
and filter changed by a workshop
within one week or 500 km
(300 miles) (whichever occurs first).

Driver Information Center 3 88.
Service information 3 190.

Control indicators

The control indicators described are
not present in all vehicles. The
description applies to all instrument
versions. When the ignition is
switched on, most control indicators
will illuminate briefly as a functionality
test.

The control indicator colours mean:
red = danger, important

reminder
yellow = warning, information, fault
green = confirmation of activation
blue = confirmation of activation

82 Instruments and controls

Back to overview

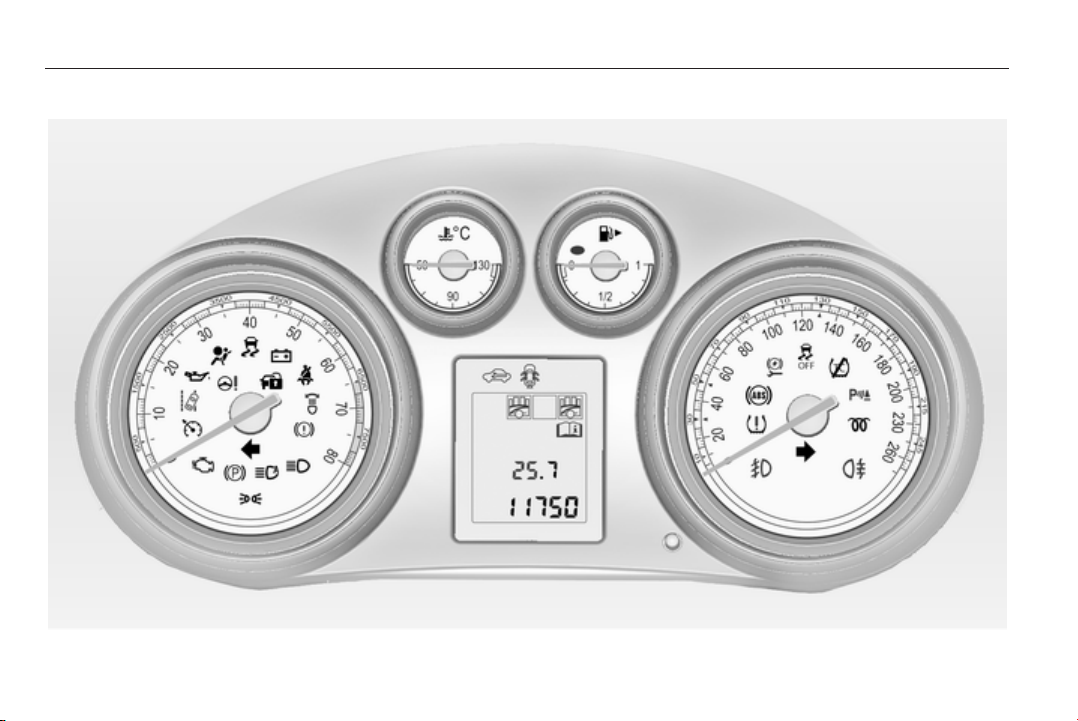

Control indicators in the instrument cluster

Instruments and controls 83

Back to overview

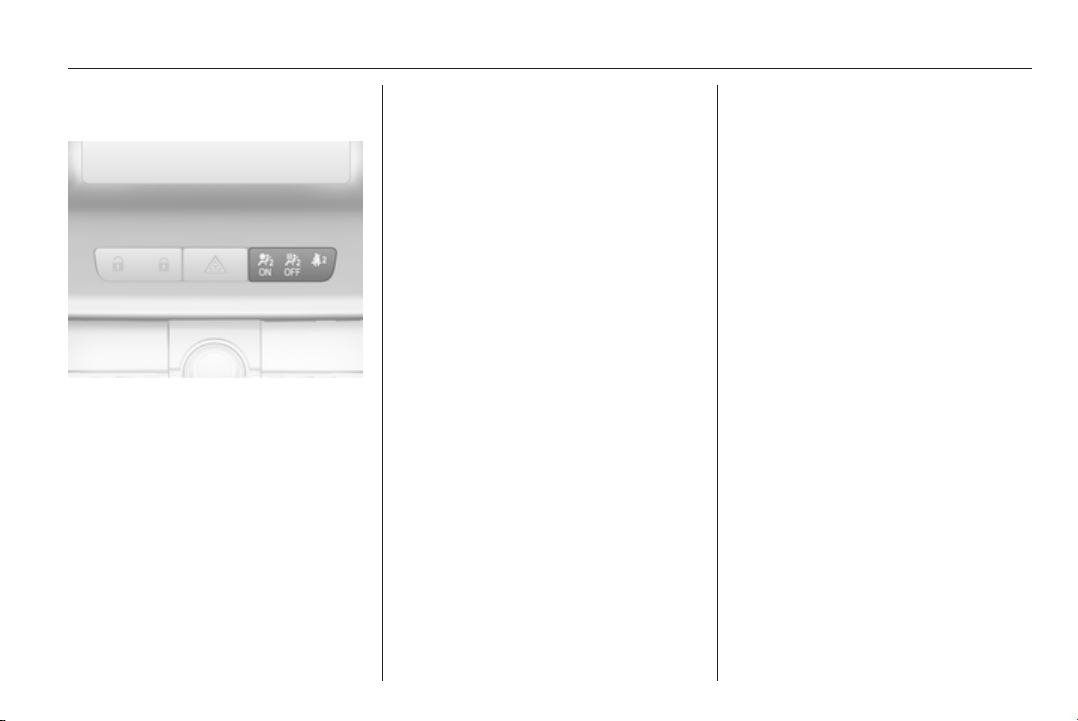

Control indicators in the centre console

Turn signal

O illuminates or flashes green.

Illuminates

The control indicator illuminates
briefly when the parking lights are
switched on.

Flashes

The control indicator flashes if a turn
signal or the hazard warning flashers
are activated.

Rapid flashing: failure of a turn signal
light or associated fuse, failure of turn
signal light on trailer.

Bulb replacement 3 156, Fuses
3 165.

Turn signals 3 105.

Seat belt reminder

Seat belt reminder on front seats

X for driver's seat illuminates or
flashes red.

k for front passenger seat illuminates
or flashes red, when seat is occupied.

Illuminates
After the ignition is switched on until

the seat belt is fastened.

Flashes
After starting off until the seat belt is

fastened.

Seat belt reminder on rear seats

> or X, depending on the display,
flashes or illuminates.

Illuminates
After the ignition is switched on when

the seat belt is fastened.

Flashes
After starting off when the seat belt is

unfastened.
Fastening the seat belt 3 47.

Airbag and belt tensioners

v illuminates red.
When the ignition is switched on, the

control indicator illuminates for
approx. 4 seconds. If it does not
illuminate, does not go out after
4 seconds or illuminates whilst
driving, there is a fault in the belt
tensioner, the airbags or the seat
occupancy recognition system. The
airbags and belt tensioners may fail to
trigger in the event of an accident.

Deployment of the belt tensioners or
airbags is indicated by continuous
illumination of v.

84 Instruments and controls

Back to overview

9 Warning

Have the cause of the fault
remedied immediately by
a workshop.

Belt tensioners, airbag system 3 46,
3 49.

Airbag deactivation

V for front passenger airbag
illuminates yellow.

When the control indicator illuminates
the front passenger airbag is
activated.

* for front passenger airbag
illuminates yellow.

When the control indicator illuminates
the front passenger airbag is
deactivated.

Charging system

p illuminates red.
Illuminates when the ignition is

switched on and goes out shortly after
the engine starts.

Illuminates when the engine is running

Stop, switch off engine. Battery is not
charging. Engine cooling may be
interrupted. The brake servo unit may
cease to be effective. Seek the
assistance of a workshop.

Malfunction indicator light

Z illuminates or flashes yellow.
Illuminates when the ignition is

switched on and goes out shortly after
the engine starts.

Illuminates when the engine is running

Fault in the emission control system.
The permitted emission limits may be
exceeded. Seek the assistance of
a workshop immediately.

Flashes when the engine is running

Fault that could lead to catalytic
converter damage. Ease up on the
accelerator until the flashing stops.
Seek the immediate assistance of
a workshop.

Service vehicle soon

g illuminates yellow when the
vehicle needs a service.

Illuminates in combination with
a warning message or a warning
code.

Vehicle messages 3 90.

Brake and clutch system

R illuminates red.
Illuminates when the manual parking

brake is released if the brake and
clutch fluid level is too low 3 154.

9 Warning

Stop. Do not continue your
journey. Consult a workshop.

Illuminates after the ignition is
switched on if the manual parking
brake is applied 3 132.

Electrical parking brake

m illuminates or flashes red.

Instruments and controls 85

Back to overview

Illuminates

Electrical parking brake is applied
3 132.

Flashes

Electrical parking brake is not fully
applied or released. Switch on
ignition, press foot brake pedal and
attempt to reset the system by first
releasing and then applying the
electrical parking brake. If m remains
flashing, do not drive and seek the
assistance of a workshop.

Electrical parking brake fault

j illuminates or flashes yellow.

Illuminates

Electrical parking brake is operating
with degraded performance 3 132.

Flashes

Electrical parking brake is in service
mode. Stop vehicle, apply and
release the electrical parking brake to
reset.

9 Warning

Have the cause of the fault
remedied immediately by
a workshop.

Antilock brake system (ABS)

u illuminates yellow.
Illuminates for a few seconds after the

ignition is switched on. The system is
ready for operation when the control
indicator goes out.

If the control indicator does not go out
after a few seconds, or if it illuminates
while driving, there is a fault in the
ABS. The brake system remains
operational but without ABS
regulation.

Antilock brake system 3 131.

Variable effort steering

c illuminates yellow.

Fault in variable effort steering
system. This may lead to a higher or
lower steering effort. Consult
a workshop.

Lane departure warning

) illuminates green or yellow or
flashes yellow.

Illuminates green

System is switched on and ready to
operate.

Flashes yellow

System recognizes an unintendent
lane change.

Illuminates yellow

No lane marking is detected.

Ultrasonic parking assist

r illuminates yellow.
Fault in system
or
Fault due to sensors that are dirty or

covered by ice or snow
or

86 Instruments and controls

Back to overview

Interference due to external sources
of ultrasound. Once the source of
interference is removed, the system
will operate normally.

Have the cause of the fault in the
system remedied by a workshop.

Ultrasonic parking assist 3 138.

Electronic Stability Control

b illuminates or flashes yellow.

Illuminates

A fault in the system is present.
Continued driving is possible. Driving
stability, however, may deteriorate
depending on road surface
conditions.

Have the cause of the fault remedied
by a workshop.

Flashes

The system is actively engaged.
Engine output may be reduced and
the vehicle may be braked
automatically to a small degree.

Electronic Stability Control off

n flashes yellow.
Flashes when the system is

deactivated.

Traction Control system off

k flashes yellow.
Flashes when the system is

deactivated.

Preheating and diesel particle filter

! illuminates or flashes yellow.

Illuminates

Preheating activated. Only activates
when outside temperature is low.

Flashes

If the diesel particle filter requires
cleaning and previous driving
conditions did not permit automatic
cleaning. Continue driving and if
possible do not allow engine speed to
drop below 2000 rpm.

! goes off as soon as the self­cleaning operation is complete.

Diesel particle filter 3 124.

Tyre pressure monitoring system

w illuminates or flashes yellow.

Illuminates

Tyre pressure loss. Stop immediately
and check tyre pressure.

Flashes

Fault in system or tyre without
pressure sensor mounted (e.g. spare
wheel). After 60 - 90 seconds the
control indicator illuminates
continuously. Consult a workshop.

Engine oil pressure

I illuminates red.
Illuminates when the ignition is

switched on and goes out shortly after
the engine starts.

Instruments and controls 87

Back to overview

Illuminates when the engine is running

Caution

Engine lubrication may be
interrupted. This may result in
damage to the engine and/or
locking of the drive wheels.

1. Depress clutch.

2. Select neutral gear, set selector
lever to N.

3. Move out of the flow of traffic as
quickly as possible without
impeding other vehicles.

4. Switch off ignition.

9 Warning

When the engine is off,
considerably more force is needed
to brake and steer.

Do not remove key until vehicle is
stationary, otherwise the steering
wheel lock could engage
unexpectedly.

Check oil level before seeking
assistance of a workshop 3 152.

Low fuel

i illuminates yellow.
Illuminates when level in fuel tank is

too low.
Catalytic converter 3 125.
Bleeding the diesel fuel system

3 155.

Immobiliser

d flashes yellow.
Fault in the electronic immobiliser

system. The engine cannot be
started.

Apply footbrake

- illuminates yellow.
Illuminates when brake pedal needs

to be depressed to release the
electrical parking brake 3 132.

Exterior light

8 illuminates green.

Illuminated when the exterior lights
are on 3 101.

l illuminates green.
Illuminated when the automatic light

control is switched on 3 102.

High beam

C illuminates blue.
Illuminated when high beam is on and

during headlight flash 3 104.

Adaptive forward lighting

f illuminates or flashes yellow.

Illuminates

Fault in system.
Seek the assistance of a workshop.

Flashes

System switched to symmetrical low
beam.

Control indicator f flashes for approx.
4 seconds after the ignition is
switched on as a reminder that the
system has been activated 3 104.

Automatic light control 3 102.

88 Instruments and controls

Back to overview

Fog light

> illuminates green.
Illuminated when the front fog lights

are on 3 106.

Rear fog light

r illuminates yellow.
Illuminated when the rear fog light is

on 3 106.

Cruise control

m illuminates white.
Illuminated when the system is on

3 137.

Door open

h illuminates red.
Illuminates when a door or the tailgate

is open.

Information displays

Driver Information Center

The Driver Information Center (DIC)
is located in the instrument cluster
and available as Midlevel-Display or
Uplevel-Display.

Selecting functions

The menus and functions can be
selected via the buttons on the turn
signal lever.

Press the MENU button to switch
between the menus or to return from
a submenu to the next higher menu
level.

The following menus can be selected:

■ Vehicle Information Menu

■ Trip/Fuel Information Menu

Turn the adjuster wheel to highlight
a menu option or to set a numeric
value.

Press the SET/CLR button to select
a function or to confirm a message.

Vehicle personalisation 3 97.
Trip computer 3 95.

Instruments and controls 89

Back to overview

Traffic sign assistant 3 93.

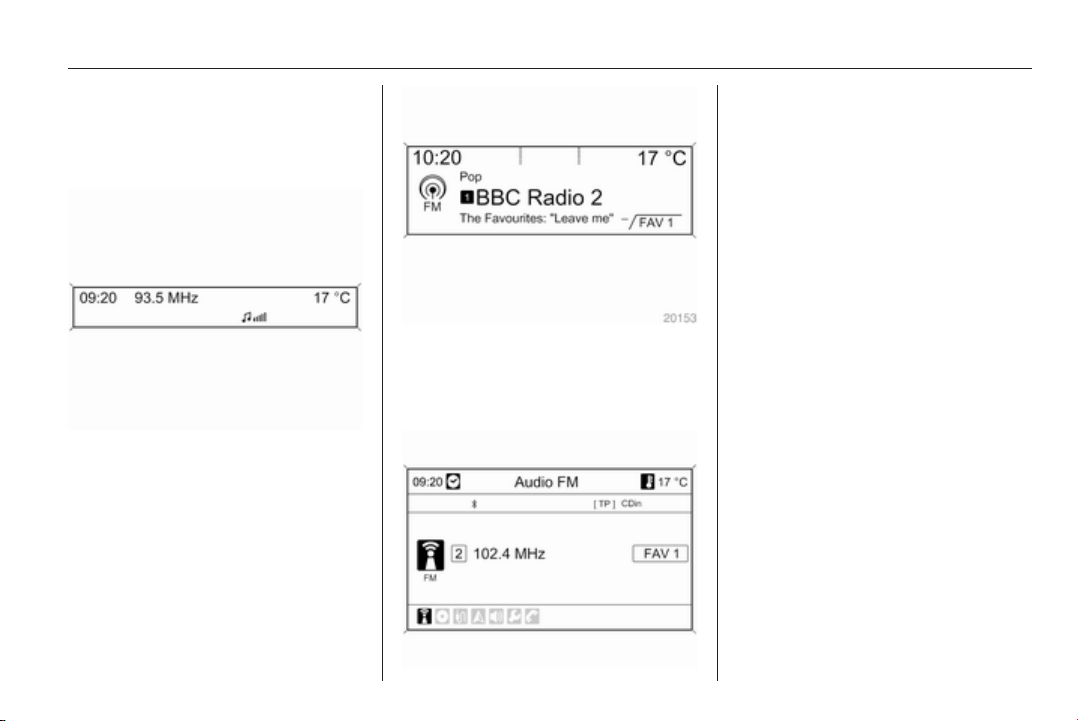

Graphic-Info-Display, Colour­Info-Display

Depending on the Infotainment
system, the Graphic-Info-Display is
available in two versions.

Displays time, outside temperature,
date or Infotainment system (when it
is on) and settings for vehicle
personalisation.

The Colour-Information-Display
presents the information in colour.

The type of information and how it is
displayed depend on the equipment
of the vehicle and the settings made.

Selecting functions

Functions and settings are accessed
via the display.

Selections are made via:

■ menus

■ function buttons and multifunction
knob of the Infotainment system

■ function buttons and multifunction
knob of the multifunction unit in the
centre console.

90 Instruments and controls

Back to overview

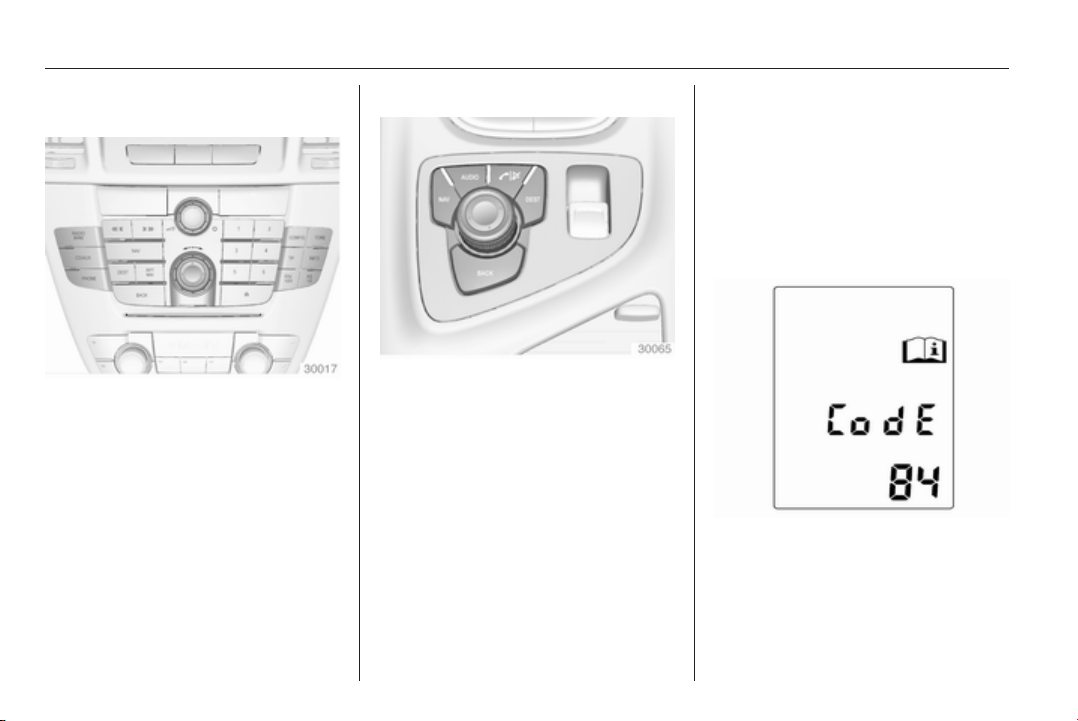

Selecting with the Infotainment system

Select menu items via the menus and
the Infotainment system buttons. The
multifunction knob is used to select an
item and confirm.

To exit a menu, press BACK.

Selecting with the multifunction unit

Select menu items via the menus and
the buttons of the multifunction unit.
The multifunction knob is used to
select an item and to confirm.

To exit a menu, press BACK.

Vehicle messages

Messages are given via the Driver
Information Center (DIC), the Info­Display or as warning and signal
buzzers. Confirm warning messages
with the multifunction knob.

Midlevel-Display

Instruments and controls 91

Back to overview

The vehicle messages are displayed
as code numbers.

No. Vehicle message

1 Change engine oil

2 No radio remote control

detected, depress clutch pedal
for a restart

3 Engine coolant level low

4 Air conditioning off

5 Steering wheel is locked

6 Depress brake pedal to release

electrical parking brake

7 Turn steering wheel, switch

ignition off and then on

8 Switch ignition off and then on,

repeat breath test

9 Turn steering wheel, start

engine again

10 Brakes overheated

11 Brake pads worn

No. Vehicle message

12 Vehicle overloaded

13 Compressor overheated

15 Centre high-mounted brake

light failure

16 Service brake lights

17 Headlight levelling malfunction

18 Left low beam failure

19 Rear fog light failure

20 Right low beam failure

21 Left front sidelight failure

22 Right front sidelight failure

23 Reversing light failure

24 Number plate light failure

25 Left front turn signal failure

26 Left rear turn signal failure

27 Right front turn signal failure

28 Right rear turn signal failure

No. Vehicle message

29 Check trailer brake light

30 Check trailer reversing light

31 Check left trailer turn signal

32 Check right trailer turn signal

33 Check trailer rear fog light

34 Check trailer rear light

35 Replace battery in radio remote

control

48 Clean side blind zone alert

system

49 Lane departure warning

unavailable

50 Activated pedestrian protection

system, reset bonnet

51 Compass unavailable

53 Tighten gas cap

54 Water in diesel fuel filter

55 Service diesel particle filter

92 Instruments and controls

Back to overview

No. Vehicle message

56 Tyre pressure imbalance on

front axle

57 Tyre pressure imbalance on

rear axle

58 Tyres without TPMS sensors

detected

59 Open and then close driver

window

60 Open and then close front

passenger window

61 Open and then close rear left

window

62 Open and then close rear right

window

65 Theft attempted

66 Service theft alarm system

67 Service steering wheel lock

68 Service power steering

69 Service suspension system

No. Vehicle message

70 Service level control system

71 Service rear axle

73 Service All-wheel drive system

74 Service AFL

75 Service air conditioning

76 Service side blind zone alert

system

77 Service lane departure warning

78 Service pedestrian protection

system

79 Top up engine oil

80 Change transmission fluid

81 Service transmission

82 Change engine oil soon

83 Service adaptive cruise control

84 Engine power is reduced

99 Pedestrian protection system

disabled

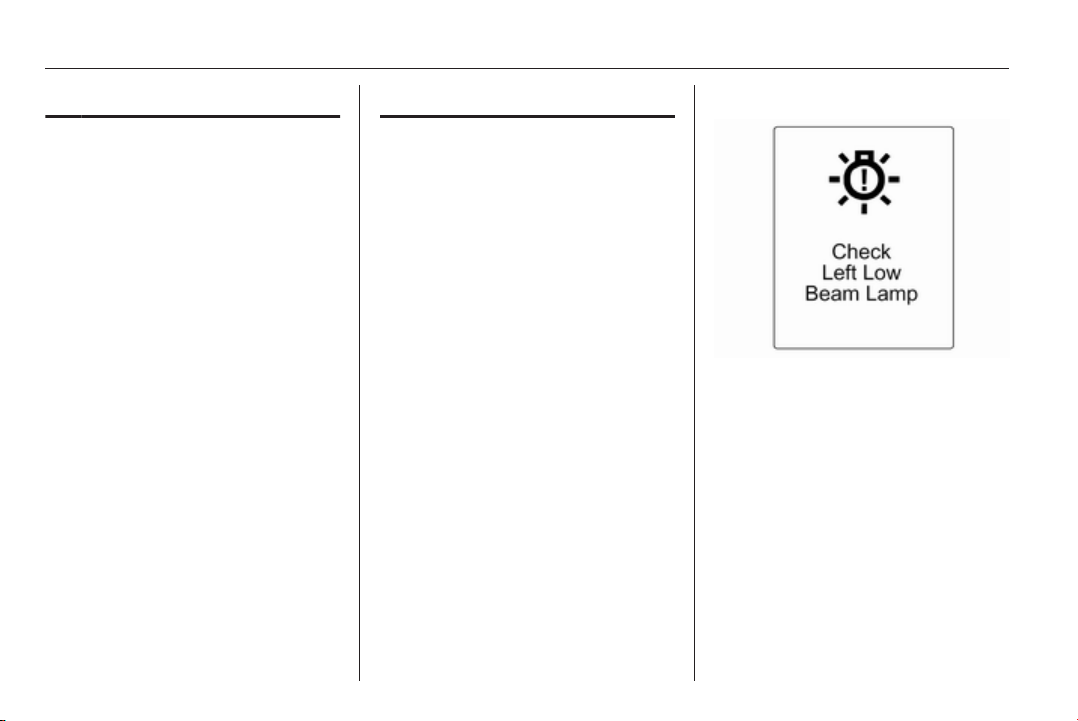

Uplevel-Display

The vehicle messages are displayed
as text. Follow the instructions given
in the messages.

The system displays messages
regarding the following topics:

■ Fluid levels

■ Anti-theft alarm system

■ Brakes

■ Drive systems

■ Ride control systems

■ Cruise control

■ Object detection systems

Instruments and controls 93

Back to overview

■ Lighting, bulb replacement

■ Wiper/washer system

■ Doors, windows

■ Radio remote control

■ Seat belts

■ Airbag systems

■ Engine and transmission

■ Tyre pressure

Warning chimes

When starting the engine or whilst driving

■ If seat belt is not fastened.

■ If a door or the tailgate is not fully
closed when starting off.

■ If a certain speed is exceeded with
parking brake applied.

■ If a programmed speed is
exceeded.

■ If a warning message or a warning
code appears in the Driver
Information Center.

■ If the parking assist detects an
object.

When the vehicle is parked and/or the driver's door is opened

■ When the key is in the ignition
switch.

■ With exterior lights on.

■ If the trailer hitch is not engaged.

Traffic sign assistant

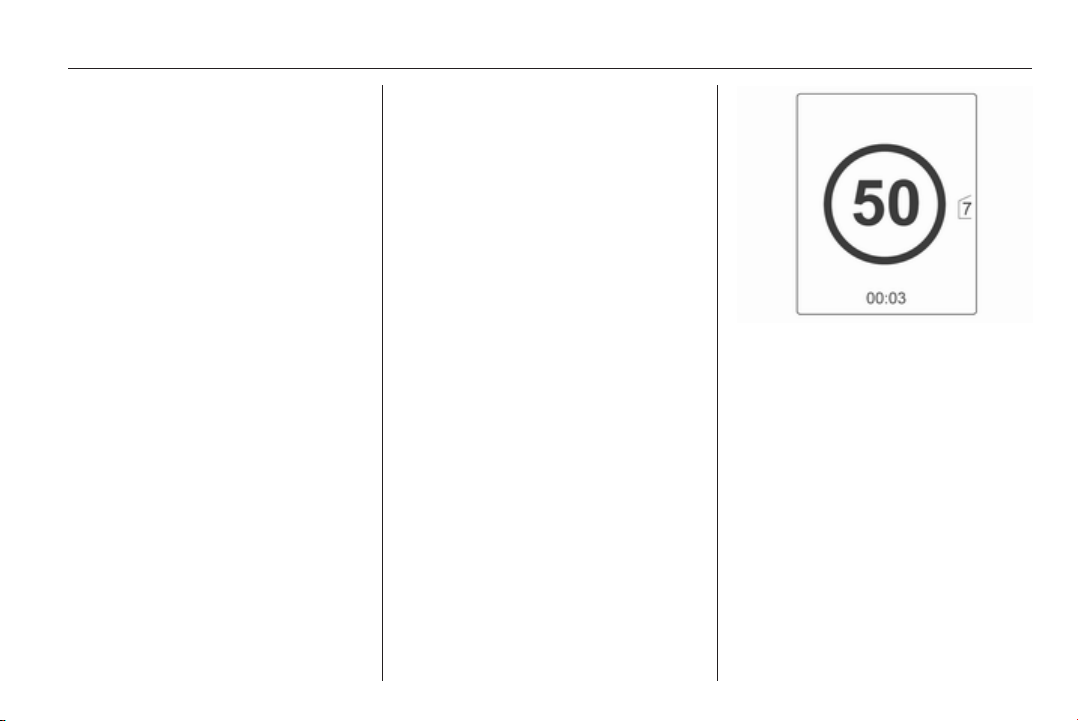

Functionality

The traffic sign assistant system
detects designated traffic signs via
a front camera and displays them in
the Driver Information Center.

Traffic signs, which will be detected,
are

■ speed limit

■ no passing

■ end of speed limit

■ end of no passing

Speed limit signs are displayed in the
Driver Information Center until the
next speed limit sign or end of speed
limit is detected.

No passing signs have priority above
speed limits and are shown as
a popup indication for approx.
8 seconds in the Driver Information
Center.

94 Instruments and controls

Back to overview

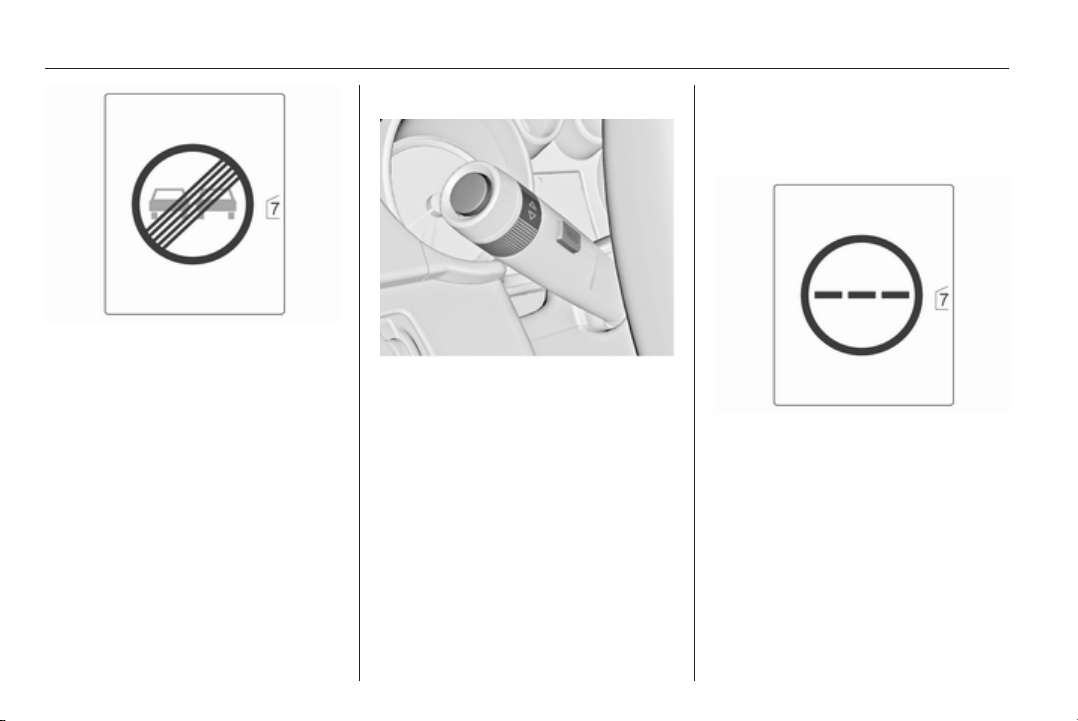

The system is active at an indicated
speed above 55 km/h (34 mph) and is
active up to a speed of 200 km/h (124
mph) depending on the lighting
conditions. At night the system is
active up to a speed of 150 km/h (93
mph).

Display indication

Traffic signs are displayed on the
page Traffic sign detection in the Trip/
Fuel Information Menu, chosen via
the adjuster wheel on the turn signal
lever 3 88. Speed limits are only
shown on this page. No passing signs
are displayed as popup on each page
of the menu. When another function
on the Driver Information Center
menu was selected and then Traffic
sign detection page is chosen again,
the last recognized traffic sign will be
displayed.

If the system is deactivated, the
content of the traffic sign page is
cleared, indicated by the following
symbol:

The content of the traffic sign page is
also cleared during driving by pushing
the SET/CLR button on the turn signal
lever.

Instruments and controls 95

Back to overview

Fault

The traffic sign assistant system may
not operate correctly when:

■ the area of the windshield, where
the front camera is located, is not
clean

■ traffic signs are completely or
partially covered or badly
discernible

■ there are bad environmental
conditions like strong rain, snow,
direct sunlight or shadows. In this
case No Traffic Sign Detection due
to Weather is indicated on the
display

■ traffic signs are incorrectly mounted
or damaged

■ traffic signs do not comply with the
Wiener Übereinkommen über
Straßenverkehrszeichen (Vienna
Convention on traffic signs)

Caution

The system is intended to help the
driver within a defined speed
range to discern certain traffic
signs. Do not ignore traffic signs
which are not displayed by the
system.

The system does not discern any
other traffic signs that might give
or end a speed limit.

Do not let this special feature
tempt you into taking risks when
driving.

Adapt speed always to the road
conditions.

The driver assistance systems do
not relieve the driver from full
responsibility of vehicle operation.

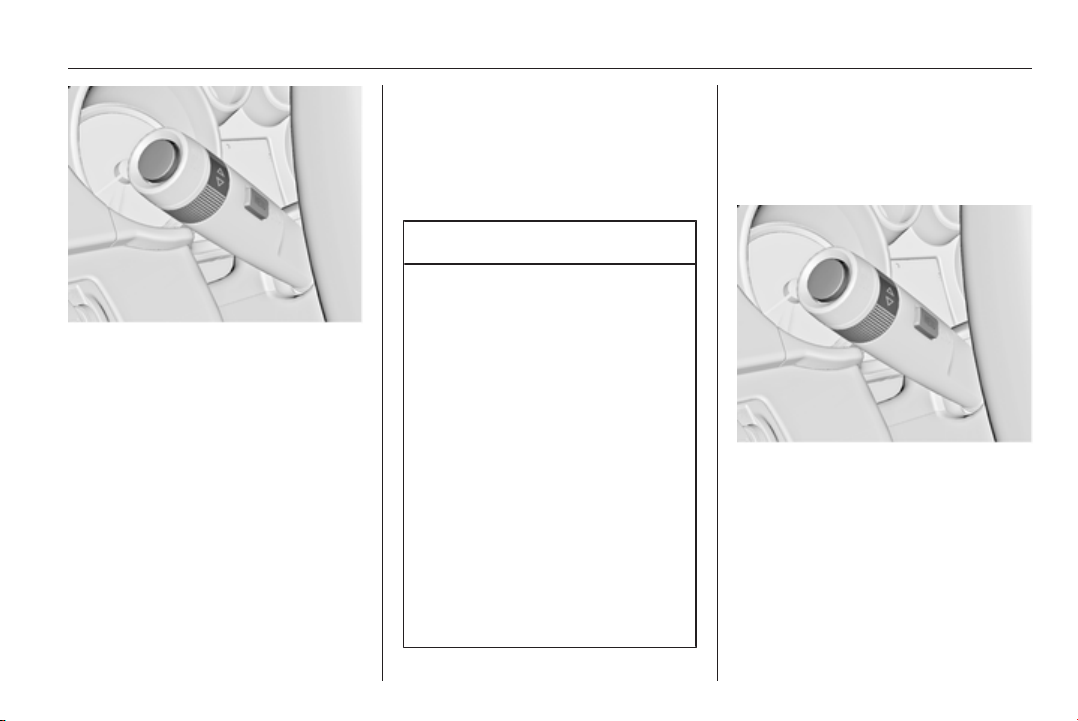

Trip computer

The menus and functions can be
selected via the buttons on the turn
signal lever.

Press the MENU button to select the
Trip/Fuel Information Menu.

Turn the adjuster wheel to select one
of the submenus:

■ Trip computer 1

■ Trip computer 2

■ Range

■ Average consumption

■ Instantaneous consumption

96 Instruments and controls

Back to overview

■ Average speed

■ Timer

■ Route information

■ Traffic sign assistant

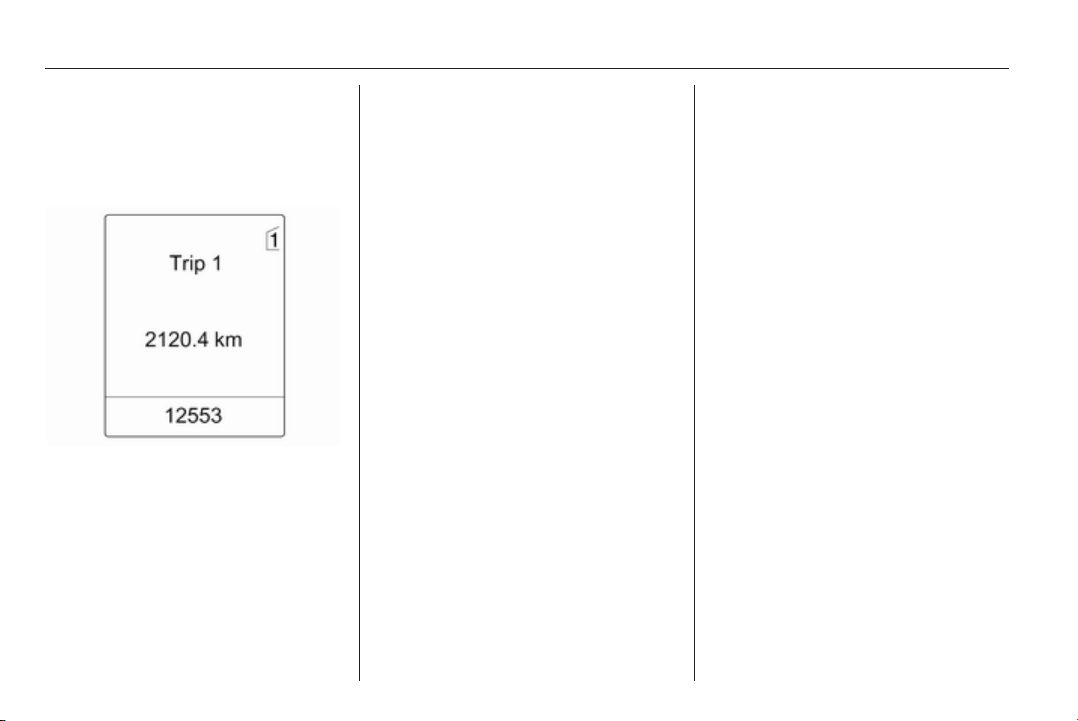

The information of the two trip
computers can be reset separately,
making it possible to display different
trip distances.

To reset, press the reset knob or
press the SET/CLR button for a few
seconds.

Range

Range is calculated from current fuel
tank content and current
consumption. The display shows
average values.

After refuelling, the range is updated
automatically after a brief delay.

When the fuel level in the tank is low,
a message appears in the Driver
Information Center and in the Info­Display.

Additionally the control indicator i in
the fuel gauge illuminates.

Average consumption

Display of average consumption. The
measurement can be reset at any
time.

To reset, press the SET/CLR button
for a few seconds.

Instantaneous consumption

Display of the instantaneous
consumption.

Average speed

Display of average speed. The
measurement can be reset at any
time.

To reset, press the SET/CLR button
for a few seconds.

Timer

Measurement of the time from
activation to deactivation.

Press the SET/CLR button to start
and stop the measurement.

Route information

In addition to the Color-Info-Display
route information is displayed when
navigation is active.

Traffic sign assistant

Indicates designated traffic signs for
a defined route section.

Instruments and controls 97

Back to overview

Vehicle personalisation

The vehicle's behaviour can be
personalised via changing the
settings in the Driver Information
Center and in the Info-Display.

Depending on vehicle equipment and
country-specific regulations some of
the functions described below might
not be available.

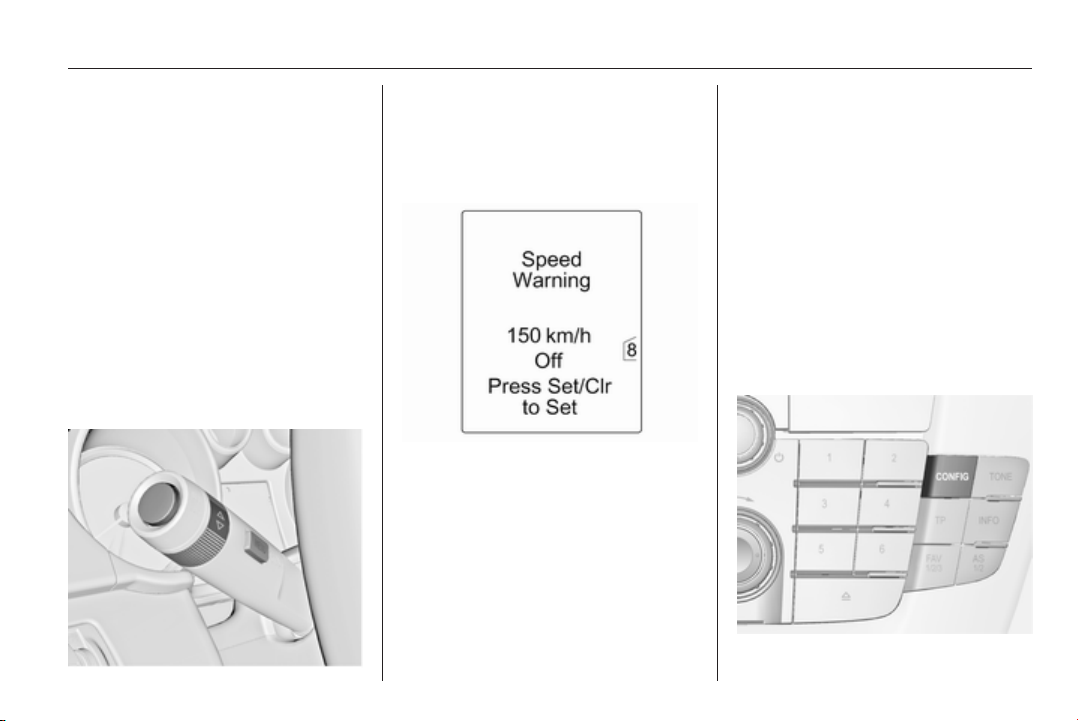

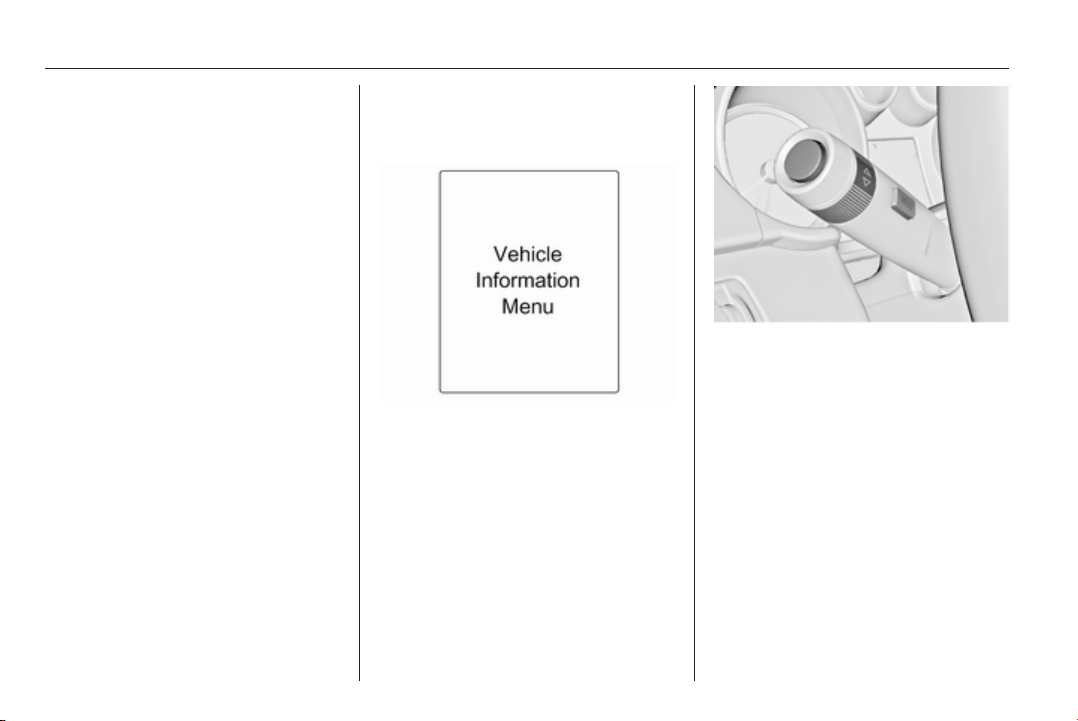

Settings in the Driver Information Center

The menus and functions can be
selected by the buttons on the turn
signal lever.

Press the MENU button to select the
Vehicle Information Menu.

Turn the adjuster wheel to select one
of the submenus. Press the SET/
CLR button to confirm.

Follow the instructions given in the
submenus:

■ Unit: Displayed units can be
changed.

■ Tire Pressure: 3 173.

■ Remaining Oil Life: 3 80

■ Coolant Temperature: Display of
engine coolant temperature. 3 80

■ Relearn Remote Key: Relearn after
battery replacement.

■ Compass: Display of compass in
combination with navigation
system.

■ Battery Voltage: Display of battery
voltage.

■ Speed Warning: If exceeding the
preset speed a warning chime will
be activated.

■ Language: Displayed language can
be changed.

Settings in the Info-Display

98 Instruments and controls

Back to overview

Press the CONFIG button. The menu
Settings is displayed.

The following settings can be
selected:

■ Sport mode settings

■ Time & Date

■ Radio settings

■ Phone settings

■ Navigation settings

■ Vehicle settings

■ Display settings

In the corresponding submenus the
following settings can be changed:

Sport mode settings
The driver can select the functions

which will be activated in Sport mode
3 135.

■ Sport suspension: Damping
becomes harder.

■ Engine & Gearbox: Accelerator
pedal and gear change
characteristics become more
responsive.

■ Sport steering: Steering support
reduced.

■ All wheel drive: Engine torque is
distributed to a greater extent to the
rear axle.

■ Main instrument illumination:
Change of instrument illumination
colour.

■ Restore factory settings: Reset all
functions to factory settings.

Time & Date
See Clock 3 76 and Infotainment
system manual for further

information.

Radio settings
See Infotainment system manual for

further information.

Phone settings
See Infotainment system manual for

further information.

Navigation settings
See Infotainment system manual for

further information.

Instruments and controls 99

Back to overview

Vehicle settings

■ Climate and air quality
Fan control: Modifies the fan

regulation.
Air conditioning mode: Activate or

deactivate cooling.
Temperature zone settings:

Change between single zone or
dual zone temperature setting.

■ Comfort & Convenience
Chime volume: Change the volume

of warning chimes.
Easy exit driver seat: Activate or

deactivate easy exit function of the
power seat.

Tilt mirror in reverse: Activate or
deactivate the parking assist
function of the exterior mirrors.

Auto mirror folding: Activate or
deactivate folding of the exterior
mirrors with radio remote control.

Personalisation by driver: Activate
or deactivate the personalisation
function.

Rear auto wipe in rear reverse:
Activate or deactivate automatically
switching on of the rear window
wiper when reverse gear is
engaged.

■ Collision detection systems
Park assistant: Activate or

deactivate the ultrasonic parking
assist .

On with towbar attached: Activate
or deactivate the ultrasonic parking
assist during trailer operation.

■ Lighting
Vehicle locator lights: Activate or

deactivate the entry lighting.
Ambient lights on exit: Activate or

deactivate and change the duration
of exit lighting.

100 Instruments and controls

Back to overview

■ Door locks
Prevent door locking while these

are open: Activate or deactivate the
locking function while driver's door
is open.

Auto door lock: Activate or
deactivate the automatic door
locking function.

Auto door unlock: Change the
configuration to unlock only the
driver's door or complete vehicle
whilst unlocking.

Delayed door lock: Activate or
deactivate the time delay of the
automatic door locking function.

■ Remote Lock / Unlock / Start
Flash lights: Activate or deactivate

the hazard warning flasher
feedback whilst unlocking.

Remote key door unlock: Change
the configuration to unlock only the
driver's door or the whole vehicle
whilst unlocking.

Relock remote door: Activate or
deactivate the automatic relock
function after unlocking without
opening the vehicle.

Memory recall using remote:
Recalls the memorised settings
with the radio remote control.

Display settings
See Infotainment system manual for

further information.
