Opel Corsa 2015 User Manual

OPEL CORSA

Owner's Manual

Contents

Introduction .................................... 2

In brief ............................................ 6

Keys, doors and windows ............ 22

Seats, restraints ........................... 36

Storage ........................................ 58

Instruments and controls ............. 76

Lighting ...................................... 110

Climate control ........................... 120

Driving and operating ................. 130

Vehicle care ............................... 178

Service and maintenance .......... 225

Technical data ........................... 228

Customer information ................ 242

Index .......................................... 246

2 Introduction

Introduction

Introduction 3

Vehicle specific data

Please enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and
maintenance" and "Technical data"
as well as on the identification plate.

Introduction

Your vehicle is a designed
combination of advanced technology,
safety, environmental friendliness
and economy.

This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.

Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.

You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this
Owner's Manual.

When this Owner's Manual refers to a
workshop visit, we recommend your
Opel Service Partner.

All Opel Service Partners provide
first-class service at reasonable
prices. Experienced mechanics
trained by Opel work according to
specific Opel instructions.

The customer literature pack should
always be kept ready to hand in the
vehicle.

Using this manual

■ This manual describes all options
and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model variant,
country specifications, special
equipment or accessories.

■ The "In brief" section will give you
an initial overview.

■ The table of contents at the
beginning of this manual and within
each section shows where the
information is located.

■ The index will enable you to search
for specific information.

■ This Owner's Manual depicts left­hand drive vehicles. Operation is
similar for right-hand drive vehicles.

■ The Owner's Manual uses the
factory engine designations. The
corresponding sales designations
can be found in the section
"Technical data".

■ Directional data, e.g. left or right, or
front or back, always relate to the
direction of travel.

■ The vehicle display screens may
not support your specific language.

■ Display messages and interior
labelling are written in bold letters.

Danger, Warnings and
Cautions

9 Danger

Text marked 9 Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.

4 Introduction

9 Warning

Text marked 9 Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.

Caution

Text marked Caution provides
information on possible damage to
the vehicle. Disregarding this
information may lead to vehicle
damage.

Symbols

Page references are indicated with 3.
3 means "see page".

We wish you many hours of
pleasurable driving.

Adam Opel AG

Introduction 5

6 In brief

In brief

Initial drive information

Vehicle unlocking

Press button c to unlock the doors
and load compartment. Open the
doors by pulling the handles.

To open the tailgate, push the
touchpad switch below the brand
emblem.

Radio remote control 3 23, Central
locking system 3 24, Load
compartment 3 27.

In brief 7

Seat adjustment

Seat positioning

Pull handle, slide seat, release
handle.

Seat position 3 37, Seat adjustment
3 38.

9 Danger

Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.

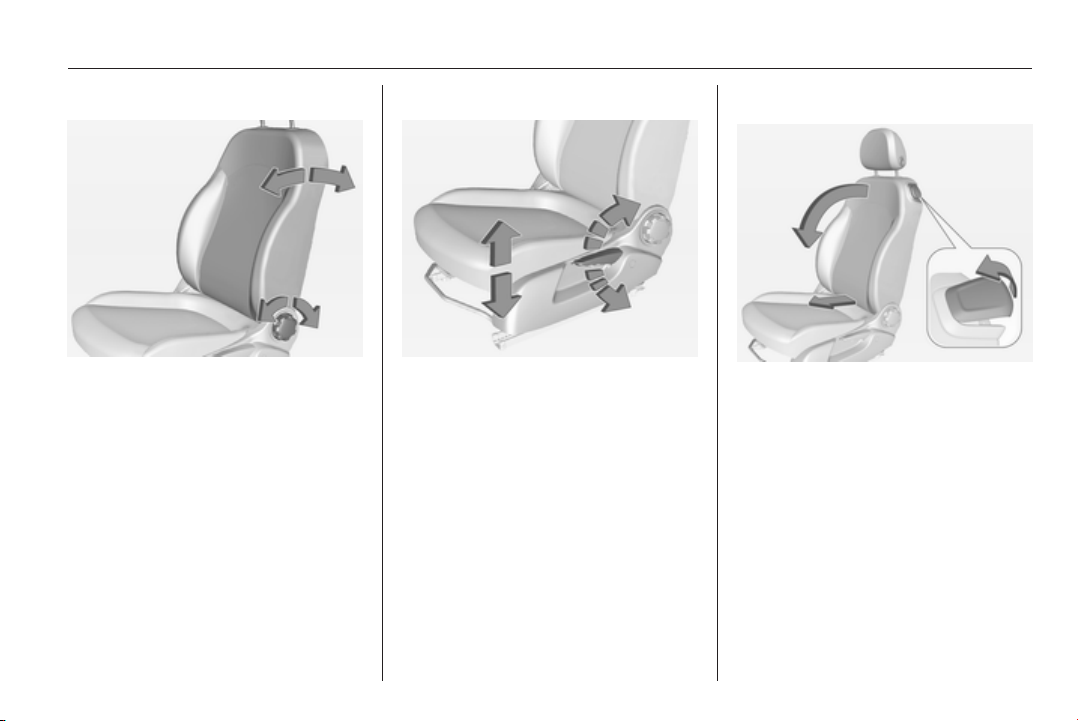

Seat backrests

Turn handwheel to adjust inclination.
Do not lean on backrest while
adjusting.

Seat position 3 37, Seat adjustment
3 38, Seat folding 3 39.

Seat height

Lever pumping motion
up = seat higher

down = seat lower

Seat position 3 37, Seat adjustment
3 38.

8 In brief

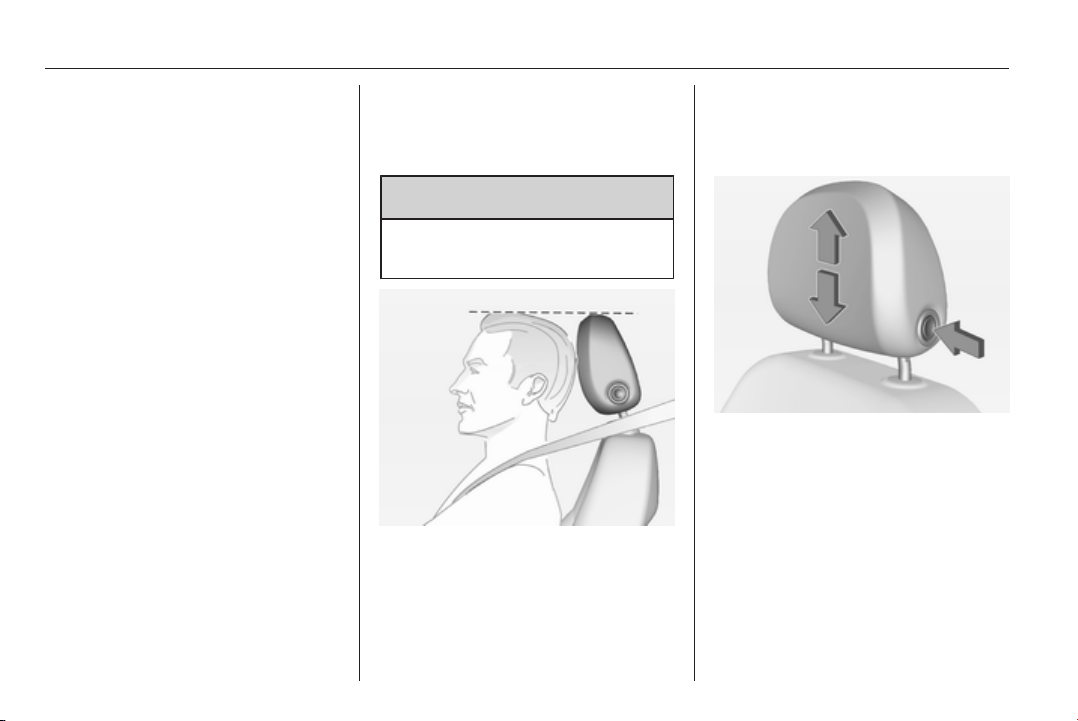

Head restraint adjustment

Press release button, adjust height,
engage.

Head restraints 3 36.

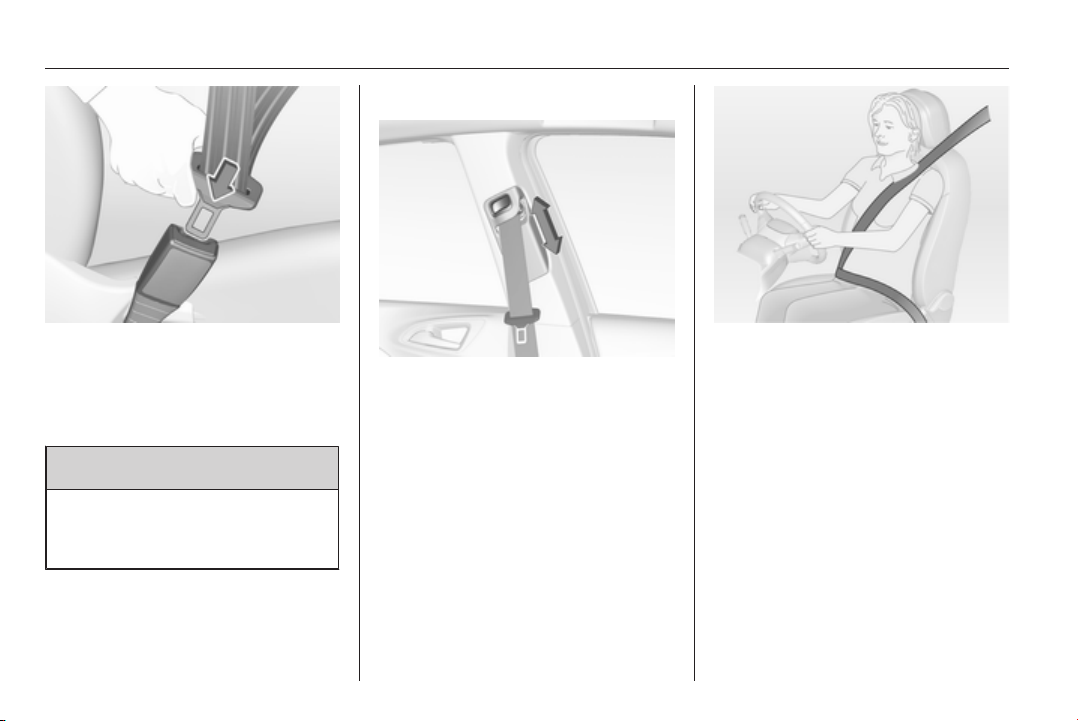

Seat belt

Pull out the seat belt and engage in
belt buckle. The seat belt must not be
twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25 °).

To release belt, press red button on
belt buckle.

Seat position 3 37, Seat belts
3 40, Airbag system 3 43.

Mirror adjustment

Interior mirror

Manual anti-dazzle

To reduce dazzle, adjust the lever on
the underside of the mirror housing.

Interior mirror 3 31.

Automatic anti-dazzle
Depending on the version, there is an
automatic anti-dazzle interior mirror.

In brief 9

Dazzle from following vehicles at
night is automatically reduced.

Automatic anti-dazzle interior mirror
3 31.

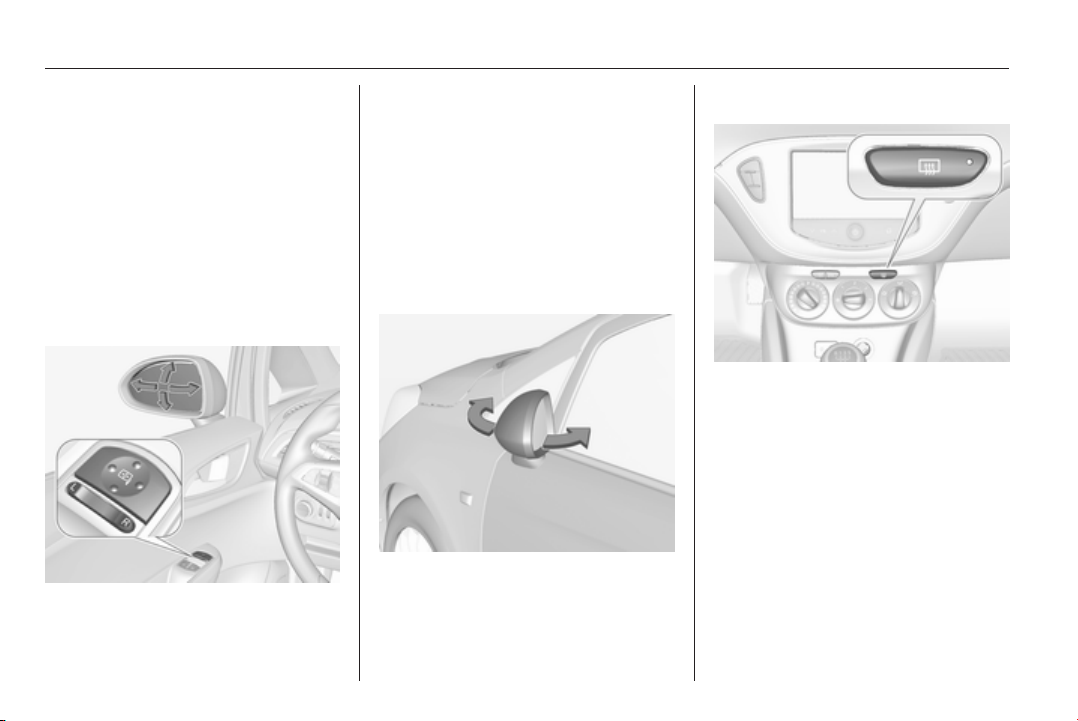

Exterior mirrors

Select the relevant exterior mirror with
the rocker switch and adjust the
mirror with the control :.

Convex exterior mirrors 3 30,
Electric adjustment 3 30, Folding
exterior mirrors 3 30.

Heated exterior mirrors 3 30.

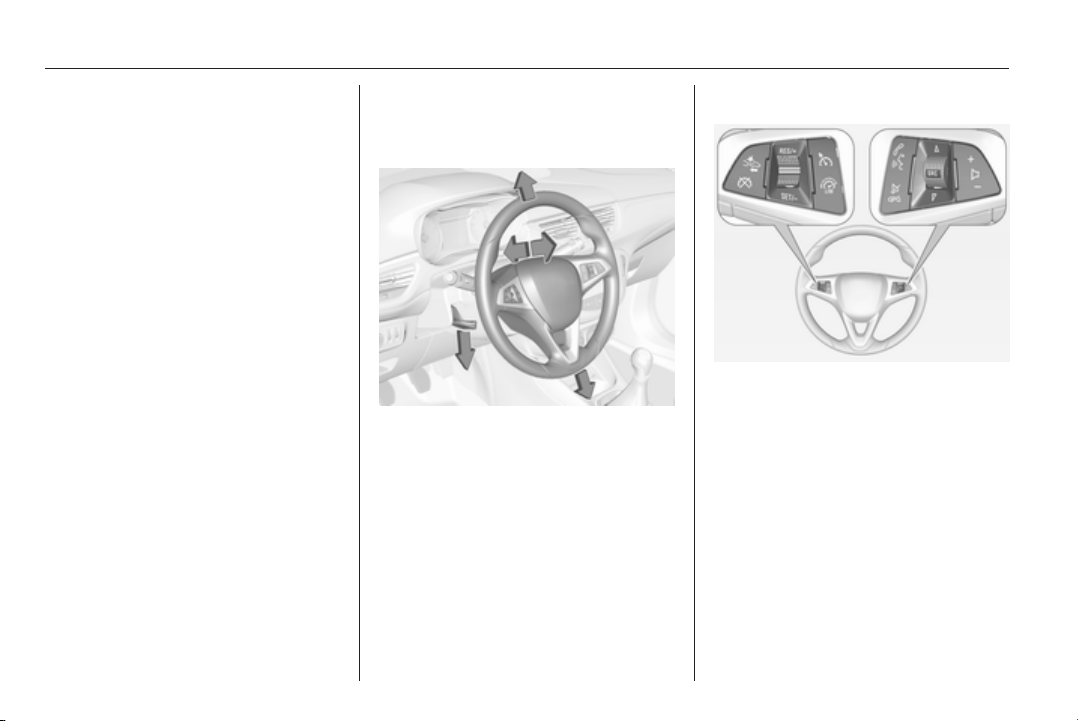

Steering wheel adjustment

Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.

Do not adjust the steering wheel
unless the vehicle is stationary and
the steering wheel lock has been
released.

Airbag system 3 43, Ignition
positions 3 131.

10 In brief

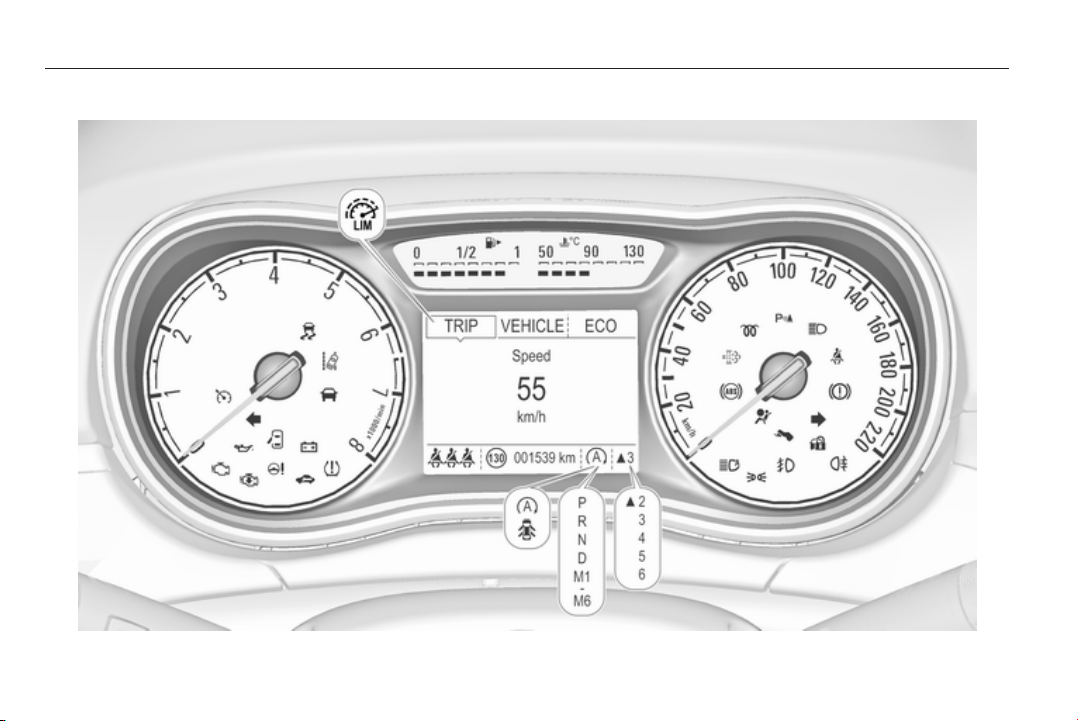

Instrument panel overview

In brief 11

1 Power windows ..................... 32

2 Exterior mirrors ..................... 30

3 Cruise control ..................... 149

Speed limiter ...................... 151

Forward collision alert ........ 152

4 Turn and lane-change

signals, headlight flash,

low beam and high beam .... 114

Exit lighting ......................... 118

Parking lights ...................... 115

Buttons for Driver

Information Centre ................ 95

5 Instruments .......................... 84

6 Forward collision alert

indicator ............................. 152

7 Driver Information Centre ...... 95

8 Infotainment controls ...........76

9 Windscreen wiper,

windscreen washer

system, rear wiper, rear

washer system ...................... 78

10 Central locking system .......... 24

City mode ............................ 148

Eco button for stop-start

system ................................. 133

Parking assist ..................... 155

Seat heating .......................... 40

Heated steering wheel .......... 77

11 Anti-theft alarm system

status LED ........................... 28

12 Hazard warning flashers ....114

Control indicator for airbag

deactivation .......................... 90

Control indicator for front

passenger seat belt ............. 89

13 Colour-Info-Display ............ 100

Graphic-Info-Display ........... 101

14 Centre air vents .................. 128

15 Side air vents passenger

side ..................................... 128

16 Airbag deactivation switch

(behind glovebox lid) ............ 48

17 Glovebox .............................. 58

18 Climate control system ........ 120

19 Power outlet .......................... 83

20 AUX input, USB input ...........10

21 Selector lever,

transmission ....................... 141

22 Parking brake ...................... 146

23 Ignition switch with

steering wheel lock ............ 131

24 Horn ..................................... 77

Driver airbag ........................ 46

25 Bonnet release lever .......... 180

26 Steering wheel adjustment ..76

27 Light switch ........................ 110

Headlight range

adjustment ......................... 112

Rear fog light ...................... 115

Fuse box ............................ 197

Brightness of instrument

panel illumination ................ 116

12 In brief

In brief 13

1 Power windows ..................... 32

2 Exterior mirrors ..................... 30

3 Cruise control ..................... 149

Speed limiter ...................... 151

Forward collision alert ........ 152

4 Turn and lane-change

signals, headlight flash,

low beam and high beam .... 114

Exit lighting ......................... 118

Parking lights ...................... 115

Buttons for Driver

Information Centre ................ 95

5 Instruments .......................... 84

6 Forward collision alert

indicator ............................. 152

7 Driver Information Centre ...... 95

8 Infotainment controls ...........76

9 Windscreen wiper,

windscreen washer

system, rear wiper, rear

washer system ...................... 78

10 Central locking system .......... 24

City mode ............................ 148

Eco button for stop-start

system ................................. 133

Parking assist ..................... 155

Seat heating .......................... 40

Heated steering wheel .......... 77

11 Anti-theft alarm system

status LED ........................... 28

12 Hazard warning flashers ....114

Control indicator for airbag

deactivation .......................... 90

Control indicator for front

passenger seat belt ............. 89

13 Colour-Info-Display ............ 100

Graphic-Info-Display ........... 101

14 Centre air vents .................. 128

15 Side air vents passenger

side ..................................... 128

16 Airbag deactivation switch

(behind glovebox lid) ............ 48

17 Glovebox .............................. 58

Fuse box ............................ 197

18 Climate control system ........ 120

19 Power outlet .......................... 83

20 AUX input, USB input ...........10

21 Selector lever,

transmission ....................... 141

22 Parking brake ...................... 146

23 Ignition switch with

steering wheel lock ............ 131

24 Horn ..................................... 77

Driver airbag ........................ 46

25 Bonnet release lever .......... 180

26 Steering wheel adjustment ..76

27 Light switch ........................ 110

Headlight range

adjustment ......................... 112

Rear fog light ...................... 115

Fuse box ............................ 197

Brightness of instrument

panel illumination ................ 116

14 In brief

Exterior lighting

Light switch

Turn light switch:

= lights off

7

= sidelights

8

= headlights

9

Fog lights

Press buttons in light switch

= front fog lights

>

= rear fog light

r

Light switch with automatic light control

AUTO = automatic light control:

exterior lighting is switched

m

8
9

Automatic light control 3 111.

on and off automatically

= activation or deactivation of

the automatic light control
= sidelights
= headlights

Headlight flash, high beam and low beam

headlight flash = pull lever
high beam = push lever
low beam = push or pull lever

High beam 3 111, Headlight flash
3 111, High beam assist 3 113.

In brief 15

Turn and lane-change signals

lever up = right turn signal
lever down = left turn signal

Turn and lane-change signals
3 114, Parking lights 3 115.

Hazard warning flashers

Operated with the ¨ button.
Hazard warning flashers 3 114.

Horn

Press j.

16 In brief

Washer and wiper systems

Windscreen wiper

HI = fast
LO = slow
INT = interval wiping

or
automatic wiping with rain

sensor

OFF = off

For single wipe when the wiper is off,
press lever down to position 1x.

Windscreen wiper 3 78.

Windscreen washer

Pull lever.
Windscreen washer system 3 78,

Washer fluid 3 183, Wiper blade
replacement 3 185.

Rear window wiper

Press the rocker switch to activate the
rear window wiper:

upper switch = continuous

operation

lower switch = intermittent

operation

middle position = off

In brief 17

Rear window washer

Push lever.
Washer fluid is sprayed on the rear

window and the wiper wipes a few
times.

Rear window wiper/washer 3 79.

Climate control

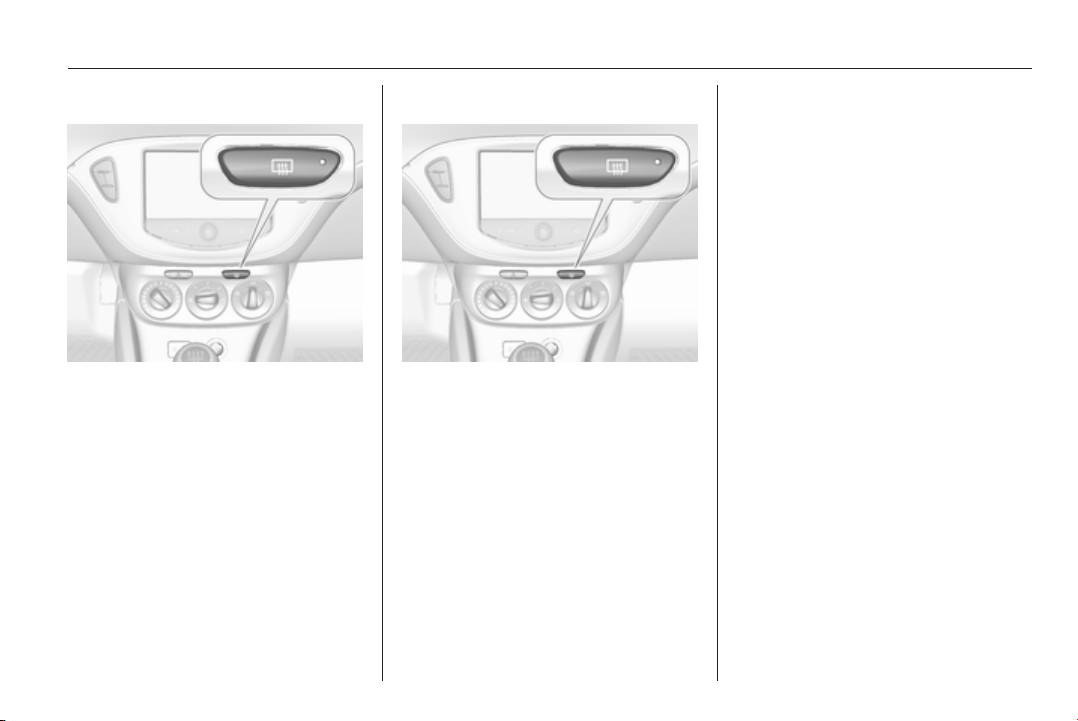

Heated rear window

The heating is operated by pressing
the Ü button.

Heated rear window 3 33, heated
windscreen 3 33.

Heated exterior mirrors

Pressing the Ü button also activates
the heated exterior mirrors.

Heated exterior mirror 3 30.

Demisting and defrosting the windows

■

Set air distribution control to l.

■

Press button V.

■ Set temperature control to warmest
level.

■ Set fan speed to highest level.

■

Switch on heated rear window Ü.

■ Open side air vents as required and
direct them towards the door
windows.

Climate control system 3 120.

18 In brief

Transmission

Manual transmission

Reverse: with the vehicle stationary,
depress clutch pedal and press the
release button on the selector lever
and engage the gear.

If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.

Manual transmission 3 141.

Automatic transmission

P = park
R = reverse
N = neutral
D = drive
M = manual mode

= push for upshifting in manual

<

mode

= push for downshifting in manual

]

mode

The selector lever can only be moved
out of P when the ignition is on and
the brake pedal is applied. To engage
P or R, press the release button.

Automatic transmission 3 138.

Manual transmission automated

R = reverse. Engage only when

vehicle is stationary
N = neutral
D = automatic mode
M = manual mode

= upshifting in manual mode

<

= downshifting in manual mode

]

Manual transmission automated
3 142.

In brief 19

Starting off

Check before starting off

■ Tyre pressure and condition 3 201,
3 240.

■ Engine oil level and fluid levels
3 180.

■ All windows, mirrors, exterior
lighting and number plates are free
from dirt, snow and ice and are
operational.

■ Proper position of mirrors, seats,
and seat belts 3 30, 3 37,
3 41.

■ Brake function at low speed,
particularly if the brakes are wet.

Starting the engine

■ Turn key to position 1.

■ Move the steering wheel slightly to
release the steering wheel lock.

■ Manual transmission: operate
clutch and brake pedal.

Manual transmission automated:
operate brake pedal.

Automatic transmission: operate
brake pedal and move selector
lever to P or N.

■ Do not operate accelerator pedal.

■ Diesel engines: turn the key to
position 2 for preheating and wait
until control indicator !
extinguishes.

■ Turn key to position 3 and release.

Starting the engine 3 132.

20 In brief

Stop-start system

If the vehicle is at a low speed or at a
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:

Vehicles with manual transmission

■ Depress the clutch pedal.

■ Set the lever in neutral.

■ Release the clutch pedal.
An Autostop is indicated by the

Control indicator D.
To restart the engine, depress the

clutch pedal again. The control
indicator D extinguishes.

Vehicles with manual transmission
automated

If the vehicle is at a standstill with
depressed brake pedal, Autostop is
activated automatically, indicated by
the control indicator D.

Release the brake pedal or move
selector lever out of D to restart the
engine. The control indicator D
extinguishes.

Stop-start system 3 133.

Parking

9 Warning

■ Do not park the vehicle on an
easily ignitable surface. The
high temperature of the exhaust
system could ignite the surface.

■ Always apply the parking brake.
Activate the manual parking
brake without pressing the
release button. Apply as firmly
as possible on a downhill slope
or uphill slope. Depress foot
brake at the same time to
reduce operating force.

■ Switch off the engine.

■ If the vehicle is on a level
surface or uphill slope, engage
first gear or set the selector lever
to position P before removing
the ignition key. On an uphill
slope, turn the front wheels
away from the kerb.

If the vehicle is on a downhill
slope, engage reverse gear or
set the selector lever to position

In brief 21

P before removing the ignition
key. Turn the front wheels
towards the kerb.

■ Close the windows and the
sunroof.

■ Remove the ignition key. Turn
the steering wheel until the
steering wheel lock is felt to
engage.

For vehicles with automatic
transmission, the key can only
be removed when the selector
lever is in position P.

For vehicles with manual
transmission automated, the
key can only be removed from
the ignition switch when the park
brake is applied.

■

Lock the vehicle with button e on
the radio remote control.

Activate the anti-theft alarm system
3 28.

■ The engine cooling fans may run
after the engine has been switched
off 3 179.

Caution

After running at high engine
speeds or with high engine loads,
operate the engine briefly at a low
load or run in neutral for
approx. 30 seconds before
switching off, in order to protect
the turbocharger.

Keys, locks 3 22, Laying-up the
vehicle for a long period of time
3 178.

22 Keys, doors and windows

Keys, doors and windows

Keys, locks ................................... 22

Doors ........................................... 27

Vehicle security ............................ 28

Exterior mirrors ............................ 30

Interior mirrors ............................. 31

Windows ...................................... 31

Roof ............................................. 34

Keys, locks

Keys

Replacement keys

The key number is specified in the
Car Pass or on a detachable tag.

The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.

Locks 3 221.
The code number of the key adapter

for the locking wheel bolts is specified
on a card. It must be quoted when
ordering a replacement key adapter.

Key with foldaway key section

Press button to extend. To fold the
key, first press the button.

Car Pass

The Car Pass contains security­related vehicle data and should
therefore be kept in a safe place.

When the vehicle is taken to a
workshop, this vehicle data is needed
in order to perform certain operations.

Keys, doors and windows 23

Radio remote control

Used to operate:

■ central locking system

■ anti-theft locking system

■ anti-theft alarm system

The radio remote control has a range
of approx. 20 metres. It can be
restricted by external influences. The
hazard warning flashers confirm
operation.

Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.

Fault

If the central locking system cannot
be operated with the radio remote
control, it may be due to the following:

■ The range is exceeded.

■ The battery voltage is too low.

■ Frequent, repeated operation of the
radio remote control while not in
range, which will require re­synchronisation.

■ Overload of the central locking
system by operating at frequent
intervals, the power supply is
interrupted for a short time.

■ Interference from higher-power
radio waves from other sources.

Unlocking 3 24.

Basic settings

Some settings can be changed in the
Info-Display.

Vehicle personalisation 3 105.

Radio remote control battery replacement

Replace the battery as soon as the
range reduces.

Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.

Extend the key and open the unit
sideways. Replace the battery
(battery type CR 2032), paying
attention to the installation position.
Close the unit and synchronise.

24 Keys, doors and windows

Radio remote control synchronisation

After replacing the battery, unlock the
door with the key in the driver's door
lock. The radio remote control will be
synchronised when the ignition is
switched on.

Memorised settings

Whenever the key is removed from
the ignition switch, the following
settings are automatically memorised
by the key:

■ lighting

■ electronic climate control

■ presets for Infotainment system

■ central locking system

■ comfort settings
The saved settings are automatically

used the next time the memorised key
is inserted into the ignition switch and
turned to position 1 3 131.

A precondition is that Personalization
by driver is activated in the personal
settings of the Info-Display. This must
be set for each key used.

Vehicle personalisation 3 105.

Central locking system

Unlocks and locks doors, load
compartment and fuel filler flap.

A pull on an interior door handle
unlocks the respective door. Pulling
the handle once more opens the door.

Note
In the event of an accident in which
airbags or belt pretensioners are
deployed, the vehicle is
automatically unlocked.

Note
Three minutes after unlocking with
the remote control, the doors are
relocked automatically if no door has
been opened.

Unlocking

Press button c.
Two settings are selectable in the

Info-Display:

■ To unlock only the driver's door,
load compartment and fuel filler
flap, press button c once. To unlock
all doors, press button c twice.

■

Press button c once to unlock
doors, load compartment and fuel
filler flap.

Vehicle personalisation 3 105.
The setting can be saved for the key

being used.

Keys, doors and windows 25

Memorised settings 3 24.
Unlocking and opening the tailgate

3 27.

Locking

Close doors, load compartment and
fuel filler flap.

Press button e.
If the driver's door is not closed

properly, the central locking system
will not work.

Central locking buttons

Locks or unlocks doors, the load
compartment and fuel filler flap from
inside the passenger compartment.

Press the e button to lock.
Press the c button to unlock.

Delayed door lock
Switch off engine and remove key
from the lock. Press the e button with
at least one door opened and three
chimes will sound. When the last door
is closed, the vehicle will
automatically lock all doors after five
seconds and a feedback is given.
After ten minutes, the vehicle will
automatically lock all doors even if a
door is still open. This function may be

activated or deactivated in the Info­Display. Vehicle personalisation
3 105.

Fault in radio remote control system

Unlocking

Manually unlock the driver's door by
turning the key in the lock. Switch on
the ignition and press the central
locking button c to unlock the other
doors, load compartment and fuel
filler flap.

By switching on the ignition, the anti­theft locking system is deactivated.

26 Keys, doors and windows

Locking
Manually lock the driver's door by
turning the key in the lock.

Fault in central locking system

Unlocking
Manually unlock the driver's door by
turning the key in the lock. The other
doors can be opened by pulling the
interior handle twice. The load
compartment and fuel filler flap
cannot be opened.

To deactivate the anti-theft locking
system, switch on the ignition 3 28.

Locking
Press inside locking knob of all doors
except driver's door. Then close the
driver's door and lock it from the
outside with the key. The fuel filler flap
and tailgate cannot be locked.

Automatic locking

This security feature can be
configured to automatically lock
doors, load compartment and fuel
filler flap as soon as a certain speed
is exceeded.

Additionally it is configurable to
unlock the driver's door or all doors
after the ignition is switched off and
the ignition key is removed (manual
transmission) or the selector lever is
moved to position P (automatic
transmission).

Settings can be changed in the
Info-Display.

Vehicle personalisation 3 105.
The settings can be saved for the key

being used 3 24.

Child locks

9 Warning

Use the child locks whenever
children are occupying the rear
seats.

Using a key or suitable screwdriver,
turn button on rear door lock to the
horizontal position. The door cannot
be opened from inside.

Keys, doors and windows 27

Doors

Load compartment

Tailgate

Opening

To open the tailgate, push the
touchpad switch below the brand
emblem.

Closing

Use interior handle.
Do not press the touchpad switch

whilst closing as this will unlock the
tailgate again.

Central locking system 3 24.

General hints for operating tailgate

9 Danger

Do not drive with the tailgate open
or ajar, e.g. when transporting
bulky objects, since toxic exhaust

gases, which cannot be seen or
smelled, could enter the vehicle.
This can cause unconsciousness
and even death.

Caution

Before opening the tailgate, check
overhead obstructions, e.g. a
garage door, to avoid damage to
the tailgate. Always check the
moving area above and behind the
tailgate.

Note
The installation of certain heavy
accessories onto the tailgate may
affect its ability to remain open.

28 Keys, doors and windows

Vehicle security

Anti-theft locking system

9 Warning

Do not use the system if there are
people in the vehicle! The doors
cannot be unlocked from the
inside.

The system deadlocks all the doors.
All doors must be closed otherwise
the system cannot be activated.

If the ignition was on, the driver's door
must be opened and closed once so
that the vehicle can be secured.

Unlocking the vehicle disables the
mechanical anti-theft locking system.
This is not possible with the central
locking button.

Activating

Press button e on the radio remote
control twice within 5 seconds.

Anti-theft alarm system

The anti-theft alarm system is
combined with the anti-theft locking
system.

It monitors:

■ doors, tailgate, bonnet

■ ignition

Activation

■ Self-activated 30 seconds after
locking the vehicle by pressing e
once.

■

Directly by pressing e twice within
five seconds.

Status LED

Status LED is integrated in the sensor
on top of the instrument panel.

Keys, doors and windows 29

Status during the first 30 seconds of
anti-theft alarm system activation:

LED illuminates = test, arming delay
LED flashes
quickly

Status after system is armed:
LED flashes

slowly

Seek the assistance of a workshop in
the event of faults.

= doors, tailgate or

bonnet not
completely closed,
or system fault

= system is armed

Deactivation

Unlocking the vehicle by pressing
button c deactivates anti-theft alarm
system.

The system is not deactivated by
unlocking the driver's door with the
key or with the central locking button
in the passenger compartment.

Alarm

When triggered, the alarm horn
sounds and the hazard warning lights
flash simultaneously. The number
and duration of alarm signals are
stipulated by legislation.

The alarm can be silenced by
pressing any button on the radio
remote control or by switching on the
ignition.

The anti-theft alarm system can only
be deactivated by pressing button c
on the radio remote control or by
switching on the ignition.

A triggered alarm, which has not been
interrupted by the driver, will be
indicated by the hazard warning
lights. They will flash quickly three
times when the vehicle is unlocked
with the radio remote control.

Vehicle messages 3 102.

Immobiliser

The system is part of the ignition
switch and checks whether the
vehicle is allowed to be started with
the key being used.

The immobiliser is activated
automatically after the key has been
removed from the ignition switch.

If the control indicator d flashes when
the ignition is on, there is a fault in the
system; the engine cannot be started.
Switch off the ignition and repeat the
start attempt.

If the control indicator continues
flashing, attempt to start the engine
using the spare key and seek the
assistance of a workshop.

Note
The immobiliser does not lock the
doors. You should always lock the
vehicle after leaving it.

Switch on the anti-theft alarm
system 3 24, 3 28.

Control indicator d 3 94.

30 Keys, doors and windows

Exterior mirrors

Convex shape

The convex exterior mirror contains
an aspherical area and reduces blind
spots. The shape of the mirror makes
objects appear smaller, which will
affect the ability to estimate
distances.

Electric adjustment

Select the relevant exterior mirror by
pressing the rocker switch to the left
(L) or right (R). Then swivel the
control : to adjust the mirror.

Rocker switch in center position: no
mirror is selected to be adjusted.

Folding mirrors

For pedestrian safety, the exterior
mirrors will swing out of their normal
mounting position if they are struck
with sufficient force. Reposition the
mirror by applying slight pressure to
the mirror housing.

Parking position

The exterior mirrors can be folded in
by pressing gently on the outer edge
of the housing, e.g. when in a
confined parking situation.

Heated mirrors

Operated by pressing the Ü button.
Mirror heating works with the engine

running.
It is switched off automatically after

six minutes.
Pressing button Ü once more during

the same ignition cycle allows the
heating to operate for another
three minutes.

Keys, doors and windows 31

Interior mirrors

Manual anti-dazzle

To reduce dazzle, adjust the lever on
the underside of the mirror housing.

Automatic anti-dazzle

Dazzle from following vehicles at
night is automatically reduced.

Windows

Windscreen

Windscreen stickers

Do not attach stickers, e.g. toll road
stickers or similar, on the windscreen
in the area of the interior mirror.
Otherwise the detection zone of the
sensor in the mirror housing could be
restricted.

Manual windows

The rear door windows can be
opened or closed manually with the
window cranks.

32 Keys, doors and windows

Power windows

9 Warning

Take care when operating the
power windows. Risk of injury,
particularly to children.

Be careful when closing the
windows. Ensure that nothing
becomes trapped in them as they
move.

Operable with ignition on (position 2)
3 131.

Retained power off 3 131.

Operate the switch in the door trim for
the respective window by pushing to
open or pulling to close.

Open

Short push: window opens stepwise.
Longer push: window opens

automatically up to endposition. To
stop movement, operate switch once
more.

Close

Short pull: window closes stepwise.
Longer pull: window closes

automatically up to endposition. To
stop movement, operate switch once
more.

Safety function

If the window glass encounters
resistance above the middle of the
window during automatic closing, it is
immediately stopped and opened
again.

Override safety function

In the event of closing difficulties due
to frost or the like, switch on the
ignition, then pull the switch several
times to close the windows in stages.

Overload

If the windows are repeatedly
operated at short intervals, the
window operation is disabled for
some time.

Fault

If the windows cannot be opened or
closed automatically, activate the
window electronics as follows:

1. Close the doors.

2. Switch on ignition.

3. Close the window completely and
operate the button for five more
seconds.

4. Open the window completely and
operate the button for one more
second.

5. Repeat this procedure for each
window.

Keys, doors and windows 33

Heated rear window

Operated by pressing button Ü.
Rear window heating works with the

engine running.
It is switched off automatically after

six minutes.
Pressing button Ü once more during

the same ignition cycle allows the
heating to operate for another
three minutes.

Heated windscreen

Operated by pressing button Ü.
Windscreen heating works together

with heated rear window and engine
running.

It is switched off automatically after
six minutes.

Pressing button Ü once more during
the same ignition cycle allows the
heating to operate for another
three minutes.

Sun visors

The sun visors can be folded down or
swivelled to the side to prevent
dazzling.

The integral mirrors should be closed
when driving.

A ticket holder is located on the
backside of the sun visor.

34 Keys, doors and windows

Roof

Sunroof

9 Warning

Take care when operating the
sunroof. Risk of injury, particularly
to children.

Keep a close watch on the
movable parts when operating
them. Ensure that nothing
becomes trapped in them as they
move.

Operable via a rocker switch with
ignition on (position 2) 3 131.

Retained power off 3 131.

Raise

Hold switch ü depressed until the
sunroof is raised at the rear.

Open

From raised position press and
release switch ü: the sunroof is
opened automatically up to end
position. To stop movement before
endposition, operate switch once
more.

Close

Hold switch d depressed from any
position until sunroof is closed
completely. Releasing the switch
stops movement in any position.

Caution

When using a roof rack, check the
free movement of the sunroof in
order to avoid damage. It is only
permitted to raise the sunroof.

Note
If the top of the roof is wet, tilt
sunroof, allow water to run off and
then open sunroof.

Do not affix any stickers to sunroof.

Sunblind

The sunblind is manually operated.
Close or open the sunblind by sliding.

Sunblind is usable in each sunroof
position.

Overload

If the system is overloaded, the power
supply is automatically cut-off for a
short time. The system is protected by
fuses in the fuse box 3 194.

Initialising the sun roof

If the sunroof cannot be operated,
activate the electronics as follows:
with ignition on close the sunroof and
hold d depressed for at least
10 seconds.

Seek the assistance of a workshop to
have the cause of the fault remedied.

Keys, doors and windows 35

36 Seats, restraints

Seats, restraints

Head restraints ............................ 36

Front seats ................................... 37

Seat belts ..................................... 40

Airbag system .............................. 43

Child restraints ............................. 50

Head restraints

Position

9 Warning

Only drive with the head restraint
set to the proper position.

The upper edge of the head restraint
should be at upper head level. If this
is not possible for extremely tall
people, set to highest position, and
set to lowest position for small people.

Adjustment

Front head restraints, height
adjustment

Press release button, adjust height,
engage.

Seats, restraints 37

Rear head restraints, height
adjustment

Pull the head restraint upwards and
let engage. To move downwards,
press the catch to release and push
the head restraint downwards.

Removal of rear head restraint
E.g. when using a child restraint
system 3 50.

Press both catches, pull the head
restraint upwards and remove.

Place the head restraint in a net bag
and secure the underside of the bag
with Velcro fasteners to the load
compartment floor. A suitable net bag
is available from your workshop.

Front seats

Seat position

9 Warning

Only drive with the seat correctly
adjusted.

Sit with buttocks as far back against

■
the backrest as possible. Adjust the
distance between the seat and the
pedals so that legs are slightly
angled when pressing the pedals.
Slide the front passenger seat as
far back as possible.

38 Seats, restraints

■ Sit with shoulders as far back
against the backrest as possible.
Set the backrest rake so that it is
possible to easily reach the
steering wheel with arms slightly
bent. Maintain contact between
shoulders and the backrest when
turning the steering wheel. Do not
angle the backrest too far back. We
recommend a maximum rake of
approx. 25°.

■ Adjust the steering wheel 3 76.

■ Set seat height high enough to
have a clear field of vision on all
sides and of all display instruments.
There should be at least one hand
of clearance between head and the
roof frame. Your thighs should rest
lightly on the seat without pressing
into it.

■ Adjust the head restraint 3 36.

■ Adjust the height of the seat belt
3 41.

Seat adjustment

9 Danger

Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.

9 Warning

Never adjust seats while driving as
they could move uncontrollably.

9 Warning

Never store any objects under the
seats.

Seat positioning

Pull handle, slide seat, release
handle. Allow seat to engage in
position.

Seats, restraints 39

Seat backrests

Turn handwheel to adjust inclination.
Do not lean on backrest while
adjusting.

Seat height

Lever pumping motion
up = seat higher

down = seat lower

Seat folding

Pull release lever towards the front
and fold backrest forwards. Then
slide seat forwards to the stop.

To restore, slide the seat backwards
to the stop. Lift backrest to upright
position without operating the release
lever. Allow backrest to engage.

The memory function allows the seat
to engage in its original position after
folding.

Do not operate handwheel for
backrest inclination when backrest is
folded forwards.

40 Seats, restraints

Caution

When seat height is in the highest
position, push head restraints
down and fold up sun visors before
folding backrest forwards.

Heating

Activate seat heating by pressing
button for the respective front seat.

Activation is indicated by the LED in
the button.

Pressing button ß once more
deactivates seat heating.

ß

Seat heating is operational when
engine is running.

During an Autostop seat heating is
also operational.

Stop-start system 3 133.

Seat belts

The seat belts are locked during
heavy acceleration or deceleration of
the vehicle holding the occupants in
the sitting position. Therefore the risk
of injury is considerably reduced.

9 Warning

Fasten seat belt before each trip.
In the event of an accident, people

not wearing seat belts endanger
their fellow occupants and
themselves.

Seats, restraints 41

Seat belts are designed to be used by
only one person at a time. Child
restraint system 3 50.

Periodically check all parts of the belt
system for damage, pollution and
proper functionality.

Have damaged components
replaced. After an accident, have the
belts and triggered belt pretensioners
replaced by a workshop.

Note
Make sure that the belts are not
damaged by shoes or sharp-edged
objects or trapped. Prevent dirt from
getting into the belt retractors.

Seat belt reminder

Each seat is equipped with a seat belt
reminder, indicated for driver seat as
control indicator X in the tachometer
3 89, for front passenger seat as
control indicator k in the centre
console 3 87, and for rear seats by
symbols X in the Driver Information
Centre 3 95.

Belt force limiters

On the front seats and the rear
outboard seats, stress on the body is
reduced by the gradual release of the
belt during a collision.

Belt pretensioners

In the event of a head-on or rear-end
collision of a certain severity, the front
seat belts are tightened.

9 Warning

Incorrect handling (e.g. removal or
fitting of belts) can trigger the belt
pretensioners.

Deployment of the belt pretensioners
is indicated by continuous illumination
of control indicator v 3 90.

Triggered belt pretensioners must be
replaced by a workshop. Belt
pretensioners can only be triggered
once.

Note
Do not affix or install accessories or
other objects that may interfere with
the operation of the belt

pretensioners. Do not make any
modifications to belt pretensioner
components as this will invalidate
the vehicle type approval.

Three-point seat belt

Fastening

Withdraw the belt from the retractor,
guide it untwisted across the body
and insert the latch plate into the
buckle. Tighten the lap belt regularly
while driving by pulling the shoulder
belt.

42 Seats, restraints

Height adjustment

Loose or bulky clothing prevents the
belt from fitting snugly. Do not place
objects such as handbags or mobile
phones between the belt and your
body.

9 Warning

The belt must not rest against hard
or fragile objects in the pockets of
your clothing.

Seat belt reminder X 3 89.

1. pull belt out slightly

2. press button

3. adjust height and engage

Adjust the height so that the belt lies
across the shoulder. It must not lie
across the throat or upper arm.

Do not adjust while driving.

Seats, restraints 43

Removing

To release belt, press red button on
belt buckle.

Using the seat belt while pregnant

9 Warning

The lap belt must be positioned as
low as possible across the pelvis
to prevent pressure on the
abdomen.

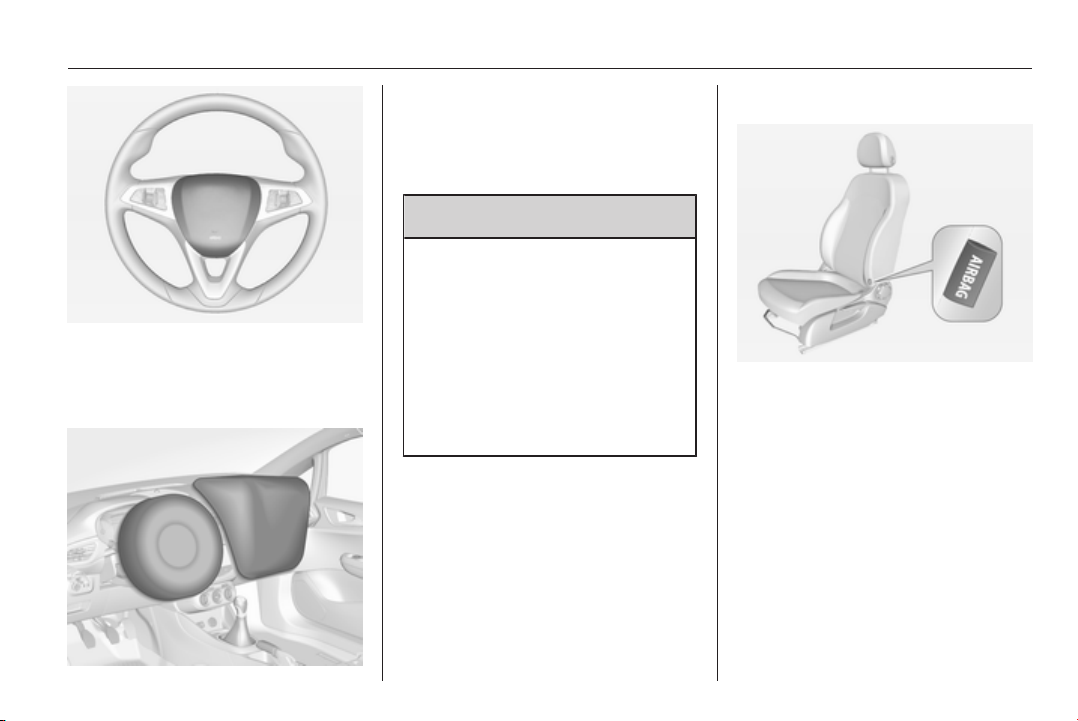

Airbag system

The airbag system consists of a
number of individual systems
depending on the scope of
equipment.

When triggered, the airbags inflate
within milliseconds. They also deflate
so quickly that it is often unnoticeable
during the collision.

9 Warning

If handled improperly the airbag
systems can be triggered in an
explosive manner.

Note
The airbag systems and belt
pretensioner control electronics are
located in the centre console area.
Do not put any magnetic objects in
this area.

Do not affix any objects onto the
airbag covers and do not cover them
with other materials.

44 Seats, restraints

Each airbag is triggered only once.
Have deployed airbags replaced by
a workshop. Furthermore, it may be
necessary to have the steering
wheel, the instrument panel, parts of
the panelling, the door seals,
handles and the seats replaced.

Do not make any modifications to
the airbag system as this will
invalidate the vehicle type approval.

When the airbags inflate escaping hot
gases may cause burns.

Fault

If there is a fault in the airbag system,
the control indicator v illuminates and
a message or a warning code
appears in the Driver Information
Centre. The system is not
operational.

Have the cause of the fault remedied
by a workshop.

Control indicator for airbag systems
3 90.

Child restraint systems on front
passenger seat with airbag
systems

EN: NEVER use a rearward-facing
child restraint on a seat protected by
an ACTIVE AIRBAG in front of it;
DEATH or SERIOUS INJURY to the
CHILD can occur.

DE: Nach hinten gerichtete
Kindersitze NIEMALS auf einem Sitz
verwenden, der durch einen davor
befindlichen AKTIVEN AIRBAG
geschützt ist, da dies den TOD oder
SCHWERE VERLETZUNGEN DES
KINDES zur Folge haben kann.

FR: NE JAMAIS utiliser un siège
d'enfant orienté vers l'arrière sur un
siège protégé par un COUSSIN
GONFLABLE ACTIF placé devant lui,
sous peine d'infliger des
BLESSURES GRAVES, voire
MORTELLES à l'ENFANT.

ES: NUNCA utilice un sistema de
retención infantil orientado hacia
atrás en un asiento protegido por un
AIRBAG FRONTAL ACTIVO. Peligro
de MUERTE o LESIONES GRAVES
para el NIÑO.

RU: ЗАПРЕЩАЕТСЯ
устанавливать детское
удерживающее устройство лицом
назад на сиденье автомобиля,
оборудованном фронтальной
подушкой безопасности, если
ПОДУШКА НЕ ОТКЛЮЧЕНА! Это
может привести к СМЕРТИ или
СЕРЬЕЗНЫМ ТРАВМАМ
РЕБЕНКА.

NL: Gebruik NOOIT een achterwaarts
gericht kinderzitje op een stoel met
een ACTIEVE AIRBAG ervoor, om
DODELIJK of ERNSTIG LETSEL van
het KIND te voorkomen.

Seats, restraints 45

DA: Brug ALDRIG en bagudvendt
autostol på et forsæde med AKTIV
AIRBAG, BARNET kan komme i
LIVSFARE eller komme ALVORLIGT
TIL SKADE.

SV: Använd ALDRIG en bakåtvänd
barnstol på ett säte som skyddas med
en framförvarande AKTIV AIRBAG.
DÖDSFALL eller ALLVARLIGA
SKADOR kan drabba BARNET.

FI: ÄLÄ KOSKAAN sijoita taaksepäin
suunnattua lasten turvaistuinta
istuimelle, jonka edessä on
AKTIIVINEN TURVATYYNY, LAPSI
VOI KUOLLA tai VAMMAUTUA
VAKAVASTI.

NO: Bakovervendt
barnesikringsutstyr må ALDRI brukes
på et sete med AKTIV
KOLLISJONSPUTE foran, da det kan
føre til at BARNET utsettes for
LIVSFARE og fare for ALVORLIGE
SKADER.

PT: NUNCA use um sistema de
retenção para crianças voltado para
trás num banco protegido com um
AIRBAG ACTIVO na frente do

mesmo, poderá ocorrer a PERDA DE
VIDA ou FERIMENTOS GRAVES na
CRIANÇA.

IT: Non usare mai un sistema di
sicurezza per bambini rivolto
all'indietro su un sedile protetto da
AIRBAG ATTIVO di fronte ad esso:
pericolo di MORTE o LESIONI
GRAVI per il BAMBINO!

EL: ΠΟΤΕ μη χρησιμοποιείτε παιδικό
κάθισμα ασφαλείας με φορά προς τα
πίσω σε κάθισμα που προστατεύεται
από μετωπικό ΕΝΕΡΓΟ ΑΕΡΟΣΑΚΟ,
διότι το παιδί μπορεί να υποστεί
ΘΑΝΑΣΙΜΟ ή ΣΟΒΑΡΟ
ΤΡΑΥΜΑΤΙΣΜΟ.

PL: NIE WOLNO montować fotelika
dziecięcego zwróconego tyłem do
kierunku jazdy na fotelu, przed
którym znajduje się WŁĄCZONA
PODUSZKA POWIETRZNA.
Niezastosowanie się do tego
zalecenia może być przyczyną
ŚMIERCI lub POWAŻNYCH
OBRAŻEŃ u DZIECKA.

TR: Arkaya bakan bir çocuk emniyet
sistemini KESİNLİKLE önünde bir
AKTİF HAVA YASTIĞI ile

korunmakta olan bir koltukta
kullanmayınız. ÇOCUK ÖLEBİLİR
veya AĞIR ŞEKİLDE
YARALANABİLİR.

UK: НІКОЛИ не використовуйте
систему безпеки для дітей, що
встановлюється обличчям назад,
на сидінні з УВІМКНЕНОЮ
ПОДУШКОЮ БЕЗПЕКИ, інакше це
може призвести до СМЕРТІ чи
СЕРЙОЗНОГО ТРАВМУВАННЯ
ДИТИНИ.

HU: SOHA ne használjon hátrafelé
néző biztonsági gyerekülést előlről
AKTÍV LÉGZSÁKKAL védett ülésen,
mert a GYERMEK HALÁLÁT vagy
KOMOLY SÉRÜLÉSÉT okozhatja.

HR: NIKADA nemojte koristiti sustav
zadržavanja za djecu okrenut prema
natrag na sjedalu s AKTIVNIM
ZRAČNIM JASTUKOM ispred njega,
to bi moglo dovesti do SMRTI ili
OZBILJNJIH OZLJEDA za DIJETE.

SL: NIKOLI ne nameščajte otroškega
varnostnega sedeža, obrnjenega v
nasprotni smeri vožnje, na sedež z
AKTIVNO ČELNO ZRAČNO

46 Seats, restraints

BLAZINO, saj pri tem obstaja
nevarnost RESNIH ali SMRTNIH
POŠKODB za OTROKA.

SR: NIKADA ne koristiti bezbednosni
sistem za decu u kome su deca
okrenuta unazad na sedištu sa
AKTIVNIM VAZDUŠNIM
JASTUKOM ispred sedišta zato što
DETE može da NASTRADA ili da se
TEŠKO POVREDI.

MK: НИКОГАШ не користете детско
седиште свртено наназад на
седиште заштитено со АКТИВНО
ВОЗДУШНО ПЕРНИЧЕ пред него,
затоа што детето може ДА ЗАГИНЕ
или да биде ТЕШКО ПОВРЕДЕНО.

BG: НИКОГА не използвайте
детска седалка, гледаща назад,
върху седалка, която е защитена
чрез АКТИВНА ВЪЗДУШНА
ВЪЗГЛАВНИЦА пред нея - може да
се стигне до СМЪРТ или
СЕРИОЗНО НАРАНЯВАНЕ на
ДЕТЕТО.

RO: Nu utilizaţi NICIODATĂ un scaun
pentru copil îndreptat spre partea din
spate a maşinii pe un scaun protejat
de un AIRBAG ACTIV în faţa sa;

acest lucru poate duce la DECESUL
sau VĂTĂMAREA GRAVĂ a
COPILULUI.

CS: NIKDY nepoužívejte dětský
zádržný systém instalovaný proti
směru jízdy na sedadle, které je
chráněno před sedadlem AKTIVNÍM
AIRBAGEM. Mohlo by dojít k
VÁŽNÉMU PORANĚNÍ nebo ÚMRTÍ
DÍTĚTE.

SK: NIKDY nepoužívajte detskú
sedačku otočenú vzad na sedadle
chránenom AKTÍVNYM AIRBAGOM,
pretože môže dôjsť k SMRTI alebo
VÁŽNYM ZRANENIAM DIEŤAŤA.

LT: JOKIU BŪDU nemontuokite atgal
atgręžtos vaiko tvirtinimo sistemos
sėdynėje, prieš kurią įrengta AKTYVI
ORO PAGALVĖ, nes VAIKAS GALI
ŽŪTI arba RIMTAI SUSIŽALOTI.

LV: NEKĀDĀ GADĪJUMĀ
neizmantojiet uz aizmuguri vērstu
bērnu sēdeklīti sēdvietā, kas tiek
aizsargāta ar tās priekšā uzstādītu
AKTĪVU DROŠĪBAS SPILVENU, jo
pretējā gadījumā BĒRNS var gūt
SMAGAS TRAUMAS vai IET BOJĀ.

ET: ÄRGE kasutage tahapoole
suunatud lapseturvaistet istmel, mille
ees on AKTIIVSE TURVAPADJAGA
kaitstud iste, sest see võib
põhjustada LAPSE SURMA või
TÕSISE VIGASTUSE.

MT: QATT tuża trażżin għat-tfal li
jħares lejn in-naħa ta’ wara fuq sit
protett b’AIRBAG ATTIV quddiemu;
dan jista’ jikkawża l-MEWT jew
ĠRIEĦI SERJI lit-TFAL.

Beyond the warning required by
ECE R94.02, for safety reasons a
forward-facing child restraint system
must only be used subject to the
instructions and restrictions in the
tables 3 52.

The airbag label is located on both
sides of the front passenger sun visor.

Airbag deactivation 3 48.

Front airbag system

The front airbag system consists of
one airbag in the steering wheel and
one in the instrument panel on the
front passenger side. The location is
identified by the word AIRBAG.

Seats, restraints 47

The front airbag system is triggered in
the event of a front-end impact of a
certain severity. The ignition must be
switched on.

The inflated airbags cushion the
impact, thereby reducing the risk of
injury to the upper body and head of
the front seat occupants
considerably.

9 Warning

Optimum protection is only
provided when the seat is in the
proper position.

Seat position 3 37.
Keep the area in which the airbag

inflates clear of obstructions.
Fit the seat belt correctly and

engage securely. Only then is the
airbag able to protect.

Side airbag system

The side airbag system consists of an
airbag in each front seat backrest.
The location is identified by the word
AIRBAG.

The side airbag system is triggered in
the event of a side impact of a certain
severity. The ignition must be
switched on.

48 Seats, restraints

The inflated airbags cushion the
impact, thereby reducing the risk of
injury to the upper body and pelvis in
the event of a side-on collision
considerably.

9 Warning

Keep the area in which the airbag
inflates clear of obstructions.

Note
Only use protective seat covers that
have been approved for the vehicle.
Be careful not to cover the airbags.

Curtain airbag system

The curtain airbag system consists of
an airbag in the roof frame on each
side. The location is identified by the
word AIRBAG on the roof pillars.

The curtain airbag system is triggered
in the event of a side-on impact of a
certain severity. The ignition must be
switched on.

The inflated airbags cushion the
impact, thereby reducing the risk of
injury to the head in the event of a
side-on impact considerably.

9 Warning

Keep the area in which the airbag
inflates clear of obstructions.

The hooks on the handles in the
roof frame are only suitable for
hanging up light articles of
clothing, without coat hangers. Do
not keep any items in these
clothes.

Airbag deactivation

The front passenger airbag system
must be deactivated for child restraint
system on the passenger seat
according to the instructions in the
tables 3 52.

The other airbag systems, the belt
pretensioners and all driver airbag
systems will remain active.

Seats, restraints 49

Use the ignition key to choose the
switch position:

*OFF

VON = front passenger airbag is

= front passenger airbag is

deactivated and will not
inflate in the event of a
collision. Control indicator
*OFF illuminates
continuously in the centre
console

active

9 Danger

Deactivate passenger airbag only
in combination with the use of a
child restraint system, subject to
the instructions and restrictions in
the tables 3 52.

Otherwise, there is a risk of fatal
injury for a person occupying a
seat with a deactivated front
passenger airbag.

If the control indicator V illuminates
for approx. 60 seconds after the
ignition is switched on, the front
passenger airbag system will inflate
in the event of a collision.

If both control indicators are
illuminated at the same time, there is
a system failure. The status of the
system is not discernible, therefore
no person is allowed to occupy the
front passenger seat. Contact a
workshop immediately.

Change status only when the vehicle
is stopped with the ignition off.

Status remains until the next change.
Control indicator for airbag

deactivation 3 90.

50 Seats, restraints

Child restraints

Child restraint systems

We recommend Opel child restraint
systems which are tailored
specifically to the vehicle.

The following child restraints are
recommended for the following
weight classes:

■ Group 0, Group 0+
Maxi Cosi Cabriofix plus Easyfix,

for children up to 13 kg

■ Group I
OPEL Duo, for children from 13 kg

to 18 kg in this group

When a child restraint system is being
used, pay attention to the following
usage and installation instructions
and also those supplied with the child
restraint system.

Check local laws and regulations for
mandatory use of child restraint
systems. In some countries, the use
of child restraint systems is forbidden
on certain seats.

Danger

9

If using a rear-facing child restraint
system on the front passenger
seat, the airbag system for the
front passenger seat must be
deactivated. This also applies to
certain forward-facing child
restraint systems as indicated in
the tables 3 52.

Airbag deactivation 3 48.
Airbag label 3 43.
The rear seats are the most

convenient location to fasten a child
restraint system.

Children should travel facing
rearwards in the vehicle as long as
possible. This ensures that the child's
backbone, which is still very weak, is
under less strain in the event of an
accident.

Selecting the right system

Only use suitable restraint systems,
e.g. those that comply with valid
UN ECE regulations.

Ensure that the child restraint system
to be installed is compatible with the
vehicle type. Refer to the tables on
the following pages, the instructions
supplied with the child restraint
system and the vehicle type list of
non-universal child restraint systems.

Ensure that the mounting location of
the child restraint system within the
vehicle is correct, see following
tables.

Allow children to enter and exit the
vehicle only on the side facing away
from the traffic.

When the child restraint system is not
in use, secure the seat with a seat belt
or remove it from the vehicle.

Child restraint systems could be
fastened with ISOFIX mounting
brackets, Top-tether if available,
and/or a three-point seat belt. Refer
to the following tables.

Note
Do not affix anything on the child
restraint systems and do not cover
them with any other materials.

A child restraint system which has
been subjected to stress in an
accident must be replaced.

Seats, restraints 51

52 Seats, restraints

Child restraint installation locations

Permissible options for fastening a child restraint system with a three-point seat belt

On front passenger seat

Weight and age class

Group 0: up to 10 kg

X

1,2

U

or approx. 10 months

Group 0+: up to 13 kg

X

1,2

U

or approx. 2 years

Group I: 9 to 18 kg

X

1,2

U

or approx. 8 months to 4 years

Group II: 15 to 25 kg

1,2

U

X

or approx. 3 to 7 years

Group III: 22 to 36 kg

1,2

U

X

or approx. 6 to 12 years

U = universal suitability in conjunction with three-point seat belt
L = suitable for particular child restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories. The child

restraint system must be approved for the specific vehicle type (refer to the vehicle type list of the child restraint system)

X = no child restraint system permitted in this weight class

1

= move seat forwards as far as necessary and adjust seat backrest inclination as far as necessary to a vertical position

to ensure that the belt runs forwards from the upper anchorage point

On rear outboard seats On rear centre seatactivated airbag deactivated airbag

U/L

U/L

U/L

U/L

U/L

3

3

3,4

3,4

3,4

X

X

X

X

X

Seats, restraints 53

2

= move seat height adjustment upwards as far as necessary and adjust seat backrest inclination as far as necessary to

a vertical position to ensure that the belt is tight on the buckle side

3

= move the respective front seat ahead of the child restraint system forwards as far as necessary

4

= adjust the respective backrest to the rearmost position 3 69, adjust the respective headrest as necessary or remove

if required 3 36

Permissible options for fitting an ISOFIX child restraint system

5

On rear outboard
seats

3

IL

3

IL

3

IL

3

IL

3,4

IL

3,4

IL

3,4

IL, IUF

3,4

IL, IUF

3,4

IL, IUF

On rear
centre seatactivated airbag deactivated airbag

X

X

X

X

X

X

X

X

X

Weight class Size class Fixture

Group 0: up to 10 kg

E ISO/R1 X IL

or approx. 10 months

Group 0+: up to 13 kg
or approx. 2 years

E ISO/R1 X IL

D ISO/R2 X IL

C ISO/R3 X IL

Group I: 9 to 18 kg
or approx. 8 months to 4 years

D ISO/R2 X IL

C ISO/R3 X IL

B ISO/F2 X IL/IUF

B1 ISO/F2X X IL/IUF

A ISO/F3 X IL/IUF

On front passenger seat

54 Seats, restraints

5

On rear outboard
seats

X

3,4

IL

On rear
centre seatactivated airbag deactivated airbag

X

Weight class Size class Fixture

Group II: 15 to 25 kg

On front passenger seat

1,2

IL

or approx. 3 to 7 years

Group III: 22 to 36 kg

1,2

IL

X

3,4

IL

X

or approx. 6 to 12 years

IL = suitable for particular ISOFIX restraint systems of the "specific-vehicle", "restricted" or "semi-universal" categories.

(ISOFIX/Top-tether fastening points optional for the front passenger seat but not available for Corsa OPC). The
ISOFIX restraint system must be approved for the specific vehicle type (refer to the vehicle type list of the child
restraint system)

IUF = suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight class

(ISOFIX/Top-tether fastening points optional for the front passenger seat but not available for Corsa OPC)

X = no ISOFIX child restraint system approved in this weight class

1

= move seat forwards as far as necessary and adjust seat backrest inclination as far as necessary to a vertical position

to ensure that the belt runs forwards from the upper anchorage point

2

= move seat height adjustment upwards as far as necessary and adjust seat backrest inclination as far as necessary

to a vertical position to ensure that the belt is tight on the buckle side

3

= move the respective front seat ahead of the child restraint system forwards as far as necessary

4

= adjust the respective backrest to the rearmost position 3 69, adjust the respective headrest as necessary or remove

if required 3 36

5

= ISOFIX/Top-tether fastening points optional for the front passenger seat (not available for Corsa OPC)

Seats, restraints 55

ISOFIX size class and seat device

A – ISO/F3 = forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg
B – ISO/F2 = forward-facing child restraint system for smaller children in the weight class 9 to 18 kg
B1 – ISO/F2X = forward-facing child restraint system for smaller children in the weight class 9 to 18 kg
C – ISO/R3 = rear-facing child restraint system for children of maximum size in the weight class up to 18 kg
D – ISO/R2 = rear-facing child restraint system for smaller children in the weight class up to 18 kg
E – ISO/R1 = rear-facing child restraint system for young children in the weight class up to 13 kg

56 Seats, restraints

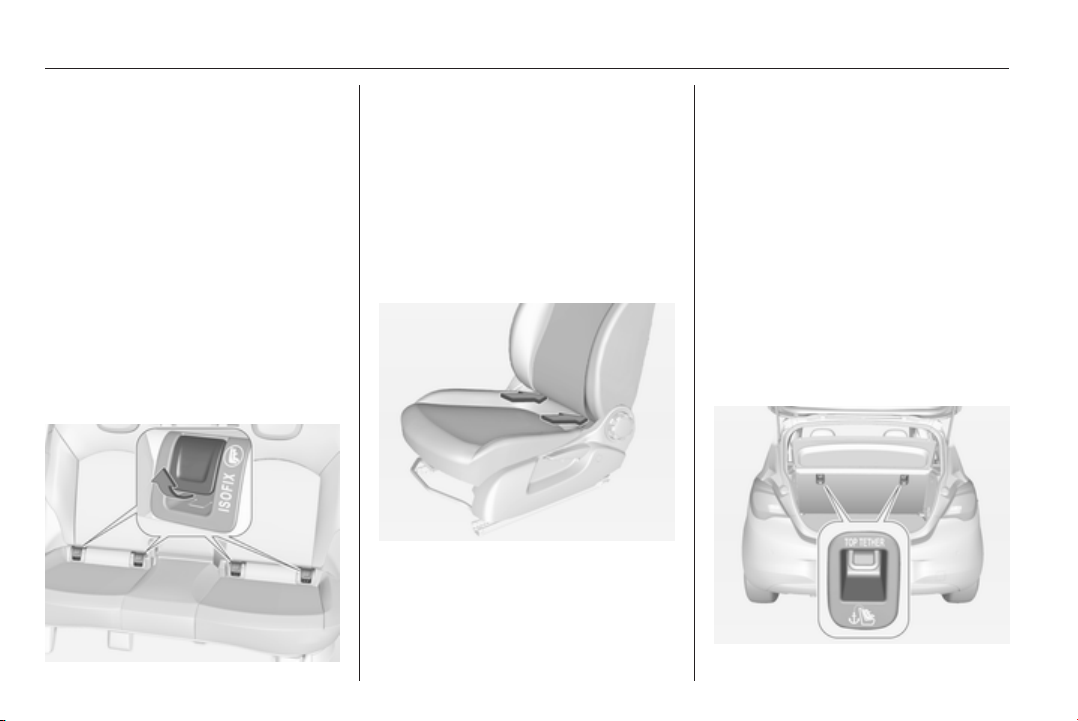

ISOFIX child restraint systems

Fasten vehicle-approved ISOFIX
child restraint systems to the ISOFIX
mounting brackets. Specific vehicle
ISOFIX child restraint system
positions are marked in the table by
IL.

The vehicle is equipped with guides in
the backrests to support the
installation of the child restraint
system.

ISOFIX child restraint systems on rear seats

ISOFIX mounting brackets on the
rear seats are indicated by the
ISOFIX logo on the backrest.

Open the flaps of the guides before
mounting a child restraint system.
After removing the child restraint
system, close the flaps.

ISOFIX child restraint systems on front passenger seat

Place the child restraint system in the
centre of the seat and push
backwards. Make sure that the child
restraint system is engaged properly.

Top-tether fastening eyes

In addition to the ISOFIX mounting,
fasten the Top-tether strap to the
Top-tether fastening eyes.

ISOFIX child restraint systems of
universal category positions are
marked in the table by IUF.

Top-tether fastening eye on rear seats

The vehicle has two fastening eyes
on the backside of the rear seats.

Top-tether fastening eyes are marked
with the symbol : for a child seat.

Top-tether fastening eye on front passenger seat

An additional fastening point is
located on the passenger seat rail in
the rear foot well.

Seats, restraints 57

58 Storage

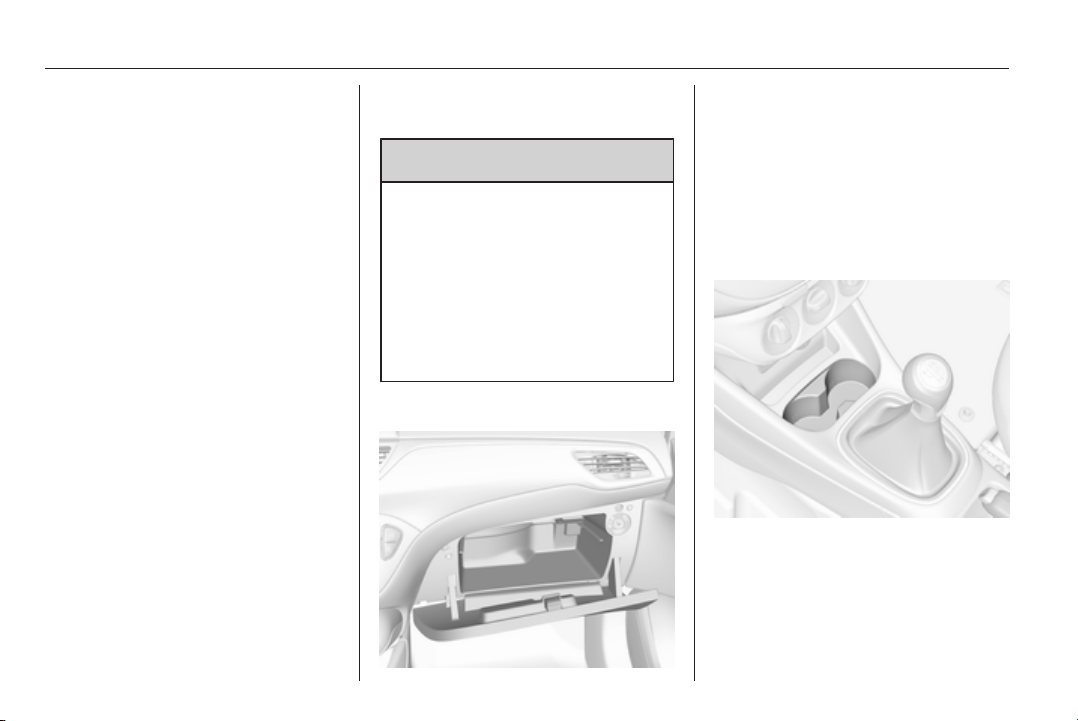

Storage

Storage compartments ................ 58

Load compartment ....................... 69

Roof rack system ......................... 73

Loading information ..................... 74

Storage compartments

9 Warning

Do not store heavy or sharp
objects in the storage
compartments. Otherwise, the
storage compartment lid could
open and vehicle occupants could
be injured by objects being thrown
around in the event of hard
braking, a sudden change in
direction or an accident.

Glovebox

Pull lever to open the glovebox cover.
The glovebox features a coin holder

and an adapter for the locking wheel
bolts.

The glovebox should be closed whilst
driving.

Cupholders

Cupholders are located in the centre
console.

The pockets in the doors are
designed to carry bottles.

Storage 59

A movable rubber strap is located in
the storage compartment in front of
the gear selector lever. Pull out the
strap to fix a cup or ashtray.

Front storage

Additional bottleholders are located in
the rear side panels.

Flexible cupholder strap

Storage compartments are located
below the light switch, in the centre
console, in the door pockets and in
the side panels near the rear seats.

60 Storage

Underseat storage

Lift at recessed edge and pull out.
Maximum load: 1.5 kg. To close, push
in and engage.

Rear carrier system

The rear carrier system (Flex-Fix
system) allows bicycles to be
attached to a pull-out carrier
integrated into the vehicle floor. The
transportation of other objects is not
permitted.

The maximum load of the rear carrier
system is 40 kg. The maximum load
per bicycle is 20 kg.

The wheelbase of a bicycle must not
exceed 1.2 metres. Otherwise the
secure fastening of a bicycle is not
possible.

If not in use, the carrier system can be
slid back into the vehicle floor.

There must not be any objects on the
bicycles that could become loose
during transportation.

Caution

Do not attach bicycles with carbon
pedal cranks to bicycle carriers.
The bicycles may get damaged.

Extending

Open the tailgate.

9 Warning

No persons may remain in the
extension zone of the rear carrier
system, risk of injury.

Storage 61

Pull release lever up. The system
disengages and travels quickly out of
the bumper.

Completely pull out the rear carrier
system until you hear it engage.

Ensure that it is not possible to push
in the rear carrier system without
pulling the release lever again.

9 Warning

It is only permissible to fit objects
to the rear carrier system if the
system has been correctly
engaged. If the rear carrier system
will not engage correctly, do not fit
objects to the system and slide the
system back. Seek the assistance
of a workshop.

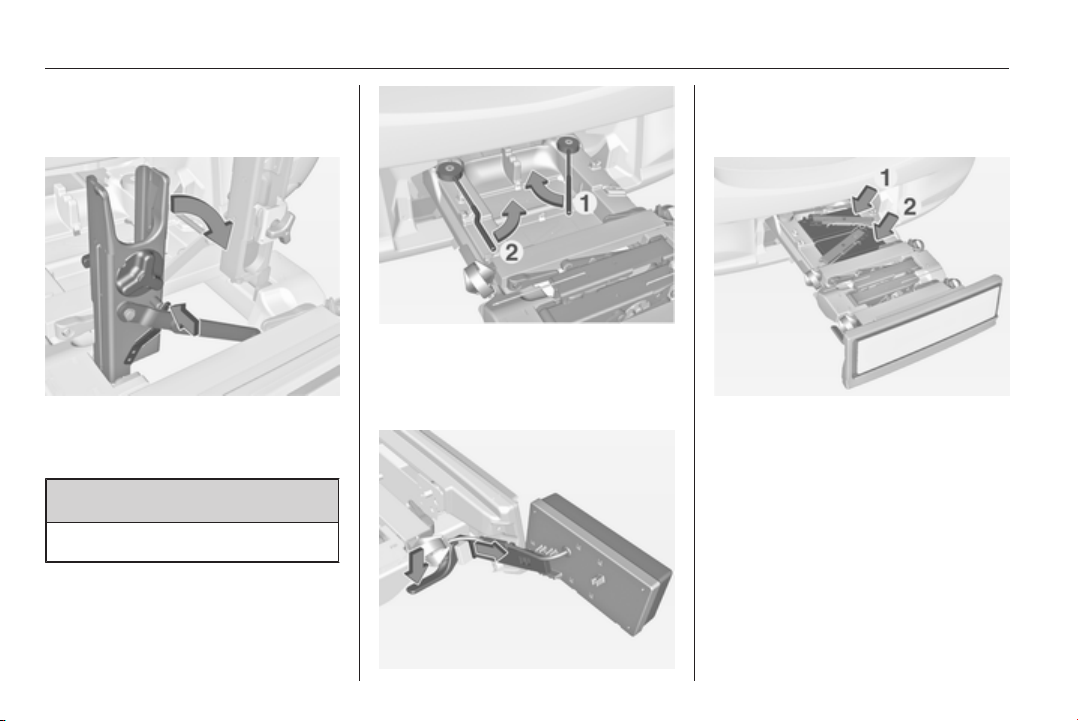

Install the tail lamps

First remove the rear (1), then the
front (2) tail lamp from the recesses.

62 Storage

Open out the lamp support on the
back of the tail lamp completely until
it engages.

Push the clamping lever down and
push the lamp support into the
retainer until it engages.

Perform this procedure for both tail
lamps.

Check the cable and lamp position to
make sure these are correctly
installed and are securely located.

Lock the rear carrier system

Swivel the left clamping lever (1) first,
followed by the right clamping lever
(2) until they stop. Both clamping
levers must point backwards,
otherwise safe functionality is not
guaranteed.

Note
Close the tailgate.

Storage 63

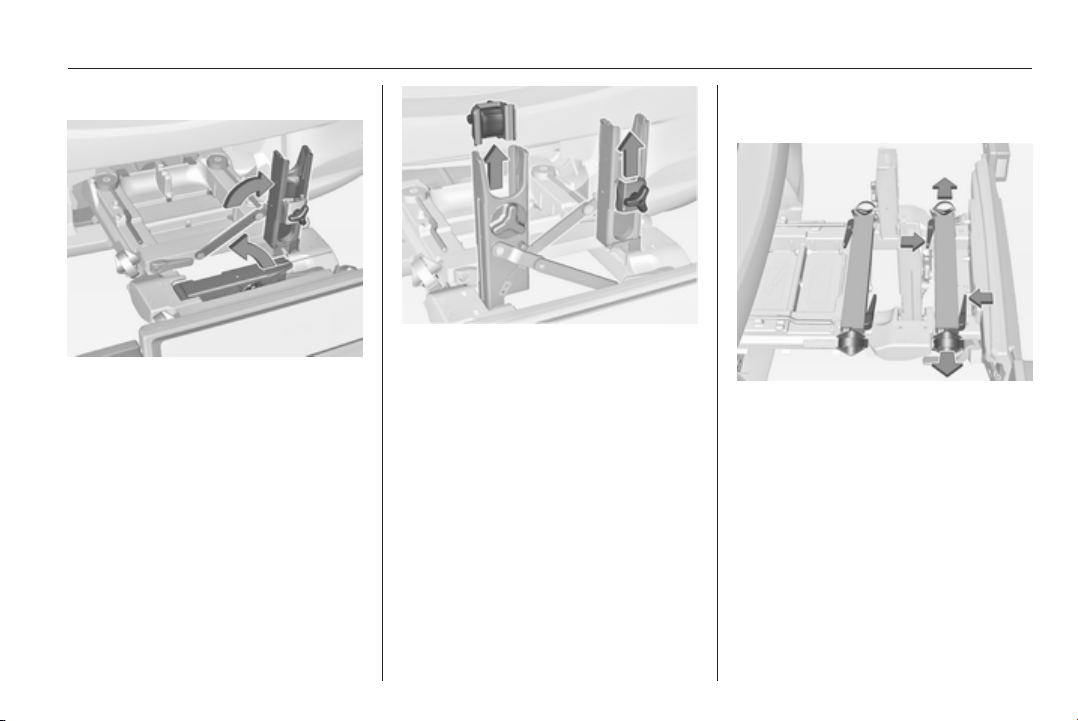

Unfold pedal crank recesses

Fold one or both pedal crank
recesses upwards until the diagonal
support engages.

Adapting the rear carrier system to a bicycle

Remove the pedal crank mounts from
the pedal crank recesses.

Press the release lever and withdraw
the wheel recesses.

64 Storage

Push the release lever on the strap
retainer and remove the strap
retainer.

Prepare the bicycle for attachment

Note
The maximum width for the pedal
crank is 38.3 mm and the maximum
depth is 14.4 mm.

Rotate the left pedal (without a chain
cog) vertically downwards. The pedal
on the left pedal crank must be
horizontal.

The front bicycle must have its front
wheel facing left.

The rear bicycle must have its front
wheel facing right.

Attaching a bicycle to the rear carrier system

With the rotary lever on the pedal
crank recess, roughly adapt the
adjustable pedal crank unit to the
protrusion of the pedal crank.

If the bicycle has straight pedal
cranks, unscrew the pedal crank unit
completely (position 5).

If the bicycle has curved pedal
cranks, screw in the pedal crank unit
all the way (position 1).

Storage 65

Put on the bicycle. The pedal crank
here must be placed in the pedal
crank recess opening as shown in the
illustration.

Caution

Make sure that the pedal does not
touch the surface of the rear end
carrier. Otherwise the crankset
might be damaged during the
transport.

Attach the pedal crank by rotating the
attachment screw on the pedal crank
mount.

Insert pedal crank mount into outer
rail of each pedal crank recess from
above and slide downwards until at
least underneath the notching.

66 Storage

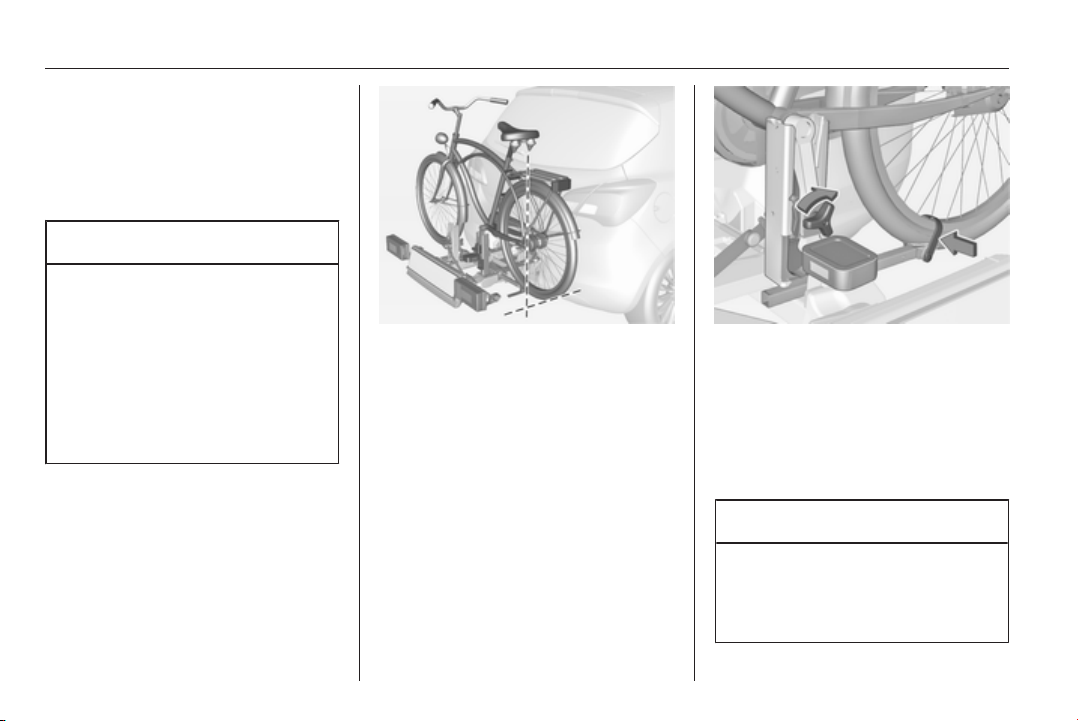

Place the wheel recesses so that the
bicycle is roughly horizontal. Here,
the distance between the pedals and
the tailgate should be at least 5 cm.

Both bicycle tyres must be in the
wheel recesses.

Caution

Make sure to pull out the wheel
recesses as far as necessary to
have both bicycle tyres placed in
the recesses. Otherwise a
horizontal mounting of the bicycle
is not ensured. Disregard could
lead to damage of the bicycle
wheels caused by hot exhaust
fumes.

Align the bicycle in the longitudinal
direction of the vehicle: Slightly
loosen the pedal mount.

Place the bicycle upright using the
rotary lever on the pedal crank
recess.

If the two bicycles obstruct one
another, the relative positions of the
bicycles can be adapted by adjusting
the wheel recesses and the rotary
lever on the pedal crank recess until
the bicycles no longer touch one
another. Make sure there is sufficient
clearance from the vehicle.

Tighten the attachment screw for the
pedal bearing mount to its maximum
point by hand.

Secure both bicycle wheels to wheel
recesses using strap retainers.

Check the bicycle to make sure it is
secure.

Caution

Ensure gap between bicycle and
vehicle is at least 5 cm. If
necessary, loosen handlebar and
swivel sideways.

Storage 67

The settings for the wheel recesses
and on the rotary lever on the pedal
crank recess should be noted and
saved for each bicycle. Correct
presetting will facilitate refitting of the
bicycle.

Note
It is recommended to attach a
warning sign at the rearmost bicycle
to increase visibility.

Removing a bicycle from the rear carrier system

Undo strap retainers on both bicycle
tyres.

Hold on to the bicycle, loosen the
attachment screw for the pedal
bearing mount, then lift the pedal
bearing mount to remove it.

Retracting the rear carrier system

Insert the strap retainer and pull
tightly downwards as far as possible.

Push the pedal crank mounts into the
pedal crank recess as shown in the
illustration.

68 Storage

Press release lever and slide in wheel
recesses all the way as far as they will
go.

Disengage the locking lever on the
diagonal support and fold both pedal
crank recesses down.

9 Warning

Risk of pinching.

Swivel first the right clamping lever
(1) forwards, followed by the left
clamping lever (2), until they can be
engaged in their respective recesses.

Push the clamping lever down and
pull both lamp supports out of the
recesses.

Fold in the lamp supports on the
backs of the tail lamps.

First place the front tail lamp (1), then
the rear tail lamp (2) in the recesses
and push down as far as possible.
Push cables all the way into all guides
in order to prevent damage.

Open the tailgate.

Storage 69

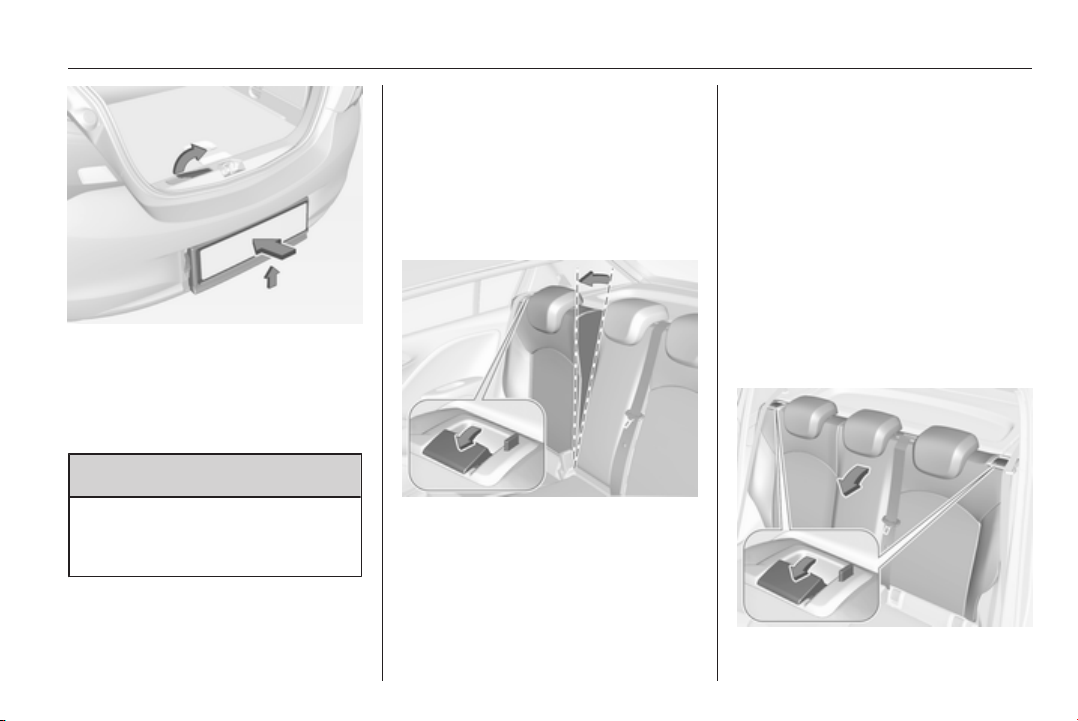

Push the release lever up and hold.
Lift the system slightly and push it into
the bumper until it engages.

Release lever must return to original
position.

9 Warning

If the system cannot be correctly
engaged, please seek the
assistance of a workshop.

Load compartment

Load compartment extension

The rear backrest can be locked in
two positions. When transporting
bulky items, lock in an upright
position.

Split backrest
Pull the release handle on the

relevant side, pull the backrest
forwards to the vertical position and
engage.

Single-unit backrest

Pull the release handle on both sides,
pull the backrest forwards to the
vertical position and engage.

When unlocking, a red marking
appears next to the release lever. The
backrest is properly engaged when
the red marks on both sides near the
release lever are no longer visible.

Folding down rear backrests

Remove load compartment cover as
necessary.

Push head restraints down by
pressing the catch.

70 Storage

Guide the seat belts through side
supports to protect them against
damage. When folding the backrest,
pull the seat belts along with it.

Split backrest
Pull the release handle on the

relevant side and fold it down onto the
seat cushion.

Single-unit backrest
Pull the release handle on both sides

and fold it down onto the seat
cushion.

If the vehicle is to be loaded via a rear
door, take the seat belt out of the seat
backrest guide and insert the latch
plate in the recess as shown in the
illustration.

To fold up, raise the backrest and
guide it into an upright position until it
engages audibly.

Ensure that the seat belts of the
outboard seats are placed in the
corresponding belt guides.

The backrest is properly engaged
when the red marks on both sides
near the release lever are no longer
visible.

Warning

9

Only drive the vehicle when the
backrests are securely locked into
position. Otherwise there is a risk
of personal injury or damage to the
load or vehicle in the event of hard
braking or a collision.

The seat belt of the centre seat could
be blocked when the backrest is
folded up too quickly. To unlock the
retractor, push in the seat belt or pull
it out by approx. 20 mm and then let
go.

Storage 71

Load compartment cover

Do not place any objects on the cover.

Removing

Unhook retaining straps from tailgate.
Lift cover at the rear and push it

upwards at the front.
Remove the cover.

Stowing
When the load compartment is fully
loaded, stow the load compartment
cover on the rear seats or remove
from vehicle.

Fitting

Engage cover in side guides and fold
downwards. Attach retaining straps to
tailgate.

Rear floor storage cover

Rear floor cover

Lift up rear floor cover to gain access
to emergency breakdown equipment.

Tools 3 200.

In models with a tyre repair kit on the
right side in the load compartment,
the spare wheel recess may be used
as an additional stowage
compartment. Tyre repair kit 3 208.

Double load-bay floor

The double load-bay floor can be
inserted in the load compartment in
two positions:

■ directly above the cover for the
spare wheel recess or the floor
cover

■ or in the upper openings in the load
compartment

To remove, lift the load-bay floor
using the recess and pull backwards.

72 Storage

To insert, push the load-bay floor
forwards in the corresponding guide,
then lower.

If mounted in the upper position, the
space between the load-bay floor and
the spare wheel well cover can be
used as a stowage compartment.

In this position, if the rear seat
backrests are folded forwards, an
almost completely flat load bay is
created.

The double load-bay floor is able to
withstand a load of no more than
100 kg. In the lower position, the
double load-bay floor is able to
withstand the maximum permissible
load.

General hint

9 Warning

For safety reasons, stow all parts
in the load compartment in its
position, always drive with a
closed rear floor cover and, if
possible, with folded up rear
backrests.

Otherwise, vehicle occupants
could be injured by objects being
thrown around in the event of hard
braking, a sudden change in
direction or an accident.

Lashing eyes

The lashing eyes are designed to
secure items against slippage, e.g.
using lashing straps or luggage net.

Warning triangle

The warning triangle is stowed in the
load compartment below the tailgate.

Storage 73

First aid kit

Stow the first-aid kit in the
compartment in the left wall of the
load compartment.

To open the compartment, disengage
cover and open it.

Roof rack system

Roof rack

For safety reasons and to avoid
damage to the roof, the vehicle
approved roof rack system is
recommended. For further
information contact your workshop.

Follow the installation instructions
and remove the roof rack when not in
use.

Fitting on model without sun roof

Push covers for concealing roof rack
mounts down and push backwards
with a valve cap key 3 200.

Fitting on model with sun roof

Disengage covers concealing roof
rack mounts by pushing sliders in
direction of arrow and remove
upwards. To close roof rack mounts,
first insert covers at front and engage
sliders at rear.

Attach roof rack at appropriate points,
see enclosed roof rack system
instructions.

74 Storage

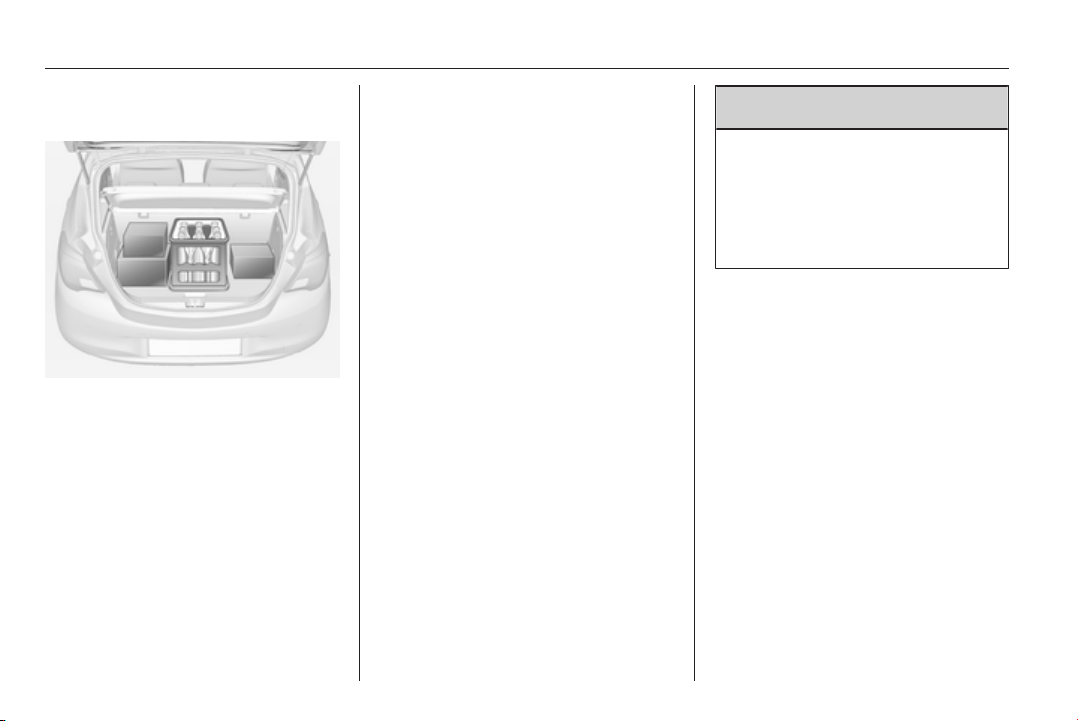

Loading information

■ Heavy objects in the load
compartment should be placed
against the seat backrests. Ensure
that the backrests are securely
engaged. If objects can be stacked,
heavier objects should be placed at
the bottom.

■ Secure objects with lashing straps
attached to the lashing eyes 3 72.

■ Use the hook at the right sidewall of
the load compartment for hanging
up carrier bags. Maximum load:
5 kg.

■ Secure loose objects in the load
compartment to prevent them from
sliding.

■ When transporting objects in the
load compartment, the backrests of
the rear seats must not be angled
forward.

■ Do not allow the load to protrude
above the upper edge of the
backrests.

■ Do not place any objects on the
load compartment cover or the
instrument panel, and do not cover
the sensor on top of the instrument
panel.

■ The load must not obstruct the
operation of the pedals, parking
brake and gear selector lever, or
hinder the freedom of movement of
the driver. Do not place any
unsecured objects in the interior.

■ Do not drive with an open load
compartment.

9 Warning

Always make sure that the load in
the vehicle is securely stowed.
Otherwise objects can be thrown
around inside the vehicle and
cause personal injury or damage
to the load or car.

■ The payload is the difference
between the permitted gross
vehicle weight (see identification
plate 3 229) and the EC kerb
weight.

To calculate the payload, enter the
data for your vehicle in the Weights
table at the front of this manual.

The EC kerb weight includes
weights for the driver (68 kg),
luggage (7 kg) and all fluids (tank
90 % full).

Optional equipment and
accessories increase the kerb
weight.

■ Driving with a roof load increases
the sensitivity of the vehicle to
cross-winds and has a detrimental
effect on vehicle handling due to

the vehicle's higher centre of
gravity. Distribute the load evenly
and secure it properly with retaining
straps. Adjust the tyre pressure and
vehicle speed according to the load
conditions. Check and retighten the
straps frequently.

Do not drive faster than 120 km/h.
The permissible roof load is 75 kg.

The roof load is the combined
weight of the roof rack and the load.

Storage 75

76 Instruments and controls

Instruments and controls

Controls ....................................... 76

Warning lights, gauges and indi‐

cators ........................................... 84

Information displays ..................... 95

Vehicle messages ...................... 102

Vehicle personalisation .............. 105

Controls

Steering wheel adjustment

Unlock lever, adjust steering wheel,
then engage lever and ensure it is
fully locked.

Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.

Steering wheel controls

Cruise control, Speed limiter,
Forward collision alert setting,
Infotainment system and a connected
mobile phone can be operated via the
controls on the steering wheel.

Driver assistance systems 3 149.
Further information is available in the

Infotainment system manual.

Instruments and controls 77

Heated steering wheel

Activate heating by pressing *
button. Activation is indicated by the
LED in the button.

The highlighted grip areas of the
steering wheel are heated quicker
and to a higher temperature than the
other areas.

Heating is operational when the
engine is running and during an
Autostop.

Stop-start system 3 133.

Horn

Press j.

78 Instruments and controls

Windscreen wiper/washer

Windscreen wiper

HI = fast
LO = slow
INT = interval wiping

or
automatic wiping with rain

sensor

OFF = off

For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.

Do not use if the windscreen is frozen.

Switch off in car washes.

Adjustable wiper interval

Wiper lever in position INT.
Turn the adjuster wheel to adjust the

desired wipe interval:
short interval = turn adjuster

wheel upwards

long interval = turn adjuster

wheel downwards

Automatic wiping with rain sensor

INT = automatic wiping with rain

sensor

The rain sensor detects the amount of
water on the windscreen and
automatically regulates the frequency
of the windscreen wiper.

If the wiper frequency is above
20 seconds, the wiper arm moves
slightly down to the park position.

Instruments and controls 79

Adjustable sensitivity of the rain sensor

Turn the adjuster wheel to adjust the
sensitivity:

low sensitivity = turn adjuster

wheel downwards

high sensitivity = turn adjuster

wheel upwards

Pull lever. Washer fluid is sprayed
onto the windscreen and the wiper
wipes a few times.

Rear window wiper/washer

Keep the sensor free from dust, dirt
and ice.

Windscreen washer

Press the rocker switch to activate the
rear window wiper:

upper position = continuous

operation

lower position = intermittent

operation

middle position = off

80 Instruments and controls

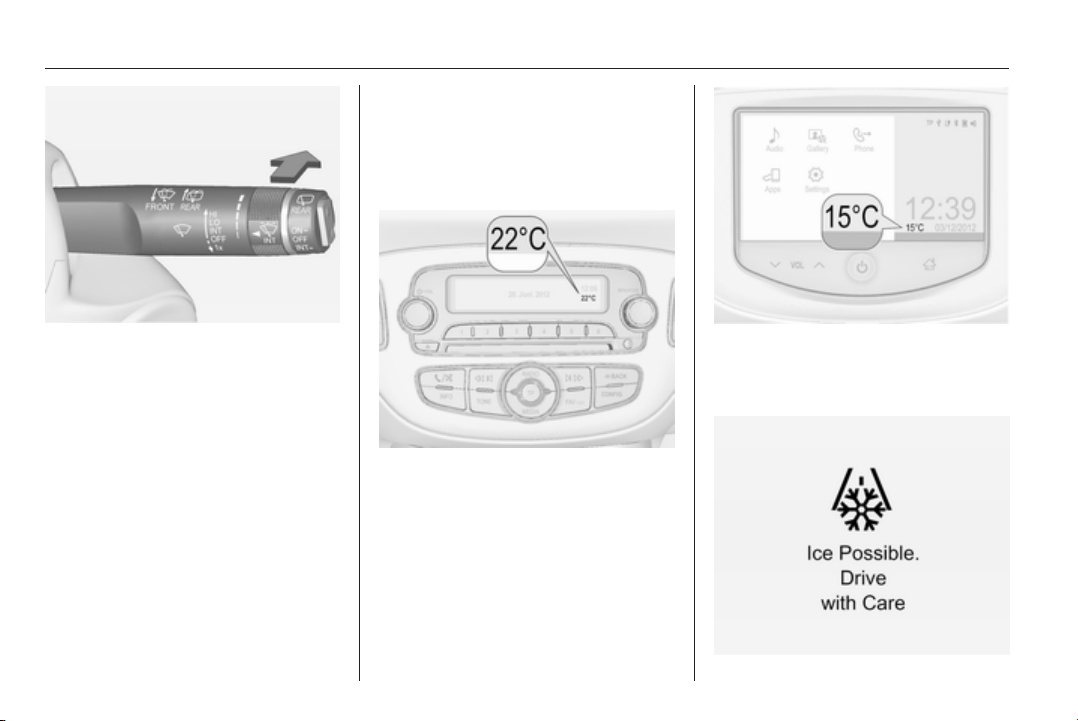

Outside temperature

A drop in temperature is indicated
immediately and a rise in temperature
after a time delay. Temperatures
below 3 °C flash on the display.

Push lever. Washer fluid is sprayed
onto the rear window and the wiper
wipes a few times.

Do not use if the rear window is
frozen.

Switch off in car washes.
The rear window wiper comes on

automatically when the windscreen
wiper is switched on and reverse gear
is engaged.

Activation or deactivation of this
function can be changed in the menu
Settings in the Info-Display.

Vehicle personalisation 3 105.

Illustration shows Colour-Info­Display.

Uplevel-Display

Illustration shows Graphic-Info­Display.

Instruments and controls 81

If outside temperature drops to 3 °C,
a warning message is displayed in the
Driver Information Centre.

9 Warning

The road surface may already be
icy even though the display
indicates a few degrees above
0 °C.

Clock

Graphic-Info Display

Press the CONFIG button to open the
Settings menu.

Scroll through the list and select the
menu item Time Date to display the
respective submenu.

Note
For a detailed description of menu
operation, refer to the Infotainment
system manual.

Set time

Press the MENU-TUNE knob to enter
the Set time submenu.

Turn the MENU-TUNE knob to
change the current value of the first
setting.

Press the MENU-TUNE knob to
confirm the set value.

The cursor then switches to the next
value. If all values are set, you are
automatically returned to the next
higher menu level.

Set date

Press the MENU-TUNE knob to enter
the Set date submenu.

Turn the MENU-TUNE knob to
change the current value of the first
setting.

Press the MENU-TUNE knob to
confirm the set value.

The cursor then switches to the next
value. If all values are set, you are
automatically returned to the next
higher menu level.

Set time format
To switch between the available
options, repeatedly press the
MENU-TUNE knob.

82 Instruments and controls

Set date format
To switch between the available
options, repeatedly press the
MENU-TUNE knob.

RDS clock synchronization
The RDS signal of most VHF
transmitters automatically sets the
time. RDS time synchronisation can
take a few minutes. Some
transmitters do not send a correct
time signal. In such cases, it is
recommended to switch off the
automatic time synchronisation.

To switch between the options On
and Off, repeatedly press the
MENU-TUNE knob.

Colour-Info Display

Press the ; button and then select
the Settings screen button.

Select Time & date settings to display
the respective submenu.

Note
For a detailed description of menu
operation, refer to the Infotainment
system manual.

Set time format
To select the desired time format, tap
on the screen buttons 12 h or 24 h.

Set date format
To select the desired date format, tap
on the < and > screen buttons and
choose between the available
options.

Set time and date

To adjust the time and date settings,
tap on the H and I screen buttons.

RDS clock synchronization
The RDS signal of most VHF
transmitters automatically sets the
time. RDS time synchronisation can
take a few minutes. Some
transmitters do not send a correct
time signal. In such cases, it is
recommended to switch off the
automatic time synchronisation.

To activate or deactivate RDS clock
synchronization, tap on the screen
buttons On or Off.

Instruments and controls 83

Power outlets

A 12 Volt power outlet is located in the
centre console.

Do not exceed the maximum power
consumption of 120 watts.

With ignition off, the power outlet is
deactivated. Additionally, the power
outlet is deactivated in the event of
low vehicle battery voltage.

Electrical accessories that are
connected must comply with the
electromagnetic compatibility
requirements laid down in
DIN VDE 40 839.

Do not connect any current-delivering
accessories, e.g. electrical charging
devices or batteries.

Do not damage the outlet by using
unsuitable plugs.

Stop-start system 3 133.

Cigarette lighter

The cigarette lighter is located in the
centre console.

Press in cigarette lighter. It switches
off automatically once the element is
glowing. Pull out lighter.

Ashtrays

Caution

To be used only for ash and not for
combustible rubbish.

The portable ashtray can be placed in
the cupholders.

84 Instruments and controls

Warning lights, gauges and indicators

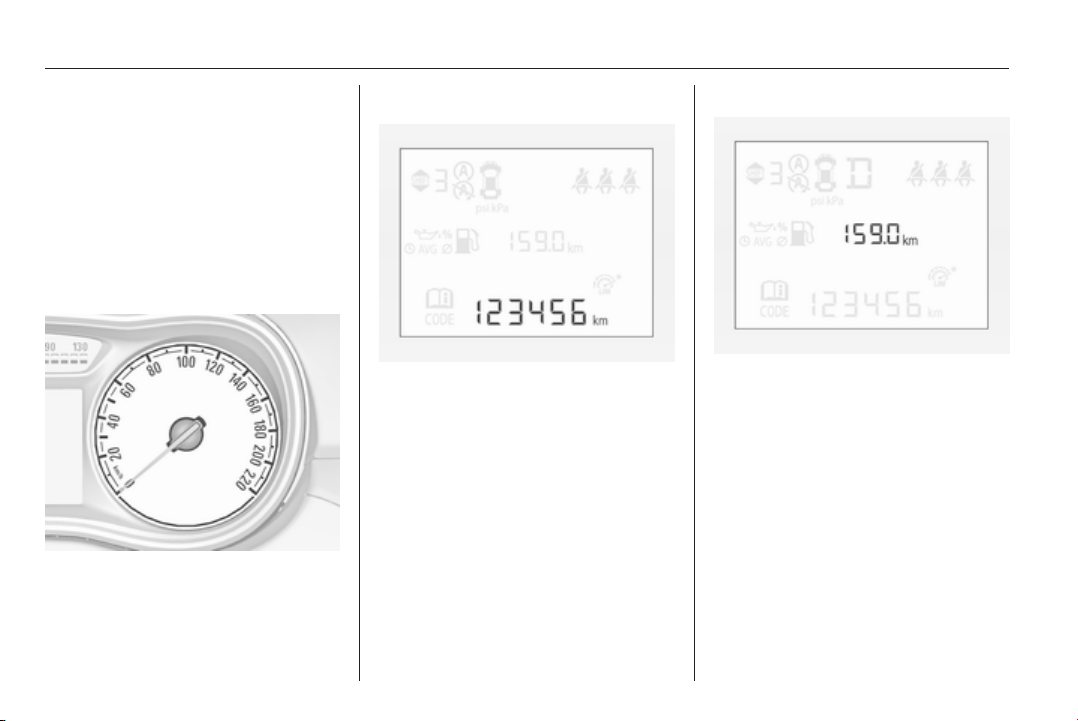

Instrument cluster

The needles of the instruments briefly
rotate to the end position when the
ignition is switched on.

Speedometer

Indicates vehicle speed.

Odometer

The bottom line displays the recorded
distance in km.

Trip odometer

The recorded distance is displayed
since the last reset.

Trip odometer counts up to
9,999 km and then restarts at 0.

Baselevel and Midlevel display

To reset, press the SET/CLR button
on the turn signal lever for a few
seconds 3 95.

Instruments and controls 85

Uplevel display

Two trip odometer are selectable for
different trips.

Select page Trip by pressing Menu
button on the turn signal lever. Turn
adjuster wheel on turn signal lever
and select Trip 1 or Trip 2. Each trip
odometer can be reset separately by
pressing SET/CLR button on the turn
signal lever for a few secondson the
respective page.

Tachometer

Displays the engine speed.
Drive in a low engine speed range for

each gear as much as possible.

Caution

If the needle is in the red warning
zone, the maximum permitted
engine speed is exceeded. Engine
at risk.

Fuel gauge

Number of LEDs displays the fuel
level in the tank.

8 LEDs = tank is full.
Control indicator Y illuminates if the

level in the tank is low. Refuel
immediately if it flashes.

Never run the tank dry.
Because of the fuel remaining in the

tank, the top-up quantity may be less
than the specified tank capacity.

86 Instruments and controls

Engine coolant temperature gauge

Number of LEDs displays the coolant
temperature.

up to 3 LEDs = engine operating

temperature not
yet reached

4 to 6 LEDs = normal operating

temperature
more than 6
LEDs

= temperature too

high

Caution

If engine coolant temperature is
too high, stop vehicle, switch off
engine. Danger to engine. Check
coolant level.

Service display

The engine oil life system lets you
know when to change the engine oil
and filter. Based on driving
conditions, the interval at which an
engine oil and filter change will be
indicated can vary considerably.

To display the remaining engine oil
life duration use turn signal lever
buttons:

Press the MENU button to select the
Vehicle Information Menu.

Turn the adjuster wheel to select
Remaining Oil Life.

Instruments and controls 87

The remaining engine oil life duration
is displayed in percent in the Driver
Information Centre.

Reset

Press the SET/CLR button on turn
signal lever for several seconds to
reset. The remaining engine oil life
duration page must be active. Switch
on ignition, but engine off.

The system must be reset every time
the engine oil is changed to ensure
proper functionality. Seek the
assistance of a workshop.

Next service

When the system has calculated that
engine oil life has diminished, a
warning message appears in the
Driver Information Centre. Have
engine oil and filter changed by a
workshop within one week or
500 km (whichever occurs first).

Driver Information Centre 3 95.
Service information 3 225.

Control indicators

The control indicators described are
not present in all vehicles. The
description applies to all instrument
versions. Depending on the
equipment, the position of the control
indicators may vary. When the
ignition is switched on, most control
indicators will illuminate briefly as a
functionality test.

The control indicator colours mean:
red = danger, important reminder

yellow = warning, information, fault
green = confirmation of activation
blue = confirmation of activation
white = confirmation of activation

88 Instruments and controls

Control indicators in the instrument cluster

Instruments and controls 89

Control indicators in the centre console

Turn signal

O illuminates or flashes green.

Illuminates briefly

The parking lights are switched on.

Flashes

A turn signal or the hazard warning
flashers are activated.

Rapid flashing: failure of a turn signal
light or associated fuse.

Bulb replacement 3 186, Fuses
3 194.

Turn signals 3 114.

Seat belt reminder

Seat belt reminder on front seats

X for driver's seat illuminates or
flashes red in the tachometer.

k

for front passenger seat illuminates
or flashes red in the centre console
when the seat is occupied.

Illuminates
After the ignition has been switched
on, until the seat belt has been
fastened.

Flashes
After having started the engine for a
maximum of 100 seconds, until the
seat belt has been fastened.

Fastening the seat belt 3 41.

Seat belt status on rear seats

X in the Driver Information Centre
flashes or illuminates.

90 Instruments and controls

Illuminates
After having started the engine for a
minimum of 35 seconds, until the seat
belt has been fastened.

If an unfastened seat belt is fastened
whilst driving.

Flashes
After starting-off, when the seat belt is
unfastened.

Fastening the seat belt 3 41.

Airbag and belt tensioners

v illuminates red.
When the ignition is switched on, the

control indicator illuminates for
approx. four seconds. If it does not
illuminate, does not go out after
four seconds or illuminates whilst
driving, there is a fault in the airbag
system. Seek the assistance of a
workshop. The airbags and belt
pretensioners may fail to trigger in the
event of an accident.

Deployment of the belt pretensioners
or airbags is indicated by continuous
illumination of v.

9

Warning

Have the cause of the fault
remedied immediately by a
workshop.

Belt pretensioners, airbag system
3 40, 3 43.

Airbag deactivation

V illuminates yellow.
Illuminates for approx. 60 seconds

after the ignition is switched on. The
front passenger airbag is activated.

* illuminates yellow.
The front passenger airbag is

deactivated 3 48.

9 Danger

Risk of fatal injury for a child using
a child restraint system together
with activated front passenger
airbag.

Risk of fatal injury for an adult
person with deactivated front
passenger airbag.

Charging system

p illuminates red.
Illuminates when the ignition is

switched on and extinguishes shortly
after the engine starts.

Illuminates when the engine is running

Stop, switch off engine. Vehicle
battery is not charging. Engine
cooling may be interrupted. The
brake servo unit may cease to be
effective. Seek the assistance of a
workshop.

Malfunction indicator light

Z illuminates or flashes yellow.
Illuminates when the ignition is

switched on and extinguishes shortly
after the engine starts.

Instruments and controls 91

Illuminates when the engine is running

Fault in the emission control system.
The permitted emission limits may be
exceeded. Seek the assistance of a
workshop immediately.

Flashes when the engine is running

Fault that could lead to catalytic
converter damage. Ease up on the
accelerator until the flashing stops.
Seek the assistance of a workshop
immediately.

Service vehicle soon

g illuminates yellow.
Additionally a warning message or

warning code is displayed in the
Driver Information Centre.

The vehicle needs a service.
Seek the assistance of a workshop.
Vehicle messages 3 102.

Brake and clutch system

R illuminates red.

The brake and clutch fluid level is too
low 3 183.

9 Warning

Stop. Do not continue your
journey. Consult a workshop.

Illuminates after the ignition is
switched on if the manual parking
brake is applied 3 146.

Operate pedal

- illuminates or flashes yellow.

Illuminates

Clutch pedal needs to be depressed
to start the engine in Autostop mode.
Stop-start system 3 133.

Flashes

Clutch pedal needs to be depressed
for a main start of the engine 3 19,
3 132.

On some versions, the operate pedal
message is indicated in the Driver
Information Display 3 102.

Antilock brake system (ABS)

u illuminates yellow.
Illuminates for a few seconds after the

ignition is switched on. The system is
ready for operation when the control
indicator extinguishes.

If the control indicator does not go out
after a few seconds, or if it illuminates
while driving, there is a fault in the
ABS. The brake system remains
operational but without ABS
regulation.

Antilock brake system 3 145.

Gear shifting

R with the number of the next higher
gear is indicated, when upshifting is
recommended for fuel saving
reasons.

Power steering

c illuminates yellow.

92 Instruments and controls

Illuminates with power steering reduced

Power steering is reduced due to
overheating of the system. Control
indicator extinguishes when the
system has cooled down.

Stop-start system 3 133.

Illuminates with power steering disabled

Failure in the power steering system.
Consult a workshop.

Illumination of c and b simultaneously

Power steering system must be
calibrated, system calibration 3 148.

Lane departure warning

) illuminates green or flashes yellow.

Illuminates green

System is switched on and ready to
operate.

Flashes yellow

System recognises an unintended
lane change.

Lane departure warning 3 169

Ultrasonic parking assist

r illuminates yellow.
Fault in system
or
Fault due to sensors that are dirty or

covered by ice or snow
or
Interference due to external sources

of ultrasound. Once the source of
interference is removed, the system
will operate normally.

Have the cause of the fault in the
system remedied by a workshop.

Ultrasonic parking assist 3 155.

Electronic Stability Control and Traction Control system

b flashes or illuminates yellow.

Flashes

The system is actively engaged.
Engine output may be reduced and
the vehicle may be braked
automatically to a small degree.

Illuminates

A fault in the system is present. A
warning message or warning code
appears in the Driver Information
Centre. Continued driving is possible.
The system is not operational. Driving
stability, however, may deteriorate
depending on road surface
conditions.

Have the cause of the fault remedied
by a workshop.

Electronic Stability Control 3 147,
Traction Control system 3 147.

Preheating

! illuminates yellow.
Preheating is activated. Only

activates when outside temperature
is low.

Instruments and controls 93

Diesel particle filter

% illuminates or flashes yellow.
The diesel particle filter requires

cleaning.
Continue driving until %

extinguishes. If possible, do not allow
engine speed to drop below
2000 rpm.

Illuminates

The diesel particle filter is full. Start
cleaning process as soon as
possible.

Flashes

The maximum filling level of the filter
is reached. Start cleaning process
immediately to avoid damage to the
engine.

Diesel particle filter 3 136, Stop-start
system 3 133.

Tyre pressure monitoring system

w illuminates or flashes yellow.

Illuminates

Tyre pressure loss. Stop immediately
and check tyre pressure.

Flashes

Fault in system or tyre without
pressure sensor mounted (e.g. spare
wheel). After 60-90 seconds the
control indicator illuminates
continuously. Consult a workshop.

Tyre pressure monitoring system
3 202.

Engine oil pressure

I illuminates red.
Illuminates when the ignition is

switched on and extinguishes shortly
after the engine starts.

Illuminates when the engine is running

Caution

Engine lubrication may be
interrupted. This may result in
damage to the engine and/or
locking of the drive wheels.

1. Depress the clutch.

2. Set selector lever to neutral.

3. Move out of the flow of traffic as
quickly as possible without
impeding other vehicles.

4. Switch off the ignition.

9 Warning

When the engine is off,
considerably more force is needed
to brake and steer.

During an Autostop the brake
servo unit will still be operational.

94 Instruments and controls

Do not remove key until vehicle is
stationary, otherwise the steering
wheel lock could engage
unexpectedly.

Check oil level before seeking the
assistance of a workshop 3 180.

Low fuel

Y illuminates or flashes yellow.

Illuminates

Level in fuel tank is too low.

Flashes

Fuel used up. Refuel immediately.
Never run the tank dry.

Catalytic converter 3 137.
Bleeding the diesel fuel system

3 185.

Immobiliser

d flashes yellow.
Fault in the immobiliser system. The

engine cannot be started.

Reduced engine power

# illuminates yellow.
The engine power is limited. Consult

a workshop.

Autostop

Autostop active

D illuminates red or white.
Engine is in an Autostop.
Stop-start system 3 133.

Exterior light

8 illuminates green.
The exterior lights are on 3 110.

High beam

C illuminates blue.
Illuminated when high beam is on or

during headlight flash 3 111.

High beam assist

l illuminates green.

The high beam assist is activated
3 113.

Fog light

> illuminates green.
The front fog lights are on 3 115.

Rear fog light

r illuminates yellow.
The rear fog light is on 3 115.

Cruise control

m illuminates white or green.

Illuminates white

The system is on.

Illuminates green

Cruise control is active.
Cruise control 3 149.

Vehicle detected ahead

A illuminates green.

Instruments and controls 95

A vehicle ahead is detected in the
same lane.

Forward collision alert 3 152.

Speed limiter

L illuminates in the Driver
Information Centre when Speed
limiter is active. Set speed is indicated
near L symbol.

Speed limiter 3 151.

Traffic sign assistant

L displays detected traffic signs as
control indicator.

Traffic sign assistant 3 166.

Door open

h illuminates.
A door or the tailgate is open.

Information displays

Driver Information Centre

The Driver Information Centre (DIC)
is located in the instrument cluster.

Depending on the version and
equipment, the Driver Information
Centre is available as Baselevel
display, Midlevel display or Uplevel
display.

Following pages are selectable in the
DIC using the buttons on the turn
signal lever:

■ trip odometer 3 84

■ vehicle information and settings,
see below

■ trip/fuel information, see below

■ economic information, see below

■ navigation information

Following indication appears if
required:

■ warning messages 3 102

■ gear shift indication 3 91

■ drive mode indication 3 138,
3 142

■ tyre pressure warning 3 202

■ seat belt reminder indication 3 89

■ autostop indication 3 133

■ service information 3 91

Baselevel-Display

Select subpages by turning the
adjuster wheel on turn signal lever.
Selectable subpages are:

■ engine oil life indication

■ tyre pressure indication

■ tyre loading

■ unit setting

96 Instruments and controls

■ language setting, if no Infotainment
system available

■ clock, if no Infotainment system
available

■ outside temperature, if no
Infotainment system available

Some of the displayed functions differ
when the vehicle is being driven or at
a standstill.

Midlevel display

The menu pages of the Midlevel
display are selected by pressing the
MENU button on the turn signal lever.

Selectable menu pages of Midlevel
display are:

■ Trip Menu, see below

■ Vehicle Menu, see below
Some of the displayed functions differ

when the vehicle is being driven or at
a standstill. Some functions are only
available when the vehicle is being
driven.

Uplevel-Display

The menu pages of the Uplevel
display are selected by pressing the
MENU button on the turn signal lever.
Main menu symbols are indicated in
the top line of the display:

■ Trip Menu, see below

■ Vehicle Menu, see below

■ Eco Menu, see below
Some of the displayed functions differ

when the vehicle is being driven or at
a standstill. Some functions are only
available when the vehicle is being
driven.

Selecting menus and functions

The menus and functions can be
selected via the buttons on the turn
signal lever.

Instruments and controls 97

Press the MENU button to switch
between the main menus or to return
from a submenu to the next higher
menu level.

Turn the adjuster wheel to select a
subpage of the main menu or to set a
numeric value.

Press the SET/CLR button to select
and confirm a function.

Vehicle and service messages are
popped up in the DIC if required.
Confirm messages by pressing
SET/CLR button. Vehicle messages
3 102.

Trip Menu

Press the MENU button to select the
Trip Information page.

Turn the adjuster wheel to select a
subpage.

The following list contains all possible
Trip Menu pages. Some may not be
available for your particular vehicle.

Follow the instructions given in the
submenus.

■ trip odometer 1

■ trip odometer 2

■ average fuel economy 1

■ average fuel economy 2

■ digital speed

■ fuel range

■ instantaneous fuel economy

■ average vehicle speed

■ clock

■ temperature

■ navigation

■ blank page

Selection and indication is different
between Base-, Midlevel- and
Uplevel-Display.

Trip odometer 1 and 2
Trip odometer displays the current
distance since a certain reset.

Trip odometer counts up to a distance
of 2,000 km then restarts at 0.

Turn the adjuster wheel to select
between trip odometer 1 and 2.

To reset, press SET/CLR button for a
few seconds while viewing this page.

Simultaneously average fuel
economy 1 and 2 is indicated together
with trip odometer 1 and 2.

The information of trip page 1 and 2
can be reset separately while the
respective display is active.

Average fuel economy 1 and 2
Display of average consumption. The
measurement can be reset at any
time and starts with a default value.

To reset, press SET/CLR button for a
few seconds while viewing this page.

98 Instruments and controls

Simultaneously trip odometer 1 and 2
is indicated together with average fuel
economy 1 and 2.

The information of trip page 1 and 2
can be reset separately while the
respective display is active.

Digital speed
Digital display of the instantaneous
speed.

Fuel range
Range is calculated from current fuel
tank content and current
consumption. The display shows
average values.

After refuelling, the range is updated
automatically after a brief delay.

When the fuel level in the tank is low,
a message appears on the display
and the control indicator Y in the fuel
gauge illuminates.

When the tank must be refuelled
immediately, a warning message
appears and remains on the display.
Additionally, the control indicator Y in
the fuel gauge flashes 3 94.

Instantaneous fuel economy
Display of the instantaneous
consumption.

Average vehicle speed
Display of average speed. The
measurement can be reset at any
time.

To reset, press SET/CLR button for a
few seconds while viewing this page.

Clock
Display of actual time.

Only indicated if no Infotainment
system is available.

Temperature
Display of actual outside
temperature.

Only indicated if no Infotainment
system is available.

Navigation
Navigation menu enables route
guidance.

See Infotainment system manual.

Blank page
Shows a blank page without any
information.

Vehicle Menu

Press the MENU button to select the
Vehicle Information page.

Turn the adjuster wheel to select a
subpage.

The following list contains all possible
Vehicle Menu pages. Some may not
be available for your particular
vehicle.

Follow the instructions given in the
submenus.

■ unit

■ speed warning

■ remaining oil life

■ tyre pressure

■ tyre loading

■ following distance

■ traffic sign assistant

■ language
Selection and indication is different

between Base-, Midlevel- and
Uplevel-Display.
