Instruction Manual

Contents

Introduction

Important Safeguards................................................2

Precautions................................................................3

Supplied Accessories................................................4

Features.....................................................................4

Before Using the TX-SR501/TX-SR501E ...............5

Controls & Connectors .............................................6

Connections

Connecting Your AV Components.........................10

Connecting -compatible AV Components ........19

Installing Your Speakers ........................................20

Connecting Antenna ...............................................22

Setup

Powering Up & Setting Up the TX-SR501/

TX-SR501E.........................................................24

Important—First Time Setup..............................24

Configuring Speaker Set A.....................................26

Thank you for purchasing the Onkyo AV Receiver. Please read this manual thoroughly before making connections and plugging in the unit.

Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new AV Receiver.

Please retain this manual for future reference.

Operation

Playing Your AV Components...............................28

Using the Tuner ......................................................30

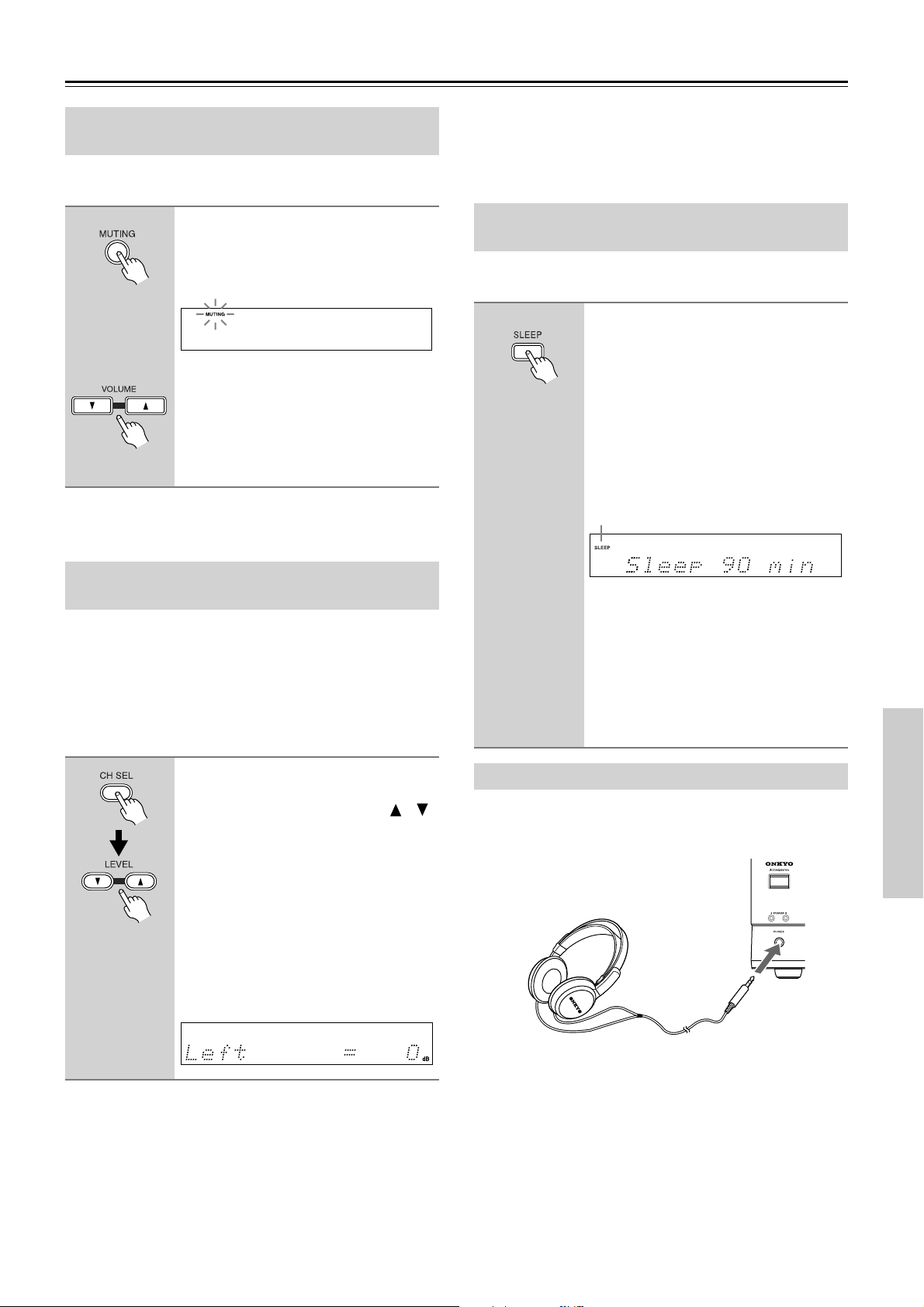

Common Functions.................................................32

Using the Listening Modes.....................................34

Audio Adjust Functions..........................................37

Recording................................................................39

Remote Controller

Using the Remote Controller RC-479S with Your

Other AV Components........................................40

Using the Remote Controller RC-518M with Your

Other AV Components........................................41

Appendix

Troubleshooting......................................................45

Specifications..........................................................48
