Onkyo C-7000R User Manual

Compact Disc Player

C-7000R

Instruction Manual

Introduction

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to

persons. The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

12. Use only with the cart, stand,

PORTABLE CART WARNING

tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

S3125A

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen

into the apparatus,

C. If the apparatus has been exposed to rain or water, D. If the apparatus does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often

AVIS

RISQUE DE CHOC ELECTRIQUE

NE PAS

OUVRIR

require extensive work by a qualified technician to restore the apparatus to its normal operation,

E. If the apparatus has been dropped or damaged in

any way, and

F. When the apparatus exhibits a distinct change in

performance this indicates a need for service.

16. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning objects on top of this unit.

17. Batteries Always consider the environmental issues and follow local regulations when disposing of batteries.

18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue-like gap for warm air to escape.

Precautions

1. Recording Copyright—Unless it’s for personal use only, recording copyrighted material is illegal without the permission of the copyright holder.

2. AC Fuse—The AC fuse inside the unit is not userserviceable. If you cannot turn on the unit, contact your Onkyo dealer.

3. Care—Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering.

4. Power WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit’s rear panel (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz).

The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.

Some models have a voltage selector switch for compatibility with power systems around the world. Before you plug in such a model, make sure that the voltage selector is set to the correct voltage for your area.

Pressing the [POWER] button to select OFF mode does not fully disconnect from the mains. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

5. Preventing Hearing Loss Caution

Excessive sound pressure from earphones and headphones can cause hearing loss.

6. Batteries and Heat Exposure Warning

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat as sunshine, fire or the like.

7. Never Touch this Unit with Wet Hands—Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer.

8. Handling Notes

• If you need to transport this unit, use the original

packaging to pack it how it was when you originally bought it.

• Do not leave rubber or plastic items on this unit for

a long time, because they may leave marks on the case.

• This unit’s top and rear panels may get warm after

prolonged use. This is normal.

• If you do not use this unit for a long time, it may not

work properly the next time you turn it on, so be sure to use it occasionally.

• When you’ve finished using this unit, remove all

discs and turn off the power.

9. Installing this Unit

• Install this unit in a well-ventilated location.

• Ensure that there’s adequate ventilation all around

this unit, especially if it’s installed in an audio rack. If the ventilation is inadequate, the unit may overheat, leading to malfunction.

• Do not expose this unit to direct sunlight or heat

sources, because its internal temperature may rise, shortening the life of the optical pickup.

• Avoid damp and dusty places, and places subject to

vibrations from loudspeakers. Never put the unit on top of, or directly above a loudspeaker.

• Install this unit horizontally. Never use it on its side

or on a sloping surface, because it may cause a malfunction.

• If you install this unit near a TV, radio, or VCR, the

picture and sound quality may be affected. If this occurs, move this unit away from the TV, radio, or VCR.

10. Moisture Condensation Moisture condensation may damage this unit.

Read the following carefully: Moisture may condense on the lens of the optical pickup, one of the most important parts inside this unit.

• Moisture condensation can occur in the following

situations: – The unit is moved from a cold place to a warm

place.

– A heater is turned on, or cold air from an air

conditioner is hitting the unit.

– In the summer, when this unit is moved from an

air conditioned room to a hot and humid place.

– The unit is used in a humid place.

• Do not use this unit when there’s the possibility of

moisture condensation occurring. Doing so may

damage your discs and certain parts inside this unit. If condensation does occur, unplug the power cord and leave the unit for two to three hours in the room temperature.

This unit contains a semiconductor laser system and is classified as a “CLASS 1 LASER PRODUCT”. So, to use this model properly, read this Instruction Manual carefully. In case of any trouble, please contact the store where you purchased the unit.

To prevent being exposed to the laser beam, do not try to open the enclosure.

CAUTION:

CLASS 1M VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

The label on the right is applied on the rear panel.

1. This unit is a CLASS 1 LASER PRODUCT and employs a laser inside the cabinet.

2. To prevent the laser from being exposed, do not remove the cover. Refer servicing to qualified personnel.

For U.S. models

FCC Information for User

CAUTION:

The user changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

For Canadian Models

NOTE:

THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.

For models having a power cord with a polarized plug:

CAUTION:

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Modèle pour les Canadien

REMARQUE:

CET APPAREIL NUMÉRIQUE DE LA CLASSE B EST CONFORME À LA NORME NMB-003 DU CANADA.

Sur les modèles dont la fiche est polarisée:

ATTENTION:

POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

For British models

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IMPORTANT

The plug is fitted with an appropriate fuse. If the fuse needs to be replaced, the replacement fuse must approved by ASTA or BSI to BS1362 and have the same ampere rating as that indicated on the plug. Check for the ASTA mark or the BSI mark on the body of the fuse.

If the power cord’s plug is not suitable for your socket outlets, cut it off and fit a suitable plug. Fit a suitable fuse in the plug.

For European Models

Declaration of Conformity

We,

ONKYO EUROPE ELECTRONICS GmbH LIEGNITZERSTRASSE 6, 82194 GROEBENZELL, GERMANY

declare in own responsibility, that the ONKYO product described in this instruction manual is in compliance with the corresponding technical standards such as EN60065, EN55013, EN55020 and EN61000-3-2, -3-3.

GROEBENZELL, GERMANY

K. MIYAGI

ONKYO EUROPE ELECTRONICS GmbH

Features

• Plays Audio CD, CD-R, CD-RW, MP3 CD, and WMA CD

• DIDRC (Dynamic Intermodulation Distortion Reduction Circuitry)

• Separate Digital/Analog Circuitry

• Separate Massive Transformers for Digital and Analog Circuitry (Toroidal Transformer for Analog Circuitry)

• Thermally Regulated High-Precision Clock

• Silent Disc Mechanism with Solid Die-Cast Aluminum Tray

• Separate Anti-Vibration Aluminum Panels for Top, Front, and Sides

• Side-mounted Circuit Board Construction to Reduce Vibration

• PLL Ultra Low Jitter Technology

• Separate TI (Burr-Brown) 192 kHz/24-Bit DACs (PCM1792) for L/R Channels

• Pure Analog Mode

• Transport Mode for Digital Output

• AES/EBU Balanced Digital Output with XLR Connector

• 3 Digital Outputs (Optical, Coaxial and AES/EBU)

• Gold-Plated, Machined Solid Brass, Wide Pitch Audio Outputs

• Display Dimmer (Normal/Dim/Off)

Discs should be properly finalized.

Technologies

DIDRC (Dynamic Intermodulation Distortion Reduction Circuitry)

Since the advent of digital audio, the values of S/N (signal-to-noise) ratio have risen significantly. However, it is also recognized that in terms of perceived S/N, analog audio sources are not inferior to digital sources. Generally, S/N measures the ratio when sound is and not produced, but takes no account of the noise generated during sound reproduction.

For a long time, Onkyo has focused and made extensive research on the S/N when sound is produced (dynamic S/N). Using a mechanism that captures the noise beyond audible range, it has been possible to determine that both dynamic S/N and perceived S/N aggravate during music reproduction.

Although frequencies above 20 kHz are beyond human hearing, it is well known that a beat can be perceived if different signals are overlapped at such frequencies. During the analog audio era, no significant signals were entering beyond the audible range. However, the digital era has made recording beyond the audible range possible and the generated beat is now perceivable. With Onkyo’s DIDRC technology, a new approach is introduced which prevents such beat from penetrating the audible range.

Separate Digital/Analog Circuitry and Transformers

To prevent unwanted interference, the C-7000R employs physically separate circuitry for digital and analog processing. In the same vein, the player also features separate transformers for digital and analog circuitry.

Thermally Regulated Super-Precision Clock

The C-7000R boasts an extremely precise clocking mechanism that controls and coordinates the timing of all digital signal processes—rather like how a conductor directs and coordinates the individual instruments of an orchestra. The C-7000R uses a state-of-theart crystal oscillator that achieves a frequency deviation of ±1.5 ppm at room temperaturemuch lower than with a conventional oscillator. Even in surrounding temperatures of -30°C or +80°C the frequency remains stable, with only ±0.5 ppm of additional frequency deviation.

PLL (Phase Locked Loop) Ultra-Low Jitter Tec hn ol og y

Jitter is an unwanted side-effect of the digitalto-analog conversion process caused by fluctuations in the time domain of a digital signal. PLL ultra-low jitter technology reduces jitter by comparing the input and output phases of the digital signal and creating an accurate clock waveform. This enhances the precision of digital signal processing and noticeably improves perceived audio quality.

Side-mounted Circuit Board Construction

Rather than being directly connected to the chassis base, the circuit boards inside the C-7000R are cushioned by internal struts and affixed to the front, side, and rear panels. This method of construction prevents vibrations from the chassis from adversely affecting the circuit boards.

Block Diagram

DIDRC (Dynamic Intermodulation Distortion Reduction Circuitry)

Supplied Accessories

Make sure you have the following accessories:

Remote controller and two batteries

Remote controller (RC-796C). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (1)

Batteries (R03/AAA). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (2)

Power cord

Power cord (1.8 m/5.9 ft) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (1)

(Plug type varies from country to country.)

Audio connection cable

Audio connection cable (0.8 m/2.6 ft) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (1)

In catalogs and on packaging, the letter at the end of the product name indicates the color. Specifications and operations are the same regardless of color.

Thank you for purchasing an Onkyo Compact Disc Player. Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new Compact Disc Player. Please retain this manual for future reference.

Contents

Introduction

Important Safety Instructions .................................................................................2

Precautions...............................................................................................................3

Features ....................................................................................................................5

Technologies ............................................................................................................6

Block Diagram ..........................................................................................................7

Supplied Accessories ..............................................................................................8

Before Using the Compact Disc Player................................................................10

Installing the Batteries .......................................................................................10

Using the Remote Controller .............................................................................10

Installing the Compact Disc Player ....................................................................10

Getting to Know the Compact Disc Player ..........................................................11

Front Panel ........................................................................................................11

Display ...............................................................................................................12

Rear Panel.........................................................................................................13

Remote Controller..............................................................................................14

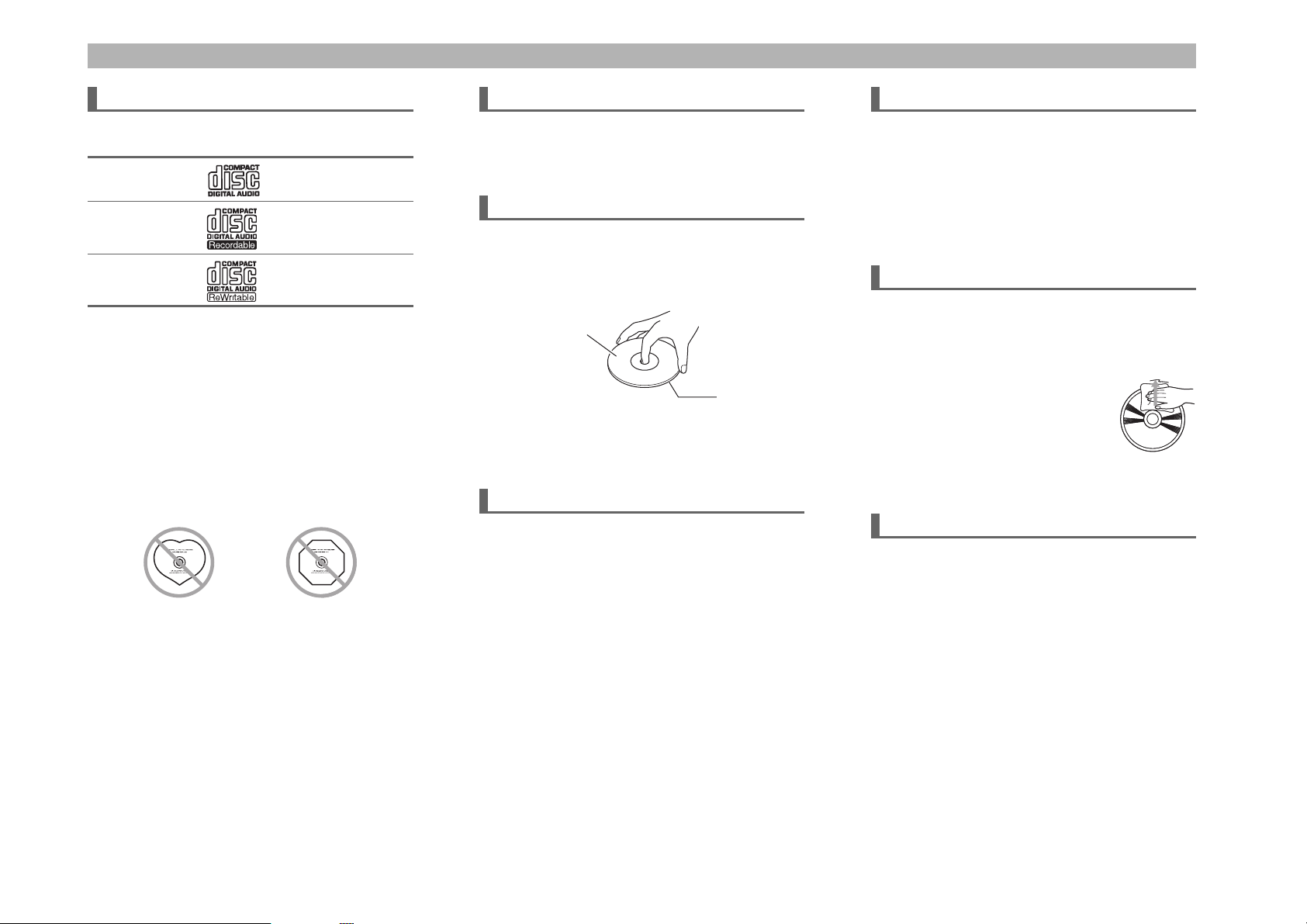

Disc Note ...........................................................................................................15

Connections

Connections ...........................................................................................................17

Cable and Jacks ................................................................................................17

Connecting the Power Cord...............................................................................18

Connecting a Preamplifier or Integrated Amplifier .............................................19

Turning On & Basic Operations

Basic Operations....................................................................................................21

Turning On/Off the Compact Disc Player ..........................................................21

Playing the Disc .................................................................................................22

Selecting Files (MP3/WMA)...............................................................................23

Setting the Display Brightness ...........................................................................24

Advanced Operations

Advanced Operations ............................................................................................25

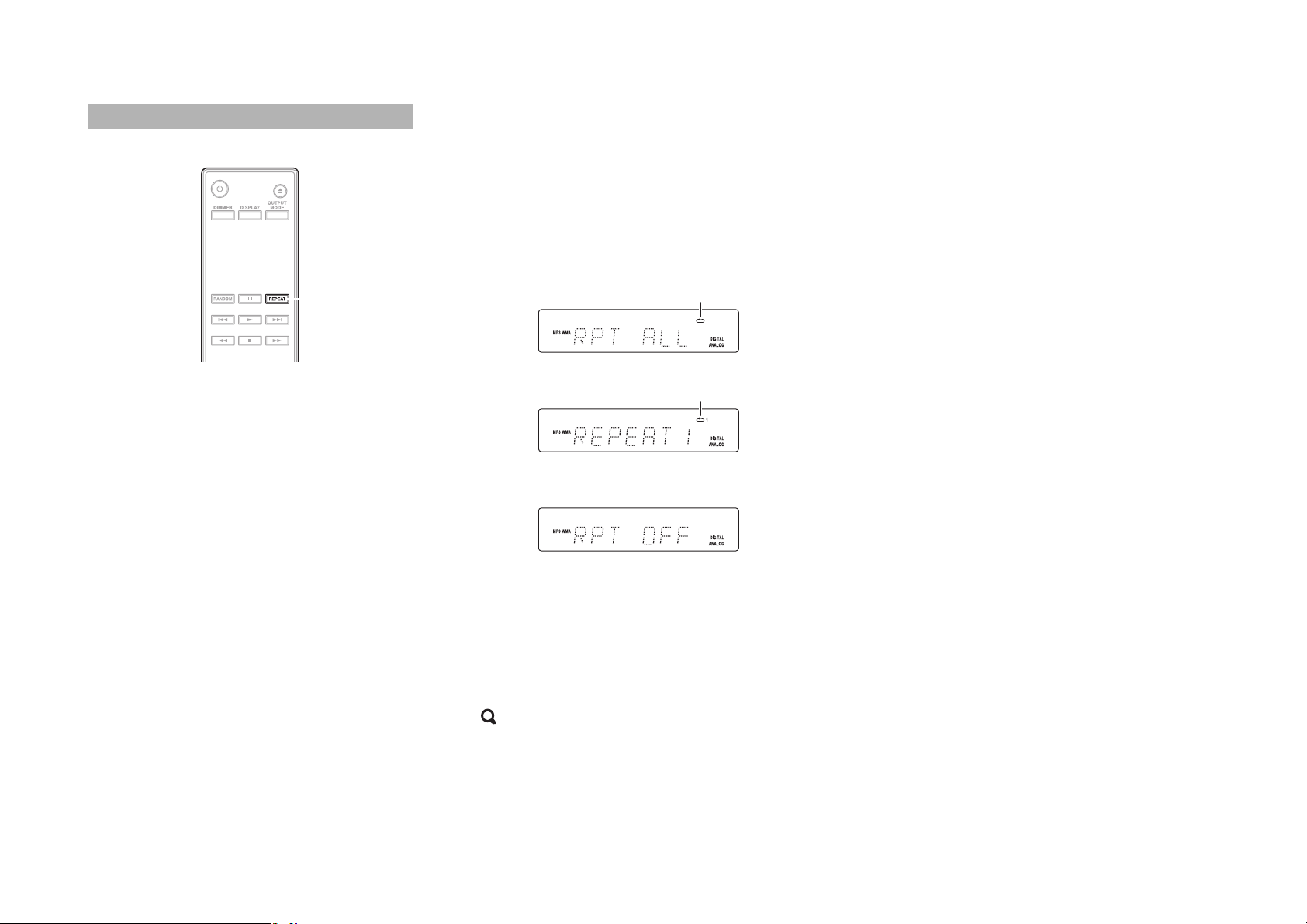

Repeat Playback................................................................................................25

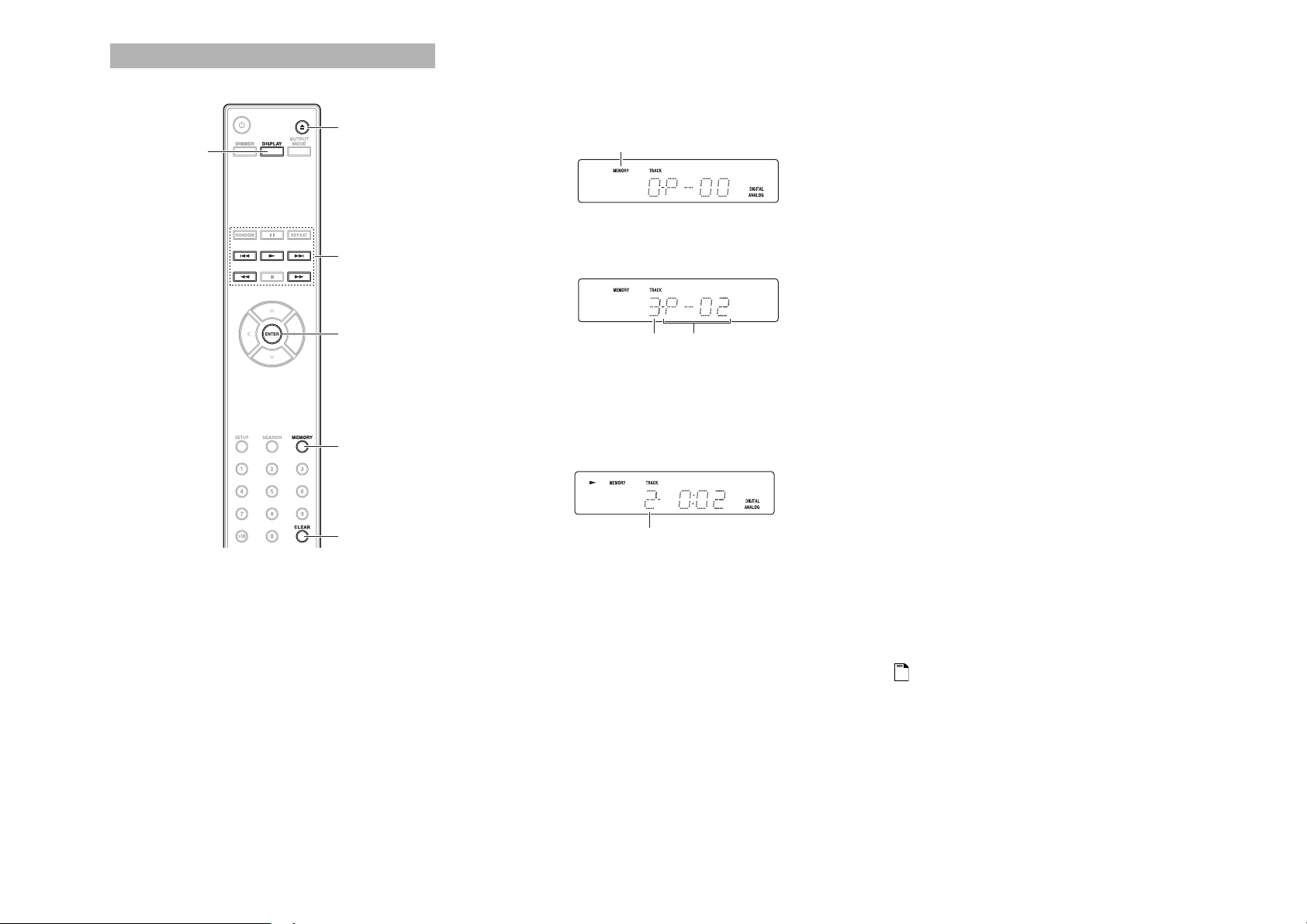

Memory Playback (CD)......................................................................................26

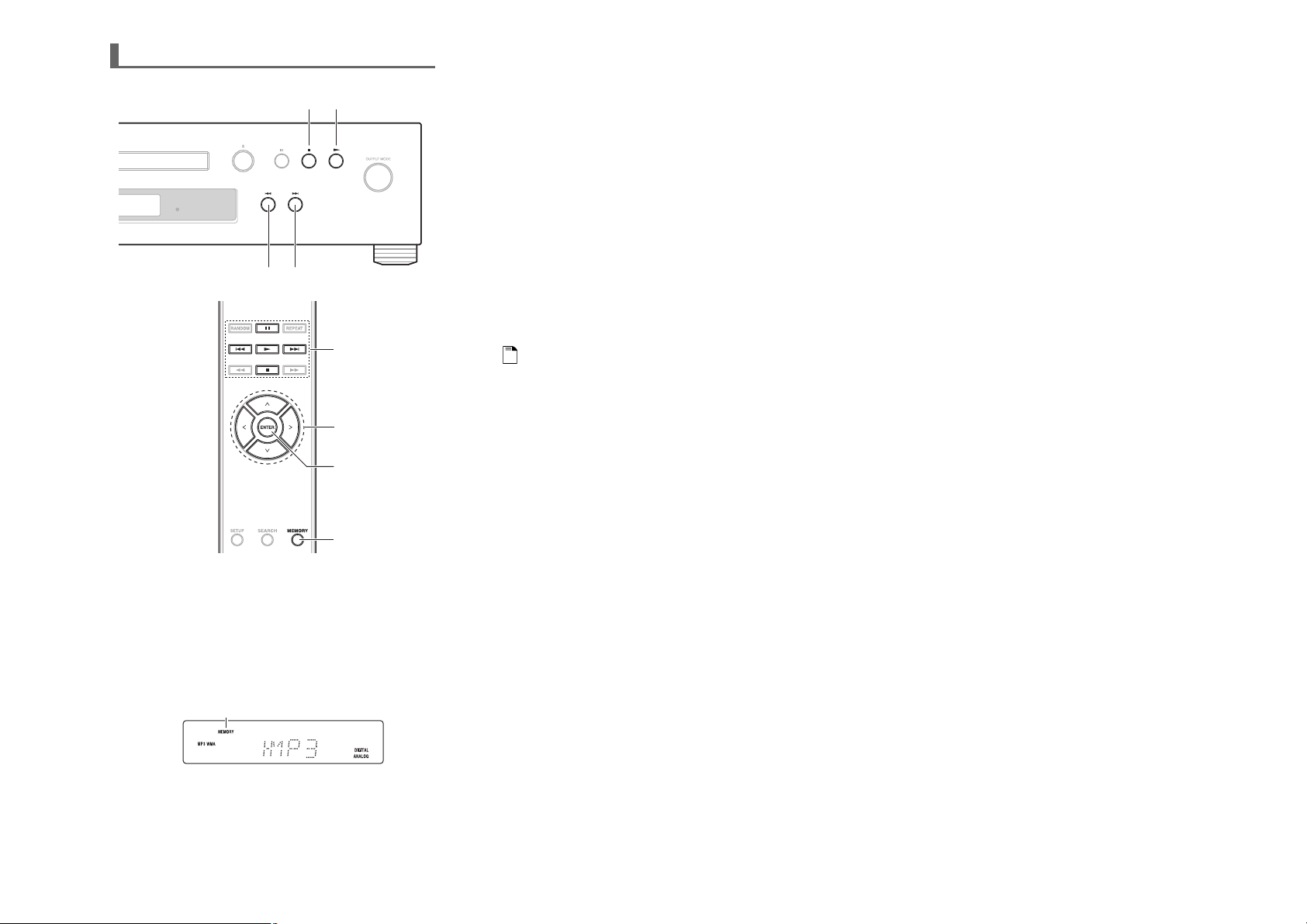

Memory Playback (MP3/WMA)..........................................................................27

Random Playback..............................................................................................29

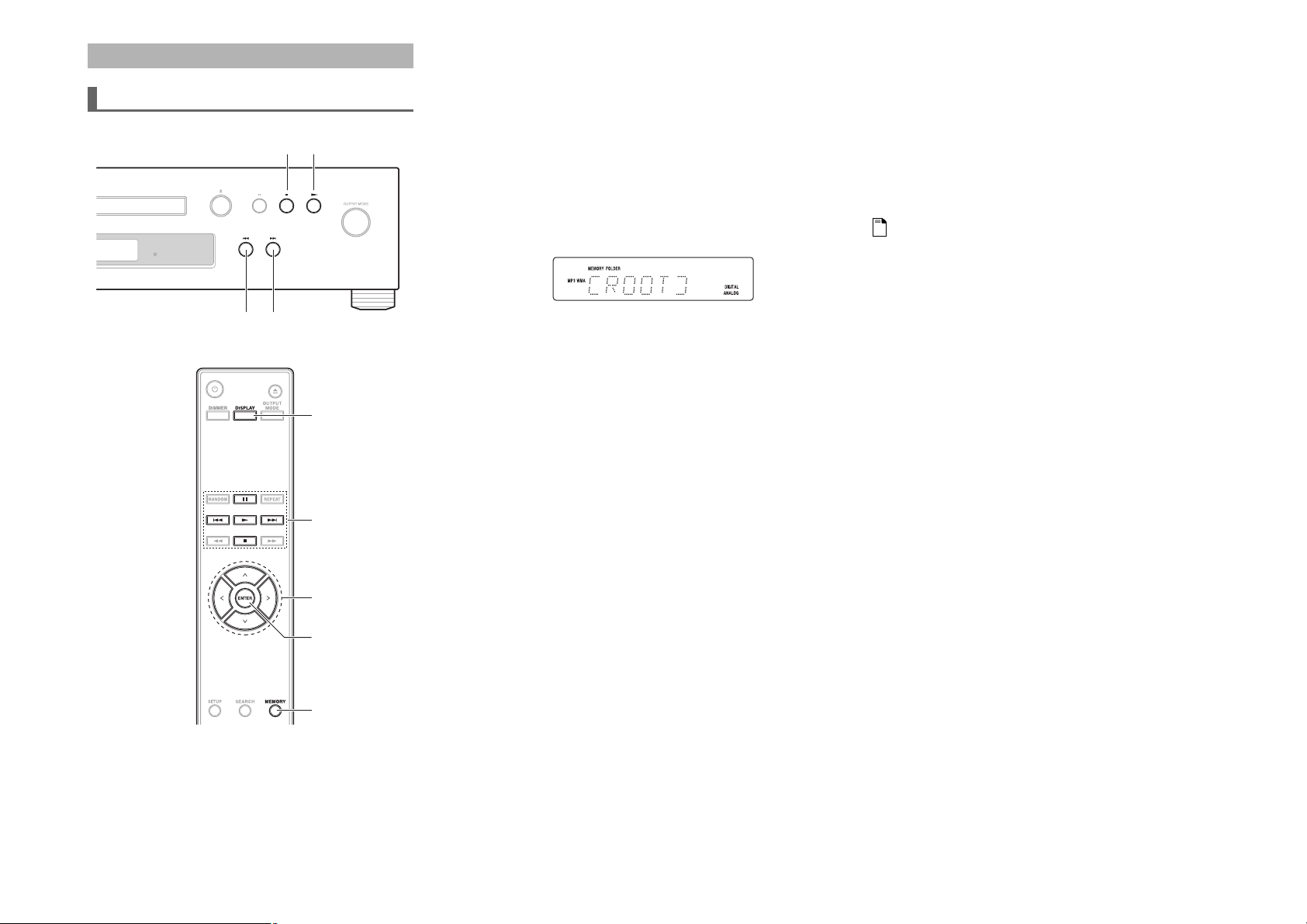

Selecting a Folder (Search Mode) .....................................................................29

Displaying Disc Information ...............................................................................30

Custom Setup

Custom Setup.........................................................................................................31

Setup Procedures ..............................................................................................31

Preferences .......................................................................................................31

Setting the Analog/Digital Output.......................................................................32

Others

Troubleshooting .....................................................................................................33

Specifications.........................................................................................................35

Before Using the Compact Disc Player

Installing the Batteries

To open the battery compartment, press the small

hollow and slide the cover.

Insert the two supplied batteries (R03/AAA) in

accordance with the polarity diagram inside the battery compartment.

Replace the cover and slide it shut.

Using the Remote Controller

To use the remote controller, point it at the compact disc player’s remote control sensor, as shown below.

Remote control sensor

Compact disc player

30° off center (Left/Right)

Note

• The remote controller may not work reliably if the compact disc player is subjected to bright light, such as direct sunlight or inverter-type fluorescent lights. Keep this in mind when installing.

• If another remote controller of the same type is used in the same room, or the compact disc player is installed close to equipment that uses infrared rays, the remote controller may not work reliably.

• Don’t put anything, such as a book, on the remote controller, because the buttons may be pressed inadvertently, thereby draining the batteries.

• The remote controller may not work reliably if the compact disc player is installed in a rack behind colored glass doors. Keep this in mind when installing.

• The remote controller will not work if there’s an obstacle between it and the compact disc player’s remote control sensor.

Approx. 16 ft. (5 m)

Installing the Compact Disc Player

20 cm (8")

10 cm (4")

Install the compact disc player on a sturdy rack or shelf. Position it so that its weight is evenly dispersed on its four legs. Do not install the compact disc player in a place with vibration or an unstable location.

Note

• If the remote controller doesn’t work reliably, try replacing the batteries.

• Don’t mix new and old batteries or different types of batteries.

• If you intend not to use the remote controller for a long time, remove the batteries to prevent damage from leakage or corrosion.

• Remove expired batteries as soon as possible to prevent damage from leakage or corrosion.

Getting to Know the Compact Disc Player

Front Panel

d eb

c gf

The page numbers in parentheses show where you can find the main explanation for each item.

a ON/STANDBY button (➔ 21)

Use this button to set the compact disc player to On or Standby.

b Standby LED (➔ 21)

Lights when the compact disc player is in Standby mode.

c Remote control sensor (➔ 10)

The sensor receives control signals from the remote controller.

d Display (➔ 12)

See “Display”.

e Disc tray (➔ 22)

Insert discs into this tray.

f 0 button (➔ 22)

Opens and closes the disc tray.

g 3 button (➔ 22)

Use this button to pause disc playback. When paused, this resumes playback.

h 2 button (➔ 22)

Use this button to stop disc playback.

i 1 button (➔ 22)

Use this button to play the disc.

j OUTPUT MODE button (➔ 32)

Use this button to switch the audio output signal between analog and digital (or both).

m n

k POWER switch (➔ 21)

This is the main power switch. When set to the OFF position (@), the compact disc player is completely shutdown. It must be set to the ON position (^) to set

the compact disc player to On or Standby.

l Display Off LED (➔ 24)

Lights when the display is turned off. Before entering standby mode with the ASb function, the Display Off LED flashes 30 seconds before the ASb function starts running.

m 7 button (➔ 22)

Use this button to skip to the beginning of the track being played. Press and hold down to fast reverse.

n 6 button (➔ 22)

Use this button to skip to the beginning of the next track. Press and hold down to fast forward.

+ 25 hidden pages
