CD Player
C-1VL
Instruction Manual
Contents
Introduction.................................... 2
Connections ................................. 10
Thank you for purchasing an Onkyo CD Player. Please
read this manual thoroughly before making connections and plugging in the unit.
Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new CD Player.
Please retain this manual for future reference.
Operation...................................... 12
Troubleshooting........................... 17
Specifications .............................. 18
En
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPARATUS
TO RAIN OR MOISTURE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12.
Use only with the cart, stand,
tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
PORTABLE CART WARNING
S3125A
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
AVIS
RISQUE DE CHOC ELECTRIQUE
NE PAS
OUVRIR
15. Damage Requiring Service
Unplug the apparatus from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
A. When the power-supply cord or plug is damaged,
B. If liquid has been spilled, or objects have fallen
into the apparatus,
C. If the apparatus has been exposed to rain or
water,
D. If the apparatus does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions as an improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician
to restore the apparatus to its normal operation,
E. If the apparatus has been dropped or damaged in
any way, and
F. When the apparatus exhibits a distinct change in
performance this indicates a need for service.
16. Object and Liquid Entry
Never push objects of any kind into the apparatus
through openings as they may touch dangerous voltage points or short-out parts that could result in a
fire or electric shock.
The apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases shall be placed on the apparatus.
Don’t put candles or other burning objects on top of
this unit.
17. Batteries
Always consider the environmental issues and follow local regulations when disposing of batteries.
18. If you install the apparatus in a built-in installation,
such as a bookcase or rack, ensure that there is adequate ventilation.
Leave 20 cm (8") of free space at the top and sides
and 10 cm (4") at the rear. The rear edge of the shelf
or board above the apparatus shall be set 10 cm (4")
away from the rear panel or wall, creating a flue-like
gap for warm air to escape.
2
Precautions
1. Recording Copyright
Unless it’s for personal use only, recording copyrighted
material is illegal without the permission of the copyright
holder.
2. AC Fuse
The AC fuse inside the C-1VL is not user serviceable. If
you cannot turn on the C-1VL, contact your Onkyo dealer.
3. Care
Occasionally you should dust the C-1VL all over with a
soft cloth. For stubborn stains, use a soft cloth dampened
with a weak solution of mild detergent and water. Dry the
C-1VL immediately afterwards with a clean cloth. Don’t
use abrasive cloths, thinners, alcohol, or other chemical
solvents, because they may damage the finish or remove
the panel lettering.
4. Power
WARNING
BEFORE PLUGGING IN THE UNIT FOR THE FIRST
TIME, READ THE FOLLOWING SECTION CAREFULLY.
AC outlet voltages vary from country to country. Make
sure that the voltage in your area meets the voltage
requirements printed on the C-1VL’s rear panel (AC230240 V, 50 Hz).
5. Never Touch This Unit with Wet Hands
Never handle this unit or its power cord while your hands
are wet or damp. If water or any other liquid gets inside
this unit, have it checked by your Onkyo dealer.
6. Installing This Unit
• Install this unit in a well-ventilated location.
• Ensure that there’s adequate ventilation all around this
unit, especially if it’s installed in an audio rack. If the
ventilation is inadequate, the unit may overheat, leading to malfunction.
• Do not expose this unit to direct sunlight or heat
sources, because its internal temperature may rise,
shortening the life of the optical pickup.
• Avoid damp and dusty places, and places subject to
vibrations from loudspeakers. Never put the unit on
top of, or directly above a loudspeaker.
• Install this unit horizontally. Never use it on its side
or on a sloping surface, because it may cause a
malfunction.
• If you install this unit near a TV, radio, or VCR, the
sound quality may be affected. If this occurs, move this
unit away from the TV, radio, or VCR.
7. Moisture Condensation
Moisture condensation may damage this unit.
Read the following carefully:
When you take a glass containing a cold drink outside on a
summer’s day, drops of water, called condensation, form
on the outside of the glass. Similarly, moisture may condense on the lens of the optical pickup, one of the most
important parts inside this unit.
— The unit is moved from a cold place to a warm
place.
— A heater is turned on, or cold air from an air con-
ditioner is hitting the unit.
— In the summer, when this unit is moved from an air
conditioned room to a hot and humid place.
— The unit is used in a humid place.
• Do not use this unit when there’s the possibility of
moisture condensation occurring. Doing so may damage
your discs and certain parts inside this unit.
If condensation does occur, remove all discs and leave this
unit turned on for two to three hours. By that time, the unit
will have warmed up and any condensation will have
evaporated. To reduce the risk of condensation, keep this
unit connected to a wall outlet.
For British models
Replacement and mounting of an AC plug on the power supply
cord of this unit should be performed only by qualified service
personnel.
IMPORTANT
The wires in the mains lead are coloured in accordance with
the following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this apparatus
may not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.
IMPORTANT
A 5 ampere fuse is fitted in this plug. Should the fuse need to be
replaced, please ensure that the replacement fuse has a rating of
5 amperes and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark or the BSI mark on the body of the
fuse.
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR
THE SOCKET OUTLET IN YOUR HOME THEN THE
FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF
AND DISPOSED OF SAFELY. THERE IS A DANGER OF
SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG
IS INSERTED INTO ANY 13 AMPERE SOCKET.
If in any doubt, consult a qualified electrician.
3
Precautions —Continued
This unit contains a semiconductor laser system and is
classified as a “CLASS 1 LASER PRODUCT.” So, to use
this model properly, read this Instruction Manual carefully. In case of any trouble, please contact the store where
you purchased the unit. To prevent exposure to the laser
beam, do not try to open the enclosure.
DANGER:
VISIBLE AND INVISIBLE LASER RADIATION
WHEN OPEN AND INTERLOCK FAILED OR
DEFEATED. DO NOT STARE INTO BEAM.
CAUTION:
THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
This label is located on the rear panel. It indicates that:
1. This unit is a CLASS 1 LASER PRODUCT and
employs a laser inside the cabinet.
2. To prevent the laser from being exposed, do not
remove the cover. Refer servicing to qualified
personnel.
Declaration of Conformity
We,
ONKYO EUROPE
ELECTRONICS GmbH
LIEGNITZERSTRASSE 6,
82194 GROEBENZELL,
GERMANY
declare in own responsibility, that the ONKYO product
described in this instruction manual is in compliance with the
corresponding technical standards such as EN60065,
EN55013, EN55020 and EN61000-3-2, -3-3.
GROEBENZELL, GERMANY
I. MORI
ONKYO EUROPE ELECTRONICS GmbH
About CDs
Important notes on handling CDs
• Carefully lift the disc from
the disc case, making sure
to hold the disc by its
edges or the hole in the
middle.
• You can use a soft, dry
cloth to wipe dust and finger-
prints off the surface of CDs.
Do not use volatile agents,
such as thinner or benzene,
on discs.
Also, do not use conventional record cleaner or antistatic agents.
Notes:
• Do not place CDs in direct sunlight or in locations
subject to high humidity or low temperature.
• Do not store a CD in the unit’s disc tray for a long
period of time.
Playable discs
This unit can play the following types of discs.
Disc mark Contents Disc size
Audio
CDs
You cannot play discs other than those listed above.
Avoid using heart-shaped or octagonal discs. Playing
irregularly-shaped discs may damage the internal mechanism of the unit.
Do not use discs that carry a residue from adhesive tape,
rental discs that have peeling labels, or discs that have
custom labels or stickers. Otherwise, you may not be
able to eject the discs, or the unit may become inoperative.
Audio
12 cm
8 cm
(CD single)
About playing copy-controlled CDs
Some copy-controlled CDs may not conform to official
CD standards. They are special discs and may not play
on the C-1VL.
Do not use discs that are not audio discs (i.e., CDROMs designed for use with personal computers), as
these could damage the speakers and amplifier.
4
Table of Contents
Introduction
Important Safety Instructions ..................................................................................................2
Precautions................................................................................................................................3
About CDs..................................................................................................................................4
Features .....................................................................................................................................6
Supplied Accessories...............................................................................................................6
Front & Rear Panels..................................................................................................................7
Remote Controller.....................................................................................................................8
Remote Controller (RC-544C) .................................................................................................8
Inserting the Batteries..............................................................................................................9
Using the Remote Controller ...................................................................................................9
Connections
Cables and Connectors.......................................................................................................... 10
Before Making Any Connections ........................................................................................... 10
Connections ............................................................................................................................ 11
Making Analog Connections to Amplifier and Recorder........................................................11
Making Digital Connections to Amplifier and Recorder ......................................................... 11
Operation
Turning On the C-1VL ............................................................................................................12
Connecting the Supplied Power Cord................................................................................... 12
Turning On the C-1VL........................................................................................................... 12
Enabling the Digital Signal Output ........................................................................................ 12
Playing CDs............................................................................................................................. 13
Playing CDs .......................................................................................................................... 13
Selecting Tracks by Number................................................................................................. 14

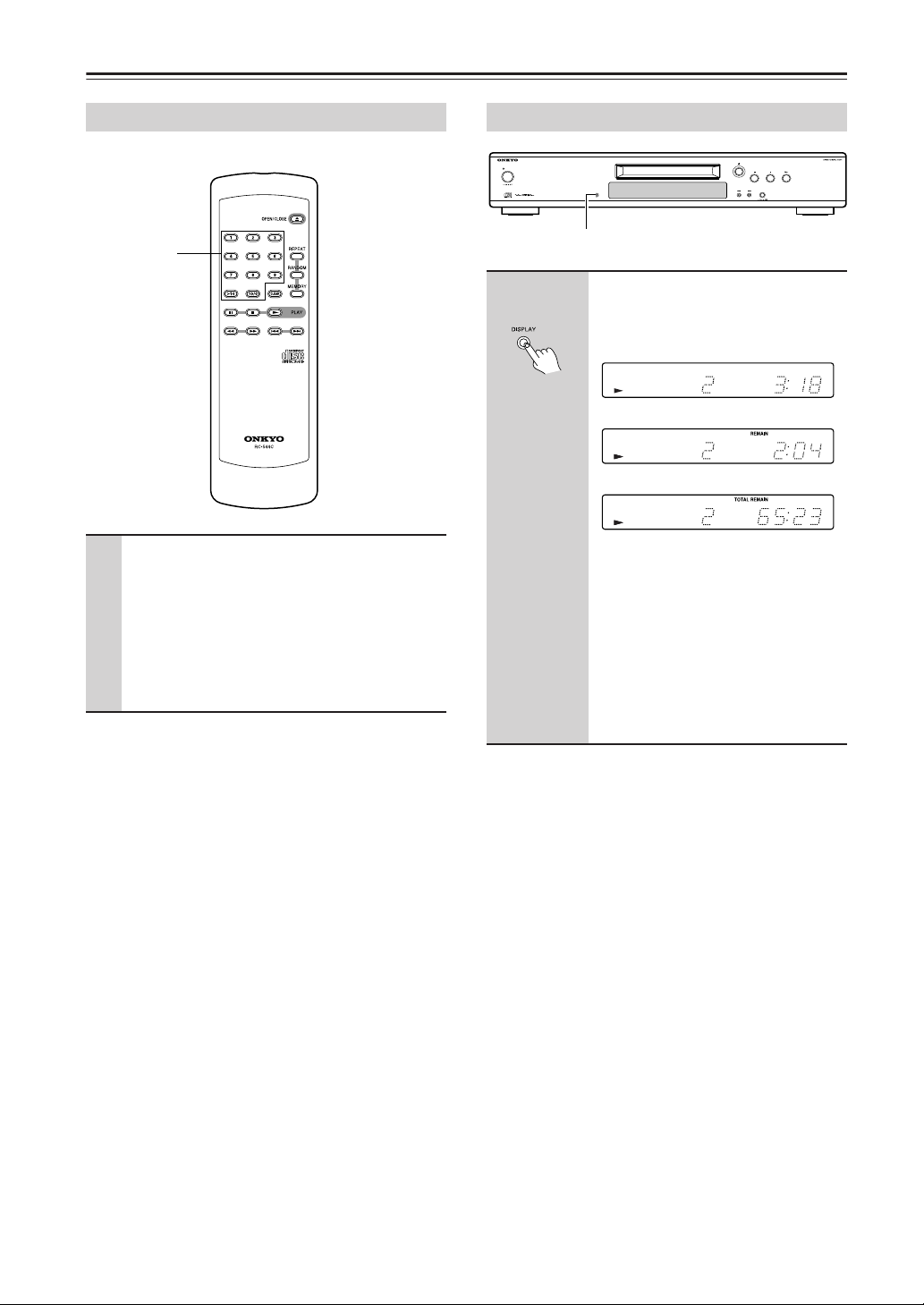

Displaying the Remaining Time ............................................................................................ 14
Random Playback.................................................................................................................15
Repeat Playback................................................................................................................... 15
Memory Playback.................................................................................................................. 16
Others
Troubleshooting......................................................................................................................17
Specifications..........................................................................................................................18
5
■
■
■
■
■
■
■
■
■
■
■
Features
The new VLSC (Vector Linear Shaping Circuitry) generates pure analog signal from
digital signal, improving the sound quality substantially.
Features Onkyo’s proprietary Direct Digital Path circuit design. The Direct Digital Path
minimizes the effect on the sound quality improvement circuits caused by digital signals
from the digital input, making the sound image clearer and the sound quality more
refined.
High-Grade Wolfson D/A Converters
The C-1VL’s Digital Output can be turned off to minimize the effect from digital signal and
improve the analog sound quality.
Toroidal transformer with lower magnetic flux leakage and better regulation
Incorporates a Digital Servo that detects the optimum servo amount for each disc
3Digital Outputs (2 Optical/1 Coaxial)
Rugged Chassis to Prevent Vibrations
Brass Insulators and Pinjacks
Shaved and gold-plated pin jacks with enough space between L and R terminals,
allowing you to use thick and heavy pin cables more easily.
High-Grade Pin Cable included
Supplied Accessories
Remote Controller (RC-544C) & Two batteries (AA/R6)
1
O
P
E
N
/
C
2
4
L
O
S
E
3
56
7
>
8
10
R
E
P
E
A
T
1
9
0
/
0
R
A
N
D
O
C
M
L
E
A
R
M
E
M
O
R
Y
P
L
A
Y
RC
544C
Audio Cable [1]
In catalogs and on packaging, the letter added to the end of the product name indicates the color of the C-1VL. Specifications and operation are the same regardless of color.
Power Cord [1]
6
Front & Rear Panels
Front Panel & Display
POWER
DISPLAY
Display
1
POWER button
Press to turn on and off the C-1VL.
2
DISPLAY button
Press to change the displayed information.
Open [ ] button
3
Press to open and close the disc tray.
Pause [ ] button
4
Press to pause the playback
5
Stop [ ] button
Press to stop the playback.
6
Play [ ] button
Press to start playback.
DIGITAL OUTPUT
COMPACT DISC PLAYER
7
[ / ] button
Press to select the previous or next track.
Press and hold to fast reverse and fast forward when
playing CDs.
DIGITAL OUTPUT button
8
Press to turn on/off the digital output on the C-1VL.
Play/Pause indicators
9
Illuminate in play or pause mode.
TOTAL/REMAIN indicator
0
Illuminates when the remaining time is shown.
A
Repeat indicator
Illuminates during repeat playback.
B
RANDOM indicator
Illuminates during random playback.
C
MEMORY indicator
Illuminates during memory playback.
-
C
1VL
Rear Panel
AUDIO OUTPUT
ANALOG
R
L
AUDIO OUTPUT ANALOG
1
With the supplied audio cable, the terminal is used
for connecting to the analog input terminals on the
devices such as amplifier.
2
AUDIO OUTPUT DIGITAL OPTICAL/
COAXIAL
With the digital optical/coaxial cable, the terminals
are used for connecting to the digital input terminals
AUDIO OUTPUT
DIGITAL
OPTICAL COAXIAL
COMPACT DISC PLAYER
MODEL NO. C
-
1
VL
AC INLET
on the devices such as amplifier. These three terminals output the sound signal with equal quality.
When using the digital connection, you have to turn
on the digital output by pressing the DIGITAL
OUTPUT button on the C-1VL.
3
AC INLET
Plug the supplied power cord into this AC INLET
and then into the Power outlet on the wall.
7

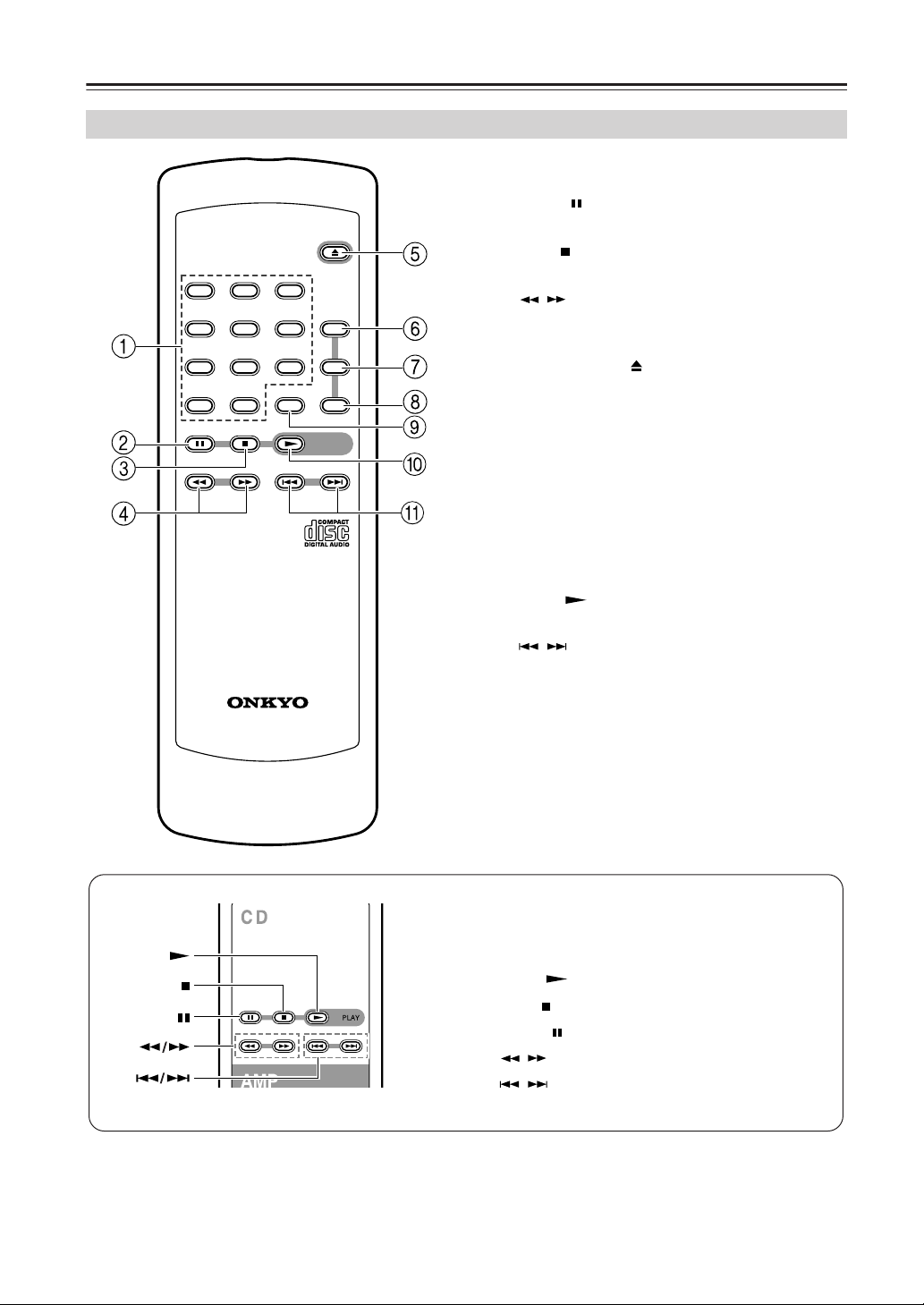

Remote Controller
Remote Controller (RC-544C)
OPEN / CLOSE
1 23
456
789
>
10
/
0
10
REPEAT
RANDOM
MEMORY
CLEAR
PLAY
Number buttons
1
Use these buttons to enter a track number.
Pause [ ] button
2
Press to pause the playback.
3
Stop [ ] button
Press to stop the playback.
4
[ / ] buttons
Press and hold to fast reverse and fast forward
when playing CDs.
5
OPEN/CLOSE [ ] button
Press to open and close the disc tray.
REPEAT button
6
During playback, press to repeat playback.
RANDOM button
7
Press to start random playback.
MEMORY button
8
Press to make a memory program while stopped.
CLEAR button
9
Press to remove the last track in the program.
0
PLAY [ ] button
Press to start playback.
A
[ / ] buttons
Press to select the previous or next track.
PLAY
RC-544C
The RC-573A remote controller, which is supplied
with the Onkyo’s Integrated Stereo Amplifier
A-1VL, can be used to operate the C-1VL.
PLAY [ ] button
Stop [ ] button
Pause [ ] button
[ / ] buttons
[ / ] buttons
RC-573A
8
Remote Controller—Continued
A
Inserting the Batteries Using the Remote Controller
Detach the battery
cover.
Insert the two R6 (size
AA) batteries.
Be sure to match the +
and – ends of the batteries to the diagram inside
the battery compartment.
Attach the battery
cover.
Notes:
• Do not mix new batteries with old batteries. Do not
mix different kinds of batteries.
• To avoid corrosion, remove the batteries if the remote
controller is not to be used for a long period of time.
• Remove dead batteries immediately to avoid damage
from corrosion. If the remote controller does not
operate smoothly, replace both batteries at the same
time.
• The life of the batteries supplied is about six months
but will vary depending on usage.
Point the remote controller toward the remote control
sensor.
Remote control sensor
P
O
W
E
R
D
I
S
P
L
A
Y
D
I
G
I
T
A
L
O
U
T
P
U
T
bout 5 m
(16 feet)
Notes:
• Place the unit away from strong light such as direct
sunlight or inverted fluorescent light, which can prevent proper operation of the remote controller.
• Using another remote controller of the same type in
the same room or using the unit near equipment that
uses infrared rays may cause operational interference.
• Do not put any object, such as a book, on the remote
controller. The buttons of the remote controller may
accidentally be pressed and drain the batteries.
• Make sure the audio rack doors do not have colored
glass. Placing the unit behind such doors may prevent
proper remote controller operation.
• If there is an obstacle between the remote controller
and the remote control sensor, the remote controller
will not operate.
C
O
M
P
A
C
T
D
I
S
C
P
L
A
Y
E
R
C
-
1
VL
9
Cables and Connectors
Before Making Any Connections
• Always refer to the instructions that came with the
component that you are connecting.
• Do not plug in the power cord until all connections
RCA Audio Connection Color Coding
• Red connector is used for the right channel and white
connector is used for the left channel.
Left (white)
have been properly made.
Optical Digital Terminals
Right (red)
The optical digital terminals are provided with protection caps. Before you connect a cable to a terminal,
remove the cap and keep it safely. If you disconnect the
cable, put the cap back on the terminal.
• Insert all plugs and connectors securely. Improper
connections can result in noise, poor performance, or
damage to the equipment.
Improper connection
Inserted completely
• Do not bind audio connection cables with power
cords and speaker cables. Doing so may adversely
affect the sound quality.
Cables are shown in the connection diagrams as follows.
Types of audio connection cables and terminals
Cable names Cable forms Terminal shapes Description
L
R
Audio connection
cable (Supplied)
Optical cable
Coaxial cable
OPTICAL
This connection carries analog audio
signals.
The audio quality is same as for coaxial.
You can connect a DAT or CD recorder with
a digital input to the C-1VL for digital
dubbing.
The audio quality is same as for optical.
You can connect a DAT or CD recorder with
a digital input to the C-1VL for digital
dubbing.
10
Connections
A
OPTICAL
OPTICAL
The C-1VL is equipped with three types of output terminals: AUDIO OUTPUT ANALOG, AUDIO OUTPUT DIGITAL (OPTICAL), and AUDIO OUTPUT DIGITAL (COAXIAL). Make appropriate connections according to your
audio devices such as amplifier and recorder.
Making Analog Connections to
Amplifier and Recorder
When you enjoy analog audio sound or perform analog
recording, make analog connection.
When making analog connection, connect the
AUDIO OUTPUT ANALOG terminal on the C-1VL
to analog audio input terminal on the amplifier or
recorder.
Example for connecting the amplifier
AUDIO OUTPUT
ANALOG
R
AUDIO OUTPUT
ANALOG
R
Supplied
L
L
AUDIO OUTPUT
DIGITAL
OPTICAL COAXIAL
L
R
COMPACT DISC PLAYER
-
C
1
CD
VL
.
Making Digital Connections to
Amplifier and Recorder
When you enjoy digital audio sound or perform digital
recording, make digital connection.
The C-1VL is equipped with both optical and coaxial
digital terminals, and you can use either of these terminals to make digital connection.
When making digital connection, connect the
AUDIO OUTPUT DIGITAL terminal on the C-1VL
to digital audio input terminal on the amplifier or
recorder.
Note:
When you enjoy the audio signal from digital output,
turn on the Digital Output function to enable digital
signal output.
Example for connecting Onkyo’s receiver
Each terminal outputs the same digital signal.
AUDIO OUTPUT
R
AUDIO OUTPUT
ANALOG
L
DIGITAL
OPTICAL COAXIAL
COMPACT DISC PLAYER
-
C
1
VL
AUDIO OUTPUT
DIGITAL
OPTICAL
OPTICAL
COAXIAL
AC INLET
Example for connecting the Cassette recorder
AUDIO OUTPUT
ANALOG
R
AUDIO OUTPUT
ANALOG
R
L
L
AUDIO OUTPUT
DIGITAL
OPTICAL COAXIAL
COMPACT DISC PLAYER
-
C
1
VL
(IN) (OUT)
L
R
Supplied
STANDBY/ON
POWER
STANDBY
ON
OFF
REC OUT OFF
PHONES
DIRECT/
AUDIO
PURE AUDIO
SELECTOR
PURE AUDIO
Connect one or
the other
MASTER VOLUME
AUDIO
SETUP
ADJUST
RETURN
LISTENING MODE
DIMMER
STEREO
DISPLAY
VIDEO
1
VIDEO 2DVD
VCR 2VCR 1
ENTER
SURROUND THX DSP
VIDEO 3
VIDEO
INPUT
VIDEO 4
TUNER CD PHONO
TAPE
4
VIDEO
S VIDEO
DIGITAL
LR
AUDIO
AC IN
Example for connecting the Mini Disc recorder
AUDIO OUTPUT
ANALOG
R
L
AUDIO OUTPUT
DIGITAL
OPTICAL COAXIAL
Connect one or
the other
IN
IN
COAXIAL
OPTICAL
Each terminal outputs the same digital signal.
AUDIO OUTPUT
DIGITAL
COAXIAL
OPTICAL
OPTICAL
COMPACT DISC PLAYER
-
C
1
VL
IN
IN
OPTICAL
COAXIAL
AC INLET
11
Turning On the C-1VL
DIGITAL OUTPUT
Connecting the Supplied Power Cord
Plug the supplied power cord into this AC INLET.
• Before you plug in the C-1VL, confirm that all connections have been made properly.
• Turning on the power may cause a momentary power
surge, which might interfere with other electrical
equipment on the same circuit, such as computers. If
this happens, use a wall outlet on a different circuit.
• Do not use a power cord other than the one supplied
with the C-1VL. The power cord supplied is designed
for use with the C-1VL and should not be used with
any other device.
• Never have the power cord disconnected from the
C-1VL while the other end is plugged into the wall
outlet. Doing so may cause an electric shock. Always
connect by plugging into the wall outlet last and disconnect by unplugging from the wall outlet first.
AC INLET
To AC wall outlet
Turning On the C-1VL
Enabling the Digital Signal Output
In the C-1VL, the digital audio output is turned off by
default to get better analog audio signal quality.
When connecting to digital recorder like MD recorder
and performing digital recording, press the DIGITAL
OUTPUT button to enable the digital audio output.
POWER
DISPLAY
Pressing the DIGITAL OUTPUT
button toggles the digital audio
output function between on ( )
and off
().
ON: Outputs digital audio signal.
When you listen to the digital output or
record the audio signal from the C1VL digitally on a digital recorder,
enable the digital audio output.
OFF: Disable the digital audio signal
output.
Turning off the digital audio signal
output reduces the effect from digital
signal on the analog signal circuit, producing better quality sound.
DIGITAL OUTPUT
COMPACT DISC PLAYER
DIGITAL OUTPUT
C
-
1VL
12
POWER
DISPLAY
DIGITAL OUTPUT
COMPACT DISC PLAYER
-
C
1VL
Power
POWER
Press POWER button to turn on
the C-1VL ( ).
■ To turn off the C-1VL, press POWER button again
().
Tip:
In general, turning on the playing component (C1VL) before turning on the amplifier will lower the
load to the speakers. On the other hand, when you
turn off the component and amplifier, turning off the
amplifier before turning off the playing component is
recommended.
Playing CDs
OPEN/
CLOSE
PAUSE STOP
PLAY
PLAY
Playing CDs
1
2
3
4
Press the [ ] button to open the
disc tray.
Put the CD on the
tray with the
label-side facing
up.
Be sure to put 8-cm
discs in the center of
the tray.
Press the [ ] button again to
close the tray.
Press the Play [ ] button to
start play-back.
Playback starts and the Play indicator appears on the display.
Note:
With CDs that contain many tracks,
playback may take a while to start.
DISPLAY
Label side
/
■ To Stop Playback
Press the Stop [ ] button.
■ To Pause Playback
Press the Pause [ ] button. The Pause indicator
appears.
To resume playback, press the Play [ ] button or [ ]
button again.
■ To Fast Forward or Fast Reverse
Using remote controller:
During playback or while playback is paused, press and
hold the [ ] button to fast forward, or the [ ] button
to fast reverse.
Using the buttons on the C-1VL:
During playback or while playback is paused, press and
hold the [ ] button to fast forward, or the [ ] button
to fast reverse.
■ To Select Tracks
Press the [ ] button to select the next track, or the
[ ] button to select the previous track.
• If you press the [ ] button during playback or while
play-back is paused, the beginning of the current
track is selected.
• If you select a track while playback is stopped, press
the Play [ ] button to start playback.
/
13
Playing CDs—Continued
Selecting Tracks by Number
You can use the number buttons to select specific tracks.
Number
buttons
Use the number buttons to enter a track
1
number.
Use the [>10] button to enter track numbers
above 10.
For example, to enter track number 10, press
[10/0].
To enter track number 12, press [>10], [1], and
[2].
Displaying the Remaining Time
POWER
DIGITAL OUTPUT
1
DISPLAY
DISPLAY
During playback, press the [DISPLAY] button on the C-1VL repeatedly to display the informations.
Elapsed track time:
Remaining track time:
Remaining disc time:
If you’re using the Memory function to
play a custom selection of tracks, the
remaining memory playback time is
displayed, instead of the remaining
disc time.
Note:
If the total playing time of your custom
selection exceeds 99 minutes and 59
seconds,
“--:--” is displayed.
COMPACT DISC PLAYER
-
C
1
VL
14
Playing CDs—Continued
Random Playback
With the Random function you can play tracks in random order.
RANDOM
1
2
Press the [RANDOM] button.
The RANDOM indicator appears on
the display and random playback
starts.
To cancel random playback, stop
playback, or press the [RANDOM] button so that the RANDOM indicator disappears.
Repeat Playback
With the Repeat function you can play all tracks repeatedly.
REPEAT
1
2
During playback, press the
remote controller’s [REPEAT]
button.
The REPEAT indicator appears on the
display and all tracks are played
repeatedly.
To cancel Repeat playback, press
the [REPEAT] button again.
The REPEAT indicator disappears.
Note:
During random playback, pressing the [ ] button will
not move to the previous track.
Repeat Memory Playback
If you press the [REPEAT] button during memory playback, your custom program will play repeatedly.
Repeat Random Playback
If you press the [REPEAT] button during random playback, tracks will be played in random order repeatedly.
15
Playing CDs—Continued
Memory Playback
With the Memory function you can make a custom program of your favorite tracks.
Number
buttons
MEMORY
1
2
While stopped, press the
[MEMORY] button.
The MEMORY indicator appears on
the display.
To add a track to your program,
use the number buttons.
You can add up to 25 tracks to your
program.
For example, to add track number 10,
press [10/0]. To add track 13, press
[>10], [1], [3].
• Tracks can also be added by using
the [ ]/[ ] buttons. Select a
track and press the [MEMORY]
button.
While stopped, you can check which
tracks you’ve added to the program by
using the [ ]/[ ] buttons.
■ To Cancel Memory Playback
Press the [MEMORY] button so that the MEMORY
indicator disappears. The entire program will be
deleted.
Tips:
• During normal playback, you can add playing track
to your program by pressing MEMORY button.
• During memory playback, you can add tracks to
your program by using number buttons.
3
Notes:
• If you try to add more than 25 tracks to your program,
the message “FULL” appears on the display.
• If the total playing time of your program exceeds 99
minutes and 59 seconds, “--:--” is displayed. (This
does not affect program playback.)
• The program is deleted when the disc tray is opened.
■ To Stop Memory Playback
Press the Stop [ ] button.
■ To Remove the Last Track in the Program
While memory playback is stopped, press the [CLEAR]
button. Each time you press it the last track in the program is removed.
To start memory playback, press
the Play [ ] button.
Memory playback stops automatically
when all the tracks in the program have
been played.
16
Troubleshooting
If you have any trouble using your C-1VL, check the following table for possible causes and remedies. If you still can’t
resolve the issue yourself, please contact your Onkyo dealer.
Trouble Possible Cause Remedy
No power. The power cord is not connected properly.
The batteries are flat. Replace with new batteries (page 8).
The batteries are installed incorrectly.
Yo u’re not pointing the remote controller at the
C-1VL’s remote sensor.
The remote controller
does not work.
Can not play a CD.
There is no sound.
CD playback skips.
Can not enter track
numbers for memory
playback.
Can not start and stop
memory playback.
It takes a long time to
locate certain tracks.
Yo u’re too far away from the C-1VL.
A strong light source is interfering with the
C-1VL’s remote sensor.
If the C-1VL is installed in a cabinet with colored
glass doors, the remote controller may not work
reliably when the doors are closed.
The disc is upside down.
The disc is dirty. Remove the disc and clean it (page 4).
Condensation has formed inside the C-1VL.
The disc is nonstandard. See “About CDs” on page 4.
The C-1VL is not connected properly. Check all connections and correct as necessary.
The wrong input source is selected on your amp.
The digital output on the C-1VL is turned off.
The C-1VL is subject to vibration. Install the C-1VL somewhere free of vibration.
The disc is dirty. Remove the disc and clean it (page 4).
The disc is very scratched. Buy a new disc.
The track number entered doesn’t exist on the
disc.
Random playback is activated.
The disc is dirty. Remove the disc and clean it (page 4).
The disc is very scratched. Buy a new disc.
Connect the power cord properly to a suitable
wall outlet (page 12).
Check the batteries and correct as necessary
(page 8).
Point the remote controller at the C-1VL’s
remote sensor (page 8).
Use the remote controller closer to the C-1VL
(page 8). The remote controller has a range of
approximately 5 meters (16 ft.).
Make sure that the C-1VL is not subjected to
direct sunshine or inverter-type fluorescent
lights.
Relocate if necessary.
Open the doors, or use a cabinet without colored
glass.
Load the disc with the label-side facing up (page
13).
Remove your discs and leave the C-1VL turned
on for several hours until the condensation has
evaporated.
Check your amp’s input source setting. Refer to
your amp’s manual.
Press the DIGITAL OUTPUT button on the
C-1VL to turn on the digital output.
Enter the correct track number (page 14).
Press the RANDOM button to disable random
playback before starting and stopping the memory playback.
The C-1VL contains a microcomputer for signal processing and control functions. In very rare situations, severe
interference, noise from an external source, or static electricity may cause it to lockup. In the unlikely event that
this should happen, turn off the C-1VL, wait at least five seconds, and then turn it back on again.
Onkyo is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused by the unit’s
malfunction. Before you record important data, make sure that the material will be recorded correctly.
17
Specifications
Power Supply
Power Consumption
Dimensions (W × H × D)
Weight
Operation Condition
Temperature/Humidity
Frequency Response
SN Ratio
Audio Dynamic Range
THD (Total Harmonic Distortion)
Audio Output
Digital Optical
Digital Coaxial
Analog
Specifications and external appearance are subject to change without notice as a result of product improvement.
AC 230-240 V, 50 Hz
9 W
435 W × 82 H × 356 D mm
6.8 kg
5 ~ 35 °C / 5 ~ 85 % (no condensation)
5 Hz ~ 20 kHz
110 dB
96 dB
0.002 %
–22.5 dBm
0.5 Vp-p / 75 Ω
2.0 V (rms) / 320 Ω
18
Memo
19
Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN
Tel: 072-831-8023 Fax: 072-831-8124
ONKYO U.S.A. CORPORATION
18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.
Tel: 201-785-2600 Fax: 201-785-2650 http://www.onkyousa.com
ONKYO EUROPE ELECTRONICS GmbH
Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY
Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.onkyo.net
ONKYO CHINA LIMITED
Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung,
N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039
SN 29343548
(C) Copyright 2004 ONKYO CORPORATION Japan. All rights reserved.
HOMEPAGE
http://www.onkyo.com/
Printed in Japan
D0404-1
