OMRON V400-H111, V400-H211 User Guide

Handheld
2D Code Reader

V400-H111/211

User’s Manual

Cat. No.

Z228-E1-01

Introduction

Thank you for purchasing the OMRON V400-H111/H211.
This manual describes the functions, performance, and application
methods of the V400-H111/H211.

This manual is intended for personnel with knowledge of electrical
systems. Be sure to read and understand this manual thoroughly before
using the product, and keep this manual in an easily accessible location
for quick reference when required.

Introduction

ÇÕǹÇ?Ç ëÊ 1 èÕ ëÊ 2 èÕ ëÊ 3 èÕ ëÊ 4 èÕ

Introduction

Introduction

Section 1

Section 2

Section 3

Section 4

Section 5

Application Considerations (Read and understand this information first.)

Section 1 Section 2 Section 3 Section 4 Section 5

Product Overview

Installation and Connections

Reading 2D Code

System Settings

Troubleshooting

Appendices

Appendices

Specifications and Dimensions

Handheld 2D Code Reader
User’s Manual

V400-H111/211

Introduction

Introduction

READ AND UNDERSTAND THIS DOCUMENT

Please read and understand this document before using the products. Please consult your OMRON
representative if you have any questions or comments.

WARRANTY

OMRON’s exclusive warranty is that the products are free from defects in materials and workmanship for
a period of one year (or other period if specified) from date of sale by OMRON.

OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING
NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR PARTICULAR PURPOSE OF THE
PRODUCTS. ANY BUYER OR USER ACKNOWLEDGES THAT THE BUYER OR USER ALONE HAS
DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR
INTENDED USE. OMRON DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED.

LIMITATIONS OF LIABILITY

OMRON SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL
DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE
PRODUCTS, WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR
STRICT LIABILITY.

In no event shall responsibility of OMRON for any act exceed the individual price of the product on which
liability is asserted.

IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS
REGARDING THE PRODUCTS UNLESS OMRON’S ANALYSIS CONFIRMS THAT THE PRODUCTS
WERE PROPERLY HANDLED, STORED, INSTALLED, AND MAINTAINED AND NOT SUBJECT TO
CONTAMINATION, ABUSE, MISUSE, OR INAPPROPRIATE MODIFICATION OR REPAIR.

SUITABILITY FOR USE

THE PRODUCTS CONTAINED IN THIS DOCUMENT ARE NOT SAFETY RATED. THEY ARE NOT
DESIGNED OR RATED FOR ENSURING SAFETY OF PERSONS, AND SHOULD NOT BE RELIED
UPON AS A SAFETY COMPONENT OR PROTECTIVE DEVICE FOR SUCH PURPOSES. Please refer
to separate catalogs for OMRON's safety rated products.

OMRON shall not be responsible for conformity with any standards, codes, or regulations that apply to
the combination of products in the customer’s application or use of the product.

At the customer’s request, OMRON will provide applicable third party certification documents identifying
ratings and limitations of use that apply to the products. This information by itself is not sufficient for a
complete determination of the suitability of the products in combination with the end product, machine,
system, or other application or use.

The following are some examples of applications for which particular attention must be given. This is not
intended to be an exhaustive list of all possible uses of the products, nor is it intended to imply that the
uses listed may be suitable for the products:

• Outdoor use, uses involving potential chemical contamination or electrical interference, or conditions or
uses not described in this document.

V400-H111/211

User’s Manual

2

Introduction

• Nuclear energy control systems, combustion systems, railroad systems, aviation systems, medical
equipment, amusement machines, vehicles, safety equipment, and installations subject to separate
industry or government regulations.

• Systems, machines, and equipment that could present a risk to life or property.

Please know and observe all prohibitions of use applicable to the products.
NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR
PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO
ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT IS PROPERLY RATED AND INSTALLED
FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.

PERFORMANCE DATA

Performance data given in this document is provided as a guide for the user in determining suitability and
does not constitute a warranty. It may represent the result of OMRON’s test conditions, and the users
must correlate it to actual application requirements. Actual performance is subject to the OMRON
Warranty and Limitations of Liability.

CHANGE IN SPECIFICATIONS

Product specifications and accessories may be changed at any time based on improvements and other
reasons.

Introduction

It is our practice to change model numbers when published ratings or features are changed, or when
significant construction changes are made. However, some specifications of the product may be
changed without any notice. When in doubt, special model numbers may be assigned to fix or establish
key specifications for your application on your request. Please consult with your OMRON representative
at any time to confirm actual specifications of purchased products.

DIMENSIONS AND WEIGHTS

Dimensions and weights are nominal and are not to be used for manufacturing purposes, even when
tolerances are shown.

ERRORS AND OMISSIONS

The information in this document has been carefully checked and is believed to be accurate; however, no
responsibility is assumed for clerical, typographical, or proofreading errors, or omissions.

PROGRAMMABLE PRODUCTS

OMRON shall not be responsible for the user’s programming of a programmable product, or any
consequence thereof.

COPYRIGHT AND COPY PERMISSION

This document shall not be copied for sales or promotions without permission.

This document is protected by copyright and is intended solely for use in conjunction with the product.
Please notify us before copying or reproducing this document in any manner, for any other purpose. If
copying or transmitting this document to another, please copy or transmit it in its entirety.

V400-H111/211

User’s Manual

3

Introduction

Introduction

Meanings of Signal Words

In this manual, precautions are indicated using the following symbols and signal words to ensure safe

use of the

important for safety and must be observed.

V400-H111/211. The precautions indicated by these symbols and signal words are

Indicates a potentially hazardous situation which, if not avoided, will

WARNING

result in minor or moderate injury, or may result in serious injury or death.
Additionally there may be significant property damage.

Meanings of Alert Symbols

Indicates the possibility of explosion under specific conditions.

Indicates general prohibitions for which there is no specific symbol.

Alert Statements in this Manual

WARNING

This product is not designed or rated for ensuring safety of persons.
Do not use it for such purposes.

A lithium battery is built into the Controller and may occasionally combust, explode,
or burn if not treated properly.
Dispose of the Controller as industrial waste, and never disassemble, apply
pressure that would deform, heat to 100 °C or higher, or incinerate the Controller.

V400-H111/211

User’s Manual

4

Introduction

Regulations and Standards

The V400-H111/211 complies with the international regulations and standards listed below.

EC Directives EMC Directive:No.89/336/EEC

EN Standards
(European Standards)

EN61326: 1997, +A1: 1998 +A2: 2001 (EMI: Class A)
Power line: 10 m max. Signal line: 30 m max.

Precautions for Safe Use

Observe the following precautions to ensure safe use of the product.

■ Installation Environment Precautions

• Do not use the product in environments with flammable or explosive gases.

• Do not install outdoors.

Introduction

■ Power Supply and Wiring Precautions

• Use the product with the power supply voltages specified in this manual.

• Use the cables specified in this manual.

• Keep the power supply cable as short as possible (10 m maximum).

• Use a DC power supply with countermeasures against high-voltage spikes (safe

extra low-voltage circuits on the secondary side).

p.29

■ Other Precautions

• Do not attempt to disassemble, repair, or modify the product. Doing so may cause
product failure or a fire.

• If the product becomes extremely hot, or abnormal odors or smoke occurs, stop using
the product immediately, turn OFF the power, and consult with your OMRON
representative.

• Dispose of the product as industrial waste.

• Do not apply pressure or deform the product when disposing of it.

V400-H111/211

User’s Manual

5

Introduction

Introduction

Precautions for Correct Use

Always observe the following precautions to prevent operation failures, malfunctions, and
adverse effects on performance and equipment.

■ Operating Environment

Do not install the product in the following locations:

• Locations subject to ambient temperature that exceeds the rated temperature range

• Locations subject to rapid changes in temperature (causing condensation)

• Locations subject to relative humidity that exceeds the rated humidity range

• Locations subject to corrosive or flammable gases

• Locations subject to dust, salt, or metallic powder

• Locations subject to direct vibration or shock outside the specified ranges

• Locations subject to direct sunlight

• Locations subject to oil or chemical spray

■ Installation and Handling of Components

• Use the cables specified in this manual.

p.18

■ Connecting and Removing Cables

• Do not connect a cable to the Handheld 2D Code Reader if the other end of the cable
is connected to a personal computer or a Programmable Controller.

• To prevent damage from static electricity, use a wrist strap or another device for
preventing electrostatic charges when touching terminals or signal lines inside
connectors.

■ Memory Cards

• Do not remove the Memory Card when the Memory Card indicator is lit. Doing so may
result in damage to the Memory Card or the Handheld 2D Code Reader.

• OMRON shall not be responsible in any way for damage or loss of Memory Card data
as a result of mishandling.

p.32

V400-H111/211

User’s Manual

6

■ Turning OFF the Power Supply

• Do not turn OFF the power supply while a message is being displayed indicating that
processing is being performed. Data in memory will be destroyed, and the product
may not operate correctly the next time it is started.

How to Use This Manual

Introduction

Page Format

System Settings

Creating Setting Files Using the 2DCR Configear

Creates the data setting file for loading set da ta to the Handheld 2D Code Reader.

Make the settings for the communications conditions, func tions, and display conversion.

Se lect Setting Reader - Create Data... from the menu.

The following window for creating the setting data file will be displayed.

■ Open

Opens the previously created data setting file f or editing.

The [Receive (R

Reader and edit it.

■ Save

Saves the created data setting file.

Communication Settings

The settings shown in the following table are set in the Communication Settings Tab

Page in the Create Setting Data Window.

Header/Footer Prefix

The default settings are indicated with an asterisk.

)] function can be used to open the data file downloaded f rom the Code

To save data to the Memory Card, create a folder with the name SETTINGS, and save. If the data is

saved to a folder other than “SETTINGS”, it cannot be uploaded.

Setting item Settings

Baud Rate

Parity

Data Length

Stop Bit

*

9,600

, 19,200, or 38,400

*

None

, odd, or even

8 bits

77 bits or

*

1sbit

or 2 bits

None*, 02 <STX>, or 1B <ESC>

Suffix

ETX, 0A LF,

FCS

ON or

OFF

0D CR

*

*

*

, or 0D0A CR+LF

Section 4

V400-H111/211

User’s Manual

Section 4

System Settings

Section 4 Creating Setting Files Using the 2DCR Configear

65

Section title

Outline

Move to the setting screen.

Screen display

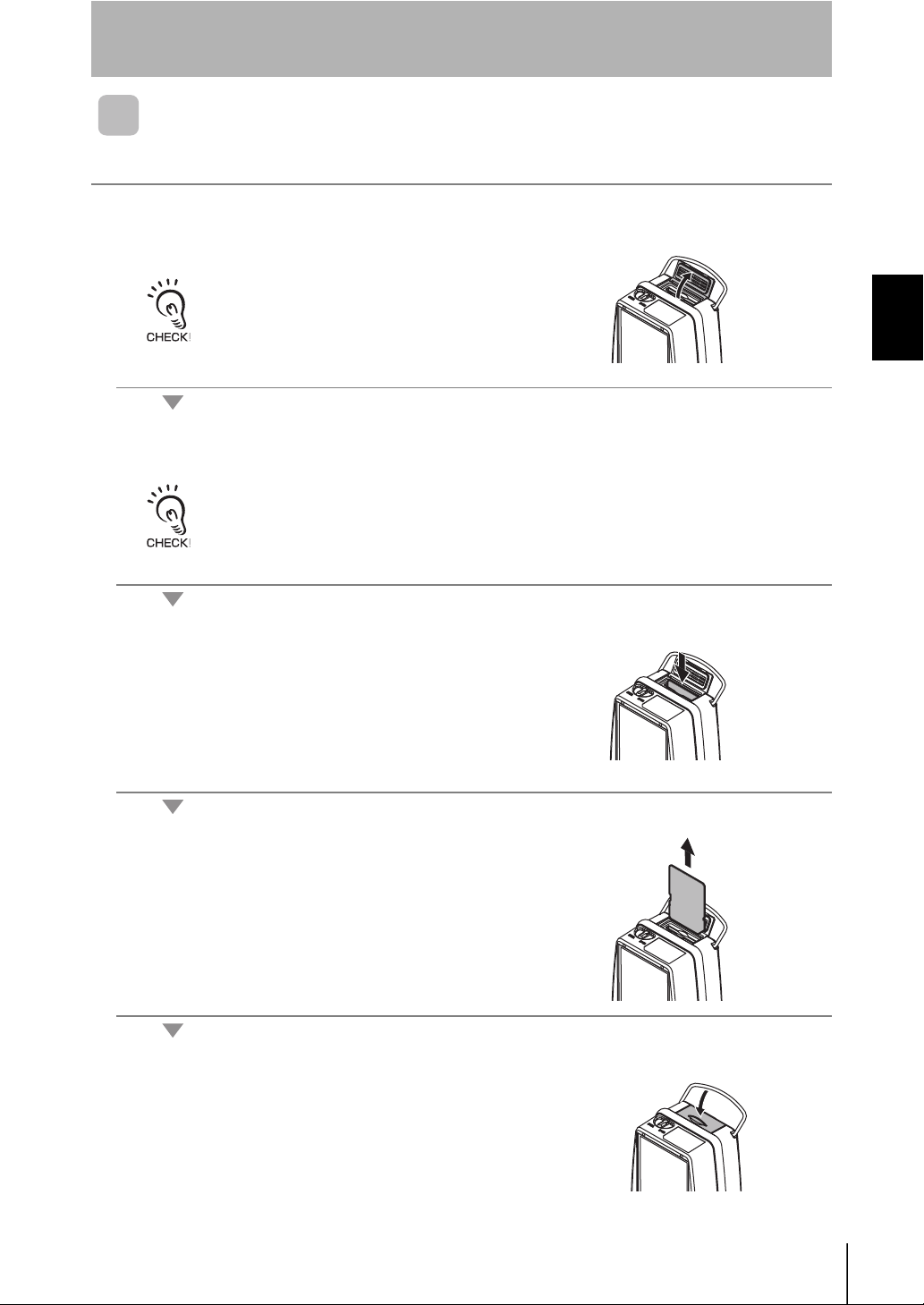

Section 4 Uploading from the Memory Card

Index label

Provides the section number
and subject matter. Can be
used to immediately open the
desired page.

Describes the settings.

Introduction

How to Use This Manual

Procedure and additional explanations

Information useful during the operation and
reference pages are provided here with special
marks to indicate the kind of information being

V400-H111/211

User’s Manual

69

*This page does not actually exist in this manual.

V400-H111/211

User’s Manual

7

Introduction

Visual Aids

Introduction

Visual Aids

Indicates points that are important in using product functions or in application procedures.

Indicates page numbers providing related information.

Indicates helpful information when a problem occurs and explanations of technical terms.

V400-H111/211

User’s Manual

8

Contents

Introduction

Introduction 1

Meanings of Signal Words 4

Meanings of Alert Symbols 4

Alert Statements in this Manual 4

Regulations and Standards 5

Precautions for Safe Use 5

Precautions for Correct Use 6

How to Use This Manual 7

Visual Aids 8

Contents 9

Section 1 Product Overview 11

Features 12

Operation Overview 15

Introduction

Contents

Section 2 Installation and Connections 17

Basic System Configuration 18

Component Names and Functions 19

Cable 20

Power Supply 29

Contactor (Optional) 31

Memory Cards 32

Section 3 Reading 2D Code 35

Basic Operation 36

Startup 37

V400-H111/211

User’s Manual

9

Introduction

Reading 2D Code 38

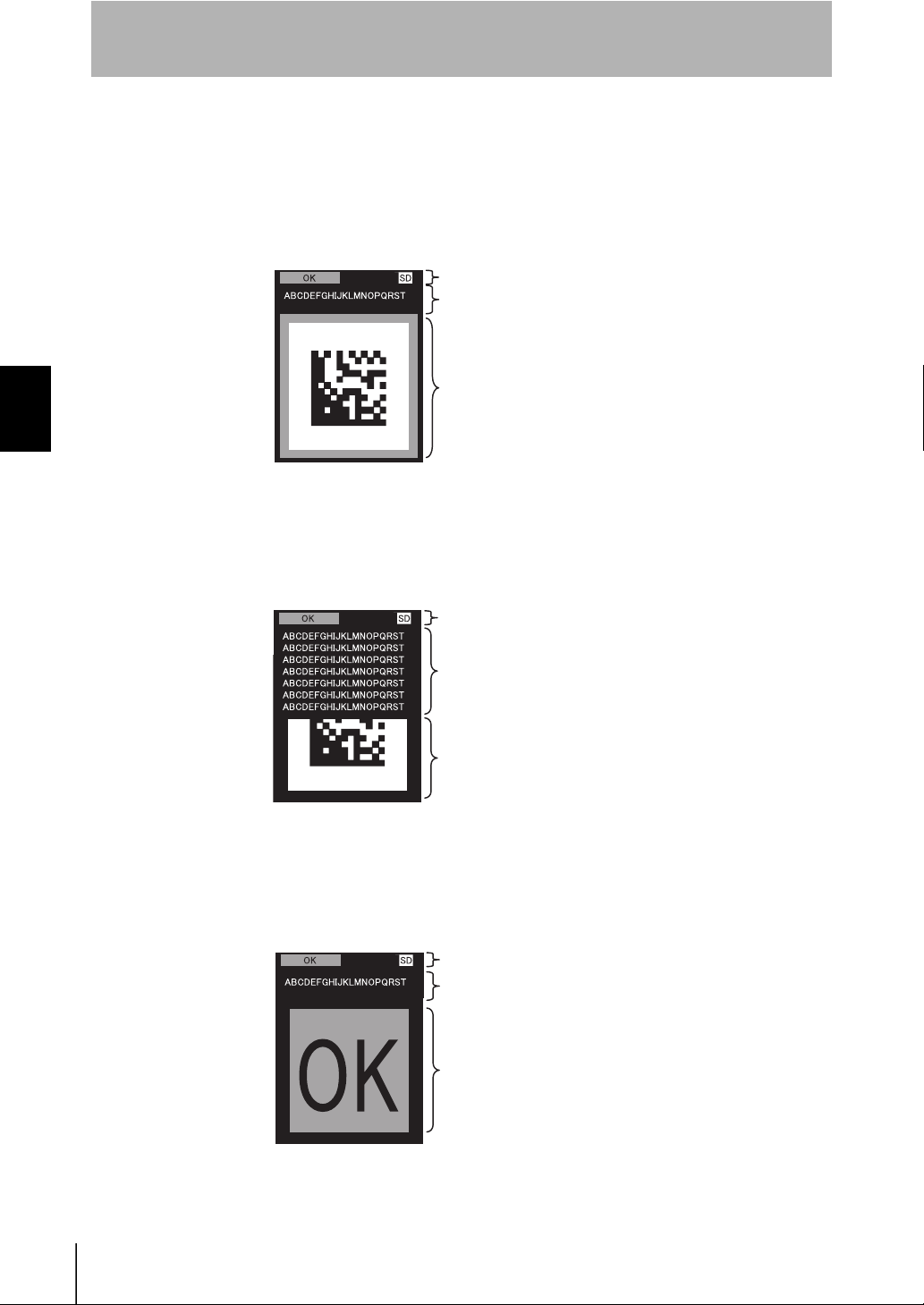

Outputting Results 39

Introduction

Contents

Functions 42

Section 4 System Settings 43

Overview 44

Making Settings on the Main Body 46

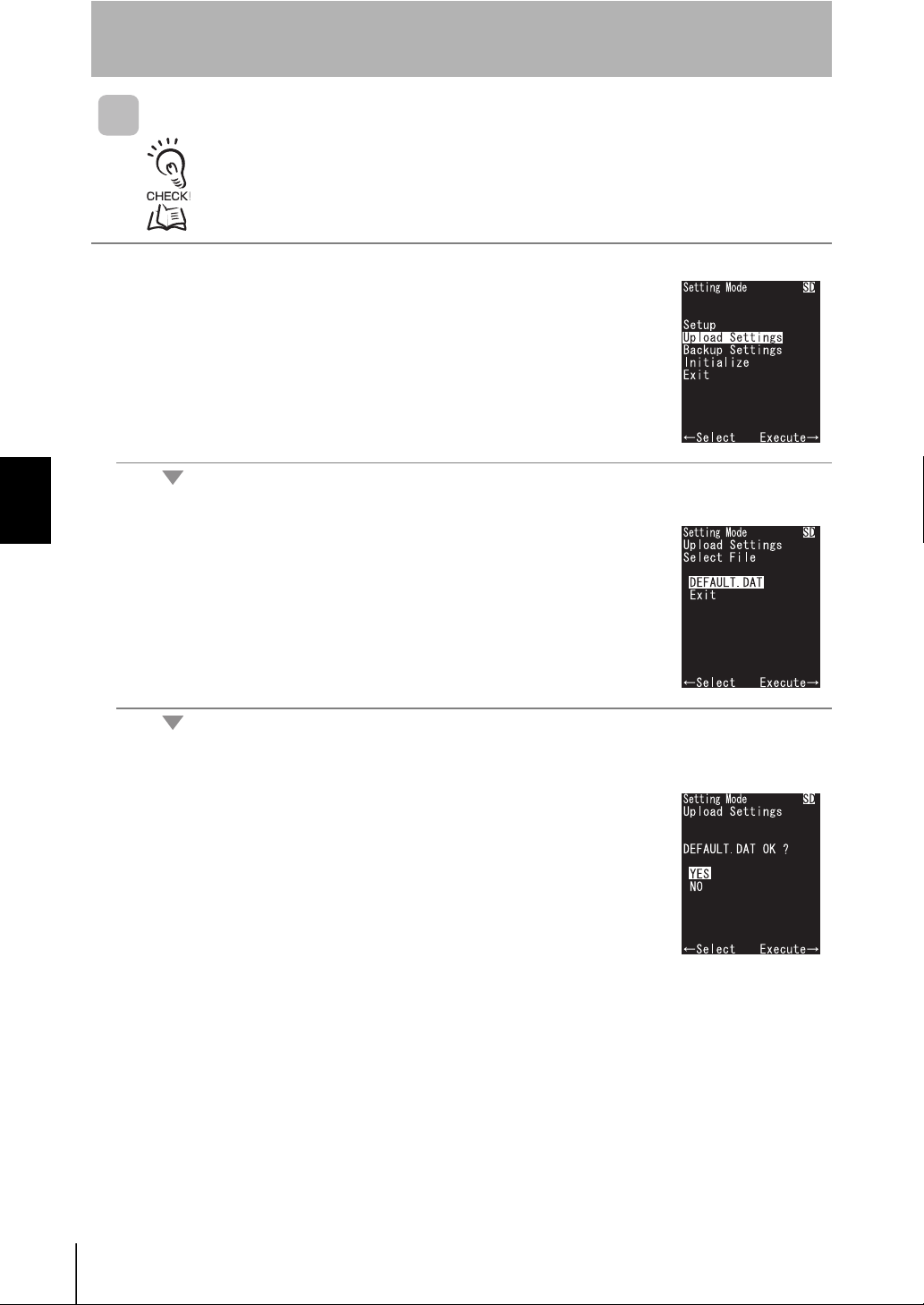

Uploading from the Memory Card 53

Restoring the Factory Setting Data 57

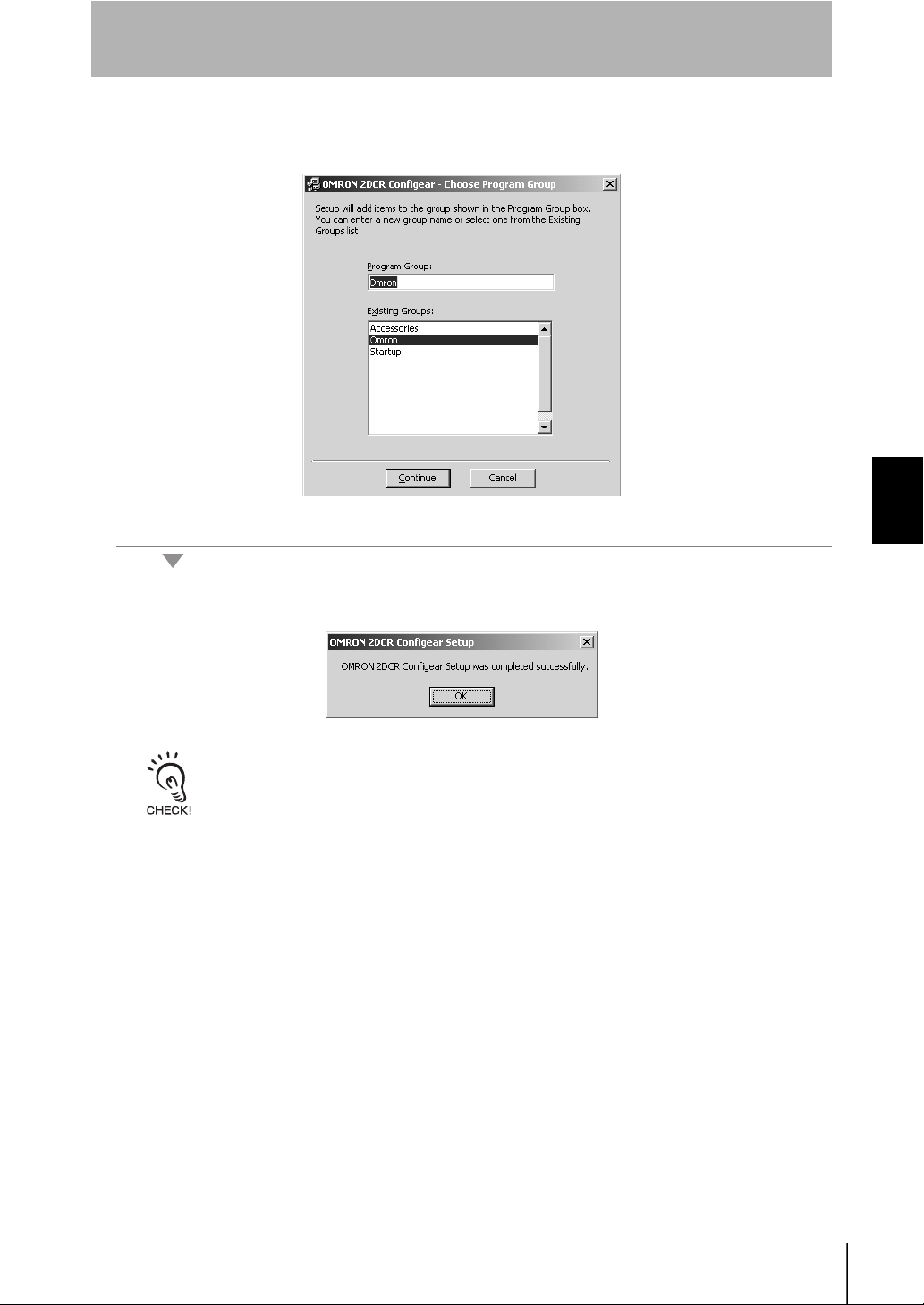

Installing the 2DCR Configear 58

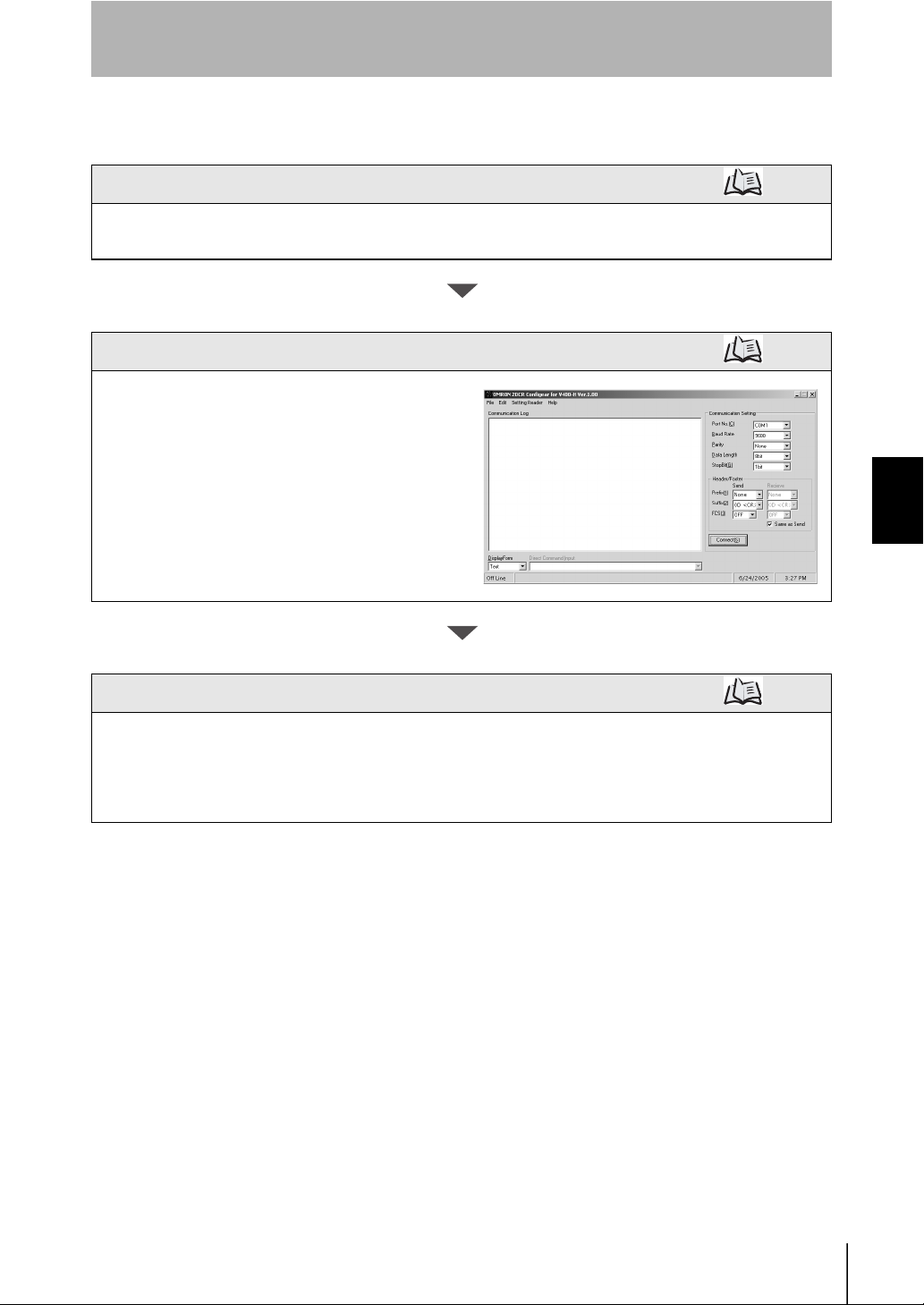

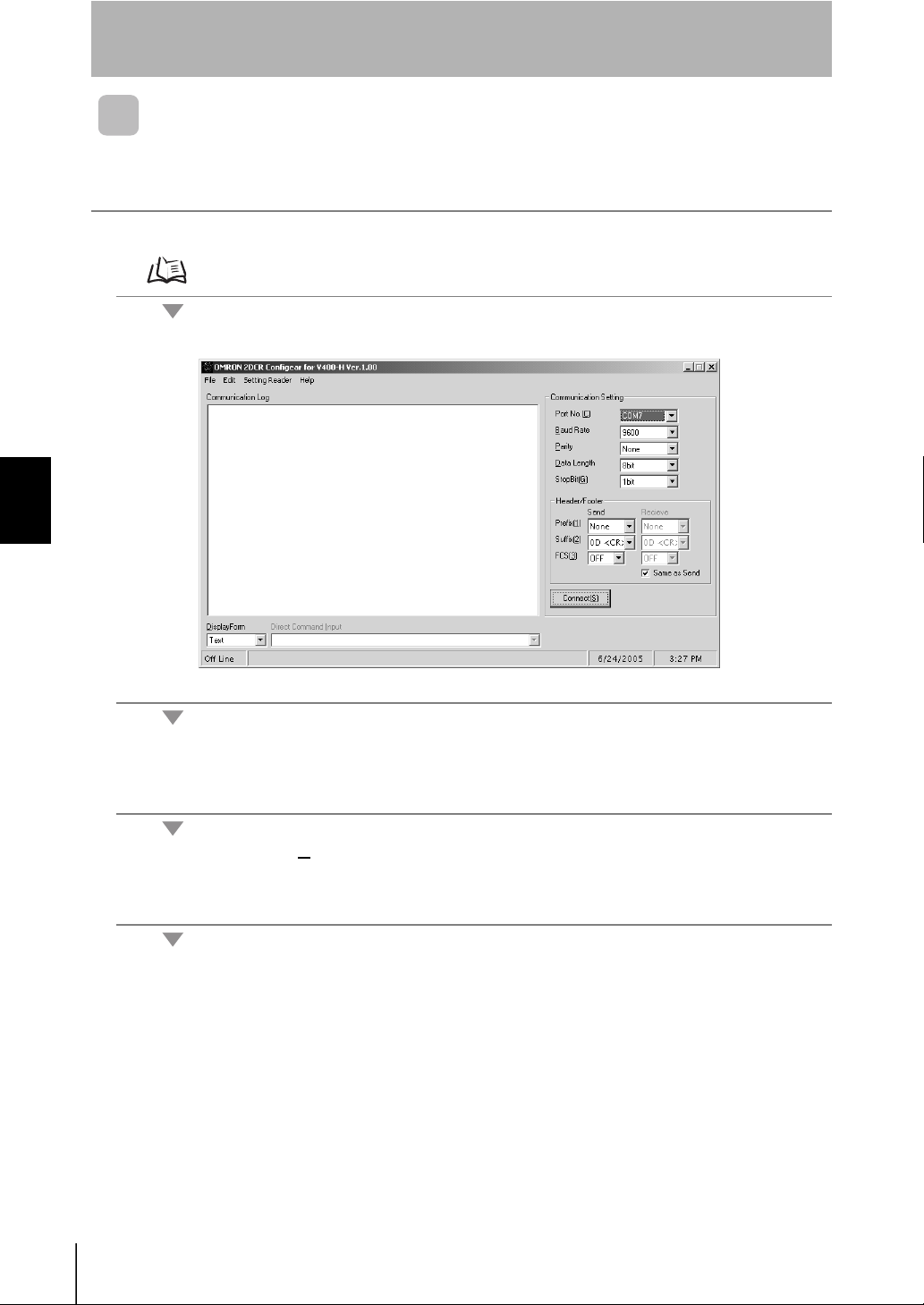

Communicating Using 2DCR Configear 60

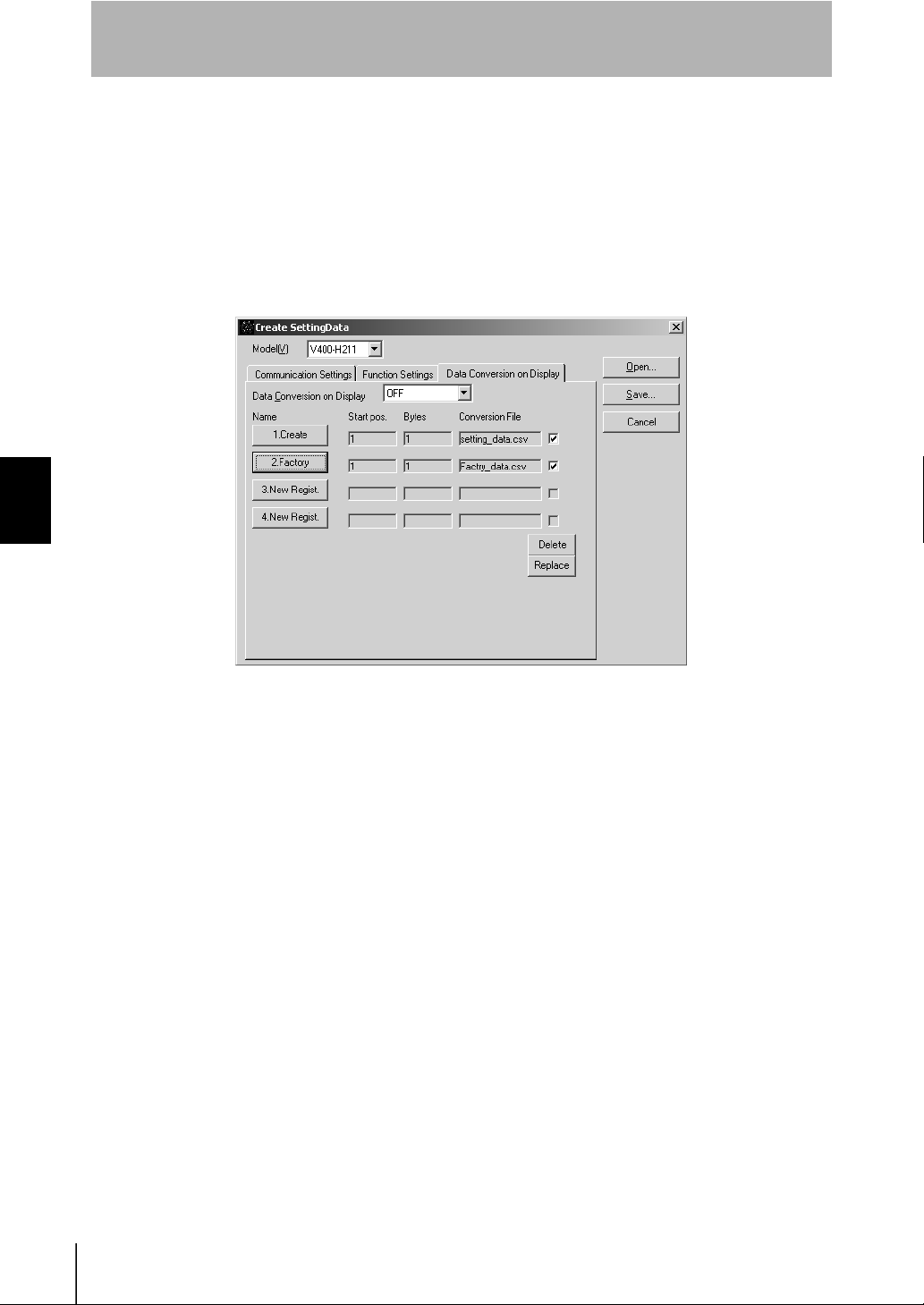

Creating Setting Files Using the 2DCR Configear 63

Section 5 Troubleshooting 75

Troubleshooting 76

Appendices 77

Maintenance 78

Specifications and Dimensions 79

ASCII Table 84

FCS Calculation Method 85

Data Capacity Tables 87

Revision History 91

V400-H111/211

User’s Manual

10

Section 1
Product Overview

This section provides an introduction to the Handheld 2D Code Reader's
features, functions, basic configuration, and operation flow.

Features 12

Operation Overview 15

Section 1 Product Overview

V400-H111/211

User’s Manual

11

Section 1
Product Overview

Features

Section 1 Features

The 2D Code Reader is designed to read two-dimensional code. A built-in monitor and zoom
lens are ideal for reading directly marked 2D code.
A Memory Card Slot is also provided along with a range of useful functions.

Readable Codes

Readable codes DataMatrix QR Code

Readable sizes
(symbol size)

• ECC200

10 × 10 to 64 × 64

8 × 18 to 16 × 48

• Model 1 or 2

21 × 21 to 57 × 57

(Version 1 to Version 10)

V400-H111/211

User’s Manual

12

Zoom Lens (Manual)

The zoom lever can be used to change the
field of view, enabling a variety of
applications with a single Unit. Two lens
variations provide wide-angle and
telescopic views, covering all viewing needs
from paper level to complicated code.

Dual System Lighting

Coaxial lighting and oblique lighting are
provided in a single Unit. The type of the
lighting is automatically selected.

• V400-H111: RGB 3 color coaxial, red

oblique lighting

• V400-H211: Red coaxial, red oblique

lighting
Workpieces with different optical
characteristics can be read with a single
Unit, and workpieces with a range of direct
markings can also be read.

Section 1

Product Overview

Section 1 Features

Liquid Crystal Display

A 1.8-inch liquid crystal monitor is provided
to enable alignment when reading while
observing the image.
The Handheld 2D Code Reader enables
confirmation of read data and images,
previously not possible with handheld
readers.

V400-H111/211

User’s Manual

13

Section 1
Product Overview

Memory Card Slot

A Memory Card slot is provided to back up settings on Memory Cards and upload data

Section 1 Features

from Memory Cards.
A function is also provided for saving 2D code data that was read as files in the
Memory Card.

p.32

Memory Card

Useful Functions

■ Data Conversion on Display

This function converts data that is read and displays it as a separate text string.

p.67

■ Data Accumulation

This function writes data that is read to the Memory Card.

p.65

V400-H111/211

User’s Manual

14

Operation Overview

Installation and Connections Section 2 p.17

Prepare the required components and connect them.

Main Peripheral Devices

• Cable

• Power supply device

• Contactor

Reading 2D Code Section 3 p.35

Section 1

Product Overview

Section 1 Operation Overview

Turn ON the power and press the trigger buttons to
read the code.

• Reading method

• Field of view setting

• Display details

System Settings Section 4 p.43

Basically, no settings are required. However, in
the following cases, the settings may need to be
changed using the Setup window of the Code
Reader or the special tool [2DCR Configear].

• To change the communication
conditions (See note.)

• To use various functions

If [2DCR Configear] is used, the changes you
have made will be reflected to the Code Reader using the Memory Card or the
communication function of [2DCR Configear].

*1 The default settings are as follows: Baud rate: 9,600 bps; Parity: None;

Data length: 8 bits; Stop bits: 1 bit

V400-H111/211

User’s Manual

15

Section 1 Operation Overview

Section 1
Product Overview

MEMO

V400-H111/211

User’s Manual

16

Section 2
Installation and Connections

This section describes the methods used to connect cables and perform
other installation procedures and connections.

Basic System Configuration 18

Component Names and Functions 19

Cable 20

Power Supply 29

Contactor (Optional) 31

Memory Cards 32

Section 2 Installation and Connections

V400-H111/211

User’s Manual

17

Section 2
Installation and Connections

Basic System Configuration

The basic system configuration is shown in the following diagram.

Section 2 Basic System Configuration

V400-H111/211

User’s Manual

18

Installation and Connections

Component Names and Functions

1 Left trigger button

2 Buzzer

3 Monitor

1 Right trigger button

4 Memory card indicator

7 Power indicator

5 Memory card slot

6 Zoom lever

Section 2

Section 2 Component Names and Functions

8 Image plane

9 Cable connector

Name Details

1 Trigger buttons (Right,

Left)

2 Buzzer A high- or low-tone buzzer sounds depending on the operation.

3 Monitor Displays the read image/results, and other data.

4 Memory card indicator Lit while the Memory Card is being accessed. (Do not remove the Memory Card if the

5 Memory card slot Slot for inserting Memory Card.

6 Zoom lever Changes the field of view.

7 Power indicator Lit when power is first turned ON and remains lit during operation.

Inputs a trigger, cancels sleep state or when setting mode is entered.

p.38

p.37

p.39

indicator is lit.)

p.41

p.41

8 Image plane Camera image plane

9 Cable connector Connects to a cable (V400-W20-2M/5M, V400-W21-2M/5M, V400-W22-2M/5M).

p.23

V400-H111/211

User’s Manual

19

Section 2
Installation and Connections

Cable

The Cables are specifically designed for the V400. Using other Cables may damage the devices.

Connecting a Personal Computer (V400-W21-2M/5M Cable)

Section 2 Cable

● Connector
The connector used for V400-W21-2M and V400-W21-5M Cables is a D-sub, 9-pin
connector (female).
The connector is compatible with the connection port on the IBM PC/AT or compatible.

2D code reader

V400-H111/211

Special round connector

Name

SD

RD

SG

+5 V

IBM PC/AT or compatible

D-sub, 9-pin

Name Pin No.

-1

RD 2

SD 3

ER 4

SG 5

DR 6

RS 7

CS 8

-9

Shield wire Connector cover

0 V

+5 V

V400-H111/211

User’s Manual

20

(View of mating section)

Section 2

Installation and Connections

Connecting a Personal Computer (V400-W22-2M/5M Cable)

● Connector
The connector used for V400-W22-2M and V400-W22-5M cables is a D-sub 9-pin
connector (female).
The connector is compatible with the connection port on the IBM PC/AT or compatible.

2D code reader

V400-H111/211

Special round connector

Name

SD

RD

SG

+5 V

IBM PC/AT or compatible

D-sub, 9-pin

Name Pin No.

-1

RD 2

SD 3

ER 4

SG 5

DR 6

RS 7

CS 8

-9

Shield wire Connector cover

0 V

+5 V

Section 2 Cable

(View of mating section)

V400-H111/211

User’s Manual

21

Section 2
Installation and Connections

Connecting a Programmable Controller (V400-W20-2M/5M Cable)

Section 2 Cable

● Connector
The connector used for V400-W20-2M and V400-W20-5M Cables is a D-sub, 9-pin
connector (male).
The connector is compatible with the connection port on OMRON CJ-series and CS­series Programmable Controller.

2D code reader
V4 00 -H111 /211

Special round connector

Name

SD

RD

SG

+5 V

Programmable Controller

D-sub, 9-pin

Name Pin No.

-1

SD 2

RD 3

RS 4

CS 5

-6

-7

-8

SG 9

Shield wire Connector cover

0 V

+5 V

V400-H111/211

User’s Manual

22

(View of mating section)

Section 2

Installation and Connections

Connecting Cables to the Handheld 2D Code Reader

Connect one end of the cable to a personal computer or Programmable Controller before
connecting the other end of the cable to the Handheld 2D Code Reader.

1. Attach the provided ferrite cores to the cable.

Attach the ferrite cores in two locations; one at the Handheld 2D Code Reader end of the cable, and the other
at the host device end of the cable.
Close the ferrite cores until a click is heard. Separate from the power lines.

Ferrite cores

Section 2 Cable

2. Remove the cover from the Code Reader.

Loosen the four screws to detach the cover.

V400-H111/211

User’s Manual

23

Section 2
Installation and Connections

3. Connect the cable.

Grasp the cable plug (part A). Line up the alignment mark
on the plug with the alignment mark on the Handheld 2D
Code Reader connector and push the plug in straight.

Section 2 Cable

Cable

Cable port

Plug

A

Use a force of no more than 15 to 20 N to plug in the connector.
Pull gently on the cable (approximately 10 N) to make sure the connector is securely connected.
After the connector is plugged in, do not apply a force of more than 30 N to the connector in the
following directions. Excessive force will damage the connector.

30 N

30 N

D

C

D

Alignment marks

C

V400-H111/211

User’s Manual

24

30 N

4. Fit the bush into the slot on the case.

5. Attach the cover and secure it with the four

screws.

Section 2

Installation and Connections

Section 2 Cable

V400-H111/211

User’s Manual

25

Section 2
Installation and Connections

Disconnecting the Cable from the Handheld 2D Code

Reader

1. Disconnect the cable connector from the host device.

Section 2 Cable

p.28

2. Remove the cover from the Code Reader.

Remove the four screws to detach the cover.

3. Remove the bush from the slot on the case.

4. Disconnect the cable.

Grasp the coupling (part B) on the plug and pull the plug
out straight as shown in the diagram below.

Coupling on the plug

Cable

B

V400-H111/211

User’s Manual

26

5. Attach the cover and secure it with the four

screws.

Section 2

Installation and Connections

Section 2 Cable

V400-H111/211

User’s Manual

27

Section 2
Installation and Connections

Connecting the Cable to the Host Device

1. Connect the cable connector to the RS-232C

Section 2 Cable

interface on the host device.

Make sure that the connector is oriented correctly and not
inserted at an angle. Secure the connector using the
screws on both sides of the connector.

Removing the Cable from the Host Device

1. Remove the cable.

Loosen the screws on both sides of the connector and pull
the connector out straight.

Loosen the screws sufficiently on both sides of the
connector to remove it. Do not remove the
connector by force.

V400-H111/211

User’s Manual

28

Section 2

Installation and Connections

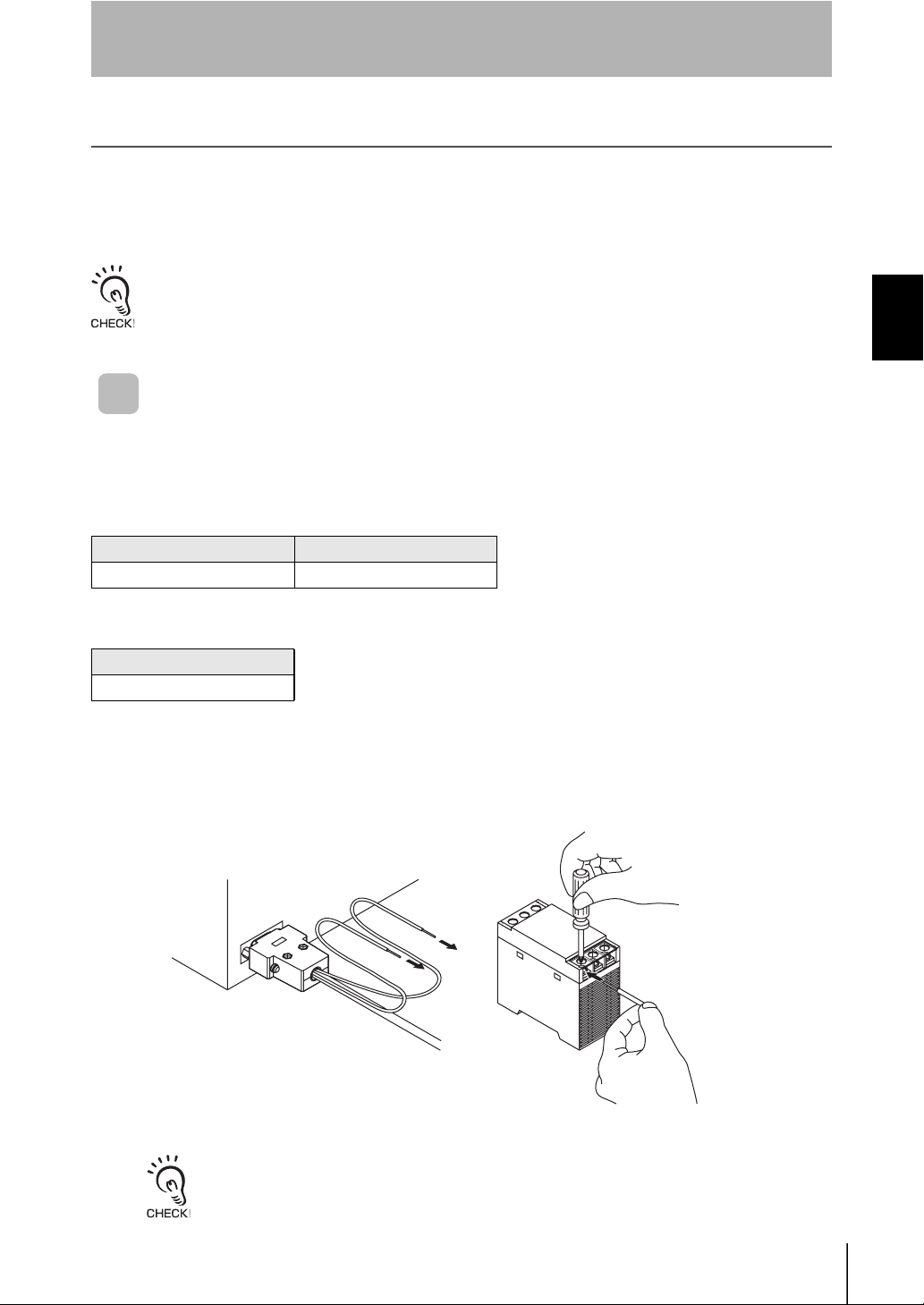

Power Supply

Power must be supplied to the V400-H111/211 via the cable.
Wire the power supply independently of other devices. In particular, keep the power supply
wired separately from inductive loads.

Use a DC power supply with safe extra-low-voltage circuits to prevent high voltage. If UL recognition is
required for the overall system, use a UL Class II DC power supply.

Connecting the Power Supply (V400-W21-2M/5M,

V400-W20-2M/5M)

Use a power supply that meets the following requirements.

Power Supply Requirements

Output current Power supply voltage

1 A min. 5 VDC ± 10 %

Recommended Power Supply

Model

S8VS-01505

■ Connection Method

Wire the power supply cables as shown in the following diagram.

Section 2 Power Supply

Connect the brown wire to the positive (+) side of the power supply and connect the blue wire to the
negative (-) side of the power supply.

V400-H111/211

User’s Manual

29

Section 2 Power Supply

Section 2
Installation and Connections

Connecting the AC Adaptor (V400-W22-2M/5M)

■ Connection Method

Connect the cable and AC adaptor as shown below.

V400-H111/211

User’s Manual

30

Section 2

Installation and Connections

Contactor (Optional)

The Contactor functions as a guide for the distance from the image plane to the code to be
read.
By making contact with the read code, the read distance can be easily aligned.

Mounting Procedure

1. Align the screw holes on the connector with

those on the main body, and then secure them
with the four screws.

Section 2 Contactor (Optional)

Removal Procedure

1. Loosen the four screws to detach the

contactor.

V400-H111/211

User’s Manual

31

Section 2
Installation and Connections

Memory Cards

The Handheld 2D Code Reader uses a Memory Card to change communication conditions
and function settings in the Setup window and to upload/backup the setting data and the data
that has been read. SD Memory Cards are supported.

• Conforms to SD Memory Card “Physical Layer Specification 1.01”

Section 2 Memory Cards

Save the data to the Memory Card, insert the Memory Card in the personal computer, and
upload the data to easily backup the data to the personal computer. SD Memory Cards are
provided with a write prohibit switch to prohibit writing to or formatting of the Memory Card.
When the switch is set to LOCK, data cannot be written to or deleted from the Memory Card,
and the Memory Card cannot be formatted. These functions are possible by setting the switch
to the unlocked state.

• File format: FAT16

Inserting the Memory Card

1. Open the Memory Card slot cover.

Lift the cover gently, without using excessive
force.

2. Position the Memory Card in the correct

direction and insert in the slot until a click is
heard.

Insert the Memory Card in the direction with the
label side facing the same direction as the
monitor of the Handheld 2D Code Reader.

3. Close the Memory Card slot cover.

V400-H111/211

User’s Manual

32

Installation and Connections

Removing Memory Cards

1. Open the Memory Card slot cover.

Lift the cover gently, without using excessive
force.

2. Make sure that the indicator on the Memory Card slot is not lit.

Do not remove the Memory Card while the indicator is lit. Doing so may damage the Memory Card
and the Handheld 2D Code Reader.

Section 2

Section 2 Memory Cards

3. Push the Memory Card in gently until a click

is heard.

The Memory Card will eject slightly.

4. Pull out the Memory Card straight.

5. Close the Memory Card slot cover.

V400-H111/211

User’s Manual

33

Section 2
Installation and Connections

MEMO

Section 2 Memory Cards

V400-H111/211

User’s Manual

34

Section 3
Reading 2D Code

This section provides information required for reading 2D code.

Basic Operation 36

Startup 37

Reading 2D Code 38

Outputting Results 39

Functions 42

Section 3 Reading 2D Code

V400-H111/211

User’s Manual

35

Section 3
Reading 2D Code

Basic Operation

Startup p.37

Turn ON the power and start the Handheld 2D Code Reader.

Section 3 Basic Operation

Press the trigger buttons and keep pressed while
moving the Handheld 2D Code Reader close to the
2D code.

Reading 2D Code p.38

Outputting Results p.39

The read data is output to the monitor and RS-232C
communications.

If no operation is performed during a fixed interval, the Handheld 2D Code Reader will enter a sleep state.
Pressing the trigger buttons will release the sleep state.

The following functions are provided with the Handheld 2D Code Reader.

• Sleep

• Data Conversion on Display

• Data Accumulation

V400-H111/211

User’s Manual

36

Functions p.42

Startup

When using a cable type, V400-W21-2M/5M, V400-W20-2M/5M, turn ON the switch
located on the power supply. When using a cable type, V400-W22-2M/5M, the AC
adaptor must be plugged into an AC outlet.
When the power is turned ON, the window on
the right will be displayed, the power indicator
will light up, and the buzzer will sound.

Section 3

Reading 2D Code

■ Buzzer

The buzzer will sound under the following
conditions.

• When starting the V400

• When reading is successful

• When operating in setting mode

When the buzzer is set to OFF, the buzzer will not sound for any operation.

Section 3 Startup

V400-H111/211

User’s Manual

37

Section 3 Reading 2D Code

Section 3
Reading 2D Code

Reading 2D Code

■ Trigger Buttons

The trigger buttons located on the left and right sides of the Handheld 2D Code Reader
perform the same operations.
When a trigger button is pressed, the 2D Code Reader will start reading code.

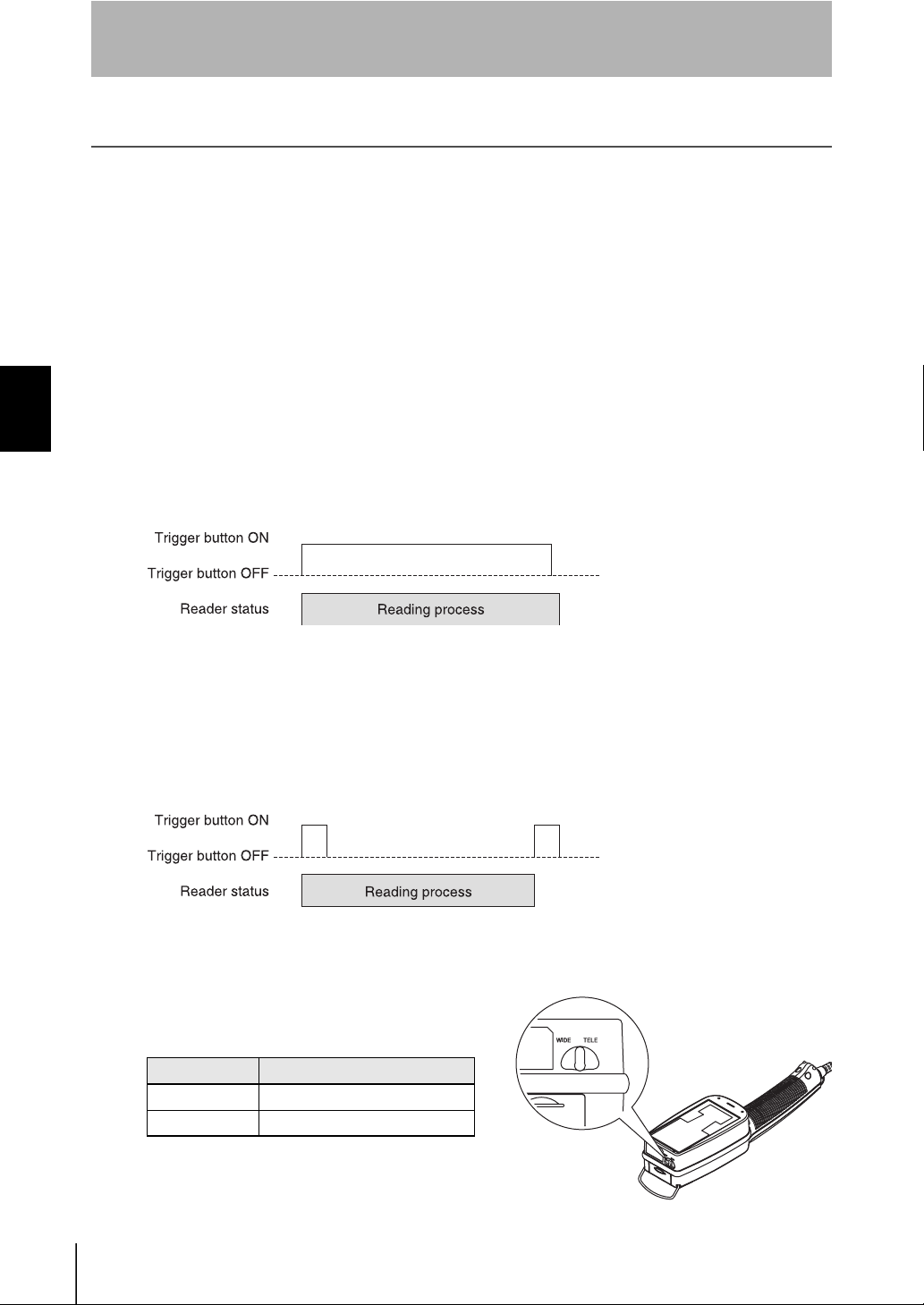

■ Trigger Mode

Triggers can be input two different ways. Select the input method to suit the required
application.

◆ Level Trigger (Factory setting)

The 2D Code Reader repeats reading while a trigger button is held down.
Reading will be stopped when the code has been read successfully or when the trigger
button is released.

◆ Alternate Trigger

Once a trigger button is pressed, reading will be repeated even after the trigger button
is released.
Reading will be stopped when the trigger button is pressed again or when the code has
been read successfully.

■ Zoom Lever

The zoom lever is used to change the field of
vision to suit the size of the code to be read.

Model Setting range

V400-H111 5 mm (TELE) to 10 mm (WIDE)

V400-H211 15 mm (TELE) to 30 mm (WIDE)

V400-H111/211

User’s Manual

38

Outputting Results

■ Monitor Description

The reading results are displayed in the LCD monitor of the main body. They can be
displayed in four display modes: Normal, Mode A, Mode B and Mode C.

p.51, p.65

◆ Normal

This mode is selected as the default mode (factory setting).

Image area

Te x t di s pl a y

Image display

Section 3

Reading 2D Code

Section 3 Outputting Results

Image area

This area displays the reading status and memory card status.

Item Details

Reading status [OK] (green) will appear in the left upper corner of the monitor when the code has

been read successfully. If the NG output is set to ON, [NG] (red) will appear in the
left upper corner of the monitor when reading of the code has failed.

Memory Card A SD mark (blue) appears when a Memory Card is present.

Displays the SD mark in red when the Memory Card is active to indicate that the
Memory Card is being accessed.

Text display area

This area displays the read data and conversion data (by the data conversion display
function).
In the case of Normal and Mode A, up to 38 characters can be displayed.
In the case of Mode B, up to 228 characters can be displayed.

Image display area

This area displays images taken by the Camera.

V400-H111/211

User’s Manual

39

Section 3 Outputting Results

Section 3
Reading 2D Code

◆ Mode A

This mode is designed to facilitate understanding of the reading status. When the code
has been read successfully, the image display area is enclosed in a green frame.When
the NG output is set to ON, the image display area will be enclosed in a red frame if
reading of the code has failed.

Image area
Te x t di s pl a y

Image display

◆ Mode B

Priority is given to the characters of read data. When the data consists of two or more
lines, the image display area is hidden and the data is displayed by characters.
Characters can be displayed up to the bottom of the screen.

Image area

Text display

Image display

◆ Mode C

Only the reading status is displayed in large size. The reading status blinks a few times
and then remains lit until the trigger button is pressed. No images are displayed.

Image area
Tex t d is pl ay

Reading status

V400-H111/211

User’s Manual

40

■ LED Indicators

Indicator Location Details

Power On the bottom of the

monitor

Memory Card Beside the Memory Card

slot

Lit when power is turned ON, and remains lit during
operation

Lit while the Memory Card is being accessed. Do not
remove the Memory Card while this indicator is lit.

■ RS-232C Communications Output

◆ Output for Successful Readings

Read data is output in the following format.

◆ Output for Unsuccessful Readings

Nothing is output with the factory setting.
An error code output, however, can be set for unsuccessful readings.

Section 3

Reading 2D Code

Section 3 Outputting Results

* NG output setting
When the NG output is set to ON, the output contents can be changed.
Output contents when NG output is ON:

• The NG mark is displayed on the monitor in red.

• The data “?E000” is sent via RS-232C communications.

V400-H111/211

User’s Manual

41

Section 3 Functions

Section 3
Reading 2D Code

Functions

■ Sleep

The Handheld 2D Code Reader is equipped with a sleep function for reducing power
consumption.
The Code Reader is automatically set to sleep when operation is not performed for a
specified period of time.

• 30 Seconds Lapsed (Default Setting)
To cancel sleep and put the Code Reader in normal state, press one of the trigger
buttons. The Code Reader will be put ready for operation.

■ Data Conversion on Display

Normally, 2D code data that is read is displayed as is on the monitor. This function
compares the read data, converts into separate text strings and displays the converted
data.

p.67

V400-H111/211

User’s Manual

42

■ Data Accumulation

The read data is not only output via RS-232C communications, but is created as a file
in the Memory Card and saved in CSV format.

p.65

Section 4
System Settings

This section explains how to set measurement conditions and functions.
There are two methods: one is to use the LCD monitor of the Coder Reader,
and the other is to use “2DCR Configear” on a personal computer.

Overview 44

Making Settings on the Main Body 46

Uploading from the Memory Card 53

Restoring the Factory Setting Data 57

Installing the 2DCR Configear 58

Communicating Using 2DCR Configear 60

Creating Setting Files Using the 2DCR Configear 63

Section 4 System Settings

V400-H111/211

User’s Manual

43

Section 4 Overview

Section 4
System Settings

Overview

Measurement conditions and functions can be changed using the LCD monitor of the Coder
Reader or using “2DCR Configear” on a personal computer.

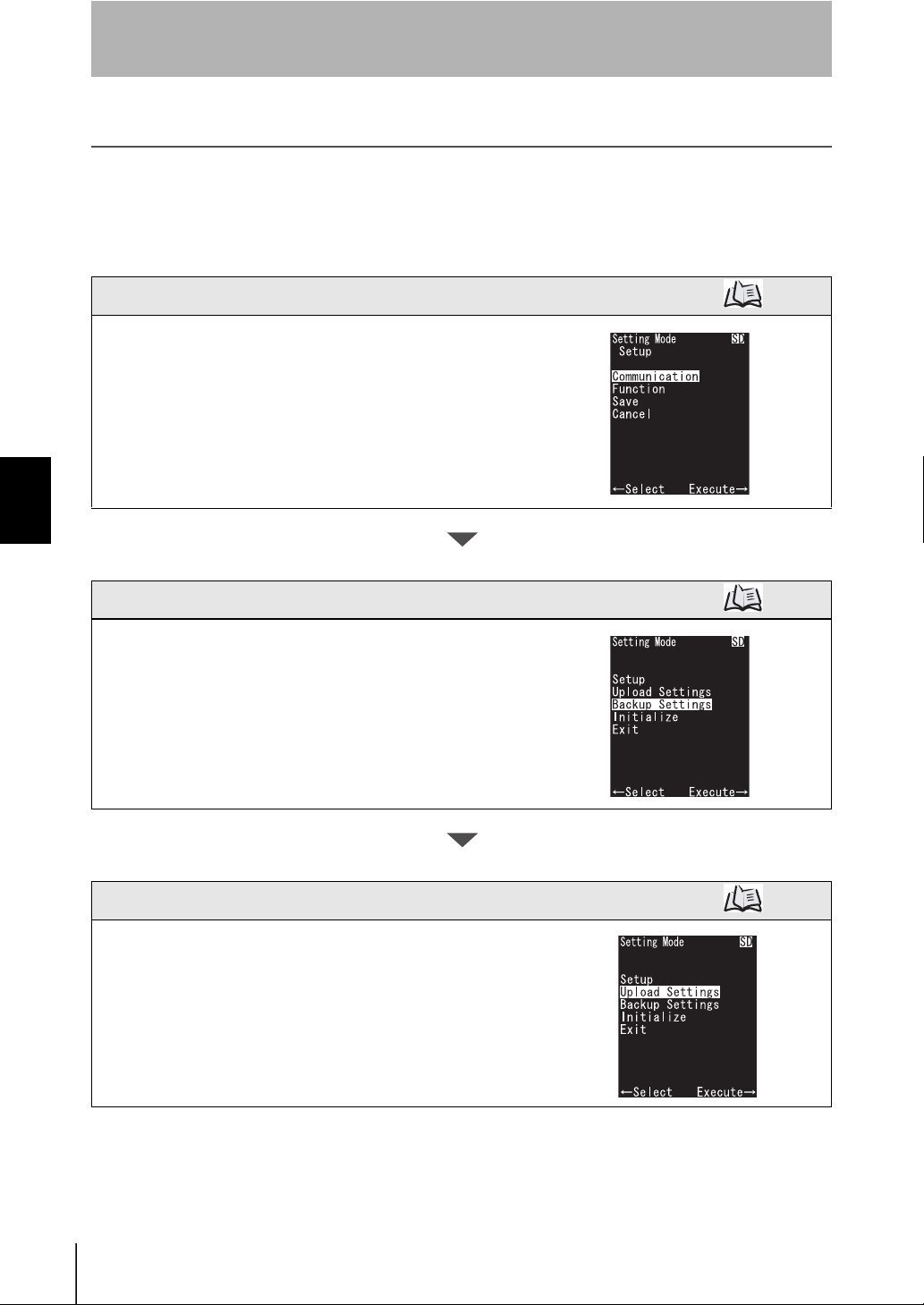

■ Using the LCD monitor

Creating the Setting Files p.46

Set necessary functions in the Setup screen and save
them.
The following items can be set.
Communications settings
Function settings

Backing Up Data p.56

To reflect the data you have set to two or more Code
Readers, the data must be backed up to a Memory
Card.

Uploading Data p.54

To reflect the data you have set to two or more Code
Readers, the data must be uploaded.

V400-H111/211

User’s Manual

44

System Settings

■ Using “2DCR Configear” on a personal computer

Installing the Software p.58

Download the application software from home page, and install it.
Contact the OMRON representative nearest you regarding the website address.

Creating Setting Files p.63

Create the setting file using the 2DCR
Configear.
Specify the required settings using the 2DCR
Configear, and create as a file.
The following items can be set.
Communications settings
Function settings

Section 4

Section 4 Overview

Uploading Data p.72

Upload the created setting data to the Handheld 2D Code Reader.
The following two loading methods are available.

• Using the 2DCR Configear

• Using the Memory Card

V400-H111/211

User’s Manual

45

Section 4
System Settings

Making Settings on the Main Body

The LCD monitor of the Code Reader can be used to set communication conditions and
functions.
For this, a Memory Card is required.

Basic Operation for Setting Mode

In the setting mode, the trigger buttons
have different functions.

Left: Selection button (to select items, to

Section 4 Making Settings on the Main Body

change settings)

Right: Confirmation button (to display the

next page, to switch between the
item and setting fields)

To select [Upload Settings] in the menu screen, carry out the following steps.

Selection button

Confirmation
button

V400-H111/211

User’s Manual

46

This series of operations whereby pressing the left trigger button to select [Upload
Settings] and then pressing the right trigger button to confirm the selection is expressed
as “selecting [Upload Settings]”.

System Settings

To set communication conditions or functions, select the desired setting.
To change Parity (communication condition), carry out the following steps.

Section 4

Section 4 Making Settings on the Main Body

V400-H111/211

User’s Manual

47

Section 4
System Settings

Starting Setting Mode (Setup Screen)

1. Start setting mode.

Setting mode can be started by the following two methods.
1 Turn ON the power to the Code Reader

while holding both right and left trigger
buttons.

2 Insert the Memory Card into the slot while

holding both right and left trigger buttons.

When using the
AC adapter

Section 4 Making Settings on the Main Body

When using the
power supply

The setting mode menu window will be displayed.

If the Memory Card does not have a folder called “SETTINGS”, “Upload
Settings” will not be displayed in the menu window. However, it is still
possible to set measurement conditions and functions even if “Upload
Settings” is not displayed, but the set data cannot be uploaded.

2. Select [Setup].

The Setup window appears.

• Setup window structure

V400-H111/211

User’s Manual

48

Changing Communication Conditions

1. Select [Communication] in the Setup window.

The Setup Communication window appears.

2. Select the item to be changed.

The cursor moves to the right of the selected item.

Section 4

System Settings

Section 4 Making Settings on the Main Body

3. Change the setting.

Available settings are shown in the table below. After a new setting is selected,
the cursor moves to the item field.

Setting item Settings

*

Baud rate (BaudRate) 9,600

Parity None

Data length (DataLength) 7bits or 8 bits

Stop Bit (StopBit) 1 bit* or 2 bits

Header (Prefix) None

Footer (Suffix) ETX/LF/CR

FCS ON or OFF

The default settings are indicated with an asterisk.

, 19,200, or 38,400

*

/Odd/Even

*

*

/STX/ESC

*

/CR+LF

*

V400-H111/211

User’s Manual

49

Section 4
System Settings

4. Exit communication setting.

When all the desired changes are made, select [Exit]. The Setup window will
reappear.

If [Cancel] is selected in the Setup window after changes are made in the
Setup Communication window, the previous settings (before changes
are made) can be restored.

5. Save the setting data.

Select [Save] in the Setup window.

Section 4 Making Settings on the Main Body

After the save window is displayed, the menu window will be displayed.

To reflect the changes made on a Code Reader to two or more Code Readers, the data must
backed up to the Memory Card and then uploaded to those Code Readers.

p.53

6. Exit setting mode.

Select [Exit] in the menu window. The setting mode will be exited.

V400-H111/211

User’s Manual

50

Setting Functions

1. Select [Function] in the Setup window.

The Setup Function window appears.

Section 4

System Settings

2. Select the item to be changed.

The cursor moves to the right of the selected item.

3. Change the setting.

Available settings are shown in the table below. After a new setting is selected,
the cursor moves to the item field.

Setting item Settings

Trigger mode (Trigger) Level

Buzzer ON

Sleep shift time (Sleep
Time)

NG Output OFF

Data accumulation
function (Accumulate)

Display Normal*/(Mode A)/

Lighting V400-H111 Auto*/Oblique/R-coax/G-coax/B-coax

*

/Alternate

*

/OFF

*

30

/60/90/120

*

/ON

*

OFF

/ON/ON + Time

Mode B/ Mode C

V400-H211 Auto*/Oblique/Coaxial

Section 4 Making Settings on the Main Body

The default settings are indicated with an asterisk.

V400-H111/211

User’s Manual

51

Section 4
System Settings

4. Exit function setting.

When all the desired changes are made, select [Exit]. The Setup window will
reappear.

If [Cancel] is selected in the Setup window after changes are made in the
Setup Function window, the previous settings (before changes are
made) can be restored.

5. Save the setting data.

Select [Save] in the Setup window.

Section 4 Making Settings on the Main Body

After the save window is displayed, the menu window will be displayed.

To reflect the changes made on a Code Reader to two or more Code Readers, the data must
backed up to the Memory Card and then uploaded to those Code Readers.

6. Exit setting mode.

Select [Exit] in the menu window. The setting mode will be exited.

p.53

V400-H111/211

User’s Manual

52

Section 4

System Settings

Uploading from the Memory Card

The Memory Card can be used to upload the setting data to the Handheld 2D Code Reader. The
following procedure needs to be performed to reflect the changes made on a Code Reader to
two or more Code Readers or to reflect the data set using “2DCR Configear” to a Code Reader.

Starting Setting Mode

1. If the data is created using “2DCR Configear”, the data must be saved to the Memory Card.

To save data to the Memory Card, create a folder with the name SETTINGS, and save. If the data is
saved to a folder other than “SETTINGS”, it cannot be uploaded.

2. Start setting mode.

Setting mode can be started by the following two methods.
1 Turn ON the power to the Code Reader

while holding both right and left trigger
buttons.

When using the
AC adapter

When using the
power supply

Section 4 Uploading from the Memory Card

2 Insert the Memory Card into the slot while

holding both right and left trigger buttons.

The setting mode menu window will be displayed.

V400-H111/211

User’s Manual

53

Section 4 Uploading from the Memory Card

Section 4
System Settings

Uploading Setting Data to the 2D Code Reader

To reflect the changes made on a Code Reader to two or more Code Readers, the data must
backed up to the Memory Card first.

p.56

1. Select [Upload Settings] in the menu window.

The Select File window will be displayed.

2. Select the data setting file.

In the Select File window, select the data setting file to be used.
The contents of the SETTINGS folder in the Memory Card will be displayed.

V400-H111/211

User’s Manual

54

After the Upload Settings window is displayed, the following save selection window will be displayed.

3. Save the setting data.

Select [YES] in the save selection window.

After the save window is displayed, the menu window will be displayed.

4. Exit setting mode.

Select [Exit] in the menu window. The setting mode will be exited.

Section 4

System Settings

Section 4 Uploading from the Memory Card

V400-H111/211

User’s Manual

55

Section 4 Uploading from the Memory Card

Section 4
System Settings

Backing Up 2D Code Reader Data

1. Select [Backup Settings] in the menu window.

The Backup Settings window will be displayed.

2. Save the setting data.

Select [YES] in the Backup Settings window.

The setting data file will be backed up in the SETTINGS folder in the
Memory Card.
The SETTINGS folder will be automatically created if it does not already
exist. The file name will be SETTINGS.DAT.

After the save window is displayed, the menu window will be displayed.

3. Exit setting mode.

Select [Exit] in the menu window. The setting mode will be exited.

V400-H111/211

User’s Manual

56

System Settings

Restoring the Factory Setting Data

The communication and function settings can be returned to the factory settings.

1. Select [Initialize] in the menu window.

A confirmation window will be displayed.

Section 4

Section 4 Restoring the Factory Setting Data

2. Return the settings to the factory settings.

Select [YES] in the confirmation window.

The menu window will appear after the communication and function settings have been returned to the
factory settings.

3. Exit setting mode.

Select [Exit] in the menu window. The setting mode will be exited.

V400-H111/211

User’s Manual

57

Section 4
System Settings

Installing the 2DCR Configear

Download the application software from home page, and install it.
Contact the OMRON representative nearest you regarding the website address.

1. Open the setup.exe file downloaded from the home page.

The following window will be displayed.

2. Click the [OK] button.

Section 4 Installing the 2DCR Configear

3. Click the button.

V400-H111/211

User’s Manual

58

4. Click the [Continue] button.

Setup will start when the [Continue] button is clicked.

Section 4

System Settings

Section 4 Installing the 2DCR Configear

5. Click the [OK] button.

When “2DCR Configear” is no longer required, uninstall it by selecting [Control Panel] - [Add/
Remove Hardware] on your computer.

V400-H111/211

User’s Manual

59

Section 4
System Settings

Communicating Using 2DCR Configear

The 2DCR Configear can be used to communicate with the Handheld 2D Code Reader.

Section 4 Communicating Using 2DCR Configear

■ Communication Setting

The following items can be set. However, the settings cannot be changed while the port
is being connected.

Setting item Settings

Port No. COM1

Baud Rate 9,600

Parity None

Data Length 77 bits or 8 bits

Stop Bit 1 bit* or 2 bits

Header/Footer Prefix Send None*, 02 <STX>, or 1B <ESC>

Suffix Send ETX, 0A LF, 0D CR

FCS Send ON or OFF

Same as Send Sets the header, footer, and FCS for receiving to the same settings as for

The default settings are indicated with an asterisk.

*

to COM 9

*

, 19,200, or 38,400

*

, odd, or even

*

Receive None*, 02 <STX>, or 1B <ESC>

*

, or 0D0A CR+LF

Receive ETX, 0A LF, 0D CR

Receive ON or OFF

sending.

*

, or 0D0A CR+LF

*

*

V400-H111/211

User’s Manual

60

■ Menu

◆ File

Save Log...

Saves the data displayed in the communication log as a text file.

Save Environment

Saves the settings made in the communications settings.

End

Ends the 2DCR Configear.

◆ Edit

Copy Log

Copies the log displayed in the communication log to the clipboard.

Erase Log

Deletes the log displayed in the communication log.

Section 4

System Settings

Section 4 Communicating Using 2DCR Configear

◆ Setting Reader

Create Data...

Creates the data setting file for loading set data to the Handheld 2D Code Reader.

p.63

Auto Scan

Automatically obtains the conditions required for communicating with the Handheld 2D
Code Reader.

p.72

Send Setting

Sends the data setting file from the host to the Handheld 2D Code Reader.

p.72

Receive Setting

Sends the data set on the Handheld 2D Code Reader to the host and saves it with a
new file name.

Set Date, Time

Sends the clock time of the personal computer in which 2DCR Configear is installed to
the Handheld 2D Code Reader.

The clock is factory set to Japanese Standard Time.

V400-H111/211

User’s Manual

61

Section 4
System Settings

◆ Help

Version

Displays the software version of the 2DCR Configear installed.

■ Buttons

◆ Connect

Connects or disconnects the port.

■ Display Form

Section 4 Communicating Using 2DCR Configear

Selects the format for displaying data in the communication log.
Either text display or hexadecimal display can be selected. (Default setting: Text
display)

■ Direct Command Input

Sends the input text string to the Handheld 2D Code Reader.

■ Status Display

◆ Port status

Indicates the port status. (On Line: Connected; Off Line: Disconnected)

◆ Communication conditions

Displays the current communications conditions. (Example: COM1 9600,n,8,1)
This is not displayed when the port is disconnected.

◆ Date

Displays the current date. (Example: 2005/01/26)

◆ Time

Displays the current time. (Example: 9:27)

V400-H111/211

User’s Manual

62

Section 4

System Settings

Creating Setting Files Using the 2DCR
Configear

Creates the data setting file for loading set data to the Handheld 2D Code Reader.
Make the settings for the communications conditions, functions, and display conversion.

XSelect Setting Reader - Create Data... from the menu.

The following window for creating the setting data file will be displayed.

Section 4 Creating Setting Files Using the 2DCR Configear

■ Model(V)

Selects the code reader model. Before setting other items, select the model of the code
reader you are using.

■ Open

Opens the previously created data setting file for editing.
The [Receive (R
Reader and edit it.

)] function can be used to open the data file downloaded from the Code

■ Save

Saves the created data setting file.

To save data to the Memory Card, create a folder with the name SETTINGS, and save. If the data is
saved to a folder other than “SETTINGS”, it cannot be uploaded.

p.53

V400-H111/211

User’s Manual

63

Section 4
System Settings

Communication Settings

The settings shown in the following table are set in the [Communication Settings] tab
Page in the Create Setting Data Window.

Setting item Settings

Baud Rate

Parity

Data Length

Stop Bit

Header/Footer Prefix

Suffix

FCS

*

9,600

, 19,200, or 38,400

*

None

, odd, or even

77 bits or 8 bits

*

1 bit

or 2 bits

None*, 02 <STX>, or 1B <ESC>

ETX, 0A LF, 0D CR

ON or OFF

*

*

, or 0D0A CR+LF

*

Section 4 Creating Setting Files Using the 2DCR Configear

The default settings are indicated with an asterisk.

The format when FCS is ON is as follows:

For details on FCS calculation methods, refer to FCS Calculation Method.

p.85

V400-H111/211

User’s Manual

64

Section 4

System Settings

Function Settings

Make the following settings in the [Function Settings] tab of the Create Setting Data
Window.

Section 4 Creating Setting Files Using the 2DCR Configear

Setting item Settings

Trigger Mode Level Trigger

Buzzer ON

Sleep Shift Time Between 30 sec

NG output (N

Data Accumulation OFF* or ON

Display(Y

Lighting (H

)ON or OFF

) Normal*/Mode A/Mode B/Mode C

) V400-H111 Auto*/Oblique/R-coax/G-coax/B-coax

*

or OFF

V400-H211 Auto*/Oblique/Coaxial

*

or Alternate

*

and 120 sec

*

The default settings are indicated with an asterisk.

■ Data Accumulation

Set whether to collect data.
The Memory Card must be inserted in the Handheld 2D Code Reader to use this
function.
When this function is ON, read data will be saved in a file with the following name in the
Memory Card’s READDATA folder. The READDATA folder will be automatically
generated if it does not already exist.

READ****.csv

Note: The digits indicated by **** start at 0000 and increment by 1 for approximately

each 40 kilobytes.
After reading is completed, the data is written to the Memory Card, which will take
several seconds.

V400-H111/211

User’s Manual

65

Section 4
System Settings

When Appending at date is selected, the date and time will be added to the read data.

Example of Saved File

Section 4 Creating Setting Files Using the 2DCR Configear

V400-H111/211

User’s Manual

66

Section 4

System Settings

Data Conversion on Display

Click the [Data Conversion on Display] tab in the Create Setting Data Window to
convert a CSV file for display.

Section 4 Creating Setting Files Using the 2DCR Configear

■ Setting Method

1. Create the CSV file for the display

conversion function.

To use this function, CSV files for display
conversion must be created using separate
spreadsheet software or a text editor for the
personal computer.
The following formatting restrictions apply.
File: CSV format (comma delimited)
Maximum No. of records: 1000
Maximum No. of comparison characters: 20
Maximum No. of conversion characters: 19
Comment row: Add a semicolon (;) to the

beginning of the row.

Enter comparison text and conversion text in each row.

The symbols and text in the following table function as special characters with specific meanings.

Symbol Name Details

* Wild card Any data OK

!a Alphabet Any lower-case character OK

!A Alphabet Any upper-case character OK

!n Numeric value Any numeral OK

ELSE Condition for no match Enter at end.

V400-H111/211

User’s Manual

67

Section 4
System Settings

Comparison Principle

With display conversion, comparison is performed with the data contained in the file, and the display

contents is changed to the registered text strings for characters that match.

Matching processing is performed in order starting from the beginning of the file. Once a match is

found, no further comparisons are made, i.e., matching processing is affected by the entry order.
Therefore, when comparing complicated patterns, make sure that the optimum order is used.

2. Click [1. New Regist.].

The Conversion Registration window appears.

Section 4 Creating Setting Files Using the 2DCR Configear

3. Select the desired start position and number of bytes.

Specify the part of the read data to be compared.
Specify the data position from which comparison is to be started and the number of data bytes to be
compared.
If you want to compare all the read data, specify "1" in [Starting Position] and "All" in [Number of Bytes].

4. Click the [Import] button.

Import the created file to the 2DCR Configear to convert the created file to a format that can be uploaded to
the Handheld 2D Code Reader

5. Select the CSV file to be uploaded and click the [Open] button.

V400-H111/211

User’s Manual

68

The CSV file will be read and displayed as shown in the following diagram.

Section 4

System Settings

Section 4 Creating Setting Files Using the 2DCR Configear

6. Enter the desired name.

7. Click the [OK] button.

The [Data Conversion on Display] tab will reappear.

8. Select ON in [Data Conversion on Display] field.

V400-H111/211

User’s Manual

69

Section 4
System Settings

■ Deleting Items and Changing Item Order

The [Data Conversion on Display] tab allows you to set up to four conversion file items.

◆ Deleting the selected items

Check the checkboxes for the items to be deleted, and then click the [Delete] button.
After a confirmation message is displayed, the selected items will be deleted.

◆ Swapping the order of the selected items

Check the checkboxes for the items to be deleted, and then click the [Replace] button.
After a confirmation message is displayed, the order of the selected items will be swapped.

Section 4 Creating Setting Files Using the 2DCR Configear

V400-H111/211

User’s Manual

70

Section 4

System Settings

Saving

1. Save the settings.

Click the [Save] button, specify the save destination for the data settings in the Save Setting Data Window,
and then click the [Save] button.

Section 4 Creating Setting Files Using the 2DCR Configear

To save data to the Memory Card, create a folder with the name SETTINGS, and save. If the data is
saved to a folder other than “SETTINGS”, it cannot be uploaded.

p.53

2. Exit creation of setting data file.

Click the [Cancel] button in the Create Setting Data window.

V400-H111/211

User’s Manual

71

Section 4
System Settings

Sending the Setting File to the 2D Code Reader

The setting data created using “2DCR Configear” can be sent to the 2D Code Reader
as follows.

1. Connect the cable to the RS-232C interface.

p.28

2. Check the port number.

Section 4 Creating Setting Files Using the 2DCR Configear

V400-H111/211

User’s Manual

72

3. Select [Setting Reader] - [Auto Scan] from the menu.

The 2D Code Reader automatically obtains the communication conditions required for communicating with
the Code Reader, and a message will be displayed when the conditions are obtained successfully.

4. Click the [Connect(S)] button.

Communication with the 2D Code Reader starts. “On Line” will be displayed in the status display area.

5. Select [Setting Reader] - [Send Setting] from the menu.

The following file selection window will be displayed.

Section 4

System Settings

Section 4 Creating Setting Files Using the 2DCR Configear

6. Select the desired file and click the [Open] button.

The selected file will be uploaded to the 2D Code Reader. A message indicating that uploading is in progress
will be displayed.

7. Exit the 2DCR Configear.

Click [File] - [End] to exit the 2DCR Configear.

V400-H111/211

User’s Manual

73

Section 4
System Settings

MEMO

Section 4 Creating Setting Files Using the 2DCR Configear

V400-H111/211

User’s Manual

74

Section 5
Troubleshooting

This section explains the countermeasures to take when reading cannot be
executed correctly or when a problem occurs.

Troubleshooting 76

Section 5 Troubleshooting

V400-H111/211

User’s Manual

75

Section 5 Troubleshooting

Section 5
Troubleshooting

Troubleshooting

Status Cause and countermeasures Page

The POWER indicator is not
lit.

The video monitor image is
not clear.

Cannot write data to Memory
Card

The saved data is corrupted. The Memory Card was removed while it was being accessed. p.41

The time stamp on saved data
is not correct.

Cannot communicate with the
host device.

The power line is not connected properly.
Insufficient power

Some pixels on the monitor may not light and some may always light.
This is a result of the monitor's construction and does not indicate a
malfunction.

The write-protect switch on the Memory Card is ON.
The Memory Card capacity is insufficient.
The Memory Card is damaged.
The Memory Card has not been formatted.
The Memory Card is the wrong type.

The clock is not set correctly.
The clock is factory set to Japanese Standard Time. Set the clock as
required.

The cable model is incorrect.
The cable connections are loose.
The communications settings are not correct.

p.29

p.60

p.20

p.60

-

-

V400-H111/211

User’s Manual

76

Appendices

Maintenance 78

Specifications and Dimensions 79

ASCII Table 84

FCS Calculation Method 85

Data Capacity Tables 87

Appendices

V400-H111/211

User’s Manual

77

Appendices

Maintenance

Handling the Handheld 2D Code Reader

• Do not touch the lens or monitor with your fingers or any pointed object.

• Do not use the Handheld 2D Code Reader in locations subject to dust or other

contaminants.

Inspection

To maintain the Handheld 2D Code Reader in optimum condition, perform the following
inspections regularly.

• Use a lens cloth or air brush to clean the lens and monitor.

• Use a soft cloth to clean other parts of the Handheld 2D Code Reader.

Inspection items Details Required tools

Power supply

Appendices

Ambient operating

temperature

Ambient operating

humidity

The voltage measured at the power supply terminals on the
terminal block must be 5 VDC ± 10%.

The ambient operating temperature must be between 0 and 40 °C.

The ambient operating humidity must be between 35% and 85%.

Multimeter

Thermometer

Hygrometer

Maintenance

• Turn OFF the power and take safety precautions before conducting maintenance or inspections.

• Do not use thinners or benzene to clean the Controller.

V400-H111/211

User’s Manual

78

Specifications and Dimensions

Handheld 2D Code Reader

■ V400-H111/211

Appendices

(Unit: mm)

Memory Card slot

Zoom lever

Monitor

Lighting

Buzzer

Power indicator (green)

Trigger button

Reading
surface

Appendices

Specifications and Dimensions

Lighting

V400-H111/211

User’s Manual

79

Appendices

V400-H111 V400-H211

Field of vision 5 to 10 mm 15 to 30 mm

Working distance 40 mm (contact with the code when the Contactor is mounted)

Power supply voltage 5 VDC ± 10 %

Current consumption 1 A max.

Serial interface RS-232C

Applicable code DataMatrix ECC200 10 × 10 to 64 × 64, 8 × 18 to 16 × 48

QR Code Model 1.2 21 × 21 to 57 × 57 (Ver. 1 to 10)

Operating method Pushbutton control using the trigger buttons

System Settings Operation in the Setup window (on Code Reader), uploading setting data using

a Memory Card, or communication by “2DCR Configear”

Memory Card SD card

Monitor 1.8-inch TFT liquid crystal display for displaying image and read data

Indicators Power indicator and Memory Card access indicator

Ambient temperature Operating: 0 to 40°C Storage: -25 to 60°C

Ambient humidity 35% to 85%(with no condensation)

Ambient environment No corrosive gases

Vibration resistance 10 to 150 Hz ; half-amplitude: 0.35 mm (max. acceleration: 50 m

Shock resistance 150m

Appendices

Weight Approx. 230 g

Degree of protection IEC 60529 (IP64)

Materials Case: ABS; Optical surface: PC; Display: PMMA

2

/s 3 times in 6 directions

2

/s)

Specifications and Dimensions

V400-H111/211

User’s Manual

80

Cable

■ V400-W20-2M/V400-W21-2M

29.8

Bush

Appendices

(Unit: mm)

2000

20 300

30

12.6 dia.

Vinyl-insulated round cable
(5-dia. with 4 conductors, length: 2 m)

Connector

■ V400-W20-5M/V400-W21-5M

29.8 5000

Bush

Connector

12.6 dia.

Vinyl-insulated round cable
(5-dia. with 4 conductors,
length: 2 m)

Nameplate

D-sub, 9-pin Connector

(99)500

Vinyl-insulated round cable
(6.1-dia. with 8 conductors)

Nameplate

20 200

30

D-sub, 9-pin Connector

(Unit: mm)

Appendices

Specifications and Dimensions

V400-W20-2M V400-W20-5M V400-W21-2M V400-W21-5M

Interface connector D-sub, 9-pin, male D-sub, 9-pin, female

Ambient temperature Operating: 0 to 40°C Storage: -25 to 60°C

Ambient humidity 35 % to 85 % (with no condensation)

Ambient environment No corrosive gases

Materials Cable sheath: Heat-resistant vinyl chloride

Special connector: PPS, PBT, POM
D-sub connector: ABS

Minimum bending radius 30 mm

Weight Approx. 100 g Approx. 340 g Approx. 100 g Approx. 340 g

V400-H111/211

User’s Manual

81

Appendices

■ V400-W22-2M

(Unit: mm)

Appendices

Specifications and Dimensions

29.8

Connector

12.6 dia.
Vinyl-insulated round cable

(5-dia. with 4conductors, length: 2 m)

■ V400-W22-5M

29.8

Bush

Bush

500

2000

Connector

(99)

Connector

200

5000

30

Nameplate

200

Vinyl-insulated Flat
cable 2 × 2-dia.,
with 2 conductors,
length: 0.2 m

D-sub, 9-pin
Connector

(Unit: mm)

Vinyl-insulated
Flat cable 2
2-dia., with 2
conductors,
length: 0.2 m

30

×

V400-H111/211

User’s Manual

82

12.6 dia.

Connector

Vinyl-insulated round cable
(5-dia. with 4conductors, length: 2 m)

Interface connector D-sub, 9-pin, female

Ambient temperature Operating: 0 to 40°C Storage: -25 to 60°C

Ambient humidity 35 % to 85 % (with no condensation)

Ambient environment No corrosive gases

Materials Cable sheath: Heat-resistant vinyl chloride

Special connector: PPS, PBT, POM
D-sub connector: ABS

Minimum bending radius 30 mm

Weight Approx. 110g Approx. 350 g

Vinyl-insulated round cable
(6.1-dia. with 8 conductors)

V400-W22-2M V400-W22-5M

D-sub, 9-pin
Connector

Nameplate

Contactor

■ V400-AC2

Appendices

(Unit: mm)

Materials PC (transparent)

The tip is made of silicon rubber (anti-static)

Weight Approx. 20 g

AC adapter

■ V600-A22

V400-AC2

Appendices

Specifications and Dimensions

(Unit: mm)

V400-H111/211

User’s Manual

83

Appendices

ASCII Table

Data read with no-protocol commands using the serial communications interface is output as 2
characters of ASCII.
The ASCII characters correspond to the following characters.

Examples:

• When the read data is A, 41 is output.

• When the data read is T, 54 is output.

Upper 4 bits

Lower 4 bits

Appendices

ASCII Table

V400-H111/211

User’s Manual

84

FCS Calculation Method

■ FCS Calculation Method

The FCS (Frame Check Sequence) is the result of taking the XOR for each byte
between the header and footer (8 bits) and converting it to 2 characters of ASCII.
The FCS can be attached to output data to improve the reliability of communications.
Each time data is received, the host calculates the FCS and checks it against the FCS
attached to the sent data so that the send data can be checked for errors.

■ Calculation Example for Sending FCS

Sample read data: ABCDEFG
The details of the read data and calculation method are as follows:

• Read data

Header Footer

Appendices

Read data FCS

• Calculation method

Read data ASCII Hexadecimal

Conversion to
ASCII:

Conversion to
hexadecimal
values

Appendices

FCS Calculation Method

Obtaining the
exclusive OR:

Conversion to
ASCII:

FCS data: 40

V400-H111/211

User’s Manual

85

Appendices

■ Calculation Programming Example for Sending FCS

DATA$ Sample data string

L Data length

CODE$ Data character

A Exclusive OR

100 ’* * * * * CALCULATE FCS * * * * *

110 ’* FCSSET

120 L=LEN(DATA$)

130 A=0

140 FOR J=1 TO L

150 CODE$=MID$(DATA$,J,1)

160 A=ASC(CODE$)XOR A

170 NEXT J

180 FCS$=HEX$(A)

190 IF LEN(FCS$)=1 THEN FCS$=“0”+FCS$

200 RETURN

Appendices

FCS Calculation Method

■ FCS Check Subroutine Example for Received Data

1000 ’* * * * * FCSHECK * * * * *

1010 ’* FCSHECK

1020 Q=0:FCSCK$=“OK”

1030 PRINT RESPONSE $

1040 LENGS=LEN(RESPONSE$)-3

1050 FCSP$=MID$(RESPONSE$,LENGS+1,2) ’FCS in response data

1060 FOR J=1 TO LENGS ’Calculation range of FCS

1070 Q=ASC(MID$(RESPONSE$,J,1))XOR Q

1080 NEXT J

1090 FCSD$=HEX$(Q)

1100 IF LEN(FCSD$)=1 THEN FCSD$=“0”+FCSD$ ’FCS calculated in a program

1110 IF FCSD$ < > FCSP$ THEN FCSCK$=“ERR”

1120 PRINT “FCSD$=”;FCSD$;“FCSP$=”;FCSP$; ’FCS received correctly: OK

“FCSCK$=”;“FCSCK$=” ’FCS not received correctly:

ERR

1130 RETURN

V400-H111/211

User’s Manual

86

Appendices

Data Capacity Tables

The maximum quantity of information that can be stored depends on the symbol size of the code.
Also the maximum data capacity in relation to the amount of information carried by the code
depends on the character type and the arrangement and combination of characters. The relation
between the symbol size (number of cells) and data capacity is shown in the following table.

■ DataMatrix

◆ DataMatrix ECC200

In the following diagram, the symbol size is 12 × 12.

12 cells

12 cells

Data capacity

Symbol size

10 × 10 6 3 3 - 1

12 × 12 10 6 5 1 3

14 × 14 16 10 9 3 6

16 × 16 24 16 14 5 10

18 × 18 36 25 22 8 16

20 × 20 44 31 28 10 20

22 × 22 60 43 38 14 28

24 × 24 72 52 46 17 34

26 × 26 88 64 57 21 42

32 × 32 124 91 81 30 60

36 × 36 172 127 113 42 84

40 × 40 228 169 150 56 112

44 × 44 288 214 190 72 142

48 × 48 348 259 230 86 172

52 × 52 408 304 270 101 202

64 × 64 560 418 372 139 278

8 × 18 10 6 5 1 3

8 × 32 20 13 12 4 8

12 × 26 32 22 20 7 14

12 × 36 44 31 28 10 20

16 × 36 64 46 41 15 30

16 × 48 98 72 64 23 47

Numerals Alphanumerics

Alphanumerics

and symbols

2-byte

characters

Japanese

characters

V400-H111/211

User’s Manual

1-byte

Appendices

Data Capacity Tables

87

Appendices

■ QR Code

◆ QR Code (Model 2)

In the following diagram, the symbol size is 21 × 21 (Version 1).

7 cells

7 cells

7 cells

7 cells

Symbol size

(version)

21 × 21

Appendices

Data Capacity Tables

(Version 1)

25 × 25

(Version 2)

29 × 29

(Version 3)

33 × 33

(Version 4)

37 × 37

(Version 5)

41 × 41

(Version 6)

Error correction level

(ECC level)

L ( 7%) 41 25 17 10

M (15%) 34 20 14 8

Q (25%) 27 16 11 7

H (30%) 17 10 7 4

L ( 7%) 77 47 32 20

M (15%)63382616

Q (25%)48292012

H (30%) 34 20 14 8

L ( 7%) 127 77 53 32

M (15%) 101 61 42 26

Q (25%)77473220

H (30%)58352415

L ( 7%) 187 114 78 48

M (15%) 149 90 62 38

Q (25%) 111 67 46 28

H (30%)82503421

L ( 7%) 255 154 106 65

M (15%) 202 122 84 52

Q (25%) 144 87 60 37

H (30%) 106 64 44 27

L ( 7%) 322 195 134 82

M (15%) 255 154 106 65

Q (25%) 178 108 74 45

H (30%) 139 84 58 36

14 cells

Numerals

Data capacity

Alphanumerics

(uppercase)

8-bit bytes

Byte

Japanese

characters

V400-H111/211

User’s Manual

88

Appendices

Symbol size

(version)

45 × 45

(Version 7)

49 × 49

(Version 8)

53 × 53

(Version 9)

57 × 57

(Version 10)

Source: 2D Codes, Basic Specifications for QR Code (JIS X 0510)

Maximum Data Capacity
Even with the same 2D code, the maximum quantity of information that can be stored depends on
the symbol size of the code.
In other words, the symbol size must be increased to increase the data capacity.
The data capacity also depends on the type of characters used for the information contained in the
code. With QR and DataMatrix Code, the maximum number of characters for the same symbol size
will be greatest for numbers only and then for alphanumerics, and will be the least with 2-byte
characters.
The data capacity also depends on the character type, and the order and combination of characters
used.

Error correction level

(ECC level)

L ( 7%) 370 224 154 95

M (15%) 293 178 122 75

Q (25%) 207 125 86 53

H (30%) 154 93 64 39

L ( 7%) 461 279 192 118

M (15%) 365 221 152 93

Q (25%) 259 157 108 66

H (30%) 202 122 84 52

L ( 7%) 552 335 230 141

M (15%) 432 262 180 111

Q (25%) 312 189 130 80

H (30%) 235 143 98 60

L ( 7%) 652 395 271 167

M (15%) 513 311 213 131

Q (25%) 364 221 151 93

H (30%) 288 174 119 74

Numerals

Alphanumerics

(uppercase)

Data capacity

8-bit bytes

Byte

Japanese

characters

Appendices

Data Capacity Tables

V400-H111/211

User’s Manual

89

Appendices

MEMO

Appendices

Data Capacity Tables

V400-H111/211

User’s Manual

90

Revision History

A manual revision code appears as a suffix to the catalog number at the bottom of the
front and back covers.

Cat. No.

Revision code Date Revised contents

01 July 2005 Original production

Z228-E1-01

Revision code

V400-H111/211

User’s Manual

91

MEMO

V400-H111/211

User’s Manual

92

Terms and Conditions of Sale

1. Offer; Acceptance. These terms and conditions (these "Terms") are deemed
part of all quotes, agreements, purchase orders, acknowledgments, price lists,
catalogs, manuals, brochures and other documents, whether electronic or in
writing, relating to the sale of products or services (collectively, the "Products
by Omron Electronics LLC and its subsidiary companies (“Omron”). Omron
objects to any terms or conditions proposed in Buyer’s purchase order or other
documents which are inconsistent with, or in addition to, these Terms.

2. Prices; Payment Terms.
out notice by Omron. Omron reserves the right to increase or decrease prices
on any unshipped portions of outstanding orders. Payments for Products are
due net 30 days unless otherwise stated in the invoice.

3. Discounts.
sent to Buyer after deducting transportation charges, taxes and duties, and will
be allowed only if (i) the invoice is paid according to Omron’s payment terms
and (ii) Buyer has no past due amounts.

4. Interest.
the maximum legal rate, whichever is less, on any balance not paid within the
stated terms.

5. Orders

6. Governmental Approvals.
costs involved in, obtaining any government approvals required for the impor­tation or sale of the Products.

7. Taxes
real property and income taxes), including any interest or penalties thereon,
imposed directly or indirectly on Omron or required to be collected directly or
indirectly by Omron for the manufacture, production, sale, delivery, importa­tion, consumption or use of the Products sold hereunder (including customs
duties and sales, excise, use, turnover and license taxes) shall be charged to
and remitted by Buyer to Omron.

8. Financial.
to Omron, Omron reserves the right to stop shipments or require satisfactory
security or payment in advance. If Buyer fails to make payment or otherwise
comply with these Terms or any related agreement, Omron may (without liabil­ity and in addition to other remedies) cancel any unshipped portion of Prod­ucts sold hereunder and stop any Products in transit until Buyer pays all
amounts, including amounts payable hereunder, whether or not then due,
which are owing to it by Buyer. Buyer shall in any event remain liable for all
unpaid accounts.

9. Cancellation; Etc.
unless Buyer indemnifies Omron against all related costs or expenses.

10. Force Majeure
resulting from causes beyond its control, including earthquakes, fires, floods,
strikes or other labor disputes, shortage of labor or materials, accidents to
machinery, acts of sabotage, riots, delay in or lack of transportation or the
requirements of any government authority.

11. Shipping; Delivery.
a. Shipments shall be by a carrier selected by Omron; Omron will not drop ship

b. Such carrier shall act as the agent of Buyer and delivery to such carrier shall

c. All sales and shipments of Products shall be FOB shipping point (unless oth-

d. Delivery and shipping dates are estimates only; and
e. Omron will package Products as it deems proper for protection against nor-

12. Claims.
Products occurring before delivery to the carrier must be presented in writing
to Omron within 30 days of receipt of shipment and include the original trans­portation bill signed by the carrier noting that the carrier received the Products
from Omron in the condition claimed.

13. Warranties
Products will be free from defects in materials and workmanship for a period of
twelve months from the date of sale by Omron (or such other period expressed
in writing by Omron). Omron disclaims all other warranties, express or implied.
(b) Limitations
EXPRESS OR IMPLIED, ABOUT NON-INFRINGEMENT, MERCHANTABIL-

Cash discounts, if any, will apply only on the net amount of invoices

Omron, at its option, may charge Buyer 1-1/2% interest per month or

. Omron will accept no order less than $200 net billing.

. All taxes, duties and other governmental charges (other than general

If the financial position of Buyer at any time becomes unsatisfactory

except in “break down” situations.

constitute delivery to Buyer;

erwise stated in writing by Omron), at which point title and risk of loss shall
pass from Omron to Buyer; provided that Omron shall retain a security inter­est in the Products until the full purchase price is paid;

mal handling and extra charges apply to special conditions.

Any claim by Buyer against Omron for shortage or damage to the

. (a) Exclusive Warranty. Omron’s exclusive warranty is that the

All prices stated are current, subject to change with-

Buyer shall be responsible for, and shall bear all

Orders are not subject to rescheduling or cancellation

. Omron shall not be liable for any delay or failure in delivery

Unless otherwise expressly agreed in writing by Omron:

. OMRON MAKES NO WARRANTY OR REPRESENTATION,

ITY OR FITNESS FOR A PARTICULAR PURPOSE OF THE PRODUCTS.
BUYER ACKNOWLEDGES THAT IT ALONE HAS DETERMINED THAT THE
PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR

")

INTENDED USE. Omron further disclaims all warranties and responsibility of
any type for claims or expenses based on infringement by the Products or oth­erwise of any intellectual property right. (c) Buyer Remedy
gation hereunder shall be, at Omron’s election, to (i) replace (in the form
originally shipped with Buyer responsible for labor charges for removal or
replacement thereof) the non-complying Product, (ii) repair the non-complying
Product, or (iii) repay or credit Buyer an amount equal to the purchase price of
the non-complying Product; provided that in no event shall Omron be responsi­ble for warranty, repair, indemnity or any other claims or expenses regarding
the Products unless Omron’s analysis confirms that the Products were prop­erly handled, stored, installed and maintained and not subject to contamina­tion, abuse, misuse or inappropriate modification. Return of any Products by
Buyer must be approved in writing by Omron before shipment. Omron Compa­nies shall not be liable for the suitability or unsuitability or the results from the
use of Products in combination with any electrical or electronic components,
circuits, system assemblies or any other materials or substances or environ­ments. Any advice, recommendations or information given orally or in writing,
are not to be construed as an amendment or addition to the above warranty.
See http://oeweb.omron.com or contact your Omron representative for pub­lished information.

14. Limitation on Liability; Etc
FOR SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES,
LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY
WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS
BASED IN CONTRACT, WARRANTY, NEGLIGENCE OR STRICT LIABILITY.
Further, in no event shall liability of Omron Companies exceed the individual
price of the Product on which liability is asserted.

15. Indemnities
their employees from and against all liabilities, losses, claims, costs and
expenses (including attorney's fees and expenses) related to any claim, inves­tigation, litigation or proceeding (whether or not Omron is a party) which arises
or is alleged to arise from Buyer's acts or omissions under these Terms or in
any way with respect to the Products. Without limiting the foregoing, Buyer (at
its own expense) shall indemnify and hold harmless Omron and defend or set­tle any action brought against such Companies to the extent based on a claim
that any Product made to Buyer specifications infringed intellectual property
rights of another party.

16. Property; Confidentiality.
sive property of Omron Companies and Buyer shall not attempt to duplicate it
in any way without the written permission of Omron. Notwithstanding any
charges to Buyer for engineering or tooling, all engineering and tooling shall
remain the exclusive property of Omron. All information and materials supplied
by Omron to Buyer relating to the Products are confidential and proprietary,
and Buyer shall limit distribution thereof to its trusted employees and strictly
prevent disclosure to any third party.

17. Export Controls.
licenses regarding (i) export of products or information; (iii) sale of products to
“forbidden” or other proscribed persons; and (ii) disclosure to non-citizens of
regulated technology or information.

18. Miscellaneous
and no course of dealing between Buyer and Omron shall operate as a waiver
of rights by Omron. (b) Assignment
without Omron's written consent. (c) Law.
law of the jurisdiction of the home office of the Omron company from which
Buyer is purchasing the Products (without regard to conflict of law princi­ples). (d) Amendment
Buyer and Omron relating to the Products, and no provision may be changed
or waived unless in writing signed by the parties. (e) Severability
sion hereof is rendered ineffective or invalid, such provision shall not invalidate
any other provision. (f) Setoff
against the amount owing in respect of this invoice. (g) Definitions
herein, “including
nies” (or similar words) mean Omron Corporation and any direct or indirect
subsidiary or affiliate thereof.

. Buyer shall indemnify and hold harmless Omron Companies and

Buyer shall comply with all applicable laws, regulations and

. (a) Waiver. No failure or delay by Omron in exercising any right

. OMRON COMPANIES SHALL NOT BE LIABLE

Any intellectual property in the Products is the exclu-

. Buyer may not assign its rights hereunder

These Terms are governed by the

. These Terms constitute the entire agreement between

. Buyer shall have no right to set off any amounts

” means “including without limitation”; and “Omron Compa-

. Omron’s sole obli-

. If any provi-

. As used

Certain Precautions on Specifications and Use

1. Suitability of Use. Omron Companies shall not be responsible for conformity
with any standards, codes or regulations which apply to the combination of the
Product in the Buyer’s application or use of the Product. At Buyer’s request,
Omron will provide applicable third party certification documents identifying
ratings and limitations of use which apply to the Product. This information by
itself is not sufficient for a complete determination of the suitability of the Prod­uct in combination with the end product, machine, system, or other application
or use. Buyer shall be solely responsible for determining appropriateness of
the particular Product with respect to Buyer’s application, product or system.
Buyer shall take application responsibility in all cases but the following is a
non-exhaustive list of applications for which particular attention must be given:
(i) Outdoor use, uses involving potential chemical contamination or electrical
interference, or conditions or uses not described in this document.
(ii) Use in consumer products or any use in significant quantities.
(iii) Energy control systems, combustion systems, railroad systems, aviation
