Cat. No. V088-E1-03

NS-Series

CX-Designer

Ver. 2.1 NS-CXDC1-V2

USER’S MANUAL

CX-Designer Ver. 2.1 NS-CXDC1-V2

User’s Manual

Revised July 2007

Notice:

OMRON products are manufactured for use according to proper procedures by a qualified operator and only for the purposes described in this manual.

The following conventions are used to indicate and classify precautions in this manual. Always heed the information provided with them. Failure to heed precautions can result in injury to people or damage to property.

!DANGER Indicates an imminently hazardous situation which, if not avoided, will result in death or

serious injury. Additionally, there may be severe property damage.

!WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or

serious injury. Additionally, there may be severe property damage.

!Caution Indicates a potentially hazardous situation which, if not avoided, may result in minor or

moderate injury, or property damage.

OMRON Product References

All OMRON products are capitalized in this manual. The word “Unit” is also capitalized when it refers to an OMRON product, regardless of whether or not it appears in the proper name of the product.

The abbreviation “Ch,” which appears in some displays and on some OMRON products, often means “word” and is abbreviated “Wd” in documentation in this sense.

The abbreviation “PLC” means Programmable Controller. “PC” is used, however, in some Programming Device displays to mean Programmable Controller.

Visual Aids

The following headings appear in the left column of the manual to help you locate different types of information.

1,2,3... 1. Indicates lists of one sort or another, such as procedures, checklists, etc.

Terminology

NS-series PT A Programmable Terminal in the NS Series manufactured by OMRON. PLC A Programmable Logic Controller manufactured by OMRON. Host A PLC, factory computer, personal computer or other controller controlling an NS-

NS-Designer The NS-NSDC1-V@ NS-Designer produced by OMRON. The NS-Designer is an

CX-One The CXONE-AL@@C-E CX-One FA Integrated Tool Package produced by OMRON.

CX-Designer The NS-CXDC1-V2 CX-Designer produced by OMRON. NS-Runtime The NS-Runtime software runs on Windows XP and provides the same functionality

Note Indicates information of particular interest for efficient and convenient opera-

tion of the product.

series PT.

applications software package that enables creating screen data for NS-series PTs.

This applications software package provides all of the software packages for OMRON PLCs and components.

as an NS-series PT.

 OMRON, 2005

r f

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, o by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written permission o OMRON.

No patent liability is assumed with respect to the use of the information contained herein. Moreover, because OMRON is constantly striving to improve its high-quality products, the information contained in this manual is subject to change without notice. Every precaution has been taken in the preparation of this manual. Nevertheless, OMRON assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.

TABLE OF CONTENTS

SECTION 1

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1-1 Features of the CX-Designer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1-2 Basic Operation Procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

SECTION 2

Setting Up the CX-Designer . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2-1 Preparations for Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2-2 Installing the CX-Designer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

2-3 Uninstalling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2-4 Installing USB Drivers for NS-Series PTs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

SECTION 3

Basic Operations of the CX-Designer . . . . . . . . . . . . . . . . . . 25

3-1 Starting and Exiting CX-Designer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

3-2 Menu Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

3-3 User Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

SECTION 4

Useful Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

4-1 Creating Screens Using Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

4-2 Using Screens from Other Projects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

4-3 Classifying Screens by Application. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

4-4 Checking and Changing Functional Object Properties without Opening Property Setting

Dialog Boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

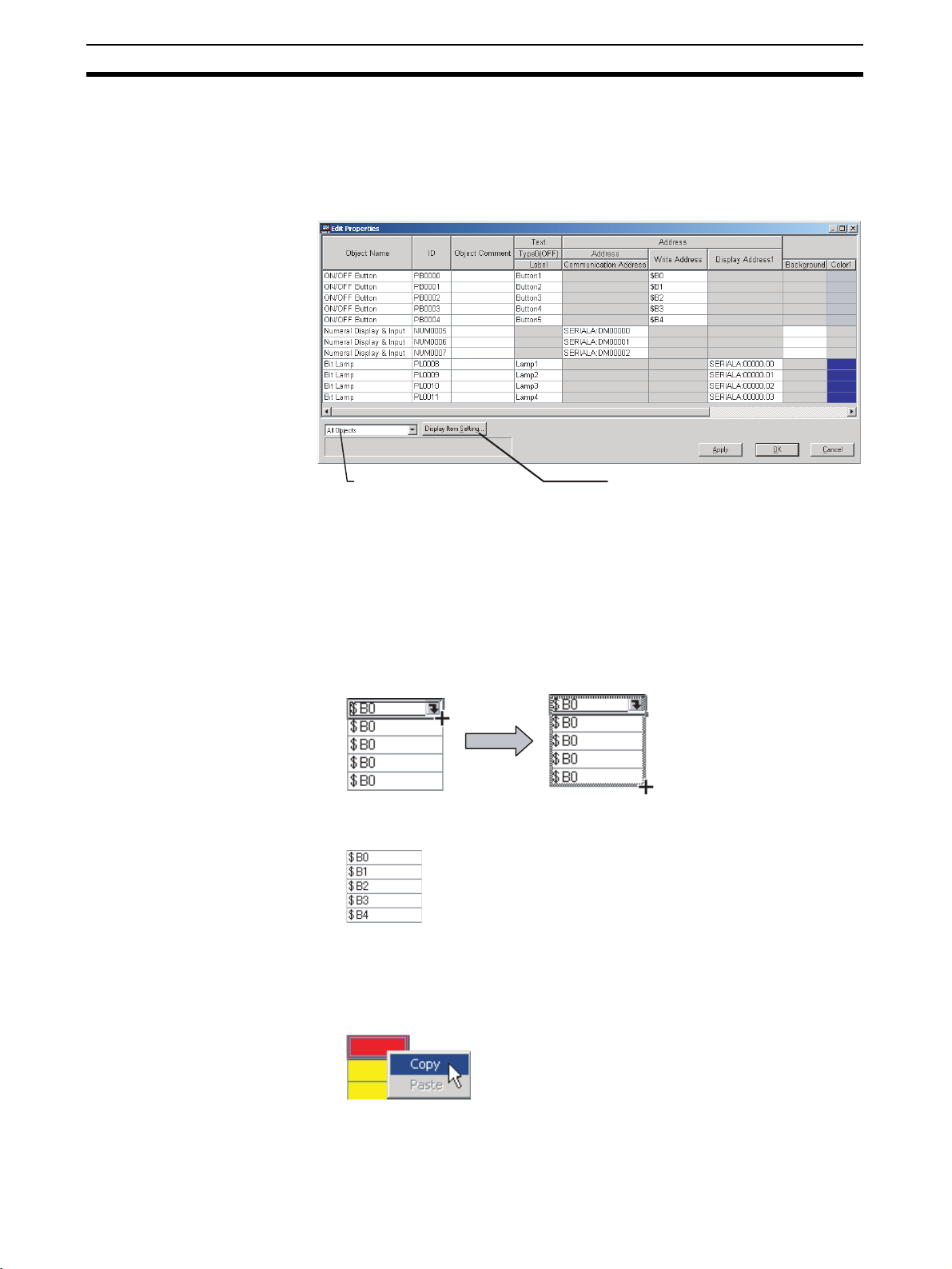

4-5 Listing and Editing Functional Object Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

4-6 Editing Overlapping Objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

4-7 Creating Multi-language Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

4-8 Checking Address Usage Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

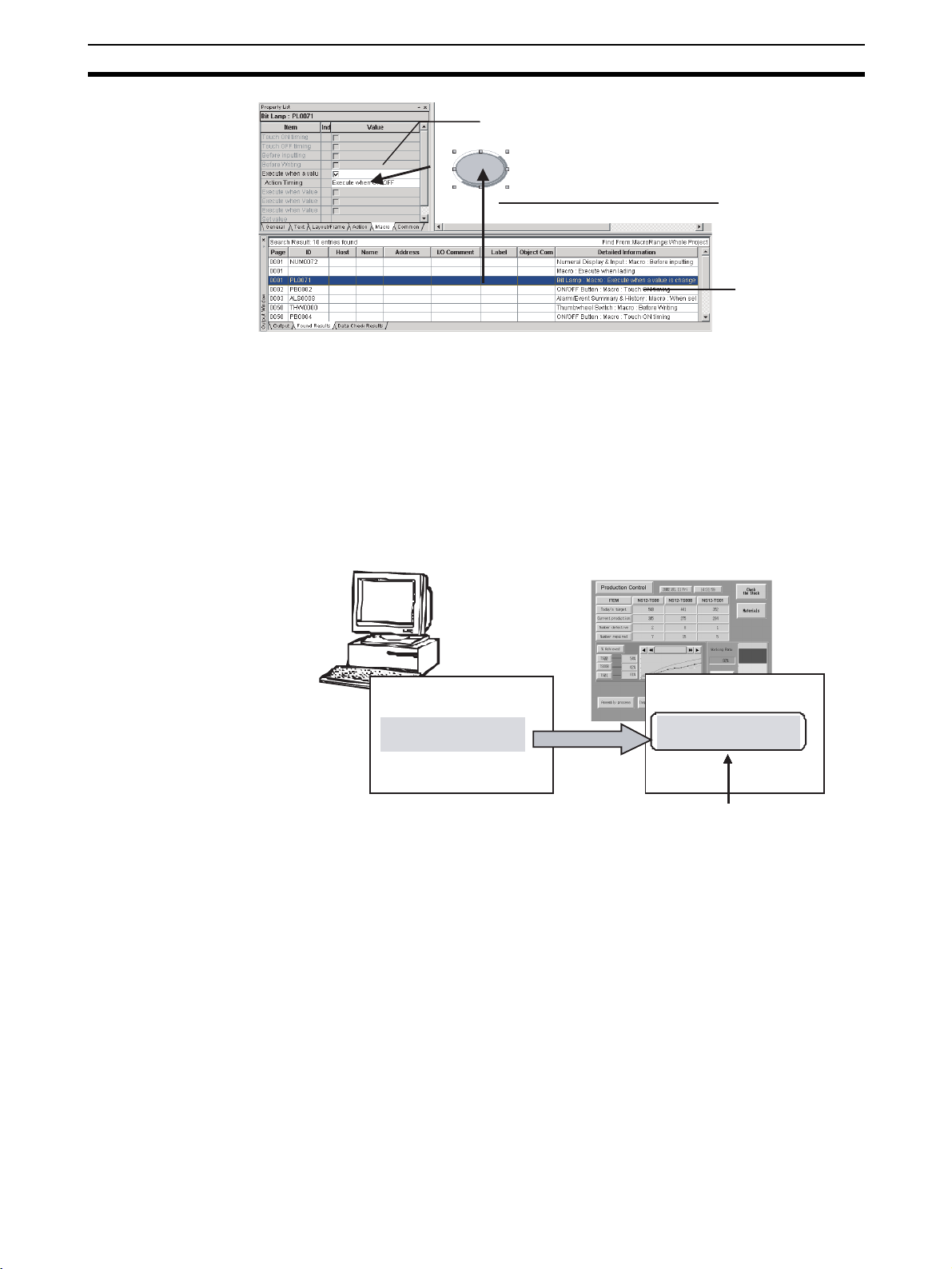

4-9 Searching for Embedded Macros. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

4-10 Transferring Only Edited Data to PT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

4-11 Creating Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

4-12 How to Use Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

4-13 Integrated Simulation for the Entire System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

4-14 Setting Security for Data Transfers with the PT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

4-15 Setting Symbol Names and I/O Comments for Use as Labels . . . . . . . . . . . . . . . . . . . . . . . 68

4-16 Executing Multiple Functions with a Single Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

4-17 Replacing a Lamp with a Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

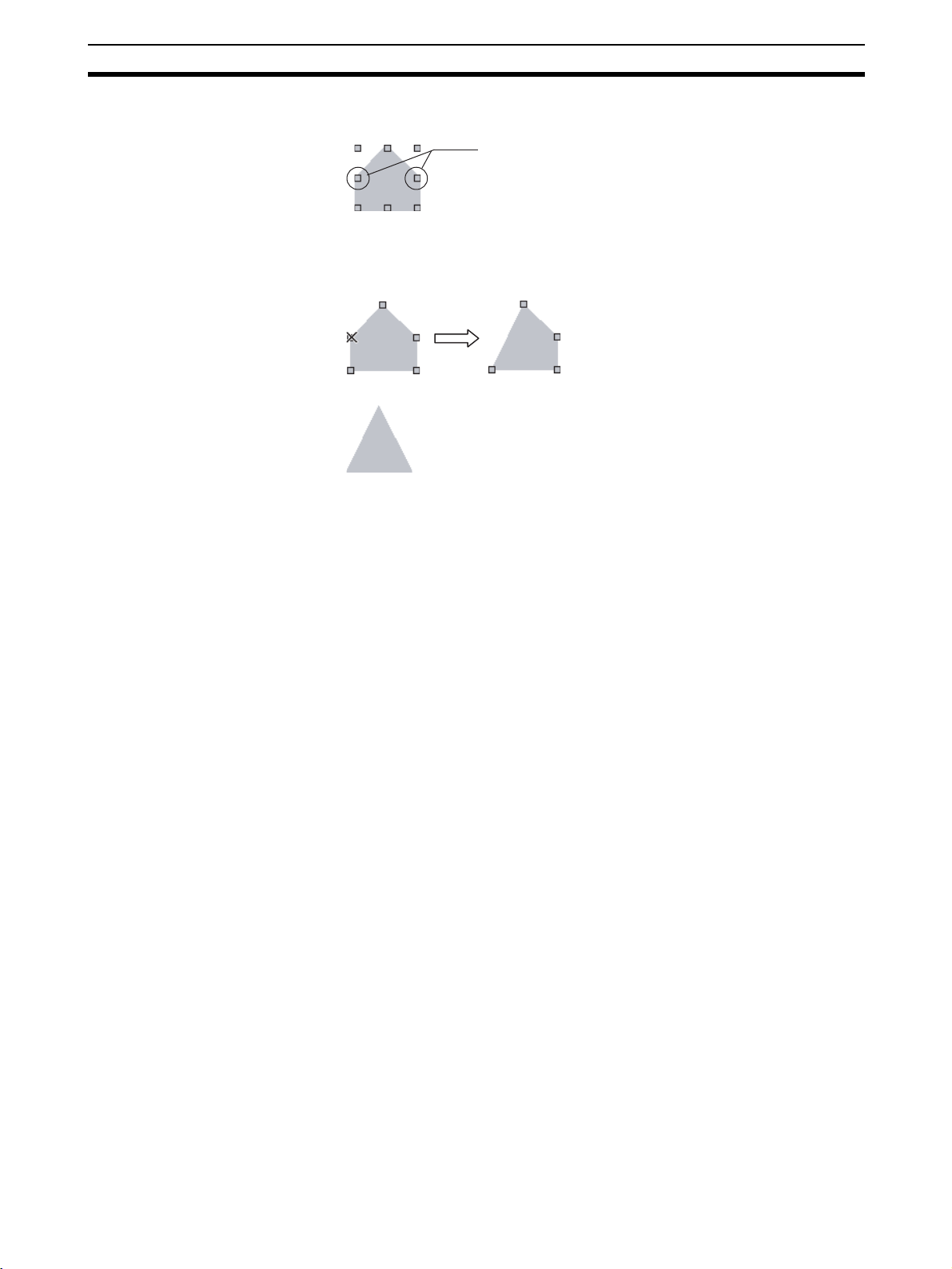

4-18 Creating Polygonal Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

4-19 Registering Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

4-20 Using Machine Navigator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

vii

TABLE OF CONTENTS

Appendices

A Comparison of Functions with NS-Designer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

B Shortcut Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

C Exchanging Data between NS-series Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

viii

About this Manual:

The CX-Designer is a software package that enables creating screens for OMRON Programmable Terminals. Please be sure you understand the functions and performance of the CX-Designer to ensure correct application of the Programmable Terminals.

Please read this manual and related manuals carefully and be sure you understand the information provided before attempting to use the CX-Designer.

Section 1 provides an overview of the CX-Designer and its features and explains basic operating methods.

Section 2 describes how to install and uninstall the CX-Designer.

Section 3 describes the CX-Designer menus and basic procedures.

Section 4 describes convenient functions of the CX-Designer.

The Appendices provide a comparison between the CX-Designer and NS-Designer, tables of shortcut keys, and data transfer procedures between different versions of NS-series PT.

Guide to Version Upgrade

From CX-Designer Version 1.0 to Version 2.0

Item Previous versions New version

CX-Designer Version 1.0 (NS-CXDC1-V1) Version 2.0 (NS-CXDC1-V2) NS system software Version 6.2 or 6.5 Version 6.6 Integrated simulation The only function available was simulated

testing of PT screen operations on a personal computer.

Symbol programming without addresses

Multi-vendor connectivity Not supported. It is now possible to connect OMRON NS-

Data security The following two types of data transfers

User security Any of five levels of passwords could be set

Consecutive line drawing Not available. Data in memory is treated as X and Y coor-

Symbol names, addresses, and comments were entered in symbol tables. Then the required symbols were selected from the symbol tables when creating screens.

are possible between CX-Designer (running on a personal computer) and a PT:

•Data transfers with the PT.

•With data transfers using a Memory Card,

data can be uploaded and downloaded by any user.

for each functional object. A dialog box asking for the password was displayed each time an attempt was made to use a functional object for which a password had been set, and the object could not be used unless the password was input.

Using a personal computer, a virtual PT can be connected to a virtual PLC (CXSimulator) or to an actual PLC, and the operation of the entire PT-PLC system can be simulated. This makes it possible to reduce the total time involved in debugging.

Symbol names and comments can be input for symbol tables with no addresses. This allows screens to be created using symbol names without inputting addresses. Entering symbols in screen designs without addresses makes it possible to reduce the total time involved in design.

series PTs to Mitsubishi FX-series PLCs, A-series PLCs, and Siemens S7-series PLCs.

A password can now be set for creating data. When data with a set password is transferred to a PT, the password is then required in order to upload the data. This prevents users who do not know the password from obtaining that data from the PT. In addition, a password can be required to transfer data to the PT. This prevents data from being accidentally overwritten.

Once a user inputs the password to use a functional object for which a password has been set, the password does not have to be input again as long as the user continues using only functional objects for which lower level passwords have been set. Functional objects with a higher-level password cannot be manipulated. (A warning message will be displayed if an attempt is made.) This makes it possible to create applications that permit only the necessary operations by users who have entered passwords, and thus helps prevent faulty operations.

dinates, and straight lines are drawn between the applicable coordinates to create consecutive line drawing. This makes it possible to handle applications involving the drawing of various graphics in twodimensional space that could not be drawn using the existing graph components.

Item Previous versions New version

Improvements in broken-line graph

Ladder Monitor To use the Ladder Monitor it was necessary

Symbol table transfers when transferring screen data

Holding log and alarm information when transferring screen data

PLC data trace reading Not supported. (This was a function of the

Addition of European fonts With the built-in raster fonts in NS-series

Japanese file names Two-byte characters could not be used for

Video display mode setting Image quality could not be adjusted when

SAP (Smart Active Parts) --- SAP has been added for the EJ1 Modular

Automatic using symbol names and I/O comments as labels and alarm messages

NS-Runtime --- Projects can be created for NS-Runtime.

Number of monitor points: 256 max. •Number of monitor points: 1,000 max.

•Batch reading

•Graph overwriting

•Indirect specification of starting display

position

•Indirect specification of displaying/hiding

graph lines

•Indirect specification of displaying/hiding

scale lines

With version-2 NS-series PTs (except for to copy the Ladder Monitor software from a CD-ROM to a Memory Card and to install the Memory Card in an NS-series PT. In addition, the PT was reset when starting or exiting the Ladder Monitor.

Symbol tables set using the CX-Designer could be managed only by the CXDesigner, and symbol data was lost when data was uploaded from an NS-series PT.

All of the log and alarm information in the PT was initialized when screen data was downloaded.

CX-Programmer.)

PTs, Russian and Greek characters were full-width and not all characters were available.

project file names.

an NS-CA002 RGB/Video Input Unit was used.

--- Symbol names and I/O comments of the

the NS5-V2 and NSJ5), ladder monitoring

is built into the PT as a standard feature, so

no separate Memory Card is required. (A

Memory Card is required for version-1 PTs,

however, just as before.) In addition, neither

version-1 nor version-2 PTs are reset when

starting or ending the Ladder Monitor when

Ladder Monitor version 2.8 is used. These

improvements make the Ladder Monitor

easier to use and reduce operating time.

When screen data is downloaded from the

CX-Designer, the symbol tables are down-

loaded together with it. Likewise, when

screen data is uploaded, the symbol tables

are uploaded too.

It is now possible to select whether log and

alarm information is to be initialized when

screen data is downloaded.

Trace results from data traces (which is a

CPU Unit function) can now be read by the

PT and displayed in time chart format.

(CSV files cannot be saved.) This makes it

possible, using just the PT without CX-Pro-

grammer, to isolate the causes of errors

that occur on-site.

All Russian and Greek characters are now

available, and all characters are half-width.

Two-byte characters can now be used for

project file names.

It is now possible to select from three pat-

terns for image quality adjustment. When a

visual sensor is connected, even small dis-

play characters can be read. It is now also

possible to adjust the display position for

RGB display.

Temperature Controller, G3ZA Multi-chan-

nel Power Controller, and Troubleshooters.

communications addresses can be auto-

matically used as functional object labels

and alarm messages.

From CX-Designer Version 2.0 to Version 2.1

Item Previous versions New version

CX-Designer Version 2.0 Version 2.1 NS system software Version 6.6 Version 7.0 Multi-vendor connectivity --- It is now possible to connect NS-series PTs

NT compatibility --- System memory can now be allocated to

Holding previous system memory values

Multilingual system capability The system supported two languages:

Multifunction Objects Macros were required in order to executed

Machine Navigator function Multiple objects, such as frames, labels,

Flicker function The only flicker method for objects was dis-

Improved alarm/event summary and history display

When an NS-series PT was started, the initial screen set in the System Setup was always opened.

English and Japanese.

multiple processes for a single functional object.

and bitmaps, were used to change displays such as on-screen characters and BMP files. Contents of displays were set individually, which was time-consuming and made maintenance troublesome.

play color inversion.

When the history was displayed using the Alarm/event Summary & History command, the same alarm/event was displayed in multiple places for each date of occurrence. This made it difficult to check the frequency of occurrence.

In addition, in some cases there were many items to be displayed and not all of them could fit on the screen.

to the following devices.

• OMRON Trajexia Motion Controllers

• Yaskawa MP-series Machine Controllers

• Yaskawa F7-series Varispeed and VS Mini V7-series Machine Controllers

• Mitsubishi Q-series PLCs

• Yaskawa Eshed Technology XtraDrive Motion Controllers

PLC memory areas in the same way as for the NT Series, enabling PLC ladder programs to be easily transferred when migrating from the NT Series to the NS Series.

It is now possible to display at the next startup the screen that was being displayed when the program was closed.

In addition to English and Japanese, the system now also supports German, French, Italian, Spanish, and Chinese (both traditional and simplified).

Multifunction Objects have been added to functional objects.

With Multifunction Object, multiple processes can be registered and can then be executed with the press of a button.

Processes that previously required the creation of macros can now be executed by simply setting properties.

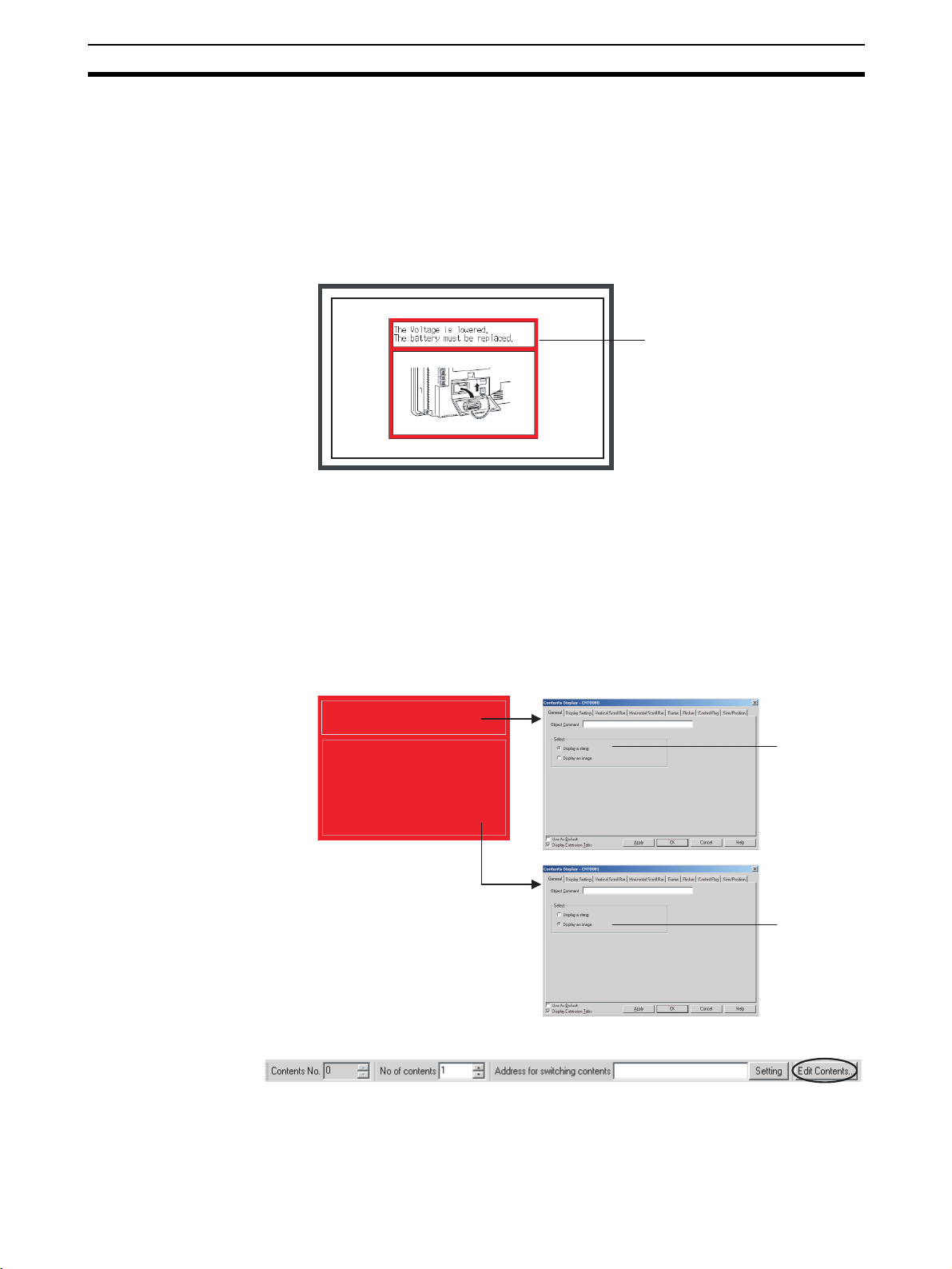

A Machine Navigator function and a functional object contents display function have been added. Machine Navigator provides unified control of text and image files (i.e., “contents”) to be displayed, and the new display function displays those contents.

Contents requiring association can be managed in ID units, and the display can be easily changed by simply changing the ID specification.

The following flicker methods have been added.

• Display/hide (entire object or label)

• Flicker color specification (fill color, character, and line colors)

A function has been added to provide a summary of a particular alarm/event on a single line, making it possible to quickly check conditions without unnecessary displays.

A horizontal scrolling function has also been added to allow all items to be checked.

xii

Item Previous versions New version

Fonts Raster fonts could be set for objects with

Improved screen switching function

Improved connection operations

SAP Library allocated unit number and communications setting information display

Programming Console function To use the Programming Console function

Bar codes The maximum length of data that could be

Test screens --- The following functions have been added to

DXF files DXF files could not be accessed. It is now possible to convert DXF files to

Initialization options for alarm/ event history data

Changing host settings with the System Menu

changing display character strings, such as numeric displays and inputs. Rounded areas became rough, however, when the font size was increased.

--- Speed and bitmap performance have been

When serial ports A and B were both set for use for NT Links, “Connecting” was displayed if either of the hosts was not connected.

SAP Library settings could not be checked even by displaying addresses using screen data checking from the System Menu.

with the NS5-V2, it was necessary to copy the program onto a Memory Card and to insert the Memory Card into the NS5-V2.

processed by an NS-series PT was 40 bytes.

When the alarm/event history data was cleared by using $SB32, all history data was cleared including current alarms or events.

The settings of a host connected by Ethernet or Controller Link could not be checked with the System Menu.

Scalable fonts have been added to enable smooth displays. Gothic numeral and 7segment displays have also been added to allow more attractive and up-to-date screens to be created.

improved for switching screens. Even if one host is not connected, the mon-

itoring results of the connected host can be displayed on the screen without “Connecting” being displayed.

The following information can now be displayed.

• Command destination port names

• Destination network addresses

• Destination node addresses

• Destination unit numbers

• DeviceNet Slave Unit address and Inverter node addresses

The Programming Console function is builtin to the NS5-V2, so there is no need for a Memory Card.

The maximum data length has been increased to 254 bytes, allowing the data to be processed by two-dimensional bar code readers.

test screens.

• Zoom

• Always displaying on top

• Starting test screens in the previous display position and zoom status

graphics and position them with the CXDesigner.

System Memory $SW40 has been added so that it is now possible to specify initializing cleared or confirmed history data.

A list of hosts can now be displayed by selecting Communications Settings from the System Menu. It is now also possible to change the host network address, node address, and host type.

xiii

Related Manuals:

The manuals related to using the CX-Designer are listed below. Manual suffixes have been omitted. Please be sure you have the most recent version for your area.

Installing the CX-Designer

CX-Designer User’s Manual - - - - - - - - - - - - - - - -V088

This manual describes how to install the CX-Designer and the user interface. It also describes characteristic functions and application methods.

Confirming Functional/Fixed Object Setting Procedures when Using the CX-Designer

CX-Designer Help

The online help feature explains CX-Designer operating methods and settings (including detailed settings for functional and fixed objects).

It also explains how to transfer screen data to the NS-series PT.

Using NS-series PT Functions and Troubleshooting Errors

NS-Series PT Programming Manual - - - - - - - - - -V073

This manual describes using NS-series PT functions and application methods. It also provides troubleshooting methods in the event that problems occur with the PT.

Checking NS-series PT Functions, Operations, and Restrictions

NS-V1/V2-series PT Setup Manual - - - - - - - - - -V083

This manual describes installation and connection procedures, general specifications, and other hardware information for NS-V1/V2-series PTs (NS12-V1/V2, NS10-V1/V2, NS8-V1/V2, and NS5-V1/V2).

NS-series PT Setup Manual- - - - - - - - - - - - - - - -V072

This manual describes installation and connection procedures, general specifications, and other hardware information for NS-series PTs (NS12, NS10, and NS7).

Installing the CX-Designer from the CX-One

CXONE-AL@@C-EV2/AL@@D-EV2 CX-One Ver. 2.1 Setup Manual

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -W463

This manual provides an overview of the CX-One FA Integrated Tool Package and describes installation methods.

Using an NS-series PT for the First Time

CX-Designer Introduction Guide - - - - - - - - - - - - -V089

This tutorial describes using a NS-series PT for first-time users, from simple screen creation to system operation.

xiv

Using NS-series PT Macros

Macro Reference (Installed from CX-Designer CD-ROM.)

The online help for the CX-Designer provides detailed descriptions of the NS-series PT macro function. The same level of detail is also provided in this reference manual, which is installed

on the hard disk as a PDF file when the CX-Designer is installed. Use either the online help or this reference as required.

Checking PLC Functions and Operation

Operation Manuals for the PLC Being Used

For information on PLC operation and functions, refer to the operation manuals for the CPU Unit, Special I/O Units, CPU Bus Units, Communications Units, or other Units that you are using.

Checking NS-Runtime Functions, Operations, and Restrictions

NS-Runtime User's Manual - - - - - - - - - - - - - - - - V093

This manual describes the special functions of NS-Runtime.

xvi

Read and Understand this Manual

Please read and understand this manual before using the product. Please consult your OMRON representative if you have any questions or comments.

Warranty and Limitations of Liability

WARRANTY

OMRON's exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specified) from date of sale by OMRON.

OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NONINFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR PARTICULAR PURPOSE OF THE PRODUCTS. ANY BUYER OR USER ACKNOWLEDGES THAT THE BUYER OR USER ALONE HAS DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE. OMRON DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED.

LIMITATIONS OF LIABILITY

OMRON SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY.

In no event shall the responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted.

IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE PRODUCTS UNLESS OMRON'S ANALYSIS CONFIRMS THAT THE PRODUCTS WERE PROPERLY HANDLED, STORED, INSTALLED, AND MAINTAINED AND NOT SUBJECT TO CONTAMINATION, ABUSE, MISUSE, OR INAPPROPRIATE MODIFICATION OR REPAIR.

xvii

Application Considerations

SUITABILITY FOR USE

OMRON shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination of products in the customer's application or use of the products.

At the customer's request, OMRON will provide applicable third party certification documents identifying ratings and limitations of use that apply to the products. This information by itself is not sufficient for a complete determination of the suitability of the products in combination with the end product, machine, system, or other application or use.

The following are some examples of applications for which particular attention must be given. This is not intended to be an exhaustive list of all possible uses of the products, nor is it intended to imply that the uses listed may be suitable for the products:

• Outdoor use, uses involving potential chemical contamination or electrical interference, or conditions or uses not described in this manual.

• Nuclear energy control systems, combustion systems, railroad systems, aviation systems, medical equipment, amusement machines, vehicles, safety equipment, and installations subject to separate industry or government regulations.

• Systems, machines, and equipment that could present a risk to life or property.

Please know and observe all prohibitions of use applicable to the products.

NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCTS ARE PROPERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.

PROGRAMMABLE PRODUCTS

OMRON shall not be responsible for the user's programming of a programmable product, or any consequence thereof.

xviii

Disclaimers

CHANGE IN SPECIFICATIONS

Product specifications and accessories may be changed at any time based on improvements and other reasons.

It is our practice to change model numbers when published ratings or features are changed, or when significant construction changes are made. However, some specifications of the products may be changed without any notice. When in doubt, special model numbers may be assigned to fix or establish key specifications for your application on your request. Please consult with your OMRON representative at any time to confirm actual specifications of purchased products.

DIMENSIONS AND WEIGHTS

Dimensions and weights are nominal and are not to be used for manufacturing purposes, even when tolerances are shown.

PERFORMANCE DATA

Performance data given in this manual is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of OMRON's test conditions, and the users must correlate it to actual application requirements. Actual performance is subject to the OMRON Warranty and Limitations of Liability.

ERRORS AND OMISSIONS

The information in this manual has been carefully checked and is believed to be accurate; however, no responsibility is assumed for clerical, typographical, or proofreading errors, or omissions.

xix

SECTION 1

Overview

This section describes the features of the CX-Designer and the startup procedures for NS-series PTs for first-time users.

1-1 Features of the CX-Designer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1-1-1 Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1-2 Basic Operation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Features of the CX-Designer Section 1-1

1-1 Features of the CX-Designer

The CX-Designer is software that can be run on Windows 98 SE, NT, Me, 2000, XP, or Vista to create screen data for NS-series Programmable Terminals (PTs).

The CX-Designer has a variety of functions to enable efficient screen creation and debugging.

Project Workspace

The entire project structure can be displayed in a directory tree.

Property List

Functional object property settings can be changed and checked without having to open a properties dialog box.

Output Window

Displays data such as search results and error details.

Edit Screens

Screen data displayed on the PTs can be created for a group of objects.

1-1-1 Features

Screens Can Be Created Using Symbols

Project Management Using Project Workspace

Easy Reuse of Screens Screens and settings can be copied between multiple CX-Designer project

Screen Classification by Application for Easy Management

Symbols can be used with the CX-Designer. Symbols are addresses to which names have been assigned. In addition to the existing method of directly inputting addresses to be browsed by functional objects, the addresses can also be set by using symbols (names). When the address allocated for a symbol is changed, the address is changed for all objects that access that symbol. This makes it easy to change address allocations and reuse screens. Symbols can also be shared by the CX-Designer and CX-Programmer by copying the symbols from CX-Programmer symbol tables to the CX-Designer.

Refer to 4-1 Creating Screens Using Symbols for details.

Screens, alarms, and other common settings can be displayed in a directory tree in the CX-Designer project workspace. Projects are easy to manage because the entire project structure can be checked at a glance.

Screens and settings can be copied between multiple CX-Designer project workspaces. Screens can also be copied within the same project workspace. Refer to 4-2 Using Screens from Other Projects for details.

workspaces. Screens can also be copied within the same project workspace. The common settings accessed by screens are also copied automatically.

If symbols are used, it also becomes easy to change addresses after screens have been copied. Refer to 4-2 Using Screens from Other Projects for details.

Screens can be classified into any category, e.g., by application, and displayed in a directory tree. When screens are created, consecutive screen numbers are automatically applied to screens in the same category. These numbers can also be changed. This makes screen management even easier.

Refer to 4-3 Classifying Screens by Application for details.

Features of the CX-Designer Section 1-1

Functional Object Property Settings Using Property Lists

Edit Properties from Lists Properties of objects on the screen can be displayed in table format and the

Select and Display Specified Objects

Find Macros Embedded macros can be listed.

Functional object settings can be changed and checked without having to open a dialog box.

When more than one object is selected, common settings for those objects can be changed in one operation from the property list.

Refer to 4-4 Checking and Changing Functional Object Properties without

Opening Property Setting Dialog Boxes.

settings changed. Settings for more than one object can be changed at the same time and con-

secutive addresses can be automatically set. Refer to 4-5 Listing and Editing Functional Object Properties for details.

Objects on the screen can be listed and specified objects selected. The screen display can also be limited to specified objects.

This makes it easy to check and change the property settings for overlapping objects.

Refer to 4-6 Editing Overlapping Objects for details.

This improves debugging efficiency by no longer requiring individual object property settings to be opened to find objects that use macros.

Refer to 4-9 Searching for Embedded Macros for details.

Automatic Transfer of Edited Data Only

Easy Document Creation Common settings and property settings for objects in screens can be output in

Integrated Simulation for Entire PT-PLC System (CX-Designer Version 2.0 and Higher)

Once screens have been transferred to the PT, quick transfers of only the changed data can be made automatically. Screens are edited and data transferred many times during debugging, so the quick transfer function greatly reduces transfer time and increases efficiency.

Refer to 4-10 Transferring Only Edited Data to PT for details.

rich text format (.rtf). The output settings are displayed in a list for easier viewing.

Screen images can also be output to bmp and jpg files. Refer to 4-11 Creating Documents for details.

The CX-Designer test function can be connected to the CX-Simulator (a virtual PLC). When the CX-Simulator is started, the PLC user program created using the CX-Programmer can be debugged on a personal computer together with screen data.

Features of the CX-Designer Section 1-1

In addition, the test function can be connected directly to an actual PLC. This enables debugging (including monitoring and settings) using actual I/O, Special I/O Units, and CPU Bus Units connected to the PLCs, as well as data from external devices and PLC data on the network.

1. Integrated operations with screens and user programs can be tested on a personal computer

2. Screen operations can be tested while connected to the actual PLC System (including external devices).

Prevent Unauthorized Uploading of Data from the PT (CX-Designer Version 2.0 and Higher)

Note Project data created using the NS-Designer can be used with the CX-

Personal computer

Virtual PT

Virtual PLC CX-Simulator

Personal computer

Virtual PT

Actual PLC

Basic I/O Units, Special I/O Unit, CPU Bus Units

External devices

Settings and monitoring are enabled for CPU Bus Units, Special I/O Units, external devices, and PLCs on the network.

To prevent data theft from the PT, a password can be required to upload project data. Data cannot be uploaded from the PT unless the correct password is input. A password can also be required for downloading data to prevent data from being accidentally overwritten.

Designer. Project data created using the CX-Designer can also be used with the NS-Designer. (Only project data versions supported by NS-Designer, however, can be used.)

Basic Operation Procedures Section 1-2

1-2 Basic Operation Procedures

This section describes the basic procedures for creating screens using CXDesigner, transferring data to the PT, and displaying screens. Refer to the CXDesigner online help and the NS Series Setup Manual and NS Series Pro- gramming Manual for details.

Creating Projects and Screens on the CXDesigner

Start CX-Designer. Select Programs - OMRON - CX-One - CX-Designer - CX-Designer Ver. @.

Refer to 3-1 Starting and Exiting CX-Designer in this manual.

Create New Project. Select File - New Project.

Set the PT model, PT system version, and file name in the New Project Dialog Box.

Specify the screen number for the new screen in the New Screen Dialog Box.

Make Project Communications Settings and Register Host. Decide the settings for the PT and PLC and register the PLC host for communications. Select Communication Setting on the project workspace System Tab Page. Alternatively, select PT - Communication Setting.

Set whether or not to use Serial Port A, Serial Port B, Ethernet, and Controller Link networks and set the communications conditions.

Click the Add Host Button in the Communication Setting Dialog Box to set the host name, host type, network address, and node address. Note: Up to 98 hosts can be registered in addition to SERIAL A and SERIAL B.

Basic Operation Procedures Section 1-2

Copy symbols from the CX-Programmer Symbol Table as required.

Refer to 4-1 Creating Screens Using Symbols for details.

Make Project System Settings. Select System Setting on the project workspace System Tab Page. Alternatively, select PT - System Setting.

The address allocation settings for system memory and the screen number to be displayed at startup are set on the Initial Tab Page in the System Setting Dialog Box.

Set the project properties as required. Make settings such as language selection and label settings for when using the switch label function. Select Project Properties on the project workspace System Tab Page. Alternatively, select PT - Project properties.

Set the screen properties as required. Set the screen title, size, pop-up screen setting, background and other settings. Select PT - Screen/sheet properties.

Create New Screen. Select File - New Screen.

Create Functional Objects.

Select the functional object from the toolbar. Move the cursor to the screen and drag the cursor from the start point to the end point of the functional object.

Select the functional object just placed on the screen and make address and other settings from the property list. (Select the host name and set the address. The address can also be set by selecting a symbol from the symbol table.)

Basic Operation Procedures Section 1-2

Debugging Newly Created Screen Data while Integrated with a Virtual or Actual PLC (CX-Designer Version 2.0 or Later)

Also set the properties for that functional object.

Save Screen. Select File - Save Screen/Sheet.

Save Project. Select File - Save All.

Print data as required. Select File - Print.

Check operation using the screen data on the CX-Designer if required. Select Tools - Test.

When using integration simulation with an actual PLC: Connect the personal computer to the actual PLC.

Start the Test Tool. Select Tool - Test.

Connect to the virtual PLC (CX-Simulator) or to the actual PLC. Select Connect to CX-Simulator or Connect to PLC, and then click the Start Button.

Run the user program and execute the integrated simulation with the PLC. Run the virtual PLC (CX-Simulator) or the actual PLC user program to debug the PT and the entire PLC System.

In personal computer

Virtual PT

Virtual PLC

In personal computer

Virtual PT

Actual PLC

External devices

Basic Operation Procedures Section 1-2

Transferring Projects and Screens to the PT

Connect the CX-Designer (Computer) and the PT.

Refer to 3-3 Connecting the CX-Designe in the NS Series Setup Manual.

Transfer Screen Data to PT.

Select the communications method. Select PT - Transfer - Transfer Setting.

Transfer the screen data. Select PT - Transfer - Transfer [Computer → PT].

Basic Operation Procedures Section 1-2

Communications between the PT and PLC

Connect the PT and PLC.

Use a Serial, Ethernet, or Controller Link network to connect the PT and PLC.

Confirm Communications Settings.

Match the PT communications settings to the PLC system settings on the PLC. Use either of the methods outlined below.

1. Check the PT communications settings under the PT System Menu. If required, change the settings on the PT or change the PLC system settings on the PLC.

• Select System Menu - Comm. Tab Page and check the settings. (The default

baud rate under the CX-Designer communications settings is High-Speed and the default NT link unit number is 0.

• Match these settings to the serial communications mode settings under the

PLC system settings on the CX-Programmer. Check that the RS-232C port serial communications mode is set to NT Link and that the maximum unit number for NT Link mode is higher than the number of units used. (The default baud rate in the PLC system settings is Standard and the default maximum unit number for NT Link mode is 0.) If the unit number for NT Link mode is set to 0, set the maximum NT Link unit number to 1 or higher in the PLC Setup.

2. Use the automatic NT Link connection setting function in CX-Integrator.

• Start CX-Integrator and click the right mouse button on the CPU Unit

in the Online Connection Information Window. Select NT Link Tool -

NT Link Automatic Connection.

The NT Link automatic connection function automatically detects the communications settings on the PT connected to the PLC by a serial network and automatically changes the serial port settings under the PLC system settings on the PLC.

CX-Integrator

• Serial connection (Toolbus or Host Link)

• Network connection

Start Operation.

(If the System Menu is displayed on the PT, press the Exit Button.)

Automatically changes the serial port settings on the PLC to match the serial port settings on the NS-series PT.

Automatic serial connection using NT Link (using RS-232C port)

Refer to 6-10 Starting Operation in the

NS Series Setup Manual.

Basic Operation Procedures Section 1-2

SECTION 2

Setting Up the CX-Designer

The CX-Designer must be installed on the computer before it can be used for the first time. The CX-Designer is application software that runs on a Windows 98 SE, NT, Me, 2000, XP, or Vista operating system. This section describes how to install the CX-Designer assuming that the Windows 98 SE, NT, Me, 2000, XP, or Vista operating system has already been installed on the computer.

2-1 Preparations for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2-2 Installing the CX-Designer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2-3 Uninstalling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2-4 Installing USB Drivers for NS-Series PTs.. . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Preparations for Installation Section 2-1

2-1 Preparations for Installation

Check to be sure that the following system requirements have been met before installing the CX-Designer.

System Requirements The system requirements for the CX-Designer are given in the following table.

Item Requirement

Operating system (OS) (See note 1.) Japanese or English system

Computer IBM PC/AT or compatible with a Pentium II 333 MHz or faster proces-

Memory 256 MB minimum A minimum of 1 GB of

Hard disk Approx. 700 MB or more available space is required to install. Display SVGA (800 × 600) or better high-resolution display with 256 colors min. Disk drive CD-ROM drive Communications

ports Other Internet access is required for online user registration, including a modem or other hardware con-

Microsoft Windows 98SE or Me

sor (Pentium III 1 GHz or faster recommended.)

1 port minimum, either RS-232C or USB (See note 2.)

nection method.

Microsoft Windows NT (Service Pack 6a)

Microsoft Windows 2000 (Service Pack 3 or higher)

Microsoft Windows XP

Microsoft Windows Vista (except for 64-bit edition) (See note 3.)

IBM AT-compatible personal computer with the processor recommended by Microsoft.

A minimum of 1 GHz is recommended.

memory is required, and a minimum of 1.5 GB is recommended.

(1) CX-Designer Operating System Precaution

The CX-Designer will not run on Microsoft Windows 95 or any other OS not listed above. If such an OS is being used on the client computer, the OS must be upgraded before installing the CX-Designer. System requirements and hard disk space may vary with the system environment.

(2) An RS-232C or USB port is required for connecting to the NS-series PT.

When Windows NT4.0 is used, however, data cannot be transferred via the USB port.

(3) The following restrictions apply when using CX-Designer version 2.1 with

Microsoft Windows Vista. Some help files cannot be referenced.

Help files can be referenced if the help program (WinHlp32.exe) for Windows Vista (distributed by Microsoft Corporation) is imported. For details, either refer to the Microsoft home page below or contact Microsoft Corporation. (When connected online, the download page is displayed automatically by opening the help file.)

http://support.microsoft.com/kb/917607/en

Installing the CX-Designer Section 2-2

Using CX-Designer with Windows Vista

The following restrictions apply when using CX-Designer with Windows Vista.

Item Contents

Fonts When project data created outside of Windows Vista is

Memory Card Transfer Support Software

2-2 Installing the CX-Designer

Install the CX-Designer in the hard disk. To install the CX-Designer, execute the installation program provided. For details on procedures for installing the CX-Designer from CX-One FA Inte-

grated Tool Package, refer to the CX-One Ver. 2.1 Setup Manual provided with CX-One.

Cat. No. Model Manual name Contents

W463 CXONE-AL@@C-

Note If the CX-Designer was previously installed from the CX-One and it's neces-

sary to install it from the individual CX-Designer CD-ROM, always uninstall the CX-Designer using the following procedure before installing it from its individual CD-ROM. The CX-Designer will not operate properly if it is installed without first uninstalling it.

EV2/AL@@D-EV2

saved in Windows Vista, characters using fonts that are different in Windows Vista will be changed.

Similarly, characters in project data using fonts added or changed in Windows Vista will be changed when saved outside of Windows Vista.

Two-bytes characters used in file names and folder names on the Memory Card will not be displayed normally.

CX-One Ver. 2.1 Setup Manual

Installation and overview of CXOne FA Integrated Tool Package.

1,2,3... 1. Insert the CX-One installation disk 1 into the CD-ROM drive.

2. Select the Modify Option to enable modifying the Support Software that is installed.

3. In the Select Features Dialog Box, clear the selection of only the CX-Designer. Do not change any other selections.

4. Continue by following the instructions in the dialog boxes to modify the installation and uninstall CX-Designer.

5. Once the CX-Designer uninstallation process has been completed, place the individual CD-ROM disk for the CX-Designer into the CD-ROM drive and install the CX-Designer. (See note.)

Note If the version of the CX-Server bundled on the individual CX-De-

signer CD-ROM is lower than the version of the CX-Server bundled with the CX-One, install only the CX-Designer and NOT the CXServer. If a version of CX-Server that is lower than the version with the CX-One is installed, the CX-One will not operate properly.

The main buttons that are displayed during installation are as follows:

Confirms the settings in the window displayed and moves to the next window.

Cancels the settings in the window displayed and returns to the previous window.

Installing the CX-Designer Section 2-2

Installation Procedure

1,2,3... 1. Start up Windows 98SE, NT, Me, 2000, XP, or Vista.

Closes the window currently being displayed. The settings in the window are cancelled.

Installation can be cancelled by pressing this button in the installation window. A confirmation message will be displayed.

The actual folder configuration is displayed in a tree format, from which the folders where installation files are to be installed can be selected.

2. Close all applications before executing installation. Place the CX-Designer CD-ROM in the CD-ROM drive. The setup program is started automatically. If the setup program does not start automatically, such as after executing uninstall, locate Setup.exe in the CD-ROM using Windows Explorer, and then double-click the file to execute the setup program.

Note If CX-Designer is already installed, a dialog box to confirm deletion of this ver-

sion will be displayed. Click the OK Button to start deleting this version. To exit the setup program, click the Cancel Button and then click the Exit Button. FinsGateway and CX-Server will not be uninstalled by this operation.

3. The CX-Designer Setup Wizard will be displayed. Install the CX-Designer by following the instructions in the Setup Wizard.

4. During installation, the installation progress is displayed as a percentage.

Installing the CX-Designer Section 2-2

5. When CX-Designer installation has been completed, a message to confirm installation of Smart Active Parts will be displayed. Click the Yes Button to start the installation. If Smart Active Parts installation is not required, click the No Button and proceed to step 10.

Smart Active Parts are libraries containing setting/monitoring screens (e.g., Position Control Unit setting screens and Temperature Controller monitoring screens).

6. The following dialog box will be displayed. Install the software according the instructions given in window messages.

7. During installation, the installation progress is displayed as a percentage. When installation has been completed, the following dialog box will be displayed. Click the Finish Button.

Installing the CX-Designer Section 2-2

8. A message will be displayed to confirm installation of the CX-Server. Click the Yes Button.

9. When installation has been completed, the following dialog box will be displayed. Select whether or not to restart the computer immediately, and click the Finish Button to complete the installation. Always restart the computer before using CX-Designer.

Note (1) When installing CX-Designer in Windows NT, 2000, XP, or Vista, log onto

the computer as the administrator to ensure that system DLL files can be overwritten. If overwriting system DLL files fails, CX-Designer may not operate properly.

(2) When adding Smart Active Parts after installation of CX-Designer, dou-

ble-click the CD-ROM directory \SmartActiveParts\Setup.exe from Windows Explorer to execute the setup program. Select all the Smart Active Parts to be used in the dialog box for selecting components.

(3) Refer to the How to manage after conversion file in the Programs Folder

under the Windows Start Menu for details after NT31C/NT631C Conversion Support Tool conversion.

(4) Internet Explorer Ver 5.5 or higher is required to transfer data.

Installing the CX-Designer Section 2-2

The folder structure after installation is as follows:

CX-Designer

bldparts intaparts

BMPfiles

Manual

Guide Users

Macro

Setup Programming

SmartActiveParts HostConnection

RGB_Video (NS-CA002)

library

SAP

SmartActiveParts_E

SAPmini_E

runparts

System Backup (See note.)

NS12_V1_V2

NSJ12

NS10_V1_V2

NSJ10

NS8_V1_V2

NSJ8

NS5_V1_V2

NSJ5

NSH5

V7_0

Parts Collection (bitmaps)

Directory containing manuals

Introductory Guide User's Manual/NSH Operation Manual

Macro reference

Setup manual Programming manual

How to use Smart Active Parts Host Connection Manuals (Temp. Controller and Memory Links/Host Links/Multivendor)

NS-CA002 RGB/Video Input Unit Manual

Smart Active Parts for NS8/NS10/NS12

Smart Active Parts for NS5

NS12-V1/-V2 system folder (Version

NSJ12 system folder (Version

NS10-V1/-V2 system folder (Version

NSJ10 system folder (Version

NS8-V1/-V2 system folder (Version

NSJ8 system folder (Version

NS5-V1/-V2 system folder (Version

NSJ5 system folder (Version

NSH5 system folder (Version

7.0

)

7.0

)

7.0

)

7.0

)

RecoverUpdate_7_0 NT631C_Cnv

Thermo Readme_E.txt

Sample Collection of sample screen data

Ver. 7.0 recovery/update program Directory containing NT31C/NT613C Conversion Support Tool

Please read. (Contains precautionary information.)

Note The System Backup folder is created only when the CX-Designer is installed

from its individual CD-ROM.

Uninstalling Section 2-3

2-3 Uninstalling

Operation Procedure

1,2,3... 1. To uninstall the CX-Designer, click the Windows Start Button and select

Settings - Control Panel.

2. Double-click Add/Remove Applications.

3. Select CX-Designer_V2.1 from the list and click the Edit/Delete Button. Follow the instructions displayed in window messages to uninstall the CXDesigner.

4. When uninstalling the CX-Designer has been finished, a message will be displayed indicating that the uninstall operation has been completed. Check the message and then click the Finish Button.

2-4 Installing USB Drivers for NS-Series PTs.

Install the NS-series USB driver in the personal computer. After installation, data can be transferred between the personal computer and NS-series PT via USB.

Note (1) With NS-V1 Series models, make sure that the PT has a lot number that

supports USB transmission. The system program version of the NS-series PT must also support USB transmission. For details, refer to 3-3-2 Connecting via USB in the NS series Setup Manual (Cat. No. V083).

(2) If an NS-series USB driver has already been installed for use with the NS-

Designer, the NS-series USB driver must be installed again to use the CX-Designer.

(3) Do not install the NS-series USB driver for the NS-Designer while the CX-

Designer is being used.

Applicable Operating Systems

Operation Procedure Windows 2000, Windows XP, and Windows Vista:

1,2,3... 1. Start Windows 2000, Windows XP, or Windows Vista.

Windows 98SE, Windows Me, Windows 2000, Windows XP, and Windows Vista

Installing USB Drivers for NS-Series PTs. Section 2-4

2. Connect the personal computer to the NS-series PT USB slave connector using the USB cable. The following Found New Hardware Wizard will be displayed.

3. For Windows 2000, select Display a list of the known drivers for this device so that I can choose a specific driver and click the Next Button. For Win- dows XP, select Install from a list or specific location (Advanced) and click the Next Button.

4. The dialog box shown below will be displayed. Confirm that Search for the

best driver for my device (Recommended) is selected. Select the Include this location in the search option, click the Browse Button and

specify the following CX-Server installation directory folder: \USB Then click the Next Button.

Installing USB Drivers for NS-Series PTs. Section 2-4

5. The dialog box shown below will be displayed. Click the Continue Anyway Button.

6. When installation is completed, the following dialog box will be displayed. Click the Finish Button.

Installing USB Drivers for NS-Series PTs. Section 2-4

Windows 98SE and Windows Me:

1,2,3... 1. Start Windows 98SE or Windows Me.

2. Connect the personal computer to the NS-series PT USB slave connector using the USB cable. The following Add New Hardware Wizard will be displayed. Click the Next Button.

3. The following dialog box will be displayed. Select Search for the best driv- er for your device (Recommended). Click the Next Button.

Installing USB Drivers for NS-Series PTs. Section 2-4

4. Select Specify a location only and then click the Browse Button and specify the following directory. CX-Server installation directory \USB

5. Click the Next Button.

6. Click the Next Button to start installation. When installation is completed, the following dialog box will be displayed. Click the Finish Button.

Installing USB Drivers for NS-Series PTs. Section 2-4

7. The Add New Hardware Wizard will be displayed again. Click the Next Button.

8. The following dialog box will be displayed. Check that Search for the best driver for your device (Recommended) is selected, and then click the Next Button.

9. Select Specify a location only and then click the Browse Button and specify the following directory. CX-Server installation directory \USB

Installing USB Drivers for NS-Series PTs. Section 2-4

10. Click the Next Button.

11. Click the Next Button to start installation. When installation is completed, the following dialog box will be displayed. Click the Finish Button.

SECTION 3

Basic Operations of the CX-Designer

This section describes basic functions and operation methods, such as starting and exiting CX-Designer and the user interface.

3-1 Starting and Exiting CX-Designer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

3-1-1 Startup Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

3-1-2 Exiting CX-Designer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

3-2 Menu Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

3-3 User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

3-3-1 Names of Basic Screen Components . . . . . . . . . . . . . . . . . . . . . . . . 34

3-3-2 CX-Designer Functions and Screens . . . . . . . . . . . . . . . . . . . . . . . . 41

Starting and Exiting CX-Designer Section 3-1

3-1 Starting and Exiting CX-Designer

This section describes how to start and exit the CX-Designer.

3-1-1 Startup Method

To start the CX-Designer, click the Windows Start Button, and then select

Programs - OMRON - CX-One - CX-Designer - CX-Designer Ver. @ (The items displayed may vary according to the program folder specified during installation). Alternatively, right-click the NS-series PT in the Network Configuration Window of CX-Integrator, and select Start Special Application - Start

Only.

When the CX-Designer startup is completed, the Main Window will be displayed, as follows:

Note (1) More than one copy of the CX-Designer application can be run at the

same time.

(2) To start CX-Designer, log in as the administrator when using a personal

computer running Windows NT, 2000, XP, or Vista.

3-1-2 Exiting CX-Designer

Use one of the following operations to exit the CX-Designer.

•Select Exit from the File Menu.

• Click the Close Button at the top right of the Main Window.

• Double-click the CX-Designer icon at the top left of the Main Window.

• Click the CX-Designer icon at the top left of the Main Window and select Close from the Control Menu Box.

• Press the Alt + F4 Keys.

If the project data that is open has not been saved, a confirmation message will be displayed.

When the CX-Designer is exited, the system will return to the Windows display.

Menu Commands Section 3-2

3-2 Menu Commands

The commands that appear on the pull-down menus of the CX-Designer and their functions are described in the following tables.

File Menu

Command Function Shortcut keys

New Project Creates a new project. --Open Project Opens an existing project. --Close Project Closes the project currently open without

Save Project As Saves the current project under a specified

Save All Saves (overwrites) all of the data for the cur-

New Screen Creates a new screen under the current

Open Screen Opens the project workspace. Ctrl+O Save Screen/Sheet Saves the current screen or sheet. Ctrl+Shift+S New Sheet Creates a new sheet under the current

Apply Sheet Sets a screen with overlapping sheets. Ctrl+J Import CSV File Imports project or screen data saved in CSV

Export CSV File Exports the current project or screen data to

Page Setup Makes the printer settings. --Preview Shows a preview of the printed image. --Print Outputs current project or screen information

Data Transfer Security

New Data Transfer Security Setting

Change Data Transfer Security Setting

Cancel Data Transfer Security Setting

Recent Projects Displays a list of currently edited projects.

Exit Ends the CX-Designer. ---

exiting the CX-Designer.

name.

rent project.

project.

format to the current project or screen.

a file in CSV format.

to a printer or to a file. Select Print to display a preview.

Sets a password to be input when transferring data.

Changes data transfer security setting. ---

Deletes data transfer security setting. ---

(Up to ten projects are displayed.)

---

Ctrl+S

Ctrl+N

Ctrl+Shift+N

---

Ctrl+P

---

Menu Commands Section 3-2

Edit Menu

Command Function Shortcut keys

Undo Discards changes and restores the previous

status. Redo Restores the changes discarded with Undo.Ctrl+Y Cut Deletes the selected objects and places them

Copy Copies the selected objects and places them

Paste Pastes objects that have been cut or copied. Ctrl+V,

Paste (Style Only) Pastes objects that have been cut or copied

Delete Deletes the selected objects. DEL Group

Group Groups more than one functional or fixed

Ungroup Ungroups grouped objects. Ctrl+U

Order

Front Brings the currently selected object to the

Back Sends the currently selected object to the

Bring Forward Brings the currently selected object forward. --Send Backward Sends the currently selected object back. ---

Align/Distribute

Align Left Aligns the currently selected objects to the

Center in a Column

Align Right Aligns the currently selected objects to the

Align Top Aligns the currently selected objects to the

Center in a Row Aligns the horizontal centers of the currently

Align Bottom Aligns the currently selected objects to the

Distribute Horizontally

Distribute Vertically

Make Same Size

Smallest Width Aligns the currently selected objects to the

Largest Width Aligns the currently selected objects to the

Smallest Height Aligns the currently selected objects to the

Largest Height Aligns the currently selected objects to the

Tabl e C olu m n Width

Table Row Height

in the internal buffer.

using the default address settings.

object to create a single object.

front.

back.

left.

Aligns the vertical centers of the currently

selected objects.

right.

top.

selected objects.

bottom.

Distributes the currently selected objects equi-

distant (between mid-points) horizontally.

Distributes the currently selected objects equi-

distant (between mid-points) vertically.

smallest width.

largest width.

smallest height.

largest height.

Aligns table columns to equal widths. ---

Aligns table rows to equal heights. ---

Ctrl+Z

Ctrl+X, Shift+DEL

Ctrl+C

Shift+Ins

---

Ctrl+G

---

Menu Commands Section 3-2

Command Function Shortcut keys

Nudge

Up Moves the selected object one dot or one grid

Down Moves the selected object one dot or one grid

Left Moves the selected object one dot or one grid

Right Moves the selected object one dot or one grid

Rotate/Flip

Rotate Right 90 Degrees

Rotate Left 90 Degrees

Rotate Right 90 Degrees Around Center of Screen/ Frame

Rotate Left 90 Degrees Around Center of Screen/ Frame

Flip Horizontal Flips the currently selected object horizontally. --Flip Vertical Flips the currently selected object vertically. --Flip Horizontal

Around Center of Screen/ Frame

Flip Vertical Around Center of Screen/ Frame

Edit Node Changes the positions of the vertices to

Select All

All Objects Selects all objects on the screen. Ctrl+A Same Type

Objects Repeat Makes multiple copies of the selected objects. Ctrl+W Edit Properties Displays a list of functional objects on screen

unit up.

unit down.

unit to the left.

unit to the right.

Rotates the currently selected object 90 degrees to the right.

Rotates the currently selected object 90 degrees to the left.

Rotates the currently selected object 90 degrees to the right around the center of the screen or frame.

Rotates the currently selected object 90 degrees to the left around the center of the screen or frame.

Flips the currently selected object horizontally around the center of the screen or frame.

Flips the currently selected object vertically around the center of the screen or frame.

change the shape of a fixed object node.

Selects all objects of the same type as the currently selected object.

to enable changing property settings.

↑

↓

←

→

---

Ctrl+D

Ctrl+L

Find Menu

Command Function Shortcut keys

Find Searches for address or character string key-

Replace Replaces the specified addresses. Ctrl+H Address Cross Ref-

erence Macro Cross Refer-

ence Replace Host Replaces the host for all addresses in the

words.

Finds locations where an address is used and lists the results.

Lists macro locations. ---

project.

Ctrl+F

Ctrl+R

---

Menu Commands Section 3-2

View Menu

Command Function Shortcut keys

Toolbar Displays and hides the toolbar. --Window

Project

Workspace

Symbol Table Displays and hides the symbol table. Alt+2

Property List Displays and hides the property list. Alt+3

Library Displays and hides the Library Window. Alt+4

Select Object Displays and hides the object selection. Alt+5

Address in Use

List

Output Window Displays and hides the Output Window. Alt+7 Status Bar Displays and hides the Status Bar. --Previous Label Displays the previous label. Ctrl+PgUp Next Label Displays the next label. Ctrl+PgDn Previous Screen Displays the previous screen. Shift+PgUp Next Screen Displays the next screen. Shift+PgDn Previous Frame

Page Next Frame Page Displays the next frame page. PgDn Show Address

Show Symbol

Name

Show Address Switches to functional object display showing

Show I/O

Comment

Hide Switches to functional object display hiding

Show ID Displays and hides ID numbers for objects. --Simulate ON/OFF Switches ON and OFF display for functional

Show Sheet Object Displays and hides objects registered in

Grid Sets the grid. --Show Touch Points Displays and hides PT touch points. --Zoom Zooms the display in and out. --Refresh Redraws the screen. F9

Displays and hides the project workspace. Alt+1

Displays and hides the List Up Addresses Used Window.

Displays the previous frame page. PgUp

Switches to functional object display showing symbol names.

addresses. Switches to functional object display showing

I/O comments.

addresses.

objects.

sheets.

Alt+6

---

Menu Commands Section 3-2

PT Menu

Command Function Shortcut keys

Tr an s fe r

Quick transfer

(Computer →

PT)

Transfer (Com-

puter → PT)

Transfer (PT →

Computer)

Transfer Setting Sets the communications path to be used in

Transfer Pro-

gram

System Setting Sets the PT operating parameters. (This is the

Project Properties Sets the project properties. (This is the same

Communication Setting

Alarm/Event Setting Registers and corrects alarms and events.

Data Log Setting Registers and corrects the data log function.

Broken-line Graph Group Setting

Data Block Setting Registers and corrects data blocks.

Document Table Setting

String Table Setting Used to register or correct character strings in

Compares project data with data in the PT and transfers only refreshed data to the PT.

Transfers all project data to the PT. Ctrl+B

Uploads the project data stored in the PT to the computer.

the transfer. Starts the tool for transferring project data cre-

ated on the CX-Designer to the PT or receive project data from the PT to the CX-Designer.

same as double-clicking System Setting on the project workspace System Tab Page.)

as double-clicking Project Properties on the project workspace System Tab Page.)

Registers hosts and sets communications conditions. (This is the same as double-clicking Communication Setting on the project workspace System Tab Page.)

(This is the same as double-clicking Alarm/ Event Setting on the project workspace Common Setting Tab Page.)

(This is the same as double-clicking Data Log Setting on the project workspace Common Setting Tab Page.)

Registers and corrects broken-line graph groups. (This is the same as double-clicking Broken-line Graph Group Setting on the project workspace Common Setting Tab Page.)

(This is the same as double-clicking Data Block Setting on the project workspace Common Setting Tab Page.)

Used to register or correct document files displayed for document display objects. Used only with NS-Runtime.

character tables. (This is the same as doubleclicking String Table Setting on the project workspace Common Setting Tab Page.)

Ctrl+Q

Ctrl+Shift+B

Ctrl+Alt+B

Ctrl+I

---

Menu Commands Section 3-2

Command Function Shortcut keys

Password Sets the password. (This is the same as dou-

Unit/Scale Sets the units and scales used by numeral

Dialog Setting Sets the dialog displayed when functional

Flicker Sets flicker settings for each screen or sheet. --Color Transparent Sets transparent colors for bitmap files set in

Screen/Sheet Properties

Change Input Order Sets the order for shifting the focus for

Edit Contents Sets switching the contents of individual

Object Properties Sets the properties for the currently selected

Edit Label Enables direct editing of functional object

ble-clicking Password Setting on the project workspace Common Setting Tab Page.)

objects. (This is the same as double-clicking Unit/Scale Setting on the project workspace Common Setting Tab Page.)

objects are pressed.

the project. Sets the screen properties. ---

numeral and text input objects on the screen.

screens and sheets.

functional object.

labels on the screen without opening a property dialog box.

---

Enter

Space

Functional Objects Menu

Command Function Shortcut keys

ON/OFF Button Starts creation of an ON/OFF button. --Word Button Starts creation of a word button. --Command Button Starts creation of a command button. --Bit Lamp Starts creation of a bit lamp. --Word Lamp Starts creation of a word lamp. --Multifunction Starts creation of a Multifunction Object. --Label Starts creation of text. --Numeral Display &

Input String Display &

Input List Selection Starts creation of a List Selection object. --Thumbwheel

Switch Analog Meter Starts creation of an analog meter. --Level Meter Starts creation of a level meter. --Broken-line Graph Starts creation of a broken-line graph. --Bitmap Starts creation of a bit map. --Alarm/event Display Starts creation of an alarm/event display

Alarm/Event Summary & History

Date Starts creation of a date object. --Time Starts creation of a time object. --Data Log Graph Starts creation of a data log graph. --Data Block Table Starts creation of a data block table. --Video Display Starts creation of a video display object. ---

Starts creation of a Numeral Display & Input Object.

Starts creation of a String Display & Input Object.

Starts creation of a thumbwheel switch. ---

object. Starts creation of an alarm/event summary &

history object.

---

Menu Commands Section 3-2

Command Function Shortcut keys

Temporary Input Starts creation of a temporary input. --Consecutive Line

Drawing Document Display Selects document display and starts creation

Contents Display Starts creation of a contents display. Frame Starts creation of a frame region. --Table Starts creation of a table on a table creation

Fixed Objects Menu

Command Function Shortcut keys

Rectangle Starts creation of a rectangle. --Circle•Oval Starts creation of a circle or oval. --Straight Line Starts creation of a straight line. --Polyline Starts creation of a continuous straight line. --Polygon Starts creation of a polygon. --Sector Starts creation of a pie-shaped sector. --Arc Starts creation of an arc. ---

Starts creation of a continuous line. ---

--of a screen. Document display is supported for NS-Runtime only.

--screen.

Tools Menu

Command Function Shortcut keys

Test Performs an operating test on the computer.

The test can be performed while connected to either the CX-Simulator (virtual PLC) or an actual PLC. (CX-Designer version 2.0 or higher.)

PLC Error Simulator Starts the PLC error simulator. For details on

the PLC error simulator, refer to the CX-Pro- gramer Operation Manual (Cat. No. W446).

Resource Report Displays a report on the resources that have

been used.

Validation

Val idation (Project)

Val idation (Current Screen)

Val idation Setting

DXF Explorer Starts the tool for accessing DXF files using

Library Displays the Library Window to enable pasting

Import Old Library Converts a library created on CX-Designer for

Conversion

Version Changes the system version of the project

Model Changes the model of the NS-series PT for

Checks all screen data in the project according to validation settings to see if any mistakes have been made.

Checks screen data displayed at the front according to validation settings to see if any mistakes have been made.

Sets the project data check items. Ctrl+Alt+E

the CX-Designer.

objects registered in the library on the screen. Also enables registering objects on the screen in the library.

use with CX-Designer.

currently being edited.

the project currently being edited.

Ctrl+T

---

Ctrl+E

Ctrl+Shift+E

---

Alt+4

---

User Interface Section 3-3

Command Function Shortcut keys

Reset Defined Default

Functional Object

Fixed Objects Resets fixed object specified values to default

Option Sets optional functions for editing screens. ---

Window Menu

Command Function Shortcut keys

Next Window Moves to the next window of the windows dis-

Previous Window Moves to the previous window of the windows

Close All Closes all open screen editing windows. --Cascade Cascades the screen editing windows. --Tile Tiles the screen editing windows. --Arrange Icons Arranges the minimized window icons. --Window List Lists all open screen editing windows. The

Help Menu

Command Function Shortcut keys

Contents Displays the contents for the online help. --Search Topic Displays a search dialog box for help topics. --Online Registration Registers the user online. --About CX-Designer Displays information on the product. ---

Resets functional object specified values to default values.

values.

played under View - Window.

displayed under View - Window.

front screen will have a check mark by it.

---

Alt+0

Alt+Shift+0

---

3-3 User Interface

3-3-1 Names of Basic Screen Components

The configuration and names and functions of the components in the CXDesigner operation screen are described here.

Project Workspace

The entire project structure can be displayed in a directory tree.

Property List

Functional object property settings can be changed and checked without having to open a properties dialog box.

Title Bar

Menu Bar

Toolbar

Screen Creation Window

Screen data displayed on the PTs can be created for a group of objects.

Status bar

Title Bar The title bar displays the application name, project name, and screen number.

User Interface Section 3-3

Menu Bar The menu bar provides groups of related functions.

Each group name is displayed in the menu bar and the functions are displayed on pull-down menus under each group name.

Project Workspace The project screen data and settings are displayed in a tree hierarchy in the

project workspace. Screens and sheets can be created, copied, and deleted in the project work-

space. Screens from different projects can be copied between workspaces if more

than one copy of CX-Designer is running at the same time. The project workspace can be displayed and hidden by selecting View - Win-

dow - Project workspace.

A list of the created screens and sheets will be displayed on the Screen/Sheet Tab Page.

Double-click on any screen or sheet to open it. Screens and sheets can be created, copied, and deleted.

The Common Setting Tab Page displays the common settings browsed by all functional objects.

Double-click any item to open the settings dialog box.

The System Tab Page displays the project and communications settings.

Double-click on any item to open the settings dialog box.

User Interface Section 3-3

Property List Property Lists display the property settings for the functional object selected

on the screen. Settings can be checked and changed without opening a Property Setting Dialog Box.

Changes to properties made on the Property List are immediately reflected on the screen, which enables changes to be checked during screen creation.

Property Lists can be displayed and hidden by selecting View - Window -

Property List.

Enables display and settings of properties of the selected object without opening a property dialog box.

■ Global Replace

More than one object can be selected and the common settings for those objects can be changed in one operation.

The following example shows a global change of the object color.

The two objects on the screen for which the color is to be changed are selected

The color for the two selected objects is changed in the one operation.

and Color 1 is changed.

Screen Creation Window Screens displayed on the PTs can be created using functional and fixed

objects.

Status bar The Status Bar can be displayed and hidden by selecting View - Status Bar.

Describes the function of the toolbar icon or menu item selected.

Displays the current coordinates of the cursor.

Displays the frame page number currently selected.

Displays the switch label name currently selected.

Displays the upper left coordinates of the object currently selected.

Displays the system version of the project.

Displays the set PT model.

Displays the key status.

User Interface Section 3-3

gner

Toolbar Each toolbar can be displayed and hidden according to the settings in the

Customize Dialog Box displayed under View - Toolbar.

■ File Toolbar

Displays functions relating to file operation, such as creating or saving projects and screens and transferring project data, as icons.

Transfer (Computer → PT)

Export CSV File

Quick transfer

Page Setup

New Project

Save All

Save Screen/ Sheet

Apply Sheet

Open Project

New Screen

New Sheet

Import CSV File

Transfer Setting

Preview

Transfer (PT → Computer)

■ Edit Toolbar

Displays functions relating to editing objects, such as copy, cut, and paste as icons.

Undo Cut Paste Repeat

Redo Co

Delete

Host selection

■ Find Toolbar

Displays functions relating to searching and replacing as icons.

Find

lac

■ Tool Toolbar

Displays frequently used functions from the Tools Menu as icons.

Resource

PLC-PT Integrated Simulation

Report

Validation (Current Screen)

Option

Te st

PLC Error Simulator

Validation Setting

DXF Explorer Validation (Project)

■ Help Toolbar

Displays help and version information functions as icons.

Contents

About CX-Desi

User Interface Section 3-3

■ Functional Object Toolbar

Displays screen creation functions for functional objects as icons. Select the icon button of the functional object to be used to start screen cre-

ation.

Label

Numeral Display & Input

List Selection

Thumbwheel

Switch String Display & Input

Analog Meter

Broken-line Graph

Level Meter

Alarm/ event Display

Bitmap

Alarm/ Event Summary & History

Date

Data Log Graph

Video Display

Time

Data Block Ta bl e

Word Button

ON/OFF Button

Command Button

Multifunction

Bit Lamp

Word Lamp

Note Document display is supported for NS-Runtime only.

■ Fixed Object Toolbar

Displays fixed object drawing functions as icons. Select the icon button of the fixed object to be used to start drawing screens.

Rectangle

Straight Line

Circle/ Oval

Polygon

Arc

Polyline Sector

■ Grouping Order Toolbar

Displays object grouping and change distribution order functions as icons.

Consecutive Line Drawing

Contents Display

Temporary Input

Document Display

Ta bl

Fram e

Group

Ungroup

Front Back

Send

Bring Forward

Backward

■ Edit Objects Toolbar

Displays functions relating to changing object layout and object alignment as icons.

Align Left

Align Center

Align Right

Align Middle

Align To p

Distribute Horizontally

Align Bottom

Distribute Vertically

Smallest Width

Largest Width

Smallest Height

Rotate Right

Largest Height

Rotate Selected Object 90° Around Center of Screen/Frame to the Right

Rotate Left

Rotate Selected Object 90° Around Center of Screen/Frame to the Left

Flip Horizontal

Flip Selected Object Horizontally Around Center of Screen/Frame

Flip Vertical

Edit Node

Flip Selected Object Vertically Around Center of Screen/Frame

User Interface Section 3-3

■ Window Display Toolbar

Displays functions for displaying windows as icons.

Symbol Ta bl e

Select Object

Status ba

Property List

Toolbar

Project Workspace

Output Window

Library

Address in Use List

■ Switch Toolbar

Displays functions for switching labels, screens, and frame pages as icons.

Label Switch

Next Label

Previous Label

Next Frame Page

Previous Frame Pa

■ View Toolbar

Displays functions for switching the Screen Creation Window display as icons.

Address Display Type

Show ID Comment

Show Address

Show Sheet Object

Show Touch Points

Grid

Select ON/OFF

Zoom

■ Font Toolbar

Displays the functions for setting text font properties in functional objects as icons.

Font

Font Size

Font Color Align Top

Italic

Center

Align

Zoom

Bold

Left

Align Ri

Align Bottom

Center

■ Color Toolbar

Displays the color settings for functional objects and fixed objects as icons.

Color 1

Color 3

Color 2

Color 4

User Interface Section 3-3

■ Address Toolbar

Displays the setting functions for the addresses of the functional objects in a toolbar. Select the functional object for which the address is to be set and set the address.

Address Selection

Address Edition

Address Settin

■ Edit Contents Toolbar

Sets the basic contents change settings required for using the Machine Navigator. By changing the contents number, the display can be changed to the contents set for that contents number.

Click the Edit Contents Button to display the Edit Contents Dialog Box. Detailed settings can then be made for changing contents.

Contents No.

Address for switching contents

No. of contents

Edit Contents Button

Output Window The Output Window displays various data such as CX-Designer search, data

check, and other processing results and error details. The Output Window can be displayed and hidden by selecting View - Win-

dow - Output Window.

The Output Tab Page displays the CX-Designer operating status and error information.

The Found Results Tab Page displays the search and replace results. Click an item to display and select the corresponding object.

The Data Check Results Tab Page displays the data check results. Click an item to display and select the corresponding object.

User Interface Section 3-3

3-3-2 CX-Designer Functions and Screens

Symbol Table A symbol table lists the symbols registered to the project.

The CX-Designer can specify symbols as the data to be accessed by functional objects, in addition to directly specifying PLC or other host addresses or internal memory.

“Symbol” is a name to which an address is allocated. This symbol can be used instead of the address in the CX-Designer. This allows addresses to be changed simply by changing the address set for the symbol, instead of opening each screen and changing the property settings for the functional objects on that screen. In addition, comments can be specified for symbols in the CXDesigner.

The Symbol Table Window can be displayed and hidden by selecting View - Window - Symbol Table from the menu bar.

Click Name to change the display order between descending and ascending (the sort function).

Click to display a pull-down list and display only the desired type (the filter function).

Note (1) Symbols can be added or deleted and functions that use a symbol can be

searched for in the symbol table.

(2) Symbols (communications addresses) to be set can be copied from the

symbol table to the Property List using the drag-and-drop function.

(3) Symbols can also be copied from the CX-Programmer's symbol table and

pasted to the CX-Designer's symbol table. This enables the same symbol to be used by both the CX-Designer and CX-Programmer.

Library Window A library object is a group of registered functional and fixed objects together

with their property settings registered as one unit of data. Objects can be registered as a library object and easily reused in multiple

locations or screens from the Library Window. The Library Window can be displayed and hidden by selecting View - Win-

dow - Library.

User Interface Section 3-3

Objects can be easily registered and reused, using the drag-and-drop function.

Library Window

Reuse

Object List Window The Object List Window lists the functional objects located in Screen Creation

Window. Any object can be selected and the display on the Screen Creation Window

can be restricted to a specified type of functional object from the Select Object Window.

Selecting and displaying objects by type enables easy editing of objects hidden under other objects. Normal screen editing is also possible in this mode.

The Select Object Window can be displayed and hidden by selecting View -

Window - Object List.

Screen Creation Window

Label objects that were hidden underneath

Select Object Screen Lists objects on the screen.

Select only Label to display labels that were hidden under other objects. Labels can also be edited in this mode.

User Interface Section 3-3

Address in Use List Displays a list of the number of times each address is used in functional

objects. A list of the functional objects using the addresses is also displayed in the

Output Window and specified functional objects can be selected on the screen.

The Address in Use Window can be displayed and hidden by selecting View -

Window - Address in Use List.

Sets the start address

Displays the addresses.

for the search range.

Sets the search range.

Displays the number of times each address is used. (Unused addresses are displayed in gray.)

User Interface Section 3-3

SECTION 4

Useful Functions

This section describes useful CX-Designer functions for creating project data and debugging and how to use these functions.

4-1 Creating Screens Using Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

4-1-1 Changing Allocated Addresses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

4-1-2 Reusing Existing Projects in Another System . . . . . . . . . . . . . . . . . 47

4-1-3 Copying and Pasting Symbols Between the CX-Programmer and

the CX-Designer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

4-1-4 Using I/O Allocation Table in Symbol Table . . . . . . . . . . . . . . . . . . 49

4-1-5 Creating Screens Using Symbol Names and Then Setting Addresses 49

4-2 Using Screens from Other Projects. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

4-3 Classifying Screens by Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

4-3-1 Creating Categories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

4-3-2 Moving Screens between Categories . . . . . . . . . . . . . . . . . . . . . . . . 54

4-3-3 Creating New Screens. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

4-4 Checking and Changing Functional Object Properties without Opening

Property Setting Dialog Boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

4-4-1 Globally Replacing Settings for More Than One Object . . . . . . . . . 55

4-5 Listing and Editing Functional Object Properties. . . . . . . . . . . . . . . . . . . . . . 55

4-5-1 Setting Consecutive Addresses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

4-5-2 Copying the Same Setting to More Than One Cell . . . . . . . . . . . . . 56

4-6 Editing Overlapping Objects. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

4-6-1 Method for Selecting Specified Objects. . . . . . . . . . . . . . . . . . . . . . 57

4-6-2 Displaying Only Specified Objects on a Screen. . . . . . . . . . . . . . . . 58

4-7 Creating Multi-language Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

4-8 Checking Address Usage Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

4-9 Searching for Embedded Macros . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

4-10 Transferring Only Edited Data to PT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

4-11 Creating Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

4-12 How to Use Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

4-13 Integrated Simulation for the Entire System. . . . . . . . . . . . . . . . . . . . . . . . . . 64

4-13-1 Debugging Screens and the User Program with a Virtual PLC . . . . 64

4-13-2 Debugging Screens and the User Program with the Actual PLC . . . 66

4-14 Setting Security for Data Transfers with the PT . . . . . . . . . . . . . . . . . . . . . . . 67

4-15 Setting Symbol Names and I/O Comments for Use as Labels . . . . . . . . . . . . 68

4-16 Executing Multiple Functions with a Single Operation . . . . . . . . . . . . . . . . . 70

4-17 Replacing a Lamp with a Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

4-18 Creating Polygonal Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

4-19 Registering Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

4-20 Using Machine Navigator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Creating Screens Using Symbols Section 4-1

4-1 Creating Screens Using Symbols

The CX-Designer can enter addresses as symbols when setting functional object addresses. (Addresses can also be directly input, the same as for the NS-Designer. Symbols are automatically allocated in these cases.)

This means that all addresses used in a project can be managed from the symbol table.

The following operations can be performed easily using the symbol table.

• Changing allocated addresses when the address allocation changes suddenly.

• Reusing existing projects in another system.

Symbols can also be copied and pasted between the CX-Programmer and CX-Designer symbol tables.

Also, any I/O allocation table created using Excel or other software can be used as is in symbol tables.

Symbol Table Example: A

PLC

Example: A

I/O memory CIO0.00

Copy/paste directly.

Copy/paste via Excel.

4-1-1 Changing Allocated Addresses

If an address allocated for a symbol is changed on a symbol table, the change is automatically reflected in all screens.

This allows allocated addresses to be changed simply by changing the symbol table, instead of opening each screen and changing the property settings for the functional objects on that screen.

There is flexibility with symbol changes to meet any requirement. The replace function can be used to globally replace the host and addresses. Symbols can also be changed individually.

Symbol Table Example: A

SERIAL A: CIO0.00

I/O allocation table created using Excel or other software.

Procedure

1,2,3... 1. Select Symbol Table on the project workspace Common Setting Tab

Page. The symbol table will be displayed.

2. Double-click the symbol for which the allocated address is to be changed in the symbol table.

3. Change the allocated address in the displayed Address Settings Dialog Box.

Creating Screens Using Symbols Section 4-1

4. When the changes have been completed, they will be reflected in all functional objects that use that symbol.

HOST1: 0.0

Screen 1

HOST1: 10.0

Screen 1

Screen 2 Screen 3

HOST1: 10.0

Screen 2

Screen 3

HOST1: 10.0

4-1-2 Reusing Existing Projects in Another System

When using existing projects in another system, the addresses allocated for objects can be easily changed simply by changing the addresses in the symbol table.

Change the address in the symbol table to 10.0.

Procedure

1,2,3... 1. Change the allocated address for each symbol in the symbol table.

2. To replace addresses in the symbol table, right-click the mouse and select Replace from the pop-up menu that is displayed.

4-1-3 Copying and Pasting Symbols Between the CX-Programmer and

the CX-Designer

Both CX-Designer and CX-Programmer have symbol tables and can share their symbol data.

This means that CX-Programmer symbols can be copied to the CX-Designer. And symbols added using the CX-designer can be copied to the CX-Programmer.

Creating Screens Using Symbols Section 4-1

CX-Programmer symbols are copied and pasted to the CX-Designer symbol table.

The same symbol as the CX-Programmer symbol is added.

Procedure

Copying CX-Programmer Symbols to the CX-Designer

1,2,3... 1. Start CX-Programmer and open the project with the symbol to be shared.

2. Select the symbol from the CX-Programmer symbol table.

3. Open the CX-Designer symbol table and paste the symbol.

4. If a host address is set for the symbol, select the applicable host for the destination.

Copying CX-Designer Symbols to the CX-Programmer

1,2,3... 1. Select the symbol from the CX-Designer symbol table and copy it to the

CX-Programmer.

Copy the symbol for which a PLC address is allocated and paste it to Excel.

2. Paste to Excel. Select and copy the cells in Excel other than those in the Host column.

This section is copied.

Creating Screens Using Symbols Section 4-1

3. Open the CX-Programmer symbol table and paste the symbol.

The same symbol as the CX-Designer symbol is added.

4-1-4 Using I/O Allocation Table in Symbol Table

The user can create the required I/O allocation table when creating projects. If the I/O allocation table is created in the same format as the symbol table, the I/O allocation table data can be copied as is to the symbol table. This enables symbols to be created easily from the I/O allocation table.

Copy the I/O allocation table created using Excel and past to the CXDesigner symbol table.

The I/O allocations in the table are registered as symbols.

Procedure

1,2,3... 1. Create an I/O allocation table using Excel. Use the following order in the

I/O allocation table: Host, symbol name, type, address, and I/O comment

2. Copy the I/O allocation table.

3. Open the CX-Designer symbol table and paste the symbols.

4-1-5 Creating Screens Using Symbol Names and Then Setting Addresses

Screens can be created using only symbol names even if addresses are not set. When the addresses are later determined, they can be input collectively in the symbol table. In addition, if an address allocated as a symbol in the symbol table is changed, that change is reflected in all functional objects where that symbol is set.

Using Screens from Other Projects Section 4-2

Procedure

1,2,3... 1. Input the symbol names for the communications address setting locations

for the functional object.

HOST1: Flag 1 HOST1: Flag 2 HOST1: Flag 1 HOST1: Flag 3 HOST1: Flag 2 HOST1: Flag 3

Screen 1

Screen 2

Screen 3

2. Set or change the addresses for the symbols input from the symbol table in step 1.

Afterwards set the addresses in the symbol table.

3. After the addresses have been set, they will be reflected in all the functional objects that reference the symbols.

HOST1: 0.00 HOST1: 0.01 HOST1: 0.00 HOST1: 0.02 HOST1: 0.01 HOST1: 0.02

Screen 1

Screen 2

4-2 Using Screens from Other Projects

Screens from different projects can be copied between project workspaces if more than one copy of CX-Designer is running at the same time.

If there is an alarm/event display object, data log graph, or other functional object on the copied screen that accesses common settings, the common settings are automatically copied as well. This means that settings do not need to be adjusted to use the same common settings in both the source and destination project.

Procedure

1,2,3... 1. Start two copies of CX-Designer and open the source project on one copy

and the destination project on the other copy. Open the project workspace Screen/Sheet Tab Page.

Screen 3

Using Screens from Other Projects Section 4-2

2. Select the screen to be copied on the source CX-Designer and drag-anddrop the screen to the destination category. The dialog box for setting the destination screen number and host will be opened.

Select the screen and drag-and-drop to the destination.

3. Specify the destination screen number and the address host in the dialog box. The screen will be copied.

The screen will be copied.

4. The addresses used in the source screen will be automatically copied to the symbol table in the destination project. The common settings accessed by screens are also added automatically.

Classifying Screens by Application Section 4-3

■ Copying Screens with Alarm/Event Displays

Source settings

Destination settings

Addresses registered as alarm/events in the source project are automatically added to both the symbol table and the Alarm/Event Dialog Box.

5. Address allocations can be changed from the symbol table to an address suitable for the destination project. (Refer to 4-1 Creating Screens Using Symbols.)

Note (1) All screens in a category can be copied by selecting the category and

dragging-and-dropping it to another project workspace. (2) Sheets can also be copied using the same method. (3) Common settings can be copied by selecting them on the project work-

space Common Settings Tab Page and dragging-and-dropping them to

another CX-Designer's project workspace Common Settings Tab Page.

4-3 Classifying Screens by Application

Screens can be classified by application in the CX-Designer. These classifications are called “screen categories.”

To display screens by screen categories, right-click in the Project Workspace and select Display Screen Category from the pop-up menu.

Classifying Screens by Application Section 4-3

Screens are classified by application.

Up to 3 levels of categories can be created.

Consecutive screen numbers are automatically allocated in the same category when a new screen is created. The screen numbers can be changed.

When a screen is created in this category,

4-3-1 Creating Categories

1,2,3... 1. Open the project workspace Screen/Sheet Tab Page.

2. Select Screen Category or an existing category.

3. Right-click and select New Category from the pop-up menu.

the next screen number is allocated to the screen.

Checking and Changing Functional Object Properties without Opening Property Setting Dialog Boxes

4. A new category will be created. Enter the category name.

4-3-2 Moving Screens between Categories

Existing screens can be moved to different categories.

1,2,3... 1. Select the screen to be moved to a different category from the project

workspace Screen/Sheet Tab Page. (More than one screen can be selected.)

2. Drag the screen or screens to the destination category.

Section 4-4

Drag

Note Categories can also be moved by selecting and dragging them to the desired

location. Screens in that category are also moved.

The screen moves to the new category.

4-3-3 Creating New Screens

Screens can be created in a category.

1,2,3... 1. Select the category for the new screen on the project workspace Screen/

Sheet Tab Page.

2. Right-click the screen category and select New Screen from the pop-up menu.

4-4 Checking and Changing Functional Object Properties

without Opening Property Setting Dialog Boxes

Click a functional object on the screen to display the properties of that object in the Property List. Settings can be checked and changed on the Property List without opening a Property Setting Dialog Box.

Settings for more than one object can be changed in the Property List by using the global replace function.

Listing and Editing Functional Object Properties Section 4-5

The Property List is used to display and set the properties for the selected object. Changes to properties are immediately reflected on the screen, which enables changes to be checked during screen creation.

Note The Property Settings Dialog Box for an object can still be displayed by dou-

ble-clicking the object.

4-4-1 Globally Replacing Settings for More Than One Object

More than one item can be selected and settings common to all items can be changed. The changed settings will be reflected in all selected objects.

Procedure

1,2,3... 1. Select all the objects for which settings are to be changed.

2. Change the setting items common to all selected objects on the Property List.

The setting common to the selected objects, be changed.

Color 1, will

3. The change will be reflected in all objects.

All selected objects change to the same color.

Note Items not common to all selected objects cannot be changed.

4-5 Listing and Editing Functional Object Properties

Properties of objects on the screen can be displayed in table format and the settings changed.

Settings for more than one object can be changed at the same time and consecutive addresses can be automatically set, making editing more efficient.

Listing and Editing Functional Object Properties Section 4-5

Procedure

1,2,3... 1. Select Edit - Edit Properties.

2. The functional objects on the screen and their properties will be displayed. Entries made to each item will be reflected as changes in the functional object.

The display can be limited to functional objects selected from the list.

4-5-1 Setting Consecutive Addresses

Addresses can be changed to make the address consecutive.

1,2,3... 1. Select the cell for the set address and move the mouse to the bottom-right

of the cell. When the cursor changes to a + cursor, drag the cursor down or up.

2. The addresses will change to descending order when the cursor is dragged down, and to ascending order when dragged up.

Click the Display Item Setting Button to change property settings displayed in the Edit Properties Window.

4-5-2 Copying the Same Setting to More Than One Cell

Each setting can be copied to other cells for items of the same type.

1,2,3... 1. Select and copy the desired cell.

Editing Overlapping Objects Section 4-6

2. Select the destination cell and paste the copied setting. Copied settings can be pasted to more than one cell, enabling global replacement of settings.

Note (1) If an object is selected on the screen, only the properties for the selected

functional object are listed.

(2) The properties of the following functional objects can be set using the list

edit function.

• ON/OFF Buttons

• Word Buttons

• Command Buttons

•Bit Lamps

• Word Lamps

•Text

• Numeral Display & Input

• String Display & Input

• Thumbwheel Switches

•Dates

•Time

• Temporary Inputs

• Consecutive Line Drawing

• Multifunction

4-6 Editing Overlapping Objects

The CX-Designer has an Object List Function, which lists objects on the screen.

4-6-1 Method for Selecting Specified Objects

Specify objects in the Object List Window to have that object selected. This enables objects hidden under other objects to be selected and for the

settings for these objects to be checked and changed on the Property List.

Bit lamp properties can be checked and changed on the Property List.

Select a bit lamp in the Object List Window.

The bit lamp hidden behind other objects will be selected.

Creating Multi-language Labels Section 4-7

Procedure

1,2,3... 1. Select View - Window - Object List.

2. The Object List Window will be displayed and the objects on the screen listed.

3. Objects specified on the Object List Window will be selected on the screen. Hold down the Shift or Ctrl Key to select more than one object. The list of objects in the Object List Window can be restricted to a specific type of object. Select the type of objects to be listed from the drop down list at the top left of the Object List Window.

Select ON/OFF Button.

4-6-2 Displaying Only Specified Objects on a Screen

The screen display can also be limited to objects selected on the Object List Window. These objects can be edited on screen.

Select a bit lamp.

Procedure

1,2,3... 1. Select the object in the Object List Window and click the Range Selection

Button.

2. Click the Release All Button to display all objects on the screen.

Only ON/OFF Buttons will be listed.

Only objects of the selected type are displayed, i.e., bit lamps.

4-7 Creating Multi-language Labels

CX-Designer multi-language displays use Unicode for the character information displayed in a screen. This enables switching the screen between different languages, such as Japanese, English, and Chinese, for display and setting.

The CX-Designer also has functions to export functional object label strings to CSV files and import label strings from CSV files, called the CSV import/ export functions.

These functions can be used to edit and set label strings in multiple languages, such as Japanese, English, and Chinese, making it easy to create multi-language screens.

Checking Address Usage Status Section 4-8

An operating system that supports Unicode (Windows 2000, XP, or Vista) is required to use multi-language labels.

Japanese

English

The language display can be

Chinese

switched during PT operation.

Procedure

1,2,3... 1. Select File - Export to CSV File.

2. Follow the directions in the displayed dialog box and export the labels to a CSV file. Select Unicode in the Output Code Area.

3. Edit the CSV file with a version of Excel that supports Unicode (Excel 2000 or higher).

4. Select File - Import CSV File.

5. Follow the directions in the displayed dialog box and import the edited CSV file. The strings in the CSV file will be reflected in each object.

Note (1) Set the number of labels to 2 or more under Project Property to set multi-

language strings for one object.

(2) In order to create screen data with CX-Designer using the multi-language

function, it is necessary to perform Windows settings beforehand. Refer to the CX-Designer online help Reference - Multi-language Display for details.

4-8 Checking Address Usage Status

The Address in Use Window displays a list of the number of times each address is used in functional objects.

A list of the functional objects using the addresses is also displayed in the Output Window and specified functional objects can be selected on the screen.

Procedure

Enter the label strings in Japanese, English, Chinese, etc.

1,2,3... 1. Select View - Window - Address in Use.

Searching for Embedded Macros Section 4-9

2. Set the addresses and search range and click the Go Button to display the number of times the addresses are used.

Displays the addresses.

Sets the start address for the search range.

Sets the search range.

Displays the number of times each address is used. (Unused addresses are displayed in gray.)

3. Select an address and click the Find Reference Object Button to display a list of functional objects using that address in the Output Window. Select a functional object in the Output Window to automatically select that object on the screen.

Objects selected in the Output Window are selected on the screen.

Note Searches can be made for the addresses used in a project or in a screen and

the results displayed in a list. Select Find - Address Cross Reference.

4-9 Searching for Embedded Macros

Embedded macros can be found and displayed in the Output Window. Objects selected in the Output Window are automatically selected, so macro

details can be checked on the Property List.

Procedure

1,2,3... 1. Select Find - Macro Cross Reference.

2. Specify the search range in the displayed Search Embedded Macro Dialog Box and execute the search.

3. A list of macro locations will be displayed in the Output Window.

Transferring Only Edited Data to PT Section 4-10

Macro details can be checked on the Property List.

Select a functional object in the Output Window to select that object on the screen.

A list of macro locations will be displayed.

4-10 Transferring Only Edited Data to PT

The data is edited and transferred to the PT many times when debugging projects.

The CX-Designer has a Quick Transfer function. The Quick Transfer function automatically compares project data with the data already transferred to the PT and transfers only changed data.

This means that only the required data is transferred to the PT, which greatly reduces the time and work required for transfers.

Screen Screen 1 Screen 2 Screen 3 Screen 4 :

Date updated

2005/6/19 09:55 2005/6/19 10:00 2005/6/19 10:05 2005/6/19 09:55

Screen Screen 1 Screen 2 Screen 3 Screen 4 :

Date updated

2005/6/19 09:55 2005/6/19 09:55 2005/6/19 09:55 2005/6/19 09:55

Only changed screens 2 and 3 are automatically selected and transferred.

Procedure

1,2,3... 1. Select PT - Transfer - Quick Transfer [Computer

→

PT].

2. A dialog box to confirm the transfer will be displayed. Press the Yes Button to start transferring the data.

Note (1) Transfer routes and other settings need to be made before executing

Quick Transfer. Select PT - Transfer - Transfer Setting to make the set- tings.

(2) Select PT - Transfer - Transfer [Computer

→

PT] to transfer data for the

whole project to the PT.

Creating Documents Section 4-11

4-11 Creating Documents

Project and screen settings and functional object property settings can be output to RTF files by using the CX-Designer print function.

Screen images can also be output to bmp and jpg files. The CX-Designer print function facilitates the production of a variety of docu-

ments, e.g., these files can be used as is for specifications, or the data can be processed to create operation manuals, etc.

Outputs settings data to RTF files.

Outputs screen images to bmp and jpg files.

Procedure

1,2,3... 1. Select File - Print.

Select File to output settings to an RTF file. Select Image File to output screen images to a bmp or jpg file.

2. When printing is executed, an RTF or bmp/jpg file is created.

Note (1) If Output to: is set to Printer, the settings will be output to the printer.

(2) If Output to: is set to File or Printer, header, footer, and margin settings

can be made.

How to Use Help Section 4-12

4-12 How to Use Help

Press the F1 Key or click the Help Button in dialog boxes to display help information relating to the selected menu or dialog box.

Press the F1 Key or click the Help Button on the History Tab Page of the System Setting Dialog Box.

A description of the History Tab Page of the System Setting Dialog Box will be displayed.

Procedure

Click on the diagram in Help Mode to display a description or switch to another topic.

If the mouse is moved to locations that can be clicked in Help Mode, the cursor will change shape to .

Click an item in the diagram to display a description of that item.

If there is a tab page in the explanatory dialog box, the Help diagram display can be switched by clicking that tab page.

Click the Initial Tab Page.

The display switches to a description of the Initial Tab Page.

Integrated Simulation for the Entire System Section 4-13

4-13 Integrated Simulation for the Entire System

The CX-Designer can simulate PT operations on a personal computer, so screens created on the computer can be debugged using the test function even without transferring the screens to a PT.

4-13-1 Debugging Screens and the User Program with a Virtual PLC

The CX-Designer can connected to a virtual PLCs running on the CX-Simulator (i.e., on a user program execution engine). By using the CX-Simulator to run programs created using the CX-Programmer, screen data and user programs can be debugged together on a personal computer.

CX-Designer

CX-Simulator

Executing the user program

CX-Programmer

The results of executing the user program in the CX-Simulator are displayed on the screen. Conversely, changes in values due to screen operations are used as CX-Simulator user program inputs.

Screen data

Using actual devices

Operations on personal computer

Integrated simulation by coordinating CXDesigner, CXSimulator, and CX-Programmer.

Virtual operation

CX-Designer test function (virtual PT)

Screen data

Screen operations can be simulated in conjunction with virtual PLC user program execution.

Connecting the CX-Programmer to the CX-Simulator makes it possible to debug programming while checking user program operation.

CX-Programmer

PLC

Host name (communications addresses)

HOST1 (applicable host)

I/O memory

Test tool

HOST2

HOSTn

User program

CX-Simulator (virtual PLC)

User program

Specify

Start

Select Connect to CX-Simulator.

Specify the host name for connecting to the CX-Simulator. (Example: HOST1)

Specify the CXP file.

CX-Programmer

User program (CXP file)

Start

Previous test function

Test function when connected to the CX-Simulator

Integrated Simulation for the Entire System Section 4-13

Procedure

1,2,3... 1. Click the PLC-PT Integrated Simulation Button ( ) in the Tool Bar.

2. Specify the host name to connect to the CX-Simulator, select the user program (CXP file) to be written, and click the Start Button.

Specify the host name to connect to the CXSimulator, and specify the user program (i.e., specify the CXP file).

3. The CX-Simulator and the CX-Programmer will start, and the user program will be written to the CX-Simulator.

4. The CX-Designer test function will start, and the specified host will be connected to CX-Stimulator.

5. When the user program is executed or debugged (step, scan execution, etc.), the applicable host communications addresses are changed according to the user program execution results, and this is reflected in the lamps on the screen and in the numeric displays. Conversely, applicable host communications address values are changed according to screen button operations and numeric inputs, and these are used as inputs for user program execution. This enables the simulation of screen operations in conjunction with virtual PLC user program execution.

Note (1)

(2) Only one host can be connected to the CX-Simulator. If multiple hosts are set in

(3) Address values at the CX-Simulator can be changed using the Switch Box Utility.

(4) The CX-Designer will be minimized when the test is started. (5) If the Start test from the current screen Option is selected under Too ls

(6) Integrated simulation can be executed by selecting Tools - Test and then

If a test is performed from the CX-Designer while the CX-Simulator is already running, a connection will be made to the CX-Simulator.

a CX-Designer project, use the test tool to change the communications address values for the hosts that are not connected to the CX-Simulator.

All of the communications address used by the displayed screen are displayed in a list. For example, if host SERIALA is connected to the CX-Simulator, the SERIALA communications addresses are used as values at the CXSimulator. The values for other host communications addresses can be changed using the test tool.

The Switch Box Utility can be started from the test tool.

- Test, the screen currently being edited will be opened when the test is started. If this option is not selected, the test will start with the initial screen specified in the PT's System Settings.

selecting Connect to CX-Simulator from the Test Dialog Box.

Integrated Simulation for the Entire System Section 4-13

4-13-2 Debugging Screens and the User Program with the Actual PLC

With CX-Designer, simulation can be executed with the personal computer connected to an actual PLC. This enables debugging (including monitoring and settings) using actual I/O Units, Special I/O Units, and CPU Bus Units connected to the PLC, as well as data from external devices and PLC data on the network.

Personal Computer Screen

CX-Designer

The results of executing the user program in the actual PLC are displayed on the screen, along with the status of external devices. Conversely, changes in values due to screen operations are used as the actual PLC user program inputs and in the set values for external devices.

Screen data

Virtual operation

I/O memory

Actual PLC

Special I/O Units and CPU Bus Unit

Network

Actual I/O

Serial

External devices

CX-Programmer

PLC

User program

Externally connected device

In personal computer

CX-Designer test function (virtual PT)

Screen data

Screen operations can be simulated in conjunction with actual PLC user program execution.

Previous test function

Test tool

Host name (communications addresses)

(Applicable host)

HOST1

HOST2

HOST n

Specify.

Integrated simulation by coordinating CX-Designer,

Test function when connected to actual PLC

actual PLC, and CX-Programmer.

Select Connect to PLC. Specify the host name for connecting to PLC. (Example: HOST1) Specify the method for communicating with the PLC.

Actual PLC

I/O memory

User program

Setting Security for Data Transfers with the PT Section 4-14

Procedure

1,2,3... 1. Connect the personal computer to the PLC by either a serial or network

connection.

2. Select Tool - Test.

3. Select Connect to PLC, specify the host name and host type for connecting to the PLC, specify the communications method, and click the Start Button.

Select Connect to PLC, specify the host name and host type for connecting to the PLC, and specify the communications method.

4. The CX-Designer test function will start and the actual PLC will be connected.

5. When the actual PLC user program is executed, the applicable host communications addresses are changed according to the user program execution results, and this is reflected in the lamps on the screen and in the numeric displays. Conversely, applicable host communications address values are changed according to screen button operations and numeric inputs, and these are used as inputs for execution of the actual PLC user program. This enables the simulation of screen operations in conjunction with actual PLC user program execution.

4-14 Setting Security for Data Transfers with the PT

Transfers between the Computer and PT

When a project for which data transfer security has been set is stored in the PT, a password is required to upload the project data from the PT. Data cannot be uploaded from the PT unless the correct password is input, preventing theft of data from the PT. A password is also required in order to download data. This prevents data from being accidentally overwritten.

When data transfer security is set

NS-series PT

Download

Upload

A password from the computer is required to transfer data (either uploading or downloading). The data cannot be transferred unless the correct password is input.

Setting Symbol Names and I/O Comments for Use as Labels Section 4-15

Transfers between the PT and a Memory Card

When a project for which data transfer security has been set is stored in the PT, a password must be input at the PT to upload the project data from the PT to a Memory Card. Data cannot be uploaded from the PT unless the correct password is input, preventing theft of data to a Memory Card. A password is also required to download data from a Memory Card. This prevents data from being accidentally overwritten.

NS-series PT

Memory Card

Upload

Download

When data transfer securit

Password input from the PT

is set

Procedure

1,2,3... 1. Select File - Data Transfer Security - New Data Transfer Security Set-

ting.

2. Set the security password.

3. Transfer to the PT the project for which data transfer security has been set.

4-15 Setting Symbol Names and I/O Comments for Use as

Labels

Symbol names or I/O comments of communications addresses can be automatically used as label text strings for the following functional objects.

• ON/OFF Buttons (when Write Address is set)

• Word Buttons (when Write Address is set)

• Bit Buttons (when Display Address is set)

• Word Lamps (when Display Address is set)

In the same way, when setting communications addresses in the Alarm/Event Details Dialog Box, symbol names or I/O comments can be set as the alarm messages.

Set the communications address.

The symbol name of the communications address is automatically used as the label.

Setting Symbol Names and I/O Comments for Use as Labels Section 4-15

Procedure

1,2,3... 1. Select Options from the Tools Menu. The Option Dialog Box will be dis-

played.

2. Open the Edit/Display Tab Page in the Option Dialog Box.

3. Select Reflect to label when an address is set, and select either Symbol Name or I/O Comment for the label text string.

Select the option, and select either Symbol Name or I/O Comment for the label text string.

4. Create the functional object.

5. Set the communications address for the functional object in one of the following ways.

• Input the address in the field in the Property Setting Dialog Box for the functional object.

• Input the address in the field in the Property List.

• Use the Address Tool Bar.

• Edit the properties in table format.

The symbol name or I/O comment that has been set will be automatically set as the label text string.

6. To set an alarm message, select Alarm/Event Setting from the PT Menu. The Alarm/Event Setting Dialog Box will be displayed.

7. Click the Add/Edit Button in the dialog box to open the Alarm/Event Details Tab Page.

8. Set the communications address in the Address Field. The symbol name or I/O comment for the communications address that was set for the message will be used automatically.

Note (1) If there are two or more labels, the symbol name or I/O comment will be

set for the text strings for all of the labels.

(2) Symbol names and I/O comments will not be set automatically in the fol-

lowing cases:

• When the communications address is replaced by another one.

• When a symbol name or I/O comment is changed in the symbol table after the label text string has been set.

• When communications address settings other than those indicated above are set.

• When the communications address is set by a method other than those indicated in step 5.

Executing Multiple Functions with a Single Operation Section 4-16

4-16 Executing Multiple Functions with a Single Operation

With Multifunction Objects, multiple processes can be set and can then be executed with just the press of a button. Processes that could previously be executed only by using macros can now be easily executed by making settings based on properties.

Multifunction Object

Executed by macro

Easy property settings

Executed in order of settings.

Procedure This procedure describes how to use a Multifunction Object to perform the fol-

lowing operations.

• Turn ON $B100.

• Set SERIALA:DM0 to 123.

• Switch to screen 100.

1,2,3... 1. Create a Multifunction Object and open the Property Setting Dialog Box.

2. In the General Tab Page, open the When pressing Tab Page and select the first item in the action item list.

3. Click the Write Button and select Write Bit from the menu. The properties for the bit setting will be displayed.

4. Set $B100 for the write address, and SET for the action.

1. Click the first item.

2. Click the Write Button and select Write Bit.

3. Make the following settings:

●

Write Address: $B100

●

Action: SET

5. Click the Add Button to add the new action item.

6. Click the Write Button and select Write Word from the displayed menu.

7. Set SERIALA: DM0 for the write address, Set Value for the action, and 123 for the set value.

Executing Multiple Functions with a Single Operation Section 4-16

1. Click the Add Button.

2. Click the Write Button and select Write Word.

3. Make the following settings:

●

Write Address: SERIAL A:DM0

●

Action: Set Value

●

Set Value: 123

8. Click the Add Button to add the new action item.

9. Click the Switch Screen Button and select Switch Screen from the displayed menu.

10. Set Specified Screen for the switch method, and 0100 Screen for the screen selection.

1. Click the Add Button.

2. Click the Switch Screen Button, and select Switch Screen.

3. Make the following settings:

●

Switch Method: Specified Screen

●

Select Screen: 0100 Screen

When the Multifunction Object is pressed on the NS-series PT, the functions that have been set will be executed in order.

Replacing a Lamp with a Button Section 4-17

4-17 Replacing a Lamp with a Button

If a bit lamp is converted to a Multifunction Object, the functions of a button and other functions can be added by simply changing property settings without creating new objects.

Bit lamp Multifunction Object

Bit lamp settings can be left unchanged and settings for button operations can be added

Convert

Touch operations also enabled

Similarly, converting to a Multifunction Object makes it easy to add new functions to buttons and lamps that have already been created.

Procedure

1,2,3... 1. Open the Bit Lamp Property Setting Dialog Box.

2. Click the Convert Button to convert the bit lamp to a Multifunction Object.

to create a "Button + Lamp" object.

Click the Convert Button.

3. The property settings for the Multifunction Object will open automatically. In the General Tab Page specify Perform an action when pressing the ob- ject option to set the function for when the Multifunction Object is pressed.

Creating Polygonal Lamps Section 4-18

Set the operation for when the Multifunction Object is pressed.

In the Color/Shape Tab Page, the same settings will be set as for the original bit lamp.

Note The following functional objects can be converted to Multifunction Objects:

ON/OFF buttons, word buttons, command buttons, bit lamps, and word lamps.

4-18 Creating Polygonal Lamps

Polygonal lamps can be created by using Multifunction Objects. This example procedure shows how to create a polygonal lamp that is turned ON and OFF by turning ON and OFF HOST1:0.0.

The settings will be the same for the Multifunction Object as for the bit lamp before the conversion.

Procedure

HOST1:0.0 : OFF

HOST1:0.0 : ON

1,2,3... 1. Create a Multifunction Object and open the Property Setting Dialog Box.

The General Tab Page will be displayed.

Creating Polygonal Lamps Section 4-18

2. Open the When pressing Tab Page in the action item list. Clear the selection of the Perform an action when pressing the object option.

Clear the Perform

an action when pressing the object

option.

3. Open the Color/Shape Tab Page and select Polygon as the shape. Set Bit Address as the display method, and HOST1:0.0 as Display Address

Polygon.

Select

Select Bit Address and HOST1:0.0.

4. Click the OK Button to close the Property Setting Dialog Box. The shape of the Multifunction Object will change to a polygon. The object will be displayed as a pentagon.

The shape is changed to a pentagon.

Registering Contents Section 4-19

5. Change the shape of the Multifunction Object to a triangle by deleting the two unnecessary nodes.

Delete these two nodes.

With the Multifunction Object selected, select Edit Node from the Edit Menu. Hold down the Ctrl Key, move the cursor to the node that is to be deleted, and click the mouse button when the shape of the cursor changes to an X. The node will be deleted.

In the same way, delete the other node to change the shape to a triangle.

Note (1) When using Edit Node from the Edit Menu, nodes can be dragged to

change their positions. It is also possible to add nodes by clicking on the outline while holding down the Ctrl Key.

(2) When a Multifunction Object set as a polygon is registered as the default

shape, then when subsequent Multifunction Objects are created it will be possible to specify the positions of their nodes just as when creating a polygon.

(3) Sector lamps can be created in the same way. For a sector lamp, just se-

lect Sector as the shape in the Property Setting Dialog Box for the Multifunction Object.

4-19 Registering Contents

Character strings and image files displayed using Machine Navigator are called "contents." Machine Navigator changes values for specified communications addresses and the displays of contents registered on the screen according to alarms and events that occur. This section describes how to easily register contents.

1,2,3... 1. Create the required number of contents displays on the screen.

Registering Contents Section 4-19

2. In the General Tab Page in the contents display Property Setting Dialog Box, specify whether character strings or images are to be displayed.

Specify whether character strings or images are to be displayed.

3. Set the number of contents in the Edit Contents Toolbar. In the No. of con- tents field, set the total number of character strings and images to be displayed. In the Address for switching contents, set the communications address for switching the contents.

Set the communications address to use to switch contents.

Set the total number of contents to be displayed.

4. In the Contents No. field in the Edit Contents Toolbar, input the number of the contents to be edited.

Set the number of the contents to be edited.

5. Select the contents display and press the Space Key. If it is a character string that is to be displayed, input the character string. If it is an image that is to be displayed, the File Selection Dialog Box will be displayed. Select the image file to be displayed.

Press the Space Key.

If displaying a character string has been specified, input the character string to be displayed.

If displaying an image has been specified, input the image file to be displayed.

6. Repeat steps 4 and 5 as required for the number of contents being created.

Note Make detailed settings for the contents in the Edit Contents Dialog Box that is

displayed when the Edit Contents Button is pressed in the Edit Contents Toolbar.

Using Machine Navigator Section 4-20

4-20 Using Machine Navigator

The countermeasures for when an alarm occurs can be automatically displayed using the Machine Navigator function.

The Machine Navigator function changes the character-string and image displays registered on the screen when the value of a specified communications address changes or an alarm or event occurs.

NS-series PT

When an alarm occurs, a popup window is automatically displayed to show the countermeasure. It includes both text and graphics.

This section describes how to create the following screen data.

• Registering HOST1:100.00, HOST1:100.01 as an alarm

• Displaying popup window 100 when an alarm occurs

• Displaying the countermeasure for the alarm on popup window 100, and not displaying anything when no alarm occurs

Creating the Popup Window

1. Create popup window 100.

2. Set up two contents displays in popup window 100: one for text and one for images. In the General Tab Page in the Contents Display Property Setting Dialog Box, set Display a string and Display an image.

Select the Display a string option.

Select the

Display an imag

option.

3. Click the Edit Contents Button in the Edit Contents Toolbar.

4. The Edit Contents Dialog Box will be displayed. Make the settings for switching contents. (If the settings shown in the figure on the next page are not displayed, click the dialog box title displayed at the upper left of the dialog box.)

Using Machine Navigator Section 4-20

•Set No. of contents to 3. (The 3 represents two states in which an alarm occurs and one state in which no alarm occurs.)

•Select Switch contents linking with alarm. (Default: Selected)

•Set Contents No. when alarm does not occur to 0.

•Set Address for switching contents to $W100.

Set to 3.

Set to $W100.

Select Set to 0.

If the contents number is not displayed in the tree on the left of the dialog box, click after inputting the set values.

Click here.

ID No. for character string contents display

ID No. for ima

e contents displa

5. Set the contents. (No setting needs to be made for 0 because for Contents No. when alarm does not occur is set.)

a. Click contents No. 1 for CNT0000 to input the character string for the

countermeasure.

b. Set the background color to white.

1. Click here.

2. Input the countermeasure.

3. Set white.

Using Machine Navigator Section 4-20

c. Click contents No. 1 for CNT0001 to set the image file for which the

countermeasure is shown.

d. Set the background color to white.

1. Click here.

2. Set the image file.

3. Set white.

e. Make the settings in the same way for contents No. 2.

Set the character-string and image displays for contents No. 2.

f. Click the OK Button to close the Edit Contents Dialog Box.

6. Make the alarm-related settings. a. First select Alarm/Event Setting from the PT Menu. The Alarm/Event

Setting Dialog Box will be displayed.

b. Click the Add Button in the dialog box to open the Alarm/Event Details

Dialog Box.

Using Machine Navigator Section 4-20

1. Set HOST1:100.00.

2. Set screen 100.

3. Select this checkbox.

4. Set to 1.

5. Select this checkbox.

c. Click the OK Button to close the Alarm/Event Details Dialog Box. d. Make the settings related to HOST1:100.01 in the same way, but in this

case set Contents No. to 2.

1. Set HOST1:100.01.

2. Set screen 100.

3. Select this checkbox.

4. Set to 2.

5. Select this checkbox.

e. Click the OK Button to close the Alarm/Event Details Dialog Box. f. Click the OK Button to close the Alarm/Event Setting Dialog Box.

7. The settings are now complete. Transfer the project data to the NS-series PT.

Using Machine Navigator Section 4-20

Using the Machine Navigator function, popup screen 100 will be displayed when HOST1:100.00 turns ON at the PT, and the contents of contents No. 1 will be displayed.

Similarly, popup screen 100 will be displayed when HOST1:100.01 turns ON at the PT, and the contents of contents No. 2 will be displayed.

NS-series PT

HOST1:100.00 or HOST1:100.01 turns ON.

Popup screen 100 is automatically displayed, and contents related to the alarm are displayed in the contents display.

Note Character strings and image files can be set by selecting the contents display

and pressing the Space Key.

Press the Space Key.

For a contents display showing a character string, input the character string to be displayed.

For a contents display showing an image, select the image file.

In addition, specifying a contents number in the Edit Contents Toolbar will cause the contents for that number to be displayed. This makes it possible to set character strings and image files for individual contents numbers without having to open the Edit Contents Dialog Box. The Edit Contents Dialog Box can also be displayed by selecting PT - Edit Contents.

Omron NS-CXDC1-V2 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

CX-Designer Ver. 2.1 NS-CXDC1-V2

Notice:

About this Manual:

Guide to Version Upgrade

Related Manuals:

Read and Understand this Manual

1-1 Features of the CX-Designer

1-2 Basic Operation Procedures

2-1 Preparations for Installation

2-2 Installing the CX-Designer

2-3 Uninstalling

2-4 Installing USB Drivers for NS-Series PTs.

3-1 Starting and Exiting CX-Designer

3-2 Menu Commands

3-3 User Interface

4-1 Creating Screens Using Symbols

4-2 Using Screens from Other Projects

4-3 Classifying Screens by Application

Checking and Changing Functional Object Properties without Opening Property Setting Dialog Boxes

4-5 Listing and Editing Functional Object Properties

4-6 Editing Overlapping Objects

4-7 Creating Multi-language Labels

4-8 Checking Address Usage Status

4-9 Searching for Embedded Macros

4-10 Transferring Only Edited Data to PT

4-11 Creating Documents

4-12 How to Use Help

4-13 Integrated Simulation for the Entire System

4-14 Setting Security for Data Transfers with the PT

Setting Symbol Names and I/O Comments for Use as Labels Section 4-15

4-16 Executing Multiple Functions with a Single Operation

4-17 Replacing a Lamp with a Button

4-18 Creating Polygonal Lamps

4-19 Registering Contents

4-20 Using Machine Navigator
