Cat. No. V098-E1-05

NS15-TX_, NS12-TS_, NS10-TV_, NS8-TV_, NS5-SQ_, NS5-TQ_, NS5-MQ_

Programmable Terminals

Host Connection Manual: Host Link

OPERATION MANUAL

Introduction

This manual describes the configuration and settings required for communicating with the host devices used by NS-series Programmable Terminals for Host Link communications.

First familiarize yourself with the contents of the manuals related to NS-series

Programmable Terminals (the NS-series Setup Manual, NS-series Programming Manual, and the CX-Designer online help), and then use this manual for Host Link communications.

1-1 Overview

This section provides an overview of connecting an NS-V1/V2 PT to an OMRON Programmable Controller that supports Host Link communications.

The NS-V1/V2 PT is connected 1:1 to the CPU Unit or a Host Link Unit of an OMRON PLC. Host Link communications are used to read and display or write the words and settings in the host PLC.

NS-V1/V2 PT serial ports A and B can both be connected to a host by means of the Host Link protocol.

Reference

When an NS-V1/V2 PT and a PLC are connected by Host Link, it is not possible to change to RUN Mode. If the PLC is set for RUN Mode, it is automatically switched to Monitor Mode. For example, if a compatible Programming Console is connected to the PLC and the PLC operating mode is switched to RUN mode, the password display for the Monitor Mode will be displayed at the Programming Console.

1-2 Connection Configuration

This section describes the system configuration required for connecting to the host by Host Link communications.

1-2-1 NS-V1/V2 Configuration Required for Connection

 NS-V1/V2 Models

One of the following NS-V1/V2 PTs is required to connect with the host by Host Link communications.

Model

NS15-TX01@-V2 NS12-TS0@(B)-V1/-V2 NS10-TV0@ (B)-V1/-V2 NS8-TV0@ (B)-V1/-V2 NS8-TV1@ (B)-V1 NS5-SQ@@ (B)-V1/-V2 NS5-TQ@@ (B)-V2 NS5-MQ@@ (B)-V2

Reference

NS-series PTs without the -V1 or -V2 suffix do not support Host Link communications. One of the above NS-V1/V2 models must be used.

 NS-V1/V2 System Program

To connect to the host by means of Host Link communications, system program version 6 or later must be installed in the NS-V1/V2 PT.

System program

Ver. 6 or later

 Communications Ports

Communications

port

Serial port A Host Link

Serial port B Host Link

Applicable communications method

1:1 NT link 1:N NT link Memory link (Bar-code reader input) (Temperature controller connection) (CX-Designer connection)

The following table shows the communications methods that can be used in combination when serial ports A and B are used at the same time.

Serial port B

Host Link

Host Link YES YES YES YES YES YES YES 1:1 NT link YES YES YES YES YES YES YES 1:N NT Link YES YES YES YES YES YES YES Memory link YES YES YES No YES YES YES Bar-code reader YES YES YES YES No YES YES

Serial port A

Temperature controller YES YES YES YES YES YES YES CX-Designer connection YES YES YES YES YES YES No

1:1 NT Link

1:N NT Link

Memory link

Bar-code

reader

Temperature

controller

CX-Designer

connection

 Communications Setup

The following table shows the communications settings required at the NS-V1/V2 PT and the host to connect to the host by means of Host Link communications.

Setup

location

NS-V1/V2 PT Baud rate: 9,600 or 19,200 bps (See note 1.) Host Start bits: 1 bit

Data: 7 bits Stop bits: 2 bits Parity: Even Host Link unit number: 0 Baud rate: 9,600 or 19,200 bps (See note 1.)

Note 1: The baud rate settings must be the same for both the NS-V1/V2 PT and the host.

2: Use the 1:N protocol setting.

1-2-2 Applicable PLCs

The OMRON PLCs listed below can be connected as hosts using Host Link communications. The connection can be made either directly to the built-in serial port on the CPU Unit or to a Host Link Unit mounted to the PLC.

 C Series

C200HS, C200HX/HG/HE(-Z), CQM1, CQM1H, CPM2A/CPM2C, CPM1/CPM1A, C500, C1000H, C2000H

 CV Series

CV500, CV1000, CV2000, CVM1

 CS/CJ Series

CS1G/CS1H, CS1G-H/CS1H-H, CJ1G, CJ1G-H/CJ1H-H, CJ1M, CP1H/CP1L, CJ2H, CJ2M

Settings (See note 2.)

1-3 Connecting to the Host

The types of host that can be connected to a PT by using the serial ports on the NS-series PT and connecting to an RS-232C port at the host are described here.

1-3-1 Connecting to an RS-232C Port at the Host

 Compatible Host Units

Some models and series of OMRON PLCs have the host link function built in.

In the CS-series or CQM1H PLCs, the host link method can be used by installing a Serial Communications Board. In addition, some C200HX/HG/HE(-Z)E have an integral CPU Unit that can be connected in the host link method by installing a Communications Board.

Check the model and series of the PLC, the type of installed Serial Communications Board or Serial Communications Unit before making a connection.

The PLC Units/Boards that can be connected to an NS-series PT through a Host Link connection using RS-232C ports on both the PLC Unit/Board and PT are listed in the following table.

PLC Series CPU Units with Built-in Host Link

Function

CS Series

CJ Series

C Series

CS1G-CPU42/43/44/45-EV1 CS1H-CPU63/64/65/66/67-EV1

CS1G-CPU42H/43H/44H/45H CS1H-CPU63H/64H/65H/66H/67H

CJ1G-CPU44/CPU45 CJ1G-CPU44/CPU45

CJ1G-CPU42H/43H/44H/45H CJ1H-CPU65H/66H/67H CJ1H-CPU65H/66H/67H-R CJ2H-CPU64/65/66/67/68(-EIP)

CJ1M-CPU11/12/13/21/22/23 CJ2M-CPU11/12/13/14/15

CP1H-XA40DR-A/XA40DT-D/XA40D

CP1L-L14DR-A/L14DR-D/L14DT-D/L

C1000H-CPU01-EV1

C200HS-CPU21/22/31/33-E

C200HE-CPU42-E C200HE-CPU42-ZE

C200HG-CPU43/63-E C200HG-CPU43/63-ZE

C200HX-CPU44/64-E C200HX-CPU44/64/65/85-ZE

CPU Units Connectable with Host

Link Units or Expansion Communications Board

CS1G-CPU42/43/44/45-EV1 CS1H-CPU63/64/65/66/67-EV1

CS1G-CPU42H/43H/44H/45H CS1H-CPU63H/64H/65H/66H/67H

CJ1G-CPU42H/43H/44H/45H CJ1H-CPU65H/66H/67H CJ1H-CPU65H/66H/67H-R CJ2H-CPU64/65/66/67/68(-EIP)

CJ1M-CPU11/12/13/21/22/23 CJ2M-CPU11/12/13/14/15 /31/32/33/34/35

T1-D/X40DR-A/X40DT-D/X40DT1-D/ Y20DT-D

14DT1-D/L20DR-A/L20DR-D/L20DTD/L20DT1-D/M30DR-A/M30DR-D/M3 0DT-D/M30DT1-D/M40DR-A/M40DRD/M40DT-D/M40DT1-D

C2000H-CPU01-EV1

C200HS-CPU01/03/21/23/31/33-E C200HE-CPU11/32/42-E C200HE-CPU11/32/42-ZE C200HG-CPU33/43/53/63-E C200HG-CPU33/43/53/63-ZE C200HX-CPU34/44/54/64-E C200HX-CPU34/44/54/64/65/85-ZE

C200HE-CPU32/42-E C200HE-CPU32/42-ZE

C200HG-CPU33/43/53/63-E C200HG-CPU33/43/53/63-ZE

C200HX-CPU34/44/54/64-E C200HX-CPU34/44/54/64/65/85-ZE

Host Link Unit/

Communications

Board

CS1W-SCU21-V1 CS1W-SCB21-V1 CS1W-SCB41-V1

CJ1W-SCU21/41-V1

CP1W-CIF01

C120-LK201-EV1

C200H-LK201-EV1

C200HW-COM02/04/ 05/06-EV1

PLC Series CPU Units with Built-in Host Link

Function

C Series

CV Series (See note 3.)

CVM1 Series (See note 3.)

CompoBus/S master control unit

C1000H-CPU01-EV1

CPM1-10/20/30CDR-@+CPM1-CIF01

CPM1A-10/20/30/40CD@-@+CPM1CIF01

CPM2A-30/40/60CD@@-@+CPM1CIF01 (Peripheral port connection)

CPM2C-10/20@@@@@@-@ (See note 1.)

CQM1-CPU21-E

CQM1-CPU41/42/43/44-EV1

CQM1H-CPU11/21/51/61 (See note 2.) CQM1H-CPU51/61 CQM1H-SCB41

CV500-CPU01-EV1 CV500-CPU01-EV1 CV500-LK201

CV1000-CPU01-EV1 CV1000-CPU01-EV1

CV2000-CPU01-EV1 CV2000-CPU01-EV1

CVM1-CPU01-EV2 CVM1-CPU11-EV2 CVM1-CPU21-EV2

SRM1-C02-V2

CPU Units Connectable with Host

Link Units or Expansion Communications Board

C2000H-CPU01-EV1

C1000HF-CPUA1-EV1 C2000H-CPU01-EV1

CVM1-CPU01-EV2 CVM1-CPU11-EV2 CVM1-CPU21-EV2

Host Link Unit/

Communications

Board

C500-LK201-EV1

C500-LK203

CV500-LK201

Note 1: Use a CPM2C-CN111 or CS1W-CN114/118 Connecting Cable, CPM1-CIF01

RS-232C Adapter, or CPM1-CIF11 RS-422A Adapter to connect.

2: The CQM1H-CPU11 does not have a built-in RS-232C port, so connect to the

peripheral port to the PT with a CS1W-CN118 Connecting Cable.

3: CPU Units of CVM1/CV-series PLCs without the suffix –EV@ cannot be connected.

 Settings at the Host

When using the host link method, the settings shown below must be made at the host (depending on the unit, some of these settings may not be necessary, or settings not shown here may be necessary).

Item Switch Setting

I/O port RS-232C

Communications speed Set the same baud rate as set at the NS-series PT (See note 1.)

Transfer code ASCII, 7 data bits, 2 stop bits

Parity Even

1-to-1/1-to-N 1-to-N (See note 2.)

Command level Level 1, 2, 3

Unit # 00

Note 1: Set the Host Link communications speed (baud rate) to 9600 bps or 19200 bps with

the Communications Setting menu item in the CX-Designer and the System Menu for the NS-series PT. For details, refer to 1-4 Settings for Host Link.

2: The 1-to-N setting enables using a BCC (Block Check Character). It is not actually

possible to connect more than one NS-series PT in a single Host Link.

The setting methods for each type of unit are described in the following.

Connecting to a C-series Host Link Unit

C200H/C200HS/C200HE(-Z)E/C200HG(-Z)E/C200HX(-Z)E Rack-mounted type: C200H-LK201-V1

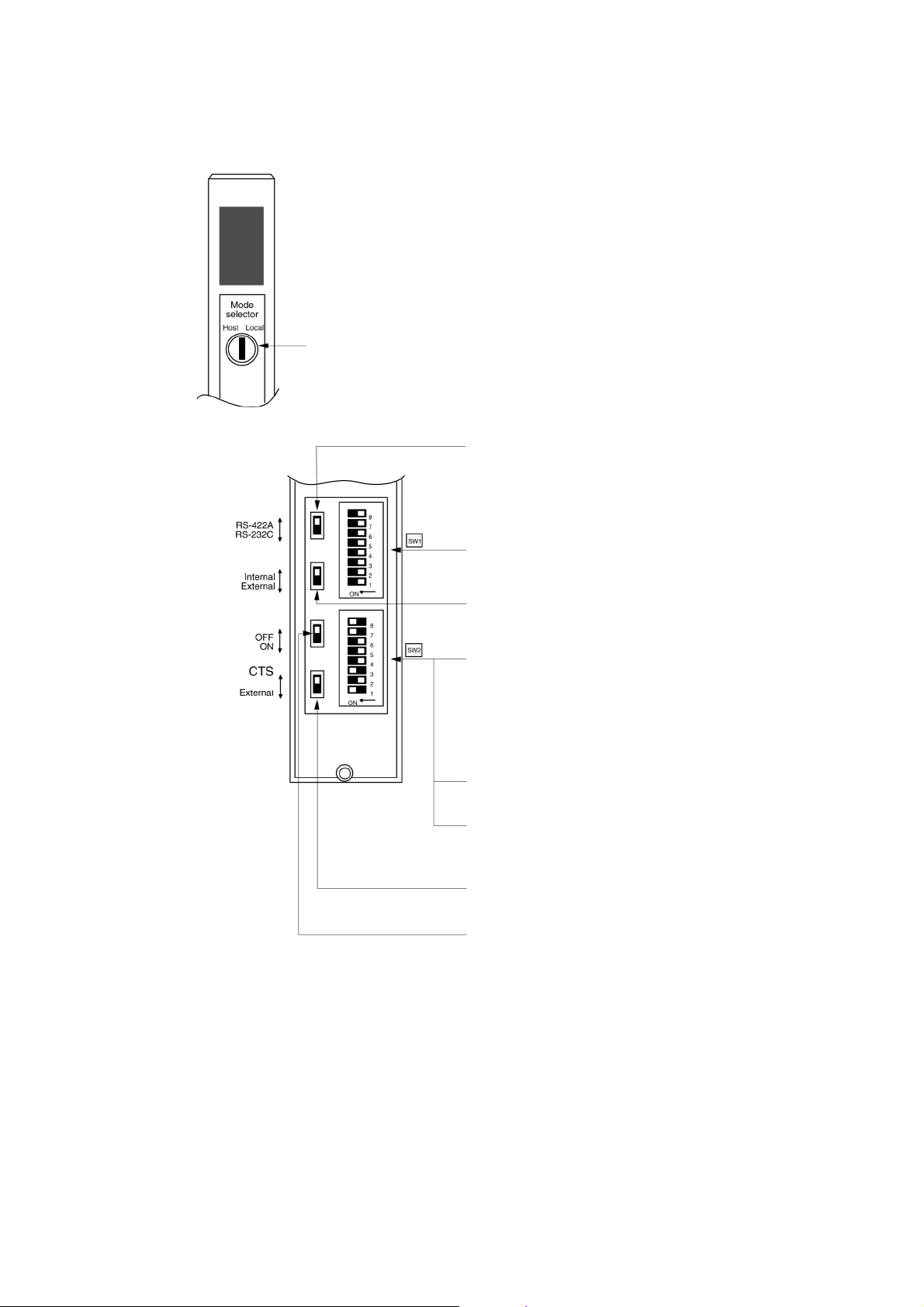

Setting the Front Switches

Set each switch with a flat blade screwdriver so that the values or symbols in the setting value window agree with the following.

• Unit # (SW1, SW2) Set these switches to 0.

• Command level, parity, and transfer code (SW4) Set this switch to 2.

• Communications speed (SW3) Set this switch to 5 to select 9600 bps.

Set this switch to 6 to select 19200 bps.

Setting the Rear Switches

• 1-to-1/1-to-N selection (DIP switch) Set #3 to ON.

CTS selector switch

External

0 V (ON)

• CTS selection (selector switch) Set this always to 0 V (ON).

C1000H/C2000H Rack-mounted type: C500-LK201-EV1

Setting the Front Switches

• Mode control (key switch) Set this to host link.

Setting the Rear Switches

(

)

(

)

pply

I/O port

• I/O port selection (selector switch) Set this to RS-232C.

• Unit # (DIP SW1) Set SW1-1 to SW1-5 to OFF (0).

0 V

• Synchronization (selector switch) Set this to Internal.

• Communications speed (DIP SW2-1 to SW2-4)

Set these switches to 0010 to select 19,200 bps.

Set these switches to 1010 to select 9,600 bps.

(0: OFF 1: ON)

• 1-to-1/1-to-N selection (DIP SW2-6) Set SW2-6 to OFF (0) (1-to-N).

• Command level (DIP SW2-7, SW2-8) Set these switches to ON (1).

Levels 1, 2, and 3 are enabled.

• CTS selection (selector switch) Set this always to 0 V (ON).

nchronization

Terminato

C1000H(F)/C2000H Rack-mounted type: C500-LK203

Setting the Rear Switches

• I/O port selection (selector switch)

5V su

Set this to RS-232C.

I/O port

nchronization

Terminator

• Unit #, parity, and transfer code (DIP SW1-1 to SW1-7)

Set SW1-1 to SW1-7 to OFF (0).

• Synchronization (selector switch) Set this to Internal.

• Communications speed

(DIP SW2-1 to SW2-4)

Set these switches to 0010 to select 19,200 bps.

Set these switches to 1010 to select 9,600 bps.

(0: OFF 1: ON)

• 1-to-1/1-to-N selection (DIP SW2-6) Set SW2-6 to OFF (0) (1-to-N).

• Command level (DIP SW2-7, SW2-8) Set these switches to ON (1).

Levels 1, 2, and 3 are enabled.

• CTS selection (selector switch) Set this always to 0 V (ON).

C200H/C1000H/C2000H CPU Unit-mounted Type: C120-LK201-EV

(

)

Setting the Rear Switches

Unit #, parity, and transfer code

•

(DIP SW1-1 to SW1-5) Set SW1-1 to SW1-5 to OFF (0). * Parity is fixed at Even Parity. Transfer code

is fixed at ASCII 7 data bits and 2 stop bits.

Communications speed (DIP SW2-1 to SW2-4)

•

Set these switches to 0010 to select 19200 bps. Set these switches to 1010 to select 9600 bps.

0: OFF 1: ON

1-to-1/1-to-N selection (DIP SW2-6)

•

Set SW2-6 to OFF (0) (1-to-N).

Command level (DIP SW2-7, SW2-8)

•

Set these switches to ON (1). (Levels 1, 2, and 3 are enabled.)

CTS selection (DIP SW3-1 and SW3-2)

•

Set SW3-1 to ON (1), and SW3-2 to OFF (0). (Set this always to 0V.)

Synchronization (DIP SW3-3 to SW3-6)

•

Set SW3-3 and SW3-5 to ON (1), and SW3-4 and SW3-6 to OFF (0). (Set these to Internal.)

Connecting to a CVM1/CV Series Host Link Unit

CVM1/CV-series Rack-mounted type: CV500-LK201

A CVM1/CV series host link unit (CV500-LK201) has two connectors (communications ports 1 and 2). Either of these ports can be used for connection to an NS-series PT by the RS-232C method. However, since the connectors at these ports are of different types, a cable that matches the connector must be prepared.

• Communications port 1 Communications port 1 is a 25-pin connector for RS-232C use only.

• Communications port 2 Communications port 2 is a 9-pin connector which allows selection of the RS-232C or RS-422A method. When this port is used with the RS-232C method, the I/O port selector switch on the front of the unit must be set to RS-232C (the upper position).

CPU Bus Unit Settings

When connecting to a CVM1/CV series host link unit, set the following communications conditions for the CPU Bus Unit settings.

Item Setting at Host

Communications speed Set the same baud rate as set at the NS-series PT (See note 1.)

Transfer code ASCII, 7 data bits, 2 stop bits

Parity Even

Note 1: Set the Host Link communications speed (baud rate) to 9600 bps or 19200 bps with

the Communications Setting menu item in the CX-Designer and the System Menu for the NS-series PT. For details, refer to 1-4 Settings for Host Link.

Set the CPU Bus Unit settings directly from a Programming Device (e.g. CX-Programmer).

For details on the CPU Bus Unit settings, refer to the SYSMAC CVM1/CV-series Host Link Unit Operation Manual (W205-E1-@).

Setting The Front Switches

Unit # (SW3, SW4)

•

When using communication port 2, set these switches to 0.

I/O port selection (selector switch)

•

Set this to RS-232C.

CTS selection (DIP SW2 and SW3)

•

Set SW2 or SW3 to ON. (Set this always to 0V.) To use communication port 1, set SW2. To use communication port 2, set SW3.

Communication condition setting (DIP SW1)

•

Set this switch to OFF. Communication is executed in accordance with the CPU bus unit system settings made at the PLC. The initial values for the system settings ar e as follows.

- Communications speed: 9600 bps

- Parity: Even

- Xon/Xoff control: Not executed

- Communication method: Full duplex

- Stop bits: 2 stop bits

- Data length: 7 bits

Connecting to a CS-series Serial Communications Unit

CS-series Rack-mounted type: CS1W-SCU21(-V1)

Setting the Front Switches

Set the unit number of the Serial Communications Unit by using the rotary switch located on the front panel. Set each switch with a flat blade screwdriver so that the values or symbols in the setting value window agree with the following.

Set the unit number to 0 through F so that it will not overlap with the numbers used in other

units.

Allocation DM Area Settings in CPU Unit

Settings are written from the Programming Device (a Programming Console or CX-Programmer) directly into the allocation DM area (system setting area) of the CPU Unit. After the settings are written, they become effective by turning the power ON, restarting the unit, restarting the communications port, or execution of the STUP command.

In the following, the words allocated in the DM area and the settings are shown.

m = DM 30000 + 100 × unit number (word address)

Allocation DM area word

Port 1 Port 2

Writing

Value

m m+10 8000 Host link mode, 2 stop bits, even parity, data length

7 bits

0000 Communications speed 9600 bps. m+1 m+11

0007 Communications speed 19200 bps.

m+2 m+12 0000 Transmit delay time 0 ms.

m+3 m+13 0000 No CTS control Unit No.0 for host link

Connecting to a CJ-series Serial Communications Unit

CJ-series Rack-mounted Type: CJ1W-SCU21/41-V1

Setting the Front Switches

Set the unit number for the Serial Communications Unit using the rotary switch on the front of the Unit. Follow the procedure below use a flat-head screwdriver (−) to set the number and sign in the setting display window.

Port 2 on the CJ1W-SCU41-V1 is an RS-232C port.

CJ1W-SCU21-V1

CJ1W-SCU41-V1

Settings

• Unit Number Setting Set a number from 0 to F that does not overlap another unit.

• Port 1 RS-232C

• Port 2 RS-232C

• Unit Number Setting Set a number from 0 to F that does not overlap another unit.

• Port 2 RS-232C

Setting CPU Unit Allocation DM Area Words

Settings can be directly written to the Allocation DM Area (System Setup Area) by using a Programming Device, such as a Programming Console or the CX-Programmer. After the settings are written, the settings will become valid by performing any of the following: turning on the power supply again, restarting the Unit, restarting the communications port, or executing a STUP instruction.

The following table shows words allocated in the DM Area and setting details.

Allocation DM area word

Port 1 Port 2

m m+10 8000 Host link mode, 2 stop bits, even parity,

m+2 m+12 0000 Transmission delay time: 0 ms

m+3 m+13 0000 No CTS control, Unit number 0 for host

Connecting to a CPU Unit

CV-series and CVM1/CV-series (-EV@) CPU Units

CV500-CPU01-EV1/CV1000-CPU01-EV1/CV2000-CPU01-EV1

CVM1-CPU01-EV2/CVM1-CPU11-EV2/CVM1-CPU21-EV2

PLC Setup

When connecting to a CVM1/CV series CPU Unit, set the following communications conditions for the PLC Setup.

Item Setting at Host

Communications speed Set the same baud rate as set at the NS-series PT (See note.)

Stop bit 2 stop bits

Parity Even

Data length ASCII 7 bits

Unit # 00

Note: Set the Host Link communications speed (baud rate) to 9600 bps or 19200 bps with

the Communications Setting menu item in the CX-Designer and the System Menu for the NS-series PT. For details, refer to 1-4 Settings for Host Link.

Either set PLC Setup directly from a Programming Device (e.g. CX-Programmer), or transmit the PLC Setup made at a Programming Device to the CPU UNIT.

For details on the PLC Setup, refer to the SYSMAC CVM1/CV500/1000/2000 Operation Manual: Ladder Diagrams (W202-E1-@).

m = D30000 + 100 × unit number (word address)

Writing Value Setting details

7-bit data length

0000 Baud rate: 9,600 bps m+1 m+11

0007 Baud rate: 19,200 bps

link

Setting the Front Switches

• I/O port selection (selector switch) Set this to RS-232C.

• System setting (DIP SW4) To effect the existing DIP switch settings, set SW4 to ON. To effect the existing PC Setup, set SW4 to OFF.

I/O port selector switch

C-series C200HS, C200HX/HG/HE(-Z)E, CPM1, CPM2A, CPM2C, CQM1, CQM1H CPU Units, SRM1

The connection method depends upon the model of PLC being used, as shown in the following table.

PLC model Connection method

C200HS, CQM1 Connect to the CPU Unit’s built-in RS-232C port.

C200HX/HG/HE(-Z)E

CQM1H

• Connect to the CPU Unit’s built-in RS-232C port.

• Connect to one of the RS-232C ports (port A or port B) on a Serial

Communications Board.

• Connect to the CPU Unit’s built-in RS-232C port.

• Connect to the peripheral port through a CS1W-CN118

Connecting Cable.

• Connect to the RS-232C port (port 1) on a Serial Communications Board.

CPM1 Connect to the peripheral port through a CPM1-CIF01

RS-232C Adapter.

CPM2A, SRM1

• Connect to the CPU Unit’s built-in RS-232C port.

• Connect to the peripheral port through a CPM1-CIF01 RS-232C

Adapter.

CPM2C Connect to the CPU Unit’s RS-232C port or the peripheral

port through a Connecting Cable (CPM2C-CN111, CS1W-CN118, or CS1W-CN114). (The CPM2C-CN111 splits the Unit’s communications port into an RS-232C port and a peripheral port. A CPM1-CIF01 RS-232C Adapter is also required to connect to this peripheral port.)

Note

For CPUs manufactured before or during June 1995 (lot No.

DIP switch settings differ from

existin the existing PC Setup as follows.

- DIP switch settings: 2,400 bps, 1 stop bit, even parity, 7 bit data length

- PC Setup: 9,600 bps, 2 stop bits, even parity, 7 bit data length

For CPUs manufactured from July 1995 onward (lot No. values in the DIP switch settings also are 9,600 bps and 2 stop bits.

65), the

75), the stipulated

PLC Setup Area Settings

When connecting to a C200HS, C200HX/HG/HE(-Z)E, CPM1, CPM2A, CPM2C, CQM1, or CQM1H CPU Unit, or SRM1, set the following communications conditions for the PLC Setup area.

Item Setting at Host

Communications mode Host link mode

Communications speed Set the same baud rate as set at the NS-series PT (See note.)

Stop bit 2 stop bits

Item Setting at Host

Parity Even

Data length ASCII 7 bits

Unit # 00

Note: Set the Host Link communications speed (baud rate) to 9600 bps or 19200 bps with

the Communications Setting menu item in the CX-Designer and the System Menu for the NS-series PT. For details, refer to 1-4 Settings for Host Link.

Set the PLC Setup area settings directly from a Programming Device (e.g. CX-Programmer).

For details on operations relating to the PLC Setup area, refer to the manual for the PLC which is used.

The PLC Setup area word numbers and settings to be made depending on the unit and port to which the connection is made are shown below.

CPM2A, CPM2C, CQM1H, or SRM1: Peripheral port connection

Word Writing Value Settings

DM6650 0001 Host link mode, no CTS control, communications conditions

set by the contents of DM

DM6651

0303 Data length 7 bits, 2 stop bits, even parity, communications

speed: 9600 bps

0304 Data length 7 bits, 2 stop bits, even parity, communications

speed: 19200 bps

DM6653 0000 Unit # 00

C200HS, C200HX/HG/HE(-Z)E, CPM2A, CPM2C, CQM1, CQM1H (other than the CPU11), or SRM1: Built-in RS-232C port connection

Word Writing Value Settings

DM6645 0001 Host link mode, no CTS control, communications conditions

set by the contents of DM

DM6646

0303 Data length 7 bits, 2 stop bits, even parity, communications

speed: 9600 bps

0304 Data length 7 bits, 2 stop bits, even parity, communications

speed: 19200 bps

DM6648 0000 Unit # 00

C200HX/HG/HE(-Z)E: Serial Communications Board port A, CQM1H: Serial Communications Board port 1

Word Writing Value Settings

DM6555 0001 Host link mode, no CTS control, communications conditions

set by the contents of DM area

DM6556

0303 Data length 7 bits, 2 stop bits, even parity, communications

speed: 9600 bps

0304 Data length 7 bits, 2 stop bits, even parity, communications

speed: 19200 bps

DM6558 0000 Unit # 00

C200HX/HG/HE(-Z)E: Board Port B Connection

Word Writing Value Settings

DM6550 0001 Host link mode, no CTS control, communications conditions

set by the contents of DM

DM6551

0303 Data length 7 bits, 2 stop bits, even parity, communications

speed: 9600 bps

0304 Data length 7 bits, 2 stop bits, even parity, communications

speed: 19200 bps

DM6553 0000 Unit # 00

CPM1 Connection

Word Writing Value Settings

DM6650 0001 Host link mode, communications conditions set by the

contents of DM area

DM6651

0303 Data length 7 bits, 2 stop bits, even parity, communications

speed: 9600 bps

0304 Data length 7 bits, 2 stop bits, even parity, communications

speed: 19200 bps

DM6653 0000 Unit # 00

Connecting to a CPM2C

The CPM2C PLCs do not have the same kind of port connectors found on CS-series PLCs. The CPM2C’s communications port handles both RS-232C and peripheral port connections which are divided internally. Therefore, when using the CPM2C, it is necessary to select RS-232C or peripheral port connections, according to the kind of cable and port (on the cable) used, as shown in the following table. Refer to the CPM2C Operation Manual for more details.

Port connecting to PT PLC Setup

RS-232C port (D-Sub 9-pin) of CPM2C-CN111 Built-in RS-232C port settings

Peripheral port of CPM2C-CN111 Peripheral port settings

RS-232C port (D-Sub 9-pin) of CS1W-CN118 Built-in RS-232C port settings

Peripheral port of CS1W-CN114 Peripheral port settings

Peripheral port

RS-232C port (D-Sub 9-pin, female)

Peripheral port

Setting the DIP Switches of a C200HX/HG/HE(-Z)E, CQM1 or CQM1H

When using a C200HX/HG/HE(-Z)E, CQM1, or CQM1H the DIP switches on the front panel must be set as shown below in order to make the settings in the PLC Setup area (data memory) effective.

RS-232C port communication condition setting Set DIP SW5 to OFF to make the settings made in PC Setup effective.

When using the CQM1H’s built-in peripheral port, turn ON SW7.

Setting the Switches of a CPM2A

When using a CPM2A, the switches on the front panel must be set as shown below in order to make the PLC Setup settings effective.

Set the Communications switch to OFF (down position).

Setting the Switches of a CPM2C

When using a CPM2C, the switches on the front panel must be set as shown below in order to make the PLC Setup settings effective.

The settings for SW1 and SW2 depend upon the usage of the peripheral port and RS-232C port.

• Connecting PT to peripheral port

• Connecting PT to built-in RS-232C port

(A device that requires non-standard communications settings is connected to the peripheral port.)

• Connecting PT to built-in RS-232C port (A Programming Console is connected to the peripheral port.)

Setting the Switches on a RS-232C Adapter

When using a CPM1-CIF01 RS-232C Adapter, set the mode switch as shown in the following diagram.

Set the mode setting switch to HOST (upper position).

CS-series CPU Unit type: CS1G/H-CPU-EV1, CS1G/H-H

Connect to the built-in RS-232C port of the CPU Unit, or the RS-232C port of the Communications Board. Note that the connection to a peripheral port must be made via an RS-232C adapter (CS1W-CN118) specially designed for connecting to a peripheral port.

PLC Setup

When connecting to a CS-series CPU Unit, set the following communications conditions for the PLC Setup area. Since the settings shown below are the PLC default settings for the CPU Unit, no change to the PLC Setup is necessary as long as the communications speed is maintained at 9600 bps.

Item Setting at Host

Communications speed Set the same baud rate as set at the NS-series PT (See note.)

Stop bits 2 stop bits

Parity Even

Data length ASCII 7 bits

Unit No. for the host link 00

Note: Set the Host Link communications speed (baud rate) to 9600 bps or 19200 bps with

the Communications Setting menu item in the CX-Designer and the System Menu for the NS-series PT. For details, refer to 1-4 Settings for Host Link. When the communications speed is set to 19200 bps., the PLC Setup of the CPU Unit need to be changed.

Either set the PLC Setup directly from a Programming Device (Programming Console), or transmit the PLC Setup made at a Programming Device (CX-Programmer) to the CPU Unit.

For details on PLC Setup, refer to the SYSMAC CS series Operation Manual (W339-E1-@).

When using the built-in RS-232C port of CS1G/H

Word # Writing Value Settings

160 8000 Host link mode, data length 7 bits, 2 stop bits, even parity

0000 Communications speed: 9600 bps. 161

0007 Communications speed: 19200 bps.

166 0000 Unit #00

When using the peripheral port of CS1G/H

Word # Writing Value Settings

144 8000 Host link mode, data length 7 bits, 2 stop bits, even parity

0000 Communications speed: 9600 bps. 145

0007 Communications speed: 19200 bps.

150 0000 Unit #00

Setting the Front Switches

Set the CPU Unit DIP switches to 4 or 5 in accordance with the port the NS-Series PT is connected to.

DIP switches (inside the battery storage)

• Set SW4 to ON (establishing communication in accordance with PC Setup) when connecting the NSseries PT to a peripheral port.

Peripheral port

This is used mainly for connection to the Programming Device. (This also supports the RS-232C unit connection.)

RS-232 port

This is used mainly for connection to the RS-232C unit. (This also supports the CX-Programmer.)

• Set SW5 to OFF (establishing communication in accordance with PC Setup) when connecting the NSseries PT to an RS-232C port.

Connecting to CS1 Series Serial Communications Board

Serial Communications Board equipped with an RS-232C port for CS-series CPU Units: CS1W-SCB41/21-V1

Allocation DM Area Settings in CPU Unit

In the following, the words allocated in the DM area and the settings are shown.

Allocation DM area word

Port 1 Port 2

Writing Value Settings

D32000 D32010 8000 Host link mode, 2 stop bits, even parity,

data length 7 bits

0000 Communications speed 9600 bps. D32001 D32011

0007 Communications speed 19200 bps.

D32002 D32012 0000 Transmit delay time 0 ms.

D32003 D32013 0000 No CTS control, Unit No. 0 for host link

1-3-2 Connecting to an RS-422A/485 Port at the Host

 Compatible Host Units

Some models and series of OMRON PLCs have the RS-422A type host link function built in. With the CS-series and CQM1H, the host link method can be used by installing a serial Communications Board. In addition, some C200HX/HG/HE(-Z)E devices have an integral CPU Unit that can be connected in the host link method by installing a Communications Board.

With the CPM2A and CPM2C, an RS-422A type of 1:1 NT Link can be created through a CPM1-CIF11 RS-422A Adapter.

Check the model and series of the PLC and the type of the installed Board or Unit before making a connection.

The PLC Units that provide an RS-422A Host Link interface and that can be connected to an NS-series PT port to which an RS-232C/RS422A Link Adaptor (NS-AL002) is connected are listed in the following table.

PLC

Series

CS Series

CJ Series

C Series

CPU Units with Built-in Host Link

Function

CP1H-XA40DR-A/XA40DT-D/XA

CP1L-L14DR-A/L14DR-D/L14DT-

C1000H-CPU01-EV1

C200HE-CPU32/42-E

C200HG-CPU33/43/53/63-E

C200HX-CPU34/44/54/64-E

C1000H-CPU01-EV1

CPU Units Connectable with

Host Link Units or Expansion

Communications Board

CS1G-CPU42/43/44/45-EV1

CS1H-CPU63/64/65/66/67-EV1

CS1G-CPU42H/43H/44H/45H

CS1H-CPU63H/64H/65H/66H/ 67H

CJ1G-CPU44/CPU45

CJ1G-CPU42H/43H/44H/45H

CJ1H-CPU65H/66H/67H

CJ1H-CPU65H/66H/67H-R

CJ2H-CPU64/65/66/67/68(-EIP)

CJ1M-CPU11/12/13/21/22/23

CJ2M-CPU11/12/13/14/15 /31/32/33/34/35

40DT1-D/X40DR-A/X40DT-D/X40 DT1-D/Y20DT-D

D/L14DT1-D/L20DR-A/L20DR-D/ L20DT-D/L20DT1-D/M30DR-A/M 30DR-D/M30DT-D/M30DT1-D/M4 0DR-A/M40DR-D/M40DT-D/M40 DT1-D

C2000H-CPU01-EV1

C200HS-CPU01/03/21/23/31/33-E

C200HE-CPU11/32/42-E

C200HE-CPU11/32/42-ZE

C200HG-CPU33/43/53/63-E

C200HG-CPU33/43/53/63-ZE

C200HX-CPU34/44/54/64-E

C200HXCPU34/44/54/64/65/85-ZE

C200HE-CPU32/42-ZE

C200HG-CPU33/43/53/63-ZE

C200HXCPU34/44/54/64/65/85-ZE

C2000H-CPU01-EV1

C1000HF-CPUA1-EV1

C2000H-CPU01-EV1

Host Link Unit/

Communications Board

CS1W-SCB41-V1

CJ1W-SCU41-V1

CP1W-CIF11

C120-LK202-EV1

C200H-LK202-EV1

C200HW-COM03/06-EV1

C500-LK201-EV1

C500-LK203

PLC

Series

C Series

CV Series (See note

2.)

CVM1 Series (See note

2.)

SRM1 SRM1-C02-V2+CPM1-CIF11

CPU Units with Built-in Host Link

Function

CPM1-10/20CDR-@+CPM1-CIF11

CPM1A-10/20/30/40CD@-@+CPM1-CIF11

CPM2A-30/40/60CD@@-@+CPM1-CIF11 (Peripheral port connection)

CPM2C-10/20@@@@@@-@ (See note 1.)

CQM1H-CPU51/61 CQM1H-SCB41

CV500-CPU01-EV1 CV500-CPU01-EV1

CV1000-CPU01-EV1 CV1000-CPU01-EV1

CV2000-CPU01-EV1 CV2000-CPU01-EV1

CVM1-CPU01-EV2

CVM1-CPU11-EV2

CVM1-CPU21-EV2

CPU Units Connectable with

Host Link Units or Expansion

Communications Board

CVM1-CPU01-EV2

CVM1-CPU11-EV2

CVM1-CPU21-EV2

Host Link Unit/

Communications Board

CV500-LK201

Note 1: Use a CPM2C-CN111 or CS1W-CN114/118 Connecting Cable, CPM1-CIF01

RS-232C Adapter, or CPM1-CIF11 RS-422A Adapter to connect.

2: CPU Units of CVM1/CV-series PLCs without the suffix -EV@ cannot be connected.

The RS-485 interface (2-wire method) provided by NS-series PTs is for connecting to an OMRON Temperature Controller. Do not connect it to an NS-series PT or PLCs using RS-485.

 Settings at the Host

When using the RS-422A type host link method, the settings shown below must be made at the host (depending on the unit, some of these settings may not be necessary, or settings not shown here may be necessary).

Item Setting at Host

I/O port RS-422A

Communications speed Set the same baud rate as set at the NS-series PT (See note 1.)

Transfer code ASCII, 7 data bits, 2 stop bits

Parity Even

1-to-1/1-to-N 1-to-N (See note 2.)

Command level Level 1, 2, 3

Unit # 00

Note 1: Set the Host Link communications speed (baud rate) to 9600 bps or 19200 bps with

the Communications Setting menu item in the CX-Designer and the System Menu for the NS-series PT. For details, refer to 1-4 Settings for Host Link.

2: The 1-to-N setting enables using a BCC (Block Check Character). It is not actually

possible to connect more than one NS-series PT in a single Host Link.

The setting methods for each type of unit are described in the following.

Connecting to a C Series Host Link Unit

C200H/C200HS/C200HE(-Z)E/C200HG(-Z)E/C200HX(-Z)E Rack-mounted Type: C200H-LK202-V1

Setting the Front Switches

Set each switch with a flat blade screwdriver so that the values or symbols in the setting value window agree with the following:

• Unit # (SW1, SW2) Set these switches to 0.

Command level, parity, and transfer code (SW4)

•

Set this switch to 2.

• Communications speed (SW3) Set this switch to 5 to select 9600 bps. Set this switch to 6 to select 19200 bps.

Setting the Rear Switches

Terminator

• Terminator setting (selector switch) Set this switch to ON.

• 1-to-1/1-to-N protocol selection (selector switch) Set this switch to 1-to-N (OFF).

C1000H/C2000H Rack-mounted Type: C500-LK201-EV1

Setting the Front Switches

• Mode selector (key switch)

Set this to Host link.

Setting the Rear Switches

• I/O port selection (selector switch) Set this to RS-422A.

I/O port

Synchronization

Terminator

0 V

• Unit # (DIP SW1) Set SW1-1 to SW1-5 to OFF (0).

• Synchronization (selector switch) Set this to Internal.

• Communications speed (DIP SW2-1 to SW2-4) Set these switches to 0010 to select 19200 bps. Set these switches to 1010 to select 9600 bps. (0: OFF 1: ON)

• 1-to-1/1-to-N selection (DIP SW2-6) Set SW2-6 to OFF (0) (1-to-N).

• Command level (DIP SW2-7, SW2-8) Set these switches to ON (1). (Levels 1, 2, and 3 are enabled.)

• CTS selection (selector switch) Set this always to 0 V (ON).

• Terminator setting (selector switch) Set this switch to ON.

C1000H(F)/C2000H Rack-mounted Type: C500-LK203

Setting the Rear Switches

• I/O port selection (selector switch)

Set this to RS-422A.

5V supply

I/O port

Synchronization

Terminator

• Unit #, parity, and transfer code

(DIP SW1-1 to SW1-7) Set SW1-1 to SW1-7 to OFF (0).

• Synchronization (selector switch)

Set this to Internal.

• Communications speed

(DIP SW2-1 to SW2-4) Set these switches to 0010 to select 19,200 bps. Set these switches to 1010 to select 9,600 bps. (0: OFF 1: ON)

• 1-to-1/1-to-N selection (DIP SW2-6)

Set SW2-6 to OFF (0) (1-to-N).

• Command level (DIP SW2-7, SW2-8)

Set these switches to ON (1). (Levels 1, 2, and 3 are enabled.)

• CTS selection (selector switch)

Set this always to 0 V (ON).

• Terminator setting (selector switch)

Set this switch to ON.

C200H/C1000H/C2000H CPU-mounted Type: C120-LK202-EV1

Setting the Rear Switches

• Unit #, parity, and transfer code

(DIP SW1-1 to SW1-5) Set SW1-1 to SW1-5 to OFF (0). * Parity is fixed at Even Parity. Transfer code

is fixed at ASCII 7 data bits and 2 stop bits.

• Communications speed (DIP SW2-1 to SW2-4)

Set these switches to 0010 to select 19200 bps. Set these switches to 1010 to select 9600 bps. (0: OFF 1: ON)

• 1-to-1/1-to-N selection (DIP SW2-6)

Set SW2-6 to OFF (0) (1-to-N).

• Command level (DIP SW2-7, SW2-8)

Set these switches to ON (1). (Levels 1, 2, and 3 are enabled.)

• Terminator setting (DIP SW3-1 to SW3-6)

Set SW3-1, SW3-3, and SW3-5 to ON (1). Set SW3-2, SW3-4, and SW3-6 to OFF (0). (Set terminator ON.)

Connecting to a CVM1/CV Series Host Link Unit

CVM1/CV series Rack-mounted Type: CV500-LK201

A CVM1/CV series host link unit (CV500-LK201) has two connectors (communications ports 1 and 2). To use the RS-422A type host link method, set communications port 2 to RS-422A.

Communications port 2 is a 9-pin connector which allows selection of the RS-232C or RS-422A method. When this port is used with the RS-422A method, the I/O port selector switch on the front of the unit must be set to RS-422A (the lower position).

CPU Bus Unit Settings

When connecting to a CVM1/CV series host link unit, set the following communications conditions for the CPU Bus Unit settings.

Item Setting at Host

Communications speed Set the same baud rate as set at the NS-series PT (See note 1.)

Transfer code ASCII, 7 data bits, 2 stop bits

Parity Even

Note 1: Set the Host Link communications speed (baud rate) to 9600 bps or 19200 bps with

the Communications Setting menu item in the CX-Designer and the System Menu for the NS-series PT. For details, refer to 1-4 Settings for Host Link.

Set the CPU Bus Unit settings directly from a Programming Device (e.g., CX-Programmer).

For details on the CPU Bus Unit settings, refer to the SYSMAC CVM1/CV-series Host Link Unit Operation Manual (W205-E1-@).

Setting the Front Switches

• Unit # (SW3, SW4)

Set these switches to 0.

Communications port 1 (RS-232C)

Communications port 2 (RS-232C/RS-422A)

I/O port selector switch

Connecting to a CPU Unit

CVM1/CV-series (-EV@) CPU Units

• CV500-CPU01-EV1/CV1000-CPU01-EV1/CV2000-CPU01-EV1

• CVM1-CPU01-EV2/CVM1-CPU11-EV2/CVM1-CPU21-EV2

PLC Setup

When connecting to a CVM1/CV-series CPU Unit, set the following communications conditions for the PLC Setup.

Item Setting at Host

Communications speed Set the same baud rate as set at the NS-series PT (See note.)

Stop bit 2 stop bits

Parity Even

Data length ASCII 7 bits

Unit # 00

Note: Set the Host Link communications speed (baud rate) to 9600 bps or 19200 bps with

the Communications Setting menu item in the CX-Designer and the System Menu for the NS-series PT. For details, refer to 1-4 Settings for Host Link.

Either set the PLC Setup directly from a Programming Device (e.g. CX-Programmer), or transmit the PLC Setup made at a Programming Device to the CPU Unit.

For details on the PLC Setup, refer to the SYSMAC CVM1/CV500/CV1000/ CV2000 Operation Manual: Ladder Diagrams (W202-E1-@).

• I/O port selection (selector switch)

Set this to RS-422A.

• Communication condition setting (DIP SW1)

Set this switch to OFF.

Communication is executed in accordance with the CPU bus unit system settings made at the PLC. The initial values for the system settings are as follows.

- Communications speed: 9,600 bps

- Parity: Even

- Xon/Xoff control: Not executed

- Communication method: Full duplex

- Stop bits: 2 stop bits

- Data length: 7 bits

• Terminator setting (selector switch)

Set this to ON.

Setting the Front Switches

I/O port selector switch

• I/O port selection (selector switch)

Set this to RS-422A.

• Communication type setting (DIP SW3)

Set SW3 to OFF. (for host link communication)

• Host link default value settings

(DIP SW4) To effect the existing DIP switch settings, set SW4 to ON. To effect the values set in the PC Setup, set SW4 to OFF.

Note

For CPUs manufactured before or during June 1995 (lot No. existing DIP switch settings differ from the PC Setup default values as follows.

- Existing DIP switch settings: 2,400 bps, 1 stop bit, even parity, 7 bit data length

- PC Setup default values: 9,600 bps, 2 stop bits, even parity, 7 bit data length

For CPUs manufactured from July 1995 onward (lot No. values in the DIP switch settings also are 9600 bps and 2 stop bits.

65), the

75), the stipulated

• Terminator setting (DIP SW6)

Set this switch to ON. (Set terminator ON.)

C-series C200HX/HG/HE(-Z)E, CPM1, CPM2A, CPM2C, CQM1H, CPU Unit or SRM1

The connection method depends upon the model of PLC being used, as shown in the following table.

PLC model Connection method

C200HX/HG/HE(-Z)E

CQM1H

• Connect to the RS-422A port (port A) on a Communications Board.

• Connect to the RS-422A port (port 2) on a Serial Communications

Board.

CPM1

• Connect to the peripheral port through a CPM1-CIF11 RS-422A Adapter.

CPM2A, SRM1

• Connect to the peripheral port through a CPM1-CIF11 RS-422A Adapter.

CPM2C

• Connect to the peripheral port (on a CPM2C-CN111 or CS1W-CN114 Connecting Cable) through a CPM1-CIF11 RS-422A Adapter. (The CPM2C-CN111 splits the Unit’s communications port into a RS-232C port and a peripheral port.)

Reference

• There are no Communications Boards for the C200HX/HG/HE(-Z)E in which port B is the RS-422A port.

• There are no Serial Communications Boards for the CQM1H in which port 1 is the RS-422A port.

PLC Setup Area Settings

When connecting to a C200HX/HG/HE(-Z)E or CPM1, CPM2A, CPM2C, CQM1H CPU Units or SRM1, set the following communications conditions for the PLC Setup area.

Item Setting at Host

I/O port RS-422A

Communications mode Host link mode

Communications speed Set the same baud rate as set at the NS-series PT (See note.)

Stop bit 2 stop bits

Parity Even

Data length ASCII 7 bits

Unit # 00

Note: Set the Host Link communications speed (baud rate) to 9600 bps or 19200 bps with

the Communications Setting menu item in the CX-Designer and the System Menu for the NS-series PT. For details, refer to 1-4 Settings for Host Link.

Set the PLC Setup area settings directly from a Programming Device (e.g. CX-Programmer).

For details on operations relating to the PLC Setup area, refer to the manual for the PLC which is used.

The PLC Setup area word numbers and settings to be made depending on the unit to which the connection is made are shown below.

When using port A of the Communications Board of C200HX/HG/HE(-Z)E

Word # Writing Value Settings

DM6555 0001 Host link mode, no CTS control, communications

conditions set by the contents of DM area

DM6556

DM6558 0000 Unit # 00

When using a CPM1, CPM2A, CPM2C, SRM1

Word # Writing Value Settings

DM6650 0001 Host link mode, no CTS control, communications

DM6651

DM6653 0000 Unit # 00

0303 Data length 7 bits, 2 stop bits, even parity,

communications speed: 9600 bps

0304 Data length 7 bits, 2 stop bits, even parity,

communications speed: 19200 bps

conditions set by the contents of DM area

0303 Data length 7 bits, 2 stop bits, even parity,

communications speed: 9600 bps

0304 Data length 7 bits, 2 stop bits, even parity,

communications speed: 19200 bps

When using a CQM1H

(

)

(

)

(rig

Word # Writing Value Settings

DM6550 0001 Host link mode, no CTS control, communications

conditions set by the contents of DM area

DM6551

0303 Data length 7 bits, 2 stop bits, even parity,

communications speed: 9600 bps

0304 Data length 7 bits, 2 stop bits, even parity,

communications speed: 19200 bps

DM6553 0000 Unit # 00

Connecting to a CPM2C

Peripheral port

RS-232C port

D-Sub 9-pin, female

Peripheral port

Setting Switches on a C200HX/HG/HE(-Z)E Communications Board

Set the switches on a C200HX/HG/HE(-Z)E Communications Board as follows.

Switch 1: Set to 4 (4-wire type, for RS-422A) Switch 2: Set to ON for terminator ON (termination resistance applied)

Setting Switches on a CQM1H Serial Communications Board

Set the switches on a CQM1H Serial Communications Board as follows.

2-wire/4-wire selection (WIRE): Set to 4 (4-wire type, for RS-422A) Terminator (TERM): Set to ON for termination ON (termination resistance applied).

Serial Communications Board

Inner Board slot 1

Terminator Switch (TERM) Set to ON

2-wire/4-wire Selection Switch (WIRE) Set to 4 (right side).

ht side).

Setting the Switches on an RS-422A Adapter

(upp

Set the terminator selector switch to ON

er position).

Connecting to a CS-series Serial Communications Board

Serial Communications Board with an RS-422A/485 port equipped for CS-series CPU Unit Type: CS1W-SCB41(-V1) (The port 2 is an RS-422A/485 port.)

Allocation DM Area Settings in CPU Unit

In the following, the words allocated in the DM area and the settings are shown.

Allocation DM area word

Port 2

D32010 8000 Host link mode, 2 stop bits, data length 7 bits,

D32012 0000 Transmit delay time 0 ms.

D32013 0000 No CTS control, Unit No. 0 for host link

Writing Value Settings

even parity,

0000 Communications speed 9600 bps. D32011

0007 Communications speed 19200 bps.

Connecting to a CJ-series Serial Communications Unit

CJ-series Rack-mounted Serial Communications Unit: CJ1W-SCU41-V1

(Port 1 is an RS-422A/ 485 port.)

Setting the Front-panel Switches

Set the unit number for the Serial Communications Unit using the rotary switch on the front panel of the Unit. Use a flat-head screwdriver to set the unit number in the setting display window.

Set the terminator switch to ON (right side).

Set the 2-wire/4-wire selection switch to 4 (right side).

• Terminator Switch (TERM) Set to ON (right side).

• Unit Number Setting Set a number between 0 and F. Do not set a number used by another Unit.

• 2-wire/4-wire Selection Switch (WIRE)

Set to 4 (right side).

• Port 1 RS-422A/485

Setting Parameters Allocated in the DM Area in the CPU Unit

Settings can be directly written to the words allocated to the Serial Communications Unit in the DM Area (System Setup Area) by using a Programming Device, such as a Programming Console or the CX-Programmer. Any changes to the settings can be enabled by cycling the power supply, restarting the Unit, restarting the communications port, or executing a STUP instruction.

The following table lists the words allocated in the DM Area and setting details.

M = D30000 + 100 × unit number (word address)

Allocation DM Area word

Port 1 Port 2

m M+10 8000

M+2 M+12 0000 Transmission delay time: 0 s

M+3 M+13 0000 No CTS control, unit number 0 for Host

Write value Setting details

Host Link mode, 2 stop bits, even parity, 7-bit data

0000 Baud rate: 9,600 bps M+1 M+11

0007 Baud rate: 19,200 bps

Link

1-4 Settings for Host Link

This section describes the procedure for making the NS-V1 PT settings for connecting to the host by means of Host Link communications.

Use either serial port A or B. The flow of operations for connecting to the host is as follows:

(1) Design the screen data.

(2) Transfer the screen data.

(3) Set the communications method for serial port A or B

(4) Connect to the host.

1-4-1 Designing the Screen Data

Use the CX-Designer to create the screen data. First, select Communication Setting from the PT Menu to display the Communication Setting Dialog Box.

Select Serial Port A or Serial Port B. Then set the serial port to PLC and the protocol to Host Link.

1-4-2 Transferring Screen Data

Use the transfer program to transfer the screen data to the NS-V1/V2 PT.

For details on transferring screen data, refer to Transferring Data to the PT in the CX-Designer online help.

1-4-3 Setting the Communications Method for Serial Port A or B

This procedure is not required if the method has already been set in 1-4-1 Designing the Screen Data above. At the NS-V1/V2 PT, set Host Link as the communications method for

the serial port that is to be used to connect to the host by means of Host Link communications. Also set the baud rate to same value as the host.

These settings are made from the NS-V1/V2 PT’s System Menu.

(1) Press the Comm. Tab in the System Menu to display the Communications Setup Screen.

(For the NS5 PT, press the Comm. Button in the System Menu to display the screen, and then press the ← and → Screen Switching Buttons to display the screen for page (2/3).

(2) Press the drop-down menu button and set Host Link as the communications method for

serial port A or B.

(3) Press the Detail Button to display the Host Link settings, and select Comm. Speed.

(4) Press the Write Button and press the Yes Button on the following dialog boxes to restart

the NS-V1/V2.

 NS15/NS12/NS10/NS8-V1/V2 PT

(The screen is somewhat different for the NS15/12.)

 NS5

1-4-4 Connecting to the Host

Connect in the same way as for a 1:1 NT Link, and use the same cables that are used for a 1:1 NT Link connection.

If cables must be prepared, refer to the relevant manuals for the PLC or Host Link Unit, and to the NS Series Setup Manual (Cat. No. V083).

1-5 PLC Areas That Can Be Used for Communications

 OMRON C-series PLCs

PLC model

Common I/O Area

(CIO)

Holding Relay

(HR)

Auxiliary Relay

(AR)

Link Relay (LR)

Timer/Counter

Area (TIM/CNT)

Data Memory

Area (DM)

EM Area (Current

bank) (EM)

00000

06655

07000

09999

00000

00511

04095

00000

06655

00000

06655

00000

01023

06144

06655

00000

02047

06144

06655

00000

06143

00000

06143

C200HS -

C200HE/HG/HX(-Z)

C500 00000

C1000H 00000

C2000H

CQM1

CQM1H

Ladder type PLCs

CPM1/CPM1A 00000

CPM2A/CPM2C 00000

00000

00511

00063

00000

00255

00019

00200

00255

00049

00200

00255

00000

00099

00000

00031

00000

00099

00000

00019

00000

00027

- 00000

00000

00027

00000

00015

00000

00023

00000

00063

00031

00000

00063

00000

00015

00000

00511

00000

00127

00000

00511

00000

00127

00000

00255

(

)

 CVM1/CV-series PLCs

PLC model

CV500 CVM1-CPU01-V

CVM1-CPU11-V@

CV1000

CV2000 CVM1-CPU11-V

CVM1-CPU21-V

Note 1: The HR Area is included in the CIO Area. To use the HR Area, specify the CIO Area.

2: Do not use this area for creating screens. It cannot be used with Host Link

00000

02555

00000

02555

00000

02555

communications.

Common I/O Area (CIO)

Holding Relay (HR)

(See note 1.)

Auxiliary Relay (AR)

- 00000

00511

- 00000

00511

- 00000

00511

Link Relay (LR)

Timer/Counter Area

(TIM/CNT)

- 00000

00511

- 00000

01023

- 00000

01023

00000

08191

00000

09999

00000

09999

Data Memory Area (DM)

EM Area (Current bank)

(EM) (See note 2.)

 OMRON CS/CJ-series PLCs

PLC model

Common I/O Area

(CIO)

CS1G/H(-H)

CJ1G/H(-H)

CJ1M

CP1L

CP1H

CJ2H

CJ2M

00000

06143

Note 1: The EM Area cannot be specified for the CJ1M.

2: Do not use this area for creating screens. It cannot be used with Host Link

communications.

00000

00511

Work Area (WR)

(See note 2.)

Holding Relay

(HR)

Auxiliary Relay

(AR)

Link Relay (LR)

Timer/Counter

Area (TIM/CNT)

Data Memory

Area (DM)

00000

00959

- 00000

02047

00000

09999

See note 1.

EM Area (Current

bank)

00000

09999

1-6 Restrictions

 Applicable Project Versions

When connecting to the host by means of Host Link communications, use version 6.0 or later for creating the screen data (project) to be transferred to the NS-V1/V2 PT.

To use a project of version 5.x or earlier, first use CX-Designer to convert the project to version 6.0 or later before transferring it to the NS-V1/V2 PT.

 Applicable Serial Ports

Either NS-V1/V2 serial port A or B can be used to connect to the host by means of Host Link communications.

 Applicable NS Models

Only NS-series PT models with a -V1/V2 suffix can be used to connect to the host by means of Host Link communications. NS-series PT models without the -V1/V2 suffix cannot be connected.

Revision History

The following table outlines the changes made to the manual during each revision. Page numbers refer to the previous version.

Cat. No.

V098-E1

-05

Revision Code

Revision code Date Revised content

01 July 2004 Original production

02 July 2006 Revisions made for the release of the CX-Designer.

03 July 2007 Pages 6 and 20: CJ-series CPU Unit model numbers

added.

04 June 2008 Cover: Added models to list of NS-series PT.

Page 3: Added 3 models to end of model table in section 1-2-1. Page 5: Added CJ2H to list of CS/CJ-series PLCs. Pages 6 and 19: Added models to CJ-series PLCs in table. Page 26: Added CJ2H to PLC models listed in table.

05 October 2010 Revisions made for the release of the CX-Designer.

Omron NS5-MQ, NS5-SQ, NS15-TX, NS8-TV, NS10-TV OPERATION MANUAL

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

1-1 Overview

1-2 Connection Configuration

1-2-1 NS-V1/V2 Configuration Required for Connection

1-2-2 Applicable PLCs

1-3 Connecting to the Host

1-3-1 Connecting to an RS-232C Port at the Host

1-3-2 Connecting to an RS-422A/485 Port at the Host

1-4 Settings for Host Link

1-4-1 Designing the Screen Data

1-4-2 Transferring Screen Data

1-4-3 Setting the Communications Method for Serial Port A or B

1-4-4 Connecting to the Host

1-5 PLC Areas That Can Be Used for Communications

1-6 Restrictions

Revision History
