Page 1
TMTM
Compressor Nebuliser
Model NE-C801KD
• Instruction Manual
• Mode d’emploi
• Gebrauchsanweisung
• Manuale di istruzioni
• Manual de instrucciones
• Gebruiksaanwijzing
• РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
IM-NE-C801S-KDE-03-11/2011
5332892-4C
EN
FR
DE
IT
ES
NL
RU
AR
Page 2
QUICK MANUAL
Clicks
Clicks
Please read entire manual before using the
device.
Warning:
Clean and disinfect all the parts before using
them.
page 16-18
1. Adding medication
Rotate the inhalation top anti-clockwise
to remove.
Add the appropriate amount of
prescribed medication.
Make sure the vaporiser head is
securely attached to the inhalation top.
Put the inhalation top back and rotate it
clockwise until they click in place.
page 12
2. Assembling kids accessory and mask
Assemble the nebuliser kit as the
following order.
[1] Cap
[2] Kids accessory
[3] Mask
Warning:
Do not let infants and children play with
a kids accessory. Kids accessory is not
a toy, but a component of nebuliser kit.
page 13
Page 3

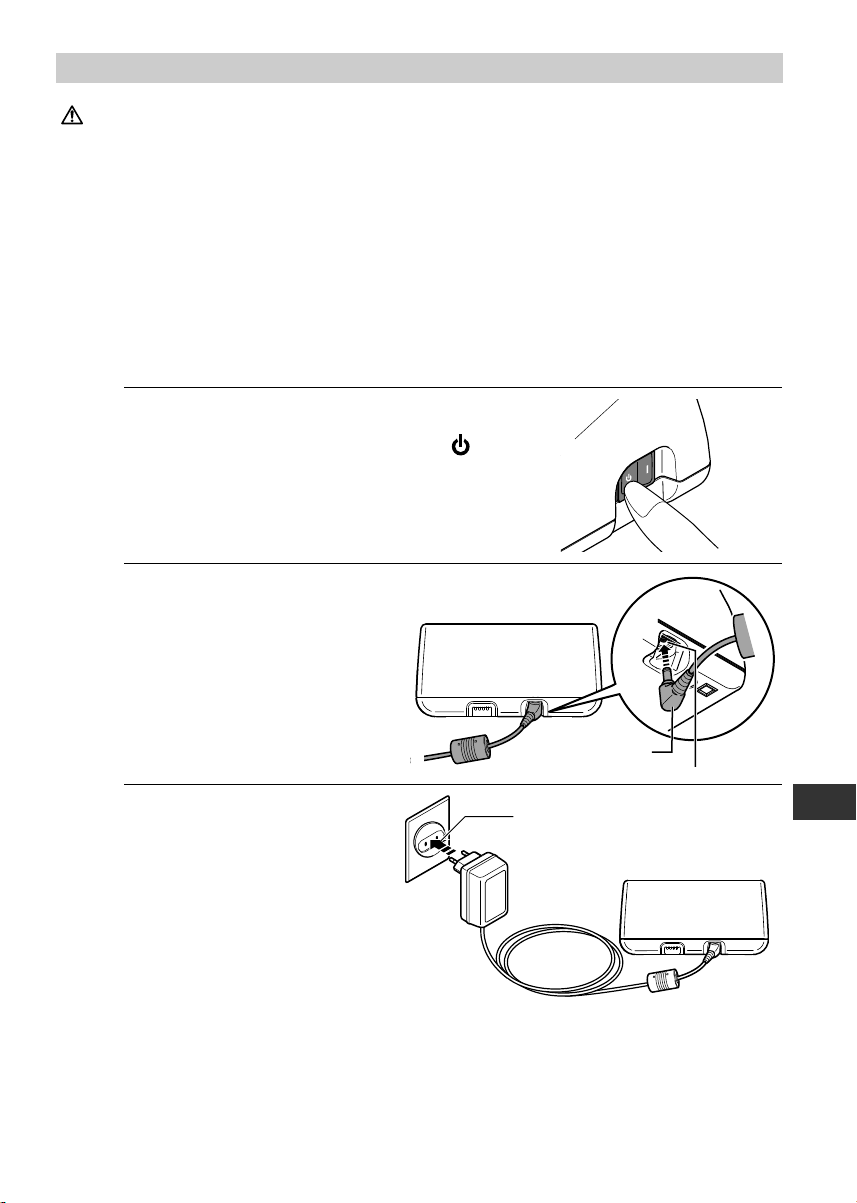

3. Connecting AC adapter
Power Outlet
Power Connector
Power Plug
Use the nebuliser kit holder to
place the nebuliser kit
page 15
Insert the power plug of AC
adapter into the power
connector of the main unit.
Plug the AC adapter into the
power outlet.
4. Attaching air tube
Attach the air tube to the main unit
and to the nebuliser kit.
When do so, twist and push it firmly.

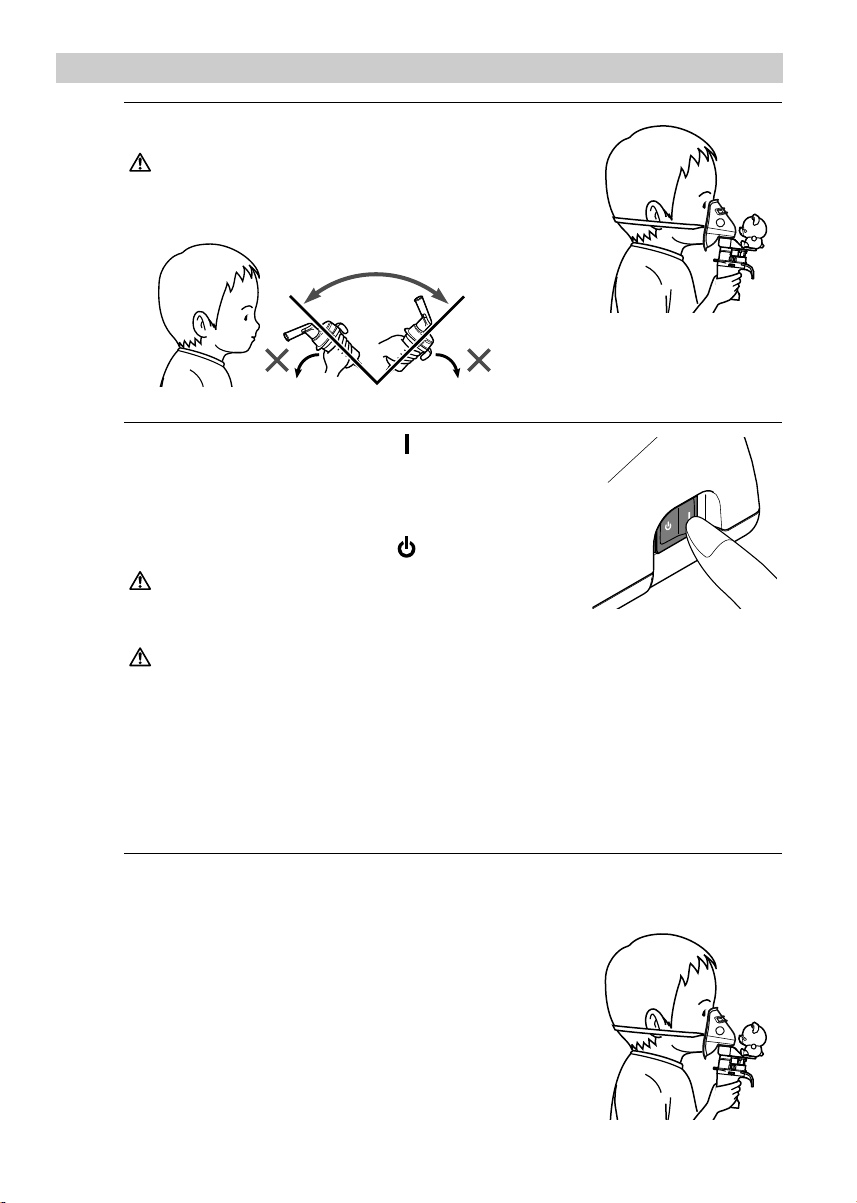

5. Applying mask and starting inhalation
Apply the mask securely.
Turn on the power to the main unit.
page 11
page 13
page 14
Page 4
Before using the device
Introduction
Baffle
Aerosol
Medication
Channel
Medication
Compressed Air
Aerosol
Medication
Nozzle
Contents
Before using the device
Introduction ................................................................................................................. 4
Intended use................................................................................................................ 5
Important safety instructions.....................................................................................6

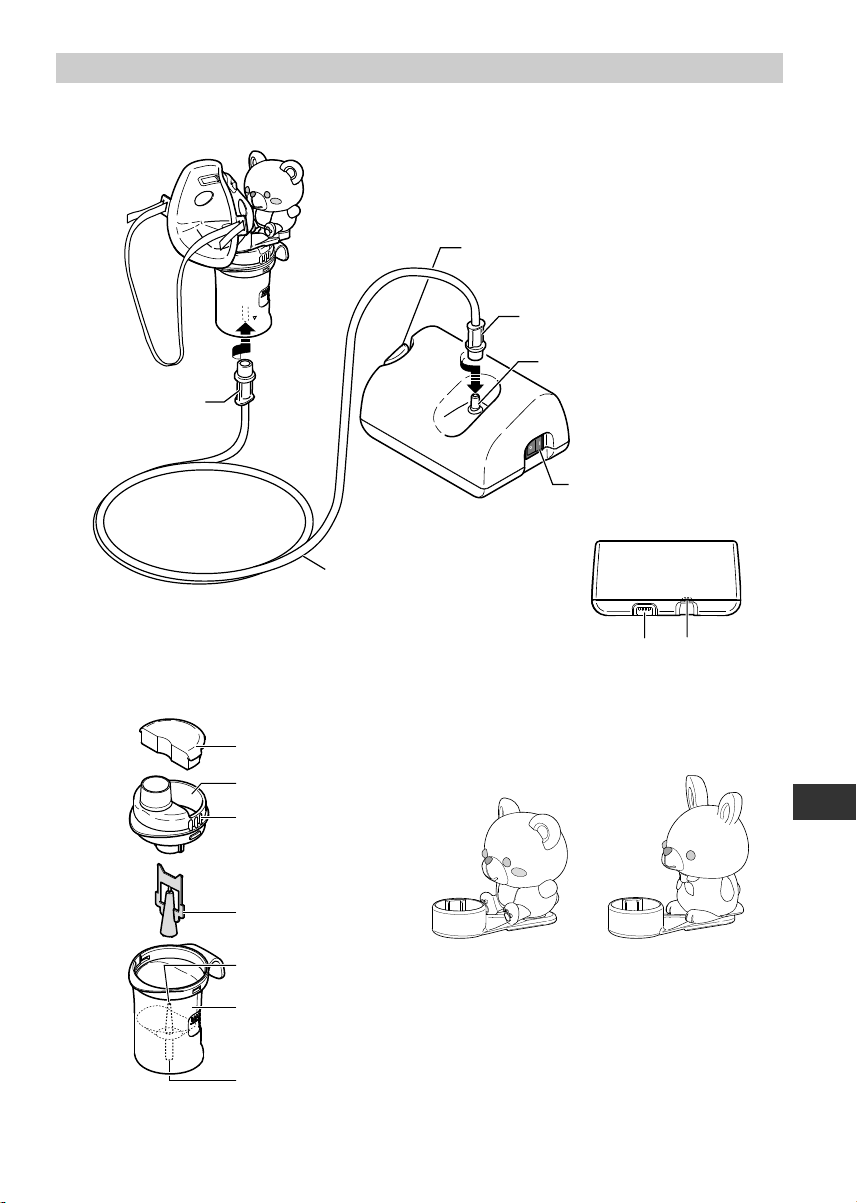

1. Know your unit........................................................................................ 9
Operating instructions
2. Preparing the nebuliser for use ........................................................... 11
2.1 Connecting AC adapter .................................................................................. 11
2.2 Adding medication and assembling the parts................................................. 12
3. Taking medication ................................................................................ 14
Care and maintenance

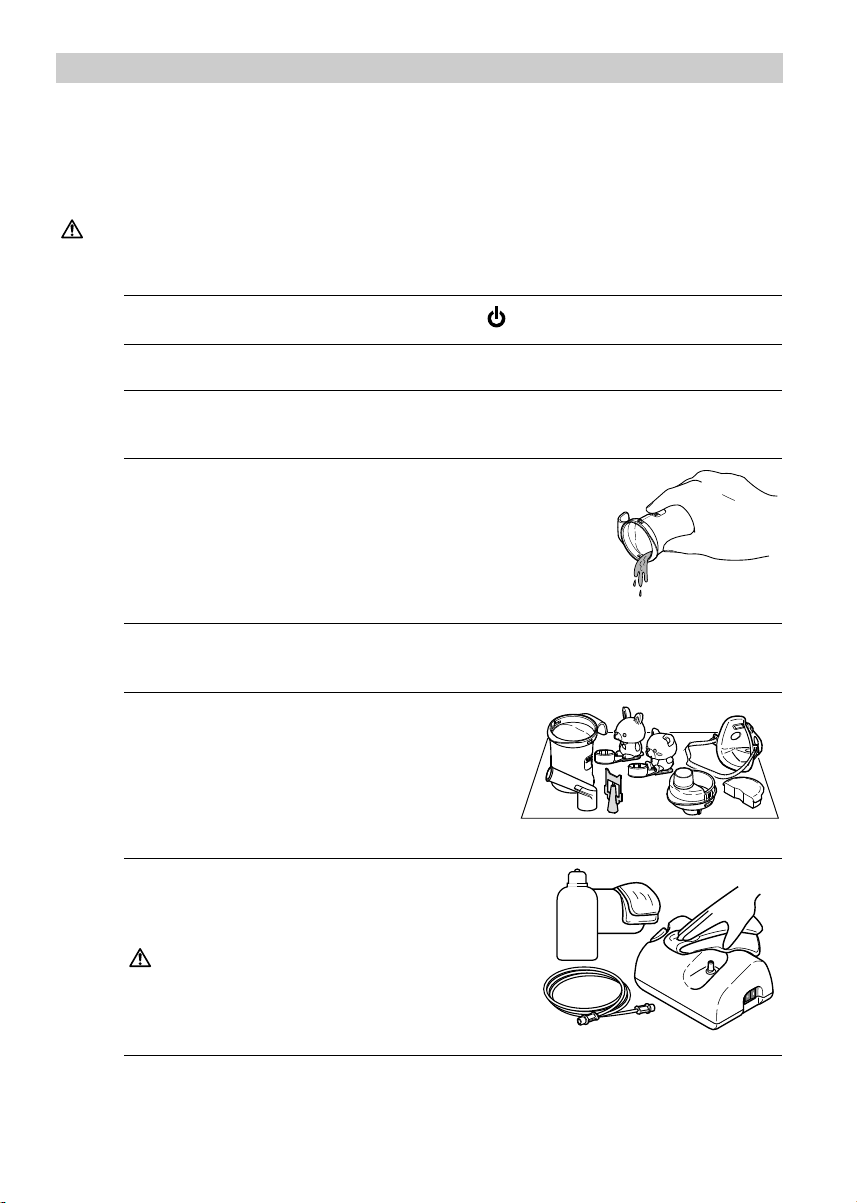

4. Cleaning and daily disinfecting ........................................................... 16
4.1 Cleaning.......................................................................................................... 16
4.2 Disinfecting the nebulising parts ..................................................................... 17

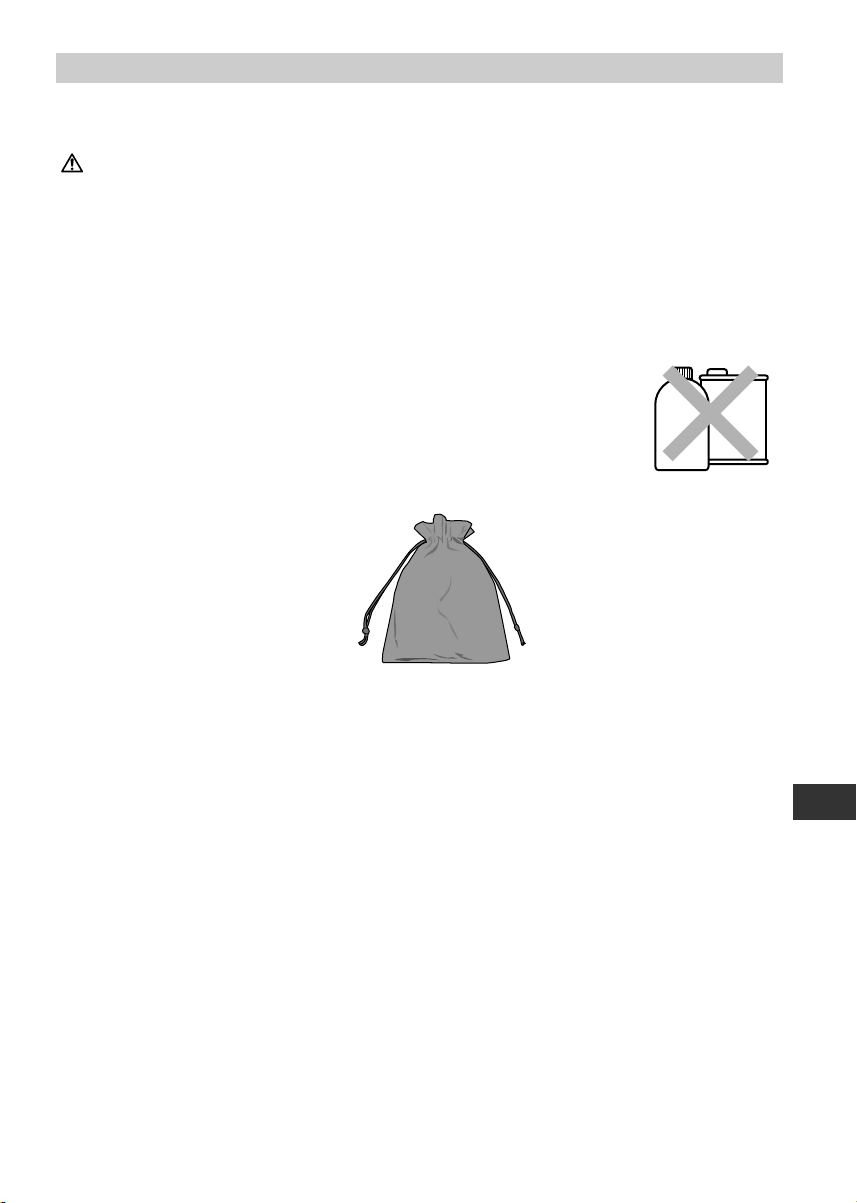

5. Maintenance and storage..................................................................... 19
6. Changing the air filter........................................................................... 20
7. Troubleshooting.................................................................................... 21

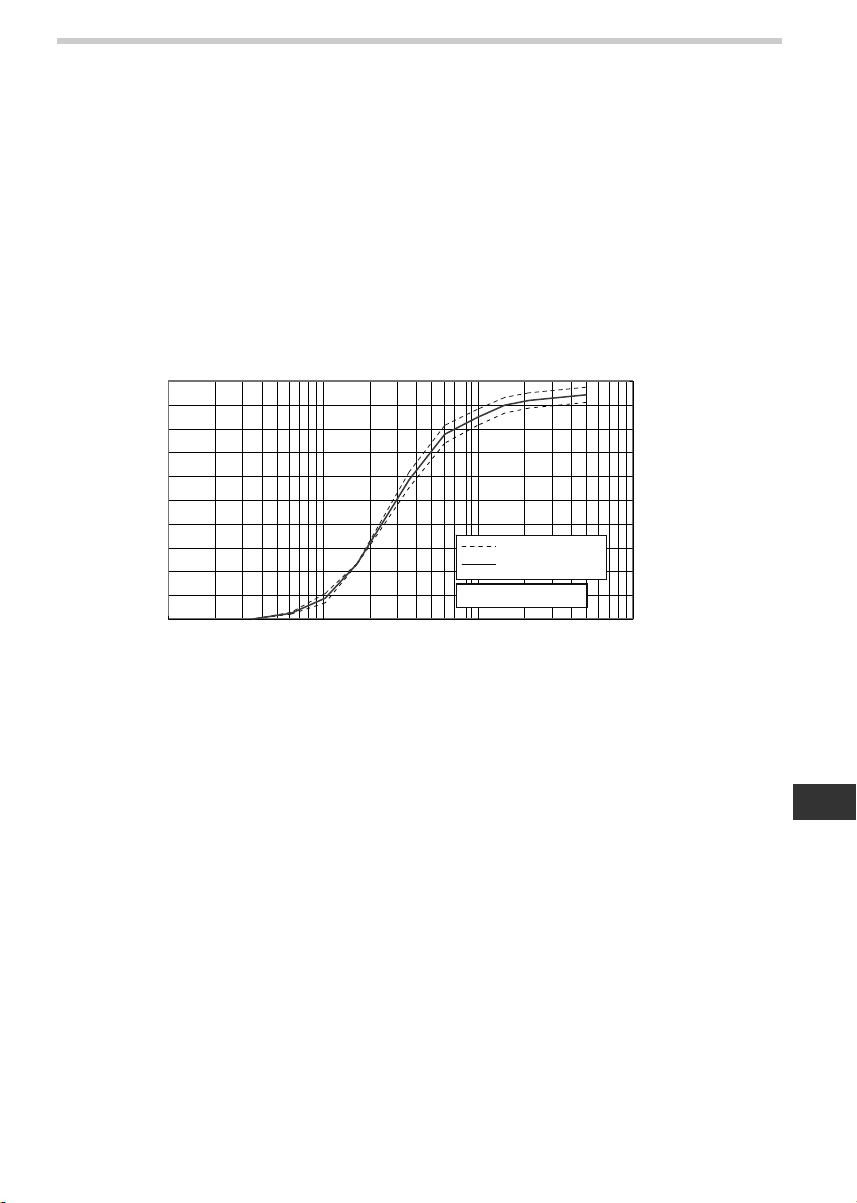

8. Technical data ....................................................................................... 22

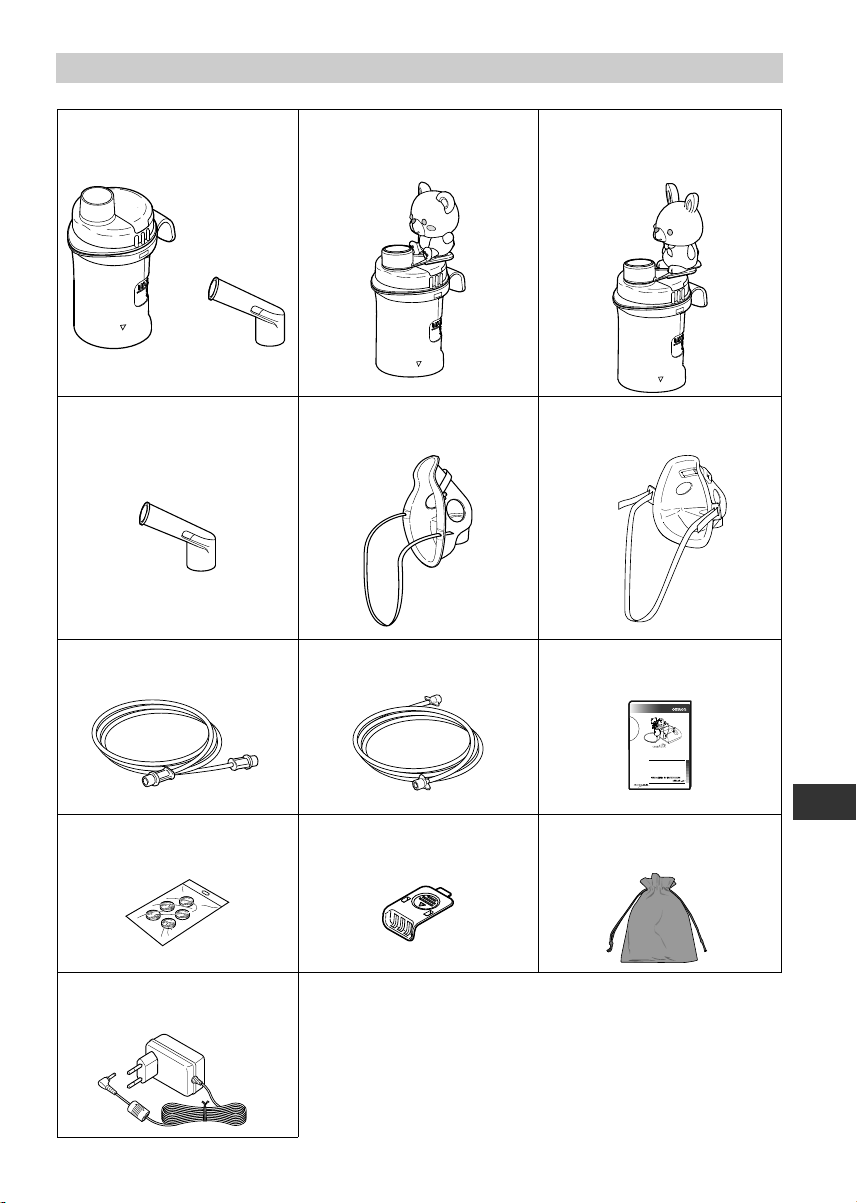

9. Optional parts and accessories........................................................... 25
Thank you for purchasing the OMRON COMP AIR.
This product was developed in conjunction with respiratory therapists for the successful
treatment of asthma, chronic bronchitis, allergies and other respiratory disorders. The
compressor forces air to the nebuliser kit. When the air enters the nebuliser kit, it converts
the prescribed medication into an aerosol of microscopic droplets that can easily be inhaled.
This is a medical device. Operate the device only as instructed by your doctor and/or
respiratory therapist.
NE-C801KD includes the kids accessories to enable children to feel more comfortable while
inhaling. It improves compliance with drug treatment.
How the nebuliser kit works
The medication that is pumped up through the medication
channel is mixed with compressed air which is generated
by a compressor pump. The compressed air mixed with
medication is turned into fine particles and sprayed by
being impacted to the baffle.
4
Page 5
Intended use
Medical Purpose This product is intended to be used for inhaling medication for
respiratory disorders.
Intended User • Legally certified medical experts, such as doctor, nurse and
therapist.
• Caregiver or patient under the guidance of qualified medical
experts for home treatment.
• The user should also be capable of understanding general
operation of NE-C801KD and the content of instruction manual.
Intended Patients This product should not be used by patients, who are unconscious
or are not breathing spontaneously.
Environment This product is intended for use in a medical facility, such as
Hospital, clinic and doctor’s office, and in a room of general
household.
Durable period Durable periods are as follows, provided the product is used to
nebulise 2 ml of medication 2 times a day for 6 minutes each time
at room temperature (23°C).
Durable period may vary depending on usage environment.
Compressor (Main unit) 5 years
Nebuliser Kit 1 year
(Cap, Inhalation Top,
Vaporiser Head, Medication Tank)
Kids Accessory 1 year
Mouthpiece 1 year
Air Tube (PVC, 100cm) 1 year
Air Filter 60 days
Infant Mask (PVC) 1 year
Child Mask (PVC) 1 year
Precautions for use Warnings and cautions described in the instruction manual should
be observed.
EN
5
Page 6
Important safety instructions
Read all the information in the instruction manual and any other literature included in the
box before using the device.
When using an electrical product, especially when children are present, basic safety
precautions should always be followed including the following:
Warning:
Indicates a potentially hazardous situation which, if not avoided, could result in serious injury.
(Usage)
• For type, dose, and regime of medication follow the instructions of your doctor or
respiratory therapist.
• If you feel anything unusual during use, stop using the device immediately and consult
your doctor.
• Do not use only water in the nebuliser, for inhaling purposes.
• Clean and disinfect the nebuliser kit, kids accessory, mask or mouthpiece before using
them for the first time after purchase.
• If the device has not been used for a long period of time, or if more than one person uses
the same device, clean and disinfect the nebuliser kit, kids accessory, mask or mouthpiece
before using them.
• Be sure to wash the parts after use, and ensure that they are thoroughly disinfected and
dried, and stored in a clean location.
• Keep the device and kids accessory out of the reach of unsupervised infants and children.
The device may contain small pieces that can be swallowed.
• Do not let infants and children play with a kids accessory. Kids accessory is not a toy, but a
component of nebuliser kit.
• Do not store the air tube while there is moisture or medication remaining inside it.
• Do not leave the cleaning solution in the nebuliser parts. Rinse them with clean hot tap
water after disinfecting.
• Do not use or store the device where it may be exposed to noxious fumes or volatile
substances.
• Do not use the device where it may be exposed to flammable gas.
• Do not cover the compressor with a blanket, towel, or any other type of cover during use.
• Make sure that the nebuliser kit and kids accessory are clean before use.
• Always dispose of any remaining medication after use, and use fresh medication each time.
• Do not use in anaesthetic or ventilator breathing circuits.
(Risk of electrical shock)
• Do not use the compressor or AC adapter while they are wet, or connect them to a power
outlet or other devices with wet hands.
• The compressor and AC adapter are not waterproof. Do not spill water, or other liquids, on
these parts. If liquid does spill on these parts, immediately unplug the power cord and wipe
off the liquid with gauze or other absorbent material.
• Do not immerse the compressor in water or other liquid.
• Do not use or store the device in humid locations, such as a bathroom.
• Use only original OMRON AC adapter. Use of unsupported AC adapter may damage the
device.
• Do not operate the device with a damaged power cord or plug.
• Keep the power cord away from heated surfaces.
• Read and follow the “Important information regarding Electro Magnetic Compatibility
(EMC)” (page 24) in the Technical Data Section.
6
Page 7
Caution:
Indicates a potentially hazardous situation which if not avoided, may result in minor or
moderate injury, or physical damage.
(Usage)
• Provide close supervision when this device is used by, on, or near children or invalids.
• Make sure that the parts are attached correctly.
• Make sure that the vaporiser head is correctly installed before use.
• Make sure that the air filter is correctly attached.
• Make sure that the air filter is clean. If the air filter has changed colour, or has been used
on average for more than 60 days, replace it with a new one.
• Do not spill liquid or medication on the compressor.
• Do not tilt the nebuliser kit so that it is at an angle of greater than 45° in all directions, or
shake it while in use.
• Do not use or store the device while the air tube is creased.
• Use only original nebulising parts, air tube, air filter and air filter cover.
• Do not add more than 7 ml of medication to the medication tank.
• Do not carry or leave the nebuliser kit while the medication tank contains medication.
• Do not leave the device unattended with infants or persons who cannot express their
consent.
• Do not subject the device or the parts to any strong shocks such as dropping the device on
the floor.
• Do not distort the vaporiser head, or jab the nozzle of the medication tank with a pin or any
sharp object.
• Do not insert fingers or objects inside the compressor.
• Do not disassemble or attempt to repair the compressor or power cord.
• Do not leave the device or its parts where it will be exposed to extreme temperatures or
changes in humidity, such as in a vehicle during the summer, or where it will be exposed to
direct sunlight.
• Do not block the air filter cover.
• When disinfecting parts by boiling, make sure that the container does not boil dry.
• Do not use the device while sleeping or if drowsy.
• Do not block the slit between the cap and the inhalation air inlet.
• Do not use a microwave oven, dish dryer or hair dryer to dry the device or the parts.
• Approved for human use only.
• If the device is used continuously, the service life of the device may be shortened.
• Limit use to 20 minutes at a time, and allow a 40 minute interval before using the device
again.
• When using the device, the main unit may become hot.
• Do not touch the main unit for other than necessary operation such as turning off the
power while nebulising.
• To avoid the medication residue on the face, be sure to wipe the face after removing the
Mask.
EN
7
Page 8
(Risk of electrical shock)
• Always unplug the AC adapter from the power outlet after use and before cleaning.
• Plug the device into the appropriate voltage outlet. Do not overload power outlets or use
extension cords.
• Always remove the AC adapter from the device after use and before cleaning.
• Do not misuse the cord of the AC adapter.
• Do not wind the cord of the AC adapter around the compressor or AC adapter.
• Changes or modifications not approved by OMRON HEALTHCARE will void the user
warranty.
• Do not pull the power cord of AC adapter strongly.
General Safety Precautions:
• Inspect the device and parts before using them each time, and check that there are no
problems. In particular, be sure to check the following:
- That the vaporiser head, nozzle, kids accessory or air tube are not damaged.
- That the nozzle is not blocked.
- That the compressor operates normally.
• When using this device, there will be some noise and vibration caused by the pump in the
compressor. There will also be some noise caused by the emission of compressed air from
the nebuliser kit. This is normal and does not indicate a malfunction.
• Operate the device only as intended. Do not use the device for any other purpose.
• Do not use the device at temperatures greater than +40°C.
• Make sure that the air tube is securely attached to the compressor and nebuliser kit, and
does not come loose. Twist the air tube plug slightly when inserting it into the air tube
connectors to avoid the air tube disconnecting during use.
• The AC adapter is provided so that the device can be completely isolated from the power
source. To completely isolate the device from the power source unplug the plug from the
power source.
• Read and follow the “Correct Disposal of This Product” in the Technical Data Section
(page 24) when disposing of the device and any used accessories or optional parts.
Save these instructions for future reference.
8
Page 9
1. Know your unit
Air Filter Cover
*Air filter inside
Power
Connector
Compressor (Main Unit)
Cap
Inhalation Air Inlet
Inhalation Top
Vaporiser Head
Medication Tank
Air Tube Connector
Nozzle
Rear View
Nebuliser Kit
Nebuliser Kit
Kids Accessory
(Smile Bear)
Kids Accessory
(Happy Bunny)
Nebuliser Kit Holder
Air Tube Plug
Air Tube Connector
Power Switch
Air Tube
Air Tube Plug
EN
9
Page 10
1.Know your unit
• Instruction Manual
• Mode d’emploi
• Gebrauchsanweisung
• Manuale di istruzioni
• Manual de instrucciones
• Gebruiksaanwijzing
•
EN
FR
DE
IT
ES
IM-NE-C801S-KDE-02-5/2011
5332892-4B
NL
AR
RU
Compressor Nebuliser
Model
NE-C801KD
TMTM
Spare Air Filters × 5 AC adapter Storage Bag
Instruction Manual Warranty card
Mouthpiece Child Mask (PVC) Infant Mask (PVC)
Accessories
10
Page 11
Power Plug
Power Connector
Power Outlet
Operating instructions
2. Preparing the nebuliser for use
Warning:
• Clean and disinfect the nebuliser kit, kids accessory, mask or mouthpiece before using them
for the first time after purchase.
• If the device has not been used for a long period of time, or if more than one person uses the
same device, clean and disinfect the nebuliser kit, kids accessory, mask or mouthpiece
before using them.
For directions on cleaning and disinfecting refer to Section 4 (page 16-18).
Note: Make sure that the air filter is changed regularly. Refer to Section 6 “Changing the air filter”
(page 20).
2.1 Connecting AC adapter
1. Make sure that the power switch is turned off.
Check that the power switch is in the off ( ) position.
2. Inserting the power plug of the AC
adapter into the power connector
on the compressor.
3. Plug the AC adapter into a power
outlet.
Note: When disconnecting the AC
adapter, unplug the AC adapter
from the power outlet before
removing the power connector
on the compressor.
EN
11
Page 12
2.Preparing the nebuliser for use
2.2 Adding medication and assembling the parts
1. Remove the mask or mouthpiece, kids accessory and
cap from the nebuliser kit.
2. Remove the inhalation top from the medication tank.
1) Rotate the inhalation top anti-clockwise.
2) Lift the inhalation top out of the medication tank.
3. Add the correct amount of prescribed medication to
the medication tank.
Caution:
The capacity of the medication tank is 2 to 7 ml.
Note: Scales on the nebuliser kit are for reference only. The
scale on the outside of the tank is with no vaporiser
head in place. Please use the scale on your syringe or
vial for accurate measurement of medication.
4. Make sure that the vaporiser head is securely
attached to the inhalation top.
5. Put the inhalation top back inside the medication
tank.
1) Align the protrusion on the inhalation top with the
indent on the medication tank, as shown.
2) Rotate the inhalation top clockwise and align with
the medication tank until they click in place.
12
Page 13
2.Preparing the nebuliser for use
6. Attach the cap, kids accessory, mask or mouthpiece
to the nebuliser kit.
1) Attach the cap to the inhalation air inlet.
2) Attach the kids accessory to the inhalation top.
3) Attach the mask or mouthpiece to the inhalation
top.
Note: If the amount of aerosol is too small, it is not
necessary to place the cap.
7. Attach the air tube.
1) Twist the air tube plug slightly and push it firmly into the air tube connector on
the compressor.
2) Twist the air tube plug slightly and push it firmly into the air tube connector on
the medication tank.
Notes:
• Make sure that the air tube is securely attached to the compressor and nebuliser kit, and
does not come loose. Twist the air tube plug slightly when inserting it into the air tube
connectors to avoid the air tube disconnecting during use.
• Take care not to spill the medication when attaching the air tube. Keep the nebuliser kit
upright.
EN
13
Page 14
3. Taking medication
45q 45q
Right angle
1. Hold the nebuliser kit as indicated on the right.
Caution:
Do not tilt the nebuliser kit so that it is at an angle of greater
than 45° in all directions. Medication may flow into the mouth
or it may result in not nebulising effectively.
2. Press the power switch to the on ( ) position.
The compressor starts and nebulisation starts.
Note: Observe whether aerosol is generated.
To stop nebulisation
Press the power switch to the off ( ) position.
Warning:
Do not cover the compressor with a blanket or towel etc.,
during use.
Caution:
• Do not block the air filter cover.
• Limit use to 20 minutes at a time, and allow a 40 minute interval before using the device
again.
• When using the device, the main unit may become hot.
• Do not touch the main unit for other than necessary operation such as turning off the power
while nebulising.
Note: Do not leave the compressor on for a long period of time. This could result in the
compressor overheating or malfunctioning.
3. Inhale medication according to your doctor’s and/or health care adviser’s
instructions.
Attach the mask so that it covers your nose and
mouth and inhale the medication.
Exhale through the mask.
Using the mouthpiece
Insert the mouthpiece into your mouth and inhale the
medication breathing normally.
Exhale as normal through the mouthpiece.
14
Page 15
3.Taking medication
Use the nebuliser kit holder as a temporary holder for the nebuliser kit.
Note: Align the mark on the unit with the mark on the nebuliser kit as shown
4. When treatment is complete, turn the power off. Check that there is no
condensation or moisture in the air tube and unplug the device from the power
outlet.
Warning:
Condensation may occur in the air tube. Do not store the air tube while it contains
condensation or moisture. This could result in infection via bacteria.
If there is moisture or liquid remaining in the air tube, be sure to follow the
procedure below to remove any moisture from within the air tube.
1) Make sure that the air tube is still connected to the air connector on the
compressor.
2) Unplug the air tube from the nebuliser kit.
3) Turn on the compressor and pump air through the air tube to expel the
moisture.
EN
15
Page 16
Mild Detergent
Care and maintenance
4. Cleaning and daily disinfecting
4.1 Cleaning
Following the cleaning instructions after each use will prevent any remaining medication in
the tank from drying, resulting in the device not nebulising effectively and also for preventing
infections.
Warning:
Thoroughly rinse the nebuliser kit, kids accessory, mask or mouthpiece with clean hot tap water
after each use, and disinfect them after the last treatment of the day.
1. Make sure that the power switch is in the off ( ) position.
2. Disconnect the AC adapter from the wall outlet and the compressor.
3. Remove the nebuliser kit from the air tube and disassemble the nebuliser kit. Refer
to Section 2 (page 12-13).
4. Discard any remaining medication in the medication tank.
5. Wash all the nebulising parts in warm water and mild detergent and rinse in clean
hot tap water.
6. After cleaning and disinfecting the parts, rinse
them thoroughly with clean water and allow the
parts to air dry in a clean environment.
Note: Do not start operation before the cleaned parts
are completely dried.
7. If the compressor or the outside of the air tube are
dirty, wipe them clean with a soft cloth moistened
with water or mild detergent.
Caution:
The compressor is not waterproof.
8. Reassemble the nebuliser kit. Put it in the storage bag.
16
Page 17
4.Cleaning and daily disinfecting
Baffle
Vaporiser Head
4.2 Disinfecting the nebulising parts
Always clean before disinfection. (See Section 4.1 “Cleaning”)
Always disinfect the medication tank, mouthpiece and other nebulising parts after the last
treatment of the day. For appropriate method of disinfecting each part, refer to page 18.
To disinfect the parts, use one of the methods described below:
A. Use a commercially available disinfectant. Follow the instructions provided by the
disinfectant manufacturer.
1. Submerge the parts in the cleansing solution for the specified period.
2. Remove the parts and discard the solution.
3. Rinse the parts with clean hot tap water, shake off excess water and allow to air dry
in a clean environment.
B. Parts may be boiled between 15 to 20 minutes.
After boiling, carefully remove the parts, shake off excess water and
allow to air dry in a clean environment.
Note: Do not boil air tube, mask, kids accessory, air filter and air filter cover.
Caution:
Do not use an autoclave, EOG gas disinfection or low temperature plasma
sterilizer to disinfect the device.
Note: The printing may come off the surfaces of kids accessories as a result of repeated washing and
disinfecting.
Handling the Vaporiser Head
The vaporiser head is an important part that is used to
vaporise medication.
Be sure to observe the following precautions when handling it.
Caution:
• Always wash the vaporiser head after each use.
• Do not use a brush or pin etc., to clean the parts.
• When disinfecting the parts by boiling, be sure to boil them in plenty
of water.
• Do not boil vaporiser head together with other objects, other than
applicable nebuliser accessories.
• Do not use a microwave oven, dish dryer or hair dryer to dry parts.
EN
17
Page 18
4.Cleaning and daily disinfecting
Use the table below as a guideline to select a method for disinfecting O: applicable ×: not applicable
* an example of commercially available disinfectant.
Parts Model Materials Boiling
Alcohol
Sodium
hypochlorite
Quaternary
ammonium
Chlorhexi-
dine
Amphoteric
surfactant
Disinfecting
ethanol
Milton*
(0.1%)
Osvan*
(0.1%)
Hibitane*
(0.5%)
Tego*
(0.2%)
Mouthpiece C28-3P PP
OO O O O O
Nebuliser Kit Set C801-NSET3
Cap: PP
Inhalation Top: PP
Vaporiser Head: PC
Medication Tank: PP
OO O O O O
Kids Accessory
C801-NKKD1
C801-NKKD2
PP, PVC
(Phthalate free)
×× O O O O
Air Filter C30-4-E Polyester
×× × × × ×
Air Filter Cover C801-FCKD ABS
×O O O O O
Child Mask (PVC)
Infant Mask (PVC)
C28-9
C801-MSSP
Mask: PVC
(Phthalate free)
Band: Rubber
(non-latex)
×O O O O O
Air Tube (PVC, 100cm) C801-ATBP
PVC
(Phthalate free)
×× × × × ×
Air Tube (Silicone,
100cm)
C28-6
Tube: Silicone
Connector: PP
OO O O O O
18
Page 19
5. Maintenance and storage
Benzene
Thinner
To keep your device in the best condition and protect the device from damage follow these
directions:
Caution:
• Do not leave the device unattended with infants or persons who cannot express their consent.
• Do not subject the device or the parts to any strong shocks such as dropping the device on the floor.
• Do not carry or leave the nebuliser kit while the medication tank contains medication.
Notes:
• Do not store the device in extreme hot or cold temperatures, high humidity or under direct sunlight.
• Do not crease or fold the air tube.
• Dispose of the device and any used accessories or optional parts according to applicable local
regulations.
• Never clean with benzene, thinner or a flammable chemical.
Always transport the device in its storage bag, and store the device in
the bag if it will not be used for a long period.
Note: Nebuliser kit should be replaced after using for one year.
EN
19
Page 20
6. Changing the air filter
If the air filter has changed colour, or has been used on average for more than 60 days,
replace it with a new one.
1. Pull the air filter cover off
the compressor.
2. Change the air filter.
3. Put the air filter cover back
in place.
20
Notes:
• Use only OMRON air filters designed for this device. Do not operate without a filter.
• There is no front or back orientation for the air filters.
• Check that air filters are clean and free of dust before inserting them.
• Do not attempt to wash or clean the filter. If the air filter becomes wet, replace it. Damp air
filters can cause blockages.
• To prevent the air filter cover from becoming blocked, wash the cover regularly. Do not boil
the air filter cover. Remove the air filter cover, wash it, and make sure it is dry and
reattached correctly.
• Please contact your OMRON dealer for additional air filters, or if the parts supplied with the
device are damaged or missing.
Page 21
7. Troubleshooting
Check the following if your unit should fail during operation. You can also refer to the pages
of this manual for complete instructions.
Problem Cause Remedy
Nothing happens when the
power switch is pressed.
No nebulisation or low
nebulisation rate, when the
power is on.
The device is abnormally
loud.
The device is very hot. Is the compressor covered? Do not cover the compressor
Note: If the suggested remedy does not solve the problem, do not try to repair the device - no parts of
the unit are user serviceable.
Return the unit to an authorized OMRON retail outlet or distributor.
Is the AC adapter connected
correctly to the an electrical
outlet and the compressor?
Is there medication in the
medication tank?
Is there too much/little
medication in the medication
tank?
Is the vaporiser head missing
and not assembled correctly?
Is the nebuliser kit
assembled correctly?
Is the nozzle blocked? Make sure that the nozzle is
Is the nebuliser kit tilted at a
sharp angle?
Is the air tube connected
correctly?
Is the air tube folded or
damaged?
Is the air tube blocked? Make sure that the air tube is
Is the air filter dirty? Replace the air filter with a
Is the air filter cover attached
correctly?
Is the device operating
continuously over 20
minutes?
Check that the plug is
inserted in an electrical
outlet. Unplug then reinsert
the plug if necessary.
Add the correct amount of
medication to the medication
tank.
Attach the vaporiser head
correctly.
Assemble the nebuliser kit
correctly.
free of blockages.
Make sure that the nebuliser
kit is not tilted at an angle of
more than 45 degrees.
Make sure that the air tube is
correctly connected to the
compressor and nebuliser kit.
Make sure that the air tube
does not contain kinks.
free of blockages.
new one.
Attach the air filter cover
correctly.
with any type of cover during
use.
Limit use to 20 minutes at a
time, and allow a 40 minute
interval before using the
device again.
EN
21
Page 22
8. Technical data
Name:
Model: NE-C801KD (NE-C801S-KDE)
Type: Compressor Nebuliser
Rating (AC adapter): 100 - 240V ~ 350mA, 50/60Hz
Rating
(Compressor Nebuliser):
Operating Condition: Intermittent operation 20min. ON / 40min. OFF
Operating Temperature/
Humidity:
Storage Temperature/
Humidity/Air Pressure:
Weight: Approx. 270g (compressor only)
Dimensions: Approx. 142 (W) × 72 (H) × 98 (D) mm
Contents: Compressor, Nebuliser Kit, Kids Accessories (Smile Bear, Happy
Classification: Class ll equipment, Type B applied part
COMP AIR
12V 0.8A
+10
°C to +40°C 30% to 85% RH
-20
°C to +60°C 10% to 95% RH 700 - 1060 hPa
Bunny), Air Tube (PVC, 100cm), 5 pcs Spare Air Filters,
Mouthpiece, Infant Mask (PVC), Child Mask (PVC), AC adapter,
Storage Bag, Instruction Manual, Warranty Card.
= Class ll equipment
= Type B
applied part
Read the instruction
manual carefully
= No operation = Power on
Notes:
• Subject to technical modification without prior notice.
• This OMRON product is produced under the strict quality system of OMRON HEALTHCARE Co., Ltd.,
Japan.
• The device may not work if the temperature and voltage conditions are different to those defined in
the specifications.
• Do not use the device where it may be exposed to flammable gas.
• This device fulfils the provisions of the EC directive 93/42/EEC (Medical Device Directive) and the
European Standard EN13544-1:2007, Respiratory therapy equipment - Part1: Nebulising systems
and their components.
22
Page 23
8.Technical data
0
10
20
30
40
50
60
70
80
90
100
1000110.1
Cumulative % particle mass of sodium fluoride under size
Particle Size Dp (µm)
Individual
Mean
MMAD 3.0 µm
Cumulative Undersize %
Technical data for the OMRON NE-C801KD Compressor with the OMRON V.V.T.
(Virtual Valve Technology) Nebuliser kit:
Particle Size:
**MMAD Approx. 3µm
MMAD = Mass Median Aerodynamic Diameter
Medication Tank Capacity:
Appropriate Medication
Quantities:
Sound:
Nebulisation Rate:
Aerosol Output:
Aerosol Output Rate:
7ml maximum
2ml minimum - 7ml maximum
*Approx. 46dB
*Approx. 0.3ml/min (by weight loss)
**0.47ml (2ml, 1%NaF)
**0.06ml/min (2ml, 1%NaF)
Result of cascade impactor measurements for particle size**
* Measured by OMRON HEALTHCARE Co., Ltd.
**Independently measured by Prof. Dr. Hiroshi Takano, Department of Chemical
Engineering and Materials Science, Faculty of Science and Engineering, Doshisha
University, Kyoto, Japan, according to EN 13544-1:2007
Notes:
• Performance may vary with drugs such as suspensions or high viscosity. See drug supplier’s data
sheet for further details.
• See web site of OMRON HEALTHCARE EUROPE to update technical information.
URL: www.omron-healthcare.com
EN
23
Page 24
8.Technical data
Important information regarding Electro Magnetic Compatibility (EMC)
With the increased number of electronic devices such as PC’s and mobile (cellular)
telephones, medical devices in use may be susceptible to electromagnetic interference
from other devices. Electromagnetic interference may result in incorrect operation of
the medical device and create a potentially unsafe situation.
Medical devices should also not interfere with other devices.
In order to regulate the requirements for EMC (Electro Magnetic Compatibility) with the
aim to prevent unsafe product situations, the EN60601-1-2:2007 standard has been
implemented. This standard defines the levels of immunity to electromagnetic
interferences as well as maximum levels of electromagnetic emissions for medical
devices.
This medical device manufactured by OMRON HEALTHCARE conforms to this
EN60601-1-2:2007 standard for both immunity and emissions.
Nevertheless, special precautions need to be observed:
• Do not use mobile (cellular) telephones and other devices, which generate strong
electrical or electromagnetic fields, near the medical device. This may result in
incorrect operation of the unit and create a potentially unsafe situation.
Recommendation is to keep a minimum distance of 7 m. Verify correct operation of the
device in case the distance is shorter.
Further documentation in accordance with EN60601-1-2:2007 is available at OMRON
HEALTHCARE EUROPE at the address mentioned in this instruction manual.
Documentation is also available at www.omron-healthcare.com.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
This marking shown on the product or its literature, indicates that it should not be
disposed of, with other household wastes at the end of its working life. To prevent
possible harm to the environment or human health from uncontrolled waste disposal,
please separate this from other types of wastes and recycle it responsibly to promote
the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product,
or their local government office, for details of where and how they can take this item for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for
disposal.
This product does not contain any hazardous substances.
24
Page 25
9. Optional parts and accessories
Nebuliser Kit No. : N-01
Mouthpiece
• Instruction Manual
• Mode d’emploi
• Gebrauchsanweisung
• Manuale di istruzioni
• Manual de instrucciones
• Gebruiksaanwijzing
•
EN
FR
DE
IT
ES
IM-NE-C801S-KDE-02-5/2011
5332892-4B
NL
AR
RU
Compressor Nebuliser
Model
NE-C801KD
TMTM
V.V.T. Nebuliser Kit N-01 &
Mouthpiece Set
Model: C801-NSET3
Order No.: 9515573-6
Mouthpiece
Model: C28-3P
Order No.: 9956273-5
Air Tube (PVC, 100cm)
Model: C801-ATBP
Order No.: 9515575-2
V.V.T. Nebuliser Kit N-01 &
Smile Bear Set
Model: C801-NKKD1
Order No.: 9520011-1
Child Mask (PVC)
Model: C28-9
Order No.: 9956276-0
Air Tube (Silicon, 100cm)
Model: C28-6
Order No.: 9956269-7
V.V.T. Nebuliser Kit N-01 &
Happy Bunny Set
Model: C801-NKKD2
Order No.: 9520012-0
Infant Mask (PVC)
Model: C801-MSSP
Order No.: 9520250-5
Instruction Manual
Model: C801-MA-KDE
Order No.: 5332892-4
Air Filters (x 5)
Model: C30-4-E
Order No.: 9956636-6
AC Adapter
Model: C30-E-AC
Order No.: 9956628-5
Air Filter Cover
Model: C801-FCKD
Order No.: 9520251-3
Storage Bag
Model: C801-SOCA-KDE
Order No.: 9520249-1
EN
25
Page 26
Manufacturer
OMRON HEALTHCARE Co., Ltd.
53, Kunotsubo, Terado-cho, Muko, Kyoto, 617-0002 JAPAN
EU-representative
Production facility
Subsidiary
OMRON HEALTHCARE EUROPE B.V.
Scorpius 33, 2132 LR Hoofddorp, THE NETHERLANDS
www.omron-healthcare.com
OMRON (DALIAN) CO., LTD.
Dalian, CHINA
OMRON HEALTHCARE UK LTD.
Opal Drive, Fox Milne, Milton Keynes, MK15 0DG, U.K.
OMRON MEDIZINTECHNIK HANDELSGESELLSCHAFT mbH
John-Deere-Str. 81a, 68163 Mannheim, GERMANY
www.omron-medizintechnik.de
OMRON SANTÉ FRANCE SAS
14, rue de Lisbonne, 93561 Rosny-sous-Bois Cedex, FRANCE
Made in China
26
Loading...
