Page 1
Compressor Nebulizer
Model NE-C29
INSTRUCTION MANUAL
3
5
TM
Page 2
1
Before Using the Unit
Important Safety Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Guide to Using the NE-C29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Operating Instructions
How to Prepare the Nebulizer for Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
How to Take Medication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Care and Maintenance

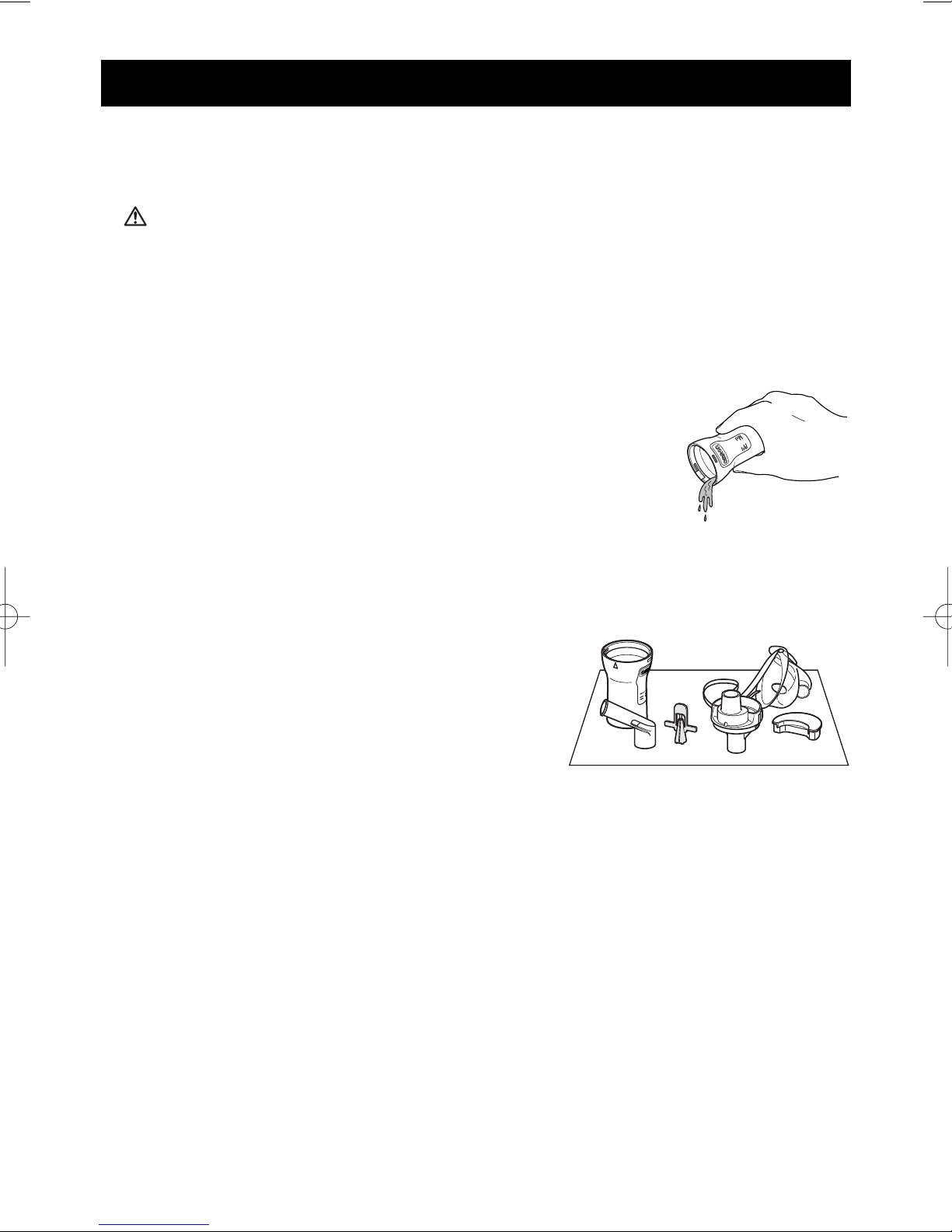

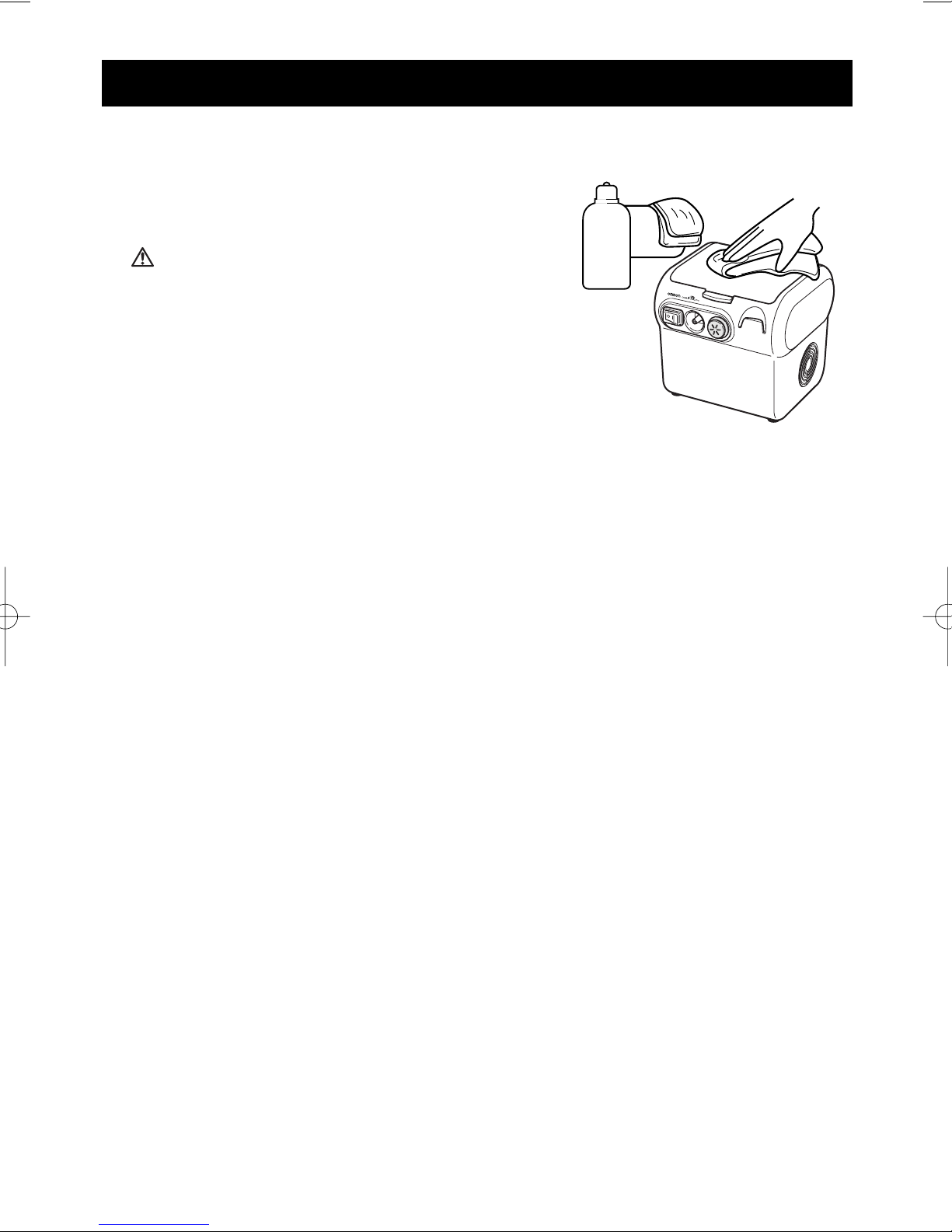

Cleaning and Daily Disinfecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Maintenance and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

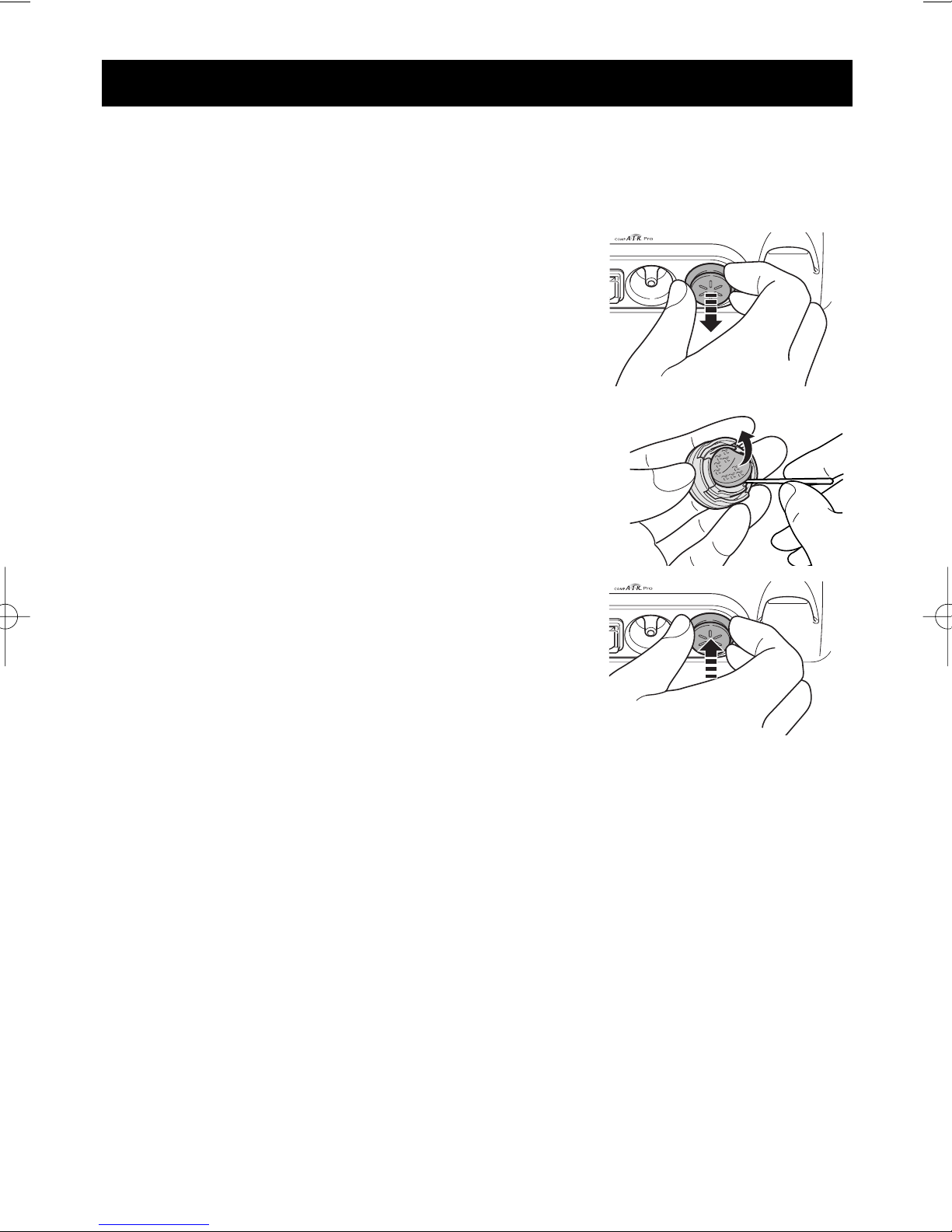

How to Change the Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Optional Parts and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
CONTENTS
Page 3
2
To assure the correct use of the product basic safety measures should always be followed
including the precautions listed below:
WARNING:
Indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.
(Usage)
For type, dose, and regime of medication follow the instructions of your doctor or
respiratory therapist.
Clean and disinfect the nebulizer kit, mouthpiece and optional nosepiece or masks
before using them for the first time after purchase, if the device has not been used for
a long period of time.
If the device is used by more than one person, be sure to clean and disinfect parts
before they are used by each person.
Always dispose of any remaining medication after use, and use fresh medication each
time.
Do not use only water in the nebulizer, for nebulizing purposes.
Do not use the device where it may be exposed to flammable gas.
Do not block the ventilation slots. Never place the device where the ventilation slots
may be obstructed during operation. Do not cover the compressor with a blanket or
towel etc., during use.
(Risk of electrical shock)
Never unplug the power cord with wet hands.
The compressor and power cord are not waterproof. Do not spill water, or other
liquids, on these parts. If liquid does spill on these parts, immediately unplug the
power cord and wipe off the liquid with gauze or other absorbent material.
Do not use or store the device in humid locations, such as a bathroom.
Do not immerse the main unit in water or other liquid.
Although this device fulfils the provisions of the EMC (Electromagnetic Compatibility)
directive, the use of it should be avoided in direct vicinity of other electric devices.
(Maintenance and Storage)
Store the device and accessories in a clean location.
Always rinse the nebulizing parts with clean hot tap water after disinfecting them.
Never leave the cleaning solution in the nebulizing parts.
Be sure to wash the parts after use, and dry the parts immediately after washing them.
Keep the device out of the reach of unsupervised infants and children. The device
may contain small pieces that can be swallowed.
Do not store the air tube while there is moisture or medication remaining inside it.
IMPORTANT SAFETY NOTES
Before Using the Unit
Page 4
CAUTION:
Indicates a potentially hazardous situation which if not avoided, may result in minor or
moderate injury, or physical damage.
(Usage)
Provide close supervision when this device is used by, on, or near children or invalids.
Make sure that the baffle, air filter, and other parts are attached correctly.
Make sure that the air filter is clean. If the air filter has changed colour, or has been
used on average for more than 60 days, replace it with a new one.
Do not tilt the nebulizer kit so that it is at an angle of greater than 45º, or shake it
while in use.
Do not use or store the device while the air tube is bent.
Approved for human use only.
Use only original OMRON parts and accessories. Use of unsupported parts may
damage the device.
Do not add more than 7 ml of medication to the medication cup.
Do not drop the compressor or nebulizer kit, or subject them to strong shocks.
Do not distort the baffle, or jab the nozzle of the medication cup with a pin etc.
Do not insert fingers or objects inside the compressor.
Do not block the air filter cover.
Do not disassemble or attempt to repair the compressor or power cord.
To avoid injury to the nose mucosa, do not squeeze the nosepiece into the back of the
nose.
Do not block the slit between the cap and the inhalation air inlet.
Do not use a microwave oven or hair dryer to dry the nebulizing parts.
Changes or modifications not approved by OMRON Healthcare will void the user
warranty.
(Risk of electrical shock)
Plug the device into the appropriate voltage outlet. Do not overload power outlets or
use extension cords.
Always unplug the device from the power outlet after use.
Always disconnect the power cord before cleaning.
(Maintenance and Storage)
Do not carry or leave the nebulizer while the medication cup contains medication.
When sterilizing parts by boiling, make sure that the container does not boil dry.
IMPORTANT SAFETY NOTES
3
Page 5
Never place, or attempt to dry the compressor, the power cord or nebulizing parts in a
microwave oven.
General Safety Precautions:
Inspect the device and parts before using the them each time, and check that there are
no problems. In particular, be sure to check the following:
- That the baffle, nozzle or air tube are not damaged.
- That the nozzle is not blocked.
- That the compressor operates normally.
When using this device, there will be some noise and vibration caused by the pump in
the compressor. There will also be some noise caused by the emission of compressed
air from the nebulizer kit. This is normal and does not indicate a malfunction, or
reduce the working life of the device.
Operate the device only as intended. Do not use the device for any other purpose.
Do not use the device at temperatures greater than +40ºC.
Dispose of the device and any used accessories or optional parts according to
applicable local regulations. Unlawful disposal may cause environmental pollution.
IMPORTANT SAFETY NOTES
4
Page 6
3
5
3
5
5
KNOW YOUR UNIT
Compressor (Main Unit)
Nebulizing Parts
Inhalation Attachments
Mouthpiece
Adult Mask
Child Mask
Nosepiece
(Option)
Air Plug
Air Plug
Air Connector
Air Tube
Ventilation
Slots
Nebulizer Kit
Holder
Ventilation
Slots
Power Cord
NOTE:
Above shows the power plug
for 230V 50Hz model.
Rear View
Power Plug
Storage Compartment
Cover
Air Filter Cover
(*Air Filter Inside)
Power
Switch
Nebulizer Kit
Cap
Inhalation Air Inlet
Inhalation Top
Baffle
Medication Cup
Nozzle
Air Tube Connector
Page 7
KNOW YOUR UNIT
6
Accessories:
Spare Air Filters x 5
Instruction Manual
Page 8
GUIDE TO USING THE NE-C29
7
HOW TO PREPARE THE NEBULIZER FOR USE (Page 8)
NOTE:
Clean and disinfect the nebulizer kit and applicable inhalation attachments
before using the device for the first time, or if it has not been used for a
while.
HOW TO TAKE MEDICATION (Page 12)
NOTES:
• Do not tilt the nebulizer kit so that it is at an angle of
greater than 45°.
• Do not bend or fold the air tube.
HOW TO CLEAN PARTS AFTER USE (Page 15)
NOTE:
Failure to clean the nebulizing parts after use may lead
to infection.
HOW THE NEBULIZER KIT WORKS
The compressed air from the compressor is
forced through the nozzle, as it does so, it is
mixed with the medication in the baffle and
forced upwards. The medication is then turned
into a fine aerosol and directed upwards by the
baffle, where it is broken down into many
smaller aerosol particles.
Aerosol
Baffle
Baffle
Medication
Compressed Air
Medication
Nozzle
Aerosol
ax
ax
ax
ax
m
m
m
m
5
5
5
5
3
3
3
3
Page 9
WARNING:
Clean and disinfect the nebulizer kit, mouthpiece and optional nosepiece or masks
before using them for the first time after purchase, if the device has not been used
for a long period of time.
For directions on cleaning and disinfecting the parts of the device refer to page 15 in this
instruction manual.
NOTE:
Make sure that the air filter is changed regularly. (See “How to Change the Air Filter”
on page 18.)
1. Make sure that the power switch is turned off.
Check that the power switch is in the position.
2. Plug the power plug into a power outlet.
3. Remove the mouthpiece and cap from the nebulizer kit.
4. Remove the inhalation top from the medication cup.
1) Rotate the inhalation top counter clockwise.
2) Lift the inhalation top out of the medication cup.
HOW TO PREPARE THE NEBULIZER FOR USE
8
Operating Instructions
2
1
5
3
Page 10
5. Remove the baffle from the medication cup.
6. Add the correct amount of prescribed medication to the
medication cup.
CAUTION:
The capacity of the medication cup is
2 to 7 ml.
7. Reattach the baffle to the medication cup.
8. Put the inhalation top back inside the medication cup.
1) Align the protrusion on the inhalation top with the
indent on the medication cup, as shown.
2) Rotate the inhalation top clockwise and align with
the medication cup until they click in place.
HOW TO PREPARE THE NEBULIZER FOR USE
9
max
5
3
1
max
5
3
2
Page 11
9.Attach the desired inhalation attachment, as described below.
Attach the cap when using the mouthpiece or optional nosepiece. Using the cap with
these attachments will reduce the amount of medication that is discharged into the air.
Attaching the Mouthpiece
1) Attach the cap to the inhalation air inlet.
2) Attach the mouthpiece to the inhalation top.
Attaching the Adult Mask
Attach the mask to the inhalation top.
NOTE:
Do not attach the cap.
Attaching the Child Mask
Attach the mask to the inhalation top.
NOTE:
Do not attach the cap.
Attaching the Nosepiece (Option)
1) Attach the cap to the inhalation air inlet.
2) Attach the nosepiece to the inhalation top.
HOW TO PREPARE THE NEBULIZER FOR USE
10
2
1
2
1
Page 12
10 .Attach the air tube.
1) Attach the air tube to the air connector on the compressor.
2) Attach the other end of the air tube to the air tube connector on the medication cup.
NOTES:
• Make sure that the air tube is securely connected. Otherwise, air may leak from
the air tube during use.
• Take care not to spill the medication when attaching the air tube. Keep the
nebulizer kit upright.
• Use the nebulizer kit holder as a temporary holder for the nebulizer kit.
HOW TO PREPARE THE NEBULIZER FOR USE
11
2
1
Page 13

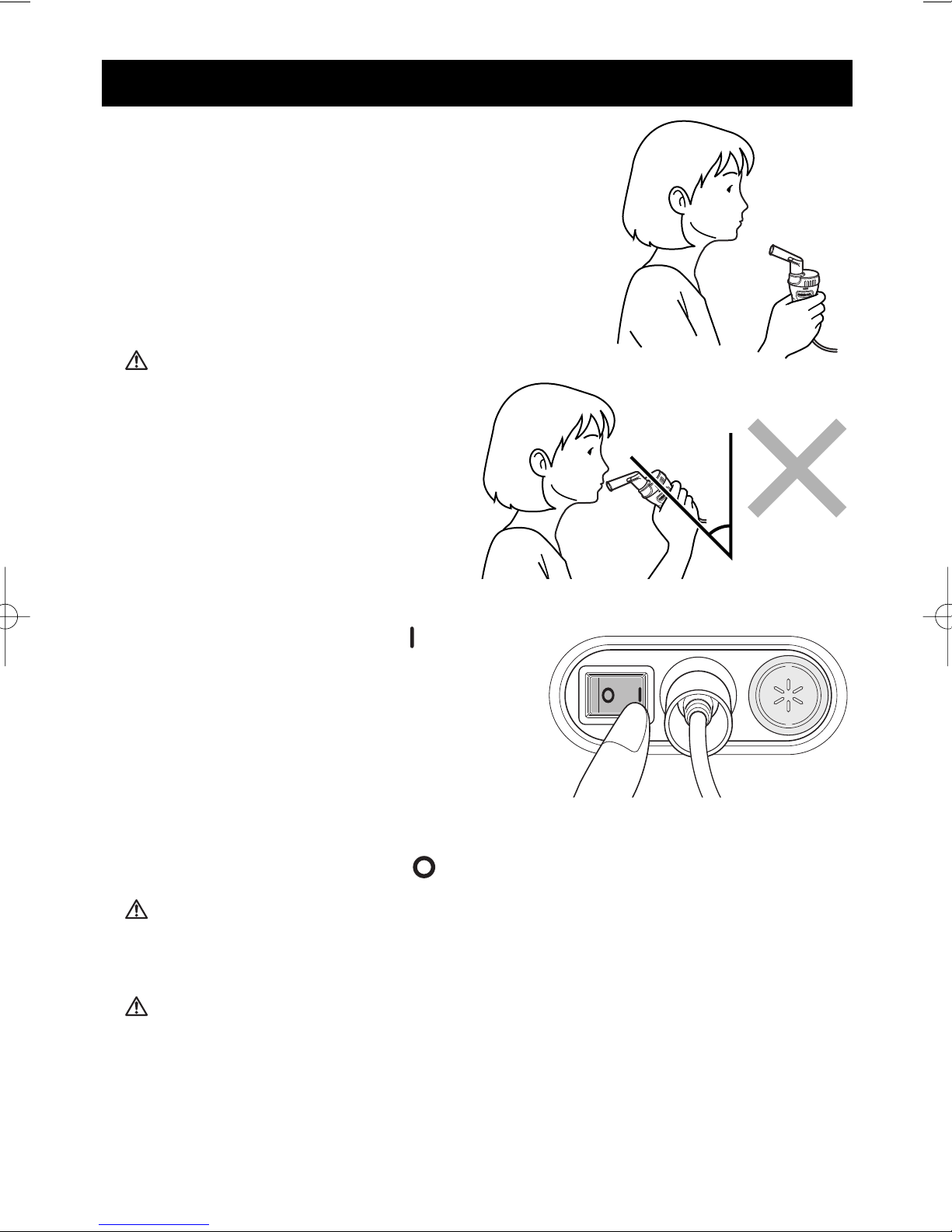

1.Hold the nebulizer kit as indicated on the right.
CAUTION:
Do not tilt the nebulizer kit so that it
is at an angle of greater than 45°.
Medication may flow into the
mouth.
2.Press the power switch to the on ( ) position.
The compressor starts and nebulization starts.
NOTE:
Perform functional test, observe whether
aerosol is generated.

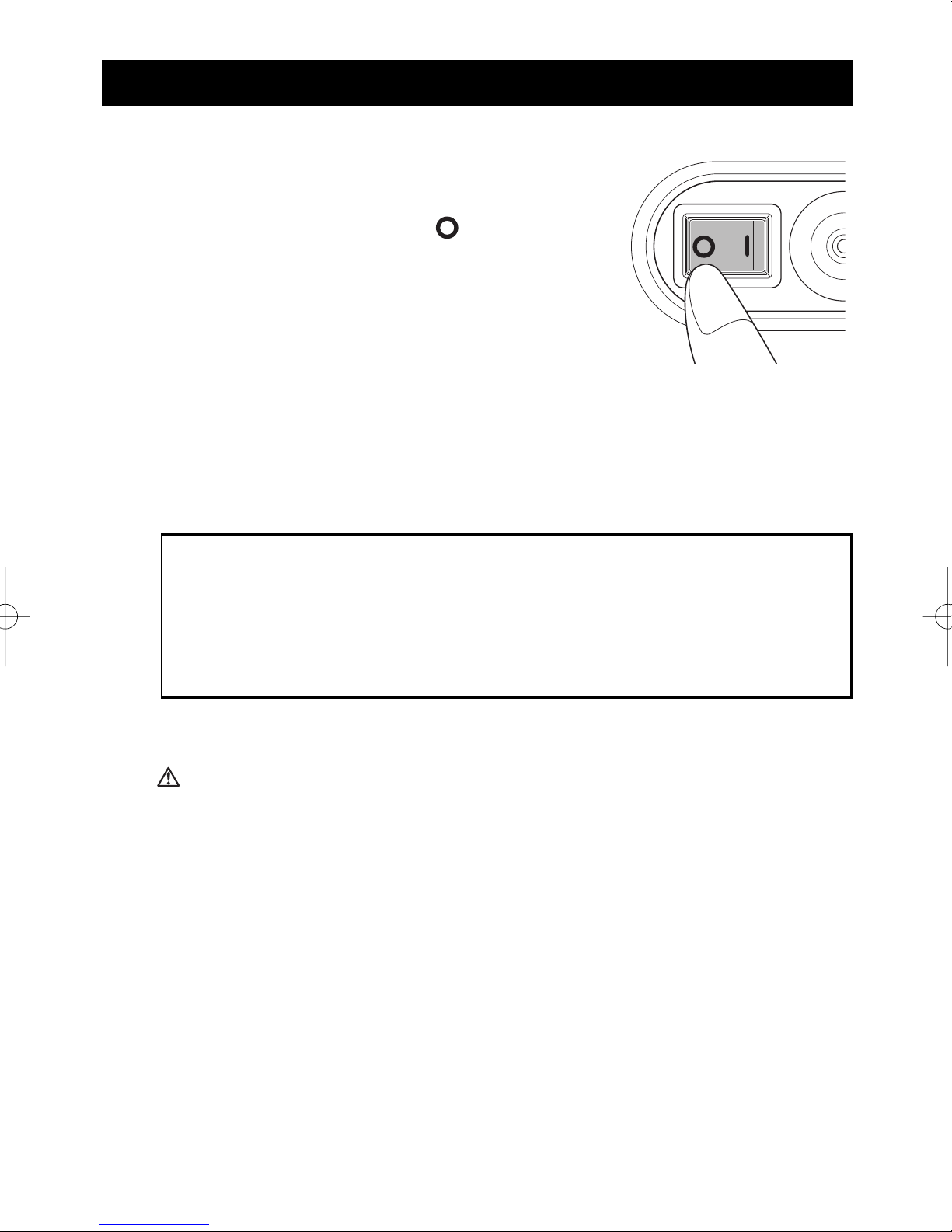

To stop nebulization
Press the power switch to the off ( ) position.
WARNING:
Do not block the ventilation slots on the compressor. This could result in the
compressor overheating or malfunctioning.
CAUTION:
Do not block the air filter cover.
HOW TO TAKE MEDICATION
12
m
a
x
5
3
m
a
x
5
3
45°
max
max
5
5
3
3
Page 14
3. Inhale medication as according to your doctor’s and/or health care adviser’s
instructions.
Using the Mouthpiece
Insert the mouthpiece into your mouth and inhale the
medication breathing normally. Exhale as normal through the
mouthpiece.
Using the Adult Mask
Attach the mask so that it covers your nose and mouth and
inhale the medication. Exhale as normal through the mask.
NOTE:
If the amount of aerosol is too great, attach the cap.
Using the Child Mask
Attach the mask so that it covers your nose and mouth and
inhale the medication. Exhale as normal through the mask.
NOTE:
If the amount of aerosol is too great, attach the cap.
Using the Nosepiece (Option)
Inhale the medication through the nosepiece, as shown and
exhale through the mouth.
HOW TO TAKE MEDICATION
13
m
a
x
5
3
m
ax
5
3
max
5
3
max
5
3
m
a
x
5
3
m
a
x
5
3
m
a
x
5
3
m
a
x
5
3
Page 15
4.Complete your treatment.
1) When you have finished inhaling your medication,
turn the compressor off.
Press the power switch to the off position.
2) Unplug the air tube from the nebulizer kit.
NOTE:
Always hold the air plug when disconnecting the air tube.
3) Check that there is no condensation or moisture remaining in the air tube.
4) Unplug the air tube from the compressor.
WARNING:
Condensation may occur in the air tube. Do not store the air tube while it
contains condensation or moisture. This could result in infection via
bacteria.
5) Unplug the device from the power outlet.
HOW TO TAKE MEDICATION
14
If there is moisture or liquid remaining in the air tube, be sure to follow
the procedure below to remove any moisture from within the air tube.
i) Make sure that the air tube is still connected to the air connector on the
compressor.
ii) Turn on the compressor and pump air through the air tube to expel the moisture.
Page 16
Following the cleaning instructions after each use will prevent any remaining
medication in the bottle from drying resulting in the device not nebulizing effectively
and also for preventing infections.
WARNING:
Be sure to wash the parts after use, and dry the parts immediately after
washing them.
1.Remove the nebulizer kit from the air tube and disassemble the nebulizer kit.
Separate the inhalation attachment and the nebulizer kit, and disassemble the nebulizer
kit. (See page 8)
2. Discard any remaining medication in the medication cup.
3.Wash all the parts of the nebulizing parts in warm water and mild detergent, or wash in
a dishwasher.
For instructions on how to disinfect the parts, see the following section.
4.After cleaning and disinfecting the parts, rinse them
thoroughly with clean water and allow the parts to
air dry in a clean environment.
Disinfecting the Parts of the Nebulizing Parts
Always disinfect the medication cup, mouthpiece and other parts of the nebulizing parts
after the last treatment of the day. To disinfect the parts, use one of the methods
described below:
A. Use a commercially available disinfectant. Follow the instructions provided by the
disinfectant manufacturer.
B. Parts may be boiled for more than 15 minutes (except for mask).
1.Submerge the parts in the cleansing solution for the specified period.
2.Remove the parts and discard the solution.
3.Rinse the parts with clean hot tap water.
CLEANING AND DAILY DISINFECTING
15
Care and Maintenance
3
5
ax
m
5
3
Page 17
1.Assemble the nebulizing parts.
2.If the compressor is dirty, wipe it clean with a soft
cloth moistened with water or mild detergent.
WARNING:
The compressor is not waterproof.
3.If the outside of the air tube is dirty, wipe it clean with a soft cloth moistened with
water or mild detergent.
4.Store the parts in the storage compartment in the compressor.
NOTE:
Make sure that the parts are clean and dry. Do not place parts in the storage
compartment if they are still wet.
5.Store the unit in a clean location.
NOTE:
Nebulizer kit should be replaced after using for 6 months.
MAINTENANCE AND STORAGE
16
Mild Detergent
Page 18
To keep your device in the best condition and protect the device from damage follow
these directions:
CAUTION:
• Do not drop the compressor or nebulizer kit, or subject them to strong shocks.
• Do not carry or leave the nebulizer while the medication cup contains
medication.
NOTES:
• Do not store the device in extreme hot or cold temperatures, high humidity or under
direct sunlight.
• Dispose of the device and any used accessories or optional parts according to
applicable local regulations.
• Never clean with benzene, thinner or a flammable chemical.
MAINTENANCE AND STORAGE
17
Benzene
Thinner
Gasoline
Page 19
If the air filter becomes dirty, or has water or medication spilled on it, replace the air
filter with a new one. On average, the air filter should be changed every 60 days even if
it does not appear dirty.
1.Pull the air filter cover off the compressor.
2.Change the air filter.
Remove the old air filter with a sharp object, such as a
toothpick, and insert the new air filter.
3.Put the air filter cover back in place.
NOTES:
• Use only OMRON air filters designed for this unit.
Do not operate without a filter.
• There is no front or back orientation for the air
filters.
• Check that air filters are clean and free of dust before inserting them.
• Do not attempt to wash or clean the filter. If the air filter becomes wet, replace it.
Damp air filters can cause blockages.
• To prevent the mesh of the air filter cover becoming blocked, wash the cover
regularly. Do not boil the air filter cover.
Remove the air filter cover, wash it, and make sure it is dry and reattached
correctly.
• Please contact your OMRON dealer for additional air filters, or if the parts
supplied with the device are damaged or missing.
HOW TO CHANGE THE AIR FILTER
18
Page 20
The device is abnormally
loud.
Attach the air filter cover
correctly.
Is the air filter cover
attached correctly?
The device is very hot.
Do not block the ventilation
slots.
Are the ventilation slots
blocked?
Check the following if your unit should fail during operation. You can also refer to the
pages of this manual for complete instructions.
TROUBLESHOOTING TIPS
19
PROBLEM REMEDY
Nothing happens when
the power switch is
pressed.
Check that the plug is
inserted in an electrical
outlet. Unplug then reinsert
the plug if necessary.
No nebulization or low
nebulization rate, when
the power is on.
Fill the medication cup.
Add the correct amount of
medication to the medication
cup.
Attach the baffle correctly.
Assemble the nebulizer kit
correctly.
Make sure that the nozzle is
free of blockages.
Make sure that the nebulizer
kit is not tilted at an angle of
more than 45 degrees.
Make sure that the air tube is
correctly connected to the
compressor and nebulizer
kit.
CAUSE
Is the power plug
plugged into an electrical
outlet?
Is there medication in
medication cup?
Is there too much/little
medication in the
medication cup?
Is the baffle missing and
not assembled correctly?
Is the nebulizer kit
assembled correctly?
Is the nozzle blocked?
Is the nebulizer kit tilted
at a sharp angle?
Is the air tube connected
correctly?
Make sure that the air tube
does not contain kinks.
Is the air tube folded or
damaged?
Make sure that the air tube is
free of blockages.
Is the air tube blocked?
Replace the air filter with a
new one.
Is the air filter dirty?
NOTES:
•
If the suggested remedy does not solve the problem, do not try to repair the device - no
parts of the unit are user serviceable. Return the unit to an authorized OMRON dealer.
• The device should be serviced once a year by an approved OMRON service centre.
Page 21
Model: NE-C29
Type: Non-heating compressor nebulizer
Electrical: 230V, 50Hz model ; 230V, 60Hz model
Power Consumption: 138VA
Nebulizer Rate: 0.4 ml/min (without cap)
Particle Size: *MMD approximately 5 µm (based on EN13544-1)
Medication Cup Capacity: 7 ml (cc) max.
Appropriate Medication 2 - 7 ml (cc)
Quantities:
Operating Temperature/ +10°C to +40°C, 30% to 85% RH
Humidity:
Storage Temperature/ –20°C to +60°C, 10% to 95% RH
Humidity:
Weight: Approx. 2.3kg (compressor only)
Dimensions: Approx. 186mm (w) × 180mm (h) × 216mm (d)
Contents: Compressor, Nebulizer Kit, Air Tube, 5 pcs Replacement
Filters, Mouthpiece, Adult Mask, Child Mask,
Instruction Manual.
*MMD = Mass Median Diameter
NOTES:
• Subject to technical modification without prior notice.
• Please note that specifications may vary with medication type used.
• Do not use the device where it may be exposed to flammable gas.
• This unit confirms to EMC Standard IEC60601-1-2:2001. However, if it is used
together with other medical devices or electrical equipment, they may influence the
operations of one of devices. Please follow any instructions in the manuals and use
all devices correctly.
SPECIFICATIONS
20
= Type B = Class II
Page 22
OPTIONAL PARTS AND ACCESSORIES
21
Air Filters (x 5)
Model No. C28FL
Filter Cover
Model No. C28FLCVR
Nebulizer Kit Set
Model No. C28NEBKIT
Nebulizer Kit
Mouthpiece
Air Tube
Model No. C30TUBE
Mouthpiece
Model No. C28MP
Nosepiece
Model No. C28NP
Adult Mask
Model No. C28AM
Child Mask
Model No. C28CM
Page 23
NOTES
22
Loading...
