Page 1
INSTRUCTION MANUAL
Electronic Nerve Stimulator
HV-F013
Page 2
TABLE OF CONTENTS
Before Using the Unit
Introduction..................................................................................2
How Electronic Nerve Stimulator Works ....................................3
Important Safety Precautions and Warnings ................................4
Know Your Unit .........................................................................11
Package Contents ..................................................................11
Features .................................................................................12

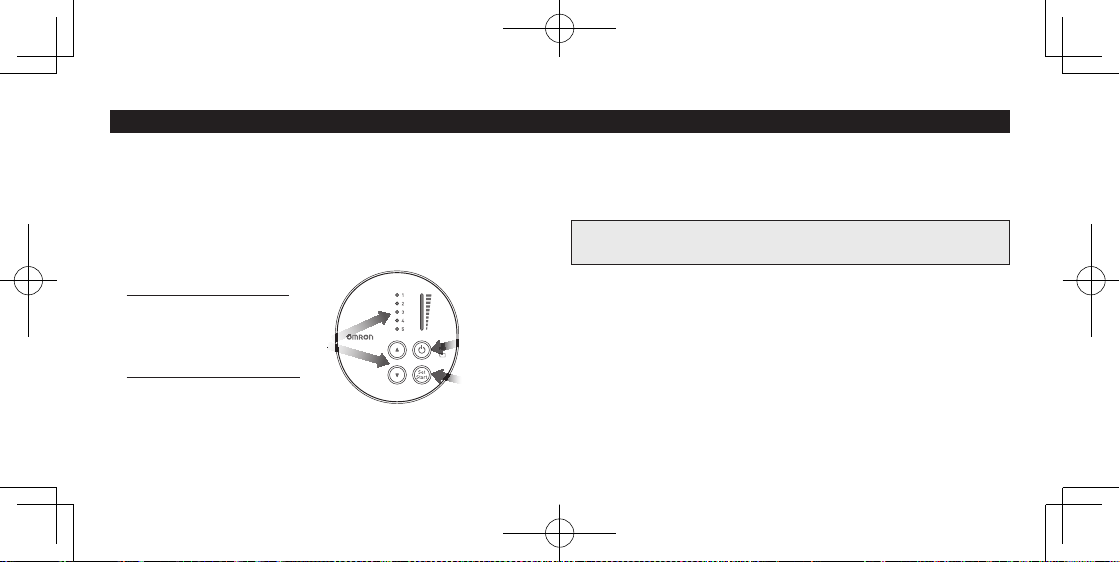

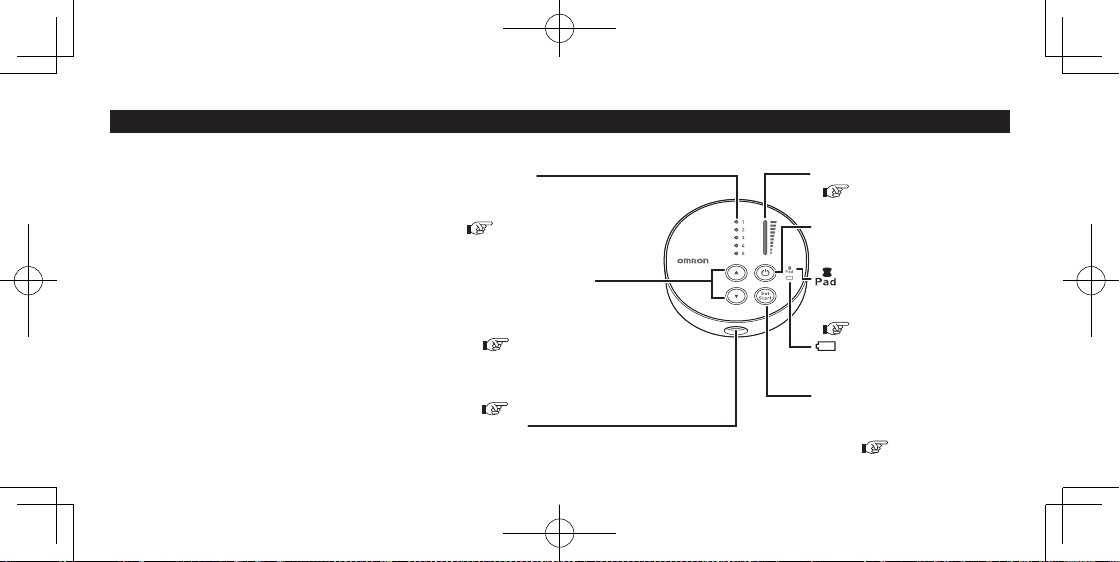

Buttons and Their Functions .................................................12
Operating Instructions
Assembly Steps ..........................................................................13

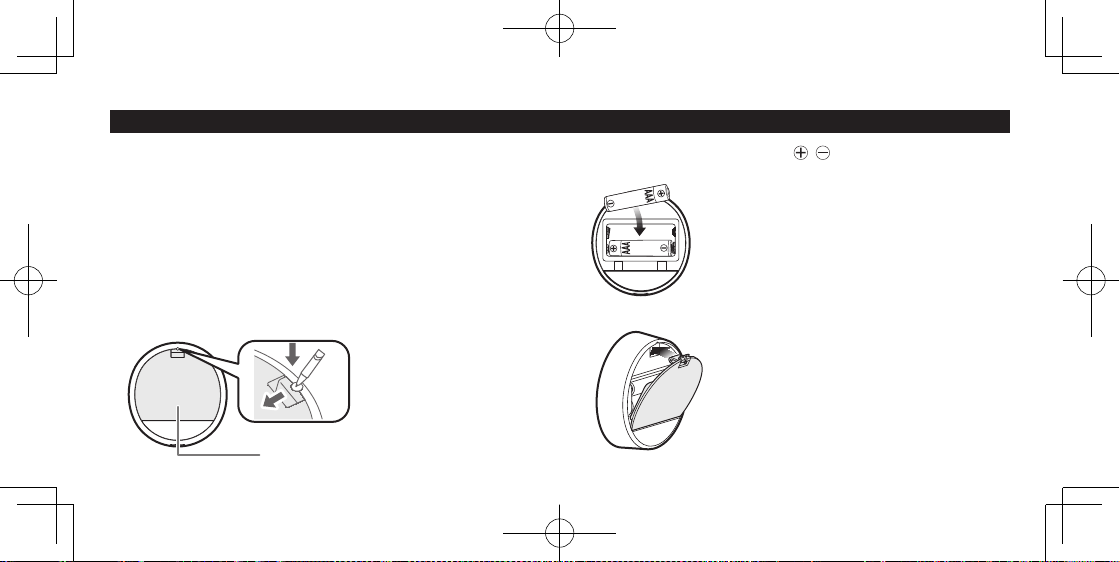

Step 1 – Insert Batteries ........................................................13
Step 2 – Attach Electrode Cord to the Main Unit .................14
Step 3 – Snap Either Electrode Cord to Each of the Pads ....14

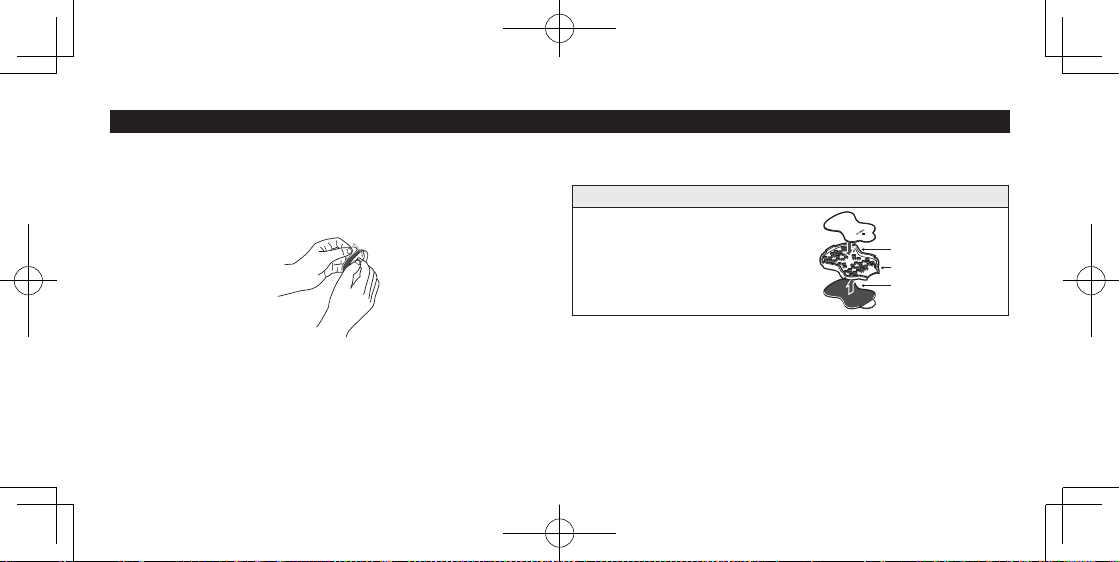

Step 4 – Remove and Discard Plastic Film from Pads .........15
Get Started with Your Therapy .................................................16

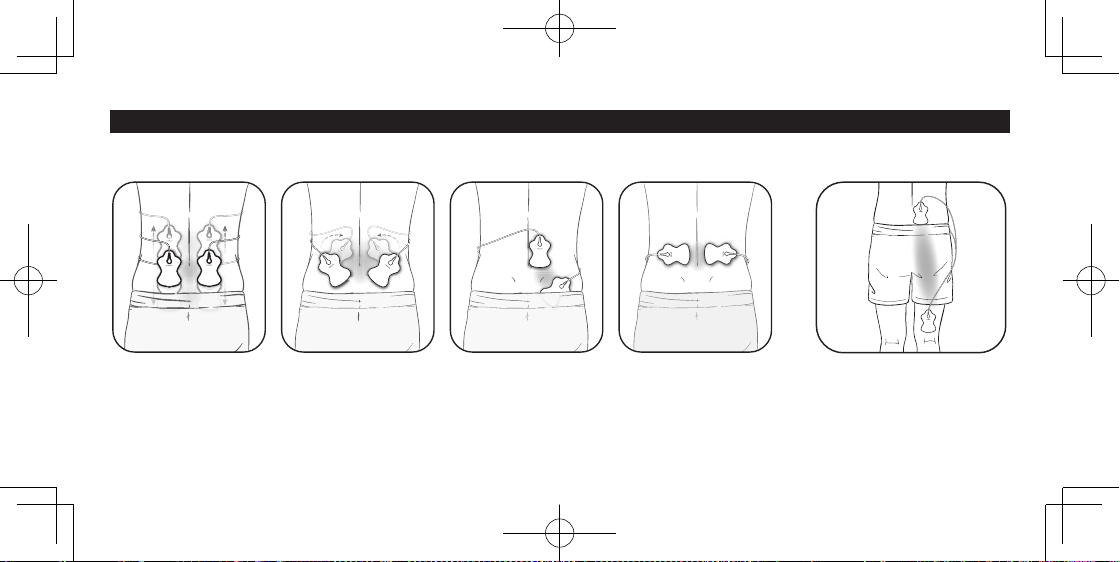

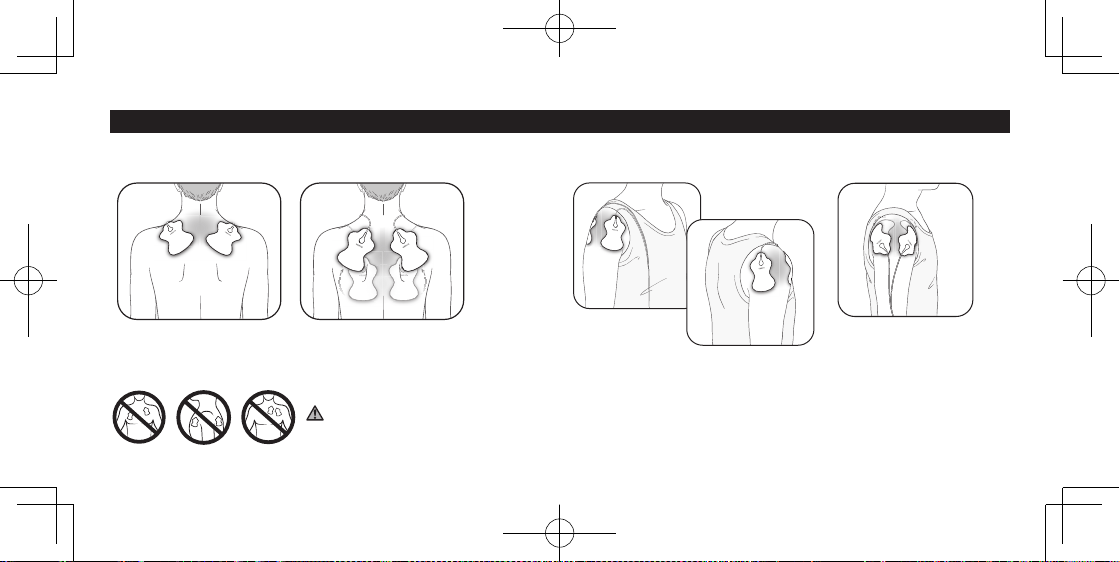

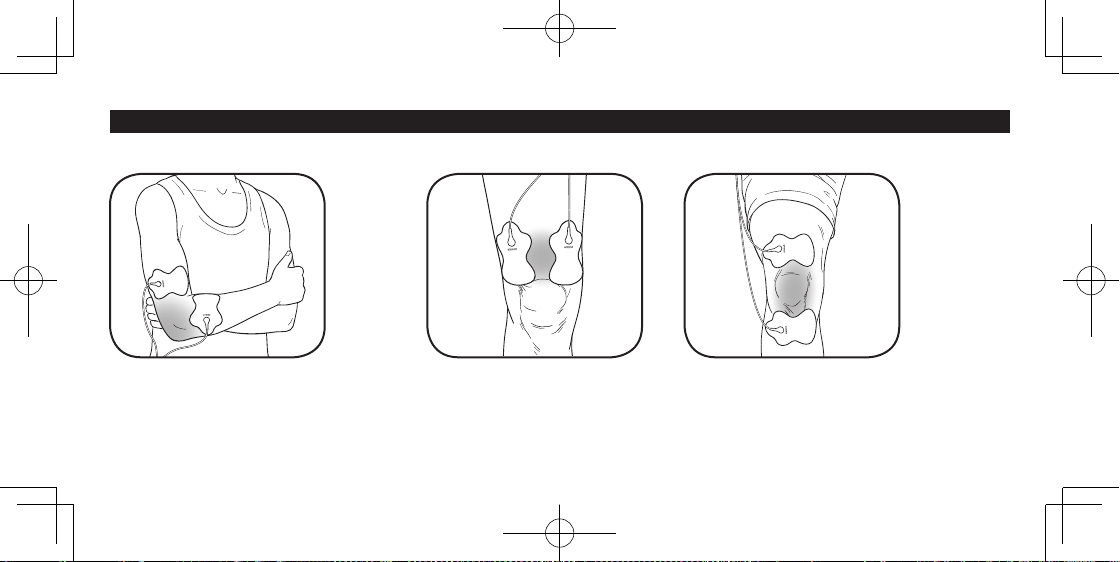

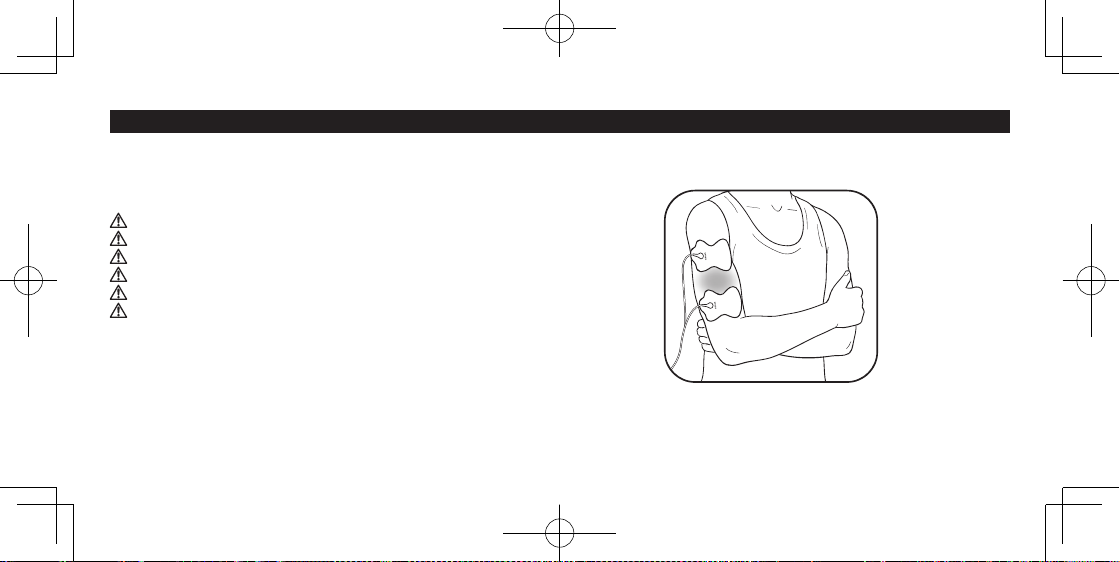

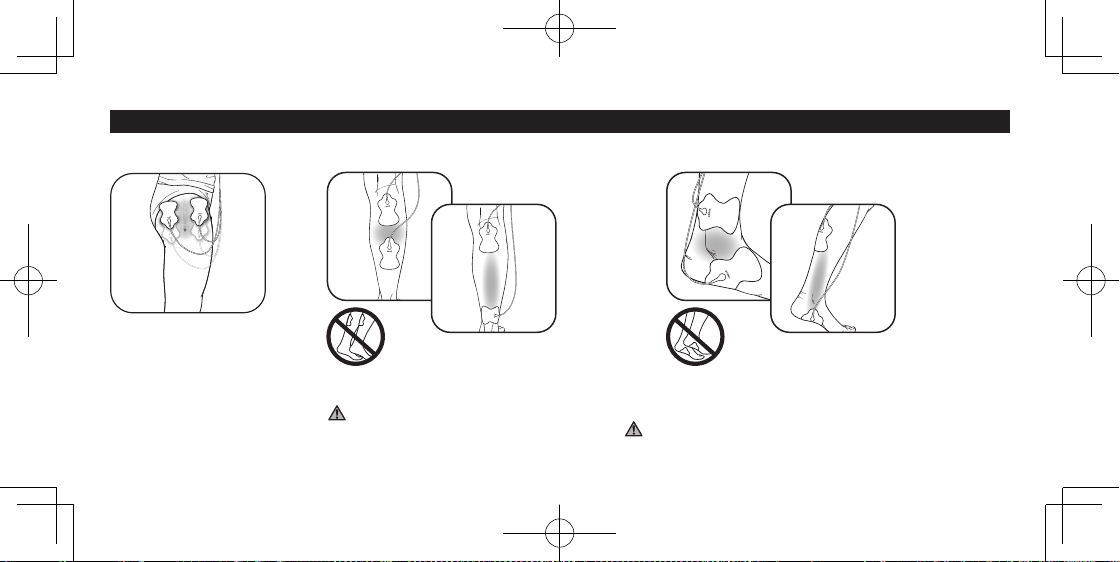

Step 1 – Pad Placement .........................................................16

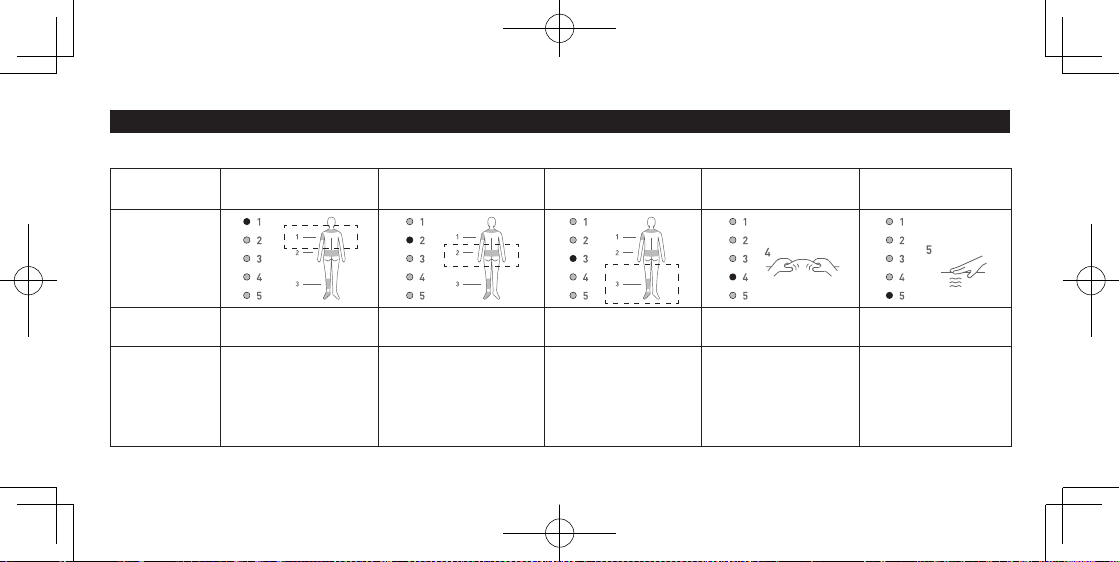

Step 2 – Select 1 of 5 Modes ................................................21

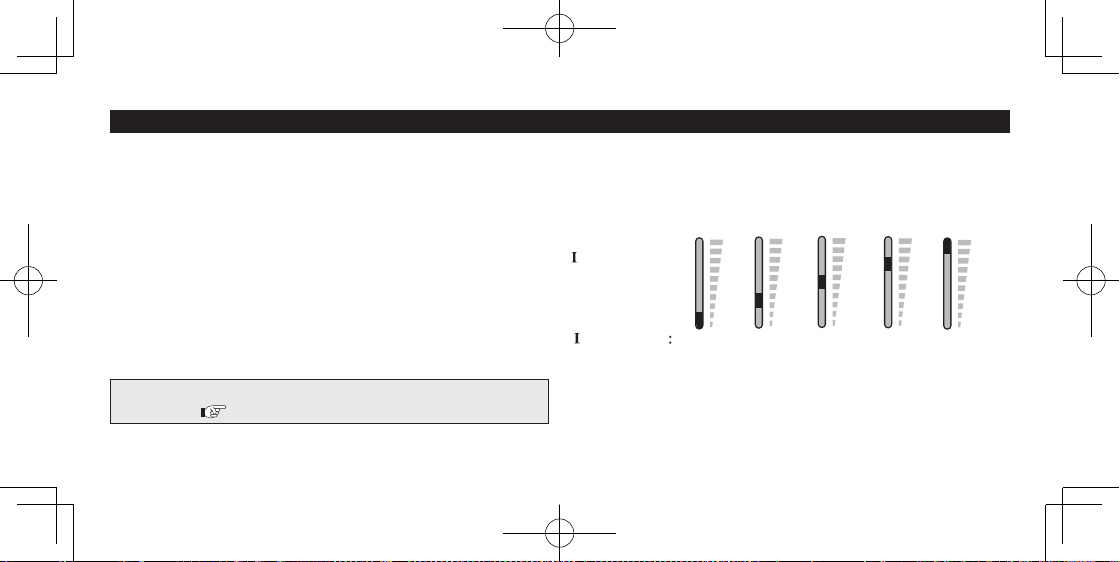

Step 3 – Select Intensity Level (1 Low – 10 High) ..............23
How to Control and Reduce Your Pain ......................................24
When Should You Start Therapy?.........................................24
Get to Your Pain Early .........................................................24
How Long Should You Use it? ............................................24
When to Stop Using the Unit? ..............................................24
What Type of Pain is it Best for? .........................................25
Cleaning and Storage

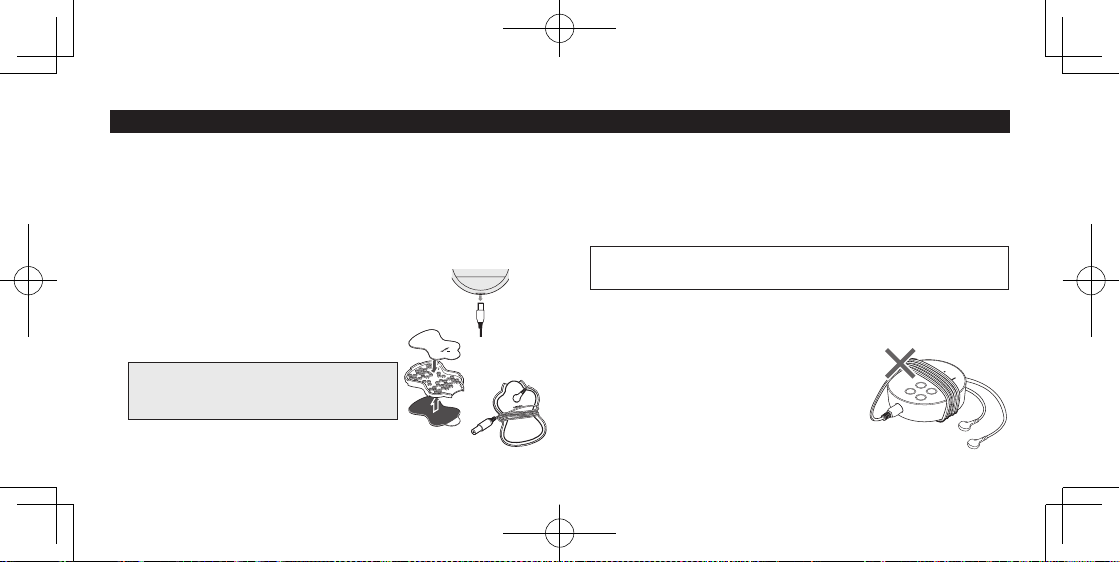

Cleaning and Storage ................................................................26
Cleaning the Pads .................................................................26
When Should You Replace Your Pads? ...............................26
Cleaning the Unit ..................................................................27
Storing the Pads ....................................................................27
Storing the Unit and Pads .....................................................27
Troubleshooting ............................................................................28
Specications ................................................................................31
1
Page 3
Before Using the Unit
INTRODUCTION
Than k you for purchasing the OMRON Electronic Nerve
Stimulator.
In order to use the unit safely, read the complete manual carefully
before using the unit for the rst time.
Keep this instruction manual in a convenient place or store with
the unit for futu re reference.

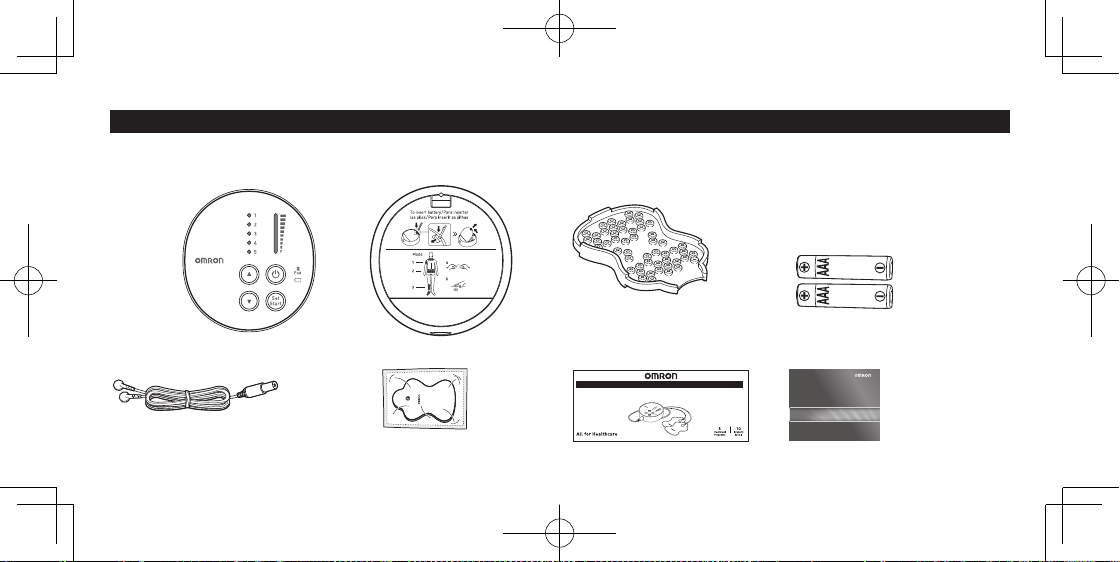

This box contains the following components:
• 1 Main Unit
• 1 Electrode Cord
• 2 Long Life Pads
• 1 Pad Holder
• 2 “AAA” Batteries (LR03)
• 1 Instruction Manual
• 1 Quick Start Guide / Pad Placement Guide
Intended Use
Medical purpose
OMRON Electronic Nerve Stimulator is intended for the relief
of pain associated with sore or aching muscles of the lower back,
arms, legs, feet and shoulder due to strain from exercise or normal
household and work activities. It should be applied to normal,
healthy, dry, clean skin of adult patients.
Intended User
This unit is intended to be operated by adults who can understand
this instruction manual. It is not for professional use in hospitals
or other medical facilities, it is intended for home use only.
2
Page 4
HOW Electronic Nerve Stimulator WORKS
What is it?
The OMRON Electronic Ner ve Stimulator unit is a portable
device designed for adults only. It is designed to reduce and
relieve muscle and joint pain, stiffness and numbness in the
back, arms, legs, shoulder and foot by applying electrical nerve
stimulation to the surface of the skin near the site of the pain.
Any of the modes can safely be used on body parts or pains
described in this manual or Quick Start Guide/Pad Placement
Guide. Just nd one that feels good and is comfortable on your
pain. It can be successfully used in conjunction with any other
pain treatment or medication.
This type of therapy, called Transcutaneous Electrical Nerve
Stimulator (TENS), has been used for over 30 years by medical
professionals such as physical therapists and chiropractors.
How does it work?
Scientic theory suggests that electrical stimulation therapy may
work in several ways:
1. The gentle electrical pulses move through the skin to nearby
nerves to block or shut out the pain message from ever
reaching the brain from the source of the pain.
2. The gentle electrical pulses increase the production of the
body’s natural pain killer, such as endorphins.
3. Furthermore, it is thought that the electrical stimulation
improves blood circulation as well. Muscles contract and relax
with the ow of the electrical stimulation. With repeated
contracting and relaxing, the blood ows in and out and the
blood circulation is improved.
3
Page 5
IMPORTANT SAFETY PRECAUTIONS AND WARNINGS
It is important that you read all the warnings and
precautions included in this instr uction manual because
they are intended to keep you safe, prevent injury and avoid a
situation that could result in damage to the unit.
SAFETY SYMBOLS USED IN THIS
INSTRUCTION MANUAL
Improper use may cause danger resulting in
DANGER
WARNING
CAUTION
death or serious i njury. These are sit uation s
in which t he device should not be used.
Indicates a potentially hazardous situation
which, if not avoided, could result in death or
se riou s inju ry.
Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injur y to the u ser or patient or
damage to the equ ipment or other prope rty.
DANGER
Do not use this unit with these other devices:
If you have a pacemaker, implanted debrillator, or other
(1)
implanted metallic or electronic device. Such use could
cause electric shock, bur ns, electrical inter ference or death.
(2) Do not use this device while using another TENS device.
(3) Together with a l ife-supporting medical electronic device such as
an articial heart or lung or res pirator.
(4) For Hospitals and Clinics, in t he presence of or when attached to
the body, electronic monitoring equipment (e.g. cardiac monitors,
ECG alar ms), which may not operate properly when the electrical
stimu lation dev ice is in use.
For Hospitals and Clinics, Simu ltaneous connection of a patient to a
(5)
high frequency surgical ME equipment may result in bur ns at the
site of the st imulator electrodes and possible damage to the stimulator.
(6) For Hospitals and Clinics, ope ration i n close proximity (e.g. 1m) to
a shortwave or microwave ther apy ME equipment may produce
instability to the sti mulator output.
4
Page 6
IMPORTANT SAFETY PRECAUTIONS AND WARNINGS
DO NOT USE THIS UNIT U NDER THESE CONDITIONS
Consult with your physician before using this unit.
The unit may cause lethal rhythm disturbances in certain
susceptible individuals. If you have had a recent surgical
procedure, the stimulation may disr upt the healing process.
DO NOT USE ON THESE INDIVIDUALS
Pregnant women.
Do not use on children or infants because this device has not
been evaluated for pediatric use.
Keep out of the reach of young children because the electrode
cord could cause strangulation.
Persons incapable of expressing their thoughts or
intentions.
Persons incapable of operating the unit by themselves.
Use caution if you have a tendency to bleed internally, such as
following an injury or fracture.
If you have suspected or diagnosed hear t disease, you should
follow precautions recom mended by your physician.
If you have suspected or diagnosed epilepsy, you should
follow precautions recom mended by your physician.
Use caution if stimulation is applied over the menstruating
uterus.
This device is not intended for use by persons (including
children) whose physical, sensory or mental abilities are
different or reduced, or lack of experience or knowledge unless
such persons are afforded supervision or training to operate
the appliance by a person responsible for their safety. Children
should be supervised to ensure they do not use the equipment
as a toy.
5
Page 7
IMPORTANT SAFETY PRECAUTIONS AND WARNINGS
NEVER A PPLY THE PADS TO THESE BODY AREAS:
The head, the mouth, or any area
of the face.
The neck or any area of the
throat because this could
cause severe muscle spasms
resulting in closure of the airway,
difculty in breathing, or adverse
effects on heart rhythm or blood
pressure.
Near the heart, or on genital
area.
Both sides of the thorax
simultaneously (lateral or front
and back), or across your chest
because the introduction of
electrical cur rent may cause
rhyth m disturbances which could
be lethal.
On the calves of both legs at
the same time because this may
cause cardiac disturbance.
On the soles of both feet at the
same time because this may
cause cardiac disturbance.
Open wounds or rashes or over swollen,
red, infected or inamed areas or
skin eruptions (such as varicose
veins, phlebitis, thrombophlebitis and
thrombosis), or on top of or close to
cancerous lesions, or over areas of sk in
that lack normal sensation.
DO NOT USE THIS UNIT DURING
THESE ACTIVITIES
When in the bath or shower;
While sleeping;
While driving, operating machinery,
or during any activity in which electrical
stimulation can put you at risk of injury.
6
Page 8
IMPORTANT SAFETY PRECAUTIONS AND WARNINGS
PAIN MANAGEMENT WARNINGS
If you have had medical or physical treatment for your pain,
consult with your physician before using this unit.
If your pain does not improve, becomes seriously chronic or
severe, or continues for more than ve days, stop using the
unit and consult with your physician.
The mere existence of pain functions as a very important
warning telling us that something is wrong. Therefore, if
you suffer f rom any serious illness, consult your physician
in order to conrm that it is advisable for you to use this
Electronic Nerve Stimulator unit.
If you have any infectious disease or illness, consult with your
physician before using this unit.
DO NOT ALTER THE UNIT
Do not plug this cord into any other device
that is not an OMRON HV-F013.
No modication of this unit is allowed.
Use this unit only with the pads, cable, and
accessories recommended by the manufacturer
to avoid damage to the unit.
WARNINGS REGAR DING THE PADS
Apply pads to normal, healthy, dry, clean
skin (of adult patients) because it may
otherwise disrupt the healing process.
If you experience any skin irritation or redness after a
session, do not continue stimulation in that area of the skin.
7
Page 9
IMPORTANT SAFETY PRECAUTIONS AND WARNINGS
PRECAUTIONS REGARDING THE PADS
Do not move the pads to another location while the unit is on.
Therapy won’t work with just one pad. You MUST USE TWO
PADS at the same time.
Make sure the components are connected well and the
pads are xed on the part of the body you wish to treat or the
therapy may not be effective.
Pad should not touch any metal object, such as a belt buckle,
necklace, or other metal worn u nder clothing.
Do not overlap pads or put pads on top of each other. It may
weaken or stop therapy, or the unit may stop working.
Gel pads may also stick together and cause gel to be removed
when separating.
Do not apply pads with wet hands.
Do not leave pads attached to the skin after treatment.
The pads are for the exclusive use of a single patient. Do
not share pads with another person. This may cause a skin
irritation or infection.
Do not bend or fold because the gel may get damaged and it
won’t stick or function properly.
To avoid damage to the adhesive surface of the pads, put the
pads only on the skin or on the plastic pad holder provided.
Always place clean pads in accordance with illustrations
provided (Refer to pages 16-20, Pad Placement).
Do not apply ointment or any solvent to the pads or to your
skin because it will disrupt the pads from functioning properly.
The self-adhesive pads will adhere to your skin.
Place pads at least 2.5 cm apart for optimal results.
8
Page 10
IMPORTANT SAFETY PRECAUTIONS AND WARNINGS
CAUTION WHILE USING UNIT
MAIN UNIT
If the unit is not functioning properly or you feel discomfort,
immediately stop using the unit.
Do not use for any other purpose except for what it is intended for.
Do not place in a room with high humidity, such as a
bathroom. This will damage the unit. Ideal temperature for
using 10°C - 40°C, 30% - 80% relative humidity.
Do not use the unit without proper lighting. You may not be
able to operate unit successfully.
CORD
Do not wash the electrode cord.
Do not insert the electrode plug into any place other than
the jack on the unit.
Do not pull on the electrode cord during treatment.
Do not bend or pull the end of the cord.
When pulling out the cord from the unit, hold the plug and pull.
Replace the cord when broken or damaged.
BATT ERY
Do not throw the bat teries into a re. The batteries may explode.
Dispose of the unit, batteries, and components according
to applicable legal regulations. Unlawful disposal may cause
environmental pollution.
Do not mix alkaline and manganese batteries as this will
shorten the battery life.
During therapy, do not remove the battery cover and do not
touch the battery terminals.
Do not use rechargeable batteries.
PADS
Use only pads recommended by the manufacturer to avoid
affect the safety and effectiveness of electrical stimulation.
The electrical performance characteristics of pads may
affect the safety and effectiveness of electrical stimulation.
Applying pads incorrectly could result in discomfort or skin
burns.
Detach the pads before replacing the batteries.
9
Page 11
IMPORTANT SAFETY PRECAUTIONS AND WARNINGS
General Precautions
The long-term effects of elect rical stimulation are un known.
Apply stimulation to only nor mal, intact, clean, dry, and
healthy skin.
TENS is not effective in treating the or iginal source or cause of
the pain, including headache.
TENS is not a substitute for pain medications and other pain
management therapies.
TENS devices do not cure disease or injuries.
TENS is a symptomatic treatment and, as such, suppresses
the sensation of pain that would otherwise serve as a
protective mechanism.
Effectiveness is highly dependent upon patient selection by a
practitioner qualied in the management of pain patients.
You may experience skin irritation or hypersensitivity due
to the electrical stimulation or electrical conductive medium
(gel).
Keep unit away from young children. The unit contains
small pieces that may be swallowed. Immediately contact
your physician.
Possible Adverse Reactions
You should stop using the unit and consult with your
physician if you experience adverse reactions from the unit.
You may experience skin irritation and burns beneath the
stimulation electrodes applied to your skin.
You may experience headache and other painful sensations
during or following the application of electrical stimulation
near your eyes and to your head and face.
Do not use to treat one region for extended periods of time
(more than 30 minutes a session, up to 3 times/day) or
muscles in that region may become exhausted and sore.
10
Page 12
KNOW YOUR UNIT
PACKAGE CONTENTS
Main Unit
Front Back
Electrode Cord
Long Life Pads
Pad Holder
(1 sta nd ard)
Instruction Manual
INSTRUCTION MANUAL
Electronic Nerve Stimulator
11
Batteries*
(2 “AAA” batteries (LR03))
* The supplied bat teries are for
trial use only, they may have a
shorter life.
Quick Start Guide / Pad
Placement Guide
Electronic Nerve
HV-F013
Stimulator HV-F013
Quick Start Guide
6602357-0A
HV-F013-AP
Page 13
FE ATURE S
1. Five pre-set modes (Ar m/Shoulder, Lower
Back, Leg /Foot, Knead, Steady).
2. Ten intensity levels (1 low to 10 high).
3. Pair of pads (durable, re-usable, washable,
up to 150 uses).
(Only use OMRON manufactured pads or
cord with this unit).
4. Automatic 15 minute shut off.
5. The lights let you clearly control
your therapy with mode, intensity level.
6. Batter y Light lights up to remind you
to replace the batteries.
7. Pad Light blinks if pad(s) falls off.
KNOW YOUR UNIT
BUTTONS AND THEIR FUNCTIONS
Mode Light
Each light corresponds
to a mode.
( Page 22 and the
Back of Main Unit)
Mode/Intensity Button
Select mode and intensity
according to your needs.
1. Press ▲ /▼ to choose mode.
( Page 21)
2. After selecting the mode:
Press ▲ for higher intensity.
Press ▼ for lower intensity.
( Page 23)
Cord Jack
12
Intensity Light
( Page 23)
Power Button
Press once for “ON” and again
for “OFF”.
Pad Light
If the pad dislodges,
PadLight will blink.
( Page 30)
Battery Light
If the battery is low, Battery
Light will light up.
Set/Start Button
After choosing the mode:
Press Set/Start to select the
mode. ( Page 21)
Page 14
Operating Instructions
ASSEMBLY STEPS
Before using your unit, inspect these things.
1. Cord is not broken.
2. Pad gel is not damaged.
3. Electrode cord connection is not broken.
4. Unit is intact and working.
5. There is no battery leakage.
STEP 1 – INSERT BATTERIES
1 Remove the batter y cover using a hard object (such as the tip of
a pen, thin screwdriver).
2 Insert bat teries. Make sure the signs correspond when
inserting batteries.
3 Reinstall the battery cover.
Battery Cover
13
Page 15
ASSEMBLY STEPS
STEP 2 – ATTACH ELECTRODE CORD
TO THE MAIN UNIT
Attach the electrode cord plug to the bottom of the main unit.
STEP 3 – SNAP EITHER ELECTRODE CORD TO
EACH OF THE PADS
For the rst time, take the pads out of the sealed package.
Do NOT turn unit on,
until pads are on your
skin.
You MUST USE BOTH
PADS or stimulation will
not work.
NOTE:
Pads will not stick if the skin has too much hair. We recommend
shaving the area for effective treatment.
14
Page 16
ASSEMBLY STEPS
STEP 4 – REMOVE AND DISCARD PLASTIC FILM
FROM PADS
For the rst time, remove the clear plastic lm from the back
of the pad.
Discard the plastic lm backing as well as the clear packaging.
STORING PADS ON PAD HOLDER
Remove plastic lm and put sticky
side of pads on either side of the
pad holder.
15
Pad facing down
Pad holder
Pad sticky side up
Page 17
GET STARTED WITH YOUR THERAPY
(USE FOR A MAXIMUM OF 30 MINUTES PER SESSION)
STEP 1 – PAD PLACEMENT
For optimal therapy:
Place pads on either side of the pain, not directly on the pain.
Place pads at least 2.5 cm apart.
MUST USE TWO PADS at a time for therapy to work.
Do not overlap pads or put on top of each other.
Do not add spray, lotions or creams to skin or pads.
Do not share pads.
Attach both pads on either side of the
ARM
16
region where you feel pain.
Page 18
GET STARTED WITH YOUR THERAPY
STEP 1 – PAD PLACEMENT (continued)
Attach both pads on the shoulder according to your
SHOULDER
pain.
Do not use near the heart, on both sides of the thorax or across your chest because the introduction of
electrical cur rent may cause rhythm dist urbances which could be lethal.
Attach one pad on the f ront and on the back of your shoulder.
SHOULDER
17
Page 19
GET STARTED WITH YOUR THERAPY
STEP 1 – PAD PLACEMENT (continued)
Attach both pads on the lower back according to your pain.
LOWER BACK
Place pads on muscle of back, not on spine, for optimal therapy.
18
LOWER BACK
Attach one pad below and
above the region in pain,
both on same side.
Page 20
GET STARTED WITH YOUR THERAPY
STEP 1 – PAD PLACEMENT (continued)
Outside
Inside
LEG
(HIP & THIGH)
Attach both pads on
either side of the area
with pain.
LEG
(CALF)
Attach both pads on the calf where
you feel pain.
Pads should not be placed
simultaneously on the calves of
both legs.
FOOT
Attach pads on the left for pain on the outside of
your ankle/foot. Attach the pads on the right for
pain on the inside of your ankle/foot.
Do not put the pads on the bottom of both feet
19
at the same time.
(ANKLE)
Page 21
GET STARTED WITH YOUR THERAPY
STEP 1 – PAD PLACEMENT (continued)
JOINT
(ELBOW)
Attach both pads on either side
of the joint with the pain.
JOINT
(KNEE)
Attach both pads above the knee or
above and below the joint with pain.
20
Page 22
GET STARTED WITH YOUR THERAPY
STEP 2 – SELECT 1 OF 5 MODES
A Press the Power button.
B Press ▲(Up) or ▼(Down) button to choose 1 of the 5 modes.
Modes cannot be combined.
C Press the Set/Start button to select the mode. It will start the
therapy at the intensity level of 1.
Select a treatment mode:
1. Arm/Shoulder
2. Lower Back
3. Leg/Foot
Or select a massage mode:
4. Knead
5. Steady
2
Mode
1
Press
Power Button
3
Press
Set/Start
How to change modes during therapy?
If you want to change modes during therapy, press the Set/Start
button and ▲(Up) or ▼(Down) button to select a new mode. You
can only use ONE MODE at a time.
If you don’t press the Set/Star t button to select the mode, the unit
will automatically tur n off after 3 minutes.
How to select the right mode?
Any of the modes can be used on body parts or pains described in
this manual or Quick Start Guide/Pad Placement Guide.
Select the mode that feels r ight for your unique pain.
21
Page 23
GET STARTED WITH YOUR THERAPY
STEP 2 – SELECT 1 OF 5 MODES (continued)
Therapies
designed for
Mode Light
and the Back of
Main Unit
Arm/Shoulder Lower Back Leg/Foot Knead Steady
Potential
conditions
What does
the therapy
deliver?
Stiff ness, sore or achy,
tight feeling.
Series of low to
high rate tapping,
pulsing, kneading
and massage-like
sensations.
Stiffness, soreness,
muscle spasm, nerve pain.
Series of high rate to
low tingling sensations,
followed by t apping.
With higher intensity,
you may feel kneading or
massage-like sensations.
Swelling, fatigue, chilly
feeling, sore or achy.
Series of low rate
tapping, pulsing
sensations.
22
Stiffness, soreness,
tight feeling.
Series of medium rate
pulsing sensations to
mimic massage.
Stiffness, soreness,
tight feeling, or achy.
Series of regular
pulsing sensations
that do not change.
Page 24
GET STARTED WITH YOUR THERAPY
STEP 3 – SELECT INTENSITY LEVEL
(1 LOW – 10 HIGH)
The unit automatically starts at the intensity level of 1. Slowly
increase the intensity level by pressing ▲(Up) button. You should
feel a gentle pulsing sensation.
How do I select the right intensity level for my pain?
Each time you press ▲(Up) or ▼(Down) button, it moves to
another level. If the stimulation sensation becomes weaker or
disappears, increase the intensity. But, if the sensation is at all
uncomfortable, press ▼(Down) button to decrease the intensity.
• Press ▲ for higher intensity.
• Press ▼ for lower intensity.
If Pad Light is blinking, the unit will automatically tur n off after
30 seconds. (
“TROUBLE SHOOTING” on page 28)
What intensity level is my unit on?
Press ▲(Up)/▼(Down) button to increase/decrease the intensity.
The Intensity Light moves up/down after pressing it once or twice
(as shown below). Therefore, the light may not move up/down, but
the intensity level does increase/decrease each time you press it.
ntensity Light:
ntensity level 1 or 2 3 or 4 5 or 6 7 or 8 9 or 10：
How long is the therapy?
The unit will continue automatically for 15 minutes before it shuts off.
If you want to stop the therapy while in use, press the Power button. We
recommend a total of 30 minutes therapy in one sitting, up to 3 times/day.
23
Page 25
HOW TO CONTROL AND REDUCE YOUR PAIN
When should you start therapy?
Use as soon as your pain begins. Start with one session (the unit
automatically tu rns off at 15 minutes).
Get to your pain early
If you get to your pain early, it may prevent the pain from
becoming worse, or even chronic. It’s better for you to get it under
control sooner so that it does not reach a high pain threshold where
it limits your daily activities.
How long should you use it?
Start with one 15 minute session. Always turn unit off with pads
still on. Rate your pain to check you r progress, 1 low to 10 high.
Stop therapy session if pain has reduced or stopped. Press the
Power button to continue therapy for another 15 minute session.
1 session Max minutes/session Max times/day
15 minute 30 minutes 3 times
automatic shut-off
See warnings on page 9. Long-time treatment and strong
stimulation may cause muscular fatigue and may generate
adverse effects.
When to stop using the unit?
1. If you experienced an adverse reaction (skin irritation/
redness/ burns, headache or other painful sensation, or if you
feel any unusual discomfort).
2. If your pain does not improve, becomes seriously chronic
and severe, or continues for more than ve days.
24
Page 26
HOW TO CONTROL AND REDUCE YOUR PAIN
What ty pe of pain is it best for?
This therapy works best on acute pain because it is localized.
Acute pain is pain in one area for less than 3 months. If you have
chronic pain, you may have pain in more than one area and for
longer than 6 months. Chronic pain may be compounded by other
issues that this unit cannot address.
Remember, this unit does not cure your pain or the original cause
of the pain. It provides temporar y relief or reduction of pain so
that you can control your life and activities better.
Before using, check these points to make sure everything is
working properly.
1. Make sure the cord is not broken.
2. Check that the pad adhesive sticks and is not
damaged.
3. The electrode cord connection is not broken.
4. The unit is intact and in working order.
5. There is no battery leakage.
25
Page 27
CLEANING AND STORAGE
CLEANING AND STORAGE
The unit is designed for repeated use over time. The pads will
last up to 150 uses, or 5 months (based on use 1/day). Here are
important cleaning and storage instructions:
Cleaning the pads
1. Turn the power off and remove the electrode cord from the pads.
2. Wash the pads when the adhesive surface becomes dirty and/or
the pads are difcult to attach.
• Wash the pad softly with
your ngertips under slow
running cold water for several
seconds (do not use a sponge/
cloth/sharp object like a nail on
adhesive side, do not use
detergents, chemicals or soap).
3. Pads can be washed after 15 uses, approximately ten times for
up to 150 uses. Do not wash the pads too long or too frequently.
4. Dry the pads and let the adhesive surface air-dry completely.
Do not wipe with a tissue paper or cloth.
5. Pads are replaceable and can be purchased. Please consult
your local OMRON representatives.
The life of the pads may vary by how often you wash the pads, the
skin condition, and how you store the pads.
When should you replace your pads?
If the pad no longer sticks to your skin or if more than 25% of the
pad’s surface is not in contact with your skin.
26
Page 28
CLEANING AND STORAGE
Cleaning the unit
1.
Turn unit off and disconnect the electrode cord from the pads.
2. Clean with a lightly moistened cloth (or a cloth soaked in a
neutral cleaning solution) and wipe gently.
• Do not use chemicals (like thinner, benzene).
• Do not let water get into the internal area.
Storing the pads
1. Turn the unit off and remove the cord
from the bottom of the unit.
2. Remove the pads from your body.
3. Leave the electrode cord connected
to the pads.
Place the pads on the pad holder, one pad on
each side with the sticky side of each pad on
the pad holder.
4. Wrap the electrode cord around the
pa d hol de r.
Storing the unit and pads
• Place the unit, pads with electrode cord on pad holder, Pad
Placement Guide and Instruction Manual inside the original
box.
•
Do not keep in areas subject to direct sunlight, high or low
temperatures, humid area, near to re, vibration, or shock.
Storage temperat ure, 0ºC to 40ºC,
30% - 80% relative humidity.
• Do not keep at places that can be easily reached by children.
• When not in use for a long period, remove the batteries before
storage, to avoid liquid discharge from batteries.
• Do not wrap the electrode cord
around the unit because it may
damage the cord.
27
Page 29
TROUBLESHOOTING
In case of a ny of the below problems occu rs dur ing use, rst check that no other electrical device is with in 30cm. If the problem persists, refer to t he table below.
If this happens...
The intensity is
not felt.
Very weak
intensity level.
Possible causes... Try this solut ion...
Are you using only 1 pad?
Have you removed t he
transparent lm from
the pad?
Are the pads stacked
togethe r or do pads
ove rla p?
Is the cord properly
connected to the unit?
Is the intensity setti ng
getting weak?
Is the gel damaged? Replace pad.
Put the other pad on your
skin. You must use BOTH
PADS for therapy to work.
Peel off lm on the
adhesive surfa ce of
pads.
Check placement of
pads. Refe r to Pad
Placement Guide.
Connect cord plug
correctly into the jack
at bottom of this unit.
Press t he ▲(Up)
button.
If this happens... Possible causes... Try this solution...
The intensity is
not felt.
Very weak
intensity level.
The ski n turns red
or the ski n feels
irritated.
28
Are the batteries weak? Replace both “AAA”
Is the intensity “1”?
Is the ad hesive
surface of pads d irt y
or dry?
Is therapy time too
long?
Are the two pads
atta ched properly to
the body?
batteries.
Press the ▲(Up) button.
Wash adhesive surface
of pads sof tly with you r
nger tips for about 3
seconds under slow
running water.
Use less than 15
minutes.
Refer to the Pad
Placement Guide and
attach correctly.
Page 30
TROUBLESHOOTING
If this happens... Possible causes... Try this solution...
The ski n turns red
or the ski n feels
irritated.
No power source.
Power cut off
during use.
Batter y Light l ights
up.
Is the pad surface
worn out?
Are the polarit ies
of battery (+ and -)
aligned in the wrong
direction? or Are the
batte ries depleted?
Are the batteries
weak?
Is the cord broken? Replace cord.
Are the batter ies
weak?
Replace both pads at
the same time.
Check bat teries for
correct alignment. or
Replace batter ies.
Replace both batt eries
at the same time.
Replace both batt eries
at the same time.
If this happens... Possible causes... Try this solution...
Pad gel does not stick
to skin.
29
Have you removed t he
transparent lm from
the pad?
Is the pad wet? or Is
your ski n too wet?
The pad gel may be
damaged.
Is there too much hai r
on your skin?
Is the ad hesive
surface of pads d irt y
or dry?
Peel off lm on the
adhesive surfa ce of
pads.
Dry the pad. or Dry
the ski n.
Replace t he pad.
Shave the immediate
area for proper pad
adhesion.
Wash adhesive surface
of pads sof tly with you r
nger tips for about 3
seconds under slow
run ning cold water.
Page 31
TROUBLESHOOTING
If this happens... Possible causes... Try this solution...
Pad gel does not stick
to skin.
Pad Light is blink ing.
Are you using pad
during perspiring?
Have the pads been
washed too long and /
or too frequently?
Were the pads
stored u nder hig h
temperature, high
humidity, or direct
sunsh ine?
Are bot h pads
atta ched to the body?
Dry the pad placement
area.
Leave the pad in
freezer for overnight.
Replace both pads.
Re-attach dislocated
pad(s) onto the sk in
r mly.
If this happens... Possible causes... Try this solution...
Pad Light is blink ing.
If the above measures are not effective, please consult your local
OMRON representatives.
30
Have you removed t he
transparent lm from
the pad?
Is the cord properly
connected to the main
unit?
Is the ad hesive
surface of pads d irt y
or dry?
Peel off lm on the
adhesive surfa ce of
pads.
Connect cord plug
correctly into the jack
at the bot tom of the
main unit.
Wash adhesive
surface of pads softly
with your ngertips
for about 3 seconds
under slow r unning
cold water.
Page 32
Product Description Electronic Nerve Stimulator
Model (code)
Electrical Characteristics
Battery Life
Energy Consumption Approx. 30mA
Frequency Approx. 1 to 108Hz
PULSE Duration 100 μsec
Maximum Output Voltage 32V (during 500Ω load)
Power Cont rol 10 intensity levels
Operating Temperature,
Humidity (When using product)
Storage Temperature, Humidity 0 °C to 40 °C, 30 to 80% R H
Transportation Temperature,
Humidity, Air Pressure
Weigh t Approx. 75g (incl. bat teries)
HV-F013( H V-F 013 -A P)
3V (with two alkaline “AAA”
batteries [LR03] or manganese [ R03])
New batteries (two AAA alkaline
batteries) will last for approx. 3 months
(when used for 15 minutes a day, Lower
Back Mode, max. intensity).
10 °C to 40 °C, 30 to 80% R H
-20 °C to 60 °C, 10 to 95% RH,
700 to 1060 hPa
SPECIFICATIONS
Outer Dimension
(Width × Heig ht × Depth)
Classication of ME equipment
IP classi cation IP 22*
Contents
This OMRON product is produced under the strict quality system
of OMRON HEALTHCARE Co. Ltd., Japan.
Designed for a minimum of 5 years life expect ancy.
*
IP classication is degrees of protection provided by enclosures
NOTE: These specications are subject to change.
31
Approx. 75 × 70 × 22mm
Internally powered
Main Unit, Electrode Cord, Long
Life Pads, Pad Holder, 2 “AAA”
Batteries(LR03), Instruction Manual,
Quick Start Guide/Pad Placement Guide
in accordance with IEC 60529. This device is protected against
solid foreign objects of 12.5 mm diameter and greater such as
a nger. This device is protected against oblique falling water
drops which may cause issues during a normal operation.
Page 33
Accessories/replacement parts
Long Life Pads .......................................Model Number : HV-LLPAD
This device fulls the provisions of EC directive 93/42/EEC (Medical Device Directive).

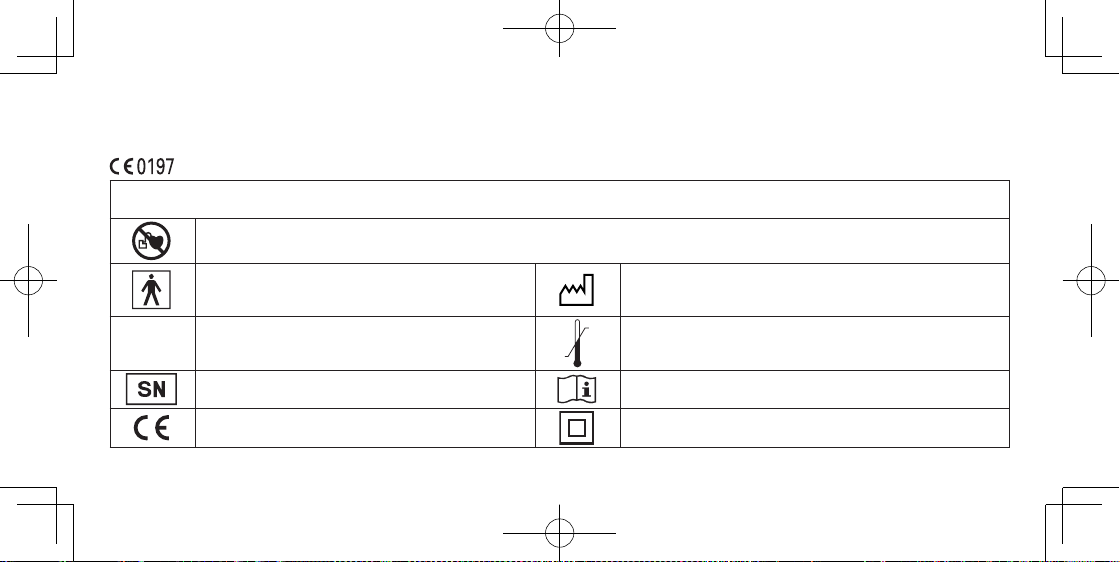

Description of symbols that, depending on a model, can be found on the product itself, product sales package or IM
This product should not be used by persons with medical implants, e.g. heart pacemakers, articial heart, lung or other
electronic life support systems.
Applied part - Type BF
Degree of protection against electric shock
Date of manufacture
(leakage current)
IP XX
Ingress protection degree provided by IEC 60529
Temperature limitation
Serial number Need for the user to consult the instructions for use
CE Marking Class II equipment
32
Page 34
Humidit y limitation
Direct current recycling mark
Product production date is printed on the unit and a label which is placed on the sales package: the rst 4 digits mean year of
production, the next 2 digits - month of production.
Atmospheric pressure limitation
Important information regarding Electro Magnetic Compatibility (EMC)
HV-F013 manufactured by OMRON HEALTHCARE Co., Ltd. conforms to EN60601-1-2:2015 Electro Magnetic Compatibility (EMC)
standard.
Further documentation in accordance with this EMC standard is available at http://www.omronhealthcare-ap.com/emc-information.
Refer to the EMC information for HV-F013 on the website.
33
Page 35
Correct Disposal of this Product
(Waste Electrical & Electronic Equipment)
This marking shown on the product or its literature, indicates that it should not be disposed with other household
wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
ofce, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the ter ms and conditions of the purchase contract. This
product should not be mixed with other commercial wastes for disposal.
This product does not contain any hazardous substances.
Disposal of used batteries should be car ried out in accordance with the national regulations for the disposal of
batteries.
34
34
Page 36
Manufacturer
OMRON HEALTHCARE Co., Ltd.
53, Kunotsubo, Terado-cho, Muko, KYOTO, 617-0002 JAPAN
EU-representative
OMRON HEALTHCARE EUROPE B.V.
Scorpius 33, 2132 LR Hoofddorp, THE NETHERLANDS
Production facility
OMRON DALIA N Co., Ltd.
Dalian, China
OMRON HEALTHCARE SINGAPORE PTE LTD.
Asia Pacic HQ
438A Alexandra Road, #05-05/08, Alexandra Technopark Singapore 119967
www.omronhealthcare-ap.com
Made in China 6602358 -8B
Loading...
